USER MANUAL DCA120 DEWALT

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

D. IGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WtNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAITON: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Fig. A

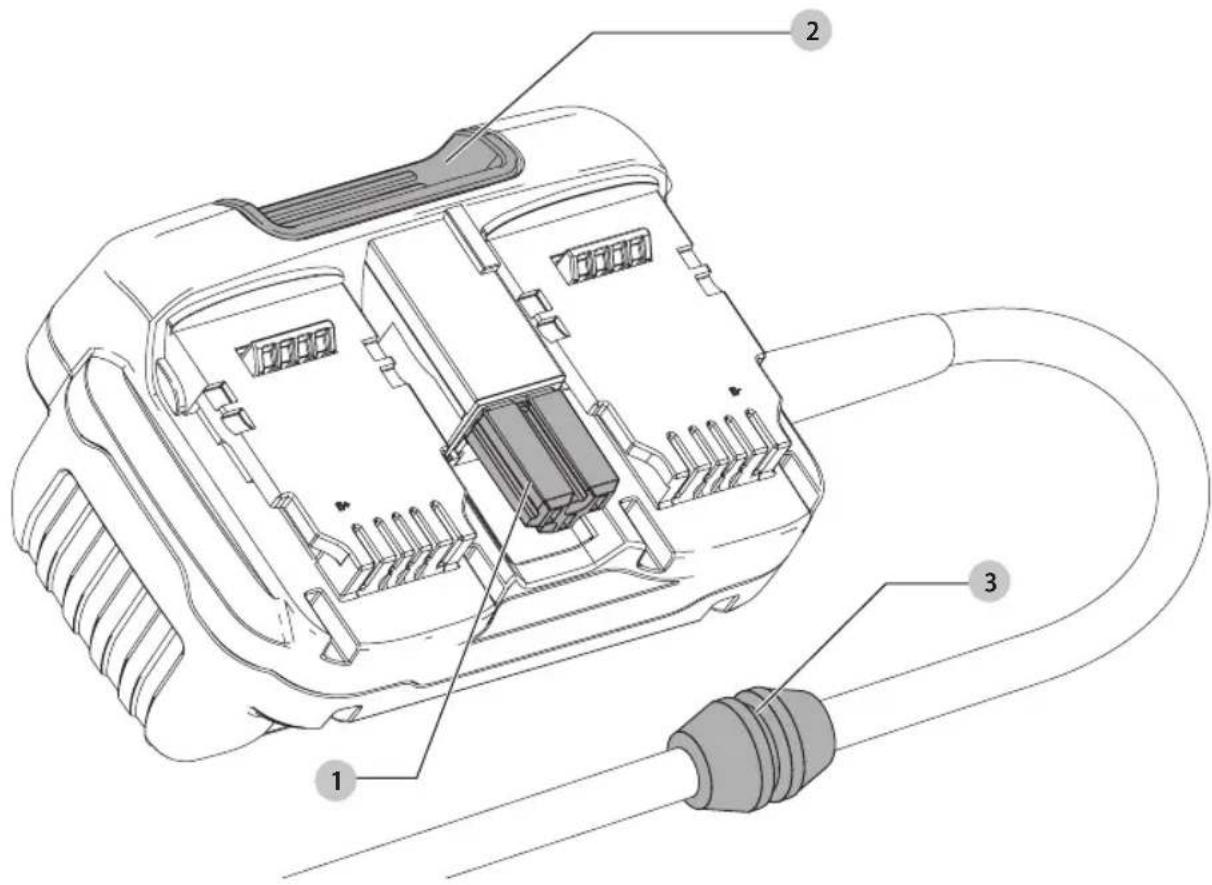

1 AC connector
2 Release button
3 Cord clip

WARNING: Read all safety warnings and all

Instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any DEWALT tool, call us toll free at: 1-800-4-DEWALT(1-800-433-9258).

ENGLISH

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE

Safety Rules for Corded Power Supply

DANGER: High voltage present inside the unit. Probe with conductive objects. Danger of electric shock or electrocution.

DANGER: If the corded power supply case is used or damaged, do not plug into AC outlet or insert into tool. Return the unit to an authorized DEWALT service center. Danger of electric shock or electrocution.

DANGER: The corded power supply and power may produce a small magnetic field. Users with cardiac pacemakers should keep the corded power supply and power tool at least 6^ (15 cm) away from implanted device. Users should immediately stop using this product, remove power, and call physician if any physical effects are felt.

• Do not use under wet conditions or in presence of flammable liquids or gases.
• Do not expose corded power supply to rain or snow.
• Use of an attachment not recommended or sold by DEWALT may result in a risk of fire, electric shock, or injury to persons.
• This corded power supply is not intended for any uses other than powering DEWALT 120 V Max* FLEXVOLT™ tools. Any other uses may result in risk of fire, electric shock or electrocution.
• Pull by the plug rather than the cord when disconnecting the corded power supply. This will reduce the risk of damage to the electric plug and cord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
• When operating the corded power supply outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the

minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet(meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12	16 16 14 12
12 16	14 12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.....volts or AC/DC...alternatingor Hz....hertz direct current

min.........minutes or DC.........direct current

Class I Construction (grounded)

../min...per minute BPM...beats per m

IPM............impacts per minute

RPM... revolutionsperr minute

sfpm surface feet per minute

SPM . strokes per minute A. amperes

W.....watts

or AC....alternating current

or AC/DC....alternatingordirect current
Classll Construction (double insulated)
n_0 .no load speed n. rated speed
..earthing terminal A.. safety alert symbo
visible radiation wearrespiratory protection
weareye protection
...wearhearing protection
readall documentation

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components.

Intended Use

This corded power supply is designed for professional use in DEWALT 120 V Max* FLEXVOLT™ tools.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

This corded power supply is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators this tool.

English

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

The DCA120 DEWALT corded power supply is designed to provide power for DEWALT 120 V Max* FLEXVOLT™ cordless tools.

Your DEWALT corded power supply should only be used with standard household 120 V AC, 50/60 Hz power and not with DC power sources.

The DCA120 corded power supply is suitable for use with both grounded and double insulated 120 V Max* FLEXVOLT™ cordless tools. When the power supply is utilized with a grounded tool, the tool inlet will be equipped with a ground prong that allows the ground path from the tool to connect to the power supply. When the power supply is utilized in a double insulated tool, the tool inlet will not contain a ground prong and no ground connection will be made from the tool to the power supply as double insulated tools are not required to have a ground connection.

Additional Specific Usage Instructions

The corded power supply may become warm to the touch during use. This is a normal condition and does not indicate a problem.

IMPORTAnT: The power supply is not user serviceable. There are no user serviceable parts inside the power supply.

Installing and Removing the Cored Power Supply into and from Tool (Fig. A-D)

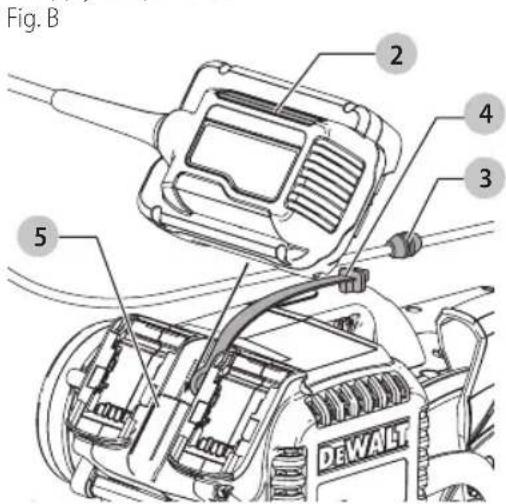

Before inserting the corded power supply into your tool, remove the end of the dust cover (4 Fig. B) from the tool's corded power supply receptacle, if applicable. Pull the dust cover away from the tool's corded power supply receptacle so that it does not interfere with insertion of the corded power supply. Inspect the tool's corded power supply receptacle for debris. Debris inside the receptacle can prevent the corded power supply from fully seating. If debris is present, clean it using low pressure air. Refer to tool manual.

WARNING: To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection and respiratory protection when performing this procedure.

NOTICE: The corded power supply is for AC power sources only when used with a tool. Use with DC power sources could result in damage to the tool.

To install the corded power supply into your tool: With the corded power supply unplugged, align its AC connector (1, Fig. A) with the tool's corded power supply receptacle (5, Fig. B) then snap into place. Ensure that it is fully seated in the tool and does not disengage.

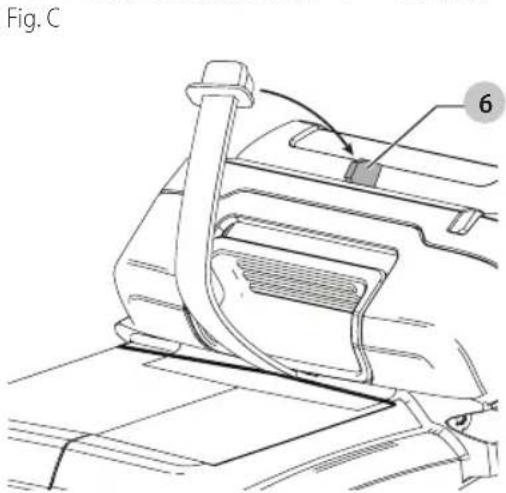

If applicable, attach the dust cover 4 to the dust cover holder (6, Fig. C) in the corded power supply. Secure the cord clip 3 into the tool's cord holder (7, Fig. D), if applicable. Firmly press the clip into the holder.

With the tool turned off, plug the corded power supply into a standard 120 V household electric power outlet. Do not attempt to use the corded power supply on any other voltage.

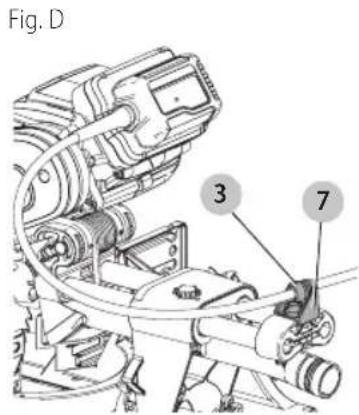

Use the tool according to the tool instructions, making sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

To remove the corded power supply from the tool (Fig. B), first unplug the corded power supply from the outlet, then press the release button 2 and firmly pull the corded power supply out of the tool. If applicable, firmly press the end of the dust cover 4 into the tool's corded power supply receptacle 5.

English

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those used by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

Repairs

WARNING: To assure product SAFETY and BILITIES, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DEWALT factory service center or a DEWALT authorized service center. Always use identical replacement parts.

The corded power supply is not serviceable. There are no serviceable parts inside the corded power supply.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• COnFiRMAtiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.dewalt.com/register.

Three Year Limited Warranty

DEWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DEWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces. In addition to the warranty, DEWALT tools are covered by our:

1 YEAR FREE sERVICE

DEWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.

90 DAY MOnEY BACK gUARAnTEE

If you are not completely satisfied with the performance of your DEWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

IATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARning IABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.
