USER MANUAL B36CL81ENW BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

Refrigerator-freezer

Refrigerador/congelador

BOSCH

Important safety instructions 3

Definitions 3

About these instructions 3

Introduction 3

Restriction of user group. 3

Risk of explosion. 3

Risk of electric shock 3

Risk of cold burns 4

Risk of injury 4

Fire hazard/Danger due to refrigerants 4

Risk of fire 4

Risk of suffocation. 4

Damage 4

Weight 4

State of California Proposition 65Warnings. 4

Intended use 5

Environmental protection 5

Packaging 5

Old appliances 5

Installation and connection 5

Contents of package. 5

Technical data. 5

Installing the appliance 5

Saving energy 12

Before using for the first time. 13

Water connection 13

Electrical connection 13

Getting to know your appliance 14

Appliance 14

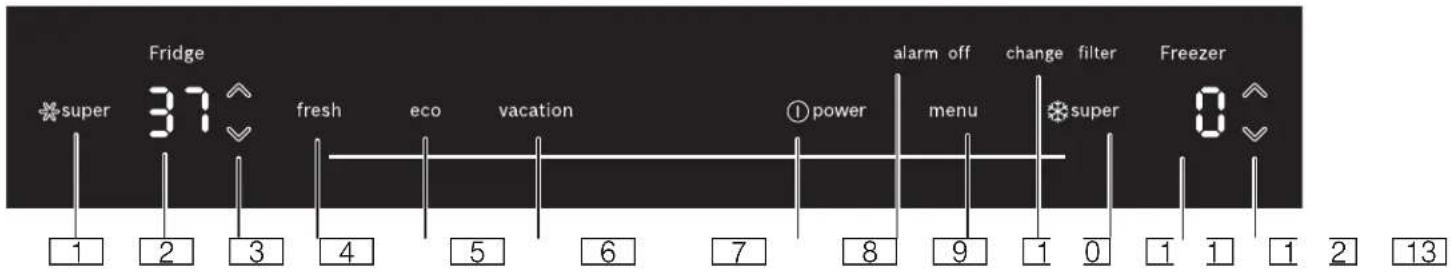

Operating controls. 15

Equipment 16

Operating the appliance. 20

Switching the appliance on 20

Switching off and disconnecting the appliance . . . 20

Setting the temperature unit 20

Setting the temperature. 20

Setting the bottle storage compartment 20

Super cooling. 20

Super freezing 21

Energy saving mode 21

Freshness mode 21

Vacation mode 21

Sabbath mode. 21

Setting the light 22

Change filter alarm 22

Alarm 22

Door alarm 22

Temperature alarm 22

Home Connect. 23

Setting up Home Connect 23

Installing updates for the Home Connect software 24

Information on data protection 24

Remote Diagnostics 25

Refrigerator compartment. 25

Note when storing food 25

Bottle storage compartment 25

Recommended bottles 25

Loading bottles. 25

Freezer compartment. 26

Water dispenser. 26

Before using the appliance for the first time. 26

Observing drinking water quality 26

Dispensing water 26

Ice maker. 27

Before using the appliance for the first time. 27

Switching ice cube production on or off 27

Defrosting 27

Cleaning 28

Cleaning the appliance interior. 28

Cleaning the equipment 28

Odors. 29

Lighting 29

Noises 29

Normal noises 29

Preventing noises 29

Faults - what to do? 30

Appliance 30

Water dispenser 31

Ice maker 31

Customer service 32

Appliance self-test 32

Warranty statement. 32

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Definitions

WARNING

Non-compliance with safety information that could lead to a dangerous situation with risk of death or serious injury.

CAUTION

Non-compliance with safety information that could lead to a dangerous situation with risk of injury.

NOTICE: Non-observation of this information could damage the appliance.

Note: This indicates important information and/or tips.

About these instructions

• Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
• Retain all documents for subsequent use or for the next owner.

Introduction

This appliance complies with the relevant safety regulations for electrical appliances.
The refrigeration circuit has been checked for leaks.

Restriction of user group

• Avoid placing children and vulnerable persons at risk.
  This appliance may be used by children and persons who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children should be supervised to ensure that they do not play with the appliance.

Risk of explosion

• Never use electric devices inside the appliance (e.g. heaters or electric icemakers).
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.
  Only store high-proof alcohol tightly closed and standing up.
• Do not use other means to accelerate the defrosting process other than those recommended by the manufacturer.

Risk of electric shock

Improper installations or repairs may put the user at considerable risk.

• When installing the appliance, make sure that the power cord does not get jammed or damaged.
  In order to avoid danger, if the power cord is damaged, disconnect the appliance from the power source immediately. Have the power cord replaced by the manufacturer, customer service or a similarly qualified person.
• Do not use multiple outlets, extension cords, or adapters.
  Before servicing the appliance or carrying out installation work, disconnect the appliance from the power source or switch off the circuit breaker.
  Before cleaning the appliance, press the ① power button to turn the appliance off. Glass shelves and other equipment can be moved while the appliance is switched on.
• Never cut through or remove the power cord's third conductor (grounding conductor).
• Never defrost or clean the appliance using a steam cleaner. The steam may penetrate electrical parts and cause a short circuit.

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

The appliance, cord and accessories should only be repaired or replaced by the manufacturer or an authorized service provider.
Only use original parts supplied by the manufacturer.

These parts come with a warranty from the manufacturer that they satisfy the safety requirements.

Risk of cold burns

• Never put frozen food straight from the freezer compartment into your mouth.
• Avoid prolonged skin contact with frozen food, ice or any other surface inside the freezer compartment.

Risk of injury

• Containers with carbonated drinks may burst.
• Do not store containers which contain carbonated drinks in the freezer compartment.

Fire hazard/Danger due to refrigerants

The tubes of the refrigeration circuit contain a small quantity of an environmentally friendly but flammable refrigerant (R600a). If the refrigerant escapes, it may injure your eyes or ignite.

• Do not damage the tubes.
  If the tubes are damaged:
• Keep open flames and ignition sources away from the appliance.
• Ventilate the room.
• Switch off the appliance and unplug the power cord.
  Please contact customer service.

Risk of fire

Portable multi-outlet power strips and portable power supplies may overheat, causing a fire.

• Never leave portable multi-outlet power strips or portable power supplies behind the appliance.

Risk of suffocation

• Keep children away from the packaging and its parts.
• To avoid having children climb into the appliance, never remove the partition wall of the frozen food bin (large).

Damage

To avoid damage:

• Do not stand or lean on the base, runners or doors.
• Keep plastic parts and door seals free of oil and grease.
  Pull the power plug - not the power cord.

Weight

The appliance is very heavy. The appliance should always be transported and set up by at least 2 people.

"Installation and connection" on page 5

State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:/ AVENTISSEMENT ISSUE DE LA PROPOSITION 65 DE L'ETAT DE LA CALIFORNIE:

WARNING / AVERTISSEMENT

Cancer and Reproductive Harm / Cancer et dommages à la reproduction - www.P65Warnings.ca.gov.

Intended use

Use this appliance

only for cooling and freezing food, making ice, dispensing drinking water and storing drink bottles.
only in the home and in the home environment.
only according to these operating instructions.

This appliance is intended for use at an altitude of max. 6,561 ft (2,000 meters) above sea level.

CAUTION

RISK OF INJURY!

Do not install the appliance above the maximum altitude for use. At higher altitudes, the glass in the bottle storage compartment could break due to the change in air pressure.

Environmental protection

Packaging

All materials are environmentally safe and recyclable:

• Dispose of packaging in an environmentally responsible manner.
  Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling old appliances.

WARNING

CHILDREN MAY BECOME LOCKED IN THE APPLIANCE AND SUFFOCATE!

Before disposing of your old appliance:

Remove the doors and drawer.
- Leave shelves and bins in the appliance to prevent children from climbing in.
- Keep children away from the discarded appliance.

CAUTION

REFRIGERANT AND HARMFUL GASES MAY ESCAPE.

Do not damage the tubes of the refrigeration circuit and insulation.

1. Pull out the power cord.
2. Cut through the power cord.
3. Have the appliance disposed properly.

Installation and connection

Contents of package

After unpacking, check all parts for damage during transportation.

In the event of damage, contact your dealer or our customer service.

"Customer service" on page 32

The delivery consists of the following parts:

Free-standing appliance
Equipment (depending on model)
Installation and Using Instructions
Statement of limited product warranty
Information on the energy consumption and noises

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

"Getting to know your appliance" on page 14

Installing the appliance

Installation location

Follow these instructions when installing your appliance.

WARNING

RISK OF EXPLOSION!

If the appliance is installed in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air. Only install the appliance in a space with a volume of at least 36ft^3 (1m^3) per 0.3 oz (8 g) of refrigerant. The amount of refrigerant is indicated on the rating plate.

"Getting to know your appliance" on page 14

Depending on the model, the weight of the appliance factory-made may be up to 386 lb (175kg) . The subfloor must be sufficiently stable to bear the weight of the appliance.

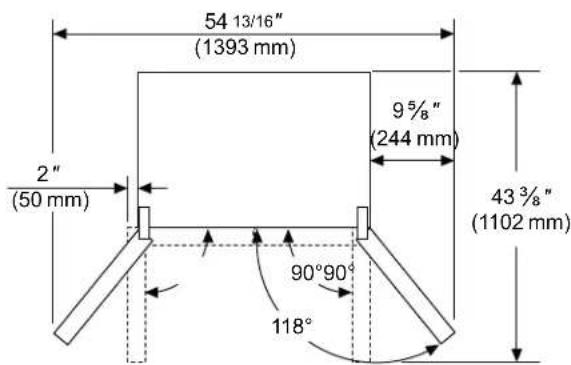

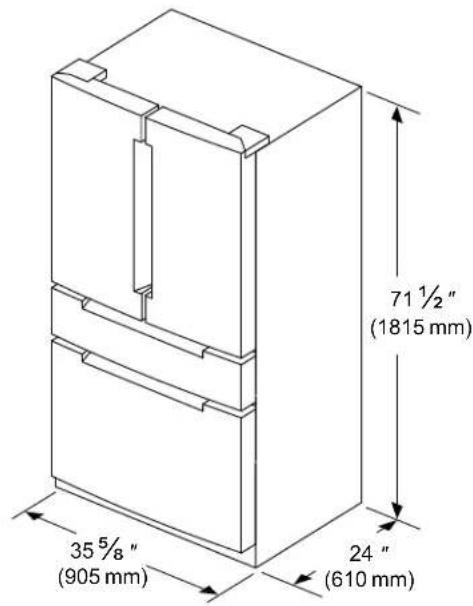

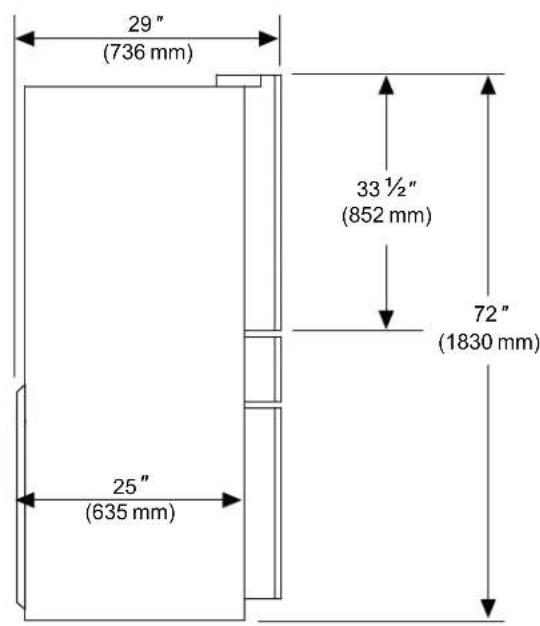

Installation dimensions Door opening angle

If the installation location limits the door opening angle to less than 118^ , buy a 90^ door stopper from our customer service.

"Customer service" on page 32

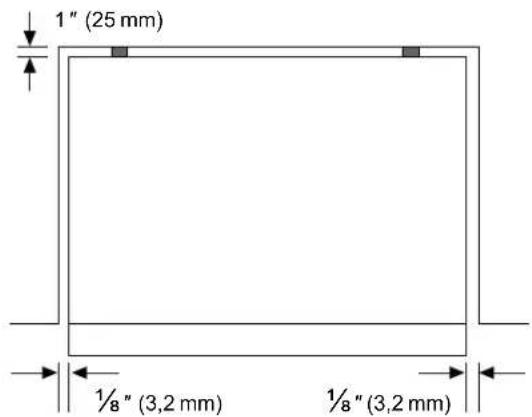

Minimum clearances

Leave a clearance of 1 / 2 (12.7mm) above the appliance.

Observe minimum clearances as follows:

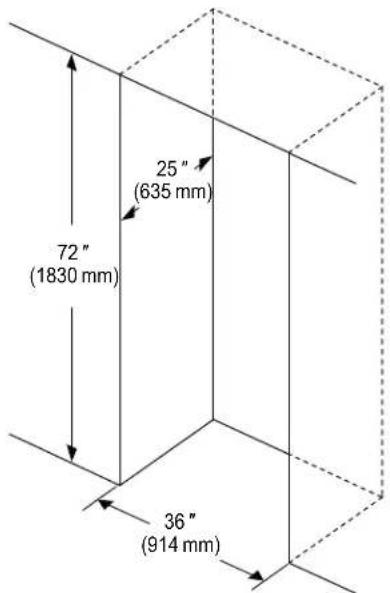

Niche dimensions

If you install the appliance in a niche, adhere to the following dimensions:

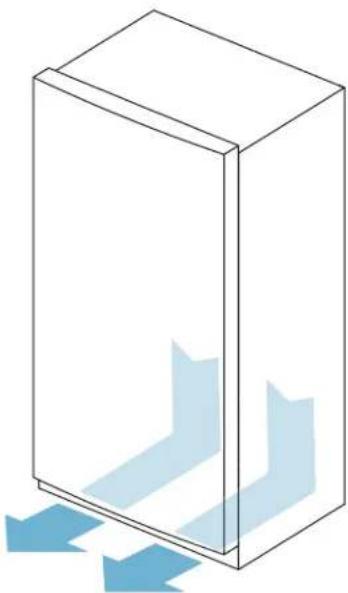

Ventilation

Never cover or block ventilation openings.

Aligning the appliance

CAUTION

To avoid damaging the floor, always move the appliance with the height-adjustable feet screwed upwards.
The two front height-adjustable feet must always be in contact with the floor to avoid the appliance from rolling or tipping when the door is opened.

Rollers are located under the appliance for easy movement and alignment:

1. Place the appliance vertically on a firm and leveled floor.

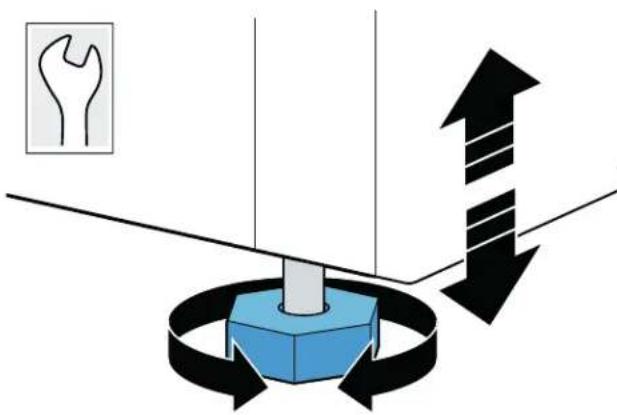

2. Using a wrench, screw down both of the front height-adjustable feet so that they touch the floor.
3. Compensate for floor unevenness with the front height-adjustable feet.

Note: To align, use a level.

en-us Installation and connection

Align refrigerator compartment doors

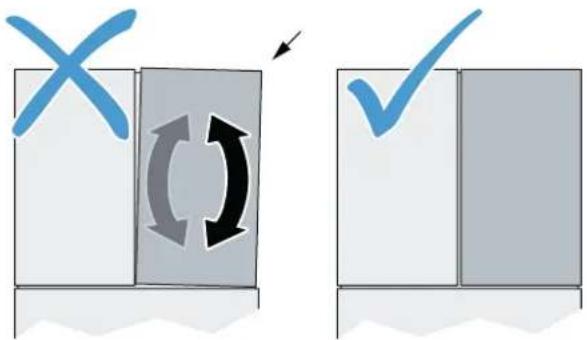

Aligning the vertical gap of the doors:

Note: Remove any items contained in the doors.

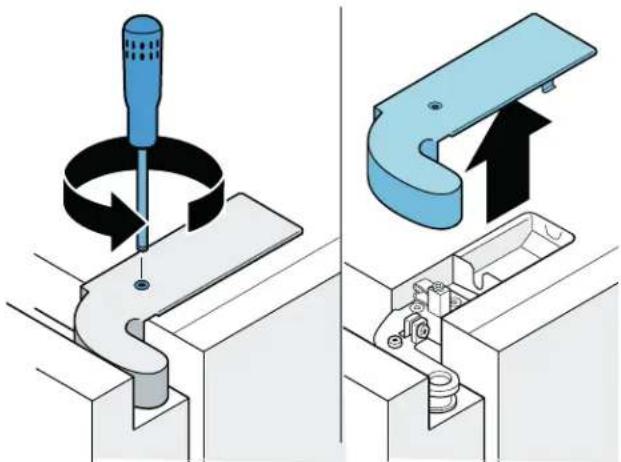

1. Remove T20 screw and cover cap on the door hinge.

1. Loosen the safety screw.

CAUTION

Do not remove the safety screw.

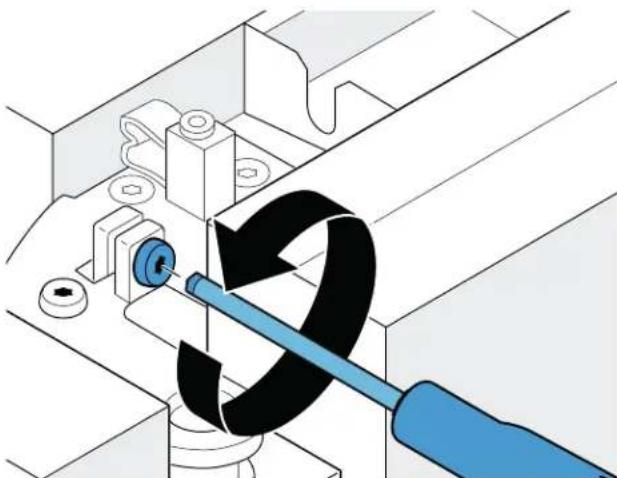

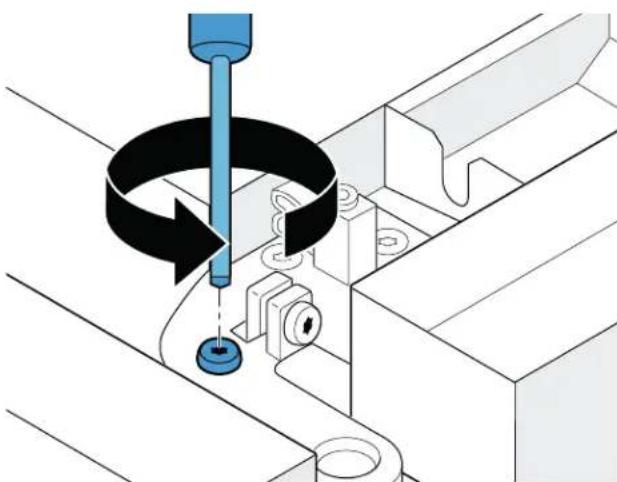

1. With the door closed, turn the adjustment screw until the desired position is reached.

2. To move the upper end of the door outwards, turn clockwise.

3. To move the upper end of the door inwards, turn counterclockwise.

1. Close the door to check the position and correct if necessary.
2. Tighten the safety screw again.
3. Fit the cover cap and screw in T20 screw again.

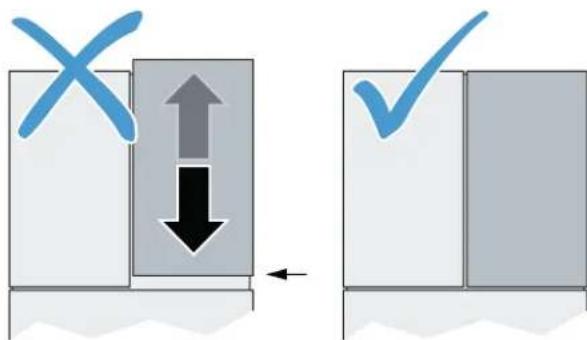

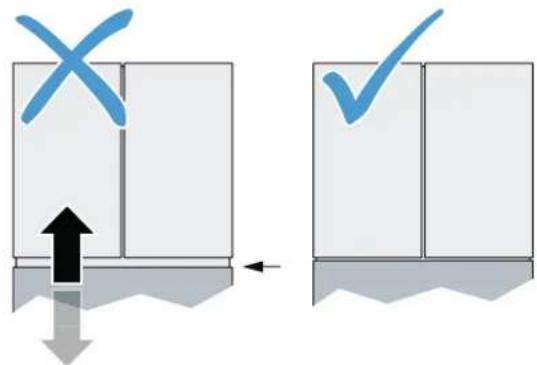

Aligning the horizontal gap between the doors and drawer:

CAUTION

To avoid damaging the appliance, move the right-hand door down if the top of the door pillar interferes with the housing.

Note: Remove any items contained in the doors.

1. Open the door and drawer.

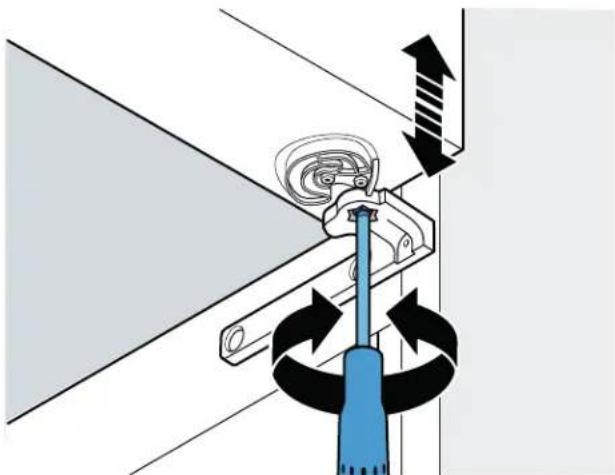

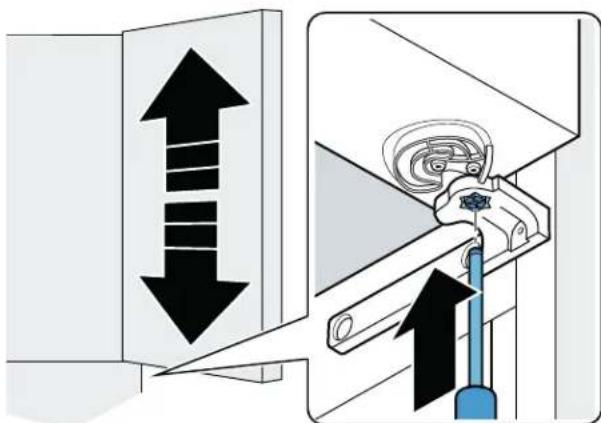

2. Lift the door and insert a screwdriver into the door hinge from below.

1. Push up the adjustable part and turn by 60^ until the desired position is reached.

2. The door height can be set at 2 levels, adjusted by 1 / 16'' (1.6 mm) in each case. The higher level is followed by the lower. The adjustable part engages as soon as a position is reached.

3. To move the door up, turn clockwise.
4. To move the door down, turn counterclockwise.

1. Close the door and drawer to check the position and correct if necessary.

en-us Installation and connection

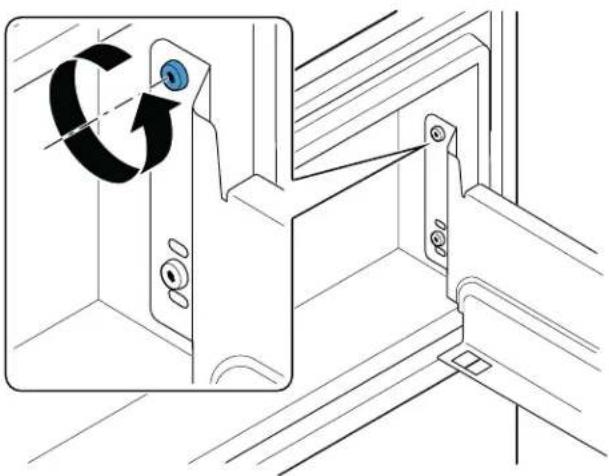

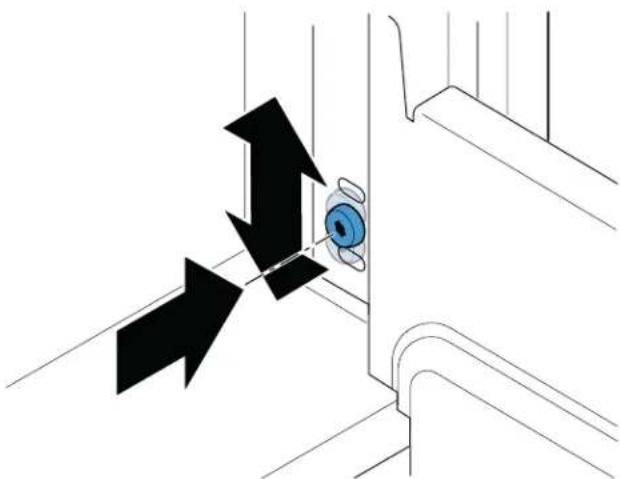

Aligning the drawers

You can align the drawer vertically:

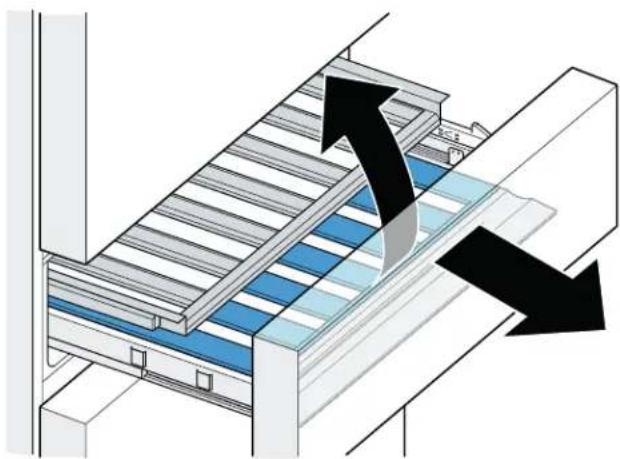

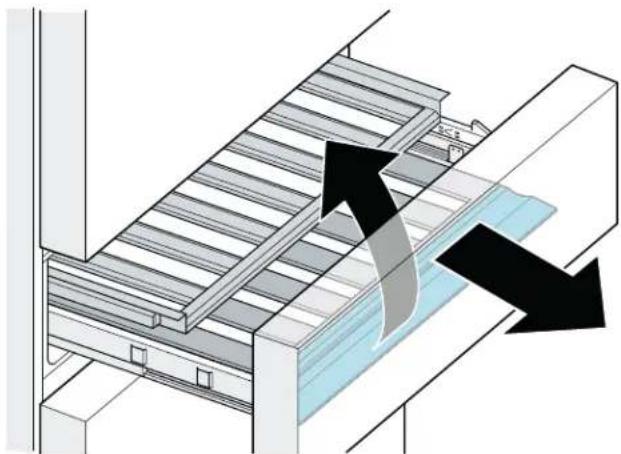

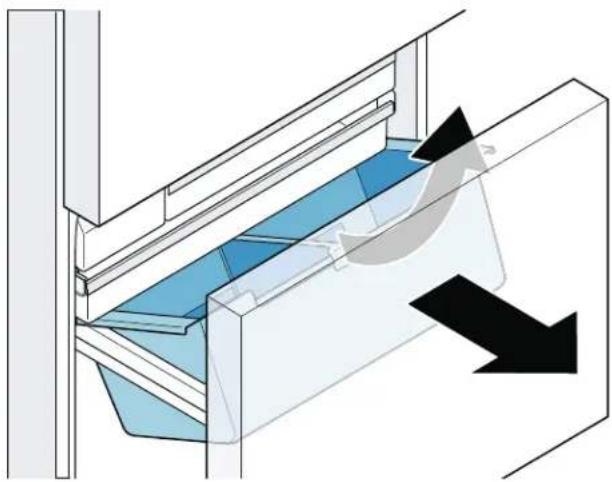

1. Open the drawer as far as it will go and remove the bottle shelves.
2. Remove the cover cap on both sides.

1. Loosen the upper screw on both sides.

Note: Do not remove the screws.

1. Lift the drawer and remove the lower screw on both sides.
2. Move the drawer up or down to the required position and screw the lower screw into one of the available holes.

Note: The drawer can be adjusted by 1/16" (1.6 mm) up and down.

1. Tighten all screws again and put the cover cap back on.
2. To check the position, close the drawer and correct if necessary.

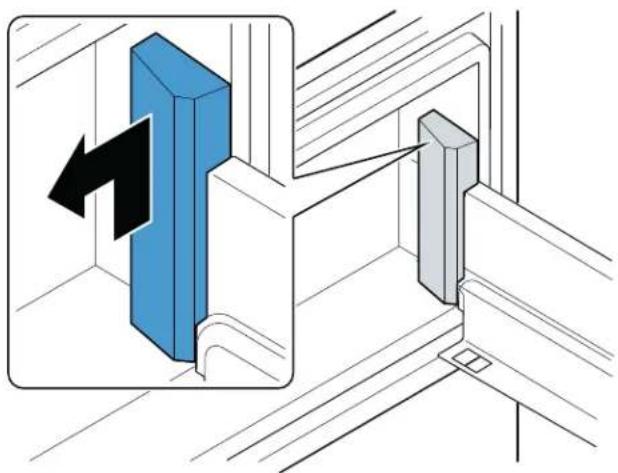

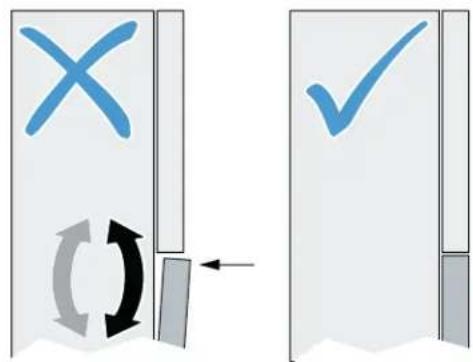

You can adjust the angle of the drawer:

1. Open the drawer as far as it will go and remove the bottle shelves.
2. Remove the cover cap on both sides.

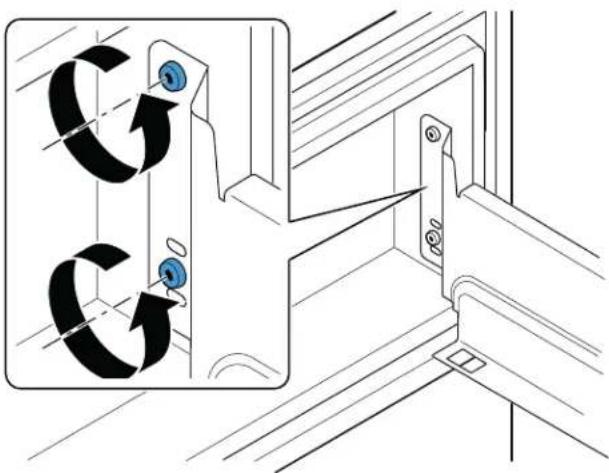

1. Loosen the upper and lower screw on both sides.

Note: Do not remove the screws.

1. Move the drawer on the lower screw to the left or right into the required position and tighten the screw.

1. Tighten all screws again and put the cover cap back on.
2. To check the position, close the drawer and correct if necessary.

Saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the equipment does not affect the energy consumption of the appliance.

Installing the appliance
Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient temperatures and therefore consumes less power.
Install the appliance as far away as possible from heating elements, cooker and other heat sources:At least 1¼" (3 cm) from electric or gas cookers.At least 11¾" (30 cm) from oil or solid-fuel cookers.
Select an installation location at a room temperature of approx. 68 °F (20 °C).
Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm air can escape and therefore consumes less power.
Using the appliance
Open the appliance door only briefly.	The air in the appliance does not warm up as intensely. The appliance needs to cool less frequently and therefore consumes less power.
Transport purchased food in a cooler and place in the appliance quickly.
Allow warm food and drinks to cool down before placing in the appliance.
Thaw frozen food in the refrigerator compartment to utilize the low temperature of the frozen food.
Always leave some space between the food and to the back panel.	The air can circulate and the humidity will remain constant. The appliance needs to cool less frequently and therefore consumes less power.
Pack food airtight.
Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can escape.
Vacuum the ventilation openings once a year or as frequently as needed.

Before using for the first time

1. Remove information material, adhesive tape and protective foil.
2. Remove the power cord from inside the appliance.
3. Clean the appliance.

"Cleaning" on page 28

1. Install the equipment.
   "Equipment" on page 16

Water connection

CAUTION

Never bend, crush, modify or cut water hoses.
- Never pull on the water hose on the rear panel of the appliance.
To avoid damaging the appliance and to ensure proper functioning, it should only be connected to a drinking water line.
To avoid water damage, a shut-off valve must be installed.

Notes

Installation and connection of the appliance must be carried out by a qualified technician.
The shut-off valve must also be freely accessible following installation of the appliance.
Observe the local regulations for water connection.

The water quality of the water connection is tested:

Rinse the water line leading to the appliance thoroughly until there are no more sediments or turbidity in the water.
If the water line leading to the appliance still contains sediments or turbidity, install an external water filter system.

Water pressure of drinking water line

CAUTION

To avoid damage to the appliance, a pressure relief valve must be installed between the drinking water connection and the hose set if the water pressure exceeds the maximum value.

Note: If the water pressure is too low, this will impair functioning of the appliance.

Water pressure min.: 0.2 MPa (2 bar / 29 psi)
Water pressure max.: 0.8 MPa (8 bar / 116 psi)

Electrical connection

CAUTION

Do not connect the appliance to electronic energy saver plugs.

Note: You can connect the appliance to mains-controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.

1. Insert the power cord plug in the rear of the appliance.
2. Check that the power outlet has been installed according to the regulations and complies with the requirements.

Requirements for power outlets

Power outlet with grounding 110 V ... 127 V / conductor: 60 Hz Circuit breaker: min. 15 A ... 20 A

Maximum load

Appliance: 5.5 A

1. Connect the appliance to an outlet near the appliance.

The outlet must also be freely accessible following installation of the appliance. If free access is impossible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the installation regulations.

WARNING

RISK OF ELECTRIC SHOCK!

Never use multiple outlets, extension cords or adapters.

The appliance must be grounded correctly. Never cut through or remove the power cord's third conductor (grounding conductor).

WARNING

RISK OF ELECTRIC SHOCK!

If the power cord is too short, never use multiple outlets or extension cords. Instead, please contact customer service.

Getting to know your appliance

Appliance

A Refrigerator compartment
B Bottle storage compartment
Freezer compartment
1Operating controls
2 Equipment bar
3 Bin (hanging)
4 Shelf (hanging)
5 Water dispenser
6 Pull-out bin
7 Bottle storage compartment controls
8 Bottle shelf (bottom)
9 Ice maker

10 Ice cube bin with ice scoop
11 Interior light
12 Water filter
13Butter and cheese compartment
14 Bottle shelf (hanging)
15 Rating plate
16 Door pillar with condensation protection
17 Fixed shelf
18 Storage compartment for large bottles
19 Bottle shelf (top)
20 Bottle shelf (front)
21 Frozen food bin (small)
22 Frozen food bin (flat)
23 Frozen food bin (large)
24 Height-adjustable feet

Operating controls

1 Refrigerator compartment * super button Switches super cooling on or off.
2 Refrigerator compartment temperature display Indicates the set temperature in ^ C / ^
3 Refrigerator compartment 空 / 空 button Sets the temperature of the refrigerator compartment.
4 fresh button Switches freshness mode on or off.
5eco button Switches energy-saving mode on or off.
vacation button Switches vacation mode on or off.

7 ① power button Switches the appliance on or off.
8 alarm off button Switches off the alarm.
9 menu button Opens the menu.
10 change filter button Switches the change filter alarm off
Freezer compartment super button Switches super freezing on or off.
Freezer compartment temperature display Indicates the set temperature in ^ C / ^ F
13 Freezer compartment 空 button Sets the temperature of the freezer compartment.

Controls submenu

1 Submenu display Displays the selected submenu.
2 空 V submenu button Used to navigate through the submenu.
3 connect button Opens the Home Connect menu.
4 light settings button Opens the lighting menu.
5 ^ C / ^ button Opens the temperature unit menu.
6 Settings display Displays the settings of the submenu.

7 A/ Settings button Changes the settings of the submenu.
8 alarm off button Opens the alarm menu.
9 change filter button Opens the filter menu.

Bottle storage compartment controls

1 beverages button

Sets the temperature in the bottle storage compartment to 36^ (2^) to store soft drinks.

2 beer button

Sets the temperature in the bottle storage compartment to 33^ (1^) to store beer.

3 champagne button

Sets the temperature in the bottle storage compartment to 43^ (6^) to store champagne.

4 white wine button

Sets the temperature in the bottle storage compartment to 46^ (8^) to store white wine.

5 red wine button

Sets the temperature in the bottle storage compartment to 50^ (10^) to store red wine.

6 unlock bottle storage compartment button

Unlocks the controls of the bottle storage compartment.

7 Light bar custom

Lights up if user-defined settings have been set via the Home Connect app. For more information, see the Home Connect app.

Equipment

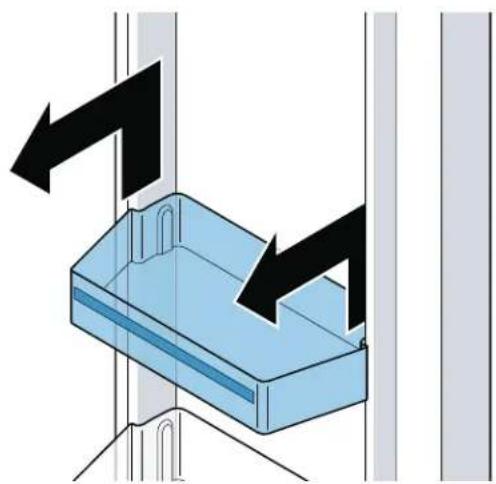

Storage compartment

You can remove the storage compartment:

• Lift up the storage compartment and remove.

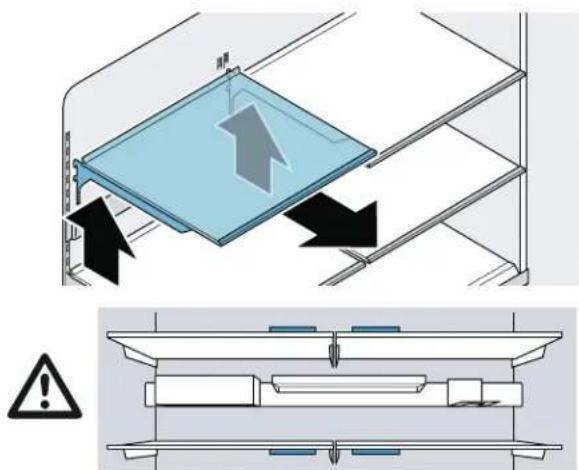

Shelf

You can remove and adjust the shelf:

Lift shelf and remove.

Notes

• Do not cover the ventilation openings.
  Insert shelf carefully to avoid scratching the appliance.
• Ensure that the hooks are fully inserted and the shelf is horizontal.

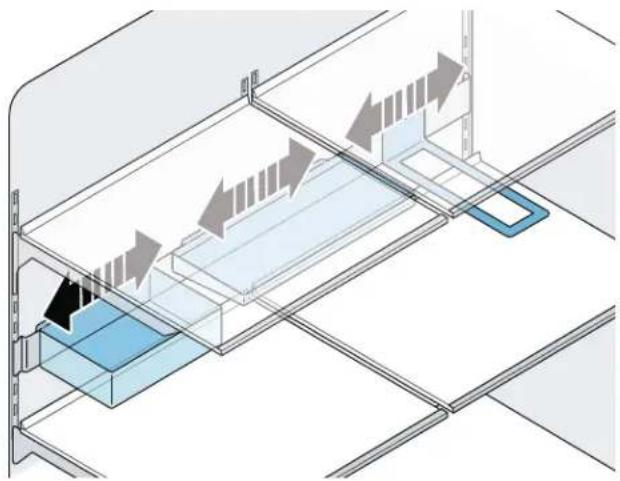

Equipment bar

You can remove and adjust the equipment bar:

Lift equipment bar and remove.

Notes

Position the equipment bar in the middle of the refrigerator compartment, between the top and bottom shelves.
Insert the equipment bar carefully to avoid scratching the appliance.
Check that the hooks are fully inserted and the equipment bar is horizontal.

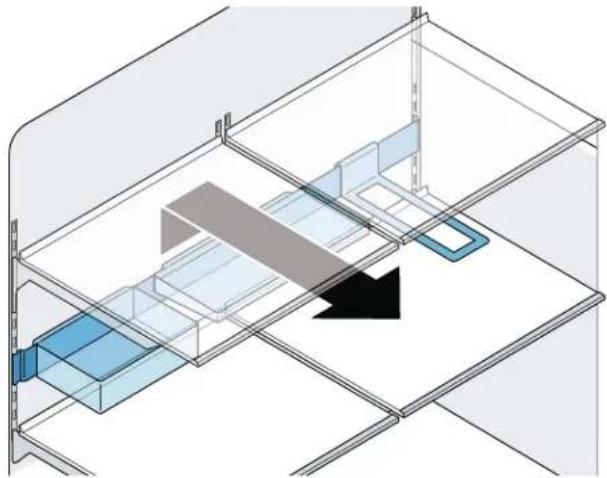

Note: You can remove the bin (hanging), the shelf (hanging) and the bottle shelf (hanging) and move them laterally.

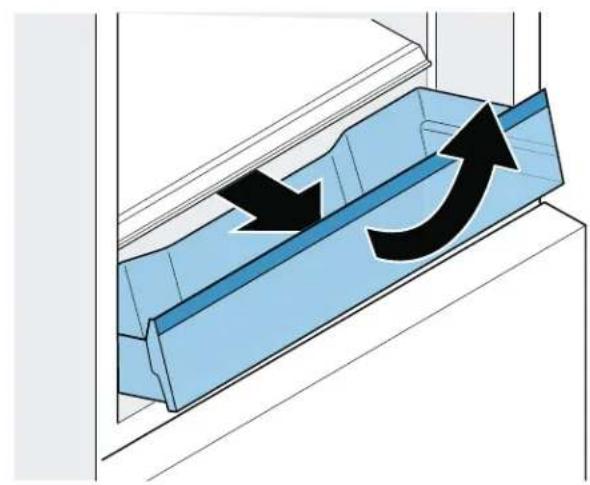

Pull-out bin

You can remove the bin:

Pull out the bin all the way, lift at the front and remove.

You can insert the bin:

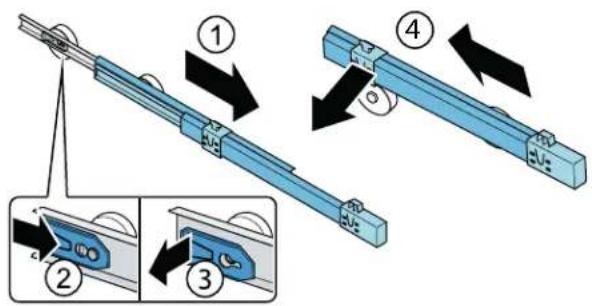

Pull out the telescopic rails all the way.
- Place the bin on the telescopic rails and push into the appliance until it engages.

Fixed shelf

You can remove the shelf:
- Open the bin, lift the shelf at the front and remove.

Bottle shelf (bottom)

You can remove the bottle shelf (bottom):

1. Open the bottle storage compartment drawer as far as it will go.
2. Reach between the ribs of the bottle shelf (bottom) and lift out.

Bottle shelf (front)

You can remove the bottle shelf (front):

1. Open the bottle storage compartment drawer as far as it will go.
2. Remove the bottle shelf (bottom).
3. Lift out the bottle shelf (front).

Bottle shelf (top)

You can lift out the bottle shelf (front):

1. Open the bottle storage compartment drawer as far as it will go.
2. Pull out the bottle shelf (top) all the way, raise at the front and lift out.

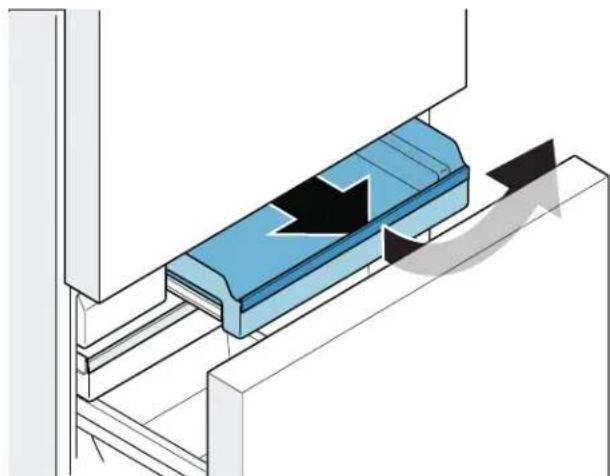

Frozen food bin (small)

You can remove the bin:
Pull out the bin all the way, lift at the front and remove.

You can insert the bin:

Pull out the telescopic rails all the way.
- Place the bin on the telescopic rails and push into the appliance until it engages.

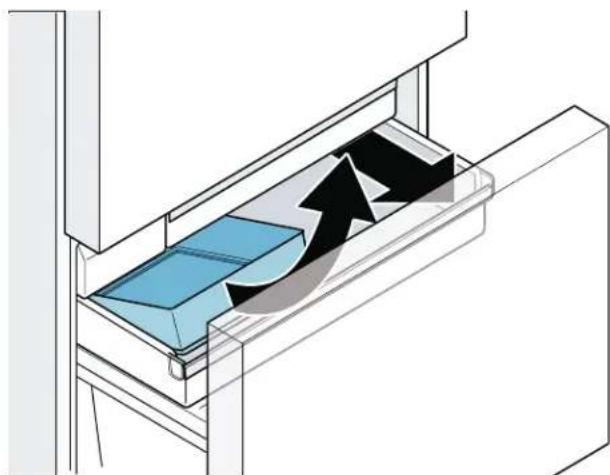

Ice cube bin

You can remove the ice cube bin:
Pull out the frozen food bin (flat) as far as it will go and remove the ice cube bin.

Notes

You can use the ice scoop to remove a portion of ice cubes.
To ensure that ice cube production does not stop early, do not store the ice scoop in the ice cube bin.
To ensure that the ice cube bin is not overfilled, do not distribute the ice cubes manually in the bin.
To ensure that no ice cubes fall into the freezer compartment via the ice cube bin, do not slam the freezer compartment drawer shut.

Frozen food bin (flat)

You can take out the frozen food bin (flat):

1. Pull the frozen food bin all the way out.
2. Pull the frozen food bin (flat) out, lift and remove.

Frozen food bin (large)

CAUTION

DAMAGE TO EQUIPMENT

Never remove the partition wall from the bin.

You can take out the frozen food bin (large):
1. Pull the freezer compartment drawer all the way out and remove the frozen food bin (flat).
2. Lift the frozen food bin (large) and remove it.

Water filter

Note: After installing a new water filter, for hygiene reasons discard the ice cubes produced within the first 24 hours and dispense water for 5 minutes and discard.

The water filter supplied filters particles and the taste of chlorine out of the water, not bacteria or microbes:

Replace the water filter

every 6 months
as soon as the change filter button lights up
if the water flow is visibly reduced

Note: A new water filter is available from our customer service, your dealer or on our website.

If you use an external water filtration system, you can also use the appliance without an internal water filter. To do this, replace the water filter with a bypass filter:

The bypass filter removes coarse particles from the drinking water and can be cleaned as required.
The bypass filter can remain in the appliance permanently and does not need to be changed.
- Switch off the change filter alarm as soon as the change filter button lights up.

"Change filter alarm" on page 22

Note: A new bypass filter is available from our customer service or on our website.

Change water filter or replace with bypass filter:

Notes

• When changing, some water will drip from the filter. Wipe drips up with a soft cloth.

• You can dispose the used filter with your household garbage.

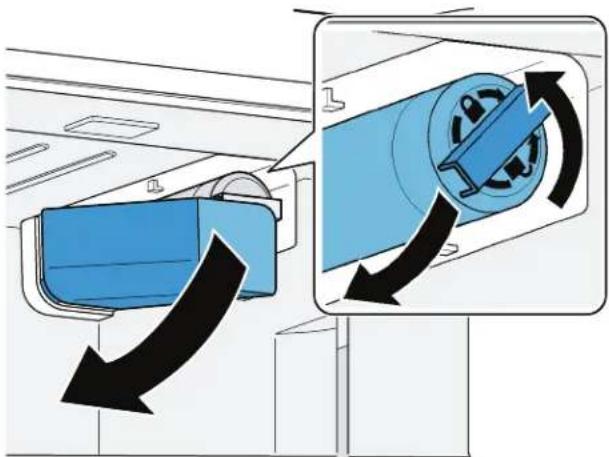

• Reach into the lower recess of the filter cover, pull forwards slightly and move to the bottom left.

• Turn the filter 90^ counterclockwise and remove.
• Insert the new filter in the filter opening to the stop and turn 90^ clockwise as far as it will go.
• Move the filter cover up to the right again and slide back as far as it will go.

Operating the appliance

Switching the appliance on

1. Press ① power button.

The appliance begins to cool. The alarm off button will blink and a warning sound will beep if the temperature in the freezer compartment is still too warm.

1. Press alarm off button.

The warning sound switches off.

1. Set the required temperature.

"Setting the temperature" on page 20

Operating tips

• When the appliance has been switched on, it may take several hours until the set temperatures have been reached. Do not put in any food until the selected temperature has been reached.
  The fully automatic NoFrost system ensures that the appliance remains frost-free. Defrosting is not required.
  The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.

Switching off and disconnecting the appliance

Switching off the appliance

Press ① power button.

The appliance is no longer cooling.

Disconnecting the appliance

If you are not going to use the appliance for a long period:
1. Interrupt the water supply to the appliance.
2. Take all food out of the appliance.
3. Press power button.
The appliance is no longer cooling.
4. Pull out the power plug or switch off the circuit breaker.
5. Remove the water filter, empty the ice cube bin and clean the appliance.
"Cleaning" on page 28
6. Leave the doors and drawers of the appliance open.

Setting the temperature unit

You can choose between the units ^ C and ^

1. Press menu button.
2. Press ^ C / ^ button.
3. Press / Settings button until settings display shows ^ C or ^
4. Press menu button.

The setting is saved.

Setting the temperature

Recommended temperature

Refrigerator compartment: 37^ (3^)

Bottle storage compartment: 46^ (8^)

Freezer compartment: 0^ (-18^)

Cooling compartment

• Keep pressing the / button until the display indicates the required temperature.

Freezer compartment

• Keep pressing button until the display indicates the required temperature.

Setting the bottle storage compartment

You can adjust the temperature of the bottle storage compartment using pre-defined storage settings:

1. Open the bottle storage compartment drawer.
2. Press any button of the bottle storage compartment controls.
3. Press and hold unlock bottle storage compartment button until the light bar is fully illuminated.
4. Press the required storage setting button.
5. Close the bottle storage compartment drawer. The setting is saved.

Super cooling

Super cooling cools the refrigerator compartment as cold as possible.

Switch on super cooling, e.g.:

Before placing large quantities of food into the compartment
For cooling drinks quickly

Note: When super cooling is switched on, increased operating noises may occur.

After approx. 6 hours, the appliance switches to normal operation.

Switching super cooling on/off:

Press * super button.

When super cooling is switched on, the button is lit up.

Super freezing

With super freezing, the freezer compartment cools down to the coldest temperature setting of the freezer compartment.

Switch on super freezing, e.g.:

To quickly freeze food all the way to the center
To increase ice cube production

Note: When super freezing is switched on, increased operating noise may occur.

After approx. 8 hours, the appliance automatically returns to normal operation.

Switching super freezing on/off:

Press super button.

When super freezing is switched on, the button lights up.

Energy saving mode

You can set the appliance to save energy with the energy-saving mode.

The appliance automatically sets the following temperatures:

Refrigerator compartment: 43^ (6^)
Freezer compartment: 6^ (-14^)

The temperature in the bottle storage compartment remains unchanged.

Switch energy-saving mode on or off:

Press eco button.

The temperatures are changed, and the display shows the new temperatures. When energy-saving mode is switched off, the last temperature set is displayed.

Freshness mode

Food stays fresh for even longer with freshness mode.

The appliance automatically sets the following temperatures:

Refrigerator compartment: 36^ (2^)

The temperature in the bottle storage compartment and the freezer compartment remains unchanged.

Switch freshness mode on or off:
Press fresh button.

The temperature is changed, and the display shows the new temperature. When freshness mode is switched off, the last temperature set is displayed.

Vacation mode

If leaving the appliance for a long period, you can switch it to energy-saving vacation mode.

The appliance automatically sets the following temperature:

Refrigerator compartment: 43^ (6 °C)

The temperature in the bottle storage compartment and the freezer compartment remains unchanged.

Switch on vacation mode:

Press vacation button.

The temperature is changed and the display shows the new temperature.

Empty the ice cube bin for hygiene reasons.

Switching off vacation mode:

Press vacation button.

The last temperature set is displayed.

For hygiene reasons, dispense water for

5 minutes and discard.

Sabbath mode

All non-essential functions are switched off so you can also use the appliance on the Sabbath.

The appliance switches off the following:

Super cooling and super freezing
Audible signals
Interior light
Messages on the control panel
Water dispenser
Ice maker

Note: Background illumination of display is reduced in Sabbath mode.

Switch on Sabbath mode:

Press and hold vacation button for 10 seconds until an audible signal sounds.

When Sabbath mode is switched on, the alarm display lights up.

Switching Sabbath mode off:
Press and hold the alarm display for 5 seconds until an audible signal sounds.

Note: After approx. 72 hours, the appliance automatically returns to normal operation.

Setting the light

You can adjust the brightness levels of the interior lighting from 0 to 5:

Note:

0 = lighting off

1 = minimum brightness

5-maximum brightness

1. Press menu button.
2. Press light settings button. The submenu display shows In.
3. Press / Settings button repeatedly until the settings display shows the desired brightness level.
4. Press menu button. The setting is saved.

Change filter alarm

When the change filter alarm switches on, the change filter button will light up. The alarm is designed to switch on every 6 months but it may not always do so. We recommend that the water filter is changed every 6 months.

Note: An increase in ice and water consumption will cause the change filter alarm to be switched on earlier.

Switching off the change filter alarm:

1. Change water filter or replace with bypass filter. "Water filter" on page 19
2. Press and hold change filter button or ice maker button for 3 seconds. The change filter alarm is now switched off and the change filter button is no longer illuminated. The water filter timer is reset automatically.

If you replace the water filter before the change filter alarm lights up, reset the water filter timer manually:

Note:

1 = water filter timer running

0 = reset water filter timer

1. Press menu button.
2. Press change filter button.
3. Press / Settings button until settings display shows 0.
4. Press menu button. The setting is saved.

Alarm

Door alarm

If the appliance door is left open for a while, a warning sound is switched on and the alarm off button flashes.

Switching off door alarm:

• Close the door or press the alarm off button. The warning sound is switched off and the alarm off button no longer flashes.

You can switch the door alarm warning sound on or off:

Note: On = switch on door alarm warning sound

OF = switch off door alarm warning sound

1. Press menu button.
2. Press alarm off button.
3. Press / Settings button until settings display shows On or OF.
4. Press menu button. The setting is saved.

Temperature alarm

If the freezer compartment becomes too warm, the warning sound switches on and the alarm off button flashes.

CAUTION

DURING THE THAWING PROCESS, BACTERIA MAY DEVELOP AND SPOIL THE FROZEN ITEMS

Do not refreeze partly or completely thawed food.

Refreeze food only after cooking. The frozen items should no longer be stored for the maximum storage period.

Note: The temperature alarm can be set off without risk to the frozen food in the following situations:

The appliance is switching on.
If the freezer compartment door has been open too long.
Large quantities of fresh food are being placed inside.

Switching off the temperature alarm:

1. Check that the cause of the temperature alarm has been eliminated.
2. Press the alarm off button.

The warning sound will be switched off and the freezer compartment temperature display will briefly indicate the warmest temperature reached in the freezer compartment. Then the display indicates the set temperature again. The warmest temperature will be measured again and saved.

Note: The alarm off button remains lighted until the set temperature has been reached again.

Home Connect

This appliance is Wi-Fi-capable and can be controlled remotely using a mobile device.

Note: Wi-Fi is a registered trade mark of the Wi-Fi Alliance.

The appliance functions without a network connection and can still be operated manually via the controls:

The appliance is not connected to a home network.
The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com.

Note: Please observe the safety information in this instruction manual. Ensure that this is also observed if you operate the appliance via the Home Connect app and are not at home when doing so. "Important safety instructions" on page 3

Follow the instructions in the Home Connect app as well.

Setting up Home Connect

Notes

Take note of the Home Connect supplementary sheet, which is available for download at http:// www.bosch-home.com together with the instructions. To do so, enter the E-number of your appliance in the search field.
After switching on the appliance, wait at least two minutes until the internal device initialization process has been completed. Only then start setting up Home Connect.
To be able to make settings with Home Connect, you need to install the Home Connect app on your end device.

To do this, please take note of the documentation that has also been supplied from Home Connect.

Follow the steps specified by the app to make the settings.

If the device is not operated for a prolonged period, the Home Connect menu will close automatically. You can find information on how to open the Home Connect menu at the start of the appropriate chapter.

Automatic connection with the WLAN home network (Wi-Fi)

If a router with WPS function is available, the refrigerator can be automatically connected to the home network.

1. Press menu button.

The connect button lights up. The submenu display shows Cn.

1. Press / submenu button repeatedly until submenu display shows AC and the settings display OF.

2. Press Settings button.

The appliance is ready for automatic connection. The settings display shows an animation for 2 minutes.

The appliance is ready for automatic connection for as long as the animation is displayed.

1. Within those 2 minutes, activate the WPS function on the home network router (e.g. using WPS button, note the information in the router documentation).

If the connection is successful, On flashes in the settings display.

The refrigerator is ready to connect with the app.

Note: If the settings display shows OF, it was not possible to establish a connection.

1. Check whether the refrigerator is located within the range of the WLAN home network (Wi-Fi).
2. Repeat the process or establish the connection manually.

Manual connection with the WLAN home network (Wi-Fi)

If the available router does not have a WPS function, or or if this is unknown, you can connect the refrigerator to the WLAN home network (Wi-Fi) manually.

1. Press the menu button.
   The connect button lights up. The submenu display shows Cn.
2. Press the submenu button repeatedly until submenu display shows SA and the settings display OF.
3. Press the Settings button. The appliance is ready for manual connection. The settings display shows an animation. The appliance is ready for manual connection for as long as the animation is displayed.
4. The refrigerator has now set up its own WLAN home network (Wi-Fi) with the network name HomeConnect.

You can now access this network with your mobile device.

1. Follow the instructions in the app until the process is complete.

2. If the connection is successful, On flashes in the settings display.

The device connects automatically to the app.

• If the settings display shows OF, it was not possible to establish a connection. Check whether the refrigerator is located within the range of the WLAN home network (Wi-Fi).

Repeat the process.

Connecting the refrigerator to the Home Connect app

The appliance automatically connects to the app with set-up for the first time after a connection to the WLAN home network has been established (Wi-Fi).

If the appliance does not automatically connect to the app, connect the appliance manually:

1. Press the menu button. The connect button lights up. The submenu display shows Cn.
2. Press the / submenu button repeatedly until the submenu display shows PA and the settings display OF.
3. Press Settings button to connect the appliance to the app. The settings display shows an animation. As soon as the refrigerator and the app are connected, the settings display shows On.
4. Open the app and wait until the refrigerator is displayed. Press Add to confirm the connection between app and the refrigerator.

If the refrigerator is not automatically displayed, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with ^+

1. Follow the instructions in the app until the process is complete.

The submenu display shows PA and the settings display On.

The refrigerator has been connected to the app. If the connection fails, check whether the mobile device is connected to the WLAN home network (Wi-Fi).

Then try to establish the connection again. If the settings display shows Er, reset the Home Connect settings.

Note: On resetting, all Home Connect settings are reset.

Verifying signal strength

You should verify the signal strength if no connection can be established.

1. Press the menu button.

The connect button lights up. The menu display shows Cn.

1. Press the / submenu button repeatedly until the submenu display shows SI. The settings display shows a value between 0 (no reception) and 3 (full reception).

The signal strength should be at least 2. If the signal strength is too weak, the connection may be interrupted.

• Place the router and refrigerator closer together.
• Check that screening walls do not interfere with the connection.
• Alternatively, install a repeater to make the signal stronger.

Reset Home Connect settings

If there is a problem when trying to establish a connection, or if you would like to register the appliance on a different WLAN home network (Wi-Fi), the Home Connect settings can be reset:

1. Press the menu button. The connect button lights up. The submenu display shows Cn.
2. Press the submenu button repeatedly until submenu display shows rE and the settings display OF.
3. Press / Settings button. The settings display shows an animation for 15 seconds. The display then shows OF settings. The Home Connect settings have been reset

Installing updates for the Home Connect software

The refrigerator checks at regular intervals whether updates are available for the Home Connect software.

If an update is available, the submenu display shows UP:

• Confirm update in Home Connect app.
  Do not switch the refrigerator off during updates.
  The settings display shows an animation. The update is being installed.

Note: All buttons are locked during installation.

If installation has been completed successfully, the settings display shows On.
If installation has not been completed successfully, the settings display shows Er. Start the update again at a later time. If installation could not be completed even after multiple attempts, notify customer service.

Press any button to reset the display to the set temperature.

Information on data protection

The first time your Home Connect appliance is registered on a WLAN home network connected to the Internet (Wi-Fi), your appliance will transmit the following types of data to the Home Connect server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
  Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
  The current software and hardware version of your domestic appliance.
  Status of any previous resetting to factory settings.

This initial registration prepares the
Home Connect functions for use and is only required when you want to use these
Home Connect functions for the first time.

Note: Please note that the Home Connect functions can be utilized only in conjunction with the Home Connect app. Information on data protection can be called up in the Home Connect app.

Remote Diagnostics

Customer service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server, and if Remote Diagnostics is available in the country in which you are using the appliance.

Note: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

Refrigerator compartment

The refrigerator compartment is suitable for storing meat, sausages, fish, dairy products, eggs, ready meals and pastries.

The temperature can be set from 33^ (1^) to 43^ (6^) .

The refrigerator compartment can also be used to store highly perishable groceries in the short to medium term. A temperature of +39^ (+4^) or lower ensures optimum freshness and hygiene of the stored groceries.

Note when storing food

Store fresh undamaged food. The quality and freshness will then be retained for longer.
In the case of convenience products and bottled goods, do not exceed the minimum sell-by date or use-by date specified by the manufacturer.
To retain aroma, color and freshness, pack or cover food well before placing it into the appliance. This will prevent flavors being transferred between foods and the plastic parts from becoming discolored.
Leave warm food and drinks to cool down before placing them into the refrigerator compartment.

Bottle storage compartment

Use the bottle storage compartment to store different drink bottles at optimum temperatures.

You can select pre-defined storage settings directly using the bottle storage compartment controls or adjust the temperature from 33^ (1^) to 50^ (10^) using the Home Connect app.

Note: Be sure only to store bottles in the bottle storage compartment. Other food items may discolor the wood of the bottle trays.

Recommended bottles

Beer
Red wine
White wine
Champagne
Soft drinks

Loading bottles

To ensure you use the space available to optimum effect, store bottles as shown.

Notes

Not all bottle sizes can be stored.
Maximum recommended bottle height: 12 5/8" (320 mm)
Maximum bottle diameter for bottle tray (top) and bottle tray (bottom): 3 1/2" (89 mm)

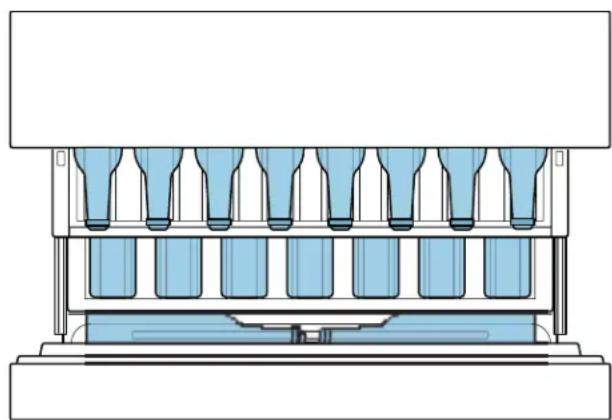

Storage example with standard bottles

• Bottle tray (bottom): up to 7 bottles Maximum loading weight: 49.6 lb (22.5 kg)
  Bottle tray (top): up to 8 bottles Maximum loading weight: 30.9lb (14.0kg)
• Bottle tray (front): up to 2 bottles

Notes

To remove bottles more easily, store the bottles on the bottle tray (top) with the necks to the front of the appliance and on the bottle tray (bottom) with the bases to the front of the appliance.
Store bottles on the bottle tray (front) with the necks facing each other.
To create storage space for larger bottles, take out the bottle tray (top).

Freezer compartment

The freezer compartment is suitable for:

storing frozen food
making ice cubes
freezing food

The temperature can be set from 6^(-14^) to -7^(-22^) .

The freezer compartment can be used to store perishable foods long-term almost without any noticeable reduction in quality, as the low temperatures considerably slow down or stop deterioration. Appearance, flavor and all valuable ingredients are largely retained.

The time between putting fresh food in the freezer compartment and it freezing solid depends on the following factors:

temperature set
type of food
amount of food in the freezer compartment
quantity and type of storage

Water dispenser

You can dispense cold water using the water dispenser.

Note: The water dispenser will only work when the appliance is connected to a drinking water supply and a filter is installed.

Before using the appliance for the first time

Once the refrigerator has been connected or a new water filter has been installed, there will be air in the water circuit. Keep dispensing water until it contains no more bubbles. Wipe splashes dry with a soft cloth.
For hygiene reasons, dispense water for 5 minutes and discard.

Observing drinking water quality

All materials used in the water dispenser are odorless and tasteless.

If the water has an aftertaste, this may be due to the following causes:

Mineral content and chlorine content of the drinking water
Material of the water line leading to the appliance
Freshness of the drinking water

Note: If you dispense water again after a long period, it may taste stale. Allow water to dispense for 5 minutes and discard.

You will obtain optimum water quality if you dispense some water regularly.

Dispensing water

CAUTION

To avoid water damage to the floor or appliance, never dispense water without a glass underneath.

Notes

To prevent water from being permanently dispensed unintentionally, the dispenser will stop automatically after a period of continuous dispensing. Wait a few seconds before dispensing water again.
The water dispenser will stop automatically after several consecutive dispensing operations. Wait a few minutes before dispensing water again.
The dispensed water is cooled to a palatable temperature. To obtain a colder drinking temperature, put additional ice cubes in the glass.
The water may become warmer if large amounts of water are dispensed.

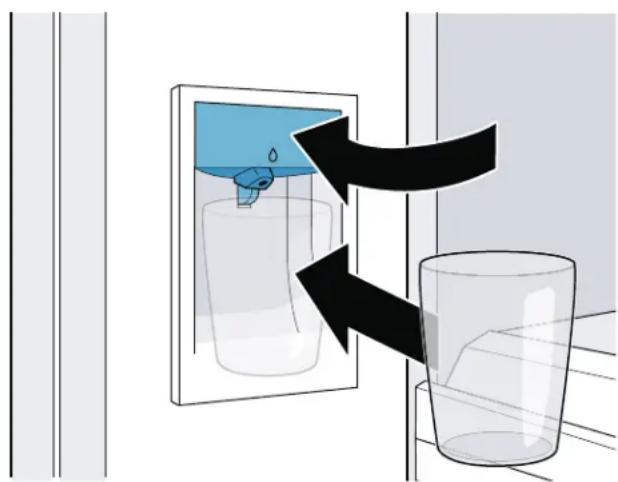

1. Hold the glass under the water dispenser.
2. Push the glass upwards against the dispenser lever or press the button until the glass contains the amount of water required.

Ice maker

The ice maker produces ice cubes.

Note: The ice maker will only work when the appliance is connected to a drinking water supply and a filter is installed.

Before using the appliance for the first time

As soon as the appliance is switched on and the freezer compartment reaches the set temperature, the first batch of ice cubes will be ready in approximately 4 hours.
For hygiene reasons, ice cubes produced within the first 24 hours should be discarded.

Switching ice cube production on or off

WARNING

RISK OF INJURY!

Never reach under or into the ice maker.

CAUTION

Damage to the appliance!

Never store bottles or food in the ice cube bin when ice cube production is switched on. This may block and damage the ice maker.

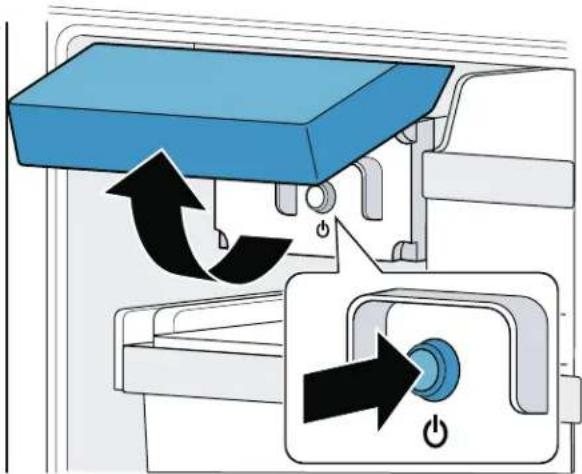

1. Open the freezer drawer up to the stop.
2. Move up the ice maker flap to open.
3. Press button for the ice maker. If ice cube production is switched on, the button lights up.
4. Close the ice maker flap and freezer compartment drawer.

Notes

Once ready, ice cubes are automatically discharged into the ice cube bin.
Ice cube production stops automatically when the maximum filling level of the ice cube bin is reached.
You can accelerate ice cube production by setting a colder freezer compartment temperature or switching on super freezing. This will slightly increase energy consumption.
If ice cubes taste stale, discard the rest and the cubes produced over the next 24 hours. If ice cubes still taste stale, change the water filter.

Defrosting

The fully automatic NoFrost system ensures that the appliance remains frost-free. Defrosting is not required.

Cleaning

CAUTION

AVOID DAMAGING THE APPLIANCE AND THE EQUIPMENT.

• Do not use abrasive, chloride-based or acidic cleaning agents or solvents.
  Do not use scouring or abrasive sponges. The metallic surfaces may corrode.
• Never clean the shelves or bins in the dishwasher.
  The parts may become deformed.

CAUTION

AVOID DAMAGE TO APPLIANCE.

• Do not use stainless steel cleaner on the exterior.
  Test all cleaning agents or solvents on a small area before using them on the entire appliance.

Cleaning the appliance interior

Proceed as follows:

1. Press power button.
   2.Pull out the power plug or switch off the circuit breaker.
2. Take out food and store in a cool location. Place ice pack (if available) on the food.
3. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral liquid detergent.

CAUTION

The rinsing water must not run into the lights.

1. Wipe door seal with clean water and dry thoroughly with a cloth.
2. Switch appliance back on and load the food.

Cleaning the equipment

To clean, take the removable parts out of the appliance.

"Equipment" on page 16

Glass plate partition

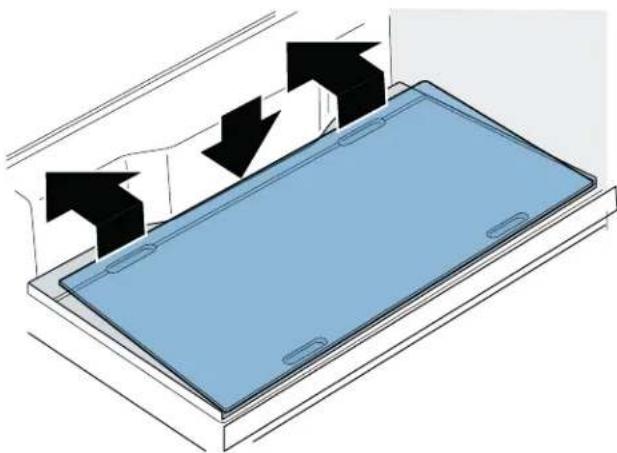

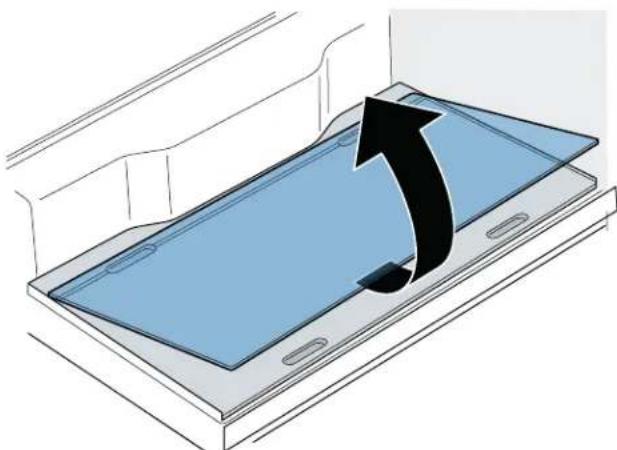

Remove the glass plate:

1. Reach into the back of the recess, lift the glass plate and push right back.
2. Reach into the front of the recess, lift the glass plate at the front and remove.

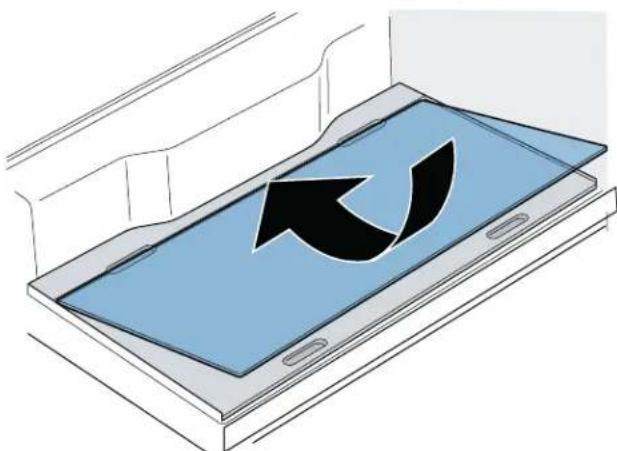

Install the glass plate:

• Place the glass plate on the partition and push right to the front.

Telescopic rails

Removing telescopic rails

1. Pull out telescopic rail.
2. Push lock in the direction of the arrow.
3. Detach telescopic rail from the rear pin.
4. Push telescopic rail together, push backwards above the rear pin, and disengage.

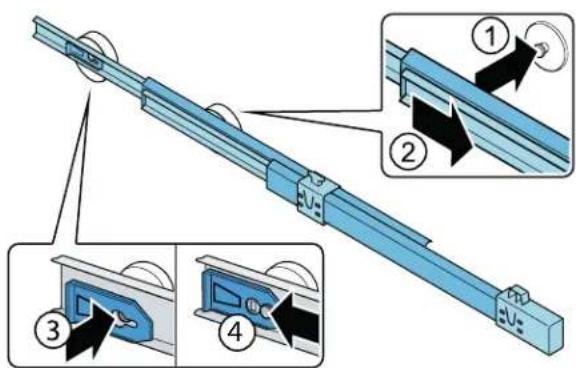

Installing telescopic rails

1. Place the extended telescopic rail on the front pin.
2. Pull the telescopic rail forwards slightly until it engages.
3. Insert telescopic rail on the rear pin.
4. Push lock backwards.

Odors

If you notice any unpleasant odors:

1. Switch off the appliance with the ① power button.
2. Take all food out of the appliance and look for spoiled food or any spillage.
3. Clean the inside. "Cleaning" on page 28
4. Seal strong-smelling food.
5. Switch the appliance on again.
6. Arrange food in the appliance.
7. After 24 hours, check whether odors are building up again.

Lighting

Your appliance features a maintenance-free LED light.

Only customer service or authorized technicians may repair the light.

Noises

Normal noises

Droning: A motor is running, e.g. refrigerating unit, fan, water valve is activated.

Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.

Clicking: Motor, switch, solenoid valves or water valve are switching on or off.

Cracking: Automatic defrosting is running.

Clattering sound: Ice cubes from the ice maker are falling into the ice cube bin.

Preventing noises

Appliance is not level: Align appliance.

"Aligning the appliance" on page 7

The appliance is not "free-standing": Make sure the appliance is not touching other surfaces and the minimum clearances are observed.

"Minimum clearances" on page 6

Bins, shelves or storage compartments wobble or stick: Check the removable equipment and re-insert if required.

Bottles or containers are touching each other: Move bottles or containers away from each other.

Faults – what to do?

Before you call customer service, use this table to check whether you can rectify the fault yourself.

Appliance

Appliance overcooling or food too cold.

Temperature has been set too low. Adjust setpoint to a higher temperature.

Appliance not cooling or food too warm.

Door(s) or drawer not closing properly. Check if the appliance is leveled → "Aligning the appliance" on page 7 Check if there is no food or equipment obstructing the door. Check the door seals are free from damage.

Temperature has been set too high. Adjust the setpoint to a lower temperature.

Air vent(s) are blocked. Remove any food blocking the air vent(s).

Door(s) or drawer opened frequently or for an extended period of time. Wait at least 2 hours for the temperature in the appliance to cool down.

Appliance is in Eco Mode or Vacation mode. Check to ensure that the appliance is not in Eco or Vacation mode.

A large amount of fresh food has been loaded in the refrigerator. Wait at least 2 hours for the temperature in the appliance to cool down.

Appliance is in Showroom mode. If the appliance has the internal lights ON and the operating control display is also ON and showing no errors, the product might be in Showroom mode. Start the appliance self-test.

"Appliance self-test" on page 32 Wait at least 2 hours for the temperature in the appliance to cool down. If appliance still does not cool down, please contact customer service. "Customer service" on page 32

Displays do not light up.

The power plug has not been inserted properly. Check that the power plug ends are fully inserted into the back of the appliance and into the wall power outlet.

The circuit breaker has tripped. Check the circuit breaker box.

Power outage. Check if power is available at the wall outlet.

Display indicates E....

The electronics have detected an error.

Disconnect the appliance from power for 1 minute, either by removing the power cord from the wall outlet or by switching off the circuit breaker. After reconnecting the appliance, if error persists please contact customer service.

"Customer service" on page 32

The alarm off button flashes and a warning signal sounds.

	Press alarm off button. Alarm is switched off.
Door(s) or drawer ajar.	Close door or drawer. Check if there is no food or equipment obstructing the door.
Temperature of compartments too warm	Blocked air vents located on the back wall of the refrigerator and freezer compartments. Remove any food blocking the air vents.
	If compartments have just been loaded with fresh food, then wait at least 2 hours for the temperature in the appliance to cool down.

Water dispenser

The water dispenser is not functioning.
No water supply Check water connection, make sure the water supply is turned on and contact a certified plumber if necessary.
Low water pressure. Appliance needs to be connected in accordance with instructions. → "Water connection" on page 13 If a reverse osmosis water filtration system is connected to your refrigerator water supply, install a bypass filter. New bypass filter can be purchased from customer service and our website. → "Water filter" on page 19 The water filter is blocked or needs to be replaced.
Kink in water hose. Turn off water supply, straighten out kink. Replace the water hose if necessary.
Water is leaking out of the appliance.
Supply line connection is not tight. Check if the connections are fastened firmly and the water hose is undamaged. Replace the water hose if necessary.
Recently installed filter. When changing, some water will drip from the filter. Wipe drips dry with a soft cloth. → "Water filter" on page 19
Water is dripping from dispenser.	Air may be trapped in the water system. To remove air, allow water to dispense for at least 5 minutes and discard. Repeat this step if you still experience water dripping. After dispensing, a few drops of water are normal. To minimize, slowly remove your glass from the dispenser.
Any other source. Please contact customer service.	→ "Customer service" on page 32

Ice maker

The ice maker is not functioning.
Ice cube production has been switched off. Switch on ice cube production.→ "Switching ice cube production on or off" on page 27
No water supply Check water connection, make sure the water supply is turned on and contact a certified plumber if necessary. Switch off the appliance and back on again. Check whether ice cubes are being produced after 2 hours.
Ice maker without power. Disconnect the appliance from power for 1 minute, either by removing the power cord from the wall outlet or by switching off the circuit breaker. After reconnecting the appliance, if error persists please contact customer service.→ "Customer service" on page 32
Ice cube production is low.
Appliance just plugged in. It can take several hours for the first batch of ice.→ "Ice maker" on page 27
Recently dispensed a large amount of ice cubes. It could take up to 48 hours until the ice cube bin is full again.
Low water pressure. Appliance needs to be connected in accordance with instructions.→ "Water connection" on page 13
Door(s) or drawer opened frequently or for an extended period of time.	Wait at least 2 hours for the temperature in the appliance to cool down.
Ice cube production stops even though the ice cube bin is not yet full.	Never store bottles, food or the ice scoop in the ice cube bin. Otherwise the ice maker will not detect the actual fill level of the bin.

Customer service

Before calling customer service, please check whether you can correct the fault yourself.

If you are unable to correct the fault, please contact customer service. We will always find an appropriate solution.

US 1-800-944-2904 Toll-free phone number

CA 1-800-944-2904

When calling, please state the product number (ENr.) and the production number (FD), which can be found on the rating plate.

"Getting to know your appliance" on page 14

Appliance self-test

Your appliance features a self-test program which displays the fault your customer service can rectify.

1. Press ① power button.
2. Pull out the power plug or switch off the circuit breaker and wait 5 minutes.
3. Switch the appliance on again.
4. Within the first 2 minutes press and hold menu button for 10 seconds until an audible signal sounds. The self-test program starts. While the self-test is running, a long audible signal sounds in the meantime.
   If 2 audible signals sound after the end of the self-test and the set temperature is displayed, your appliance is OK.
   If 5 audible signals sound after the end of the self-test and the settings display shows Er, contact customer service.

When the program has ended, the appliance switches to normal operation.

Warranty statement

Please see the enclosed statement of limited product warranty for detailed information on warranty coverage.

fr Table des matieres

Configurer Home Connect

Remarques

Compartment congélateur

Le compartmentengélateur sertà:

Compartmento refrigerator 90

Compartmento refrigerator

Compartmento refrigerator

Puede seleccionar los ajustes de almacenamento predefinidos directamente mediante los elementos de mando del compartmento de almacenamento de botellas o bien ajustar la temperatura de 33^ (1^) hasta 50^ (10^) a工程技术 of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application of the application

1901 Main Street, Suite 600

Irvine CA 92614, USA

www.bosch-home.com
