USER MANUAL TYNNERÅS IKEA

Safety Information	4		What to do if ...	10
Product description	7		Technical data	14
First Use	7		Environmental concerns	14
Daily use	7		Maintenance and cleaning	15
Before first use		9	IKEA GUARANTEE	16

Safety Information

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.
• Our company shall not be held responsible for damages that may occur if these instructions are not observed.

Always use genuine spare parts and accessories.

Original spare parts will be provided for 10 years, following the product purchasing date.

Do not repair or replace any part of the product unless specified expressly in the user manual.

Do not perform any modifications on the product.

1.1 Purpose of usage

• This product is not intended for commercial use and it shall not be used out of its intended purpose.
  This product is intended for operating interiors, such as households or similar.

For example;

• In the staff kitchens of the stores, offices and other working environments,
• In farm houses,
• In the units of hotels, motels or other resting facilities that are used by the customers,
• In hostels, or similar environments,

-In catering services and similar non-retail applications.

This product shall not be used in open or enclosed external environments such as vessels, balconies or terraces. Exposing the product to rain, snow, sunlight and wind may cause risk of fire.

1.2 Safety of children, vulnerable persons and pets

• This product may be used by children aged 8 years and older and persons with underdeveloped physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a the product safe way and the hazards involved.
• Children between 3 and 8 years are allowed to put and take out food to/from the cooler product.
• Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product.
• Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.
• Keep the packaging materials away from children. Risk of injury and suffocation.

Before disposing of old products:

1. Unplug the power cord from the mains socket.
2. Cut the power cord and remove it from the appliance together with the plug.

3. Do not remove the racks and drawers from the product to prevent children from getting inside the appliance.

4. Remove the doors.

5. Store the product so that it shall not be tipped over.

6. Do not allow children to play with the scrapped product.

7. Do not dispose of the product by throwing it into fire. Risk of explosion.

8. If there is a lock available in the product's door, keep the key out of children's reach.

1.3 Electrical safety

• The product shall not be plugged into the outlet during installation, maintenance, cleaning, repair, and transportation operations.
• If the power the cord is damaged, it shall be replaced by authorized service only to avoid any risk that may occur.
• Do not tuck the power cord under the product or to the rear of the product. Do not put heavy items on the power cord. The power cord should not be bent, crushed, and come into contact with any heat source.
• Do not use an extension cord, multi-plug or adaptor to operate your product.
• Portable multi sockets or portable power supplies may overheat and cause fire. Thus, do not have a multi-plug behind or in the vicinity of the product.
• The plug shall be easily accessible. If this is not possible, a mechanism that meets the electrical legislation and that disconnects all terminals from the mains (fuse, switch, main switch, etc.) shall be available on the electrical installation.
• Do not touch the plug with wet hands.
• When unplugging the appliance, don't hold the power cord, but the plug.

1.4 Handling Safety

• This product is heavy, do not handle it by yourself.
• Do not hold the product from its door while handling the product.
• Be careful not to damage the cooling system and the pipes while handling the product. Do not operate the product if the pipes are damaged, and contact an authorized service.

1.5 Installation Safety

• To prepare the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If the installation is not suitable, call a qualified electrician and plumber to have them make the necessary arrangements. Otherwise, electric shock, fire, issues with the product or injuries may occur.
• Check for any damage on the product before installing it. Do not have the product installed if it is damaged.
• Place the product on a level and hard surface and balance with the adjustable legs. Otherwise, the refrigerator may tip over and cause injuries.
• The product shall be installed in a dry and ventilated environment. Do not keep carpets, rugs or similar floor covers under the product if it is not recommended by the supplier. This may cause risk of fire as a result of inadequate ventilation!
• Do not block or cover ventilation holes. Otherwise, power consumption may be increased and damage to your product may occur.
• Do not connect the product to supply systems such as solar power supplies. Otherwise, damage to your product may occur as a result of the abrupt voltage fluctuations!
• The more refrigerant a refrigerator contains, the bigger its installation room shall be. In very small rooms, a flammable gas-air mixture may occur in case of a gas leak in the cooling system. At least 1 m ^3 of volume is required for each 8 grams of refrigerant. The amount of the refrigerant available in your product is specified in the Type Label.
• The installation place of the product shall not be exposed to direct sunlight and it shall not be in the vicinity of a heat source such as stoves, radiators, etc.

If you cannot prevent installation of the product in the vicinity of a heat source, you shall use a suitable insulation plate and the minimum distance to the heat source shall be as specified below.

- At least 30 cm away from heat sources such as stoves, heating units and heaters, etc.,

- And at least 5 cm away from electric ovens.

• Your product has the protection class of I. Plug the product in a grounded socket that conforms with the Voltage, Current and Frequency values specified in the type label. The socket outlet shall be equipped with a fuse with a rating of 10 A – 16 A. Our company shall not be responsible for the damages that shall be incurred as a result of operating the product without ensuring ground and electrical connections made as per local or national regulations.
• The product's power cable must be unplugged during installation. Otherwise, risk of electric shock and injury may occur!
• Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact.
• Place the power cord and hoses (if available) of the product so that they shall not cause a risk of tripping over.
• Penetration of humidity to live parts or to the power cord may cause short circuit. Thus, do not

use the product in humid environments or in areas where water may splash (e.g. garage, laundry room, etc.) If the refrigerator is wet by water, unplug it and contact an authorized service.

- Do not connect your refrigerator to power saving devices. These systems are harmful for the product.

1.6 Operational safety

• Do not use chemical solvents on the product. These materials contain an explosion risk.
• In case of a failure of the product, unplug it and do not operate until it is repaired by the authorized service. There is a risk of electric shock!
• Do not place a source of flame (e.g. candles, cigarettes, etc.) on the product or in the vicinity of it.
• Do not get on the product. Risk of falling and injury!
• Do not cause damage to the pipes of the cooling system using sharp and piercing tools. The refrigerant that sprays out in case of puncturing the gas pipes, pipe extensions or upper surface coatings may cause irritation of skin and injuries of the eyes.
• Do not place and operate electric appliances inside the refrigerators/deep freezer unless it is advised by the manufacturer.
• Do not jam any parts of your hands or your body to the moving parts inside the product. Be careful to prevent jamming of your fingers between the refrigerator and its door. Be careful while opening or closing the door if there are children around.
• Do not put ice cream, ice cubes or frozen food to your mouth as soon as you take them out of the freezer. Risk of frostbite!
• Do not touch the inner walls, metal parts of the freezer or food kept inside the refrigerator with wet hands. Risk of frostbite!
• Do not place soda cans or cans and bottles that contain fluids that may be frozen to the freezer compartment. Cans or bottles may explode. Risk of injury and material damage!
• Do not use or place materials sensitive against temperature such as flammable sprays, flammable objects, dry ice or other chemical agents in the vicinity of the refrigerator. Risk of fire and explosion!
• Do not store explosive materials such as aerosol cans with flammable materials inside the product.
• Do not place cans containing fluids over the product. Splashing of water on an electrical part may cause the risk of an electric shock or a fire.
• This product is not intended for storage and cooling of medicines, blood plasma, laboratory preparations or similar materials and products that are subject to the Medical Products Directive.
• If the product is used against its intended purpose, it may cause damage to or deterioration of the products kept inside.
• If your refrigerator is equipped with blue light, do not look at this light with optical devices. Do not stare directly at UV LED light for a long time. Ultraviolet rays may cause eye strain.
• Do not fill the product with more food than its capacity. Injuries or damages may occur if the contents of the refrigerator falls when the door

is opened. Similar problems may occur when an object is placed over the product.

• Ensure that you have removed any ice or water that may have fallen to the floor to prevent injuries.
• Change the locations of the racks/bottle racks on the door of your refrigerator while the racks are empty only. Danger of physical injury!
• Do not place objects that may fall/tipped over on the product. These objects may fall while opening or closing the door and cause injuries and/or material damages.
• Do not hit or exert excessive pressure on glass surfaces. Broken glass may cause injuries and/or material damages.
• The cooling system in your product contains R600a refrigerant. The refrigerant type used in the product is specified in the type label. This gas is flammable. Therefore, be careful not to damage the cooling system and the pipes while operating the product. In case of damage to the pipes;

- Do not touch the product or the power cord,

- Keep the product away from potential sources of fire that may cause the product to catch fire.

- Ventilation the area where the product is placed. Do not use a fan.

- If the product is damaged and you observe gas leak, please stay away from the gas. Gas may cause frostbite if it contacts your skin.

1.7 Maintenance and cleaning safety

• Do not pull by the door handle if you shall move the product for cleaning purposes. Handle may cause injuries if it is pulled too hard.
• Do not clean the product by spraying or pouring water on the product and inside the product. Risk of electric shock and fire.
• Do not use sharp or abrasive tools to clean the product. Do not use materials such as household cleaning agents, detergents, gas, gasoline, alcohol, wax, etc.
• Use cleaning and maintenance agents that are not harmful for food only inside the product.
• Do not use steam or steamed cleaning materials for cleaning the product and thawing the ice inside it. Steam contacts the live areas in your refrigerator and causes short circuit or electric shock!
  • Take care to keep water away from the electronic circuits or lighting of the product.
• Use a clean, dry cloth to wipe the dust or foreign material on the tips of the plugs. Do not use a wet or damp piece of cloth to clean the plug. Otherwise, risk of fire or electric shock may occur.

Installation

To make the product ready for use, be careful that the electrical wiring and plumbing are appropriate by referring to the information in the user manual. If not, call a qualified electrician and plumber and have the necessary arrangements made.

⚠ WARNING: The manufacturer is not liable for damages caused by operations by unauthorized persons. To avoid shaking, place the product on a flat surface.

⚠ WARNING: During the installation, the power plug of the product should not be plugged in. Otherwise, there is a danger of death or serious injury!

⚠ WARNING: If the doorway of the room to where the product will be placed is so narrow that the product cannot pass through, pass the product by turning it to side; otherwise, call an authorized service.

• Do not expose the product to direct sunlight and do not store it in humid place.
• Do not install the product where the temperature drops below 10 °C.

Electrical connection

⚠ WARNING: Do not make connections to the extension cords or multiple sockets.

⚠ WARNING: Damaged power cable must be replaced by an Authorized Service.

⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged

• Our company will not be liable for any damages that occur when the product is used without grounding and electrical connections that are according to national regulations.
• The power cord plug must be easily accessible after installation.
• Connect your refrigerator to an outlet with a ground line with 220-240V/50 Hz voltage. Plugs should have a 10-16 A fuse.

Climate Class and Definitions

Please refer to the Climate Class on the rating plate of your device. One of the following information is applicable to your device according to the Climate Class.

SN: Long Term Temperate Climate: This cooling device is designed for use at ambient temperatures between 10 °C and 32 °C.

N: Temperate Climate: This cooling device is designed for use at ambient temperatures between 16°C and 32°C.

ST: Subtropical Climate: This cooling device is designed for use at ambient temperatures between 16°C and 38°C.

T: Tropical Climate: This cooling device is designed for use at ambient temperatures between 16°C and 43°C.

Product description

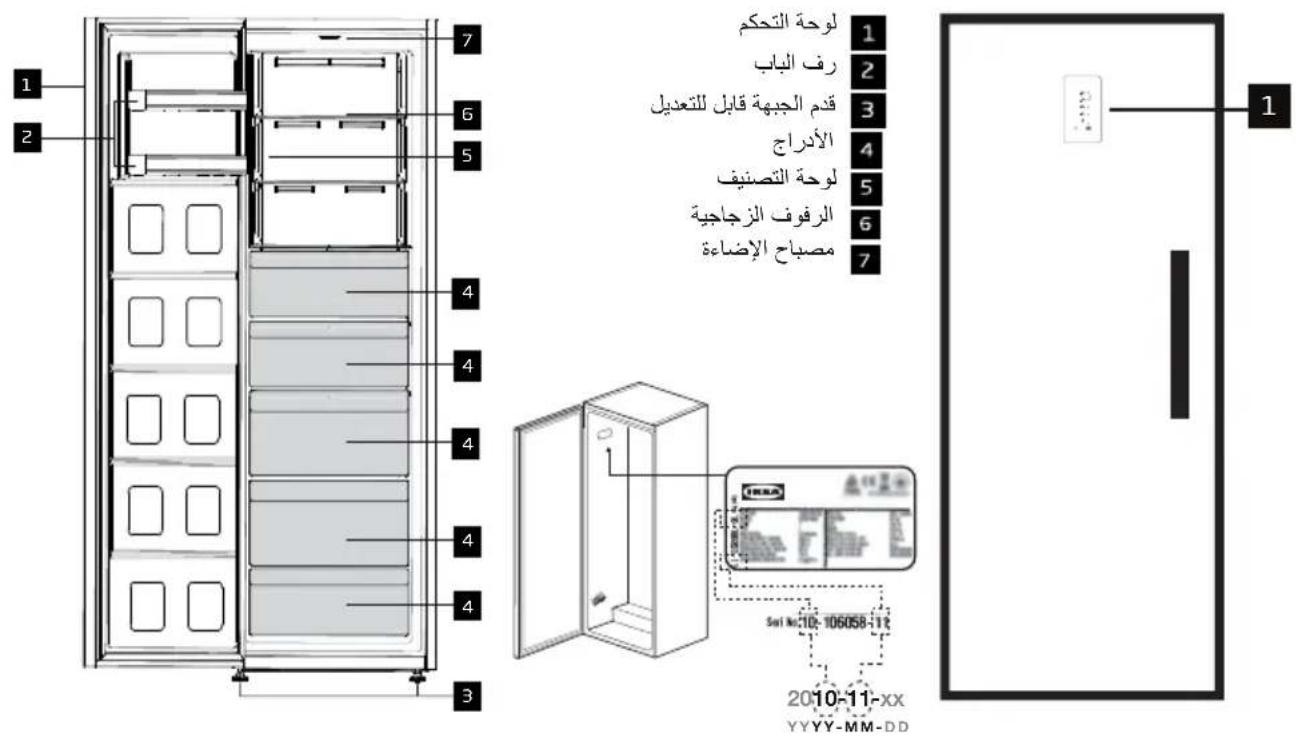

1 Control Panel 2 Door shelf 3 Adjustable front feet 4 Drawers 5 Rating Plate 6 Glass shelves 7 Illumination lamp 1 2 3 4 4 4 4 4 Control Panel Door shelf 2010-11-xx YYYY-MM-DD

First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety Information" and "Installation" sections.

If the product is transported horizontally, do not plug the product to power supply for first 4 hours.

Keep the product running without placing any food inside for 12 hours and do not open the door, unless absolutely necessary.

☐A sound will be heard when the compressor is engaged. It is normal for the product to make noise even if the compressor is not running, as fluid and gas may be compressed in the cooling system.

☐It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.

For some models, control panel turns off automatically 1 minute after the door closes. It will be reactivated when the door is opened or any button is pressed.

Daily use

-18 - -20 - -22 - -24 - ! - °C ★ A B C

Error Status Indicator
B Quick Freezing
c Freezer Compartment Temperature Setting

Error Status Indicator

This indicator A shall be active when your refrigerator cannot perform adequate cooling or in case of any sensor error. When you load the freezer compartment with hot food or if you leave the door open for a prolonged time, an exclamation mark can be lit. This is not a fault, this warning shall be removed when the food is cooled or pressed any key.

Quick Freezing B

When the quick freeze function is pressed, the LED on the key is illuminated and the quick freeze function shall be activated. The freezer compartment temperature is set to -27 °C. Press the key again to cancel the function. Quick freeze function will automatically self-cancel after 52 hours. To freeze a large amount of fresh food press the quick freeze key before placing them in the freezer compartment.

Freezer Compartment Temperature Setting

Temperature setting is made for freezer compartment. Pressing the key will enable the freezer compartment temperature to be set at -18, -20, -22, -24 °C.

Adjusting the feet

If the product is unstable on the place where it is placed, adjust it by turning the front adjustment feet to the right or left.

ENGLISH

Changing door opening direction

Based on where you use, your refrigerator's door opening direction can be changed.

Diagram showing three steps of a mechanical clamp or bracketing process with X marks and checkmark indicating inspection.

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance are stable in extreme physical conditions such as temperatures below -20 °C. (only chest and upright freezer)

Door Open Warning

An audio and visual warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Before first use

• For a freestanding appliance; 'this refrigerating appliance is not intended to be used as a built-in appliance.
• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be +10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "What to do if" section.
• Original packaging and foam materials should be kept for future transportations or moving.
• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

Simple line drawing of a ceiling-mounted device with a vertical panel and a hanging component (no text or symbols)

• In some models, the instrument panel on display automatically turns off 1 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
• When temperature change caused by door opening/closing frequently, condensation on door/body shelves and the glass containers may be seen.
• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.
• In case of multiple options are present glass shelves must be placed so that the air outlets at the backwall are not blocked, preferably air outlets are remaining below the glass shelf. This combination may help impoving air distribution and energy efficiency.

Installation of the Cooler and Freezer Products Side-by-side

When the freezer and cooler products are installed side by side, the installation should be performed so that the freezer product will be on the left and the cooler product will be on the right. To prevent sweating problems that might occur between products, anti-condensation elements are located on the left side of the cooler product.

Freezer Cooler

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

Problems		Solutions
The refrigerator does not operate.	· The plug is not inserted into the socket correctly.	· Insert the plug into the socket securely.
	· The fuse of the socket which your refrigerator is connected to or the main fuse have blown out.	· Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).	· Door has been opened frequently.	· Do not open and close the door of refrigerator frequently.
	· Ambient is very humid. · Do not install your refrigerator into highly humid places.
	· Food containing liquid is stored in open containers.	· Do not store food with liquid content in open containers.
	· Door of the refrigerator is left open.	· Close the door of the refrigerator.
	· Temperature is set to a very cold level.	· Set the temperature to a suitable level.
Compressor is not running	· Protective thermic of the compressor blows out during sudden power failures.	· The refrigerator will start running approximately after 6 minutes.
	· plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet.	· Please call the service if the refrigerator does not startup at the end of this period.
	· The fridge is in defrost cycle.	· This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
	· Temperature settings are not made correctly.	· Select the suitable temperature value.
	· There is a power outage. · Refrigerator returns to normal operation when the power restores.
The operation noise increases when the refrigerator is running.	The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.
The refrigerator is running frequently or for a long time.	The room temperature may be high.	It is normal that the product operates for longer periods in hot ambient.
	The refrigerator might be plugged in recently or might be loaded with food.	When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.
	Large amounts of hot food might be put in the refrigerator recently.	Do not put hot food into the refrigerator.
	Doors might be opened frequently or left open for a long time.	>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.
	Freezer or fridge compartment door might be left open.	Check if the doors are closed completely.
	The refrigerator is adjusted to a very low temperature.	Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
	Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated.	Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
Fridge temperature is very low while the freezer temperature is sufficient.	The fridge temperature is adjusted to a very low value.	Adjust the fridge temperature to a warmer degree and check.
Food kept in the fridge compartment drawers is frozen.	The fridge temperature is adjusted to a very high value.	Adjust the fridge temperature to a lower value and check.
Temperature in the fridge or freezer is very low.	The fridge temperature is adjusted to a very high value.	Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
	Doors are opened frequently or left open for a long time.	Do not open the doors frequently.
	Door is open. Close the door completely.
	The refrigerator is plugged in or loaded with food recently.	This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
	Large amounts of hot food might be put in the refrigerator recently.	Do not put hot food into the refrigerator.
Vibrations or noise.	The floor is not level or stable.	If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level.
	The items put onto the refrigerator may cause noise.	Remove the items on top of the refrigerator.
There are noises coming from the refrigerator like liquid flowing, spraying, etc.	Liquid and gas flows occur in accordance with the operating principles of your refrigerator. It is normal and not a fault.
Whistle comes from the refrigerator.	Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.	Hot and humid weather increases icing and condensation. It is normal and not a fault.
	Doors are opened frequently or left open for a long time.	Do not open the doors frequently. Close them if they are open.
	Door is open. Close the door completely.
Humidity occurs on the outside of the refrigerator or between the doors.	There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

ENGLISH13

Bad odour inside the refrigerator.	No regular cleaning is performed.	Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water.
	Some containers or package materials may cause the smell.	Use a different container or different brand packaging material.
	Food is put into the refrigerator in uncovered containers.	Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
	Remove the foods that have expired best before dates and spoiled from the refrigerator.
The door is not closing.	Food packages are preventing the door from closing.	Replace the packages that are obstructing the door.
	The refrigerator is not completely even on the floor.	Adjust the feet to balance the refrigerator.
	The floor is not level or strong.	Make sure that the product is leveled and capable to carry the refrigerator.
Crispers are stuck. • The	food is touching the ceiling of the drawer.	Rearrange food in the drawer.
If The Surface Of The Product Is Hot.	High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!

Technical data

Dimensions (mm) TYNNERÅS
Height(min-max) 1865
Width 597
Depth 754
Net Volume(l)
Fridge -
Freezer 286
Defrost system
Fridge -
Freezer Auto Defrost
Star Rating 4
Rising Time ( h) 9
Freezing capacity(kp/24h)	17
Energy consumption( kwh/Year)	250
Noise level(db) 34dBA
Energy class E

Environmental concerns

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated

by the local authorities.

Maintenance and cleaning

△Never use gasoline, benzene or similar substances for cleaning purposes.

⚠️We recommend that you unplug the appliance before cleaning.

△Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

△For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.

△Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface.

Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

⚠️Make sure that no water enters the lamp housing and other electrical items.

If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door open.

Check door seals regularly to ensure they are clean and free from food particles.

⚠️To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

△Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

△Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five years from the original date of purchase of your appliance at IKEA. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labur and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Cases where no fault could be found during a technician's visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

- Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

- Cost for carrying out the initial installation of the IKEA appliance.

- However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

- This does not apply within Ireland, customer should contact the local IKEA dedicated after sales line or the appointed Service Provider for further information.

(just for GB)

These restrictions do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed Authorized Service Centre to:

• make a service request under this guarantee;
- ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;
- ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

Please refer to the last page of this manual for the full list of IKEA appointed Authorized Service Centre and relative national phone numbers.

In order to provide you a quicker service, we recommend to use the specific phone numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for. Please also always refer to the IKEA article number (8 digit code)

i SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Spare parts information

• The following spare parts: thermostats, temperature sensors, printed circuit boards and light sources, will be available to professional repairers for a minimum period of seven years, after placing the last unit of the model on the market.
• The following spare parts: door handles, door hinges, trays and baskets will be available to professional repairers and end users for a minimum period of seven years, and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

This refrigerator contains biocidal products in the following parts to prevent dry film fungal growth or eliminate unwanted odours.

Active Substance: Silver (CAS: 7440-22-4) contains (nano) silver for door handle and carbon filter Active Substance: Titanium dioxide (CAS: 13463-67-7) contains (nano) titanium dioxide for carbon filter Active Substance: IPBC (CAS: 55406-53-6) for seal

The concentrations of biocidal products are very low hence they should not pose unacceptable health risks.

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or hygiene (no text or symbols present)

جدول المحتويات

m = 311

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

m = 311

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

m = 311

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

Diagram showing three mechanical assembly states with checkmark indicators and cross symbols, likely illustrating a process or modification.

Simple line drawing of a ceiling-mounted device with a digital display (no text or symbols)

• يُؤْرِ إعداد درجة حérارة حجرةesthesia على درجة• حérارة المحمد. قم بتفيير درجات حérارةesthesia أوالمgmt وانتظر حتى تصل درجة حérارة الجزاء ذاتالصلة إلى درجة حérارة كافية.	• يتم ضبط درجة حérارةesthesia على قيمة• عالية جداً.	درجة الحérارة فيesthesia أو المgmtمنخفضة جداً.
• لا ت Connectivity الأوباب بشكل مكتور.	• يتم فتح الأوباب بشكل مكتور أو تركها• مفتوحة لفترة طويلة.
• أغلق الباب تمامًا.	• الباب مفتوح.
• هذا أمر طبيعي. عند توصيلesthesia أو تحmilها• بالطعام مؤخرza، سiestغرق anymore وقَدّا أطول للوصولإلى درجة حérارة الم Occupدة.	•esthesia موصولة بالkehرباء أو محملة• بالطعام مؤخرza.
• لا ت String Event Management Service Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Strategy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Model Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy, Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Program Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Target Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Method Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Practice Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Pricing Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Formula Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Prediction Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy PolicyPolicy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Scenario Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Package Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Supply Category Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Policy Ratio Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model ModelModel Model Model Model ModelModel Model ModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelModelTotalModelModelModelTotalModelModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModelTotalModel TotalModelTotalModelTotalTotalModelTotalTotalModelTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalInitialTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotal TotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalTotalAverage Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Target Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Full Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Tocal Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total TotalTotal Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total Total
• إذا اهترتbidلاة عند تحريها ببطه، فقم بتوازنها عن طريق ضبط أقدامها. تأكد أيضا من أن الأرضية قوية بما يكفي لhomيلالثلاة.	• الأرضية غير مستوية أو ثابته.	الاهترازات أو الضوضاء.
	• قم بازالة العناصر الموجودة أعلىbidلاة. حدوي ضوضاء.

Silhouette of a hand holding a water droplet, symbolizing water or hygiene (no text or symbols present)

Съдържание

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet, symbolizing water absorption or health care (no text or symbols present)

ГАРАНЦИЯ НА ІКЕА

Diagram illustrating three different mechanical or structural states with cross symbols indicating failure or incorrect operation.

Simple line drawing of a ceiling-mounted device mounted on a vertical pole (no text or symbols)

Mraznička Chladnička

Co dělat, pokud ...

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

ZÁRUKA IKEA

Diagram showing a door with a labeled component and a numbered label '1' pointing to the right side.

Erste Verwendung

Diagram illustrating three mechanical assembly states with cross symbols indicating failure or rejection points.

Simple line drawing of a ceiling-mounted device with a vertical panel and a hanging handle (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

IKEA GARANTIE

Diagram showing three mechanical assembly states with cross symbols indicating failure or inspection points

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Diagram illustrating three mechanical assembly states with cross symbols indicating failure or incorrect operation

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Sisukord

Diagram illustrating three mechanical clamp configurations with cross symbols indicating failure or incorrect states

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Sisällysluettelo

Diagram showing three mechanical clamping or bracketing methods with X marks and a checkmark indicating selection.

Lampun vaihtaminen

Simple line drawing of a ceiling-mounted device mounted on a vertical pole (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

A

B

C

Diagram showing three mechanical clamping or bracketing steps with X marks and checkmark indicators

Simple line drawing of a ceiling-mounted device with a vertical pole and a circular button (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health (no text or symbols present)

Sadržaj

Sigurnosne informacije	157	Što učiniti ako...	163
Opis proizvoda	160	Tehnički podaci	167
Prva uporaba	160	Zaštita okoliša	167
Svakodnevna uporaba	160	Održavanje i čišćenje	168
Prije prve uporabe	162	JAMSTVO IKEA	169

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Tartalomjegyzék

Diagram showing three mechanical assembly states with cross symbols indicating failure or failure, and a checkmark indicating cancellation.

Simple line drawing of a ceiling-mounted device with a hand holding a small object (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or water transfer (no text or symbols present)

Indice

Diagram illustrating three different mechanical or electrical component configurations with cross symbols indicating failure or failure points.

Simple line drawing of a ceiling-mounted device with a vertical rod and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Turinys

Diagram showing three mechanical assembly states with cross symbols indicating failure or incorrect operation

Simple line drawing of a ceiling-mounted device with a vertical rod and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health (no text or symbols present)

Satura rādītājs

Diagram showing three mechanical assembly states with cross symbols indicating failure or rejection points

Apgaismojuma lampas maina

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or water transfer (no text or symbols present)

Inhoudsopgave

Diagram illustrating three mechanical assembly states with cross symbols indicating failure or rejection points.

De lamp vervangen

Simple line drawing of a ceiling-mounted device mounted on a vertical pole (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health (no text or symbols present)

Innholdsfortegnelse

Diagram showing three different types of mechanical clamping or fastening tools with cross symbols indicating failure or rejection.

Simple line drawing of a ceiling-mounted device with a vertical rod and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or water withdrawal (no text or symbols present)

Spis treści

Technical diagram showing three mechanical assembly states with cross symbols indicating failure or modification points.

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or water transfer (no text or symbols present)

Conteúdo

Simple diagram with a vertical black bar and a labeled arrow pointing to a white rectangular box (no text or symbols)

Primeira utilização

Technical illustration of two mechanical clamping components with cross marks, no text or symbols present

Simple line drawing of a ceiling-mounted device with a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or water withdrawal (no text or symbols present)

Cuprins

Diagram showing three different mechanical clamp configurations with X and ✓ symbols indicating selection or inspection points.

Schimbarea lămpii de iluminat

Simple line drawing of a ceiling-mounted device with a vertical pole and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Содержание

Technical diagram showing three mechanical assembly states with cross symbols indicating failure or inspection points.

Simple line drawing of a ceiling-mounted device with a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Kazalo vsebine

Three-step diagram showing a mechanical clamp or bracket with cross marks, no text or symbols present.

Simple line drawing of a ceiling-mounted device with a vertical rod and a digital display (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health (no text or symbols present)

Simple line drawing of a ceiling-mounted device with a hand holding a clip (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Pregled sadržaja

Bezbedonosne informacije	339	Šta učiniti ako...	345
Opis proizvoda	342	Tehnički podaci	349
Prva upotreba	342	Briga o životnoj sredini	349
Svakodnevna upotreba	342	Održavanje i čišćenje	350
Pre prve upotrebe	344	IKEA GARANCIJA	351

Diagram showing three mechanical assembly states with cross symbols indicating failure or incorrect operation

Promena sijalice za osvetljenje

Simple line drawing of a ceiling-mounted device with a vertical pole and horizontal lines (no text or symbols)

• Na nekim modelima, instrument tabla na ekranu se isključuje 1 minuta nakon što se vrata zatvore. Ona će se ponovo aktivirati kada se otvore vrata ili se pritisne bilo koje dugme.
• Kada je promena temperature uzrokovana čestim otvaranjem/zatvaranjem vrata, može se videti kondenzacija na policama vrata/kućišta i staklenim posudama.
• Budući da vrući i vlažni vazduh neće direktno prodreti u vaš proizvod dok se vrata ne otvore, vaš proizvod će stvoriti optimalne uslove dovoljne da sačuva vašu hranu. Funkcije i komponente poput kompresora, ventilatora, grejača, odmrzavanja, osvetljenja, ekrana i tako dalje funkcionisaće u skladu s potrebama da se u tim okolnostima potroši minimalna količina energije.
• U slučaju da postoji više opcija, staklene police moraju biti postavljene tako da izlazi za vazduh na zadnjem zidu ne budu blokirani, i po mogućnosti da izlazi za vazduh budu ispod staklene police. Ova kombinacija može doprineti u poboljšanju raspodele vazduha i energetske efikasnosti.

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Obsah

Diagram illustrating three different mechanical or electrical component states with cross symbols indicating failure or rejection.

Simple line drawing of a ceiling-mounted device with a hand holding a clip (no text or symbols)

Mraznička Chladnička

Čo robit', ak ...

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

İçindekiler

Technical diagram showing three mechanical assembly states with cross symbols indicating failure or inspection points.

Simple line drawing of a ceiling-mounted device with a hanging component (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Зміст

Diagram showing three mechanical clamping or disassembly steps with X marks and a checkmark indicating the process.

Simple line drawing of a ceiling-mounted device mounted on a vertical pole (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or water transfer (no text or symbols present)

Efnisyfirlit

Three diagrams showing mechanical clamping or assembly steps with no visible text or symbols

Skipt um lýsingarlampa

Simple line drawing of a ceiling-mounted device mounted on a vertical pole (no text or symbols)

Silhouette of a hand holding a water droplet above it, symbolizing water absorption or health care (no text or symbols present)

Country Phone Number Call Fee Opening time
België	0 2 303 75 75	Lokaal nummer	Ma.-Vrij. 09.00-17.00
Belgique		Nombre local	Lun.-Ven. 09.00-17.00
България	0800 45 800 Безплатен	телефонен номер	Пон-Нед 9:00-20:00
Česká republika	[phone] lokální číslo		7 dní v týdnu 8:00-17:00
Danmark	70 15 09 09https://serviceinfo.se/onsite/ikea	Landstakst	man. - fre. 09.00 - 20.00lør. - søn. 09.00 - 18.00
Deutschland	06102 86 86 891	Regional Number	Mo.-Fr. 8.00-18.00
Eesti	3,726,366,525 Vastavalt operaatori tariifile		Es-Re 9:00-17:30
	3,724,427,231 Vastavalt operaatori tariifile		Es-Re 9:00-18:00
	7,344,299 Vastavalt operaatori tariifile		Es-Re 9:00-18:00
	6,512,222 Vastavalt operaatori tariifile		Es-Re 9:00-17:00
Espanā	932 514 201 Numero local		Lunes a Viernes: 9:00 - 20:00
Ελλάδα +30	2510 392 511/512	Με χρέωση σύμφωνα με τητιμολογιακή πολιτική τουτηλεπικοινωνιακού παρόχου σας	Δευτ. - Παρ. 09.00 - 17.00
France	09 69 37 71 99	Service gratuit + prix appel	Du lundi au vendredi de 9h00 à 19h00.
Nederland	088 - 3425200	Lokaal nummer	Ma-Vrij. 09.00-17.00
Norge	815 59590https://serviceinfo.se/onsite/ikea	Lokal takst	Mo-Fr: 09.00-15.00
Hrvatska	01 77 100 71 Lokalni poziv		Ponedjeljak - petak od 9:00 - 17:00Subota od 9:00 - 14:00
Italia	02 7040	National Number	Dal lunedí al sabato - dalle 08.00 alle 20.00
Ireland	01 862 3411	National Number	Mon - Fri 8.00am - 6.00pmSat - Sun 9.00am - 5.00pmUK Public holidays 9.00am - 5.00pm
Ísland	3,545,202,500	Sveitarfélaga skatta	Mán-Sun: 11:00-17:30
Κύπρος (+357)	22 502 502	Με χρέωση σύμφωνα με τητιμολογιακή πολιτική τουτηλεπικοινωνιακού παρόχου σας	Δευτ. - Σαβ. 08:00 - 21:00Kup. 11:00 - 20:00
Latvija	+[phone]-32	Saskaņa ar operatora tarifu	Pir-Pie 9:00-17:30
Lietuva	8 700 55 595	Pagal operatoriaus tarifa	Pir-Pen 9:00-18:00
	370 37 330187	Pagal operatoriaus tarifa	Pir-Pen 9:00-18:00
Luxembourg	0032 2 303 75 75	Tu appelles la belgique	Lundi- Vendredi. 09.00-17.00
Magyarország	[phone]	Helyi tarifával hívható	Hétfő - Péntek 8:00 - 17:00
Россия	8 800 200 23 56	Федеральная горячая линия	Пн-Пт: 07.00-21.00Сб-Вс: 08.00-21.00Праздничные дни: 08.00-17.00
Polska	222 50 14 14	wg taryfy operatora	Poniedziałek - Piątek 8:00 - 20:00
Portugal	00351 215551968	Chamada local (sem custo adicional)	Segunda a Sexta das 9h00 às 18h00
Romania	*9010	Numar national taxat standard	Luni - Vineri 08:30 - 20:00Sambata - 08:30 - 17:00
Schwelz	0848 801 100	Tarif für Anrufe im Bundesgebiet	Mo-Fri: 8:30 - 19:30Sa: 8:30 -18:00
Suisse		Tarif des appels nationaux
Svizzera		Tariffa applicata alle chiamate nazionali
Slovenija	01 309 3701	Lokalni poziv	Ponedeljek - petek od 8.00 - 18.00
Slovensko	[phone]	lokálne číslo	7 dní v týždni 8:00-17:00
Srbija	0800 800 008	Besplatan poziv	Ponedeljak - petak od 9:00 - 17:00 Subota od 9:00 - 14:00
Suomi	0800 152 152https://serviceinfo.se/onsite/ikea	Local number	Mo-Fr: 09.00-16.00
Sverige	775700500https://serviceinfo.se/onsite/ikea	Lokalsamtal (lokal taxa)	mån-fre 8.30 - 20.00lör-sön 9.30 - 18.00
United Kingdom	0333 207 9710	National Number	Mon - Fri 8.00am - 6.00pmSat - Sun 9.00am - 5.00pmUK Public holidays 9.00am - 5.00pm
Österreich	01 26 76 004	Local number	Mo.-Fr. 8.00-17.00
