USER MANUAL D25302DH DEWALT

English (original instructions)

Line drawing of a hand holding a camera case with a labeled component (b), no text or symbols present.

Figure 5

Diagram showing a hand inserting a device into a device with labeled parts 'c' and 'd'

Figure 6

Illustration of hands operating a DFWX camera with a tool, no text or symbols present

Figure 7

Line drawing of a person using a machine tool, wearing safety gear (no text or symbols)

Figure 8

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and motion indicators (no text or symbols)

Figure 9

Technical diagram of a mechanical assembly with labeled parts i and h

Figure 10

Technical diagram of a mechanical component with labeled parts t and j, showing internal structure and cross-sectional views.

ST∅VOPSAMLINGSSYSTEM D25302DH

Tillykke!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

D25302DH
Contact pressure N	60
Max. stroke mm	150
Max. drill diameter mm	16

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

Safety Instructions

WARNING! Always observe safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before operating the attachment. Also refer to the manual of any power tool that will be used with this attachment.

SAVE THIS MANUAL FOR FUTURE REFERENCE

General Safety Rules

1. Keep work area clear.

Cluttered areas and benches invite injuries.

1. Keep children away.

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

1. Use appropriate tool.

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

WARNING: The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

Additional Specific Safety Rules for Dust Extraction Systems

• Do not use the attachment for drilling applications in wood, steel or plastic.
• Do not use the attachment in core drilling applications.
• Do not use the attachment for chiselling applications.
• Use only power tools recommended by DEWALT with this attachment. For more information about DEWALT power tools compatible with this attachment, please contact your local dealer, refer to the addresses at the back of the manual or visit www.dewalt.eu.
• Do not use the tool in damp or wet conditions.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

Residual Risks

The following risks are inherent to the use of the dust extraction system:

- injuries caused by touching the rotating parts or hot parts of the tool

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment of hearing.
• Risk of squeezing fingers when changing the accessory.
  – Health hazards caused by breathing dust developed when working in concrete and/or masonry.

Markings on Dust Extraction System

The following pictograms are shown on the tool:

Read instruction manual before use.

DATE CODE POSITION

The Date Code, which also includes year of manufacture, is printed into the housing surface that forms the mounting joint between tool and dust box.

Example:

2014 XX XX

Year of Manufacture

Package Contents

The package contains:

1 Dust extraction system:
1 Side handle
1 Dust extraction head/dust brush
1 Telescope with depth adjustment slide
1 Dust hose
1 Instruction manual
- Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

a. Extractor base
b. Base release button
c. Dust collector
d. Dust collector release button

e. Dust hose

f. Telescope
g. Depth adjustment button

h. Length adjustment button

i. Dust extraction head

j. Dust brush

k. Side handle

INTENDED USE

Your dust extraction system D25302DH has been designed for the extraction of dust in professional hammerdrilling in masonry or concrete, and with solid drill bits mounted to the power tool. DO NOT use for drilling plastic, wood or metal.

This dust extraction system will fit DEWALT 28V and 36V cordless SDS Plus ^® hammers. For more information about DEWALT power tools compatible with this attachment, please contact your local dealer, refer to the addresses at the back of the manual or visit www.dewalt.eu.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

The dust extraction system is an attachment for use with professional power tools.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN 60335; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organization.

ENGLISH

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Attaching and Removing the Dust Extraction System

WARNING: To reduce the risk of personal injury, ALWAYS operate the tool with the side handle properly installed and securely tightened. Failure to do so may result in the side handle slipping during tool operation and subsequent loss of control.

TO ATTACH THE DUST EXTRACTION SYSTEM (FIG. 1-4, 6)

1. Remove the drill bit, side handle and the depth adjustment rod, if attached to the tool.
2. Attach supplied side handle (k), align telescope end (m) with the side handle opening (n). Push the telescope in until the spring-loaded button (o) locks the telescope into place.
3. Align the ribs (p) of the extractor base with the grooves (q) on the sides of the tool and slide the tool onto the extractor base until it locks into place. The slots (s) in the base of the tool will align with the electrical connectors (r) in the extractor base.

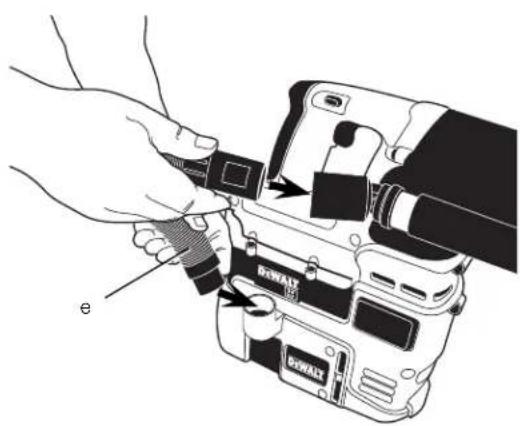

4. Insert the dust hose (e) into the telescope and the extractor base as shown in figure 6.

TO REMOVE THE SYSTEM

To remove the dust extraction system, press the two extractor base release buttons (b) and pull the dust extraction system off.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: Always read and operate the tool as instructed in the tool instruction manual.

Switching On and Off

The extraction system automatically starts when the tool is turned on.

ELECTRONIC SWITCH-OFF DELAY

After turning the tool off, the extraction system will run for a few seconds longer to vacuum the remaining dust particles in the internal parts and collect the dust in the dust collector.

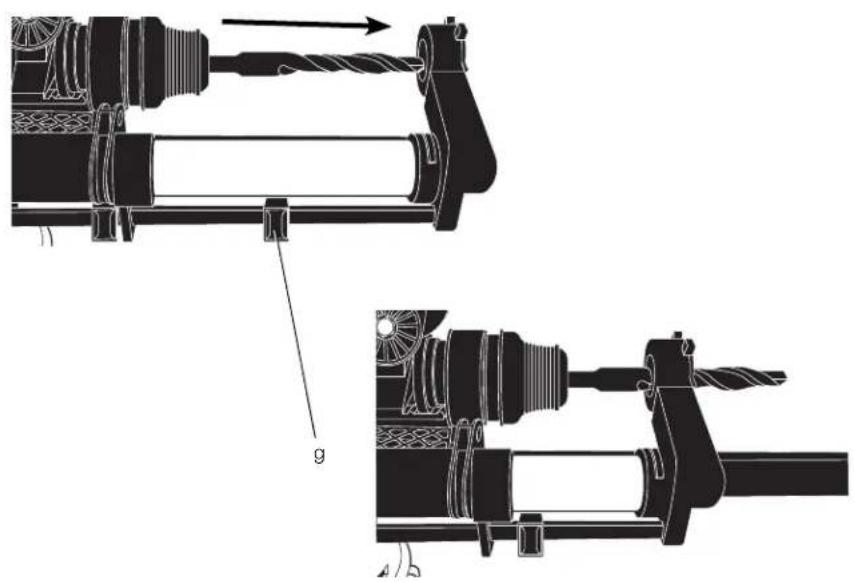

Setting the Drilling Depth (fi g. 8)

Press the depth adjustment button (g) on top of the front slider and move it to the desired drilling depth. Release the button.

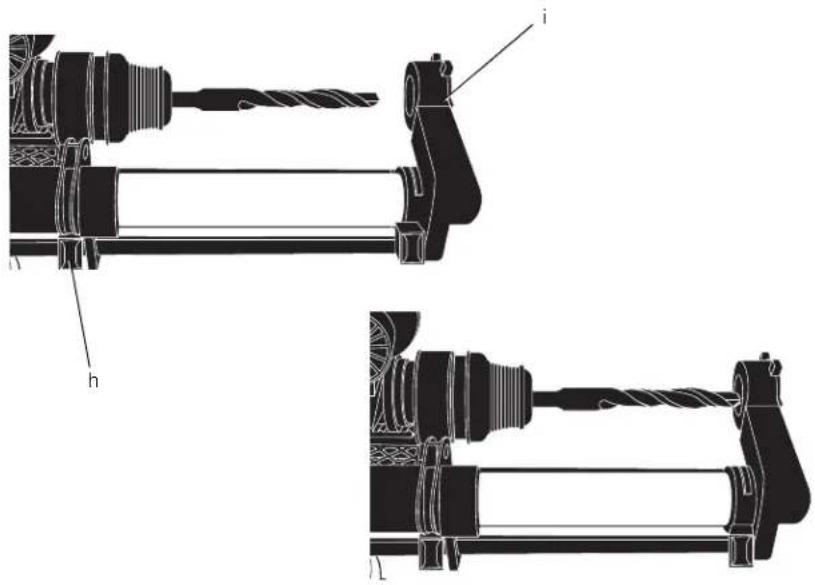

Adjusting the Drill Length (fi g. 7, 9)

1. Insert the appropriate drill bit.

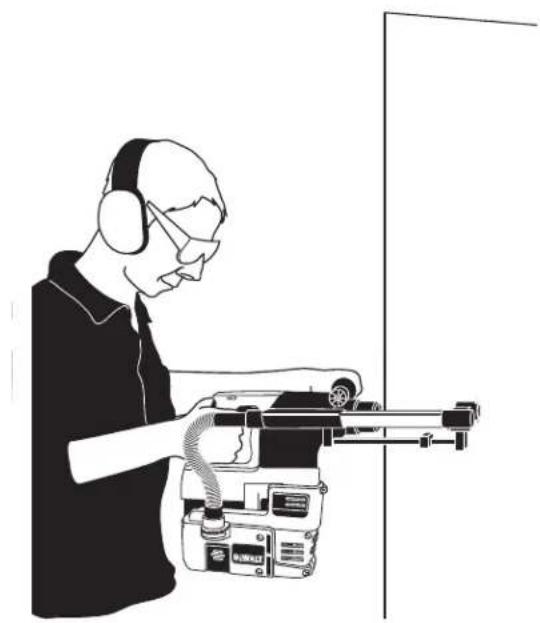

2. Hold the dust extraction head (i) against a wall (fig. 7).
3. Push the tool to make the drill bit touch the surface (fig. 7).
4. Press the length adjustment button (h) on top of the back slider and move it to the desired length. Release the button.
5. Gently withdraw the tool assembly from the wall, taking care that the spring-loaded mechanism does not release.

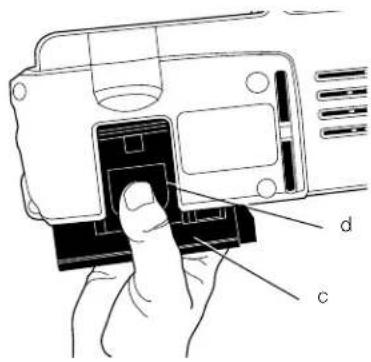

Emptying the Dust Collector (fi g. 5).

The dust collector (c) should be emptied as soon as the performance has noticeably decreased.

1. Press the two dust collector release buttons (d) and remove the dust collector.
2. Gently shake the dust collector to remove the dust.
3. Slide the dust collector back in place until it locks.

MAINTENANCE

Your DEWALT dust extraction system has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.

IG: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Use only DEWALT replacement parts.

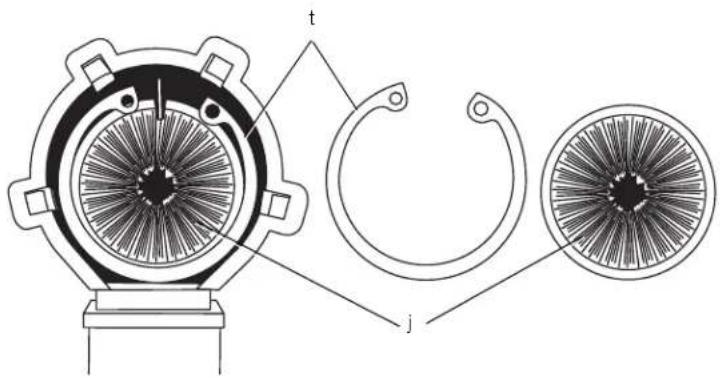

Replacing the Dust Brush (fi g. 10)

VG: Wear approved eye protection and approved dust mask when performing this procedure.

The dust brush will wear during use and will need to be replaced.

1. Remove the circlip (t) using a pair of circlip pliers.
2. Replace the dust brush (j).
3. Refit the circlip.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

VG: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Cleaning the Dust Collector

VG: Do not use a brush to clean the dust collector or filter.

During intensive use the dust collector becomes clogged with dust. Refer to Emptying the Dust Collector under Operation.

When the filter in the dust collector is worn take the extraction system to an authorised DEWALT repair agent to replace it.

IMPORTANT: The dust collector should be replaced after every 100–120 cycles of use.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could

be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

GUARANTEE

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;
- The product has been subject to fair wear and tear;
• Repairs have not been attempted by unauthorised persons;
• Proof of purchase is produced;
- The product is returned complete with all original components.

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at:

www.2helpU.com.
