USER MANUAL WS 13-125 SXEK AEG

Close-up of an AEG angle grinder with orange and black components (no visible text or symbols)

Close-up of a mechanical grinding tool with orange and black components (no visible text or symbols)

Close-up of a robotic arm with a metallic gear and mechanical component (no visible text or symbols)

Close-up of a mechanical component with orange and gray parts, no visible text or symbols

Exploded view of a mechanical assembly showing internal components and a close-up of a gear mechanism (no text or symbols visible)

V START STOP

Close-up of a black robotic arm with an orange accent, accompanied by a small atomic symbol icon (no text or labels)

VII TIP

Illustration of a wrench, gear, and washer components (no text or symbols)

Accessory Zubehör Accessoires Accessorio

Accessorio • Acessório Toebehoren • Tilbehør Tilbehør • Tillbehør Lisälaite • Εξαρτήματα Aksesuar • Pīnslušenstvn Prīslušenstv • Wyposażenie Azokat a tartozékokat Oprema • Piederumi Priedas • Tarvikud Дополнитель • Аксесоари Accesorii • ополнителна опрема • Комплектуючі الملحق

IX Technische Daten . Technical Dat ractéristiques techniques . Da technici . Datos técnic knik veril Características data . Technic Tekni Techni Tekni dанныe . Technischen Technik veril Technick podat podaci indmed чески annin evens

Close-up of a mechanical power tool with orange and black components (no visible text or symbols)

Close-up of a mechanical power tool with orange and black components, showing a disassembly or disassembly process (no text or symbols visible)

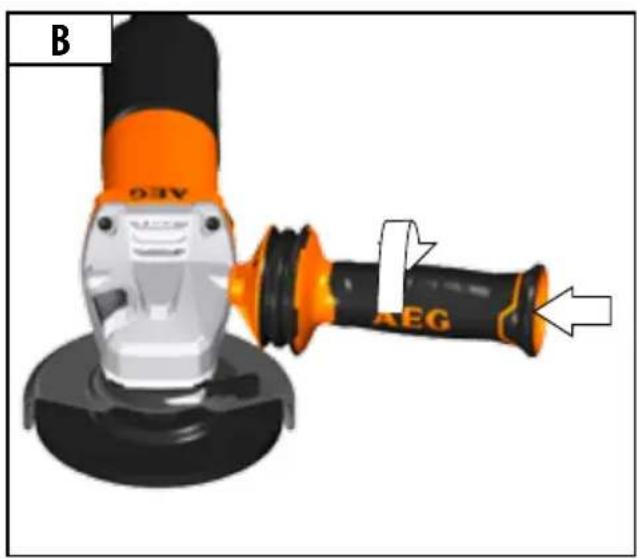

B 25V AEG

Close-up of a robotic arm joint with metallic components (no visible text or symbols)

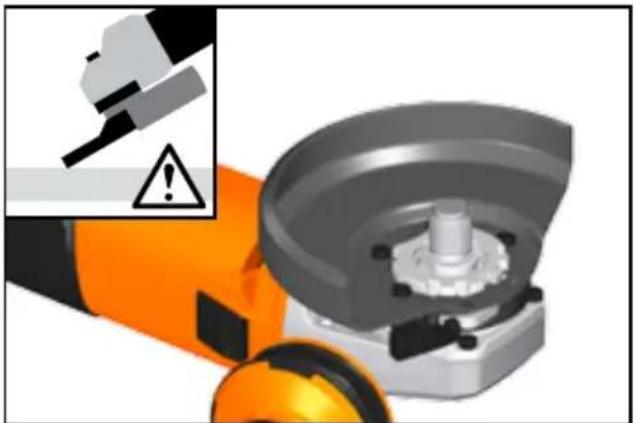

Close-up of a mechanical grinding machine with a warning symbol and a warning icon (no text or labels)

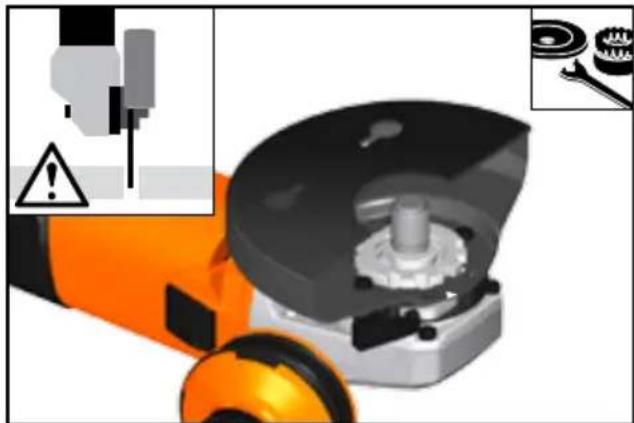

Illustration of a mechanical grinding machine with warning symbols and gear assembly (no text or labels)

3D mechanical assembly diagram showing a robotic arm and a gear mechanism with an inset close-up (no text or symbols)

Close-up of a mechanical component with orange and gray parts, no visible text or symbols

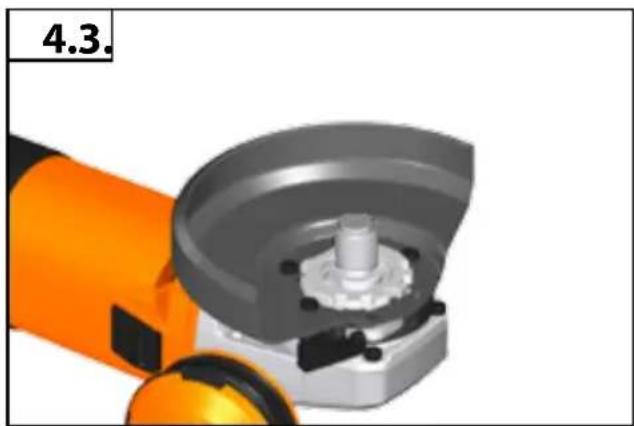

Mechanical assembly diagram showing a rotating component with labeled parts and directional arrows (no text or symbols)

Close-up of a mechanical grinding tool with orange and gray components (no visible text or symbols)

Close-up of a mechanical component with orange and white surfaces, no visible text or symbols

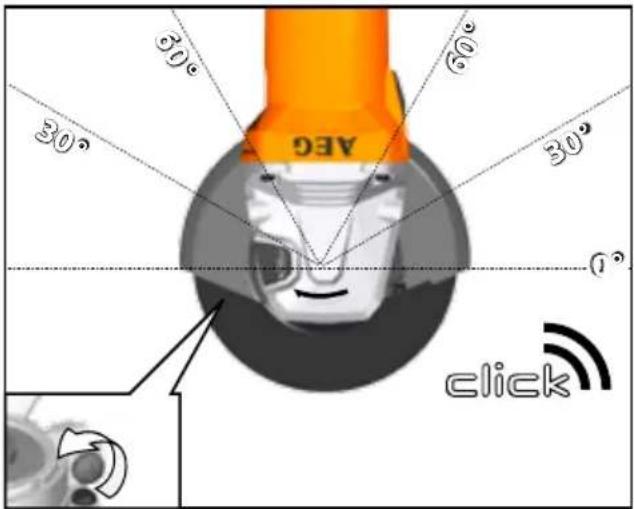

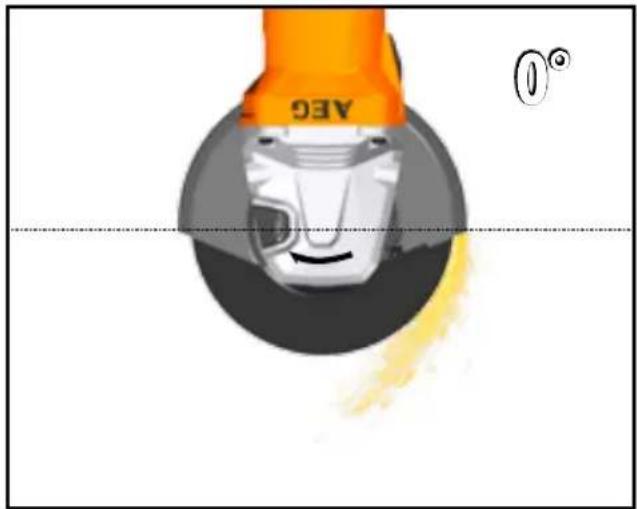

30° 30° 30° 30° 30° 0° AEC click

Diagram of a mechanical component with an orange tip labeled 'AEC' and a yellow arc indicating force or motion, no readable text or symbols present.

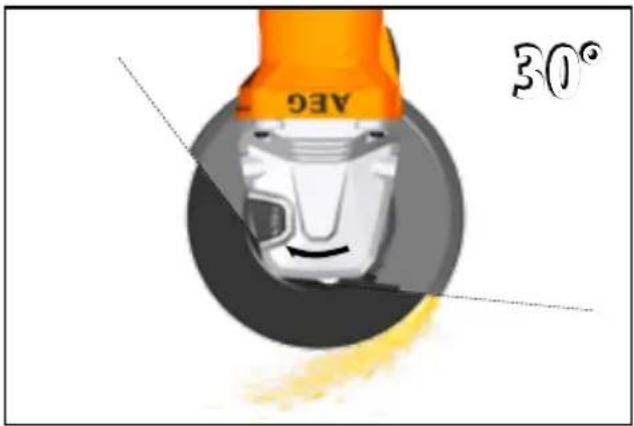

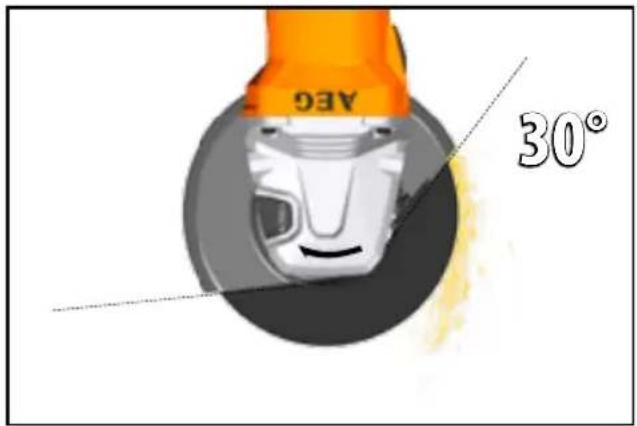

AEC 30°

AEC 30°

Close-up illustration of a mechanical component with orange and gray parts, showing a circular head and a 60° angle indicator (no text or symbols on the diagram itself)

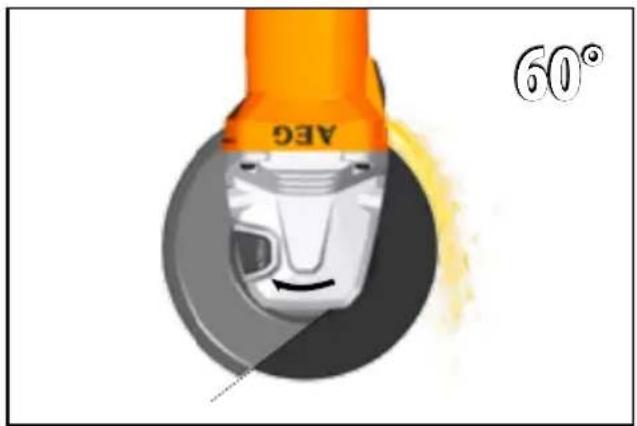

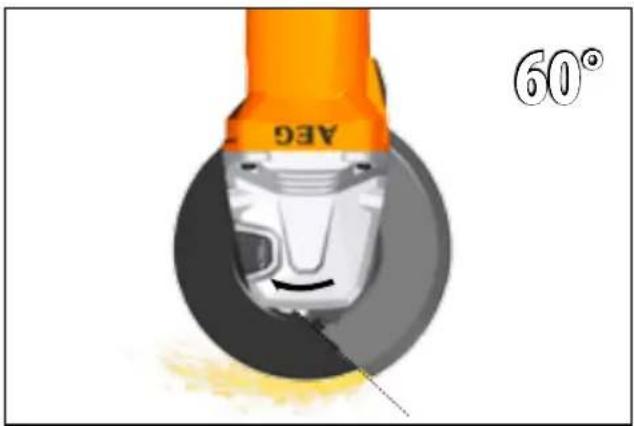

Close-up illustration of a mechanical component with a 60° angle indicator (no text or symbols on the diagram itself)

Close-up of mechanical components including a gear and shaft assembly (no visible text or symbols)

1.

Close-up of a mechanical device with a highlighted component and arrow indicating assembly (no text or symbols)

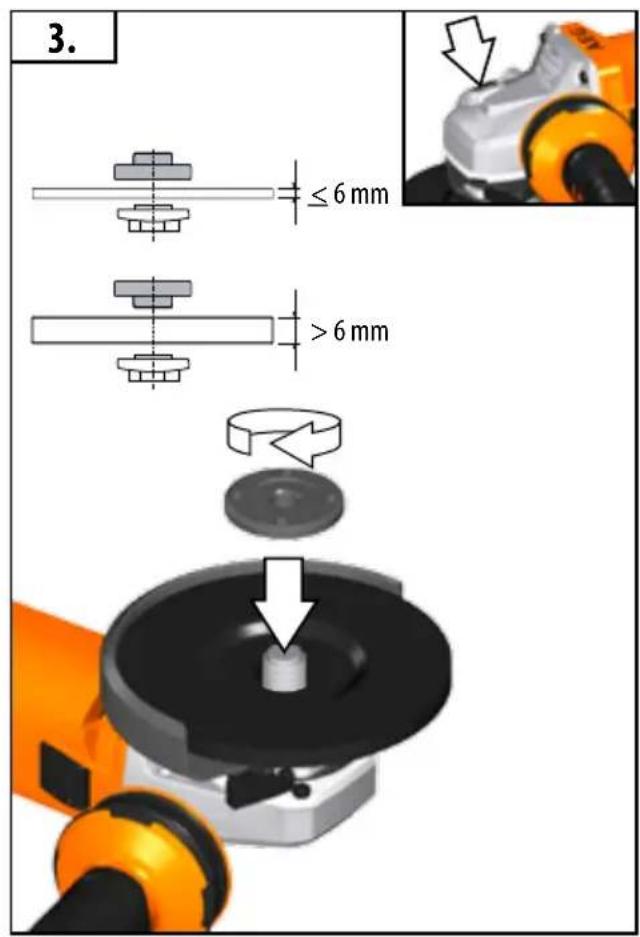

3. ≤ 6 mm > 6 mm

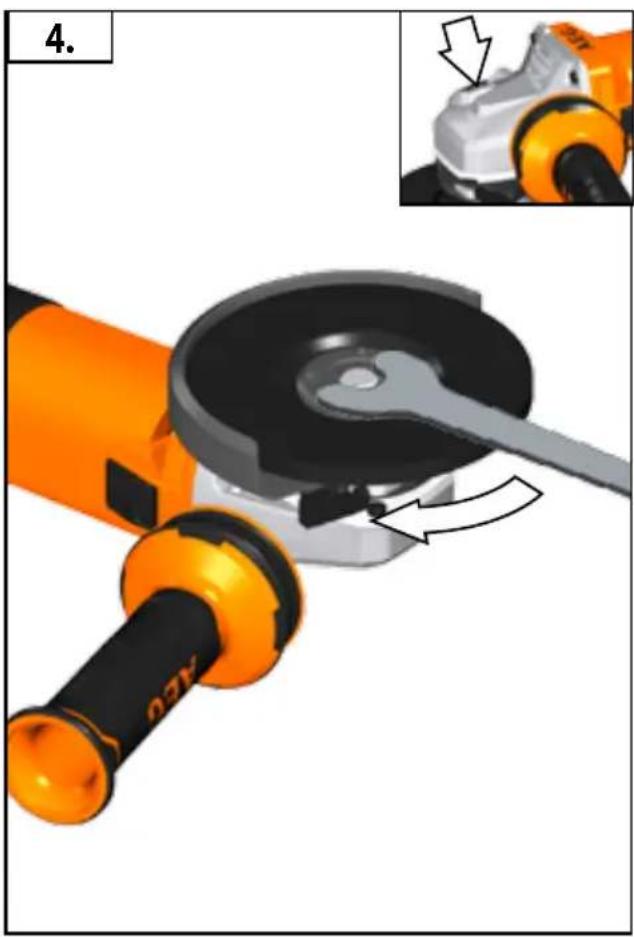

4.

Close-up of mechanical components including a yellow-handled tool and a disassembled gear assembly (no text or symbols visible)

1.

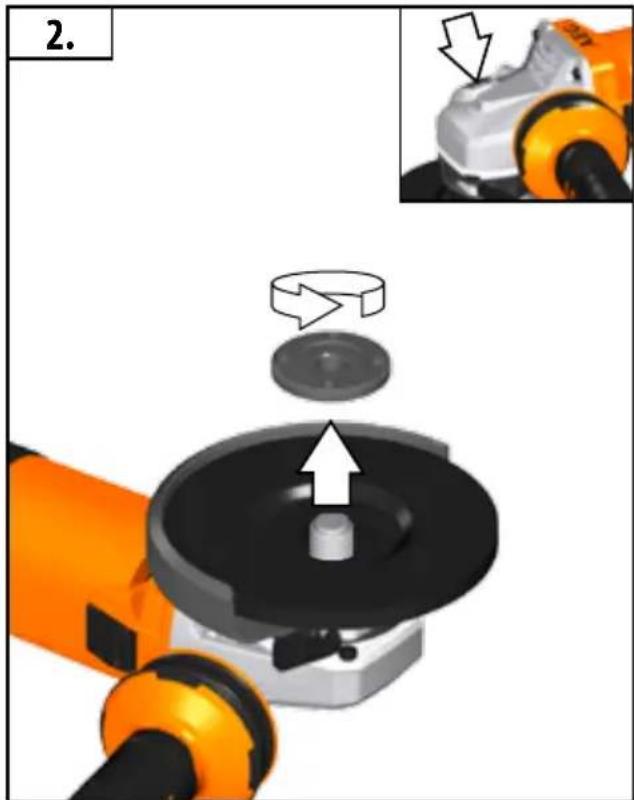

2.

Close-up of a robotic arm holding a mechanical component with a circular dial and a white arrow indicating the process (no text or symbols present)

Close-up of mechanical components including a rotary knob, gear assembly, and wrench (no text or symbols visible)

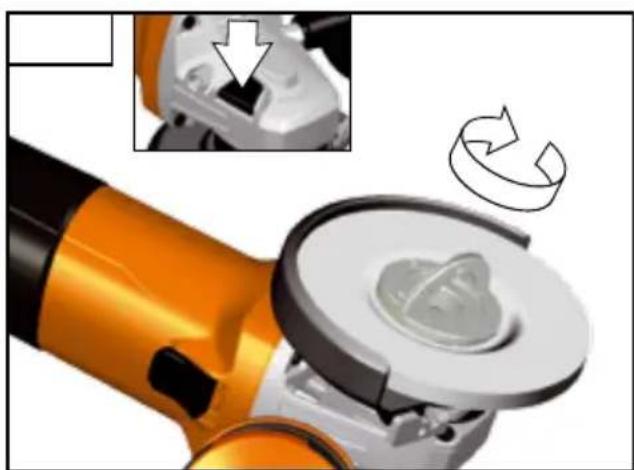

WS ...-... X...

3D illustration of a robotic arm with a lid and internal components, showing mechanical assembly (no text or symbols)

Close-up of a robotic arm with a circular component and mechanical assembly, showing a rotating mechanism (no text or symbols visible)

Close-up of a robotic arm with a circular dial and directional arrow indicator (no text or symbols)

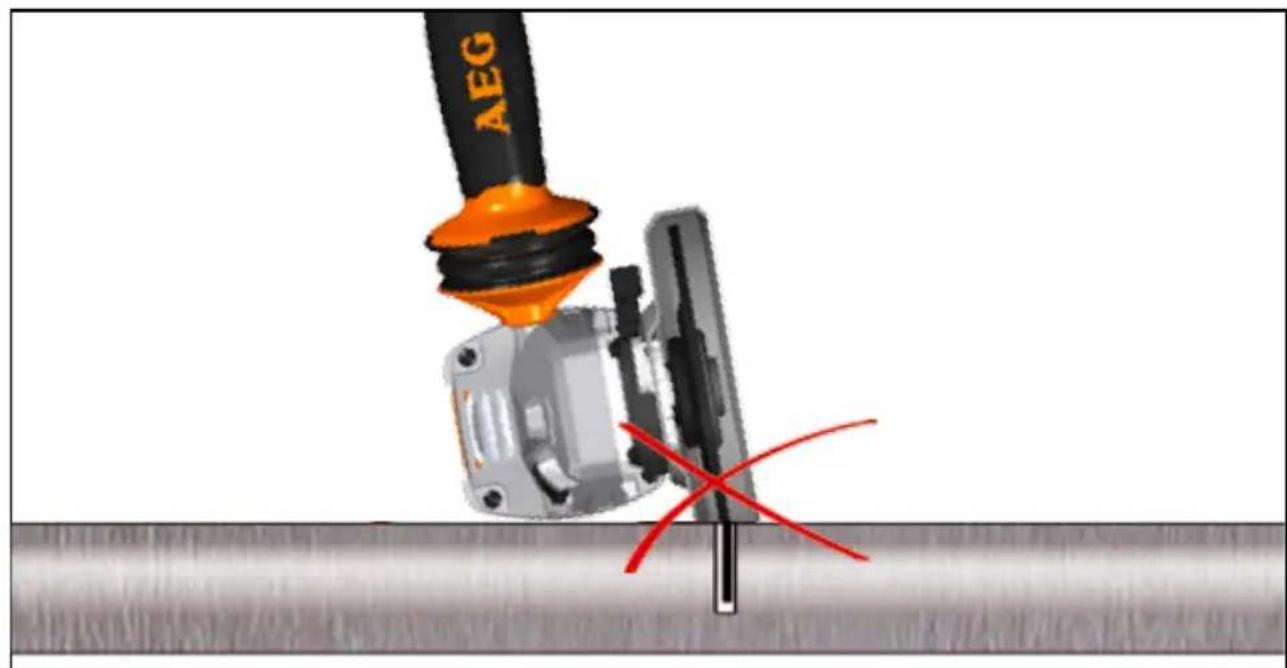

Close-up of a robotic arm with a red X mark indicating crossed-out or no-crossing mechanism (no text or symbols present)

Close-up of a robotic arm with a circular component and mechanical components, showing a close-up view of the internal mechanism (no text or symbols visible)

3D illustration of a robotic arm with internal components and a white arrow pointing to a component (no text or symbols)

START STOP

< START STOP

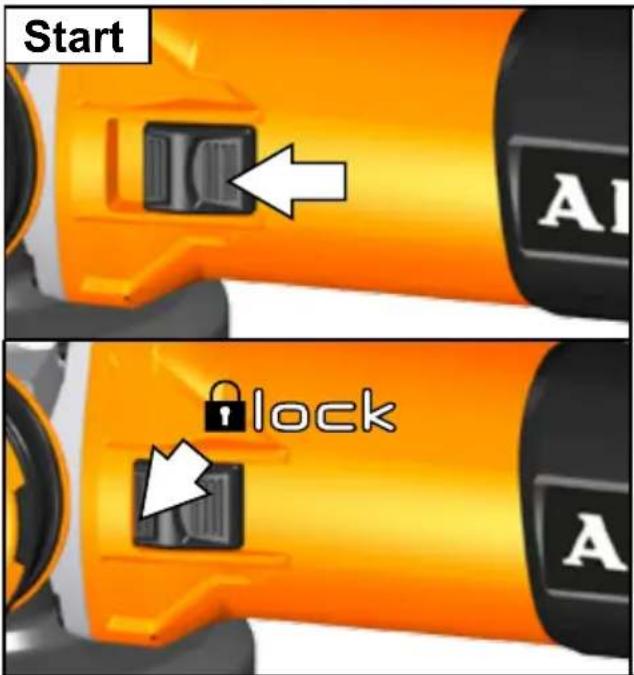

Start lock

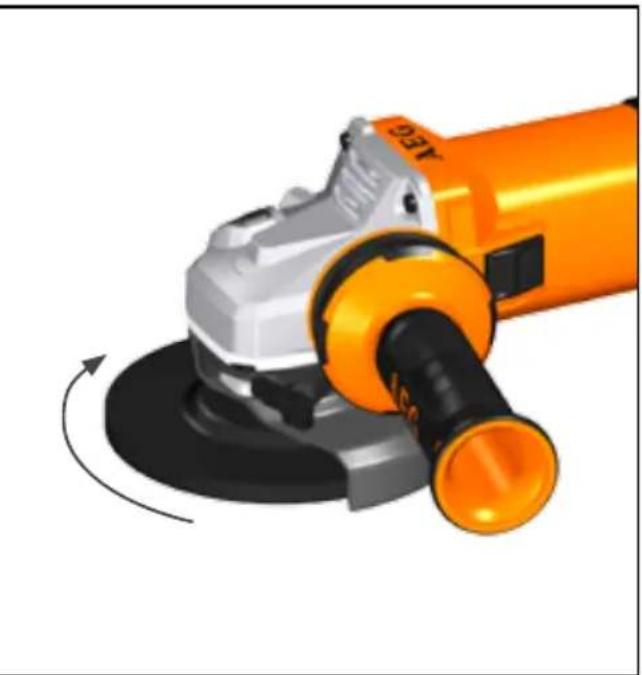

Close-up of a yellow and gray electric grinder with a black handle, showing mechanical components and a curved arrow indicating rotation (no text or symbols)

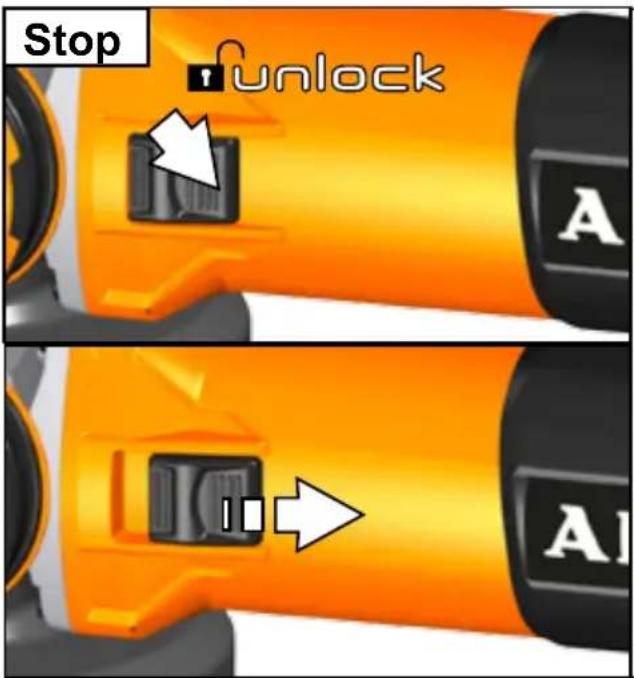

Stop unlock A AI

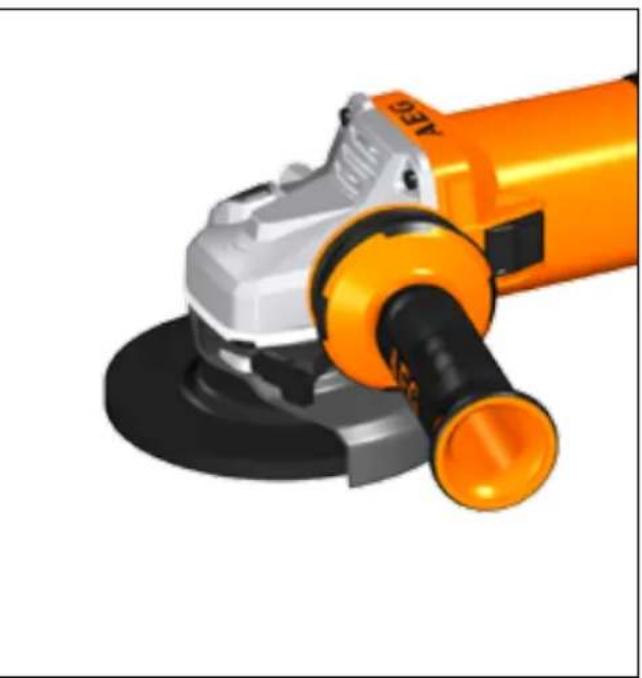

Close-up of a yellow and silver electric grinder with a black handle (no visible text or symbols)

Startup protection:

When switched on, the machine will not start up after voltage breakdown. To continue working, switch the machine off and then on again.

Wiederanlaufschutz:

Close-up of a black electronic device with an orange button and an atomic symbol icon (no text or labels)

WS ...-... E...

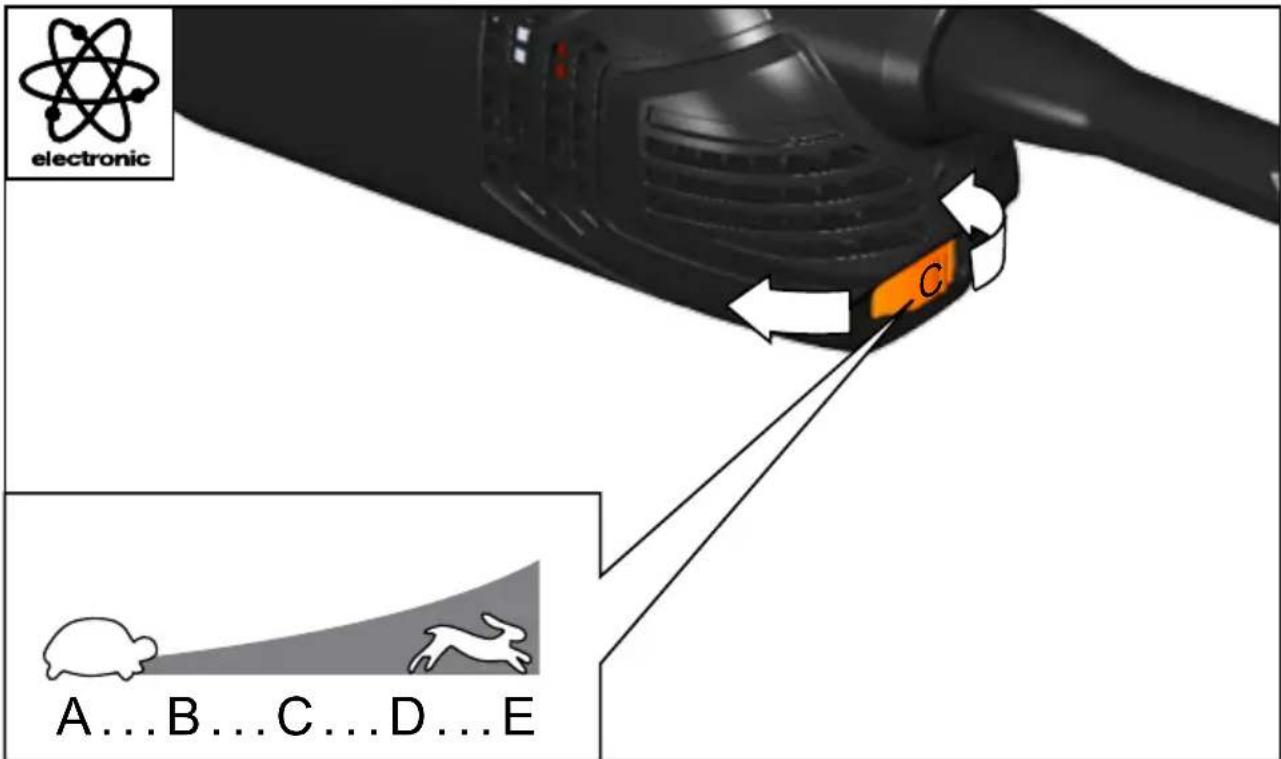

electronic A...B...C...D...E

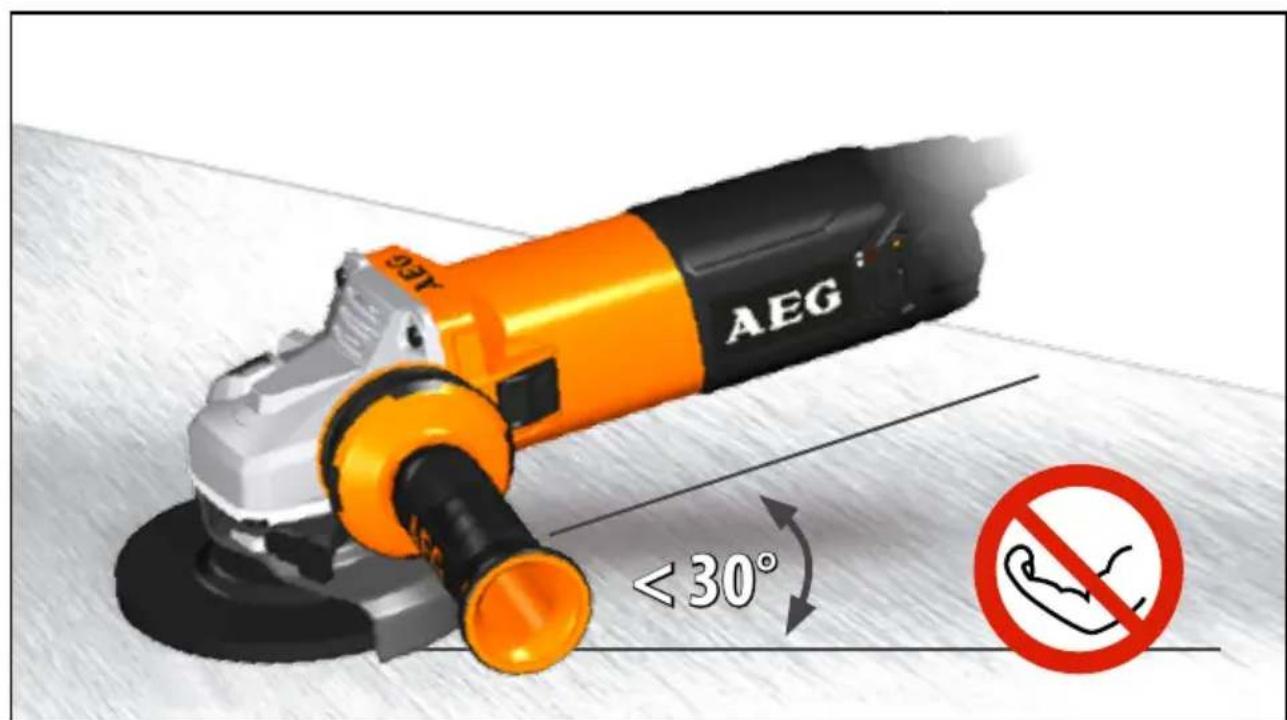

AEG 125 < 30° No Sign

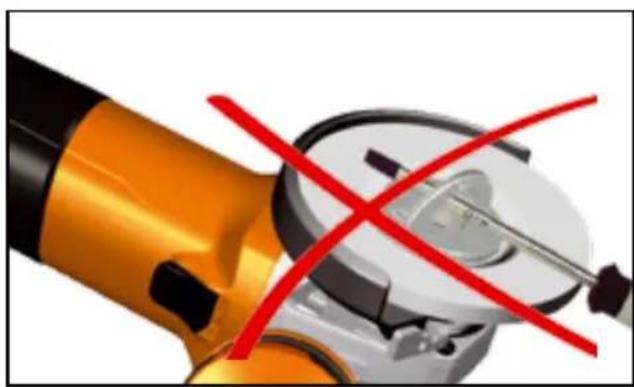

Mechanical assembly diagram showing a AEG tool interacting with a mechanical component, with a red X mark indicating a specific part (no text or symbols present)

Illustration of a wrench, a washer, and a gear-like component (no text or symbols)

Accessory

Zubehör

Accessoires

Accessorio

Accessorio

Acessório

Toebehoren

Tilbehør

Tilbehør

Tillbehör

Lisälaite

Εξαρτήματα

Aksesuar

Příslušenství

Príslušenstv

Wyposażenie

Tartozékokat

Oprema

Piederumi

Prieda

Tarvikud

Aksessuaarid

Дополнитель

Аксесоари

Accesoriu

Додатоци

Комплектуючі

الملحق

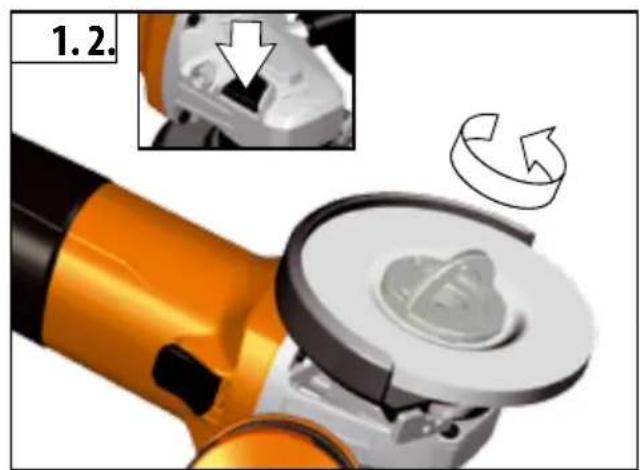

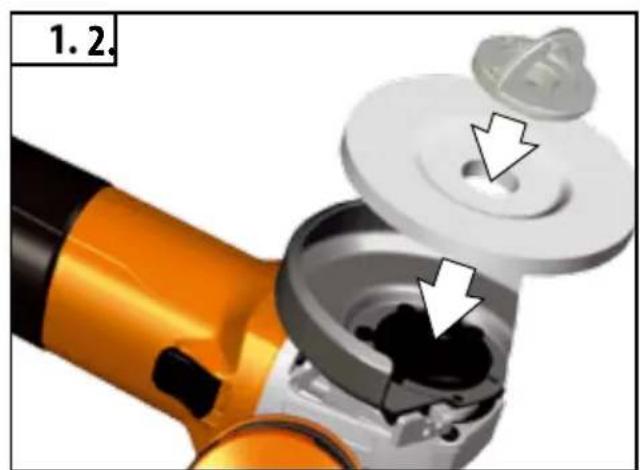

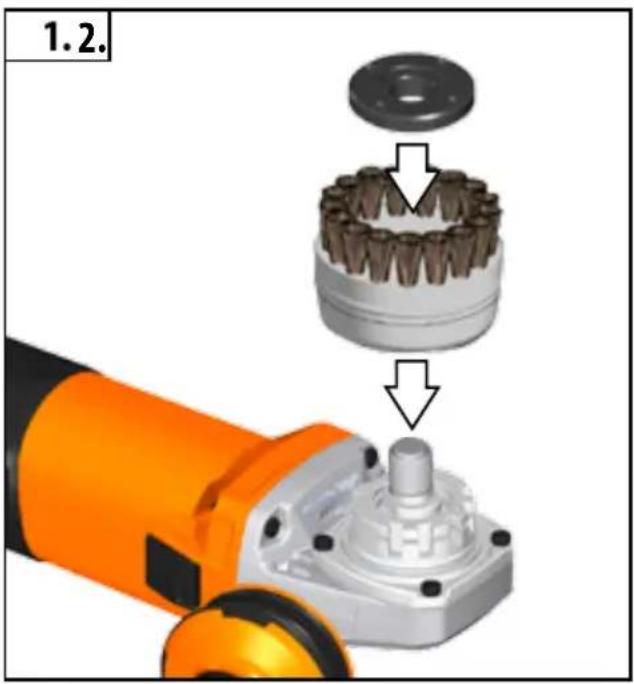

1.2.

Mechanical assembly diagram showing a robotic arm with gear and a close-up of the component being cut (no text or symbols present)

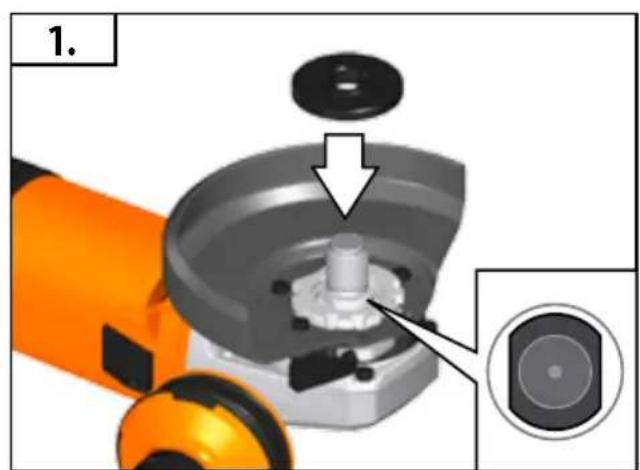

1.

2.

Illustration of a wrench, a washer, and a gear-like component (no text or symbols)

Accessory

Zubehör

Accessoires

Accessorio

Accessorio

Acessório

Toebehoren

Tilbehør

Tilbehør

Tillbehör

Lisälaite

Εξαρτήματα

Aksesuar

Příslušenství

Príslušenstv

Wyposażenie

Tartozékokat

Oprema

Piederumi

Prieda

Tarvikud

Aksessuaarid

Дополнитель

Аксесоари

Accesoriu

Додатоци

Комплектуючі

الملحق

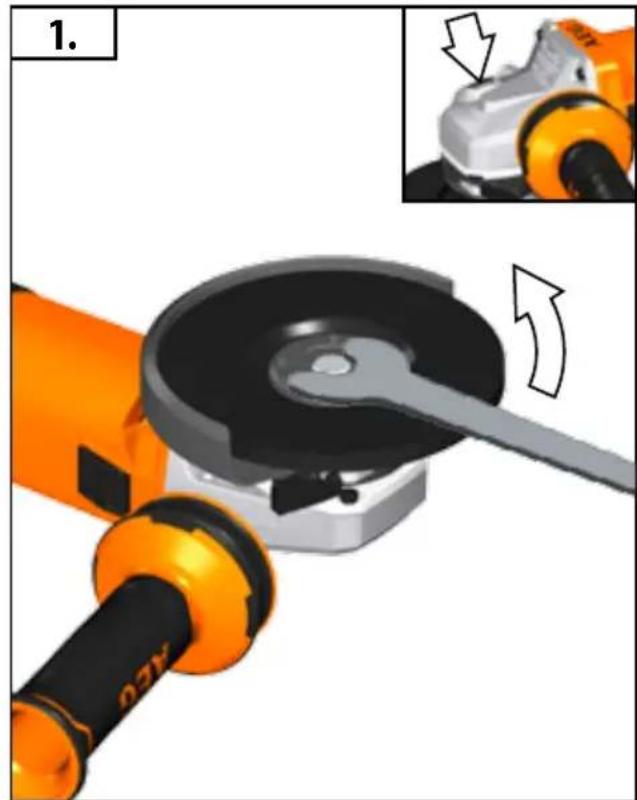

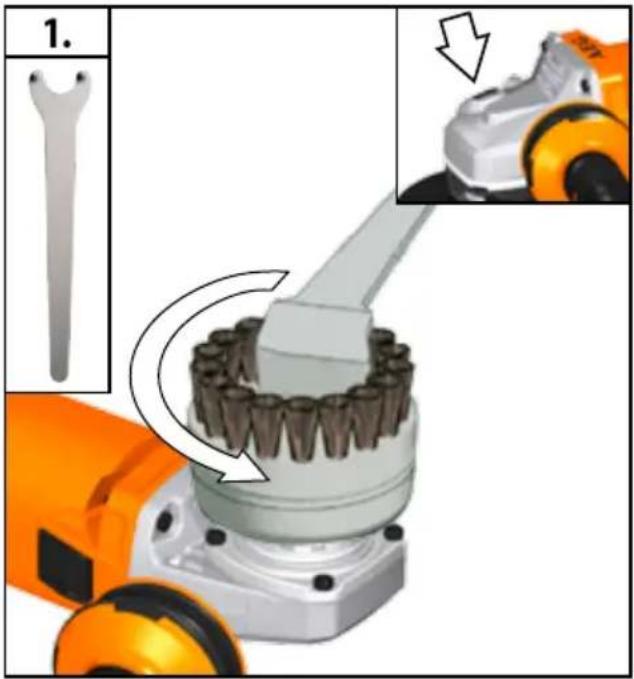

1.

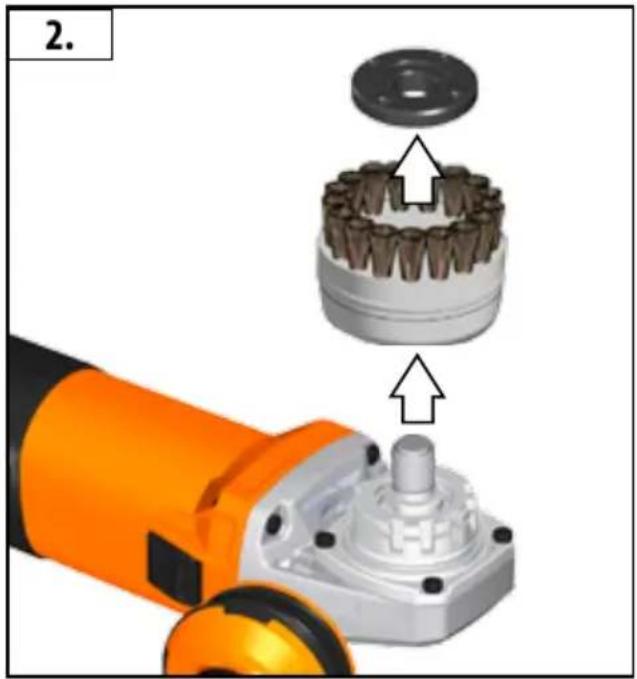

2.

Close-up of a mechanical component with orange and gray parts, no visible text or symbols

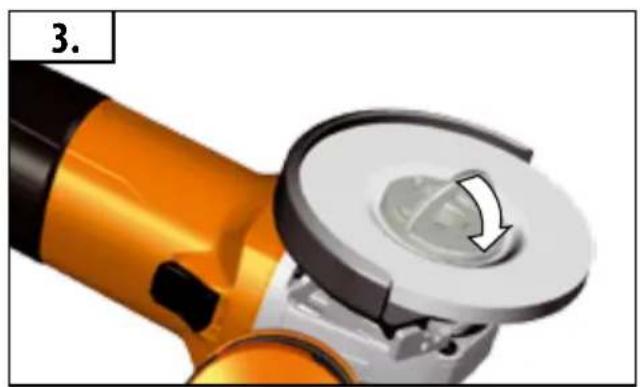

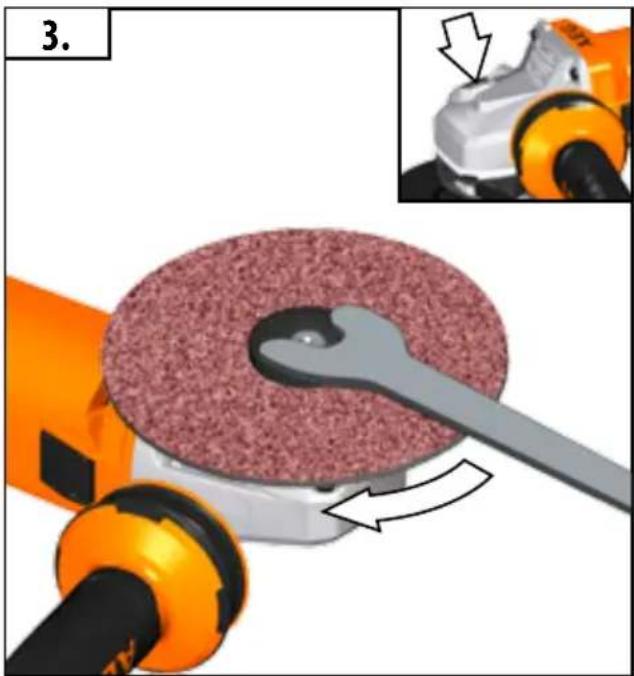

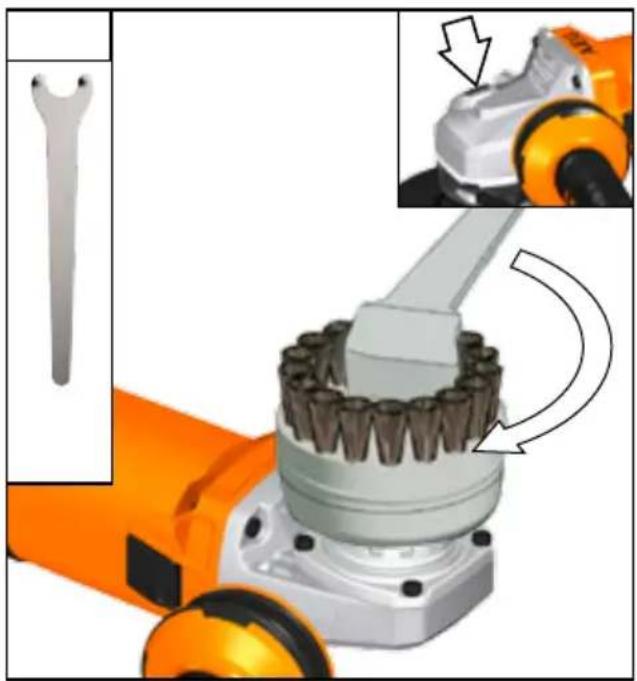

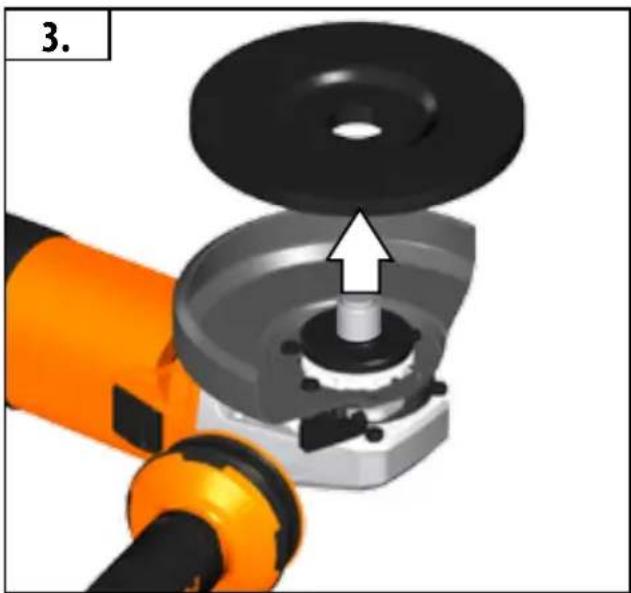

3.

Close-up of a mechanical component with an arrow pointing to a specific part (no visible text or symbols)

Illustration of a wrench, a washer, and a gear-like component (no text or symbols)

Accessory

Zubehör

Accessoires

Accessorio

Accessorio

Acessório

Toebehoren

Tilbehør

Tilbehør

Tillbehör

Lisälaite

Εξαρτήματα

Aksesuar

Příslušenství

Príslušenstv

Wyposażenie

Tartozékokat

Oprema

Piederumi

Prieda

Tarvikud

Aksessuaarid

Дополнитель

Аксесоари

Accesoriu

Додатоци

Комплектуючі

الملحق

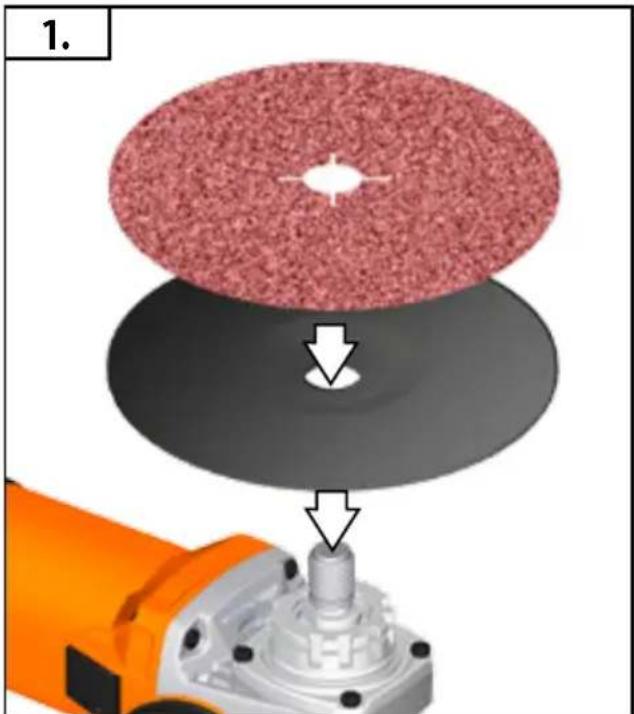

1.

Close-up of a mechanical component with a white and orange body, no visible text or symbols

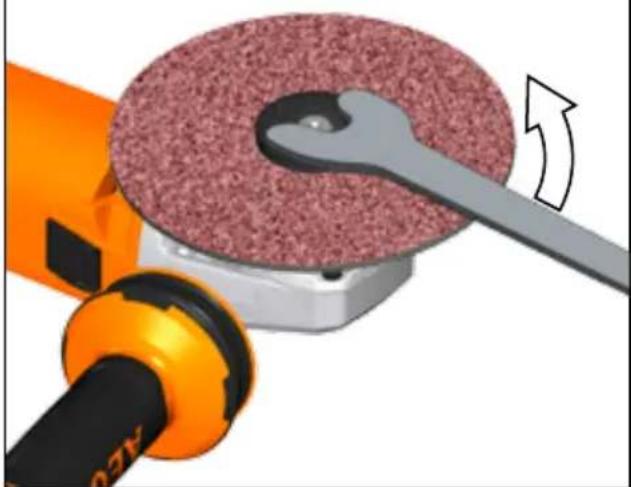

Illustration of a robotic grinding tool interacting with a circular sample on a workbench, showing a wrench and motion arrow (no text or symbols)

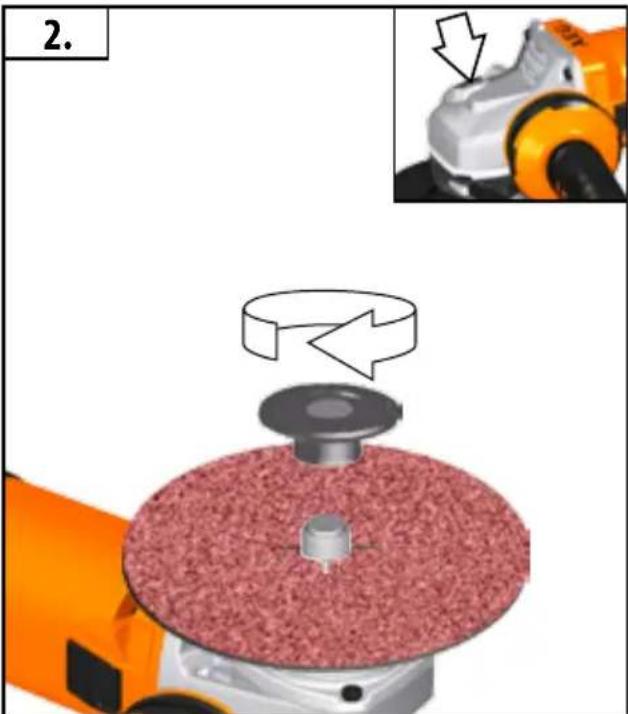

2.

Close-up of a mechanical component with an arrow pointing to a specific part (no visible text or symbols)

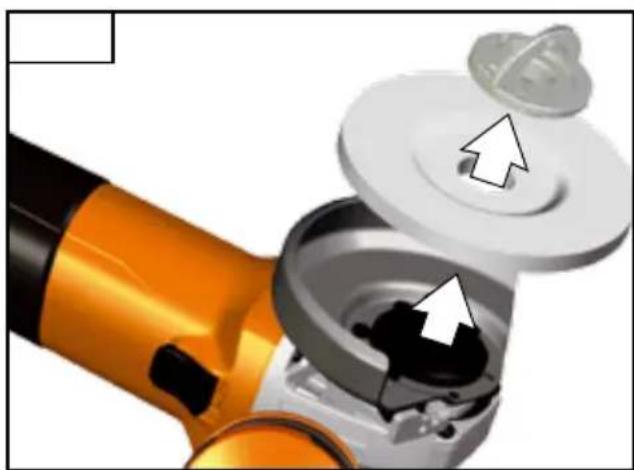

3D illustration of a mechanical press or grinding machine with a red granular material on top and a black circular component, no text or symbols present.

Mechanical assembly diagram showing a presser pressing a component with a textured circular part and directional arrows indicating motion (no text or symbols)

TECHNICAL DATAAngle Grinder	WS 10-115 S WS 10-115 SK WS 10-125 S WS 10-125 SK
Production code	4561 04 01... ... 000001-999999	4601 57 01... ... 000001-999999	4561 16 01... ... 000001-999999	4561 22 01... ... 000001-999999
Rated input 1000 W 1000 W 1000 W 1000 W
Rated speed 11500 min	-1	11500 min-1	11500 min-1	11500 min-1
D= Grinding disk diameter max. d= Grinding disk hole diameter b= Cutting disk thickness min. / max. b= Grinding disk thickness max. 6 mm 6 mm 6 mm 6 mm	115 mm 22,2 mm 1/3 mm 1/3 mm 1/3 mm	115 mm 22,2 mm 1/3 mm	125 mm 22,2 mm	125 mm 22,2 mm
D= Grinding surface diameter max. 115 mm 115 mm 125 mm 125 mm
D= Wiring brush diameter max. 75 mm 75 mm 75 mm 75 mm
Thread of work spindle	M 14	M 14	M 14	M 14
Weight according EPTA-Procedure 01/2003	2,3 kg	2,3 kg	2,3 kg	2,3 kg
Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A)) Sound power level (Uncertainty K=3dB(A)) Wear ear protectors!	87,1 dB (A) 98,1 dB (A)	87,1 dB (A) 98,1 dB (A)	87,1 dB (A) 98,1 dB (A)	87,1 dB (A) 98,1 dB (A)
Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Surface grinding:Vibration emission value a_h,SG Uncertainty K= Disk sanding:Vibration emission value a_h,DS Uncertainty K=	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2

TECHNICAL DATAAngle Grinder	WS 10-115 S WS 10-115 SK WS 10-125 S WS 10-125 SK
Production code	4561 04 01... ... 000001-999999	4601 57 01... ... 000001-999999	4561 16 01... ... 000001-999999	4561 22 01... ... 000001-999999
Rated input 1000 W 1000 W 1000 W 1000 W
Rated speed 11500 min	-1	11500 min-1	11500 min-1	11500 min-1
D= Grinding disk diameter max. d= Grinding disk hole diameter b= Cutting disk thickness min. / max. b= Grinding disk thickness max. 6 mm 6 mm 6 mm 6 mm	115 mm 22,2 mm 1/3 mm 1/3 mm 1/3 mm	115 mm 22,2 mm 1/3 mm	125 mm 22,2 mm	125 mm 22,2 mm
D= Grinding surface diameter max. 115 mm 115 mm 125 mm 125 mm
D= Wiring brush diameter max. 75 mm 75 mm 75 mm 75 mm
Thread of work spindle	M 14	M 14	M 14	M 14
Weight according EPTA-Procedure 01/2003	2,3 kg	2,3 kg	2,3 kg	2,3 kg
Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A)) Sound power level (Uncertainty K=3dB(A)) Wear ear protectors!	87,1 dB (A) 98,1 dB (A)	87,1 dB (A) 98,1 dB (A)	87,1 dB (A) 98,1 dB (A)	87,1 dB (A) 98,1 dB (A)
Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Surface grinding:Vibration emission value a_h,SG Uncertainty K= Disk sanding:Vibration emission value a_h,DS Uncertainty K=	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2	6,2 m/s21,5 m/s26,0 m/s21,5 m/s2

TECHNICAL DATAAngle Grinder	WS 12-125 S WS 12-125 SK WS 13-125 SXE WS 13-125 SXEK
Production code	4561 40 01... ... 000001-999999	4561 46 01... ... 000001-999999	4561 58 01... ... 000001-999999	4561 64 01... ... 000001-999999
Rated input 1200 W 1200 W 1300 W 1300 W
Rated speed 11500 min	-1	11500 min -1	2800 - 11500 min -1	2800 - 11500 min -1
D= Grinding disk diameter max. d= Grinding disk hole diameter b= Cutting disk thickness min. / max. b= Grinding disk thickness max. 6 mm 6 mm 6 mm 6 mm	125 mm 22,2 mm 1/3 mm 1/3 mm 1/3 mm	125 mm 22,2 mm 1/3 mm	125 mm 22,2 mm	125 mm 22,2 mm
D= Grinding surface diameter max. 125 mm 125 mm 125 mm 125 mm	mm 125 mm 125 mm
D= Wiring brush diameter max. 75 mm 75 mm 75 mm 75 mm	mm 75 mm
Thread of work spindle	M 14	M 14	M 14	M 14
Weight according EPTA-Procedure 01/2003	2,4 kg	2,4 kg	2,4 kg	2,4 kg

TECHNICAL DATAAngle Grinder	WS 12-125 S WS 12-125 SK WS 13-125 SXE WS 13-125 SXEK
Production code	4561 40 01... ... 000001-999999	4561 46 01... ... 000001-999999	4561 58 01... ... 000001-999999	4561 64 01... ... 000001-999999
Rated input 1200 W 1200 W 1300 W 1300 W
Rated speed 11500 min	-1	11500 min -1	2800 - 11500 min -1	2800 - 11500 min -1
D= Grinding disk diameter max. d= Grinding disk hole diameter b= Cutting disk thickness min. / max. b= Grinding disk thickness max. 6 mm 6 mm 6 mm 6 mm	125 mm 22,2 mm 1/3 mm 1/3 mm 1/3 mm	125 mm 22,2 mm 1/3 mm	125 mm 22,2 mm	125 mm 22,2 mm
D= Grinding surface diameter max. 125 mm 125 mm 125 mm 125 mm	mm 125 mm 125 mm
D= Wiring brush diameter max. 75 mm 75 mm 75 mm 75 mm	mm 75 mm
Thread of work spindle	M 14	M 14	M 14	M 14
Weight according EPTA-Procedure 01/2003	2,4 kg	2,4 kg	2,4 kg	2,4 kg

TECHNICAL DATAAngle Grinder	WS 12-125 S WS	12-125 SK WS 13-	125 SXE WS 13-125 SXEK
Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A)) 89,3 dB (A) 89Sound power level (Uncertainty K=3dB(A)) Wear ear protectors!	3 dB (A) 90,1 dB (A)100,3 dB (A)	90,1 dB (A)100,3 dB (A)	101,1 dB (A)	101,1 dB (A)
Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Surface grinding:Vibration emission value a_h,SG Uncertainty K= Disk sanding:Vibration emission value a_h,DS Uncertainty K=	5,8 m/s^2 1,5 m/s^2	5,8 m/s^2 1,5 m/s^2	8,0 m/s^2 1,5 m/s^2	8,0 m/s^2 1,5 m/s^2
	5,5 m/s^2 1,5 m/s^2	5,5 m/s^2 1,5 m/s^2	7,5 m/s^2 1,5 m/s^2	7,5 m/s^2 1,5 m/s^2

For other applications, e.g. Abrasive Cutting-Off Operations or Wire Brushing other vibration values could occur.

WARNING!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

ANGLE GRINDER SAFETY WARNINGS

Safety Warnings Common for Grinding, Sanding, Wire Brushing or Abrasive Cutting-Off Operations:

a) This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

b) Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

English

j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel.
I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations:

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings Specific for Abrasive Cutting-Off Operations:

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings Specific for Sanding Operations:

a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Safety Warnings Specific for Wire Brushing Operations:

a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b) If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional Safety and Working Instructions

When grinding metal, flying sparks are produced. Take care that no persons are endangered. Because of the danger of fire, no combustible materials should be located in the vicinity (spark flight zone). Do not use dust extraction.

Avoid flying sparks and sanding dust hit your body.

Never reach into the danger area of the machine when it is running.

Immediately switch off the machine in case of considerable vibrations or if other malfunctions occur. Check the machine in order to find out the cause.

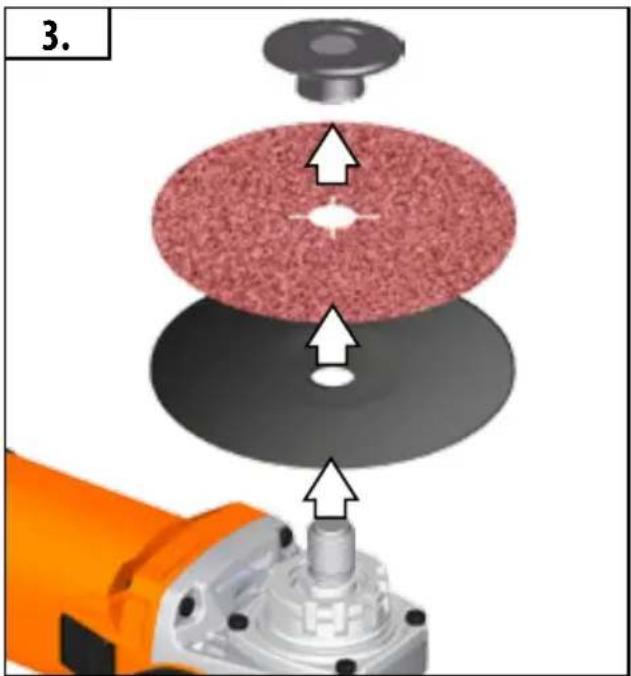

Under extreme conditions (e.g. smooth-grinding metals with the arbour and vulcanized fibre grinding disk), significant contamination can build up on the inside of the angle grinder. For safety reasons, in such conditions a ground fault interrupter must be connected in series. If the ground fault interrupter trips the machine must be sent for service.

Chips and splinters must not be removed while the machine is running.

MAINS CONNECTION

Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.

Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.

Only plug-in when machine is switched off.

Do not let any metal parts enter the airing slots - danger of short circuit!

Inrush currents cause short-time voltage drops. Under unfavourable power supply conditions, other equipment may be affected. If the system impedance of the power supply is lower than 0,2 Ohm, disturbances are unlikely to occur.

SPECIFIED CONDITIONS OF USE

The angle grinder is intended for grinding and cutting metal, stone and ceramic materials as well as sanding and wire brushing.

Use the cutting guard from the accessories range for cutting application.

Please refer to the instructions supplied by the accessory manufacturer.

The machine is suitable only for working without water.

WORKING INSTRUCTIONS

For accessories intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

Always use and store the cutting and grinding disks according to the manufacturer's instructions.

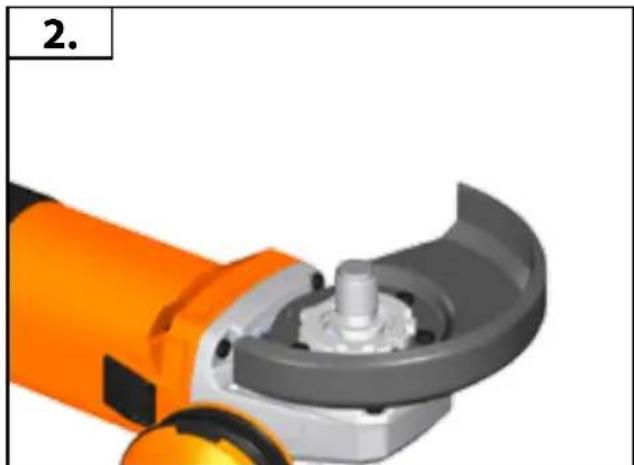

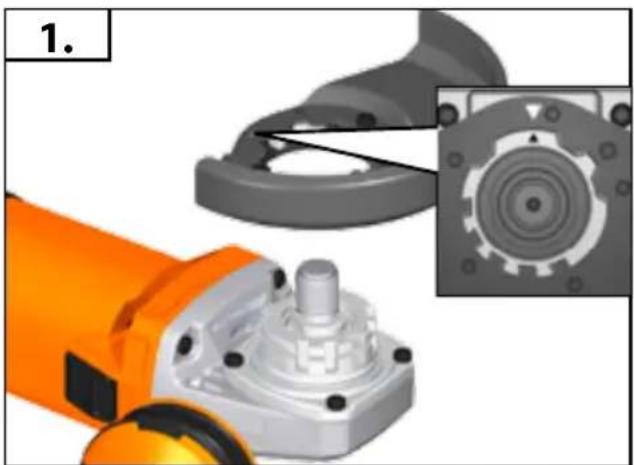

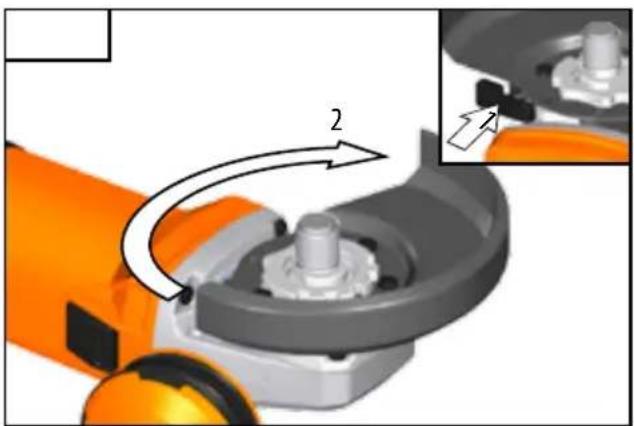

Always use the correct guard for cutting and grinding.

The grinding surface of the centre depressed disks must be mounted min. 2 mm below the plane of the guard lip.

The adjusting nut must be tightened before starting to work with the machine.

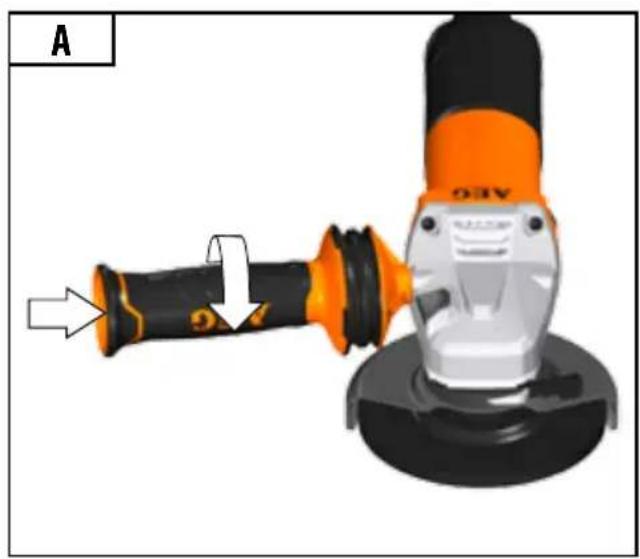

Always use the auxiliary handle.

The workpiece must be fixed if it is not heavy enough to be steady. Never move the workpiece towards the rotating disk by hand.

The flange nut must be securely tightened before the machine is started.

If the tool is not securely tightened with the flange nut, it is possible that the tool will lose the required clamping force when it is decelerated.

In the event that a power failure occurs whilst the machine is operating, the brake function will be inoperative.

ELECTRONICS

Machines with a lockable switch are supplied with a restart cutout. This prevents the machine restarting by itself after a power failure. When resuming work, switch the machine off and then switch it back on again.

The device has an overload protection function and will stop if an overload occurs. Machine shut-off. After the machine has cooled down the device can be put back into operation.

SMOOTH START

Electronic smooth start for save use prevents jerky run-up of the machine.

MAINTENANCE

The ventilation slots of the machine must be kept clear at all times.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organization.

Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at:

Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives

2011/65/EU (RoHS)

2006/42/EC

2014/30/EU

and the following harmonized standards have been used.

EN 60745-1:2009 + A11:2010

EN 60745-2-3:2011 + A2:2013 + A11:2014 + A12:2014

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:1997 + A1:2001 + A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLS

CAUTION! WARNING! DANGER!

Please read the instructions carefully before starting the machine.

Always wear goggles when using the machine.

Wear gloves!

Always disconnect the plug from the socket before carrying out any work on the machine.

Do not use force.

Only for cutting work.

Only for grinding.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided. There being no provision for protective earthing or reliance upon installation conditions.

European Conformity Mark

UkrSEPRO Conformity Mark

EurAsian Conformity Mark

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

DÉCLARATION CE DE CONFORMITÉ

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLES

ATTENTION! AVERTISSEMENT! DANGER!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

ATTENZIONE! AVVERTENZA! PERICOLO!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÍMBOLOS

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10,71364 Winnenden, Germany

SYMBOLE

ATENÇÃO! PERIGO!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLLEN

OPGELET! WAARSCHUWING! GEVAAR!

EurAsian-symbol van overeenstemming.

TEKNISKE DATAVinkelsliber	WS 10-115 S WS 10-125 S WS 10-125 SK WS 12-125 S
Produktionsnummer	4561 04 01... ... 000001-999999	4561 16 01... ... 000001-999999	4561 22 01... ... 000001-999999	4561 40 01... ... 000001-999999
Nominel optagen effekt 1000 W 1000 W 1000 W 1200 W
Nominelt omdrejningstal 11500 min	-1	11500 min-1	11500 min-1	11500 min-1
D= Slibeskive-∅ maks.	115 mm	125 mm	125 mm	125 mm
d= borings-ø	22,2 mm	22,2 mm	22,2 mm	22,2 mm
b= Skæreskive tykkelse min. / maks.	1/3 mm 1/3 mm 1/3 mm	mm 1/3 mm
b= Slibeskivetykkelse maks. 6 mm 6 mm 6 mm 6 mm
D= Slibefladens diameter maks. 115 mm 125 mm	125 mm 125 mm
D= Kopbørstens diameter maks. 75 mm 75 mm 75 mm 75 mm
Spindelgevind	M 14	M 14	M 14	M 14
Vægt svarer til EPTA-procedure 01/2003	2,3 kg	2,3 kg	2,3 kg	2,4 kg
StøjinformationMåleværdier beregnes iht. EN 60745. Værktøjets A-vurderede støjniveau er typisk:
Lydtrykniveau (Usikkerhed K=3dB(A))	87,1 dB (A)	87,1 dB (A)	87,1 dB (A)	89,3 dB (A)
Lydeffekt niveau (Usikkerhed K=3dB(A))	98,1 dB (A)	98,1 dB (A)	98,1 dB (A)	100,3 dB (A)
Brug høreværn!
VibrationsinformationSamlede vibrationsværdier (værdisum for tre retninger) beregnet iht. EN 60745.
Overfladeslibning:
Vibrationseksponering ah,SG	6,2 m/s2	6,2 m/s2	6,2 m/s2	5,8 m/s2
Usikkerhed K=	1,5 m/s2	1,5 m/s2	1,5 m/s2	1,5 m/s2
Slibning med slibeblad:
Vibrationseksponering ah,DS	6,0 m/s2	6,0 m/s2	6,0 m/s2	5,5 m/s2
Usikkerhed K=	1,5 m/s2	1,5 m/s2	1,5 m/s2	1,5 m/s2

TEKNISKE DATAVinkelsliber		WS 12-125 SK WS 13-125 SXE WS 13-125 SXEK
Produktionsnummer		4561 46 01... ... 000001-999999	4561 58 01... ... 000001-999999	4561 64 01... ... 000001-999999
Nominel optagen effekt		1200 W 1300 W 1300 W
Nominelt omdrejningstal		11500 min ^-1	2800 - 11500 min ^-1	2800 - 11500 min ^-1
D= Slibeskive-∅ maks.		125 mm	125 mm	125 mm
d= borings-ø		22,2 mm	22,2 mm	22,2 mm
	b= Skæreskive tykkelse min. / maks.	1/3 mm 1/3 mm 1/3 mm
	b= Slibeskivetykkelse maks.	6 mm 6 mm 6 mm
	D= Slibefladens diameter maks.	125 mm 125 mm 125 mm
	D= Kopbørstens diameter maks.	75 mm	75 mm	75 mm
	nd	M 14	M 14	M 14
	til EPTA-procedure 01/2003	2,4 kg	2,4 kg	2,4 kg

Dansk

TEKNISKE DATAVinkelsliber	WS 12-125 SK WS 13-125 SXE WS 13-125 SXEK
StøjinformationMåleværdier beregnes iht. EN 60745. Værktøjets A-vurderede støjniveau er typisk:Lydtrykniveau (Usikkerhed K=3dB(A)) 89,3 dB (A) 90,1 dB (A) 90,1 dB (A)Lydeffekt niveau (Usikkerhed K=3dB(A)) 100,3 dB (A) 101,1 dB (A) 101,1 dB (A)Brug høreværn!
VibrationsinformationSamlede vibrationsværdier (værdisum for tre retninger) beregnet iht. EN 60745.Overfladeslibning:Vibrationseksponering a_h,SG Usikkerhed K=Slibning med slibeblad:Vibrationseksponering a_h,DS Usikkerhed K=	5,8 m/s^2 1,5 m/s^2 5,5 m/s^2 1,5 m/s^2	8,0 m/s^2 1,5 m/s^2 7,5 m/s^2 1,5 m/s^2	8,0 m/s^2 1,5 m/s^2 7,5 m/s^2 1,5 m/s^2

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

VIGTIGT! ADVARSEL! FARE!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

OBS! ADVARSEL! FARE!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

OBSERVERA! WARNING! FARA!

Läs instruktionen noga innan du startar maskinen.

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLIT

HUOMIO! VAROITUS! VAARA!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ΣΥΜΒΟΛΑ

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SEMBOLLER

DİKKAT! UYARI! TEHLİKE!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

POZOR! VAROVÁN! NEBEZPEČÍ!

CE - VYHLÁSENIE KONFORMITY

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

POZOR! NEBEZPEČENSTVO!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SZIMBÓLUMOK

FIGYELEM! FIGYELMEZTETÉS! VESZÉLY!

UPORABA V SKLADU Z NAMEMBNESTJO

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

POZOR! OPOZORILO! NEVARNO!

Prosimo, da pred uporabo pozorno preberete to navodilo za uporabo.

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Ovlašten za formiranje tehničke dokumentacije.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

PAŽNJA! UPOZORENIE! OPASNOST!

Molimo da pažljivo pročitate uputu o upotrebi prije puštanja u rad.

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

UZMANĪBU! BĪSTAMI!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Igaliotas parengti techninius dokumentus.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLIAI

DÈMESIO! JSPÉJIMAS! PAVOJUS!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÜMBOLID

ETTEVAATUST! TÄHELEPANU! OHUD!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛЫ

No. TC RU C-DE.M86.B.00177

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLURI

PERICOL! AVERTIZARE! ATENTIE!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМБОЛИ

ВНИМАНИЕ! ПРЕДУПРЕДУВАЊЕ! ОПАСНОСТ!

Winnenden, 2016-05-12

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

2016-05-12, Winnenden

Alexander Krug / Managing Director
