VAPPEBY 905.174.14 - Speakers IKEA - Free user manual and instructions
Find the device manual for free VAPPEBY 905.174.14 IKEA in PDF.
| Product type | Bluetooth speaker with lamp |
| Brand | IKEA |
| Model | VAPPEBY 905.174.14 |
| Product name | VAPPEBY peanut |
| Type number | E2125 |
| Wireless technology | Bluetooth |
| Power supply | 24 V DC power adapter (ICPSW24-7-3) |
| Built-in battery | Li-ion 3.6 V, 3300 mAh, 12 Wh |
| Battery life | 11-13 hours at 50% volume |
| Protection rating | IP54 (dust and splash resistant) |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 25°C |
| Operating humidity | 0 to 95% RH |
| Radio frequency | 2400-2483.5 MHz |
| Radio power (EIRP) | 3 dBm |
| Decorative light | 2 lm, 2600 K |
| Main functions | Play/pause, volume, track change, disco mode, nightlight mode |
| Auto-off | 5 min without pairing, 20 min without playback |
| Care and cleaning | Soft damp cloth, do not use abrasive cleaners |
| Safety | Do not open, do not expose to heat above 60°C, do not dispose in fire, use only the included adapter |
| Repairability | Do not repair yourself, entrust to a qualified professional |
| No-load power consumption of adapter | 0.05 W |
Frequently Asked Questions - VAPPEBY 905.174.14 IKEA
User questions about VAPPEBY 905.174.14 IKEA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speakers in PDF format for free! Find your manual VAPPEBY 905.174.14 - IKEA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VAPPEBY 905.174.14 by IKEA.
USER MANUAL VAPPEBY 905.174.14 IKEA
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
This product contains a light source of energy efficiency class E.

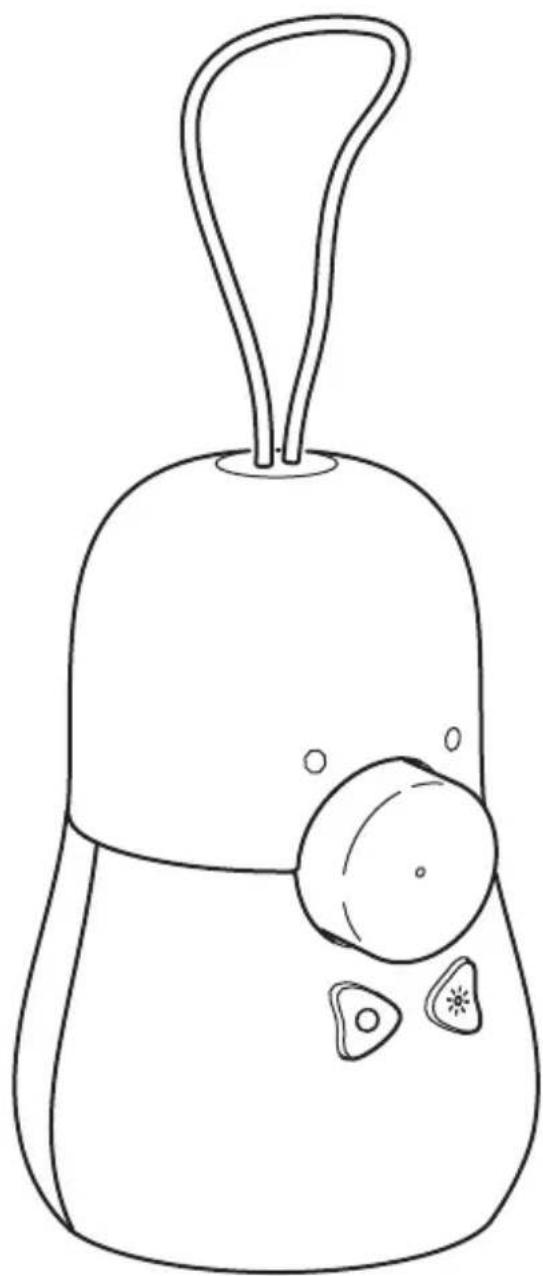

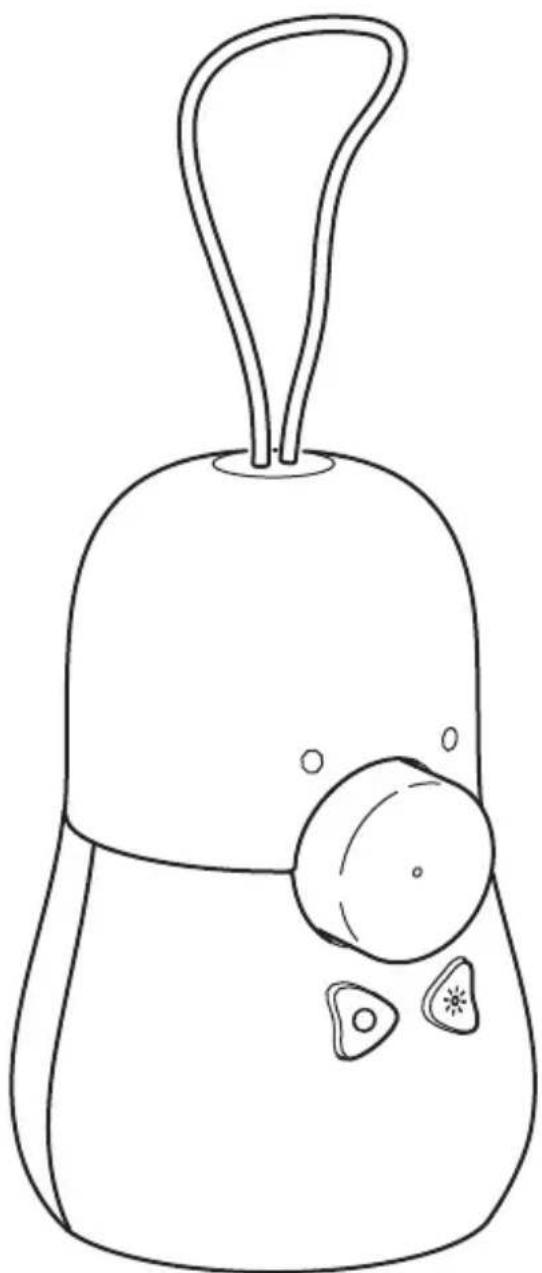

- Charging dock.
- Dial for Play/Pause/Volume.
- Speaker Power On button and skip track.
- Lamp Switch button.
- LED status light
LED status
Flashing white: Bluetooth is pairing.
Solid white: Paired to a device.
Flashing red: Low battery.
Solid red: Charging (when speaker is off)
Getting started

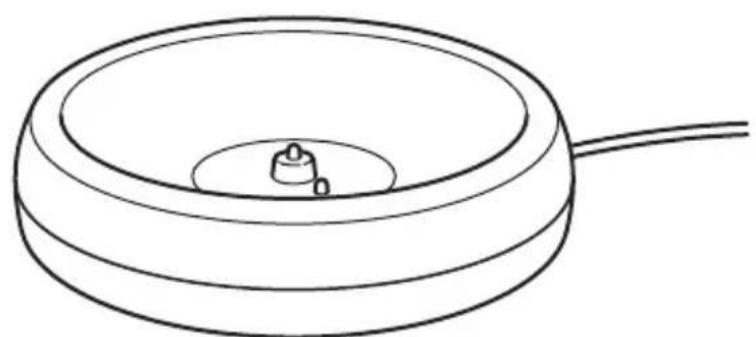

Connect the charging dock to a wall outlet and place the speaker in the charging dock (1) to charge your product before the first use and whenever the LED is blinking red to indicate low battery. When charging, the LED will remain red if the speaker is off, and turn off when the battery is fully charged.
Lamp functions
Turning ON/OFF. Press the Lamp switch (4) once to turn on the disco light function. The light will pulse in different colours when music is played from the speaker. Press the Lamp switch a second time to switch the light to night light mode, and a third time to TURN OFF.
Speaker functions
Turning ON/OFF.
Press and hold the Power button (3) to turn ON and OFF your speaker.
Skip. A short press on the Power button will skip to next song.
Play/Pause. Press the dial (2) to play or pause music.
Volume. Rotate the dial (2) clockwise to increase volume and anticlockwise to reduce volume.
Auto-off. If the speaker is not paired to any device, it will turn off automatically after 5 minutes. In case the speaker is paired but no music is playing, it will turn off automatically after 20 minutes.
Bluetooth Pairing
To pair your speaker to a source device, the speaker will have to be in Bluetooth pairing mode. To pair, open Bluetooth setting on your source device and connect to "VAPPEBY Peanut".
The speaker will enter Bluetooth pairing mode automatically when powered on the first time, and any time a previously paired device cannot be found.
To remove previously made Bluetooth pairings, reset
the speaker by pressing and holding the volume knob for more than 5 seconds. Successful factory reset is confirmed by red LED flashing and sound feedback.
Alternatively, go to the Bluetooth menu on your source device and un-pair.
Good to know
- The speaker is protected against dust and water according to IP54. Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area. Storage temperature: -20°C to 25°C (-4°F to 77°F)
- Unplug the product from the power supply before cleaning and when it is not in use.
- It is normal for the battery to become hot during charging and it will gradually cool down after charging.
- Battery should not be left discharged for a longer period.
- Battery should not be charged while in contact with flammable material like textiles.
WARNING:
- Too high volume can damage your hearing
- Only use the included 24V adapter for charging.
- Do not charge product when wet.
- Only charge the product indoors.
- Do not use a defective power supply when charging the product.
- Never install the product in a confined space.
- Always leave a space of at least 5mm around the product for ventilation.
Children should be supervised to ensure they do not misuse the product.
- Do not modify, disassemble, open, drop, crush, puncture, or shred battery.
- Do not expose the battery to rain or water.
- Risk of fires and burns. Do not open, crush, heat above 60°C (140°F) , or incinerate.
- Keep battery away from open flame or sunlight to prevent heat build-up.
- Keep battery away from high voltage devices.
- This product is not a toy, ensure that all persons who use this product read and follow these warnings and instructions.
- Do not short-circuit the battery or its cells.
- In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.
Save these instructions for future use.
Care instructions
To clean the product, wipe with a soft moistened cloth. Use another soft, dry cloth to wipe dry.
Note!
Never use abrasive cleaners or chemical solvents as this can damage the product.
Product servicing
Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
Disassembly of product and removal of battery is only intended at product end of life and shall be performed by a skilled professional.
Technical data
Model Name: VAPPEBY peanut
Type Number: E2125
Battery capacity: 3.6V DC, 3300 mAh, 12 Wh, Li-ion
Input: 24.0V DC, 0.29A,
Estimated battery play time at 50% volume: 11 - 13 h
Operating temperatures: 0°C to 40°C (32°F to 104°F)
Operating humidity: 0 to 95% RH
Operating Frequency: 2400-2483.5 MHz
Radio output power: 3 dBm (EIRP)
Decorative light: 2 lm, 2600 K
IP Class: IP54

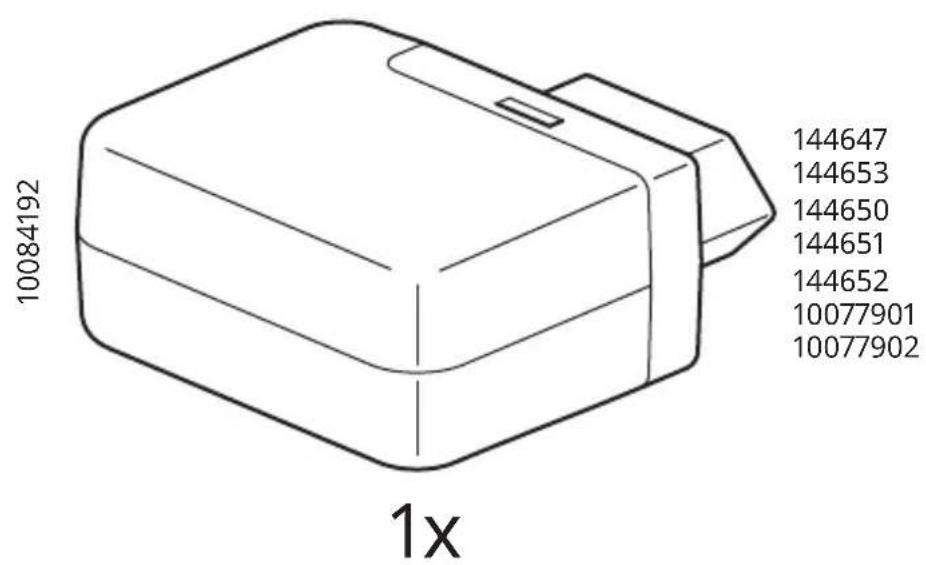

Power Supply unit:
Type: ICPSW24-7-3
Input: 100-240 VAC, 50/60 Hz, 0.11A
Output: 24.0V DC, 0.29 A, Max 7.0W
Average active efficiency: 80.0%
No load power consumption: 0.05W
Indoor use only
Manufacturer: IKEA of Sweden AB
(commercial registration number: 556074-7551)
Address: Box 702, SE-343 81 Almhult, SWEDEN
Bluetooth
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
Bluetooth pairing
Input: 24.0 V DC, 0.29 A
Input: 100-240 V AC, 50/60 Hz, 0.11 A
Output: 24.0 V DC, 0.29 A, 7.0 W max.
Manufacturer: IKEA of Sweden AB
(registration number: 556074-7551)
Address: Box 702, SE-343 81 Almhult, SWEDEN
Bluetooth
Manufacturer: IKEA of Sweden AB
(CVR number: 556074-7551)
Address: Box 702, SE-343 81, Almhult, SWEDEN
Bluetooth
Input: 24.0 V DC, 0.29 A
Input: 24.0 V DC, 0.29 A
Manufacturer: IKEA of Sweden AB
Manufacturer: IKEA of Sweden AB
Manufacturer: IKEA of Sweden AB
(Company registration number: 556074-7551)
Address: Box 702, SE-343 81 Almhult, SWEDEN
Bluetooth
Input: 100-240V AC, 50/60Hz, 0.11A
Output: 24.0 V DC, 0.29 A, max. 7.0 W
Manufacturer: IKEA of Sweden AB
(Company registration number: 556074-7551)
Address: Box 702, SE-343 81 Almhult, SWEDEN
Bluetooth
Manufacturer: IKEA of Sweden AB
Output: 24.0 V DC, 0.29 A, max. 7.0 W
Average active efficiency: 80.0%
Power consumption at no load: 0.05 W
For indoor use only
Ipon3bOuTeJ: IKEA of Sweden AB
(TbproBcN peRncTpaCnoHn Homep: 556074-7551)
Ampec:Box 702,SE-34381Almhult,LIBEUN
Bluetooth
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.
The crossed-out wheeled bin symbol indicates that the item must be disposed of separately from household waste. The item must be recycled in accordance with local waste disposal regulations. By separating the item from household waste, you help reduce the amount of waste sent to incinerators and landfills, and minimize potential negative effects on human health and the environment. For more information, please contact your local IKEA store.
AUTOMATIC SHUTDOWN. IF THE SPEAKER IS NOT CONNECTED TO ANY DEVICE, IT WILL AUTOMATICALLY TURN OFF AFTER 5 MINUTES. IF THE SPEAKER IS CONNECTED, BUT MUSIC IS NOT PLAYING, IT WILL AUTOMATICALLY TURN OFF AFTER 20 MINUTES.
Bluetooth pairing
To pair the speaker with a source device, the speaker must be in Bluetooth pairing mode. To pair, open the Bluetooth settings on the source device and connect to "VAPPEBY Peanut".
The speaker automatically enters Bluetooth pairing mode when turned on for the first time, or each time a previously paired device is not found.
To delete previous Bluetooth pairings, reset the speaker by pressing and holding the volume button (more than 5 seconds). On a successful reset to factory settings, the LED indicator flashes red and a sound signal is emitted.
You can also open the Bluetooth settings on the source device and cancel the pairing.
Important information
- The speaker is protected against dust and water according to protection rating IP54. - Devices and batteries may heat up during charging. This is
completely normal. After charging, they will gradually cool down.
The operating time depends on the battery capacity, charge level, battery service life, and ambient temperature. - Storage temperature: -20...+25 °C. - Disconnect the device from the power source before cleaning and when it is not in use. - The battery should not be left discharged for a long time. - During charging, the battery must not come into contact with flammable materials, for example, cloth.
WARNING:
- Listening to music at high volume can damage your hearing. - For charging, use only the supplied 24V adapter. Do not charge the device if water has gotten into it.
- Charge the device only indoors. Do not use a faulty power supply when charging the device. Do not install the device in an enclosed space. Always leave at least 5 mm of free space around the device for ventilation. Make sure that the device does not overheat. It is forbidden to puncture, disassemble, open, bend, break, or disassemble the battery into parts.
- Protect the battery from rain and moisture. There is a risk of fire and burns. Do not heat the battery above 60°C or incinerate it. Store the battery away from open flames and direct sunlight to prevent overheating. Store the battery away from high-voltage devices.
- The device is not a toy. Make sure that all users have read and follow these warnings and instructions. Do not short-circuit the battery or its terminals. In case of electrolyte leakage from the terminals, do not allow it to come into contact with skin or eyes.
Keep these instructions for future reference.
Maintenance instructions
To clean the device, use a soft, damp cloth. Then wipe dry with a soft, dry cloth.
Attention!
Abrasive cleaners and chemical solvents may damage the device.
Device maintenance
Do not attempt to repair the device yourself, as opening the housing or removing the insulation may be dangerous due to voltage or other risks.
Disassembly of the device and removal of the battery may only be performed by a qualified specialist at the end of the service life.
Technical data
Model name: VAPPEBY speaker
Article number: E2125
Battery capacity: 3.6 V DC, 3300 mAh, 12 Wh, lithium-ion
Input: 24.0 V DC, 0.29 A
Estimated battery operating time when playing
at 50% volume: 11-13 hours
Average efficiency in active mode: 80.0%
Power consumption without load: 0.05 W
For indoor use only
Manufacturer: IKEA of Sweden AB
(Registration number: 556074-7551)
Address: Box 702, SE-343 81 Almhult, SWEDEN
Bluetooth
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.
The symbol with the crossed-out wheeled bin indicates that this product must be disposed of separately from household waste. The product must be handed in for recycling in accordance with local regulations. Proper recycling helps reduce waste sent to incinerators and landfills, and minimizes potential negative impact on human health and the environment. For more information, contact your local IKEA store.
1. Charging dock. 2. Playback / pause / volume control button. 3. Power button for the lamp and track switching. 4. Lamp power button. 5. LED status indicator.
Lamp
Flashing white: Bluetooth pairing in progress.
Solid white: Bluetooth connection established.
Flashing red: charging.
Solid red: fully charged (if the lamp is off).
Before use
Connect the charging dock (1) to a wall outlet and place the speaker on the charging dock to charge the device. Charging is necessary before first use and whenever the LED indicator flashes red, indicating low battery. During charging, the LED indicator will flash red if the speaker is off, and will turn off when the battery is fully charged.
Lamp functions
On/Off. Press the lamp power button (4) once to turn on the lamp function. While playing music through the speaker, the light will pulse with different colors. Press the lamp power button a second time to switch the light to night light mode, and a third time to turn it off.
Speaker functions
On/Off.
Press and hold the power button (3) to turn the speaker on or off.
Track switching. A short press on the power button will switch to the next track.
Play/Pause. Press the button (2) to start or pause music playback.
Volume adjustment. Turn the knob (2) clockwise to increase the volume and counterclockwise to decrease the volume.
AUTO POWER OFF. IF THE SPEAKER IS NOT CONNECTED TO ANY DEVICE, IT WILL AUTOMATICALLY TURN OFF AFTER 5 MINUTES. IF THE SPEAKER IS CONNECTED BUT MUSIC IS NOT PLAYING, IT WILL AUTOMATICALLY TURN OFF AFTER 20 MINUTES.
Bluetooth pairing
To pair the speaker with a source device, the speaker must be in Bluetooth pairing mode. To pair, open the Bluetooth settings on the source device and connect to "VAPPEBY Peanut".
The speaker automatically enters Bluetooth pairing mode when turned on for the first time and every time a previously paired device is not found.
To delete previous Bluetooth pairings, restart the speaker by pressing and holding the volume knob (more than 5 seconds). On factory reset, the LED indicator flashes red with a sound signal.
You can also open the Bluetooth settings on the source device and cancel the pairing.
Important information
- The speaker is protected against dust and water in accordance with protection level IP54. - The device and battery may heat up during charging. This is completely normal. After full charging, they will gradually cool down. Charging time depends on battery capacity, charge level, battery service life, and ambient temperature. Storage temperature: -20...+25°C. - Disconnect the device from the power source before cleaning and when it is not in use. - The battery should not be left discharged for a long time. - During charging, the battery should not come into contact with hot materials, such as fabric.
WARNING:
- Do not listen at high volume for a long time; it may damage your hearing. - For charging, use only the supplied 24V adapter. Do not charge the device if water has gotten into it.
- Charge the device only indoors. Do not use a damaged power supply when charging the device.
- Do not install the device in an enclosed space. Always leave at least 5 mm of space around the device for ventilation. Make sure that the device does not overheat. It is forbidden to puncture, disassemble, open, drop, break, or take apart the battery or separate it into parts.
- Protect the battery from exposure to rain and water. There is a risk of fire and burns. Do not heat the battery above 60°C or throw it into a fire. Store the battery away from open flames and direct sunlight to prevent overheating. Store the battery away from high-voltage devices.
- The device is not a toy. Make sure that everyone who uses the device has read and understood these warnings and instructions and follows them. Do not short-circuit the battery or its terminals. In case of liquid leakage from the battery, do not allow it to come into contact with skin or eyes.
Keep these instructions for future use.
Maintenance instructions
To clean the device, use a soft, damp cloth. Wipe it dry with a soft, dry cloth.
Warning!
Abrasive cleaners and chemical solvents may damage the device.
Device maintenance
Do not attempt to repair the device yourself, as opening the housing or removing the battery may be dangerous due to voltage or other risks.
Disassembly of the device and removal of the battery may only be performed by a qualified specialist at the end of the service life.
Technical data
Model name: VAPPEBY peanut
Article number: E2125
Battery capacity: 3.6 V DC, 3300 mAh, 12 Wh, lithium-ion
Input: 24.0 V DC, 0.29 A
Estimated battery operating time when playing
At 50% volume: 11-13 hours
Charging efficiency in active state: 80.0%
Power consumption without load: 0.05 W
Manufacturer: IKEA of Sweden AB
(Registration number: 556074-7551)
Address: Box 702, SE-343 81 Almhult, SWEDEN (LIIBELIJA)
Bluetooth
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land fill and minimize any potential negative impact on human health and the environment. For more information, contact your IKEA store.
- Charging base.
- Play/pause/volume control.
- Button for turning on the speaker and skipping tracks.
- Lamp switch.
- LED status indicator.
LED status
Flashing white: Bluetooth pairing in progress.
Steady white: Paired with the device.
Flashing red: Battery almost empty.
Steady red: Charging (when the speaker is off).
Getting started
Connect the charging base (1) to a wall outlet and place the speaker in the charging base to charge the product before first use. Do the same whenever the LED indicator flashes red, signaling that the battery charge is low. While charging, the LED will glow red when the speaker is off, and the LED will turn off when the battery is fully charged.
Lamp functions
ON/OFF. Press the lamp switch (4) once to turn on the disco lighting function. Lights of different colors will flash while music is playing through the speaker. After a second press of the lamp switch, the lighting will switch to night mode, and after a third press, it will turn off.
Speaker functions
ON/OFF.
Press and hold the power button (3) to turn the speaker ON and OFF.
Model name: VAPPEBY peanut
Type number: E2125
Battery capacity: 3.6V DC, 3300 mAh, 12 Wh, Lithium-ion
Input: 24.0V DC, 0.29A
Box 702, SE-343 81 Almhult, SWEDEN:
Bluetooth
- GETTING STARTED
- LAMP FUNCTIONS
- SPEAKER FUNCTIONS
- TURNING ON/OFF
- BLUETOOTH PAIRING
- GOOD TO KNOW
- WARNING
- SAVE THESE INSTRUCTIONS FOR FUTURE USE
- CARE INSTRUCTIONS
- NOTE
- PRODUCT SERVICING
- TECHNICAL DATA
- BLUETOOTH
- IMPORTANT INFORMATION
- KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
- MAINTENANCE INSTRUCTIONS
- ATTENTION
- DEVICE MAINTENANCE
- BEFORE USE
- ON/OFF
- KEEP THESE INSTRUCTIONS FOR FUTURE USE
- LED STATUS
Brand : IKEA
Model : VAPPEBY 905.174.14
Category : Speakers
