EP75 - Keyboard Epomaker - Free user manual and instructions

Product Type	Mechanical Keyboard
Brand	Epomaker
Model	EP75
Dimensions (L x W x H)	330 x 138 x 32 mm
Weight	1160 g (±20 g)
Compatible Operating Systems	Windows, Mac, Linux
Connection Type	Bluetooth 5.0, 2.4 GHz, USB-C Wired
Key Layout	75% Compact
Backlighting	Customizable RGB with lighting effects
Hotswap Function	Yes, compatible with mechanical switches
Bluetooth Connectivity	Up to 3 devices
Power Supply	Built-in rechargeable battery
Battery Indicator	Yes, via FN + Space combination
Warranty	1 year (purchase on Epomaker website)
Included Accessories	2-in-1 puller for keycaps and switches
Default Reset	Restore with FN + ESC (3 seconds)
Keyboard Lock	FN + P (lock/unlock)
Operating Temperature	Standard ambient (not specified)

Frequently Asked Questions - EP75 Epomaker

How to connect the keyboard via Bluetooth?

Press and hold FN + 1/2/3 for 3 seconds to start pairing. The indicator under the key flashes quickly. Once connected, press the same combination briefly to switch between devices.

How to switch to 2.4 GHz mode?

Briefly press FN + 4 to switch to 2.4 GHz wireless mode, then insert the USB receiver into your computer.

How to use the keyboard in wired mode?

Connect the USB-C cable to the computer and press FN + 5 to switch to wired mode.

How to lock the keyboard?

Press FN + P to lock or unlock the keyboard. The indicator 3 (keyboard lock) lights up.

How to check the battery level?

Make sure the backlight is on, then press FN + Space. Keys 1 to 0 light up to indicate the percentage (e.g., 1-5 lit = 50%).

How to replace the switches?

Use the provided puller. Align the prongs vertically on the switch, apply firm but gentle pressure to remove it. To install, ensure the pins are straight, align the Gateron logo northward, and press until it clicks.

How to reset the keyboard?

Press and hold FN + ESC for 3 seconds to restore factory default settings.

How to adjust the backlight?

Use FN + BACKSPACE to turn on/off, FN + ↓/↑ for brightness, FN + END for mode, FN + HOME for color, FN + ←/→ for speed.

What to do if the keyboard does not connect?

Check that the battery is charged. Try resetting the keyboard (FN+ESC 3s). For Bluetooth, remove the device from the Bluetooth list and re-pair. In 2.4 GHz, make sure the receiver is properly inserted.

What is the warranty for the keyboard?

Epomaker offers a one-year warranty for products purchased on its official website. It covers factory defects, but not normal wear or unauthorized modifications.

USER MANUAL EP75 Epomaker

75% Hot-Swap Wired/Wireless Mechanical Keyboard

This Quick Guide is an introduction to the use and functionality of the EPOMAKER EP75.

For in-depth guide of functionality of the customization software please refer to the manual that you can find in the official epomaker website at https://epomaker.com/pages/software-downloads

Should you require more assistance please email us at [e-mail]

MODEL: EPOMAKER EP75

WEIGHT: 1160g ± 20g

SIZE: 330 x 138 x 32mm

HOTSWAP: YES

SYSTEM: Windows / Mac / Linux

LAYOUT: 75% Layout(82keys)

CONNECTION: USB-C, 2.4GHz Wireless, Bluetooth 5.0

BUILT-IN BATTERY: 10000mah

CABLE USB VOLTAGE RANGE: 5≤500MAH

Made in China

Manufacturer: Shenzhen Changyun Technology Co., Ltd.

Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road,

Xili Street, Nanshan District, Shenzhen, Guangdong, CN

Email: [e-mail]

Web: www.epomaker.com

APEX CE SPECIALISTS LIMITED

Unit 3d North Point House, North Point Business Park,

New Mallow Road Cork, 123 AT2P, Ireland

Contact: Wells Tel: [phone]

APEX CE SPECIALISTS LIMITED

89 Princess Street, Mancheste, M1 4HT, UK

Contact: Wells E-mail: [e-mail]

WINDOWS SHORTCUTS

FN + ESC	Long press 3s to restore the default setting	FN + ESC	Long press 3s to restore the default setting
FN + WIN	Lock/Unlock the Windows key	FN + ESC	Lock/Unlock the FN key (Short Press)
FN + DEL	Ins	FN + DEL	Ins
FN + P	Lock/Unlock the Keyboard	FN + P	Lock/Unlock the Keyboard
FN + F1	Screen Brightness-	FN + F1	Screen Brightness-
FN + F2	Screen Brightness+	FN + F2	Screen Brightness+
FN + F3	Task View	FN + F3	Screenshot
FN + F4	Open browser	FN + F4	Task Control
FN + F5	Email	FN + F5	Mute
FN + F6	My Computer	FN + F6	VOL-
FN + F7	Last Song	FN + F7	VOL+
FN + F8	Play/ Pause	FN + F8	Last Song
FN + F9	Next Song	FN + F9	Play/ Pause
FN + F10	Mute	FN + F10	Next Song
FN + F11	VOL-	FN + F11	Search
FN + F12	VOL+	FN + F12	Home Page
FN + 1	Bluetooth Device 1	FN + 1	Bluetooth Device 1
FN + 2	Bluetooth Device 2	FN + 2	Bluetooth Device 2
FN + 3	Bluetooth Device 3	FN + 3	Bluetooth Device 3
FN + 4	2.4GHz Wireless	FN + 4	2.4GHz Wireless
FN + 5	Wired	FN + 5	Wired

BACKLIGHT SETTINGS

FN + BACKSPACE	Turn off/on the backlight	FN + ↓	The backlight brightness-
FN + END	Switch the backlight mode	FN + R-CTRL	Toggle the side glow effect
FN + HOME	Switch the light color	FN + R-ALT	Toggle the side light color
FN + PGUP	Switch the light direction	FN + [	Side light brightness+
FN + ←	Backlight speed+	FN + ]	Side light brightness-
FN + →	Backlight speed-	FN + ;	Side light speed+
FN + ↑	The backlight brightness+	FN + '	Side light brightness-

EN

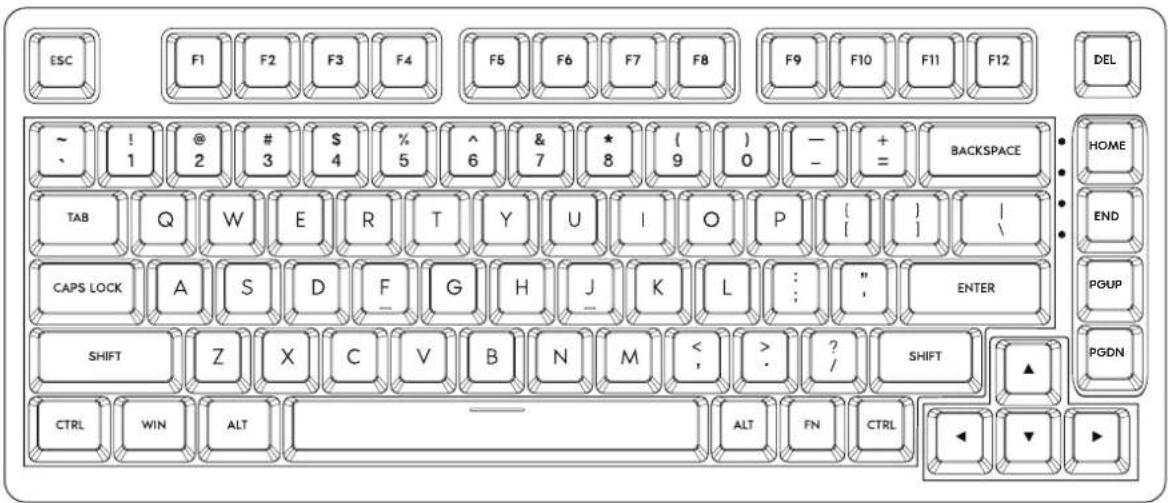

INDICATOR INSTRUCTIONS:

1: Caps Lock

2: Win / Fn Lock

3: Keyboard Lock

4: Battery Indicator

PAIRING BLUETOOTH

FN+1/2/3 Long Press for 3 seconds to pair bluetooth device

FN+1/2/3 Short Press to switch to last paired device

Long press the FN+1/2/3 for 3 seconds, the keyboard will start pairing and the light under the 1/2/3 key will flash quickly.

Short press FN+1/2/3 to switch to the bluetooth mode 1/2/3, the light under the 1/2/3 key will flash slowly.

(If it has never been paired or there's no connection, the keyboard will enter into sleep mode)

PAIRING WIRELESS 2.4GHZ

FN+4 Switch to Wireless Mode

Short press Fn+4 to the 2.4Ghz mode, then insert the receiver into your device.

KEYBOARD SLEEPING

When your keyboard is on 2.4GHz mode or Bluetooth mode, if there is no operation for 5 minutes, the backlight will turn off, and keyboard will enter into deep sleep without operation for 30 minutes.

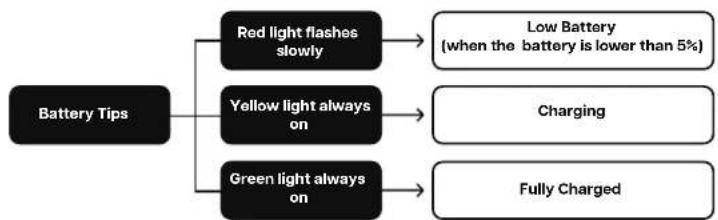


POWER QUERY

When the backlight is turned on, press the key combination Fn+Space, the backlight will turn off, and the number keys 1 to 0 will light up to display the power ratio. Example 1-5 light means 50% .

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser: https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

Before installing switches, be sure the pins are clean and straight.

Push Straight Down

Please be gentle. Be sure the pins are aligned with the slots.

Included Tool

2-in-1 Puller

Mechanical Switch

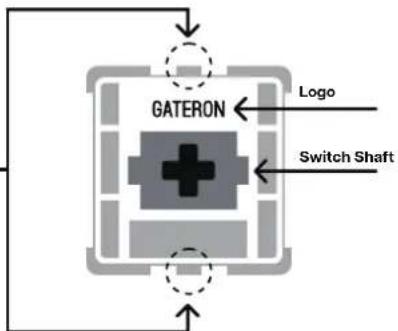

Example of a switch as seen from top after you remove the keycap to prepare for switch removal.

The Switch Puller tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.

Remove Switches

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.
2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to [e-mail] with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.

COMMUNITY FORUMS

Join our community and learn together with other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

WARRANTY

EPOMAKER's Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn't cover any damage that may occur from normal wear and tear. If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker.

We provide a 1 year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1 year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.

We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
