USER MANUAL 86756 UNOLD

Front view of a UNO ID airship with four blades and mesh fan (no text or symbols visible)

WINDMASCHINE SPEED

Bedienungsanleitung

Modern kitchen appliance with digital display and bucket, no visible text or symbols

Modern industrial bread machine with a bucket containing grain, accompanied by small kitchen utensils and glassware (no visible text or symbols)

UNOLD®

Care + Style

Product photo of a red and black electric toothbrush with a brush holder, plus a small gear clip (no text or symbols visible)

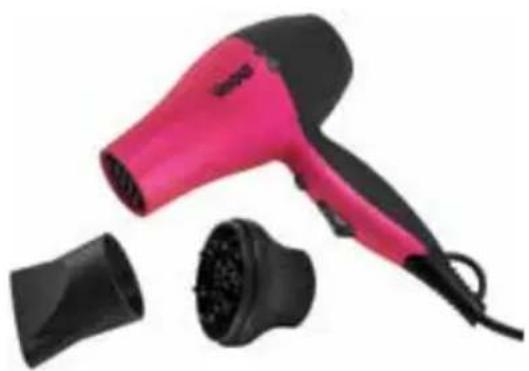

Pink hair dryer with black handle and cord, accompanied by a pair of black blower covers (no text or symbols visible)

UNOLD®

Fan + Heat

Close-up of a metallic desktop fan with visible blades and base (no text or symbols)

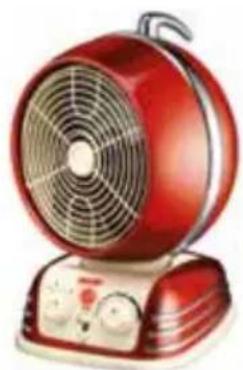

Red portable electric fan with cooling fan and control panel (no visible text or symbols)

INHALTSVERZEICHNIS

Instructions for use Model 86756

Technical Specifications....13

Explanation of the symbols....13

For your safety....13

Before using the appliance the first time....16

Operation....16

Cleaning and care....17

Guarantee Conditions....18

Waste Disposal/Environmental Protection ... 18

Illustration of a medical device with attached tubing and a leaf cover (no text or symbols)

Front view of a modern office fan with visible blades and central hub (no text or symbols)

Dimensions: Approx. 54.0 x 19.0 x 51.5 cm (D/W/H)

Weight: Approx. 4,8 kg

Diameter: Approx. 45 cm

Motor housing: Metal, chrome paints

Power cord length: Approx. 150 cm

Features: 3 speed levels, carrying handle

Accessories: Operating instructions

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

FOR YOUR SAFETY

Please read the following instructions and keep them on hand for later reference.

Instructions for persons in the household

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.
4. Keep the appliance and the power cord out of the reach of children under 8 years.

Safety instructions for set-up and operation of the appliance

1. Only switch the appliance on when it has been properly assembled.
2. Ensure that there is sufficient space where the appliance is located. A minimum distance of 50 cm must be maintained between the appliance and other objects.
3. Do not use the appliance in rooms that are extremely dusty or in the vicinity of flammable substances.
4. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
5. This appliance must not be operated with an external timer or a remote control system.
6. Never immerse the appliance or the power cord in water or other liquids - life-threatening danger!
7. Do not open the motor housing under any circumstances, there is danger of electric shock!
8. The appliance is intended for household use only, or for similar areas of use, such as in kitchenettes in businesses, offices or other workplaces, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.
9. Ensure that the power cord is laid out in such a manner that there is no possibility of stumbling over it.
10. To avoid damage to the cord, never wrap the power cord around the appliance.
11. To avoid damage to the cord, always unplug the mains plug from the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.
12. Ensure that the electrical outlet used is easily accessible, in order to unplug the appliance in an emergency.
13. To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.
14. If possible, do not use an extension cord. If you must use an extension cord, completely unwind the extension cord and comply with the power limits of the respective extension cord.
15. Never place the appliance directly under an electrical outlet.

16. The appliance must never be used in wet/wet and cold or damp rooms - danger of electric shock!

17. Keep the appliance out of direct sunlight.

18. Never stick objects such as fingers, needles, pins, etc. through the openings into the interior of the appliance – danger of injury!
19. Check the appliance, the plug and the power cord regularly for wear or damage. If there is damage, please send the appliance for inspection and repair to our customer service organization. Unauthorised repairs can result in serious hazards for the user and void the guarantee.
20. If the power cord is damaged, it must only be repaired by the manufacturer, the manufacturer's customer service organization, or some other person with the appropriate technical qualifications to avoid hazards.
21. To avoid damage, do not use the appliance with accessories from other manufacturers or of other brands.
22. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.

Never stick objects such as fingers, needles, pins, etc. through the openings into the interior of the appliance – danger of injury!

Only operate the appliance on a level, stable substrate, so that it does not tip over.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children - danger of suffocation!
2. Check whether all parts are present. If parts are missing or damaged, contact your dealer or our customer service department.
3. Clean all parts with a damp cloth, as described in the chapter „Cleaning and care“.

OPERATION

1. Ensure that the appliance is standing on a suitable, level substrate, and has been set up so that it is safe and stable.
2. Plug the power cord into an electrical outlet.

Adjusting the tilt angle

1. Loosen the screws on the left and right side.

2. Tilt the basket cover to the desired angle. Caution: Only tilt the cover in the intended range and not beyond the point of tangible resistance, to avoid damaging the appliance.

3. Fasten the screws again.

Close-up of a transparent plastic bag with metal handles and a coiled cable, no visible text or symbols

Setting the speed

1. Switch on the appliance by selecting one of the three speed levels and press the appropriate button. The speed regulator is on the rear, top side of the motor housing.

■ Level 1: Light breeze
■ Level 2: Moderate breeze
■ Level 3: Strong breeze
■ The button “O” switches off the appliance.

1. You can change the speed levels at any time.

Switching off

1. To switch off the appliance, switch the speed regulator to "0". When you are no longer using the appliance, unplug the plug from the electrical outlet.

CLEANING AND CARE

To switch off the appliance, press the regulator to "O", and unplug mains plug from the electrical outlet.

Wait until the appliance has come to a complete standstill.

Never immerse the appliance in water. The motor or electrical components of the appliance must not get wet.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants.
2. Wipe off the stand tube and grille of the fan with a slightly damp cloth.
3. Store the fan in a dry, safe place so that it is protected from dust, impact, heat and moisture.

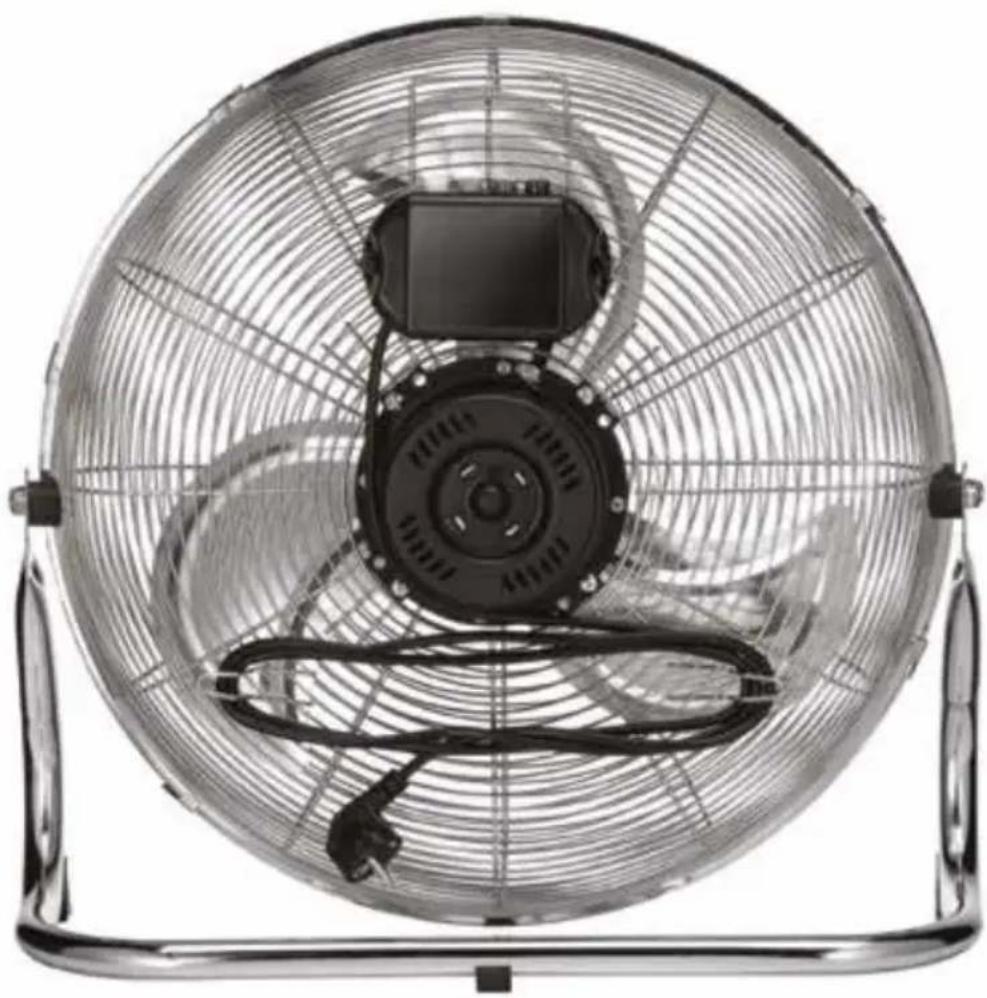

Front view of a modern office fan with visible blades and central hub (no text or symbols)

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Do not dispose of used batteries as household waste. Dispose of this product via your appliance dealer or take it to the municipal collection point.

NOTICE D'UTILISATION MODÈLE 86756

SPÉCIFICATION TECHNIQUE

Puissance : 100 Watts, 220-240 V\~, 50 Hz

Dimensions : Env. 54,0 x 19,0 x 51,5 cm (p/l/h)

Poids : Env. 4,8 kg

Illustration of a handheld device with a transparent cover and metal bracket, partially covered by a leaf-like background (no text or symbols visible)

Régler la vitesse

Front view of a modern office fan with visible blades and central hub (no text or symbols)

CONDITIONS DE GARANTIE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Illustration of a mechanical device with attached components, possibly a valve or connector (no visible text or symbols)

Snelheid instellen

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Misure: Circa 54,0 x 19,0 x 51,5 cm (P/L/H)

Peso: Circa 4,8 kg

Diametro: Circa 45 cm

Illustration of a mechanical device with a transparent body and attached lever, surrounded by a leaf-like structure (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Medidas: Aprox. 54,0 x 19,0 x 51,5 cm (Pr/An/Al)

Peso: Aprox. 4,8 kg

Illustration of a medical device with attached tubing and a transparent cap (no text or symbols visible)

Ajustar velocidad

Front view of a modern office fan with visible blades and central hub (no text or symbols)

CONDICIONES DE GARANTIA

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

INSTRUKCJA OBSŁUGI MODEL 86756

DANE TECHNICZNE

Výkon: 100 W, 220-240 V\~, 50 Hz

Rozměry: Cca 54,0 x 19,0 x 51,5 cm (H/Š/V)

Illustration of a medical device with a transparent cap and tubing, no visible text or symbols
