USER MANUAL RA445BE FRIGELUX

MANUEL D'INSTRUCTIONS

Two white and one metallic kitchen cabinets side by side, no visible text or symbols on the cabinets themselves.

RÉFRIGÉRATEUR

RANF445BD RNFA445XD RANF445XDS RA445BE RA445XE RA445XES

FR – MANUEL D'UTILISATION P. 1

Technical diagram showing a rectangular block connected to a cylindrical component with a rotating arrow, no text or symbols present.

30cm 50-75mm 30cm

Simple line drawing of a rectangular frame with a small object on top and two hanging blocks above it (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '8' pointing to its left edge (no text or symbols on the frame itself)

Figure 1

10 8 9

Figure 2

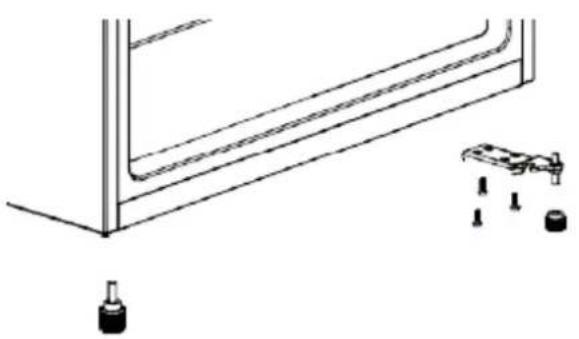

Simple line drawing of a rectangular door or cabinet with a handle and base (no text or symbols)

Figure 3

7. GUIDE DE DEPANNAGE

Before placing your new refrigerator into operation, please read these operating instructions carefully. They contain important information for safe use, for installation and for maintenance of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Notes: which are important for your safety or for the proper functioning of the appliance, are stressed with a warning triangle and or with signal words (Warning! Caution! Important!).

Please observe the following carefully.

1. GENERAL SAFETY INSTRUCTIONS

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety of children and other vulnerable people

• This appliance can be used by children aged from 8 years and above, and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.
• Keep all packaging away from children as there is risk of suffocation.
• Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seal, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• Keep the appliance and its power cable out of reach of children less than 8 years old.
• Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside.
  • Children from 3 to 8 are allowed to load and unload the appliance.

General safety

WARNING — This appliance is intended to be used in household.

WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

Caution risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

• We cannot be held responsible for any incident caused by poor electrical installation. The power cord must not be lengthened. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the main plug of the appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.

• The appliance is only applied with power supply of single phase alternating current of 220\~240V/50Hz. The device uses a wall socket earthed according to current recommendations.

• If the power cable is damaged, do not proceed with his replacement but contact your after-sales service.

• The socket must be readily accessible but out of reach of children. If unsure, contact your installer.
• When positioning the appliance, ensure that the cord is not trapped or damaged.

Daily use

• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• Never place bottles or jars containing liquids in the refrigerator unless they are filled at 2/3 of their capacity, freezing expands liquids and the container may explode.
• When unplugging always pull the plug from the mains socket. do not pull on the cable.
• Do not place the appliance in direct sunlight.
• Keep burning candles jumps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping food stuff.
• The appliance is heavy. Care should be taken when moving it.
• If your machine has wheels, remember that they are only used to facilitate small movements. Do not move it on longer journeys.
• Never use the base, drawers, doors etc. to stand on or as supports.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution! Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

For electrical connection, carefully, follow the instructions given in this manual.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
• It is advisable to wait at least 24 hours before connecting the appliance to allow the oil to flow back in the compressor.
• This refrigerating appliance is not intended to be used as a built-in appliance

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

• Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

ENERGY SAVINGS

• To reduce the power consumption of your device:
• Install it in a suitable location (see "Installing your appliance").
• Keep the doors open for as short time as possible.
• Do not put hot food into your device.
• Ensure the optimal functioning of your device by periodically cleaning the condenser (see "Routine maintenance of your appliance").
• Ensure the optimal functioning of your device by not allowing too much frost accumulate in the refrigerator (defrost it when the frost thickness exceeds 5-6 mm).
• Periodically check the door seals and make sure they always close effectively. If this is not the case, please contact your after-sales service.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

This appliance is for domestic use only. The manufacturer cannot be held responsible for another use.

Aesthetic and functional spare parts in accordance with REGULATION (EU) 2019/2019 (Annex II, point 3.), are available for after sales service network and end users for a maximum period of 7 or 10 years (List on Annex II, point 3.a.1 et 3.a. from the date of end of commercialization on the market of the last unit. The list of spare parts and the procedure for ordering them (professional access / end user access) are available on the following website: www.interfroidservices.fr or by post at the following address: Interfroid Services, 123 Route du Chêne 72230 ARNAGE.

For other functional spare parts not specified in EU regulation 2019/2019, they are available for a period of 7 years.

The manufacturer's warranty is 1 year for functional parts.

R600a Safety regulation

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Do not damage the refrigerant circuit.

Refrigerating units operating on Isobutane (R600a) may not be placed in an area with sources of ignition (e.g. unsealed electrical contacts) or where the refrigerant could gather in the event of a leak. The type of refrigerant is indicated on the cabinet's type plate.

Warning: Do not use electrical appliances inside the compartments of the appliance, unless they are of the type recommended by the manufacturer.

The appliance meets the requirements of all European Directives and their modifications.

CE FR + + + + +

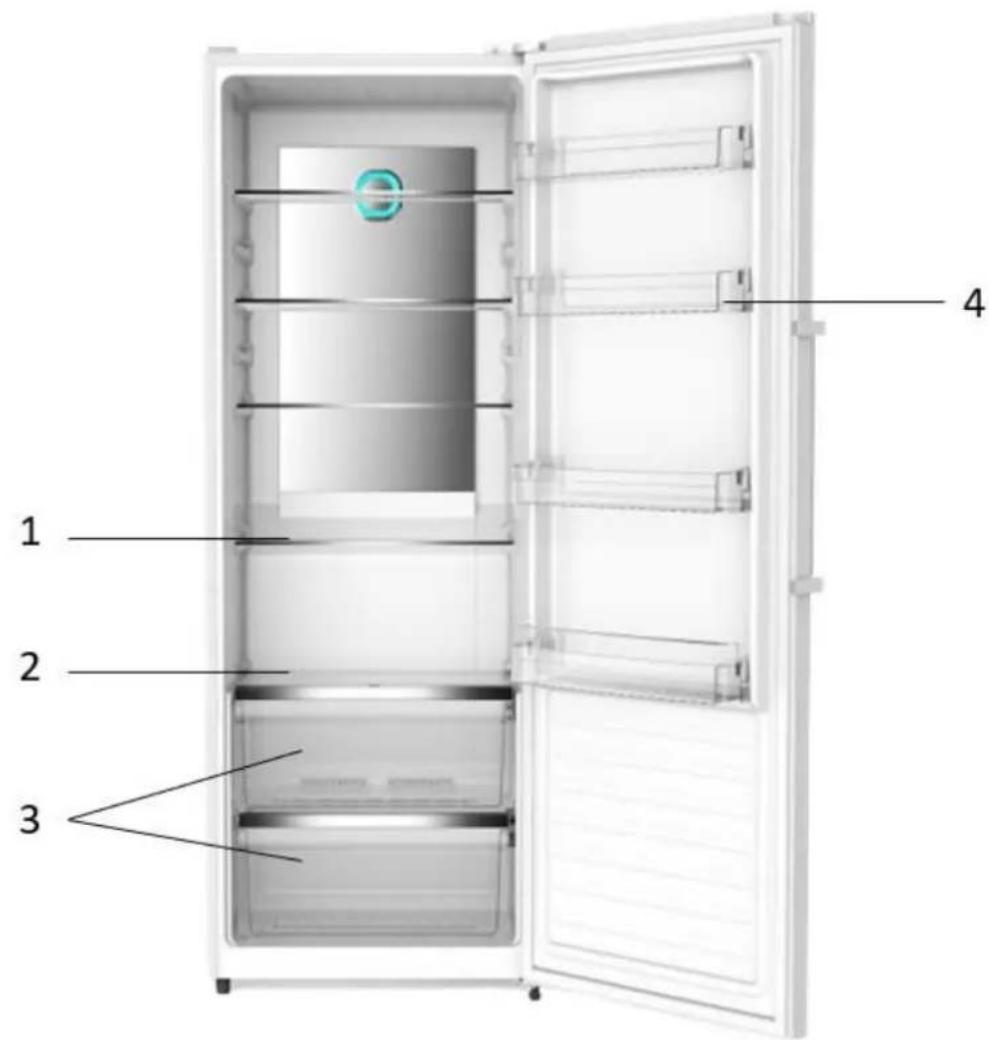

2. PRODUCT DESCRIPTION

1 2 3 4

1	Glass shelf
2	Crisper shelf
3	Crispers
4	Balcony

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (2019/2016 all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for Energy Labeling).

This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to www.ec.europa.eu and searching the reference of your refrigeration appliance.

3. INSTALLATION INSTRUCTIONS

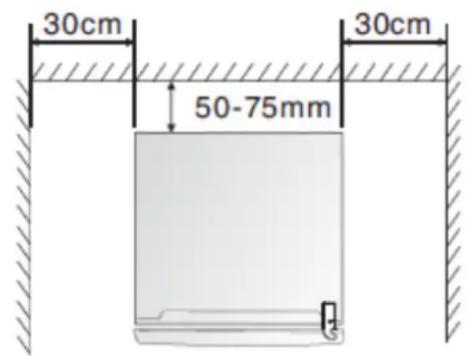

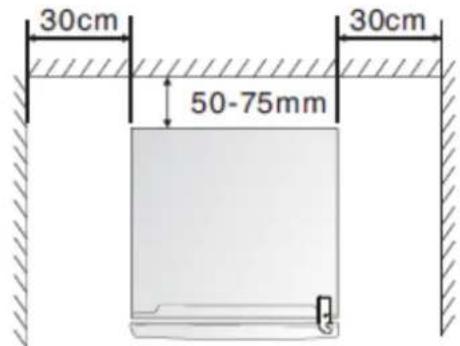

Location

When selecting a position for your fridge you should make sure the floor is flat and firm, and the room is well ventilated. An average ambient temperature must be observed. This temperature is specific according to the climatic class of the device:

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

• N: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C
• ST: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C

Avoid location near a heat source, eg, cooker, boiler or radiator. Also, avoid direct sunlight in out-buildings or terraces/outside seating areas. If you are placing your appliance in an out-building such as a garage or annex ensure that it is placed above the damp course, otherwise condensation will occur on the cabinet.

Never place the appliance in a wall recessed or into fitted cabinets or furniture when it is working, the metal grid at the back may become hot and the sides warm.

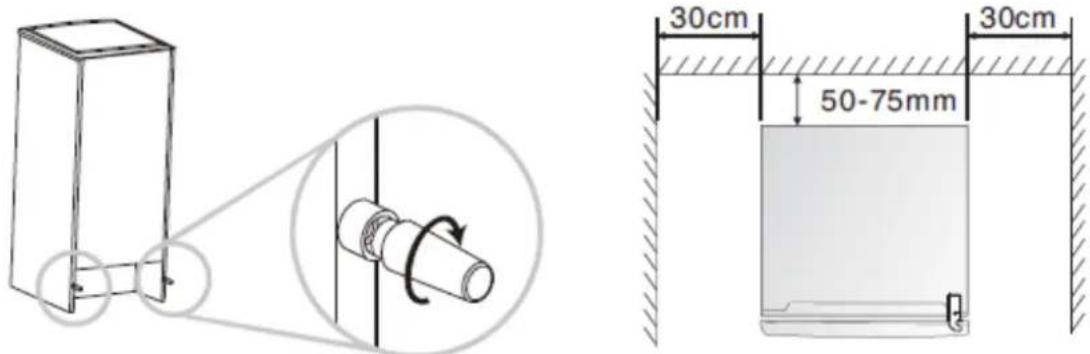

The device is supplied with two plastic spacers. After installing these spacers, the unit cannot be pushed against the wall to ensure adequate ventilation. Insert the spacers into the corresponding openings on the back of the device, then screw the spacers firmly. Place the device against a wall whose free distance does not exceed 75 mm and exceeds it by more than 50 mm.

Technical diagram showing a mechanical assembly with dimension annotations and a magnified detail view.

Transport and start-up

When transporting this device, hold it by the base and gently tilt the device up to a maximum of 45^ . Do not lift the appliance by the door handle. Do not place the device in a completely horizontal position or upside down. Push the refrigerator on the roller feet to move it.

Leveling the fridge

If the fridge is not level, the door and magnetic seal alignment will be affected and may cause you fridge to work incorrectly. Once the fridge is placed in its final location, adjust the leveling feet at the front turning them.

by L H

Cleaning before use

Wipe the inside of the fridge with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the fridge.

Before plugging in

Check that you have a socket which is compatible with the plug supplied with the fridge. DO NOT SWITCH ON UNTIL SIX HOURS AFTER MOVING THE FRIDGE.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

Before filling your fridge

Before storing foods in your fridge, turn the fridge on and wait for 4 hours, to make sure it is working properly and to allow the fridge to fail to the correct temperature.

4. OPERATING YOUR APPLIANCE

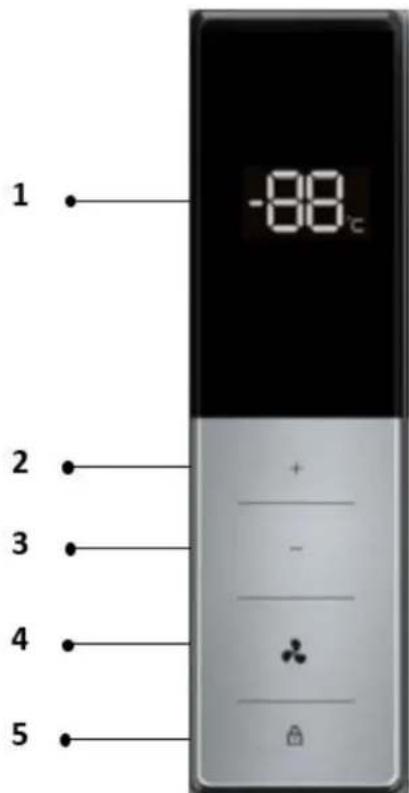

Temperature Control

1 -88°C 2 + - 3 4 5

1	Display of the set temperature.
2	Key to increase the set temperature by 1°C.
3	Key to decrease the set temperature by 1°C.
4	Cool key fast.
5	Key for activating / deactivating child safety.

Use your device according to the control rules following, your device has the functions and modes corresponding as shown in the panels of control in the picture above. When the device is powered on for the first time, the panel display lights up, but all buttons are locked.

The default temperature setting is 5^ C. If no button has been pressed and the doors are closed, the display turns off.

Temperature control

When using your refrigerator for the first time, we recommend setting the temperature to 5^ C. If you wish to change the temperature, please follow the directions below.

Attention! When you set a temperature, you set an average temperature for the whole cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

Press on « 🔊 » for 3 seconds to unlock the buttons. The display starts to flash. Press “+” and “-” to set the temperature between 2°C and 8°C as needed, and control panel will display corresponding values. After 10s, the display stops flashing, and buttons locked with a sound. The setting takes effect. After another 10s, the display turns off.

It is suggested to set 4^ C for use daily.

Note: the temperature will impact the storage time of food. Set the temperature as necessary. Warmer will accelerate food spoilage and colder will freeze food bad. Thus, food to be wasted.

Super fresh

Super cool will quickly lower the temperature within the appliance so food will cool faster. It can lock in the vitamins and nutrients of fresh food and keep food fresh longer.

Press on « 🔊 » for 3 seconds to unlock buttons. The display starts flashing. Press on « ♣ », the screen displays FC and will take effect after 10s with a sound.

Super Fresh automatically switches off after 3 hours.

When the super fresh function is activated, you can deactivate it by pressing when >> the buttons are unlocked. The temperature setting will revert to the previous setting.

Power outage

In the event of a power failure, all temperature settings will automatically preserve, unless you change the setting of temperature.

Door alarm

If the door is opened for over 2 minutes, the door alarm will sound. Buzzer will sound 3 times every 1 minute and will automatically stop alarming 10 minutes later.

To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be cleared by closing the door.

Error codes

Code	Description
Ec	Communication failure
E1	Fridge temperature sensor failure
E2	Ambient temperature sensor failure
F1	Fan failure
dR	Door switch failure

NOTE:

• Turning the temperature control to "OFF" setting stops the cooling cycle but does not shut off the power to the refrigerator.
• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
• If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.

Do not leave the door open for too long so that the indoor temperature does not rise too much.

"COLD ZONE" SYMBOLS (Depending on models)

You will find the symbol opposite in your refrigerator. It clearly shows the location of your appliance's coldest zone: the temperature here is +4°C or less. A temperature indicator here enables you to check that your refrigerator is working correctly.

TEMPERATURE INDICATOR (Depending on models)

mperature to set

Correct temperature

Attention: Prolonged opening of the door will cause the internal temperature to rise. You must therefore read the indicator within 30 seconds of the door being opened for the reading be correct.

5. FOOD CONSERVATION

The storage of foodstuffs must comply with regulatory conservation temperatures established by the National Agency for Food, Environmental and Occupational Health Safety (ANSES). Failure to respect these storage temperatures involves risks of poisoning and food waste.

Food preservation and storage.

Under the recommended setting, the best shelf life is no more than 3 months in the freezer (4 stars); The better storage time may reduce other parameters.

Food Location	Food Location
Butter, cheese	Locker upper door
Eggs	Door locker
Fruits, vegetables, salad	Vegetable and fruit drawer
Meat, sausages, cheese and milk	Lower area (lower shelf / crisper cover
Dairy products, canned goods, cans	Top shelf or door locker
Drinks, bottles and tubes	Door locker

Failure to comply with these storage temperatures involves risks of poisoning and food waste. For optimal conservation of foodstuffs, it is recommended to adjust the temperatures of the compartments as below:

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge	+2≤+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer **	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill	2≤+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8	Fresh Food	0≤+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine	+5≤+20	red wine,white wine,sparkling wine etc.

Non-compliance with these storage temperatures involves risks of poisoning and food waste. For optimal preservation of foodstuffs, it is recommended to set the temperatures of the compartments as follows:

		Storage conditions
Compartment	Type of compartment	T°C mini	T°C maxi	T°C consigne
Compartment for non-frozen food	Compartment for fresh food	0	8	4
Compartment for highly perishable food	Compartment for highly perishable food	-3	3	2
	No star and ice making	s.o.	0	0
Compartment for frozen food	1 star	s.o.	-6	-6
	2 stars	s.o.	-12	-12
	3 stars	s.o.	-18	-18
	4 stars	s.o.	-18	-18

PREPARING FOOD FOR THE REFRIGERATOR

Wrap fresh foods well: they will retain aroma, color, moisture content and freshness. You will also avoid in this way that the taste of certain foods is transmitted to others. Only vegetables, fruit and salads can be stored unpackaged in the vegetable drawer.

Note: Food should not directly touch any surfaces inside the appliance. It should be packed separately in aluminum foil or cellophane sheet or waterproof plastic boxes. Make sure food is securely wrapped or covered before storing. This will prevent food from becoming dehydrated, losing its color or losing its taste and will help maintain its freshness. This will also prevent the transfer of odors. Vegetables and fruits do not need to be wrapped if stored in the crisper drawer of the refrigerator.

Leave hot food and drinks to cool outside the appliance. Remove the cardboard packaging around the yoghurt pots. Check the expiry date indicated on the products you have purchased. It should not be exceeded.

ARRANGING FOOD IN YOUR REFRIGERATOR

The temperature inside your refrigerator is not uniform. Some areas are colder than others and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely.

Leave a space between the food items to allow the air to circulate freely and avoid different products contaminating each other.

Do not put packages and food in contact with the wall at the back of the appliance, this is a particularly cold and damp area of the appliance and water droplets, and frost condense there as part of your refrigerator's normal operation.

The coldest area, indicated by the logo “OK”, is designed for delicate, sensitive and highly perishable food: meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream-based dishes and pastries, fresh pasta, pastry, pizza/quiches, fresh produce and raw milk cheese, ready- to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4°C or below.

6. CARE AND MAINTENANCE

Defrost

The defrost of your device East entirely automatic. The water of defrost flows towards Atray located recovery has the back of the device.

Cleaning interior of the device

For hygienic reasons, the device (including interior and exterior accessories) should be cleaned regularly at least every two months.

WARNING: The appliance must not be connected to the mains while you are cleaning it. Risk of electric shock! Before cleaning, switch off the appliance and disconnect the power supply.

Wipe the interior walls of the refrigerator with a weakly concentrated baking soda solution, then rinse with warm water using a wrung-out sponge or cloth. Wipe dry before replacing shelves and bins.

Thoroughly dry all surfaces and removable parts.

Cleaning of outside of the device

To maintain its appearance, your device must be cleaned regularly.

• Wipe the digital panel and display panel with a soft, clean cloth.
• Spray the water on the cloth rather than spraying directly on the surface of the device. This helps to ensure a good distribution of the liquid on the surface.
• Clean the doors, handles, and cabinet surface with a neutral cleaning agent, then wipe with a soft cloth.

Attention!

• Do not use sharp objects as they may scratch the surface.
• Do not use thinner, car detergent, Clorox, abrasive cleaners or organic solvents such as Benzene. They can damage the surface of the device and present a fire risk.

If you're going on vacation

If your appliance is not to be used for several months, remove all food, turn off and unplug the appliance from the outlet. Clean and dry the inside and outside of the appliance thoroughly. Also leave the door open, blocking it if necessary, to prevent condensation, odors, mold.

Moving the unit

After any movement, it must not be connected for 4 hours. This delay allows the coolant to be adjusted.

Energy saving tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Refrigerator storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the refrigerator less efficient.

- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time and close the door as soon as possible.

Changing the light bulb

This device is made up of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no changes to be made. If however, and despite all the care taken during the manufacture of your device, the LEDs were defective, please contact your after-sales service for any intervention.

Door reversal instructions

You can change the door opening direction, to the left (standard installation) or to the right, depending on your installation needs.

Attention! When you reverse the door opening direction, the appliance must not be connected to the mains. Make sure the plug is unplugged.

Note: Before laying the refrigerator horizontally to access the base, place foam packing or similar material underneath to prevent damage to the rear panel. Stand the device upright. Open the upper door to remove all the shelves (to avoid damaging them), then close the door. To reverse the door opening direction, we recommend following the steps below.

1. Remove the upper right hinge,hinge cover and left hinge cover with a screwdriver.

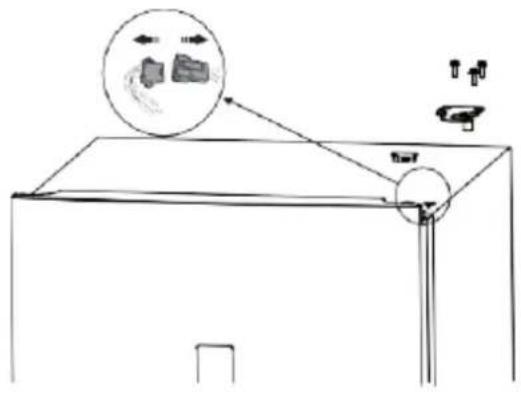

2. Disconnect the connection line between the door display and the cabinet, and pull out the terminal as shown in the figure.

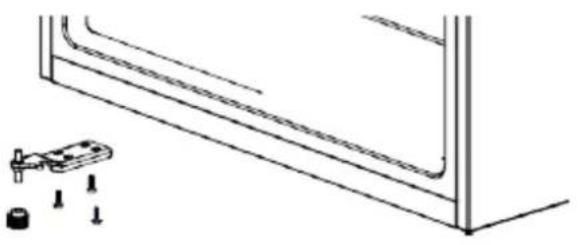

3. Remove the lower hinge and adjustable foot on the left and right sides.
4. Take out 4 spare parts from the manual bag, as shown in the picture: top hinge, top hinge cover, left assistant suction, left lower hinge. (if the manual bag does not contain all the parts, contact your after-sales service to have them supplied)
5. Take out 4 spare parts from the manual bag, as shown in the picture:top hinge, top hinge cover, left assistant suction, left lower hinge.
6. Install the lower hinges and adjustable feet in the manual bag on the left and right sides
7. Connect the door body to the terminal on the door

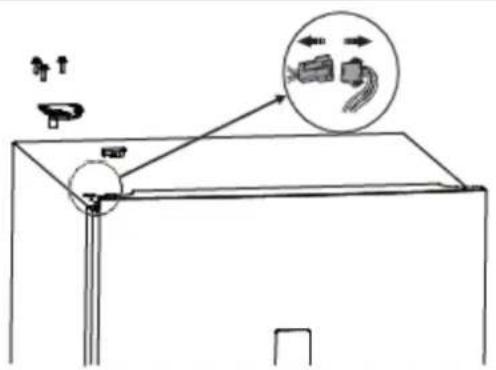

1. Install the upper left hinge and upper hinge cover in the manual bag and right hinge cover

Simple line drawing of a table with two small objects on top, no text or symbols present

Installation of handles

This refrigerator is equipped with exterior handles, which are in the bag. Follow the instructions below to install them.

1. Remove the two screws (8) using a Phillips screwdriver.
2. Pull out the handle (9) and fix it with the two screws (8).
3. Cover the two screws (8) with two caps (10), which are in the small bag with the handle.

Figure 1: Front view without handle.
Figure 2: Exploded view of handle installation.
Figure 3: Front view with handle.

Simple line drawing of a rectangular frame with a numbered label '8' pointing to the left side (no text or symbols on the frame itself)

Figure 1

10 8 9

Figure 2

Simple line drawing of a rectangular door or cabinet with a handle and base (no text or symbols)

Figure 3

7. TROUBLESHOOTING GUIDE

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

Problems	Solutions
The device does not function correctly	✓ Check that the power cord is correctly plugged into the mains. ✓ Check your power module's fuse or circuit, replace if necessary. ✓ The ambient temperature is too low. Try adjusting the room temperature to fix this problem.
Smell particular in the device	✓ Check that there is not a damaged food, if it is the case, throw it away. ✓ Check that your food Who feel strong be packed. ✓ You may need to clean the inside.
Noises emitted by the device	✓ The noises below are absolutely normal: ✓ Compressor noise. ✓ Gurgling similar to the sound of boiling water. ✓ Cracking noises during automatic defrosting. ✓ Clicks before the compressor turns on.
	✓ Other unusual noises are caused by the reasons below and may require you to take action: ✓ Cabinet is not level. ✓ The back of the device is in contact with the wall. ✓ Bottles or containers have fallen or rolled away.
Motor runs continuously	✓ It is normal to hear engine noise frequently; it will need to work harder under the following circumstances: ✓ The temperature is set lower than necessary. ✓ A large quantity of still hot food has recently been placed in the appliance. ✓ The temperature outside the device is too high. ✓ The doors are left open too often or too long. ✓ Immediately after installing the device or if it has been turned off for a long time.
A layer of gel develops in the compartment	✓ Check that the appliance's air outlets are not blocked by food and ensure that the food inside the appliance is placed in such a way as to allow sufficient ventilation. ✓ Make sure the door is securely closed. To remove the gel, please refer to the chapter "Cleaning and maintenance".
The indoor temperature is too high	✓ You may have opened the doors too long or too frequently, an obstacle could prevent the doors from closing; or the appliance does not have sufficient space on the sides, behind and above.
The indoor temperature is too low	✓ Increase the temperature following the instructions in the "Control panel" chapter.
Doors do not close easily	✓ Check that the refrigerator is tilted backwards by approximately 10 to 15 mm to allow the doors to close themselves and that nothing inside is preventing them from closing.
The door is difficult to open	✓ It is normal for the door to offer some resistance to the opening, especially when you have just come from the close. A small depression is created in your device which used to ensure a perfect seal of the door It is enough to wait a few moments before of the reopen.
Water drops on the floor	✓ The water tank (located at the back of the cabinet) may not be stable, or the drainage spout is not positioned to pour water into the container, or the spout is blocked. You may need to move the refrigerator away from the wall to check the condition of the spout and container.
The bulb does not work	√ The LED bulb may be damaged. Refer to the passage on replacing the LED bulb in the “Cleaning and maintenance” chapter.√ The control system turned off the light because the door was left open too long. Close and reopen the door to reactivate the light.

8. ENVIRONMENT

This appliance is marked according to the European directive 2019/290/UE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed-Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

9. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for FRIGELUX brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

Your Economic Operator Contact is:

FRIO ENTREPRISE

143 Boulevard Pierre Lefaucheux

72230 ARNAGE

Warning sign depicting a flame symbol in yellow and black on a yellow triangle

R600a

30cm 30cm 50-75mm

1 -88°C 2 + - 3 4 5

This appliance is for domestic use only. The manufacturer cannot be held responsible for another use.

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

30cm 50-75mm 30cm

1 -88°C 2 + 3 - 4 - 5

Simple line drawing of a rectangular frame with a numbered label '8' pointing to its left side (no text or symbols on the frame itself)

Figure 1

10 8 9

Figure 2

Simple line drawing of a rectangular door or cabinet with a handle and base (no text or symbols)

Figure 3

7. GUIDA ALLA RISOLUZIONE DEI PROBLEMI

This appliance is for domestic use only. The manufacturer cannot be held responsible for another use.

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

Technical diagram showing a mechanical assembly with a rectangular block and a magnified inset illustrating rotational motion (no text or symbols)

30cm 50-75mm 30cm

Simple line drawing of a rectangular frame with a numbered label '8' pointing to the left side (no text or symbols on the frame itself)

Figure 1

10 8 9

Figure 2

Simple line drawing of a rectangular door or cabinet with a handle and base (no text or symbols)

Figure 3

7. FEHLERSUCHE
