USER MANUAL S4BI122 FRIGELUX

Interior view of a white refrigerator with open doors and shelves (no visible text or symbols)

RÉFRIGÉRATEUR

S4BI122

FR - MANUEL D'UTILISATION

FR - MANUEL D'UTILISATION P. 1

Warning sign depicting a flame symbol in yellow and black on a white background

R600a

Illustration of a hand holding a screwdriver above a window-like panel (no text or symbols)

Hand holding a tool near a wall-mounted bracket, with a red arrow pointing to the handle (no text or symbols visible)

3b

Illustration of a hand holding a cable or wire inside a cabinet (no text or symbols visible)

Technical diagram showing installation steps of a door panel with labeled components and dimensions

Illustration of a door with a red circular arrow symbol pointing to a device (no text or symbols present)

Illustration showing two steps of installing a battery cover panel, with no text or symbols present.

Technical diagram showing a cabinet with internal structure and three circular insets illustrating mechanical assembly changes, including 180° rotation.

Before placing your new refrigerator into operation, please read these operating instructions carefully. They contain important information for safe use, for installation and for maintenance of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Notes: which are important for your safety or for the proper functioning of the appliance, are stressed with a warning triangle and or with signal words (Warning! Caution! Important!).

Please observe the following carefully.

1. GENERAL SAFETY INSTRUCTIONS

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety of children and other vulnerable persons

• This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.
• Keep all packaging away from children as there is risk of suffocation.
• Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seal, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• Keep the appliance and its power cable out of reach of children less than 8 years old.
• Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside.
  • Children from 3 to 8 are allowed to load and unload the appliance.

General safety

WARNING — This appliance is intended to be used in household.

WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings, in the appliance enclosure or in the

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

Caution risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
  • Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

• We cannot be held responsible for any incident caused by poor electrical installation. The power cord must not be lengthened. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the main plug of the appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.
• The appliance is only applied with power supply of single-phase alternating current of 220\~240V/50Hz. The device uses a wall socket earthed according to current recommendations.
• If the power cable is damaged, do not proceed with his replacement but contact your after-sales service.

- The socket must be readily accessible but out of reach of children. If unsure, contact your installer.

- When positioning the appliance, ensure that the cord is not trapped or damaged.

Daily use

• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• Never place bottles or jars containing liquids in the refrigerator unless they are filled at 2/3 of their capacity, freezing expands liquids and the container may explode.
• When unplugging always pull the plug from the mains socket. do not pull on the cable.
• Do not place the appliance in direct sunlight.
• Keep burning candles jumps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping food stuff.
• The appliance is heavy. Care should be taken when moving it.
• If your machine has wheels, remember that they are only used to facilitate small movements. Do not move it on longer journeys.
• Never use the base, drawers, doors etc. to stand on or as supports.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution! Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

For electrical connection, carefully, follow the instructions given in this manual.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
• It is advisable to wait at least 24 hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating.

To achieve sufficient ventilation, follow the instructions relevant to installation.

• The appliance must not be located close to radiators or cookers.
  • Make sure that the mains plug is accessible after the installation of the appliance.

ENERGY SAVINGS

• To reduce the power consumption of your device:
  • Install it in a suitable location (see "Installing your appliance").
• Keep the doors open for as short time as possible.
• Do not put hot food into your device.
• Ensure the optimal functioning of your device by periodically cleaning the condenser (see "Routine maintenance of your appliance").
• Ensure the optimal functioning of your device by not allowing too much frost accumulate in the refrigerator (defrost it when the frost thickness exceeds 5-6 mm).
• Periodically check the door seals and make sure they always close effectively. If this is not the case, please contact your after-sales service.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

This appliance is for domestic use only. The manufacturer cannot be held responsible for another use.

Aesthetic and functional spare parts in accordance with REGULATION (EU) 2019/2019 (Annex II, point 3.), are available for after sales service network and end users for a maximum period of 7 or 10 years (List on Annex II, point 3.a.1 et 3.a. from the date of end of commercialization on the market of the last unit. The list of spare parts and the procedure for ordering them (professional access / end user access) are available on the following website: www.interfroidservices.fr or by post at the following address: Interfroid Services, 123 Route du Chêne, 72230 ARNAGE.

For other functional spare parts not specified in EU regulation 2019/2019, they are available for a period of 7 years.

The manufacturer's warranty is 1 year for functional parts.

R600a Safety regulation

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Do not damage the refrigerant circuit.

Refrigerating units operating on Isobutane (R600a) may not be placed in an area with sources of ignition (e.g. unsealed electrical contacts) or where the refrigerant could gather in the event of a leak. The type of refrigerant is indicated on the cabinet's type plate.

Warning: Do not use electrical appliances inside the compartments of the appliance, unless they are of the type recommended by the manufacturer.

The appliance meets the requirements of all European Directives and their modifications.

FR + + + +

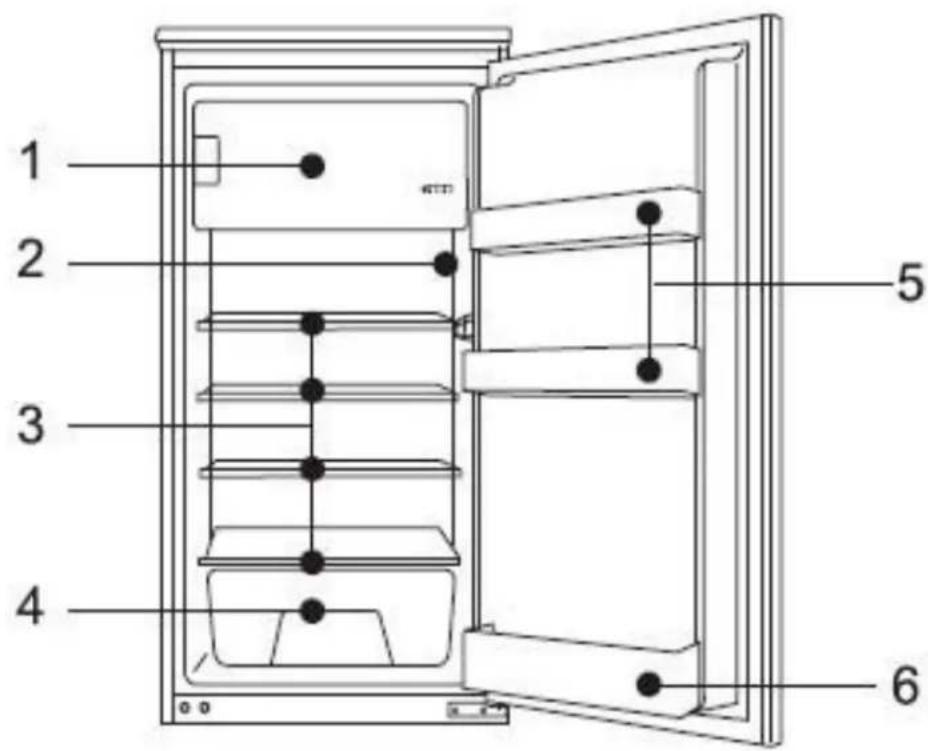

2. PRODUCT DESCRIPTION

1 2 3 4 5 6

1	Freezer compartment	5	Standard Balcony
2	Control panel	6	Balcony for bottles
3	Shelves
4	Vegetable drawer

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (2019/2016 all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for Energy Labeling).

This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to www.ec.europa.eu and searching the reference of your refrigeration appliance.

3. INSTALLATION INSTRUCTIONS

Location

When selecting a position for your fridge you should make sure the floor is flat and firm, and

the room is well ventilated. An average ambient temperature must be observed. This temperature is specific according to the climatic class of the device:

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

• SN: This refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^
• N: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C
• ST: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^
  • T: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C

Avoid placing your fridge near a heat source, for example, cooker, boiler or radiator. Also, avoid direct sunlight on buildings or deckchairs. Make sure the fridge is not placed near moisture (e.g. tumble dryer) otherwise condensation will occur on the furniture.

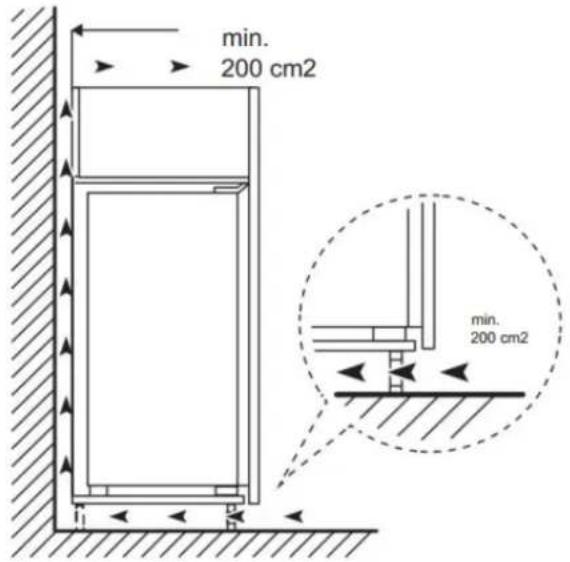

It is mandatory to add ventilation under and behind the product in order to create a better airflow and avoid poor cooling performance, high internal temperatures, excessive consumption and condensation in the device.

Space requirement diagram

min. 200 cm2 min. 200 cm2

Product Installation:

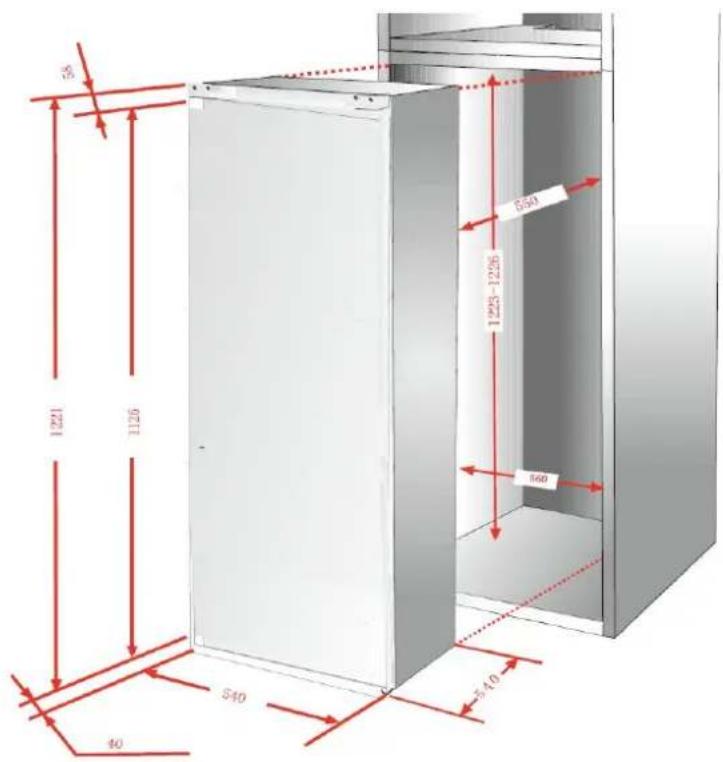

The dimensions of the dwelling in the column must match those shown in the figure.

58 1221 1126 540 1223-1226 160 540 540 540 40

Place the unit in the housing against the side panel adjacent to the opening.

1. Check that the kitchen cabinet door is in the correct position.
2. Run the power cable through the cabinet so that it can be connected to the power outlet after the device has been installed. Remove the top cover only if there is no gap.
3. Place the unit in the housing against the side panel adjacent to the opening.

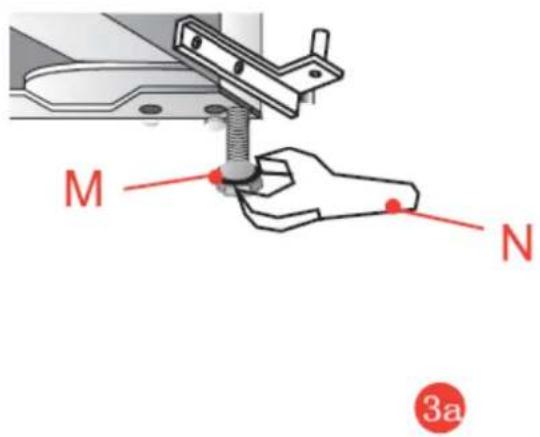

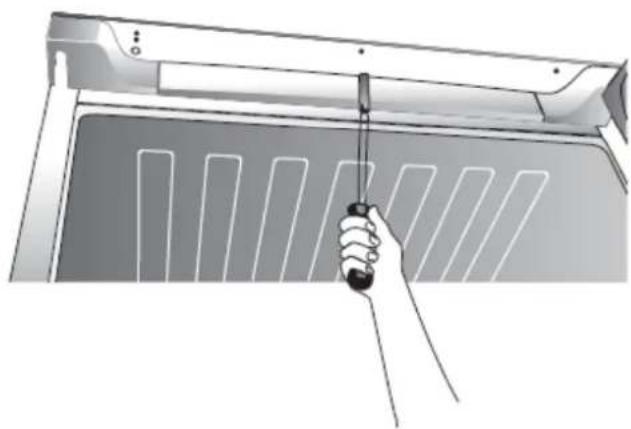

3a Adjust the stand until the top panel is in contact with the furniture and fix the upper part of the appliance with the screws provided, in the previously drilled panel above the headband.

M N 3a

Illustration of a hand holding a screwdriver above a window with ventilation slots (no text or symbols)

3b Anchor the bottom of the appliance to the wall of the cabinet using the special parts provided.

Hand holding a tool near a wall-mounted fixture (no text or symbols visible)

3b

3c Attach the bottom two legs into the holes in the base of the furniture

3d If supplied originally, apply the plastic gasket.

Illustration of a hand holding a cable or wire inside a cabinet (no text or symbols visible)

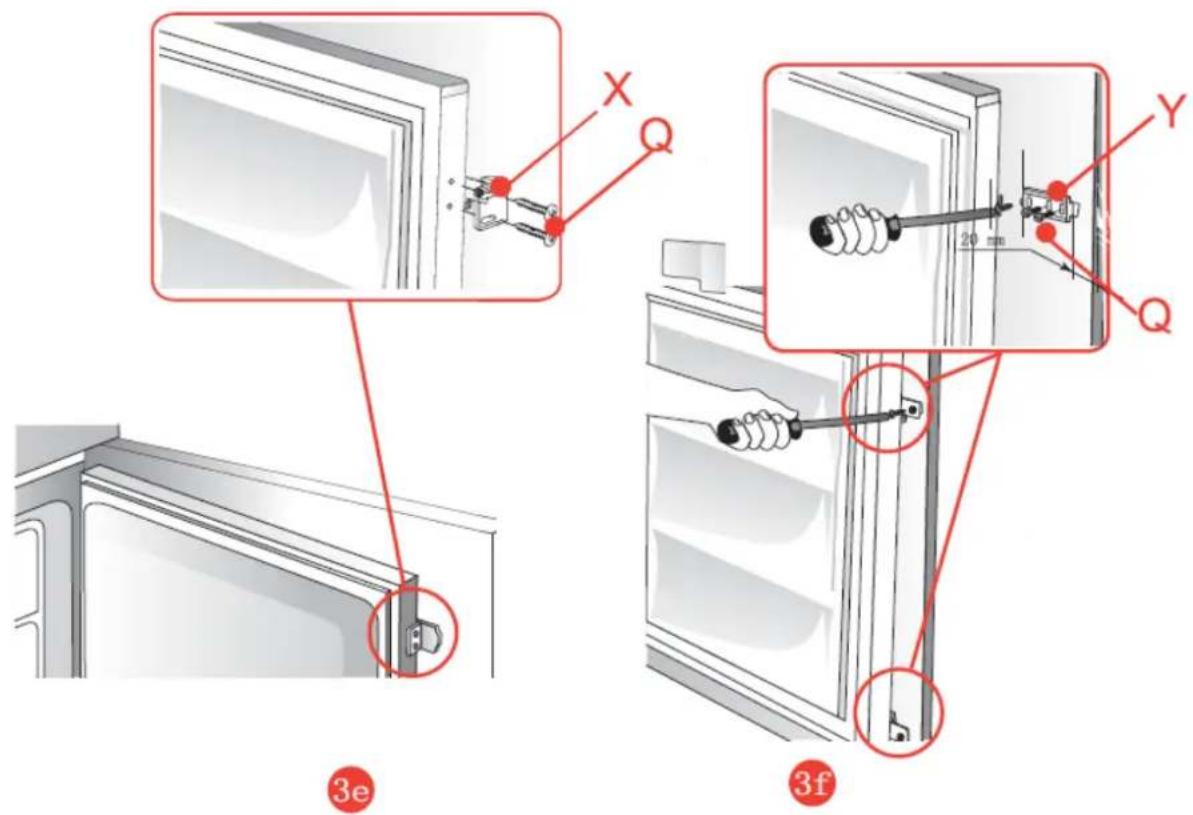

3e Anchor the X part to the appliance door using the screws.

3f Install and fix the sliding Y-part with screws, after adjusting the housing door.

X Q Y 20 mm Q 3e 3f

1. Close the hole in the door of the appliance with the cap.

Recommendation combination:

The following arrangement of your appliance's equipment (drawers, bins, shelves, etc.) is recommended so that energy is used as rationally as possible by the refrigeration appliance. Any change to this arrangement may impact the appliance's energy consumption.

Cleaning before use

Wipe the inside of the fridge with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the fridge.

Before plugging in

Check that you have a socket which is compatible with the plug supplied with the fridge. DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FRIDGE.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

Before filling your fridge

Before storing foods in your fridge, turn the fridge on and wait for 4 hours, to make sure it is working properly and to allow the fridge to fail to the correct temperature.

4. OPERATING YOUR APPLIANCE

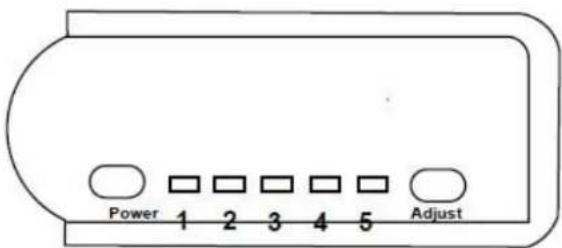

Temperature Control

Your refrigerator is equipped with a thermostat located inside your appliance.

Power 1 2 3 4 5 Adjust

Display:

1. Once the product is turned on, the thermostat will adjust to position 3.
2. When the refrigerator door is opened, the refrigerator's control panel and lighting are turned on. 60 seconds after the door is opened, the door opening alarm starts working. 7 minutes after opening the door, the lights will automatically turn off but can be turned on by touching the switch. While the refrigerator door is open, the control panel remains illuminated. When the door is closed, the lights turn off immediately and the control panel turns off 60 seconds later.
3. If you want to adjust the indoor temperatures, please press the "Adjust" button, choose different levels from 1 to 5 to get a lower temperature.
4. Press the "Power" button for 3 seconds to turn off your device and the button will turn on, the power will be turned off. The internal lamps go out, the compressor stops working. Press the "Power" button for 3 seconds to turn on your device, the symbol will light up and the power will be restored.
5. In the event of a power outage, the settings will be kept as before.

Temperature Reference

Parameters	Refrigerator	Freezer
1	8 ± 2^	-13 ± 2^
2	6 ± 2^	-15 ± 2^
3	4 ± 2^	-17 ± 2^
4	3 ± 2^	-19 ± 2^
5	2 ± 2^	-21 ± 2^

NOTE:

• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
• If you choose to change the thermostat setting, adjust thermostat control by one

numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.

Do not leave the door open for too long so that the indoor temperature does not rise too much.

"COLD ZONE" SYMBOLS (Depending on models)

You will find the symbol opposite in your refrigerator. It clearly shows the location of your appliance's coldest zone: the temperature here is +4°C or less. A temperature indicator here enables you to check that your refrigerator is working correctly.

TEMPERATURE INDICATOR (Depending on models)

Prolonged opening of the door will cause the internal temperature to rise. You must therefore read the indicator within 30 seconds of the door being opened for the reading to be correct.

5. FOOD CONSERVATION

Food preservation and storage.

The storage of foodstuffs must comply with the regulatory conservation temperatures established by the National Agency for Food, Environmental and Occupational Health Safety (ANSES). Failure to comply with these storage temperatures involves risks of poisoning and food waste.

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.

Under the recommended setting, the best shelf life is no more than 3 days in the refrigerator and 3 months in the freezer (4 stars); The better storage time may reduce other parameters.

		Storage conditions
Compartment	Type of compartment	T°C mini	T°C maxi	T°C consigne
Compartment for non-frozen food	Compartment for fresh food	0	8	4
Compartment for highly perishable food	Compartment for highly perishable food	-3	3	2
	No star and ice making	s.o.	0	0
Compartment for frozen food	1 star	s.o.	-6	-6
	2 stars	s.o.	-12	-12
	3 stars	s.o.	-18	-18
	4 stars	s.o.	-18	-18

Failure to comply with these storage temperatures involves risks of poisoning and food waste. For optimal conservation of foodstuffs, it is recommended to adjust the temperatures of the compartments as below:

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge	+2≤+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer **	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill	2≤+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8	Fresh Food	0≤+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine	+5≤+20	red wine,white wine,sparkling wine etc.

PREPARING FOOD FOR THE REFRIGERATOR

Carefully wrap fresh foods: they will then keep their flavor, color, humidity content and freshness. You also avoid the taste of some foods contaminating the taste of others. Only vegetables, fruit and salad vegetables can be stored in the vegetable compartment without being packed. Let hot dishes and drinks cool down outside the appliance. Remove the cardboard packs from around yoghurt pots. Check the consume-by dates on the products you have bought. You should not exceed these.

ARRANGING FOOD IN YOUR REFRIGERATOR

The temperature inside your refrigerator is not uniform. Some areas are colder than others and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely.

Leave a space between the food items to allow the air to circulate freely and avoid different

products contaminating each other.

Do not put packages and food in contact with the wall at the back of the appliance, this is a particularly cold and damp area of the appliance and water droplets and frost condense there as part of your refrigerator's normal operation.

The coldest area, indicated by the logo “OK”, is designed for delicate, sensitive and highly perishable food: meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream-based dishes and pastries, fresh pasta, pastry, pizza/quiches, fresh produce and raw milk cheese, ready- to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4°C or below.

6. CARE AND MAINTENANCE

Defrosting

Defrost your appliance when frost is accumulated on the evaporator is about 2mm:

• Remove all contents from the appliance and unplug it.
• Leave the fridge door open to allow melting of the ice.
• Remove large pieces of ice if necessary with dishcloth or something that will not damage the walls.
• Do not use hot water or other electric heaters to melt the accumulated ice.

- After defrosting, remove the accumulated ice / water and try the appliance with a soft cloth.

- Restart the unit according to the start instructions. Never use a knife or other sharp instrument to scrape ice inside.

Cleaning inside the fridge

After defrosting you should clean the fridge internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the fridge. Water will flow into the defrost drain, it doesn't matter if the amount of water is not large, this water arrives in the recovery tank located at the back and evaporates naturally.

Caution: Make sure that no pieces of food are clogging the defrost drain.

If you're going on vacation

If your appliance is not to be used for several months, remove all food, turn off and unplug the appliance from the outlet. Clean and dry the inside and outside of the appliance thoroughly. Also leave the door open, blocking it if necessary, to prevent condensation, odors, mold.

Moving the unit

After any movement, it must not be connected for 4 hours. This delay allows the coolant to be adjusted.

Energy saving tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze

too slowly may lose quality, or spoil.

• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Refrigerator storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the refrigerator less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Changing the light bulb

This device consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifespan of these LEDs is normally sufficient for no changes to be made. If, however, and despite all the care taken during the manufacture of your device, the LEDs are defective, please contact your service department for any intervention.

Door reversal instructions

1. Turn off the unit and remove all items from the door trays.

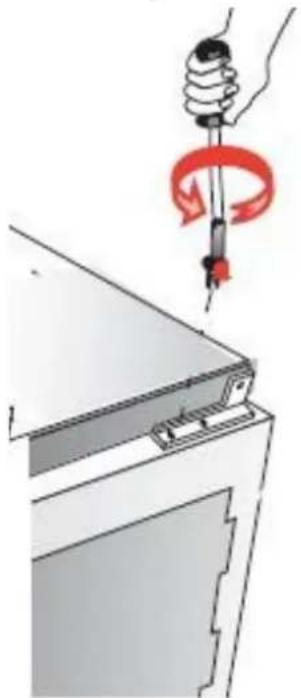

2. Remove the top hinge and the holes caps of the appliance door.

Illustration of a door with a red arrow symbol pointing to a device, no text or symbols present

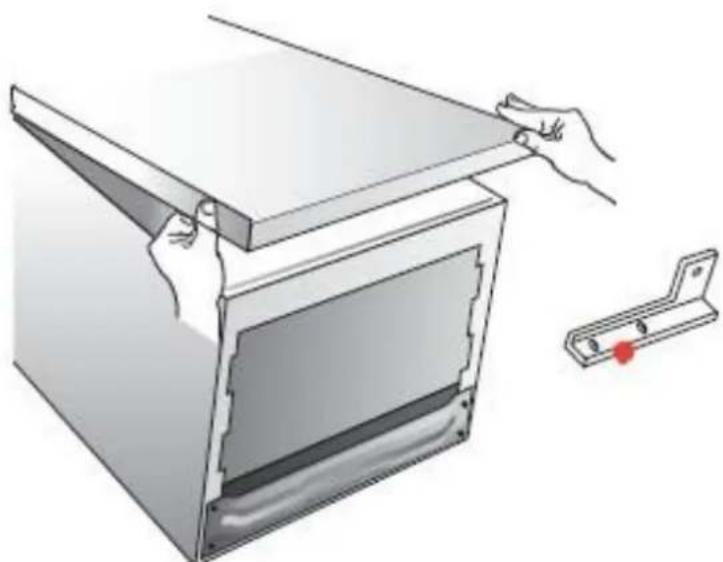

1. Remove the appliance door, bottom hinge, and the hole caps.
2. Exchange the bottom hinge and upper hinge, then install them according to below steps, and

Illustration of a hand using a screwdriver to lift a component, with no visible text or symbols

install the hole caps.

Illustration of a hand installing or adjusting a metal panel on a cabinet (no text or symbols present)

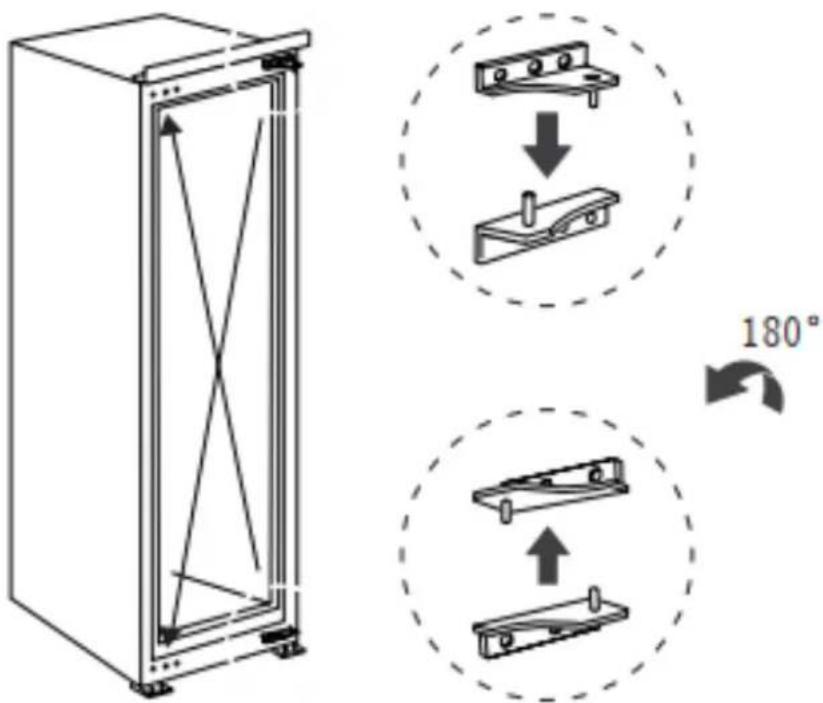

Technical diagram showing a cabinet with internal structure and three mechanical assembly states, annotated with 180° rotation indicator.

1. Install the hinge at the bottom, position the door and install the top hinge.

2. The installation is finished.

7. TROUBLESHOOTING GUIDE

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

Problèmes	Solutions
Unusual noises	√ Check that all the movable parts (trays, racks, etc..) are securely in place.
The fridge does not get cold enough	√ Check if the temperature is correct. If this is not the case, adjust the temperature appropriately.√ Make sure that you have not placed a large amount of food or hot food in your appliance.√ Be careful not to open the door too often or leave it open.√ Check that the door is closed tightly.√ Keep your device away from heat sources.
Your appliance does not get cold at all	√ Check that your appliance is connected to the electrical supply.√ Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed
Frost forms inside your appliance	√ Be careful not to open your appliance's door too often and not toleave it open.
The door is difficult to open	√ It is normal for the door to offer some resistance to being opened, particularly when you have just shut it: a slight under pressure forms in your appliance to ensure the door seals perfectly. All you have to do is wait a few seconds before re-opening.
The fridge is not working	√ Check that your appliance is connected to the electrical supply.√ Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed
The light does not work	√ Check that your appliance is connected to the electrical supply.√ Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed√ Check that the bulb is not burned out and refer to the "Changing the bulb" section.
Condensation appears on the outside of the fridge	√ This may be due to a change in the room temperature. Wipe off ar residue of moisture. If the problem continues contact the local store where your purchase was made.
Special odors in the appliance	√ Check that you do not have spoiled food, if so, throw it away.√ Check that your strong-smelling foods are packed.

8. ENVIRONMENT

This appliance is marked according to the European directive 2019/290/UE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed-Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

9. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for FRIGELUX brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

Ureido cliente,

Warning sign depicting a flame symbol in a yellow triangle with black border

R600a

Illustration of a hand holding a tool inside a ventilation duct (no text or symbols)

Hand holding a tool near a wall-mounted bracket (no text or symbols visible)

3b

Illustration of a hand holding a cable or wire attached to a cabinet or cabinet frame (no text or symbols visible)

Technical diagram showing assembly steps of a door panel with labeled components and dimensions

Illustration of a door with a red circular arrow symbol pointing to a device (no text or symbols present)

Illustration showing two steps of installing a door panel, with one being adjusted and the other holding a clip (no text or symbols present)

Technical diagram showing a cabinet with internal components and directional arrows, including a 180° rotation indicator.

Illustration of a hand holding a tool inside a ventilation duct (no text or symbols)

Hand holding a tool near a wall-mounted bracket (no text or symbols visible)

3b

Hand holding a cable or wire attached to a cabinet or cabinet frame, no text or symbols visible

Technical diagram showing installation steps of a wall-mounted device with labeled components and dimensions

Illustration of a door with a red circular arrow symbol pointing to a handle (no text or symbols present)

Illustration of two different mechanical assembly steps: one with a tool and red-handled ring, the other showing a close-up of a panel mounted on a bracket (no text or symbols present)

Technical diagram showing a cabinet with internal structure and three mechanical assembly states, including angle measurement of 180°.

Warning sign depicting a flame symbol with hazard symbol inside a yellow triangle

R600a

Illustration of a hand holding a screwdriver above a door with ventilation slots (no text or symbols)

Illustration of a hand holding a tool near a wall-mounted bracket, with a red arrow pointing to the handle (no text or symbols present)

Hand holding a cable or wire inside a cabinet (no text or symbols visible)

Technical diagram showing assembly steps of a door panel with labeled components and dimensions

Illustration of a door with a red circular symbol and a hand holding a tool, no text or symbols present

Illustration showing a hand using a screwdriver to lift a screw into a battery cover, and a close-up of the device being handled with a tool (no text or symbols present)

Technical diagram showing a cabinet with internal structure and three circular insets illustrating mechanical assembly changes, including 180° rotation.
