STM3025 - Mixer Vonyx - Free user manual and instructions

USER MANUAL STM3025 Vonyx

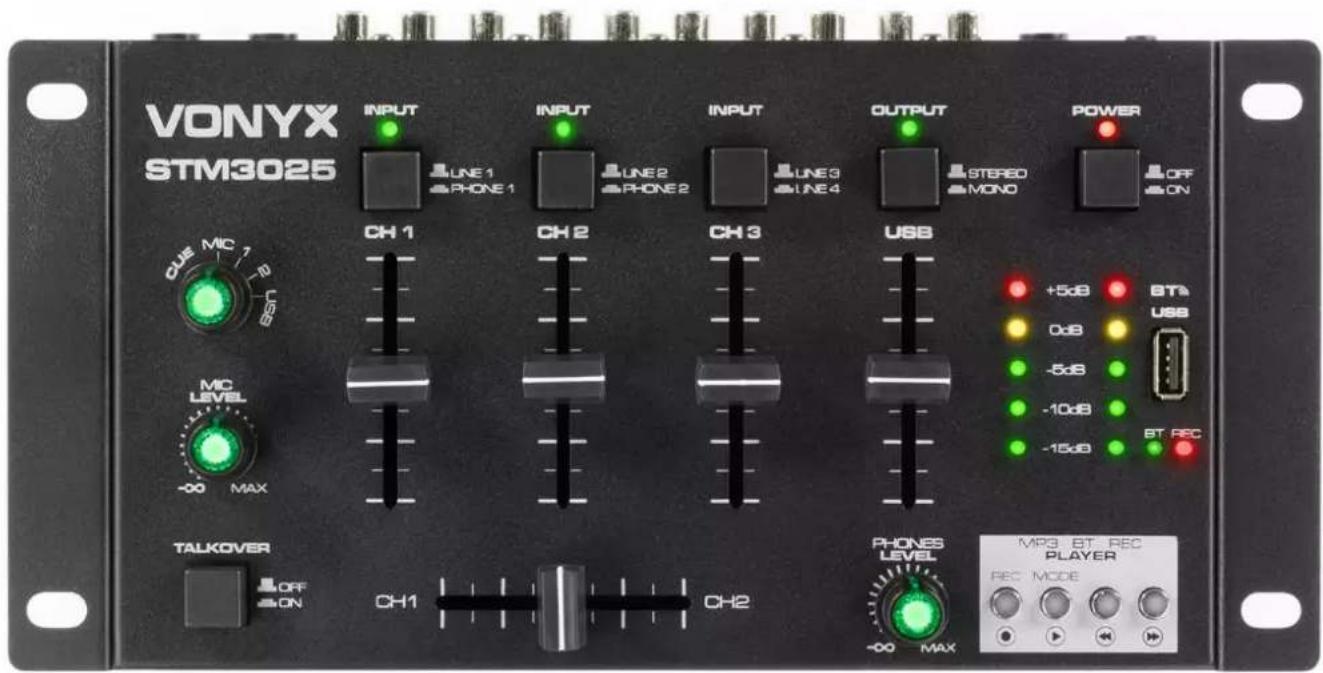

STM3025 7-Channel Mixer

Ref. nr.: 172.970

VONYX STM3025 INPUT LINE1 PHONE1 INPUT LINE2 PHONE2 INPUT LINE3 LINE4 OUTPUT STEREO MONO POWER OFF ON CUE MIC 1 -8 BST CH 1 CH 2 CH 3 USB +5dB BT& 0dB USB MC LEVEL -∞ MAX -5dB -10dB -15dB BT REC TALKOVER OFF ON CH1 CH2 PHONES LEVEL -∞ MAX MP3 BT REC PLAYER REC MODE

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

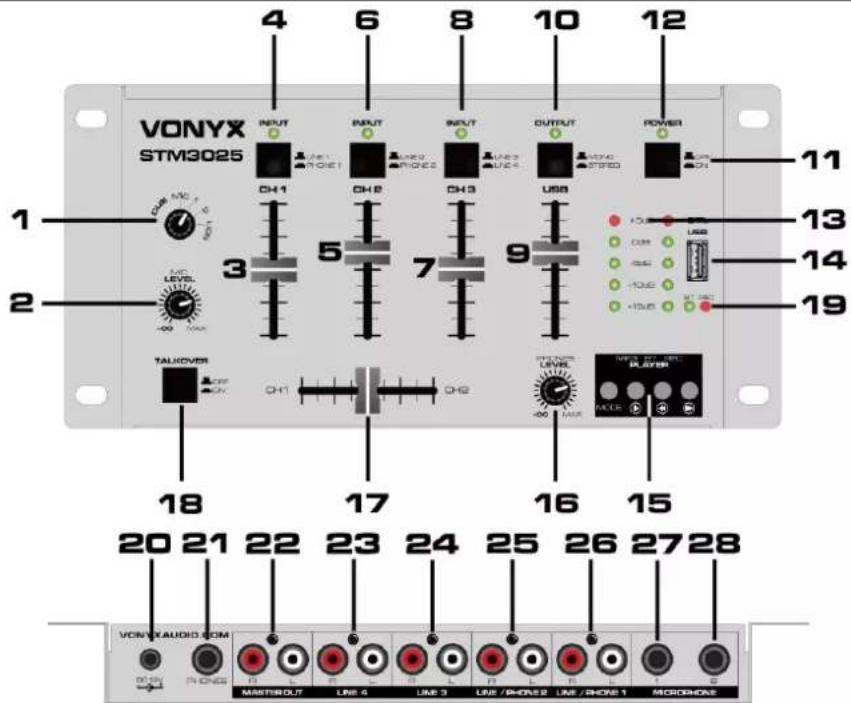

VONYX STM3025 1 2 3 4 6 8 10 12 11 13 14 19 TALKOVER 18 20 21 22 23 24 25 26 27 28 VONYX AUDIO.COM MAST/SOUT LINE 4 LINE 3 LINE / PHONE 2 LINE / PHONE 1 MICROPHONE

1. CUE

Turn to select the channel you want to listen via headphones.

1. Microphone level

Adjust the volume of the microphone signal.

1. Channel 1

Adjust the final channel volume.

1. Input selector Channel 1

Press to select of the input on the respective channel. The "PHONO" setting is intended for turntables and for all other signal sources, i.e. a CD player, use the "LINE" setting.

WARNING: Never connect line level equipment when PHONO-input is selected! Do not turn up the volume when no turntable is connected to the PHONO input terminals.

1. Channel 2

Adjusts the final channel volume.

1. Input selector Channel 2

Press to select one of the input pairs on the respective channel. The "PHONO" setting (and inputs) is intended for turntables; for all other signal sources, i.e. a CD player, use the "LINE" setting and inputs.

WARNING: Never connect line level equipment to the highly sensitive PHONO inputs! Do not turn up the volume when no turntable is connected to the PHONO input terminals.

1. Channel 3

Adjusts the final channel volume.

1. LINE3/LINE4

Press to select audio source inputs line 3 or 4.

1. Channel USB

Adjusts the final channel volume of USB output.

1. Output selector

Press to select mono or stereo master output.

1. Power ON/OFF

Press button to turn on and press again to turn off.

1. Power LED Indicator

2. VU Meter

Indicate the output levels of left and right master channels

1. USB Port

2. MP3 / BT / REC Player Buttons

3. Phones Level

Adjust the volume of the headphones signal.

1. Crossfader CH1 / CH2

Adjust the fade between channel 1 and 2.

1. Talkover

Press this button for automatic lower the level of the input sources when using the microphones.

1. LED Indicator

Shows BT, USB or recording mode.

20. Power supply

Connect the supplied power adapter DC12Volt.

21. Phones Input

Connect your headphones with a 6.35mm stereo jack (output signal is main mix).

22. Master Output

Adjust the overall output level of the mixer.

23. Line 4 Input

Line input connector for the audio input source e.g. mixer, CD player, etc.

24. Line 3 Input

Line input connector for the audio input source e.g. mixer, CD player, etc.

25. Line / Phone 2 Input

Line input connector for the audio input source e.g. mixer, CD player, etc.

26. Line / Phone 1 Input

Line input connector for the audio input source e.g. mixer, CD player, etc.

27. Microphone input 1

6.3mm 1/4" input jack for connecting a microphone.

28. Microphone input 2

6.3mm 1/4" input jack for connecting a microphone.

USB/MP3/BT-PLAYER

Mode

This button let you select the mode of USB channel. The two (green/red) mode LEDS will indicate the actual device status. Press the MODE button several times to step to your desired function.

Mode		BT LED	REC LED
USB Play mode		On	OFF
BT mode	Connection search	Flash	Off
	Connecting	On	On
Record mode	Ready	On	Flash
	Recording	Off	Flash
	Play	On	Off

USB

Press MODE button until status LEDs display BT LED=ON/REC LED=OFF. The USB storage device (USB stick) is placed into USB socket. The player is ready to work.

Press for switching between play and pause the music.

Press shortly for select next or previous song or press and hold for more than 3 seconds for fast forward or backward.

BT

Press MODE button until LEDs display BT LED = FLASH/ REC LED = OFF. The BT player is searching for a connection. If the device which already had a connection in the past is still active, the connection will be made and LEDs change to ON/ON. The BT player is now ready to work.

For first connection use your BT player (e.g. smartphone) and search for „STM3025“. In BT mode PLAY/ PREV/NEXT functions can be used on DJ-Mixer or on your BT device to control.

Press for switching between play and pause the music.

Press shortly for select next or previous song or press and hold for more than 3 seconds for fast forward or backward.

Record

Put the USB storage device (USB stick) into USB port. Press MODE button until status LEDs display BT LED =Off/ REC LED =FLASH. Mixer is ready for record. Press any player button for stop the recording.

NEDERLANDS

Adjusts the final channel volume of USB output.

1. Selector de salida

Frequency response : 20Hz-20kHz

THD: <0.1%

Line input: 150mV/100k

Line Phono: 3mV/50k

Line Mic: 1mV/1k

Master output: 1.5V / 600 Ohms

Headphone output: 200mW

Signal to noise Line: 80dB

Phono: 70dB

Mic: 70dB

Dimensions: 135 x 266 x 45mm

Weight: 1.1kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
