USER MANUAL i-SENSYS LBP212dw CANON

Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

canon.com/oip-manual

Quick Setup

Getting Started

Please read "Important Safety Instructions" before operating this product.

P.138

After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

Mise en route

canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

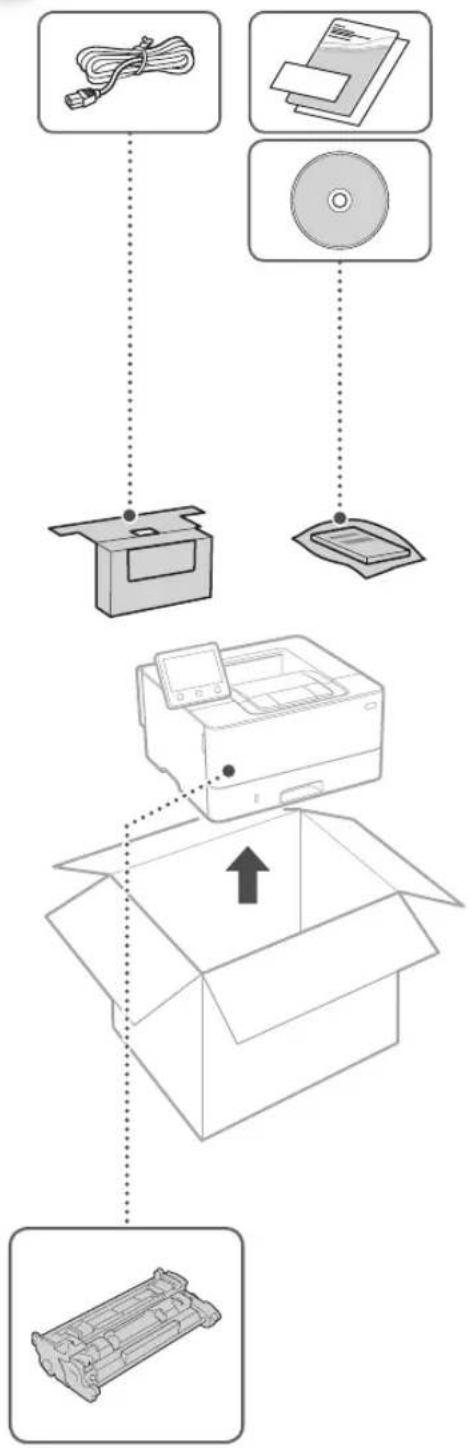

Items Included with the Machine

Diagram illustrating the assembly of a printer into an open box, with labeled components including cable, CD, and print.

Toner cartridge (included with the machine)

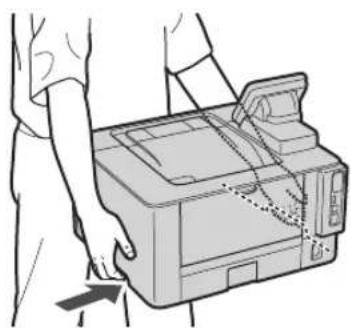

Installing the Machine

Before starting the installation

- Remove all of the tape.

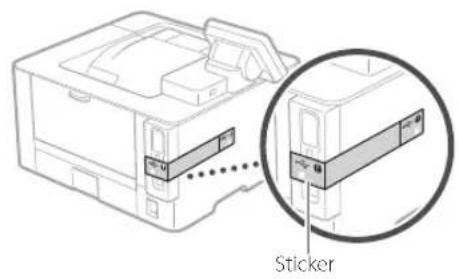

- Do not remove the sticker that covers the USB port.

Sticker

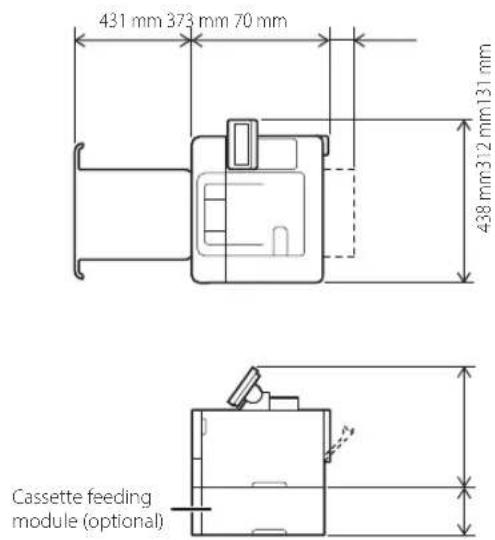

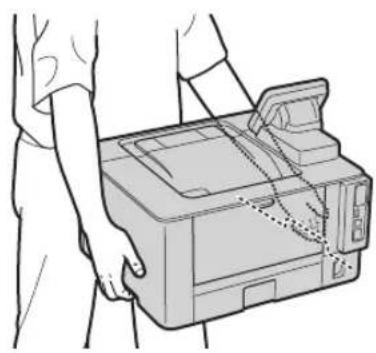

Installation Requirements

Provide a space of 100 mm or more around the machine.

LBP215x

431 mm 373 mm 70 mm 438 mm 312 mm 131 mm Cassette feeding module (optional)

LBP214dw/LBP212dw

431 mm 373 mm 70 mm 399 mm'

Cassette feeding module (optional) 131 mm 250 mm

* The protruding portion is not included. The whole length, if the portion included, is 401mm.

1

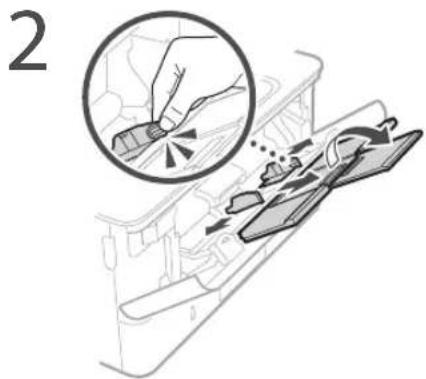

Line drawing of a person using a printer to press or install a paper airplane (no text or symbols present)

Diagram showing hands inserting a device into a plastic housing (no text or symbols)

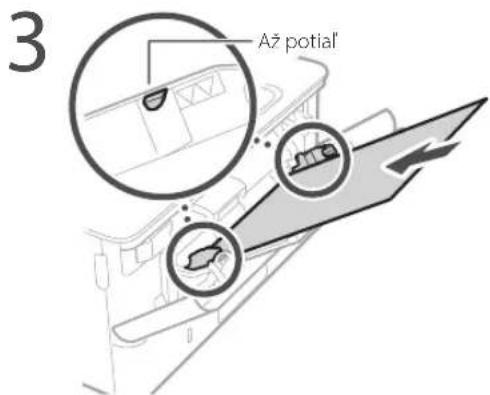

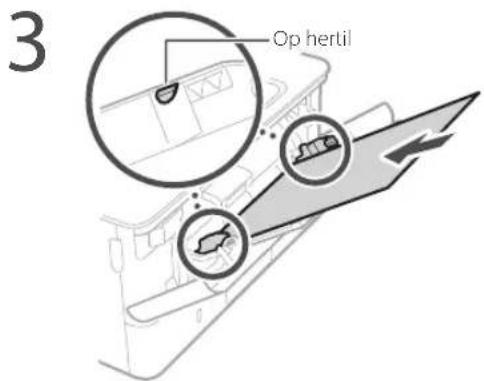

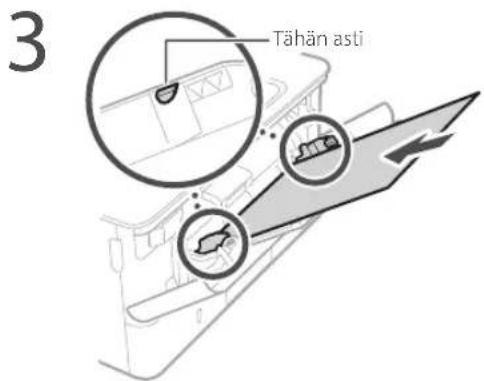

3

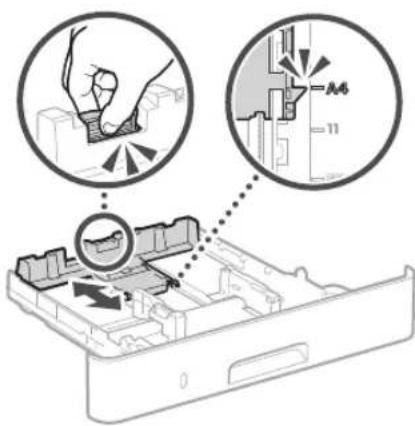

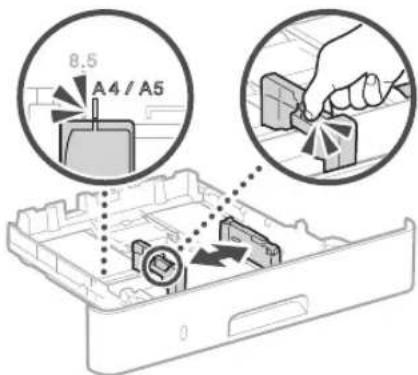

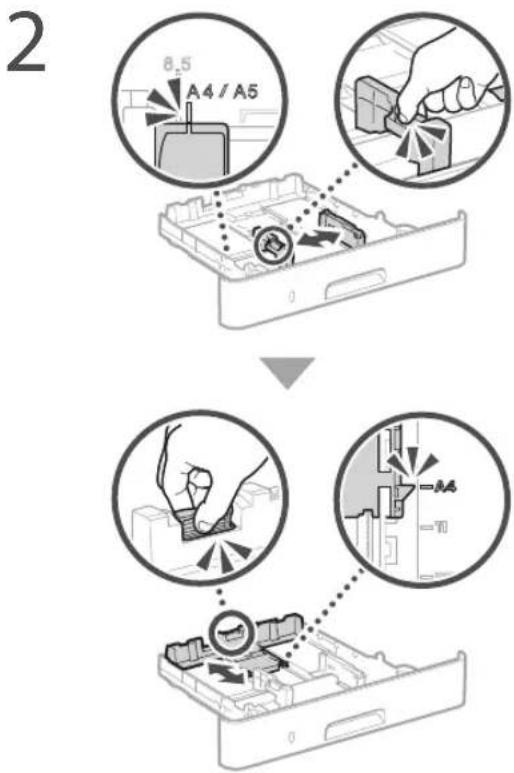

8.5 A4 / A5

4

Diagram illustrating a device's internal structure with light bulb and magnified views, including annotations like 'A4' and dimension '11'

5

Diagram of a device's internal structure showing a rectangular component with a curved arrow indicating rotation (no text or symbols present)

6

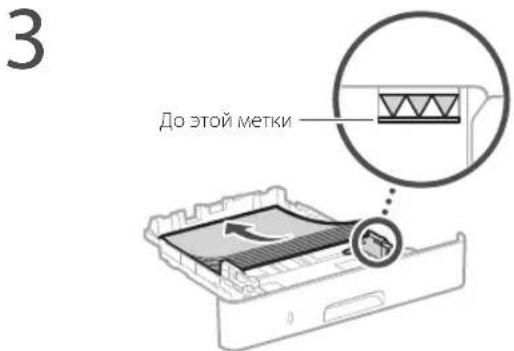

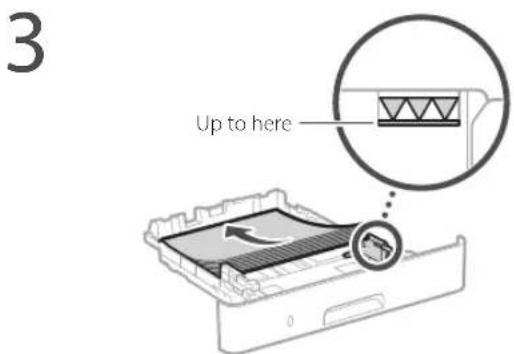

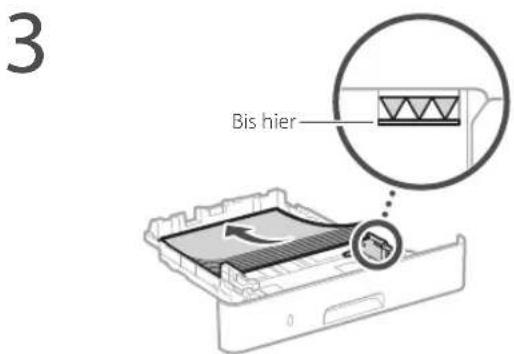

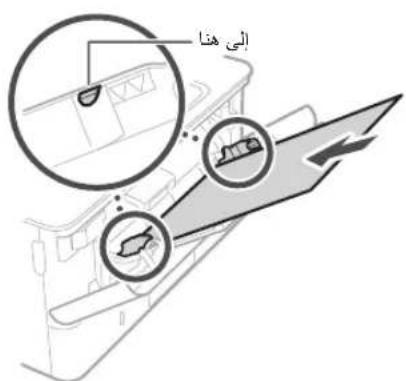

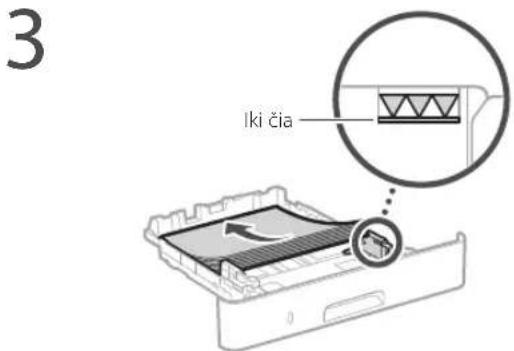

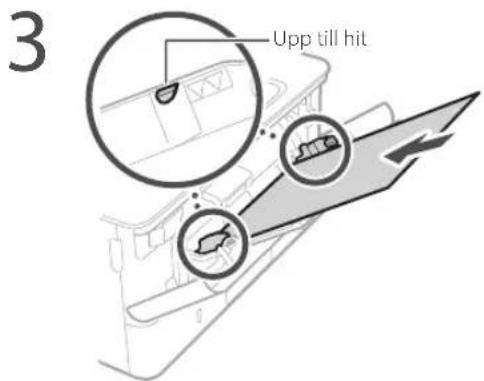

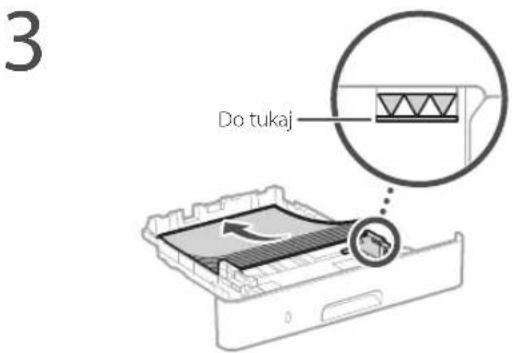

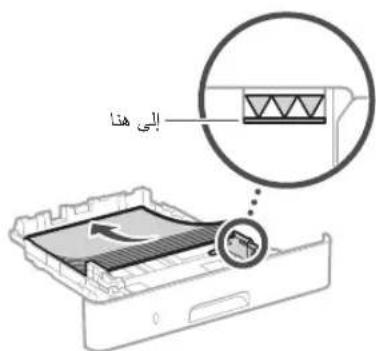

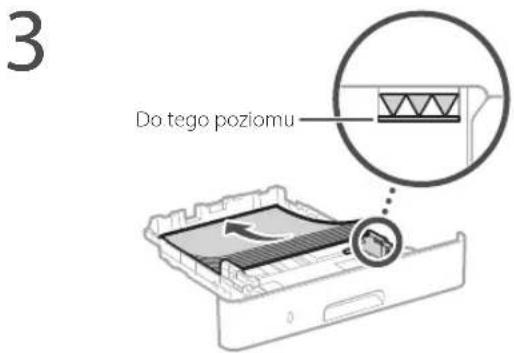

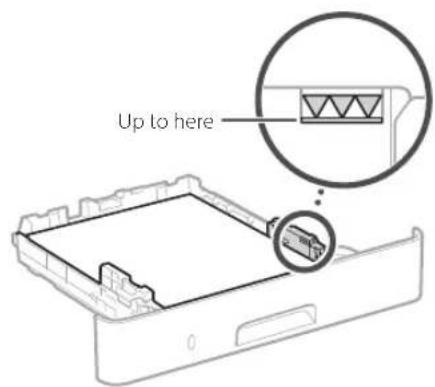

Up to here

Technical line drawing of a rectangular electronic device with internal components, resting on a base (no text or symbols)

7

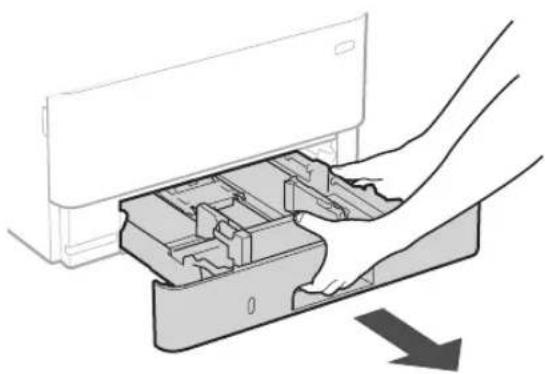

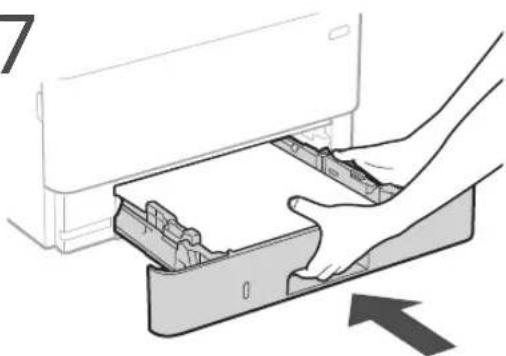

Illustration of a hand inserting a device into a drawer with an arrow indicating direction (no text or symbols)

Diagram showing hands inserting a device into a plastic housing (no text or symbols)

8

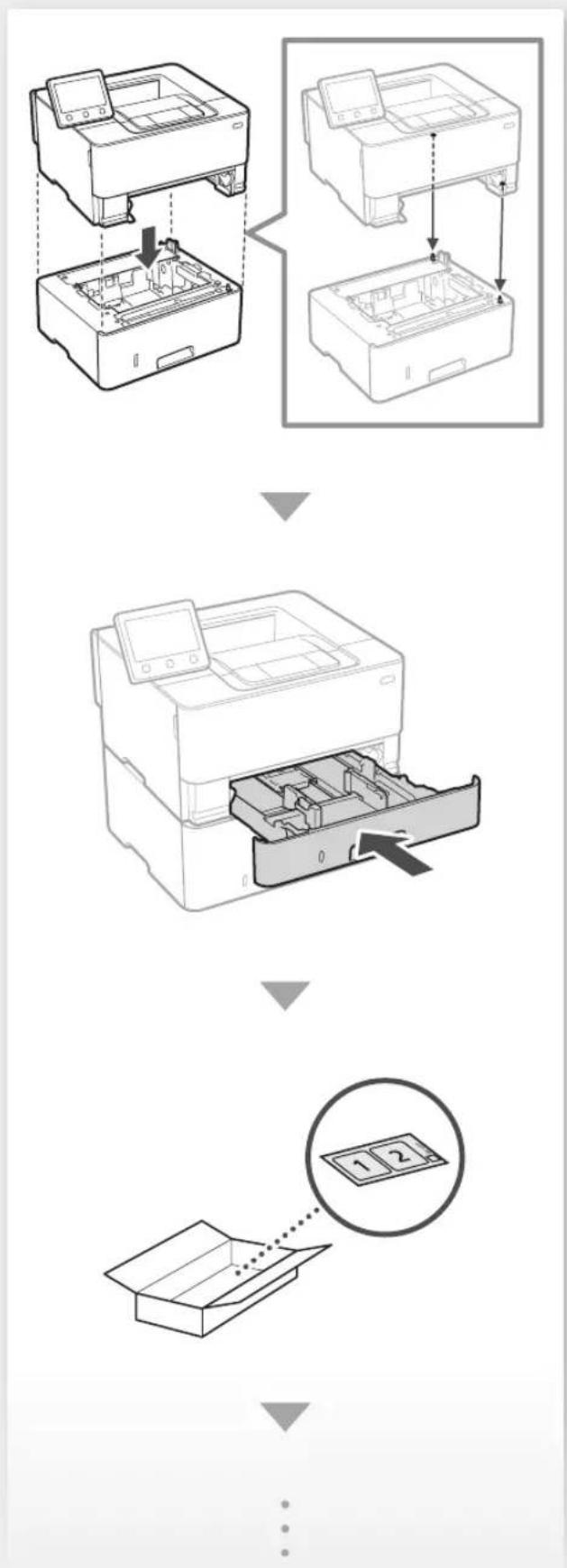

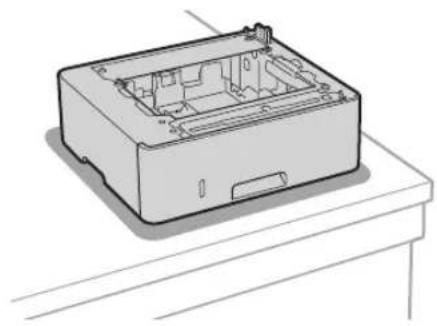

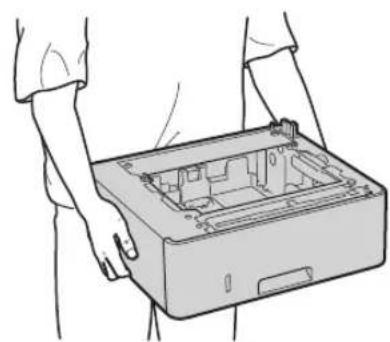

Install the cassette feeding module (optional).

Line drawing of hands holding an open electronic device casing (no text or symbols)

Line drawing of a person handling a printer with a paper airplane (no text or symbols)

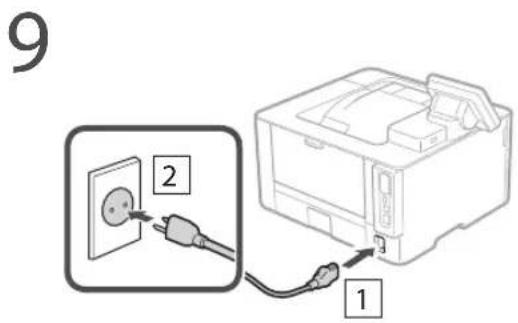

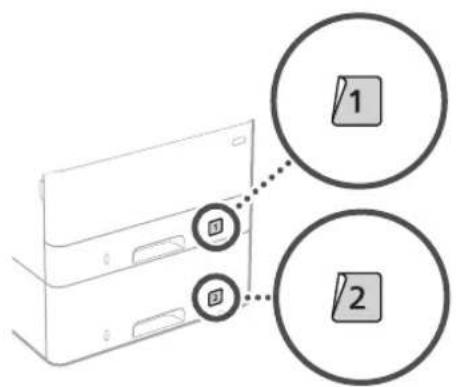

Diagram showing two labeled circular components (1 and 2) connected to a device with two ports, likely illustrating a system or installation concept.

9 2 1

Next, proceed to configure the machine.

Configuring the Initial Settings of the Machine

The design of the operation panel differs depending on the model of your machine. The descriptions of the operation panel in this guide basically presumes that the model is LBP215x.

NOTE

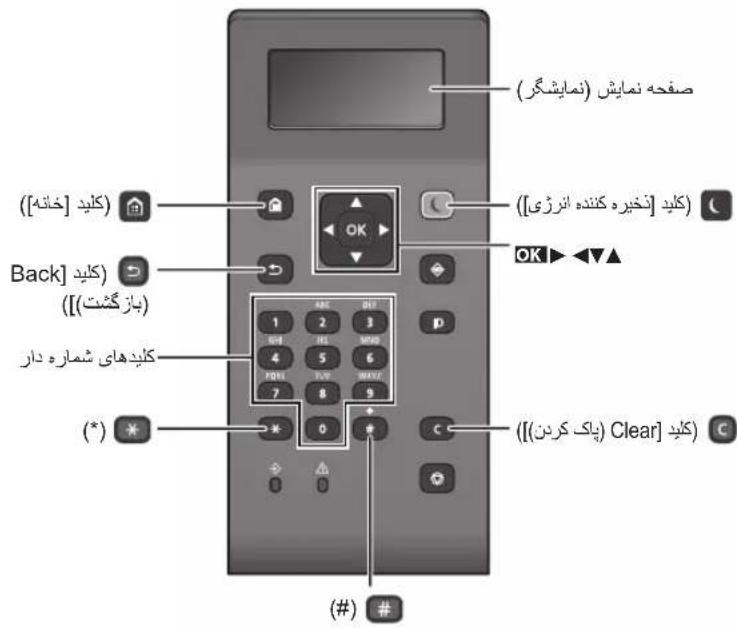

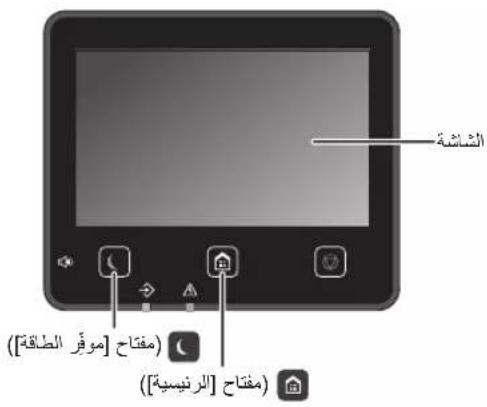

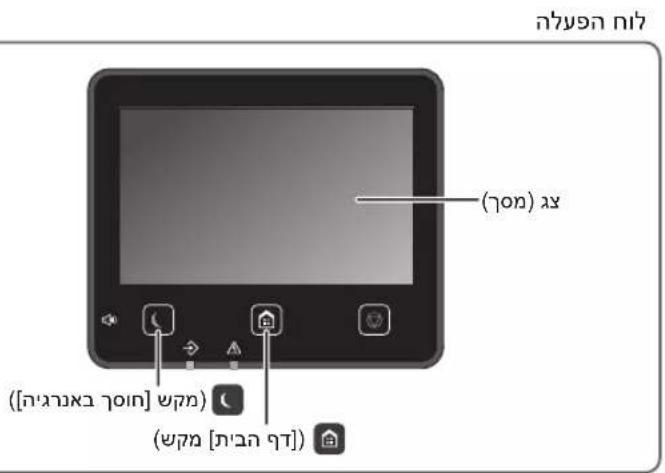

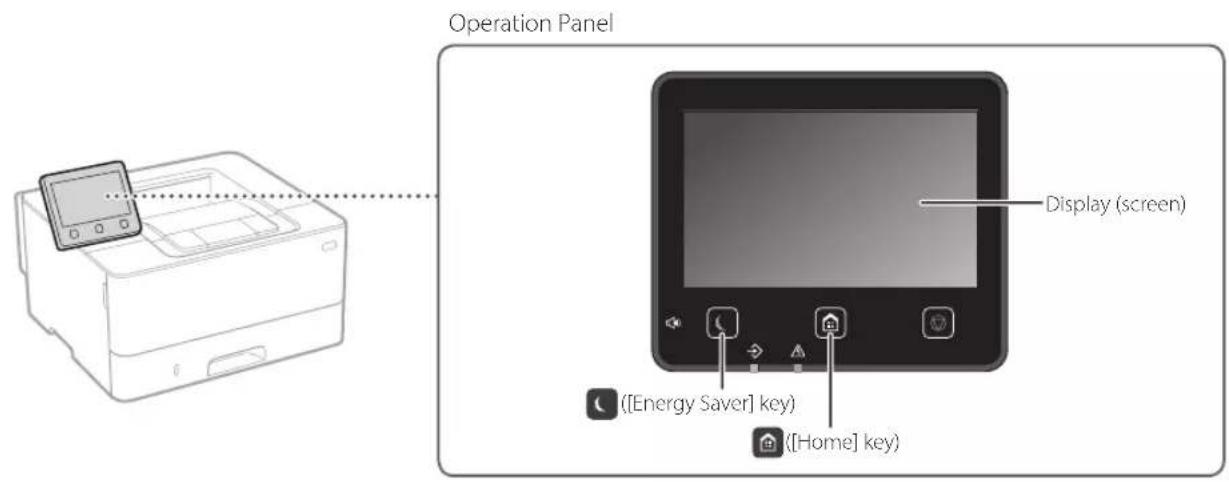

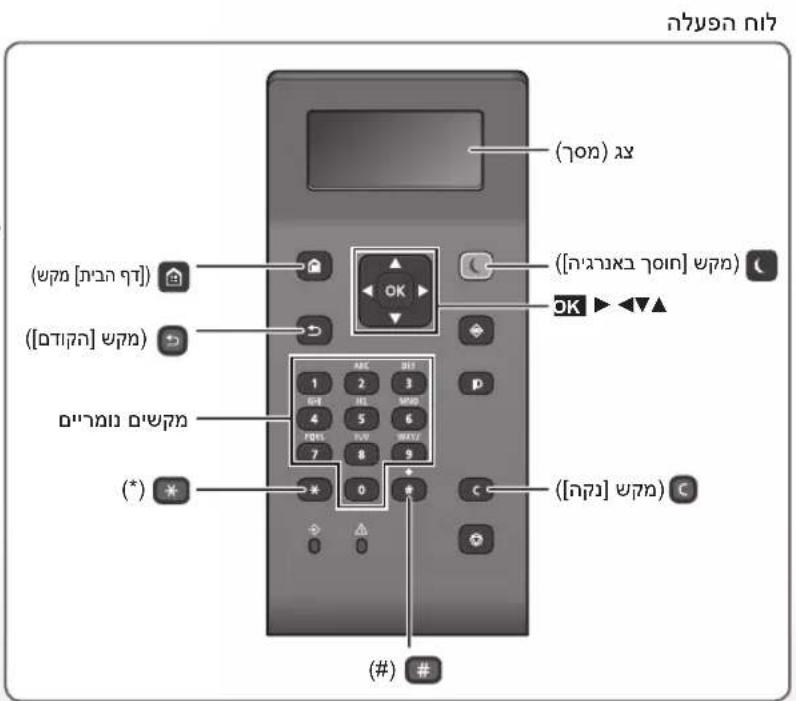

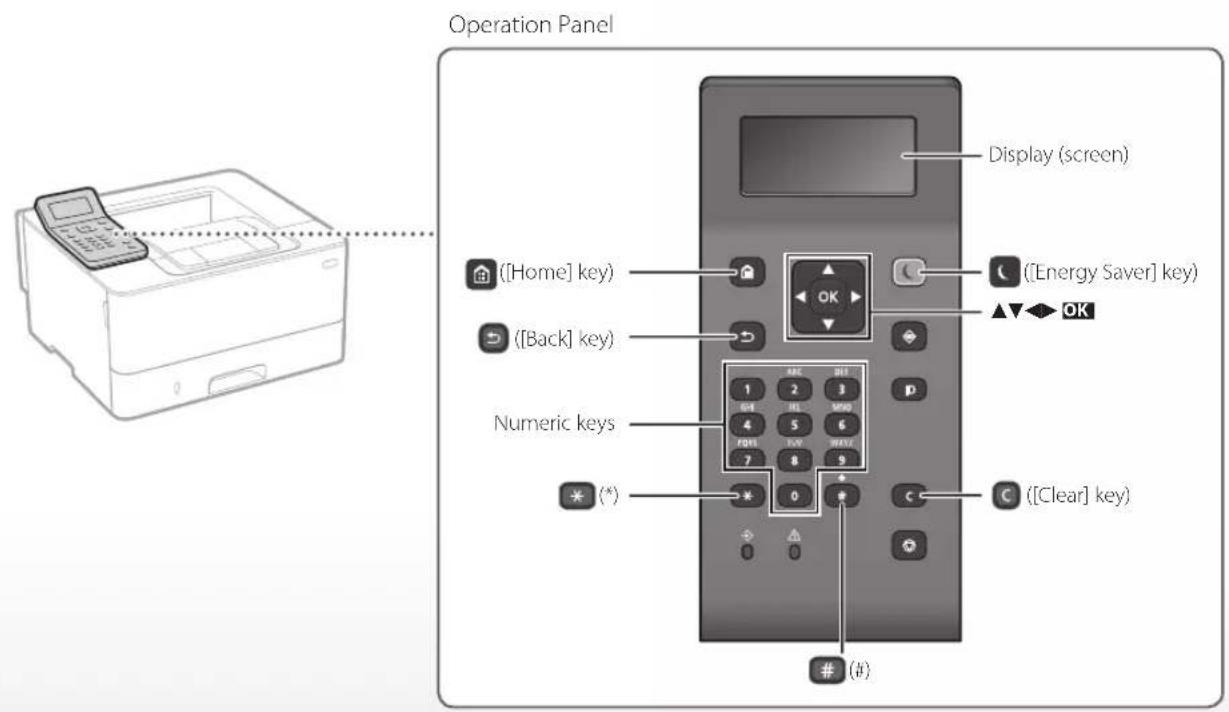

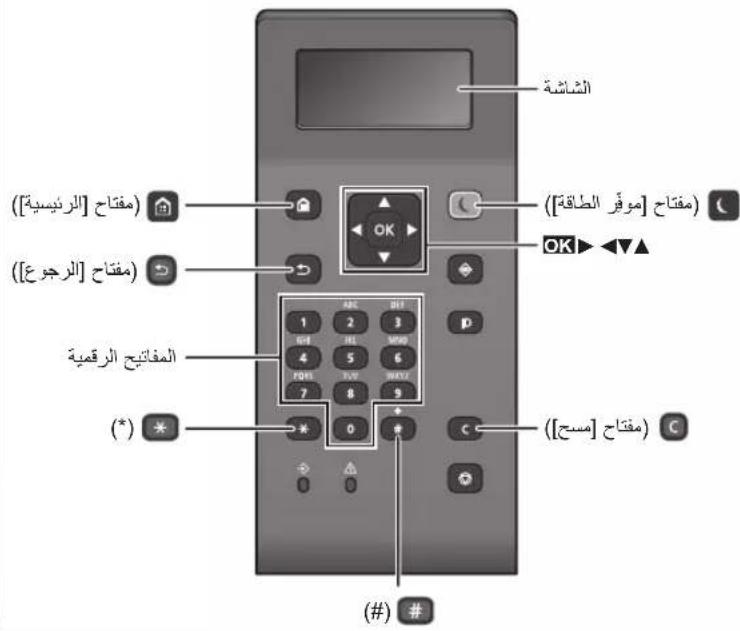

Parts and functions of the operation panel.

P.134 "Start the Operation from the Operation Panel"

About Application Library\*

Application Library is an application that allows you to use useful functions for routine jobs or other convenient functions in a one-touch operation without necessity of making functional settings every time. You can access each registered function by simply pressing the appropriate button displayed in the Home screen. For the respective function, see the description displayed in the Setup Guide.

* This function may not be available, depending on the model of the machine.

1.

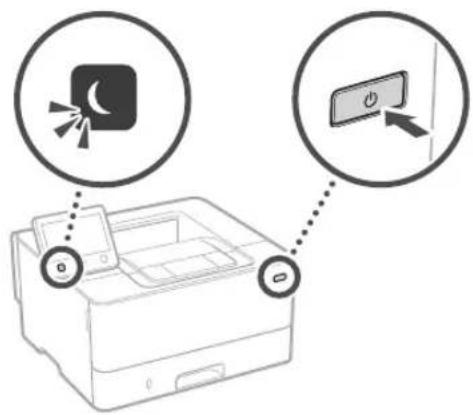

Diagram showing a printer with a magnified inset highlighting a button (no text or symbols present)

- Configure the initial settings, according to the screen.

1. Set the language and country/region.

2. Set the time zone and current date/time.

3. Configure the settings to prevent unauthorized access.

- For the purpose of confirmation, enter the same PIN twice.

Configuring the Method of Connecting to a Computer

Before starting the configuration

• The machine cannot be connected to both wired and wireless LANs at the same time.
• If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this.
• The machine does not come with a router. Please have one ready, if necessary.
• Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).

→ User's Guide

Specifying the connection method

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

• To connect via wireless LAN :
• To connect via wired LAN or USB :

To connect via wireless LAN

Illustration of a wireless network device with monitor, tower, and printer (no text or symbols)

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

For details

"Setting Up Using the Setup Guide" in the User's Guide

1. Take note of the SSID and network key.

2. Check the label on the router. ➞ User's Guide

3. The setting operation is easier if the router is provided with a WPS mark. ➕ User's Guide

4. Set the access point and network key according to the screen below.

For more information, refer to the manual. OK

1. Select .
2. Select .
3. Select .
4. Select the access point (SSID), and select .
5. Enter a WEP key (network key), and select .
6. Select .
7. Wait until message is displayed.

8. Select .
   • The IP address will be automatically configured in a few minutes.

9. Install the driver and software.

P.10 "Installing the software"

Now you are finished with the configuration of the initial settings.

To connect via wired LAN

Illustration of a desktop computer connected to a printer (no text or symbols present)

The machine does not come with a LAN cable. Please have one ready, if necessary.

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

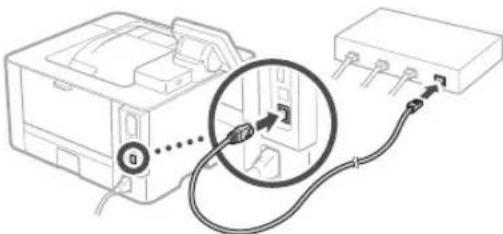

3. Connect the LAN cable.

Diagram of a device with cable and connector, showing connection point (no text or symbols)

• After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address has been set on the computer, set the machine's IP address manually.

1. Install the driver and software.

P.10 "Installing the software"

Now you are finished with the configuration of the initial settings.

To connect via USB

Illustration of a desktop computer connected to a printer (no text or symbols present)

- The machine does not come with a USB cable. Please have one ready, if necessary.

• Make sure that the USB cable you use has the following mark.

- Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.

1. Install the driver and software.

P.10 "Installing the software"

- When a screen with instructions for connecting the USB cable to the machine is displayed, remove the sticker that covers the USB port.

Diagram of a printer or printer device with a magnified inset showing internal structure (no text or symbols)

Now you are finished with the configuration of the initial settings.

Installing the software

• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual.
- For the installation when your computer runs on the macOS, see the driver's manual.
- Your machine may not come with the driver for the macOS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.

1.

Illustration of a CD or DVD drive with an open disk and a computer tower (no text or symbols)

2.

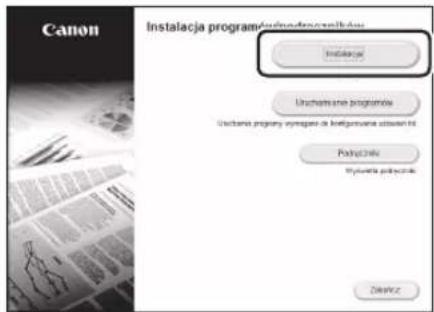

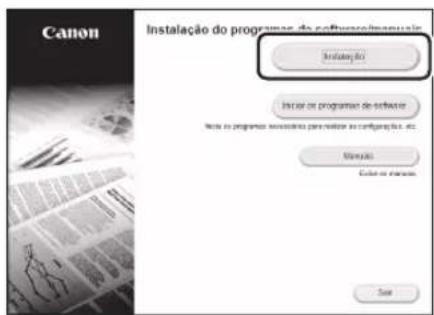

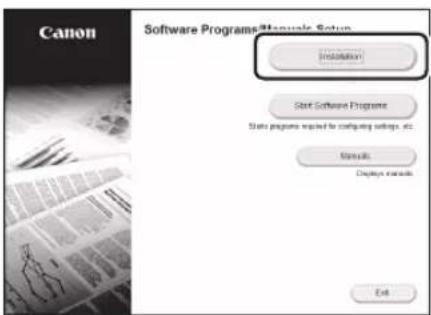

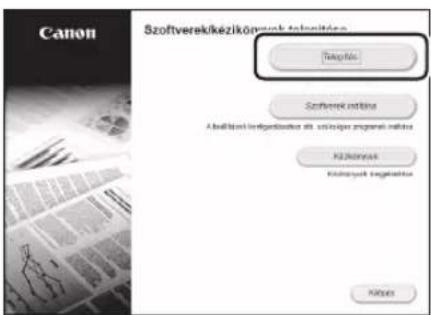

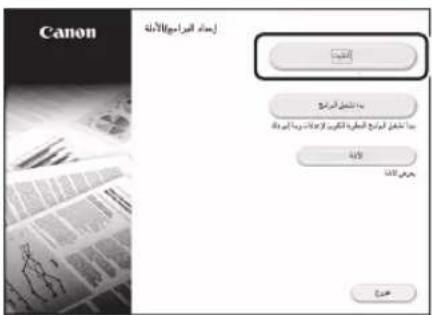

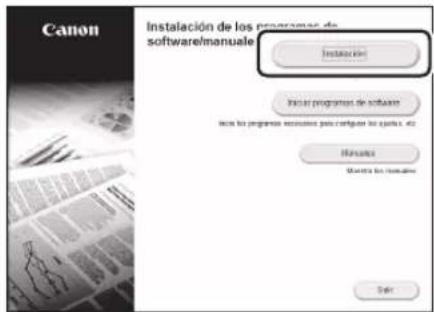

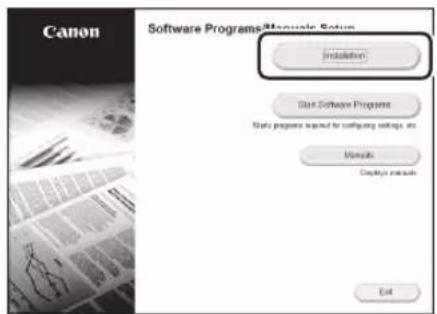

Canon Software Programs\Temporary Setup Installation Start Software Programs Start programs required for configuring settings, etc. Status: Display execs. OK

If the screen is not displayed properly, re-insert the CD-ROM/DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the CD-ROM/DVD-ROM drive name).

Memo

En

Diagram showing a printer with a close-up of its screen and a button labeled 'Power' pointing to it, with an arrow indicating direction.

Illustration of three electronic devices: a monitor, a wireless router connected to a printer (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a mechanical component (no text or symbols present)

Illustration of a computer monitor and CD/DVD drive (no text or symbols)

2.

Diagram showing a printer with a close button and a cursor clicking a button, illustrating a process or operation.

Illustration of three electronic devices: a monitor, a tower, and a printer with wireless signal lines (no text or symbols)

Illustration of a desktop computer connected to a printer via a cable (no text or symbols)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Diagram of a printer or printer device with a magnified inset showing internal components (no text or symbols)

Illustration of a CD or DVD drive system with an arrow pointing to the CD (no text or symbols present)

2.

Canon Installation von Softwareprogramme@CanonSoftware Installation Softwareprogramme status Status Programme zur Verfügung nach Einstellungen und Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand<-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand>-Hand:- Hand-

Diagram showing a printer with a close-up of its screen and a button labeled 'Power' pointing to it, connected by an arrow.

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a tower (no text or symbols)

Illustration of a desktop computer connected to a printer via a cable (no text or symbols)

Diagram showing connection between a device with cable and connector (no text or symbols)

Illustration of a computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a folded paper edge (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

Diagram showing a printer with a magnified view of its screen and power button, likely illustrating a printing or printing process.

Illustration of three electronic devices: a desktop computer, a wireless router connected to a printer (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing connection between a device and a terminal block, with a magnified inset highlighting a cable or connector (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a close-up of the printer's internal structure (no text or symbols present)

Illustration of a computer monitor with a CD inside and an external CD or DVD unit (no text or symbols)

2.

Diagram showing a printer with a close button and a power button, connected to a circular icon with an arrow.

Illustration of a wireless communication system with monitor, printer, and tower (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a clamping mechanism (no text or symbols present)

Illustration of a CD or DVD drive system with an open disk and a rectangular unit (no text or symbols)

2.

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of three electronic devices: a monitor, a tower, and a printer with wireless signal lines (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Diagram showing a computer monitor and a CD tower with an arrow pointing to the screen (no text or symbols present)

2.

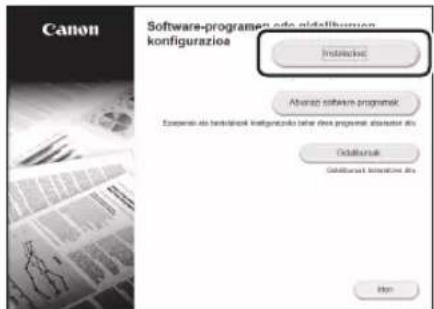

Canon Software-programen odo plafiblumszen konfigurazione Installskost Abrazo software programak Eszemere als bestijszerek infigurazione lubare deze programa identitet als Odsikursuk Odsikursuk intiezione als Hpon

Pantaila behar bezala erakusten ez bada, instalatu CD-ROM/DVD-ROMa edo bilatu "D:\MInst.exe" Windows sisteman (Deskribapen honek CD-ROM/DVD-ROM unitateren hizkia "D:" dela suposatzen du).

Oharra

Eu

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow.

Illustration of three devices: a computer, a printer, and a server with wireless signal lines (no text or symbols)

Illustration of a desktop computer connected to a printer via a cable (no text or symbols)

Diagram of a device with cable and connector, showing connection point with magnified detail (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow symbol.

Illustration of three electronic devices: a monitor, a printer with wireless signal, and a tower (no text or symbols)

Illustration of a desktop computer connected via a serial port (no text or symbols)

Diagram showing cable routing from a device to an external connector (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing internal structure (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Manual Setup Installation Start Software Programs Start programs applied for configuring settings, etc. Manuals Displays commands Exit

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow.

Illustration of three devices: a desktop computer, a printer with wireless signal, and a router (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Illustration of a computer monitor and CD with an arrow pointing to its disc (no text or symbols)

2.

Diagram showing a printer with a power button and a magnified view of the next button, likely illustrating a process or system.

Illustration of three electronic devices: a monitor, a printer, and a router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection to an electronic component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a folded paper edge (no text or symbols present)

Illustration of a CD or DVD drive with an arrow pointing to a CD (no text or symbols present)

2.

Canon Installatie van softwarevergozenes's handelslovenen Installsfu Name: Programme's station Niveau versat programme gestat de waarst opur het configemen van wollingen, opvrent Handelslogen Niveau gelt/Handelslogen.com Abfallen

Diagram showing a printer with a power button and a close-up of the next button labeled 'Power' pointing to it.

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection to a terminal block (no text or symbols present)

• Vent i et par minutter etter at kabelen er koblet til (til IP-adressen er automatisk innstilt).

• Hvis det er angitt en statisk IP-adresse for datamaskinen, må maskinens IP-adresse stilles inn manuelt.

• Installer driver og programvare.

ide 54 "Installere programvaren"

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a cable being inserted (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Installering av programware&Configuration Installering Start programme Start programme om lasso for tool/gaming as installing og video Kindsat View Coordinate Anset

Diagram showing a printer with a power button and a close-up of the next button, illustrating a process or operation.

Illustration of a wireless network device with monitor, printer, and router (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with an arrow indicating a process or operation, showing internal components and a magnified view (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow symbol.

Illustration of three devices: a desktop computer, a printer with wireless signal, and a router (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram showing connection between a device with cable and connector (no text or symbols)

Illustration of a computer monitor connected to a file box via a cable (no text or symbols)

Diagram of a printer or printer device with a magnified inset showing a clamping mechanism (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

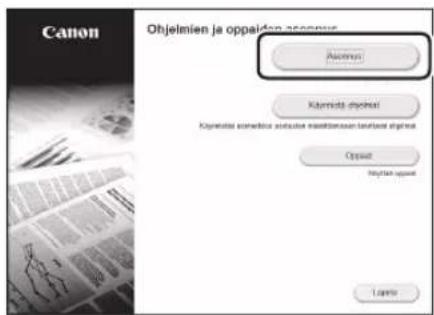

Canon Ohjelmien ja oppaiden asopmuus Appen: Kärnida objektal Kärnidai ostenkina asistate nastitismian tavilisaj objektal Opput Mytion appust Last

Diagram showing a printer with a close-up of its screen and a button labeled 'Power' (no text or symbols present)

Illustration of a network device with monitor, tower, and printer (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing connection between a device with cable and connector, no text or symbols present

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing internal structure (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Diagram showing a printer with a close-up of its screen and a button labeled 'Power' pointing to it, connected by an arrow.

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of three electronic devices: a monitor, a printer, and a router with signal waves (no text or symbols)

For more information, refer to the manual. OK

Illustration of a desktop computer connected to a printer via a cable (no text or symbols)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Illustration of a computer monitor with an open CD and a circular disc, showing no text or symbols.

1.

Canon Software Programs/Monochrome Solution Installation Start Software Programs State programs required for configuring settings, etc. Visuals Display mode(s) Exit

Illustration of a printer with a close button and a circular button highlighting a button (no text or symbols present)

Illustration of three electronic devices: a monitor, a tower, and a printer with wireless signal lines (no text or symbols)

Illustration of a computer connected via a serial line to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection to a terminal block (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with an arrow indicating a process or operation, showing no text or symbols.

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Manual Setup Installation Start Software Programs Start programs applied for configuring settings, etc. Manuals Display manuals Exit

Diagram showing a printer with a close-up of its screen and a button, no text or symbols present

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a tower (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

- Irenginys tiekiamas be USB kabelio. Prireikus, jj jsigykite.

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Canon Software Programs/Manual Setup Installation Start Software Programs Start programs required for configuring settings, etc. Manuals Display formats Exit

Diagram of a printer with a close-up of its screen and power button, showing no text or symbols.

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a server tower (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

1.

Canon Software Programs/Manual Setup Installation Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals. Exit

Diagram showing a printer with a close button and a control panel with an arrow, illustrating a process or operation.

Illustration of a wireless communication system with monitor, printer, and printer (no text or symbols)

Illustration of a desktop computer connected to a printer via a cable (no text or symbols)

Diagram showing connection between a device with cable and connector (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a clamping mechanism (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Diagram showing a printer with a close-up of its screen and a button, indicating a zoom or adjustment process.

Illustration of three devices: a monitor, a printer with wireless signal lines, and a server with antenna (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection to a terminal block (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a computer monitor and CD tower with an arrow pointing to a disc (no text or symbols)

2.

Canon Instalace softwarovich program (eFiridite) Instalace Squatic softwarovich program Squatic program pathed by fastpath softwarovich Pftrudy Direct pathed Name

Diagram showing a printer with a power button and a magnified view of the next button, likely illustrating a physical or mechanical process.

Illustration of three electronic devices: a monitor, a printer, and a router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing internal structure (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Start Menu Options Installation Start Software Programs Start programs required for configuring settings, etc. Manuals Displays defaults Exit

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow symbol.

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a tower (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Naprava ni opremljena s kablom LAN, zato ga po potrebi zagotovite.

Diagram showing connection between a device with cable and connector (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

- Naprava ni opremljena s kablom USB, zato ga po potrebi zagotovite.

Diagram of a printer or printer device with a magnified inset showing a clamping mechanism (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Manual Setup Installation Start Software Programs Start programs required for configuring settings, etc. Manuals Display mode(s) Exit

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow symbol.

- Konfigurirajte početne postavke u skladu sa zaslonom.

Illustration of three electronic devices: a monitor, a tower, and a printer with wireless signal lines (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

• Nakon što ste spojili kabel pričekajte par minuta (dok se adresa IP automatski postavi).

• Ako je na računalu postavljena statička IP adresa, ručno postavite IP adresu uređaja.

• Instalirajte upravljački program i softver.

Str. 102 „Instaliranje softvera“

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing a close-up of its internal structure (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Canon Software Programs Installation Start Software Programs Start programs required for configuration settings, etc. Status: Display mode: Exit

Ako se zaslon ne prikazuje ispravno, ponovno umetnite CD-ROM/DVD-ROM ili potražite „D:\MInst.exe“ na sustavu Windows (U ovom se opisu „D:“ odnosi na pogon CD-ROM/DVD-ROM).

Bilješka

Hr

Illustration of a printer with a close-up of its screen and power button (no text or symbols)

Illustration of three electronic devices: a monitor, a wireless router, and a printer (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing cable routing between a device and a terminal block, with no visible text or symbols.

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing internal components (no text or symbols)

Illustration of a computer monitor with a CD inside, showing an arrow pointing to its disc (no text or symbols present)

1.

Diagram showing a printer with a close-up of its screen and a button labeled 'Power' pointing to it.

Illustration of a wireless network device with monitor, printer, and tower (no text or symbols)

Illustration of a computer connected to a printer via a serial line (no text or symbols)

Diagram showing connection between a device with cable and connector (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a clamping mechanism (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Start Menu Options Installation Start Software Programs Start programs required for configuring settings, etc. Manuals Displays defaults Edit

Diagram showing a printer with a circular dial and a magnified view of the next control panel (no text or symbols)

Illustration of three electronic devices: a desktop computer, a wireless router connected to a printer (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection to an electronic component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer with a magnified inset showing a close-up of the printer's internal structure (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Manual Setup Installation Start Software Programs Start programs required for configuring settings, etc. Manuals Displays manuals Exit

Diagram showing a printer with a close button and a button labeled 'Power' pointing to it, connected by an arrow.

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a printer or printer device with a magnified inset showing internal components (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of three electronic devices: a monitor, a tower, and a printer with wireless signal lines (no text or symbols)

Diagram showing a printer with a power button and a magnified view of the next button, likely illustrating a physical or technical concept.

Illustration of a desktop computer connected to a printer via a cable (no text or symbols)

Diagram showing cable routing from a device to an external connector (no text or symbols present)

Illustration of a CD or DVD drive system with an external CD or folder (no text or symbols visible)

Illustration of a computer monitor connected to a file box via a cable (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a disassembled part (no text or symbols present)

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a printer (no text or symbols)

Diagram showing a printer with a magnified view of its screen, highlighting the device's position.

Illustration of a desktop computer connected to a server and printer (no text or symbols)

Diagram of a device with cable and connector, showing connection to a terminal block (no text or symbols)

For more information, refer to the manual. OK

Illustration of a computer monitor and CD tower with an arrow pointing to a disc (no text or symbols)

.

Canon Software Programs Manual Solution Installation Start Software Programs Static programs required for configuring settings, etc. Manuals Desktop menu Exit

.

Illustration of a desktop computer connected to a file box (no text or symbols)

Diagram of a printer or printer with a magnified inset showing internal structure (no text or symbols)

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

(12) : Using LAN is using the following: (13) : USB is using LAN is using the following:

הכלה LAN

Illustration of three electronic devices: a monitor, a printer with wireless signal, and a tower (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

הכלהה. LAN

. וְרָה בַתִים אַל

Diagram showing connection between a device with cable and connector (no text or symbols)

For more information, refer to the manual. OK

.(הכלה) הכלה .1

. Connectivity <. Connected>

.7.7

Diagram showing a computer monitor and a CD/DVD drive (no text or symbols present)

.1

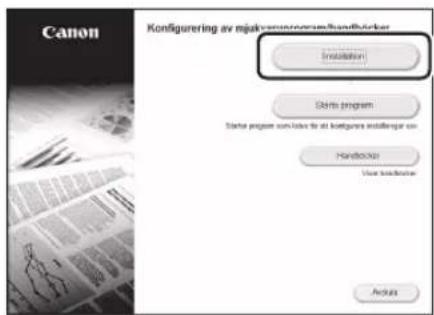

Canon Software Programs/Continuous Options Installation Start Software Programs Start programs required for configuring settings, etc. Instructions Display networks Exit

.2

Illustration of a computer monitor connected to a file box via a cable (no text or symbols)

• USB USB

Diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Start the Operation from the Operation Panel

The design of the operation panel differs depending on the model of your machine. The descriptions of the operation panel in this guide basically presumes that the model is LBP215x.

Machine (LBP215x)

Operation Panel Display (screen) ([Energy Saver] key) ([Home] key)

Machine (LBP214dw/LBP212dw)

Operation Panel Display (screen) ([Home] key) ([Energy Saver] key) ([Back] key) OK Numeric keys C ([Clear] key) (*) 0 #

(#)

Navigating the Menu

Item selection or moving the cursor among the menu items

Select an item with [▲] or [▼].

Press OK or [▶] to proceed to the next hierarchy.

Press 📋 or [◀] to return to the previous hierarchy.

Setting confirmation

Press OK. However, when appears on the display, select , and then press OK.

Text Input Method

Changing entry mode

To change the entry mode, press

Entry mode Available text

Uppercase alphabetic letters and symbols

Lowercase alphabetic letters and symbols

<12> Numbers

Entering text, symbols, and numbers

Enter with the numeric keys or #

Moving the cursor (Entering a space)

Press [◀] or [▶], to move the cursor. To enter a space, move the cursor to the end of the text, and press [▶].

Deleting characters

Press pressing and holding deletes all characters.

	Entry mode:	Entry mode:	Entry mode:
1	@.-/_/1
2	ABC abc 2
3	DEF def	3
4	GHI	ghi	4
5	JKL	jkl	5
6	MNO	mno	6
7	PQRS	pqrs	7
8	TUV tuv	8
9	WXYZ	wxyz	9
0	(Not available)		0
#	(space) @ . / - _ ! ? & $ % # ( )[] {} < > * + = ",:: ' ^ ' | "		(Not available)

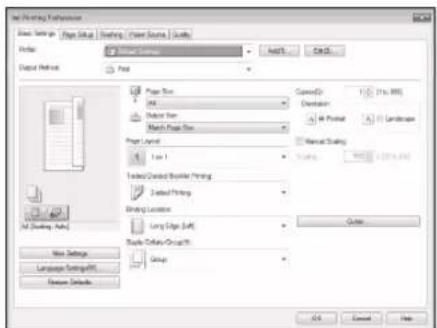

Printing

1. Open the document to print, and select the print function of the application.
2. Select the printer driver for the machine, and select [Preferences] or [Properties].
3. Specify the paper size.
4. Specify the paper source and paper type.
5. Specify the print settings, as necessary.
6. Select [OK].
7. Select [Print] or [OK].

Print Settings Page Setup | Setting - Power Source | Format Format Print Options Print Page Size Size Output Size Match Paper Size Page Layout 1 to 1 Selected/Contact Border Printing Selected Printing Binding Location Long Edge (Left) Trade Color Group: Group Export Export AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD AutoCAD

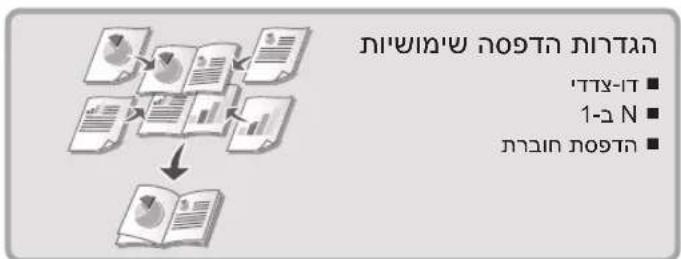

Useful print settings

■ 2-sided
■ Non 1
■ Booklet Printing

For details

"Printing" in the User's Guide

Loading in the Paper Drawer

1 Pull out the paper drawer.

2 8,5 A4 / A5 A4 = 10

3 Up to here

4 Insert the paper drawer into the machine.

If you load a different size or type of paper from the one before, make sure to change the settings.

5 Press and select .

6 Specify the size and type of paper, according to the screen.

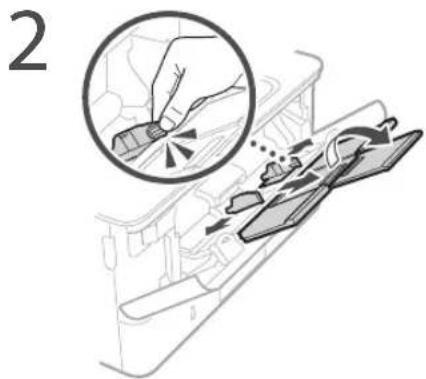

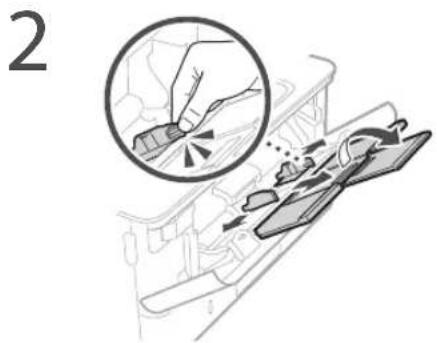

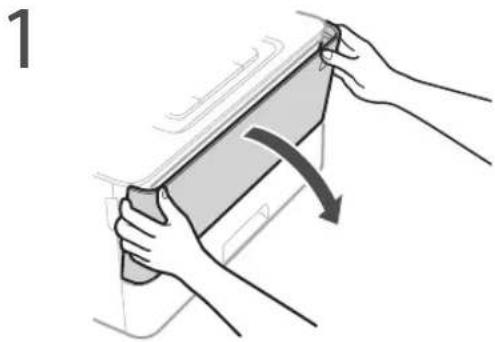

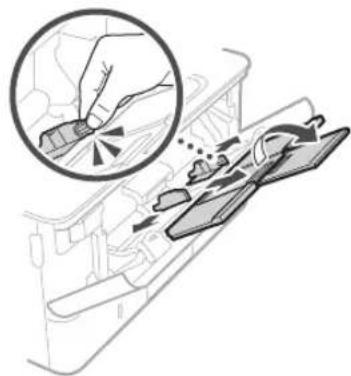

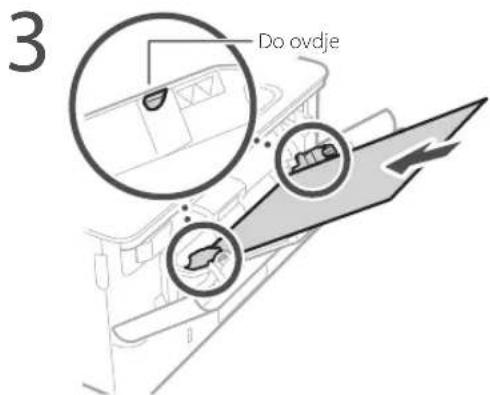

Loading in the Multi-Purpose Tray

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Up to here

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

5 Specify the size and type of paper, according to the screen.

The Machine Does Not Seem to Work

Check the following.

• Is the power turned ON?
  • Is the machine out of sleep mode?

If both the display and 📁 are not lit, press the power switch.

Diagram showing printer application with icons and control buttons, including a timer and power button

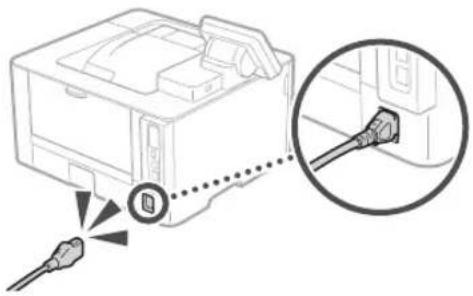

• Is the power cord connected correctly?

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

If the problem persists, see the User's Guide.

Paper Jams Have Occurred

Clear the paper jams, according to the on-screen instructions.

Paper jammed Press the button and open the front cover. Previous 1/7

Replacing the Toner Cartridge

Replace the toner cartridge, according to the on-screen instructions.

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Model number of replacement toner cartridge

• Canon Cartridge 052
• Canon Cartridge 052 H

Appendix

Important Safety Instructions

This manual describes only warnings and cautions for the installation and the power supply. Be sure to read "Important Safety Instructions" described in the User's Guide also.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or properly.

Installation

To use this machine safely and comfortably, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a fire or electrical shock

• A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
  • A damp or dusty location
  • A location exposed to direct sunlight or outdoors
  • A location subject to high temperatures
  • A location exposed to open flames
• Near alcohol, paint thinners or other flammable substances

Other warnings

• Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
• Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
• If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.

CAUTION

Do not install in the following locations

The machine may drop or fall, resulting in injury.

• An unstable location

• A location exposed to vibrations

Other cautions

• When carrying this machine, follow the instructions in this manual, if carried improperly, it may fall, resulting in injury.
• When installing this machine, be careful not to get your hands caught between the machine and the floor or walls. Doing so may result in injury.

Avoid poorly ventilated locations

This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Power Supply

WARNING

• Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
• Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.

• Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.

• Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.

• Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
  • Make sure that the power supply for the machine is safe, and has a steady voltage.
• Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.

Avoid the following situations:

If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire.

• Connecting and disconnecting the power cord frequently.
• Tripping over the power cord.
• The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
• Applying excessive force on the power plug.

CAUTION

Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

Handling

ACAUTION

Laser Safety

This product is confirmed as a Class 1 laser product in ILC60825-1:2014 and LN60825-1:2014.

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO I ÁSFR DE CL ASF

APAREIHO A1 ASFR DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.
• Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

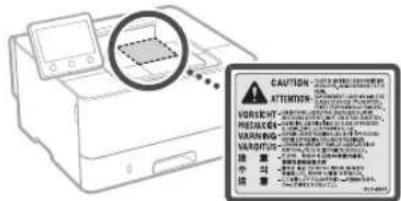

Laser Safety Label

CAUTION ATTENTION VORUSCH WARNING 注意 注意

Safety-Related Symbols

Power switch: "ON" position
Power switch: "OFF" position
(1) Power switch: "STAND-BY" position
① Push push switch "ON" "OFF"
Protective earthing terminal

Dangerous voltage inside. Do not open covers other than instructed.

CAUTION: Hot surface. Do not touch.

Class II equipment

Moving parts: Keep body parts away from moving parts

• Some of symbols shown above may not be affixed depending on the product.

Consumables

WARNING

Do not dispose of used toner cartridges in open flames. Also, do not store toner cartridges or paper in a location exposed to open flames. This may cause the toner or paper to ignite, and result in burns or fire.

Notice

Product Name

Safety regulations require the product's name to be registered.

In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.

LBP215x / LBP214dw / LBP212dw (F173500)

EMC requirements of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC

requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

EU WEEE and Battery Directives

You can see the WEEE and Battery Directives information in the latest User's Guide (HTML manual) from the Canon website (canon.com/oip-manual).

Wireless LAN Regulatory Information

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

• The information in this document is subject to change without notice.
• CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

Illustrations and Displays Used in This Manual

Illustrations and displays used in this manual are which of LBP215x unless specified.

About This Manual

Trademarks

Mac is a trademark of Apple Inc.

Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.
(3) You may use the SOFTWARE solely for use with the PRODUCT.
(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.
(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.
(6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.

(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions.

Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http://canon.com/oip-manual.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

V_170601

Memo

En

2 8.5 A4 / A5 → → → →

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSL 1
PRODUCTO LÁSER DE CLASE 1
APARLIJO A LASER DE CLASSE
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

2 8.5 A4/A5 M M M

3 Bis hier

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Bis hier

4

Diagram showing printer operation with icons and control buttons, including a timer and power button

Diagram of a printer with connectors and a magnified inset showing internal components (no text or symbols)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTF

LASERPRODUKT KI ASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Fino qui

4

Diagram showing printer application with icons and control buttons, including a close-up of the printer's screen.

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

2 8.5 A4 / A5 AA -10

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPAREIL À LASER DE CLASSE T

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LASER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASRPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Options for this instance Configured to this instance A small class (a) or (b) Importing Place in the origin (1) Size Place in the origin (2) Replace the size of the space Description of this instance Use 1 Use any table can improve the size (1) Improve it into the size Default non- improvements Use high (select) Show classification (input) Classifica Close (C) Default A: Vertical B: Horizontal Create manual Accession Edit Cancel Help

2 8.5 A4 / A5 AA -10

3 Fins aquí

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Fins aquí

4

Diagram showing printer setup with icons and control buttons, including a timer and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPAREIL À LASER DE CLASSE

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LASER DE CLASE 1

APARELIO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/FU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz Maximum radio frequency power: 15.9 dBm

File Edit View Insertion Form1: Format1: Format2: Format3: Format4: Format5: Format6: Format7: Format8: Format9: Format10: Format11: Format12: Format13: Format14: Format15: Format16: Format17: Format18: Format19: Format20: Format21: Format22: Format23: Format24: Format25: Format26: Format27: Format28: Format29: Format30: Format31: Format32: Format33: Format34: Format35: Format36: Format37: Format38: Format39: Format40: Format41: Format42: Format43: Format44: Format45: Format46: Format47: Format48: Format49: Format50: Format51: Format52: Format53: Format54: Format55: Format56: Format57: Format58: Format59: Format60: Format61: Format62: Format63: Format64: Format65: Format66: Format67: Format68: Format69: Format70: Format71: Format72: Format73: Format74: Format75: Format76: Format77: Format78: Format79: Format80: Format81: Format82: Format83: Format84: Format85: Format86: Format87: Format88: Format89: Format90: Format91: Format92: Format93: Format94: Format95: Format96: Format97: Format98: Format99: Format100: Delete currently Add Remove currently Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current Not available in this image. Delete current Add Remove current No Yes Help

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Honaino

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TH LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Configuration Universe Format File Edit View Insert... Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Format selection Formula1 Formula2 Formula3 Formula4 Formula5 Formula6 Formula7 Formula8 Formula9 Formula10 Formula11 Formula12 Formula13 Formula14 Formula15 Formula16 Formula17 Formula18 Formula19 Formula20 Formula21 Formula22 Formula23 Formula24 Formula25 Formula26 Formula27 Formula28 Formula29 Formula30 Formula31 Formula32 Formula33 Formula34 Formula35 Formula36 Formula37 Formula38 Formula39 Formula40 Formula41 Formula42 Formula43 Formula44 Formula45 Formula46 Formula47 Formula48 Formula49 Formula50 Formula51 Formula52 Formula53 Formula54 Formula55 Formula56 Formula57 Formula58 Formula59 Formula60 Formula61 Formula62 Formula63 Formula64 Formula65 Formula66 Formula67 Formula68 Formula69 Formula70 Formula71 Formula72 Formula73 Formula74 Formula75 Formula76 Formula77 Formula78 Formula79 Formula80 Formula81 Formula82 Formula83 Formula84 Formula85 Formula86 Formula87 Formula88 Formula89 Formula90 Formula91 Formula92 Formula93 Formula94 Formula95 Formula96 Formula97 Formula98 Formula99 Formula100

2 8.5 A4 / A5 AA -10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer operation with labeled buttons and icons, including a timer and power button

Diagram showing a printer with cables connected to a device, and a magnified inset highlighting the cable detail (no text or symbols present)

Se o problema persistir, consulte o Manual do utilizador.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/ LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Box Settings Page Setup Drawing1 - Power Source Format New Document Auto... Print Page Size 45 Diameter Match Page Size Page Layout 1.0 x 1 Named/Classical Border/Printing Selected Printing (Bruing) Location Long Edge (Left) Brack Color Group(S) Colors Current Duration In Format Language Weight Scaling Graph View Edit Save Edit Settings Language Settings(All) Options Defaults

Για λεπτομέρειες

2 8.5 A4 / A5 A4 = n

3 Εως εῶν

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer setup with two circular insets highlighting icons for lighting and power application.

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LASER DE CLASE 1

APARFI HO A1 ASFR DE CLASSE 1

LUOKAN 1 LASER-TUOTF

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

Document settings Sub-reading | Edit/Forward | Paste/Edit File Description Category Categories Add Sub-sheets2 Match categories 1. List 1 Text 2 tables: Printmaking Select addiff Index generation Large font (dots) Text Text/Drawn Sales Name(N): [14 KB] Papering(P):

Samples

Legend Manual editing Add target(D): Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other... Add to other...

Find oplysninger i

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Op hertil

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer operation with labeled buttons and icons, including a timer and power button

Diagram showing a printer with cable connectors and a close-up of the cable being inserted (no text or symbols present)

CLASS 1 LASER PRODUCT

LASFR KI ASSE 1

APPAREL À LASFR DE CLASSE 1
APPARFCCHIO | ASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KI ASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Agronomical journal Paproliform Rising Function Symbol Form Paproliform(D) H Unsaturated(C) Soft un-suproporous Paproliform(F) Log 1 Distributive Subsorption Feature (SIP) (C) Subsorption effects Structural Large size (Size) Main structure (Provenit R) System Actual representation(C) Advanced (AC) F-Standard Harmonic effects Propagms OK Cancel Help

2 8.5 A4 / A5 AA -10

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer operation with labeled buttons and icons, including a timer and power button

Diagram showing a printer with cable connectors and a magnified inset of the connector (no text or symbols)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREL À LASER DE CLASSE 1

APPARLCCHIO LASLR DI CLASSE 1

PRODUCTO LÁSLR DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

CAUTION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Exception

Veiligheidssymbolen

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

2 8.5 A4 / A5 AA = 10

3 Opp hit

4 Skyv papirskuffen inn i maskinen.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Opp hit

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

Se bruksanvisningen hvis problemet vedvarer.

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPAREL À LASER DE CLASSE 1

APPARFCCHIO LASER DI CLASSF 1

PRODUCTO LASER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

Unreadable Subsea: Subwaying Paperside - Solid File: Unreadable Subsea Object Size Unreadable Name: cinder Size 1 Display: subwaying font in library Outflow font Plan binding Large (size) Multi-lens/Inclusion Scales Name: 01 (19.00) Demery

Samples

Legend Subway/soft Formagen 01 Add Help

Praktiska

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Upp till hit

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer application with icons and control buttons, including a timer and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPARIL À LASER DE CLASSE 1

APPARECCHIO LASFR DI CL ASSE 1

PRODUCTO LASER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN I LASER TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPARIL À LASER DE CLASSE 1

APPARFCCHIO LASFR DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KI ASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

Document file selection File name: Document12 - Document13 - Default Format: Default format: Form1 Format settings: Name: Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Form1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format settings: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1 Format features: Format1

2 8.5 A4 / A5 AA -10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer application with icons and control buttons, including a timer and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE 1

APPAREL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

Net Printing Preferences Basic Settings: Page Setup / Setting / Filter Source / Format Format: Output Format: Print Page Type Add Output Type Match Page Size Page Layout 1.0 x 1 Text/Cladot Border Printing Selected Printing Binding Location Long Edge (Left) Flash Colors (Right) Group Copy Delete Help

Корисні параметри

друку

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

Diagram showing printer application with icons and control buttons, including a timer and power button

Diagram showing a device with connectors and a magnified inset highlighting a detail of the cable (no text or symbols present)

Paper jammed Press the button and open the front cover. Previous 1/7

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO | ASFR DI CLASSE 1

PRODUCTO I ÁSFR DE CL ASF 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Page Setup Page Setup Setting Power Source Groups Input Output Settings Post Page Size Size Format Match Page Size Page Layout 1 in 1 Textured/Created Section/Papping Textured Printing Drawing Location Long Edge (Left) Double Column Group(S) Color Current: [ ] (No. 98) Description: A) Top Sheet B) Landings Magnet Scaling Cage View View Settings Language Settings(S) Delete Settings OK Cancel Help

2 8.5 A4 / A5 → A4 = 10

3 Lidz šai atzimei

4 levietojiet papira atvilktni atpakaj ieriče.

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Lidz šai atzimei

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with attached cables and a magnified inset highlighting the cable connection (no text or symbols present)

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

A UZMANIBU!

CLASS 1 LASER PRODUCT

LASERKLASSE I

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO I ÁSFR DE CL ASF 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS 1

Wireless LAN Regulatory Information

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

Basic Settings Page Layout Drawing Filter Status Style Format Layer Options Font Page Size Size Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer Outer Top Outer Bottom Outer Layer

2 8.5 A4 / A5 AA = 10

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer application with icons and control buttons, including a timer icon and power button

• Ar tinkamai prijungtas maitinimo laidas?

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KI ASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE I

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASFR-TUOTF

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Page Setup Page Size Page Format Page Layout 1 in 1 Text/Contrast Overlay/Printing Selected Printing [Drawing] Location Long Image (LIF) Single Color Group (S) Color Copy: 1 (In 8) Description: All Format Landandscape Input Scaling: 0.000x 0.000x OK Cancel Help

Kasulikud printimisseaded

■ Kahepoolne
■ N paanitud 1-le
■ Brošüüri printimine

Üksikasjad

„Printimine“ kasutusjuhendis

Paberi asetamine paberisahtlisse

2 8.5 A4 / A5 → A4 = 10

3 Kuni siiani

4 Sisestage paberisahtel seadmesse.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Kuni siiani

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer operation with labeled buttons and icons, including a timer and power button

Diagram showing a printer with connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KI ASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE I

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASFR-TUOTF

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Database tabulature Database name: Database1 - Database2 - Table1 Name: Database name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database Name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name: Database name: Name:

2 8.5 A4 / A5 AA = 10

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Do lego poziomu

4

Diagram showing printer application with icons and control buttons, including a timer and power button

Diagram showing a printer with cable connectors and a close-up of the cable being inserted (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARLECCHIO LASER DI CLASSE 1

PRODUCTO I ÁSFR DE CI ASF 1

APARFI HO A LASFR DE CLASSF 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Data export File Edit View Insert Modify Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Select export: Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: 100% Set to: Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source Show the source

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Až sem

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer application with icons and control buttons, including a close-up of the printer's screen.

Diagram showing a computer setup with connectors and a magnified detail of the cable connection (no text or symbols present)

CLASS 1 LASER PRODUCT

LASER KLASSE I

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LASER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Basic Settings Page Size | Setting | Page Setup | Style Format Page Layout Page Size 100 Format: Top Match Page Size Page Layout 1.0 x 1 Match Created Forming Printing Selected Printing Drawing Location Long Edge (Left) Back Colors Group(S) Coles Customs [ ] (No. 98) [ ] (No. 98) Landmarks [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) Layer Options [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98) [ ] (No. 98)

Užitočné nastavenia pre tlač

■ Obojstranná
■ N na 1
■ Tlač brožúry

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Až potia

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer application with icons and control buttons, including a close-up of the printer's screen.

Diagram showing a computer interface with connectors and a magnified detail of the cable (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARLIHO A LASER DE CLASSE 1

LUOKAN 1 LASLR-TUOTL

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Box Settings Page Setup | Setting | Power Source | Format Format Power Settings Output Print Page Size 10x Format Match Page Size Page Layout 1 to 1 Texted/Context: Screen Printing Texted Printing [Drawing] Location Long Edge (Left) Single Color Group (S) Colors Cows: 10x Cows: Help

2 8.5 A4 / A5 AA = 10

3 Do tukaj

4 Vstavite predal za papir v napravo.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Do tukaj

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer operation with labeled buttons and icons, including a timer and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPAREL À LASER DE CLASSE 1

APPARFCCHIO LASFR DI CLASSF 1

PRODUCTO LASER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Page Setup Page Preset Drawing1 Power Source Groups Input Export Output Settings Print Page Size Width Outer Tip Match Page Size Page Layout 1 in 1 Selected/Control Window/Printing Selected Printing Printing Locations Long Line (Left) Trade Column Group (S) Color Current Duration All Postlet Landmarks Logical Scaling OK Cancel Help

2 8.5 A4 / A5 AA = 10

3 Do ovdje

4 Umetnite ladicu za papir u uređaj.

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Do ovdje

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

5 Navedite veličinu i vrstu papira sukladno zaslonu.

Ako je došlo do problema

Za detalje

„Otklanjanje poteškoća“ u Korisničkom vodiču

Diagram showing printer setup with icons and control buttons, including a clock icon and power button

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

Ako problem i dalje postoji, pogledajte Korisnički vodič.

Došlo je do zaglavljivanja papira

Uklonite zaglavljeni papir u skladu s uputama na zaslonu.

Papir zaglavljen Pritisnite gumb i otvorite prednji pcklopac. Prethod. 1/7

CLASS 1 LASER PRODUCT

LASER KI ASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE I

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTF

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Eddig a jelig

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer operation with labeled buttons and icons, including a timer and power button

Diagram showing a printer with cable connectors and a close-up of the cable being inserted (no text or symbols present)

CLASS | LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Page Settings Page Setup Drawing1 - Power Source - Format Format Resource Center Auto... Edit... Delete Paste Page Size Add Delete Type Balance Page Size Page Layout 1.0 x 1 Loaded/Converted Border/Printing Deleted Printings Binding Location Long Edge (Left) Stack Colors Group(S) Color Customs Properties A: P: 95 B: P: 95 C: P: 95 D: P: 95 E: P: 95 F: P: 95 G: P: 95 H: P: 95 I: P: 95 J: P: 95 K: P: 95 L: P: 95 M: P: 95 N: P: 95 O: P: 95 P: P: 95 Q: Cancel Help

2 8.5 A4 / A5 AA = 10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer application with icons and control buttons, including a timer and power button

Diagram showing a printer with a close-up view of its cable connector (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Regulatory information for users in Jordan LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Page Setup Page Size Drawing Power Source GmbH Delete Settings Add Edit Paste Page Size Size Outer Type Match Paper Size Page Layout 1.0x 1 Selected Copy Copy Printing Selected Print Binding Locations Long Edge (Left) Static-Delta Group(1) Cables Copy: 1 (From -8) Duration: All Format Landmarks Magnet Scaling: None Outer New Settings Language Settings(2) Design Defaults 4.4 Cancel Help

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 До тук

Diagram of a vehicle interior showing directional arrows and components (no text or symbols)

Diagram showing printer application with icons and control buttons, including a clock icon and power button

Diagram showing a printer with connectors and a magnified inset highlighting the connector detail (no text or symbols present)

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPARLIL À LASLR DE CLASSL 1 APPARLCCHIO LASLR DI CLASSL 1 PRODUCTO I ÁSFR DE CLASF 1 APARELHO A I ÁSFR DE CLASSE 1 LUOKAN I LASER TUOTE LASERPRODUKI KLASS 1

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

2 8.5 A4 / A5 AA = 10

3 Buraya

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Buraya

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer application with icons and control buttons, including a timer icon and power button

Diagram showing a printer with two cables connected to a device, and an inset magnified view of the cable being inserted (no text or symbols present)

CLASS 1 LASER PRODUCT

LASERKLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 15.9 dBm

Line drawing of a printer with a digital display and dotted line indicating measurement (no text or symbols)

الشاسة (مفتاح [新房سية] (مفتاح [新房سية] ([مُفْرِّ الطَاقَة])

لوحة التشفيل

Line drawing of a printer with a handheld device on top, no text or symbols present

لوحة التشغيل

(#) # (مفتاح [ الرجوع] ) (مفتاح [ الرئيسيه] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (مفتاح [ مWR اق [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (mمتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ مزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان [ ] ) (ممتان [ المزامان[ ] ] (ممتان[العربية] ) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية)

التنقل عبر القائمة

تأكيد الإعداد

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

Diagram illustrating a hand using a tool to interact with a device, showing a magnified view of the component.

إلى هنا

Line drawing of a vehicle interior showing airflow or movement arrows (no text or symbols)

Diagram illustrating mechanical assembly steps with magnified views of a component and detail view labeled AA

إلى هنا

Diagram showing printer application setup with labeled components and zoomed-in views of the printer's screen interface.

Diagram showing a printer with cable connectors and a magnified inset highlighting the cable connection (no text or symbols present)

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA). Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Line drawing of a printer with a digital display and paper airplane, no text or symbols present

پانل عمليات

Paper jammed. Press the button and open the front cover. Previous 1/7

تعويض کارetriج تونر

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Diagram showing printer application with two circular insets highlighting the device's components and their respective buttons.

Diagram showing a printer with cable connectors and a magnified inset highlighting the connector detail (no text or symbols present)

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Line drawing of a printer with a screen and dotted line indicating measurement (no text or symbols)

Line drawing of a printer with a handheld device on top, no text or symbols present

File Properties Base Settings: Page Layout / Ordering / User Source / Quick Profile: Output Method: Print Format: Auto Global View Match Place View Page Layout Form 1 Selected Selected Preview Printing Selected Printing Binding Locations Long Slice (Soft) Track Circular Group/1 Group Copy(S)... Deposition All Payout Landscape Manual Scaling Gaze... New Settings Language Settings(0) Browse Defaults OK Cancel Help

Hebrew text snippet showing 'ה' and its pinyin 'ה' with a circular icon, likely indicating a name or address.
    note1["הכלה: 1-2 N"]
    note2["הכלה: 1-2 N"]
    note3["הכלה: 1-2 N"]

Paper jammed. Press the button and open the front cover. Previous 1/7

תְרָה בַרִי הַלְרָה

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Diagram showing printer setup with two circular insets highlighting icons of a clock and a power button.

Diagram showing a printer with cable connectors and a magnified inset highlighting the cable connection (no text or symbols present)

Regulatory information for users in Jordan

LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

Contains Wireless LAN Module approved by TRC/LPD/2017/19

Regulatory information for users in UAE LBP215x / LBP214dw / LBP212dw includes approved Wireless LAN Module (Model name: Type1KA).

TRA

REGISTERED No: ER51217/17

DEALER No: DA0073692/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.9 dBm

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

One Canon Park, Melville, NY 11747, U.S.A.

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

2F Jinbao Building No.89, Jinbao Street,

Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 Fusionopolis Place, #15-10, Galaxis, Singapore

138522

CANON AUSTRALIA PTY LTD

Building A, The Park Estate, 5 Talavera Road,

Macquarie Park, NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

http://www.canon.com/

Printed on non-chlorine bleached paper.
