USER MANUAL SR-TMJ181 PANASONIC

Line drawing of a rice cooker with control panel and buttons (no text or symbols)

사용설명서

멀티 쿠커

가정용

Operating Instructions

Household UseMulti Cooker

Thank you for purchasing this Panasonic product.
- This product is intended for household use only.
- Please read these instructions carefully and follow safety precautions when using this product.
- Before using this product please give your special attention to "Safety Precautions" (Page 3-4).

Keep this manual for future use
목차

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. This product is intended for household use only.

15. SAVE THESE INSTRUCTIONS.

CAUTION :

a. A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
c. The use of extension cords is not recommended.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fi t into a polarized outlet only one way. If the plug does not fi t fully into the outlet, reverse the plug. If it still does not fi t, contact a qualified electrician. Do not attempt to modify the plug in any way.

Safety Precautions

Must be followed!

In order to prevent accidents or injuries to the users, other people and damage to property, please follow the instructions below.

■ The following charts indicate the degree of damage caused by wrong operation.

WARNING

Indicates serious injury or death.

CAUTION

Indicates risk of injury or property damage.

■ The symbols are classified and explained as follows.

These symbols indicate prohibition.

This symbol indicates requirement that must be followed.

WARNING

■ Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the power outlet.

(It may cause an electric shock or fire caused by short circuit.)

■ Do not insert any objects in the steam vent or gap.

Especially metal objects such as pins or wires. (It may cause an electric shock or malfunction.)

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(It may cause burn or injury.)

■ Clean the power plug regularly.

(A soiled power plug may cause insufficient insulation due to the moisture, and may cause a fire.)

- Unplug the power plug, and wipe with a dry cloth.

■ Do not damage the power cord or power plug.

Following actions are strictly prohibited.

Modifying, placing near heating elements, bending, twisting, pulling, putting heavy objects on top, and bundling the cord. (It may cause an electric shock or fi re caused by short circuit.)

- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

■ Do not immerse the appliance in water or splash it with water.

(It may cause a fire caused by short circuit or electric shock.)

- Please enquire with an authorized dealer if water gets inside the appliance.

■ Use only a power outlet rated at 15 amperes and alternating electric voltage at 120 volts.

(Plugging other devices into the same outlet may cause electric overheating, which may cause a fire.)

- Use only an extended cord rated at 10 amperes minimum.

■ Discontinue using the appliance immediately and unplug the power cord in cases of abnormal situations and breaking down.

(It may cause smoking, a fire or electric shock.)

(e.g. for abnormal situations or breaking down)

• The power plug and the power cord become abnormally hot.

- The power cord is damaged or power failure occurs when touched.

• The main body is deformed or abnormally hot.

• The unit gives out smoke or scorching smell.

- There are cracks, looseness or wobbles of the appliance.

• The cast heater is warped or the inner pan is deformed.

→ Please make enquiries at a Panasonic authorized service center for immediate inspection and repair.

■ Do not plug or unplug the power plug with wet hands.

(It may cause an electric shock.)

■ Do not get your face close to the steam vent or touch it with your hand. Keep the steam vent out of reach of small children.

Steam vent

(It may cause a burn.)

■ Do not modify, disassemble, or repair this appliance.

(It may cause a fire, electric shock or injury.)

- Please make enquiries at the store or the repair department of an authorized dealer.

■ Insert the instrument plug and the power plug firmly.

(Otherwise it may cause an electric shock and fi re caused by the heat that may generate around the instrument plug or the power plug.)

- Do not use a broken power plug or a loose power outlet.

Safety Precautions

Must be followed!

CAUTION

■ Do not use the appliance in the following places.

Illustration of a cooking setup with a pot on a stove next to a rice cooker (no text or symbols)

• In an area where it may be splashed with water or near a heat source. (It may cause a fire caused by short circuit or electric shock.)
• An unstable surface or carpet, electric carpet, table cloths (ethylene plastic) or other object that cannot resist high temperature. (It may cause an injury, burn or fire.)
• Near a wall or furniture. (It may cause a discoloration or deformation.)

- Do not expose the power plug to steam and do not let water spill on the connector of the power plug.

- Do not expose the power plug to steam when it is plugged in. (It may cause a fi re caused by short circuit.) When using a cabinet with sliding table, use the appliance where the power plug cannot be exposed to steam.

■ Be sure to hold the instrument plug or the power plug when unplugging. Do not pull the power cord.

(Otherwise it may cause an electric shock or fire caused by short circuit.)

Do not use the cord set (for instrument plug and power plug) that is not specified for use with this appliance. Also do not transfer them.

(It may cause an electric shock, leakage, and fire.)

■ Unplug the power plug from the power outlet when the appliance is not in use.

(Otherwise it may cause an electric shock and fi re caused by short circuit due to the insulation deterioration.)

■ Heating element is subjected to residual heat after use. Please allow the appliance to cool down before cleaning it.

(Touching hot elements may cause a burn.)

■ Do not touch heating elements while the appliance is in use or after cooking.

Especially the cast heater. (It may cause a burn.)

■ Do not touch the hook button while moving the appliance.

(It may cause the outer lid to open, resulting in a burn.)

■ Be careful when opening the outer lid while cooking.

(It may cause a burn.)

■ Do not use other pans than the one specifi ed.

(It may cause a burn and injury due to overheat or malfunction.)

Precaution for Use

Please put in correct amount of rice and water and select functions correctly according to the operating instructions.

(So as to avoid overflow of rice water, half-cooked rice or scorched rice.)

Do not put ingredients to be cooked directly into the appliance in which no inner pan is placed. Do not cook without inner pan.

(So as to prevent any impurities from causing failure.)

Avoid using the appliance under direct sunlight.

(So as to avoid color change.)

Do not let water spill on the power plug of the power cord set. (This may result in electric shock.)

Before using the appliance, the anti-tarnish paper between the inner pan and the cast heater should be removed.

(So as to avoid poor cooking or fire.)

Do not cover the outer lid with cloth or other objects when the appliance is in use.

(So as to avoid deformation, color change of the outer lid or failure.)

Do not scoop out rice with any metal object.

(So as to avoid scratching the inner pan coating and causing peeling of the coating.)

Please always clean the foreign matters such as rice on the inner pan, cast heater and temperature sensor. Foreign matters

Cast heater

Temperature sensor

• Do not tilt or overturn the appliance.
• Before cleaning, turn off the power switch and pull out the power plug.

When there is any overflow of rice water from the steam vent, pull out the power plug immediately to disconnect the power supply. Do not resume the use until the rice water on the power plug and the instrument plug is cleaned with a dry cloth.

The appliance is for household use only. Do not use it for any commercial or industrial purposes or any purposes other than cooking.

When power failure occurs during the operation of the appliance, the cooking result may be affected.

Parts Identifi cation

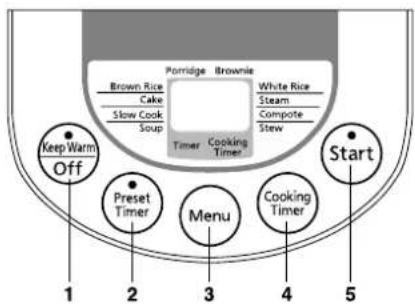

Display

Brown Rice Cake Slow Cook Soup Porridge Brownie White Rice Steam Compote Stew Timer Cooking Timer Keep Warm Off Preset Timer Menu Cooking Timer Start 1 2 3 4 5

Press this button to: 1. Cancel the previous operation or enter Keep Warm function.

1. Preset timer.
2. Select cooking menu.
3. Select cooking timer.
4. Start cooking.

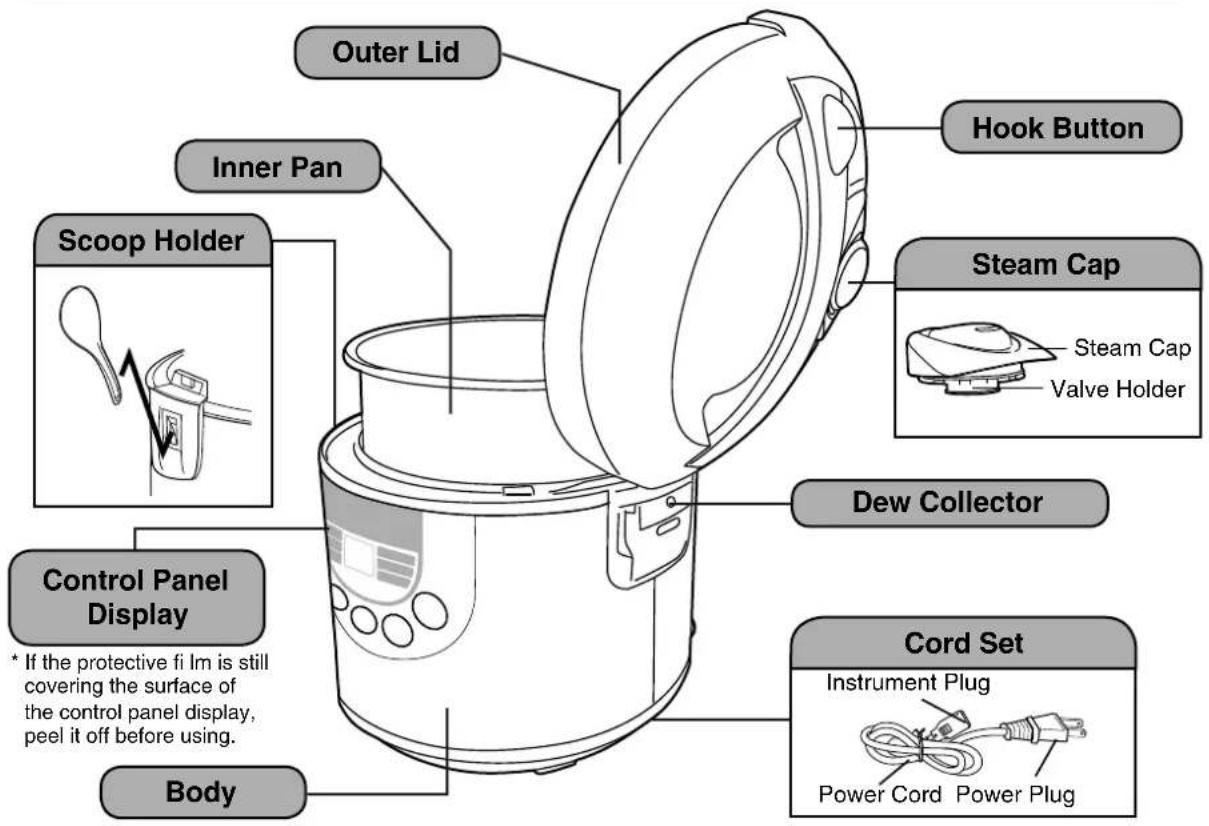

Parts Identifi cation

Outer Lid Hook Button Inner Pan Scoop Holder Steam Cap Valve Holder Dew Collector Control Panel Display * If the protective fi lm is still covering the surface of the control panel display, peel it off before using. Body Cord Set Instrument Plug Power Cord Power Plug

Accessories

Measuring Cup (Approx. 180 mL)

Steaming BasketRice Scoop

Preparations

Measure rice with the measuring cup provided.

• The volume of the measuring cup is about 180 mL.
- For the maximum quantity of rice to be cooked at once, refer to specifications in Page 17.

Correct

The cooking result may be affected

2 Wash the rice till the water turns relatively clear.

① Wash the rice quickly with plenty of water and stirring the rice lightly to wash it while changing water.
② Repeat it for several times (wash the rice → pour out water), till the water turns relatively clear.

①

②

ATTENTION

• In order to avoid scratching the non-stick coating on the pan surface, do not wash rice in the pan.
• Wash the rice thoroughly. Otherwise, rice crust may appear and the residual rice bran may affect the taste of the rice.

2 Add the washed rice or other ingredients into the pan.

- Use water line on the pan to measure cooking quantity as follows.

Function White Rice Brown Rice Mixed Rice Sticky Rice Porridge
Rice (cup)	Water level (CUP)*		1		Water level (L)*2
12	-	-	-	-	-
1	-	-	-	-	0
1+12 - - - - -	1.2
2	-	-	-	-	1
3	3	3	3+34	3	-
4	4	4	4+34	4	-
5	5	5	5+34	5	-
6	6	6	6+34	6	-
7	7	7	7+34	-	-
8	8	-	8+34	-	-
9	9	-	-	-	-
10	10	- - - -

* By following water level mark "CUP" inside the pan.
*2 By following water level mark "L" inside the pan.

- Wipe the surface of the pan before use. If it is wet, it may cause noise while cooking. Any foreign matters between the pan and the cast heater may damage the unit.

- The water level data indicated in above table is only approximation. If rice is too hard or too soft, please adjust water amount according to your personal taste.

MAXIMUM LEVEL
Do not cook with more than this level

L CUP 1.8 10 1.4 8 1.0 6 4 0.6

SR-TMJ181

Preparations

Put the inner pan into the body and close the outer lid.

① In order to closely attach the bottom of inner pan to the cast heater, please rotate the inner pan along the direction indicated by the arrow 2 or 3 times. Please check whether the steam cap is correctly positioned (Page 15).

② Close the outer lid until it clicks.

5 Connect the plugs.

① Please insert the instrument plug into the body first. ② Connect the power plug. Make sure that both plugs are tightly connected.

ATTENTION

* The table on the right shows the maximum allowable amount of white rice that can be cooked while steaming food in the steam basket.
* Reasonable time interval is recommended between subsequent cooking to ensure cooking result is normal.
* There is possibility of starch, spill over through steam vent if cooking is done using hard water (ie: untreated water).

The maximum amount of rice (in measuring cups)

Maximum amount of white rice

5

Functions Porridge

Porridge Brownie Brown Rice White Rice Cake Steam Slow Cook Compote Soup Stew Timer Cooking Timer 3 Keep Warm Start Off Preset Menu Cooking Timer 2

■ Important Information

• Incorrect water or rice quantity may lead to overflow of rice water from the steam cap.
• If the outer lid is opened during cooking, the amount of moisture condensation may be increased.
• If the porridge is kept in Keep Warm function for an excessively long time, it will become thicker.
  • Each time after use, take off and clean the steam cap so as to prevent any strange smell.

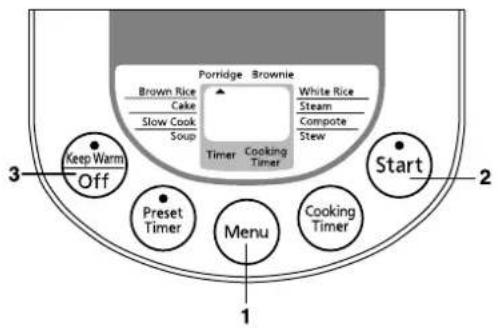

Operations (Cooking with the Porridge function.)

1 Press 📁 button to select Porridge function.

• The Start indicator blinks.

2 Press Start button.

• The ⑤start indicator lights up and cooking starts.
- The remaining time counter will appear on the LCD display when the remaining time reaches 5 minutes.

Brown Rice Cake Slow Cook Soup Porridge Brownie 5 min White Rice Steam Compute Stew Timer Cooking Timer

- If you want to preset the timer for Porridge, please refer to "Using the Timer" (Page 14).

The cooking is over

• When cooking is over, the multi cooker beeps and automatically switches to the Keep Warm function (The Start indicator turns off and the Hangker Off indicator lights up automatically).
  • However, we do not recommend using the Keep Warm function as it may become too thick and dry. Press the ☐ button to exit the Keep Warm function and unplug the power plug.

Functions Brown Rice

Porridge Brownie Brown Rice Cake Slow Cook Soup Timer Cooking Timer White Rice Steam Compote Stew 3 Keep Warm Off 2 Preset Timer Menu 1 Cooking Timer Start

■ Important Information

• Incorrect water or rice quantity may lead to overflow of rice water from the steam cap.
• Do not use Keep Warm function for brown rice, so as not to effect the taste.
• Brown rice is a kind of rice which is difficult to cook. In the course of cooking, the rice shall be soaked for about 1 hour first, so that rice grain can absorb enough water to achieve a satisfactory cooking performance.
• Frequent opening of the outer lid after cooking may result in excess water and cause the dew collector to overflow. User should always empty it.

Operations (Cooking with the Brown Rice function.)

1 Press ☐ menu button to select Brown Rice function.

• The (Start) indicator blinks.

2 Press Start button.

• The indicator lights up and the cooking starts.
- The remaining time counter will appear on the LCD display when the remaining time reaches 13 minutes.

- If you want to preset the timer for Brown Rice, please refer to "Using the Timer" (Page 14).

The cooking is over

Stir and loosen the rice.

• When cooking is over, the multi cooker beeps and automatically switches to the Keep Warm function (The Start indicator turns off and the Off indicator lights up automatically).
• However, we do not recommend using the Keep Warm function as it may become affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

Functions Cake / Brownie

Brown Rice Cake Slow Cook Soup Porridge Brownie White Rice Steam Compute Stew Timer Cooking Timer Start Keep Warm Off Preset Timer Menu Cooking Timer 1 2 3 4

■ Important Information

• Do not cook more than 1,660 g of cake mixture.
  • Cooking time depends on volume and type of cake.
• Please wear the kitchen gloves while taking out the inner pan.
  • Leaving the cake inside the inner pan will cause the cake to be wet.
  • After cooking, some oil stains may remain in the inner pan. This is normal.

Preparations

• Prepare the cake mixture by following your recipe.
- Coat the inner pan with butter or margarine to facilitate removing the cake from inner pan.
- Pour the cake mixture into the inner pan and level it.

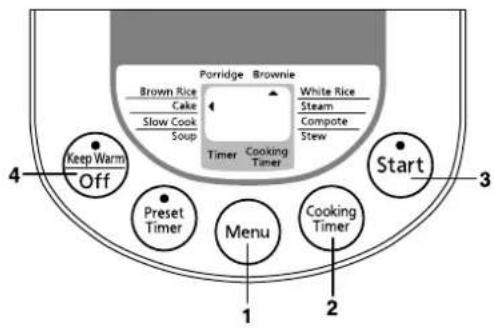

Operations (Cooking with the Cake / Brownie function.)

1 Press ☐ menu button to select Cake / Brownie function.

- The indicator blinks and 40min (40 minutes) will appear on LCD display (as the default baking time for Cake function).

2 Press Cooking Timer button to set the cooking time as your desire.

• You can set the cooking time for:
  Cake function : from 20 to 65 minutes (5 minutes increment).
  Brownie function : from 1 to 20 minutes (1 minute increment) and 20 to 65 minutes (5 minutes increment).
• Keeping the button pressed will make setting faster.

3 Press Start button.

• The indicator lights up and the cooking starts.
- The LCD display will show remaining time in 1 minute decrement.

The cooking is over

• When cooking is over, the multi cooker beeps and automatically switches to the Keep Warm function (The Start indicator turns off and the Keep Warm indicator lights up automatically).
• However, we do not recommend using the Keep Warm function as it may affect the taste. Press the Keep Warm button to exit the Keep Warm function and unplug the power plug.
• Bring out the pan and leave it cool for 2-3 minutes. Then put the pan upside down onto a tray or grill.
  • Decorate the cake surface as your desire.

Inner pan Cake Hand glove

Functions Slow Cook / Soup / Stew

Brown Rice Cake Slow Cook Soup Porridge Brownie White Rice Steam Compute Stew Timer Cooking Timer Keep Warm Off Start Preset Timer Menu Cooking Timer 1 2 3 4

■ Important Information

• If the outer lid is opened during cooking, the amount of moisture condensation may be increased.
  • Each time after use, take off and clean the steam cap so as to prevent any strange smell.

Preparations

• Place all ingredients into the pan.
• Close the lid.

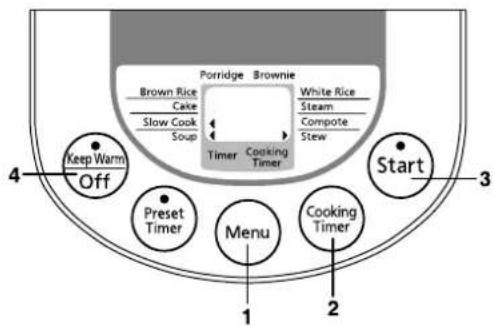

Operations (Cooking with the Slow Cook / Soup / Stew function.)

1 Press ☐ menu button to select Slow Cook / Soup / Stew function.

- The 📋 indicator blinks and 1h (1 hour 0 minute) will appear on LCD display (as the default cooking time for Slow Cook / Soup / Stew function).

2 Press Cooking Timer button to set the cooking time as your desire.

• You can set the cooking time from 1 to 12 hours (30 minutes increment).
• Keeping the button pressed will make setting faster.

3 Press Start button.

• The indicator lights up and the cooking starts.
- The LCD display will show remaining time in 30 minutes decrement and reduce to 1 minute decrement when cooking time is less than 1 hour.

The cooking is over

• When cooking is over, the multi cooker beeps and automatically switches to the Keep Warm function (The
  indicator turns off and the Turnoff indicator lights up automatically).
• However, we do not recommend using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

Functions White Rice • Keep Warm

Porridge Brownie Brown Rice Cake Slow Cook Soup White Rice Steam Compote Stew Timer Cooking Timer Keep Warm Off Preset Timer Menu Cooking Timer Start 2

■ Important Information

• Incorrect water or rice quantity may lead to overflow of rice water from the steam cap.
• If the outer lid is not securely closed, cooking may be affected.
• Frequent opening of the outer lid after cooking may result in excess water and cause the dew collector to overflow. User should always empty it.
• This function is also suitable for Mixed Rice and Sticky Rice cooking.

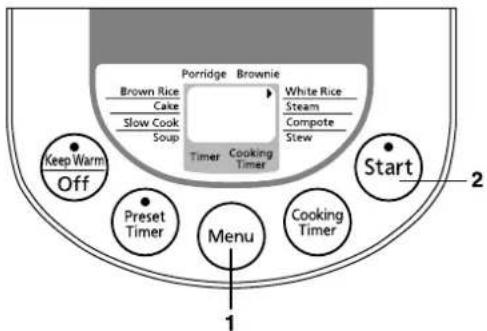

Operations (Cooking with the White Rice function.)

1 Press 📂 button to select White Rice function.

• The Start indicator light blinks.

2 Press Start button.

• The 0 indicator lights up and the cooking starts.
- The remaining time counter will appear on the LCD display when the remaining time reaches 9 minutes.

- If you want to preset the timer for White Rice, please refer to "Using the Timer" (Page 14).

The cooking is over

Stir and loosen the rice.

- When cooking is over, the multi cooker beeps and automatically switches to the Keep Warm function (The Start indicator turns off and the Keep Warm Off indicator lights up automatically).

Keep Warm

• When the cooking is over, all functions will turn to Keep Warm function automatically.
• You can keep the rice warm for up to 12 hours, so as not to affect the taste or cause unpleasant smell.
• If you want to exit the Keep Warm function, press button.

Menu	Keep Warm	The result after kept warm
White Rice	○	No problem.
Brown Rice	×	Affects the taste or causes a strange smell.Flavor can be adversely affected.
Mixed Rice	×
Sticky Rice	×
Porridge	×	It may become too thick.
Cake / Brownie	×	Affects the taste or causes a strange smell.
Slow Cook / Soup / Stew	×
Steam / Compote	×

○ : Can be used, × : Not recommend for use

Functions Steam / Compote

Brown Rice Cake Slow Cook Soup Porridge Brownie White Rice Steam Compute Stew Timer Cooking Timer Keep Warm Off Start Preset Timer Menu Cooking Timer 1 2 3 4

■ Important Information

• When steaming food at the same time as cooking rice, please select White Rice function.
• The steaming time shall be determined according to the water quantity in the inner pan. Please adjust the water quantity according to the time required.
  • After the water has fully evaporated, the rice cooker will turn to the keep warm function automatically.
• If you want to stop steam function during cooking, press button.

Preparations

• Add the required amount of water.
• Place foods to be steamed into the steam basket.
• Close the outer lid.

Correspondence between the amount of water and time of steaming as below serves as a guideline to achieve a satisfactory cooking performance.

Cooking time	Amount of water
Less than 10 minutes	1 measuring cup
10 ~ 30 minutes	2 measuring cups
30 - 60 minutes	4 measuring cups

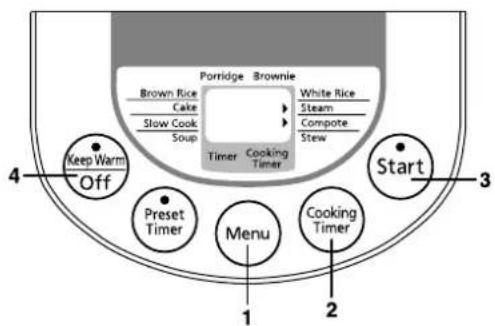

Operations (Cooking with the Steam / Compote function.)

1 Press ☐ button to select Steam / Compote function.

- The Start indicator light blinks and 10min (10 minutes) will appear on LCD display (as the default steaming time for Steam / Compote function).

2 Press Cooking Timer button to set the cooking time as your desire.

• You can set the cooking time from 1 to 60 minutes (1 minute increment).
• Keeping the button pressed will make setting faster.

3 Press Start button.

• The Ⓞ Start indicator lights up and the steaming starts.
• After water is boiled, the LCD display will show remaining time in 1 minute decrement.

The cooking is over

• When cooking is over, the multi cooker beeps and automatically switches to the Keep Warm function (The Start indicator turns off and the Keep Warm indicator lights up automatically).
• However, we do not recommend using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

Using the Timer

Brown Rice Cake Slow Cook Soup Porridge Brownie White Rice Steam Compote Stew Timer Cooking Timer Keep Warm Off Preset Timer Menu Cooking Timer Start 3 2 1

The presetting time is a countdown timer.

• Time can be preset 13 hours in advance.

Example

If the timer is set for 4H 30min, cooking will be completed in 4 hours 30 minutes after Start button is pressed.

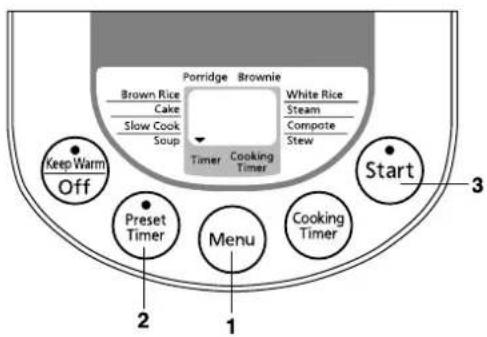

Operations

1 Press ☐Menu button to select function.

• The Start indicator light blinks.
- Applicable function for timer cooking and recommended time setting range as below.

Function Timer (hrs.)

White Rice 1 - 13

Brown Rice 3 - 13

Porridge 1 - 13

2 Press Timer button to set the timer as your desire.

• The first time Timer button is pressed, the previous timer setting will be displayed.
  • The timer will advance 30 minutes each time.
• Keeping the button pressed will make setting faster.

3 Press Start button.

• The indicator turns off and the indicator lights up.
- When cooking starts, the Timer indicator turns off and the Start indicator lights up.
- Timer setting can't be used in the following functions :

Function

Cake / Brownie

Slow Cook / Soup / Stew

Steam / Compote

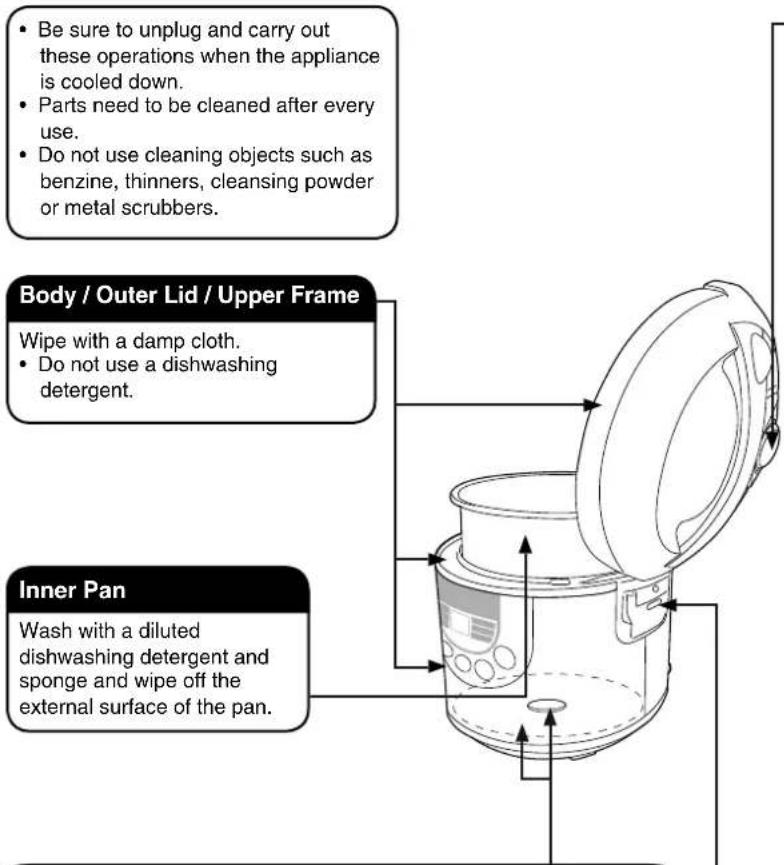

Cleaning and maintenance

• Be sure to unplug and carry out these operations when the appliance is cooled down. • Parts need to be cleaned after every use. • Do not use cleaning objects such as benzine, thinners, cleansing powder or metal scrubbers. Body / Outer Lid / Upper Frame Wipe with a damp cloth. • Do not use a dishwashing detergent. Inner Pan Wash with a diluted dishwashing detergent and sponge and wipe off the external surface of the pan.

Temperature Sensor / Cast Heater

If an object has become stuck to the Temperature Sensor / Cast Heater, slightly polish it off using fine sandpaper (of about # 600). Then wipe with a damp cloth.

Dew Collector

• Hold the sides and remove / install in the direction of the arrows.
• Remove and empty the Dew Collector after every use.

Steam Cap

\* Please do not remove Steam Cap when using rice cooker.

Removal

① Pull off the Steam Cap to remove as shown in the figure.
②Remove the Valve Holder by turning it counterclockwise. Wash and wipe with a damp cloth.

* Do not remove Rubber

③ Wipe the inside of the hole with a damp cloth.

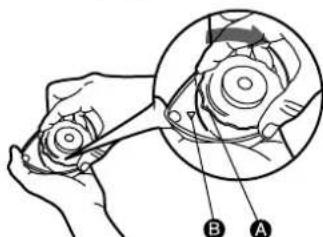

■ Install

①Insert the Valve Holder into the Steam Cap by setting the tap of the holder A into the slot of the cap B and turn it from left to right until it seats properly.

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a gear mechanism.

②Put the Steam Cap into the hole of the lid.

Accessories

Measuring Cup Steaming BasketRice Scoop

- Wash with a diluted dishwashing detergent and sponge.

Troubleshooting

Please check the following items

Rice Cooking

Details	Cooking problems					Keep Warm problems			No power	Strange sound occurs
	Too hard	Undercooked	Too soft	Water overflow	Burnt rice at bottom of inner pan	Color change	Bad smell	Too dry
Wrong rice and water proportion.	●	●	●	●	●		●		Pull out plug and check the socket.	Sound occurs because of water that has stuck to inner pan.
Inadequate washing of rice.				●	●	●	●
Foreign matters between inner pan and cast heater.	●	●	●		●
Cooking with a lot of oil.	●	●		●	●	●
The rice has been warmed more than 12 hours.						●	●	●
The outer lid is not securely closed.	●		●		●	●	●
The inner pan is not adequately washed.					●		●
The power cord is not connected to the socket securely.		●					●

Cake Baking

Details	Baking Cake problems							No power	Strange sound occurs
	Undone Cake	Undercooked Cake	Wet Cake	The Cake sticks to the base of pan	The Cake sticks to the base of pan	Bottom of the Cake burnt	Not fluffed
Too much dough.	●	●						Pull out plug and check the socket.	Sound occurs because of water that has stuck to pan.
Not enough mixing before baking.				●	●		●
Used with incompatible cake mix.	●	●	●		●
Used with cake mix that contains too much chocolate, sugar or fruit ingredients.	●	●		●	●
Outer lid not close while cooking.	●	●				●
Foreign matters between pan and cast heater.	●	●	●		●	●
Not enough butter or cooking oil applied to the bottom of the pan.				●
Cake left in the pan too long.			●		●
Inadequate mixing or mixed too long.						●	●
Wrong ingredient quantity.		●		●	●	●

Specifications

Model No.		SR-TMJ181
Power Source 120 V		60 Hz
Power Consumption	In the Cooking Function 670 W
	In the Keep Warm Function 108 W
Capacity	White Rice 3 - 10 cups
	Sticky Rice 3 - 6 cups
	Mixed Rice 3 - 8 cups
	Brown Rice 3 - 7 cups
	Porridge 1 - 2 cups
	Slow Cook / Soup / Stew 1,1 - 3,2 L
	Cake / Brownie 1,660 g
Dimensions (Width x Length x Height) (approx.) 274 x 275 x 276 mm
Weight (approx.) 3,1 kg
Keep Warm 12 hours

• For power cord replacement and product repair, please contact Panasonic authorized service center.

Line drawing of a cooking setup with a pot and a rice cooker on a stove (no text or symbols)

Porridge Brownie Brown Rice White Rice Cake Steam Slow Cook Compote Soup Stew Timer Cooking Timer 3 Keep Warm Start Off Preset Menu Cooking Timer 2

■ Informations importantes

Brown Rice Cake Slow Cook Soup Porridge Brownie 5 min Timer Cooking Timer White Rice Steam Compute Stew

Technical diagram of a portable oven with labeled components and directional arrows indicating flow or movement.

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a gear mechanism.

Brown Rice Cake Slow Cook Soup Porridge Brownie 5 min Timer Cooking Timer White Rice Steam Compute Stew

Technical diagram showing a hand operating a mechanical component with labeled parts A and B, including a circular inset view of the mechanism.

② 將蒸氣裝置放入蓋孔中.

配件

量杯

飯勺子

蒸籠

- 使用稀釋的餐具洗滌劑和海綿清洗。

故障排除

請檢查以下項目

烹調米飯

Illustration of a cooking setup with a pot on a stove next to a rice cooker (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a gear mechanism.

Simple line drawing of a cooking pot on a stove next to a rice cooker (no text or symbols)

Illustration showing two steps of cooking: one with a lid and open lid, the other with a rice cooker and a cloth cover.

Porridge Brownie Brown Rice White Rice Cake Steam Slow Cook Compote Soup Stew Timer Cooking Timer 3 Keep Warm Start Off Preset Menu Cooking Timer 2

Brown Rice Cake Slow Cook Soup Porridge Brownie 13 min Timer Cooking Timer White Rice Steam Compute Stew

Technical diagram of a portable oven with labeled components and directional arrows indicating flow or movement.

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a gear mechanism.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

EXCHANGE PROGRAM

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Electric Rice Cooker	One (1) year
Hot Water Dispenser	One (1) year
Automatic Bread Maker	One (1) year
Multi Cooker	One (1) year
Toaster Oven	One (1) year
Breakfast series (Coffee maker, Toaster, Kettle)	One (1) year
Hand Blender	One (1) year

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

CONTACT INFORMATION

For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support

For defective product exchange within the warranty period, please contact the original dealer.

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT PANASONIC - GARANTIE LIMITÉE

PROGRAMME DE REMPLACEMENT

© Panasonic Corporation 2016

RZ19C9861

D0316-0

Printed in Malaysia

Imprimé en Malaisie
