USER MANUAL Tropicano Plug Heater TAURUS

Diagram of a vehicle's seat structure with circular components and a rectangular panel (no text or labels)

EN: This product is only suitable for well insulated spaces or occasional use.

D E G C F B

Technical diagram of a handheld device with labeled parts A and H, showing internal components and control knob.

Español

Portable ceramic heater

Tropicano Plug Heater

Dear customer,

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WARNINGS

- CAUTION: Some parts of this product may become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The appliance must not be placed below a power socket.

- Children under 3 years old must be kept out of reach of the appliance unless they are continuously supervised.

- Children of between 3 and 8 years old may only switch the appliance on or off if it has

been placed or installed in its designated normal working position and if they are supervised or have received instructions relating to the safe use of the appliance and understand the risks the appliance has.

- This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless supervised.

- Children of between 3 and 8 years old may not plug in, adjust or clean the appliance or carry out maintenance operations.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Do not use the appliance near bathtubs, showers or swimming pools.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order

to prevent any danger, do not attempt to dismantle or repair it yourself.

- This appliance is for household use only, not professional or industrial use.

is symbol means that product can't be covered.

- WARNING: In order to prevent overheating do not cover the appliance.

- CAUTION: In order to avoid dangers relating to unwanted resetting of the thermal circuit breaker, do not plug the appliance into an external tripping device, such as a programmer, or connect it to a circuit that is switched on and off regularly by the electricity supply company.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not modify the plug. Do not use plug adaptors.

- Use the appliance in a well ventilated area.

- Make sure the room is adequately ventilated, if other appliances are used in the same room and at the same time that are powered by gas or other types of fuel.

- Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.

- Install the appliance a minimum distance of 50cm away from combustible materials, such as curtains, furniture ...

- Do not place inflammable material near the appliance.

- Ensure that neither the air inlet or outlet become totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

- Do not use the appliance in conjunction with a programmer, timer or other device automatically connected to it.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- WARNING: Maintain the appliance dry.

- Do not use the appliance with damp hands or feet, or when barefooted.

- Keep the appliance away from sources of heat, oils, sharp edges or moving objects.

- As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30mA. Ask for advice from a competent installer.

- Do not use or store the appliance outdoors.

- Do not leave the appliance

out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

- Do not touch the plug with wet hands.

- Do not use the appliance, in the case persons insensitive to heat (the appliance has heated surfaces).

- Do not touch any heated parts, as this may cause serious burns.

- The temperature of the accessible surfaces may be high when the appliance is in use.

USE AND CARE:

- Do not use the appliance if the on/off switch does not work.

- Do not move the appliance while it is in use.

- Do not turn the appliance over while it is in use or connected to the mains.

- Unplug the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use

- Do not put the appliance away if it is still hot.

• Do not store the appliance on areas where the temperature could be lower than 2^ C.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Never leave the appliance unattended while in use.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance to dry pets or animals.
• Do not use the appliance to dry garments of any kind.
• WARNING: Do not sleep while using this appliance, as there is risk you could be harmed.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• WARNING: There is a risk of fire if the appliance is not cleaned following these instructions.
• Misuse or failure to follow the instructions may be dangerous and renders the

manufacturer's guarantee null and void.

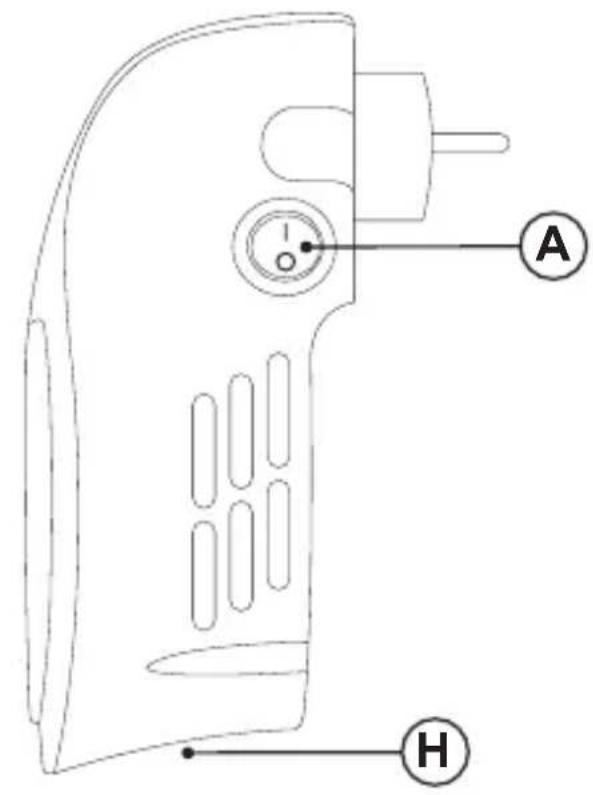

DESCRIPTION

A on/off switch
B "on/ standby
C "SPEED" fan mode, selection (high / low)
D “TEMP. +” Increase temperature
E “TEMP. -” Decrease temperature
F "TIMER" timer
G Display
H Led light

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all the product's packaging has been removed.
• Some parts of the appliance have been lightly greased, consequently, the appliance may give off a light smoke the first time it is used. After a short time, this smoke will disappear.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

- Prepare the appliance according to the function you wish to use.

USE:

• Connect the appliance to the mains.
• Turn the appliance on using the on/off switch "A".
• Start the appliance by turning on the “on/ standby” switch “B”
• The display (G) will light up.
• Select the desired temperature using “E” and “F”. Once the desired temperature has been reached, the fan will continue to operate without heating mode for 1 minute after it stops.
• Select the desired ventilation speed by pressing both “D” and “E”, “LL” (Low) low and “HH” (high) for high.

TIMER FUNCTION:

• The appliance's operating time can be controlled.
• To schedule an operating time simply select it using (F).
• The set time or time remaining will appear on the display (G).

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

- Stop the appliance, by activating "B" and "A" for its total

disconnection.

• The fan will remain in operation during 60 seconds to cool the appliance before its total stop to avoid burns.
• Unplug the appliance from the mains..
• Clean the appliance

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a

damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

- Do not submerge the appliance in water or any other liquid, or place it under a running tap.

- If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

- Note: When the appliance is switched on during the heating function, after a long period stopped or operating only in fan mode, it is possible that at first it releases some smoke, without any consequence, because dust and other particles accumulated in the heating element are burning. This phenomenon can be avoided by cleaning up previously and through the vents of the appliance and its interior with the help of a vacuum cleaner or with a jet of compressed air.

FAULTSANDREPAIR

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.

FOREUPRODUCTVERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGYANDRECYCLABIL- ITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that if you wish to dispose of the product once its useful life has ended, it must be deposited with an authorised waste management agent for the selective collection of Waste Electrical and Electronic Equipment (WEEE)

The following information details the characteristics related to the ecological design:

Model: Tropicano Plug Heater
Heat output
Nominal heat output P_nom	0,5 kW
Minimum heat output (indicative) P_min	0 kW
Maximum continuous heat output P_max,c	0,5 kW
Auxiliary electricity consumption
At nominal heat output el_max	N/A
At minimum heat output el_min	N/A
In standby mode el_SB	0.00038 kW
Type of heat input, for electric storage local space heaters only
Manual heat charge control, with integrated thermostat	No
Manual heat charge control with room and/or outdoor temperature feedback	No
Electronic heat charge control with room and/or outdoor temperature feedback	No
Fan assisted heat output	No
Type of heat output/room temperature control
Single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
With mechanic thermostat room temperature control	No
With electronic room temperature control	Yes
Electronic room temperature control plus day timer	No
Electronic room temperature control plus week timer	No
Other control options
Room temperature control, with presence detection	No
Room temperature control, with open window detection	No
With distance control option	No
With adaptive start control	No
With working time limitation	Yes
With black bulb sensor	No
Contact details“ELECTRODOMÉSTICOS TAURUS, S.L. Avda. Barcelona S/N 25790 Oliana, Lleida, Spain”

This appliance complies with Directive 2014/35/EC on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.
