USER MANUAL MVX150H VOX

Introduction......11

Panel frontal.....24

Panel posterior....25

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- WARNING—This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

- Mains powered apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases or drinking glasses, shall be placed on the apparatus.

- Turning off the power switch does not completely isolate this product from the power line.

- Keep the power plug easily accessible. Do not install this equipment far from a power outlet and/or power strip.

- Do not install this equipment in a confined space such as a box for the conveyance or similar unit.

- Excessive sound pressure from earphones and headphones can cause hearing loss.

- This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

- The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

THE FCC REGULATION WARNING (for USA)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

If items such as cables are included with this equipment, you must use those included items.

Unauthorized changes or modification to this system can void the user's authority to operate this equipment.

Notice regarding disposal (EU only)

When this “crossed-out wheeled bin” symbol is displayed on the product, owner's manual, battery, or battery package, it signifies that when you wish to dispose of this product, manual, package or battery you must do so in an approved manner. Do not discard this product, manual, package or battery along with ordinary household waste.

Disposing in the correct manner will prevent harm to human health and potential damage to the environment. Since the correct method of disposal will depend on the applicable laws and regulations in your locality, please contact your local administrative body for details. If the battery contains heavy metals in excess of the regulated amount, a chemical symbol is displayed below the “crossed-out wheeled bin” symbol on the battery or battery package.

Introduction

Thank you for purchasing the VOX MVX150C1/MVX150H guitar amplifier. To help you get the most out of your new instrument, please read this manual carefully.

Main Features

About Nutube

Nutube is a new vacuum tube developed by KORG INC and Noritake Itron Corporation and utilizes technology from vacuum fluorescent displays.

As with conventional vacuum tubes, the Nutube is constructed with an anode, grid and filament, and operates as a complete triode tube. Furthermore, it generates the response as well as the same rich harmonics characteristic of conventional vacuum tubes.

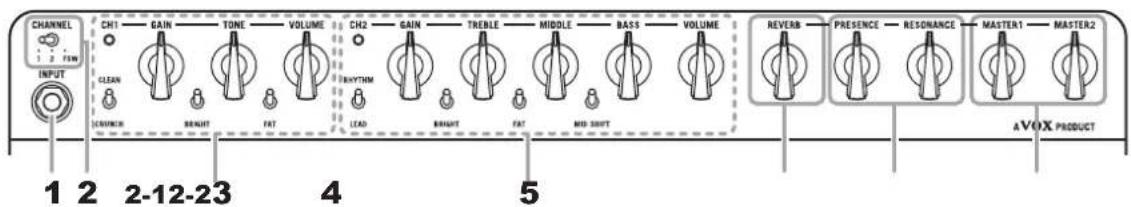

Front Panel

CHANNEL 1 2 3 FSW INPUT CH1 GAIN TONE VOLUME CH2 GAIN TREBLE MIDDLE BASS VOLUME REVERB PRESENCE RESONANCE MASTER1 MASTER2 CLEAN BRIGHT FAT KEYTHM LEAD BRINUT FAT MID SHIFT A VOX PRODUCT 1 2 2-12-23 4 5

1. INPUT jack

Plug your guitar in here, ensuring you use a shielded guitar cable.

2. Channels

This amp has 2 channels, and each channel has 2 modes.

Channels can be selected with the CHANNEL switch.

Please set this switch to FSW position, to enable the optional foot switch.

2-1. CH1

CH1 has 2 modes, CLEAN and CRUNCH.

This channel has GAIN, TONE and VOLUME controls.

In addition, you can tweak your tone with the versatility of the BRIGHT and FAT switches.

2-2. CH2

CH2 has 2 modes, RHYTHM and LEAD.

This channel has GAIN, TREBLE, MIDDLE, BASS and VOLUME controls.

In addition, you can tweak your tone with the versatility of the BRIGHT, FAT and MID-SHIFT switches.

3. REVERB

This amp has a high quality digital reverb inside.

This can be switched On or Off by the foot switch.

4. PRESENCE, RESONANCE

These controls allow more detailed voicing of your tone.

PRESENCE controls the high-end frequency, whereas RESONANCE controls the low-end frequency.

5. MASTER1, 2

This amp has 2 MASTER volume controls, that can be switched by the foot switch.

Please use MASTER1 as a normal MASTER volume.

MASTER2 can be selected only when you connect a foot switch.

Setting this higher will push the Nutube in the power amp, into greater saturation.

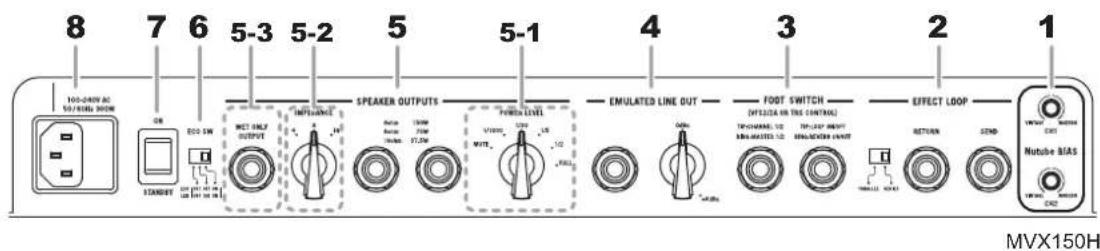

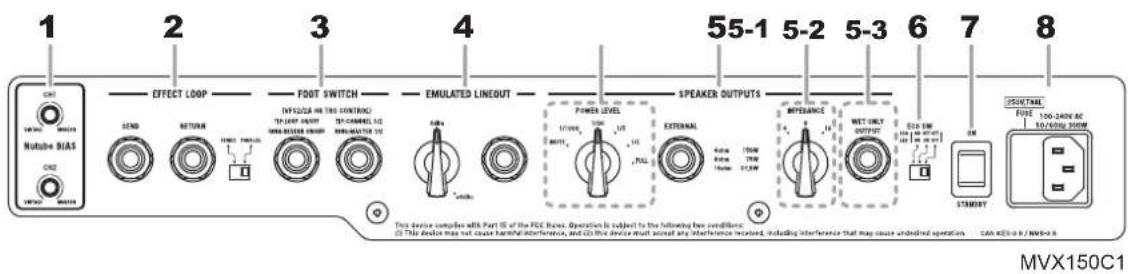

Rear Panel

1 2 3 4 55-1 5-2 5-3 6 7 8 Nute+ BIAS CH1 END RETURN TIME CONTROL TIF/DATA OR TIME CONTINUING TP-LEEP SWITCH TIME CHANGES WIRE SWITCH GROUP EMULATED LINEOUT POWER LEVEL 1/100V 1/2V 1/10V PICKLE SPEAKER OUTPUTS EXTERNAL 4.0A 8.0A 15.0A 15.0V RALL INTELLANCE WET ONLY OUTPUT ECU SW STRAWHY FUSE 100-240V DC 10V/100V 300W This device complies with Part III of the FEE Route. Operation is subject to the following low conditions: (2) This device may not cause harmful interference, and (3) This device must accept any interference received, including interference that may cause undirected operation. CAN KES-9 / NMX-9 MVX150C1

8 7 6 5-3 5-2 5 5-1 4 3 2 1 100-DRAW AC 50-RASOL SHOWN OR ECO SW MKT ONLY OUTPUT SPEAKER OUTPUTS POWER LEVEL EMULATED LINE OUT FOOT SWITCH (OUTSIDE ON TES CONTROL) TYPICALS, L2 MINIQUED BY MINIQUED BY RETURN SEND Nutebias C22 MVX150H

1. Nutube BIAS

You can control the bias voltage of Nutube for CH1 and CH2 individually.

VINTAGE: Decreasing the voltage makes the amp sound like a vintage guitar amp, this sometimes makes your tone feel a little more unstable (like the old days).

MODERN: Increasing the voltage creates more gain, and makes its tone smoother.

2. EFFECT LOOP

This has SEND and RETURN jacks, and a SERIES/PARALLEL switch.

This can be switched On or Off by the foot switch.

3. FOOTSWITCH

There are 2 foot switch jacks to switch the setting of the amplifier as below.

Optional VFS2 or VFS2A is accepted.

TIP! You can also use a commercially-available open/close type footswitch with a TRS standard phone jack connection.

TIP: LOOP ON/OFFRING: REVERB ON/OFF	Switch 1 Switches the EFFECT LOOP on/off.
	Switch 2 Switches the REVERB on/off.
TIP: CHANNEL 1/2RING: MASTER 1/2	Switch 1 Switches between CHANNEL 1 and CHANNEL 2.
	Switch 2 Switches between MASTER1 and MASTER2.

4. EMULATED LINE OUT

This output has a built-in analog speaker cabinet emulation circuit. This sounds like you're using a well-known dynamic microphone in front of your speaker cabinet.

5. SPEAKER OUTPUTS

MVX150C1 has 1 EXTERNAL speaker jack. Use this jack to use another speaker cabinet. Connecting to this jack disables the internal speaker. Minimum load is 4ohms.

MVX150H has 2 parallel speaker jacks.

With the MVX150H, you can connect two speakers at the same time, for a parallel connection. When doing so, make sure that the combined impedance is not less than 4 ohms. When connecting two of the same speakers, use speaker cabinets of 8 ohms or more on each.

5-1. POWER LEVEL

This 6 way selector decides the total output volume. MUTE position disables the power amp, so that you can do a silent recording with the EMULATED LINE OUT.

5-2. IMPEDANCE

Please select the same value as the impedance of the speaker cabinet you use.

(MVX150C1 internal speaker is 4ohm)

5-3. WET ONLY SPEAKER OUTPUT

You can get only the WET signal from this speaker output, when using EFFECT LOOP or REVERB. Connecting to this jack makes the standard speaker output DRY automatically, so that you can achieve the professional DRY/WET setup very easily.

This output is independent from the standard speaker output. Minimum load is 4ohms.

If you use the WET ONLY OUTPUT, the total output wattage will be switched automatically.

For example, when you plug the speaker cabinet into both DRY and the WET ONLY OUTPUT, the maximum output wattage will be limited to 75W for DRY, and 75W for WET.

NOTE! Speaker jack does not need to be used if not required. This won't harm the amp.

NOTE! This is BTL (Bridge-Tied-Load) output. This means both tip and sleeve is the signal line, and sleeve is not grounded. Only use this jack for connecting speakers to MVX150. Connecting anything else may result in damages to MVX150.

WARNING! To ensure that your system works correctly, you must observe the following points.

a) Don't connect a speaker whose rated input capacity is less than the total output wattages. The speaker may be destroyed if you ignore this caution—not recommended!

b) You must use a speaker cable to connect an external speaker. Don't use a shielded cable like the one you use to connect a guitar to an amp.

c) You must turn off the power before connecting the speaker cable. Connecting the cable while the power is turned on may damage your amp.

NOTE! It is recommended that all audio cables (with the exception of the speaker lead), used to connect to the MVX150C1/MVX150H are of a high quality, screened type. These should not exceed 10 metres in length.

6. ECO switch

This switch decides the setting of ECO mode and LED mode.

ECO=ON enables the auto power-off function.

LED=ON turns the LED illumination on.

7. Power switch

Hold this switch, to turn the amp ON, or STANDBY (OFF).

8. MAINS INPUT

Connect the included power cord here.

WARNING! Be sure to plug the power cord into an outlet of the appropriate voltage.

WARNING! Use only the included power cord. Using any different power cord may cause malfunctions or other issues.

Auto power-off function

The amp has an auto power-off function. With this function, the amp is automatically turned off if there is no output for approximately 30 minutes.

When the amp is turned off, it is not turned back on, even if a control is operated. After the amp is turned off, turn it on again.

NOTE! When the input level is extremely low or there is very little change in the sound, the auto power-off function may be activated. In addition, depending on the settings and environment, the amp may interpret noise as input, even if the guitar is not being played.

TIP! As the factory default setting, the auto power-off function is enabled (ECO SW=ECO: ON). The function can be disabled by moving the ECO switch to the ECO: OFF position.

Over load protection function

This amp has an over load protection function for its safety.

The power amp will be disabled, if the speaker output was shorted, or had some trouble with an impedance of the speaker cabinet you connect. Moreover, the amp will be shut down when the total output wattage exceeds 150W. With these cases, please check the connection or the impedance of the speaker cabinet you connect, and re-start the amp.

Specifications

Input/Output jacks: INPUT, SEND, RETURN, EMULATED LINE OUT, SPEAKER OUTPUT (MVX150H: 2x SPEAKER OUTPUT, MVX150C1: EXTERNAL), WET ONLY SPEAKER OUTPUT

Power amp output: Maximum approx. 150W RMS@4ohms, 75W RMS@8ohms, 37.5W RMS@16ohms

Speaker: MVX150C1: 1x 12" 4ohm Celestion G12H-150 Redback

Current consumption: 300W

Dimensions (WxDxH): MVX150C1: 520 mm x 260 mm x 535 mm / 20.47" x 10.24" x 21.06" MVX150H: 520 mm x 219 mm x 194 mm / 20.47" x 8.62" x 7.64"

Weight: MVX150C1: 19.4 kg / 42.77 lbs. MVX150H: 7.1 kg / 15.65 lbs.

Included items: Power cord, Owner's manual

Options: VFS2A Footswitch, VFS2 Footswitch

* Specifications and appearance are subject to change without notice for improvement.
