BY 802 S - Heating DIMPLEX - Free user manual and instructions

Product type	Infrared heating
Brand	Dimplex
Model	BY 802 S
Rated voltage	230 - 240 V~, 1/N/PE
Protection rating	IP24 (against water splashes)
Dimensions (mounting)	768 x 100 x 92 mm (L x H x D)
Weight	1.9 kg
Nominal thermal output	0.6 kW (600 W)
Minimum thermal output	0.3 kW (300 W)
Maximum continuous thermal output	0.6 kW (600 W)
Auxiliary electricity consumption (standby)	0.0 W
Control type	Two-stage manual (pull-chain switch)
Minimum mounting height	1.8 m
Minimum front distance	65 cm
Safety distance for children	100 cm
Tilt possible	Up to 40° downwards (cold appliance)
Cleaning	Damp cloth, dust brush; no abrasive products
Child safety	Do not leave children under 3 years unattended; keep children under 8 away unless supervised
Heating element replacement	By a specialist only
Warranty	2 years
Disposal	Do not dispose with household waste; take to a recycling center

Frequently Asked Questions - BY 802 S DIMPLEX

How to install the Dimplex BY 802 S heater?

Install the appliance horizontally on a vertical wall, at a minimum height of 1.8 m. Drill the fixing holes at a height of 1.9 m. Maintain a front distance of at least 65 cm from objects. Do not mount the appliance under a wall socket.

How to adjust the heating power?

Use the pull-chain switch. Position 0: off, position 1: 300 W, position 2: 600 W. The display shows the selected level.

Can the heater be tilted?

Yes, you can tilt the appliance downwards up to an angle of 40°. Only make this adjustment when the appliance is cold to avoid burns.

How to clean the BY 802 S heater?

Turn off the appliance and let it cool down. Clean the external surfaces with a damp cloth and dry thoroughly. Use a soft brush for dust. Do not use abrasive or polishing products.

What are the safety precautions for children?

Children under 3 years must be kept away or under constant supervision. Children from 3 to 8 years may only switch on/off under supervision. Do not let children play with the appliance. Maintain a minimum distance of 100 cm between the child and the appliance.

What to do if the appliance does not heat?

Check that the switch is not in position 0. Check the circuit breaker in the electrical panel. If the problem persists, contact a qualified electrician or Glen Dimplex customer service at [phone].

How to replace the heating element?

Replacement must be carried out by a specialist. Disconnect the appliance, let it cool down. Remove the front grille, flat connectors, and fixing pins. Mount the new element by proceeding in reverse order.

Where to find spare parts for the BY 802 S?

Spare parts can be ordered online from Glen Dimplex website. Use the model and manufacturing date (FD) indicated on the rating plate.

How to dispose of the heater at end of life?

Do not dispose of the appliance with household waste. Take it to a local collection point or recycling center for proper recycling.

What are the available power levels?

The appliance offers two power levels: 300 W (position 1) and 600 W (position 2). The maximum continuous power is 600 W.

USER MANUAL BY 802 S DIMPLEX

3D rendered image of a cylindrical mechanical component with internal grooves and a small protrusion (no text or symbols visible)

EN - This product is only suitable for well insulated spaces or occasional use.

Technical line drawing of a device with internal components and dimension lines (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and a housing (no text or symbols)

ACHTUNG!

10. Garantie

1. Please observe before use

i NOTE

Dear customer,

keep these instructions in a safe place and pass them on to any new owner.

ATTENTION!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given super-vision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision!

ATTENTION!

Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved!

ATTENTION!

Children aged from 3 years and less than 8 years shall not switch on or clean the appliance or perform user maintenance!

ATTENTION!

Do not operate the appliance near curtains, draperies and other flammable materials!

ATTENTION!

This device is not fitted with equipment for regulating room temperature. The heater must not be used in small rooms occupied by people who cannot leave the room without assistance unless continuous monitoring is guaranteed!

ATTENTION!

Some parts of this product can become very hot and cause burns! Particular attention has to be given where children and vulnerable people are present!

ATTENTION!

Do not use the heating device in areas where flammable gases or liquids are stored or used.

ATTENTION!

Install the device in such a way to ensure that a person taking a shower or a bath can not touch the appliance.

ATTENTION!

If the power cable is damaged, it must be replaced by the manufacturer or after-sales service representative or a person with comparable qualifications for switching off danger sources!

NOTE

Do not operate the heater outside

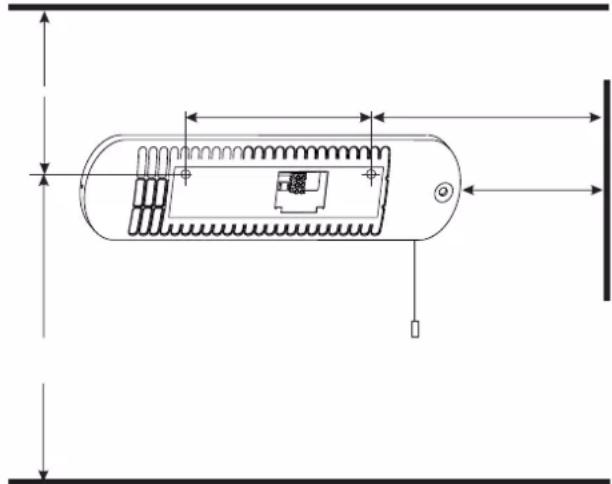

2. Minimum clearances, notes on Installation

ATTENTION!

The device must not be located beneath a socket outlet!

The minimum clearances must be observed.

In addition a minimum clearance of 1 m must be observed in front of the device.

Technical line drawing of a device casing with internal components and dimension lines (no text or symbols)

Inflammable objects must not be placed in the radiation area of the heating device. The heating device must be aligned horizontally and installed on a vertical wall (see illustration).

The device must be installed at a minimum height of 1.8 metres.

It is not permissible to install the device vertically or on the ceiling.

The protection areas defined in the current wiring regulations must be observed during installation.

The supply connection socket must be accessible after installation.

Due to the heat radiation of the device, the surface on which the device is installed can darken in colour.

i NOTE

Installation on wooden walls is permissible.

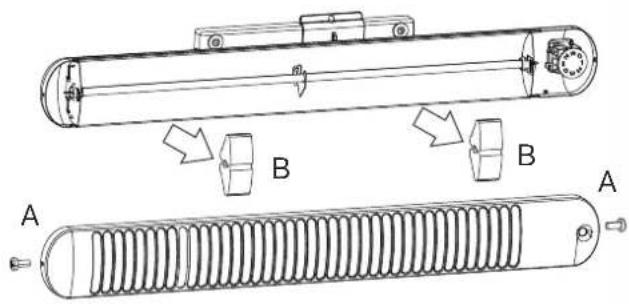

Remove transport fastening

■ Loosen the front grill screws (A) and remove the front grill.
■ Remove the transport fastenings (B) from the heating elements.
■ Re-attach the front grill.

3. Wall mounting

To achieve the stipulated minimum installation height of 1.8 metres, the mounting holes for the wall holder must be drilled at a height of 1.9 metres.

■ Loosen the screw on the connection compartment cover and remove the cover.
■ Fold the radiator forward.
■ Mark and drill the mounting holes on a vertical wall and insert dowels.
■ Insert spacers with screws into the openings of the wall holder and screw the device into place.

4. Electrical connection

The voltage specified on the type plate must match the mains voltage.

The supply cable must not be laid in the radiation area of the heating device and must not be in contact with the device's casing.

Insert the plug in the socket. The plug must always be accessible in case of emergencies.

5. Operation

The desired heating level can be set by pulling the cord switch once or repeatedly.

The set heating level can be read in the display window.

In position 0, the heating device is switched off.

The radiator heats the objects or persons upon which/whom it is directed without also directly heating the indoor air.

The radiator can be tilted downwards by a maximum of 40^ .

ATTENTION!

Adjustments may only be made when the device is fully cooled. Danger of burns!

Power output in switch position

Type Display 0 Display 1 Display 1 Display 2
BY 802 S Off 300 W 300 W 600 W

W = output power in watts.

ATTENTION!

Exposure to the device's radiation must not exceed 15 minutes

ATTENTION!

Small children must be prevented from looking directly at the radiator!

ATTENTION!

Small children with high body temperatures must not be exposed to the device's radiation.

ATTENTION!

Children must be kept at least 100cm away from the radiator.

6. Cleaning

Switch off the device and let it cool down before cleaning it.

Caution! Do not touch the reflector or heating element with bare hands.

The outer surfaces of the device can be cleaned with a damp cloth and then dried thoroughly.

No scouring agents or polishes should be used.

Dust which gathers inside the device can be removed using a brush with soft, long bristles.

If the device is heavily soiled, it should be cleaned by a specialist.

7. Faults

In the event of a fault, disconnect the device from the power supply

If the heating device does not give off heat, check the following points:

Is the display at "0"?
■ Is the fuse in the fuse box switched on?

If the fault cannot be corrected, please contact your electrical retailer.

If necessary, you can also call the Glen Dimplex Thermal Solutions Service Hotline.

Telephone: [phone]

Facsimile: [phone]-924545

Mail: [e-mail]

To process your order, the device type and the device's production date (FD number) are required. These specifications can be found on the device's type plate.

i NOTE

Repairs and corrective measures must only be carried out by a qualified electrician or the after-sales service.

8. Spare parts

Ordering spare parts at Glen Dimplex Germany GmbH on the Internet at:

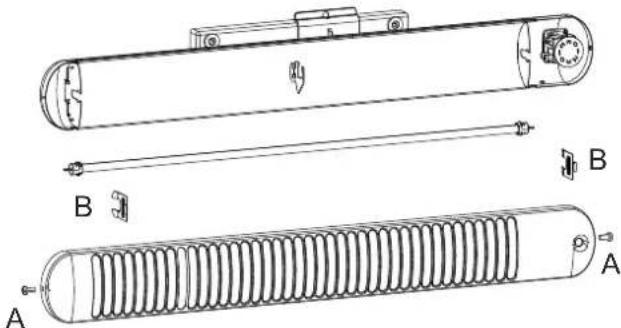

9. Changing the heating element

A heating element may only be changed by a specialist. Disconnect the device from the power supply and allow it to cool.

Do not touch the heating element or reflector with bare hands. Use a cloth to protect the surface.

■ Loosen the front grill screws (A) and remove the front grill.
■ Remove push-on connections using a suitable tool.
■ Pull out the two fixing brackets (B).
■ Remove the heating element.
■ Insert new heating element.
- Carry out assembly in reverse order.

Technical line drawings of three mechanical components: a cylindrical housing, a coiled spring, and a rectangular housing (no text or symbols present)

10. Warranty

This product is supplied with a two-year warranty according to our warranty terms and conditions.

11. Note on disposal

Do not dispose of the unit with general household waste. The unit must be taken to a local waste disposal plant.

12. Technical data

Model reference BY 802 S
Nominal voltage 1/N/PE, 230 - 240 V~
Degree of protection IP24, splashproof
Dimensions (W x H x D) 768 x 100 x 92 mm
Weight 1.9 kg
Heat output
Nominal heat output P	nom	0.6 kW
Minimum heat output (indicative)	P_min	0.3 kW
Maximum continuous heat output	P_max, C	0.6 kW
Intrinsic consumption
At nominal heat output	eI_max	0.0 W
At minimum heat output	eI_min	0.0 W
In standby mode	eI_SB	0.0 W
Control for heat output
Two manual stages, no room temperature control

Technical line drawing of a device with internal components and dimension lines (no text or symbols)
