USER MANUAL Viera TH-50PX80 PANASONIC

Operating Instructions

42"/50" Class 720p Plasma HDTV

(41.6/49.9 inches measured diagonally)

Black Panasonic TV monitor with blank screen and stand (no visible text or symbols on the device body)

For assistance (U.S.A.), please call:
1-888-VIEW-PTV (843-9788)
or visit us at www.panasonic.com/contactinfo

For assistance (Puerto Rico), please call: 787-750-4300

or visit us at www.panasonic.com

For assistance (Canada), please call: 1-800-561-5505

or visit us at www.panasonic.ca

Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

Turn your own living room into a movie theater!

Experience an amazing level of multimedia excitement

Interior view of a modern room with wooden paneling and a Panasonic TV, no visible text or symbols on the main subject.

SDHC Logo is a trademark.	GalleryPlayer*GalleryPlayer and the GalleryPlayer Logo are trademarks of GalleryPlayer, Inc.	HDAVI ControlTMHDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
HIGH-DEFINITION MULTIMEDIA INTERFACEHDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.		VIERA LinkTM is a trademark of Matsushita Electric Industrial Co., Ltd.

HDAVI Control™

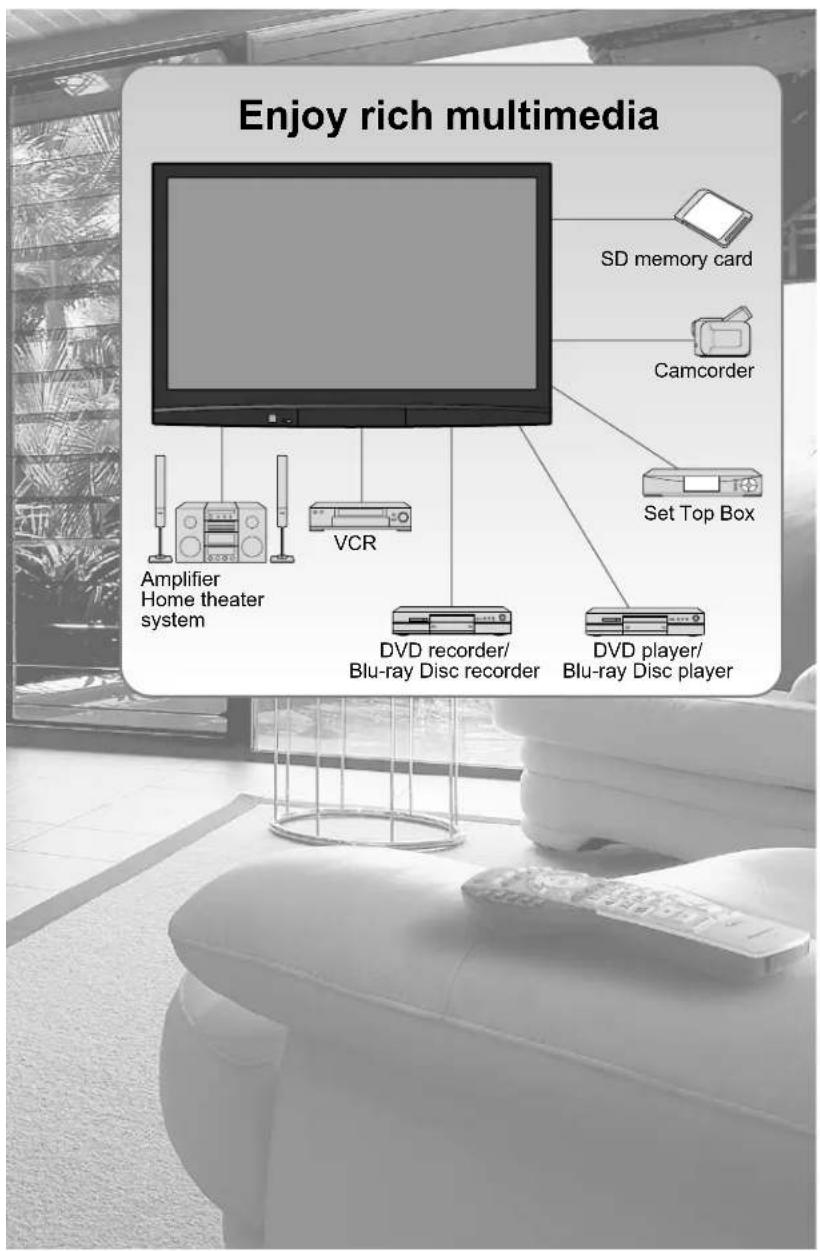

Enjoy rich multimedia SD memory card Camcorder Set Top Box Amplifier Home theater system VCR DVD recorder/ Blu-ray Disc recorder DVD player/ Blu-ray Disc player

HDTV
Manufactured under license from Dolby Laboratories.DOLBY and the double-D symbol are trademarks of Dolby Laboratories.
EZ SyncTM EZ SyncTM is a trademark of Matsushita Electric Industrial Co., Ltd.

Contents

Please read before using the unit

Safety Precautions 4
Notes 5

Quick Start Guide

● Accessories/Optional Accessory …… 6
● Basic Connection 9

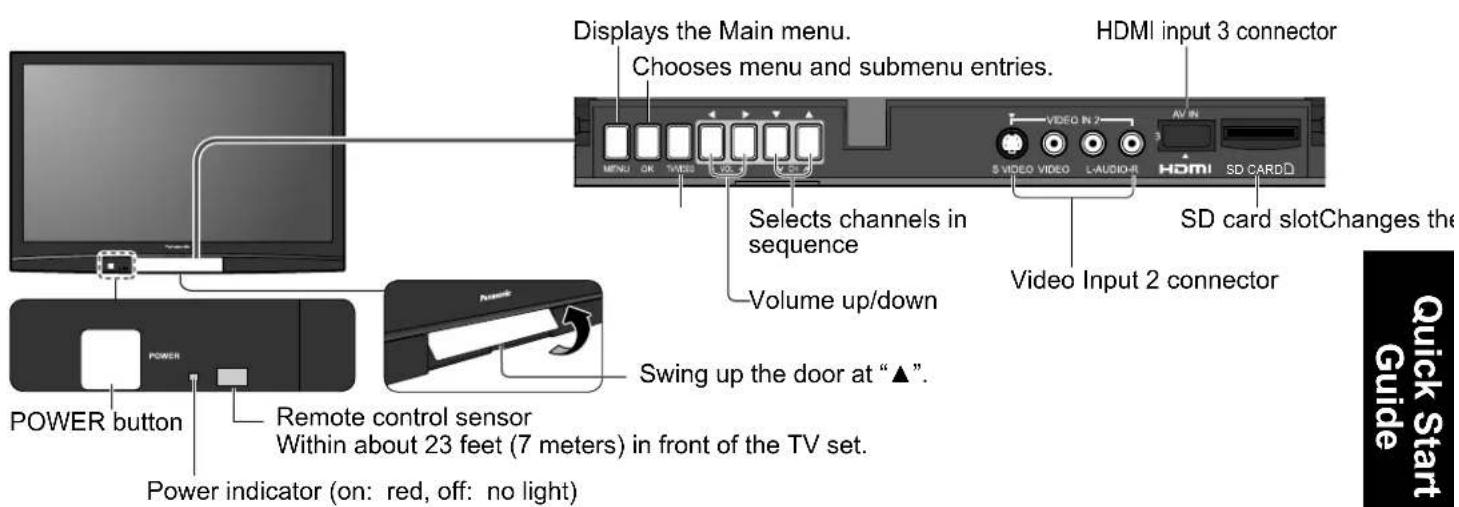

● Identifying Controls 13

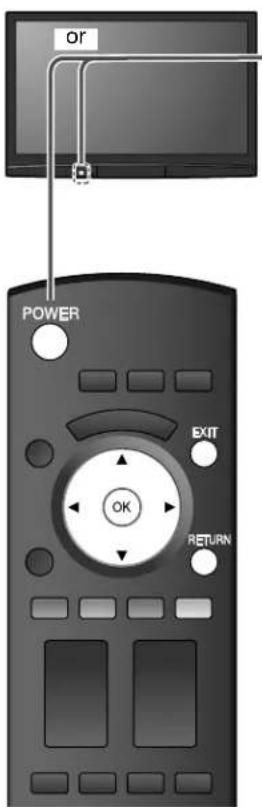

● First Time Setup 14

Enjoy your TV! Basic Features

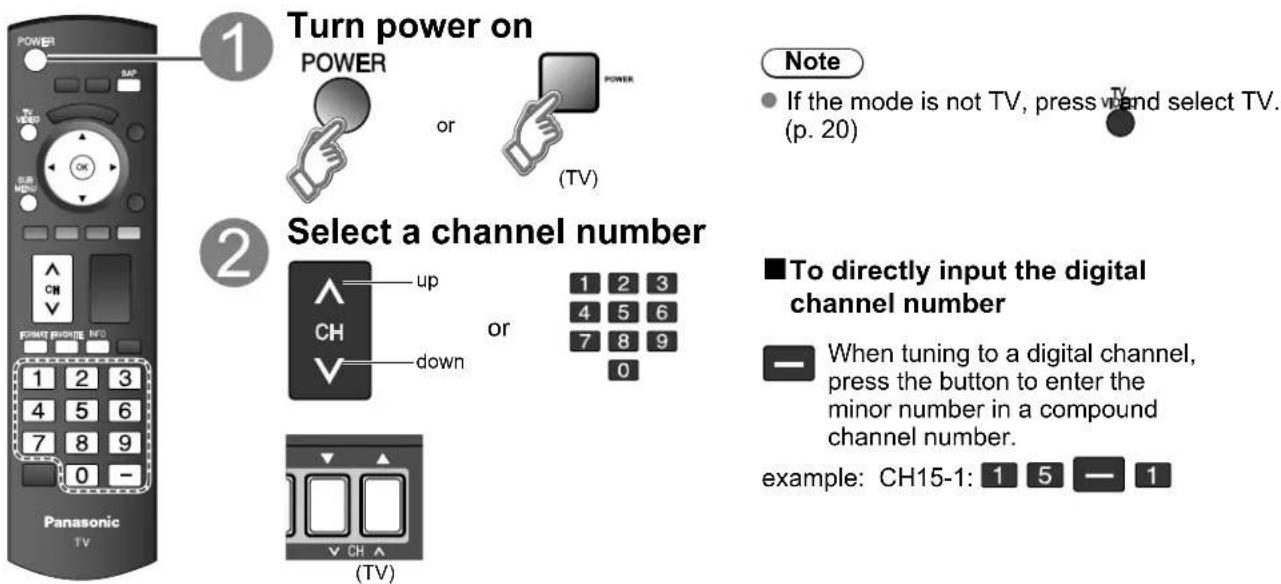

● Watching TV 16

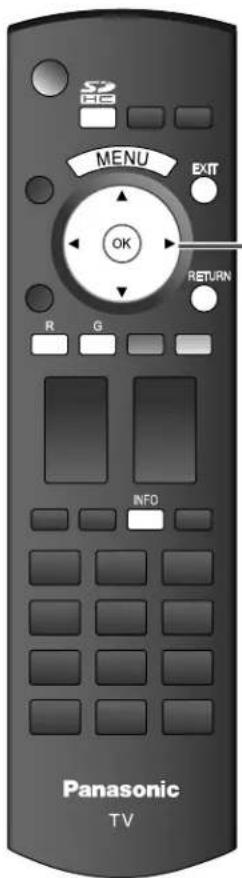

Viewing from SD Card 18
● Watching Videos and DVDs 20

Advanced Features

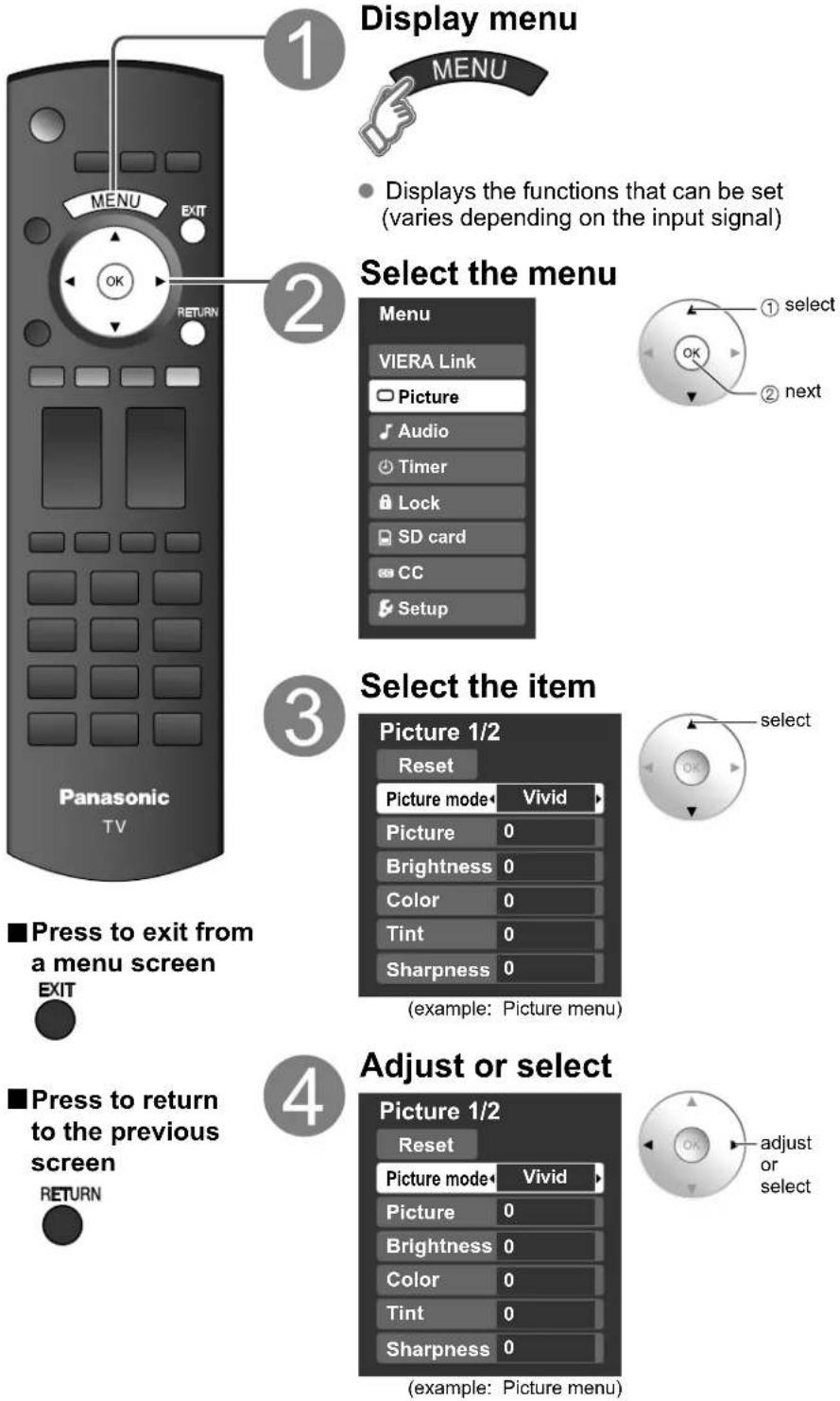

How to Use Menu Functions (picture, sound quality, etc.) 22

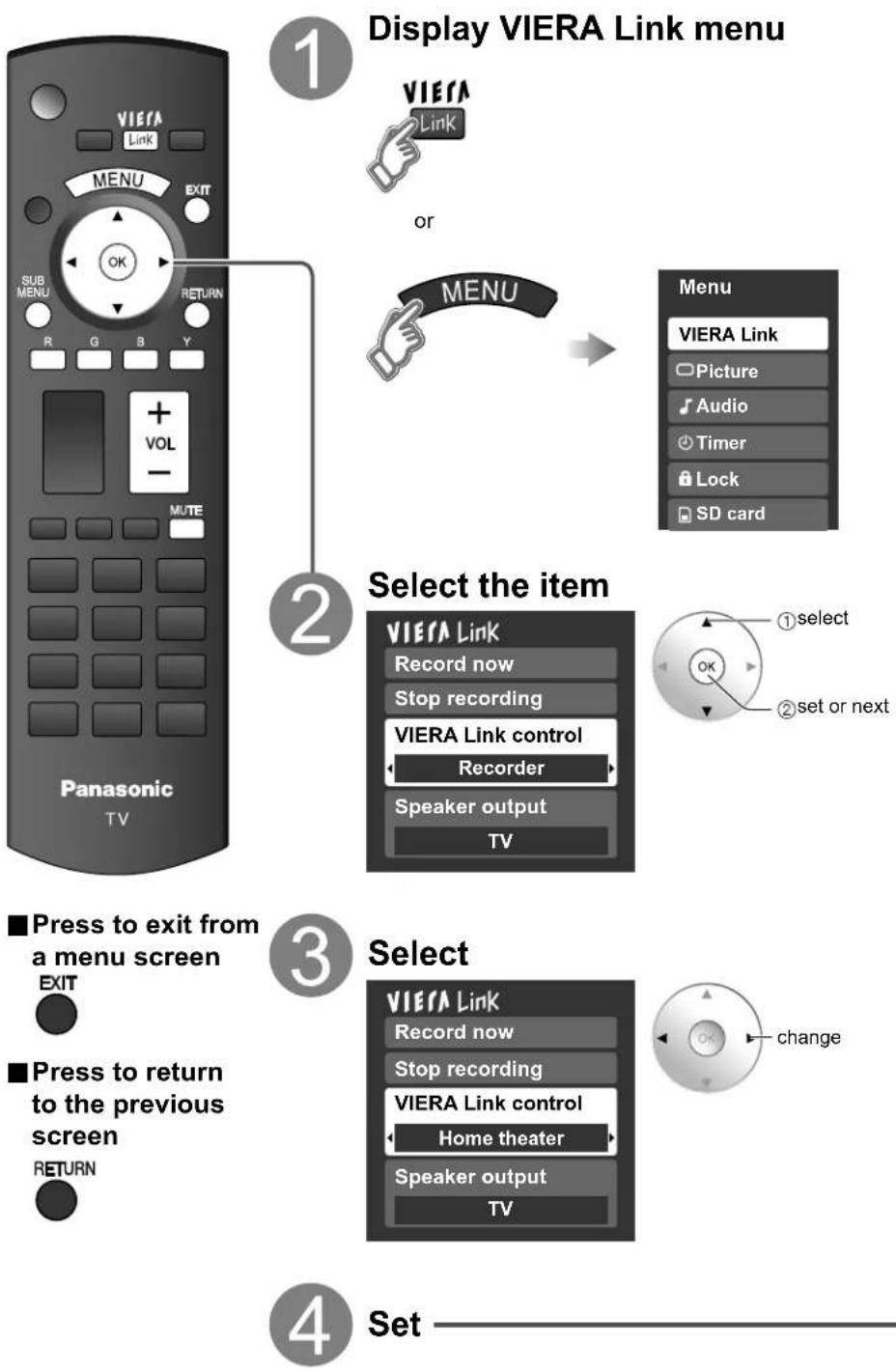

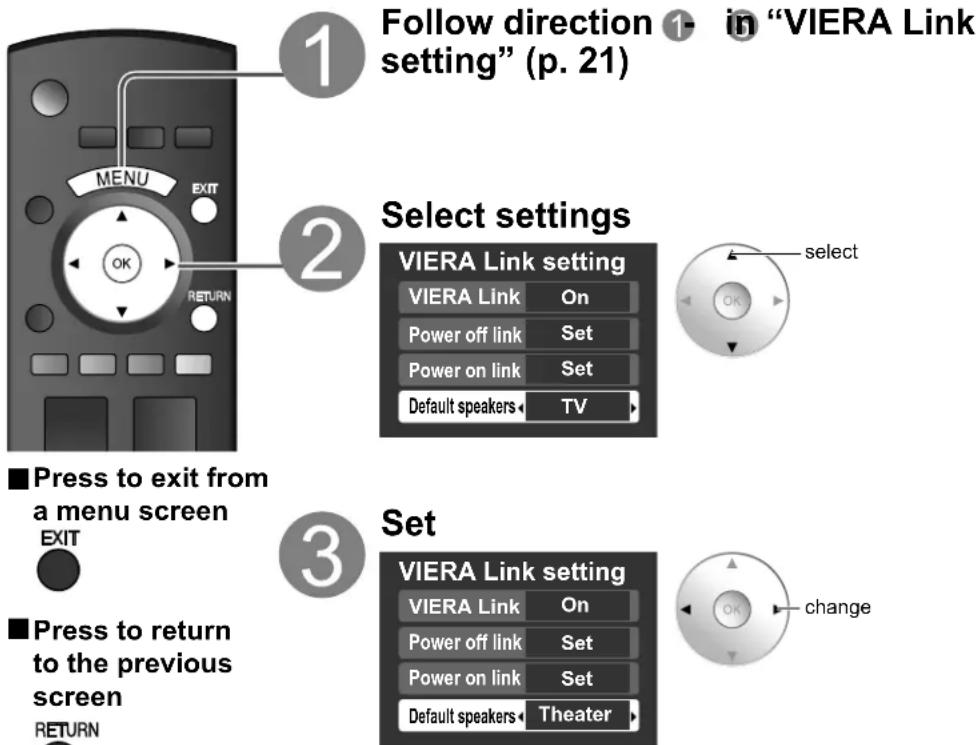

- VIERA Link™ "HDAVI Control™" 26
Lock 30
● Editing and Setting Channels 32

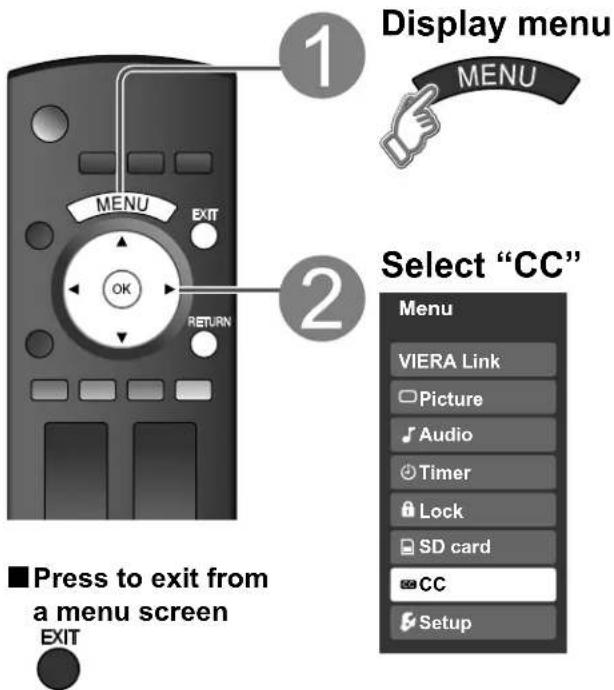

- Closed Caption 34

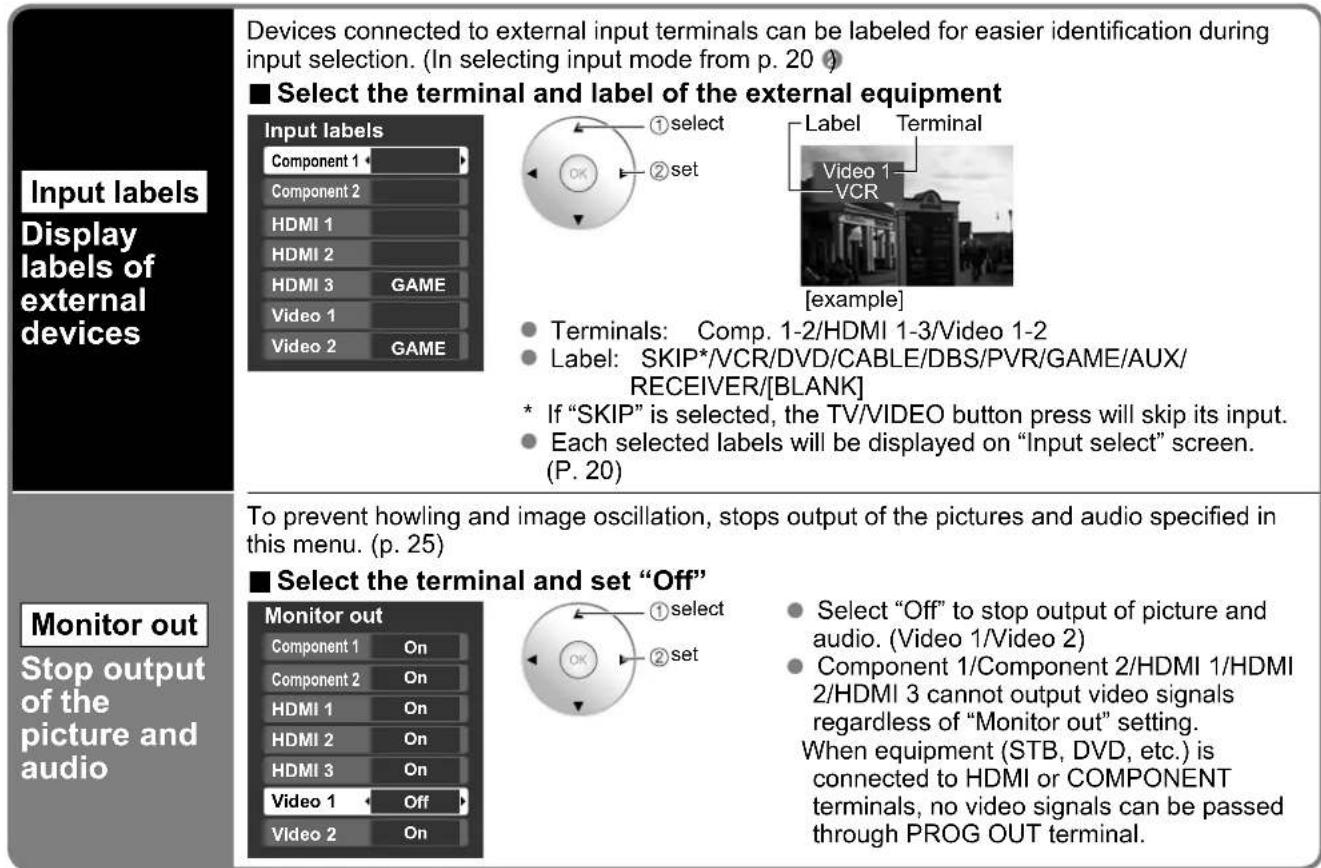

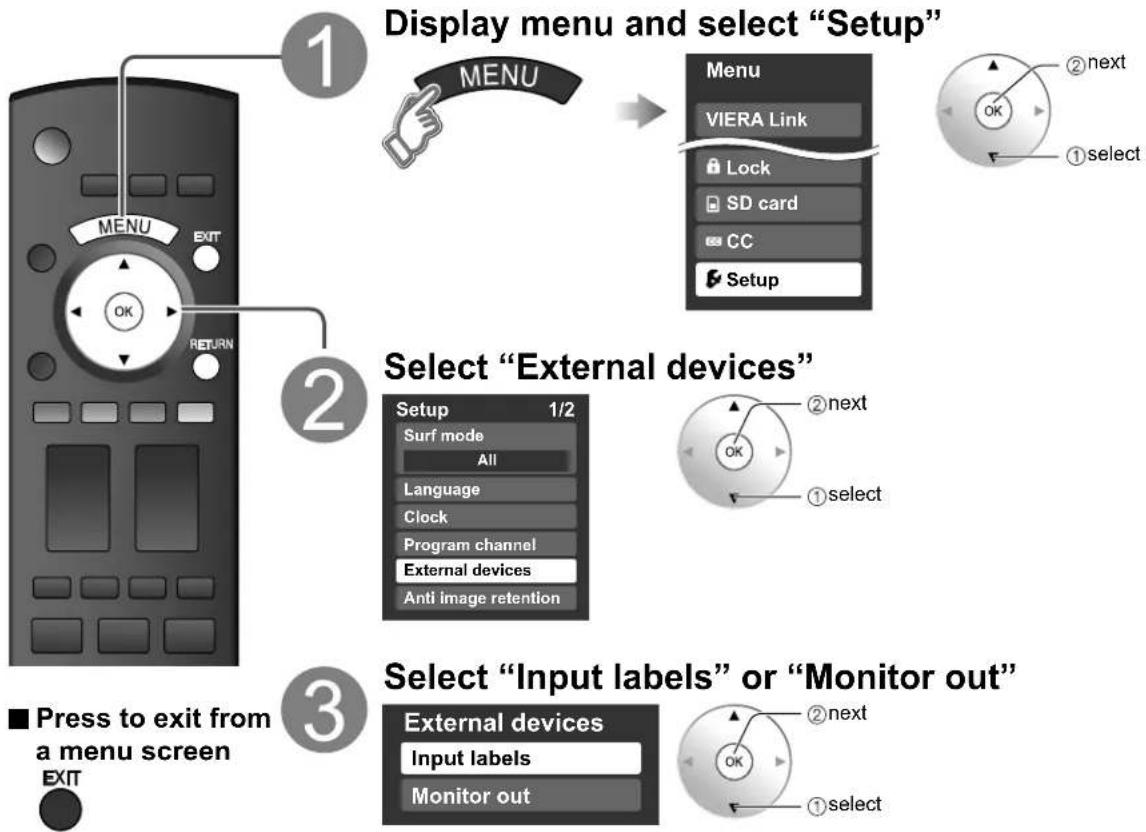

Input Labels/Monitor Out 35

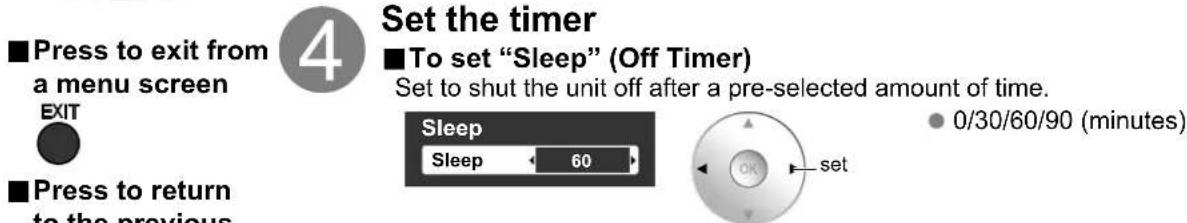

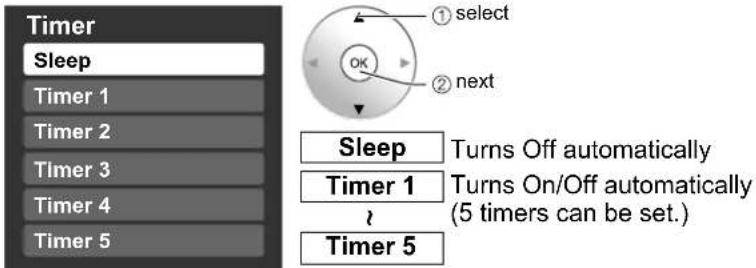

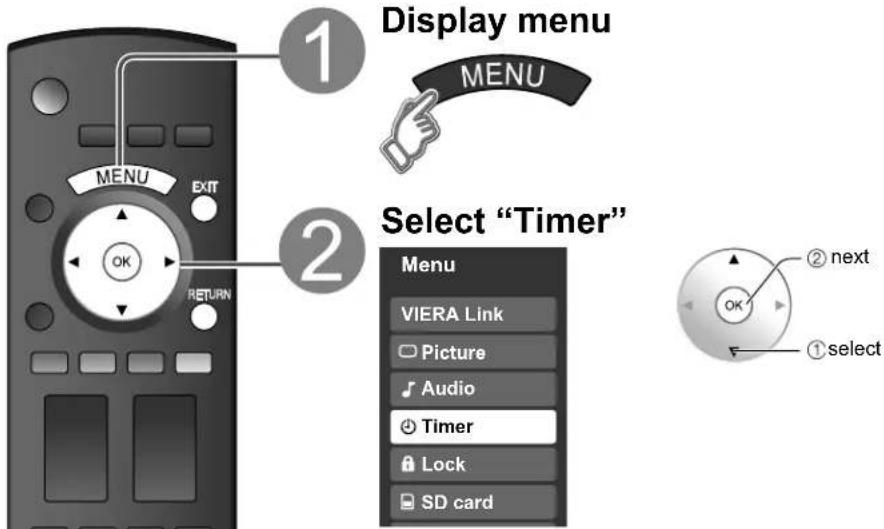

Using Timer 36

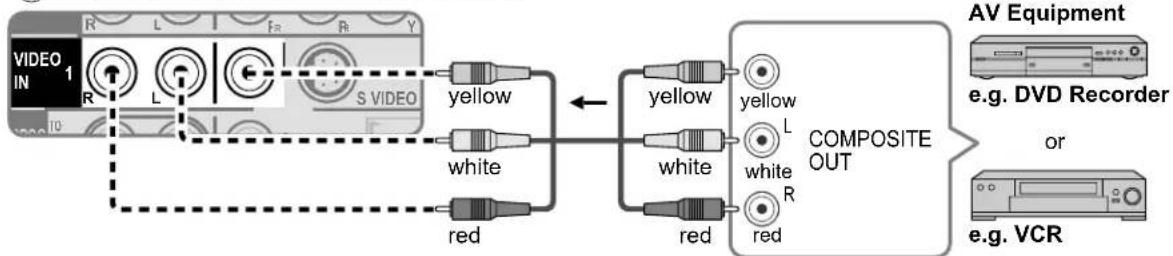

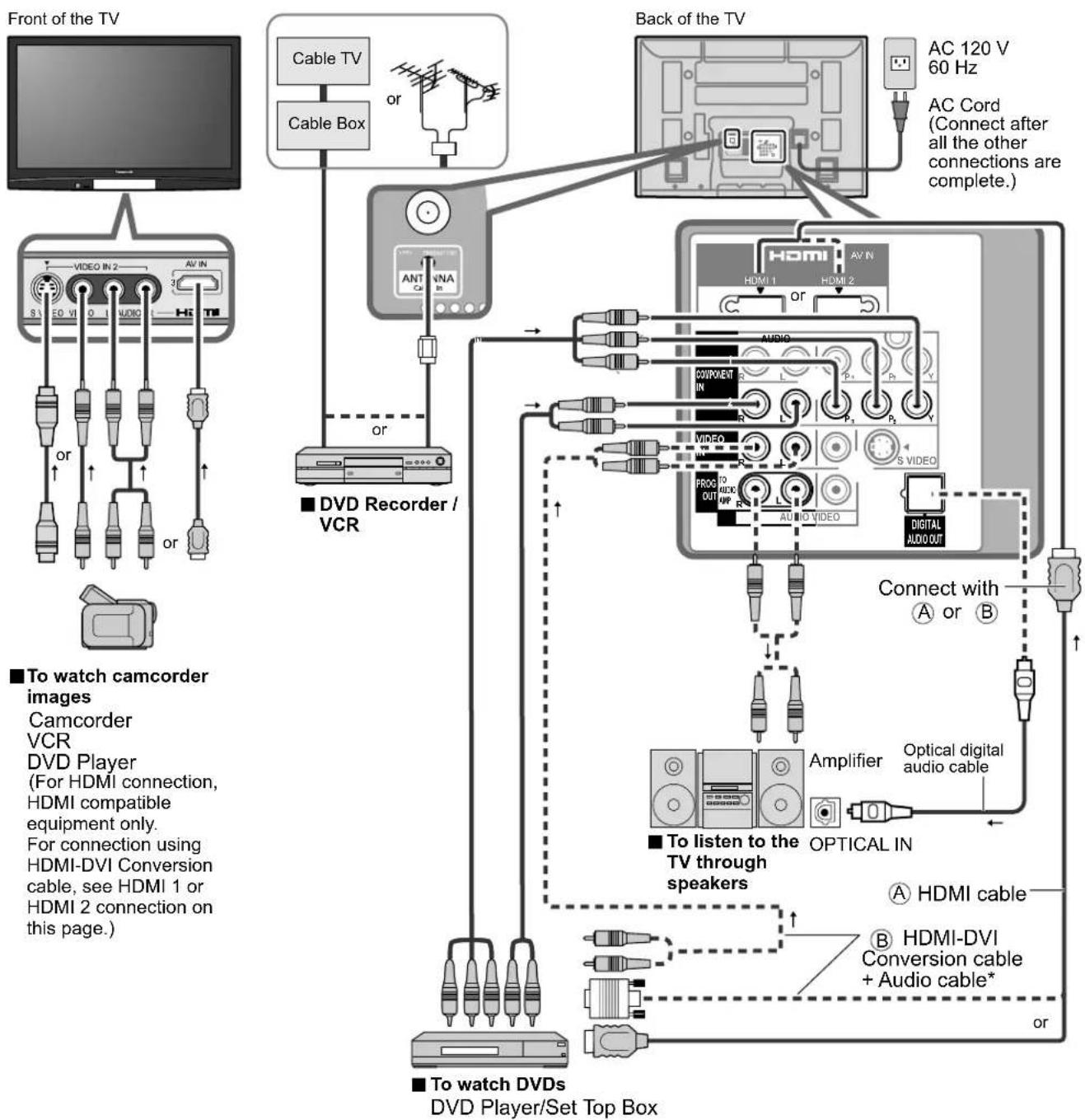

Recommended AV Connections 37

FAQs, etc.

● Ratings List for Lock 39
● Technical Information 40
Care and Cleaning 43

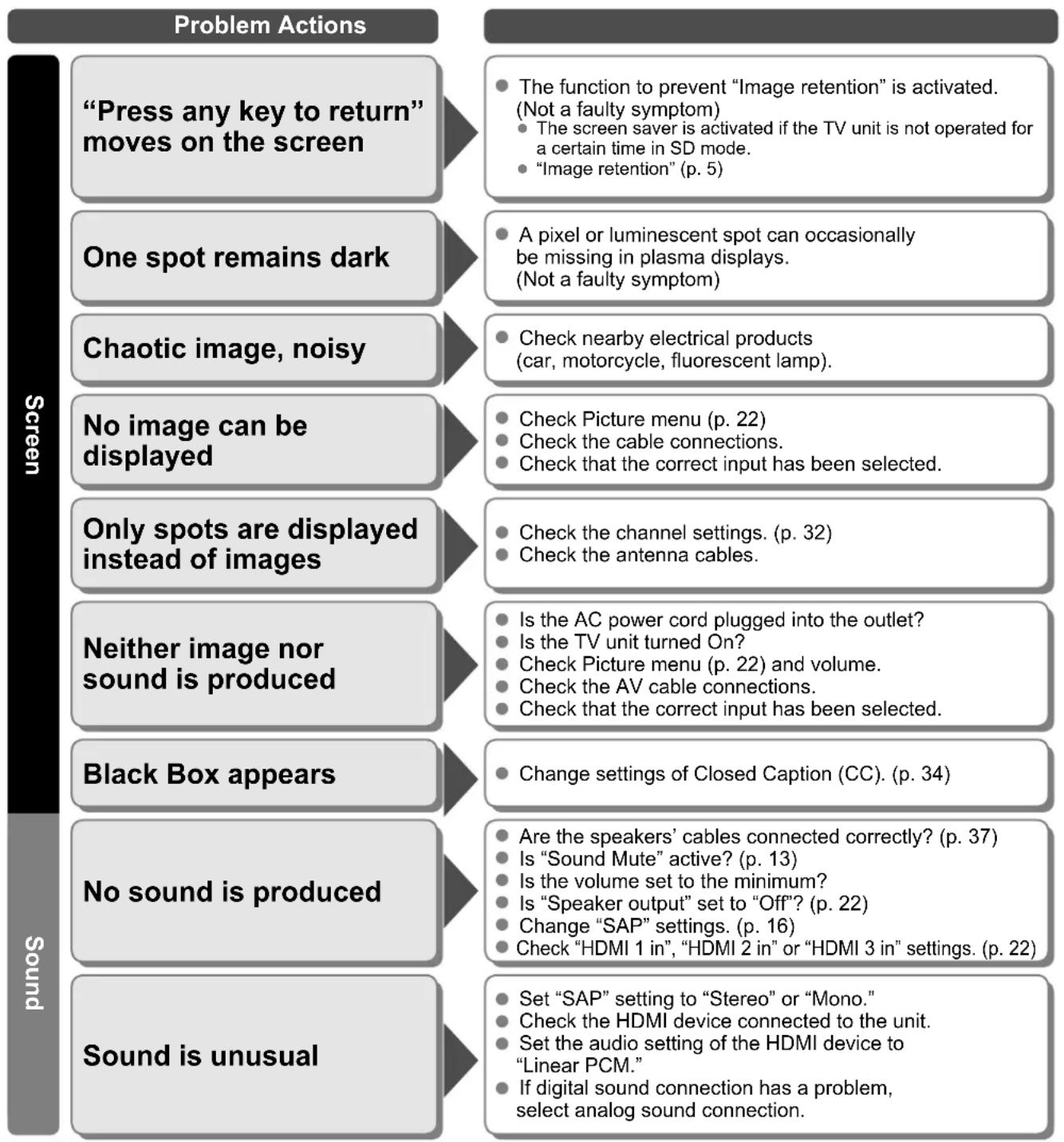

FAQ 44
Specifications 46
Limited Warranty (for U.S.A.) 47
- Customer Services Directory (for U. S. A.)…48
● Limited Warranty (for Canada) 49

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set (including on shelves above, etc.).

Important Safety Instructions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

FCC Caution:

To assure continued compliance, use only shielded interface cables when connecting TV to peripheral devices. Any changes or modifications not expressly approved by responsible party may cause harmful interference and could void the user's authority to operate this device.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-888-VIEW-PTV (843-9788)

email: [e-mail]

CANADIAN NOTICE:

For Model TH-42PX80U, TH-50PX80U

This Class B digital apparatus complies with Canadian ICES-003.

WARNING/CAUTION

WARNING

Small parts can present choking hazard if accidentally swallowed.

Keep small parts away from young children.

discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

■ Set up

Do not place the Plasma TV on sloped or unstable surfaces.

● The Plasma TV may fall off or tip over.
Do not place any objects on top of the Plasma TV.
- If water spills onto the Plasma TV or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma TV, please consult an Authorized Service Center.

This Plasma TV is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury. (All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Wall-hanging bracket (Vertical) TY-WK42PV3U,

TY-WK42PV4W

• Wall-hanging bracket (Angled) TY-WK42PR3U

TY-WK42PR4W

Always be sure to ask a qualified technician to carry out set-up.

• Two or more people are required to install and remove the television. If two people are not present, the television may be dropped, and personal injury may result.
  Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

■ AC Power Supply Cord

The Plasma TV is designed to operate on 120 V AC, 60 Hz.

Securely insert the power cord plug as far as it will go.

- If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.

The included power cord is for use with this unit only. Do not use any power cord other than that provided with this TV. ● Doing so may cause fire or electric shocks.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.
  Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.
• Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

■ If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma TV, unplug the power cord immediately.

• Continued use of the TV under these conditions might cause fire or permanent damage to the unit. Have the TV evaluated at an Authorized Service Center. Servicing of the TV by any unauthorized personnel is strongly discouraged due to its high voltage dangerous nature.
  If water or foreign objects get inside the Plasma TV, if the Plasma TV is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.
• A short may occur, which could cause fire. Contact an Authorized Service Center for any repairs that need to be made.

CAUTION

Do not cover the ventilation holes.

- Doing so may cause the Plasma TV to overheat, which can cause fire or damage to the Plasma TV.

Leave a space of 3 15/16" (10 cm) or more at the top, left and right, and 2 3/4" (7 cm) or more at the rear.

When using the pedestal, keep the space between the bottom of the TV and the floor surface.

■ When using the Plasma TV

Be sure to disconnect all cables before moving the Plasma TV.

• Moving the TV with its cables attached might damage the cables which, in turn, can cause fire or electric shock.
  Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.
  Electric shocks can result if this is not done.
  Clean the power cable regularly to prevent it from becoming dusty.
  Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.
  This Plasma TV radiates infrared rays; therefore, it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV.
  Do not climb up onto the television or use it as a step. (Young children should be made particularly aware of this caution.)
• If the unit falls over or becomes damaged through misuse, injury may result.
  The TV will still consume some power as long as the power cord is inserted into the wall outlet.

Notes

■ Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“Image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

• Channel number and other logos
• Image displayed in 4:3 mode
- SD Card photo - Video game - Computer image

To prevent "Image retention", the screen saver is automatically activated after a few minutes if no signals are sent or no operations are performed. (p. 45)

Setup

• Do not place the unit where it's exposed to sunlight or other bright light (including reflections).
• Use of some types of fluorescent lighting may reduce the remote control's transmission range.

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

□ Remote Control Transmitter • N2QAYB000221

Remote Control Transmitter (2) • AA Battery

□ Antenna Adapter ● F-Type for 5C-2V

□ Cable clampers (2) Batteries for

□ AC cord

□ Pedestal • TBLX0036 (TH-42PX80U) • TBLX0037 (TH-50PX80U)

Technical line drawing of a mechanical component with two protruding pins (no text or symbols)

How to assemble (p.7)

□ Operating Instructions □ Quick Setup Guide (For viewing HD programming)

□ Product Registration Card (U.S.A.) □ Customer Care Plan Card (U.S.A.)

Optional Accessory

Technical line drawing of a rectangular frame with mounting holes and a central blank space (no text or symbols)

Technical line drawing of a mechanical component with mounting flanges and internal channels (no text or symbols)

Wall-hanging bracket (vertical)

- TY-WK42PV3U - TY-WK42PV4W

(angle) • TY-WK42PR3U • TY-WK42PR4W

Note

• In order to maintain the TV's performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets.
• Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.
• Handle the TV carefully during installation since subjecting it to impact or other forces may cause its panel to crack.

Installing the remote's batteries

Open Hook

Close Note the correct polarity (+ or -).

Caution

- Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

• Do not mix old and new batteries.
• Do not mix different battery types (such as alkaline and manganese batteries).
• Do not use rechargeable (Ni-Cd) batteries.

- Do not burn or break batteries.

Attaching the pedestal to TV

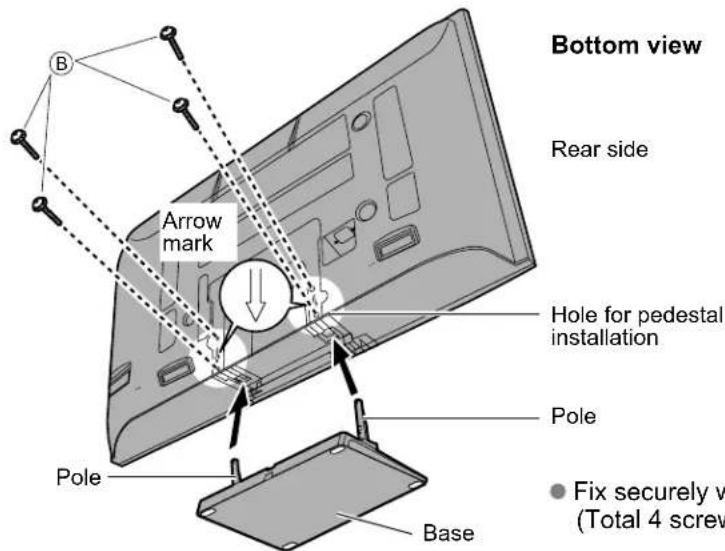

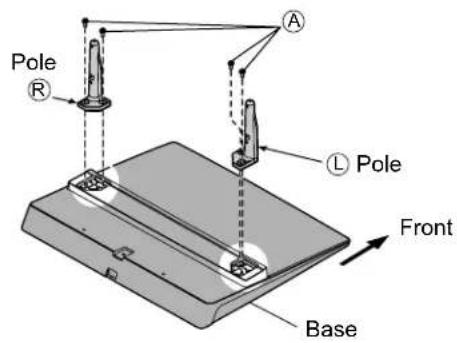

■Assembling the pedestal

Fix securely with assembly screws Ⓐ . (Total 4 screws) Tighten screws firmly.

Pole R A L Pole Front Base

Set-up

Carry out work on a horizontal and level surface. Tighten screws firmly.

Bottom view Rear side Arrow mark Hole for pedestal installation Pole Pole Base ● Fix securely w (Total 4 screw)

Accessories

Assembly screws (4 of each)

M5 x 18 (Silver)

M5 x 25 (Black)

Poles (2)

- L or R is printed at the bottom of the poles.

Base (1)

Warning

Do not disassemble or modify the pedestal.

● Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any other TV and displays.

● Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

- If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.

During set-up, make sure that all screws are securely tightened.

- If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Accessories/Optional Accessory (Continued)

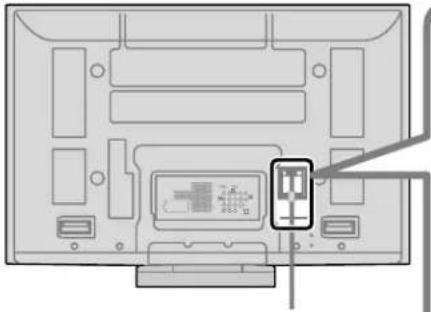

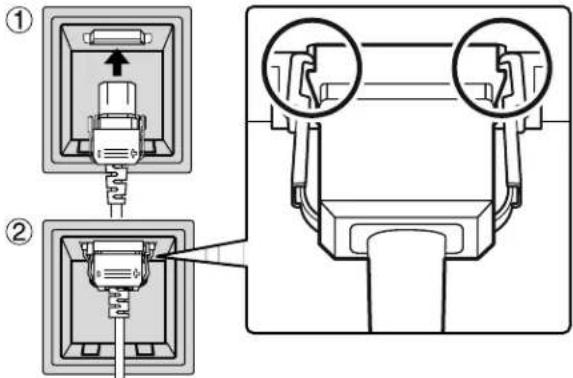

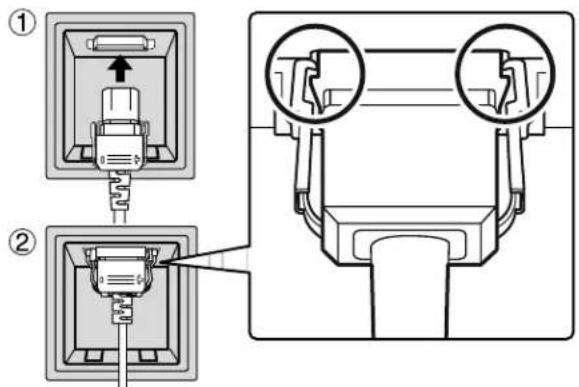

AC cord connection

Top-down schematic of a computer monitor showing internal components and a central display (no text or symbols)

To attach To remove

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

① ② Keep pushing both side snaps

Insert it firmly until the tabs on both sides click into place.

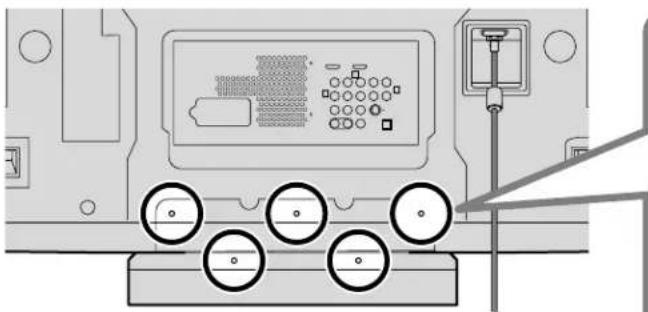

Cable Binding Instructions

Diagram of an electronic device rear panel with ports and connectors, no visible text or symbols

• Do not bundle the RF cable and AC cord together (could cause distorted image).
• Fasten the cables with the Cable clamper as necessary.
• When using the optional accessories, follow their assembly manuals to fix cables.

To attach

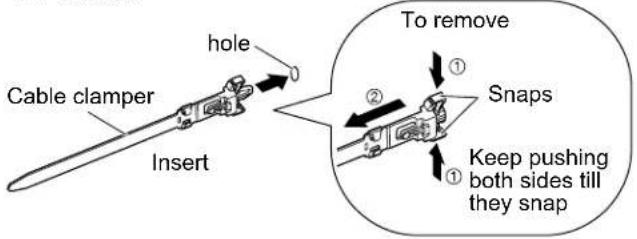

Cable clamper Insert hole To remove Snaps ① ② ① ① Keep pushing both sides till they snap

To bundle

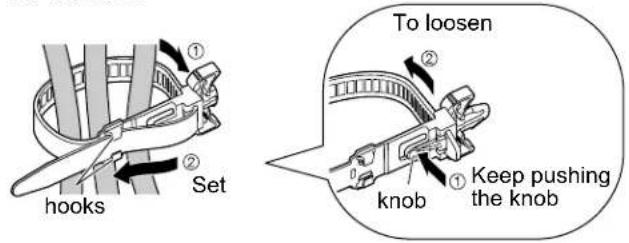

To loosen ① ② ③ ④ ⑤ ⑥ hooks Set knob Keep pushing the knob

Reference of connection

Antenna terminal Pin terminals HDMI terminal

- Firmly tighten by hand.

greenbluered green

• Match colors of plugs and terminals.
• Insert firmly.

Line drawing of a USB cable connector with a port icon (no text or symbols)

• Insert firmly.

Basic Connection

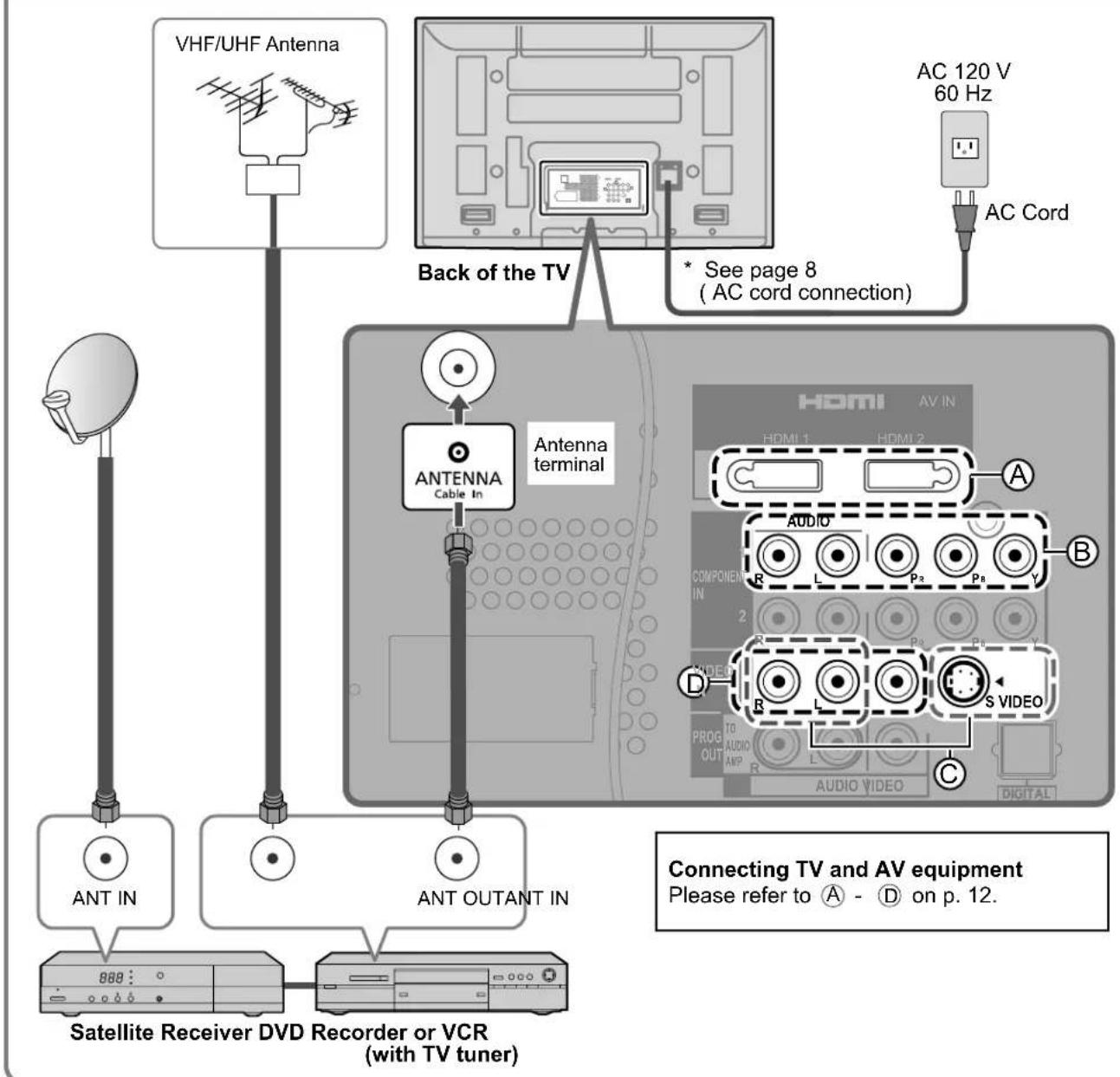

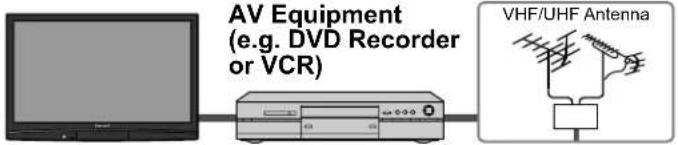

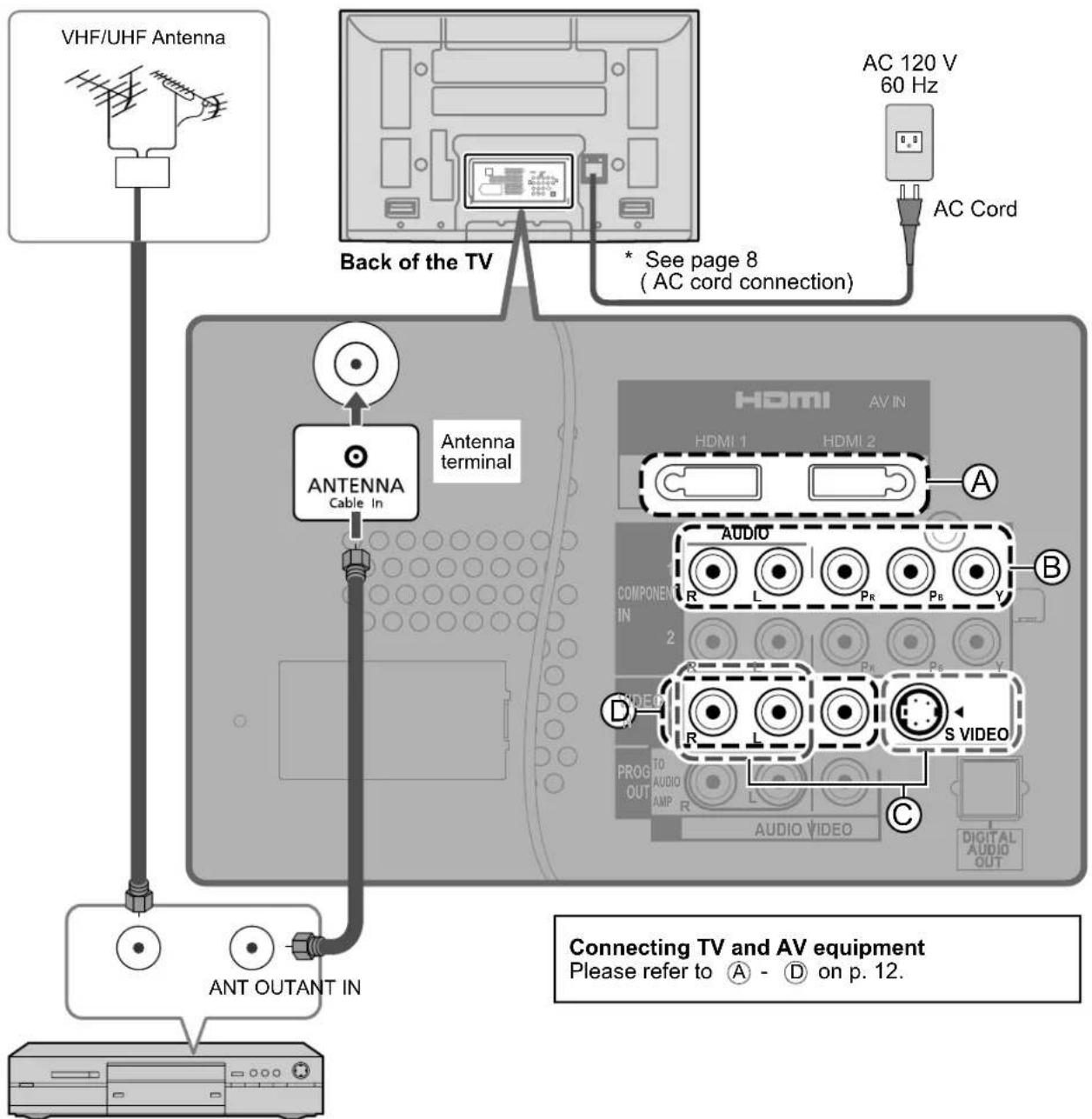

Example 1 Connecting Antenna (To watch TV)

TV

VHF/UHF Antenna

• NTSC (National Television System Committee): Conventional broadcasting
• ATSC (Advanced Television Systems Committee): Digital TV Standards include digital high-definition television (HDTV), standard-definition television (SDTV), data broadcasting, multi-channel surround-sound audio and interactive television.

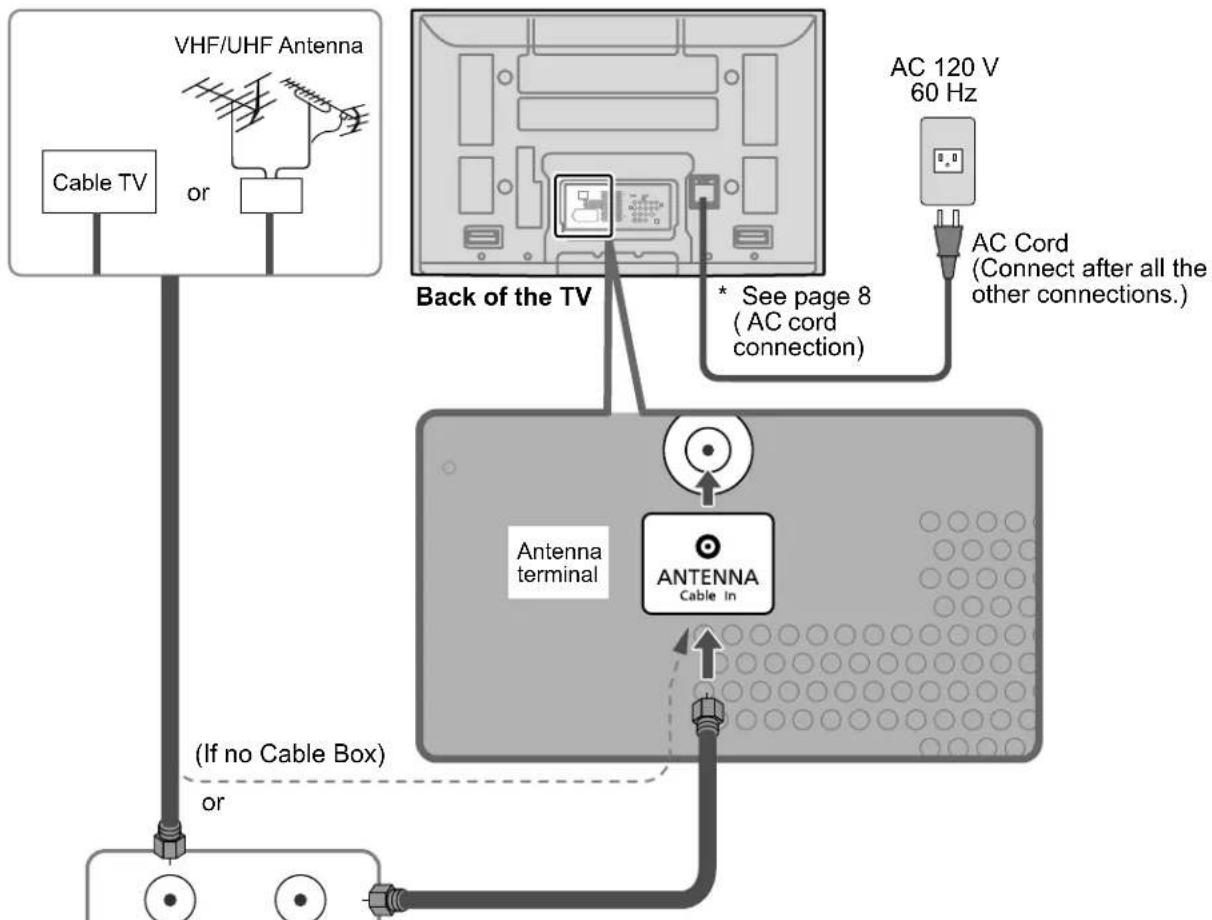

To connect the antenna terminal and Cable Box

ANT OUTANT Cable Box/Cable

• You need to subscribe to a cable TV service to enjoy viewing their programming.
• You can enjoy high-definition programming by subscribing to a high-definition cable service.
  The connection for high-definition can be done with the use of HDMI or Component Video cable.
• If using a Cable Box set the TV channel to CH3 or CH4 for regular cable.
• To view high-definition programming select the correct video input.

Note

All cables and external equipment shown in this book are not supplied with the TV.
- For the details of the external equipment's connections, please refer to the operating manuals for the equipment.
- When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.
- For additional assistance, visit us at: www.panasonic.com

www.panasonic.ca

Basic Connection (Continued)

Example 2 Connecting DVD recorder (VCR) (To record/playback)

TV

AV Equipment (e.g. DVD Recorder or VCR) VHF/UHF Antenna

DVD Recorder

If this source has higher resolution through interlace or progressive signal, connection can be done with the use of Component Video or HDMI cable.

VCR

Connection can be done with the use of an RF cable and Composite Video/S Video cable.

To connect the antenna terminal and DVD recorder or VCR

VHF/UHF Antenna Back of the TV * See page 8 (AC cord connection) AC 120 V 60 Hz AC Cord Antenna terminal ANTENNA Cable In HDMI AV IN HDMI 1 HDMI 2 A AUDIO COMPONENT IN R L PR PR Y 2 VIDEO D R S VIDEO PROG OUT AUDIO AMP R AUDIO VIDEO C DIGITAL AUDIO OUT ANT OUTANT IN Connecting TV and AV equipment Please refer to Ⓐ - Ⓓ on p. 12.

AV Equipment (e.g. DVD Recorder or VCR) (with TV tuner)

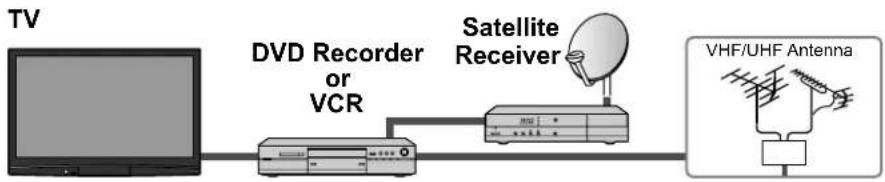

Example 3 Connecting DVD recorder (VCR) and satellite receiver

You can enjoy high-definition programming by subscribing to a high-definition satellite service. Connection can be done with the use of HDMI or Component Video cable.

To connect the antenna terminal and Satellite Receiver and DVD recorder or VCR

VHF/UHF Antenna Back of the TV * See page 8 ( AC cord connection ) AC 120 V 60 Hz AC Cord ANT EN ANT OUTANT IN Antenna terminal ANTENNA Cable In HDMI AV IN HDMI 1 HDMI 2 A AUDIO COMPONENT IN R L P2 P3 Y 2 VIDEO D R S VIDEO PROG OUT AUDIO AMP AUDIO VIDEO C Digital Connecting TV and AV equipment Please refer to A - D on p. 12. Satellite Receiver DVD Recorder or VCR (with TV tuner)

Note

- For details of external equipment connections, please refer to the operating manuals for the equipment.

Basic Connection (Continued)

AV cable connections

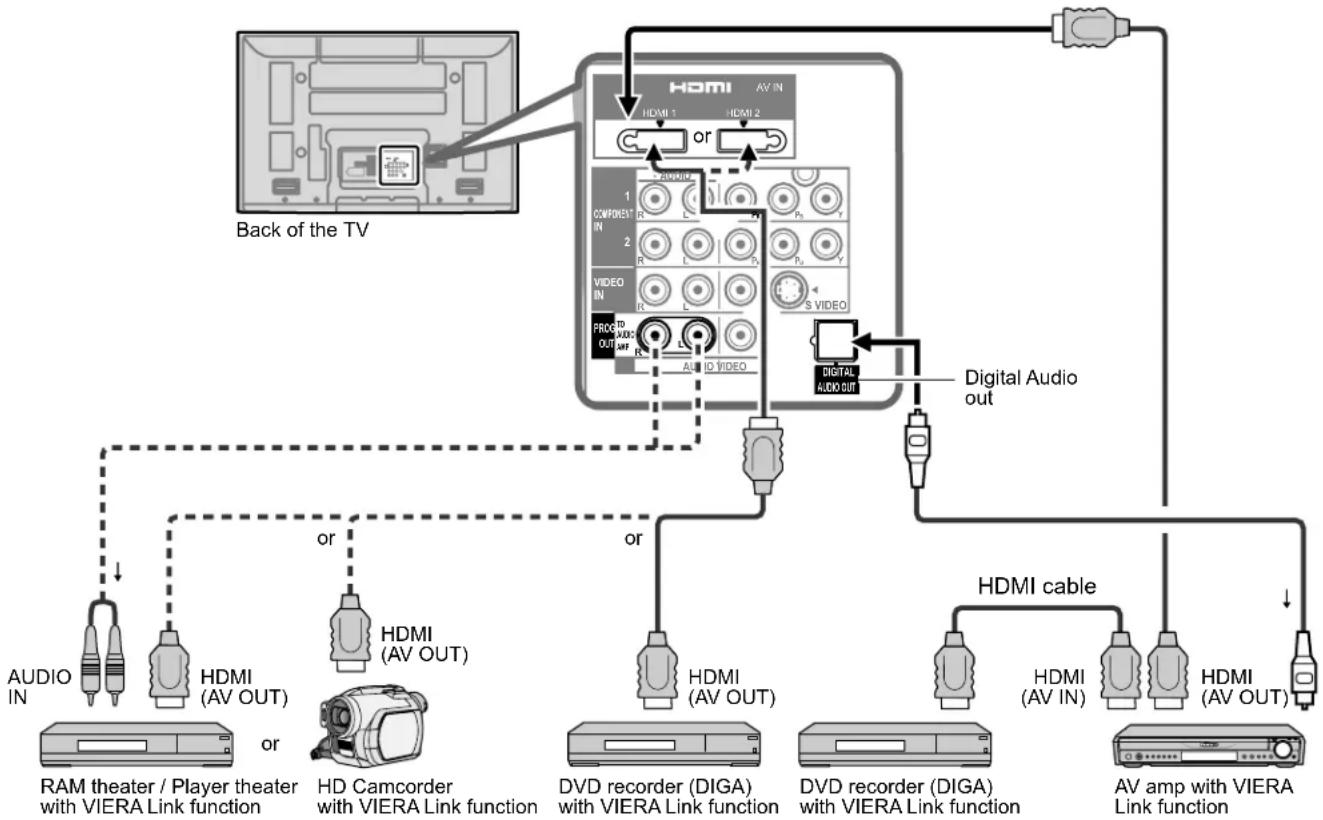

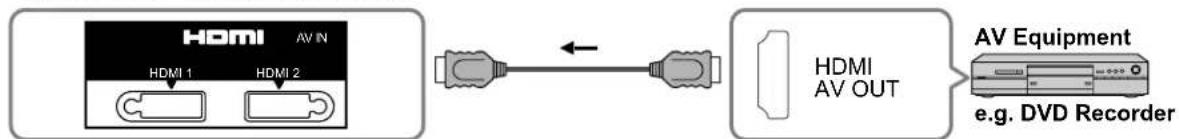

Ⓐ To use HDMI terminals

• Connecting to HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.
• For "VIERA Link™ connections", please refer to p. 38.

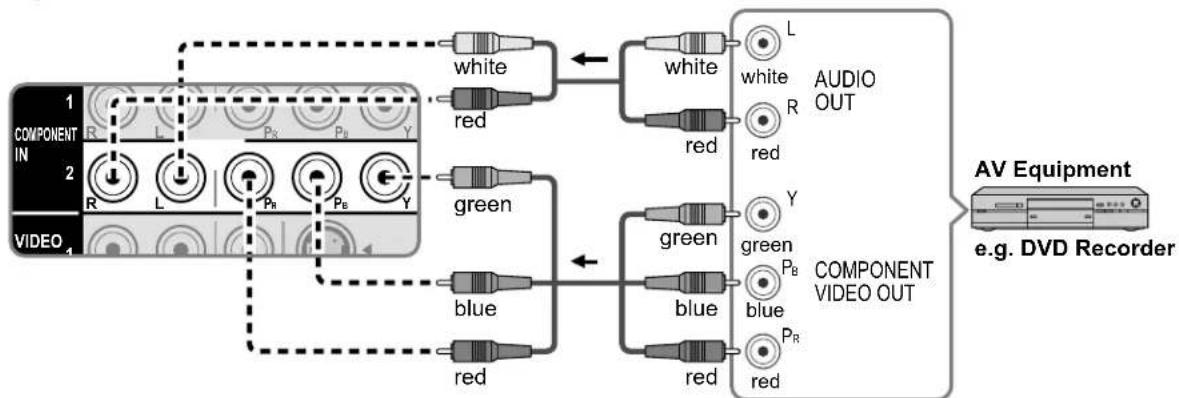

⑧ To use COMPONENT terminals

• Recorders may also be connected to COMPOSITE or S VIDEO terminals. (see below)

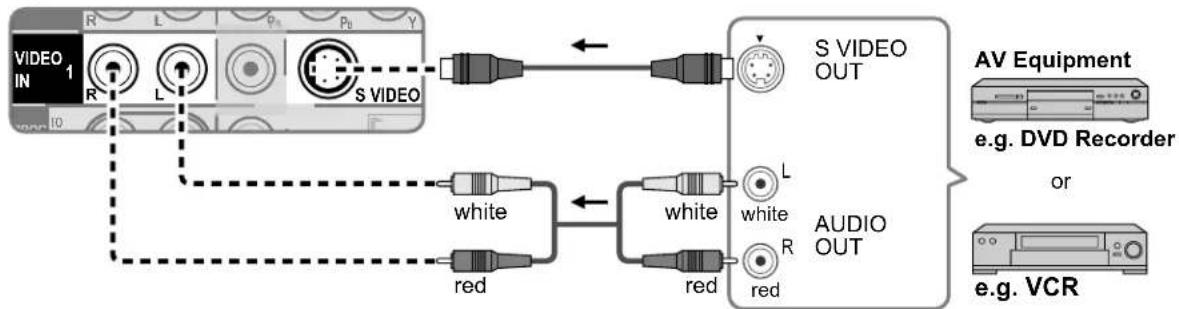

© To use S VIDEO terminals

D To use COMPOSITE terminals

• The S Video input will override the composite video signal when S Video cable is connected. Connect either S Video or Video cable.
• Connecting to S VIDEO terminals will enable you to enjoy greater picture quality than using Composite terminals.

High-Definition

C

• Some programs contain a copyright protection signal to prevent recording.
• When the copyright protection program is displayed, do not connect the other TV monitor through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the other TV monitor.
• For the details of the external equipment's connections, please refer to the operating manuals for the equipment.

Identifying Controls

TV controls/indicators

Displays the Main menu. Choose menu and submenu entries. HDMI input 3 connector Selects channels in sequence Volume up/down Video Input 2 connector SD card slotChanges the SWING UP THE DOOR AT "▲". Power button Remote control sensor Within about 23 feet (7 meters) in front of the TV set. Power indicator (on: red, off: no light) POWER SD CARD D VIVO IN 2 5 VIDEO VIDEO L-AUDIO-R AV IN HVDC

Note

● The TV consumes a limited amount of power as long as the power cord is inserted into the wall outlet.

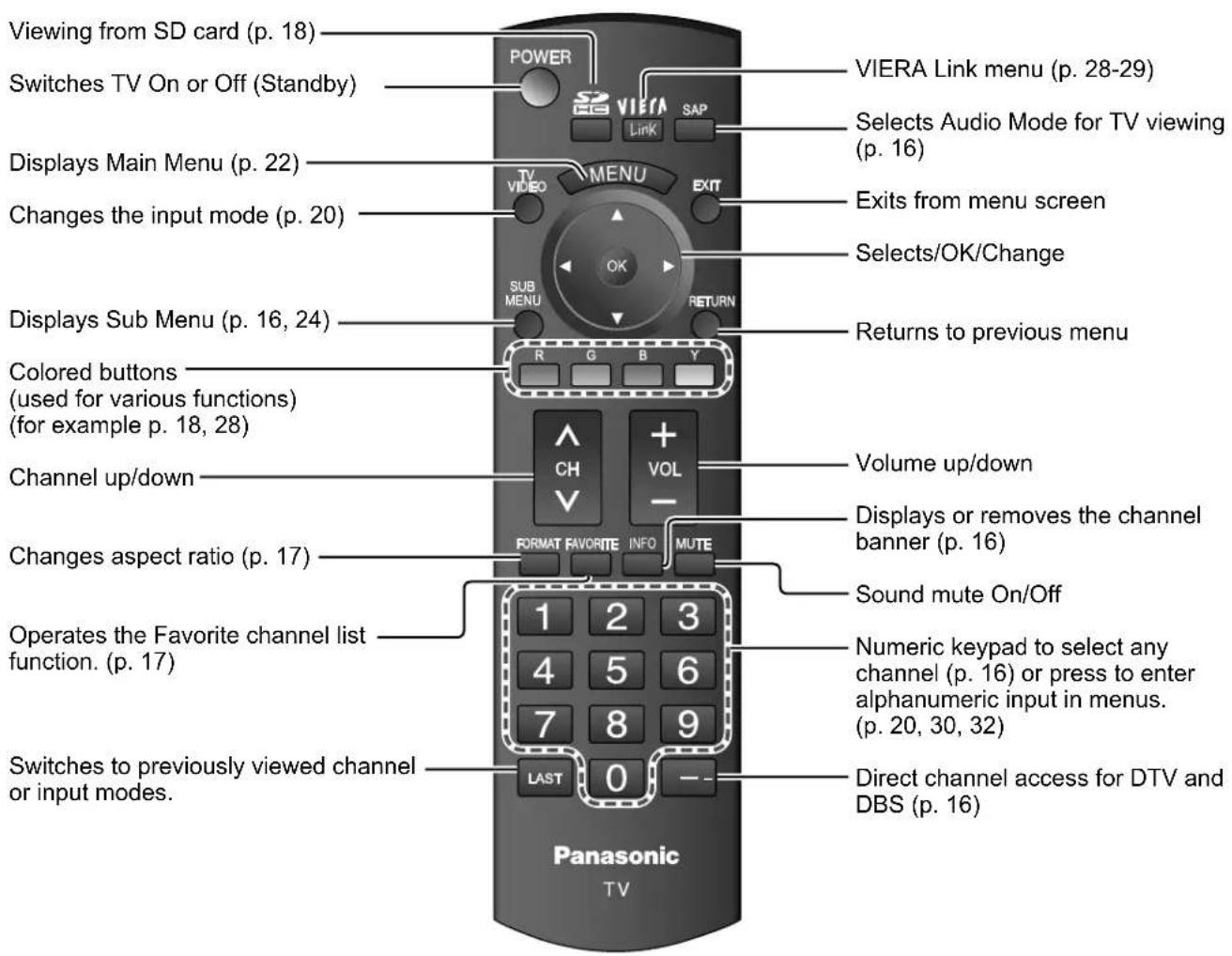

Remote control

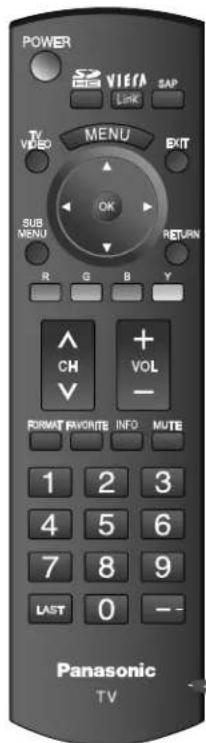

Viewing from SD card (p. 18) Switches TV On or Off (Standby) Displays Main Menu (p. 22) Changes the input mode (p. 20) Displays Sub Menu (p. 16, 24) Colored buttons (used for various functions) (for example p. 18, 28) Channel up/down Changes aspect ratio (p. 17) Operates the Favorite channel list function. (p. 17) Switches to previously viewed channel or input modes. POWER VIERA Link menu (p. 28-29) Selects Audio Mode for TV viewing (p. 16) TV VIDEO MENU EXIT Sub MENU RETURN Returns to previous menu R G B Y Volume up/down CH VOL FORMAT FAVORITE INFO MUTE Displays or removes the channel banner (p. 16) Sound mute On/Off 1 2 3 4 5 6 7 8 9 LAST 0 - Direct channel access for DTV and DBS (p. 16) Panasonic TV

First Time Setup

"First time setup" is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when "Auto power on" (p. 24-25) is set to "No".

OR POWER EXIT OK RETURN

1

Turn the TV On with the POWER button

POWER or POWER (Remote)(TV)

Be sure to select "Home" (Normal display mode)

● This setting will be skipped from next time.
- If you select "Store", "First time setup" will not be displayed. In case you select "Store" by mistake, unplug the TV and plug it again. Then, set to "Home" next time.
- This selection screen is displayed when "Store" is selected.

2
Select your language

First time setup Language Clock Auto program

Language Language ← English → → English ↔ Español

Go back to previous screen.

3
Adjust the clock

First time setup Language Clock Auto program

Clock Year 2008 Month 1 Day 7 Hour 10 AM Minute 10

Year: Select the year Month: Select the month Day: Select the day Hour: Adjust the hour Minute: Adjust the minute

RETURN Go back to previous screen.

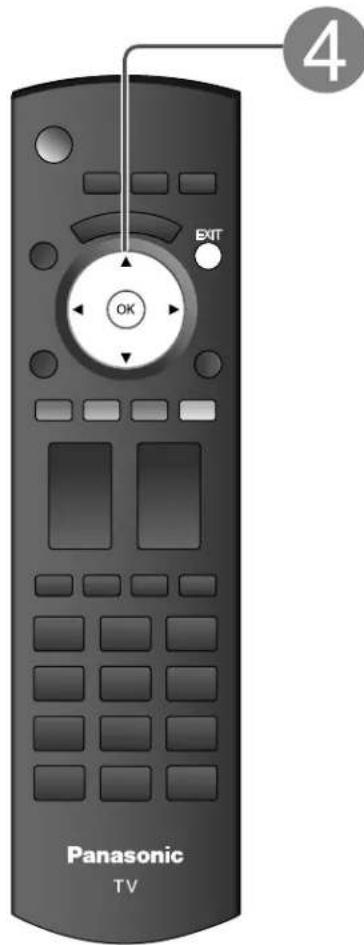

4 EXIT OK Panasonic TV

■Press to exit from a menu screen

4

Auto channel setup

① Select "Auto program"

First time setup Language Clock Auto program

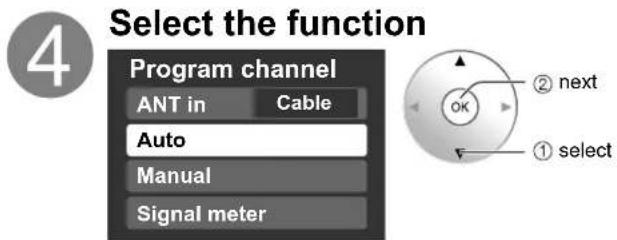

② Select "ANT in"

ANT in

Cable: Cable TV

Antenna: Antenna

③ Select "Auto"

④ Select scanning mode (ALL channels/Analog only/Digital only)

Auto program All channels Analog only Digital only

Auto program Progress 8% Number of analog channels 10 Number of digital channels 0 Press RETURN to quit. RETURN

Start scanning the channels

● Available channels (analog/digital) are automatically set.

All channels: Scans digital and analog channels

Analog only: Scans Analog channels only

Digital only: Scans Digital channels only

⑤ Confirm registered channels

program Apply Cancel Option Favorite Add ... Yes ... Yes ... Yes

• If OK is not pressed after selecting "Apply", the channels will not be saved. The channel will be saved when no operation is performed for 60 seconds and the "Manual program" menu will also exit automatically.
• If you perform scanning more than twice, previously saved channels are erased.

Note

- About broadcasting systems

Analog (NTSC): Conventional broadcasting

Digital (ATSC): New programming that allows you to view more channels featuring high-quality video and sound

Watching TV

Connect the TV to a cable box/cable, set-top-box, satellite box, or antenna cable (p. 9-12)

To watch TV and other functions

- If the mode is not TV, press v and select TV. (p. 20)
When tuning to a digital channel, press the button to enter the minor number in a compound channel number.
example: CH15-1: 1 5 — 1

■ Other Useful Functions (Operate after

Listen with SAP (Secondary Audio Program)	■ Select Audio Mode for watching TV SAP ● Digital mode Press SAP to select the next audio track (if available) when receiving a digital channel. Audio track 1 of 2 (English) ● Analog mode Press SAP to select the desired audio mode. • Each press of SAP will change the audio mode. (Stereo/SAP/Mono)
Display the SUB MENU	■ Press SUB MENU to show sub menu screen. (p. 24) This menu consists of shortcuts to convenient functions. SUB MENU Setup SUB MENU Surf mode All Set favorite CC Off Caption select Signal meter
Information Recall	■ Displays or removes the channel banner. INFO Channel 15-2 ABC-HD ABC-HD Station identifier Closed caption SAP indication Rating Level TV-G 1080i Standard 4:3 Clock 12:30 PM 30 Sleep timer remaining time Aspect ratio

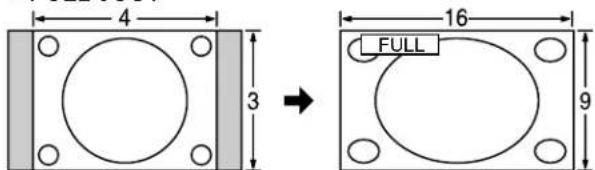

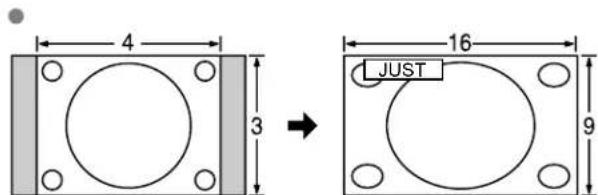

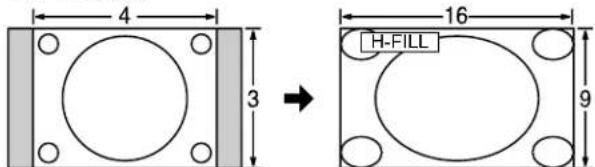

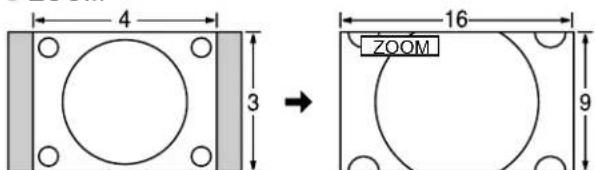

Change aspect ratio	■Press FORMAT to cycle through the aspect modes. (p. 40)
Call up a favorite channel		■FAVORITEChannel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast station with the cursor or use number buttons. (see below)

FAVORITE

Note

• Reselect "Cable" or "Antenna" in "ANT in" of "Program channel" to switch the signal reception between cable TV and antenna. (p. 15, 33)
• The channel number and volume level remain the same even after the TV is turned off.

Favorite Feature

■ Set Favorite Feature

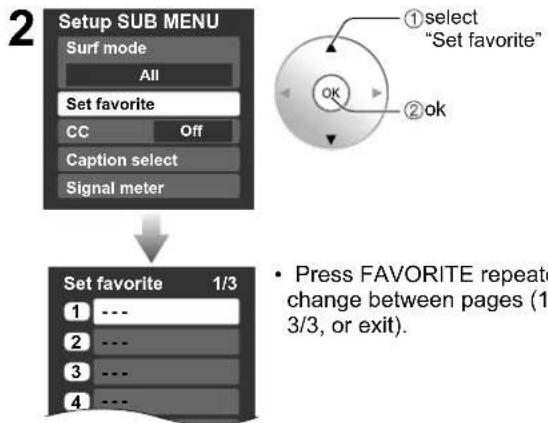

1 Display the SUB MENU.

Setup SUB MENU Surf mode All Set favorite CC Off Caption select Signal meter

2 Setup SUB MENU Surf mode All Set favorite CC Off Caption select Signal meter 1 select "Set favorite" OK 2 ok Set favorite 1/3 1 --- 2 --- 3 --- 4 --- Press FAVORITE repeated change between pages (1/ 3/3, or exit).

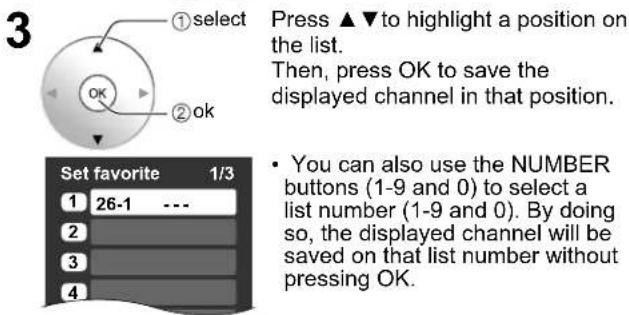

3 ①select OK ②ok Press ▲▼ to highlight a position on the list. Then, press OK to save the displayed channel in that position. Set favorite 1/3 1 26-1 --- 2 3 4 • You can also use the NUMBER buttons (1-9 and 0) to select a list number (1-9 and 0). By doing so, the displayed channel will be saved on that list number without pressing OK.

• To delete a favorite channel

A saved channel can be removed from the list by holding down OK while its position is highlighted.

• To change the page

Pressing ◀ changes the page backward.

■ Use Favorite Feature

Press FAVORITE.

- Press FAVORITE repeatedly to change between pages (1/3, 2/3, 3/3, or exit).

Press ▲▼ or a Numbered key (1-9 and 0) to highlight a channel on the list.

- Selecting a channel number from the list with the number button will display the channel directly.

Press OK to display the highlighted channel.

Viewing from SD Card

You can view photos taken with a digital camera or digital video camera and saved on an SD card. (Media other than SD Cards may not be reproduced properly.)

Photo viewer

Illustration of a flat-screen monitor with a cable inserted into the top panel (no text or symbols visible)

Insert the SD card and select "Play SD card now"

- "SD card setting" will be displayed automatically each time a SD card is inserted for the first time.

Play SD card automatically: Set it to playback the data when SD card is inserted.

On: When SD card is inserted, the data play automatically from next time.

Off: The data can be played manually.

Press the SD key or select "SD card" on the Menu.

- You can skip this step when "Play SD card now" is selected or "On" is set in "Play SD card automatically" setting.

SP HG MENU EXIT OK RETURN R G INFO Panasonic TV

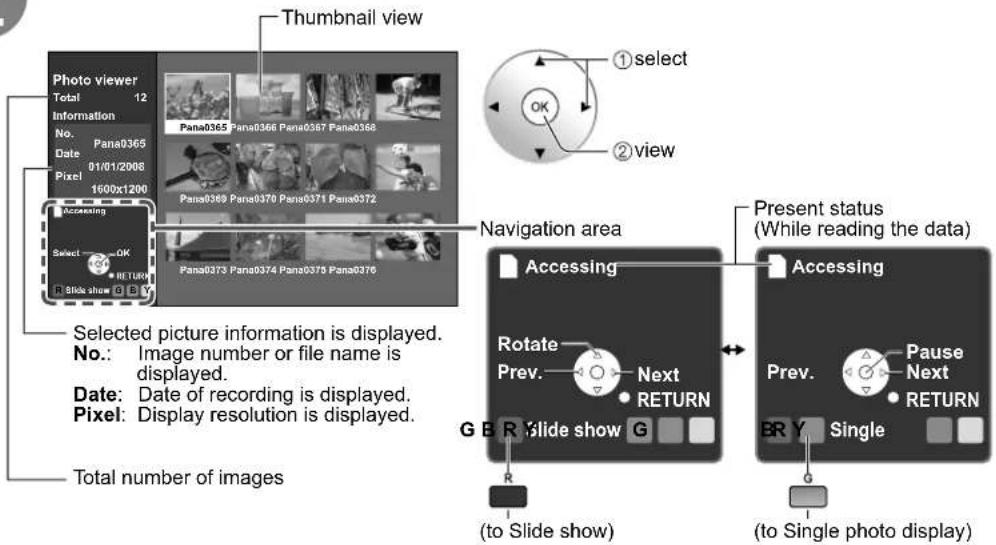

Select the data to be viewed

Thumbnail view Photo viewer Total 12 Information No. Pana0365 Date 01/01/2006 Pixel 1600x1200 Accessing Select OK RETURN Slide show Selected picture information is displayed. No.: Image number or file name is displayed. Date: Date of recording is displayed. Pixel: Display resolution is displayed. Total number of images Navigation area ①select OK ②view Present status (While reading the data) Accessing Rotate Prev. Next RETURN G B R Slide show G R (to Slide show) Accessing Prev. Pause Next RETURN BR Y Single G (to Single photo display)

Note

- Depending on the JPEG format, "Information" contents may not be displayed correctly. Refer to p. 41 (Data format for SD card browsing) for details.

■Press to exit from

a menu screen

EXIT

■Press to return to the previous

screen

RETURN

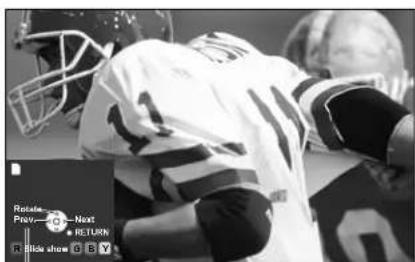

View

Black-and-white photo of a football player in action, wearing jersey number 210, with helmet and ball in background (no visible text or symbols)

Displays one at a time
Navigation area

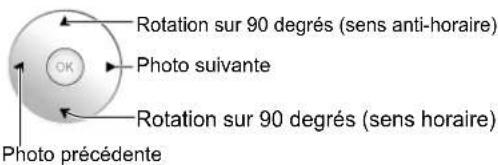

Rotate 90 degrees (counter-clockwise) To next photo Rotate 90 degrees (clockwise)

To previous photo

SD Card

- Insert the card Remove the card

SD CAPS Label surface Push until a click is heard

Press in lightly on SD Card, then release.

SD CARD

- Compliant card type (maximum capacity): SDHC Card (16 GB), SD Card (2 GB), miniSD Card (1 GB) (requiring miniSD Card adapter) - For cautions and details on SD Cards (p. 41)

To change the view (slide show mode, adjusting images, etc.)

■To setup the slide show mode

In ② or ③

1 Display "Photo menu"

2 Select "Setup slide show"

3 Select the item and adjust

Setup slide show Disp. time ← 5 → Repeat On

Disp. time	You can set how many seconds each image is displayed in Slide show mode. (1-10/15/20/30/45/60/120 sec)
Repeat	Turn the slide show Repeat function On or Off.

Note

• For large image sizes, the display time will be longer than the number of seconds set.
  • To stop in mid-cycle → Press

■ To adjust picture

In ② or ③

1 Display "Photo menu"

2 Select "Picture"

Photo menu Picture Setup slide show ① select "Picture" OK ② ok

2 Select the item

Picture 1/2 Reset Picture mode Vivid Picture 0 Brightness 0

Picture menu (p. 22)

4 Adjust or select

Picture 1/2 Reset Picture mode Vivid Picture 0 Brightness 0

Watching Videos and DVDs

If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV's screen.

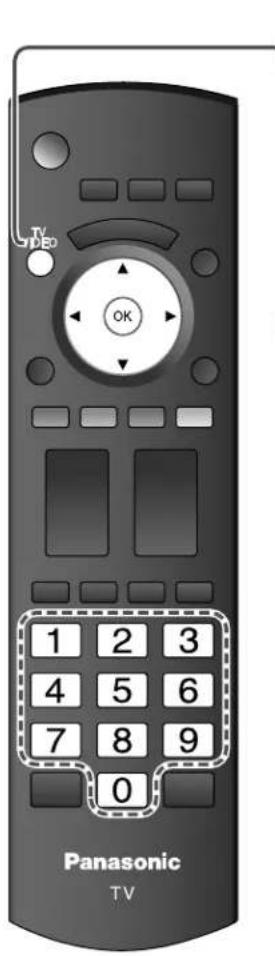

Input Select

You can select the external equipment to access.

TV JDBD OK 1 2 3 4 5 6 7 8 9 0 Panasonic TV

1

With the connected equipment turned On Display the Input select menu

2
Select the input mode

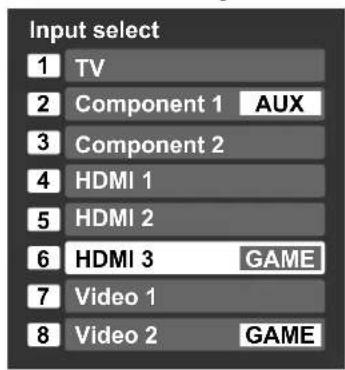

Input select 1 TV 2 Component 1 AUX 3 Component 2 4 HDMI 1 5 HDMI 2 6 HDMI 3 GAME 7 Video 1 8 Video 2 GAME

Press corresponding NUMBER button on the remote control to select the input of your choice.

Select the input of your choice, then press OK.

- During the selection, if no action is taken for several seconds, the "Input select" menu disappears.

- The terminal and label of the connected equipment are displayed. To label each of the input, please refer to p. 35.

HDMI 3 GAME Terminal Label (example) (example)

■ To return to TV

Note

• The input label will be displayed on "Input select" screen if Input label is set on p. 35.
• For front input terminals (HDMI 3/Video 2), "GAME" input label is set as default. (Picture mode is set to "Game", refer to p. 42.)
• For more details for picture mode setting, refer to p. 42. For Input label, refer to p. 35.

3

Operate the connected equipment using the remote control supplied with the equipment.

Note

- For details, see the manual for the connected equipment.

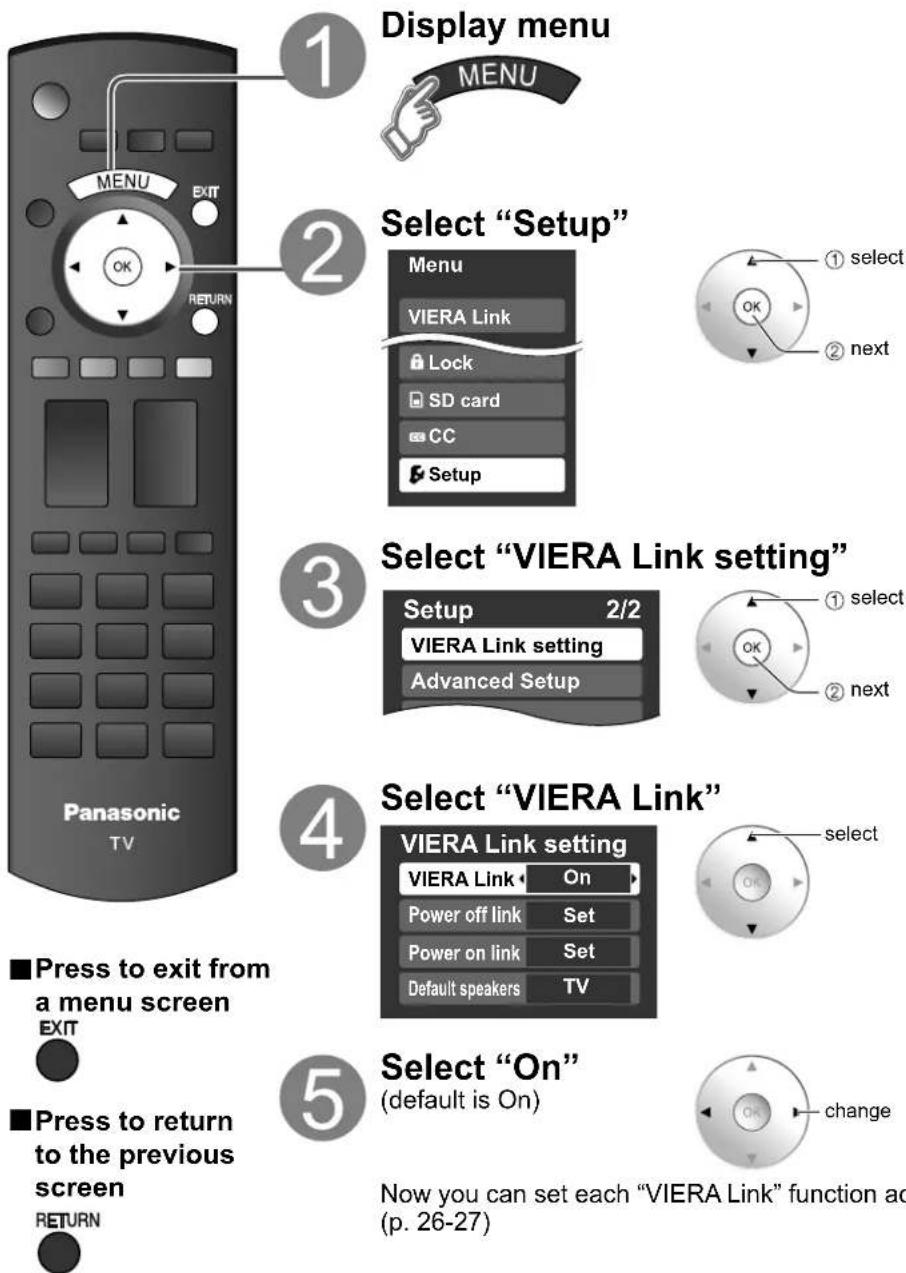

VIERA Link™ Setting

If you connect equipment that has "HDAVI Control" function to a TV with HDMI cable, you can use more convenient functions. Please refer to p. 26-29. Before using these functions, you need to set "VIERA Link" setting to "On" as shown below.

Now you can set each "VIERA Link" function according to your preference (p. 26-27)

Note

• If no HDMI equipment is connected or standard HDMI equipment (non- "VIERA Link") is used, set it to "Off".
• For the details on the external equipment's connections, please refer to the operating manuals for the equipment.

How to Use Menu Functions

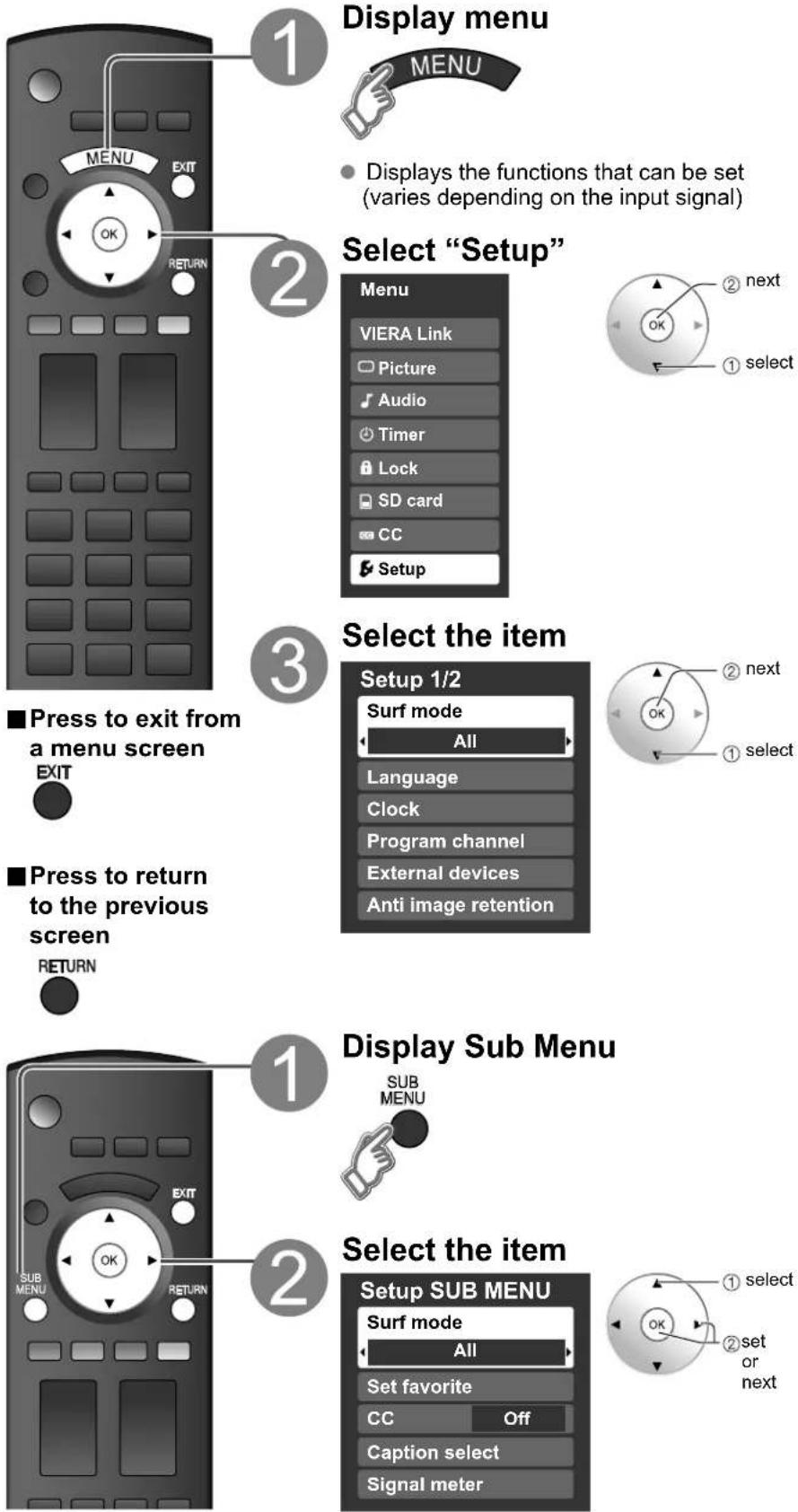

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

Display menu MENU • Displays the functions that can be set (varies depending on the input signal) Select the menu Menu VIERA Link Picture Audio Timer Lock SD card CC Setup 1 select OK 2 next 3 Select the item Picture 1/2 Reset Picture mode Vivid Picture 0 Brightness 0 Color 0 Tint 0 Sharpness 0 (example: Picture menu) select Panasonic TV ■Press to exit from a menu screen EXIT ■Press to return to the previous screen RETURN 4 Adjust or select Picture 1/2 Reset Picture mode Vivid Picture 0 Brightness 0 Color 0 Tint 0 Sharpness 0 (example: Picture menu) adjust or select

■ Menu list

Menu	tem
VIERA Link	Record nowStop recordingVIERA Link controlSpeaker output
Picture	Reset
	Picture mode
	Picture, Brightness,Color, Tint, Sharpness
	Color temp.
	Color mgmt.
	x.v.Color
	Zoom adjust
	Advanced picture	Video NR
		3D Y/C filter
		Color matrix
		MPEG NR
		Black level
Audio	Reset
	Bass
	Treble
	Balance
	Advanced audio	AI sound
		Surround
		Bass boost
		Audio leveler
		Speaker output
		HDMI 1 inHDMI 2 inHDMI 3 in
Timer	Sleep, Timer 1-5
Lock
SD Card	SD card
CC	CC

Adjustments/Configurations (alternatives)

[Record now/Stop recording]Records programs on the recorder immediately with the TV's remote control (p. 28-29).[VIERA Link control]Selects equipment to access and operate. (Recorder/Home theater/Player/Camcorder) (p.28-29)[Speaker output]Selects an audio output. (Home theater/TV) (p. 28-29)VIERA Link menu is accessible directly by pressing the VIERA Link button on the remote control. ▶(0-28)
Resets all picture adjustments to factory default settings except for “Advanced picture”.		Reset
Basic picture mode (Vivid/Standard/Cinema/Game/Custom) (p. 42)		Picture mode Vivid
Adjusts color, brightness, etc. for each picture mode to suit your tasteDisplay rangePicture/Brightness/Color/Sharpness: 0 - 100Tint: 50 - +50		Picture +20 Brightness 0 Color 0 Tint 0 Sharpness 0
Selects a choice of Cool(blue), Normal, or Warm(red) color. (Cool/Normal/Warm)		Color temp. Cool
On: Enhances green and blue color reproduction, especially outdoor scenes. (On/Off)		Color mgmt. On
Auto: Provide the appropriate picture when images corresponding to “x.v.Color” are input via the HDMI or component input of this TV. (Off/Auto)		x.v.Color Auto
Adjusts vertical alignment and size when aspect setting is “ZOOM” (p. 40)		Zoom adjust
Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On)		Video NR Off
Minimizes noise and cross-color in the picture. (On/Off)		3D Y/C filter On
Selects image resolution of component-connected devices (HD/SD)SD: Standard Definition HD: High DefinitionOnly 480p signal accepted; regular TV (NTSC) is not available.		Color matrix SD
Reduces noise of specific digital signals of DVD, STB, etc. (On/Off)		MPEG NR Off
Selects Dark or Light. Valid only for external input signals. (Dark/Light)		Black level Light
Resets Bass, Treble and Balance adjustments to factory default settings.		Reset
Increases or decreases the bass response.		Bass 0
Increases or decreases the treble response.		Treble 0
Emphasizes the left / right speaker volume.		Balance 0
Equalizes overall volume levels across all channels and external inputs. (On/Off)		AI sound On
Enhances audio response when listening to stereo. (On/Off)		Surround Off
Enhances bass sound and provides powerful sound. (On/Off)This setting will not function if “off” is set in “Speaker output”.		Bass boost Off
Minimizes volume disparity after switching to external inputs		Audio leveler 0
Switch to “Off” when using external speakers (On/Off)“AI sound”, “Surround”, and “Audio leveler” do not work if “Off” is selected		Speaker output On
The default setting is “Digital” for HDMI connection. (Digital input signal)Select audio input terminal when DVI cable is connected. (Analog audio input signal)(Digital/Component 1/Component 2/Video 1/Video 2)		HDMI1 In DigitalHDMI2 in DigitalHDMI3 in Digital

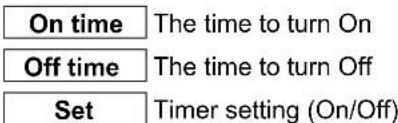

The TV can automatically turn On/Off at the designated date and time (p. 36)		Sleep 60
Locks the channels and programs (p. 30)
Displays SD card data (p. 18-19)		SD card
Displays subtitles (Closed Caption) (p. 34)		CC

• In AV mode, the Audio menu and Setup menu give fewer options.

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

■ Menu list

Menu	tem
Setup	Surf mode
	Language
	Clock
	Program channel
	External devices	Input labels
		Monitor out
	Anti image retention	Pixel orbiter
		Time
		Side bar
		Scrolling bar
	VIERA Link setting	VIERA Link
		Power off link
		Power on link
		Default speakers
	Advanced setup	Auto power on
		No signal shut-off
		No action shut-off
		Play SD card automatically
	About
	Reset

■ Sub menu list

Menu	tem
SUSUB MENU	Surf mode
	Set favorite
	CC
	Caption select
	Signal meter

(Continued)

Adjustments/Configurations (alternatives)
Sets the mode to select the channel with Channel up/down button(All/Favorite/Digital Only/Analog only)Favorite: Only channels registered as FAVORITE (p. 17)	Surf mode All
Selects the screen menu language (p. 14)	Language
Adjusts the clock (p. 14)	Clock
Sets channels (p. 32)	Program channel
Selects the terminal and label of the external equipment (p. 35)

[Component 1/Component 2/HDMI 1/HDMI 2/HDMI 3/Video 1/Video 2]

To prevent howling and image oscillation, stops output of the pictures and audio specified in this menu. (p. 35) (On/Off)

Prevent “Image retention” with Wobbling (Shifts the display image automatically.) (Automatic/Force)	Pixel orbiter	Auto
Sets the time for “Pixel orbiter-Force” setting. (1/2/3/4)	Time	4
Change the brightness of the side bar (Off/Dark/Mid/Bright) (4:3 mode only)The recommended setting is “Bright” to prevent panel “Image retention”. (p. 43)	Side bar	Bright
Press “OK” to start horizontal “Scrolling” on the screen (p. 43)	Scrolling bar
Controls equipment connected to HDMI terminals (p. 26) (On/Off)“Power off link”, “Power on link”, and “Default speakers” cannot be selected if “Off” is set.	VIERA Link	On
Sets “Power off link” of HDMI connection equipment (p. 26) (Set/No)	Power off link	Set
Sets “Power on link” of HDMI connection equipment (p. 26) (Set/No)	Power on link	Set
Selects the default speakers (p. 26) (TV/Theater)	Default speakers	TV
Turns TV On automatically when the cable box or a connected device is turned On (No/Set)The “Sleep” timer, “On / Off timer”, and “First time setup” will not function if “Auto power on” is set. (p. 36)	Auto power on	No
To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION is performed for more than 10 minutes. (Set/No)NoteNot in use when setting “Auto power on”, “On/Off Timer”, “Lock”, “SD Mode”, or Digital channel.“No signal shut-off was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after turning the power off by “No signal shut-off”.The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.	No signal shut-off	Set
To conserve energy, the TV automatically turns off when no operation of remote or front panel key continues for more than 3 hours. (No/Set)NoteNot in use when setting “Auto power on” or “On/Off Timer”.“No action shut-off was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after turning the power off by “No action shut off”.The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.	No action shut-off	No
Set “On” to play back SD cards automatically. (On/Off)	Play SD card automatically	On
Displays TV version and software license.	About
Performing Reset will clear all items set with Setup, such as channel settings. (p. 32)	Reset

Adjustments/Configurations (alternatives)

Sets the mode to select the channel with Channel up/down button (All/Favorite/Digital Only/Analog only)

Sets favorite channels. (p. 17)

Displays Closed Caption. (p. 34) (Off/On)

Changes the station identifier. (p. 33)

Checks the signal strength if interference or freezing occurs on a digital image. (p. 33)

VIERA Link™ “HDAVI Control™”\*

* Simultaneously control all Panasonic "HDAVI Control" equipped components using one button on one remote.

VIERA Link™ is a new name for EZ Sync™

Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control". This TV supports "HDAVI Control 3" function.

Connections to the equipment (DVD recorder DIGA, HD Camcorder, Player theatre, RAM theater, Amplifier, etc.) with HDMI cables allow you to interface them automatically.

The equipment with "HDAVI Control" function enables the following operations:

● Automatic Input Switching (p. 27)

● Power on link (p. 27)

● Power off link (p. 27)

● Default speakers (p. 27)

● One-touch theater playback (p. 27)

- Speaker control (p. 29)

The equipment with "HDAVI Control 2" (or more) function enables the following operations:

- VIERA Link control only with the TV's remote control (for "HDAVI Control 2" or "HDAVI Control 3") (P. 29)

● Providing the setting information (for "HDAVI Control 3") (p. 27)

● Automatic lip-sync function (for "HDAVI Control 3") (p. 27)

- Direct TV Recording (for "HDAVI Control 3") (p. 29)

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to the individual manuals for other manufacturers' equipment supporting the VIERA Link function.

For the first time / When adding new equipment, reconnecting equipment or changing the setup after the connection, turn the equipment on and then switch the TV on. Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 20), and make sure that an image is displayed correctly.

■ HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic's HDMI cable. Recommended part number:

- RP-CDHG10 (3.3 ft/1.0 m) RP-CDHG15 (4.9 ft/1.5 m), RP-CDHG20 (6.6 ft/2.0 m), RP-CDHG30 (9.8 ft/3.0 m), RP-CDHG50 (16.4 ft/5.0 m)

* For more detail on the external equipment's connections, please refer to the operating manuals for the equipment.

■Press to exit from

a menu screen

EXIT

●

■Press to return to the previous screen

RETURN

●

Automatic Input

Switching

Power on link

Power off link

Default speakers

One-touch theater playback

Providing the setting information

(for "HDAVI Control 3")

Automatic lip-sync function

(for "HDAVI Control 3")

At the start of the DIGA, Player theater, or RAM theater playback, the TV's input automatically switches to the input based on the playback equipment.

- For the RAM theater, the speakers automatically switch to the theater system.

If using the DIGA operation, the TV's input automatically switches to the DIGA and DIGA menu is displayed.

When “Set” is selected (p. 25), TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible equipment is initially turned on and Play mode is selected.

When "Set" is selected (p. 25) and the TV is turned off, all connected VIERA Link compatible equipment is also automatically turned off.

- DIGA (Panasonic DVD Recorder) will not turn off if it is still in rec mode.

Caution: The TV remains on even if the VIERA Link compatible equipment is turned off.

"TV" is the default setting. To set the Home Theater system as default speakers, change the default speakers setting from "TV" to "Theater". Sound will be output from the Home Theater whenever the TV is powered on.

If the "ONE TOUCH PLAY" key is pressed on the remote control for Panasonic Home Theater system, the following sequence of operations is performed automatically.

① Home Theater power switches On, and playback begins.
② TV power switches On, and the playback screen is displayed.
③ Audio is muted on the TV and switches to the theater system.

The following information about the TV settings can be transmitted to each equipment (Recorder/Home theater/Player) that has "HDAVI Control 3" function connected to a TV with HDMI cable.

Transmittable data		Recorder	Home theater	Player
1 On Screen Display Language setting (English/Espanol/Français)		○	○	○
2 Panel Aspect Ratio (16:9 fixed)		○	○	○
3 Closed caption information	Mode	○	--- ---
	CC type	○	--- ---
	Digital setting	○	--- ---
4 Channel information	Input signal	○	--- ---
	Channel list	○	--- ---
	Caption information	○	--- ---

Note

• There is a possibility that all the GUI language information might be set from equipment that has HDMI CEC function connected to TV with HDMI cable. Depending on operating conditions or the specification for each piece of equipment the setting may or may not be applied.
• For the detail on external equipment's operation, please refer to the operating manuals for the equipment.

[For Recorder]

- You cannot operate other functions while transmitting TV's information above except Power On/Off key operation. When you turn off this unit, the transmission will be interrupted (only when you are transmitting ④Channel information).

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or Amplifier.

VIERA Link™ “HDAVI Control™”\*

You can enjoy more convenient operation with the "HDAVI Control" function in the "VIERA Link" menu.

For more details on the "HDAVI Control" function, refer to p. 26

    subgraph Section 1
        E["VIERA Link"] --> F["or"]
        G["Menu"] --> H["Select the item"]
        I["VIERA Link"] --> J["Select the item"]
        K["Radio"] --> L["Select the item"]
        M["Video"] --> N["Select the item"]
    end

    subgraph Section 2
        O["Record now"] --> P["Select the item"]
        Q["Stop recording"] --> R["Select the item"]
        S["VIERA Link control"] --> T["Select the item"]
        U["Recorder"] --> V["Select the item"]
        W["Speaker output"] --> X["Select the item"]
        Y["TV"] --> Z["Select the item"]
    end

    subgraph Section 3
        AA["Record now"] --> AB["Select the item"]
        AC["Stop recording"] --> AD["Select the item"]
        AE["VIERA Link control"] --> AF["Select the item"]
        AG["Home theater"] --> AH["Select the item"]
        AI["Speaker output"] --> AJ["Select the item"]
        AK["TV"] --> AL["Select the item"]
    end

    subgraph Section 4
        AM["Change"] --> AN["Set"]
    end

(Continued)

You can select Home theater or TV speakers for audio output.

Control theater speakers with the TV's remote control.

This function is available only when Panasonic Amplifier or Player theater is connected.

① Select "Speaker output"
② Select "Home theater" or "TV"

VIERA Link Record now Stop recording VIERA Link control Recorder Speaker output TV

■Home theater: Adjustment for equipment

The sound of the TV is muted.

When the equipment is turned off, the TV speakers take over.

Selecting "Home theater" turns the equipment on automatically if it is in standby mode.

■TV: The TV speakers are on.

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV's remote control to operate the equipment, pointing it at the TV.

① Select "VIERA Link Control"
② Select the equipment you want to access. (Recorder/Home theater/Player/Camcorder)

VIERA Link Record now Stop recording VIERA Link control Recorder Speaker output TV

You can select available items only.

■Available TV's remote control buttons

	Move the cursor/Select
	Set/Access
	Return to the previous menu
	Display the Functions menu on the equipment
	Available when the purpose of the keys is displayed on screen

③ Operate the equipment with the TV's remote control, pointing it at the TV.
- To operate the equipment, read the manual of the equipment.

Records the current program on the recorder immediately.

① Select "Record now"

VIERA Link Record now Stop recording VIERA Link control Recorder Speaker output TV

For optimal recording, the settings of the recorder might be required. For details, read the manual of the recorder.

② Select "Stop recording", when you want to stop recording

VIERA Link Record now Stop recording VIERA Link control Recorder Speaker output TV

Recording will not stop automatically when the program is finished.

Lock

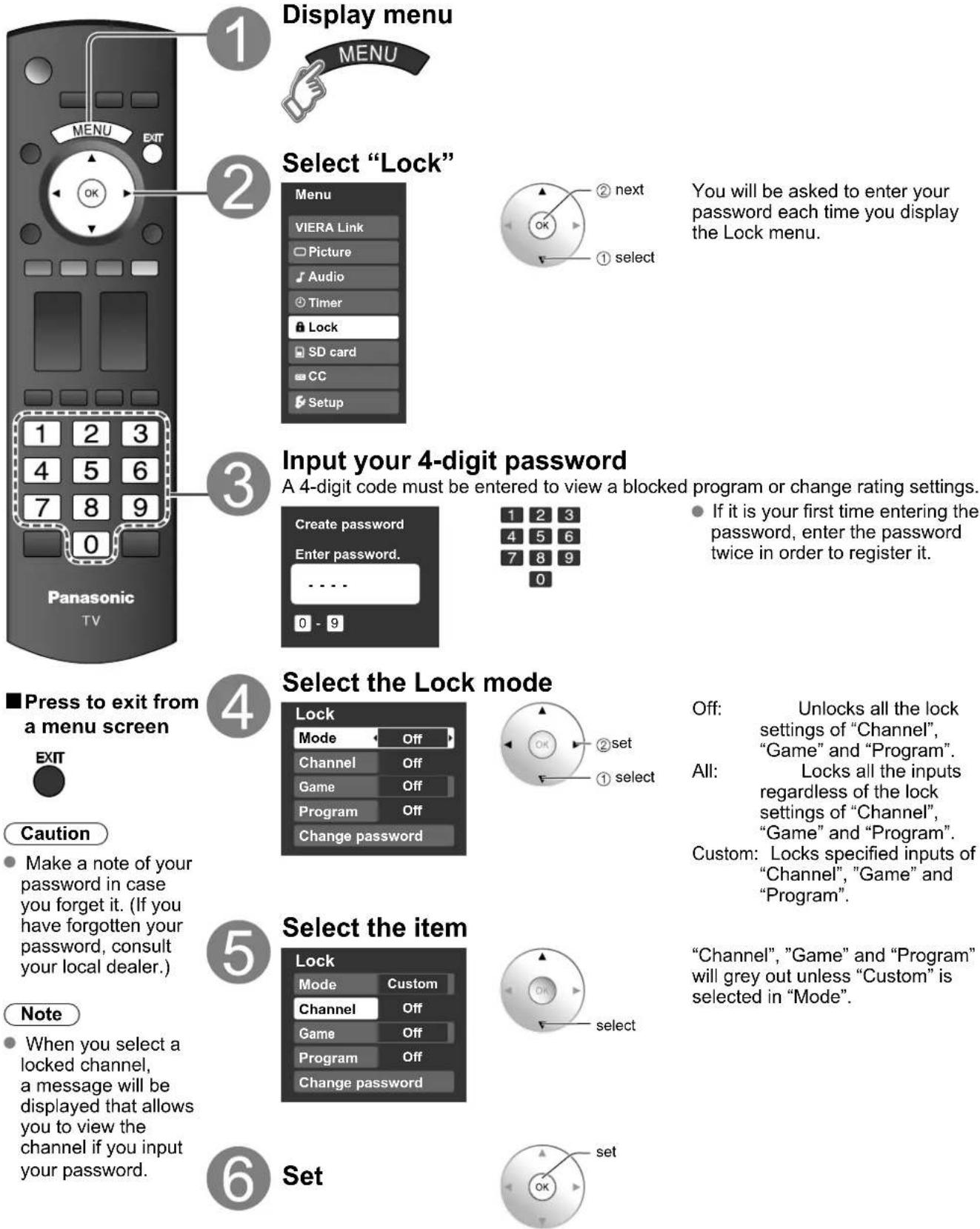

You can lock specified channels or shows to prevent children from watching objectionable content.

You will be asked to enter your password each time you display the Lock menu.

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or change rating settings.

- If it is your first time entering the password, enter the password twice in order to register it.

■Press to exit from a menu screen

Caution

- Make a note of your password in case you forget it. (If you have forgotten your password, consult your local dealer.)

Note

- When you select a locked channel, a message will be displayed that allows you to view the channel if you input your password.

Set

Off: Unlocks all the lock settings of "Channel", "Game" and "Program".

All: Locks all the inputs regardless of the lock settings of "Channel", "Game" and "Program".

Custom: Locks specified inputs of "Channel", "Game" and "Program".

"Channel", "Game" and "Program" will grey out unless "Custom" is selected in "Mode".

■ To select the channel or the rating of the program to be locked

Channel lock	Select up to 7 (1-7) channels to be blocked. These channels will be blocked regardless of the program rating.1 Select “Mode” and set to “Custom”2 Select channel to lock.		To lock/unlock all channels:Select “Mode” and set to “All” or “Off”.All: Locks all channelsOff: Unlocks all channels
Game lock	Locks Channel 3, Channel 4 and external inputs.Select “Game” in 5 and set to “On”.		On: LocksOff: Unlocks
Program lock	■ To set a rating level“V-chip” technology enables restricted shows to be locked according to TV ratings.1 Select “Mode” and set to “On”.Program lockMode OnMonitor out OnMPAA OffU.S.TV OffC.E.L.R. OffC.F.L.R. Off2 Select the rating category you wish to followProgram lockMode OnMonitor out OnMPAA OffU.S.TV OffC.E.L.R. OffC.F.L.R. OffMPAA: U.S movie ratingsU.S.TV: U.S TV program ratingsC.E.L.R.: Canadian English ratingsC.F.L.R.: Canadian French ratings		3 Select the rating to be lockedExample of “MPAA” (U.S movie ratings)NR No ratingG General Audience: All ages admittedPG Parental Guidance SuggestedPG-13 Parents Strongly Cautioned: Inappropriate for children under 13R Restricted: Under 17 requires accompanying parent or adult guardianNC-17 No one 17 and under admittedX Adults only● To get more information (p. 39)■ To disable recording of the locked programSelect “Monitor out” and set to “On”.Program lockMode OnMonitor out OffMPAA OffU.S.TV OffC.E.L.R. OffC.F.L.R. Off
Change password	■ To change the passwordIn , select “Change password” and press OKInput the new 4-digit password twice		→ Change passwordEnter new password....0 - 9

■ To set a rating level

Program lock
Mode	On
Monitor out	On
MPAA	Off
U.S.TV	Off
C.E.L.R.	Off
C.F.L.R.	Off

Program lock
Mode	On
Monitor out	On
MPAA	Off
U.S.TV	Off
C.E.L.R.	Off
C.F.L.R.	Off

Note

• This television is designed to support the “Downloadable U.S. Region Rating System” when available. (Available only in U.S.A.)
  ● The Off rating is independent of other ratings.
• When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also be blocked.

Editing and Setting Channels

The current channel settings can be changed according to your needs and reception conditions.

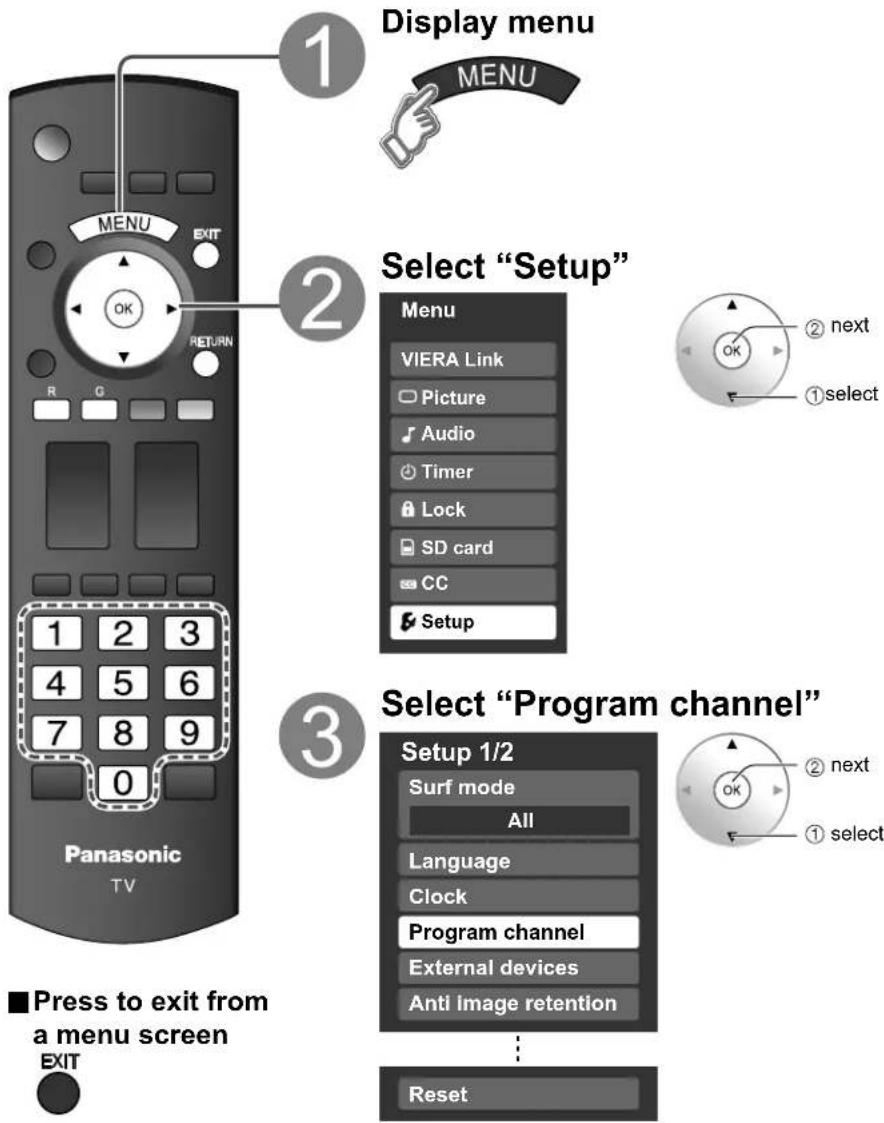

Display menu MENU MENU EXIT RETURN R G 1 2 3 4 5 6 7 8 9 0 Panasonic TV ■Press to exit from a menu screen EXIT Select "Setup" Menu VIERA Link Picture Audio Timer Lock SD card CC Setup ② next ①select ③ Select "Program channel" Setup 1/2 Surf mode All Language Clock Program channel External devices Anti image retention Reset ② next ① select

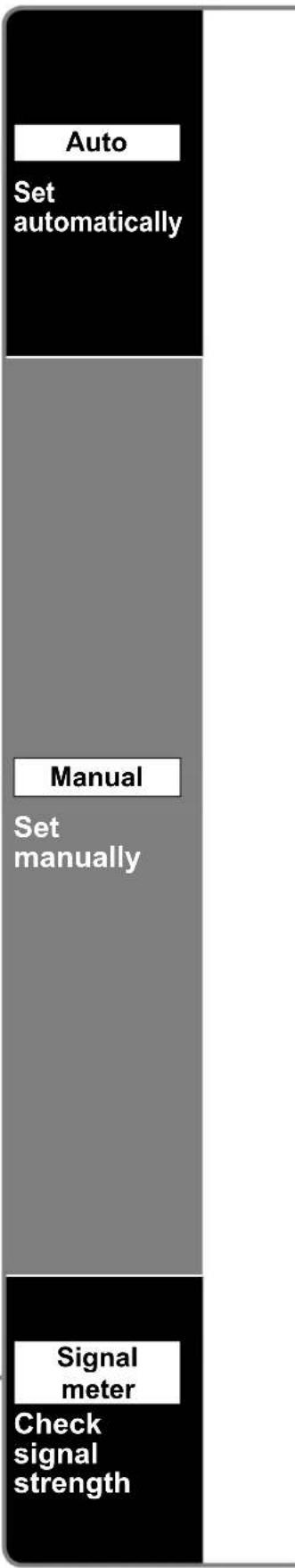

4 Select the function Program channel ANT in Cable Auto Manual Signal meter ② next OK ① select

5 Set

Automatically searches and adds available channels to the memory.

① Select "ANT in"

→ Select Cable or Antenna (p. 15)

② Select "Auto"

Program channel ANT in Cable Auto Manual Signal meter

③ Select a scanning mode (p. 15)

Auto program All channels Analog only Digital only

Settings are made automatically

- After the scanning is completed, select "Apply". (see below 5)

- All previously saved channels are erased.

Use this procedure when changing the channel setup or changing the channel display.

Also, use this to add or skip channels from the channel list manually.

You can select a channel tuning mode (Digital only/Analog only) in "Surf mode"(p. 25)

① Select "Edit"

② Select the item to be edited

Manual program Edit Apply Cancel Cannel Caption Favorite Add 2 ... ... Yes 3 ... ... Yes 4 ... ... Yes Favorite Caption Add

Select OK RETURN R Prev. page S Next page B Y R G Proceed to next page

Go back to previous page

• Caption:
  Changes the station identifier
• Favorite:
  Registers channel to Favorite List
• Add:
  Adds or skips channels

③ Edit

Caption

Caption

Select the station identifier

- Favorite

Caption detail

Rename (maximum 7 characters available)

Set favorite Select the number

- Add

Press OK to select "Yes (add)" or "No (skip)"

④ Move cursor to channel number

⑤ Select "Apply"

To cancel the Edit

Changes will be lost. Continue? Yes No

② ok (returns to "Program channel") ① select "Yes"

Check the signal strength if an interference is found or freezing occurs on a digital image.

Signal meter Channel 1-1 Signal strength Current 30% Peak level 45%

- If the signal is weak, check the antenna. If no problem is found, consult your local dealer.

Note

• Not available if "Cable" is selected in "ANT in" (see above).
  ● Available only for digital antenna channels.

Closed Caption

1 Display menu MENU MENU EXIT OK RETURN 2 Select "CC" Menu VIERA Link Picture Audio Timer Lock SD card CC Setup ■Press to exit from a menu screen EXIT

CC Display Closed Caption

The television includes a built-in decoder that is capable of providing a text display of the audio. The program being viewed must be transmitting Closed Caption (CC) information. (p. 40)

■ Select the item and set

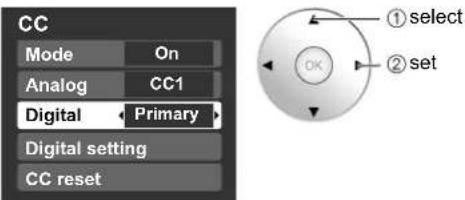

CC Mode On Analog CC1 Digital Primary Digital setting CC reset ① select ② set

- The settings in "Analog" or "Digital" depend on the broadcaster.

Select "On" (when not using, select "Off").
(Choose the Closed Caption service of Analog broadcasting.)
CC1-4: Information related to pictures (Appears at bottom of screen)
T1-4: Textual information (Appears over entire screen)

Mode

Analog

Digital

(The Digital Closed Caption menu lets you configure the way you choose to view the digital captioning.)

Select the setting

- "Primary", "Second.", "Service 3", "Service 4", "Service 5", "Service 6"

■To make more in-depth display settings in digital programs

① Select "Digital setting" and press OK
② Select the item and set

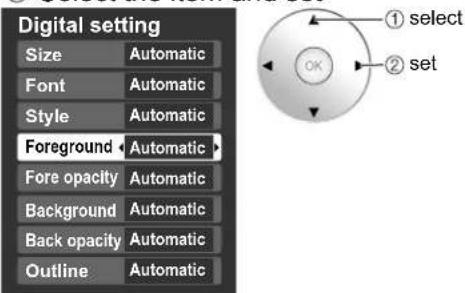

Digital setting Size Automatic Font Automatic Style Automatic Foreground Automatic Fore opacity Automatic Background Automatic Back opacity Automatic Outline Automatic

• Size: Text size
• Font: Text font
  Style: Text style (Raised, Depressed, etc.)
• Foreground: Color of text
• Fore opacity: Opacity of text
  Background: Color of text box
• Back opacity: Opacity of text box
• Outline: Outline color of text (Identify the setting options on the screen.)

■ To reset the settings

Select "CC reset" and press OK

Input Labels/Monitor Out

Devices connected to external input terminals can be labeled for easier identification during input selection. (In selecting input mode from p. 20) ■ Select the terminal and label of the external equipment Input labels Component 1 Component 2 HDMI 1 HDMI 2 HDMI 3 GAME Video 1 Video 2 GAME Input labels Display labels of external devices To prevent howling and image oscillation, stops output of the pictures and audio specified in this menu. (p. 25) ■ Select the terminal and set “Off” Monitor out Stop output of the picture and audio Monitor out Component 1 On Component 2 On HDMI 1 On HDMI 2 On HDMI 3 On Video 1 Off Video 2 On Select "Off" to stop output of picture and audio. (Video 1/Video 2) Component 1/Component 2/HDMI 1/HDMI 2/HDMI 3 cannot output video signals regardless of "Monitor out" setting. When equipment (STB, DVD, etc.) is connected to HDMI or COMPONENT terminals, no video signals can be passed through PROG OUT terminal.

Using Timer

The TV can automatically turn On/Off at the designated date and time.

● The Clock must be set before On time/Off time settings. (p. 14)
- The "Sleep" timer and "On / Off timer" will not work if the "Auto power on" (p. 25) is set.

1 Display menu MENU 2 Select "Timer" Menu VIERA Link Picture Audio Timer Lock SD card ① select ② next OK

Select the timer to set

Timer Sleep Timer 1 Timer 2 Timer 3 Timer 4 Timer 5 ① select OK ② next Sleep Turns Off automatically Timer 1 Turns On/Off automatically ? (5 timers can be set.) Timer 5

■Press to exit from a menu screen EXIT ■Press to return to the previous 4 Set the timer ■To set "Sleep" (Off Timer) Set to shut the unit off after a pre-selected amount of time. Sleep Sleep 60 ● 0/30/60/90 (minutes) OK set

■Press to return to the previous screen

Note

- The TV automatically turns Off after 90 minutes when turned On by the Timer. This operation will be cancelled if the Off time is selected or if a key is pressed.

Set the timer

■To set "Sleep" (Off Timer)

Set to shut the unit off after a pre-selected amount of time.

0/30/60/90 (minutes)

■ To set "Timer 1-5" (On/Off Timer)

Select the item and set

Timer 1 Channel 310 - 1 Day EVR FRI On time 10:00 AM Off time 11:00 AM Set On

or

Channel Select the channel
Day Select the day

SUN/MON/TUE/WED/THU/FRI/SAT (displays the nearest future date) MON-FRI/SAT-SUN/DAILY/EVR SUN/EVR MON/ EVR TUE/EVR WED/EVR THU/EVR FRI/ EVR SAT

On time The time to turn On Off time The time to turn Off Set Timer setting (On/Off)

Recommended AV Connections

These diagrams show our recommendations on how to connect the TV unit to your various equipment. For other connections, consult the instructions for each piece of equipment and its specifications.

For additional assistance, please visit our website at: www.panasonic.com

www.panasonic.ca

Note

• The picture and audio input signals connected to a terminal specified in "Monitor out" (p. 35) cannot be output from "PROG OUT" terminals. However, audio output can be obtained from "DIGITAL AUDIO OUT" terminal.

• To prevent howling and image oscillation, set the "Monitor out" setting when connecting the VCR with loop-connection. (p. 24, 35)

• When equipment (STB, DVD, etc.) is connected to HDMI or COMPONENT terminals, no video signals can be passed through PROG OUT terminal.

• When receiving digital channel signals, all digital formats are down-converted to composite NTSC video to be output through the PROG OUT terminals.
  * Please see p. 22-23 for setup when using an external analog audio cable with an HDMI to DVI cable.

VIERA Link™ Connections

Follow the connection diagrams below for HDAVI control of a single piece of AV equipment such as a DVD recorder (DIGA), RAM theater, or Player theater system.

Refer to page 26-29 for Setup Menu settings and additional control information.

- Optional HDMI and/or optical cables are not included.

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and check that DVD recorder (DIGA), RAM theater, and Player theater playback operate.

Note

• HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3, set the input mode to HDMI 2/HDMI 3 (p. 20) initially before connecting to HDMI 2/HDMI 3. After connection, confirm the HDMI control functions (p. 26-29).

■ Connecting this unit to the DVD recorder (DIGA), RAM theater, or Player theater

- For DVD recorder (DIGA): Connect with HDMI cable

- For RAM theater and Player theater:

Connect with the HDMI and audio cables.

If audio cable is not connected, you cannot listen to the TV program through the theater system.

■ Connecting this unit to a DVD recorder (DIGA) AV amp

When using an "VIERA Link" audio-video amplifier and a compatible DVD recorder (DIGA) use a daisy chain connection as shown below.

● One AV amp and one DVD recorder (DIGA) can be operated with this unit.
- Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).

■Setting of this unit after connection

After making connections as shown above, set "VIERA Link" (under "VIERA Link setting") to "On" using the Setup menu. (p. 21, 24-25).

Note

• Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their respective operating instruction manuals.
• When audio from other equipment connected to this unit via HDMI is output using "DIGITAL AUDIO OUT" of this unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

- About HDMI cable for connecting Panasonic HD camcorder, read the manual of the equipment.

Ratings List for Lock

"V-chip" technology enables you to lock channels or shows according to standard ratings set by the entertainment industry. (p. 31)

■U.S. MOVIE RATINGS (MPAA)

NR	NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply.
G	GENERAL AUDIENCES. All ages admitted.
PG	PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PG-13	PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.
R	RESTRICTED. Under 17 requires accompanying parent or adult guardian.
NC-17	NO ONE 17 AND UNDER ADMITTED.
X	ADULTS ONLY.

■U.S. TV PROGRAMS RATINGS (U. S. TV)

Age-based Group	Age-based Ratings	Possible Content Selections	Description
NR(Not Rated)	TV-NR	ViewableBlocked	Not Rated.
Youth	TV-Y	ViewableBlocked	All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6.
	TV-Y7	FV BlockedViewableBlocked	Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.
Guidance	TV-G	ViewableBlocked	General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.
	TV-PG	D,L,S,V (all selected)Any combination of D, L, S, V	Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.
	TV-14	D,L,S,V (all selected)Any combination of D, L, S, V	Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.
	TV-MA	L,S,V (all selected)Any combination of L, S, V	Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

■CANADIAN ENGLISH RATINGS (C. E. L. R.)

E	Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
C	Programming intended for children under age 8. No offensive language, nudity or sexual content.
C8+	Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.
G	General programming, suitable for all audiences.
PG	Parental Guidance suggested. Some material may not be suitable for children.
14+	Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.
18+	18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

■CANADIAN FRENCH RATINGS (C. F. L. R.)

E	Exempt - Exempt programming.
G	General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.
8 ans+	8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.
13 ans+	Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.
16 ans+	Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.
18 ans+	Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

- The V-Chip system that is used in this set is capable of blocking "NR" programs (non rated, not applicable and none) as per FCC Rules Section15.120(e)(2). If the option of blocking "NR" programs is chosen "unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming."

• Emergency Bulletins (Such as EAS messages, weather warnings and others)
- Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

Technical Information

Closed Caption (CC)

• For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM, or 4:3; characters might be cut off).
• The CC can be displayed on the TV if the receiver (such as a set-top box or satellite receiver) has the CC set On using the Component or HDMI connection to the TV.
• If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC may overlap on the TV.
• If a digital program is being output in analog format, the CC data will also be output in analog format.
• If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.

Aspect Ratio

Lets you choose the aspect depending on the format of the received signal and your preference. (p. 17) (e.g.: in case of 4:3 image)

FULL JUST

4 3 FULL 16 9

Enlarges the 4:3 image horizontally to the screen's side edges. (Recommended for anamorphic picture)

4 3 16 9 JUST

Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast)

H-FILL 4:3

4 3 16 H-FILL 9

Enlarges the 4:3 image horizontally to the screen's side edges. The side edges of the image are cut off.

4 4:3 3 Side bar

Standard (Note that "Image retention" of the side bar may occur from displaying it for a long time.)

• ZOOM

4 3 16 9 ZOOM

Enlarges the 4:3 image to the entire screen. (Recommended for Letter Box)

Note

● 480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9): FULL, JUST, 4:3 or ZOOM
- 1080p / 1080i / 720p: FULL, H-FILL, JUST, 4:3 or ZOOM

- Zoom adjust

Vertical image position and size can be adjusted in "ZOOM".

Select "Zoom adjust" on the "Picture" menu. (p. 22-23)

②position: Vertical position adjustment V-size: Vertical size adjustment

Black-and-white photo of a football player in mid-throw, wearing helmet and jersey (no visible text or symbols)

- To reset the aspect ratio

Data format for SD Card browsing

Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF** standards

Data format: Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)

Max. number of files: 9,999

Image resolution: 160 x 120 to 10,000,000

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association's standard

** EXIF (Exchangeable Image File Format)

Caution

● A JPEG image modified with a PC may not be displayed.
- Partly degraded files might be displayed at a reduced resolution.

Note

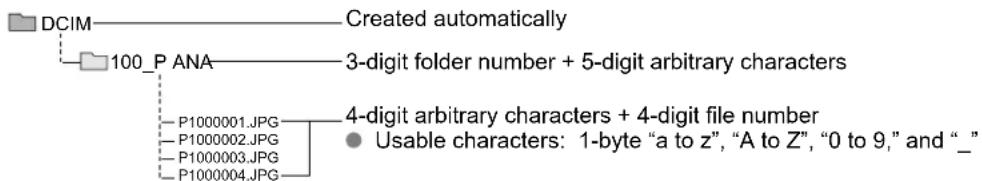

- Folder structure viewed in PC

DCIM Created automatically 100_P_ANA 3-digit folder number + 5-digit arbitrary characters P1000001.JPG P1000002.JPG P1000003.JPG P1000004.JPG 4-digit arbitrary characters + 4-digit file number ● Usable characters: 1-byte "a to z", "A to Z", "0 to 9," and "_"

• The folder and file names may be different depending on the digital camera used.
  For the suitable SD Memory Cards, please confirm the latest information on the following website. http://panasonic.co.jp/pavc/global/cs (This site is in English only)

Cautions in handling SD Card:

• Do not remove the card while the unit is accessing data (this can damage card or unit).
• Do not touch the terminals on the back of the card.
• Do not subject the card to a high pressure or impact.
• Insert the card in the correct direction (otherwise, card may be damaged).
  Electrical interference, static electricity, or erroneous operation may damage the data or card.
• Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

SD Card warning messages

Message Meaning

Is SD card in?

No file

Cannot read file

● The card is not inserted.
● The card has no data or this type of data is not supported.
● The file is broken or unreadable.
● The TV does not support the format.

GalleryPlayer warning messages

Cannot display image due to incorrect ID data.

Cannot display image on SD card.

● There is a problem with your TV decoder.
- If this message appears, please contact Panasonic Service Center for assistance. Refer to page 48 (Customer Services Directory), page 47, 49 (Limited Warranty)
- There is a problem with the data. Check the data inside the SD card.

Viewing from a GalleryPlayer SD Card

You can view high-definition art and photography purchased on or downloaded to an SD card. GalleryPlayer provides pre-loaded SD cards with copy-protected imagery and images for download to your computer that can be saved on an SD card for display on your television.

GalleryPlayer images are available for a fee from GalleryPlayer, Inc.

Technical Information (Continued)

VIERA Link "HDAVI Control™"

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 26)

• This function may not work normally depending on the equipment condition.
  ● The equipment can be operated by other remote controls with this function on even if TV is in Standby mode.
• Image or sound may not be available for the first few seconds when the playback starts.
• Image or sound may not be available for the first few seconds when Input mode is switched.
  Volume function will be displayed when adjusting the volume of the equipment.
• If you connect the same kind of equipment at once (for example: one DIGA to HDMI 1 / another DIGA to HDMI 2), VIERA Link is available for the terminal with the smaller number.
• If you connect equipment that has "HDAVI Control 2" (or more) function to the TV with HDMI cable, the sound from DIGITAL AUDIO OUT terminal can be output as multi channel surround.
• “HDAVI Control 3” is the newest standard (current as of December, 2007) for the HDAVI Control compatible equipment. This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and the devices.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard.
- If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).
- When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.
● Audio settings can be made on the "HDMI 1 in", "HDMI 2 in" or "HDMI 3 in" menu screen. (p. 22)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device.
(*2): Enquire at your local digital equipment retailer shop.

Caution

• Use with a PC is not assumed.
  ● All signals are reformatted before being displayed on the screen.
• If the connected device has an aspect adjustment function, set the aspect ratio to "16:9".
• These HDMI connectors are "type A".
  ● These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
• A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S VIDEO”, or “VIDEO” to receive analog signals.
• The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p. Match the output setting of the digital device.
• For details of the applicable HDMI signals, see below.

Input signals that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

	horizontal frequency (kHz)	vertical frequency (Hz)	COMPONENT HDMI
525 (480) / 60i 15.73 59.94			*	*
525 (480) /60p 31.47 59.94			*	*
750 (720) /60p 45.00 59.94			*	*
1,125 (1,080) /60i 33.75 59.94			*	*
1,125 (1,080)/60p 67.43 59.94				*
1,125 (1,080)/60p 67.50 60.00				*
1,125(1,080)/24p 26.97 23.98				*
1,125(1,080)/24p 27.00 24.00				*

Note

● Signals other than those shown above may not be displayed properly.
● The above signals are reformatted for optimal viewing on your display.

Picture mode

● Vivid: Provides enhanced picture contrast and sharpness for viewing in a well-lit room.
- Standard: Recommended for normal viewing conditions with subdued room lighting.
Cinema: For watching movies in a darkened room. It provides a soft, film-like picture.
● Game: For playing video game. This mode will be set automatically if "GAME" is selected from Input label setting (p. 35)
- Custom (Photo): Customizes each item according to your taste.

Photo is displayed in JPEG menu.

Note

● Picture mode will be automatically set to "Standard" if you change Input label from "GAME" to other labels.
● Picture mode will be automatically set to "Game" if you change from an Input label other than "GAME" to "GAME" label.

DIGITAL AUDIO OUT terminals

You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and "Multi Channel" amplifier to the DIGITAL AUDIO OUT terminals.

Caution

● Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output.
● External speakers cannot be connected directly to PROG OUT terminals.
- When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC channel is selected, the output will be PCM.
See pages 37-38 for more information.

Side Bar

Do not display a picture in 4:3 mode for an extended period, as this can cause "Image retention" to remain on either or both sides of the display field. To reduce the risk of such "Image retention", change the brightness of the side bars. See pages 24-25 for more information.

- The side bar may flash (alternate black/white) depending on the picture. Using Cinema mode will reduce such flashing (See below).

Scrolling bar

Scrolling bar: To prevent "Image retention", scrolls white vertical bar from left to right on a black screen.

- Press any key except the POWER key to return to previous screen.

- You will return to previous screen if any key operation has not been performed for 15 minutes. See pages 24-25 for more information.

[Scrolling bar]

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

- If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

- Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

- If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry. Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.

- Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV. If water droplets get inside the unit, operating problems may result.

- Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Pedestal

- Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

- Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with rubber, vinyl products, or the like. (Doing so will cause deterioration.)

FAQ

Before requesting service or assistance, please follow these simple guides to resolve the problem.

If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance.

For details (p. 48, 49)

For additional assistance, please contact us via the website at:

www.panasonic.com/contactinfo

www.panasonic.ca

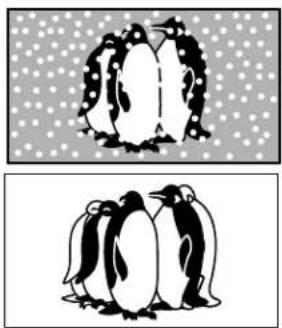

White spots or shadow images (noise)

- Check the position, direction, and connection of the antenna.

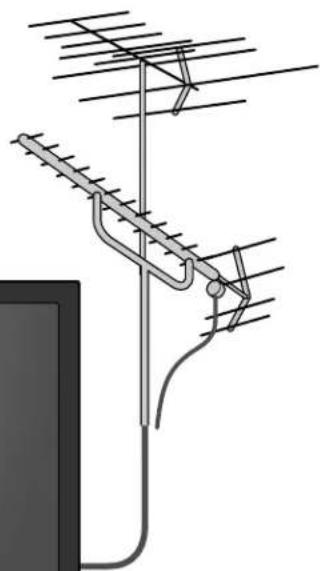

Interference or frozen digital channels (intermittent sound)

Low-resolution grayscale image with no discernible text, symbols, or identifiable objects.

• Change the direction of antenna for digital channels.
• Check "Signal meter" (p. 33). If the signal is weak, check the antenna and consult your local dealer.

Front view of a Panasonic TV displaying its blank screen (no visible text or symbols on the screen)

Diagram of a mounted antenna with antenna array and cable, no text or symbols present

Illustration of a computer monitor with an attached cable or plug, showing no text or symbols.

POWER VISA SAP Link TV VIDEO MENU EXIT OK SUB MENU RETURN R G B Y A + CH VOL - FORMAT PAVORTE INFO MUTE 1 2 3 4 5 6 7 8 9 LAST 0 - Panasonic TV

Pictures from external equipment are distorted when the unit is connected via HDMI

• Is the HDMI cable connected properly? (p. 37, 38)
• Turn Off the TV unit and equipment, then turn them On again.
• Check an input signal from the equipment. (p. 42)
• Use equipment compliant with EIA/CEA-861/861B.

Recording does not start immediately

- Check the settings of the recorder. For details, read the manual of the recorder.

The remote control does not work

Are the batteries installed correctly? (p. 6)
- Has the battery run down?

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).

    B --> K["The function to prevent &quot;Image retention&quot; is activated. (Not a faulty symptom)<br>The screen saver is activated if the TV unit is not operated for a certain time in SD mode.<br>&quot;Image retention&quot; (p. 5)"]
    C --> L["A pixel or luminescent spot can occasionally be missing in plasma displays. (Not a faulty symptom)"]
    D --> M["Check nearby electrical products (car, motorcycle, fluorescent lamp)."]
    E --> N["Check Picture menu (p. 22)<br>Check the cable connections.<br>Check that the correct input has been selected."]
    F --> O["Check the channel settings. (p. 32)<br>Check the antenna cables."]
    G --> P["Is the AC power cord plugged into the outlet?<br>Is the TV unit turned On?<br>Check Picture menu (p. 22) and volume.<br>Check the AV cable connections.<br>Check that the correct input has been selected."]
    H --> Q["Change settings of Closed Caption (CC). (p. 34)"]
    I --> R["Are the speakers' cables connected correctly? (p. 37)<br>Is &quot;Sound Mute&quot; active? (p. 13)<br>Is the volume set to the minimum?<br>Is &quot;Speaker output&quot; set to &quot;Off&quot;? (p. 22)<br>Change &quot;SAP&quot; settings. (p. 16)<br>Check &quot;HDMI 1 in&quot;, &quot;HDMI 2 in&quot; or &quot;HDMI 3 in&quot; settings. (p. 22)"]
    J --> S["Set &quot;SAP&quot; setting to &quot;Stereo&quot; or &quot;Mono.&quot;<br>Check the HDMI device connected to the unit.<br>Set the audio setting of the HDMI device to &quot;Linear PCM.&quot;<br>If digital sound connection has a problem, select analog sound connection."]

Specifications

		TH-42PX80U TH-50PX80U
Power Source AC 120 V, 60 Hz
Power Consumption	Maximum 385 W 497 W
	Standby condition 0.3 W 0.2 W
Plasma Display panel	Drive method AC type
	Aspect Ratio 16:9
	Visible screen size (W × H × Diagonal) (No. of pixels)	42" class (41.6 inches measured diagonally) 50" class (49.9 inches measured diagonally)
		36.2" × 20.4" × 41.6"(922 mm × 518 mm × 1,057 mm)	43.5" × 24.4" × 49.9"(1,106 mm × 622 mm × 1,269 mm)
		786,432 (1,024 (W) × 768 (H))[3,072 × 768 dots]	1,049,088 (1,366 (W) × 768 (H))[4,098 × 768 dots]
Sound	Audio Output 20 W [10 W + 10 W ] (10 % THD )
Channel Capability (Digital/Analog)		VHF/UHF: 2 - 69, CATV: 1 - 135
Operating Conditions		Temperature: 32°F - 104°F (0°C - 40°C) Humidity: 20% - 80% RH (non-condensing)
Connection Terminals	VIDEO IN 1-2	VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)S-VIDEO: Mini DIN 4-pin Y: 1.0 V [p-p] (75 Ω) C: 0.286 V [p-p] (75 Ω)AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]
	COMPONENT INPUT 1-2	Y: 1.0 V [p-p] (including synchronization)PB, PR: ±0.35 V [p-p]AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]
	HDMI 1-3	TYPE A Connector × 3● This TV supports "HDAVI Control 3" function.
	Card slot	SD CARD slot × 1
	AV PROG OUT	VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]
	DIGITAL AUDIO OUT	PCM / Dolby Digital, Fiber Optic
FEATURES		3D Y/C FILTERCLOSED CAPTION V-ChipPhoto Viewer HDAVI Control 3

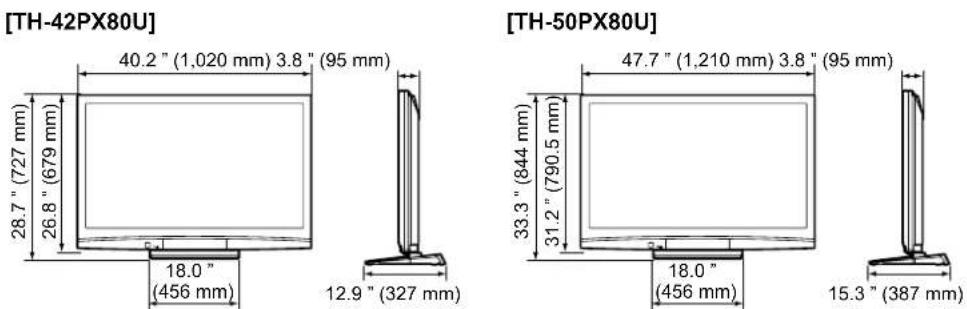

Dimensions(W × H × D)	Including pedestal	40.2" × 28.7" × 12.9"(1,020 mm × 727 mm × 327 mm)	47.7" × 33.3" × 15.3"(1,210 mm × 844 mm × 387 mm)
	TV Set only	40.2" × 26.8" × 3.8"(1,020 mm × 679 mm × 95 mm)	47.7" × 31.2" × 3.8"(1,210 mm × 790.5 mm × 95 mm)
Mass	Including pedestal	61.8 lb. (28.0 kg)	82.7 lb. (37.5 kg)
	TV Set only	56.7 lb. (25.7 kg)	76.8 lb. (34.8 kg)

Note

- Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Limited Warranty (for U.S.A.)

PANASONIC CONSUMER ELECTRONICS COMPANY,

DIVISION OF

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way

Secaucus, New Jersey 07094

PANASONIC SALES COMPANY,

DIVISION OF

San Gabriel Industrial Park

Carolina, Puerto Rico 00985

Panasonic Color Television Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

CATEGORIES	ALL PARTS EXCEPT GLASS PANEL OR CRT	LABOR GLASS PANEL OR CRT	GLASS PANEL OR CRT LABOR	SERVICE
PLASMA DISPLAY 1 (ONE) YEAR	AR 1 (ONE) YEAR		GLASS PANEL - 2 (TWO) YEARS	1 (ONE) YEAR IN-HOME OR CARRY-IN

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will be no charge for parts.

You must carry-in your product or arrange for in-home service during the Limited Warranty period. If non-rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of the original purchase date is required for Limited Warranty service.

In-Home or Carry-in Service

For In-Home or Carry-In Service in the United States call 1-888-VIEW-PTV(1-888-843-9788).

For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax [phone].

In-Home service requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV's, or non-expanded standard 4:3 pictures on wide screen TV's, or onscreen data in a stationary and fixed location).

The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As

examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE LIMITED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Customer Services Directory (for U.S.A.)

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-888-VIEW-PTV (843-9788)

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

■For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South,

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

■For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Service in Puerto Rico

Panasonic Puerto Rico, Inc.

Limited Warranty (for Canada)

Panasonic Canada Inc.

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Plasma TV / Monitor In-h	home service One (1) year, parts (including Plasma Panel) and labour.
LCD TV (26 in & over) In-	home service One (1) year, parts (including LCD Panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

In-home service requires clear, complete and easy access to the product by the Authorized Servicentre and does not include removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of the Servicentre and in no event will Panasonic Canada Inc. or the Servicentre be liable for any special, indirect or consequential damages.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014

Email link: www.vieraconcierge.ca

FOR PRODUCT REPAIRS, please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Customer's Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model

Number

Serial

Number

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus New Jersey 07094 U.S.A.

Panasonic Puerto Rico, Inc. Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Panasonic Canada Inc. 5770 Ambler Drive Mississauga, Ontario L4W 2T3 CANADA

Interior view of a modern room with wooden paneling and a Panasonic TV, no visible text or symbols on the main subject.

Responsible: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Dirección de

Panasonic Consumer Electronics Company

contacto:

1-888-VIEW-PTV (843-9788)

email: [e-mail]

ADVERTENCIA/PRECAUCION

ADVERTENCIA

Technical line drawing of a rectangular frame with mounting holes and a central blank space (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

Back view of a computer monitor showing internal components and a small screen with a logo (no text or symbols visible)

Para colocar Para quitar

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Diagram of a computer monitor rear panel with four circular ports and a cable connector (no text or symbols)

Line drawing of a USB cable with a connector (no text or symbols)

• Inserte firmemente.

Conexión básica

Front view of a Panasonic TV remote control with no visible text or symbols on the device itself

Configurar favorito 1/3 1 --- 2 --- 3 --- 4 ---

Front view of a flat-screen computer monitor with a cable inserted into the top panel (no visible text or symbols)

1

Route Push 3 - Signets RETURN Dispost. O B Y

Black-and-white photo of a football player in mid-throw, wearing helmet and gear (no visible text or symbols)

VIERA Link "HDAVI Control™"

Low-resolution grayscale image with no discernible text, symbols, or identifiable objects.

Front view of a Panasonic TV displaying its blank screen (no visible text or symbols on the screen)

Diagram of a mounted antenna with curved and straight lines, no text or symbols present

Illustration of a computer monitor with an attached cable (no text or symbols visible)

POWER VISA SAP Link TV VIDEO MENU EXIT OK SUB MENU RETURN R G B Y A + CH VOL - FORMAT PAVORTE INFO MUTE 1 2 3 4 5 6 7 8 9 LAST 0 - Panasonic TV

Front view of a Panasonic TV monitor with black frame and stand (no visible text or symbols on screen)

Interior view of a modern room with wooden paneling and a Panasonic TV, no visible text or symbols on the main subject.

Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact:

Panasonic Consumer Electronics Company

1-888-VIEW-PTV (843-9788)

email:

[e-mail]

Technical line drawing of a rectangular frame with mounting holes and a central blank space (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

Montant R A L Montant Avant Base

Installation

Montant (2) L R

Simple line drawing of a flatboard with a clip, labeled 'Base (1)' above (no other text or symbols)

Avertissement

Back view of a computer monitor with an internal component and a small inset showing a device (no text or symbols visible)

Technical diagram showing two views of a device with labeled components and directional arrows indicating assembly or connection.

Diagram of a mechanical or electrical component with labeled parts ① and ②, showing internal structure and directional arrows.

Diagram of an electronic device rear panel with ports and connectors, showing no text or symbols

Line drawing of a USB cable with an external connector (no text or symbols)

• Insérez à fond.

Connexion de base

Front view of a Panasonic TV remote control with no visible text or symbols on the device itself

Front view of a flat-screen monitor with a cable inserted into the top-right corner (no visible text or symbols)

Black-and-white photo of a soccer player in action, wearing jersey number 21, with NFL helmet and scoreboard visible (no readable text or symbols)

0/30/60/90 (minutes)

Remarque

** EXIF (Exchangeable Image File Format)

Caution

Informations techniques (Suite)

VIERA Link™ "HDAVI Control™"

Low-resolution grayscale image with no discernible text, symbols, or identifiable objects.

Front view of a Panasonic TV displaying its blank screen (no visible text or symbols on the screen)

Diagram of a mounted antenna with curved and straight lines, no text or symbols present

Illustration of a computer monitor with an attached cable, showing no text or symbols.

POWER VISA SAP Link TV VIDEO MENU EXIT OK SUB MENU RETURN R G B Y A + CH V VOL - FORMAT FONORTE INFO MUTE 1 2 3 4 5 6 7 8 9 LAST 0 -- Panasonic TV

Panasonic Canada Inc.

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus New Jersey 07094 U.S.A.

Panasonic Puerto Rico, Inc. Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Panasonic Canada Inc. 5770 Ambler Drive Mississauga, Ontario L4W 2T3 CANADA
