User Manual

iGen5000DFc EFI

Digital Inverter Generator

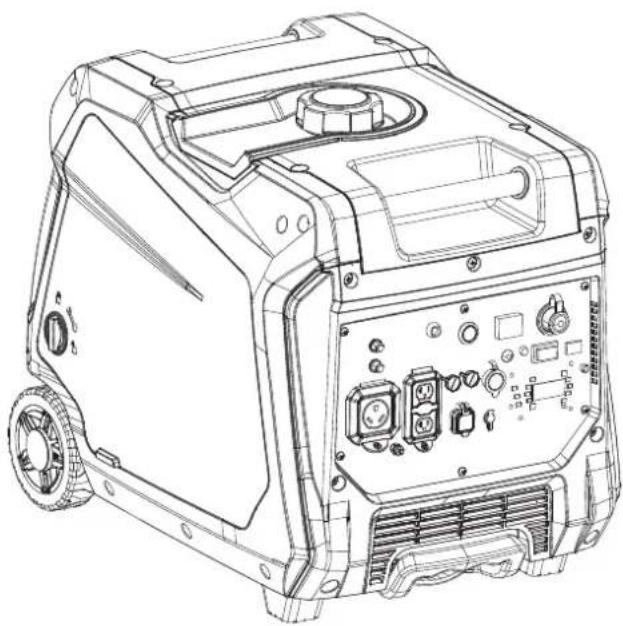

Line drawing of a portable electricity generator with control panel and fan (no text or symbols)

Introduction....2-3

Safety 4-10

Electrical....11

Components 12-13

Assembly 14

Operation....14-24

Care and maintenance 25-30

Troubleshooting....31-32

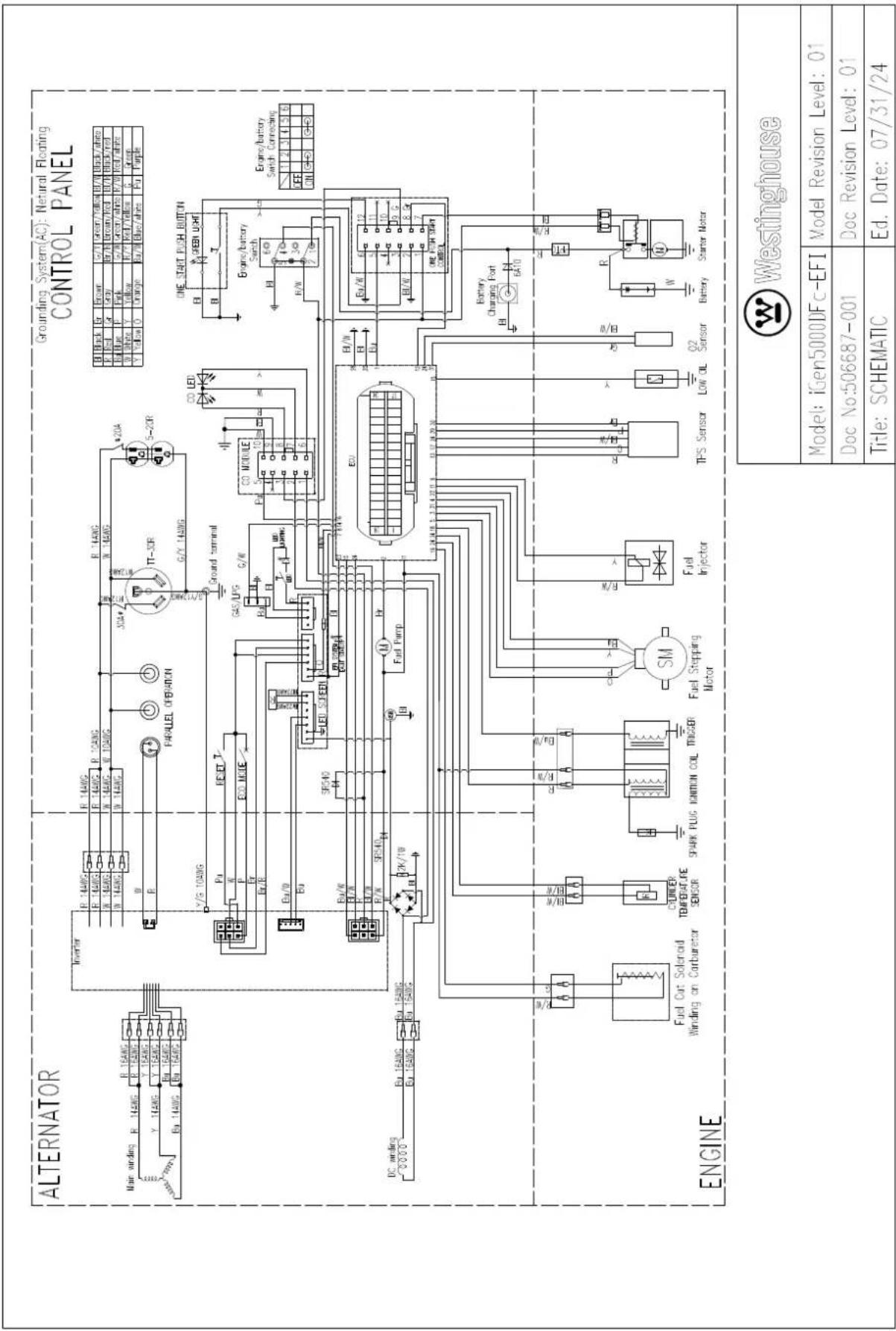

Schematic....33

Service Hotline/Company Address...... Back Page

INTRODUCTION

WARNING

Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from without the written permission of Westinghouse.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

UPDATES

The latest User Manual for your Westinghouse products can be found under our support tab. wpowereq.com/pages/manuals.

Or scan the following QR code with your smartphone camera to be directed to the link.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register your

Westinghouse product.

You can register by:

• Completing and mailing the product registration card included in the carton.
• Registering your product on-line at: wpowereq.com/pages/warranty-registration.
• Scanning the above QR code with your smartphone camera to be directed to the mobile registration link.

For Your Records

Date of Purchase: ____

Model Number: ____

Serial Number: ____

Place of Purchase: ____

- Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.

SPECIFICATIONS

AC Voltage 120V
Power (Running)....3900 Gas / 3500 LPG
Power (Peak)....5000 Gas / 4500 LPG
Current (at 120V)....32.5A Gas / 29.2A LPG
DC Voltage 5V
Current (at 5V)......MAX 3.1A
Frequency....60 Hz
Phase .......Single
RPM....3,800
Power Factor 1.0
Insulation Class ....F
Maximum Ambient Temperature 104°F (40°C)

Fuel Type......Unleaded gasoline
87–93 Octane*
Fuel Capacity....3.4 Gal (12 L)
Oil Capacity ....58 quarts (18.6 oz)
Oil Type ....SAE 10W-30
Spark Plug....F7RTC
Spark Plug Gap 0.028 - 0.032 in.
(0.7 - 0.8 mm)
Valve Intake Clearance ....0.0031 - 0.0047 in.
(0.08 - 0.12 mm)
Valve Exhaust Clearance ....0.0051 - 0.0067 in.
(0.13 - 0.17 mm)
AC Grounding System....Floating neutral

NOTICE

This product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). If needed, this product can be operated at temperatures ranging from 5°F (-15°C) to 122°F (50°C) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must always be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents.

Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc.

NOTICE

Thank you for choosing

Westinghouse! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 1-855-944-3571 to speak with an agent.

SAVE THIS MANUAL

FOR FUTURE REFERENCE.

HAVE QUESTIONS?

Email us at [e-mail] or call 1-855-944-3571

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator.

This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol.

DANGER

Indicates a hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation

which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation

which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which can

cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.

NOTE: Indicates a procedure, practice or condition to be followed for the generator to operate properly.

SAFETY SYMBOLS

Follow all safety information contained in this user's manual as well as the information on the product labeling.

SYMBOL	DESCRIPTION
	Safety Alert Symbol.
	Electrocution Hazard.
	Asphyxiation Hazard.
	Burn Hazard. Do not touch hot surfaces.
	Electrical Shock Hazard.
	Fire Hazard.
	Maintain Safe Distance.
	Lift Hazard.
	Read the user manual.
	Do not operate in wet conditions.
	Ground. Consult with electrician to determine grounding requirements before operation.

IMPORTANT SAFETY INSTRUCTIONS

DANGER

Generator exhaust contains

high levels of carbon monoxide (CO).

ONLY operate generators outside, in a well-ventilated area. NEVER operate generators indoors, doing so CAN KILL YOU IN MINUTES.

- CorrectUse—Only use generators outside and downwind, away from windows, doors and vents. Always direct exhaust away from occupied spaces. Always install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

- IncorrectUse—NEVER use a generator in a home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a running fan WILL NOT provide adequate ventilation. See Figure 2.

If feeling dizzy, weak, or sick while using the generator, move to fresh air immediately. Contact a doctor. This may be carbon monoxide poisoning.

DANGER

Fire and electrocution hazard.

Do not connect to a building's electrical system unless the generator and a transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Failure to properly isolate the generator power could cause property damage and create a dangerous back feed of electricity which could kill or seriously injure utility workers.

DANGER

Electrocution hazard. NEVER

use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

WARNING

Become familiar with all the

instructions, safety warnings, illustrations, and specifications provided with this product. Failure to follow the manufacturer's instructions may result in electric shock, fire, and/or carbon monoxide poisoning that can lead to death or serious injury.

NOTICE

Install battery-powered carbon

monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas.

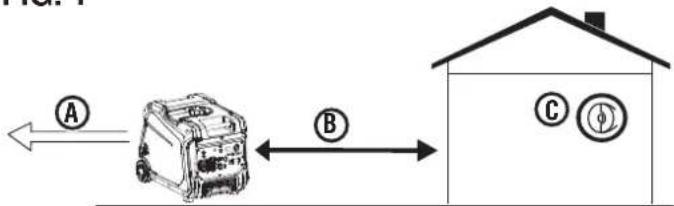

FIG. 1

A - Exhaust (CO)

B - Only use OUTSIDE and FAR AWAY from windows, doors, and vents

C - CO detectors in living areas

FIG. 2

A - Exhaust (CO)

B - Living Area

C - Basement Crawlspace

D - Entryway/Porch/Mudroom

E - Garage

● This product should ONLY be used outdoors.

- NEVER use a generator in a home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES.

- Only use OUTSIDE and away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.

- The National Electrical Code requires the use of a transfer switch or other suitable transfer equipment whenever a portable generator is connected to a building's electrical system. Transfer switches isolate generator power from utility power and prevent back feeding of electric power into the utility system.

NOTE: A transfer switch must be installed by a qualified electrician in accordance with applicable electrical codes. Some jurisdictions may require the installation to be inspected by local authorities. Keep all relevant installation, inspection, and maintenance information.

● Never use the generator to power medical support equipment.

• Never use this product for equipment that relates to personal safety and relies heavily on electricity, such as medical devices, life-saving devices, equipment for nuclear facilities, or the manufacturing of air and spacecraft.
• Never expose the generator to rain, snow, water spray, or standing water while in use. Store and operate the unit in a dry or covered (but not enclosed) location.
• Do not let children or untrained individuals operate the generator.
• Keep children, bystanders, and pets a minimum of 10 ft. away from a running generator.
• Maintain a safe distance while operating and storing the generator. Maintain at least five feet of clearance on all sides of the generator including overhead. Turn the unit off and allow it to cool a minimum of 30 minutes before storage. Heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• Do not operate the unit in areas where combustible or hazardous materials are stored including gasoline and natural gas filling stations.
• Do not operate the generator while barefoot, with wet hands or feet, while standing in water or in wet conditions.
• Do not use this unit when tired or under the influence of drugs, alcohol, or medication.
  ● Burn Hazard. Do not touch hot surfaces.
• Do not contact the muffler or engine. They are very HOT and will cause severe burns. Do not put body parts or any flammable or combustible materials in the direct path of the exhaust.
• Keep hands, fingers, feet, and other body parts away from all moving parts of the generator.
• Do not connect worn or damaged electrical cords to the generator. NEVER touch frayed or exposed wires.
• Do not operate the generator on an incline. The unit should always be placed on a flat stable surface.
• Check the physical condition of the product prior to each use. Inspect for loose bolts, fluid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact customer service.
• For optimal performance, use the generator in temperatures between 23^ (-5°C) and 104^ (40°C) with a maximum relative humidity of 90%.
• Before starting the generator, check all fluids (oil and gasoline).
• Do not remove the oil dipstick or fuel cap when the generator is running.
• Securely tighten the oil dipstick after adding oil and the fuel cap after adding gasoline.
• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin

with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions.

• Generators vibrate and bounce during normal operation. Check the generator and all of the cords connected to it for any damage that may have resulted from the vibration. Replace or repair damaged items as needed. Do not use the generator or any items that show signs of damage.
• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.
• Before transporting the generator, disconnect the spark plug boot, drain the fuel tank and properly restrain the unit.
• Fuel or oil may leak from the generator during transport. Place a towel, plastic sheet, or absorbent pad beneath the unit to protect your vehicle.
• To prolong the life of this product, follow the instructions in the Maintenance section of this manual.
• Replace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury.
• Always remove any tools or other service equipment used during maintenance away from the generator before operating.

GROUNDING

See Figure 3.

WARNING

Shock hazard. Failure to prop-ator can result in electric shock.

NOTICE

tension cords, tools, and appliances, or double-insulated tools and appliances.

The generator neutral is floating. The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection may not function properly.

If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

SAFETY PRECAUTIONS FOR GASOLINE AND GASOLINE VAPOR

DANGER

Fire and explosion hazard. Gasoline is highly explosive and flammable and can cause severe burns or death.

WARNING

Fire and Burn Hazard. NEVER loosen or remove the fuel cap while the generator is running. Turn off the generator and allow the generator to cool down for a minimum of five minutes before adding gasoline. Be sure to loosen the fuel cap slowly before adding gasoline. Loosen the fuel cap slowly.

WARNING

In case of a gasoline fire, do not attempt to extinguish the flame unless the engine/fuel control switch is in the OFF position. Introducing an extinguisher to a generator with an open fuel switch could create an explosion hazard.

● Fire Hazard. Gasoline is highly flammable. Handle with care.

● Never use gasoline as a cleaning agent.

● Gasoline is a skin irritant and needs to be cleaned immediately if it comes in contact with the skin.

- Do not store gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

- Keep gasoline away from sparks, open flames, pilot lights, heat, and other sources of ignition.

- Store any containers containing gasoline in a well-ventilated area, away from any combustibles or source of ignition.

- ALWAYS store gasoline in a container approved for gasoline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard.

● Gasoline has a distinctive odor, this will help detect potential leaks quickly.

● Gas vapors can cause a fire if ignited.

- Do not smoke when handling fuel, adding fuel to the generator, or emptying the gas tank.

● Wear eye protection while refueling.

- Before adding fuel to the generator, turn off the unit and allow it to cool a minimum of five minutes. If necessary, move the unit to level ground.

- Do not remove the fuel tank cap when the generator is running.

- Loosen the fuel cap slowly to release pressure safely, keep gasoline from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors.

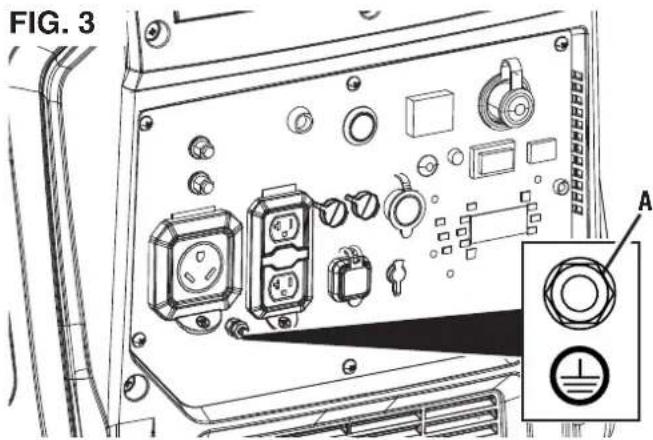

FIG. 3 A

A - Ground Terminal

• NEVER fill the gasoline tank on the generator beyond the maximum fill ring on the fuel screen. Keeping gasoline levels at or below the fill ring will allow for fuel expansion. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. Clean spills immediately and allow the area to dry before operating the generator. NEVER attempt to burn off spilled fuel.
  ● Tighten the fuel cap securely after adding gasoline.
• Do not cover the fuel cap while the generator is in operation. Covering the cap may cause the engine to fail or damage the product.
• Drain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open flames, pilot lights, heat, and other sources of ignition.
  ● Turn off the unit and allow it to cool a minimum of 30 minutes before draining fuel.

LIQUID PETROLEUM GAS (LPG/PROPANE)

WARNING

Fire and explosion hazard. Never, LPG/propane hose, propane fuel item that appears to be damong smell of propane while operfully close the propane cylinder since the propane is off, use soapy leaks on the hose and connections and the generator. Do not smoke check for leaks using any open is a match or lighter. If a leak is amplified technician to inspect and the system before using the gen-

CAUTION

Fire and explosion hazard. Only use approved propane cylinders with an Overfilling Prevention Device (OPD) valve. Always keep the tank in a vertical position with the valve on top and placed at ground level on a flat surface. Do not allow tanks to be near any heat source. When transporting and storing, turn the propane cylinder valve to the fully closed position and disconnect the tank. Be sure to always cover the generator inlet and tank outlet with protective plastic caps.

● LPG/Propane is highly flammable and explosive.
- In case of a LPG/Propane fire, DO NOT attempt to extinguish the flame if the fuel valve is in the gas position. Introducing an extinguisher to a generator with an open fuel valve could create an explosion hazard.
- LPG/Propane can settle in low places because it is heavier than air.
- LPG/Propane has a distinctive odor added to help detect potential leaks. If there is a smell, DO NOT use the engine.
● Always keep a propane cylinder in an upright position.
- When exchanging propane cylinders, be sure the tank valve is the same type.
- LPG/propane will burn the skin. Prevent skin contact at all times.
- Keep the propane cylinder away from the generator exhaust.
- Large (500 – 1,000 gallon) propane cylinders will require a certified plumber to install the fuel line to the generator and the loose regulator is not used (the regulator that is attached to the fuel tank). The pressure as measured at the regulator mounted to the generator must be 7-14 in. of water column. A certified plumber must ensure that the pressure is correct or install a step down regulator if needed.
- Be sure the generator and propane cylinder are on a flat, even surface before operating.
- If there is a propane odor, do not start the unit because there may be a potential leak. Never place a propane cylinder near the engine exhaust.
- When transporting, be sure the propane cylinder and LPG/propane hose are not attached to the generator.
- Store propane cylinder away from sparks, open flames, pilot lights, heat, and other sources of ignition.
- Do not store propane cylinder near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

FIG. 4

FIG. 4 A

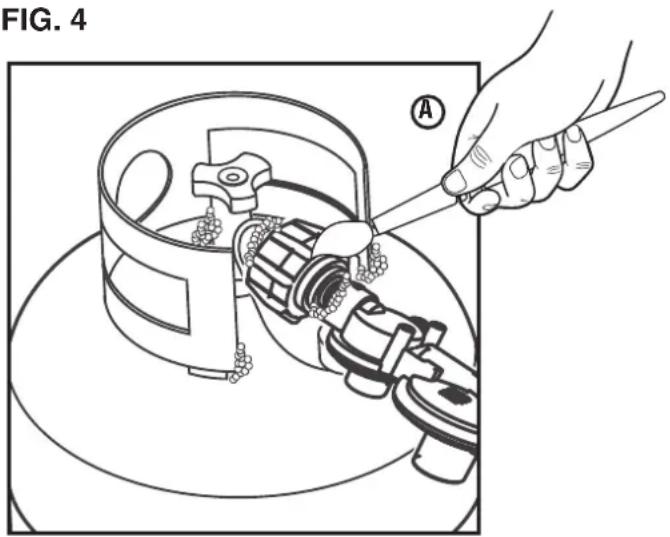

A - Leak testing with soapy water (Propane)

LEAK TESTING

See Figure 4.

NOTICE

Connections on the hose and the propane inlet were tested at the factory to ensure there were no gas leaks. However, shipping and handling may have loosened connections. We recommend always testing for leaks before using the generator.

To test for LPG/Propane leaks:

• Connect the LPG/propane hose to the propane inlet on the generator and to the cylinder valve.
• Open the cylinder valve. If there is a rushing sound, immediately turn off the cylinder valve. This noise indicates a significant leak at the connection. Replace the cylinder or have it repaired.
• Brush the inlet, hose connections, and LP gas cylinder with a soapy solution made of a 20/80 mixture of mild soap and water.

• If bubbles begin growing, there is a leak.

• If the leak is at the inlet, contact customer service. DO NOT USE THE GENERATOR.

• If the leak is at the hose connections, reinstall the hose securely and perform the check again. If the leaks persist, DO NOT USE THE GENERATOR.
• If the leak is at the cylinder, do not use or move the cylinder. Contact the fire department or the gas supplier.

IMPORTANT INFORMATION FOR THE CO SENSOR

The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts off the engine.

The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error, hazardous carbon monoxide has been detected by the CO Sensor. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings.

NOTE: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs.

Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine and the RED indicator light will flash notifying the user that there are unsafe levels of carbon monoxide.

If the generator shuts off and the RED indicator light flashes, leave the area immediately. Wait for the carbon monoxide to dissipate and the RED indicator light to turn off before returning to the affected area. Once it is safe to return, read the Action Label for further steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home.

WARNING

Automatic shutoff accompanied

with a flashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located which allowed carbon monoxide to accumulate to unsafe levels. If feeling sick, dizzy, weak, or carbon monoxide detectors in the home indicate an alarm, get to fresh air immediately. Call emergency services. This may be carbon monoxide poisoning.

UNDERSTANDING THE CO SENSOR'S INDICATOR LIGHTS

See Figure 5.

COLOR DESCRIPTION
RED	Unsafe levels of carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to carbon monoxide levels rising above a safe threshold. The RED light will flash for at least five minutes after a CO shut-off.When it is safe to do so, move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area and the red light is off, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down.
YELLOW	A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will flash to provide notification that a fault has occurred. The YELLOW light will flash for at least five minutes after a fault. The generator can be restarted but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center.

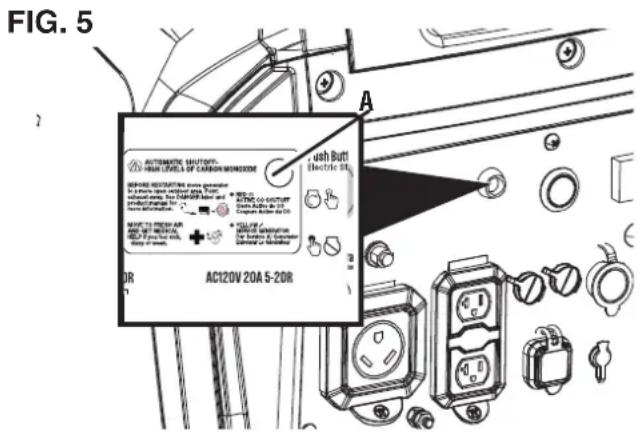

FIG. 5 AUTOMATIC BATTERY AVI-HAIR LEVELS OF CABBON/MONEXIDE BUTTER RESTRIPLATING POWER GENERATOR IN A BHAIR, MAXIMUM POWER, MAXIMUM BALANCE SHEET, MAXIMUM POWER AND CABBON (MAXIMUM POWER) & MAXIMUM BALANCE SHEET, MAXIMUM POWER AND CABBON (MAXIMUM POWER) & MAXIMUM WATER SWITCH AIR MINIMUM SWITCH AIR MINIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR MAXIMUM SWITCH AIR Maximable AC120V 20A 5-2DR

A - CO SENSOR'S INDICATOR LIGHT

SAFETY LABELS AND DECALS

① ACTION LABEL AUTOMATIC SHUTTOFF - YOU MUST: STROKTA DE FUNCIONAMIENTOS TANTHETTE OF ACTIONS POINT PEAKING EXHAUST EXTRACTION BEANS WARNING AVENITORS AVENITORS TEMPORATE WITH CABBAGE MONOBOE SENSOR CAULD RESULT IN HAZARDOUS CONDITION BASZ ACTRACINES OR VENTURE IN MARRADO IN CABBAGE MONOBOE CABBAGE MONOBOE PEAKING LACTUATION DE CAPTES DE MONOBOE DE CABBAGE POINT POTATO DES CONTINUING DABAOUSES ② DANGER Failure to follow warning, instructions and operators manual result in cost of particular range. Generator must cause electrical shock. • ONLY use in dry conditions. • DO NOT recover the power and weather. • A handle switch that is used when connecting to a building. Never load until with engine turning. Always turn-on will ventilated area. Always allow until to cost before turing. Hot mutter and earthed gases can cause free. Keep at hard 5t. (1.5 mg difference from any combustible or structure, including system. Exhaust contains propane carbon monoxide gas that can close automatic purchase or DEATH. Installation carbon monoxide always inside home. For electrical equipment only. Failure to property ground generator can result in electronics. ③ CAUTION HOT SURFACES PRECAUCIÓN SUPERFICIES CALIENTES ATTENTION SURFACES CHAUDES ④ DANGER Le intramined des conducteurs, con intermersion de manual on the lower end of the surface being on the lower end of the floor. Le precaudable process for the elevation. • No change in the level of the height of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the floor. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the forces. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the fence. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the force. • No change in the level of the house. - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, or away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water; - Use outside car, nor away from vehicle, water, and water;

SAFETY LABELS AND DECALS

The following information is on your generator's labels and decals.

① Action Label

If unsafe levels of carbon monoxide accumulate around the generator, automatic shutoff will occur. If the unit shuts off, leave the area immediately. When it is safe to return, do the following:

• Move the generator to an open, outdoor area.
• Point exhaust away.
• Do not run generator in enclosed areas (e.g. not in house or garage).
• Move to fresh air.
  ● Get medical help if sick, dizzy or weak.
• WARNING – Tampering with the carbon monoxide sensor could result in hazardous conditions.

② Safety Symbols

(See page 4)

③ Exhaust Direction

Point exhaust away from body parts and flammable or combustible materials.

④ Hot Surface

Do not touch.

⑤ Carbon Monoxide

• Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.
• NEVER use inside a home or a garage, EVEN IF doors and windows are open.

⑥ Specifications

(See page 3)

⑦ EZ Start Instructions

Starting procedures for gasoline or propane.

GENERATOR CAPACITY

NOTICE

Do not overload the capacity of

the generator. Exceeding the wattage/amperage capacity of the generator can damage the generator and any electrical devices connected to it.

Review the Specifications for this generator and record the running (continuous) and peak (starting) watts. In general, the higher the wattage, the more devices can be powered at the same time. The total power requirements of all connected devices must be considered. Power requirements are often listed on a device's data label or nameplate.

To determine power requirements:

• Choose the devices to power simultaneously.
• Record and total the running (continuous) watts of each device. The generator must continuously produce this amount of wattage to keep the devices running.
• Record the peak (starting) watts for each device. This is the momentary surge of power required to start electric motors in some tools and appliances.
• Select the device with the highest peak (starting) wattage. Add the peak (starting) watts for that device to the total running (continuous) watts for all the connected devices to determine the total peak wattage requirement for the generator.

NOTE: Total peak wattage requirement assumes intermittent starting of devices. Adjust estimate if devices reach peak wattage at the same time.

MANAGING GENERATOR POWER

To extend the service life of the generator, use caution when adding electrical loads. Disconnect all loads before starting the generator. Best practice to manage generator power is to add loads sequentially by doing the following:

• Remove all loads and start the generator as described later in this manual.
• Connect and start the largest device or appliance. Power requirements are often listed on a device's data label or nameplate.
• Allow the generator output to stabilize. Once stable, the engine should run smoothly and the device should function properly.
• Connect and start the next largest device or appliance.
• Allow the generator output to stabilize.
• Repeat this process for each additional load.

EXTENSION CORDS

WARNING

Asphyxiation hazard. Extension

cords running directly into a home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery-powered carbon monoxide detector(s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector(s) battery.

WARNING

Asphyxiation hazard. When op-

erating the generator with extension cords, be sure the generator is located in an open, outdoor area far away from occupied spaces with exhaust pointed away.

WARNING

Fire and electrocution hazard.

Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury.

Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Be sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Be sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.

NOTICE

Do not exceed the capacity of

the unit. Overloading the wattage/amperage of the generator can damage the generator and any electrical devices connected to it.

EXTENSION CORD SIZING

Be sure the extension cord can carry the required load. Extension cords that are too small may cause a voltage drop that can cause the cord to overheat or cause property damage. Refer to the cord manufacturer's guidelines for the appropriate size and length.

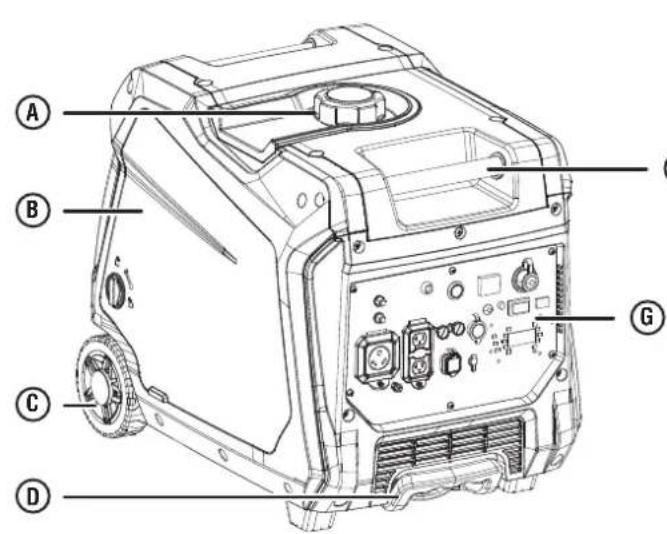

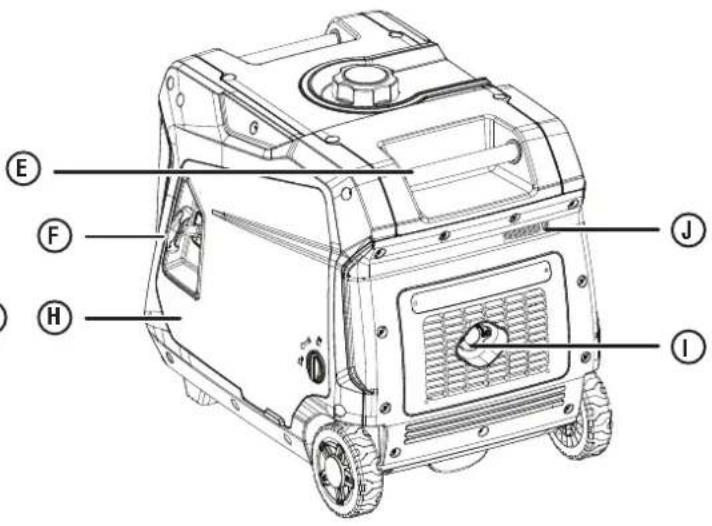

FIG. 6

Technical diagram of a portable gas generator with labeled components including wheels, switches, and control panel

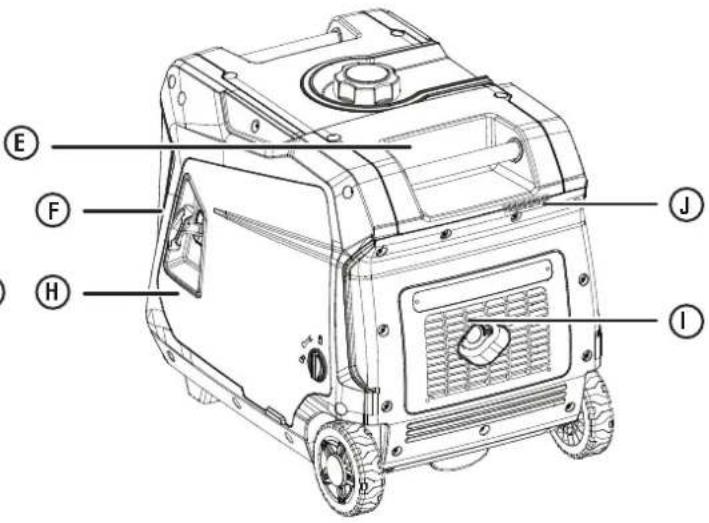

A - Fuel cap
B - Engine service cover
C - Wheel
D - Extendable handle
E - Carry handles
F - Recoil handle
G - Control panel

E F H J I

H - Engine service cover
I - Muffler/spark arrestor
J - Serial number location

UNDERSTANDING YOUR GENERATOR

See Figures 6 - 7.

To reduce the risk of injury and product failure, read and understand the information in this user manual as well as the information on the product labeling.

120 VOLT AC RECEPTACLES

This unit has a 120V, 30A RV receptacle and duplex 120V, 20A receptacles capable of powering a variety of appliances, tools, and equipment.

CIRCUIT BREAKERS

The circuit breakers protect devices and equipment connected to the receptacles from electrical overload.

ECO MODE SWITCH

Eco mode minimizes fuel consumption and noise by adjusting the engine RPM to the minimum required for the current load.

ELECTRONIC FUEL INJECTION (EFI)

Electronic fuel injection (EFI) is an on-board electronic engine management system. It is self-adjusting and eliminates the need of a kit for operating at different altitudes.

ELECTRONIC FUEL INJECTION (EFI) LED

The electronic fuel injection LED runs diagnostics on the unit and informs the user of its status.

FUEL SELECTION SWITCH

Rotate the engine/fuel control switch to start or stop the flow of fuel.

ENGINE SERVICE PANEL

Turn the lock knob to unlock and remove cover to service the oil, spark plug, and air filter.

FUEL TANK

The generator has a fuel tank with a capacity of 3.4 gallons.

GROUND TERMINAL

The ground terminal is used to externally ground the generator.

LED DATA CENTER

Displays remaining run time (F), power output in kW (P), fuel level in liters (L), voltage output (V), and lifetime hours.

LOW OIL LED

Indicates low oil level. When the oil level in the crankcase falls below the safe operating limit, the low oil level indicator will illuminate and the generator will automatically shut off the engine.

MUFFLER AND SPARK ARRESTOR

The spark arrestor prevents sparks from exiting the muffler. It must be removed for servicing.

NOTICE

The spark arrestor is a safety device that prevents sparks from exiting the muffler and creating a fire hazard. In certain locations a spark arrestor may be required by law. It is the responsibility of the operator to know and follow all local laws and regulations related to fire prevention requirements.

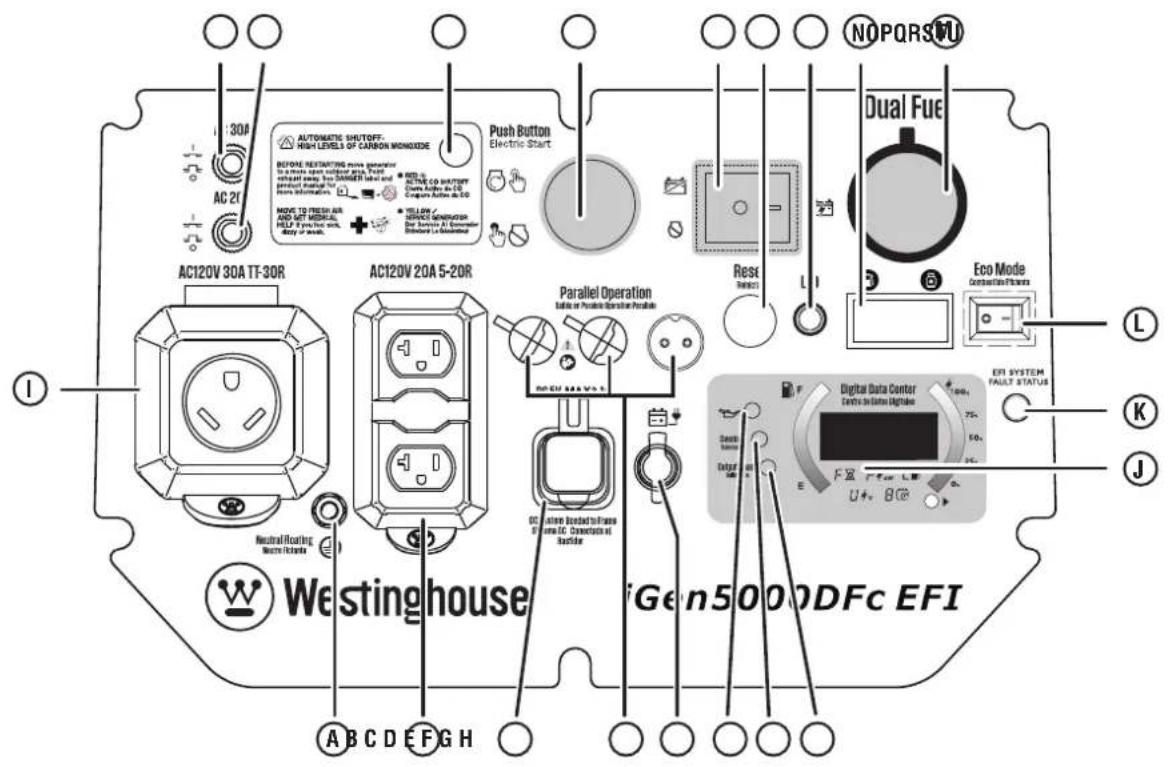

FIG. 7

AC120V 30A TT-30R AC120V 20A 5-20R Neutral/Flowering Neutrals/Flowers Westinghouse Automotive Shuttoff, High Levels of Carbon Monoxide Push Button Electric Start Multi- mounted power generator to a motor open voltmeter or PWR with speed today from SABET label and product installed in the from information. EYES / CHANGE GENERATOR Red Services All Emperations Electrician Le Gasifier Parallel Operation Sable or Parallel Operation Portable Reset Resist Digital Data Center Centre to Garden Digitalize Control External Banded to Frame Internal DC Connectracts of Buckfly Digital Data Center Centre to Garden Digitalize Control External Banded to Frame Internal DC Connectracts of Buckfly EYES / Change Banded to Frame Internal DC Connectracts of Buckfly EYES / Change Banded to Frame Internal DC Connectracts of Buckfly EYES / Change Banded to Frame Internal DC Connectracts of Buckfly EYES / Change Banded to Frame Internal DC Connectracts of Buckfly EYES / Change Banded to Frame Internal DC Connectracts of Buckfly

A - Ground terminal
B - 120 Volt AC 20 A receptacles
C - USB ports
D - Parallel operation outlets
E - Battery charger
F - Low oil LED
G - Overload LED

H - Output ready LED

I - 120 Volt AC 30 A receptacle
J - Data center
K - EFI status indicator
L - ECO mode switch
M - LPG/Propane inlet
N - Fuel switch

0 - Battery indicator
P - Reset button
Q - Battery switch
R - Electric start button
\$ - Service generator LED/Automatic shutoff LED
T - 20 A circuit breaker
U - 30 A circuit breaker

OIL DIPSTICK

Unscrew the oil dipstick to check oil levels and add oil when needed.

OUTPUT READY LED

Illuminates when the generator is operating normally. Indicates the generator is producing electrical power at the receptacles.

OVERLOAD LED

Indicates that the generator is overloaded.

OVERLOAD RESET

The generator will automatically switch OFF all AC output to protect the generator if overloaded or if there is a short circuit in a connected appliance.

A parallel cord (not included) can be used to connect a compatible Westinghouse inverter generator for additional power output.

RECOIL HANDLE

Use the recoil handle (and the engine/fuel control switch) to start the generator.

USB PORTS

Two-ports 5V/2.1A USB outlet. Accepts Type A USB plugs.

REMOVING CARTON CONTENTS

WARNING This product does not require assembly. Do not attempt to operate this product if it is not completely assembled. Using an improperly assembled product can be hazardous and could result in serious personal injury.

CAUTION Weight hazard. ALWAYS have assistance when lifting the generator.

NOTICE

THIS GENERATOR HAS BEEN

SHIPPED WITHOUT OIL. Do not attempt to crank or start the engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty. See Adding Oil/Checking Oil Level in the Operations section of this manual.

- Remove and inspect the carton contents. Verify that all the items in the INCLUDED LIST are present and undamaged.

● Recycle or dispose of the packaging materials properly.

INCLUDED LIST

Generator, engine oil (SAE 10W 30), battery charger cable, funnel, spark plug socket wrench, propane hose, quick start guide, and user manual.

If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

WARNING

Do not alter or modify this product to so in this manual or by the use attachments or accessories intended for use with this product. Modifications and using incom- an damage the unit and may void

WARNING

OVERVIEW

This portable generator can provide power to a wide range of items including household appliances, job-site tools, camping equipment, tailgating essentials, and much more.

OPERATION

DANGER

Generator exhaust contains

high levels of carbon monoxide (CO). If you smell exhaust fumes, you are breathing carbon monoxide. Even if you do not smell exhaust fumes, you may be breathing CO.

ONLY operate generators outside, in a well-ventilated area. NEVER operate generators indoors, doing so CAN KILL YOU IN MINUTES.

- CorrectUse—Only use generators outside and downwind, far away from windows, doors and vents. Always direct exhaust away from occupied spaces. Always install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

- IncorrectUse—NEVER use a generator in a home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a running fan WILL NOT provide adequate ventilation. See Figure 2.

If feeling dizzy, weak, or sick while using the generator, move to fresh air immediately. Contact a doctor. This may be carbon monoxide poisoning.

WARNING

Do not alter or modify this product to so in this manual or by the use attachments or accessories intended for use with this product. Modifications and using incom- an damage the unit and may void

WARNING

Avoid skin contact with engine or protective clothing and equipped skin with soap and water. Let with gasoline or engine oil mayitation and other adverse reac-

NOTICE

In certain circumstances, the

National Electric Code may require the generator to be grounded to an approved ground. Consult with a qualified electrician to determine grounding requirements before operation.

NOTICE

Check the physical condition of

the product prior to each use. Inspect for loose bolts, fluid leaks, and other signs of wear. Replace all damaged items.

KNOW HOW TO SAFELY LOCATE AND OPERATE YOUR GENERATOR

DANGER Asphyxiation hazard. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning the generator.

WARNING Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution.

WARNING Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage.

- Read and understand all safety information before starting the generator (see pages 4 - 10).

- NEVER use a generator in a home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES.

- DO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. Operating the generator in enclosed or partially enclosed areas will allow dangerous levels of CO to accumulate.

- DO NOT enclose generators during operation.

- Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.

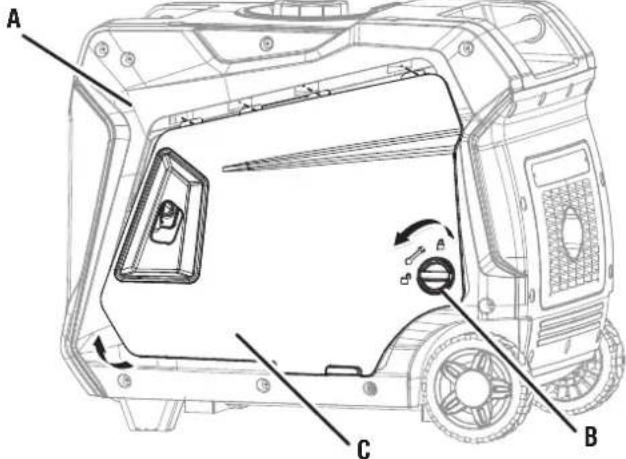

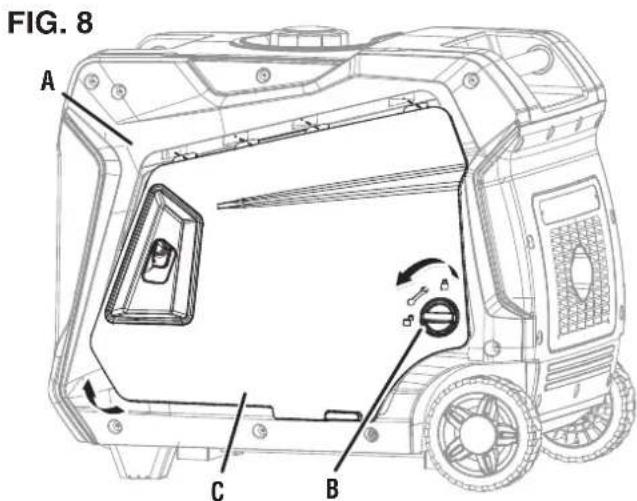

FIG. 8 A C B

A - Tab
B - Locking knob
C - Engine service cover

• Do not operate the generator on an incline. The unit should always be placed on a flat, stable surface.
• The generator should be on a flat, level surface at all times (even while not in operation).
  ● The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material.

KNOW THE REGULATIONS FOR THE USE OF PORTABLE GENERATORS

Consider where and how the generator will be used, and become familiar with any local, state, or federal ordinances concerning your intended use. It may be necessary to contact a qualified electrician or local governing agency for a full list of requirements.

OPEN/CLOSE ENGINE SERVICE COVER

See Figure 8.

The engine service covers are located on both sides of the generator for easy access to the battery, oil fill, and spark plug maintenance. To open the engine service cover, follow these steps:

• Rotate the locking knob from the locked to the unlocked position.
• Lift the cover from the bottom. Pull the cover up and out at the same time to remove the tabs at the top.
  ● To install the cover, align the three tabs at the top of the cover and insert while lowering the bottom into the case.
• Rotate the locking knob to the locked position.

ADDING OIL/CHECKING OIL LEVEL

See Figure 9.

If your product has a separate engine manual, disregard the information in this section and follow the instructions in the engine manual.

NOTICE

THIS GENERATOR HAS BEEN

SHIPPED WITHOUT OIL. Do not attempt to crank or start the engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty.

NOTICE

Use only recommended oil.

Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty.

The included, recommended oil type for typical use, is 10W-30 engine oil. If running the generator in extreme temperatures, see the Recommended Engine Oil Type table.

NOTE: Check the engine oil level before each use or every 8 hours of operation.

• Turn off the generator and allow the engine to cool for at least five minutes.
• Place the generator on a level surface in a well-ventilated area.
• To remove the oil service door, press down on the tab while pulling away the top the door.
• Clean the area around the oil dipstick.

For initial oil fill:

- Slowly unscrew and remove the oil dipstick.

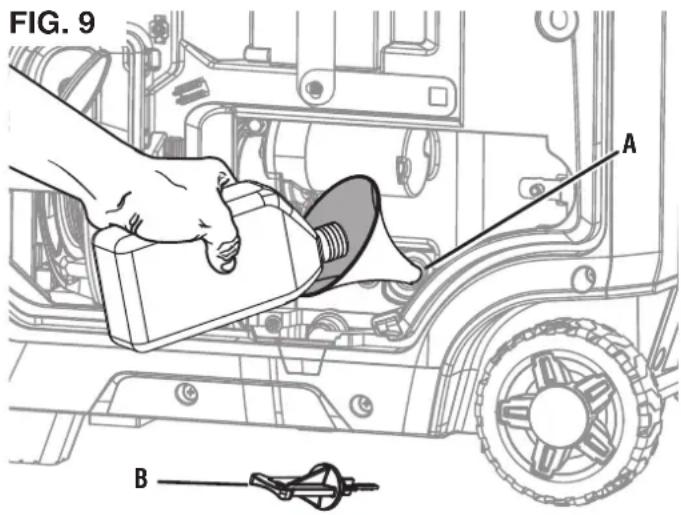

FIG. 9 A B

A - Oil filler B - Dipstick

• Using the funnel, slowly pour the supplied engine oil into the oil fill hole. Stop frequently to be sure not to overfill..
  NOTE: The generator was functionally tested in the factory and may contain minimum residual oil. Additional oil is required to operate the unit. Do not overfill.
• Replace and tighten the oil dipstick.
• To install the oil service door, insert the base of the cover first. Push the top of the door until the tab locks into place.

To check oil level:

• Slowly unscrew and remove the oil dipstick.
• Clean the dipstick and re-seat it inside the oil fill hole. Do not thread the dipstick.
• Remove the dipstick and verify that the oil level is within safe operating range.
• If the oil level is low, add recommended engine oil incrementally and recheck until the level is within the safe operating range.
• Replace the oil dipstick and hand-tighten.
• Install the engine service cover and turn the locking knob to the locked position to secure.

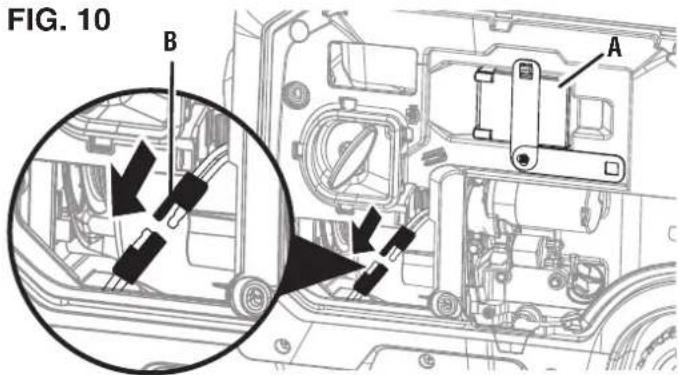

CONNECT THE BATTERY

See Figure 10.

NOTICE

THIS GENERATOR HAS BEEN

SHIPPED WITHOUT OIL. Do not attempt to crank or start the engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty.

• Press the tab to release the battery access cover.
• Verify the rubber battery strap is securing the battery.
• A quick-connect battery plug is pre-installed on the battery. Remove the cable tie securing the plugs then push firmly to connect them.

NOTE: The generator is equipped with a battery charging feature. Once the engine is running, a small charge will slowly recharge the battery.

GASOLINE REQUIREMENTS

NOTICE

Do not use E15 or E85 fuel in

this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

• ALWAYS use CLEAN, FRESH, unleaded gasoline (87–93 octane) in this unit. NEVER use OLD, STALE, or CONTAMINATED gasoline.
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
• DO NOT use E85 or E15.
• DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer's instructions for use.

Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system.

FIG. 10 B A

A - Battery
B - Battery connector plug

LP GAS CYLINDER REQUIREMENTS

NOTICE

Propane cylinders that use liq-

uid withdrawal system can-not be used on these models.

LP gas is extremely flammable and could ignite spontaneously when mixed with air. The LP gas cylinder used with this generator must meet the following requirements:

• The cylinder must be manufactured and labeled in accordance with the Specifications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for Transportation of Dangerous Goods; and Commission.
  ● The cylinder must have a safety relief valve.
• The cylinder must include a UL listed Overfill Protection Device (OPD). Cylinders with this safety feature will have a unique triangular hand wheel. Only use LP gas cylinders with this type of hand wheel.
• The cylinder must be periodically certified for use by the authority having local jurisdiction (AHJ). Before use, verify that the certification date on the cylinder has not expired.
• All new cylinders must be purged of air and moisture prior to filling. Used cylinders that have not been plugged or kept closed must also be purged. The purging process should be done by a propane supplier (Cylinders from an exchange supplier should have been purged and filled properly).

CONNECTING AN LP GAS CYLINDER TO THE GENERATOR

See Figures 11 - 12.

DANGER

Fire and explosion hazard. Never connect or disconnect the LPG/propane hose while the engine is running. Do not smoke or create sparks while handling LPG/propane. Always turn off the engine and allow the generator to cool for at least five minutes before connecting the propane cylinder.

WARNING

Never use a gas container, LPG/propane hose, propane cylinder or any other fuel item that appears to be damaged.

WARNING

To reduce the risk of injury, perform a leak test any time the LP gas cylinder is disconnected and reconnected.

● Turn off the generator and allow the engine to cool for at least five minutes.
- Place the generator on a level surface in a well-ventilated area. DO NOT connect or disconnect the LP gas cylinder indoors.
- Place the LP gas cylinder near the generator, but do not place it in the path of the muffler exhaust.

NOTE: The propane cylinder can be of any capacity but it must conform to the LP Gas Cylinder Requirements listed earlier in this section.

• Verify that the hand wheel is in the full off position.
• Hold the LPG/propane hose firmly and push the nipple into the cylinder valve.
• Use your hand to thread the LPG/propane hose to the cylinder valve. Do not cross-thread. Do not use tools or sealants.

NOTE: There will be resistance as the hose seals in the cylinder valve. To complete the connection, turn the connector an additional one-half to three-quarters of a turn. If unable to complete the connection, disconnect the hose and try again. If you still cannot complete the connection, DO NOT use this hose!

- Thread the propane hose onto the propane inlet. pull the hose gently to be sure that it is secure.

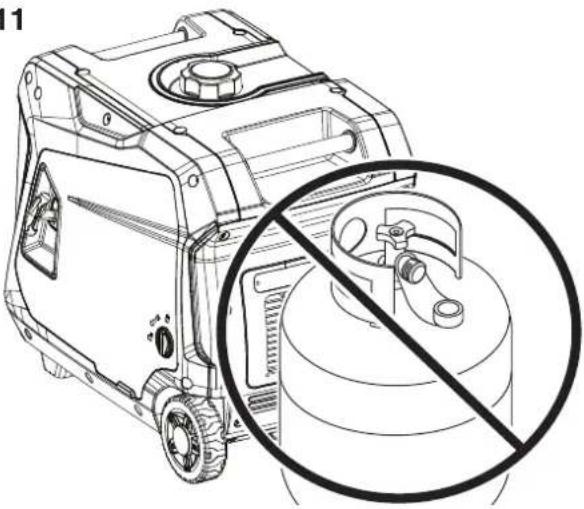

FIG. 11

Technical line drawing of a mechanical device with a circular annotation highlighting a no-smoking symbol (no text or labels present)

FIG. 12

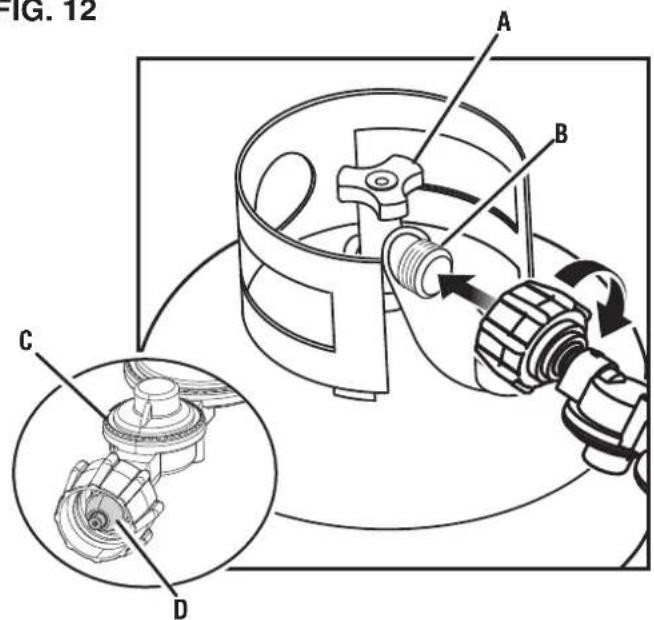

IG. 12 A B C D

A - Hand wheel

B - Cylinder valve

C - LPG/propane hose

D - Nipple

ADDING GASOLINE

See Figures 13 - 14.

DANGER Fire and explosion hazard. Never remove the fuel cap or refuel the generator while the engine is running. Do not smoke or create sparks while fueling. Always turn off the engine and allow the generator to cool for at least five minutes before refueling.

DANGER Fire and explosion hazard. Do not overfill fuel tank. Fill only to the red maximum fill ring on the fuel screen. Overfilling may cause fuel to spill onto engine causing a fire or explosion hazard.

WARNING Never use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged.

NOTICE Only fill the tank from an approved gasoline container. Be sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

● Turn off the generator and allow the engine to cool for at least five minutes.
- Place the generator on a level surface in a well-ventilated area. DO NOT fuel indoors.
● Clean area around fuel cap and remove the cap slowly.
- Slowly add the recommended fuel. Do not overfill.

NOTE: The gasoline level should NOT be higher than the red maximum fill ring on the fuel screen.

● Install the fuel cap. Tighten securely.
- Clean up any spilled fuel.
- Move at least 30 ft. away from refueling area before restarting the engine.

NOTICE Fuel can damage paint and plastic. Use caution when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty.

NOTICE Clean the fuel screen filter of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

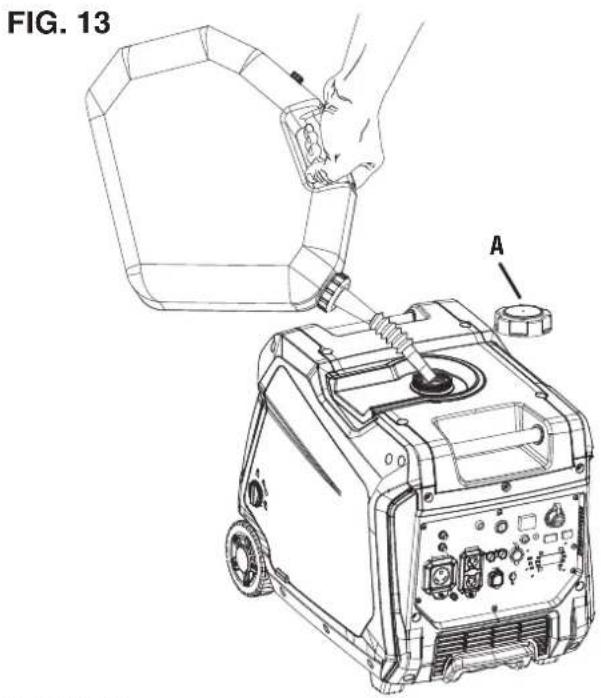

FIG. 13 A

A - Fuel cap

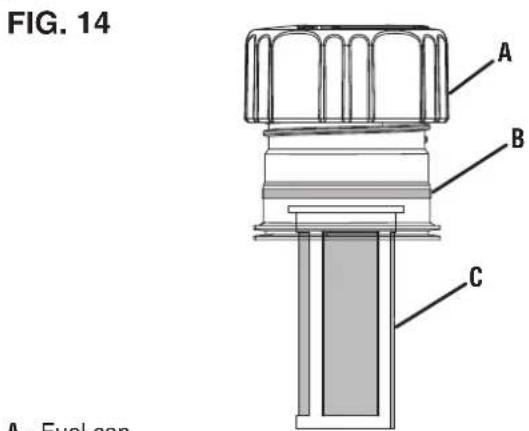

FIG. 14 A - Fuel cap B C

A - Fuel cap

B - Max fill line

C - Screen filter

SELECTING THE FUEL SOURCE

See Figure 15.

DANGER

Fire and explosion hazard. DO

NOT add gasoline to the fuel tank or connect the LPG/propane hose to the generator while the generator is in operation.

NOTICE

Do not overload the generator.

Load capacities differ depending on the fuel source. Before switching fuel sources, be sure the generator can supply enough running (continuous) and peak (starting) watts for the connected items.

The fuel source can be switched while the engine is off or while it is running if a propane tank is connected to the generator BEFORE operation. If switched from gasoline to another fuel source while the engine is running, it may run rough for a few seconds as it purges gasoline from the throttle body.

To switch to gasoline:

• Place the fuel switch in the GAS position.
  ● Turn off the flow of propane gas.

To switch to propane:

- Open the cylinder valve on the LP gas cylinder to start the flow of propane.

- Place the fuel switch in the LPG (propane) position.

DATA CENTER

See Figure 16.

Press the mode button to cycle through the data display modes.

Voltage: Displays current voltage output.

Power output: Displays power output frequency in Hertz.

Lifetime Hours: Displays the lifetime run hours.

Fuel Level: Indicates how much gasoline remains in the fuel tank.

Run Time/Maintenance: Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required.

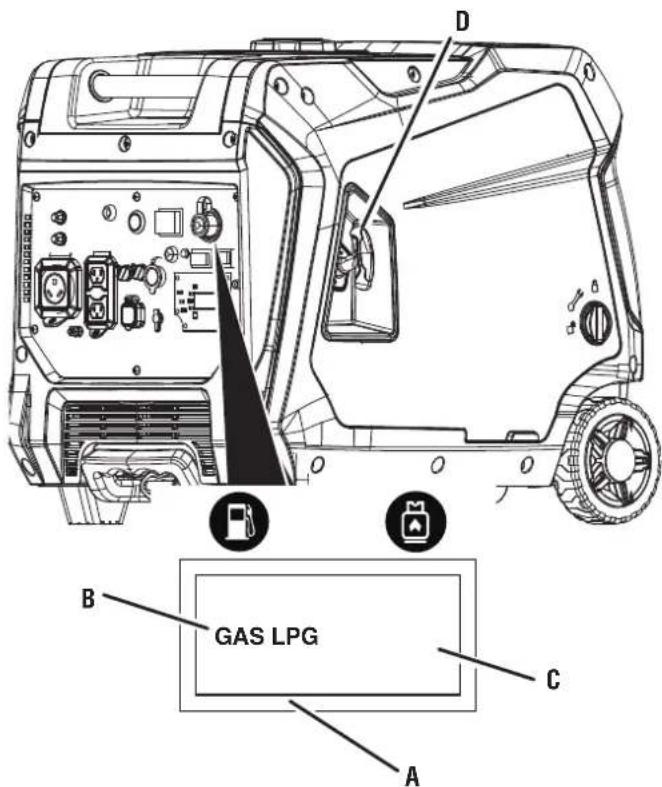

FIG. 15

The remote start key fob included with the generator should be attached to the recoil handle or control panel. If the unit was shipped without a key fob, contact customer support. The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob.

NOTE: As the batteries in the remote start key fob drain, operational distance will decrease.

Remote replacement batteries: P/N CR2016 (2)

Pairing the remote start:

If the remote start key fob is replaced or needs to be paired to the generator, follow this procedure:

• Turn the generator battery switch to the ON position. The power indicator light will illuminate.
• Push and hold the electric start switch on the control panel for 10 seconds. The button illuminates and starts flashing.
• Push and hold the ON button on the key fob. It should automatically pair with the generator and the electric start switch will stop flashing.
• Turn the generator battery switch to the OFF position. The remote is now paired.

BREAK-IN PERIOD

For proper break-in, do not exceed 50% of the rated running watts during the first five hours of operation.

Use supplied oil until first recommend oil change. Do not use full synthetic oil during break-in period. Full synthetic oil may prevent proper breaking and seating of the piston rings.

Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

BEFORE STARTING THE GENERATOR

Verify that:

● The generator is placed in a safe, appropriate location.
● The generator is on a dry, flat, and level surface.
● Oil and fuel levels are within safe operating range.
- All loads are disconnected from the control panel receptacles.
● The ECO mode switch is in the OFF position.

Fire and explosion hazard. DO

NOT move or tip the generator during operation.

FIG. 17 A B ON OFF C D Reset HENS

A - Activity light
B - Remote
C - Remote ON/OFF buttons
D - Electric start button

FIG. 18

DANGER Fire and explosion hazard. DO NOT move or tip the generator during operation.

WARNING Verify that the area around the generator is clear before remote starting the generator.

• Place the generator in a safe, level location.
• Unplug all loads.
• Be sure the ECO mode switch is in the OFF position.
• Check oil and fuel levels. If needed, add fuel or oil as described earlier.
• Place the fuel selector switch on the control panel to GAS operation. (See Figure 15).
• Place the engine switch in the on (1) position. (See Figure 17).

To start the generator using the recoil handle:

• Grasp the recoil handle and pull the recoil handle until there is increased resistance. At this point, rapidly pull the recoil handle away from the generator until the engine starts.
  NOTE: Return the recoil handle into place after starting the unit. Do not let it snap back against the unit. During initial starting, additional pulls may be required to prime the fuel pump.

To start the generator using the engine switch:

- Choose the starting method:

• Remote Start: Push and hold the ON button on the remote start key fob for one second.
• Push-Button Start: Push and hold the ON/OFF push button for two seconds.

•RecoilStart: Grasp and pull the recoil handle slowly until there is increased resistance, then pull rapidly.

NOTE: If the electric start procedures do not start the generator, the battery may need to charge. Start the unit using the recoil handle. The battery will charge as the unit runs.

- When the OUTPUT READY LED illuminates, the control panel receptacles can be safely connected to loads.

NOTE: Verify that all devices are turned off before connecting them to the generator.

NOTE: Be sure that the wattage requirements for all connected devices are within the specifications for the generator's capabilities.

- Connect and start the largest device or appliance.

FIG. 19

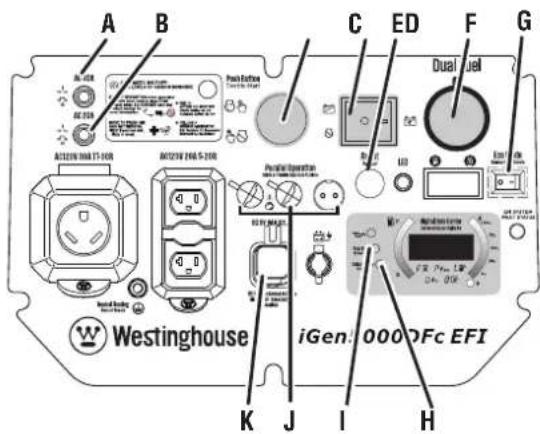

A B C D E F G AC20W 1968-17-20R AC20W 2065-20R PC DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3.0V DC 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90 Westinghouse iGen: 0000DFc EFI K J I H

A - 30 amp circuit breaker

B - 20 amp circuit breaker

C - ON/OFF start switch

D - Engine switch

E - Reset button

F - Propane inlet

G - ECO mode switch

H - Output ready LED

I - Overload LED

J - Parallel operation outlets

K - USB ports

• Allow the generator output to stabilize. Once stable, the engine should run smoothly, and the device should function properly.
• Connect and start the next largest device or appliance.
• Allow the generator output to stabilize.
• Repeat this process for each additional load.

STARTING THE GENERATOR: PROPANE

See Figures 18 - 19.

DANGER

Fire and explosion hazard. Always turn the propane tank valve to the fully closed position if the generator is not operating on propane.

• Place the generator in a safe, level location.
• Unplug all loads.
• Be sure the ECO mode switch is in the OFF position.
• Check oil level. If needed, add oil as described earlier.
• Be sure the LPG/propane hose is correctly connected to the generator and propane tank.
• Turn the fuel selector switch on the control panel to LPG (propane) operation. (See Figure 15).
  ● Fully open the valve on the propane tank.
• Place the engine switch in the on (I) position. (See Figure 17).

To start the generator using the recoil handle:

- Grasp and pull the recoil handle until there is increased resistance. At this point, rapidly pull the recoil handle away from the generator until the engine starts.

NOTE: Return the recoil handle into place after starting the unit. Do not let it snap back against the unit. During initial starting, additional pulls may be required to prime the fuel pump.

To start the generator using the engine switch:

• Choose the starting method:
• RemoteStart: Push and hold the START button on the remote start key fob for one second.

- Push-ButtonStart:Push and hold the engine START/STOP button for two seconds.

- RecoilStart: Grasp and pull the recoil handle until there is increased resistance, then pull rapidly.

NOTE: If the battery switch and start button does not start the generator, the battery may need to charge. Start the unit using the recoil handle. The battery will charge as the unit runs.

- When the OUTPUT READY LED illuminates, the control panel receptacles can be safely connected to loads.

NOTE: Verify that all devices are turned off before connecting them to the generator.

NOTE: Be sure that the wattage requirements for all connected devices are in line with the generator's capabilities.

• Connect and start the largest device or appliance.
• Allow the generator output to stabilize. Once stable, the engine should run smoothly, and the device should function properly.
• Connect and start the next largest device or appliance.
• Allow the generator output to stabilize.
• Repeat this process for each additional load.

ELECTRONIC FUEL INJECTION OPERATIONS CHECK

- When the battery switch is turned on the Electronic Fuel injection will run a self test to ensure proper function. The EFI System Fault Status LED will illuminate for 2 seconds and then turn off indicating proper function.

- When the battery has a low charge, the unit will run multiple tests on the Electronic Fuel Injection System. Charge the battery to see if this corrects the issue. If the EFI System Fault Status LED continues to blink, discontinue use and have the generator inspected by a qualified technician.

STOPPING THE GENERATOR

See Figures 18 - 19.

- Disconnect any connected loads from the control panel receptacles.

• Allow the generator to run at "no load" to reduce and stabilize engine and alternator temperatures.
  ● Turn the fuel selector switch to the propane position.
• Turn the engine switch to the off (O) position. (See Figure 17).

To stop the unit quickly in an emergency:

- Turn the engine switch to the off (O) position. (See Figure 17).

PARALLEL OPERATION

See Figure 19.

Parallel operation gives the ability to link another compatible Westinghouse inverter generator for combined running and peak power output.

DANGER

FIRE AND ELECTROCUTION

HAZARD. Never connect or disconnect the parallel cable leads when a generator is running. Failure to follow this rule may lead to serious personal injury or death.

WARNING

WARNING Correct connection of the cables is very important when the generators are used with a transfer switch to supply power to a building. To avoid serious personal injury or damage to electrical devices, including the generators, do not try to power an electrical system in a building without using an approved transfer switch.

NOTICE

Connecting to a generator that

is not compatible can cause a low voltage output that may damage tools and appliances powered by the generator.

Refer to the manufacturer's user manual that came with your parallel cord (not included) or receptacle-mounted parallel cable (not included) for installation and operation instructions.

LOW OIL INDICATOR

See Figure 19.

The LOW OIL LED on the control panel will illuminate when the unit is low or out of oil. The generator will not start when the indicator is lit. To resume normal operation, add engine oil as described earlier in this section. Do not attempt to crank or start engine before it has been properly serviced with the recommended oil.

ECO MODE

See Figure 19.

NOTICE

Always start the generator with

the ECO mode switch in the OFF position. Allow the engine speed to stabilize and the OUTPUT READY LED to illuminate before putting the ECO mode switch in the ON position.

NOTICE

Do not use ECO mode when in

parallel operation with another Westinghouse inverter generator.

ECO mode minimizes fuel consumption and noise by adjusting the engine RPM to the minimum required for the current load.

Turn ON ECO mode when powering small appliances with continuous loads such as a computer or electric light.

Turn OFF ECO mode when powering large surge loads such as an air conditioner or electric pump.

To turn on ECO mode, verify that the OUTPUT READY LED is illuminated, then push the switch to the on (I) position.

(See Figure 17). If no load is present, the generator RPM will drop to idle speed. The generator will detect loads as they are applied and increase engine RPM.

To run the generator at maximum power and RPM, push the ECO mode switch to the OFF position.

OVERLOAD RESET

See Figure 19.

Do not overload the generator. If the generator is approaching or has reached an overload condition, the OVER-LOAD LED on the control panel will illuminate.

If the generator is close to overloading, the OVERLOAD LED will blink. Turn off and remove one or more connected devices to decrease the load and resume normal operation. If the load is not reduced, the unit will reach an overload condition. To extend the service life of the generator, avoid running the unit near capacity.

If the generator is overloaded or if there is a short circuit in a connected device, the OVERLOAD LED will turn solid, and the unit will automatically disconnect from the load. The engine will continue to run, but there will not be any electrical output.

To restore electrical output after an overload:

• Remove any connected loads from the control panel receptacles.
• Push the RESET button on the control panel until the OVERLOAD LED goes OFF and the OUTPUT READY LED is illuminated.
• Reset the circuit breaker(s) if activated.
• Verify that the intended running and surge loads do not exceed the capacity of the generator.

- Reconnect electrical loads sequentially, allowing the generator to stabilize after each load is connected.

CIRCUIT BREAKERS

See Figure 19.

The 20 amp circuit breaker protects devices and equipment connected to the 120V, 20 amp receptacles from electrical overload. The 30 amp circuit breaker protects devices and equipment connected to the 120V, 30 amp receptacle. If a circuit breaker activates, turn off the connected device, remove it from the port or outlet, and press the circuit breaker to reset.

USB PORTS

See Figure 19.

Use the USB ports and USB cables (not included) to charge USB-compatible devices such as phones, tablets, and speakers (up to 2.1 Amps).

NOTE: The USB ports are designed for charging only and do not have data transfer or communication capabilities.

TRANSPORTING

• Turn off the generator.
• Allow the generator to cool a minimum of 30 minutes before transporting.
• Replace all protective covers on the generator control panel.
• Only use the fixed handle to lift the unit or attach any load restraints such as ropes or tie-down straps. DO NOT attempt to lift or secure the generator by holding onto any of its other components.
• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.

CAUTION

Fire hazard. DO NOT up-end

the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.

WARNING

ACCIDENTAL START-UP. Dis-

connect the spark plug boot (see figure 23) from the spark plug before performing any maintenance on the generator.

WARNING

Replace damaged or worn items

with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury.

WARNING

Allow hot components to cool

for 30 minutes before performing any maintenance procedure.

WARNING

Avoid skin contact with engine

oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions.

NOTICE

Check the physical condition of

the product prior to each use. Inspect for loose bolts, fluid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service team.

To prolong the life of this product, follow the maintenance instructions in this section. Contact customer service before servicing any recall or warranty parts.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

Before Each Use

Check engine oil

After First 25 Hours or First Month

Change engine oil

After 50 Hours or Every 6 Months

Change engine oil ^1 Clean air filter ^2

After 100 Hours or Every 6 Months

Inspect/clean spark arrestorInspect/clean spark plugReplace fuel filter ^3 Inspect/adjust valve clearance ^3

After 300 Hours or Every Year

Replace spark plugReplace air filter

1 Change oil every month when operating under heavy load or in high temperatures.
2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned.
^3 Recommend service to be performed by authorized Westinghouse service dealer.

CLEANING THE GENERATOR

Do not store or operate the generator in dirty, dusty, or corrosive environments. Do not allow foreign materials and debris to clog the vents on the unit.

NEVER clean the generator with a garden hose. Water can damage the fuel system and electrical components. If the unit needs to be cleaned, use a soft brush and damp cloth to clean the exterior and use low pressure air (no greater than 25 psi) to clean the vents.

Never use gasoline as a cleaning agent.

OPEN/CLOSE ENGINE SERVICE COVER

See Figure 19.

The engine service covers are located on both sides of the generator for easy access to the battery, oil fill, and spark plug maintenance. To open the engine service cover, follow these steps:

• Rotate the locking knob from the locked to the unlocked position.
• Lift the cover from the bottom. Pull the cover up and out at the same time to remove the tabs at the top.
  ● To install the cover, align the three tabs at the top of the cover and insert while lowering the bottom into the case.
• Rotate the locking knob to the locked position.

CLEANING/REPLACING THE AIR FILTER

See Figure 20.

Keep the air filter clean. A dirty air filter can cause poor performance and decrease the service life of the product. NEVER operate the generator without an air filter in place.

• Turn off the generator and allow the engine to cool for 30 minutes.
• Remove the engine service cover.
• Rotate the locking knob and remove the air filter cover.
• Remove the air filter from the air cleaner housing and place it in a suitable cleaning container. Replace the air filter if damaged.

NOTE: The air filter may be covered in oil. Use an appropriate container.

- Wash the air filter by submerging the filter in a solution of household detergent and warm water. Slowly squeeze the filter to thoroughly clean.

NOTICE

DO NOT twist or tear the air filter during cleaning or drying. Only apply slow but firm squeezing action.

FIG. 20

A B C

A - Tab
B - Locking knob
C - Engine service cover

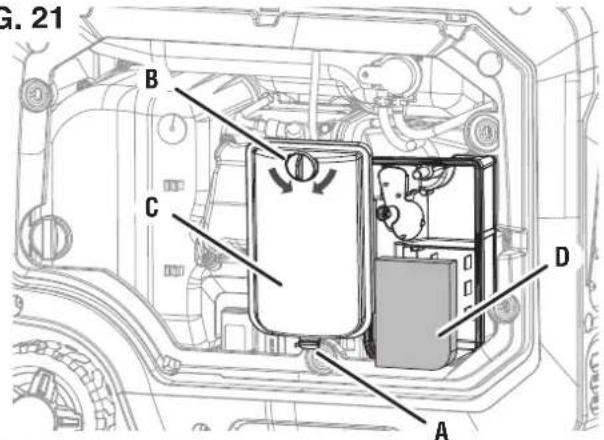

FIG. 21

G. 21 B C D A

A - Tab
B - Lock knob
C - Air filter cover
D - Air filter(Foam)

- Rinse the air filter by submerging it in fresh water and applying a slow squeezing action. Allow the filter to dry thoroughly.

NOTICE

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

- Dip the air filter in clean engine oil then squeeze out all excess oil.

NOTE: The engine will smoke when started if too much oil is left in the filter.

● Install the air filter into the air cleaner housing.
- Align and insert the tab at the bottom first to reinstall the air filter cover. Rotate the lock knob back to the locked position.
● Install the engine service cover and turn the lock knob to the locked position to secure.

CHANGING THE ENGINE OIL

See Figure 22.

Follow the intervals for maintenance described in the Maintenance Schedule table.

NOTE: Change the oil while the engine is warm but not hot. Warm engine oil drains more quickly and thoroughly than cool oil. Contact with hot oil may cause serious burns.

• Turn off the generator and allow the engine to cool for 30 minutes.
• Position the generator on a level surface in a well-ventilated area.
• Remove the engine service cover.
• Remove the "V" piece from the opening.
• Locate the oil drain tube.
• Place an oil pan (or suitable container) beside the unit.
• Lift the oil drain tube and position it in the "V" opening and to the outside of the case on the generator.
  ● Lower it into the oil drain pan and twist the cap on the end of the oil drain tube counterclockwise to open.
  ● After the oil has drained completely, twist the cap of the oil drain clockwise to close.
• Reposition the oil drain tube inside the case of the generator in the position shown.
  ● Refill the oil and check level as described in the Operations section.
• Replace the oil dipstick and hand-tighten.
• Clean any spilled oil.
  ● Reinstall the engine service cover.

CLEANING/REPLACING THE SPARK PLUG

See Figure 23.

NOTICE

ALWAYS use compatible or

Westinghouse OEM spark plugs.

Be sure the spark is clean and properly gapped. To clean or replace the spark plug:

• Turn off the generator and allow the engine to cool for 30 minutes.
• Position the generator on a level surface in a well-ventilated area.
• Remove the engine service cover.
• Remove the spark plug boot by pulling the spark boot directly away from the engine.
• Clean the area around the spark plug.
• Remove the spark plug with the included spark plug socket wrench.

NOTICE

Never apply any side load or

pressure to move the spark plug laterally when removing it.

- Inspect the spark plug. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.

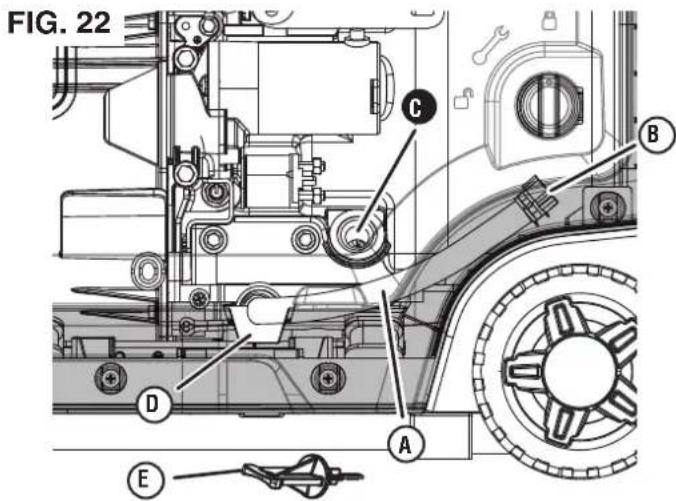

FIG. 22 C B D A E

A - Oil drain tube
B - Oil drain tube cap
C - Oil fill
D - "V" opening
E - Oil dipstick

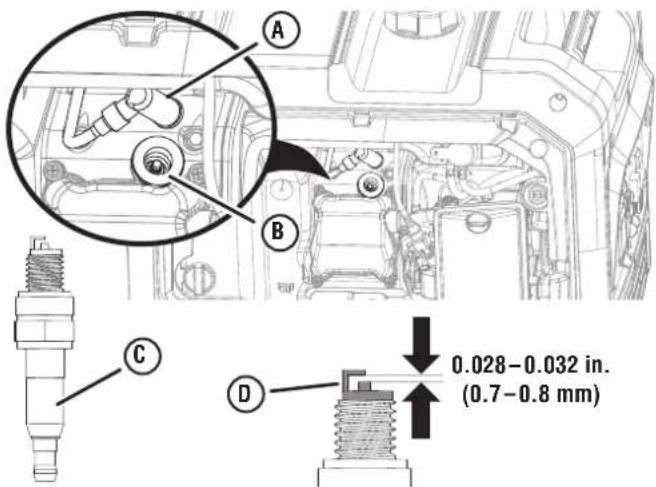

FIG. 23

A B C D 0.028-0.032 in. (0.7-0.8 mm)

A - Spark plug boot
B - Spark plug
C - Insulator
D - Electrode

- Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

Spark plug gap: 0.028 - 0.032 in. (0.7 - 0.8 mm)

• Carefully install the spark plug finger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench.
  ● Install the spark plug boot and close the spark plug service door.

CLEANING THE SPARK ARRESTOR

See Figure 24.

Check and clean the spark arrestor according to the figures specified in the Maintenance Schedule or the engine manual (if applicable). Failure to clean the spark arrestor will result in degraded engine performance.

• Turn off the generator and allow the engine to cool for 30 minutes.
• Position the generator on a level surface in a well-ventilated area.
• Remove the two screws securing the spark arrestor bracket.
• Remove the bracket, screen, and spark arrestor from the generator.
• Clean the screen and spark arrestor using a wire brush.
  ● Reinstall the spark arrestor, screen, and bracket. Tighten the screws securely.

DRAINING THE FUEL TANK AND INJECTOR

See Figures 25 - 26.

WARNING

ALWAYS store gasoline in a container approved for gasoline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard.

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the fuel to prevent gum and varnish buildup in the injector. If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

• Turn off the generator and allow the engine to cool for 30 minutes.
• Place the generator on a level surface in a well-ventilated area.

To drain the injector:

- Start the generator as described earlier in the Starting generator: gasoline section of this manual.

NOTE: Remove the propane tank if installed and store in a safe location before starting engine.

● After the engine starts, turn the fuel selection switch to the propane (LPG) position.

- Allow the generator to run until the fuel in the injector is depleted and the engine stops.

- Turn the engine control switch to the off (O) position.

To drain the fuel tank:

NOTE: When draining the fuel tank, be sure to drain the injector first before removing the remaining fuel from the fuel tank.

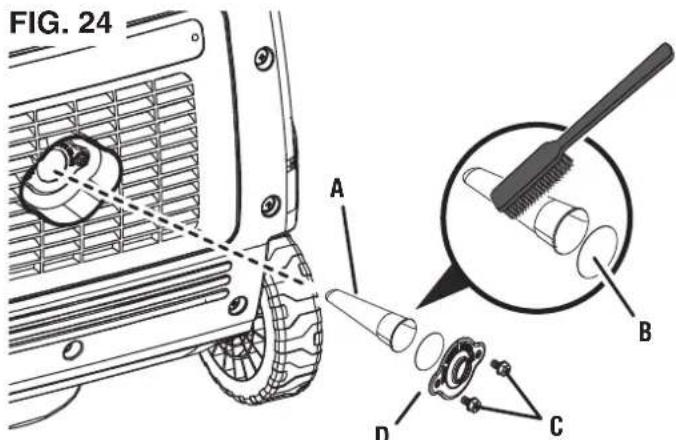

FIG. 24 A B C D

A - Spark Arrestor
B - Screen
C - Screws
D - Bracket

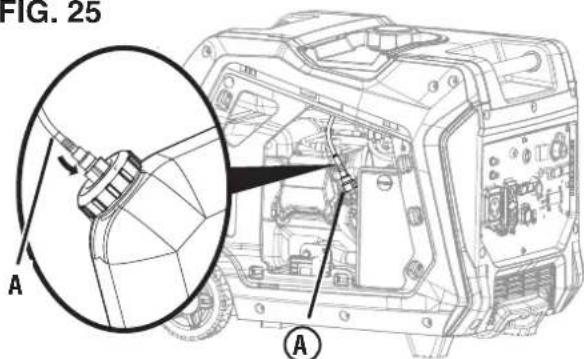

FIG. 25

FIG. 25 A A

A - Injector hose

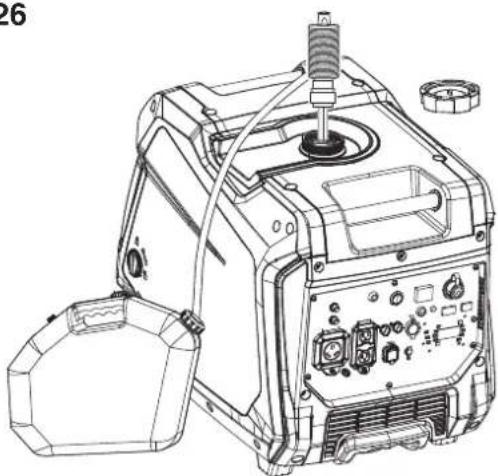

FIG. 26

Technical line drawing of a mechanical device with no visible text or symbols

• Turn the fuel selection switch to the propane (LPG) position.
• Clean the area around fuel cap and remove the cap slowly.
• Remove the fuel screen filter by slightly compressing it while removing it from the tank.
  ● Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an

approved gasoline container. DO NOT use an electric pump.

FUEL FILTER

The fuel filter is located inside the fuel tank at the base of the pump assembly. It helps prevent impurities in the tank from entering into the fuel system where it could restrict the flow of fuel into the injector.

The fuel filter should be replaced every 100 hours or six months of use, whichever comes first. This service is recommended to be performed by an authorized Westinghouse service dealer.

CHECKING/ADJUSTING VALVE CLEARANCE

See Figures 27 - 28.

NOTICE

Checking and adjusting valve clearance must be done when the engine is cold.

• Turn off the generator and allow the engine to cool for 30 minutes.
• Position the generator on a level surface in a well-ventilated area.
• Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
• Remove the spark plug so that the engine can be rotated.
• Pull the recoil handle to rotate the engine to top dead center (TDC). Looking through the spark plug hole; the piston should be at the top (both valves are closed).
• Both rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360°.
• Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.

	Intake Valve Exhaust Valve
Valve Clearance	0.0039 – 0.0059 in.(0.1 – 0.15 mm)	0.0059 – 0.0078 in.(0.15 – 0.2 mm)
Torque 8–12 Nm8–12 Nm

• If an adjustment is necessary, loosen the jam nut.
• Slide the appropriate feeler gauge between the rocker arm and the valve stem.
  ● Tighten the adjustment screw onto the push rod to obtain the specified clearance.

NOTE: The feeler gauge should be able to contact the rocker arm.

● Hold the adjustment screw in place and tighten the nut.

Torque: 106 inch-pound (12 Nm)

• Recheck valve clearance.
• If no further adjustments are needed, perform this procedure on the other valve.
• When finished, install the gasket, rocker arm cover, and spark plug.

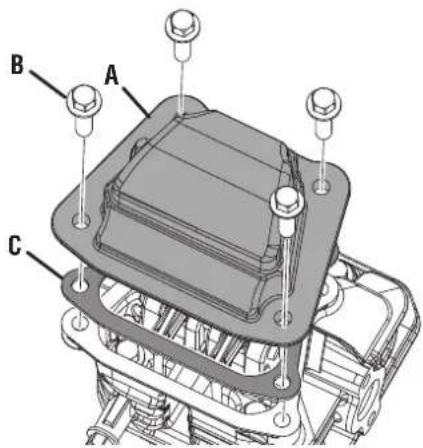

FIG. 27

Technical diagram of a mechanical assembly with labeled components A, B, and C

A - Rocker arm cover

B - Bolt

C - Gasket

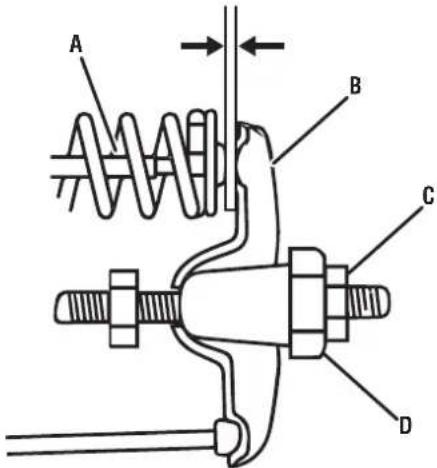

FIG. 28

A B C D

A - Valve stem

B - Rocker arm

C - Pivot adjusting nut

D - Rocker arm pivot

STORAGE

Turn off the unit and allow it to cool for a minimum of 30 minutes before storage. Keep the unit upright. Do not store the generator on its side. Drain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open flames, pilot lights, heat, and other sources of ignition.

NOTICE

Gasoline stored for as little as

30 days can deteriorate, causing gum, varnish, and corrosive build up in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the flow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer significantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer's instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE
Less than 1 month	Replace all protective covers on the generator control panel.Clean the exterior of the generator and remove any debris from the muffler cooling vents.
2 to 6 months	Replace all protective covers on the generator control panel.Clean the exterior of the generator and remove any debris from the muffler cooling vents.
6 months or longer	Replace all protective covers on the generator control panel.Clean the exterior of the generator and remove any debris from the muffler cooling vents.Drain the fuel tank.(Store gasoline in an approved gasoline container or dispose of it according to state and local ordinances.)Put a tablespoon of engine oil into the spark plug cylinder. Gently pull the recoil handle to slowly turn the engine and distribute the lubricant. Reinstall the spark plugChange the engine oil.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

NOTE: If your product has a separate engine manual, disregard the information in this chart and follow the instructions in the engine manual.

	Before Each Use	After First 25 Hours or First Month	After 50 Hours or Every Six Months	After 100 Hours or Every Six Months	After 300 Hours or Every Year
Check Engine Oil X
Change Engine Oil ^1		X	X
Clean Air Filter ^2			X
Inspect/Clean Spark Arrestor				X
Inspect/Clean Spark Plug				X
Inspect/Adjust Valve Clearance ^3				X
Replace Spark Plug					X
Replace Air Filter X
Replace Fuel Filter X
^1 Change oil every month when operating under heavy load or in high temperatures. ^2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned. ^3 Recommend service to be performed by authorized Westinghouse service dealer.

PROBLEM POSSIBLE	CAUSE CORRECTION
Engine starts, then shuts down	Fuel level is low or depleted. Refuel.
	Incorrect engine oil level. Check engine oil level.
	Dirty air filter. Clean the air filter.
	Contaminated gasoline. Drain the fuel tank. Refuel with fresh gasoline.
	Defective low oil level switch. Contact Westinghouse customer service toll-free at 1-855-944-3571.
Engine lacks power	Air filter restricted. Clean or replace air filter.
	Stale gasoline, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Fuel system malfunction, ignition malfunction, or valves stuck.	Contact Westinghouse customer service toll-free at 1-855-944-3571.
Engine will not start	Out of fuel. Refuel.
	Stale gasoline, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the gasoline tank. Refuel with fresh gasoline.
	Dirty air filter. Clean the air filter.
	Low engine oil level stopped generator. If LOW	OIL LED illuminated, turn battery switch OFF. Add engine oil.
	Spark plug wet with fuel (flooded engine). Wait	five minutes. Turn fuel selector switch to the PROPANE position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry.
	Spark plug faulty, fouled, or improperly gapped.	Gap or replace the spark plug. Reinstall.
	Fuel system malfunction, ignition malfunction,or valves stuck.	Contact Westinghouse customer service toll-free at 1-855-944-3571.
	CO sensor removed or modified. Return to original configuration.
	CO sensor activated or system fault occurred.	Relocate generator / Contact Westinghouse customer service toll-free at 1-855-944-3571.
Engine runs rough or bogs when load applied	Dirty air filter. Clean the air filter.
	Generator overloaded. Disconnect some devices.
	Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine.
	Fuel system malfunction, ignition malfunction,insert space or valves stuck.	Contact Westinghouse customer service toll-free at 1-855-944-3571.
No power at AC receptacles	OUTPUT READY LED is OFF and OVERLOAD LED is ON.	Check AC load. Stop and restart engine.
		Check the air inlet. Stop and restart the engine.
	AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.
	Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine.
	Faulty generator. Contact Westinghouse customer service toll-free at 1-855-944-3571.
Frost on the propane tank or regulator	If the temperature of the propane tank drops below the dew point, condensation on the tank may turn to frost or ice. This typically occurs in humid conditions.	Providing all the propane fuel handling equipment is functioning normally, no correction is needed.
	The propane tank is not equipped with an Overfilling Prevention Device (OPD).	If you suspect your propane fuel tank is not equipped with an OPD device, discontinue operation immediately and replace the propane fuel tank with a propane tank equipped with a an OPD.
	Propane fuel tank overfilled. If you suspect your	propane fuel tank has been overfilled, discontinue operation immediately and return the propane fuel tank to the place of purchase or refilling.
Propane fuel smell Fuel	regulator or fuel hose and fittings not securely sealed.	Using a soap solution check each connection and tighten as needed.
	Propane fuel regulator vent active. The propane fuel regulator is equipped with a vent that will allow a small amount of propane fuel vapor to escape from the regulator when the propane tank valve is opened. This can be normal providing the venting of the propane is brief. If you suspect that this is abnormal, immediately discontinue use and have the propane regulator inspected by a qualified technician.
	Residual fuel from the throttle body dispersing after operation.	Normal, no correction is needed.
Poor performance or engine stalling on Propane	Propane fuel line kinked or crushed. Inspect pro	propane fuel line and remove kinks or other obstructions.
	Fuel selector valve not properly positioned. Rot	tate the fuel valve fully until the pointer is directly in line with the desired fuel.

ALTERNATOR Grounding System(AC): Natural Floating CONTROL PANEL Main winding R 14A0G R 15A0G Y 14A0G Y 15A0G Bu 14A0G Bu 16A0G DC, winding DC, 16A0G Bu 16A0G Fuel Cut Solenoid Winding on Carburetor COUNTER TEMPERATURE SENSOR SPARK PLUG IGNITION COIL THIGER Fuel Stepping Motor Fuel Injector TPS Sensor LOW OIL O2 Sensor Battery Starter Motor Engine Westinghouse Model: iGen5000DFc-EFI Doc No:506687-001 Title: SCHEMATIC Model Revision Level: 01 Doc Revision Level: 01 Ed. Date: 07/31/24

iGen5000DFc EFI Inverter

Generador Inversor Digital

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

SAFETY LABELS AND DECALS

1 ACTION LABEL AUTOMATIC SHUTOFF - YOU MUST: STRAWA DE FUNCIONAMIENTS ETHNICITE D'ACTIME EXTRAUST POINT EXHAUST LEMONDANCE BEANS PO Box COOKING PULLISHING WITH CABBON MUNICOLE SENSOR COLD RESULT IN HAZARDORS CONDITION MOVE TO FRESH ARE. CAST MEDICAL HELP OF SICK, OZZY OR WEAR. MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHILLI MINIMUM CHOLL WARNING AVOCATORIA AVOCATORIA AVOCATORIA TAMPOSSURE WITH CABBON MUNICOLE SENSOR COLD RESULT IN HAZARDORS CONDITION MAKE AUTHORIZATION ON SEVERE OR INSURANCE OR CABBON MUNICOLE CABBON MUNICOLE CABBON MUNICOLE LUCTURATION DE CAPITUS DE BIMMATIC DE CABBON FOR OUTRATIONS DE CONTINUING CONSUMES 3 CAUTION HOT SURFACES PRECAUCIÓN SUPERFICIES CALIENTES ATTENTION SURFACES CHAUDES 2 DANGER Failure to follow warnings, instructors and operators' manuals in result in death of serious lesion. Generator shall cause electrical shock. • ONLY use in dry conditions. • NO NOT consider the fault with a barrier. • A barrier is not used for connection to a building. Never find out with engine turning. Always listen will well beiled area. Always allow until it cool before being. For traffic and exhaust gases can cause fire. Keep at least #6. 1.5 mg clearance from any commercial or structural, including overhead. Exhaust contains passenger carbon monoxide gas that can cause environmental issues or DEATH. Installation Monoxide alarme inside home. For electrical equipment only. Failure to propriet power generator can lead in electronics. 4 PELIGRO No exceedor tax accretioners e instrumentares y al manual del operator provocard lektrera graves a la mante. El generator plume causes one resistance electrica. • No does not understand any other congeneres de combustion. • No does not understand any other's problems. • No direct or indirect electricis de un care. Motor compus la liquid can isolate an antenna. Carpa dampes per unit level can be seen. Some help par la dose. • Let per manometer check per year can be seen on the right. • Let per manometer check per year can be seen on the right. • Let per manometer check per year can be seen on the right. • Let per manometer check per year can be seen on the right. • Let per manometer check per year can be seen on the right. • Let per manometer check per year can be seen on the right. • Let per manometer check per year can be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per manometer check per year CAN be seen on the right. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let per human features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features for all three types of car. • Let personal Features: LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, LUXED, 5 DANGER Using a generator rotorso CAN KILL YOU IN MINUTES. Generator shaft contains carbon monoxide. This is a power you cannot test or email. NEVER use inside a home for parking, EVEN IF doors and windows are open... Only use OUTSIDE and far away from windows, doors, and walls. Only use outside and far away from windows, doors, and walls. 40°C (104°F) 5 Serial No. No. De Série Register your product: Westinghouse Westinghouse Outdoor Power Equipment Columbus Ohio 43228 USA Made in: Facteur de: Model: Modelie iGen50000Fe EFL AC Voltage Tension CA 32.5A GAS 29.2A LPG RPM TR/MN 3800rpm Power Factor Factor de purnance 1.0 7 EZ Start Instructions GASOLINE SET UP Inicio de gasolina | Début de l'assurance Propane Set UP Propano Start | Début du propane Segment de la heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propane set up as a heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation estер regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propano Start | Début du propane Segment de la heat conformation ester regular- propanu Start | Début du propane Segment de la heat conformation ester regular- propanu Start | Début du propane Segment de la heat conformation ester regular- propanu Start | Début du propane Segment de la heat conformation ester regular- propanu Start | Début du propane Segment de la heat conformation ester regular- propanu Start | Début du propane Segment de la heat conformation ester regular- propanu Start | Début d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunision d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunition d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunisation d'immunise n'e non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remisure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-micronon eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnium eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnions eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnion eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletomnios eletoma n'e non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure et non-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiura enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet emfumon enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet enfeet in feet en feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in fumon en feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feet in feeutine n'e non-remiure et non-remiure et non-remiure et non-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiruse n'e non-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiure etnon-remiruse n'e non-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse etnon-remiruse and other commsenanone can be seen from the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first timeof the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time of the first time 5 DANGER using a generator rotorso on Feas you in minutes. Generator shaft contains carbon monoxide. This is a power you cannot test or email, NEWER use inside a home or gate, ECV/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DF/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/AC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / AC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / SCV / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / DC VEG / SCV / DC VEG / Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UPPropane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UPPropane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UP Propane SET UPPropane SET UP Propane SET UP Propane SET UPPropane SET UP Propane SET UP Propane SET UPPropane SET UP Propane SET UP Propane SET UPPropane SET UP Propane SET UPPropane SET UP Propane SET UPPropane SET UP Propane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPropane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UPPROpane SET UFPROANOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENOSOENososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososososnososinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinoisivosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinosinsiosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosiniosinsiosiniosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsioisivosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsiosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisivosinsioisiosisnsissous

Technical diagram of a portable generator with labeled components including power source, fan, and control panel

E F H J I

U T S R NOPQ M 130A AC 2F AUTOMATIC SHUTTOFF- HIGH LEVELS OF CARBON MONOXIDE BEFORE RESTARTING more polarizer to a power open electrical bus. Push reliased anti- bus GANGER, fan and drone/neutral for more information. MOVE TO FRESH AIR AND GET MEDICAL HELP FOR OUT DOG. Supply of work. Push Button Electric Start YELLOW/ DIFFER GENERATION One sensor: AI Sonnader Dissociation La Monetode AC120V 30A TT-30R AC120V 20A 5-20R Parallel Operation Switch to Parallel Operation Parallel DC Return Banded to Frame with DC Construado at Biomarker Eco Mode Conductible Emitter L EPI SYSTEM FAULT STATUS K J Westinghouse iGen5000DFc EFI ABCDEFGH

A - Battery
B - Battery connector plug

REQUISITOS DEL CILINDRO DE GAS LP

AVISO

Technical line drawing of a mechanical device with a circular annotation highlighting a no-smoking symbol (no text or labels present)

FIG. 12

FIG. 12 A B C D

A - Volante
B - Válvula del cilindro
C - Manguera de GLP/propano
D - Niple

AGREGANDO GASOLINA

G. 23 A A

Technical line drawing of a mechanical device with no visible text or symbols

NE PAS RETOURNER CE PRODUIT AU MAGASIN

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

AVOIR DES QUESTIONS?

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

CAUTION HOT SURFACES PRECAUCIÓN SUPERFICIES CALIENTES ATTENTION SURFACES CHAUDES DANGER Let us expect an environmental, do the manufacture and use of the water from the water to the water from the water. Let you want to fill your space for this purpose. Let us understand that you are able to build a suitable water. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you need to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitability or other suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for this purpose. Let you want to build a suitable water for the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of the situation of 100% (20%) (30%) (40%) (50%) (60%) (70%) (80%) (90%) (100%) (110%) (120%) (130%) (140%) (150%) (160%) (170%) (180%) (190%) (200%) (210%) (220%) (230%) (240%) (250%) (260%) (270%) (280%) (290%) (300%) (310%) (320%) (330%) (340%) (350%) (360%) (370%) (380%) (390%) (400%) (410%) (420%) (430%) (440%) (450%) (460%) (470%) (480%) (490%) (500%) (510%) (520%) (530%) (540%) (550%) (560%) (570%) (580%) (590%) (600%) (610%) (620%) (630%) (640%) (650%) (660%) (670%) (680%) (690%) (700%) (710%) (720%) (730%) (740%) (750%) (760%) (770%) (780%) (790%) (800%) (810%) (820%) (830%) (840%) (850%) (860%) (870%) (880%) (890%) (900%) (910%) (920%) (930%) (940%) (950%) (960%) (970%) (980%) (990%) (100%) ▲ DANGER Using a generator in lineers can kill you in minutes. Generator exhaust contains carbon monoxide. This is a person who cannot see or email. Only use outside and for waste from windings, doors, and vents. Never use inside a home or garage, every if stores and will have are open. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windings, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside and for waste from windines, doors, and vents. Only use outside, but not available in some parts or parts in less than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than 5 mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be used in more than five mmol/L/min/day water can be using an electric circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its other circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its non-current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its own current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit or its current circuit/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their currentircuit/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our their current circuits/our theircurrent / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / ourcurrent / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / ourcurrent / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / our current circuits / ourcurrent / our current circuits / our current circuits / our current circuits / our current circuits / ourcurrent / our current circuits / our current circuits / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent / ourcurrent | Utilizer un generaliser un generaliser per out your full time per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per Unit Utilizer un generaliser un generaliser per out your full time per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit per unit Utilizer un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliserun generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un generaliser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiser un gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun gradualiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyiseun graduallyisugranlyn graduallyiseanllyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulynlyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrulyngrJulyngrulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulyngrJulynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlynggrranynlyngggrranynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlynlaynlynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynonglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglorynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglynnylglymmnlgyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllmyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllnyllkyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmyllmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylhyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmilylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaullmifylgyllaillpurnlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaummalveu laumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlaumlanlu#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#y#Y DANGER Using a generator in lineers can kill you in minutes. Generator exhaust contains carbon monoxide. This is a person who cannot see one email. Never use outside home or garden, every night there are no changes in some days are present. Only use outside home and garden, every night there are no changes in some days are present. Only use outside home and garden, every night there are no changes in some days are present. Only use outside home and garden, every night there are no changes in some days are present. Only use outside home and garden, every night there are no changes in some days are present. Only use outside home and garden, every night there are no changes in some days are present.

②

Westinghouse Westinghouse Outdoor Power Equipment Columbus Ohio 43226 USA Rev. Level Revision Phase AC Voltage Tension CA Model Module IGens5000DFs EFI AC Current Intensile CA Rev01 Single Single AC Voltage Tension CA Power (Rated) Pulsance (Nom.) Power (Peak) Pulsance (Pointe) Frequency Frequency Frequency 32.5A GAS 29.2A LPG RPM TR/MIN 2800rpm Incl Class Class D/Sol. 5000W GAS <500W LPG 60Hz Duty Service Power Factor Factor for maintenance F 40°C (104°F) S1 Serial No.No. Do Series Register your product:

7

Technical diagram of a two-part electric vehicle with labeled components from A to J

PRISES 120 VOLTS C.A.

CENTRE DE DONNÉES LED

U T S R Q P O N M AC 20 AUTOMATIC SHUTOFF. HIGH LEVELS OF CABBON MONORIDE Push Button Electric Start BEVERAGE RESTARTING multi-generator for more dual switches, then without every 300W/Hz band and with one or more work without MOVE TO FRESH AIR AND NOT MANUAL RED IF you feel able, dry or weak. AC120V 30A TT-30R AC120V 20A 5-20R Parallel Operation Stable or Parallel Operation Parallel DC EU MAX 5.1 ECO Powered to frame on DC Convertible of Bachlar Digital Data Center Centre de Boute Digitale EVI SYSTEM PALET STATUS Eco Mode Control Panel Emitter L K J Westinghouse Gen5000DFc EFI A B C D E F G H

Line drawing of a mechanical device with a circular annotation highlighting a no-smoking symbol (no text or labels present)

FIG. 12

IG. 12 A B C D

A - Volant
B - Soupape de cylindre
C - Tuyau GPL/propane
D - Teton

AJOUTER DE L'ESSENCE

The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact the Westinghouse support team.

The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob.

NOTE: As the batteries in the remote start key fob drain, operational distance will decrease.

Remote replacement batteries: P/N CR2016 (2)

19 A B C D E F G AC200V 306 TT-30R AC200V 208.5-20R AC200V 306 TT-30R AC200V 208.5-20R Dual Fuel Dual Fuel DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC K J I H Westinghouse iGen: 0000DFc EFI

FIG. 25 A ①

Technical line drawing of a mechanical device with no visible text or symbols

Blue circular icon with a white crown symbol (no text or numbers)

www.WestinghouseOutdoorPower.com

Service Hotline [phone]

777 Manor Park Drive, Columbus, OH 43228

and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Outdoor Power Equipment. © 2024 MWE Investments, LLC All Rights Reserved.
