USER MANUAL RT53K6335SL SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

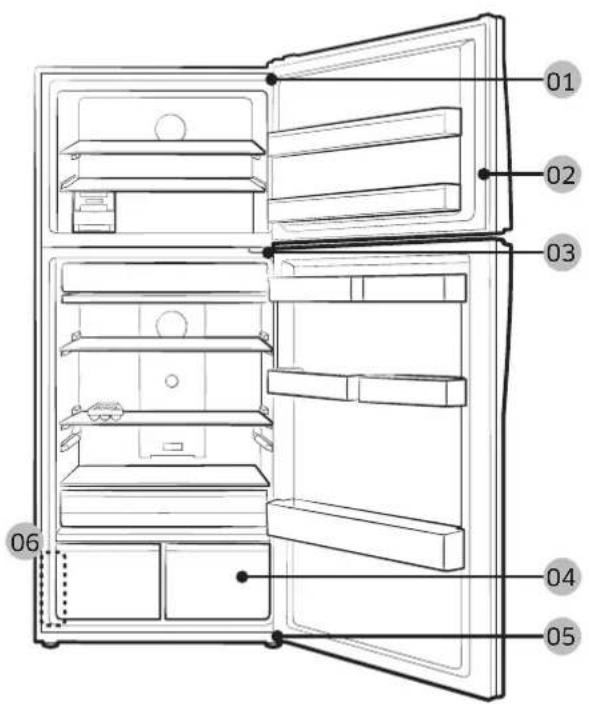

01 02 03 04 05 06

01 Hinge Up 02 Gasket
03 Hinge Mid 04 Drawer
05 Hinge Low 06 Barcode label

English

Handle replacement

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

FRE

Close-up of a hand holding a small electronic device, showing its screen and panel (no visible text or symbols)

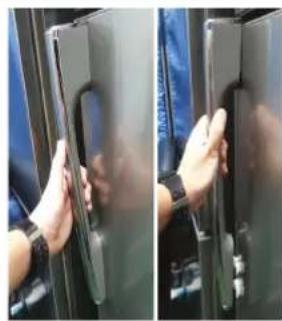

Pull out the handle and hit the handle vertically. When the handle is released from the lock. To pull the handle toward you. (Refer to the picture)

REF

Two-panel photo showing a person adjusting a door panel, no visible text or symbols

CAUTION

• Be careful not to scratch.
• When disassembling, make sure the unit turned off if you want to assembly fellow the reverse order.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

FRE REF

1. Pull the 4 corners of gasket Fre & Ref.

Close-up of a hand pressing down on a white plastic component (no visible text or symbols)

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

1. Pull the center of gasket.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Interior view of a refrigerator with a hand adjusting the drawer (no visible text or symbols)

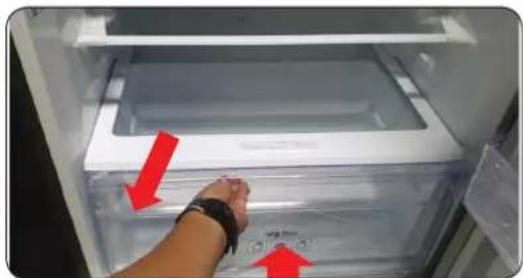

Remove the drawer by pulling the roller part and lifting it up.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

- When removing the doors, take extreme caution because the doors are heavy. - Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down. - As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

- If you remove the hinge without holding the door, the door may fall and cause injury. - Ensure that the shaft is firmly tightened on the hinge. - Check that the hinge is firmly attached to the cabinet. - Make sure the wire connectors are connected properly. - Be careful not to damage the wires when fastening the top cover.

WARNING

- Tilting/laying the refrigerator requires a minimum of 2 people. - Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench Allen wrench (5 mm) 10 mm spanner

English

Reversing the door

Hinge Up

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

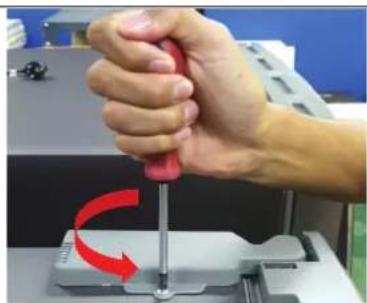

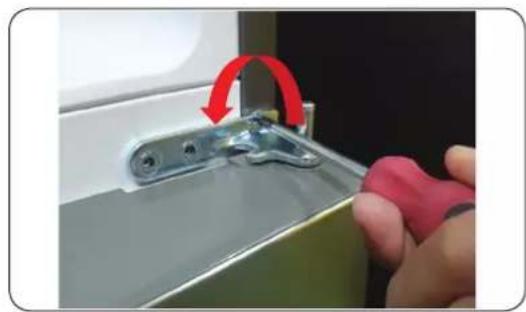

1. Remove screw 1 ea Cover hinge with the (+) screwdriver and Open.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

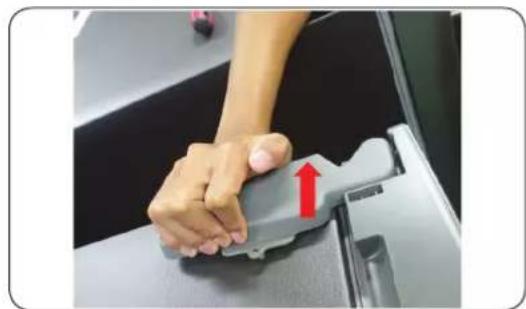

1. Pull the hooks and lift Cover hinge.

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

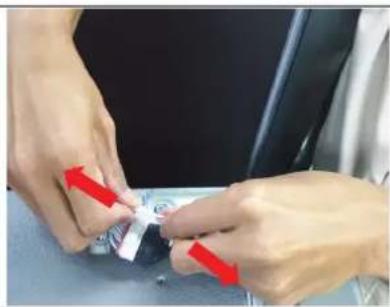

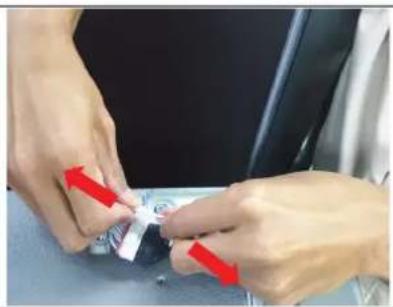

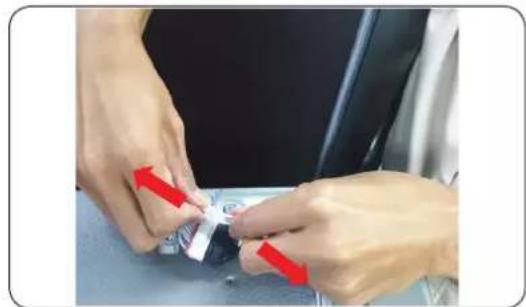

1. Disconnect the wire connector on the hinge up.

CAUTION

Be sure to unplug the power cord before performing the operation above.

Hand operating a mechanical clamp on a workbench with a red ribbon and plastic tray (no visible text or symbols)

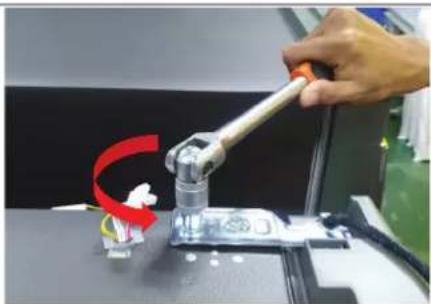

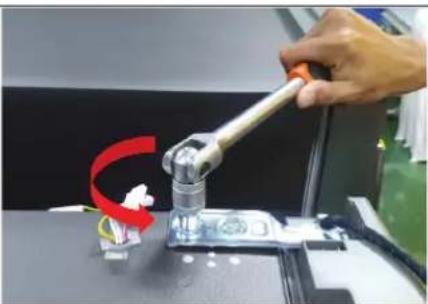

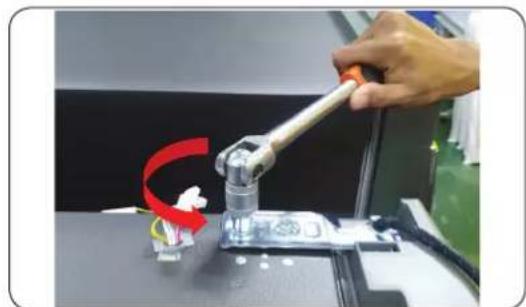

1. Remove the 2 hex bolts that hold the hinge on the top of the refrigerator with the 10mm socket wrench.

English

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

1. Remove Hinge up R/L.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a person holding the door (no visible text or symbols)

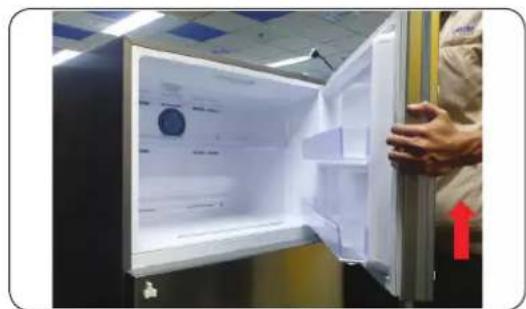

1. Remove Door.

CAUTION

Must working more than 2 people. One person grab the door to prevent falling door.

English

Hinge Mid

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic device with a red upward arrow indicating motion (no text or symbols visible)

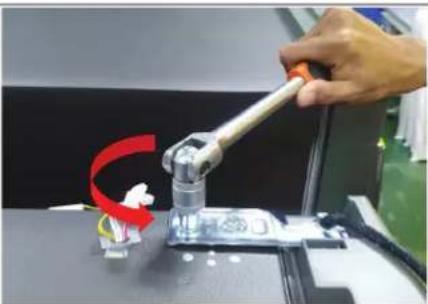

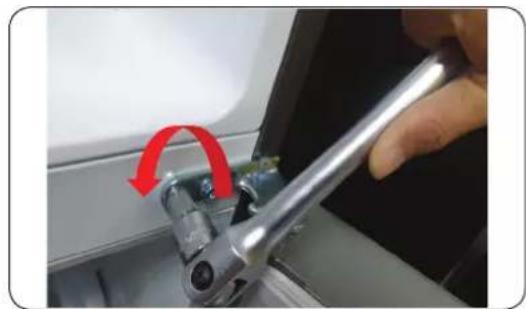

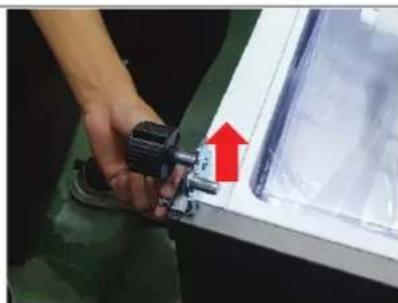

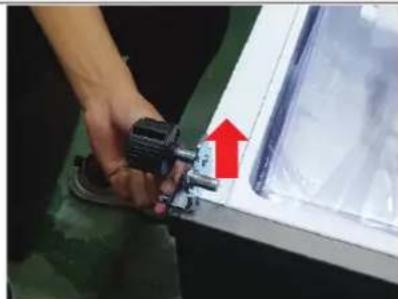

1. Remove the 2 hex bolts that hold the hinge with the 8 mm socket Wrench or using (+) screwdriver.

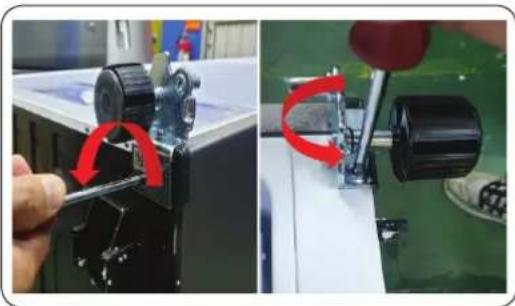

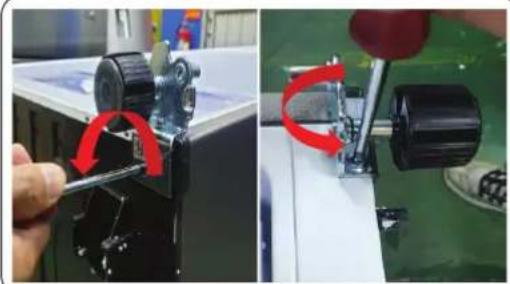

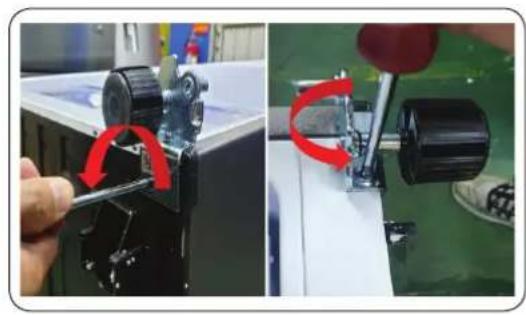

2. Remove the screw 1 ea the hinge With (+) screwdriver.

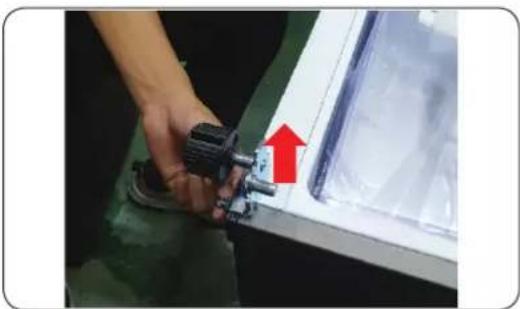

3. Diassembly hinge mid from door ref up.

CAUTION

- Must working more than 2 people.

- Be sure to unplug the power cord before performing the operation above.

English

Hinge Low

Black rectangular container with red downward arrows indicating internal flow or movement (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

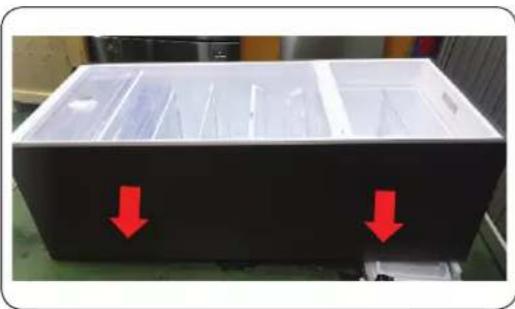

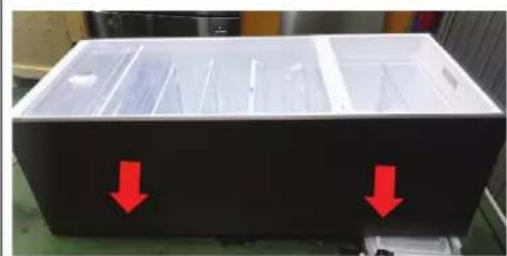

1. Lay down product (Refer picture).

CAUTION

• Must to a pad underneath to protect the back of the product from being damaged.
• Must working more than 2 people.

• Be sure to unplug the power cord before performing the operation above.

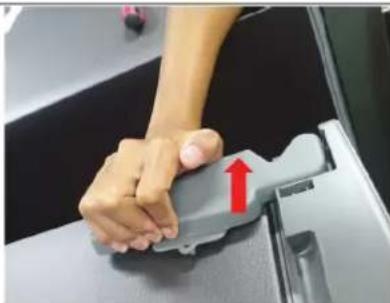

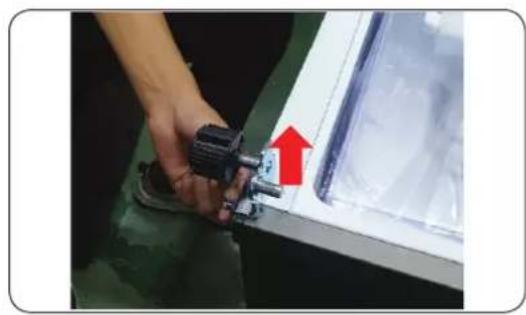

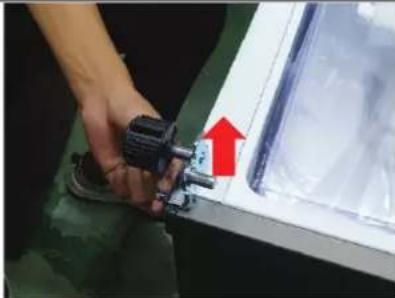

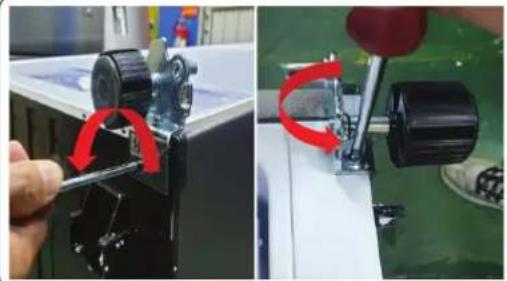

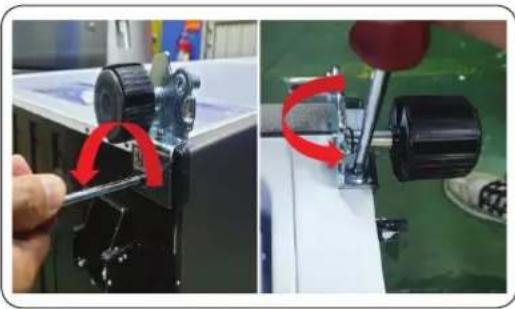

• Remove the 3 hex bolts that hold the hinge with the 8 mm socket Wrench or using (+) screwdriver.

• Remove Hinge Low.

• Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.
- Be careful not to damage the wires when fastening the top cover

English

Guide de réparation

Close-up of a hand holding a metallic object, showing part of a refrigerator (no visible text or symbols)

Close-up of hands adjusting a door panel inside a vehicle (no visible text or symbols)

ATTENTION

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or install a mechanical component, with no visible text or symbols.

Close-up of a hand pressing down on a car seatbelt buckle (no text or symbols visible)

Close-up of hands installing a small white component with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical tool on a workbench with a red ribbon and plastic components (no visible text or symbols)

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a person holding the door (no visible text or symbols)

1. Retirez la porte.

ATTENTION

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal clip on a white shelf (no text or symbols visible)

Close-up of a hand holding a small metallic clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black rectangular container with two red downward arrows pointing to its sides (no text or symbols visible)

Two-panel image showing a robotic arm with red arrows indicating motion or adjustment, next to a close-up of the mechanical component (no text or symbols visible)

Close-up of a hand holding a mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Close-up of a hand holding a black refrigerator door, showing the interior and exterior view (no text or symbols visible)

ATTENZIONE

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a small object with a dark, triangular shape (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or install a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a gray car seatbelt buckle with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small component with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and green plastic nearby (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

1. Rimuovere la cerniera S/D.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a person adjusting the door (no visible text or symbols)

1. Rimuovere la porta.

ATTENZIONE

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic device with a red arrow pointing upward (no text or symbols visible)

Black rectangular container with two red downward arrows pointing to its sides (no text or symbols visible)

Two-panel image showing a robotic arm and a close-up of a mechanical component with red arrows indicating motion (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a white plastic component, with a red arrow indicating the direction (no visible text or symbols)

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Close-up of a hand holding a refrigerator door, showing interior details (no visible text or symbols)

VORSICHT

Close-up of hands cleaning a printed document with a hand pointing to it (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical clamp on a workbench with a red ribbon and plastic tray (no visible text or symbols)

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a person holding the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic device with a red arrow pointing upward (no text or symbols visible)

Exterior view of a rectangular storage unit with two red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a hand using a tool to adjust a mechanical component; the left panel shows a close-up of a mechanical part with red arrows indicating rotation or adjustment, while the right panel shows a close-up of a mechanical component with red arrows indicating rotational motion.

Close-up of a hand using a tool to adjust or install a white plastic component, with a red arrow indicating the motion (no visible text or symbols)

Close-up of a hand holding a metal object, showing part of a device (no visible text or symbols)

Close-up of hands adjusting a black door panel, no visible text or symbols

LET OP

Two-panel photo showing a hand inserting a card into a device, no visible text or symbols

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no text or symbols visible)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a person holding the door (no visible text or symbols)

1. Verwijder de deur.

LET OP

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

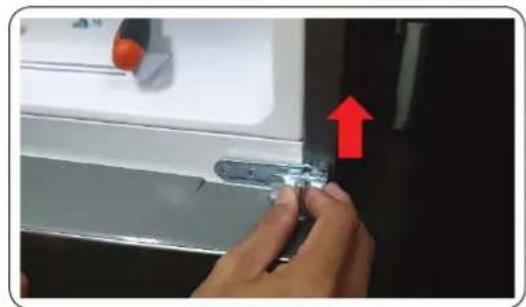

Close-up of a hand holding a small metallic clip next to a white door, with a red arrow pointing upward (no text or symbols visible)

Black rectangular container with transparent lid and two red downward arrows pointing to its side (no text or symbols visible)

Two-panel image showing a robotic arm tool interacting with a mechanical component, one with red curved arrows indicating motion or adjustment (no text or symbols visible)

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand holding a black object, possibly a device or device component, with no visible text or symbols.

Two-panel photo showing a person adjusting a black refrigerator door, no visible text or symbols

PRECAUCIÓN

Two-panel image showing a hand inserting or removing a document into a device (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the drawer (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

1. Retire la bisagra superior D/I.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a person holding the door (no visible text or symbols)

1. Retire la puerta.

PRECAUCIÓN

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic device with a red arrow pointing upward (no text or symbols visible)

Black rectangular container with red downward arrows indicating internal flow or movement (no text or symbols visible)

Two-panel image showing a mechanical device with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand holding a small electronic device, showing its screen and panel (no visible text or symbols)

Two-panel photo showing a person adjusting a door panel, no visible text or symbols

ATENÇÃO

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a textured, curved object with no visible text or symbols

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the buckle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Remova a porta.

ATENÇÃO

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component (no text or symbols visible)

Close-up of a hand holding a small metallic clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black plastic tray with red arrows pointing downward, no visible text or symbols

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component next to a white panel, with a red arrow pointing to a small object (no visible text or symbols)

Close-up of a hand holding a metallic object, showing part of a door handle (no visible text or symbols)

Two-panel photo showing a person holding a door panel, no visible text or symbols

ΠΡΟΣΟΧΗ

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or install a mechanical component, with no visible text or symbols.

Close-up of hands holding a gray safety belt switch with a red upward arrow (no text or symbols visible)

Close-up of hands adjusting a small white object with red arrows indicating direction (no text or symbols visible)

Close-up of a robotic arm gripping a metallic component, with a red ribbon and blue cable wrapped around it (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flatbed surface (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal clip on a white surface (no text or symbols visible)

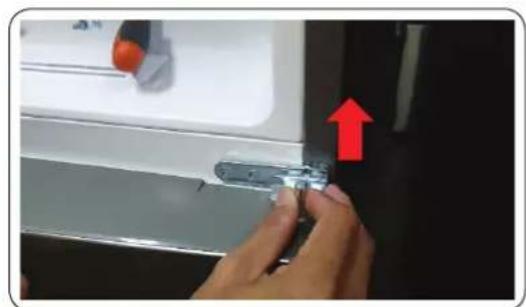

Close-up of a hand holding a small metallic object with a red arrow pointing upward (no text or symbols visible)

Black plastic tray with red downward arrows indicating a reduction or drop in quantity (no text or symbols visible)

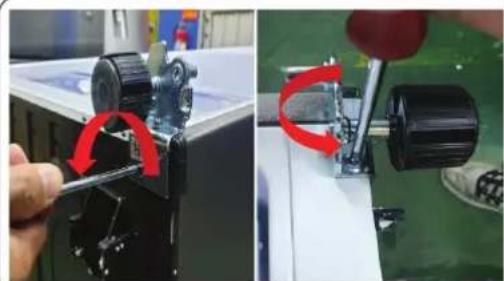

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

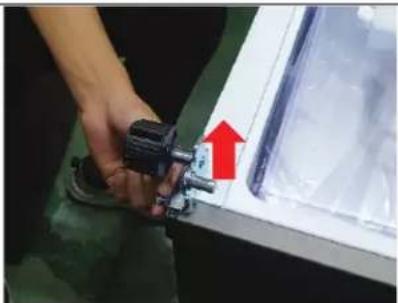

Close-up of a hand holding a mechanical component, with a red arrow pointing to a device component (no visible text or symbols)

Close-up of a hand holding a refrigerator in a kitchen (no visible text or symbols)

Two-panel photo showing a person holding a door panel, no visible text or symbols

VAR FÖRSIKTIG

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a small object with a dark, triangular shape (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the drawer (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the buckle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical clamp on a workbench with a red ribbon and plastic tray (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Ta bort dörren.

⚠️ VAR FÖRSIKTIG

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component (no text or symbols visible)

Close-up of a hand holding a small metallic clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black rectangular container with red downward arrows indicating internal flow or movement (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no visible text or symbols)

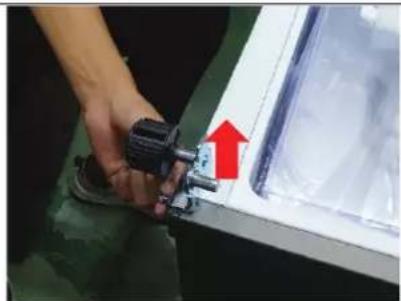

Close-up of a hand holding a mechanical device with a red upward arrow indicating motion (no visible text or symbols)

Close-up of a hand holding a metal object against a plain background (no visible text or symbols)

Two-panel photo showing hands holding a refrigerator door, no visible text or symbols

FORSIGTIG

Close-up of a hand pressing down on a white surface with a gray handle (no visible text or symbols)

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the drawer (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Fjern døren.

⚠️ FORSIGTIG

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic component with a red upward arrow indicating motion (no text or symbols visible)

Black plastic tray with red downward arrows indicating internal compartments or features (no text or symbols visible)

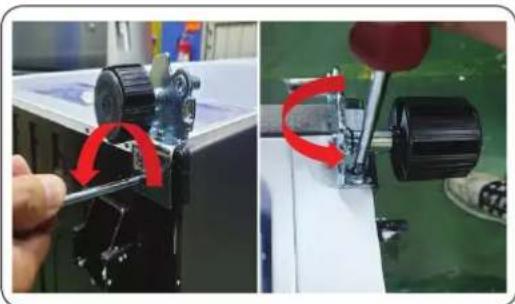

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component next to a white panel, with a red arrow pointing to a small object (no visible text or symbols)

Close-up of a hand holding a metal object against a plain background (no visible text or symbols)

Two-panel photo showing a person holding a door panel, no visible text or symbols

FORSIKTIG

FRYS KJ∅L

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a textured, curved object with no visible text or symbols

1. Trekk midten av pakningen.

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Fjern døren.

⚠️ FORSIKTIG

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a hand holding a small transparent object with a red upward arrow, next to a white door (no text or symbols visible)

Black rectangular container with red downward arrows indicating internal flow or movement (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no visible text or symbols)

Close-up of a hand holding a mechanical device with a red upward arrow pointing to a transparent container (no visible text or symbols)

Two-panel photo showing a hand holding a metal object, no visible text or symbols

Two-panel photo showing a person holding a refrigerator, no visible text or symbols

HUOMIO

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a mechanical component, with no visible text or symbols.

Close-up of a person's hand holding a gray mechanical device with a red upward arrow, partially open the dashboard (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Close-up of a robotic arm gripping a metallic tool, with a red ribbon and yellow cable nearby (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Irrota ovi.

HUOMIO

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a hand holding a small transparent object with a red upward arrow, next to a white door (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to internal compartments (no text or symbols visible)

Two-panel image showing a mechanical device with red arrows indicating rotation or adjustment, next to a close-up of the component (no visible text or symbols)

Close-up of a hand holding a small mechanical component with a red arrow pointing to it, next to a transparent container (no visible text or symbols)

Close-up of hands holding a black object, possibly a refrigerator or appliance, with no visible text or symbols.

Two-panel photo showing a person holding a black door panel, no visible text or symbols

PRZESTROGA

Two-panel photo showing a hand inserting a paper with visible texture (no text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Zdejmij drzwi.

⚠️ PRZESTROGA

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal hinge component (no text or symbols visible)

Close-up of a hand holding a small transparent object with a red upward arrow, next to a white door (no text or symbols visible)

Black plastic tray with red arrows pointing downward, no visible text or symbols

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component next to a white panel, with a red arrow pointing to a small object (no visible text or symbols)

Close-up of a hand holding a refrigerator in a kitchen (no visible text or symbols)

Person holding a door panel, viewed from side by side (no visible text or symbols)

UPOZORNĚNÍ

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a textured, curved object with no visible text or symbols

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no text or symbols visible)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Demontujte dveře.

⚠️ UPOZORNĚNÍ

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a hand holding a small transparent object with a red upward arrow, next to a white door (no text or symbols visible)

Black plastic tray with red downward arrows indicating internal compartments or features (no text or symbols visible)

Two-panel image showing a mechanical device with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand holding a metal object, showing part of a refrigerator (no visible text or symbols)

Two-panel photo showing hands installing or adjusting a black door panel, no visible text or symbols

POZOR

Two-panel photo showing a hand inserting a card into a printer (no visible text or symbols)

1. Potiahnite stred tesnenia.

Osadenie tesnenia

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Demontujte dvere.

⚠️ POZOR

Je potrebná spolupráca viac než dvoch ludí. Jedna osoba musí uchopit dvere, aby sa zabránilo pádu dverí.

Slovenčina

Stredný pánt

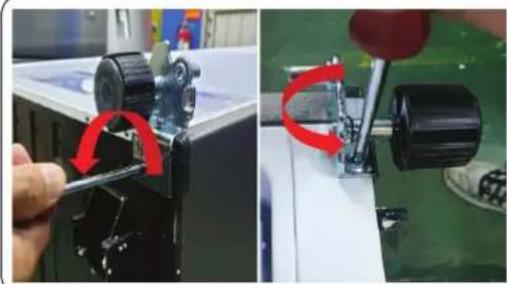

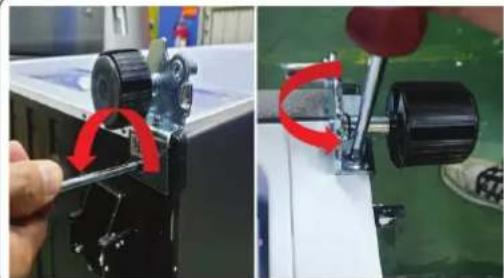

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component (no text or symbols visible)

Close-up of a hand adjusting a small metallic clip on a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to internal panels (no visible text or symbols)

Two-panel image showing a mechanical assembly: left panel shows a tool interacting with a motor, right panel shows a close-up of a mechanical component being adjusted (no visible text or symbols)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a small electronic device, showing its screen and panel (no visible text or symbols)

Two-panel photo showing a person adjusting a door panel, no visible text or symbols

ATENTIE

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a textured, curved object with no visible text or symbols

Interior view of a refrigerator with hand holding wrist strap, showing open lid and control buttons (no text or symbols visible)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the buckle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm on a mechanical device with a red ribbon, no visible text or symbols

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Scoateți ușa.

⚠️ ATENTIE

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic component with a red arrow pointing upward (no text or symbols visible)

Exterior view of a rectangular storage unit with two red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a robotic arm and a close-up of a mechanical component with red arrows indicating motion (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a white plastic component, with a red arrow indicating the direction (no text or symbols visible)

1. Puneti produsul jos (vezi poza).

ATENTIE

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Two-panel photo showing hands holding a black plastic door, one open and one closed (no visible text or symbols)

ВНИМАНИЕ

Close-up of a hand holding a pen, partially visible with no text or symbols

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the drawer (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of hands holding a gray mechanical device with a red upward arrow, inside a car (no visible text or symbols)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Close-up of a hand using a wrench to lift a mechanical component, with a red ribbon and blue plastic nearby (no visible text or symbols)

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Свалете Врамата.

⚠️ ВНИМАНИЕ

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small metal clip next to a white door, with a red arrow pointing upward (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components or features (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a mechanical component, with a red arrow pointing to a device component (no visible text or symbols)

Two-panel photo showing a hand holding a metallic object, no visible text or symbols

Person holding a door panel, viewed from side (no text or symbols visible)

VIGYÁZAT!

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a square button (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the buckle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm on a mechanical device with a red ribbon and blue plastic components (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small electronic component with a red arrow pointing upward (no text or symbols visible)

Black rectangular device with transparent lid and two red downward arrows pointing to its sides (no text or symbols visible)

Two-panel image showing a mechanical device being adjusted for a tool, with red arrows indicating the process (no visible text or symbols)

Close-up of a hand using a mechanical tool to adjust or install a white plastic component, with a red arrow indicating the motion direction (no text or symbols visible)

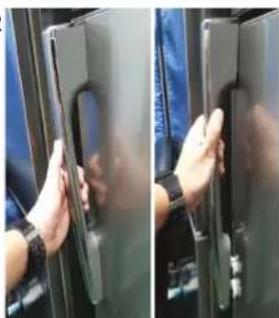

Two-panel photo showing a hand holding a device, no visible text or symbols

Izvucite ručku i povucite je nagore kada se oslobodi iz bravice. Povucite ručku ka sebi (pogledajte sliku).

FRIŽIDER

Person holding a door panel, viewed from side by side (no text or symbols visible)

OPREZ

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a small object with a dark square overlay, possibly a button or panel (no visible text or symbols)

1. Povucite sredinu zaptivne gume.

Da biste zamenili zaptivnu gumu

Postavite novu zaptivnu gumu na vrata frižidera. Uverite se da između nove zaptivne gume i vrata nema razmaka.

Srpski

Zamena fioke

OPREZ

Tokom postavljanja, proverite da li je fioka pravilno umetnuta u vodice.

Da biste skinuli fioku

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Uhvatite zaobljeni deo fioke i podignite ga da biste je izvadili.

Da biste vratili fioke

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the buckle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

1. Skinite zavrtanj sa poklopca šarke pomoću (+) odvijača i skinite ga.

2. Povucite kukice i podignite poklopac šarke.

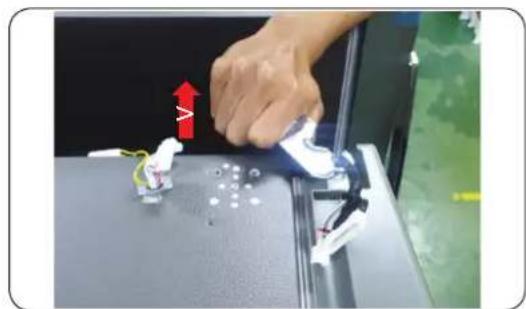

3. Isključite konektor za žicu na gornjoj šarci.

! OPREZ

Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

1. Skinite 2 vijka sa šestougaonom glavom koji pričvršćuju šarku na vrhu frižidera pomoću nasadnog ključa od 10 mm.

Srpski

Close-up of a hand operating a robotic arm on a 3D printer (no visible text or symbols)

1. Skinite gornju desnu i levu šarku.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Skinite vrata.

OPREZ

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a hand holding a small transparent object with a red upward arrow, next to a white door (no text or symbols visible)

1. Skinite 2 šestougaona vijka kojima je pričvršćena šarka pomoću nasadnog ključa od 8 mm ili (+) odvijača.

2. Skinite zavrtanj na šarci pomoću (+) odvijača.

3. Srednja šarka se rasklapa na isti način kao i gornja.

OPREZ

• Za ovo su potrebne najmanje tri osobe.
- Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

Srpski

Donja šarka

Black plastic tray with red downward arrows indicating a cut or damage point (no text or symbols visible)

Two-panel image showing a hand using a tool to adjust a mechanical component, with red arrows indicating rotation (no text or symbols visible)

Close-up of a hand holding a mechanical component next to a transparent container with a red arrow indicating direction (no text or symbols visible)

1. Položite uredaj (pogledajte sliku).

OPREZ

• Postavite neku podlogu na pod da se poledina uređaja ne bi oštetila.
• Za ovo su potrebne najmanje tri osobe.

• Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

• Skinite 3 šestougaona vijka kojima je pričvršćena šarka pomoću nasadnog ključa od 8 mm ili (+) odvijača.

• Skinite donju šarku.

• Postavljanje izvršite suprotnim redosledom od redosleda skidanja, nakon zamene gornje, srednje i/ili donje šarke.

! OPREZ

• Proverite da li su konektori kablova pravilno priključeni.
- Pazite da ne oštetite kablove dok pričvršćujete gornji poklopac

Srpski

Close-up of a hand holding a black metal object, showing a vertical panel and a small inset image with a label (no readable text or symbols)

Izvucite ručku i udarite ju vertikalno. Kada se ručka odblokira, povucite ju prema sebi. (Pogledajte sliku)

REF

Close-up of hands holding a black plastic door panel, no visible text or symbols

OPREZ

Two-panel image showing a hand inserting a card into a device, no visible text or symbols

1. Povucite sredinu brtve.

Za zamjenu brtve

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Uklonite ladicu tako da povučete dio s kotačićima i podignete ga prema gore.

Ponovno postavljanje ladica

Close-up of a hand using a red-handled tool to press or lift a mechanical component, with no visible text or symbols.

1. Uklonite vijak 1 ea poklopca šarke s pomoću (+) odvijača i otvorite.

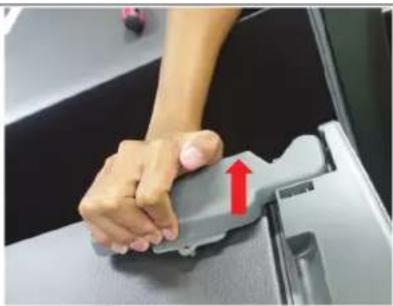

Close-up of a hand holding a gray mechanical device with a red upward arrow, partially open the side of a car (no visible text or symbols)

1. Povucite kuke i podignite poklopac šarke.

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Close-up of a robotic arm gripping a metallic tool, with a red ribbon and yellow cable nearby (no visible text or symbols)

1. Uklonite 2 imbus vijka koja drže šarku na vrhu hladnjaka ključem s čegrtaljkom od 10 mm.

Hrvatski

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

1. Uklonite desnu/lijevu gornju šarku.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Uklonite vrata.

OPREZ

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

1. Uklonite 2 imbus ključa koja drže šarku ključem s čegrtaljkom od 8 mm ili (+) odvijačem.

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

1. Uklonite vijak 1 ea šarke (+) odvijačem.

Close-up of a hand holding a small metallic object with a red upward arrow indicating motion (no text or symbols visible)

1. Rastavite srednju šarku vrata.

OPREZ

• Ovo moraju obavljati dvije ili više osoba.
• Pobrinite se da iskopčate kabel za napajanje prije nego što provedete prethodnu radnju.

Hrvatski

Donja šarka

Black rectangular device with transparent lid and two red downward arrows pointing to its sides (no text or symbols visible)

Two-panel image showing a mechanical assembly: one with a tool and red curved arrow indicating rotation, the other with a black cylindrical component being adjusted (no visible text or symbols)

Close-up of a hand holding a small mechanical component, with a red arrow pointing to a device component (no visible text or symbols)

1. Polegnite proizvod (pogledajte sliku).

OPREZ

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Two-panel photo showing a person adjusting a door panel, no visible text or symbols

KUJDES

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a metallic component (no visible text or symbols)

1. Tërhiqni qendrën e guarnicionit.

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or install a mechanical component, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical clamp on a workbench with a red ribbon and plastic housing (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Hiqni derën.

⚠️ KUJDES

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small metallic clip next to a white door, with a red arrow pointing upward (no text or symbols visible)

Exterior view of a rectangular storage unit with two red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a robotic device being adjusted for a tool, with red arrows indicating the motion (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward and a transparent container in the background (no visible text or symbols)

Close-up of a hand holding a metallic refrigerator lid, showing the handle and seat (no visible text or symbols)

Person holding a smartphone inside a vehicle door, no visible text or symbols

ВНИМАНИЕ

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand holding a textured, patterned object (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid and red arrows pointing to the door (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand holding a gray ergonomic device with a red upward arrow, partially open the seat area (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Close-up of a robotic arm gripping a mechanical component, with a red ribbon and blue plastic clip nearby (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flatbed surface (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior compartments and a person adjusting the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metallic clip on a white surface (no text or symbols visible)

Close-up of a hand holding a small electronic device with a red upward arrow indicating motion (no text or symbols visible)

Black rectangular container with red downward arrows indicating internal flow or movement (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Two-panel photo showing a hand holding a metallic object, no visible text or symbols

Close-up of a person holding a door panel, showing hand positioning (no text or symbols visible)

ETTEVAATUST!

Two-panel photo showing a hand inserting a card into a device, no visible text or symbols

1. Tömmake tihendi keskosa.

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and doorrest, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Eemaldage uks.

ETTEVAATUST!

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small metallic clip next to a white door, with a red arrow pointing upward (no text or symbols visible)

Black plastic tray with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a mechanical assembly with red arrows indicating motion or rotation, no visible text or symbols.

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

1. Asetage toode pikali (vt pilti).

ETTEVAATUST!

Close-up of a hand holding a refrigerator in a kitchen (no visible text or symbols)

Close-up of hands adjusting a refrigerator door panel, showing interior and exterior views (no text or symbols visible)

DÈMESIO

ŠALDIKLIS ŠALDYTUVAS

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a dark, textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or install a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand pressing down on a car seatbelt buckle (no text or symbols visible)

Close-up of hands installing a small white component with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical tool on a workbench with a red ribbon and plastic components (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and doorrest, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Išimkite dureles.

⚠️ DÊMESIO

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of a hand holding a small metallic object with a red arrow pointing upward (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to its sides (no visible text or symbols)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a component, with a red arrow indicating the upward motion (no visible text or symbols)

Close-up of a hand holding a small electronic device, showing its screen and panel (no visible text or symbols)

Close-up of a hand holding a door panel, showing interior details (no text or symbols visible)

UZMANĪBU!

Close-up of hands cleaning a printed document with a hand pointing to it (no visible text or symbols)

1. Pavelciet blives centru.

Lai nomainītu blīvi

Interior view of a refrigerator with a hand adjusting the drawer and red arrows pointing to the interior (no text or symbols visible)

Iznemiet atvilktni, pavelkot rullīša dalu un paceļot to uz augšu.

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

1. Nonemiet enğes pârsega skrūvi 1 ea ar (+) skrūvgriezi un atveriet.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the buckle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical clamp on a workbench with a red ribbon and plastic tray (no visible text or symbols)

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Nonemiet durvis.

⚠ UZMANĪBU!

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a hand holding a small transparent object with a red upward arrow, next to a white door (no text or symbols visible)

Black rectangular container with red downward arrows indicating internal flow or movement (no text or symbols visible)

Two-panel image showing a mechanical device with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand holding a black metal object, showing a vertical panel and a small inset image with a label (no readable text or symbols)

Close-up of hands holding a black plastic door panel, no visible text or symbols

PREVIDNO

Close-up of hands cleaning a printed document with a hand pointing to it (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Odstranite predal tako, da povlečete del valjčka in ga dvignete.

Ponovna namestitev predala

Close-up of a hand using a red-handled tool to press or lift a small object, with no visible text or symbols.

Close-up of a hand holding a gray car seatbelt buckle, with a red upward arrow indicating the handle (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand operating a robotic arm with a red ribbon, no visible text or symbols

1. Odstranite vijak 1 ea pokrova tečaja s (+) izvijačem in ga odprite.

2. Povlecite zatiče in dvignite tečaj pokrova.

3. Izključite žični priključek na zgornjem tečaju.

PREVIDNO

Close-up of a robotic arm interacting with a small electronic device on a flat surface, with no visible text or symbols.

1. Odstranite zgornji tečaj L/D.

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no visible text or symbols)

1. Odstranite vrata.

PREVIDNO

Close-up of a hand using a wrench to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component (no text or symbols visible)

Close-up of a hand adjusting a small metallic clip on a white door, with a red upward arrow indicating motion (no text or symbols visible)

1. Odstranite 2 šestrobe vijake, ki držijo tečaj, z 8 mm nasadnim ključem ali z uporabo (+) izvijača.

2. Odstranite vijak 1 ea tečaja s (+) izvijačem.

3. Razstavite srednji tečaj od vrat hladilnika navzgor.

PREVIDNO

Black rectangular container with red downward arrows indicating a measurement or drop, no visible text or symbols.

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a mechanical device with a red arrow pointing to a component (no visible text or symbols)
