Product Type	Phono Preamplifier
Compatibility	Turntables with MM (Moving Magnet) and MC (Moving Coil) cartridges
Gain (1 kHz)	40 dB (MM), 60 dB (MC)
Signal-to-Noise Ratio	>72 dB (MM), >60 dB (MC)
Crosstalk	<0.5 dB
Channel Separation	>70 dB (MM), >60 dB (MC)
Output Voltage	600 mV
Operating Temperature Range	-15°C to +50°C
Power Supply	External power supply 18 V DC / 150 mA
Input Connectors	1 x stereo RCA input (L/R)
Output Connectors	1 x stereo RCA output (L/R)
Type Selector	PHONO TYPE selector (MM/MC)
Control	POWER switch with blue LED indicator
Package Contents	Phono PreAmp PRO, power supply, user manual
Maintenance	Clean with a dry cloth only
Safety	Do not expose to moisture, ensure ventilation, do not place near heat sources
Warranty	2 years, applicable to the original purchaser, material or manufacturing defects

Frequently Asked Questions - Phono PreAmp PRO Oehlbach

How to connect the Phono PreAmp PRO?

Connect the turntable to the stereo RCA input (L/R) of the preamp, then the RCA output to an AUX or Line input of your amplifier. Plug in the 18V power supply and turn on the device.

Which cartridge type can I use: MM or MC?

The Phono PreAmp PRO is compatible with MM (Moving Magnet) and MC (Moving Coil) cartridges. Select the corresponding type using the PHONO TYPE selector on the front panel.

How to know if my turntable is equipped with an MM or MC cartridge?

Check your turntable's manual or the manufacturer's specifications. Generally, moving magnet (MM) cartridges are the most common. The MC cartridge offers a lower output voltage.

The blue LED does not light up, what to do?

Check that the power supply is properly connected and that the mains socket works. Make sure the POWER switch is in the On position. If the LED remains off, contact customer service.

Can I connect multiple turntables at the same time?

No, the Phono PreAmp PRO has only one stereo RCA input. You must use a source selector if you want to connect multiple turntables.

Is there a risk of damaging the device by using an MM cartridge on the MC setting?

Yes, this can cause input overload and sound distortion. Always set the PHONO TYPE selector according to your cartridge.

How to clean the Phono PreAmp PRO?

Use a soft, dry cloth. Never use chemicals or water. Unplug the device before cleaning.

What is the warranty period?

The warranty is 2 years from the date of purchase. It covers material and manufacturing defects. Keep the receipt.

Can I use the device with a vintage turntable without built-in preamp?

Yes, that is exactly the intended use. The Phono PreAmp PRO amplifies the turntable signal so it can be connected to a line input of an amplifier.

What to do if there is no sound?

Check all RCA cables, power supply, PHONO TYPE selector, and amplifier settings (selected source). Make sure the turntable is running.

USER MANUAL Phono PreAmp PRO Oehlbach

User manual | Warranty information

Thank you for choosing an Oehlbach® quality product. Please read these instructions carefully; this will ensure the full and error-free functioning of the product.

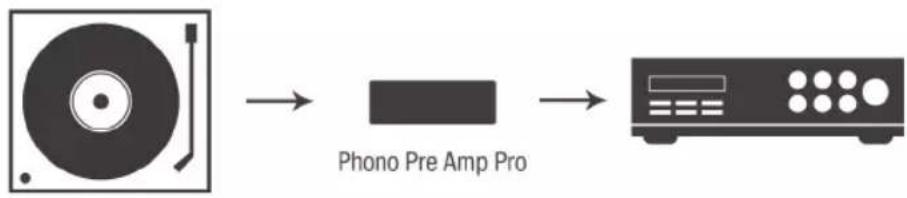

Oehlbach's Phono PreAmp PRO is a high quality phono preamplifier. It enables you to connect a turntable to the Line or Aux input on an amplifier or AV receiver that doesn't have a phono input. Both Moving Magnet (MM) and Moving Coil (MC) pickup systems can be connected. The audio signals are amplified with extremely low-noise and distortion-free properties.

ENG

Features

• Distortion-free and low-noise amplifier
• Supports MM and MC pickup systems
• Gold-plated contact
• Power supply via external power supply unit

Specification

Amplification at 1 kHz: 40 dB (MM); 60 dB (MC) Signal-to-noise ratio (SNR): >72 dB (MM); >60 dB (MC) Channel difference: < 0.5 dB Channel separation: >70 dB (MM), >60 dB (MC) Output voltage: 600 mV Temperature range: -15 to +50 °C

Connections

Analogue audio outputs: 1 x RCA stereo jack R/L Analogue audio inputs: 1 x RCA stereo jack R/L Power supply: 1 x DC18V input

OEHLBACH®

Operating elements

PHONE TYPE: By using the „Phono Type“ switch you can select whether the device is to process an audio signal from an MM or MC pickup system.

POWER: Press the Power switch to turn the unit on or off. The blue LED on the front of the unit will illuminate when it is switched on.

Note

Before using the Phono PreAmp PRO please check to verify the pickup system used by your turntable and set the PHONO TYPE switch accordingly.

Packaging contents

• Oehlbach Phono PreAmp PRO
• Power supply unit (18V/150mA)
- Instruction manual

Remarks

Please observe the following instructions in order to prevent any risk of fire, short-circuits or damage to the product:

1. Do not expose the product to rain or moisture. Do not place any containers filled with water on the product.
2. Do not install the product in a bookcase, fitted cupboard or similarly enclosed spaces. Please ensure that there is sufficient ventilation for the product.
3. You should not cover the product or place items on the product in order to prevent short-circuits or fire due to overheating.
4. Do not place the product in proximity to sources of heat, e.g. heaters, stoves, etc.
5. Do not use the product in proximity to naked flames or candles.
6. Only use a dry cloth to clean the product.
7. Functionality may be restricted depending on the configuration of the device.
8. Please only use qualified service personnel to carry out repairs or servicing work.

EU-compliance information

This product is eligible to bear the CE mark. It complies with the EU Low Voltage Directive 2006/95/EC; EU Directive 2004/108/EC; EU RoHS Directive 2011/65/EC; EU Directive on Waste Electrical and Electronic Equipment (WEEE) 2012/19/EC. You can obtain a free copy of the Declaration of Conformity by contacting your retailer, distributor or the headquarters of Oehlbach Kabel GmbH. Contact information can be found at:

http://www.oehlbach.com.

Phono PreAmp PRO

Warranty

Congratulations! Thanks to your intelligent choice you are now the proud owner of an OEHLBACH ^® product. OEHLBACH ^® products enjoy an excellent reputation around the world due to their high quality. This high quality standard allows us to provide a 2 year warranty for this OEHLBACH ^® product. OEHLBACH ^® products are continuously inspected and checked throughout the entire manufacturing process. If service is necessary, however, please observe the following:

1. The warranty period starts with the purchase of the product and only applies to the original owner.
2. During the warranty period we will rectify any defects that are due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damage or subsequent damage, are excluded. The warranty period is not affected by any work we provide under the warranty.
3. The product should not be tampered with.

4. In the event of a warranty claim please contact your authorised dealer first. Should it prove necessary to return the product to us, please ensure that

5. the product is sent in its original factory packaging in good condition,

6. your proof of purchase is enclosed.

7. The following are excluded from the warranty:

8. Illuminants

9. Wear parts
10. Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with the shipping agent, the railway express office or the post office).
11. Scratches in metal components, front panels, etc. (You must notify your authorised dealer directly of such defects within 5 days of purchase).
12. Defects caused as a result of incorrect installation, faulty connection, improper operation (see user manual), overloading or external force.
13. Improperly repaired or modified devices that have been opened by a party other than us.
14. Subsequent damage to other devices
15. Reimbursement of costs for repairing damage that has been caused by a third party without our prior consent.

OEHLBACH®
