Operating Instructions

Bedienungsanleitung

The operating instructions contain important information.

• Read the instructions carefully and follow the safety instructions in particular, and also observe the operating conditions.
• Instructions must be available to each user.
• The liability and warranty for Type 6012 are void if the operating instructions are not followed.

2. SYMBOLS

→ designates a procedure which you must carry out.

Warning of serious or fatal injuries:

DANGER!

In case of imminent danger.

WARNING!

In case of potential danger.

Warning of minor or moderately severe injuries:

CAUTION!

Warns of damage to property:

NOTE!

3. INTENDED USE

Incorrect use of the solenoid valve Type 6012 can be dangerous to people, nearby equipment and the environment.

• The device is designed for blocking, dosing, filling and venting neutral gaseous and liquid media.
• Do not use the device outdoors.
• Use according to the permitted data, operating conditions and conditions of use specified in the contract documents and operating instructions. These are described in the chapter entitled "Technical data".
• The device may be used only in conjunction with third-party devices and components recommended and authorised by Bürkert.
• Correct transportation, correct storage and installation and careful use and maintenance are essential for reliable and problem-free operation.
• Use the device only as intended.

3.1. Restrictions

If exporting the system/device, observe any existing restrictions.

3.2. Approvals

The approval mark indicated on the Bürkert labels refers to the Bürkert products.

e 1

03 5791

Devices which must bear the type approval mark were approved at the Kraftfahrtbundesamt under the type approval number

e1\*72/245\*2006/96\*5791\*00

and are put into circulation with the indicated type approval mark. You can obtain an extract of the type approval from the address below.

Bürkert Werke GmbH

These safety instructions do not make allowance for any contingencies and events which may arise during installation, operation and maintenance.

Danger – high pressure!

• Before loosening the lines and valves, turn off the pressure and vent the lines.
  Risk of electric shock!
• Before reaching into the system, switch off the power supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety regulations for electrical equipment!

Risk of burns/Risk of fire if used continuously through hot device surface!

- Keep the device away from highly flammable substances and media and do not touch with bare hands.

General hazardous situations.

To prevent injury, ensure that:

• The solenoid valve Type 6012 is not to be used in areas where there is a risk of explosion.
• Do not supply the medium connectors of the system with aggressive or flammable mediums.
• Do not put any loads on the body (e.g. by placing objects on it or standing on it).
• Do not make any external modifications to the device bodies. Do not paint the body parts or screws.
• Installation and repair work may be carried out by authorized technicians only and with the appropriate tools.
• After an interruption in the power supply or pneumatic supply, ensure that the process is restarted in a defined or controlled manner.
• The device may be operated only when in perfect condition and in consideration of the operating instructions.
• The general rules of technology apply to application planning and operation of the device.

5. SYSTEM DESCRIPTION

5.1. General description

The direct-acting solenoid valve Type 6012 is available in two designs.

Type 6012 is used for the blocking, dosing, filling and venting of neutral gaseous and liquid media, in particular for controlling single-acting pneumatic actuators or technical vacuum. The modular designed valve can be installed individually or in a block on the multiple manifold.

Type 6012P is used as a special pilot valve for direct installation on the externally controlled pneumatic actuators. It consists of the magnetic actuator Type 6012 and a special connection body with hollow screw which can be connected directly to the control air connection of the actuator. The valve features manual actuation as standard.

6. TECHNICAL DATA

6.1. Operating conditions

Warning!

Risk of injury!

Malfunction if used outside!

- Do not use Type 6012 outdoors and avoid heat sources which may cause the allowable temperature range to be exceeded.

Type Ambient temperature Medium temperature
6012 -10	... +55 °C -10 ... +100 °C
6012P -10	... +40 °C -10 ... +60 °C

Media 6012: neutral gaseous and liquid media (e.g. compressed air, Water, Hydraulic fluid, technical Vacuum)

6012P: neutral gaseous media (e.g. compressed air)

Viscosity max. 21 mm ^4 /s

Protection class IP65 in accordance with EN 60529 with cable plug

6.2. Conformity

In accordance with the EC Declaration of conformity, the solenoid valve Type 6012 is compliant with the EC Directives.

6.3. Mechanical data

Dimensions See data sheet

Body material Type 6012: Brass, polyamide (PA), Stainless steel 1.4305

Type 6012P: Polyamide (PA)

Hollow screw Type 6012P: Brass, nickel-plated

Sealing material FKM / EPDM

6.4. Fluidic data

Circuit functions
C(NC)		3/2-way valve, direct-acting, normal output A unloaded
D(NO)		3/2-way valve, direct-acting, normal output B pressurized

Pressure range 0 - 16 bar

Line connectors Type 6012: M5, G1/8, Flange

Type 6012P: G1/8, G1/4

Hose connector ∅ 6 mm

Note the voltage and current type as specified on the type label.

6.5. Type label (Example)

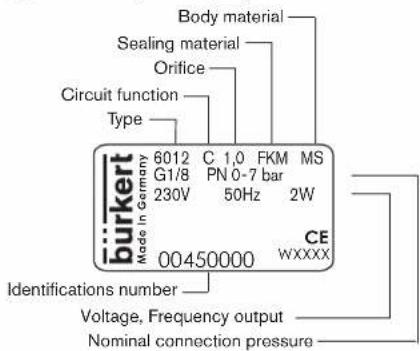

Burkert Made in Germany 6012 C 1,0 FKM MS G1/8 PN 0-7 bar 230V 50Hz 2W Type Body material Sealing material Orifice Circuit function Identifications number Voltage, Frequency output Nominal connection pressure 00450000 CE WXXXX

6.6. Electrical data

Connections DIN EN 175301-803 Form C: for cable plug Type 2506 DIN 43650 Form B: for cable plug Type 2507 Wire connection on request

Power supply 24 V DC ± 10% - max. residual ripple 10% 24 V / 50 Hz 110 / 230 / 50 Hz

Voltage tolerance ± 10%

Nominal output

4 W

Nominal operating mode 100% continuous operation

for block installation:

2 W continuous operation on request

4 W intermittent operation 60%

(30 min)

Note the voltage and current type as specified on the type label.

7. INSTALLATION

7.1. Safety instructions

Danger!

Risk of injury from high pressure in the equipment!

• Before loosening the lines and valves, turn off the pressure and vent the lines.
  Risk of injury due to electrical shock!
• Before reaching into the system, switch off the power supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety regulations for electrical equipment!

Warning!

Risk of injury from improper installation!

- Installation may be carried out by authorized technicians only and with the appropriate tools!

Risk of injury from unintentional activation of the system and an uncontrolled restart!

• Secure system from unintentional activation.
• Following installation, ensure a controlled restart.

7.2. Fluid installation

Danger!

Risk of injury from high pressure in the equipment!

- Before loosening the lines and valves, turn off the pressure and vent the lines.

Installation position: any, actuator preferably upwards.

Procedure:

→ Before installation, clean any possible dirt off the pipelines and flange connections.
→ If required, install a dirt trap to prevent malfunctions. (Mesh size: 0.2 - 0.4 mm).

Pay attention to the flow direction of the valve! from 1(P) → 2(A) (CF C) or from 1(P) → 2(B) (CF D)

Body with threaded connection:

note!

Caution risk of breakage!

- Do not use the coil as a lifting arm.

english

Use PTFE tape as sealing material.

→ Hold the device with a suitable tool (Open-end wrench) on the body and screw into the pipeline.

Valve with flanged connection:

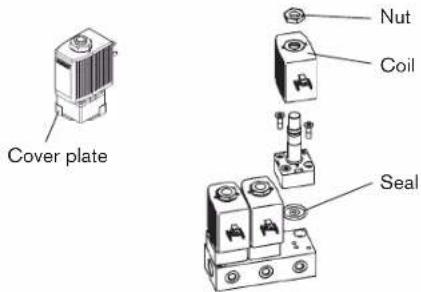

Cover plate Nut Coil Seal

→ Remove the cover plate.
→ Loosen the nut on the coil and remove coil.

Warning!

Danger – escaping medium!

Leaking connections if seals not seated properly, if manifold uneven or if surface quality of the manifold inadequate.

• Make certain the seals included with delivery are properly seated in the valve.
• Ensure that the manifold is even.
• Ensure that the surface quality of the manifold is adequate.

→ Insert the seal into the valve.
→ Screw the body onto the manifold.
→ Attach the coil and screw on the nut (Tightening torque: max. 2.8 Nm).

7.3. Electrical connection of the cable plug

Warning!

Risk of injury due to electrical shock!

• Before reaching into the system, switch off the power supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety regulations for electrical equipment!

If the protective conductor contact between the coil and body is missing, there is danger of electrical shock!

• Always connect protective conductor.
• Check electrical continuity between coil and body.

Type 2506 max. 0.30 Nm Seal

Note the voltage and current type as specified on the type label.

7.4. Installation of coil

Warning!

Electric shock!

If the protective conductor contact between the coil and body is missing, there is danger of electrical shock!

- Check protective conductor contact after installing the coil.

Overheating, Risk of fire!

Connection of the coil without pre-assembled valve will result in overheating and destroy the coil.
- Connect the coil with assembled valve only.

Nut max. 2. 41.90° O-ring

The coil can be turned by 4 x 90°:

→ Loosen nut.
→ Turn coil.
→ Tighten nut with suitable tool (Open-end wrench) (max. 2.8 Nm).

english

8. MAINTENANCE, TROUBLESHOOTING

8.1. Safety instructions

Warning!

Risk of injury from improper maintenance!

• Maintenance may be carried out by authorized technicians only and with the appropriate tools!
  Risk of injury from unintentional activation of the system and an uncontrolled restart!
• Secure system from unintentional activation.
• Following maintenance, ensure a controlled restart.

8.2. Malfunctions

If malfunctions occur, check:

→ the line connectors,
→ the operating pressure,
→ the power supply and valve control.

If the valve still does not switch, please contact your Bürkert Service.

9. SPARE PARTS

Caution!

Risk of injury and/or damage by the use of incorrect parts! Incorrect accessories and unsuitable spare parts may cause injuries and damage the device and the surrounding area.
- Use only original accessories and original spare parts from Bürkert.

Coil Nut Fitting

Coil and fitting can be ordered complete by quoting the identification number of the device (see type label).

Wearing part set on request.

10. TRANSPORT, STORAGE, DISPOSAL

note!

Transport damages!

Inadequately protected equipment may be damaged during transport.

• During transportation protect the device against wet and dirt in shock-resistant packaging.
• Avoid exceeding or dropping below the allowable storage temperature.

Incorrect storage may damage the device.

• Store the device in a dry and dust-free location!
• Storage temperature: -40 - 80 °C.

Damage to the environment caused by device components contaminated with media.

- Observe applicable regulations on disposal and the environment.
