USER MANUAL GRF2103BK Glem Gas

Thanks for choosing our product, please carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.

CONTENTS

1 - SAFETY WARNINGS 5

2 - INSTALLATION 7

2-1 Location 7

2-2 Reversing the Door Swing (optional) 7

2-3 Door Handle Install Illumination (optional) 11

2-4 Door Space Requirements 12

2-5 Levelling the Unit 12

2-6 Cleaning Before Use 12

2-7 Before Using Your Unit 12

2-8 Interior Accessories 12

1. PRODUCT OVERVIEW 13

2. OPERATION 13

4-1 Switching On Your Unit 13

4-2 Noise Inside the Unit 13

4-3 Tips for Keeping Food in the Unit 13

4-4 Change the Light Bulb 13

1. CLEANING 14

Defrosting 14

Cleaning the Interior and the Exterior of 14

the Unit Cleaning Tips

1. MAINTENANCE 14

Changing the Internal Light 14

Care When Handling / Moving Your Unit 14

Servicing 14

Switching Of for Long Periods of Time 14

1. Trouble shooting 14

2. TIPS FOR ENERGY SAVING 15

3. DISPOSAL 15

Warning: risk of fire / flammable materials

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety). Children should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING

Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER

Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

FOR EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

TO avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days (note 1).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes (note 2).
• One -, two- and three-star compartments are not suitable for the freezing of fresh food (note 3).
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs (note 4).

Note 1,2,3,4 - Please confirm whether it is applicable according to your product compartment type.

FOR a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

ANY replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2 - INSTALLATION

2.1 LOCATION

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

2.2 REVERSING THE DOOR SWING (OPTIONAL)

Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner.

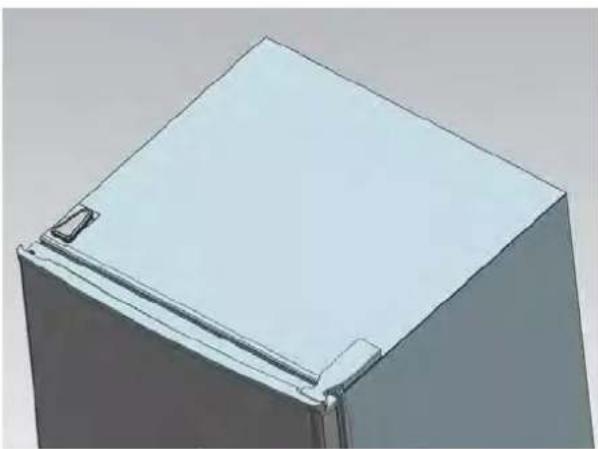

1) Remove the top hinge cover.

3D rendering of a rectangular container with a lid and corner clip (no text or symbols)

3D rendering of a rectangular electronic device with a lid and mounting bracket (no text or symbols visible)

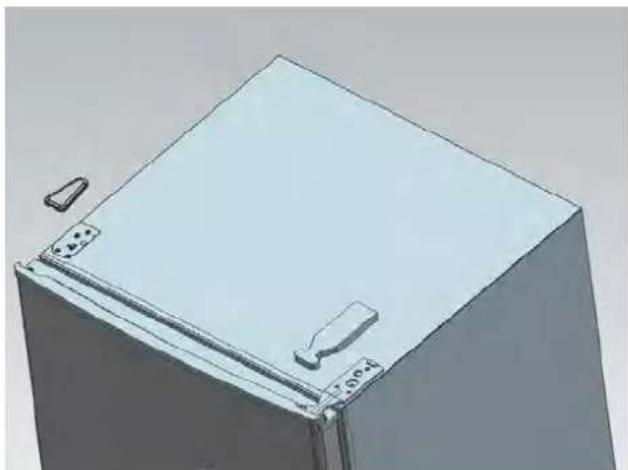

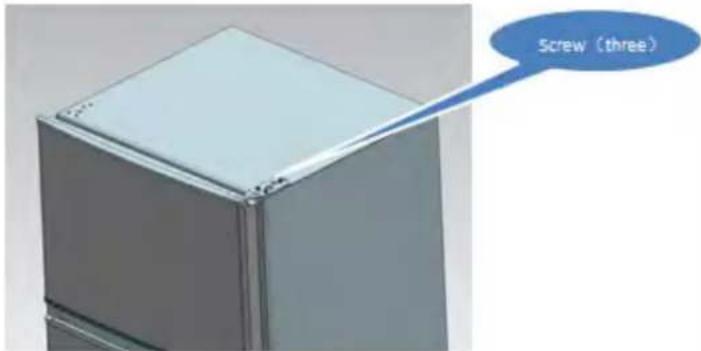

2) Remove the screws fixed the top-hinge with cross-slot screwdriver.

Screw (three)

3) Replace the top-hinge and the top-door limit block and the door bearing bush to the other side.

A. Remove the nut with sleeve. Take off the washer then remove the axes to the other side and fixed.

Mechanical component assembly showing a bracket being cut with holes, before and after assembly (no text or symbols)

B. Remove the door limit block

Diagram showing a device being processed from a panel edge, with no visible text or symbols.

C. Please taking out another door limit block, with screw mounting to the door

3D model of a device with two circular ports and a metallic handle (no text or symbols visible)

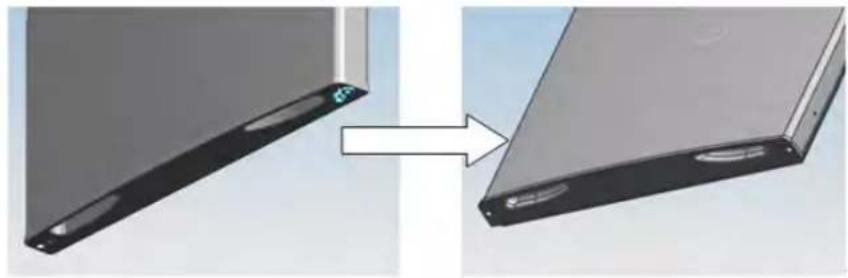

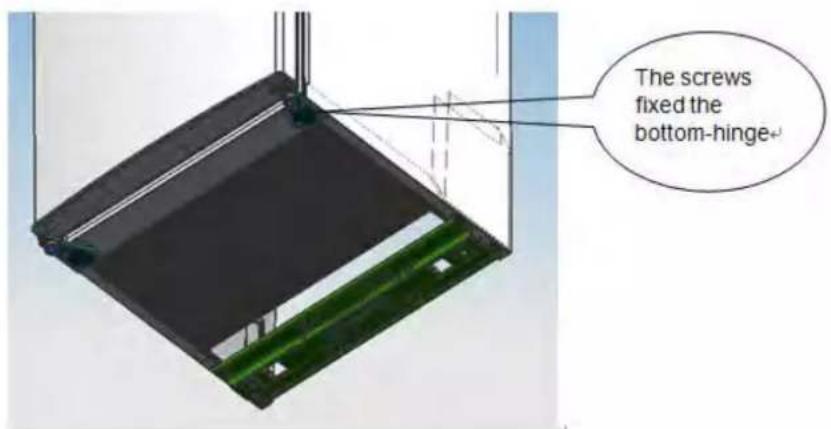

4) Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver.

The screws fixed the bottom-hinge←

Note : the refrigerator-freezer incline angle less 45^ .

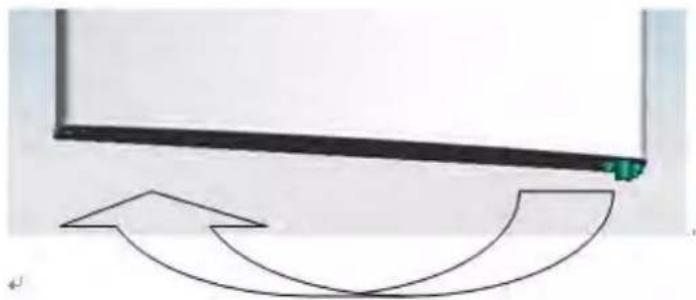

5) Replace the bottom door bearing bush and the limit block.

Simple line drawing of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

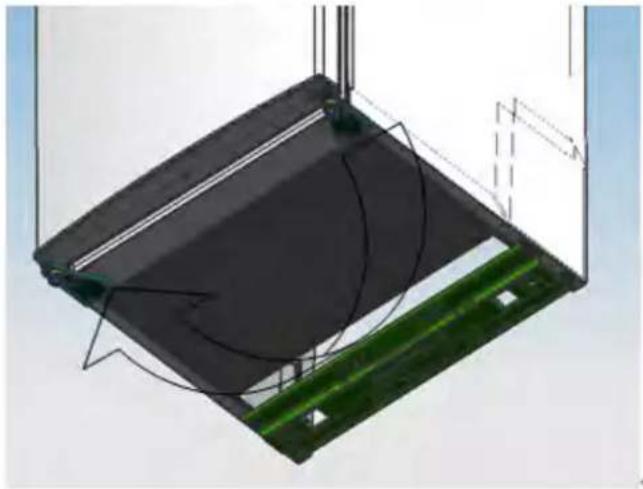

6) Replace the bottom hinge to the other side then fix it with screws.

3D diagram of a solar panel installation with green circuit board and wiring (no text or symbols)

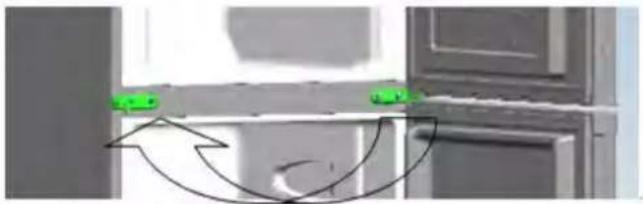

7) Replace the mid-hinge.

Close-up of a kitchen appliance with a green indicator light and curved arrows pointing to a surface (no text or symbols visible)

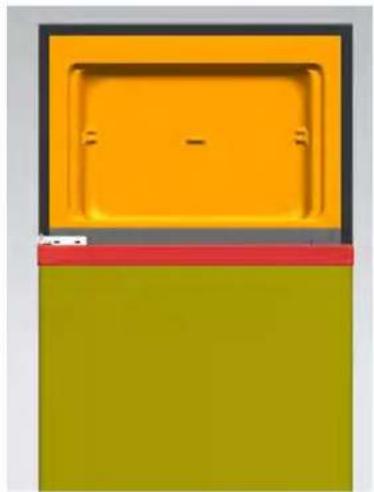

8) Set the bottom door right position, fix the mid-hinge.

Three-panel image showing a yellow rectangular panel with internal components, one above a red and one below a green, against a plain background (no text or symbols)

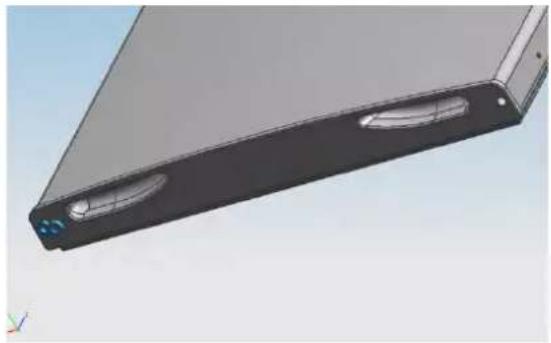

9) Replace the top-hinge.

3D rendering of a rectangular mechanical component with a curved top edge and mounting holes (no text or symbols visible)

10) Set the top door right position, fix the top-hinge and the cover.

Abstract composition of three vertical color blocks: pink, yellow, and red (no text or symbols)

11) Install the four screw caps and two catches to corresponding position.

• Ensure the Appliance is unplugged and empty.
• Adjust the two leveling feet to their highest position.
• We recommend you have someone to assist you.

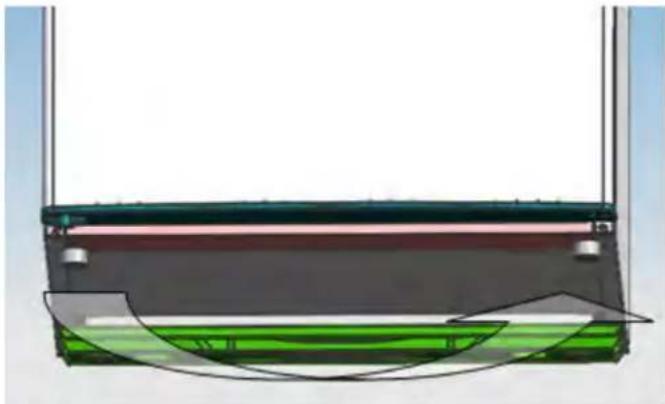

12) Replace the leveler to the other side and adjust it to make sure the cabinet level.

Diagram of a transparent container with green liquid and curved arrows indicating flow or movement (no text or symbols)

*The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

2.3 DOOR HANDLE INSTALL ILLUMINATION (OPTIONAL)

Note: Figures in the user manual are only for reference. The actual product may differ slightly.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Step 1: take out two plug pins from the door (Side of door open)

Simple line drawing of a vertical panel with arrows indicating direction (no text or symbols)

Step 2: Install the door handle to the door and fasten it with screws

with screws

Step 3: Cover screw caps of the handle into screw holes

Technical line drawing of a door with a handle and mounting bracket (no text or symbols)

*The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

2.4 DOOR SPACE REQUIREMENTS

The unit's door must be able to open fully as shown. W×D≥902×1052mm

D W

2.5 LEVELLING THE UNIT

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Make sure that the foot touches the ground before use.

Look down from the top, clockwise and counterclockwise loosening, tightening.

Diagram showing two containers with checkmark and cross symbols, likely indicating inspection or verification steps

2.6 CLEANING BEFORE USE

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section.

2.7 BEFORE USING YOUR UNIT

Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

This product is household refrigerators and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until two hours after moving the unit.

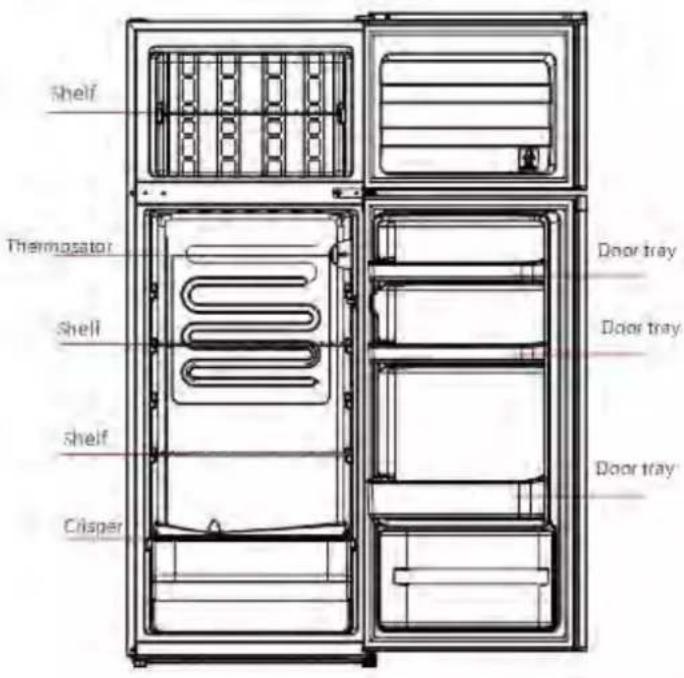

2.8 INTERIOR ACCESSORIES

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

Shelf Thermosator Shell Shelf Crisper Door tray Door tray Door tray

Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

4 - OPERATION

4.1 SWITCHING ON YOUR UNIT

Setting "Off": UnitOff.

Setting"Min": Less Cool Temperature.

Setting "Med" or "MID": Normal Operation (adequate for most situations).

Setting "Max": Coolest Temperature.

▶ During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat to the Coolest Setting (position "Max"). This may cause the compressor running continuously in order to maintain a low temperature in the cabinet.
For the first time you install your refrigerator, set the thermostat knob at "Med". Give your refrigerator time to cool down completely before adding food. It is the best to wait 24 hours before adding food. The thermostat knob controls the temperature. When the thermostat control knob is set to OFF, the refrigerator will not be running.

4.2 NOISE INSIDE THE UNIT

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 TIPS FOR KEEPING FOOD IN THE UNIT

◆ Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
◆ To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
◆ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
◆ To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

5 - CLEANING

5.1 DEFROSTING

NOTE THIS UNIT DOES NOT HAVE AN AUTO DEFROST SYSTEM.

Please use a plastic ice shovel when clearing the frosting of the evaporator. Do not use metal sharp objects.

5.2 CLEANING THE INTERIOR AND THE EXTERIOR OF THE UNIT

◆ Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
◆ Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
◆ The interior of the refrigerator should be cleaned regularly to avoid odor.
◆ Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
◆ Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
◆ Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

5.3 CLEANING TIPS

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6 - MAINTENANCE

6.1 CHANGING THE INTERNAL LIGHT

Lamp replacement by professionals.

6.2 CARE WHEN HANDLING / MOVING YOUR UNIT

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.3 SERVICING

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively technician.

6.4 SWITCHING OF FOR LONG PERIODS OF TIME

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

7 - TROUBLE SHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Failure power or tripping circuit
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put foods until they are cooled;Frequent opening of refrigerator door.
Illuminating light does not shine	Whether the refrigerator is connected to power, whether the illuminating light is damaged.
The refrigerator door can not be properly closed.	The freezer door is stuck by food packages;Too much food;Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed.

7.1 WARM TIPS

• The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
• Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
• Buzz : Buzz will be generated by running compressor specially when starting up or shutting down.

Warning for energy

8 - TIPS FOR ENERGY SAVING

9 - DISPOSAL

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break of any old locks or latches and remove the door as a safeguard.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

For more information, please contact the local authority or your retailer where you purchased the product.

Table 1 Climate classes

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: the refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; Temperate: the refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'; Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

GLEMGAS

REFRIGERATEUR

NOTICE D'UTILISATION

GRF2103WH

GRF2103SI

GRF2103BK

Warning sign depicting a flame symbol in yellow and black on white background

Mechanical component diagram showing a bracket being processed into a housing (no text or symbols)

Diagram showing a device being processed from a black component, with no visible text or symbols

Close-up of a metallic electronic device with two circular ports and a black base (no visible text or symbols)

Simple line drawing of a horizontal bar with curved arrows below, no text or symbols present

3D diagram of a rectangular electronic component with internal circuitry and green traces, no visible text or symbols

Diagram showing a mechanical or electrical component with green arrows indicating direction (no text or symbols present)

Two-panel image showing a yellow rectangular panel with a red horizontal stripe at the bottom (no text or symbols)

3D rendering of a metallic rectangular box with a curved metal rim on top (no text or symbols visible)

Abstract color block composition with pink, yellow, and red sections (no text or symbols)

Diagram of a layered structure with green and red components, no visible text or symbols

Technical line drawings of three door panel assembly steps (no text or symbols)

2.4 ESPACE NECESSAIRE A L'OUVERTURE DES PORTES

Diagram showing two containers with checkmarks and a cross symbol, likely indicating inspection or verification steps.

2.6 NETTOYAGE AVANT UTILISATION

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Diagram showing a device being processed from a panel edge, with no visible text or symbols.

3D rendering of a black electronic device with two circular ports, no visible text or symbols

3D rendering of a black rectangular electronic component with green circuitry and mounting holes (no text or symbols visible)

Simple line drawing of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

3D diagram of a solar panel structure with green circuit board and black panel, no text or symbols present

Diagram showing a mechanical or electrical component with green arrows indicating direction (no text or symbols present)

Two colored rectangular panels: a yellow upper panel with a black border and a red lower panel with a green border (no text or symbols)

3D rendering of a rectangular box with a curved top edge (no text or symbols)

Abstract composition of three colored rectangles (pink, yellow, red) with no text or symbols

Diagram of a mechanical component with green base and curved internal structure (no text or symbols)

Technical line drawings of three door frame components with directional arrows indicating movement (no text or symbols)

Diagram showing two containers with checkmarks and a cross symbol, likely indicating inspection or rejection status.

1 - VEILIGHEIDSWAARSCHUWINGEN 47

2 - INSTALLATIE 49

2-1 Locatie 49

Warning sign depicting a flame symbol with black outline and black border, commonly used in safety or hazard prevention.

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Diagram showing a device being processed from a black plastic panel, with no visible text or symbols.

3D rendering of a flat electronic device with two circular ports and a metallic top (no text or symbols visible)

3D rendering of a rectangular electronic component with green circuitry and mounting holes (no text or symbols visible)

Simple line drawing of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

3D diagram of a solar panel structure with green circuit board and black panel, no visible text or symbols

Diagram showing a mechanical or electrical component with green arrows indicating direction (no text or symbols present)

8) Zet de onderste deur in de juiste positie, zet de middelste scharnier vast.

Two colored rectangular panels: a yellow upper panel with a black border and a red lower panel with a green border (no text or symbols)

3D rendering of a rectangular box with a curved top edge (no text or symbols)

Abstract composition of three colored rectangles (pink, yellow, red) with no text or symbols

Diagram of a mechanical component with green base and curved internal structure (no text or symbols)

2.5 HET APPARAAT WATERPAS ZETTEN

Diagram showing two containers with checkmarks and a cross symbol, likely indicating inspection or warning.

2.6 REINIGEN VOORAFGAAND AAN GEBRUIK

4.1 UW APPARAAT INSCHAKELEN
