USER MANUAL CEG 3190 B GRUNDIG

Fully Automatic Espresso Machine

User Manual

Simple line drawing of a steaming coffee cup on a saucer (no text or symbols)

CEG 3190 B

EN - DE - FR - TR - ES - CS - IT - PL - RO - SK - NL - AR

CONTENTS

ENGLISH 3-29

DEUTSCH 30-58

FRANÇAIS 59-86

TÜRKÇE 87-117

ESPAÑOL 118-148

ČESKY 149-175

ITALIANO 176-204

POLSKI 205-236

ROMÂNĂ 237-267

SLOVENSKÝ 268-295

NEDERLANDS 296-322

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

DANGER: Warning for hazardous situations with regard to life and property.

WARNING: Warning indicates a potentially dangerous situation.

CAUTION: Warning indicates potential material damage.

Materials are intended to be in contact with food.

This product has been produced in environmentally friendly, modern facilities

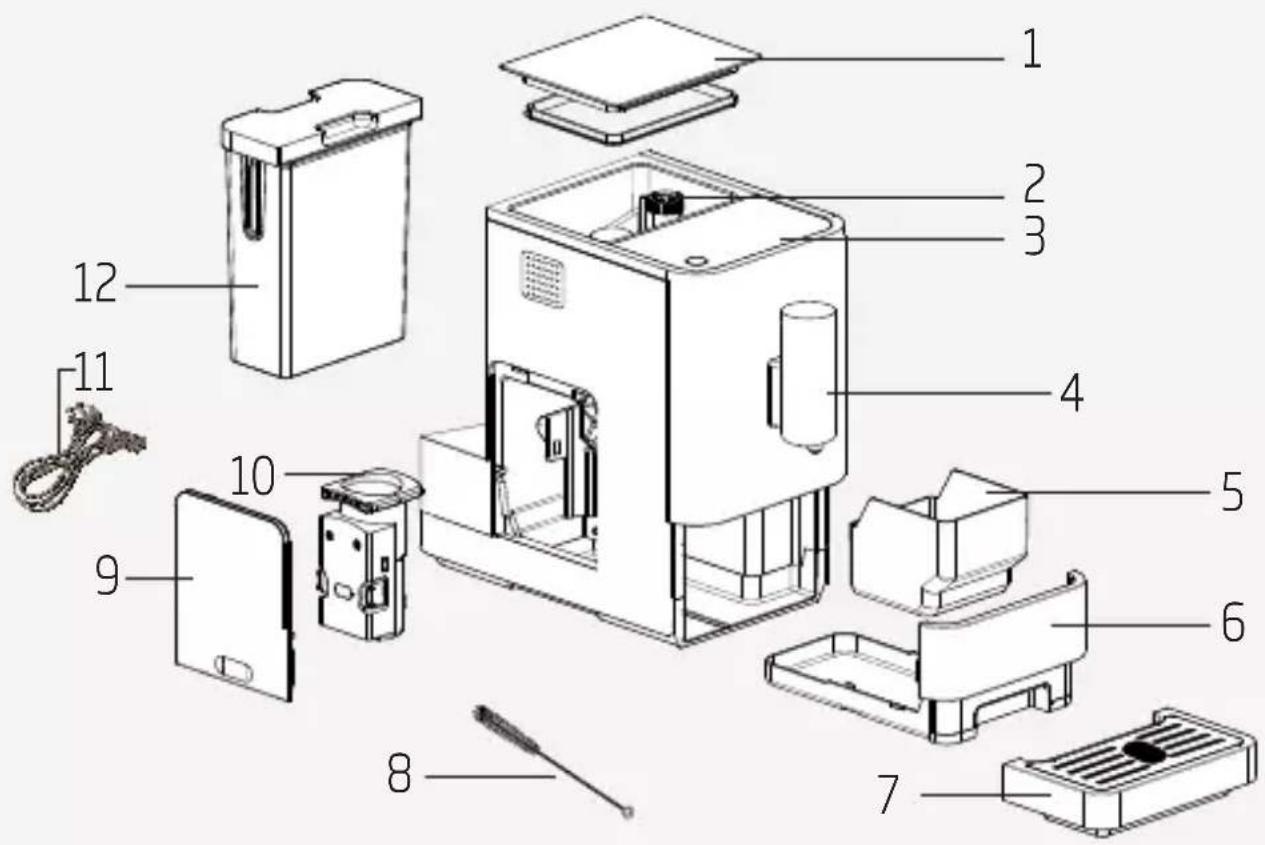

Exploded view diagram of a device with numbered parts for identification

1. Coffee Beans Container Cover
2. Coffee Bean Container
3. Control Panel
4. Adjustable coffee spout
5. Coffee Grounds Container
6. Internal Drip Tray
7. External Drip Tray
8. Cleanness brush
9. Service Door
10. Brewer
11. Power cord
12. Water Tank

Technical data

Power supply:

220-240 V\~, 50-60 Hz

Power: 1350 W

Technical and design modifications reserved.

All declared values on the product and on the printed leaflets are picked up after laboratory measurements performed according to related standards. These values may differ upon usage and ambient conditions.

1

Important instructions for safety and environment

This section includes the safety instructions that will help providing protection against personal injury and material loss risks. Failure to follow these instructions invalidates the granted warranty.

1.1 Danger of electric current

Danger to life by electric current!

Contact with live wires or components could lead to serious injury or even death!

Observe the following safety precautions to avoid electric shocks:

- Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.

- Do not open the housing of the coffee machine. Danger of electric shock if live connections are touched and/or the electrical and mechanical configuration is changed.

- Before cleaning the bean container, pull the mains plug of the appliance out of the socket. Danger from rotating coffee mill!

1

Important instructions for safety and environment

1.2 Danger of burning or scalding

Parts of the coffee machine can become very hot during operation! Dispensed drinks and escaping steam are very hot!

Observe the following safety precautions to avoid burning/scalding yourself and/or others:

• Do not touch either of the metal sleeves on both coffee spouts.
• Avoid direct contact of the skin with escaping steam or hot rinsing, cleaning and descaling water.

1.3 Fundamental safety precautions

Observe the following safety precautions to ensure safe handling of the coffee machine:

• Never play with packaging material. Risk of suffocation. Keep all the packaging materials away from children.
• Inspect the coffee machine for visible signs of damage before use. Do not use a damaged coffee machine. Contact an authorised service.

1

Important instructions for safety and environment

- If the connecting cable is damaged, it should only be replaced by a service agent recommended by the manufacturer in order to prevent any danger! Please contact the manufacturer or his customer service.

•Repairs to the coffee machine must only be carried out by an authorised specialist or by the works customer service. Unqualified repairs can lead to considerable danger for the user. They will also void the warranty.

•Repairs to the coffee machine during the warranty period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty will become void in the event of subsequent damage.

- Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

1 Important instructions to safety and environment

•This appliance can be used by children from the age of 8 up as well as by persons with reduced physical, sensory or mental abilities or with lacking experience and/or knowledge, if these persons are supervised or have been instructed how to use the appliance in a safe way and have understood the hazards which could arise from using it. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
•This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments,

• farm houses,
• by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments.

- Protect the coffee machine against the effects of weather such as rain, frost and direct sunlight. Do not use the coffee machine outdoors.

1

Important instructions for safety and environment

• Never immerse the coffee machine itself, the mains cable or the mains plug into water or other liquids.
• Do not clean the coffee machine or accessories in a dish washer.
• Do not pour any other liquids apart from water or place foodstuffs into the water tank.
• Do not fill the water tank beyond the maximum mark (lower edge of the filling hole).
• Only operate the machine when the waste container, drip tray and the cup grate are fitted.
• Do not pull the cable to remove the plug from the mains socket or touch with wet hands.
• Do not hold the coffee machine with the mains cable.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
  •The appliance can only be used to prepare coffee.
• Children should be super vised to ensure that they do not play with the appliance.

1

Important instructions for safety and environment

• Unplug the appliance before each cleaning and when the appliance is not in use.
• Place the appliance in a way so that the plug is always accessible.
  •Always use the appliance on a stable, flat, clean dry, and non-slip surface.
  •Appliance is not built-in coffee-makers and is not designed use in cabinet. The coffee maker shall not be place in a cabinet when in use.
• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the power cord away from hot surfaces and naked flame.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Use the appliance with a grounded outlet only.
• Do not use the appliance with an extension cord.
• Do not touch the appliance or its plug with wet or damp hands when the appliance is plugged in.

1

Important instructions for safety and environment

1.4 Intended use

The fully automatic coffee machine Beko is intended for use in homes and similar applications, for instance in staff kitchens, shops, offices and similar areas or by customers in bed & breakfast, hotels, motels and other living accommodation. This coffee machine is not intended for commercial use. The machine is only intended for preparing coffee and heating milk and water. Any other use other than previously stated is considered as improper use.

Danger resulting from improper use!

If not used for its intended purpose or used in any other way, the coffee machine may be or become a source of danger.

WARNING:

Therefore, the coffee machine may only be used for its intended purpose.

WARNING:

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage or injury resulting from use of the coffee machine for other than its intended purpose.

The risk has to be borne solely by the machine owner.

1.5 Limitation of li- ability

All technical information, data and instructions on installation, operation and maintenance of the coffee machine contained in these operating instructions represent the current status at the time of printing and are based on the best possible knowledge gained by experience and knowhow.

No claims can be derived from the information, illustrations and descriptions in this user manual.

1

Important instructions for safety and environment

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.

1.6 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Prohibition sign for a trash bin with crossed lines indicating no waste and a solid black bar below

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased.

Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.7 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.8 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Display

2.1 Control Panel

	Flashing: Low water level/ Water tank missing
	Lack of bean
	Lights up stably: coffee grounds container is fullFlashing: Internal Drip Tray/coffee grounds container is missing
	Lights up stably: Brewer is missing/ installed improperlyFlashing: Service door is opened / installed improperly
	Lights up stably: Requires to do descalingFlashing: Descaling is under process
	Empty System Function is running
	Power ON/OFF Button
	Hot Water Button
	Strong Espresso Button (25-40 ml coffee with one press on button)
	Mild Espresso Button (51-69 ml coffee with one press on button)

In the box, three packs of cleaning agents are included for the process of self-cleaning.

3 Preparation

3.1 Installation

Remove any protective films, stickers and any other packing material on the appliance.

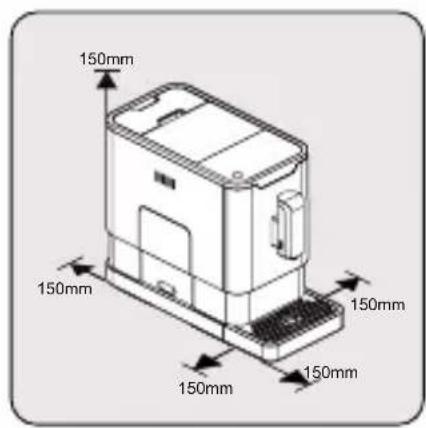

150mm 150mm 150mm 150mm 150mm

Choose a safe and stable surface with an easily reachable power supply and allow minimum distance from the sides of the machines.

Technical line drawing of a device housing with an attached component (no text or symbols)

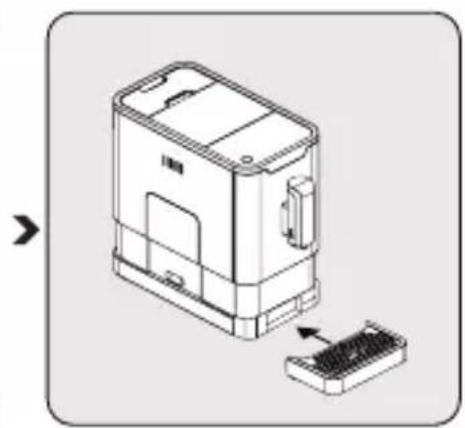

Insert the external drip tray. Make sure it is inserted correctly.

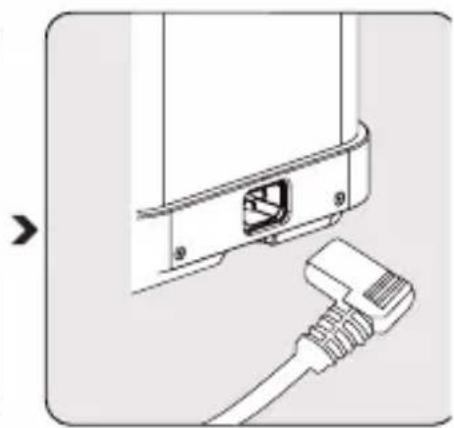

Diagram showing a cable inserted into a device with an attached socket (no text or symbols)

Unwind and straighten the power cord and insert the plug into the socket located on the back of the machine. Insert the other end of the power cord into a wall socket with suitable power voltage.

3 Preparation

3.2 Filing the water tank

About the protect program: If the water tank is not fully placed into the machine, a protection mode will be activated in 15 seconds during brewing process. Hot water button will lights on control panel.

1. Make sure that the water tank is fully inserted into the machine.
2. Press the hot water button. After the hot water is dispensed, the machine will be in standby condition.

WARNING: When is flashing, the water tank is in low water level and requires filling the water tank.

Line drawing of a mechanical device with a handle and base, showing internal components and a directional arrow (no text or symbols)

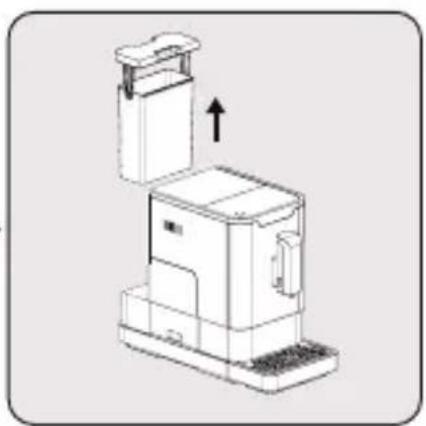

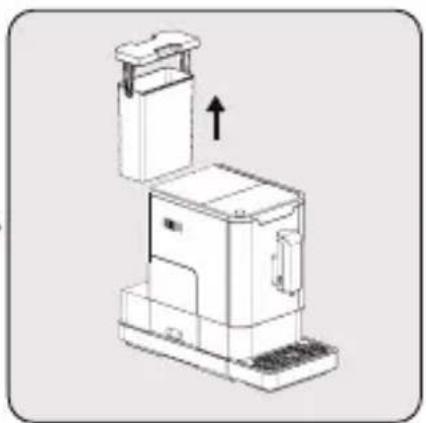

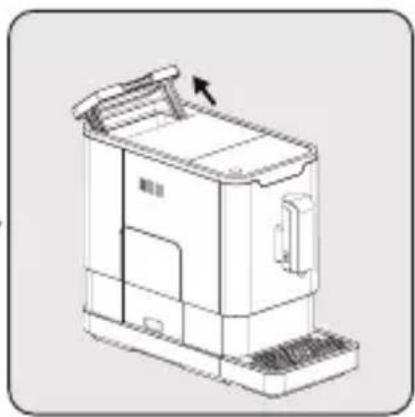

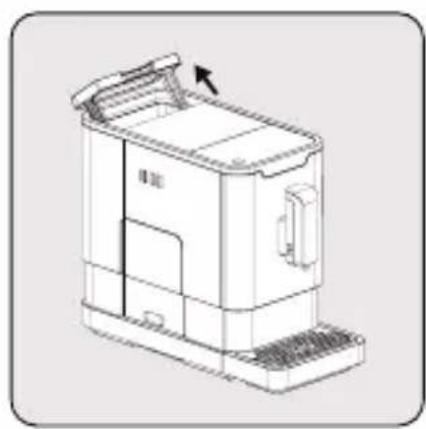

Lift the water tank by using the lid as the handle.

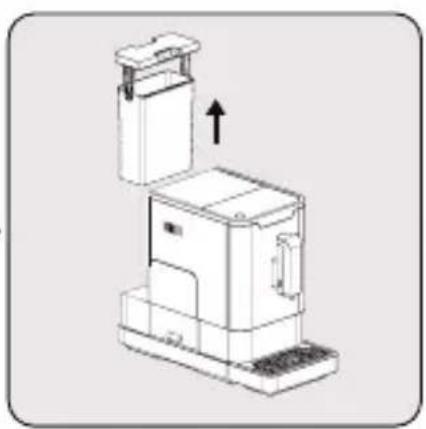

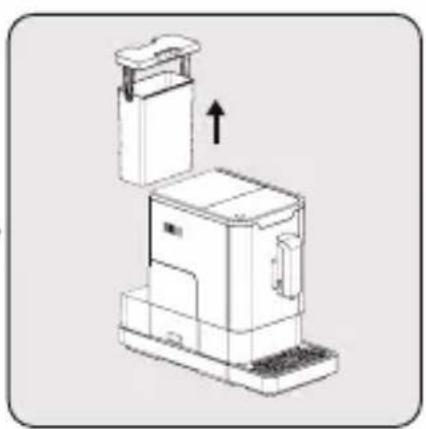

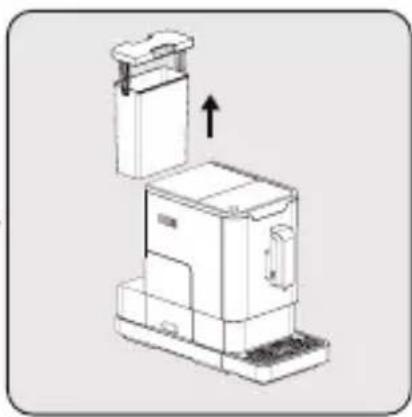

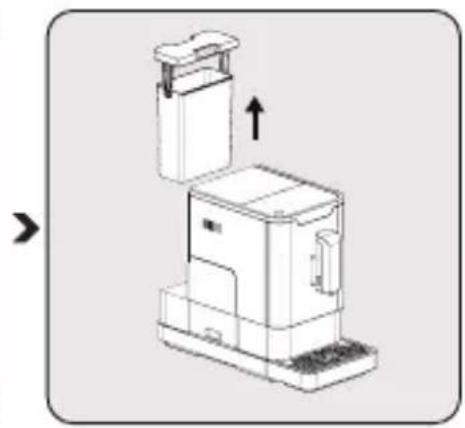

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

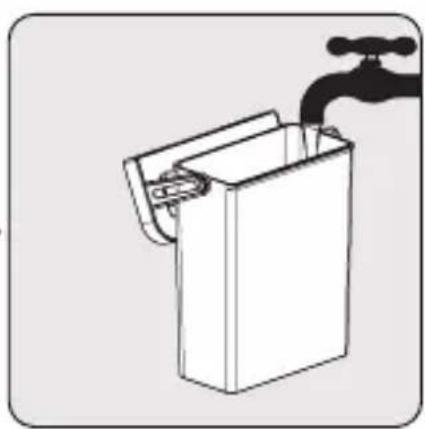

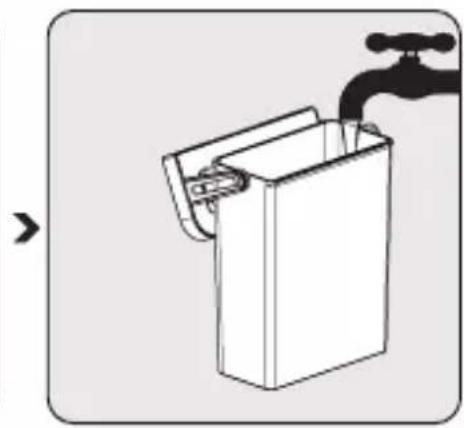

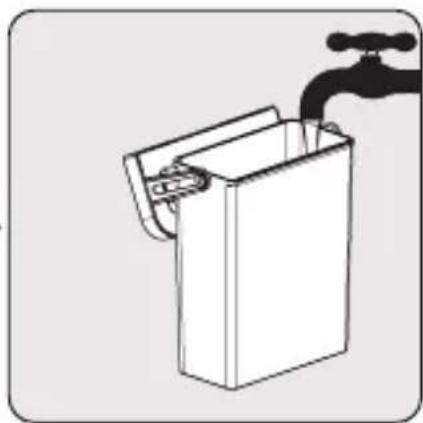

Take the water tank out. Rinse

Simple line drawing of a water tap with a container and pipe (no text or symbols)

the water tank with fresh water and then fill the tank to the Max level and place it back into the machine. Make sure it is fully inserted.

To prevent overflow of water from the water tank, do not add water directly into the appliance with another container.

3 Preparation

WARNING: Never fill the water tank with warm, hot, sparkling water or any other liquid which might damage the water tank and the machine.

Line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

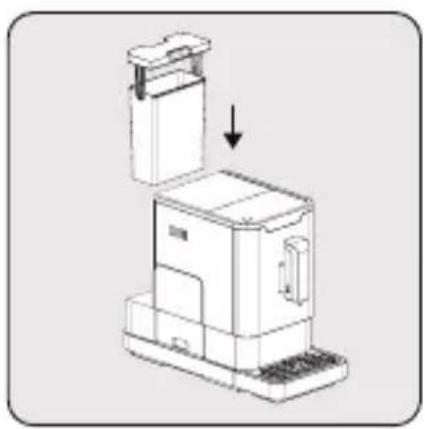

Place the water tank back by using the lid as the handle.

Line drawing of a mechanical device with a handle and side panel, showing no text or symbols.

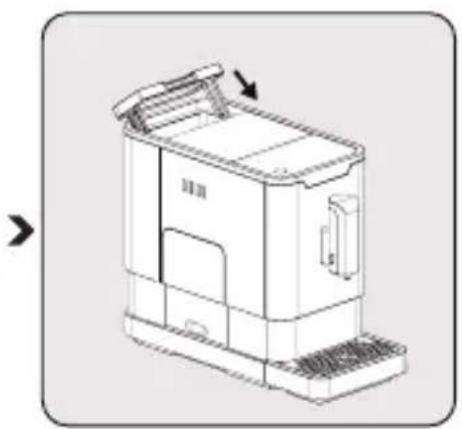

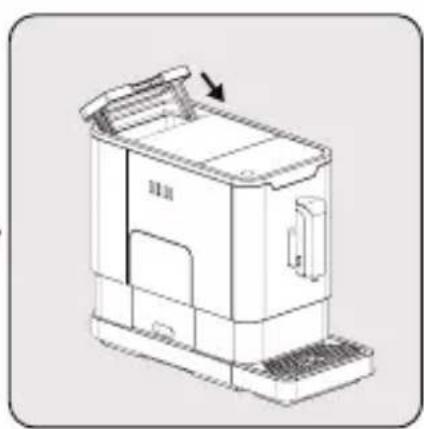

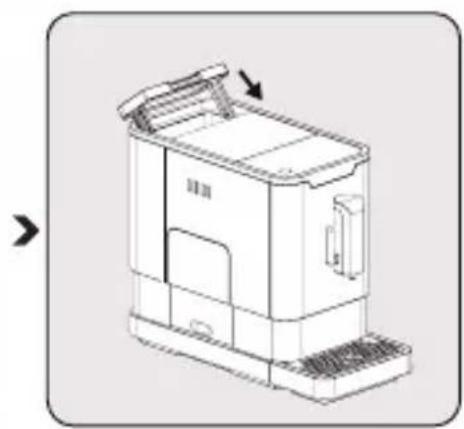

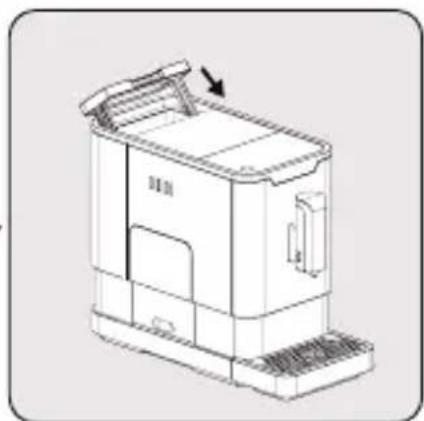

Close the water tank by using the lid.

4 Operation

4.1 Grinding Adjustment

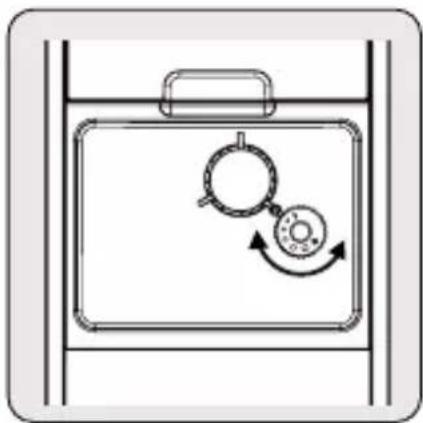

You can adjust the grinder to suit the roast of your coffee by turning adjuster knob in the bean container:

Simple line drawing of a device with two circular components and an arrow indicating rotation (no text or symbols)

When the grinder is grinding the coffee bean when it is making the coffee, you can turn the adjust knob to do the adjustment.

WARNING: Never do the grinding adjustment when the grinder is not operating. It may damage the grinder.

The dots on the adjuster knob indicate the fineness of the grind.

4 Operation

4.2 Filing the bean container

When is flashing, the appliance needs to be filled with coffee bean.

Line drawing of a mechanical device with a paper lid and mounting base (no text or symbols)

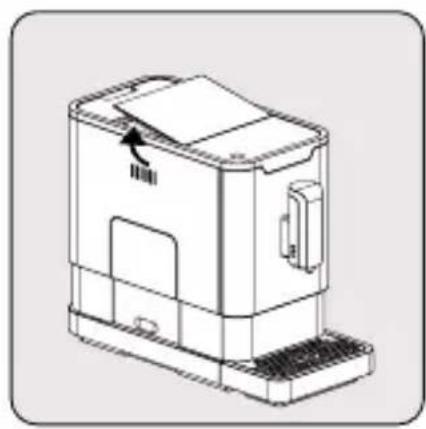

Remove the bean container lid.

Line drawing of a mechanical device with a container pouring liquid into it (no text or symbols)

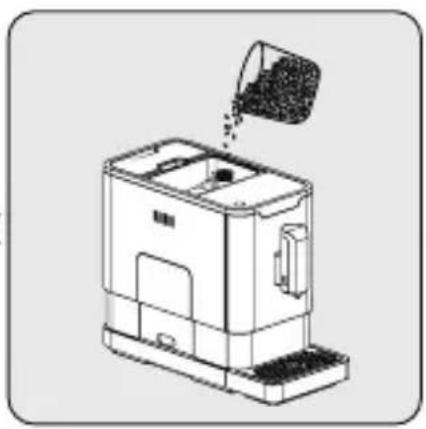

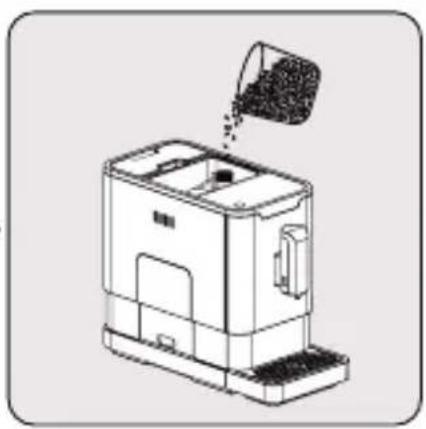

Slowly pour in the coffee beans.

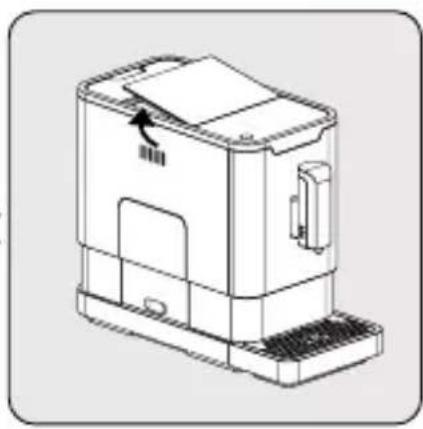

Line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

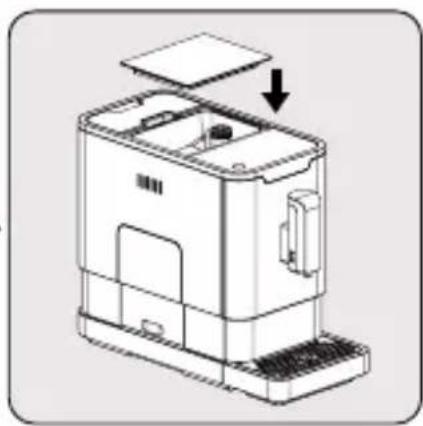

Place the container lid back.

WARNING: Fill the coffee bean container only with coffee beans. Grounded coffee, instant coffee, caramelized coffee and any other objects may damage the machine.

Press the hot water button to clean inside of the coffee maker before first use.

4 Operation

4.3 Making Your Coffee

Line drawing of a device with a power button icon (no text or symbols)

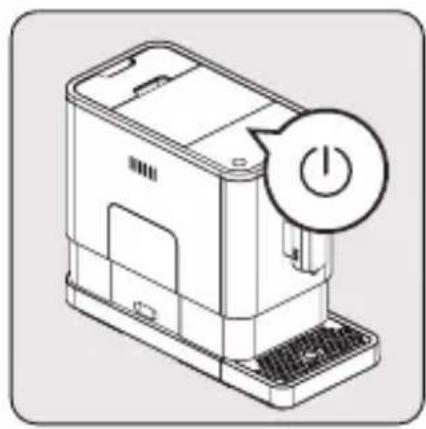

Switch on the appliance by pressing the power on/off button. The appliance is then in the standby condition.

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

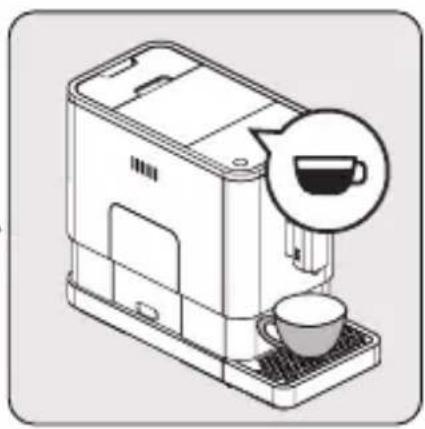

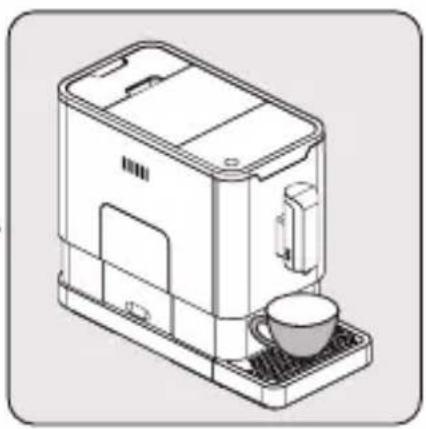

Place a cup under the coffee spout and adjust the height of the spout the fit the cup.

Line drawing of a coffee maker with a cup and a coffee cup, no text or symbols present

The espresso button being pressed will light on and the illumination will lights up indicates that the appliance is preparing the cup of coffee. When the appliance is back to standby condition, the coffee is ready to serve.

Switch off the appliance by pressing the power on/off button.

Depending on the taste of coffee you would like to have, press strong espresso button or mild espresso button.

Press the hot water button to clean inside of the coffee maker before first use.

The Appliance is equipped with auto-shut off. Depending on the mode you have selected the appliance will have different auto-shut off timing.

4 Operation

4.4 Adjusting The Volume Of Your Coffee/Hot Water

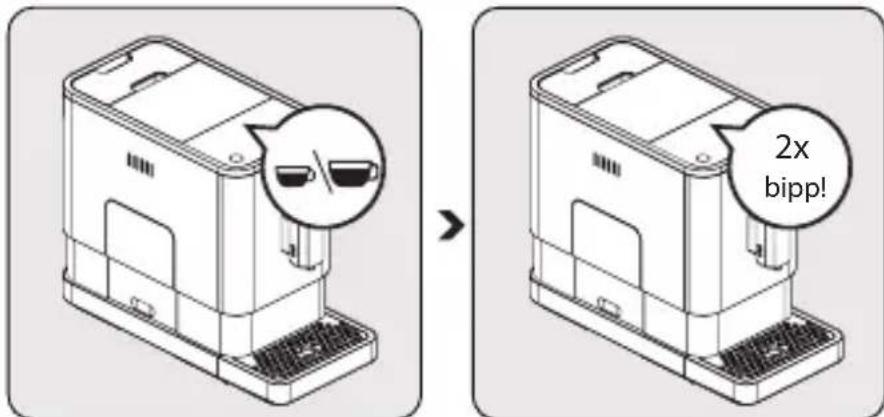

You can memorize your desired volume of coffee for both strong espresso and mild espresso and also the hot water from 25ml to 250ml.

2x bipp!

When making your coffee (either strong espresso or mild espresso) or dispensing hot water, press and hold the button you selected. The appliance will continue to make the cup of coffee.

When the volume of coffee meets your desired volume, release the button. Two beep sounds will be heard indicates that the volume of coffee is being memorized.

To reset to the default/factory settings;

In order to reset to the default settings of coffee and hot water volume selection recorded in memory, it is necessary to reset to the factory settings.

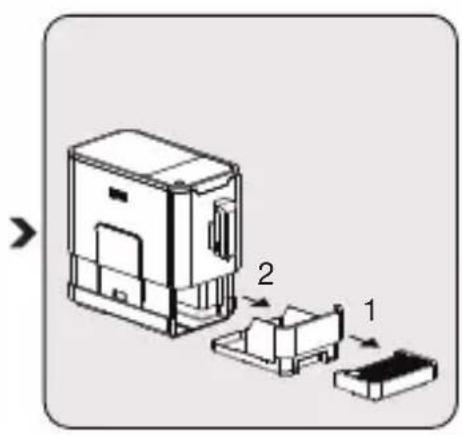

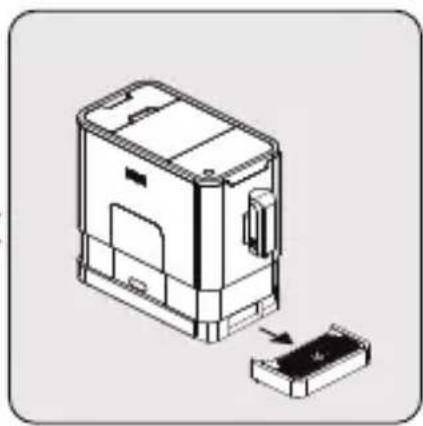

1. When the device is off, remove the inner and outer drip pans,
2. Remove the service cover,
3. Remove the carafe,
4. Place the service cover,
5. Press down the on-off key for 5 seconds (It beeps 2 times)
6. Open the service cover,
7. Place the carafe,

4 Operation

1. Close the service cover,
2. Place the drip tray.

It has been resetted to factory settings.

4.5 Hot Water

The appliance can dispense hot water by simply pressing the hot water button. The hot water button and the illumination will lights up indicates that the appliance is heating up the water. When the hot water button and the illumination turn off, the water is ready to serve.

4.6 Mode Selection

The machine has two different settings: default setting, ECO mode and speed mode. In ECO mode, the appliance helps to save more energy. In speed mode, the user can make their coffee faster than in default setting.

	ECO Mode Speed Mode Default Setting
Illumination Light No Yes	Yes
Pre-brewing* Yes No Yes
Auto shut off time 10mins	30mins 20mins
Cup Volume memory Yes	Yes Yes

The pre-brewing function moistens the grounded beans in the brewer with a small amount of water before full extraction. This expands the coffee grounds to build up a greater pressure in the brewer which help extraction of all the oils and full flavor from the grounded beans.

4 Operation

1. When the machine is in standby condition, press and holds the for 5 seconds.
2. The Ⓞ will then be flashing and the following button will have the following indications for different settings:

	Hot water button	Strong espresso button Mild espresso button
In ECO Mode Lights ON Flashing	Flashing
In Speed Mode Yes No Flashing
In Default Setting Flashing	Flashing Lights On

1. Press the hot water button for ECO mode, strong espresso button for speed mode and mild espresso button for default setting. Two Beep sound will be heard indicates that the mode is being selected. (Note: If you are pressing the relative lights on button for each mode, the machine will not response).
2. If you would like to remain the setting unchanged, press (again or wait for 5 seconds for the machine to return to the standby condition

5 Cleaning

5.1 Cleaning of the appliance

1. Disconnect the power cord from the mains supply outlet.
2. Pour away all the water in the internal and external drip tray
3. Use a damped cloth or non-scratching cleaner to clean the water stains on the appliance.

WARNING: Never use any abrasive, vinegar or descaling agents not included in the box to clean the appliance.

Timely cleaning and maintenance of the appliance is very important in prolonging the life of the appliance.

Technical line drawing of a device housing with an open base and internal components (no text or symbols)

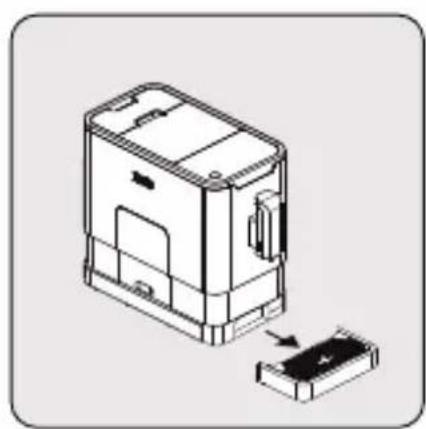

Remove the external drip tray.

Diagram showing a device with labeled parts, including a box, two numbered components, and a separate base component.

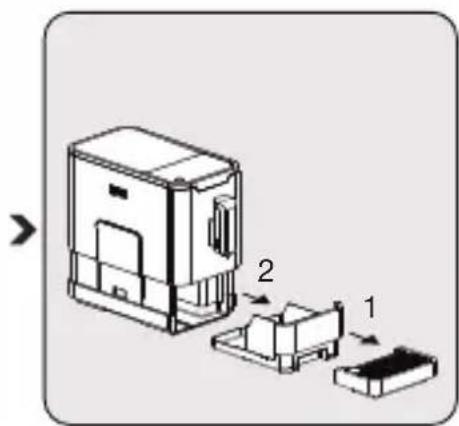

Slides open the internal drip tray and the coffee grounds container.

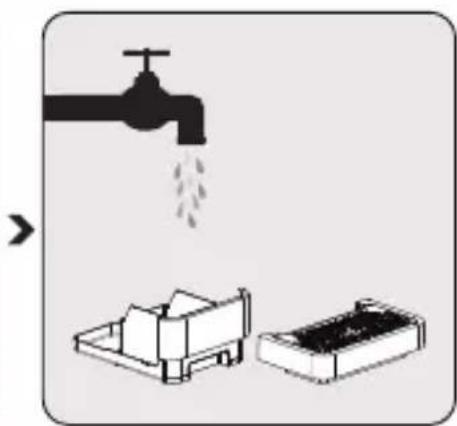

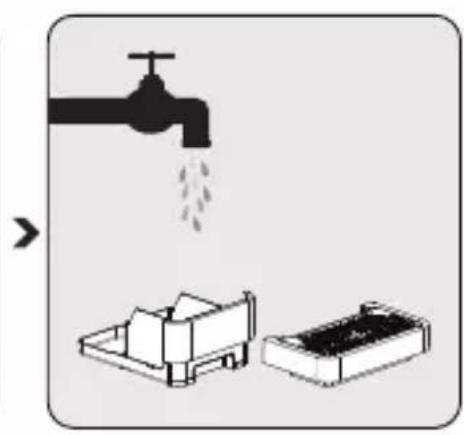

Illustration showing a faucet pouring liquid into a container and a tray with food (no text or symbols)

Empty the coffee grounds container and wash it with fresh water. Dry it afterwards.

When lights up, the coffee grounds container needs to be emptied. This icon will light up after every 10 coffee brews. Clean the container to reset the icon. If the container is clean, it will be enough to remove the container and put it back in place.

5 Cleaning

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Diagram of a hand holding a device with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install an electrical component, with no visible text or symbols.

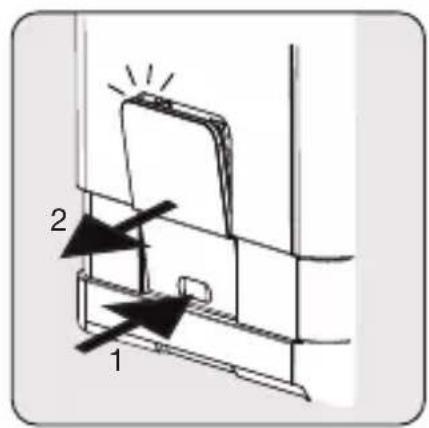

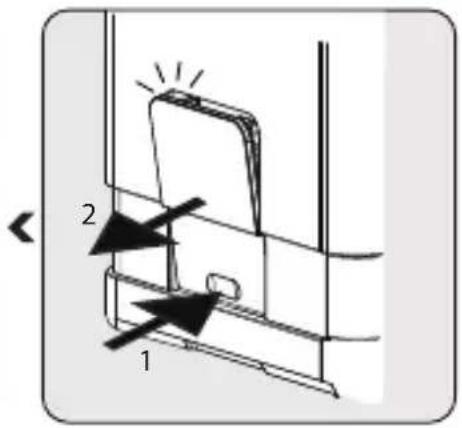

Pull down the service door and remove it.

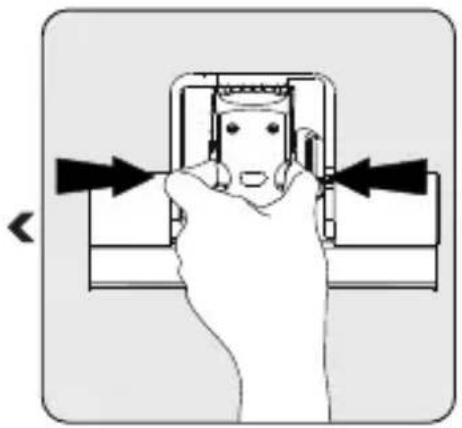

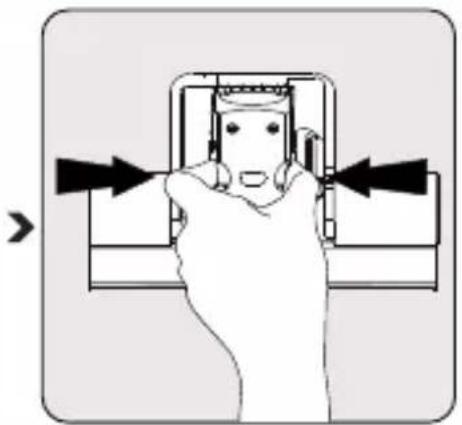

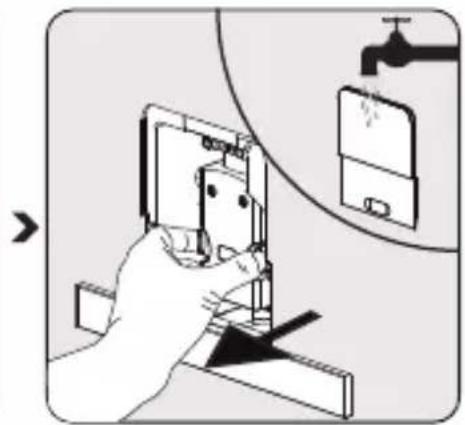

Press the release knob. Remove

the brewer. Wash the brewer with fresh water. Dry the brewer afterwards.

When lights up stably, it indicates that the brewer is missing / installed improperly. When is flashing, it indicates that the service door is missing/installed improperly.

5.2 Self-Cleaning

When is flashing, it indicates that the appliance needs to undergo self-cleaning. The appliance will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of water used. It is also suggested that to

1. Fully fill the water tank.
2. Adding one pack of cleaning agent included in the box to the water tank.

WARNING: Do not use vinegar or other cleaning agent to do self-cleaning of this appliance. The cleaning agent might damage the appliance.

1. Plug in the appliance.

5 Cleaning

1. Place a sufficient large container under the coffee spout.
2. In standby condition, press and hold and strong espresso button for 5 seconds. A beep sound will be heard with and strong espresso button will be flashing.
3. Press strong espresso button to confirm undergoing the self-cleaning process. To resume back to the standby condition, press ⏻
4. will be flashing indicates that the appliance is undergoing the self-cleaning process.

WARNING: Keep skin/body away from the hot water.

1. When all the water in the water tank is being dispensed out, and strong espresso button will be flashing. Remove all the remaining solution in the water tank and fill the tank with normal tap water until the max position. When water is filled into the water tank, will goes off. Then the appliance will continue the self-cleaning process.
2. When the self-cleaning process is completed, the appliance will switch off automatically.

5.3 Empty System Function

The empty system function is recommended to be used before long period of non-use, frost protection and before talking to repair agent.

1. In standby condition, press and hold the ⏻ and mild espresso button together for 5 seconds.
2. will then be flashing.
3. Remove the water tank from the appliance. Will light up stably indicates that the empty system is under process. You can press before removing the water tank to resume back to the standby condition.

5 Cleaning

1. When the empty system function is completed, the appliance will switch off automatically.

WARNING: After perform EMPTY SYSYEM FUNCTION; press the hot water button until water can come out from spout when the coffee maker is reused again.

5.4 Manual Rinsing

You can perform a manual rinsing cycle to clean the coffee nozzle after use. It is also suggested to perform a manual rinsing if the appliance has not been used for a long period of time.

1. In standby condition, press and hold the ⏻ and hot water button ⚙ together.
2. The hot water button , strong espresso button and mild espresso button will then goes off. The coffee nozzle will then dispense a small amount of water which is used for the rinising.

WARNING: Water comes out of the coffee nozzle is hot and is collected in the drip tray underneath. Avoid contact with splashes of water.

1. After rinsing, the appliance will return to the standby condition.

5 Cleaning

Cancelling the auto-clean mode

Your appliance cleans itself automatically before and after each brewing operation. You may follow the steps below to cancel the auto-clean mode.

• Turn on the appliance by pressing the On-Off switch ⏻ and wait until it engages the Stand-by position.
• Open the service cover.
• Press the On-Off switch for 5 seconds, a beep shall be heard.
• Close the service cover.
• Now, the auto-clean operation is cancelled.

We recommend you to use the auto-clean mode actively for a healthy operation.

6 Troubleshooting

Problem Cause Solution
The appliance does not work. The appliance is not connected to the mains.		Plug in and press the switch.Check the cable and the Plug
No or delayed response in several trials of pressing on function key on the panel	Appliance is under an electromagnetic interference Dirt over the panel	Unplug the appliance. Restart after few minutesClean the panel with the cloth provided
The coffee is not hot enough. The cups have not been preheated.The brewing unit is too cold.		Rinse the appliance at least 3 times before making the coffee.
The coffee cannot come out from spout.	Empty system function maybe used before.	Press the hot water button until water can come out from spout.
The first cup of coffee is poor quality.	The first run of grinder does not pour sufficient quantity coffee power into the brewing unit.	Throw the coffee away. The other coffees will always be of good quality.
Coffee has no cream. Not pressing the touch button from the front direction of the appliance		Press the lower bottom part of the icon of the touch button from the front direction of the appliance.
The touch buttons are not sensitive	Excessive scale has built up. Descale the appliance.
The water tank is removed / the water level is very low in the water tank but have no alert.	The area near the water tank connector is wet.	Wipe the water around the water tank connector
Internal drip tray is filled with a lot of water.	Coffee powder too fine which block the water to come out.	Adjust the coffee fineness to bigger dot during grinder operation.
Coffee is delivered too slowly or a drop at a time.	Coffee powder too fine which block the water to come out.	Adjust the coffee fineness to bigger dot during grinder operation.

6 Troubleshooting

Problem Cause Solution
Lack of bean indicator flashes but there is still a lot of coffee bean inside the container.	Internal coffee powder outlet is blocked.	To follow the steps of section cleaning coffee powder outlet.
The appliance no longer performs the rinsing cycle when switched on or off.	Improper handling when servicing the appliance may be the cause.	1. When the appliance is on, remove the coffee group access door.2. Press and hold the on/off button until you hear 2 beeps.3. Replace the coffee group access door.

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an exploded view showing internal components (no text or symbols)

Diagram showing a cable connector inserted into a device housing (no text or symbols visible)

Line drawing of a mechanical device with a handle and base, showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a water tap with a container and handle (no text or symbols)

Line drawing of a mechanical device with an arrow indicating downward motion (no text or symbols)

Line drawing of a mechanical device with a handle and side panel, no text or symbols present

Simple line drawing of a device with two circular components and an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a spool pouring liquid into it (no text or symbols)

Diagram of a device with an open lid and internal components, showing no text or symbols

Line drawing of a device casing with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on a tray (no text or symbols)

Illustration of a coffee maker with a cup and a speech bubble indicating coffee (no text or symbols present)

Technical line drawing of a device housing with an open base and internal components (no text or symbols)

Diagram showing a device with labeled parts 1 and 2, indicating assembly or installation steps.

Illustration showing a faucet pouring liquid into a container and a storage tray (no text or symbols)

Diagram showing a device with labeled parts 1 and 2, indicating directional or flow direction.

Illustration of a hand pressing a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install an electronic device, with no visible text or symbols.

Symbol of a trash bin with crossed lines and a black rectangle below (no text or labels)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an attached component (no text or symbols)

Diagram showing a cable inserted into a device with a connector (no text or symbols visible)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a water tap with a handle and outlet (no text or symbols)

Diagram showing a device being processed from a top panel to a lower panel, with no visible text or symbols.

Simple line drawing of a device with two circular components and directional arrows, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable coffee machine with a lid and spout, no text or symbols present

Line drawing of a mechanical device with an arrow indicating a component or assembly (no text or symbols present)

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Illustration of a coffee machine with a cup and coffee cup, showing its use in the kitchen (no text or symbols present)

Technical line drawing of a device housing with an inset showing a component detail (no text or symbols)

Diagram showing a device with labeled parts, including a box and two numbered components (1 and 2)

Illustration showing a faucet pouring liquid into a container and a smaller storage unit (no text or symbols)

Diagram of a hand pressing a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components, with no visible text or symbols.

Exploded view diagram of a device with numbered parts for identification

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an attached component (no text or symbols)

Diagram showing a cable inserted into a device with an attached socket (no text or symbols present)

Line drawing of a mechanical device with a handle and base, showing no text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a water tap with a handle and outlet (no text or symbols)

Line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a mechanical device with a handle and side panel, showing no text or symbols

Simple line drawing of a device with a magnifying glass and circular button, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable coffee machine with lid and spout, no text or symbols present

Line drawing of a device with an open lid and internal compartments, showing no text or symbols.

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Technical line drawing of a device housing with an arrow indicating assembly or disassembly (no text or symbols present)

Diagram showing a device with labeled parts, including a box and two numbered components.

Illustration showing a faucet pouring liquid into a container and a storage dish, with no text or symbols present.

Diagram showing a device with labeled parts 1 and 2, indicating directional or flow direction.

Illustration of a hand pressing a button on an electrical socket (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

- https://twitter.com/beko_tr

- https://www.facebook.com/bekoturkiye/

- https://www.youtube.com/user/BekoChannel

* Posta Adresimiz:

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an attached component (no text or symbols)

Diagram showing a cable inserted into a device with an attached connector (no text or symbols visible)

Line drawing of a mechanical device with a handle and side panel, showing no text or symbols.

Diagram of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Simple line drawing of a water tap with a handle and outlet (no text or symbols)

Diagram showing a device being assembled from a top panel to a closed unit, with no visible text or symbols.

Simple line drawing of a device with two circular components and directional arrows, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a lid and base, showing internal components and a drop (no text or symbols)

Line drawing of a device with an open lid and internal compartments, showing a downward arrow indicating a component (no text or symbols present)

Vuelva a colocar la tapa del recipiente.

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee maker with a cup and a coffee cup, no text or symbols present

Technical line drawing of a device with an open lid and internal components, showing no text or symbols.

Diagram showing a device with labeled parts, including a box, tray, and base, with arrows indicating sequence.

Illustration showing a faucet pouring liquid into a container and a small storage dish (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Illustration of a hand pressing a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install an electrical component, with no visible text or symbols.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an exploded view showing internal components (no text or symbols)

Diagram showing a cable inserted into a device with an attached socket (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing no text or symbols

Diagram of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Simple line drawing of a water tap with a handle and outlet (no text or symbols)

Diagram of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a mechanical device with a handle and side panel, no text or symbols present

Diagram of a device with two circular components and directional arrows, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a small industrial machine with a lid and internal compartments, no text or symbols present.

Technical line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a device casing with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee maker with a cup and a speech bubble indicating coffee (no text or symbols present)

Technical line drawing of a device housing with an open base and internal components (no text or symbols)

Diagram of a device with labeled parts showing assembly steps

Illustration showing a faucet pouring liquid into a container and a storage tray (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand using a tool to adjust or install an electrical component, with no visible text or symbols.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with a separate component, no text or symbols present

Diagram showing a cable connector inserted into a device (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a water tap with a container and pipe (no text or symbols)

Line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a mechanical device with a handle and side panel, no text or symbols present

Simple line drawing of a device with a magnifying glass and circular button, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a container and spool pouring into it (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a device casing with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee maker with a cup and a speech bubble indicating coffee (no text or symbols present)

Technical illustration of a device housing with an open base and internal components (no text or symbols)

Diagram showing a device with labeled parts, including a box, switch, and base, with arrows indicating sequence.

Illustration showing a faucet pouring liquid into a container and a small storage dish (no text or symbols)

Diagram showing a device with labeled parts 1 and 2, indicating directional or flow direction.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an attached component (no text or symbols)

Diagram showing a cable inserted into a device with an internal socket (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a water tap with a handle and outlet (no text or symbols)

Diagram showing a device being processed from a top panel to a lower panel, with no visible text or symbols.

Simple line drawing of a device with two circular components and directional arrows, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a container and spool, no text or symbols present

Technical line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee maker with a cup and a speech bubble indicating coffee (no text or symbols present)

Technical line drawing of a device housing with an open base and a separate component (no text or symbols)

Diagram showing a device with labeled parts, including a box and two numbered components (1 and 2)

Illustration of a faucet pouring liquid into a container and a small storage dish (no text or symbols)

Diagram showing a device with labeled parts 1 and 2, indicating directional or flow direction.

Illustration of a hand pressing a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a smartphone to adjust or install a device, with no visible text or symbols.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an attached component (no text or symbols)

Diagram showing a cable inserted into a device with an attached connector (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing no text or symbols

Diagram of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Simple line drawing of a water tap with a handle and outlet (no text or symbols)

Diagram of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a mechanical device with a handle and side panel, no text or symbols present

Simple line drawing of a device with a magnifying glass and circular button, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a container pouring liquid into it (no text or symbols)

Line drawing of a mechanical device with an arrow indicating a component or assembly (no text or symbols present)

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Technical line drawing of a mechanical device with an attached component (no text or symbols)

Diagram showing a device with labeled parts, including a box, tray, and base, with arrows indicating sequence.

Illustration showing a faucet pouring liquid into a container and a smaller storage unit (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Illustration of a hand pressing a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a sewing machine to adjust or install a device, with no visible text or symbols.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an exploded view showing internal components (no text or symbols)

Diagram showing a cable connector inserted into a device housing (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Zdvihnite nádržku na vodu a použite pritom veko ako držadlo.

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a water tap with a container and pipe (no text or symbols)

Diagram showing a device being assembled from a top panel to a closed panel, with no visible text or symbols.

Umiestnite nádržku na vodu spät a použite pritom veko ako držadlo.

Diagram of a device with two circular components and directional arrows, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a lid and internal compartments, no text or symbols present

Technical line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a coffee maker with a cup on the tray (no text or symbols)

Illustration of a coffee machine with a cup and a speech bubble indicating coffee (no text or symbols present)

Technical illustration of a device housing with an open base and internal components (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating assembly or movement.

Illustration showing a faucet pouring liquid into a container and a storage tray (no text or symbols)

Diagram showing a device with labeled parts 1 and 2, indicating directional or flow direction.

Stiahnite servisné dvierka smerom dolu vyberte ich zo spotrebiča.

Illustration of a hand pressing a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install an electronic device, with no visible text or symbols.

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

150mm 150mm 150mm 150mm 150mm

Technical line drawing of a device housing with an arrow indicating a component (no text or symbols present)

Diagram showing a cable inserted into a device with an attached connector (no text or symbols)

Line drawing of a mechanical device with a handle and side panel, no text or symbols present

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a water tap with a container and pipe (no text or symbols)

Line drawing of a mechanical device with an arrow indicating downward motion (no text or symbols)

Line drawing of a mechanical device with a handle and side panel, showing no text or symbols.

Simple line drawing of a device with a magnifying glass and circular button, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a container pouring liquid into it (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Line drawing of a device with a power button icon (no text or symbols)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a coffee maker with a cup and a coffee cup, no text or symbols present

Technical line drawing of a device housing with an open lid and a separate close-up view (no text or symbols)

Diagram showing a device with labeled parts, including a box and two numbered components.

Illustration showing a faucet pouring liquid into a container and a smaller storage dish (no text or symbols)

Diagram showing a device with labeled parts 1 and 2, indicating directional or flow direction.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand using a smartphone to adjust or install a device, with no visible text or symbols.

Illustration of a hand using a smartphone to adjust or install a device, with a magnified inset showing a faucet and a small device (no text or symbols present)

Illustration of a hand pressing a component with arrows indicating force direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Illustration of a faucet pouring liquid into two containers (no text or symbols)

Diagram of a mechanical device with two labeled parts (1 and 2), showing internal components and motion arrows (no text or symbols beyond labels)

القهوة لفتحها.

Technical line drawing of a device housing with an open base and a close-up view of its internal components (no text or symbols)

Line drawing of a device with a magnified inset showing two glasses (no text or symbols)

Illustration of a coffee maker with a cup and a speech bubble indicating coffee (no text or symbols present)

Line drawing of a modern coffee maker with a cup on the tray (no text or symbols)

Line drawing of a mechanical device with a circular button labeled 'Power' (no text or symbols on the device itself)

Line drawing of a 3D printer or printer with an open lid and internal components, showing no text or symbols.

<

Line drawing of a portable coffee machine with lid and side panel, showing internal compartments and exhaust plume (no text or symbols)

<

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with two circular components and directional arrows, no text or symbols present

Line drawing of a mechanical device with a handle and base, showing no text or symbols.

Diagram of a mechanical device with an arrow indicating assembly or operation (no text or symbols present)

Simple line drawing of a water tap with a handle inserted into a container (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a handle and side panel, showing no text or symbols.

Diagram of a cable connector with a socket and connector (no text or symbols)

Technical line drawing of a device housing with an exploded view showing internal components (no text or symbols)

150mm 150mm 150mm 150mm 150mm

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Exploded view diagram of a device with numbered parts for identification

البيانات الفنية

مزود الطاقة:

50-60 220-240 فولت \~

الطاقة: 1350 واط

Simple line drawing of a steaming cup on a saucer (no text or symbols)

CEG 3190 B

AR
