USER MANUAL BCS 55 Bavaria

Color palette bar with grayscale shades and a small crosshair symbol at the bottom (no text or labels)

1a 2 3 1 10 9 8 7 6 4 5 7 13a 13a 16

1b 20 14 11 12 18 17 15 21 19 2 a 4 6 -2 -

Anleitung_BCS-55_SPK1.Indb 2 08.11.11 15:28

Color palette bar with grayscale shades and a central compass icon (no text or symbols)

9 16 8

10 2 3

11 12 13b 13a 19 15 18 17

Close-up of hands operating a manual power saw with a gear cutter (no text or symbols visible)

Anleitung BCS-55_SPK1.indb 4

08.11.11 15:30

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Nur für EU-Länder

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

GB

Caution - Read the operating instructions to reduce the risk of inquiry

Wear ear-muffs. The impact of noise can cause damage to hearing.

Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

Anleitung_BCS-55_SPK1.indb 15

-15-

08.11.11 15:31

GB

▲ Important!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Caution!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2.2 Items supplied

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  • If possible, please keep the packaging until the end of the guarantee period.

Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Hand-held Circular Saw
- Sawblade
• 2x Saw blade wrench
• Adapter for dust extraction system
- Parallel stop
• Original operating instructions
• Safetyinstructions

2. Layout and items supplied

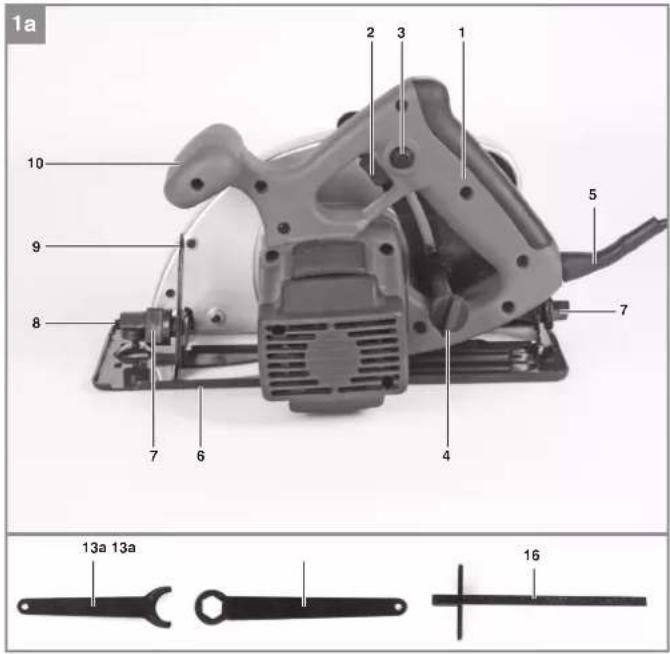

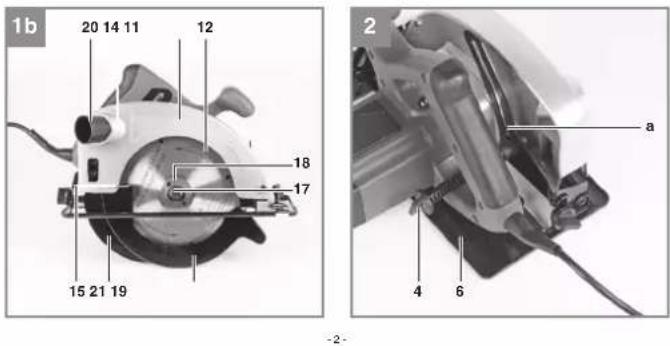

2.1 Layout (Fig. 1a/1b)

1. Handle
2. ON/OFF switch
3. Locking button for ON/OFF switch
4. Locking lever for cutting depth setting
5. Power cable
6. Soleplate
7. Locking lever for miter setting
8. Locking screw for parallel stop
9. Scale for miter angle
10. Additional handle
11. Guard hood
12. Saw blade
13. Saw blade wrench
14. Connection for sawdust extractor
15. Lever for opening the swing guard hood
16. Parallel stop
17. Screw for securing the saw blade
18. Flange
19. Swing guard hood
20. Adapter for dust extraction system
21. Splitter

3. Proper use

The hand-held circular saw is designed for sawing straight cuts in wood, wood-type materials and plastics.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

-16-

GB

4. Technical data

Mains voltage: 230 V \~ 50 Hz Power input: 1200 W

Idling speed: 4500 min ^-1

Cutting depth at 90°: 55 mm

Cutting depth at 45°: 32 mm

Saw blade: 0 160 mm

Blade holder: 0 20 mm

Blade thickness: 2.3 mm

Protection class: 11回

Weight: 4.1 kg

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level 94 dB(A)

K_a uncertainty 3 dB

L_out sound power level 105 dB(A)

K_HA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Handle

Vibration emission value a_n=2.215m/s^2

K uncertainty = 1.5 m/s ^2

Additional handle

Vibration emission value a_h = 1.911 m/s^2

K uncertainty = 1.5 m/s ^2

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
- Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

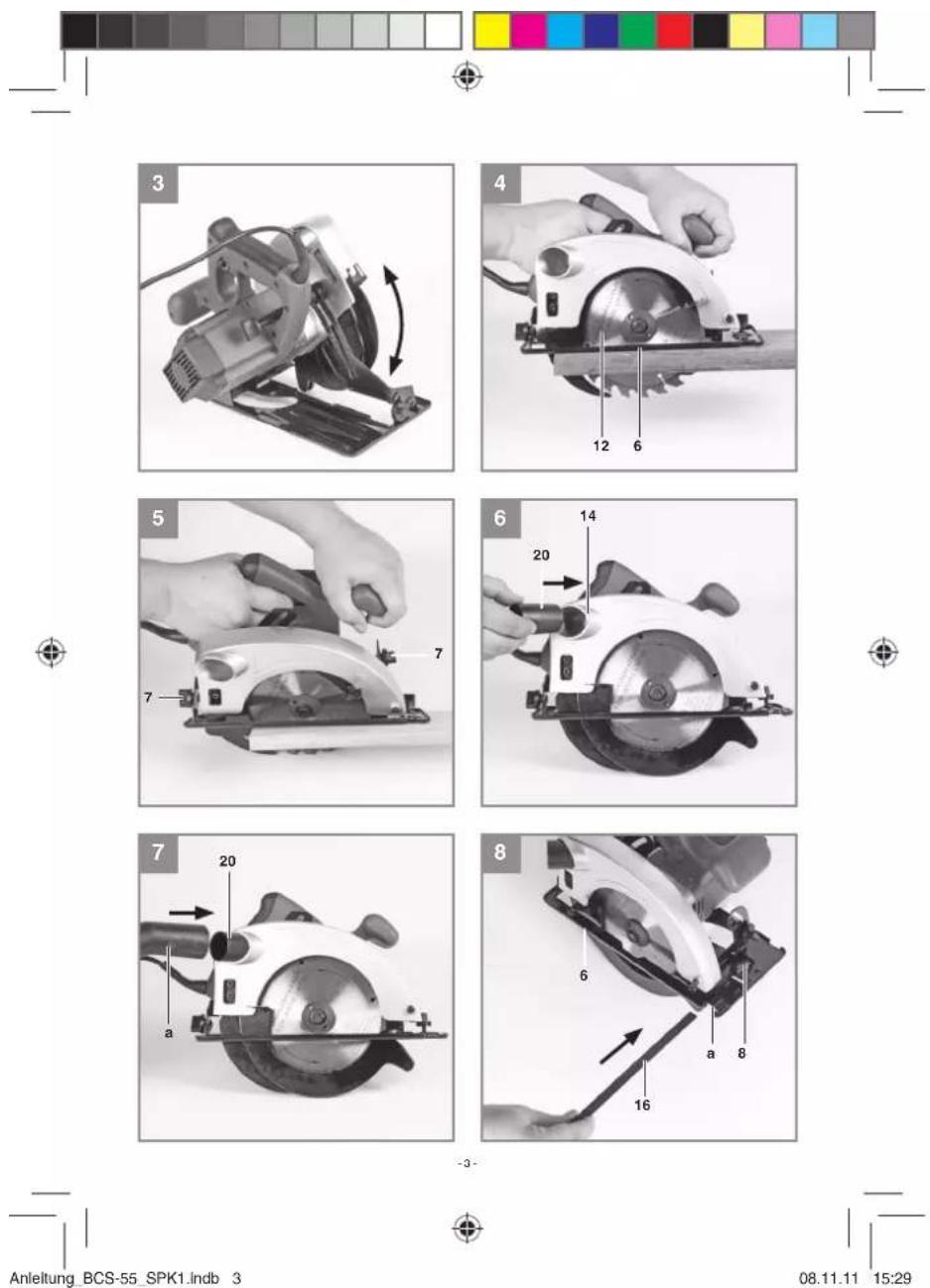

5.1 Setting the cutting depth (Figure 2/3)

- Release the handle on the rear of the guard hood for adjusting the cutting depth (4).

• Place the saw foot (6) flat on the surface of the workpiece you wish to saw. Raise the saw until the saw blade (12) is at the required cutting depth (a).
• Refasten the handle for adjusting the cutting depth (4). Check the handle is securely fastened.

-17-

GB

5.2 Miter stop (Figure 4/5)

- The preset standard angle between the saw foot (6) and the saw blade (12) is 90°. You can adjust this angle to carry out angled cuts.

- Undo the two locking screws for miter setting (7).

- You can now adjust the cutting angle by up to 45°. Keep an eye on the cutting angle scale (9) as you do so.

- Refasten the locking screws for miter setting (7). Check that everything is securely fastened.

5.3 Extraction of dust and chips (Fig. 6/7)

- Connect your circular saw to a suitable vacuum cleaner using the dust extractor adaptor (20). Then insert the dust extraction adaptor (20) into the sawdust extraction outlet (14) provided on the hand-held circular saw. You can then connect a suitable vacuum cleaner (a) to the dust extractor adaptor (20) (vacuum cleaner not supplied). This will provide excellent dust extraction on the workpiece. The benefits are that you will protect both the equipment and your own health. Your work area will also be cleaner and safer.

- Dust created when working may be dangerous. Refer to the section entitled "Safety instructions".

- Important! The vacuum cleaner you use for the extraction work must be suitable for the workpiece material.

- Check that all the parts are properly connected.

5.4 Parallel stop (Figure 8/9)

• The parallel stop (16) enables you to saw parallel lines.

- Loosen the locking screw for the parallel stop (8) on the saw foot (6).

• To assemble, slide the parallel stop (16) into the guide (a) on the saw foot (6) (see Figure 8)

- Set the required spacing and then tighten the locking screw (8) again.

• Using the parallel stop: Position the parallel stop (16) flat on the edge of the workpiece and start the cut.

⚠️ Important! Carry out a trial cut in a piece of waste wood

6. Operation

6.1 Working with the hand-held circular saw • Always hold the circular saw firmly.

• The swing guard hood (19) is pushed back automatically by the workpiece.

- Do not use force! Push forwards gently and evenly with the circular saw.

- The waste piece should be on the right-hand side of the circular saw so that the wide section of the support bench supports its full area.

- If you are sawing down a line that has been drawn, guide the circular saw along the corresponding notch.

- Clamp small pieces of wood securely before sawing them. Never hold them with your hand.

• Always follow the safety instructions. Wear safety goggles.

• Do not use defective saw blades or blades that are cracked or broken.

- Do not use any flanges / flange nuts whose bore hole is larger or smaller than those in the saw blade.

- The saw blade must not be decelerated by hand or by applying lateral pressure to the blade.

- The swing guard hood must not jam and must return to its initial position after the operation has been completed.

- Before you use the circular saw, check the function of the swing guard hood with the mains plug disconnected.

Before you use the machine, ensure that the safety equipment such as the swing guard hood, splitter, flanges and adjustment devices are in working order and are correctly adjusted and secure.

- You can connect a suitable dust extraction system to the sawdust extraction adapter (20). Ensure that the dust extractor line is safely and correctly connected.

- Saw blades whose main body is thicker or tooth set thinner than the thickness of the splitter must not be used.

⚠️ Important. Always pull out the power plug before doing any work on the circular saw!

-1B-

GB

6.2 Using the circular saw

• Adjust the cutting depth, cutting angle and parallel stop (see section 5.1, 5.2 and 5.4)
• Ensure that the ON/OFF switch (2) is not depressed. Only then should you connect the mains plug to a suitable socket.
  • Do not switch on the circular saw until you have fitted a saw blade.
• Place the saw foot flat on the workpiece you wish to saw. The saw blade must not be in contact with the workpiece.
  • Hold the circular saw firmly with both hands.

6.3 Switching ON/OFF (Fig. 10)

To switch on:

Press the locking button (3) and the ON/OFF switch (2) at the same time

- Allow the saw blade to accelerate until it reaches full speed. Then slowly move the saw blade along the cutting line. Only exert gentle pressure on the saw blade as you do so.

To switch off :

Release the locking button and ON/OFF switch • If you release the handle the equipment will shut down automatically which means that it cannot operate accidentally.

- Ensure that you do not cover or block the ventilation openings whilst working with the tool.

- Do not slow down the saw blade after you switch it off by pressing it sideways.

- Important! Do not put down the machine until the saw blade has reached a complete standstill.

⚠️ Important. Carry out a trial cut in a piece of waste wood

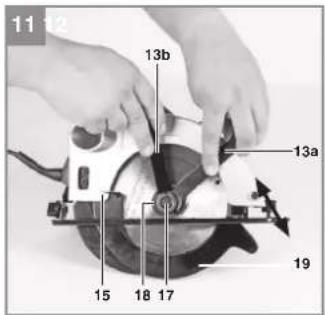

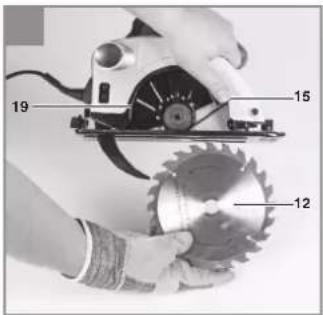

6.4 Changing the saw blade (Fig. 11-12)

⚠️ Important. Always pull out the power plug before doing any work on the circular saw!

Only use saw blades of the same type as the saw blade supplied with this circular saw. Ask your dealer for advice.

• Push back and secure the moving swing guard hood (19) using the lever for the swing guard hood (15).
• Use the saw blade wrench (13a) to apply counterpressure to the flange (18).

• Undo the screw which secures the saw blade (17) using the saw blade key (13b).

• Remove the flange (18) and the saw blade (12) in a downwards direction.

• Clean the flange and insert the new saw blade. Pay attention to the running direction (see arrow on the guard hood and saw blade).
• Tighten the screw to secure the saw blade (17), check it runs true.
• Before you press the On/Off switch, make sure that the saw blade is correctly fitted and that moving parts run smoothly and the clamping screws are tightened securely.

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

-1D-

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

8.4 Ordering replacement parts:

Please quote the following data when ordering

replacement parts:

Type of machine

• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to

www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

Anleitung BCS-55_SPK1.indb 20

08.11.11 15:31

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

Anleitung BCS-55_SPK1.indb 21

08.11.11 15:31

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered pull and void if any attempt is made to tamper with the device.
3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Anleitung BCS-55_SPK1.indb 22

08.11.11 15:31

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

DKN

Advarsel Læs betjeningsvejledningen for at reducere risikoen for personskade

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

DKN

8.4 Reservedelsbestilling:

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

DKN

Kun for EU-lande

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

DKN

Garantibevis

Kære kunde!

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Garantibevis

Bästa kund,

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

HR/BIH

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

HR/BIH

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

HR/BIH

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

HR/BIH

Jamstvenilist

Pošlovani kupče,

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Upozorenje - pročitajte uputstva za upotrebu kako bi se smanjlo rizik od povreda

Nosite zaštitu za sluh. Buka može da utiče na gubitak sluha.

Nosite zašitlnu masku protiv prašine. Prilikom obrade drveta i drugih materijala nastaje prašina opasna po zdravlje. Azbestni materijali ne smeju se obrađivati!

Nosite zaštitne naočari. Tokom rada dolazi do iskrenja ili iz uređaja izlazi iver, strugotina i prašina koji mogu uticali na gubitak vida.

Anleitung BCS-55 SPK1.indb 63

08.11.11 15:32

RS

Pažnja!

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Samo za zemlje EU

Ne bacajte elektro-alate u kućno smeće!

Shodno evropskoj smemici 2002/96/EG o starim električnim i elektronskim uređajima i primeni državnog prava, istrošeni elektro-alati mora da se odvojeno sakupe i eliminišu na ekološki primeren način u stanici za recikliranje.

Alternativa recikliranju prema zahtevima za povrat uredjaja:

Vlasnik elektro-uredjaja alternativno je obavezan da umesto povrata robe u slučaju predaje viasništva učestvuje u stručnom eliminisanju elektro-uredjaja. Stari uredjaj može da se u tu svrhu prepusti i stanici za preuzimanje rabijenih uredjaja koja će provesti odstranjivanje u smislu državnog zakona o reciklaži i otpadu. Zakonom nisu obuhvaćeni delovi pribora ugradjeni u stare uredjaje i pomoćni materijali bez električnih elemenata.

Potpuno ili delimično štampanje ili umnožavanje dokumentacije i službenih papira koji su priloženi proizvodu dozvoljeno je samo uz izričitu saglasnost firme iSC GmbH.

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Garancijski list

Pošlovani kupče,

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Jen pro země EU

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Záruční list

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Color palette bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

Len pre krajiny EÚ

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Záručný list

GB explains the following conformity according to EU directives and norms for the following product

87/404/EC_2009/105/EC	2006/42/EC
2005/32/EC_2009/125/EC	Annex IV
	Notified Body:
2006/95/EC	Notified Body No.:
2006/28/EC	Reg. No.:
2004/106/EC	2000/14/EC_2005/88/EC
2004/22/EC	Annex V
1999/5/EC	Annex VI
97/23/EC	Noise measured: LWA = dB (A): guaranteed LWA = dB (A)P = KW/LVO = cmNotified Body:
90/396/EC_2009/142/EC	2006/28/EC
89/686/EC_96/58/EC	Emission No.:
2011/65/EC

Standard references:

EN 60745-1; EN 60745-2-5; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Landau/Isar, den 10.10.2011		Madaa Cie
		Urga-Procure Management/welkse Partner/General Manager
First CE: 11Art.-No.: 43.309.01 L-No.: 11021Subject to change without notice		Archive-File/Record: NAPR004058Documents registrar: Riedel GeorgWiesenweg 22, D=54405 Landau/Isar

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

EH 11/2011 (01)

Anleitung BCS-55 SPK1.indb 88

08.11.11 15:33
