SCC-C7439P - Soundbar SAMSUNG - Free user manual and instructions

USER MANUAL SCC-C7439P SAMSUNG

Thanks you for purchasing this Samsung product.

To receive a more complete service, please visit

our website

www.samsungsecurity.com

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.

2\_ overview

1. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
2. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)
3. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock
4. Do not expose the product to the direct airflow from an air conditioner. Otherwise, it may cause moisture condensation inside the Clear Dome due to temperature difference between internal and external of the dome camera.
5. If you install this product in a low-temp area such as inside a cold store, you must seal up the wiring pipe with silicon, so that the external air can not flow inside the housing. Otherwise, external high, humid air may flow inside the housing, pooling moisture or vapor inside the product due to a difference between internal and external temperature.

CAUTION

1. Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 50^ C), low temperature (below -50^ C), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
4. Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time.
10. When the unit is stored in high humidity environment, moisture may occur inside the cover dome of the Housing. Before installation, please open the cover dome and wipe off all moisture with a soft dry cloth.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Symbolic icon of a person pushing a large object through a circle (no text or symbols)

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus

4\_ overview

OvERvIEW

2

4 Important Safety Instructions
5 Contents
6 Features
6 What's Included
7 At a Glance

INSTALLATION & CONNECTION

8

8 Optional Accessories for Installation

10 Precautions
10 Preparation
11 Installation
14 Initial Setup
17 Connecting with other Device

SETUP

20

20 How to use the Keyboard Controller
21 Main Menu
22 Profile
24 Camera Set
33 Intelligent Video

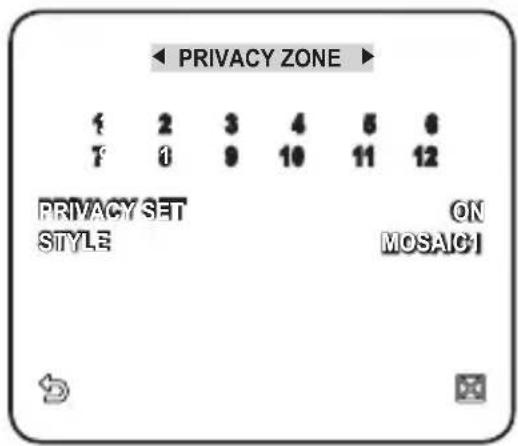

34 Privacy Zone
35 Preset
37 Auto Set
41 Zone Set
42 Alarm Set
44 Clock Set
44 Other Set
46 Communication
46 System Info
47 Language

APPENDIx

48

48 Shortcut Keys
49 Specifications
51 Product Appearance

FEATURES

• With the state-of-the-art digital signal processing technology, full digital image processing and special algorithm of 600-line high resolution implemented
• High performance surveillance camera, equipped with x34 zoom lens and digital zoom IC, enabling monitoring up to 544 times
• WDR to cover the full screen regardless of its brightness

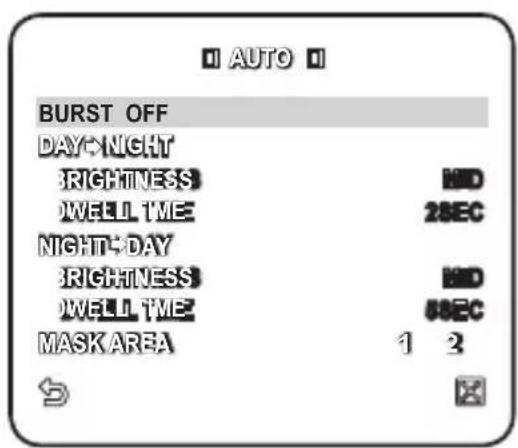

• DAY/NIGHT to improve the sensitivity by automatic conversion into the black and white mode at night or in the environment with low illumination

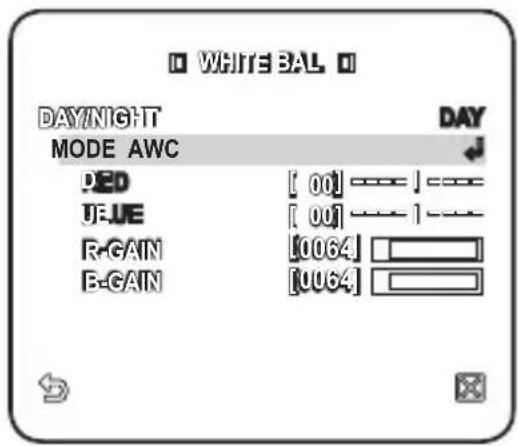

• White Balance to control the brightness to the illumination

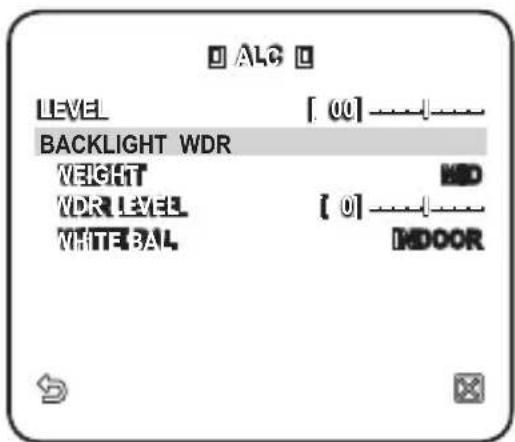

• Backlight Compensation under spotlight or utmost bright illumination
• Auto Focus to automatically adjust the focus to the subject movement
• Privacy zone to hide a specific area for personal privacy
• PAN/TILT for precise control at high speed

WHAT'S INCLUDED

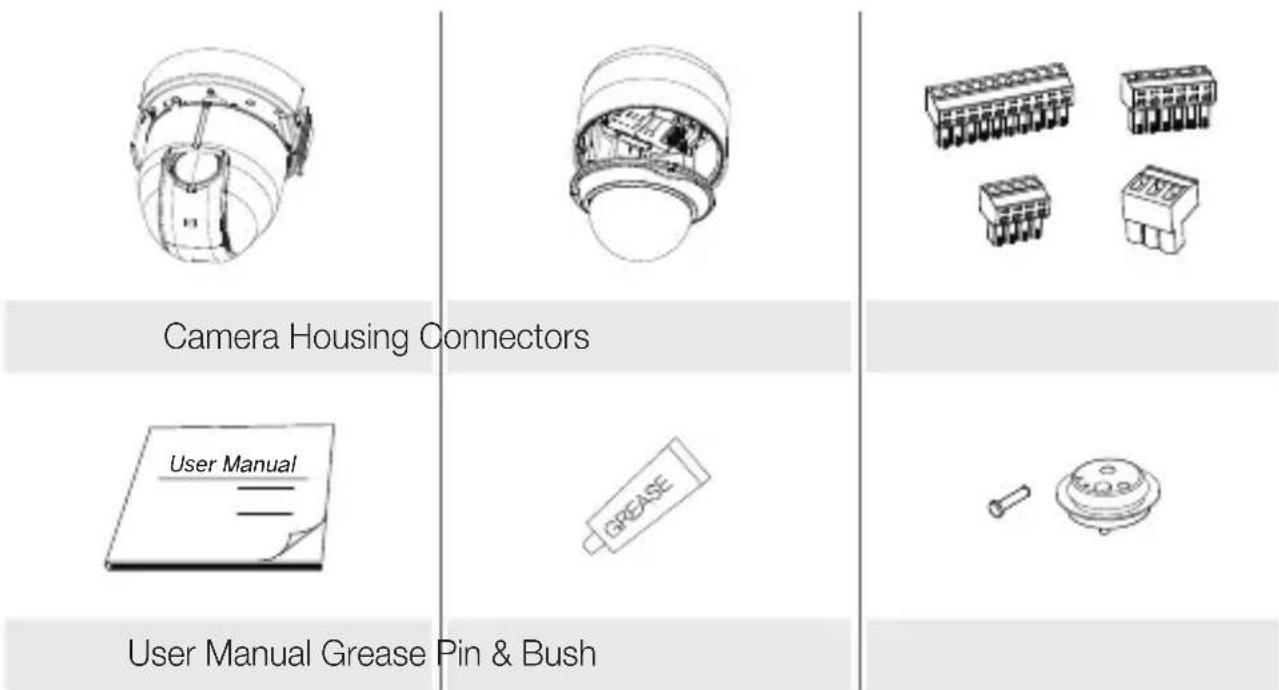

Please check if your camera and accessories are all included in the product package.

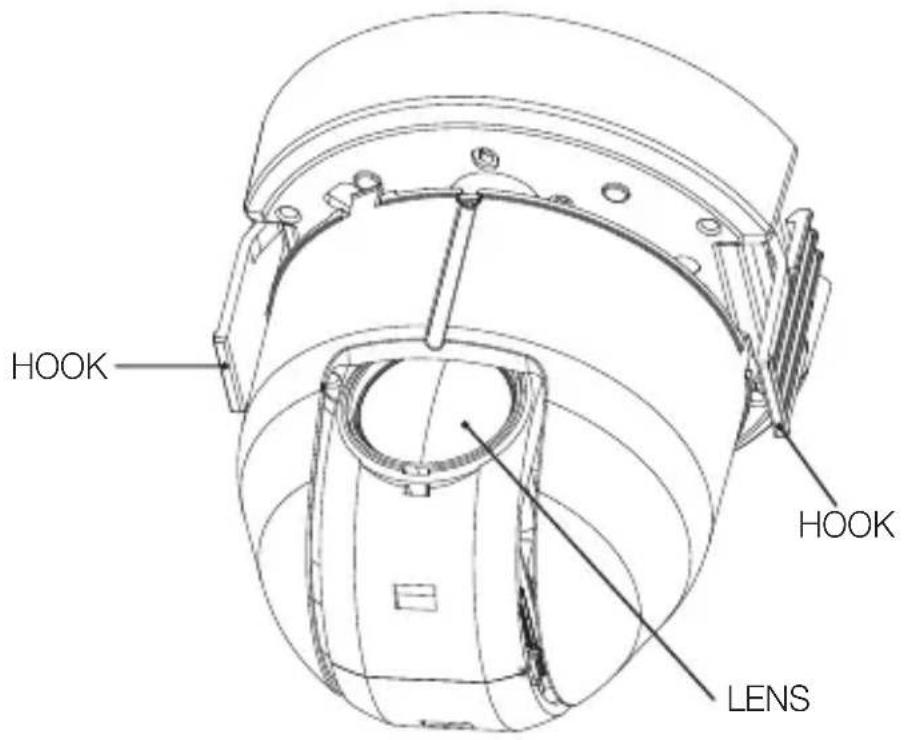

Camera Housing Connectors User Manual GREASE User Manual Grease Pin & Bush

CAmERA

HOOK HOOK LENS

FRAmE SET

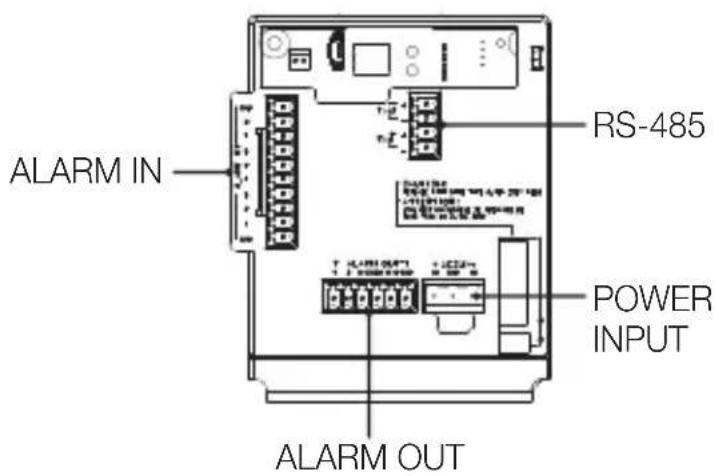

RS-485 POWER INPUT ALARM IN ALARM OUT

Diagram of an electronic device rear panel with labeled ports and connectors

■ Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol.

OPTIONAL ACCESSORIES FOR INSTALLATION

For your easier installation, you can purchase appropriate optional accessories available.

1. WALL MOUNT ADAPTOR (SCX-300WM) This is a wall mount adaptor, used for wall-mounted installation of SMART DOME CAMEA units.

Technical line drawing of a pipe fitting with mounting flange (no text or symbols)

1. CEILING MOUNT ADAPTOR (SCX-300CM) This is a ceiling mount adaptor, used for installation of SMART DOME CAMEA units on a concrete ceiling.

Technical line drawing of a cylindrical mechanical part with flange and bolt holes (no text or symbols)

1. POLE MOUNT ADAPTOR (SCX-300PM) This is an adaptor for WALL MOUNT ADAPTOR (SCX-300WM) installation on a pole whose diameter is bigger than 80mm.

Technical line drawing of a mechanical housing or bracket with mounting holes and a central circular cutout (no text or symbols)

8_ installation & connection

1. CORNER MOUNT ADAPTOR (SCX-300KM) This is an adaptor for WALL MOUNT ADAPTOR (SCX-300WM) installation on the corner of wall joint.

Technical line drawing of a metal bracket with mounting holes and a central hole (no text or symbols)

English

1. PARAPET (LONG) MOUNT (SCX-300LM) This is a mounting kit used for installation of SMART DOME CAMEA units on a parapet.

Technical line drawing of a mechanical pipe assembly with mounting flanges (no text or symbols)

PRECAUTIONS

1. Select an installation spot which can endure more than 4 times of the product weight.
2. When installing, prevent peoples approaching to avoid personal injury. Move valuables to a safer place before installing.

PREPARATION

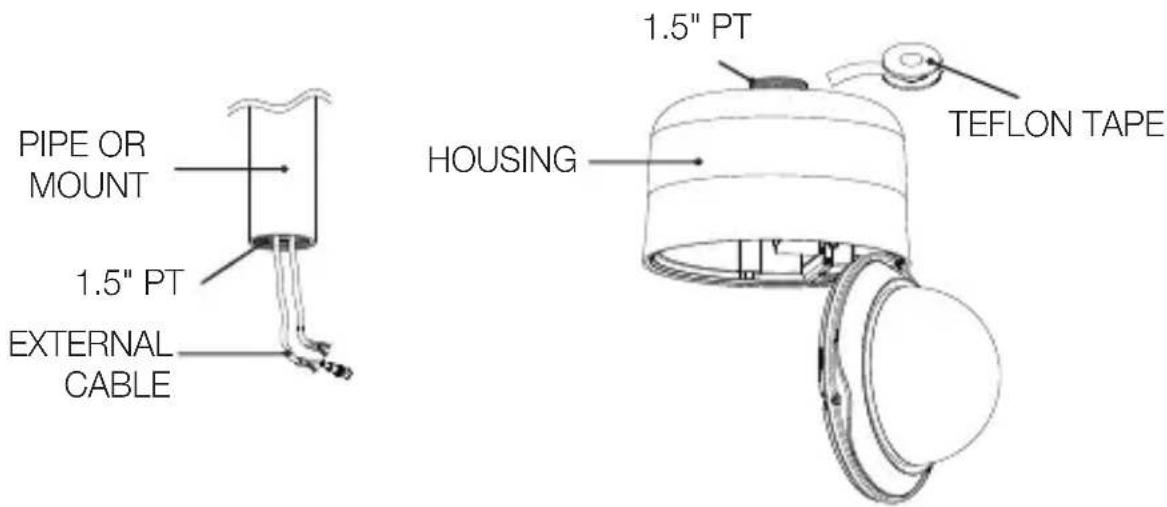

Run all the external cables through the bracket adaptor's PIPE or mOUNT hole. Wrap around the HOUSING's screw hole with the Teflon Tape.

PIPE OR MOUNT 1.5" PT EXTERNAL CABLE HOUSING 1.5" PT TEFLON TAPE

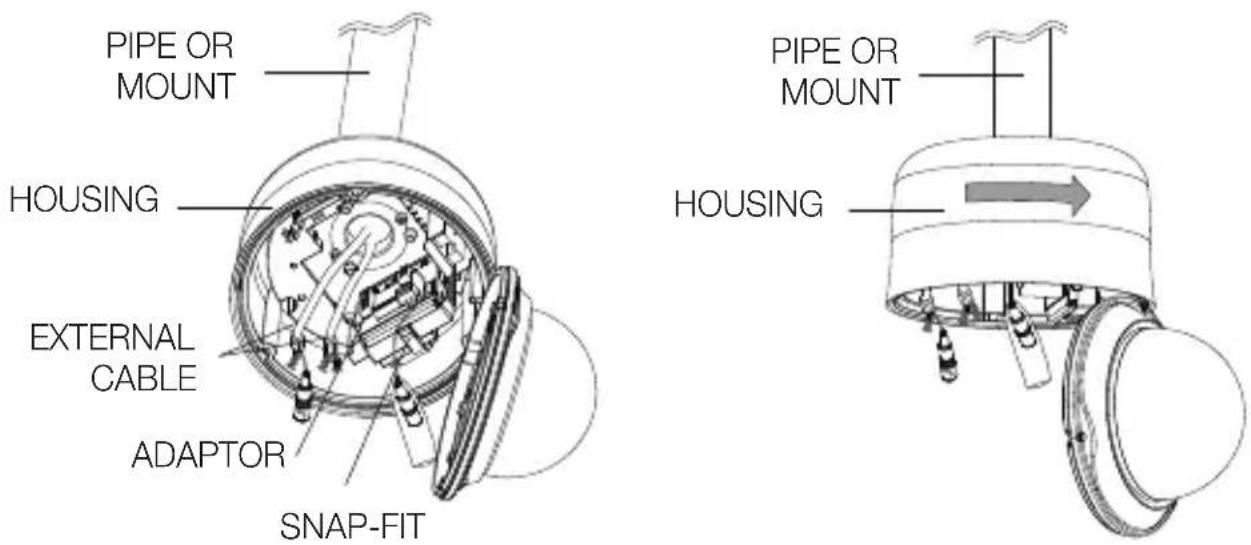

1. Press the SNAP FIT of the ADAPTOR in the HOUSING to open the ADAPTOR part, and then insert all external cables into the HOUSING. Secure the HOUSING on the PIPE or mOUNT by turning it clockwise.

(Secure two components tightly, to avoid loosened HOUSING.)

PIPE OR MOUNT HOUSING EXTERNAL CABLE ADAPTOR SNAP-FIT PIPE OR MOUNT HOUSING

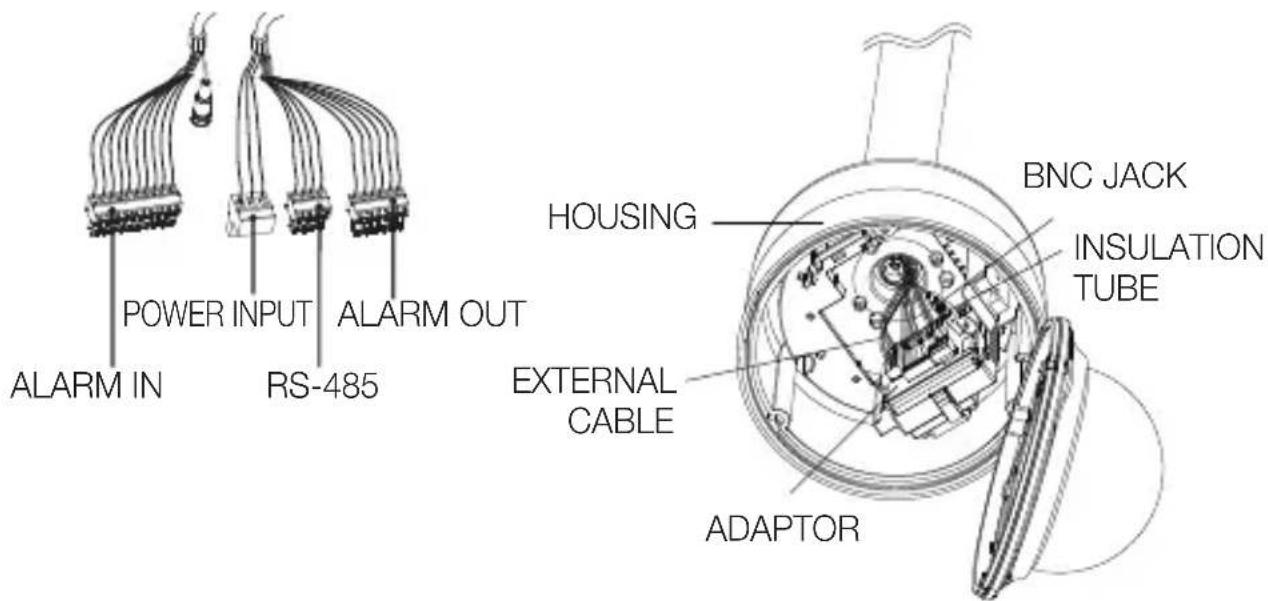

1. Connect external cables to the CONNECTORS(ALARm IN, POWER, RS-485, ALARm OUT) and connect the CONNECTOR to the ADAPTOR. Insert the cable into the FRAmE SET, and close the ADAPTOR.

POWER INPUT ALARM IN RS-485 ALARM OUT HOUSING EXTERNAL CABLE ADAPTOR BNC JACK INSULATION TUBE

■ Then, wrap the BNC JACK with the INSULATION TUBE, and use an insulation tape to seal up the end of the INSULATION TUBE so that the BNC JACK does not protrude outside of the INSULATION TUBE coating.

For more information about cable connection, refer to Connecting the adaptor cable. (page 19)

Note that BUSHINGs are provided for outdoor installations where exposed to a moisture condition through the PIPE or mOUNT, install the HOUSING using the BUSHING to prevent moisture entering.

• Apply grease of proper dose on the BUSHING before assembling, and run cables through each hole of the bushings. Use PINS to stop up empty holes having no cable running.

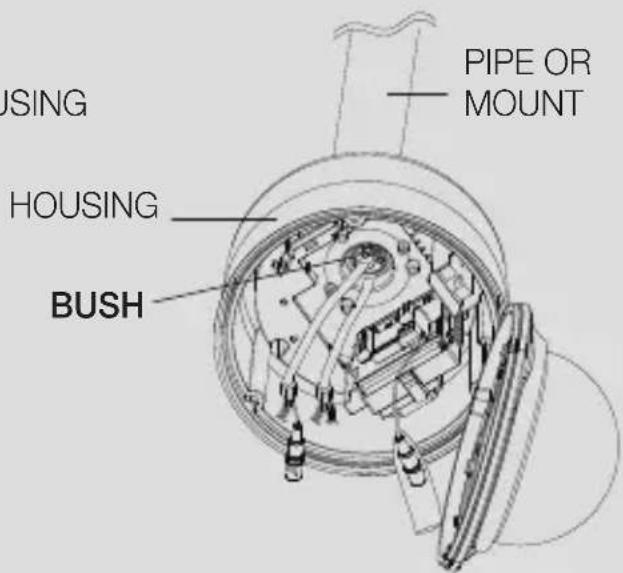

• Assemble the BUSHING to the top side of HOUSING's inside as shown in the diagram below. At the moment, apply pressure evenly on the BUSHING to secure it tightly to the HOUSING as shown in the diagram.

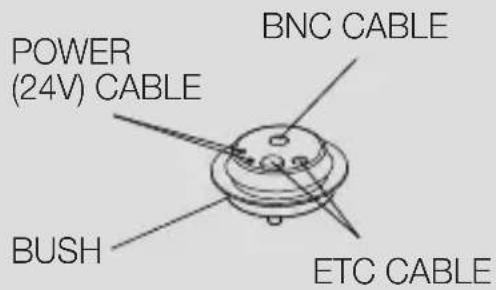

GREASE BUSH

POWER (24V) CABLE BUSH BNC CABLE ETC CABLE

BUSH

PIN BUSH

BUS

USING HOUSING BUSH PIPE OR MOUNT

1. Tie up the SAFETY WIRE of the CAMERA on the BRACKET WIRE of the FRAmE SET.

Arrange the 22P CONNECTOR of the CAMERA in line with that of the ADAPTOR, push the HOOKs on either end of the CAMERA in the RACK direction of the FRAmE SET to secure the two.

Then, ensure that all of the two HOOKs clicks to fix to the RACK properly.

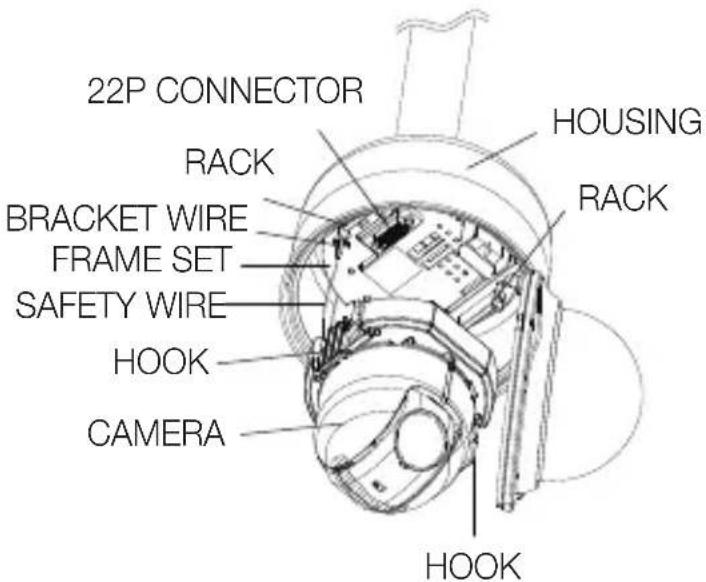

22P CONNECTOR RACK BRACKET WIRE FRAME SET SAFETY WIRE HOOK CAMERA HOUSING RACK HOOK

PROTECTIVE TAPE PROTECTIVE COVER

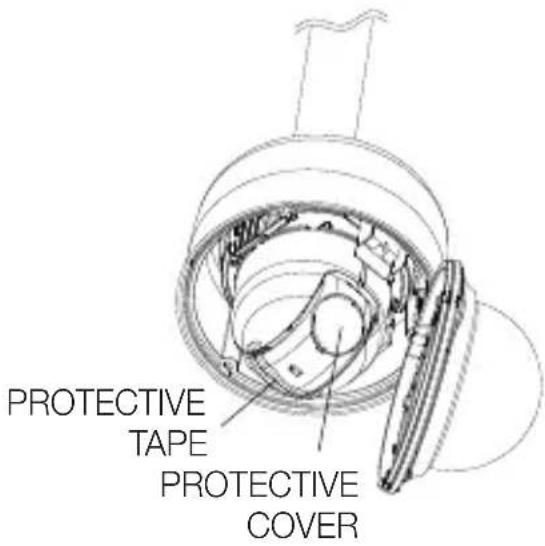

- When the installation is completed, remove the PROTECTIVE COVER and PRETOECTIVE TAPE from the lens.

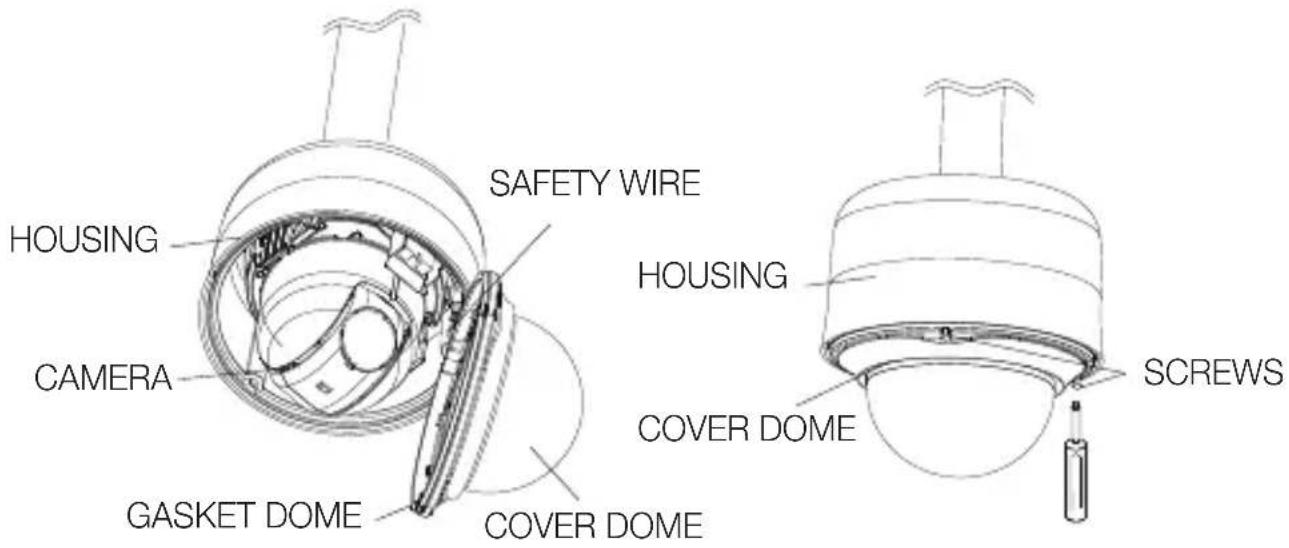

1. Align each of the 3 SCREWS of COvER DOmE and 3 SCREW HOLEs of the HOUSING respectively, and assemble the COvER DOmE and HOUSING. During the assembling, note on the followings.

2. Insert and arrange SAFETY WIRE into the HOUSING while not disturbing the camera operation.

3. Ensure that the GASKET DOmE component does not separate from the COvER DOmE. (If the GASKET DOmE is not properly assembled, it damages the waterproofness.)

HOUSING CAMERA GASKET DOME SAFETY WIRE HOUSING COVER DOME COVER DOME SCREWS

INITIAL SETUP

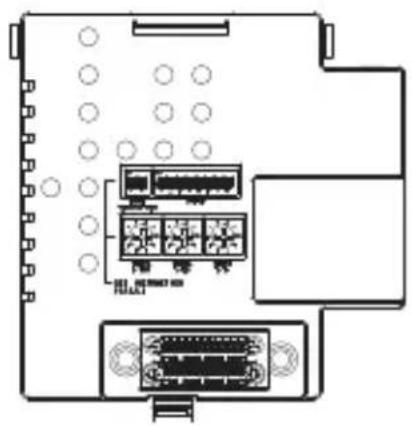

Camera Address Setup

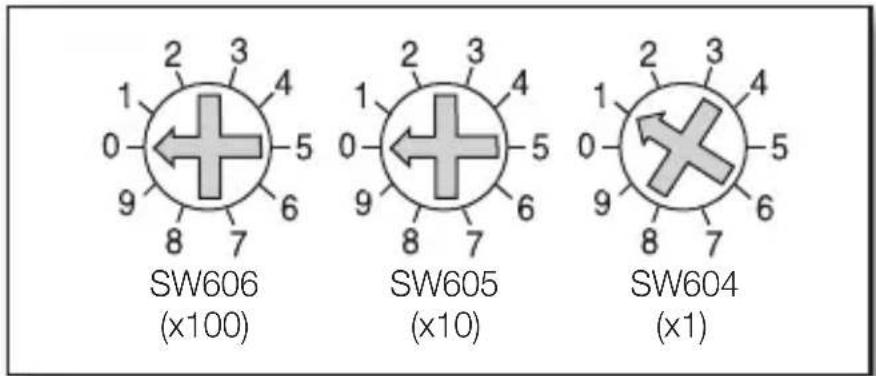

Use SW606, SW605, and SW604 to specify the camera address.

You can specify between 0 and 255 for the address, where the hundreds digit is with SW606, the tens digit with SW605, and the ones digit with SW604.

ex) Camera address: If the address is 1, follow the steps in the figure below.

SW606 (x100) SW605 (x10) SW604 (x1)

Communication Protocol Setup

Use pins #1\~#4 of SW603 to specify the communication protocol.

PIN Comp	PIN1	PIN2	PIN3	PIN4
A OFF	OFF	OFF	OFF
B ON	OFF	OFF	OFF
C OFF	ON	OFF	OFF
D ON	ON	OFF	OFF
E OFF	OFF	ON	OFF
F ON	OFF	ON	OFF
G OFF	ON	ON	OFF
H ON	ON	ON	OFF
I OFF	OFF	OFF	ON
J ON	OFF	OFF	ON
K OFF	ON	OFF	ON
L ON	ON	OFF	ON
M OFF	OFF	ON	ON
N ON	OFF	ON	ON
O OFF	ON	ON	ON
P ON	ON	ON	ON

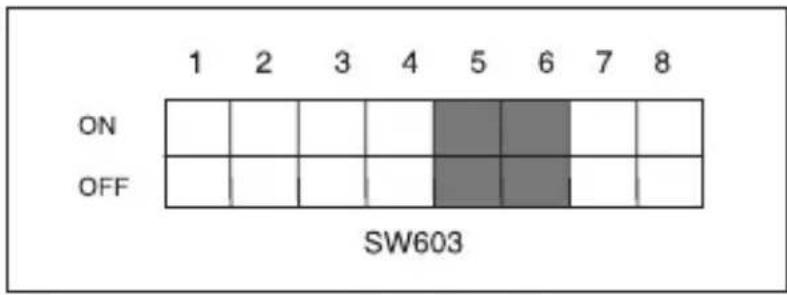

Use pins #5, #6 of SW603 to set the baud rate.

1 2 3 4 5 6 7 8 ON OFF SW603

BAUD RATE PIN 5 PIN 6
4800 BPS ON ON
9600 BPS OFF ON
19200 BPS ON OFF
38400 BPS OFF OFF

The factory default is 9600 BPS.

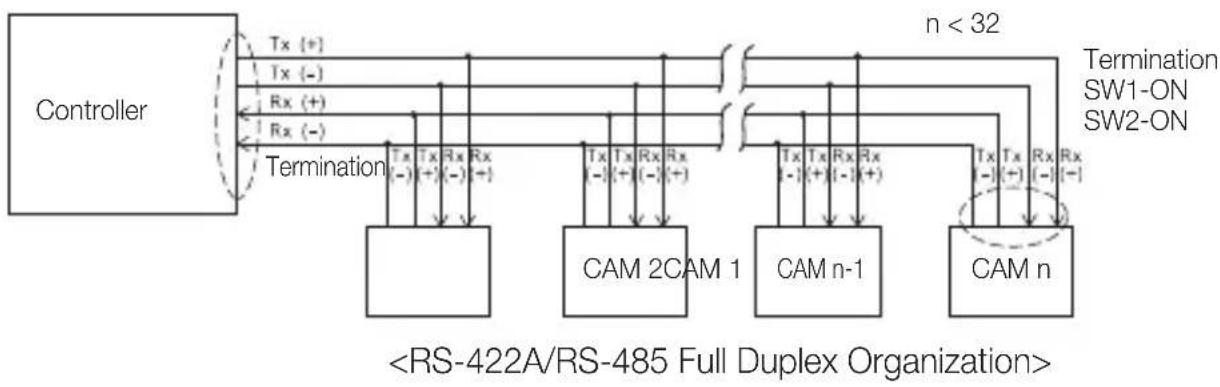

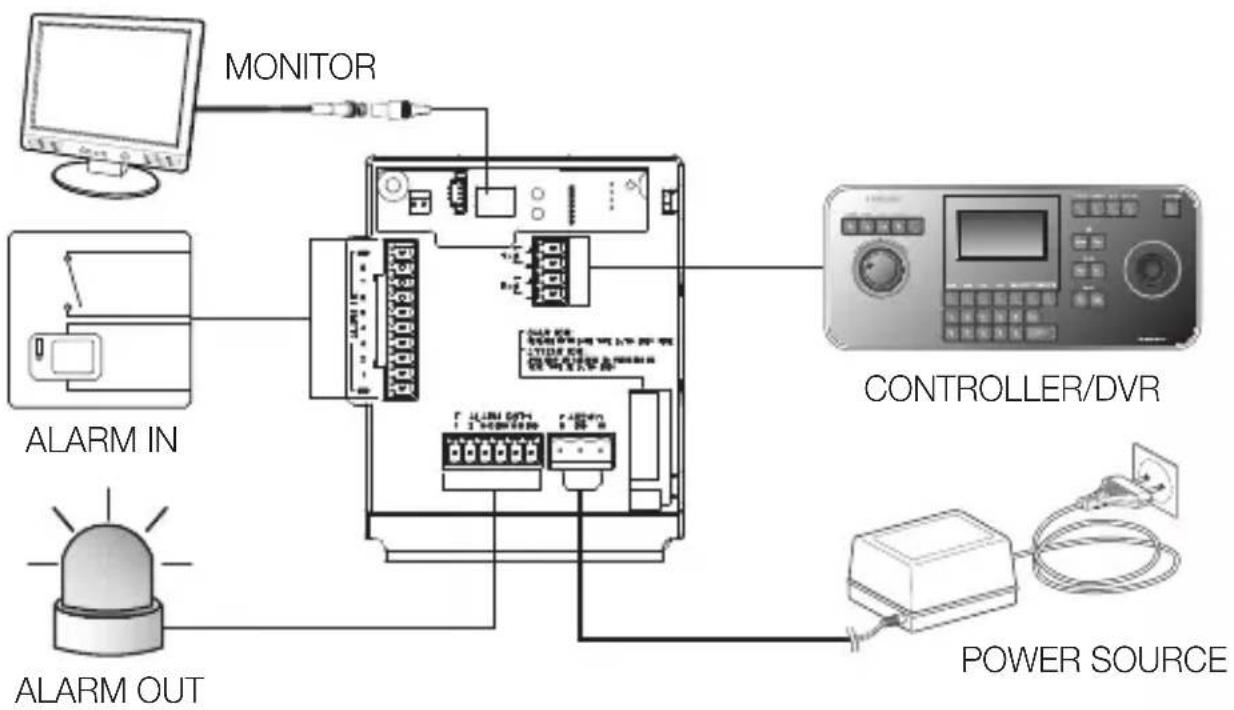

Setting RS-422A/RS-485 Termination

ON 1 2

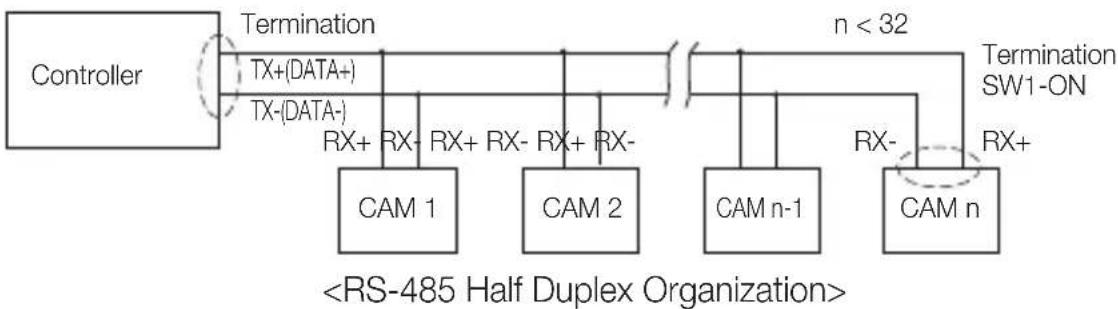

As it is shown in the structure map, when Controller and RS-422A/RS-485 is connected, it should be terminated according to the Cable feature of impedance on the each end of the transmitting line to transfer the signals in long distance by controlling the reflection of the signals to the lowest.

Termination : Using numbers 1 and 2 PIN, turn to and it will be terminated.

A communication error may occur if you connect multiple cameras that are assigned the same address in the network.

Connecting to a monitor

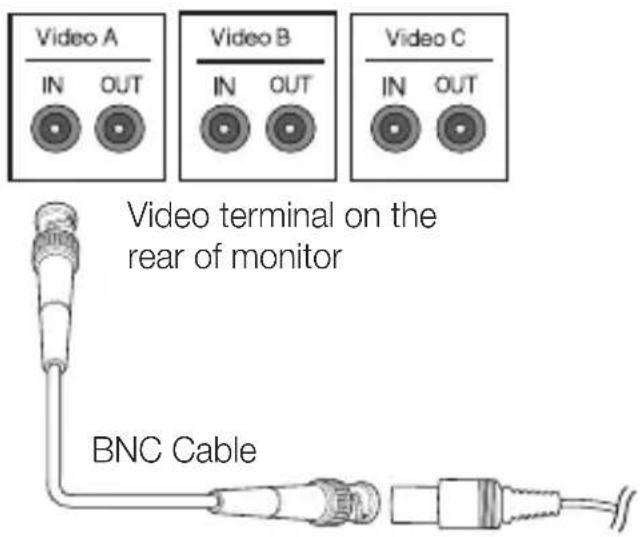

1. Connect one end of the BNC video cable connector to the Video Output Terminal (VIDEO OUT).
2. Connect the other end of the connector to the Video Input Terminal of the monitor.

Video A IN OUT Video B IN OUT Video C IN OUT Video terminal on the rear of monitor BNC Cable

To connect ALARm IN

1. Connect one end of the external device's signal line to a corresponding ALARM IN port of the monitor.
2. Connect the other end of the signal line to the earth-grounding [GND] port.

To connect ALARm OUT

1. Connect one end of the external device's signal line to a corresponding ALARM OUT port of the monitor.
2. Connect the other end of the signal line to the common [COm] port.

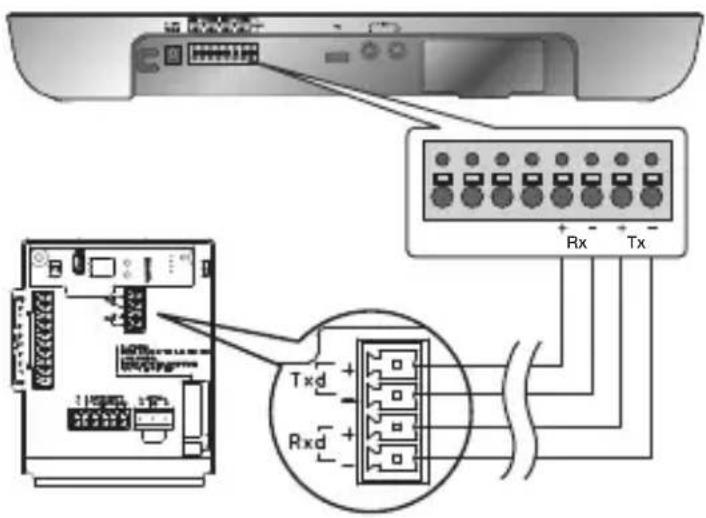

To connect the controller

Connect an external controller or DVR to the camera, with which you can adjust the camera.

1. Connect the Rx+ pin of the camera to the Tx+ pin of the controller.
2. Connect the Rx-pin of the camera to the Tx-pin of the controller.
3. Connect the Tx+ pin of the camera to the Rx+ pin of the controller.
4. Connect the Tx-pin of the camera to the Rx-pin of the controller.

Diagram showing connection between a device rear panel and an electronic device with labeled ports Rx and Tx, including a zoomed-in view of the internal components.

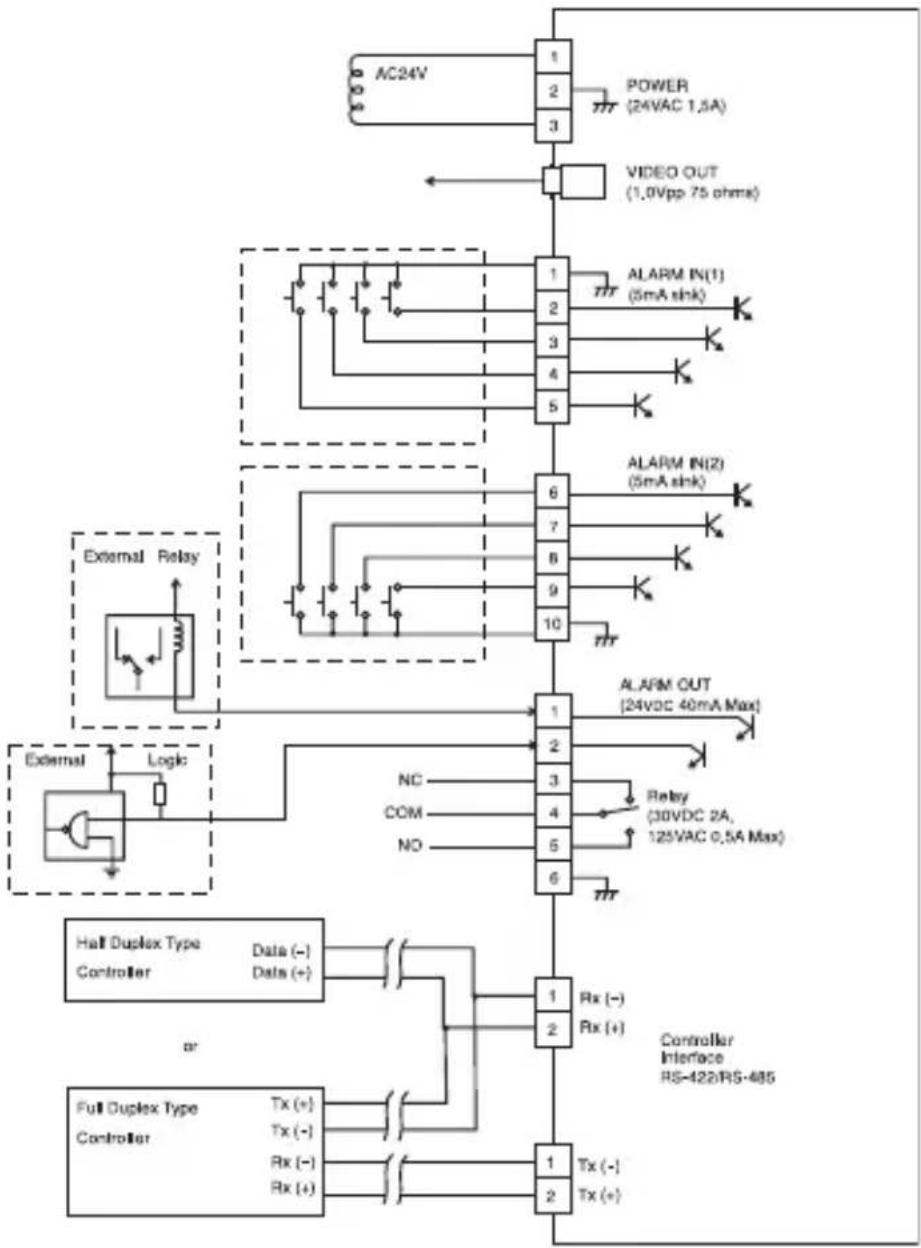

Connecting the adaptor cable

Adaptor Board

Power Supply

Connect the cables as necessary, and turn on the camera to check if it works properly.

1. Connect the adaptor to the power terminal of the camera.
2. Plug the power cord of the adaptor into the wall outlet.

Connect the camera to the keyboard controller or DVR, with which you can manipulate and change the settings of the camera.

HOW TO USE THE KEyBOARD CONTROLLER

Follow the steps below to set the camera menu using the controller.

1. Open the Camera Setup screen.
2. Use the joystick to navigate through the menus.
3. Press [ENTER] to select a menu item.
4. Use the joystick to change the value of the selected item.
5. Press [ENTER] to apply your changes.

Using OSD icons

• ◀▶: If these icons appear in the left and right corner of a menu item, you can use the joystick to move to the previous or next menu.
• (EXIT): Exits the menu setup screen.

Before exiting the setup screen, select to save your settings to the whole menus, or to cancel them.

• (RET): Saves your settings and returns to the previous screen.
  • (HOME): Returns to the main menu.
• (SAVE): Use this icon if you want to save your settings after you specified the mask area and privacy area, etc.

Once you saved your settings, the changes remain intact even if you select on exit.

• (DEL): Use this icon if you want to delete a mask, or privacy area, etc. Once you deleted your settings, the deletions remain valid even if you select on exit.
  • 📁: This icon appears in the right of a menu containing sub menu items.

While any operation of PRESET, AUTO PAN, SCAN, and PATTERN is running, and if the camera is turned off and back on without any particular manipulation, the camera will resume the last run operation.
- You can set the menu item only if the tilt angle is within 90°. If you enter the menu setup screen with the camera positioned out of a tilt of 90°, the camera will rotate by 180° to fall into the opposite position within a tilt of 90°.

This is the first screen you ever see when you turn on the camera where you can set the camera environment to your needs.

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

- PROFILE

Select a mode appropriate to the camera installation environment.

- CAMERA SET

You can configure the camera settings.

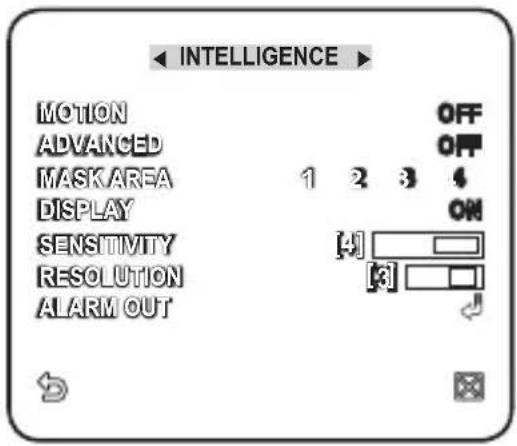

• INTELLIGENCE

Offers motion detection and tracking functions.

- PRIVACY ZONE

You can configure the privacy settings.

- PRESET

You can set the PRESET POSITION and DURATION.

- AUTO SET

Contains sub menu items of AUTO PAN, PATTERN, and SCAN.

- ZONE SET

You can set the standard azimuth and zone area for the camera.

- ALARM SET

You can set the alarm priority and I/O sequence.

- CLOCK SET

You can set the display time and format.

- OTHER SET

You can reset the camera, or adjust the OSD color to your preference.

• COMMUNICATION

Configures the settings pertaining to RS-485 communication.

- SYSTEM INFO

Shows the system information such as the camera version or communication settings.

- LANGUAGE

Select a preferred one from the supported languages.

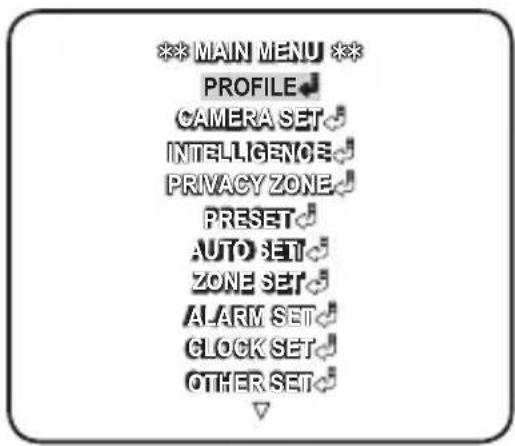

**MAIN MENU ** PROFILE CAMERA SET INTELLIGENCE PRIVACY ZONE PRESET AUTO SET ZONE SET ALARM SET CLOCK SET OTHER SET

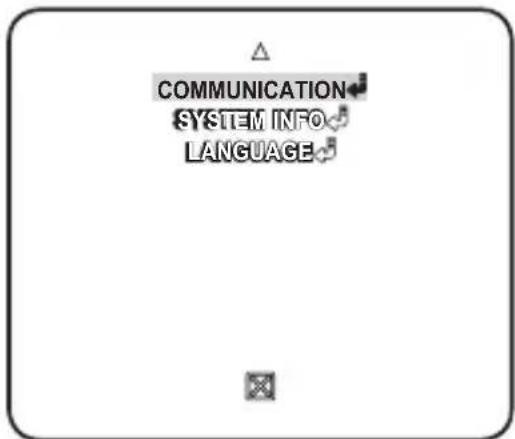

COMMUNICATION SYSTEM INFO LANGUAGE

PROFILE

You can select one from the pre-determined configurations as appropriate to your specific camera installation environment.

Your selection on each item in PROFILE will affect all other settings of the camera.

- STANDARD

Automatically optimizes the camera settings to the normal environment.

• ITS

This setting enables you to analyze the traffic situation and take the traffic information at a glance.

- BACKLIGHT

This setting enables you to view a sharp background and object even in a severe backlight scene.

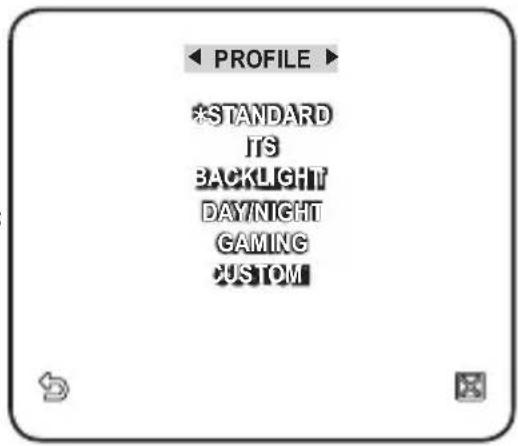

PROFILE *STANDARD ITS BACKLIGHT DAY/NIGHT GAMING CUSTOM

- DAY/NIGHT

Automatically optimizes the camera settings to the day and night scene.

• GAMING

This automatically configures the settings so that you can work in a stable illumination condition as indoors.

CUSTOM

Your change to any of the PROFILE settings will switch the display to CUSTOM.

CAMERA SETUP MENU		STANDARD ITS BACKLIGHT DAY/NIGHT GAMING
Parent Menu	Sub-menus
VPS		OFF ON OFF OFF OFF
IRIS		ALC ALC ALC ALC ALC
	ALC - - - -
	LEVEL	0 0 0 0 0
	BACKLIGHT OFF OFF WDR OFF OFF
	WDR - - - -
	WEIGHT	Custom Setting	Custom Setting	MEDIUM	Custom Setting	Custom Setting
	WDR LEVEL	Custom Setting	Custom Setting	0	Custom Setting	Custom Setting
	WHITE BAL	Custom Setting	Custom Setting	Custom Setting	Custom Setting	Custom Setting
CAMERA SETUP MENU		STANDARD ITS BACKLIGHT DAY/NIGHT GAMING
Parent Menu	Sub-menus
MOTION		(F.FAST)---	(F.FAST)---	NORM	(F.FAST)---	SLOW
DNR MEDIUM MEDIUM MEDIUM MEDIUM MEDIUM
SHUTTER OFF OFF OFF OFF
SENSE UP AUTO X4 AUTO X2 AUTO X4 AUTO X4 AUTO X4
XDR		MEDIUM MEDIUM MEDIUM MEDIUM MEDIUM MEDIUM
DAY/NIGHT		AUTO AUTO DAY AUTO DAY
	NIGHT - - - -
	BURST OFF ON OFF OFF OFF
	EXT - - - -
	BURST OFF ON OFF OFF OFF
WHITE BAL		DAY DAY/NIGHT DAY DAY NIGHT DAY
	DAY - - - -
	MODE	ATW2 ATW1 ATW1 ATW1 ATW1
	RED	0	0	0	0	0
	BLUE	0	0	0	0	0
	NIGHT - - - -
	BRIGHTNESS	Custom Setting	MEDIUM	Custom Setting	MEDIUM	Custom Setting
	MODE	OFF	ATW2 OFF	ATW2	OFF
	RED	Custom Setting	0	Custom Setting	0	Custom Setting
	BLUE	Custom Setting	0	Custom Setting	0	Custom Setting
DETAIL		2	2	2	2	2

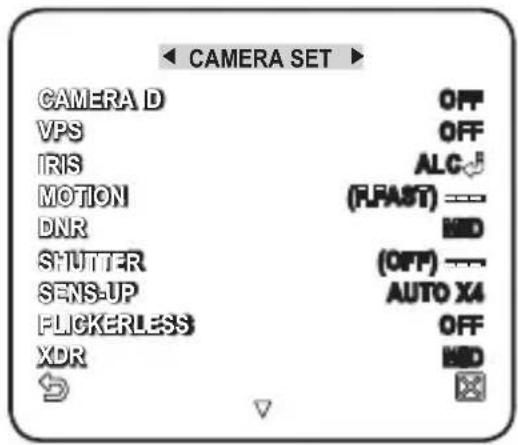

CAmERA SET

You can configure the general settings of the camera module.

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

1. Select

   - . The Camera Setup menu appears.

2. Change the settings as necessary, or select an item to check.

CAMERA SET CAMERA D OFF VPS OFF IRIS ALC MOTION (FLAST)--- DNR HED SHUTTER (OFF)--- SENS-UP AUTO X4 FLICKERLESS OFF XDR HED

CAmERA ID

Provide the ID and location for a camera that displays on the screen.

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

1. Select - .

2. Use the joystick to select a desired character, then press [ENTER].

In the lower input box of the screen, the selected character will be entered.

■ You can enter up to 54 characters including alphabets, numbers and special characters.

- LOCATION : Specify the display position of the camera ID.

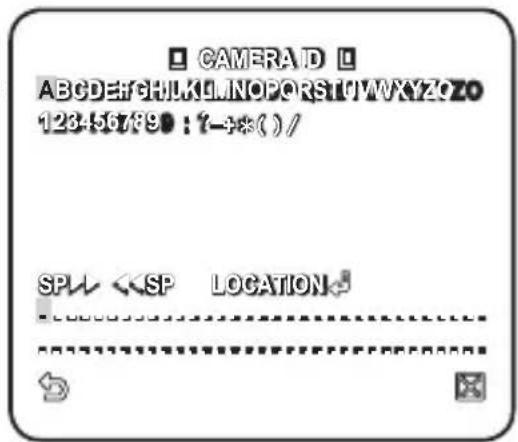

CAMERA ID ABCDEFGHIJKLMNOPQRSTUVWXYZCZ0 123-56789 : 7-4*() / SPW SP LOCATION

1. When done, press [ENTER].

The camera ID will be displayed in the specified position.

vPS

If you set it to , the camera images will be displayed in progressive mode.

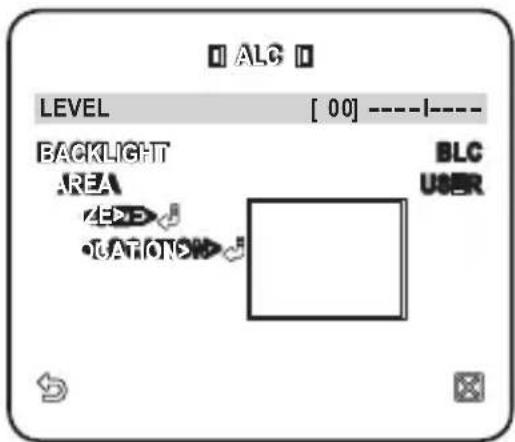

IRIS

The IRIS menu is useful if you set to adjust the intensity of radiation incoming to the camera.

- ALC: Adjust the open and close of the iris.

• LEVEL : Select an overall brightness level.
• BLC : With set to , you can specify the BLC area.

With AREA set to , you can specify the position and size.

ALG LEVEL [ 00] ----1---- BACKLIGHT AREA BLC USER •EED •LATION

- WDR : If you set to , you will see a menu where you can set the WDR options.

Specify the shutter speed in WDR LEVEL, and, the composition level in . Select OUTDOOR, or INDOOR in .

The WDR feature provides an extension of the gain range, which is useful, especially if you work on pictures both indoors and outdoors from inside of a building.

ALG LEVEL [ 00]---- BACKLIGHT WDR WEIGHT HD VDR LEVEL [ 0]---- WHITE BAL INDOOR

Namely, it improves the sharpness of the picture in outdoor scenery as well as indoor.

As long as you use the VPS function, the WDR will not be available as the CCD read method differs accordingly. If you set VPS to ON, WDR will be set to accordingly.

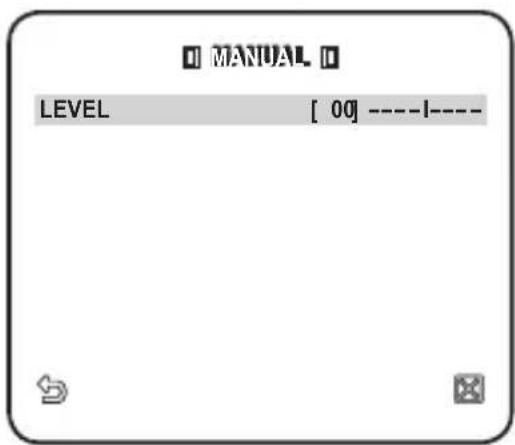

- MANUAL: Adjust the iris level manually.

■ The overall brightness target of a camera will be set to ALC level 0, while the iris can be adjusted manually.

MANUAL LEVEL [ 00] ----1----

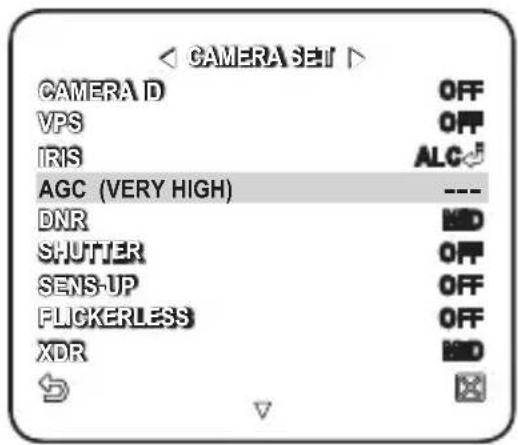

AGC

With this, you can adjust the AGC level of a camera.

With AGC active, if the signal strength falls below the standard level, AGC will amplify the video signal to automatically improve the sensitivity.

If is set to , or mode, the menu will switch to .

With the USER (◀) submenu selected, press [ENTER] to display the corresponding screen. In this mode, you can select from VERY LOW to VERY HIGH in 16 levels, enabling deeper, wider choices to your convenience. With the FIX (💡) submenu selected, press [ENTER] to display the corresponding screen. In this mode, you can select an individualized mode in 16 levels, regardless of the brightness.

< CAMERA SET > CAMERA D OFF VPS OFF IRIS ALC AGC (VERY HIGH) --- DNR MD SHUTTER OFF SENS-UP OFF FLICKERLESS OFF XDR MD →

As long as the DAY/NIGHT menu is set to AUTO in Camera Setup, the AGC menu is not available.
As long as FLICKERLESS is set to ON, the AGC mode is not available.
If you set BACKLIGHT to WDR, the AGC fix mode is not available.

mOTION

You can specify a level of AGC for controlling the camera motion.

This is available only of the SENSE UP menu is set to AUTO.

Select F.FAST if you want to monitor a very fast moving object in a low contrast scene, and S.SLOW if monitoring a very slow moving, inanimate object in the same condition.

As long as DAY/NIGHT is set to , the menu is not available.

DNR

Reduces the noise on the camera image.

The higher the level is, the greater the effect is.

Set it to to specify the level.

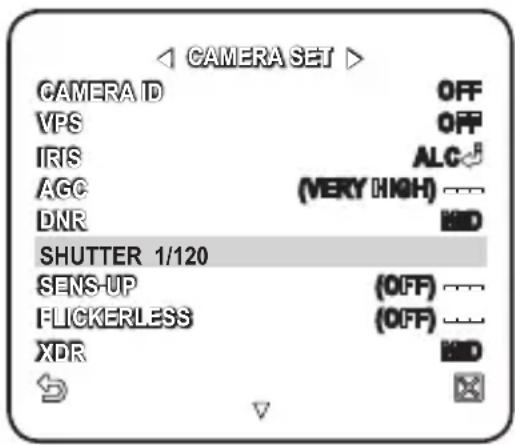

SHUTTER

You can select a fixed fast electronic shutter speed in 7 options ranging from 1/120 to 1/10k, which is mostly used to take a picture of a fast moving object.

As long as SENSE UP is set to AUTO, FIXED / FLICKERLESS to ON / BACKLIGHT to WDR, the SHUTTER menu is not available.

CAMERA SET > CAMERA ID OFF VPS OFF IRIS ALC AGC (VERY HIGH)--- DNR ###ID SHUTTER 1/120 SENS-UP (OFF)--- FLICKERLESS (OFF)--- XDR ###ID

SENS-UP

Automatically senses the darkness level at night or in a low contrast scene, and extends the accumulation time accordingly; you can select or for a bright and sharp image.

If the SHUTTER menu is set to fixed electronic shutter mode, the SENSE UP menu will not be available.
If FLICKERLESS is set to ON, or BACKLIGHT to WDR, the FIX mode of the SENSE UP menu is not available.

FLICKERLESS

This will prevent possible screen distortion due to a mismatch between the vertical sync frequency and the blinking frequency of the lighting; if set to , the shutter speed will be fixed to 1/120 second.

If SHUTTER is set to FIX, SENSE UP to FIX, and AGC to FIX, the menu is not available.

xDR

This will correct a brightness difference between different scenes for the optimal visibility by calculating the ambient luminance contrast in a certain unit of pixels. The higher the value is, the higher the correction level is.

DAY/NIGHT

You can specify a recording mode according to the scene.

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

1. Select - .

2. Select a screen transition mode according to the illumination, and set options as appropriate.

3. DAY : Fixed to DAY mode, regardless of the scene.

4. NIGHT: Fixed to NIGHT mode, regardless of the scene.

If BURST is set to , the burst signal will be output along with the black-and-white composite video signal.

- AUTO : According to the luminance, this will switch DAY to NIGHT mode, or vice versa.

• BURST : If set to , the burst signal will not be output in NIGHT mode.
• DAY→NIGHT BRIGHTNESS : Specify the brightness level switching from COLOR to BW filter.

Adjusting from HIGH to LOW will cause to switch the filter in a darker screen.

• DAY→NIGHT DWELL TIME : Time required to determine the filter switch.
• NIGHT→DAY BRIGHTNESS : Specify the brightness level switching from BW to COLOR filter. Adjusting from HIGH to LOW will cause to switch the filter in a darker screen.
• NIGHT→DAY DWELL TIME : Time required to determine the filter switch.

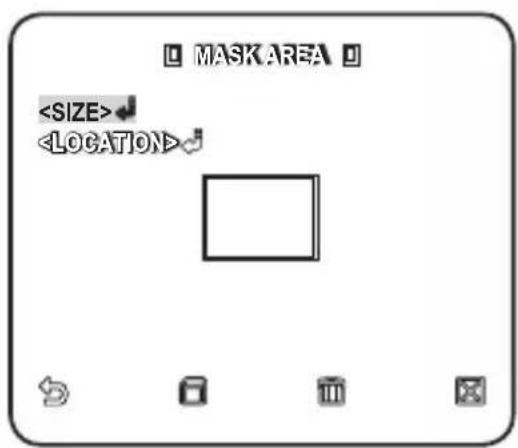

• MASK AREA : If there exists a bright spot light source in a night scene, you can specify the size and position as needed.

This will prevent an error in switching filter, or failure to determine the filter switch in a night scene where a bright spot light source exists.

Any excessively bright area in a night scene will be MASKed.

DAY/NIGHT AUTO WHITE BAL FOCUS MODE ZOOM SPEED DISPLAY ZOOM DISPLAY PIT DIGITAL ZOOM DETAIL V-SYNC ONEAF OFF OFF OFF INT

AUTO BURST OFF DAY-NIGHT RIGHTNESS WELL TIME NIGHT-DAY RIGHTNESS WELL TIME MASK AREA 1 2

MASK AREA

MASK AREA

■ You can specify MASK 1 and 2 simultaneously.
If is set to , the MASK AREA function is not available.
- EXT : The interface to an external alarm enables an automatic switch between DAY and NIGHT mode.

If you set to EXT, and alarm #1 to NO/NC in ALARM SET-ALARM IN SET, the alarm can be used for an input signal in EXT mode of .

If an alarm signal occurs, the mode will switch to NIGHT.

If is set to EXT, ALARM1 in ALARM OUT SET, and ALARM1 in ALARM SET-AUTO SET are not available.
If you use an infrared light source while in AUTO mode, this may cause a failure in AUTO SWITCH or AUTO FOCUS.

WHITE BAL

If you need to adjust the color according to the ambient illumination, you can use the function.

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

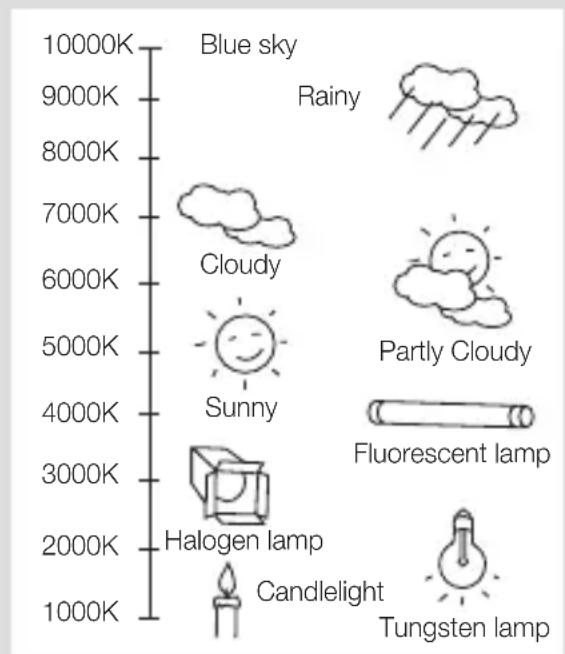

Illumination is generally referred to as color temperature, which is represented in a measurement of kelvin (K). Color temperatures for ordinary lighting are as follows:

In the menu, you can set a mode for correcting the .

- ATW1,2 : If you set the WHITE BAL> menu to or mode, this will monitor the change of the color temperature to correct the as needed. The following color temperature ranges are assured in individual modes: ATW1 : 2500K \~ 9300K (×1) ATW2 : 2000K \~ 10000K (suitable to sodium light source) (×2)

※1 : With mode active in a color temperature environment ranging beyond between 2500K and 9300K, a proper white balance value may not be produced; if this is the case, you are recommended to use mode.
※2 : With mode active in a mostly single color environment, the display color and the actual one may differ; so select a mode as appropriate to your color temperature environment.

1. Select - .

2. Select a mode where you set the .

- DAY: You can set the RED, and BLUE value in DAY mode.

The screen will be displayed in colors according to your settings.

- You can set the R-GAIN, and B-GAIN value only in mode.

If AGC is set to or , the NIGHT menu can not be accessed.

WHITE BAL DAYNIGHT MODE AWC !ED [00]------1---- UEJE [00]------1---- R-GAIN [0064] E-GAIN [0064]

- NIGHT : You can set the according to the ambient illumination. If NIGHT mode is set to , the will operate in a mode specified in DAY mode at all times; otherwise, the screen will switch to a mode specified in . You can set the RED, BLUE and BRIGHTNESS value in DAY mode. The screen will be displayed in colors according to your settings.

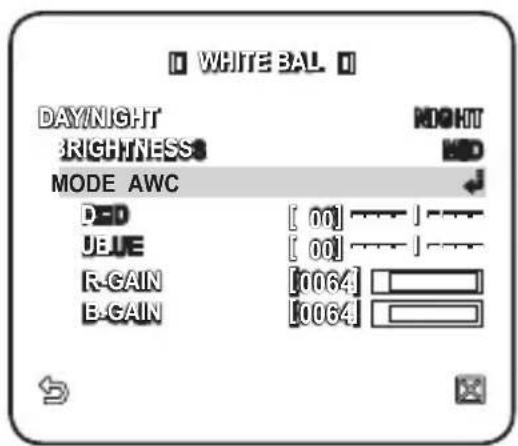

WHITE BAL DAY/NIGHT RIGHTNESS MODE AWC [00] —— —— UEJE [00] —— —— R-GAIN [0064] B-GAIN [0064]

1. According to the specified recording mode, select a mode with necessary options.

2. ATW1,2 : The camera can automatically adjust the color temperature in real time, according to the ambient conditions.
   (Color temperature range 1: 2500K \~ 9300K, 2 : 2000K \~ 10000K)

3. AWC : Pressing [ENTER] on a desired item will perform ATW once.
   ■ You can set the R-GAIN/B-GAIN value.
   • 3200K : Set the color temperature to 3200K.
4. 5600K : Set the color temperature to 5600K.

- BRIGHTNESS : Specify a brightness level switching from DAY mode to NIGHR mode setting.

• RED : Adjust the strength of the red color.
• BLUE : Adjust the strength of the blue color.
• R-GAIN/B-GAIN : Specify the current color temperature manually.

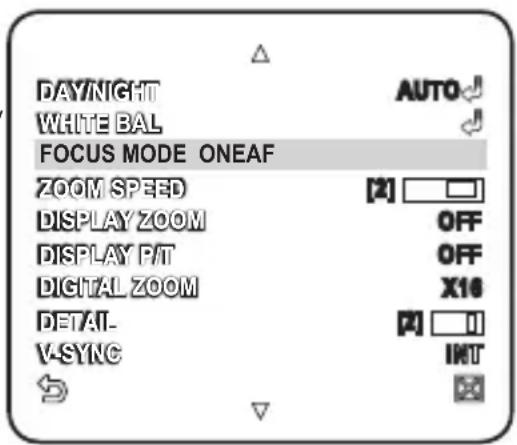

FOCUS mODE

You can select a focus mode according to the angle that you adjusted for camera recording.

- AF : This will monitor the screen continuously to focus automatically. If you adjust the focus manually, that will operate the same as in . This will also restore focus after the operation of pan/tile/zoom.

- ONEAF : Restores focus after the operation of pan/tile/zoom, and operates the same as in unless the operation of pan/tile/zoom is executed.

- MF : You can adjust the focus manually.

DAYNIGHT AUTO WHITE BAL FOCUS MODE ONEAF ZOOM SPEED [2] DISPLAY ZOOM OFF DISPLAY P/T OFF DIGITAL ZOOM X10 DETAIL- [7] V-SYNC INT →

While you are working on the following objects, may not work properly. If this is the case, use instead.

• Very bright object, or dominant object in a dark scene
• Object against the rear side of a moist or dirty glass
• A scene where nearby and distant objects co-exist
• White wall or single-colored object
• Venetian blinds and other horizontally striped objects

ZOOM SPEED

You can adjust the zoom operation speed.

DISPLAy ZOOm

You can set to display the zoom status on the screen.

- It will disappear in about 3 seconds if the zoom factor has no further change.

DISPLAy P/T

You can set to display the operation status of pan/tilt when it is active.

- It will disappear in about 3 seconds if the pan/tilt position has no further change. However, the allowable error is ± 2^ .

DIGITAL ZOOM

You can set the maximum allowable digital zoom ratio.

Digital Zoom will start operation after it is zoomed in to the maximum optical ratio of x34. If you set DIGITAL ZOOM to x16, you can take a shot at up to x544 (34x16).

DETAIL

Used to adjust the vertical and horizontal distinction, respectively.

v-SyNC

You can set the V-SYNC mode.

• If you select , the camera will use the internal synchronization.
• If selecting , the camera will use an external power frequency for synchronization. The LL-PHASE can be adjusted as appropriate.

AGC COLOR SUP

You can adjust the color reproduction range according to AGC.

REvERSE

You can reverse the video signal from left to right, upside down, or vice versa to your convenience.

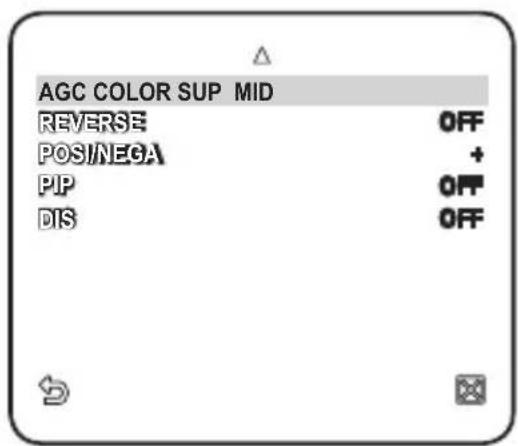

AGC COLOR SUP MID REVERSE OFF POS/NEGA + PIP OFF DIS OFF

POSI/NEGA

You can set the video brightness signal to normal or reverse.

PIP

You can view a main image with a sub image on the same screen.

If more than one PRIVACY ZONE is specified, and PRIVACY SET to , the PIP function is not available.
As long as SENSE UP is set to FIXED, PIP menu is not available.
According to the luminance, PIP will disappear if the SENSE UP menu is set to AUTO.

DIS

If you set it to for a camera that is trembled or vibrated from an ambient change, this will automatically compensate for the flicker on the screen.

If you set to , the image will be enlarged with digital zoom as much area as compensated. If you set the digital zoom to a larger ratio than the actual enlargement for compensation, the function will be disabled.

- may not work properly in the following images: Flat, i.e., no regular-patterned image/ Low contrast scene/ High frequency image taken under a fluorescent lamp / Regular-patterned image

You can enable the motion detection and tracking functions.

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

1. Select
   -.
2. Select each item and set appropriately.

mOTION

You can enable the motion detection and tracking functions.

INTELLIGENCE MOTION ADVANCED MASK AREA DISPLAY SENSITIVITY RESOLUTION ALARM OUT OFF OFF 1 2 3 4 ON [+] [3]

If you set it to , the option of ADVANCED menu will not be available.
In following situations, motion detection and tracking function may not work properly.

• When there is sudden changes of brightness
• When the device moves
• When a certain object's movement fills most of the framing area
• When there is difficulties in distinguishing the moving object and background

ADVANCED

You can detect motions and mark the video that contains such motion, and enables tracking of the movement.

Selecting the option will mark a region if an existing object disappears, or a new object appears and fixed for a certain period of time.

In following situations, FIXED/MOVED detection may not work properly.

• When multiple motions continue arbitrarily.
• When the object that is fixed continues to move in the same position.
• When a newly appearing object conceals another object that is moving.

mASK AREA

1. Select the number of the area to be masked that will be excluded from motion detection.
2. Select the mask number and set the mask size and its coverage.

MASK AREA

DISPLAY

When selected , it displays the motion detected and detection of configured advanced function.

SENSITIVITY

Sets the sensitivity of motion sensor.

RESOLUTION

The bigger the resolution setting, the smaller the object that can be detected.

ALARM OUT

When selected , it outputs alarm signal when the motion is detected and on a detection of configured advanced function.

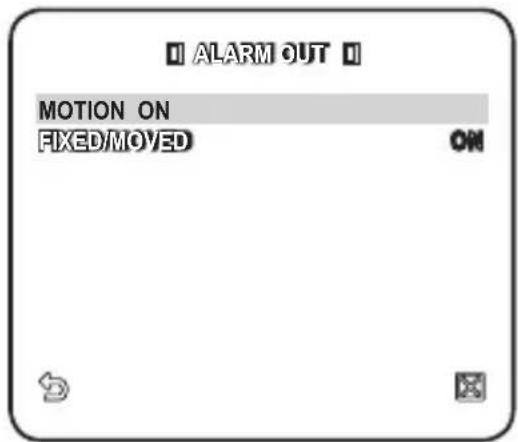

I ALARM OUT I MOTION ON FIXED/MOVED ON

PRIVACY ZONE

You can set up to 12 privacy zones that will be hided for privacy of the subject when recording.

Zone Setup

For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 20)

1. Select

   -.

2. Select the number of the zone and press [ENTER].

The Zone setup screen appears.

1. Select the and press [ENTER].

Using the joystick, adjust the camera's pan, tilt and zoom.

PRIVACY ZONE 1 2 3 4 5 6 7 0 9 10 11 12 PRIVACY SET ON STYLE MOSAICI

34\_ setup

1. Select the . Select the pixel level for the SIZE and LOCATION settings.

2. Select the and press [ENTER]. Using the joystick, set the size of the privacy zone.

3. Select the and press [ENTER]. Using the joystick, set the position of the privacy zone.

4. Save the changes and move to the previous screen and select the
