USER MANUAL Powerstation PS2200AC ANSMANN

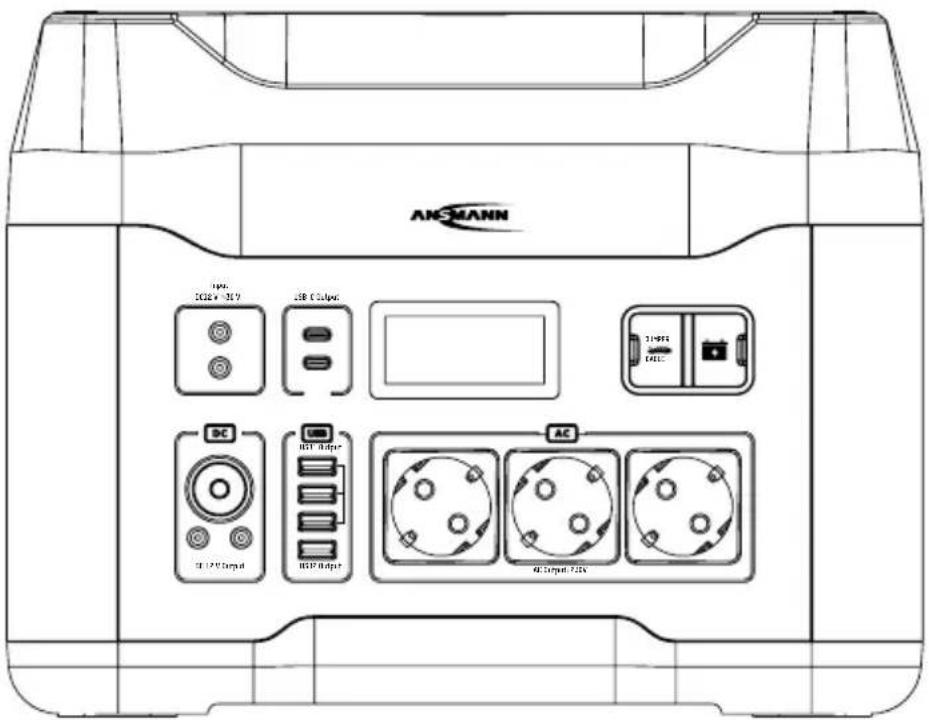

Exterior view of a black ARXAMN charging station with digital display and three power outlets (no visible text or symbols)

ANSMANN Input DCB + 31 V USB Output 31/95 DLS DC HCP Input HCP Input AC AC Input 72V

UK Conformity Assessed

Elektroschrott (WEEE-Richtlinie) | Waste of Electrical and Electronic Equipment (WEEE-Guideline)

Batterieentsorgungsinformation - Nicht in den Hausmüll! | Battery disposal information - Not for household waste

Bedienungsanleitung beachten! | Read the operating instructions carefully before use!

i ALLGEMEINES

USB-A1/-A2 5,0 V 2,4 A 12,0 W
USB-A QC 5,0 V 3 A 15,0 W
USB-A QC 9,0 V 2 A 18,0 W
USB-A QC 12,0 V 1,5 A 18,0 W
USB-C PD 5,0 V 3 A 15,0 W
USB-C PD 9,0 V 3 A 27,0 W
USB-C PD 12,0 V 3 A 36,0 W
USB-C PD 15,0 V 3 A 45,0 W
USB-C PD 20,0 V 5 A 100,0 W
DC1/DC2/DC3 12,0 V 10 A 120,0 W
AC	230,0 V	2200,0 W
Jump start	12,0 V 500 A

Please unpack all parts and check that everything is present and undamaged. Do not use the product if damaged. In this case, contact your local authorised specialist or the service address of the manufacturer.

These operating instructions contain important information for the first use and normal operation of this product.

Read through the complete operating instructions carefully before using the product for the first time. Read the operating instructions for other devices which are to be operated with this product or which are to be connected to this product. Keep these operating instructions for future use or for future users' reference.

Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

SAFETY - EXPLANATION OF NOTES

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging:

i = Information | Useful additional information about the product
☑ = Note | The note warns you of possible damage of all kinds
⚠ = Warning | Attention - Danger! May result in serious injury or death

PROPER INTENDED USE

The product is intended exclusively for private household use and not for commercial use. Use outside that stipulated in the information is improper use and this can result in damage to property or personal injury. We accept no liability for damage caused by incorrect or improper use.

A Powerstation is a battery-powered power source with different output sockets for connecting end devices with AC, DC or USB connections.

GENERAL SAFETY INSTRUCTIONS

• This product may be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they have been instructed on the safe use of the product and are aware of the hazards. Children are not permitted to play with the product. Children are not permitted to carry out cleaning or care without supervision.
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product or packaging.
• Observe all information and safety instructions for the device to be charged before using the Power-station.
• Please disconnect the Powerstation from the device being charged once it has been fully charged. Do not charge overnight. Do not charge unsupervised.
• In order to prevent any risk of fire or electric shock, the Powerstation must be protected from

moisture and rain! Never submerge the product in water or other liquids. Do not use the device if it is wet. Never operate the device with wet hands.

- The product can be damaged by impacts, shocks or being dropped, even from low heights. Handle the product carefully! Do not continue to use a damaged device. RISK OF EXPLOSION! Dispose of the Powerstation in accordance with instructions.

- Do not expose to potentially explosive environments where there are flammable liquids, dusts or gases.

• The product may only be used in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.

- Operate the product only within its power limits as cited in the technical data.

- Before connecting an end device, check whether this can be adequately supplied with the power output of the charger.

- Protect the product from moisture, overheating and dirt. Use it only in dry environments.

- Never expose the product to extreme conditions, such as extreme heat/cold, fire, direct solar radiation, etc.

- Charge your Powerstation at least once every 4 months in order to maintain its service life.

- Do not use while still in the packaging.

- Carry out cleaning tasks only when the mains plug has been pulled out / when the power supply has been disconnected.

- Clean only with a slightly damp cloth, then rub it dry. Do not use hard brushes or sharp objects, abrasive cleaners or solvents.

GENERAL INFORMATION

- Do not throw or drop

- Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

TECHNICAL SPECIFICATIONS

Input: 2x DC5521 12.0 V ... 30.0 V DC | 9.5 A | max. 200.0 W Output:

Mode Voltage Current Power
USB-A1/-A2 5,0 V 2,4 A 12,0 W
USB-A QC 5,0 V 3 A 15,0 W
USB-A QC 9,0 V 2 A 18,0 W
USB-A QC 12,0 V 1,5 A 18,0 W
USB-C PD 5,0 V 3 A 15,0 W
USB-C PD 9,0 V 3 A 27,0 W
USB-C PD 12,0 V 3 A 36,0 W
USB-C PD 15,0 V 3 A 45,0 W
USB-C PD 20,0 V 5 A 100,0 W
DC1/DC2/DC3 12,0 V 10 A 120,0 W
AC 230,0 V 2200,0 W
Jump start	12,0 V 500 A

Protective functions: Short circuit protection Temperature control Overvoltage protection Overcurrent protection

Display: LED display with percentage value

Nominal voltage: 3.7 V

Energy content: 1408 Wh

Cell chemistry: Lithium iron phosphate

Operating temperature: -20°C ... 55°C

Storage temperature: -20^ ... 55^

Size: 360 × 270 × 278 mm

Weight: 17.5 kg

Delivery includes:

Powerstation, AC charger, 12V DC connection cable, operating instructions, warranty card

Before using the Powerstation for the first time, fully charge it once with the power supply unit included.

Charging options:

• Connection of the mains power supply unit supplied to the DC input. Parallel charging at both inputs is possible, but chargers with identical power values should be used.
• Charging via solar panel
• Charging via 12V car adapter cable

First use:

1. Connect your end device to the appropriate output socket.
2. Switching on: Press one of the buttons AC, DC or USB.
3. Switching off: Press the corresponding switch button of the occupied output or disconnect the plug.

4. Automatic switch-off at low current draw (<200mA): Without manual switch-off, the outputs remain activated for another 6 hours, even if no more power consumption is measured. If the power being drawn does not increase above the minimum value within 6.5 hours, automatic shutdown is initiated.

5. The Powerstation is equipped with a powerful 12 W LED. This has the following functions:

6. Press switch 1 × - Low dimming level

7. Press switch 2 × - Medium dimming level
8. Press switch 3 × - Highest dimming level
9. Press switch 4x - Continuous flashing mode
10. Press switch 5× - SOS mode

11. Press switch 6× - switch off

12. Multifunctional storage compartment in the lid for storing cables, accessories or small parts.

Optional accessories:

• Ansmann start-assist adapter, 12V with integrated electronic protection. Do not use any other start-assist cable, even if the connectors fit!
• Ansmann Powerstation extension battery Expansion battery to double the battery life.

ENVIRONMENTAL INFORMATION | DISPOSAL

Dispose of packaging after sorting by material type. Cardboard and cardboard to the waste paper, film to the recycling collection.

Dispose of the unusable product in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste.

For disposal, pass the product on to a specialist disposal point for old equipment, use the return and collection systems in your area or contact the dealer from whom you purchased the product.

Batteries and rechargeable batteries contained in electrical appliances must be disposed of separately whenever possible.

Always dispose of used batteries & rechargeable batteries (only when discharged) in accordance with the local regulations and requirements.

Improper disposal may result in toxic ingredients being released into the environment, which may have adverse health effects on humans, animals and plants.

In this way you will fulfil your legal obligations and contribute to environmental protection.

√ LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling/use or through disregard of the information contained within these operating instructions.

- The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors.
