Product type	Expansion module for portable power station
Brand	Ansmann
Model	Powerstation Extension PSE600
Energy capacity	640 Wh
Cell chemistry	Lithium Iron Phosphate (LiFePO4)
Charge status display	4 LEDs in 25% increments
Dimensions	260 × 220 × 220 mm
Weight	8 kg
Operating temperature	-20°C to 55°C
Storage temperature	-20°C to 55°C
Compatibility	Ansmann portable power stations with dedicated connection port
Included cable	CP3500 connection cable
Charging/discharging process	Automatic, managed by the main unit
Charging order	Main unit first, then extension
Discharging order	Extension first, then main unit
Intended use	Private household, non-commercial
Cleaning	With a slightly damp cloth, unplug first
Maintenance	Recharge at least every 4 months to preserve lifespan
Safety	Protect from moisture, do not open, do not expose to fire
Spare parts and repairability	Repairs only by the manufacturer or an authorized technician

Frequently Asked Questions - Powerstation Extension PSE600 ANSMANN

What is the role of the PSE600 expansion module?

The PSE600 expansion module doubles the capacity of your Ansmann portable power station by adding an additional 640 Wh battery.

How to connect the PSE600 extension to the main power station?

Use the provided CP3500 connection cable to plug the extension into the dedicated connection port of the main power station.

What is the battery life of the extension?

The battery life depends on the consumption of connected devices. The capacity is 640 Wh, which can power, for example, a 50W refrigerator for about 12 hours.

How to check the charge level of the extension?

Press the control button to activate the display: 4 LEDs indicate the level in 25% increments (one LED = 25%, four = 100%).

Can I use the extension with any Ansmann power station?

No, it is only compatible with Ansmann portable power stations that have a dedicated connection port. Check compatibility in your power station's manual.

What is the charging and discharging order between the main unit and the extension?

During charging, the main power station is charged first, then the extension. During discharging, the extension discharges first, then the main power station.

What safety precautions should I follow?

Protect the extension from moisture and rain, do not open it, do not expose it to extreme temperatures or fire. Recharge it at least every 4 months to preserve its lifespan.

What type of battery is used in the PSE600 extension?

The battery is Lithium Iron Phosphate (LiFePO4), offering a long lifespan and better safety.

Where can I find the full manual for the PSE600 extension?

The manual is available as a free PDF download on notice-facile.com. You can also request a translation in your language.

What to do in case of malfunction or damage?

Do not use the extension if it is damaged. Contact an authorized store or Ansmann after-sales service. Do not attempt to repair it yourself.

USER MANUAL Powerstation Extension PSE600 ANSMANN

UK Conformity Assessed

Elektroschrott (WEEE-Richtlinie) | Waste of Electrical and Electronic Equipment (WEEE-Guideline)

Batterieentsorgungsinformation - Nicht in den Hausmüll! | Battery disposal information - Not for household waste

Bedienungsanleitung beachten! | Read the operating instructions carefully before use!

i ALLGEMEINES

Please unpack all parts and check that everything is present and undamaged. Do not use the product if damaged. In this case, contact your local authorised specialist or the service address of the manufacturer.

These operating instructions contain important information for the first use and normal operation of this product.

Read through the complete operating instructions carefully before using the product for the first time. Read the operating instructions for other devices which are to be operated with this product or which are to be connected to this product. Keep these operating instructions for future use or for future users' reference.

Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

SAFETY - EXPLANATION OF NOTES

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging:

i = Information | Useful additional information about the product
☑ = Note | The note warns you of possible damage of all kinds
⚠ = Warning | Attention - Danger! May result in serious injury or death

PROPER INTENDED USE

The product is intended exclusively for private household use and not for commercial use. Use outside that stipulated in the information is improper use and this can result in damage to property or personal injury. We accept no liability for damage caused by incorrect or improper use.

With an Ansmann Powerstation expansion module, you can double the capacity of your mobile power source. The additional battery is connected to the main unit with just one connection cable and supplies it with additional power.

GENERAL SAFETY INSTRUCTIONS

• This product may be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they have been instructed on the safe use of the product and are aware of the hazards. Children are not permitted to play with the product. Children are not permitted to carry out cleaning or care without supervision.
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product or packaging.
• Observe all information and safety instructions for the device to be charged before using the Power-station.
• Please disconnect the Powerstation from the device being charged once it has been fully charged. Do not charge overnight. Do not charge unsupervised.
  • In order to prevent any risk of fire or electric

shock, the Powerstation must be protected from moisture and rain! Never submerge the product in water or other liquids. Do not use the device if it is wet. Never operate the device with wet hands.

- The product can be damaged by impacts, shocks or being dropped, even from low heights. Handle the product carefully! Do not continue to use a damaged device. RISK OF EXPLOSION! Dispose of the Powerstation in accordance with instructions.

- Do not expose to potentially explosive environments where there are flammable liquids, dusts or gases.

• The product may only be used in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.

- Operate the product only within its power limits as cited in the technical data.

- Before connecting an end device, check whether this can be adequately supplied with the power output of the charger.

- Protect the product from moisture, overheating and dirt. Use it only in dry environments.

- Never expose the product to extreme conditions, such as extreme heat/cold, fire, direct solar radiation, etc.

- Charge your Powerstation at least once every 4 months in order to maintain its service life.

- Do not use while still in the packaging.

- Carry out cleaning tasks only when the mains plug has been pulled out / when the power supply has been disconnected.

- Clean only with a slightly damp cloth, then rub it dry. Do not use hard brushes or sharp objects, abrasive cleaners or solvents.

GENERAL INFORMATION

• Do not throw or drop
• Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

TECHNICAL SPECIFICATIONS

Display: 4 LEDs in 25% steps

Energy content: 640 Wh

Cell chemistry: Lithium iron phosphate

Operating temperature: -20 - 55 °C

Storage temperature: -20 - 55 °C

Size: 260 × 220 × 220 mm

Weight: 8 kg

DELIVERY INCLUDES

Expansion battery, connection cable, operating instructions, warranty card

• Before using the Powerstation expansion module for the first time, fully charge it once by connecting it with the compatible main unit. There is no other connection option.
• Connect the expansion battery to a compatible Powerstation using the corresponding connection port.
• Use only the CP3500 cable provided for this.
• The main unit controls the charging and discharging process fully automatically. When charging, the main unit is charged first, followed by the expansion module. When discharging, the expansion module is discharged first, then the main unit.

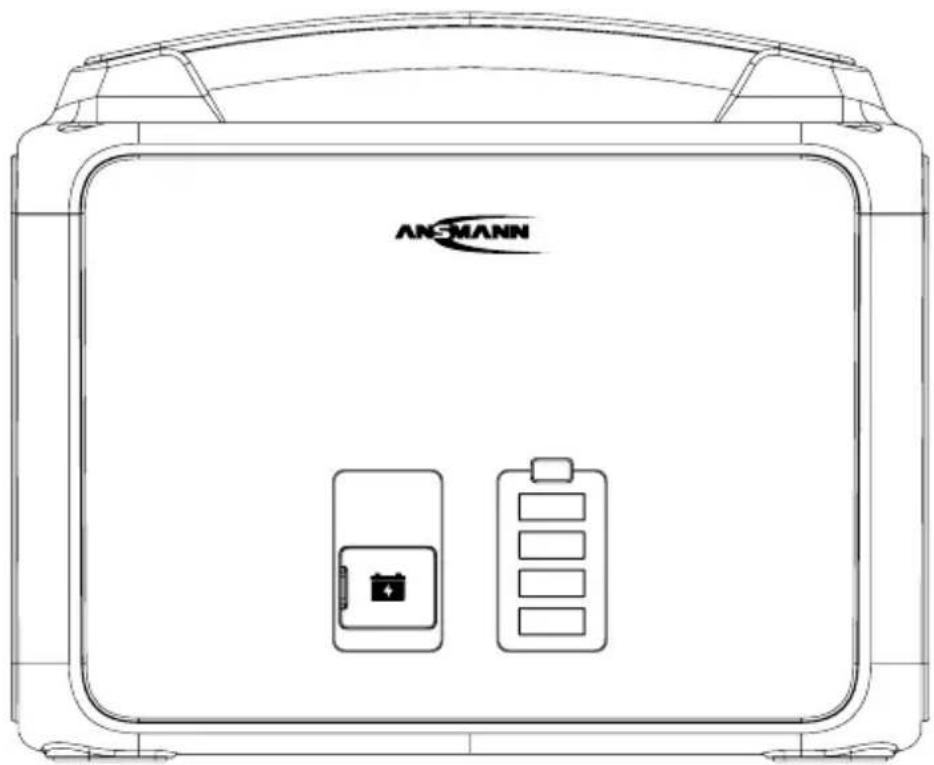

• To activate the charge level indicator, press the control button. The charge level is displayed with 4 LEDs in 25% steps.

ENVIRONMENTAL INFORMATION | DISPOSAL

Dispose of packaging after sorting by material type. Cardboard and cardboard to the waste paper, film to the recycling collection.

Dispose of the unusable product in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste.

For disposal, pass the product on to a specialist disposal point for old equipment, use the return and collection systems in your area or contact the dealer from whom you purchased the product.

Batteries and rechargeable batteries contained in electrical appliances must be disposed of separately whenever possible.

Always dispose of used batteries & rechargeable batteries (only when discharged) in accordance with the local regulations and requirements.

Improper disposal may result in toxic ingredients being released into the environment, which may have adverse health effects on humans, animals and plants.

In this way you will fulfil your legal obligations and contribute to environmental protection.

√ LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling/use or through disregard of the information contained within these operating instructions.

- The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors.

GÉNÉRAL

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Support & FAQ: ansmann.de

E-Mail: [e-mail]

Hotline: [phone]

MA-1700-0169/V00/02-2023
