AC4870 - Air purifier Guardian - Free user manual and instructions

Product Type	Air Purifier
Brand	Guardian
Model	AC4870
Dimensions (L x D x H)	23.5 x 14 x 54.6 cm
Weight	8.82 lb (4.0 kg)
Power Supply	120 V, 60 Hz, 55 W
Number of Fan Speeds	5 speeds (Mode 1 to 5)
Programmable Timer	1 to 8 hours
Filtration System	Pre-filter/Charcoal, HEPA filter, UVC lamp with TiO2
Filter Type	Combined HEPA filter with pre-filter/charcoal (model FLT4825)
Filter Life	Approximately 6 months
UVC Lamp	Model LB4000, 5 W
UVC Lamp Life	10 to 12 months
Replacement Indicator	For HEPA filter and UVC lamp
Power Consumption	55 W
Warranty	3 years limited
Filter Maintenance	Clean the pre-filter with a vacuum once a month
Appliance Maintenance	Wipe with a dry, soft cloth
Safety	Polarized plug, do not immerse, do not obstruct grilles
Indoor Use Only	Yes

Frequently Asked Questions - AC4870 Guardian

How to replace the HEPA filter?

Turn off and unplug the unit. Press the lock/unlock button and remove the back cover. Remove the old filter combination and insert the new one respecting the arrow direction. Screw the cover back on and press the timer button for 5 seconds to reset the indicator.

How to reset the filter replacement indicator?

After replacing the filter, hold down the timer button for 5 seconds until the indicator turns off.

When should I replace the UVC lamp?

The UVC lamp should be replaced every 10 to 12 months, depending on usage. The blue light flashes when it's time to replace it.

How to clean the pre-filter?

Detach the pre-filter/charcoal filter from the HEPA filter (velcro strip). Clean it with a vacuum brush to remove dust. Do not wash or reuse the HEPA filter.

Why is the unit not working?

Check that the unit is plugged into a working outlet. Make sure the HEPA filter is properly in place and the back cover is locked. If the problem persists, contact customer service.

How to disable the beep sound when pressing buttons?

Hold down the fan speed adjustment button for 3 seconds, then select ON/OFF to disable the beep. The beep reactivates automatically after unplugging.

What to do if the HEPA reset indicator lights up?

This indicates it's time to replace the filter. Follow the filter replacement instructions, then reset the indicator by holding the timer button for 5 seconds.

Can I use the unit outdoors?

No, this unit is designed for indoor use only. Do not use it outdoors.

How to change the UVC lamp?

Turn off and unplug the unit. Remove the back cover and filter. Use a Phillips screwdriver to remove the metal lamp protector. Gently pull the lamp to disengage it. Insert the new lamp (LB4000) horizontally. Reinstall the protector, filter, and cover. Press the UVC button for 5 seconds to reset.

What is the warranty on this air purifier?

The product has a limited 3-year warranty from the original purchase date, covering defects in materials and workmanship. Proof of purchase is required.

USER MANUAL AC4870 Guardian

guardian technologies™

USE & CARE INSTRUCTIONS

Line drawing of a portable electric fan with a mesh grille (no text or symbols)

Digital Air Purifying System

with HEPA Filter, UV-C & Odor Reduction

Model No. AC4870

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

guardian technologies™

Guardian Technologies LLC 26251 Bluestone Blvd. • Euclid, OH 44132 1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.
• IMPORTANT - This portable luminaire has a polarized plug (one blade is wider than the other) as a feature to reduce the risk of electric shock. This plug will fit into a polarized outlet only on way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact qualified electrician. Never use an extension cord unless the plug can be fully inserted. Do no alter the plug.
  • To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
  • DO NOT use outdoors.

• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
  • DO NOT place anything on top of unit.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solidstate speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Model No. LB4000, Manufactured by Guardian Technologies.
  • Always unplug the unit before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: Cancer or Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

ENERGY STAR

This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

PRODUCT SPECIFICATIONS AND PARTS

MODEL NUMBER: AC4870

DIMENSIONS: 9.25 in. x 5.5 in. x 21.5 in.

WEIGHT: 8.82 lbs.

INPUT VOLTAGE: 120 V 60Hz 55W

PRODUCT SPECIFICATIONS AND PARTS

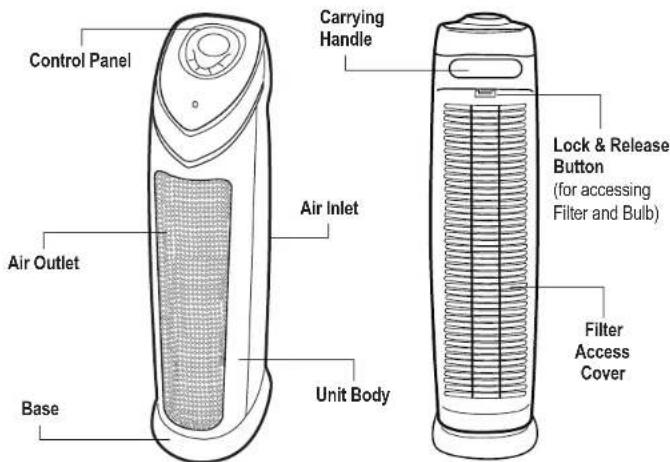

Control Panel Air Outlet Base Carrying Handle Air Inlet Unit Body Lock & Release Button (for accessing Filter and Bulb) Filter Access Cover

FRONT OF UNIT BACK OF UNIT

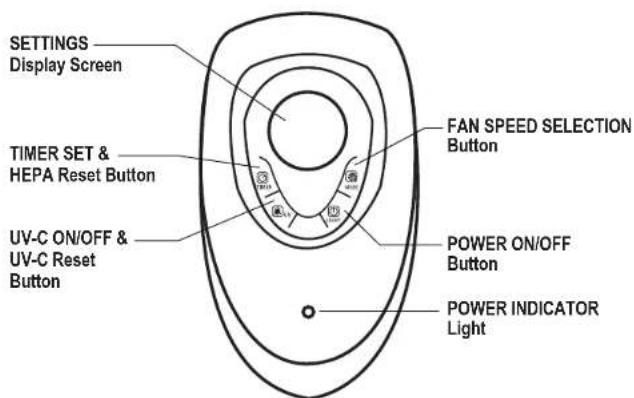

CONTROL PANEL

SETTINGS Display Screen TIMER SET & HEPA Reset Button UV-C ON/OFF & UV-C Reset Button FAN SPEED SELECTION Button POWER ON/OFF Button POWER INDICATOR Light

Digital Air Purifying System

Improve your indoor air quality with your new Germ Guardian® Air Purifying System. Multiple levels of cleaning include a combination HEPA filter that captures allergens, and Charcoal filter to remove odors. UV-C light technology enhances gem-killing.

Pre-Filter\*

Captures initial dust and allergen particles.

Charcoal Filter\* (aka Activated Carbon)

Charcoal/Activated Carbon contributes to the control and prevention of the growth of bacteria, germs and mold.

HEPA Filter

Captures 99.97% of dust and allergens.

UV-C Light

UV-C light technology works with Titanium Dioxide (TiO 2 ) to enhance the elimination of airborne germs. TiO 2 is activated by the UV-C light to decompose remaining odor molecules caused by smoking, cooking and pets.

*Pre-Filter and Carbon Filter are combined into one layer that attaches to the Filter.

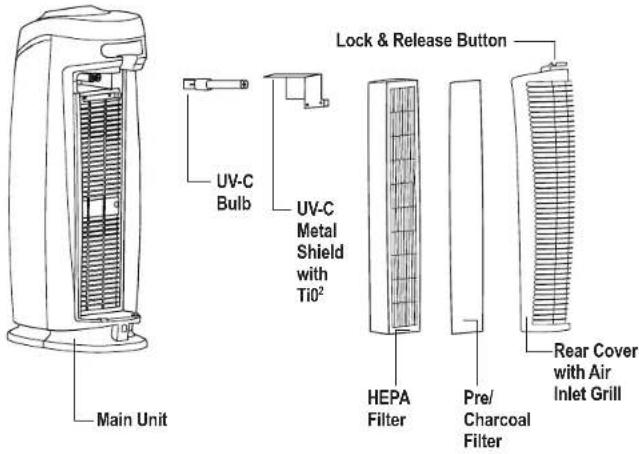

AIR CLEANING LAYERS

Main Unit UV-C Bulb UV-C Metal Shield with TiO2 Lock & Release Button HEPA Filter Pre/ Charcoal Filter Rear Cover with Air Inlet Grill

Two vertical panels showing a grid-patterned panel on the left and a single grid-patterned panel on the right, both without any text or symbols.

COMBINATION FILTER

*Filter must be removed from plastic bag before use.

NOTE: Pre/Charcoal Filter is affixed to HEPA Filter with velcro.

Filter Package includes:

1 HEPA Filter ——— Create ONE 1 Pre/Charcoal Filter ——— COMBINATION FILTER

Filter lasts approximately 6-8 months depending on use.

*Filter Replacement Indicator: The HEPA reset light on the control panel will illuminate indicating that it is time to replace your filter. Replace the filter according to directions (E-7) then push and hold Timer Button for 5 seconds to reset filter change indicator.

Depending on usage, filter will last approximately 6 months. See "Cleaning & Maintaining Filter" (E-9) for proper care of filter.

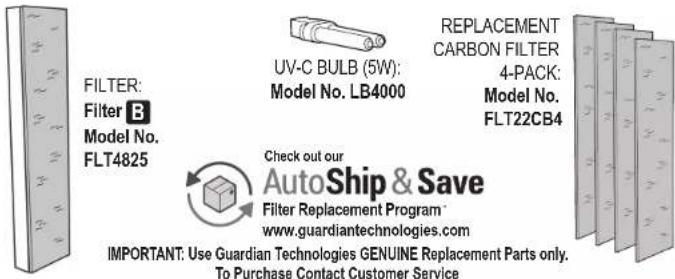

REPLACEMENT PARTS

FILTER: Filter B Model No. FLT4825 UV-C BULB (5W): Model No. LB4000 REPLACEMENT CARBON FILTER 4-PACK: Model No. FLT22CB4 Check out our AutoShip & Save Filter Replacement Program™ www.guardiantechologies.com IMPORTANT: Use Guardian Technologies GENUINE Replacement Parts only. To Purchase Contact Customer Service

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.

OPERATING INSTRUCTIONS

1. Carefully remove your air purifier and combination filter from box and bag.

2. Select a firm, level and flat location for the air purifier.

- For proper air flow, locate the unit at least 1 foot from any wall or furniture.

• Make sure none of the grills are blocked.

1. Plug the power cord into a 120V AC outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on the back.

(1 = lowest speed setting; 5 = highest speed setting)

1. Select UV-C ON or OFF using UV-C Power Button.
2. TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.

INSTALLING/REMOVING COMBINATION FILTER

The HEPA reset light on the control panel will illuminate indicating that it is time to replace your filter..

1. Turn off and unplug the unit.

Line drawing of a blender with a handle and spout, showing a side view of the lid (no text or symbols)

1. Press the Lock & Release Button and remove the Rear Cover from the unit.

Line drawing of a portable device with a handle and spout, showing an arrow indicating rotation (no text or symbols)

1. Remove the used Combination Filter and dispose of it in the garbage.

Line drawing of a portable blender with a handle and two clamps, showing internal structure (no text or symbols)

1. Remove new filter from box and bag. Insert into the unit. Consult the arrow on the filter for correct installation direction.

2. Reattach the Rear Cover of the unit and securely latch into place.

3. Push and hold Timer Button for 5 seconds to reset filter change indicator.

INSTALLING & REMOVING UV-C BULB

The blue light on the front of air cleaner will begin to flash continuously when it is time to replace the UV-C bulb. Replace the bulb according to the directions then press the UV control button and hold for 5 seconds to restart the system. The light should remain a constant blue.

Illustration of a portable electric heater with a side tab and lid, showing internal structure (no text or symbols)

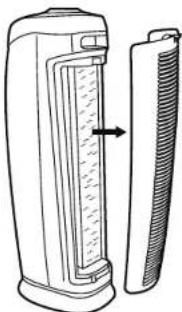

1. Remove the Rear Cover of the unit by pushing Lock & Release Button.

Line drawing of a portable electric heater with a side panel showing internal structure (no text or symbols)

1. After removing the Rear Cover from the unit, remove the Combination Filter.

Line drawing of a portable electric air conditioner unit with cooling fins and a handle (no text or symbols)

1. After removing the Combination Filter, use a Philips head screwdriver to remove two (2) screws and detach the UV-C Metal Shield.

2. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.

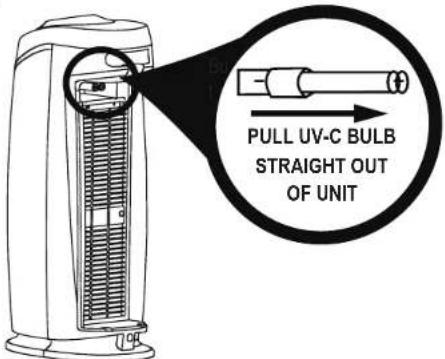

PULL UV-C BULB STRAIGHT OUT OF UNIT

1. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.
2. Push and hold UV Control Button for 5 seconds to reset UV Bulb Change Indicator.

IMPORTANT: The UV-C Bulb should be replaced every 10 - 12 months depending on use.

CLEANING & MAINTAINING THE COMBINATION FILTER

The air purifier should be cleaned at least once every month and the outer Pre-Charcoal Filter attached to the HEPA Filter should be cleaned every month. More frequent cleaning may be required depending on environmental conditions.

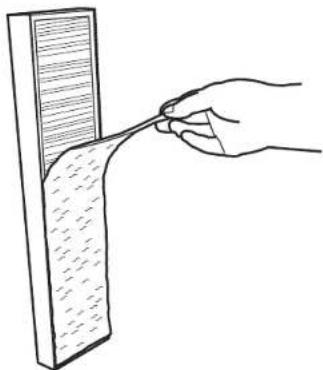

PRE-/CHARCOAL FILTER

Remove the Pre-/Charcoal Filter from the velcro strips on the HEPA Filter. Clean with the brush attachment of your vacuum cleaner. This will remove lint and dirt. After cleaning, reattach the Pre-/Charcoal Filter to the HEPA Filter.

Line drawing of a hand holding a tool interacting with a textured surface (no text or symbols)

HEPA FILTER

Remove the Combination Filter from the back of unit. Remove the Pre-/Charcoal Filter to expose the HEPA Filter. When the HEPA Filter turns from white to grey or black it should be replaced with a new one. If the HEPA Filter is still white, it does NOT need to be replaced.

IMPORTANT: Do NOT try to wash and re-use the Combination Filter. Please contact Customer Service at or visit us at www.guardiantechnologies.com to purchase a replacement filter. Replacement Filter: FILTER B (FLT4825)

NOTE: The Combination Filter is one filter. The multiple layers include: the Pre-/Charcoal Filter and the HEPA Filter.

AIR PURIFIER

Use a clean, dry, soft cloth to wipe the external surface of the unit.

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit. CAUTION: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate.	Check that the unit is plugged in.Call Customer Service.
Unit shuts off unexpectedly.	Check that the unit is plugged into a working electrical outlet.Check that the HEPA Filter is firmly in place.Check that the Rear Cover is latched firmly in place.Call Customer Service.
No air circulating from unit.	Make sure the filters are clean. Replace if necessary.
Control buttons ‘beep’ when pushed.	To shut off the ‘beeping’ sound when buttons are pushed:1. Press and hold the fan speed button for 3 seconds.2. Select ON/OFF.“Beeping” will automatically be reset to ON when the unit is unplugged.
HEPA reset light on the control panel is illuminating.	Time to change the filter. Refer to installation of filter section, page E-7.

AIR PURIFYING SYSTEM REPLACEMENT PARTS

Two vertical panels with grid patterns, one showing a mesh structure and the other a simple scale ruler (no text or symbols)

Replacement UV-C Bulb: Model No. LB4000

Replacement Filter: FILTER B Model No. FLT4825

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable electric fan with a mesh grille (no text or symbols)

Two vertical panels with grid patterns, one showing a mesh structure and the other displaying numerical values (no text or symbols)

Line drawing of a portable device with a handle and arrow indicating direction (no text or symbols)

Line drawing of a portable device with a handle and a separate clip, showing no text or symbols.

Line drawing of a portable device with two clamps and an open lid, showing internal structure (no text or symbols)

Illustration of a portable electric heater with a side-mounted blade and a side-mounted blade (no text or symbols)

Line drawing of a portable electric heater with a side panel showing internal structure (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

Line drawing of a hand holding a tool interacting with a textured surface (no text or symbols)

Filtre HEPA

TROUBLESHOOTING GUIDE

Two vertical panels showing a grid-patterned panel on the left and a single rectangular ruler with measurement markings on the right (no text or symbols)

Line drawing of a portable electric fan with a mesh grille and control panel (no text or symbols)

Two vertical panels showing a grid-patterned panel on the left and a grid-patterned panel with numerical labels on the right (no readable text or symbols)

FILTRO COMBINADO

FOCO UV-C (5W): Model No. LB4000

FILTRO 4-PAQUETE: Model No. FLT22CB4

AutoShip & Save

Line drawing of a cup with a handle and arrow indicating direction (no text or symbols)

Line drawing of a portable blender with a handle and spout, showing an arrow indicating rotation (no text or symbols)

Line drawing of a blender with two plastic applicators (no text or symbols)

Line drawing of a portable electric heater with a side tab and internal structure (no text or symbols)

Line drawing of a portable electric heater with a side panel showing internal structure (no text or symbols)

Line drawing of a portable electric heater with cooling fins and a side-mounted switch (no text or symbols)

Line drawing of a hand holding a pen over a textured surface, no text or symbols present

FILTRO HEPA

Illustration of two vertical panels with grid patterns, one showing a mesh structure and the other a simple grid pattern (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC
