USER MANUAL MFQ4015NE BOSCH

Styline / HomeProfessional

MFQ4...

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[ar]	امسع رمز الاستجابة السليغوة ضوئيا ت tightّ بزيارة الموقع الإلكتروني لفتح الإرشادات الموسّعة حول الاستخدام. تجد هناك

Line drawing of two identical mechanical tools with handles and shafts (no text or symbols)

7

Two identical line drawings of a screwdriver with no text or symbols

8

800 1 500 0.76 400 350 0.5 200 0.25 150 ml pts 9

10

Line drawing of a laboratory flask with a cylindrical neck and cap (no text or symbols)

11

Line drawing of a cylindrical container with internal piping and a top handle (no text or symbols)

-

Illustration of a blue cord being placed into two white devices, one with a plug and the other with a cable (no text or symbols)

2

CLICK

3

Diagram showing two methods of mixing a blender with checkmark and cross symbols indicating different actions.

4

M 0 1 • 3 • 5

5

M 0 1·3·5

6

Illustration of a hand using a blue mixing bowl to press or brush the mixture, with an hourglass icon nearby (no text or symbols)

7

M 0 1 • 3 • 5

8

Diagram showing a device with labeled parts and directional arrows, including numbered callouts and a checkmark.

9

Line drawing of a medical device with attached tubing and a blue clip, showing no text or symbols

Diagram of a mechanical device with coiled tubing and a cross mark, no text or symbols present

Illustration of a medical device with a coiled cable and a blue checkmark (no text or symbols)

10

			200-600 g	1-8 min	5
			1 - 8 x ○	2-5 min	5
				30 s	1
				3-4 min	5
				30 s	1
				3-5 min	5
				30 s	1
				3-5 min	5
				30 s	1
				3-5 min	5
			[IMAGE]	[IMAGE]	[IMAGE]
						×
		[A2XT]

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ With genuine parts and accessories.
■ for stirring, beating and mixing soft foods and liquids.
■ to knead soft dough.
■ In private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ Up to an altitude of max. 2000 m above sea level.

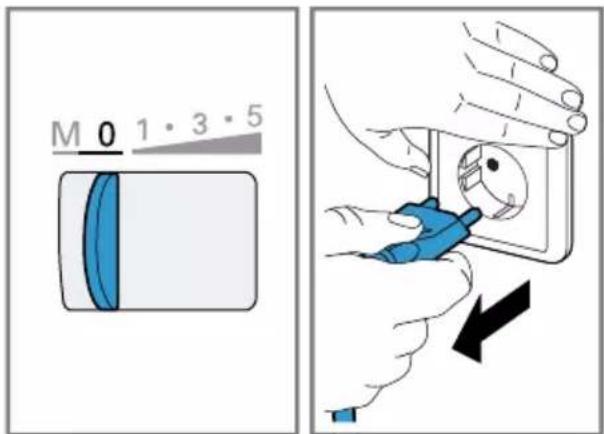

After each use, whenever the appliance is unsupervised, prior to assembly, disassembly or cleaning and in the event of an error, it must always be disconnected from the mains.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cable.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
  ▶ Never immerse the main unit in the food to be blended.
  ▶ Never operate a damaged appliance.
  ▶ Never let the power cord come into contact with hot parts or be dragged over sharp edges.

▶ Never place the appliance on or near hot surfaces.
▶ After switching off, wait until the drive has come to a complete standstill.
- Keep hands, hair, clothing and utensils away from rotating parts.
▶ Never leave the appliance switched on if the power supply is interrupted. The appliance will automatically start up again following the interruption in the power supply.
▶ Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
▶ Be careful when processing hot food.
Leave boiling food to cool down to at least 70 °C before processing.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

Avoiding material damage

▶ Do not operate the appliance at no-load.
▶ Never use the blender jug in the microwave or oven.

Overview

→ Fig. 1

1	Switch
2	Ejector button
3	Release buttons
4	Apertures (with lock) for inserting the tools
5	Cable clip ^1
6	Self-closing rear aperture
7	FineCreamer whisks
8	Kneading hook ^1

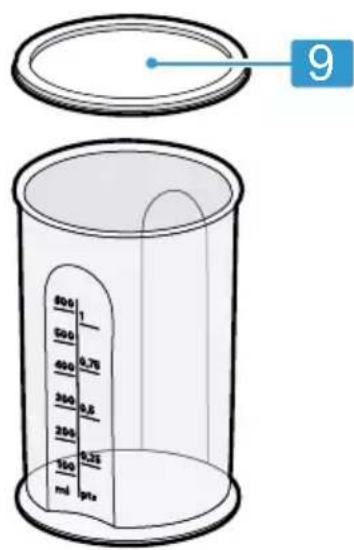

9	Lid ^1
10	Plastic blender jug ^1
11	Blender foot ^1 2

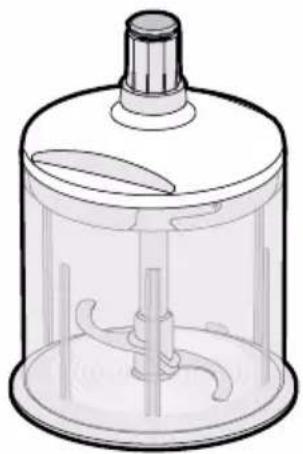

12	Universal cutter ^1 2

^1 Depending on the model ^2 separate operating instructions

Note: If an accessory is not included in the scope of supply, it can be ordered from customer service.

Operating elements

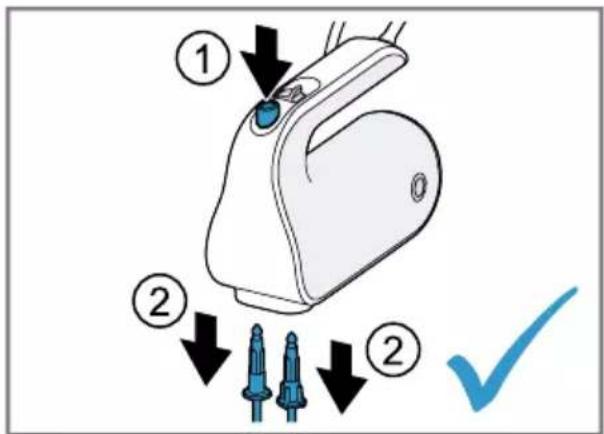

Ejector button

For removing the tools.

Note: The ejector button can only be actuated if the switch is position0.

Self-closing rear aperture

For inserting accessories, e.g. blender foot. Only open the lock when the switch is in position 0

Release buttons

For removing the accessories from the rear aperture.

Switch

Symbol Function
0	switched off
1	lowest speed
5	highest speed
M	Instantaneous switching(highest speed) press tothe left and hold in place

en Tools

Note: When the rear aperture is open, the selector switch will not function between levels 1 and 5.

Tools

Whisks

The whisks are suitable for the following tasks:

■ beating egg whites or cream
■ making light dough such as sponge mixture, cake mixture or pancake batter Recommendations for optimum results:

■ Use cream with a fat content of at least 30% and when at 4-8 °C

■ Whip cream or beat egg whites in a wide jug

Note: To make mayonnaise, use the blender foot.

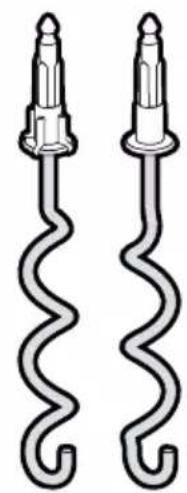

Kneading hooks

The kneading hooks are suitable for making different types of dough such as yeast dough, bread dough, pizza, strudel or short-crust pastry.

Note: The maximum processing quantity is 500 g flour and ingredients.

Processing food with the tools

Notes

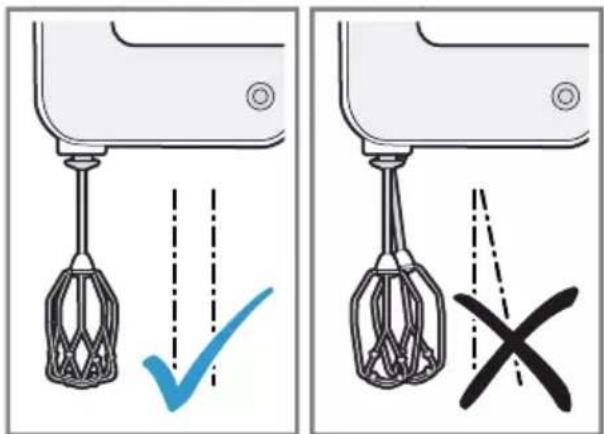

■ Only use tools of the same type in pairs.
■ Note the shape of the plastic parts on the tools to avoid mixing up the tools!

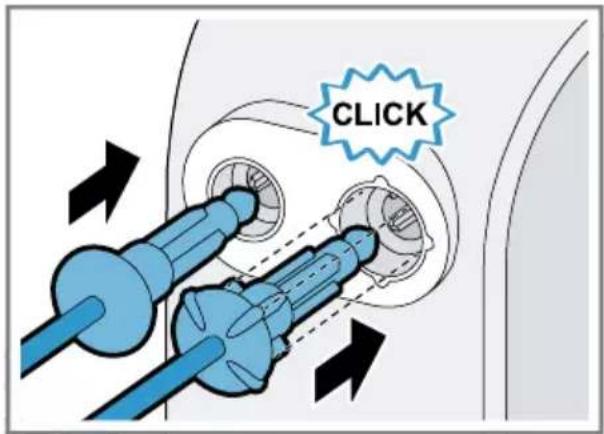

- Insert the tools one after the other to prevent them from becoming entangled.

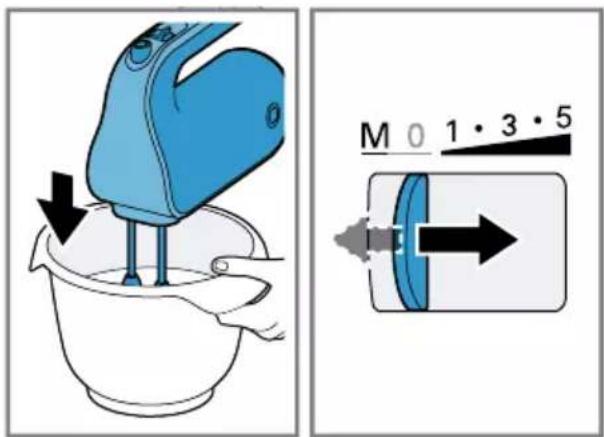

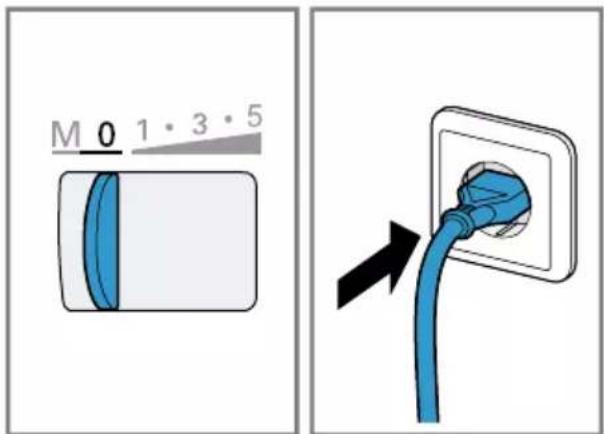

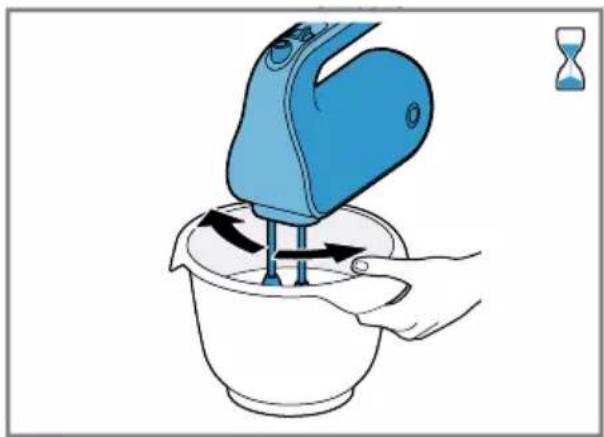

→ Fig. 2 - 9

Storage

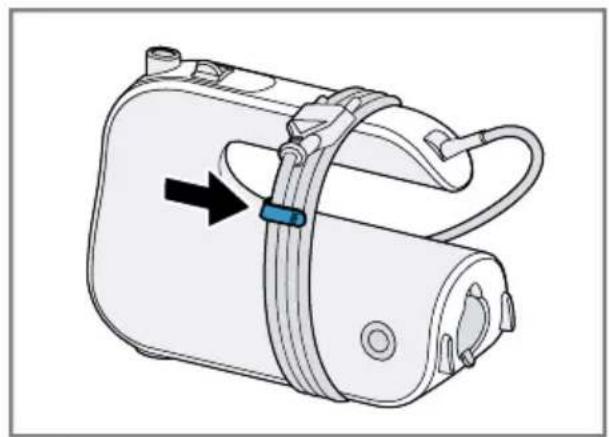

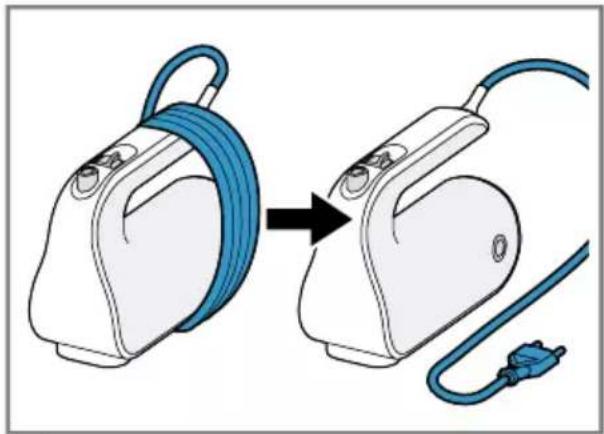

1. To store, the power cord can be wound up and the mains plug secured with the cable clip.

Fig. 10

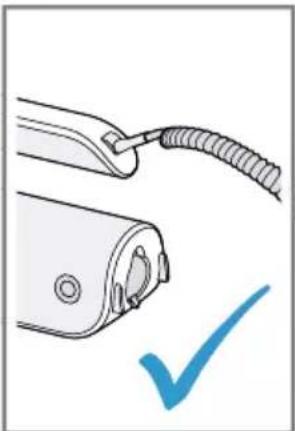

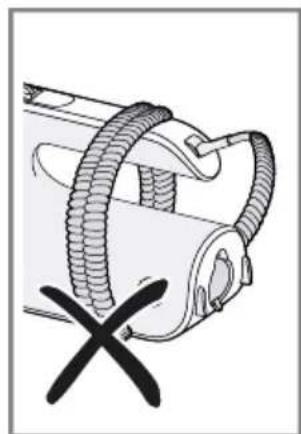

1. Appliances with a spiral cord: Never wind the cord around the appliance!

→Fig. 11

Application examples

Always observe the maximum quantities and processing times in the table.

→ Fig. 12

Overview of cleaning

Clean the individual parts as indicated in the table.

→ Fig. 13

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
