BC30LEF2301 - Dehumidifier Be Cool - Free user manual and instructions

USER MANUAL BC30LEF2301 Be Cool

White industrial water heater with black lid and control panel (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Caution,risk of fire

Line drawing of a portable air purifier with internal components and a closed case (no text or symbols)

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram illustrating the installation and disassembly of a water heater system, showing step-by-step assembly with labeled components and connection conditions.

White portable air purifier with 'BE COOL' branding and control panel (no visible text beyond label)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES CORPORELS ET/OU MATÉRIELS ET/OU LA PERTE DU DROIT À LA GARANTIE !

Caution, risk of fire

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT, LE PRODUIT DE REMPLISSAGE ET LE RACCORDEMENT ÉLECTRIQUE.

BE COOL

Line drawing of a portable air purifier with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram illustrating the installation and disassembly of a water heater system, showing step-by-step assembly with labeled components and connection conditions.

White portable water heater with black lid and 'BE COOL' branding, no visible text or symbols on body

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

Caution, risk of fire

INFORMAZIONI IMPORTANTI SU SICUREZZA, UBICAZIONE, AGENTE DI RIEMPIMENTO E COLLEGAMENTO ELETTRICO.

BE COOL

Line drawing of a portable air purifier with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram illustrating the installation and disassembly of a water heater system, showing step-by-step assembly with labeled components and connection conditions.

White portable water heater with black lid and 'BE COOL' branding, no visible text or symbols on body

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

BE COOL

Actuele handleidingen en andere talen

QR code image containing encoded data, no visible human-readable text

LEES DE BEDIENINGSINSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF VERLIES VAN DE GARANTIEDEKKING!

Caution, risk of fire

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE, VULMIDDEL EN ELEKTRISCHE AANSLUITING.

BE COOL

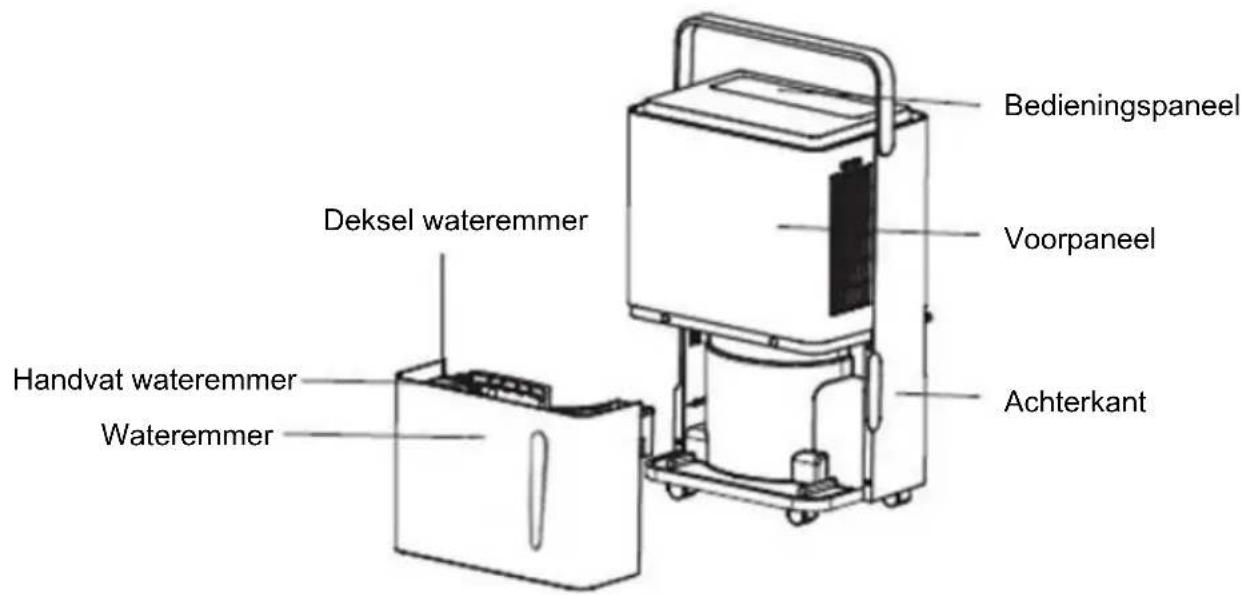

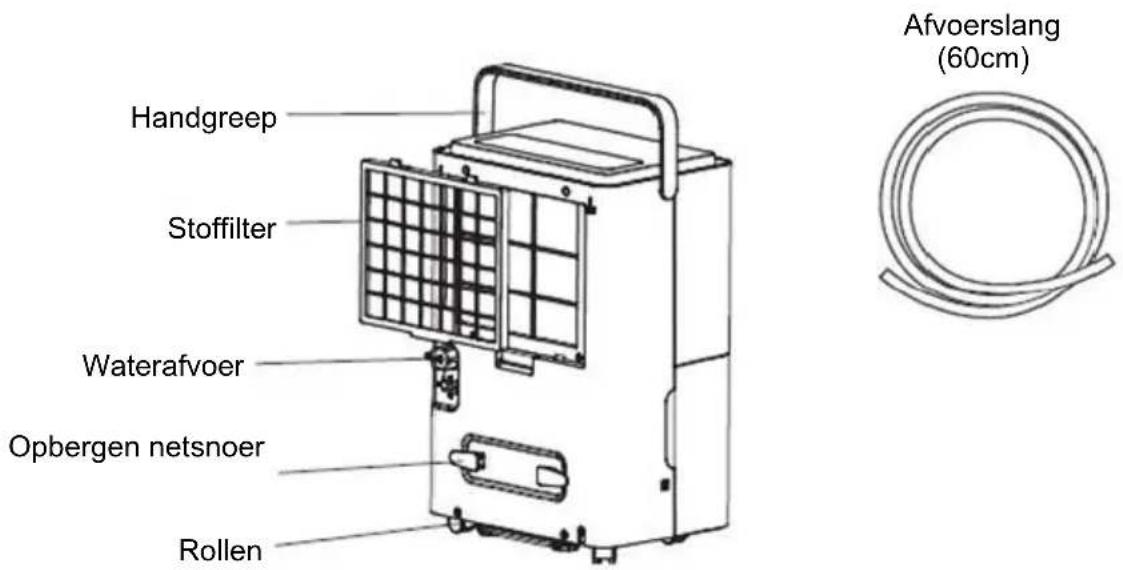

BESCHRIJVING VAN HET APPARAAT

Voor

Bedieningspaneel Voorpaneel Deksel wateremmer Handvat wateremmer Wateremmer Achterkant

Achterkant

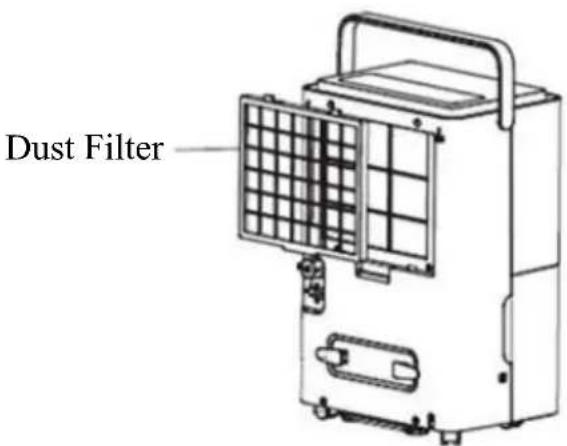

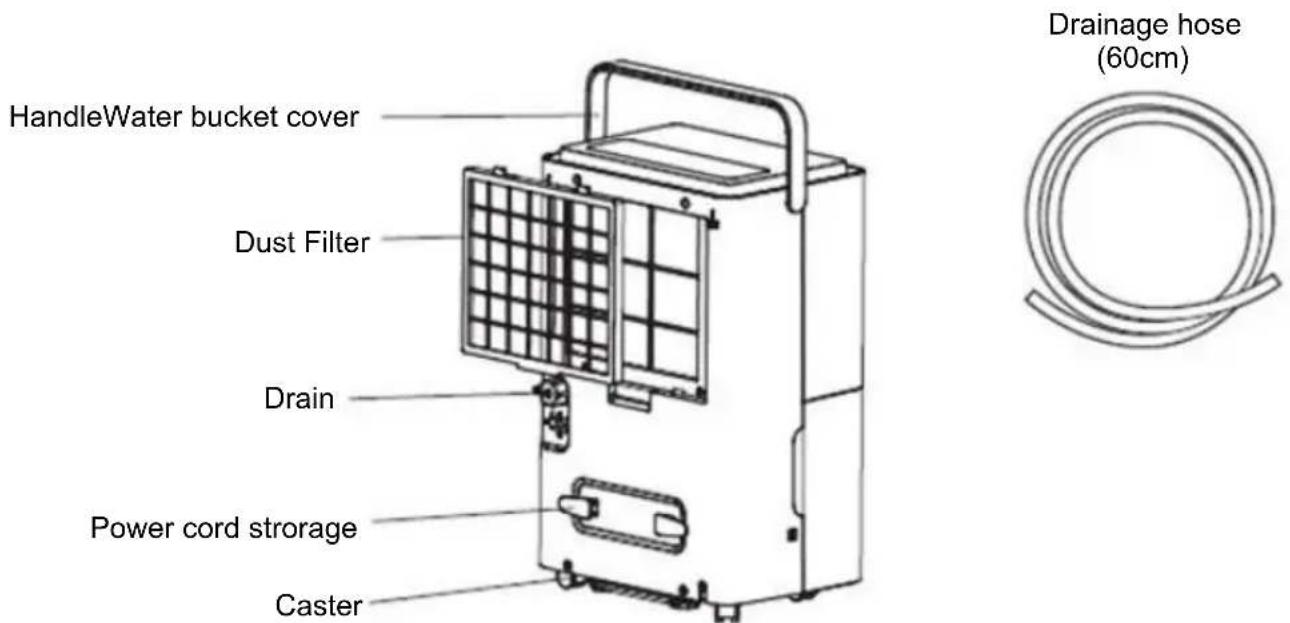

Handgreep Stofffilter Waterafvoer Opbergen netsnoer Rollen Afvoerslang (60cm)

BE COOL

INSCHRIJVING

VOOR DE EERSTE INGEBRUIKNAME

Diagram illustrating the installation and disassembly of a water heater system, showing step-by-step assembly with labeled components and connection conditions.

Exterior view of a white industrial water heater with 'BE COOL' branding and control panel (no other text or symbols visible)

ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

Caution, risk of fire

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram showing three stages of a water heater system with labeled components and connection points

Exterior view of a white portable air conditioner unit (no visible text or symbols on the device body)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE NÁVOD K OBSLUZE. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUČNÍHO KRYTÍ!

Caution, risk of fire

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ, PLNIDLE A ELEKTRICKÉM PŘIPOJENÍ.

Line drawing of a portable air purifier with internal components and a closed case (no text or symbols)

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram illustrating the installation and disassembly of a water heater system, showing step-by-step assembly with labeled components and connection conditions.

White portable water heater with black lid and control panel, labeled 'BE COOL' (no other text or symbols visible)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU ZÁRUČNÉHO KRYTIA!

Caution, risk of fire

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ, PLNIACOM PROSTRIEDKU A ELEKTRICKOM PRIPOJENÍ.

BE COOL

Line drawing of a portable air purifier with internal components and a closed case (no text or symbols)

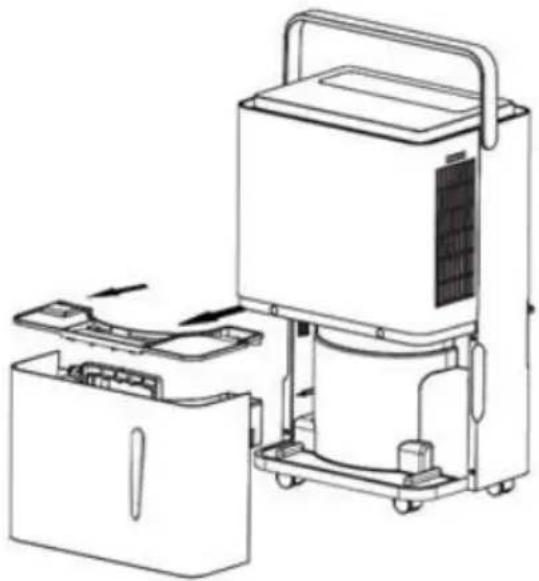

Opatrne vložte vedro spät' a znovu ho spustite.

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram showing four different installation methods for a water heater, with annotations indicating '×' and '×10CM' specifications.

White portable water heater with black lid and control panel, labeled 'BE COOL' (no other text or symbols visible)

FELICITĂRI!

VĂ MULȚUMIM CĂ ATI ALES UN PRODUS BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE INSTRUCTIUNILE DE UTILIZARE ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANTĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU PIERDEREA ACOPERIRII GARANȚIEI!

Caution, risk of fire

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA, AGENTUL DE UMPLERE ŞI CONEXIUNEA ELECTRICĂ.

BE COOL

Line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Line drawing of a portable air purifier with cooling unit and internal components (no text or symbols)

Diagram showing three stages of a water heater system with labeled components and connection points

Exterior view of a white industrial water heater with 'BE COOL' branding and control panel (no additional text or symbols visible)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZEĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

Caution, risk of fire

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI, CZYNNIKA NAPEŁNIAJĄCEGO I PODŁĄCZENIA ELEKTRYCZNEGO.

BE COOL

Line drawing of a portable air purifier with internal components and a closed case (no text or symbols)

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Diagram illustrating the installation and disassembly of a water heater system, showing valve placement and connection to a water outlet.

Exterior view of a white industrial water heater with control panel and indicator lights (no visible text or symbols)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL.

BE COOL

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE NAVODILA ZA UPORABO. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

Caution, risk of fire

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI, POLNILNEM SREDSTVU IN ELEKTRIČNEM PRIKLJUČKU.

BE COOL

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

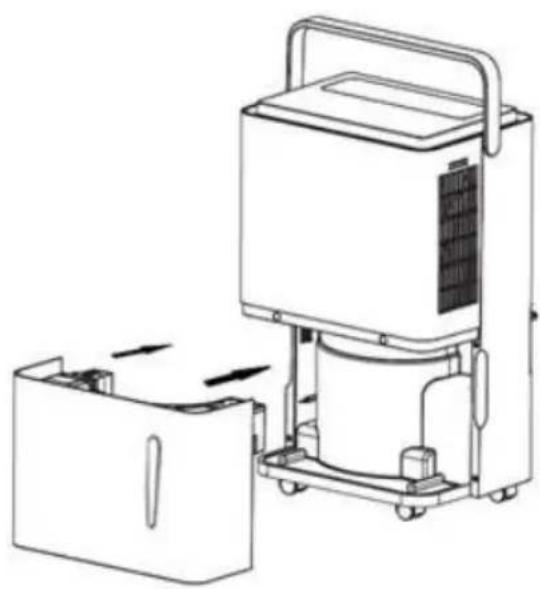

Previdno ponovno vstavite vedro in ga ponovno zaženite.

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Technical diagram of a refrigerant unit with labeled components and directional arrows indicating airflow or movement.

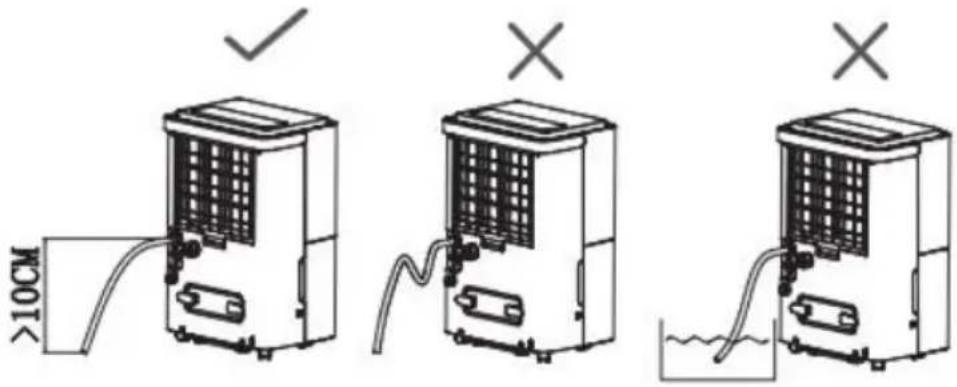

>10CM ✓ × ×

POZOR! Odtok vode mora biti nižje od odtoka vode iz aparata. Naprave ne postavljajte na tla in ne napeljite cevi navzgor!

Exterior view of a white BE COOL air purifier with control panel and indicator lights (no text or symbols on the device itself)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI PROIZVOD BE COOL.

BE COOL

Aktualne upute za uporabu i drugi jezici

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS, PAŽLJIVO PROČITAJTE UPUTE ZA KORISNIKE PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

Caution, risk of fire

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI, PUNILIMA I ELEKTRIČNOM POVEZIVANJU.

Line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

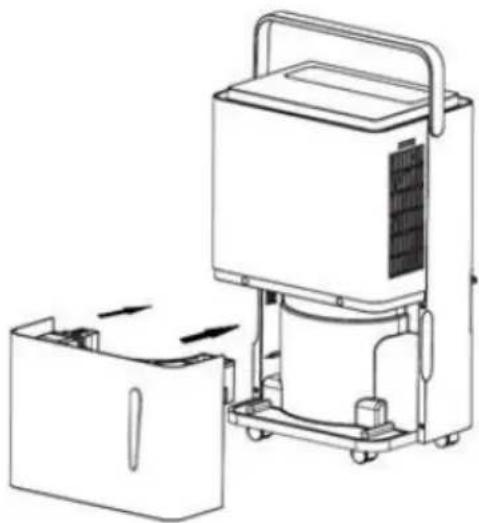

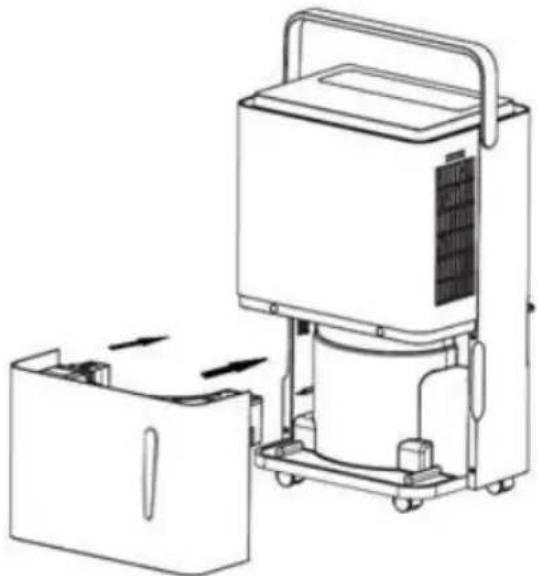

Pažljivo ponovno umetnite kantu i ponovno pokrenite.

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Napomena: U spremniku za vodu provjerite je li plovak u ispravnom položaju. Ne uklanjajte plovak i osigurajte da se može slobodno okretati. Ako se plovak ukloni, uređaj više neće prepoznati kada je spremnik vode pun.

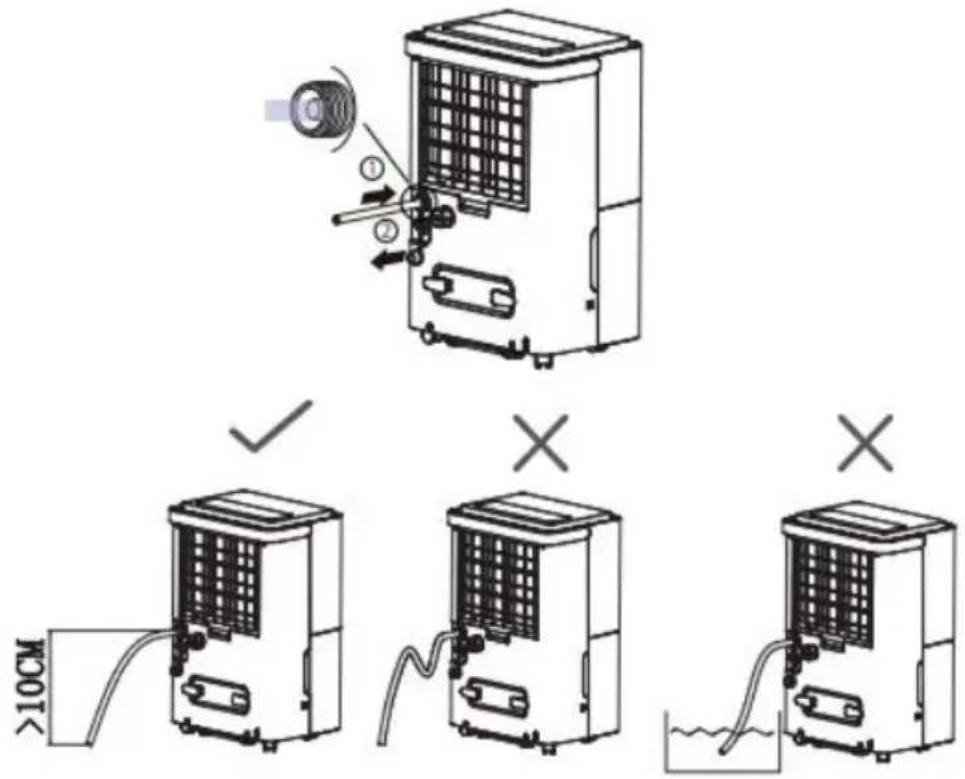

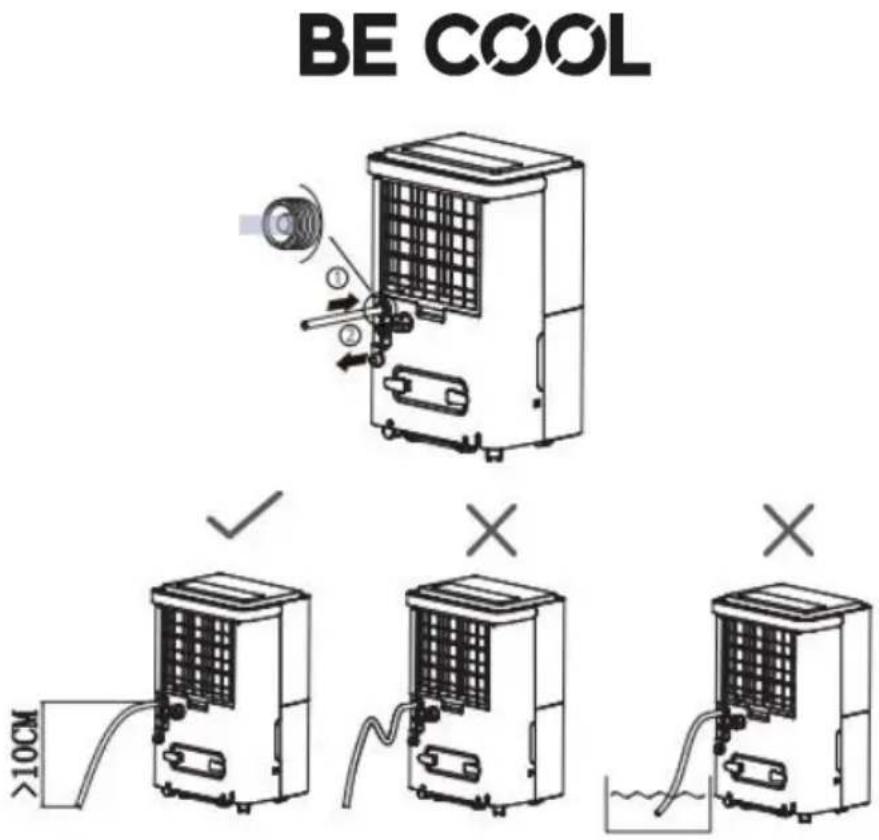

Kada se koristi s odvodnim crijevom

• Pričvršćivanjem priloženog odvodnog crijeva, voda se može automatski ispustiti u podni odvod. Alternativno se mogu koristiti i druga crijeva. (unutarnji promjer 0,35 inča)
• Straga ćete pronaći otvor za vodu. Izvadite utikač.
• Pričvrstite jedan kraj odvodnog crijeva na odvodni otvor.
• Usmjerite drugi kraj crijeva na odvod.

BE COOL

Diagram showing four stages of a water heater system with labeled components and connection points

OPASNOST! Odvod mora biti u nižem položaju od izlaza vode uređaja. Ne postavljajte uređaj na tlo i vodite crijevo prema gore!

White portable water heater with black lid and control panel (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A BE COOL PRODUCT.

BE COOL

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONS AND / OR PROPERTY DAMAGES AND / OR LOSS OF THE WARRANTY CLAIM!

Caution,risk of fire

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELECTRICAL CONNECTION.

Use this device only in accordance with the guidelines in the operating instructions. Any other use that is not

BE COOL

recommended by the manufacturer could result in fire, electric shock, or personal injury.

1. This device is intended for dehumidification in households only and must not be used for any other purpose.

2. The device is not suitable for continuous and precision operation.

3. Remove the packaging and make sure that the device is not damaged. If in doubt, do not use the device and contact the service center or your dealer.

4. If the device has a defect, switch it off and contact your dealer or the customer hotline.

5. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorized service center to avoid all possible risks.

6. For any repairs, always and only contact customer service points authorized by the manufacturer. You can access the customer service centers online at www.becool.at.

7. Before connecting to the mains, you must check whether the type of current and the mains voltage match the specifications on the device nameplate.

8. The electrical socket in which you connect the device must not be defective or loose and must be suitable for the required current load and, above all, must be reliably grounded. If in doubt, have your electrical installation checked by a qualified electrician.

9. Avoid using an extension cord as this could overheat and cause a fire.

BE COOL

1. It is forbidden to adapt or modify the properties of this device in any way and only use spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

2. Children must not play with the device.

3. Do not let children play with the packaging - IF SMALL PARTS ARE SWALLOWED THERE IS A RISK OF SUFFOCATION!

4. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities as well as lack of experience and knowledge may only use this device if it is done under appropriate supervision and it provides detailed instructions on how to use the device in a safe manner and how it came, and the existing dangers have been described.

5. Do not operate the device unsupervised. If you leave the room, always switch off the device.

6. Do not twist or kink the power cord.

7. Do not use the device with wet hands.

8. Do not use the device outdoors.

9. Never cover the device.

10. Never operate the device in rooms where gas, oil or sulfur occur.

11. Do not use the device near water or excessive moisture, e.g. in damp cellars, next to swimming pools, bathtubs or showers. Make sure that no water gets into the device.

12. Do not place the device near heat sources (e.g. next to heating systems) and avoid direct sunlight.

13. Keep a minimum distance of at least 50 cm from flammable substances (e.g. alcohol) or pressurized containers (e.g. spray containers).

BE COOL

1. Do not place heavy or hot objects on the device.

2. Place the device on a stable and level surface.

3. Never insert fingers, pens or other objects into the device and make sure that the air inlet and outlet are never blocked.

4. Empty the water tank as soon as the "water tank full" indicator lights up.

5. Do not move the device quickly when there is water in the water tank to avoid water leakage or splashing.

6. When inserting the water tank, always make sure to press it firmly into the dehumidifier.

7. If you want to move the device, always make sure that the parking brakes are released.

8. PLEASE NOTE → The dehumidifier has an automatic defrost function. If frost forms on the evaporator coil, the compressor will automatically shut down, but the cooler will continue to run until the frost dissipates. When the coil is completely thawed, the compressor starts automatically and dehumidification continues.

9. Unplug and empty the water tank when you are not using the device.

10. Always switch the device off before pulling the mains plug.

11. Do not pull on the power cord to disconnect the device from the mains. Always pull on the plug to pull out the power cord.

12. Do not handle the plug with wet hands to avoid electric shock.

13. Store the device vertically in a safe, dry and inaccessible place for children when it is not in use and do not cover the device with plastic packaging.

14. Maintain and clean the device in good condition. If you have any questions about maintenance, you can

BE COOL

contact the customer hotline / service center authorized by the manufacturer.

SPECIFIC INFORMATION ON REFRIGERANT R290

1. R290 is a refrigerant according to the EC environmental guidelines.

2. The refrigerant is odorless.

3. The appliance should be installed in a room where there are no ignition sources in operation (e.g.: open fire, gas and electrical appliances in operation with open heat source)

4. Do not perforate or burn the air conditioner.

5. Make sure that the cooling circuit is not drilled.

6. Non-ventilated rooms in which the appliance is installed, operated or stored must be designed in such a way that any loss of refrigerant does not build up. This avoids the risk of fire or explosion caused by ignition of the refrigerant caused by electric ovens, cookers or other sources of ignition. The device must be stored in such a way that no mechanical damage can occur.

7. Persons operating or intervening on a refrigeration circuit shall be in possession of a valid certificate issued by an authorized authority certifying their expertise in the handling of refrigerants by a rating specification recognized by the industry associations.

8. The repair work must be carried out according to the instructions of the manufacturer of the device. Repair and maintenance operations that require the use of additional specialist personnel are to be carried out under the supervision of a specialist who is responsible for the handling of flammable refrigerants.

9. Repair work must be carried out in accordance with the instructions provided by the manufacturer of the appliance. Repair and maintenance operations that require the intervention of additional qualified personnel must be carried out under the supervision of the qualified person responsible for handling flammable refrigerants.

BE COOL

Recycling, Disposal, Declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will help to protect resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

SCOPE OF DELIVERY

In the scope of delivery of the BE COOL dehumidifier you will receive:

• 1x dehumidifier
  • 1x instruction manual
• 1x waste water hose

BE COOL

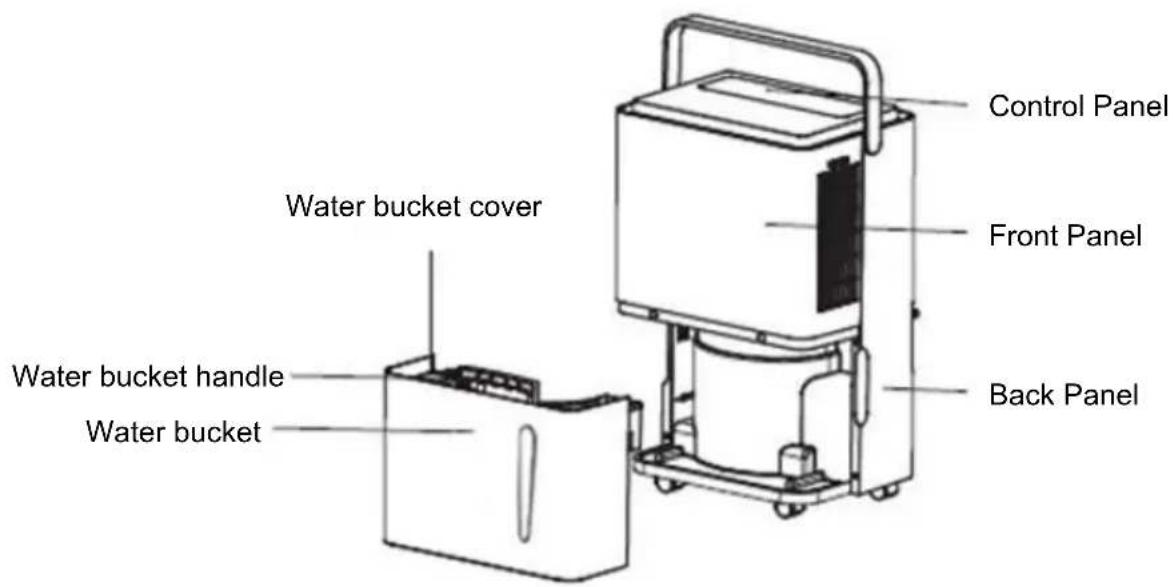

DESCRIPTION OF THE UNIT

Front:

Control Panel Front Panel Water bucket cover Water bucket handle Water bucket Back Panel

Back:

HandleWater bucket cover Dust Filter Drain Power cord storage Caster Drainage hose (60cm)

BE COOL

START UP

BEFORE THE FIRST COMMISSIONING

Unpack the Unit

• Open the box and remove the unit.
• Remove the packaging completely from the appliance.

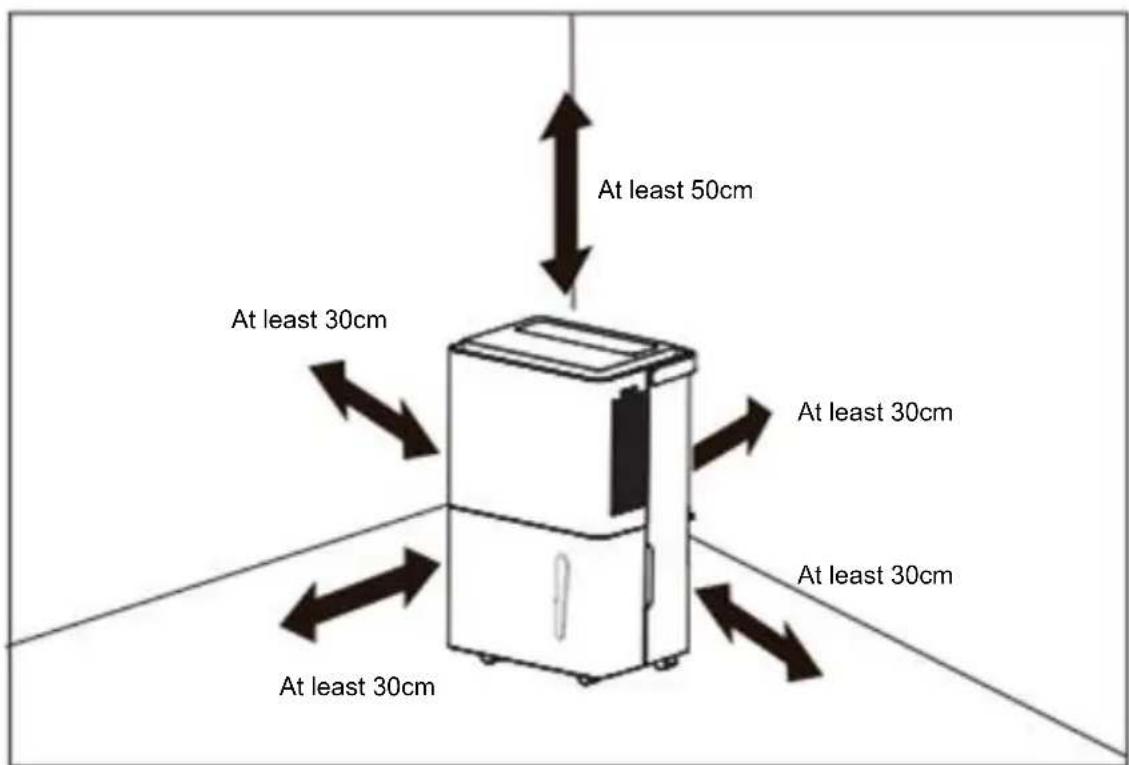

INSTALLATION

Please observe the following points during installation.

• Place the unit on a level and firm surface so that the unit is in a fixed position.
• The distance to walls or other objects must be at least 50 cm.
• Before using the unit, make sure that both the air inlet and the air outlet are free of obstacles and not blocked.
• Connect the appliance to a grounded socket.
• if the dehumidifier has been moved, it must stand upright for 24 hours before each use to avoid damage to internal components.

At least 50cm At least 30cm At least 30cm At least 30cm At least 30cm

BE COOL

FUNCTIONS

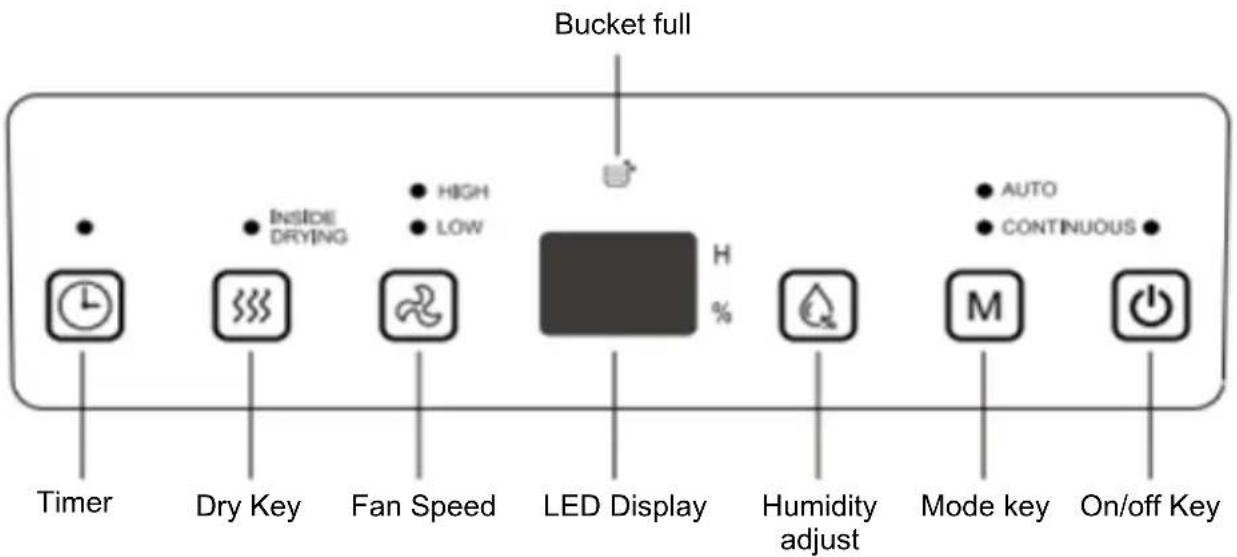

Operate the dehumidifier using the control panel:

Bucket full Timer Dry Key Fan Speed INSIDE DRYING HIGH LOW LED Display H % Humidity adjust AUTO CONTINUOUS Mode key On/off Key

	TimerPress the button to set the on/off time of the dehumidifier.The setting range is 1-24 hours. If you want to cancel the timer setting, press twice after confirming the setting time.
	Dry KeyPress this button to start the drying process in the dehumidifier.
	Fan SpeedPress the Speed button to set the speed of the fan.
	LED-DisplayIn AUTO, Continuous and DRYING modes, the display shows the room humidity. When the humidity is set in AUTO mode, the display shows the set humidity and the set time in timer status.
	Humidity adjustThe humidity is set in a circle in the range of 30% - 80% in steps of five, the humidity setting only works in automatic mode.

BE COOL

	Mode-KeyBy pressing this key, you can switch between the different modes. The corresponding indicator light will turn on.Press and hold this key for more than 3 seconds to activate the child lock (key lock).
	On / Off – KeyPress this button to switch the dehumidifier on or off.

Operating modes

Timer

• Press the timer button once to activate the timer mode.
• The display lights up, flashes and shows "00".
• Press the timer button repeatedly and select between 1 - 24 hours. After selecting the timer time, wait 5 seconds, the appliance will automatically confirm the time.
• If the unit is in standby, use steps 1 - 3 to set an automatic switch-on time.

Timer off: As soon as the desired time has elapsed, the unit switches off.

Timer on: As soon as the desired time is reached, the unit switches on automatically.

Auto Mode

In AUTO dehumidification, the compressor starts automatically as soon as the room humidity is 5% higher than the set humidity, the fan runs at the set speed.

If the humidity is 5% below the set humidity, the compressor stops, but the fan continues to run at the set speed. If the room humidity is between + 5% and - 5% of the set humidity, the unit continues to run until the room humidity is 5% below the currently set target value.

The default value set at the factory is 50% and can be selected in five steps between 30% and 80% by repeatedly pressing the "Humidity setting" button.

BE COOL

Continuous Mode

In this mode, the unit runs continuously until it is either switched off, the timer switches the unit off or the water tank is full, unless the drain hose is used. In this mode, no target room humidity can be selected.

Dry Mode

In this mode, the unit runs independently of the humidity in the room. No humidity is shown on the display in this mode and the fan runs at high power by default.

Child Lock (Key Lock)

To activate the child lock, press and hold the Mode button for more than 3 seconds. "LC" will appear on the display. To deactivate the child lock, press and hold the Mode button again for more than 3 seconds.

Drainage

When using the water tank

When the water tank is full, the appliance switches off automatically and beeps to indicate that the water tank is full. The tank full indicator lights up. The dehumidifier only continues to run after the water tank has been emptied.

BE COOL

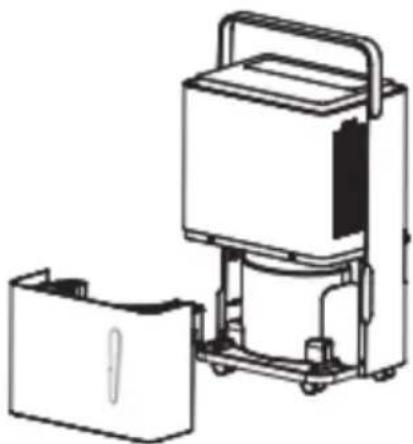

Grip each side oft the bucket and pull to remove the bucket from the dehumidifier, and remove pour the water

Line drawing of a portable air purifier with internal components and directional arrows indicating movement (no text or symbols)

Gently Re-insert the bucket, restart it.

Technical line drawing of a portable air purifier with internal components and directional arrows indicating flow (no text or symbols)

Note: Check in the water tank that the float is in the correct position. Do not remove the float and make sure that it can rotate freely. If the float is removed, the appliance will not recognise when the water tank is full.

When used with a drain hose

• By attaching the supplied drain hose, the water can be automatically emptied into a floor drain. Alternatively, other hoses can be used. (inner diameter 0.35 inch)
• At the back you will find the water outlet. Remove the plug.
• Attach one end of the drain hose to the drain hole.
• Direct the other end of the scarf to a drain.

BE COOL >10CM

ATTENTION! The drain must be in a lower position than the water outlet of the appliance. Do not place the appliance on the floor and guide the hose upwards!

If you use a drain hose that is not included in the scope of delivery, pay attention to the length of the hose. It must not be too long, as the water will run off and not be pumped out.

Note:

• Make sure that the hose connection is tight.
- Make sure that the water hose is inclined downwards and has no kinks so that the water can drain off.
- When draining the water via the hose into an external water tank, do not dip the other end into the already drained water.
- To improve the water drainage process, place the appliance in an elevated position.
- Use a short hose. If the hose is too long, there is a possibility that the water will not drain completely. Standing water in the hose can lead to mould.
- When the drain is not in use, remove the drain hose from the outlet and close it again. The water will then run back into the internal water tank.

BE COOL

Maintenance

• For maintenance of the unit, switch off the unit and disconnect it from the Power Outlet.
• When the dehumidifier is not in use, it should be disconnected from the mains supply.
• Use water and mild detergents for cleaning. Do not use bleach or abrasives to clean the appliance.
• Only use a damp cloth for cleaning. The dehumidifier must not be exposed to water jets or splashing water, as this can lead to poorer insulation or damage to the electronics.
• To clean the air inlet and outlet openings, use a soft brush or paintbrush.

Clean the water tank regularly to avoid mould in the humidifier.
Clean the plastic surface of the unit carefully with a damp cloth and use only very mild cleaning agents and no abrasives or bleach to avoid scratches or damage.
Clean the dust filter at least every 2 weeks with warm water.

BE COOL

Cleaning the Dust Filter

• Remove the dust filter from the dehumidifier and clean it.
• Use a vacuum cleaner with a soft brush attachment to remove large debris and dust.
• Wash the dust filter in lukewarm soapy water.
• Rinse the dust filter with clean water and let it dry thoroughly.
• Reinstall the dust filter.

Dust Filter

Notice: Do not clean the filter in the dishwasher. Do not operate the dehumidifier without the dust filter.

Troubleshooting

Error Codes

Error Code	Error description
FL	Water tank is full
E2	Malfunction of the inlet temperature sensor
P1	The entire machine is in defrost mode, this is not a malfunction

BE COOL

Problem	Cause	Solution
Dehumidifier does not start.	The dehumidifier is unplugged.	Make sure that the dehumidifier's mains cable is fully plugged into the socket.
	Watertank is Full.	Empty the Watertank.
	The ambient temperature is lower than 5 °C or higher than 32 °C.	Note the temperature range for which the unit is designed for.
The dehumidifier does not dry the air as desired. not as desired.	Dirty Filter.	Clean the filter as described.
	Room temperature or air humidity too low.	In the dry season, the dehumidification capacity is reduced.
The dehumidifier is noisy or makes unusual noise. Noises.	The dehumidifier is not placed horizontally.	Place the appliance on A flat surface.
	The air filter is clogged.	Clean the filter as described.
	The unit "hisses" slightly.	No fault. The flowing sound of the refrigerant.
Water leakage	Hose connection is loose.	Check the hose connection.
	Drainage system is blocked.	Remove obstacles and straighten the water pipe.
Frost occurs on the coils	The room temperature is close to or below 15°C	This is normal frost that builds up on the coils, especially when the room temperature is low. The dehumidifier defrosts automatically.

BE COOL

Technical Data

Nominal Voltage	220V – 240V
Frequency	50 Hz
Power	600 W
Humidity removal	30 L / Day (30°C / RH 80%
Air circulation	230 m3/h
Water tank capacity	4 Liters
Coolant	R290
Product dimensions	338 x 511 x 247 mm
Weight	16,6 kg
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.becool.atFB-Nr: 236974 t / FB-Court: Vienna

BE COOL

WARRANTY

By purchasing a BE COOL quality product you have acquired an innovative, long lasting and reliable item.

For this BE COOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with dehumidifier you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
- Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear

• Devices that have been used improperly

• Devices that were not opened by our authorised workshop.

- Damages caused by improperly closed condensation drains on air conditioning devices or improperly inserted water container.

• Unfulfilled customer expectations.

- Damage caused by force majeure, water, lightning and overvoltage.

• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.

• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BE COOL device!

ADDRESS

BE COOL Sales

Schuss Home Electronic GmbH

-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
