USER MANUAL BC50LEF2301 Be Cool

Exterior view of a modern white and black industrial water heater with a turquoise control panel (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Caution, risk of fire

Technical diagram of a device with numbered components, likely an air purifier or cleaning system.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Technical diagram of a heat exchanger with labeled components and directional arrows indicating assembly steps.

Technical diagram of a portable air conditioner unit with labeled components and directional arrows indicating assembly steps.

BE COOL

Hinweis:

Line drawing of a rectangular electronic device casing with a recessed lid (no text or symbols)

BE COOL

Exterior view of a modern stainless steel air purifier with a blue-lit control panel (no visible text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'INSTRUCTIONS AVANT DE COMMENCER L'ASSEMBLAGE, L'INSTALLATION, L'UTILISATION OU LA MAINTENANCE. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN SUIVANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES AUX PERSONNES ET/OU MATÉRIELS ET/OU LA PERTE DU DEMANDE DE GARANTIE!

Warning sign depicting a flame symbol in a triangular shape

Caution, risk of fire

BE COOL

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT, LE PRODUIT DE REMPLISSAGE ET LE RACCORDEMENT ÉLECTRIQUE.

Technical diagram of a device with numbered components, likely an air purifier or cleaning system.

9 10 11 12 13

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Technical diagram of a mechanical device with labeled parts, showing pipe connection and component assembly.

Technical diagram of a device with labeled parts and directional arrows indicating assembly or operation

BE COOL

Remarque :

Line drawing of a rectangular electronic device casing with a recessed top (no text or symbols)

BE COOL

Exterior view of a modern white and black industrial water heater with a blue-lit control panel (no visible text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

SI PREGA DI LEGGERE ATTENTAMENTE IL MANUALE DI ISTRUZIONI PRIMA DI INIZIARE IL MONTAGGIO, L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGI TE STESSO E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. IL MANCATO RISPETTO DELLE ISTRUZIONI POTREBBE CAUSARE DANNI A PERSONE E/O COSE E/O PERDITA DEL RICHIESTA DI GARANZIA!

Warning sign depicting a flame symbol in a triangular shape

Caution, risk of fire

INFORMAZIONI IMPORTANTI SU SICUREZZA, UBICAZIONE, AGENTE DI RIEMPIMENTO E COLLEGAMENTO ELETTRICO.

BE COOL

Technical diagram of a device with numbered components, likely an air purifier or cleaning system.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Technical diagram of a heat exchanger with labeled components and directional arrows indicating assembly steps.

Technical diagram of a device with labeled components and directional arrows indicating assembly or operation.

BE COOL

Suggerimento:

Exterior view of a modern stainless steel COOL air purifier with control panel (no visible text or symbols)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

BE COOL

Actuele handleidingen en andere talen

QR code image containing encoded data, no visible human-readable text

LEES DE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, BEDIENING OF ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSVOORSCHRIFTEN OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK EN/OF MATERIËLE SCHADE EN/OF HET VERLIES VAN DE GARANTIE!

Caution, risk of fire

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE, VULMIDDEL EN ELEKTRISCHE AANSLUITING.

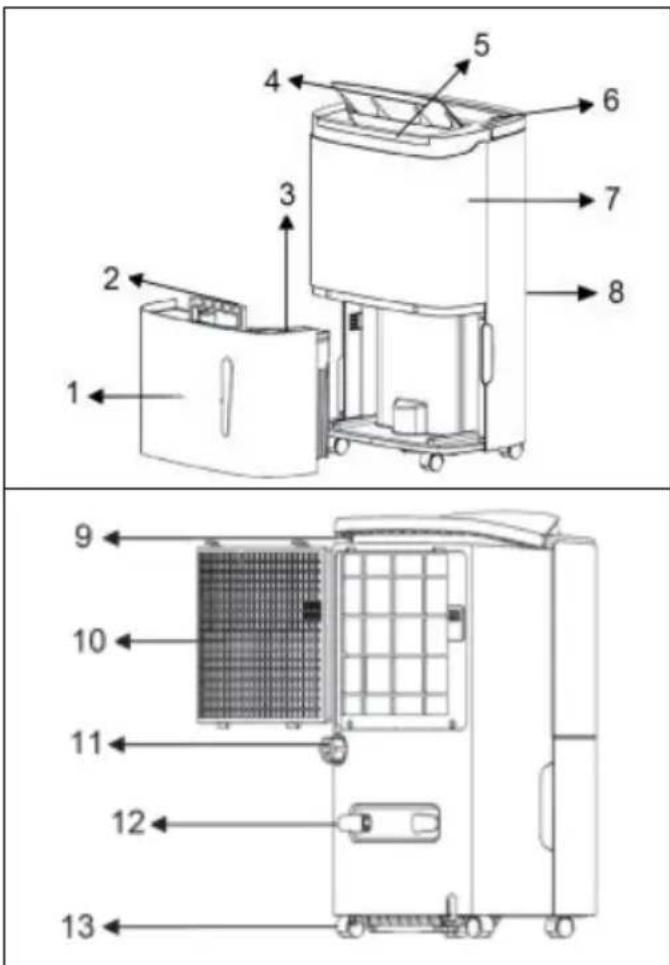

BESCHRIJVING VAN HET APPARAAT

Technical diagram of a refrigerant air conditioner unit with numbered components and labeled parts

1. Watertank
2. Watertank - handvat
3. Deksel waterreservoir
4. Windblad
5. Vochtigheidsindicator
6. Bedieningspaneel
7. Voorkant
8. Achterklep
9. Handgreep
10. Stof filter
11. Aftapplug
12. Kabelophanging
13. Wiel

INSCHRIJVING

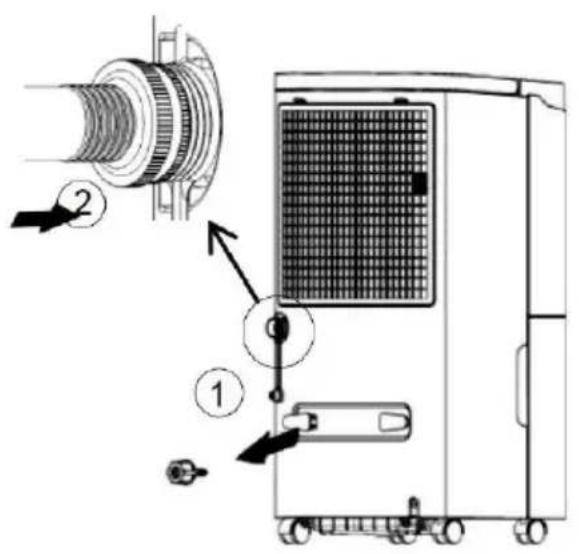

VOOR DE EERSTE INGEBRUIKNAME

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Technical diagram of a device with labeled components and directional arrows indicating assembly or installation steps.

BE COOL

Hint:

Exterior view of a modern refrigerant air purifier with a black and white body, no visible text or symbols on the device itself.

ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

Caution, risk of fire

Technical diagram of a device with numbered components, likely an air purifier or cleaning system.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Technical diagram of a mechanical device with labeled parts, showing components like a coiled spring and a heat exchanger unit.

Technical diagram of a device with labeled components and directional arrows indicating assembly or operation.

BE COOL

Pista:

Line drawing of a rectangular electronic device casing with a recessed top (no text or symbols)

BE COOL

Exterior view of a modern refrigerant air purifier with a blue-lit control panel (no visible text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

Warning sign depicting a flame symbol inside a triangle, indicating hazard or caution.

Caution, risk of fire

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ, PLNIDLE A ELEKTRICKÉM PŘIPOJENÍ.

Technical diagram of a device with numbered parts labeled 1 to 8, showing internal components and directional arrows.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Technical diagram of a device with labeled parts and directional arrows indicating assembly or operation

BE COOL

Nápověda:

Line drawing of a rectangular electronic device casing with a recessed lid (no text or symbols)

BE COOL

Exterior view of a modern industrial air purifier with a blue-lit control panel (no visible text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PREČÍTAJTE SI POZORNE NÁVOD NA OBSLUHU PRED ZAČATÍM INŠTALÁCIE, OBSLUHY ALEBO ÚDRŽBY. CHRÁŇTE SEBA A INÝCH DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV. NEUPOSLUŠNÉ DODRŽIAVANIE POKYNOV MÔŽE VEDIET K ÚRAZOM A/ALEBO POŠKODENIU MAJETKU A/ALEBO STRATE NÁROKU NA ZÁRUKU!

Warning symbol of a flame inside a triangle (no text or numbers)

Caution, risk of fire

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ, PLNIACOM PROSTRIEDKU A ELEKTRICKOM PRIPOJENÍ.

Technical diagram of a device with numbered parts labeled 1 to 8, showing internal components and directional arrows.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Technical diagram of a device with labeled components and directional arrows indicating assembly or installation steps.

BE COOL

Tip:

Exterior view of a modern refrigerant air purifier with a turquoise-lit control panel (no visible text or symbols)

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENTIE MANUALUL DE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE MONTAREA, INSTALAREA, UTILIZARE SAU ÎNTRETINERE. PROTEJAȚI-VĂ ȘI PE CEILALȚI URMARIND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA RESULTE LA PERSOANE ȘI/SAU DAUNEA PROPRIETĂȚII ȘI/SAU LA PIERDEREA RECLAMATIE DE GARANTIE!

Caution, risk of fire

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA, AGENTUL DE UMPLERE ŞI CONEXIUNEA ELECTRICĂ.

BE COOL

Technical diagram of a device with numbered components, likely an air purifier or cleaning machine.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Technical diagram of a device with labeled components and directional arrows indicating assembly or installation steps.

BE COOL

Sfat:

Line drawing of a rectangular electronic device casing with a recessed top (no text or symbols)

BE COOL

Exterior view of a modern stainless steel air purifier with a blue-lit control panel (no visible text or symbols)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PROSIMY O UWAŻNE PRZECZYTANIE INSTRUKCJI OBSŁUGI PRZED ROZPOCZĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI. PROSIMY O ZACHOWANIE BEZPIECZEŃSTWA WŁASNEGO I INNYCH OSÓB, PRZESTRZEGAJĄC WSKAZÓWEK BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE PROWADZIĆ DO OBRAŻEŃ CIAŁA I/LUB USZKODZENIA MIENIA I/LUB UTRATY PRAWA DO GWARANCJI!

Warning sign depicting a flame symbol in a triangular shape

Caution, risk of fire

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI, CZYNNIKA NAPEŁNIAJĄCEGO I PODŁĄCZENIA ELEKTRYCZNEGO.

BE COOL

Technical diagram of a device with numbered parts labeled 1 to 8, showing internal components and directional arrows.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Technical diagram of a device with labeled components and directional arrows indicating assembly or installation steps.

BE COOL

Wskazówka:

Exterior view of a white and black industrial air purifier with a turquoise logo on the front panel (no visible text or symbols on the device body)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL.

BE COOL

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM SESTAVLJANJA, NAMESTITEV, UPORABE ALI VZDRŽEVANJA POZORNO PREBERITE PRIROČNIK ZA UPORABO. ZAŠČITITE SEBE IN DRUGE Z UPOŠTEVANJEM VARNOSTNIH NAVODIL. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI OSEBNO IN/ALI PREMOŽENJSKO ŠKODO IN/ALI IZGUBO GARANCIJSKI ZAHTEVEK!

Warning sign depicting a flame symbol in a triangular shape

Caution, risk of fire

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI, POLNILNEM SREDSTVU IN ELEKTRIČNEM PRIKLJUČKU.

Technical diagram of a device with numbered parts labeled 1 through 8, showing internal components and directional arrows.

9 10 11 12 13

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Technical diagram of a device with labeled parts and directional arrows indicating assembly or operation

BE COOL

Namig:

Exterior view of a white and black industrial air purifier with a turquoise logo on the front panel (no visible text or symbols on the device body)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI PROIZVOD BE COOL.

BE COOL

Aktualne upute za uporabu i drugi jezici

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS, PAŽLJIVO PROČITAJTE PRIRUČNIK S UPUTAMA PRIJE POČETKA SASTAVLJANJA, INSTALACIJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI LJUDSKIM I/ILI IMOVINSKIM ŠTETAMA I/ILI GUBITKOM ZAHTJEV IZ JAMSTVA!

Caution, risk of fire

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI, PUNILIMA I ELEKTRIČNOM POVEZIVANJU.

Technical diagram of a device with numbered components and directional arrows indicating assembly or flow.

9 10 11 12 13

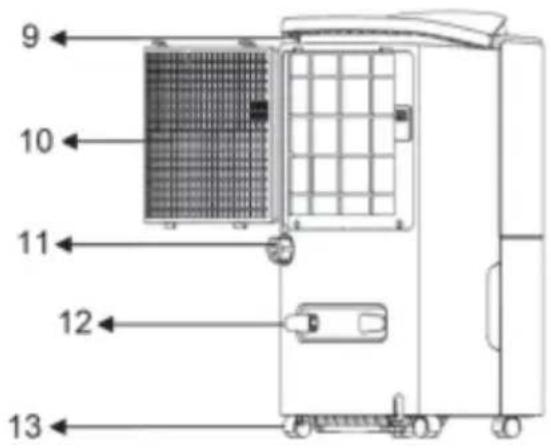

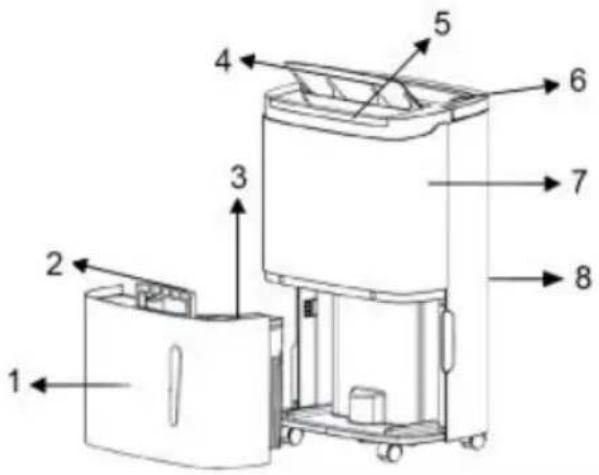

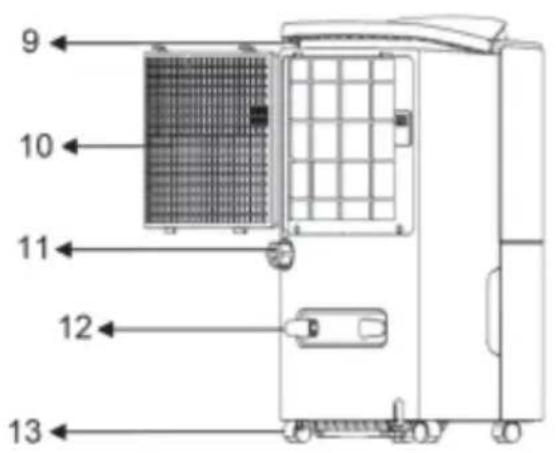

1. spremnik za vodu
2. Spremnik za vodu – ručka
3. Poklopac spremnika za vodu
4. oštrica vjetra
5. Indikator vlage
6. Upravljačka ploča
7. Naslovnica
8. Stražnja korica

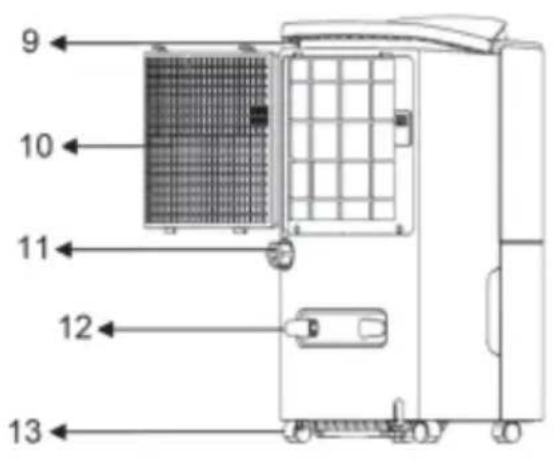

9. Ručka

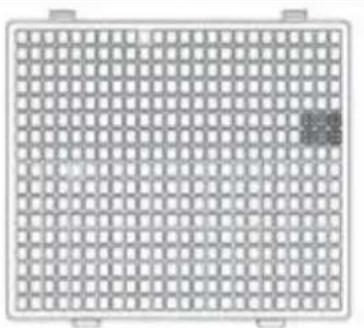

10. Filter za prašinu
11. Odvodni čep
12. Kabelski ovjes
13. kotač

MONTAŽA

PRIJE PRVE UPOTREBE

Raspakirajte uređaj

• Otvorite kutiju i uklonite uređaj.
• U potpunosti uklonite ambalažu s uređaja.

MONTAŽA

Line drawing of a multi-tiered industrial machine with open doors and wheels, showing internal components (no text or symbols)

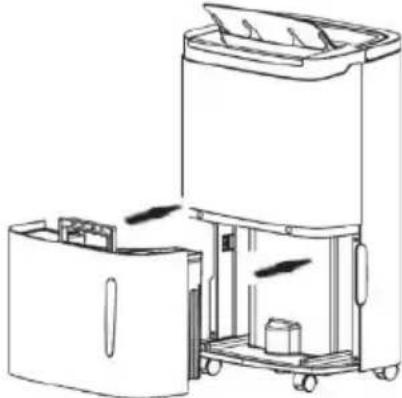

Zatvorite poklopac spremnike za vodu i okrenite ručicu spremnika za vodu prema dolje. Vratite spremnik za vodu u uređaj i ponovno pokrenite odvlaživač.

Napomena: U spremniku za vodu provjerite je li plovak u ispravnom položaju. Ne uklanjajte plovak i osigurajte da se može slobodno okretati. Ako se plovak ukloni, uređaj više neće prepoznati kada je spremnik vode pun.

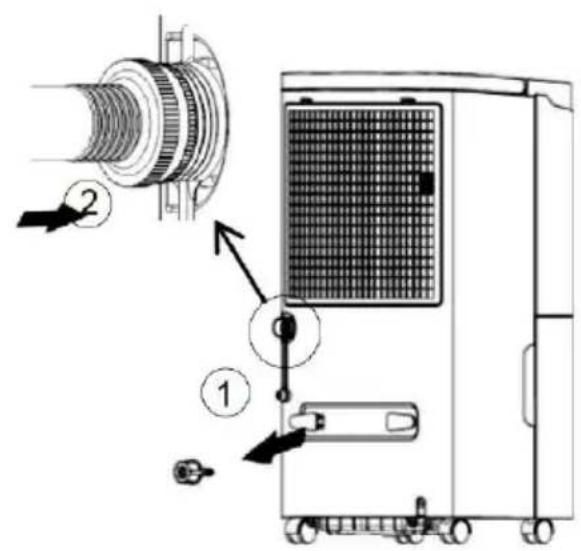

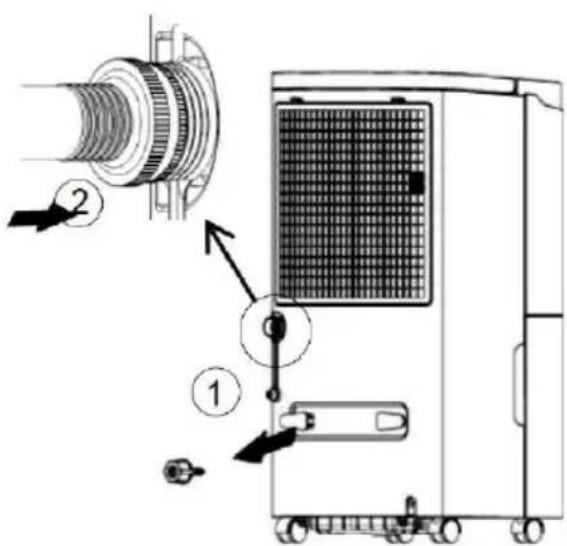

Kada se koristi s odvodnim crijevom bez funkcije pumpe

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Technical diagram of a mechanical device with labeled parts, showing pipe connection and component layout

BE COOL

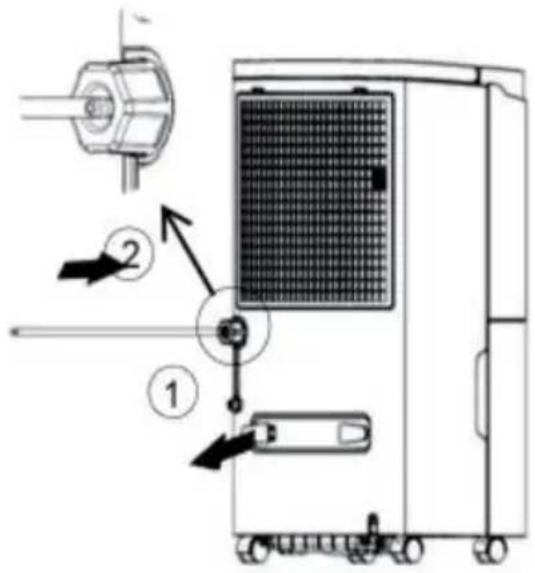

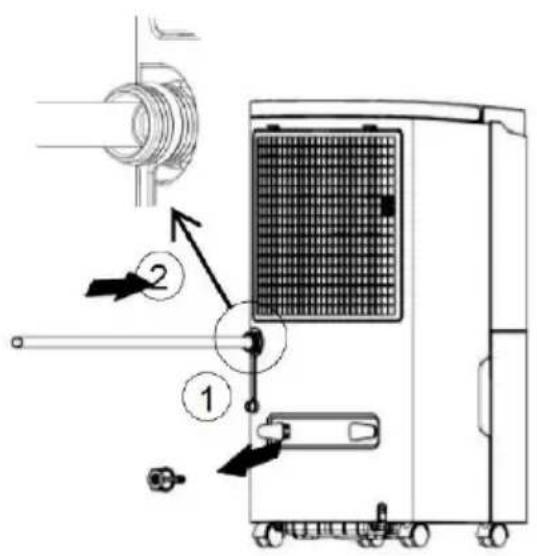

Kada se koristi s odvodnim crijevom s funkcijom pumpe

• Za korištenje s funkcijom pumpe, spojite odvodno crijevo promjera 5 mm.
• Straga ćete pronaći otvor za vodu. Izvadite utikač
• Pričvrstite jedan kraj odvodnog crijeva na odvodni otvor
• Usmjerite drugi kraj crijeva na odvod.

Technical diagram of a device with labeled components and directional arrows indicating assembly or operation.

Obavijest:

Exterior view of a modern white and black industrial air purifier with a blue-lit control panel (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A BE COOL PRODUCT.

BE COOL

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONS AND / OR PROPERTY DAMAGES AND / OR LOSS OF THE WARRANTY CLAIM!

Caution,risk of fire

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELECTRICAL CONNECTION.

Use this device only in accordance with the guidelines in the operating instructions. Any other use that is not

BE COOL

recommended by the manufacturer could result in fire, electric shock, or personal injury.

1. This device is intended for dehumidification in households only and must not be used for any other purpose.

2. The device is not suitable for continuous and precision operation.

3. Remove the packaging and make sure that the device is not damaged. If in doubt, do not use the device and contact the service center or your dealer.

4. If the device has a defect, switch it off and contact your dealer or the customer hotline.

5. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorized service center to avoid all possible risks.

6. For any repairs, always and only contact customer service points authorized by the manufacturer. You can access the customer service centers online at www.becool.at.

7. Before connecting to the mains, you must check whether the type of current and the mains voltage match the specifications on the device nameplate.

8. The electrical socket in which you connect the device must not be defective or loose and must be suitable for the required current load and, above all, must be reliably grounded. If in doubt, have your electrical installation checked by a qualified electrician.

9. Avoid using an extension cord as this could overheat and cause a fire.

BE COOL

1. It is forbidden to adapt or modify the properties of this device in any way and only use spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

2. Children must not play with the device.

3. Do not let children play with the packaging - IF _SMALL PARTS ARE SWALLOWED THERE IS A RISK OF SUFFOCATION!

4. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities as well as lack of experience and knowledge may only use this device if it is done under appropriate supervision and it provides detailed instructions on how to use the device in a safe manner and how it came, and the existing dangers have been described.

5. Do not operate the device unsupervised. If you leave the room, always switch off the device.

6. Do not twist or kink the power cord.

7. Do not use the device with wet hands.

8. Do not use the device outdoors.

9. Never cover the device.

10. Never operate the device in rooms where gas, oil or sulfur occur.

11. Do not use the device near water or excessive moisture, e.g. in damp cellars, next to swimming pools, bathtubs or showers. Make sure that no water gets into the device.

12. Do not place the device near heat sources (e.g. next to heating systems) and avoid direct sunlight.

BE COOL

1. Keep a minimum distance of at least 50 cm from flammable substances (e.g. alcohol) or pressurized containers (e.g. spray containers).

2. Do not place heavy or hot objects on the device.

3. Place the device on a stable and level surface.

4. Never insert fingers, pens or other objects into the device and make sure that the air inlet and outlet are never blocked.

5. Empty the water tank as soon as the "water tank full" indicator lights up and a signal tone sounds.

6. Do not move the device quickly when there is water in the water tank to avoid water leakage or splashing.

7. When inserting the water tank, always make sure to press it firmly into the dehumidifier.

8. If you want to move the device, always make sure that the parking brakes are released.

9. PLEASE NOTE → The dehumidifier has an automatic defrost function. If frost forms on the evaporator coil, the compressor will automatically shut down, but the cooler will continue to run until the frost dissipates. When the coil is completely thawed, the compressor starts automatically and dehumidification continues.

10. Unplug and empty the water tank when you are not using the device.

11. Always switch the device off before pulling the mains plug.

12. Do not pull on the power cord to disconnect the device from the mains. Always pull on the plug to pull out the power cord.

13. Do not handle the plug with wet hands to avoid electric shock.

BE COOL

1. Store the device vertically in a safe, dry and inaccessible place for children when it is not in use and do not cover the device with plastic packaging.

2. Maintain and clean the device in good condition. If you have any questions about maintenance, you can contact the customer hotline / service center authorized by the manufacturer.

SPECIFIC INFORMATION ON REFRIGERANT R290

1. R290 is a refrigerant according to the EC environmental guidelines.

2. The refrigerant is odorless.

3. The appliance should be installed in a room where there are no ignition sources in operation (e.g.: open fire, gas and electrical appliances in operation with open heat source)

4. Do not perforate or burn the air conditioner.

5. Make sure that the cooling circuit is not drilled.

6. Non-ventilated rooms in which the appliance is installed, operated or stored must be designed in such a way that any loss of refrigerant does not build up. This avoids the risk of fire or explosion caused by ignition of the refrigerant caused by electric ovens, cookers or other sources of ignition. The device must be stored in such a way that no mechanical damage can occur.

7. Persons operating or intervening on a refrigeration circuit shall be in possession of a valid certificate issued by an authorized authority certifying their expertise in the handling of refrigerants by a rating specification recognized by the industry associations.

8. The repair work must be carried out according to the instructions of the manufacturer of the device. Repair and maintenance operations that require the use of additional specialist personnel are to be carried out under the supervision of a specialist who is responsible for the handling of flammable refrigerants.

9. Repair work must be carried out in accordance with the instructions provided by the manufacturer of the appliance. Repair and maintenance operations that require the intervention of additional qualified personnel must be carried out under the supervision of the qualified person responsible for handling flammable refrigerants.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will help to protect resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

SCOPE OF DELIVERY

In the scope of delivery of the BE COOL dehumidifier you will receive:

• 1x dehumidifier
  • 1x instruction manual

BE COOL

DESCRIPTION OF THE UNIT

	1. Watertank2. Watertank – Handle3. Water tank Cover4. Wind Sheet5. Humidity Indicator6. Control Panel7. Front Cover8. Back Cover9. Handle10. Dust Filter11. Drain Plug12. Cable Suspension13. Wheels

START UP

BEFORE THE FIRST COMMISSIONING

Unpack the Unit

• Open the box and remove the unit.
• Remove the packaging completely from the appliance.

INSTALLATION

Please observe the following points during installation:

• Place the unit on a level and firm surface so that the unit is in a fixed position.
• The distance to walls or other objects must be at least 50 cm.

BE COOL

• Before using the unit, make sure that both the air inlet and the air outlet are free of obstacles and not blocked.
• Connect the appliance to a grounded socket.
• if the dehumidifier has been moved, it must stand upright for 24 hours before each use to avoid damage to internal components.

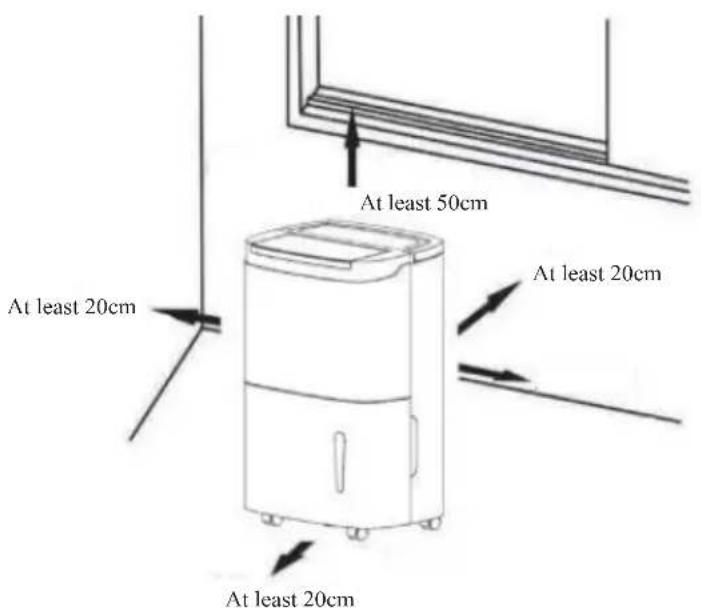

At least 20cm At least 20cm At least 50cm At least 20cm At least 20cm

FUNCTIONS

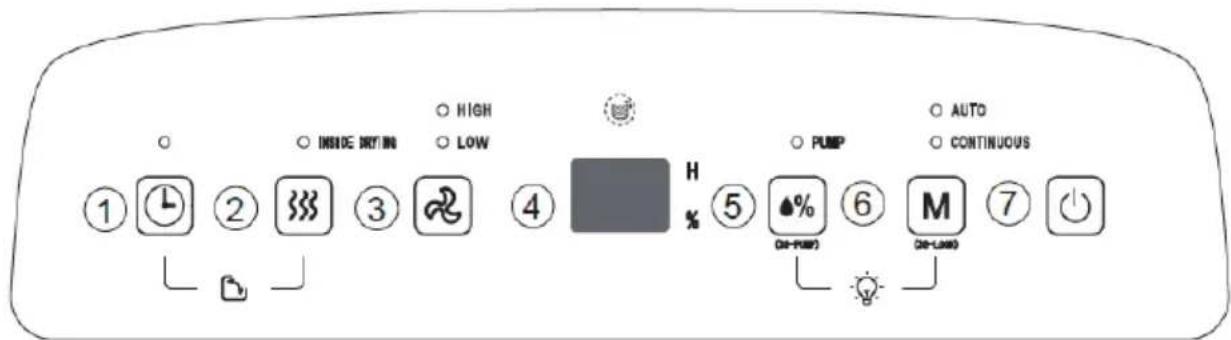

Operate the dehumidifier using the control panel:

HIGH INSIDE WITHIN LOW ① ② ③ ④ H % ⑤ ⑥ ⑦ AUTO PUMP CONTINUOUS (30-PUMP) (30-LUMP)

BE COOL

	TimerPress the button to set the on/off time of the dehumidifier. The setting range is 1-24 hours. If you want to cancel the timer setting, press twice after confirming the setting time.
	Dry KeyPress this button to start the drying process in the dehumidifier. This takes about one hour and prevents mould from forming in the appliance. Press the button again to cancel the drying process.
	Fan SpeedPress the Speed button to set the speed of the fan.
	LED-DisplayIn AUTO, Continuous and DRYING modes, the display shows the room humidity. When the humidity is set in AUTO mode, the display shows the set humidity and the set time in timer status.
	Humidity adjustThe humidity is set in a circle in the range of 30% - 80% in steps of five, the humidity setting only works in automatic mode.
	Mode - KeyPress this button to switch between the different modes. The respective lamp lights up.Press and hold the button for 3 seconds to activate the key lock / child lock. Press and hold the button again for 3 seconds to deactivate it.
	On / Off – KeyPress this button to switch the dehumidifier on or off.

BE COOL

Operating modes

Timer

• Press the timer button once to activate the timer mode while the appliance is switched on.
  • The display lights up and the time is set to 1 h.
• Press the timer button repeatedly and select between 1 - 24 hours. After selecting the timer time, wait 5 seconds and the appliance will automatically confirm the time.
• If the unit is in standby, use steps 1 - 3 to set an automatic switch-on time

Timer off: As soon as the desired time has elapsed, the unit switches off.

Timer on: As soon as the desired time is reached, the unit switches on automatically.

Auto Mode

In AUTO dehumidification, the compressor starts automatically as soon as the room humidity is 5% higher than the set humidity, the fan runs at the set speed. If the humidity is 5% below the set humidity, the compressor stops, but the fan continues to run at the set speed. If the room humidity is between +5% and -5% of the set humidity, the unit continues to run until the room humidity is 5% below the currently set target value.

The default value set at the factory is 50% and can be selected in five steps between 30% and 80% by repeatedly pressing the "Humidity setting" button.

Continuous Mode

In this mode, the unit runs continuously until it is either switched off, the timer switches the unit off or the water tank is full, unless the drain hose is used. In this mode, no target room humidity can be selected.

Dry Mode

In this mode, the unit runs independently of the humidity in the room.

No humidity is shown on the display in this mode and the fan runs at high power by default.

- Press the drying button to activate the drying function.

Duration: Approx. 1 hour.

BE COOL

• The dehumidifier operates at high fan speed and emits air for more than 30 minutes
• then the dehumidifier changes to low speed and continues to run for approx. 20 minutes.
• if you press the dry button again, the drying process is interrupted.

Drainage

When using the water tank

When the water tank is full, the appliance switches off automatically and beeps to indicate that the water tank is full. The tank full indicator lights up.

The dehumidifier only continues to run after the water tank has been emptied.

	Place both hands respectively at the side of the back cover side of the depression, gently remove the water tank and open the tank cover on the right side of the body, then pour the water from the gap between water tank and the cover.
	Close the tank cover, and rotating water tank handle down, then put the water tank gently and put it back in the right place to restart dehumidifier.

Note: Check in the water tank that the float is in the correct position. Do not remove the float and make sure that it can rotate freely. If the float is removed, the appliance will not recognize when the water tank is full.

When used with drain hose without pump function.

- By attaching a drain hose (13 mm outer diameter) or a garden hose with standard thread (26.98 mm outer diameter and 11.5 TPI rivet), the water can be automatically emptied into a floor drain.

BE COOL

• At the back you will find the water outlet. Remove the plug.
• Attach one end of the drain hose to the drain hole.
• Direct the other end of the hose to a drain.

ATTENTION! The drain must be in a lower position than the water outlet of the appliance. Do not place the appliance on the floor and guide the hose upwards

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

When used with drain hose with pump function

• For use with the pump function, connect a 5 mm diameter drain hose.
• On the back, you will find the water outlet. Remove the plug.
• Attach one end of the drain hose to the drain hole.
• direct the other end of the hose to a drain.

Note:

• Make sure that the hose connection is tight.
- Make sure that the water hose is inclined downwards and has no kinks so that the water can drain off.
- When draining the water via the hose into an external water tank, do not dip the other end into the already drained water.
- To improve the water drainage process, place the appliance in an elevated position.
- Use a short hose. If the hose is too long, there is a possibility that the water will not drain completely. Standing water in the hose can lead to mould.
- When the drain is not in use, remove the drain hose from the outlet and close it again. The water will then run back into the internal water tank.

BE COOL

Maintenance

• For maintenance of the unit, switch off the unit and disconnect it from the Power Outlet.
• When the dehumidifier is not in use, it should be disconnected from the mains supply.
• Use water and mild detergents for cleaning. Do not use bleach or abrasives to clean the appliance.
• Only use a damp cloth for cleaning. The dehumidifier must not be exposed to water jets or splashing water, as this can lead to poorer insulation or damage to the electronics.
• To clean the air inlet and outlet openings, use a soft brush or paintbrush.

Clean the water tank regularly to avoid mould in the humidifier.
Clean the plastic surface of the unit carefully with a damp cloth and use only very mild cleaning agents and no abrasives or bleach to avoid scratches or damage.
Clean the dust filter at least every 2 weeks with warm water.

BE COOL

Cleaning the Dust Filter

• Remove the dust filter from the dehumidifier and clean it.
• Use a vacuum cleaner with a soft brush attachment to remove coarse debris and dust deposits.
• Wash the dust filter in lukewarm soapy water.
• Rinse the dust filter with clean water and allow it to dry thoroughly.
  • Reinsert the dust filter.

Notice: Do not clean the filter in the dishwasher. Do not operate the dehumidifier without the filter supplied.

Troubleshooting

Error Codes

Fehlercode	Fehlerbeschreibung
FL	Water Tank is full
E1	Malfunction of the coil sensor / coil
E2	Malfunction of the room temperature sensor
P1	The unit is in defrost mode
CL	The Unit is in Dry Mode
LC	The key lock / child lock has been activated

Problem	Cause	Solution
Dehumidifier does not start.	The dehumidifier is unplugged.	Make sure that the dehumidifier's mains cable is fully plugged into the socket.
	Watertank is Full.	Empty the Watertank.

BE COOL

	The ambient temperature is lower than 5 °C or higher than 32 °C.	Note the temperature range for which the unit is designed for.
The dehumidifier does not dry the air as desired. not as desired.	Dirty Filter.	Clean the filter as described.
	Room temperature or air humidity too low.	In the dry season, the dehumidification capacity is reduced.
The dehumidifier is noisy or makes unusual noise. Noises.	The dehumidifier is not placed horizontally.	Place the appliance on A flat surface.
	The air filter is clogged.	Clean the filter as described.
	The unit "hisses" slightly.	No fault. The flowing sound of the refrigerant.
Water leakage	Hose connection is loose.	Check the hose connection.
	Drainage system is blocked.	Remove obstacles and straighten the water pipe.
Frost occurs on the coils	The room temperature is close to or below 15°C	This is normal frost that builds up on the coils, especially when the room temperature is low. The dehumidifier defrosts automatically.

BE COOL

Technical Data

Nominal Voltage	220V – 240V
Frequency	50 Hz
Power	750 W
Humidity removal	50 L / Day (30°C / RH 80%)
Air circulation	360 m3/h
Water tank capacity	7 L
Coolant	R290
Product dimensions	378 x 615 x 266 mm
Weight	19 kg
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.becool.atFB-Nr: 236974 t / FB-Court: Vienna

BE COOL

WARRANTY

By purchasing a BE COOL quality product you have acquired an innovative, long lasting and reliable item.

For this BE COOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only. In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with dehumidifier you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
- Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear

• Devices that have been used improperly

• Devices that were not opened by our authorised workshop.

- Damages caused by improperly closed condensation drains on air conditioning devices or improperly inserted water container.

• Unfulfilled customer expectations.

- Damage caused by force majeure, water, lightning and overvoltage.

- Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.

- Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BE COOL device!

ADDRESS

BE COOL Sales

Schuss Home Electronic GmbH

Scheringgasse 3

A-1140 Vienna

Type designation:

Serial number:

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
