15A1F - Monitor Innocn - Free user manual and instructions

Product type	Portable monitor
Brand	Innocn
Model	15A1F
Screen size	15.6 inches (39.6 cm)
Screen type	OLED
Resolution	1920 x 1080 pixels (Full HD)
Typical brightness	400 cd/m²
Refresh rate	60 Hz
Typical contrast ratio	100,000:1
Displayable colors	1.074 billion (8-bit + 2-bit FRC)
Built-in speakers	2 x 1.5 W
Input connectors	2x USB Type-C, 1x Mini HDMI
Dimensions (W x H x D)	359 x 229 x 8.2 mm
Net weight	730 g
Power supply	DC 20 V, 1.5 A (charger included)
Power consumption	30 W (max)
Operating temperature	0 °C to 45 °C
Main features	OSD menu, image profiles (Standard, Text, Cinema, Game, RTS, FPS), color temperature adjustment, eye protection (low blue light), HDR rendering, volume adjustment
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use harsh chemicals. Unplug before cleaning.
Safety	Do not expose to moisture, do not open the casing, use only original accessories, unplug during prolonged inactivity.
Spare parts and repairability	Contact Innocn customer service ([e-mail]) for any repairs. 1-year warranty for the screen and components.
General information	TÜV Rheinland certification for low blue light. Compatible with computers and smartphones supporting USB-C video output.

Frequently Asked Questions - 15A1F Innocn

How to turn on the Innocn 15A1F monitor?

Press and hold the power button for about 3 seconds until the LED indicator turns blue.

What to do if the screen remains black but the power indicator is on?

Check that the video cable (HDMI or USB-C) is properly connected and that the correct input source is selected in the OSD menu. Also ensure that your computer or phone supports video output via USB-C.

How to adjust brightness and contrast?

From the OSD menu, go to the 'Home' tab and use the up/down buttons to adjust brightness, contrast, and volume.

What image profiles are available?

The monitor offers 6 profiles: Standard, Text, Cinema, Game, RTS, and FPS. You can select them in the 'Profiles' menu of the OSD.

How to activate eye protection mode (low blue light)?

In the OSD menu, select 'Eye Protection' and choose the desired level. The icon turns blue once activated.

Is the monitor compatible with my mobile phone?

Yes, provided your phone supports video output via USB-C (alternate mode). Simply connect the provided USB-C cable.

How to clean the OLED screen?

Use a soft, dry cloth, slightly dampened with water if necessary. Never use abrasive products, alcohol, or solvents. Unplug the device before cleaning.

What to do if there are dead or stuck pixels?

A dead pixel is a natural defect of LCD/OLED technology. If the number of defective pixels is significant, contact Innocn customer service. For stuck pixels, try turning the screen off and on again.

How to reset to factory settings?

In the OSD menu, select the 'RESET' option and confirm to restore default settings.

What to do if the monitor does not turn on at all (indicator off)?

Check that the power adapter is properly plugged in and the outlet works. Try pressing and holding the power button for 5 seconds. If the problem persists, contact Innocn support.

USER MANUAL 15A1F Innocn

Thank you for choosing Innoc®!

We hope the Innoc® product you purchased will serve you well. To ensure safety and trouble-free operation of your device, please read the user guide carefully and keep it for future needs.

Please email us for customer service & technical support at 品 [e-mail].

We recommend you go online to our homepage for the most up-to-date guidance for your product. registering Innocn membership; referring to warranty information.

http://www.innocn.com

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,
(2) this device must accept any interference received,

including interference that may cause undesired operation.

1. Read all warnings and follow all instructions. Keep this user guide for later reference.
2. Do not use this device near water. To reduce the risk of fire or electric shock, do not expose the device to moisture.
3. Do not place the device on an uneven or unstable surface. The device may fall over resulting in an injury or malfunction.
4. Avoid exposing the device to direct sunlight or other sources of sustained heat.
5. Always use genuine INNOCN components to ensure safety and product performance.
6. To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the display.
7. Disconnect the power plug from the AC outlet if the device will not be used for a long period of time.
8. When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
9. Place the device in a well-ventilated area. Do not place anything on the device that prevents heat dissipation.
10. The power adaptor must be replaced when using different voltage from that specified in the User Guide. For more information, please contact us.
11. Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
12. Do not apply pressure to the screen. Excessive pressure may cause permanent damage to the display.
13. Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.
14. Do not attempt to repair the product by yourself. Opening the back cover may expose you to high voltages, the risk of electric shock, and other hazards. If repair is required, please contact us anytime. ([e-mail])
15. If there are visual smoke or sparks, unplug the power cord and contact us ([e-mail]). Do not try to repair the product yourself.
16. To avoid risk of electric shock, do not touch the power plug and ports with wet hands.

Table of Contents

Packaging List 4
Product Instruction 4

Key Instruction 4
Input Connector 5

OSD(On-Screen Display) Menu 6

Troubleshooting(FAQ) 10
Product Specification 11
German Rhine TUV Low Blue Light Certification 11
Warranty Information 12

Monitor x1

Mini HDMI cable x1

Type-C data cable x1

Type-C power cable x1

Charger x1

Quick Start Guide

Stand x1

Product Instruction

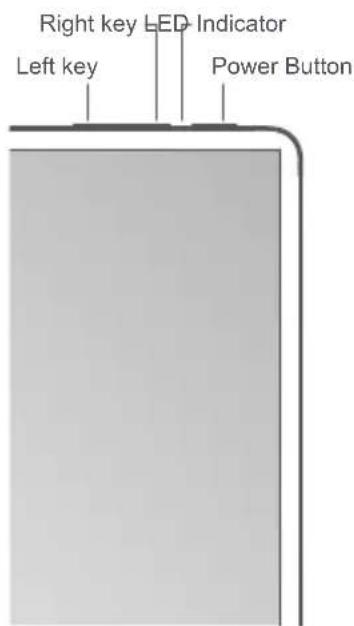

Key Instruction

1	Power Button: ·Turn on the monitor: long press the power button for 3s. ·Pop up the OSD menu/ enter to sub-menus: short press the power button. ·Return to previous menu: long press the button for 1s. ·Exit the OSD menu: long press the button for 3s.
2	LED Indicator: ·Blue: Working ·Orange: Standby mode (no signal detected) ·Dark: Power off
3	Right key: ·In the OSD menu: press the right-key to move right in the menu / turn up the progress bar. ·Without OSD menu: press the right-key to pop up the volume shortcut, then press to increase volume.
4	Left key: ·In the OSD menu: press the left-key to move left in the menu / turn down the progress bar. ·Without OSD menu: press the left-key to pop up the volume shortcut, then press to decrease volume.

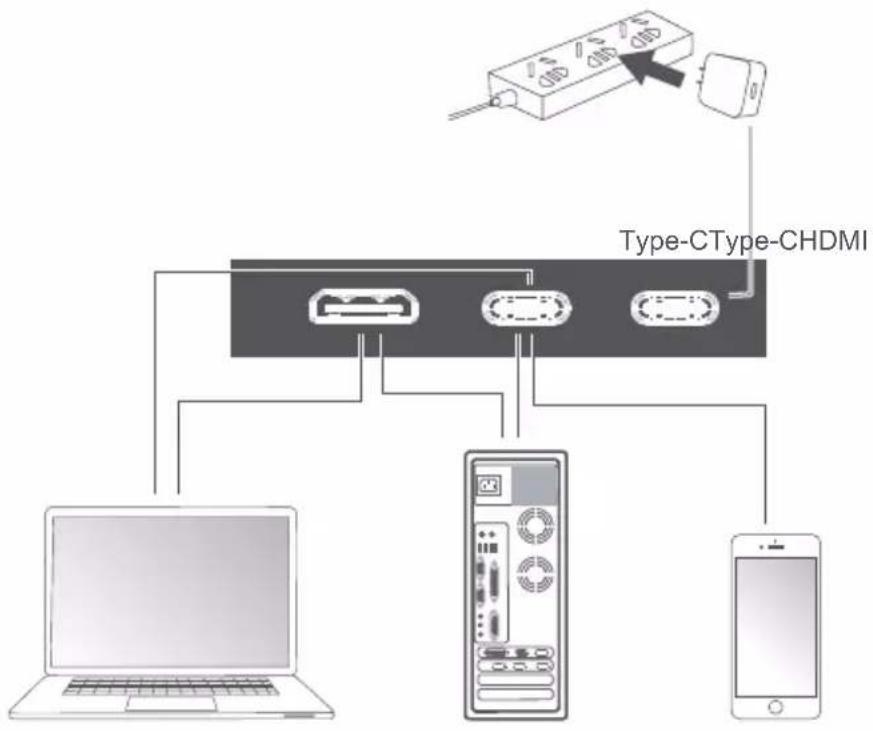

Input Connector

Notes:

If a faulty or damaged cable is delivered with the machine, please be sure to replace it with the original cable from the dealer or manufacturer.

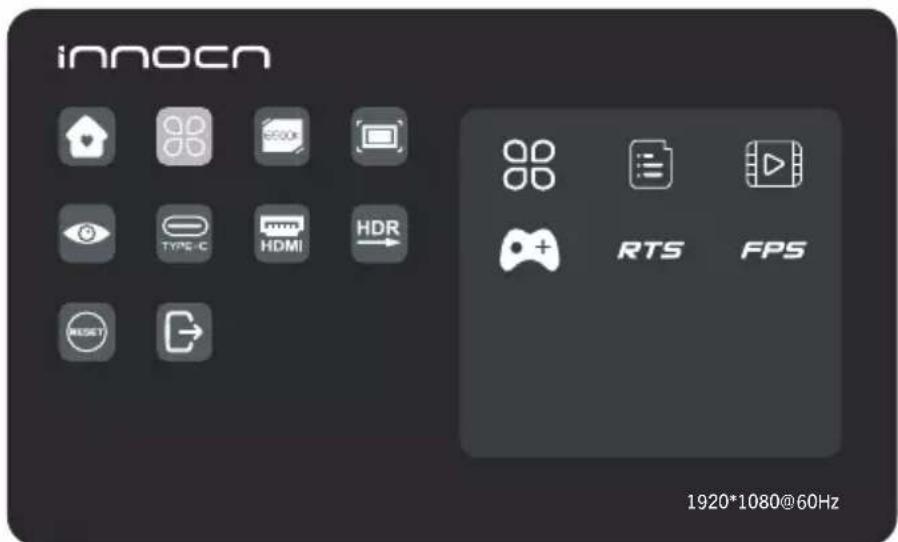

OSD(On-Screen Display) Menu

Press the menu key in the power-on state. The main menu (OSD) is displayed.

Home	Adjust Brightness,Contrast,Volume
Profiles	6 Profiles are available
Color temperature	Under USER mode, the R G B can be adjusted
Color	Adjust the chrominance color saturation sharpness
Eye protection	When it is selected, the background color of the eye protection icon turns blue. Select the eye protection level.
TYPE-C	When selected, signal source is Type-C
HDMI	When selected, signal source is HDMI
HDR Render	When it is selected, the background color of HDR render icon turns blue and HDR render function is enabled.
Reset	When selected, restore factory settings
EXIT	When clicked, OSD menu disappears

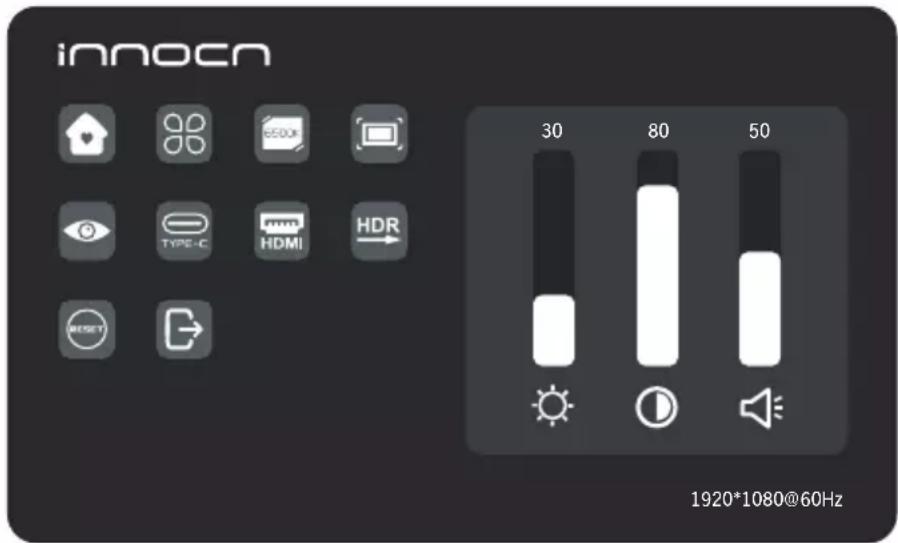

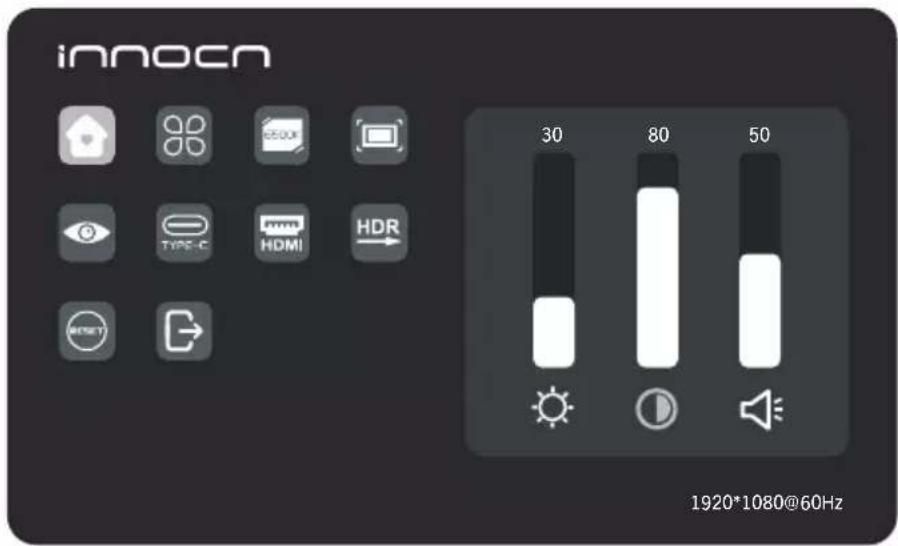

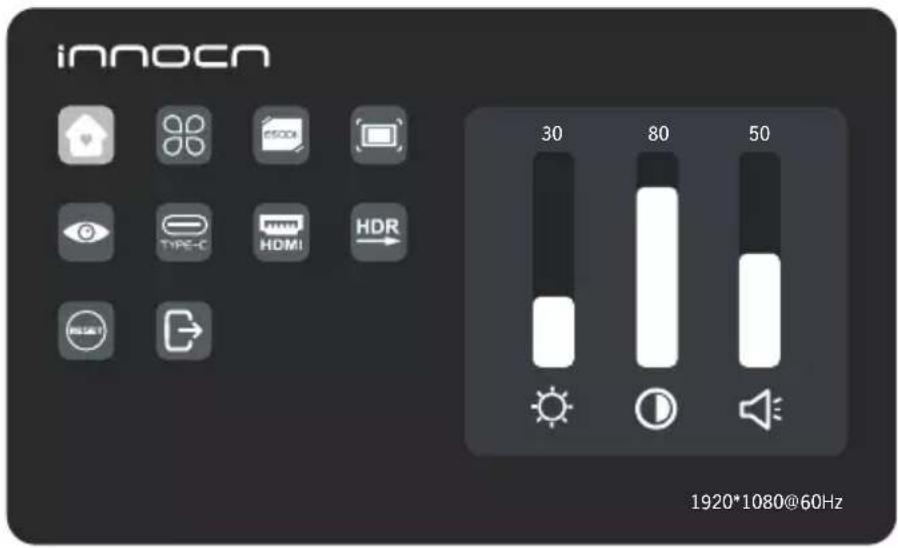

Home

Press the up and down keys to adjust brightness, contrast ratio, and sound

Profiles

Press the up and down keys to select modes: Standard, Text, Movie, Game, RTS, FPS

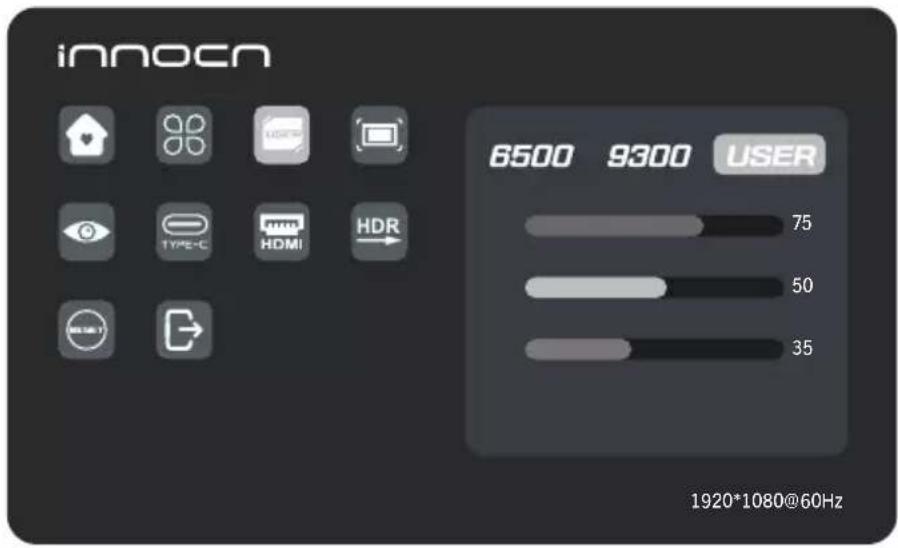

Color temperature

Select the USER mode to adjust RGB value.

Color

Press the up and down keys to adjust chroma, saturation, sharpness.

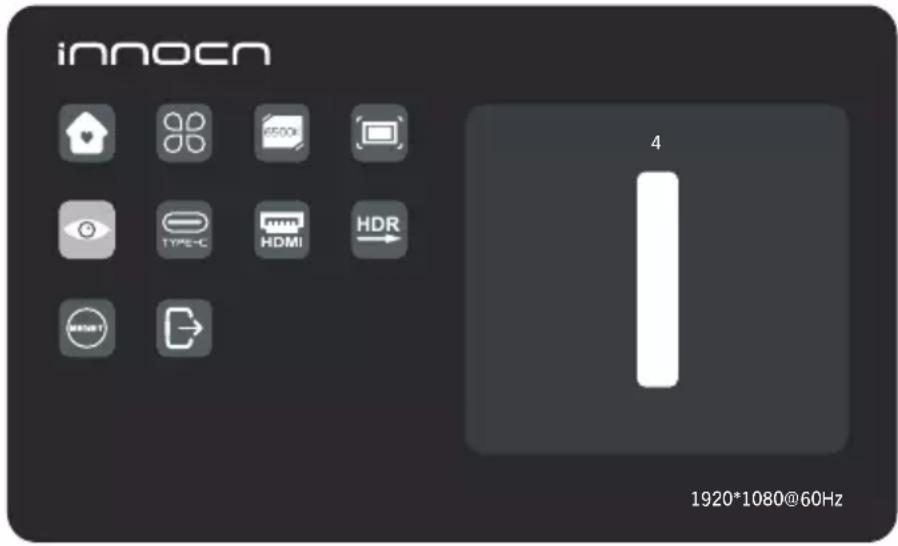

Eye protection level

Other icons

The following table contains general information about common monitor problems you might encounter and the possible solutions.

Common Symptoms	Possible Solutions
No display after turning monitor ON (screen is black but power supply lights is ON)	·Ensure that the video cable connecting the monitor and the computer is properly connected and secure. ·Make sure if the operating system had entered hibernation, sleep or power-saving mode. Press any key (Enter key / Power key) or move the mouse to wake it up. ·Check for bent or broken pins in the video cable connector. ·Ensure that the correct input source is selected in the Input Source menu. ·Replace other identical signal cable (HDMI / Type-C) to take cross-test. Attention: Not every computer/phone 's USB Type-C port will support video out signals. Please check your cable and your computer/phone to make sure those will support a video signal.
No display after turning monitor ON (not boot, black screen & no power lights)	·Verify that the power outlet is functioning properly using any other electrical equipment. If your device has battery, make sure it's not out of battery. ·Make sure the power button is pressed fully and hold for 5s.
Missing Pixels. OLED screen has spots	·Cycle power On-Off. ·Pixel that is permanently Off is a natural defect that can occur in OLED technology. ·For more information on Innocn Monitor Quality and Pixel Policy, see Innocn warranty information at: http://www.innocn.com.
Safety Related Issues (Visible signs of smoke or sparks)	·Do not perform any troubleshooting steps. ·Contact Innocn immediately.
viewing area.	·Check the resolution setting in your PC.Image does not fill entire
The screen appears yellow	·Make sure the device was not set to "Eyes Care mode" ·Check here: OSD→
Control panel keys do not work	·Press only one key at a time. ·Make sure to have a valid video signal going through the monitor before you can turn on the OSD.
I cannot adjust the brightness/contrast ratio/ color saturation through OSD	·Make sure the device was set to "custom mode" ·Check here: OSD→
Product Name	INNOCN 15.6" portable monitor
Product Model	15A1F
Screen Size	15.6"
Screen Type	OLED
Resolution	1920*1080P
Brightness (Typ.)	400cd/m²
Touchable	NO
Speaker	2*1.5W
Refresh Rate	60Hz
Color Gamut	N/A
Display Colors	1,074M(RGB 8bit+2FRC)
Contrast (Typ.)	100000:1
Digital Input	Type-C*2、Mini HDMI*1
Phys. Dimension	359*229mm
Phys. Thickness	8.2mm
Net weight	730g
Voltage Rating	DC 20V==1.5A
Operating Temp.	0 C~45 C

German Rhine TÜV Low Blue Light Certification

Blue light may cause eye fatigue and discomfort. Joint Innovation now offers the screen that passes German Rhine TÜV Low Blue Light certification to ensure the comfort and health of users' eyes. Please follow the instructions below operate the screen to reduce symptoms caused by prolonged exposure to blue light on the screen.

Low Blue Light (Hardware Solution)

www.huy.com ID 1111245173

1. Place the screen 20-28 inches (50-70 cm) away from the eyes, with the center of the screen slightly below the line of sight.
2. When you need to use the screen for a long time, blinking consciously from time to time will help reduce eye fatigue.
3. Take a 20-minute break every 2 hours.
4. Take your eyes away from the screen when you rest and stare at distant objects for at least 20 seconds.
5. Stretch moderately during rest to relieve physical fatigue or pain.
6. After the ex-factory setting (that is, Pro mode is User), turn on Low Blue Light in line with TUV Rhineland's low blue light certification.

1. What is covered in your warranty?

Item	Warranty term
Monitor	1 Years
Panel	1 Years
Battery	1 Years

2. Contact us

Service Email	[e-mail]
Service Website	http://www.innocn.com

3.Members only

Signing up to become our members, to exchange new one without repair in one year.

Register website	https://www.innocn.com/user/register
QR code

4. This Warranty is not applicable:

1. The product is not purchased from an Authorized Innocn dealer.
   2.The product is not used according to instructions given in the instruction manual.
   3.Defects caused by improper use as determined by company personnel.
   4.Modification or alteration of any nature is made in the electrical circuitry / or physical construction of the set.
   5.Installation / repair work is carried out by persons / agency other than authorized by the company.
   6.The original serial number is removed, obliterated or altered from the machine or cabinet.
2. Accidents, Acts of God, lightning, water, fire, public disturbances, improper ventilation, voltage fluctuations or any cause beyond the control of Innocn.

Low Blue Light (Hardware Solution)

www.ttu.com ID 111425173

Low Blue Light (Hardware Solution)

www.bu.com ID:111245713

Low Blue Light (Hardware Solution)

www.tuv.com ID 1111245173

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
