USER MANUAL AIO Pro A50 TRIANGLE

WARNING : Read carefully all the safety instructions before using the device.

Î Keep these safety instructions for future references. Î Do not use this apparatus near water or liquid. Î Only clean with a dry and soft cloth. Î Do not block any aperture (vents) of the device. Î Do not install near any heat sources such as radiators, stoves, or any other apparatus (including ampliers) that produce heat. Î Only use accessories specied by the manufacturer. Î Be sure that the stand/table/furniture is strong enough to support the apparatus. Î Protect the power cord from being walked on or pinched particulary at the plugs and also protect the connector where it exit from the apparatus. Î Unplug the apparatus during lightning storms or when it’s unused for long periods of time. Î The plug of the apparatus must t with the outlet. Never modify the plug in any way. Apparatus should be connected to a mains socket outlet with protective earthing connection. Î Refer to your authorized TRIANGLE dealer or qualied service personnel if the apparatus is damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen on the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 20190107-AIOpro50_manuel.indd 3 21/05/2019 18:19:51www.trianglehi.com resellers.trianglehi.com support.trianglehi.com

Î Unpacking 28 Î Device description 29 Î How it works 30 Î Installation guide 31 Î How to use 34 Î App overview 35 Î Troubleshooting 42 Î Frequently Asked Questions 43

44 rue Barreyre - CS 40099 33300 Bordeaux Cedex FRANCE GARANTIE / WARRANTY Thanks for buying a TRIANGLE product. We want you to enjoy your purchase to the fullest. The rst step is an easy registration of your products. By doing this, you will benet from helpful tips, products support, special offers and 2 years warranty.

1- Online registration

Register your product easily online at the following address : http://register.trianglehi.com/

You can also register your product and validate your warranty by lling the warranty card and sending it to :

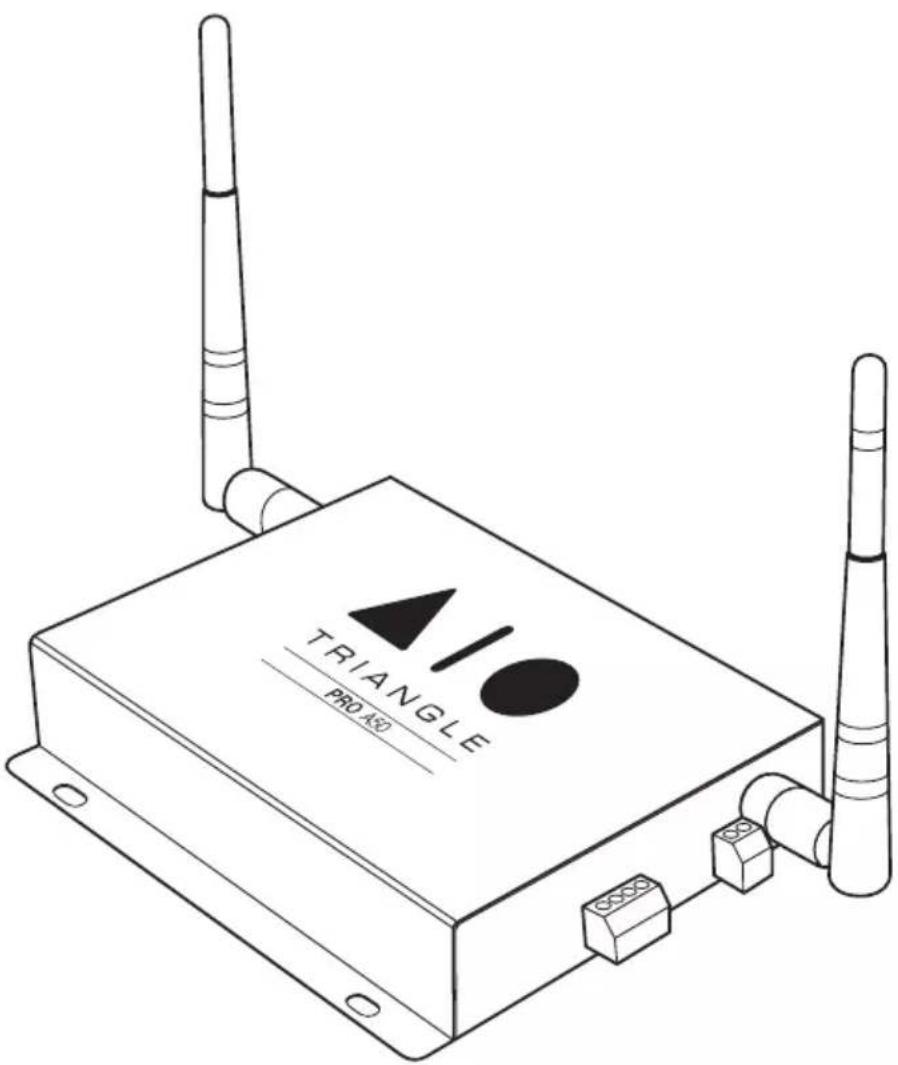

UNPACKING Open the box and take out the device. If you notice any defects in one of the elements as you unpack, please get in touch with your reseller. Your device is fragile and it is recommended to handle it carefully. Before disposing of the packaging, make sure there is nothing left inside. EACH BOX CONTAINS: Î 1x AIO Pro A50 device Î 1x Wi Antenna Î 1x Bluetooth Antenna Î 1x IR Receiver Cable Î 1x IR Remote Controller Î 1x Quick Start Guide Î 1x Power Supply Î 1x AUX Cable INSTALLATION PRECAUTIONS Before the installation Before connecting your AIO Pro A50, check the stability of the surface you want to install it on and reduce the distance between the speaker and your router as much as possible. Moving the device Always remove the power cord and disconnect the cables between all audio components when moving the device. This will prevent a short-circuit or the damage to the plugs or connection cables. Locations to avoid Avoid humid locations or direct sunlight. It is preferable to install your speaker in a temperate place. Recycling Protection of the environment: your products contain valuable materials which can be recovered or recycled. Take them to the appropriate collection points. 20190107-AIOpro50_manuel.indd 28 21/05/2019 18:20:4229

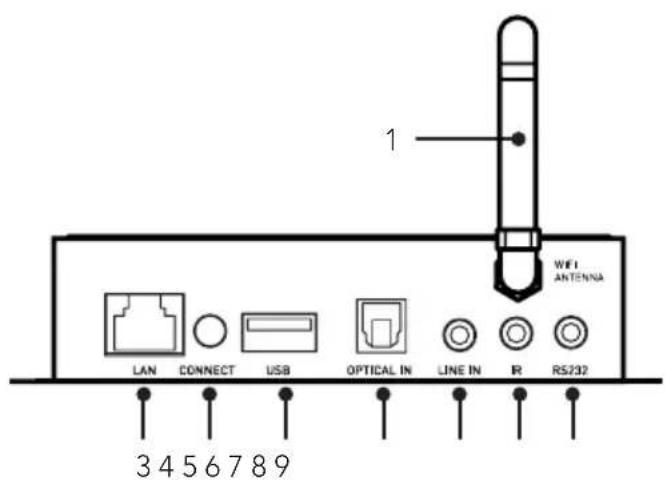

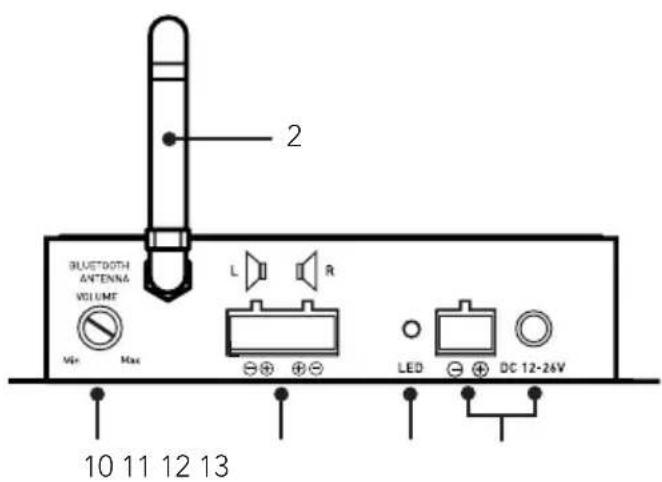

8. IR: to use the features on the remote

controller, please connect the IR receiver rst.

9. RS232: to control features from the central

control consoles, please contact us or the local seller to get the RS232 commands.

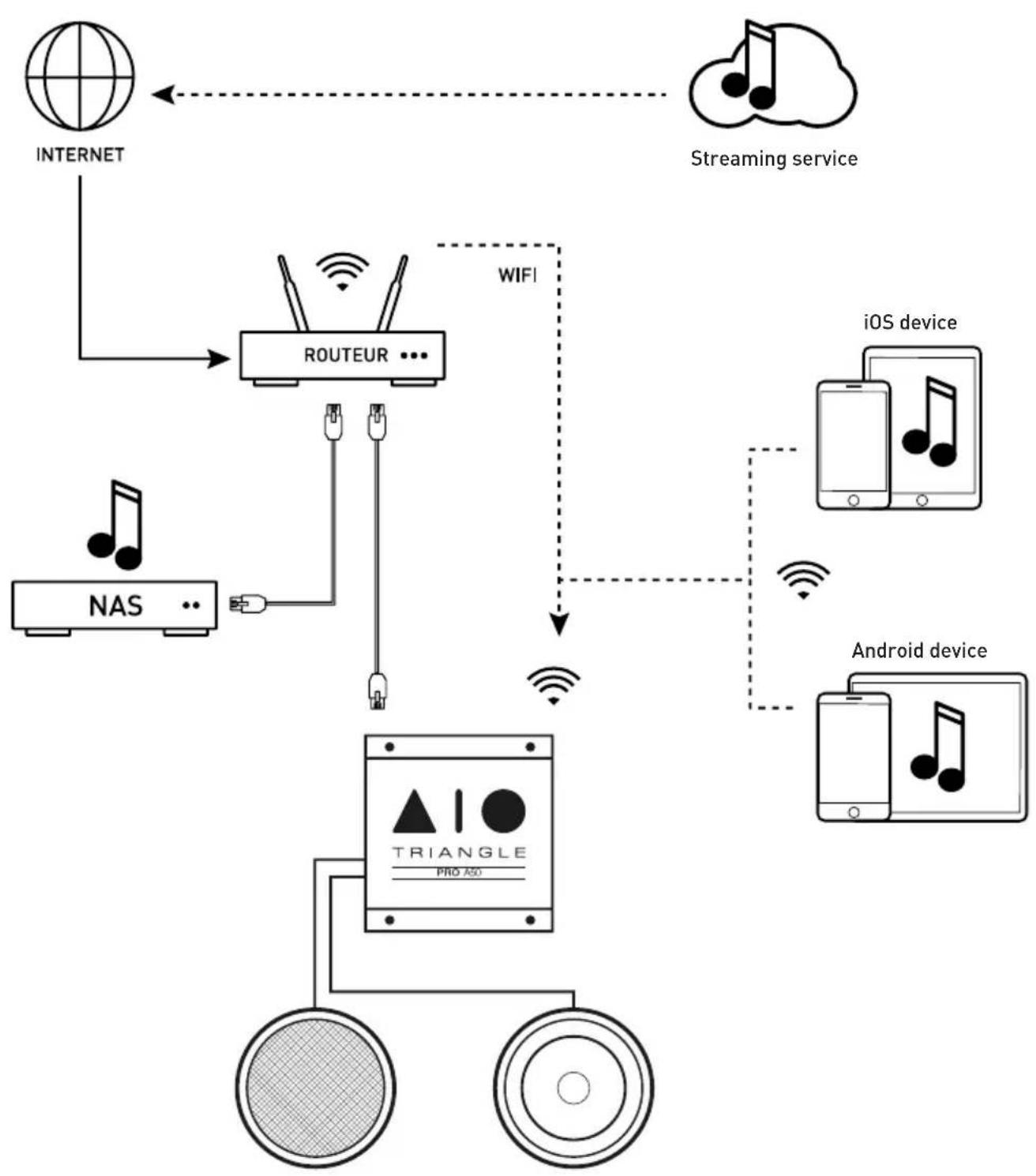

INSTALLATION GUIDE Î Unpack: Verify all the accessories are included in the package. Î Place: Place this amplier at a safe and proper location in your home. Î Connect.

1. Speaker Wiring Diagrams

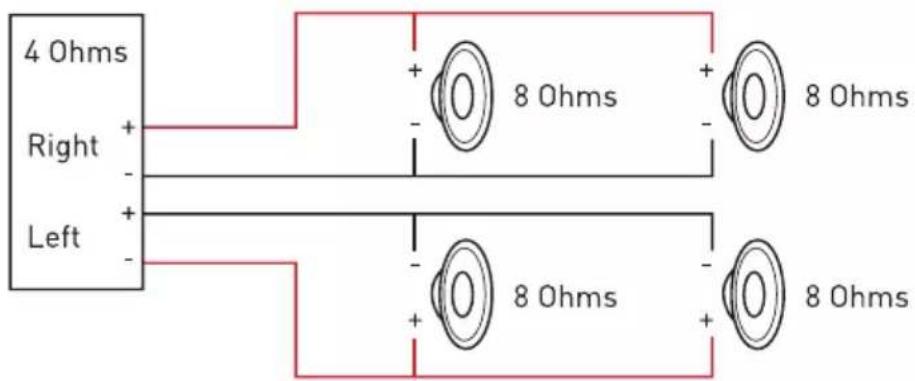

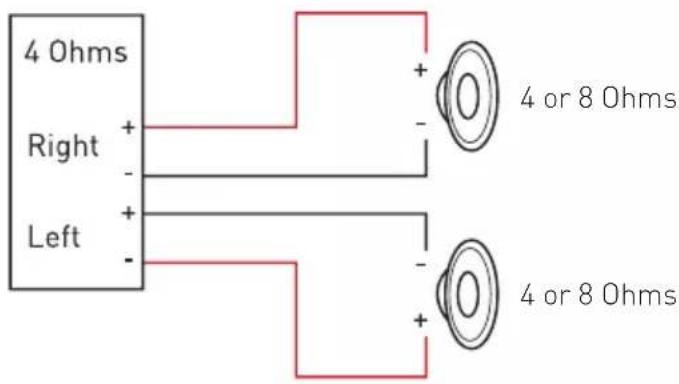

Speaker Wire Diagram Parallel Speaker Wire Diagram Pay attention to the impedance of the speakers. A two pair connection can only be made with 8 Ohms speakers. 4 or 8 Ohms 4 or 8 Ohms 20190107-AIOpro50_manuel.indd 31 21/05/2019 18:20:4232

2. Connect the speaker

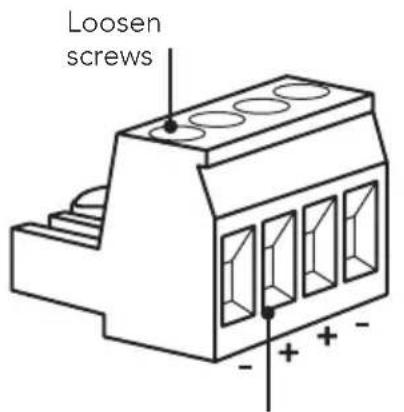

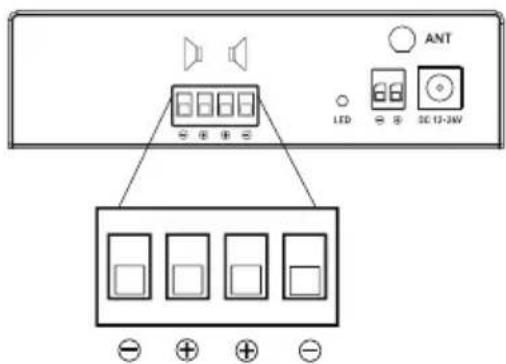

Speaker Wire Connection Î Take the speaker connector block that came with the AIO Pro A50. Î Loosen the screws before connecting the speaker wires. Î Please insert the speaker wire ends properly and tighten down each screw. Removable speaker connector block Wiring connections Loosen screws Insert speaker wires 20190107-AIOpro50_manuel.indd 32 21/05/2019 18:20:4333

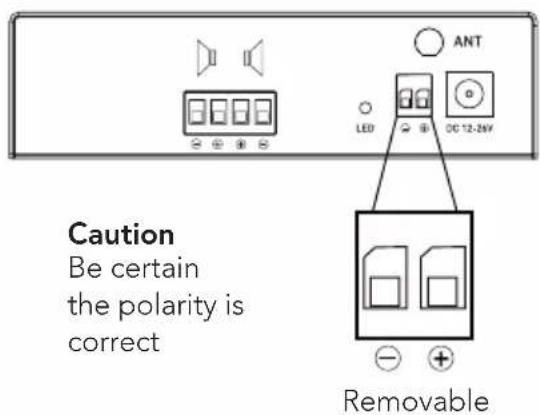

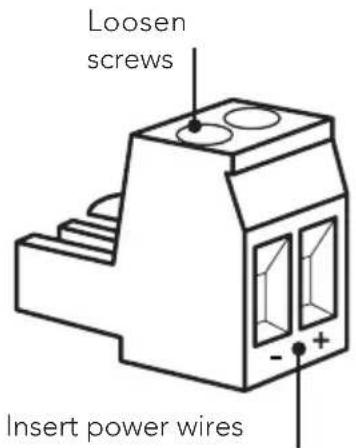

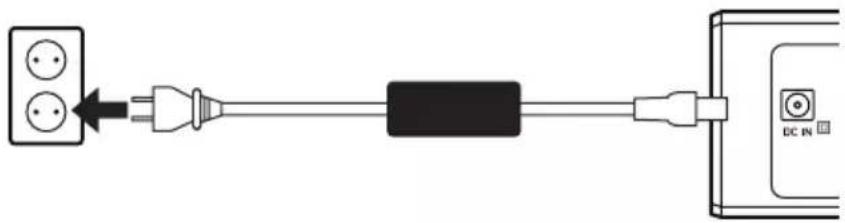

Power connection Î Option 1: If the distance is sufcient, use the supplied power supply. Î Option 2: If the distance between the AC outlet and the AIO Pro A50 is too great, turn off the power connector and extend the cable. Locate the power connector, loosen the screws, insert the power wires, tighten each screw. Note: Left negative (-), Right positive (+) Note: The standard power input is 24V/3.3A. Loosen screws Insert power wires Caution Be certain the polarity is correct Caution Be certain the polarity is correct Removable 20190107-AIOpro50_manuel.indd 33 21/05/2019 18:20:4334

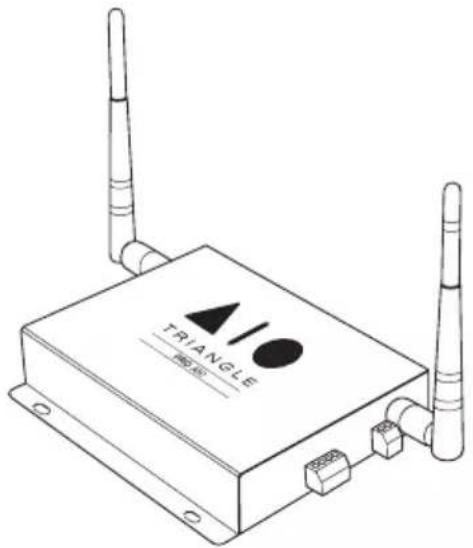

Download the app Go to your store (App Store or Google Play) and download the app TRIANGLE AIO.

Î Turn on your product using the remote control. Î Wait for your AIO Pro A50 to congure itself. Î 3 musical notes will sound when your device is ready for use.

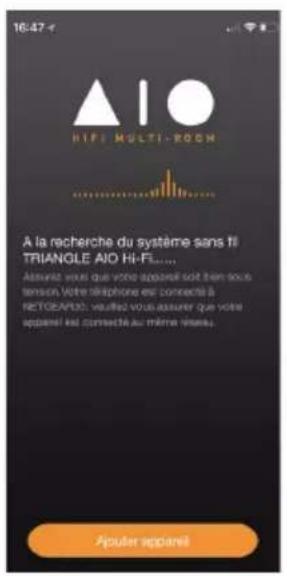

connected to the WiFi of your AIO Pro A50, go back to the app. Select your WiFi network and enter the password. Launch the app and follow the instructions.

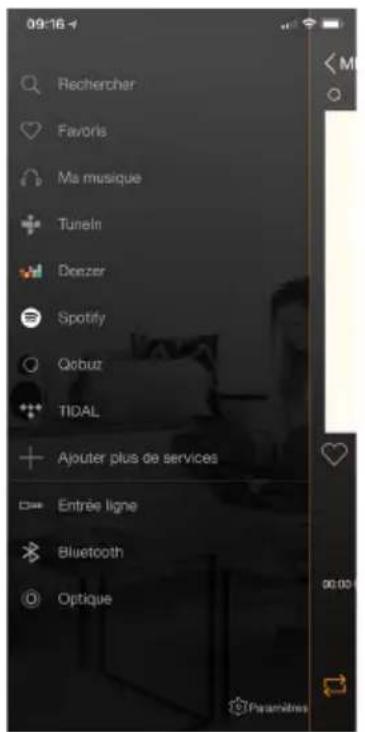

Sources Playback Screen AIO devices The navigation is in 3 panels. Just swipe the screen from left to right to make them appear. APP OVERVIEW 20190107-AIOpro50_manuel.indd 35 21/05/2019 18:20:5636

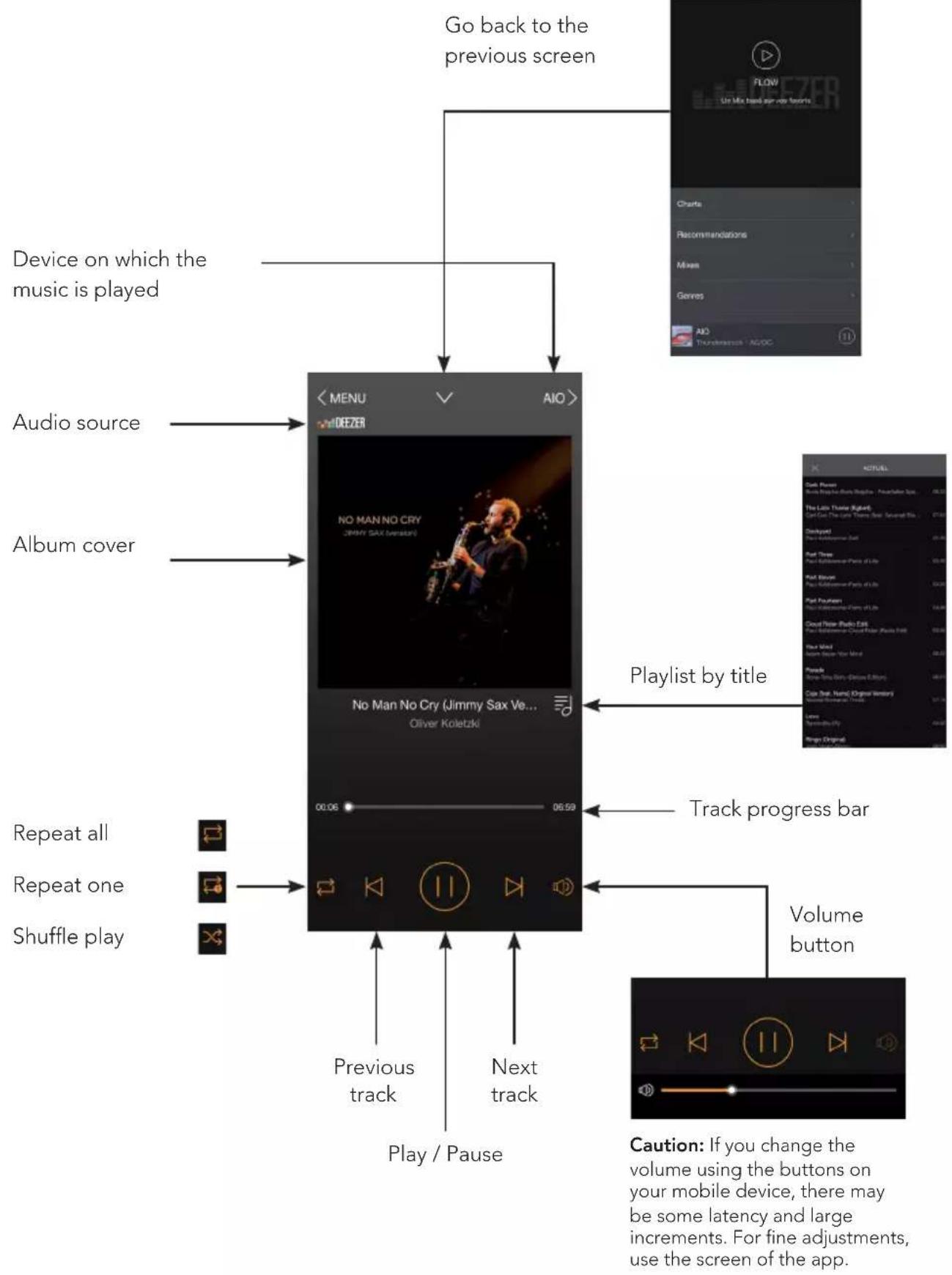

Go back to the previous screen Audio source Device on which the music is played Album cover Repeat all Repeat one Shufe play Previous track Next track Play / Pause Track progress bar Playlist by title Caution: If you change the volume using the buttons on your mobile device, there may be some latency and large increments. For ne adjustments, use the screen of the app. Volume button 20190107-AIOpro50_manuel.indd 36 21/05/2019 18:21:0937

2. List of connected AIO

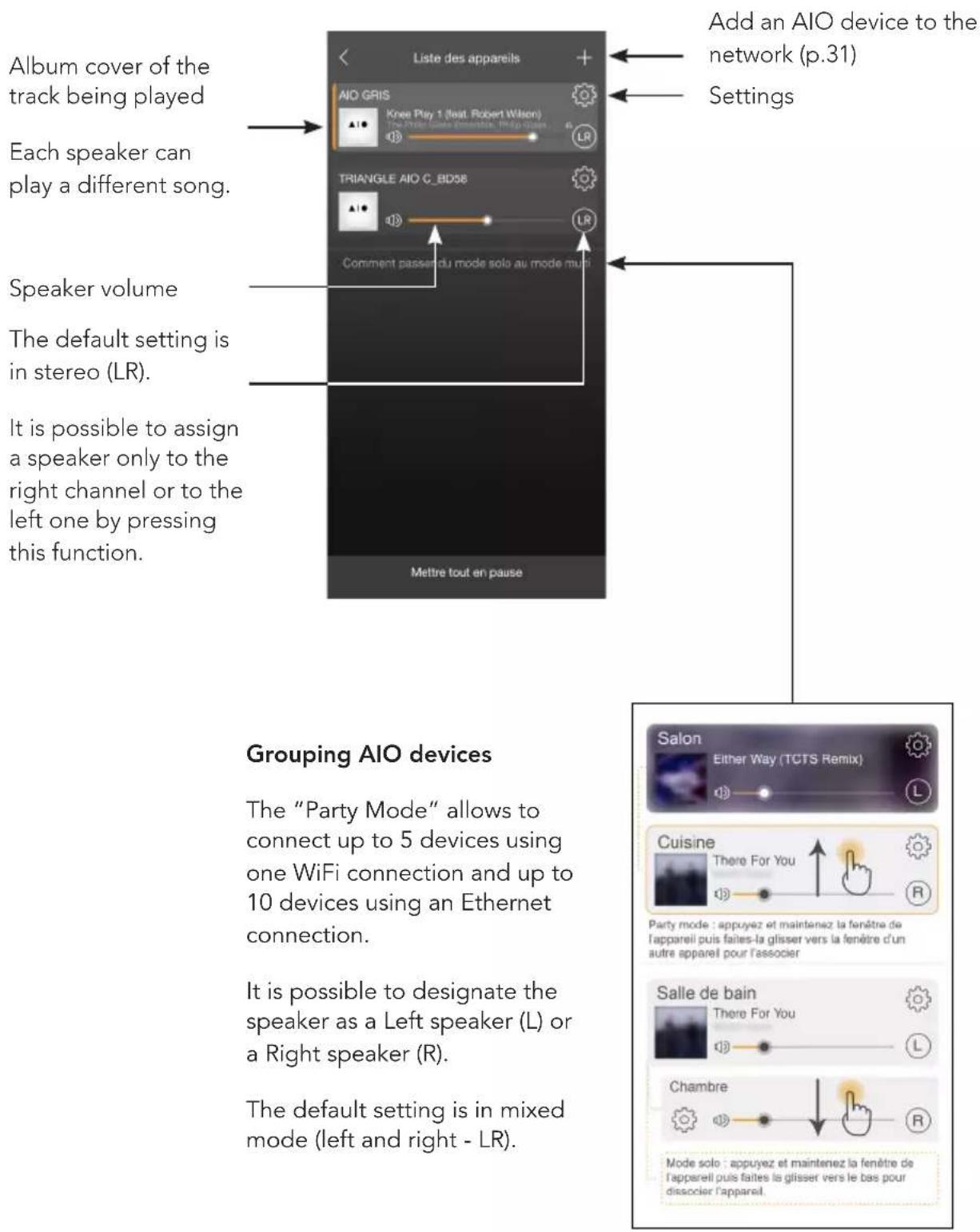

Add an AIO device to the network (p.31) Grouping AIO devices The “Party Mode” allows to connect up to 5 devices using one WiFi connection and up to 10 devices using an Ethernet connection. It is possible to designate the speaker as a Left speaker (L) or a Right speaker (R). The default setting is in mixed mode (left and right - LR). The default setting is in stereo (LR). It is possible to assign a speaker only to the right channel or to the left one by pressing this function. Album cover of the track being played Each speaker can play a different song. Speaker volume Settings 20190107-AIOpro50_manuel.indd 37 21/05/2019 18:21:1238

Renaming the speaker

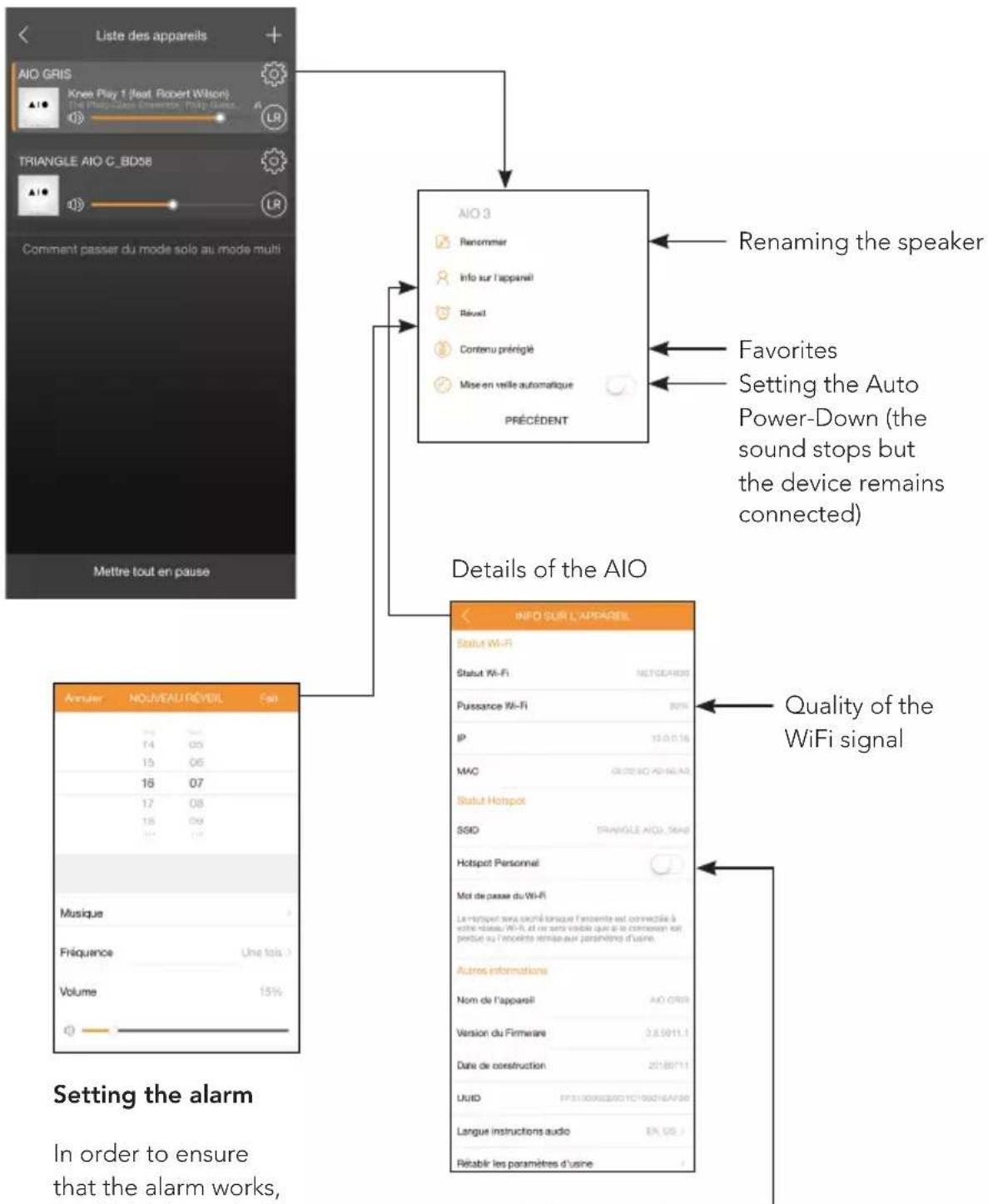

Setting the Auto Power-Down (the sound stops but the device remains connected) Setting the alarm In order to ensure that the alarm works, leave your device turned on. Details of the AIO Favorites Quality of the WiFi signal AIO3 has the “hot spot” function, it can manage your own WIFI network and extend your current WIFI network. You just need to activate this function in the APP and dene a password. 20190107-AIOpro50_manuel.indd 38 21/05/2019 18:21:1839

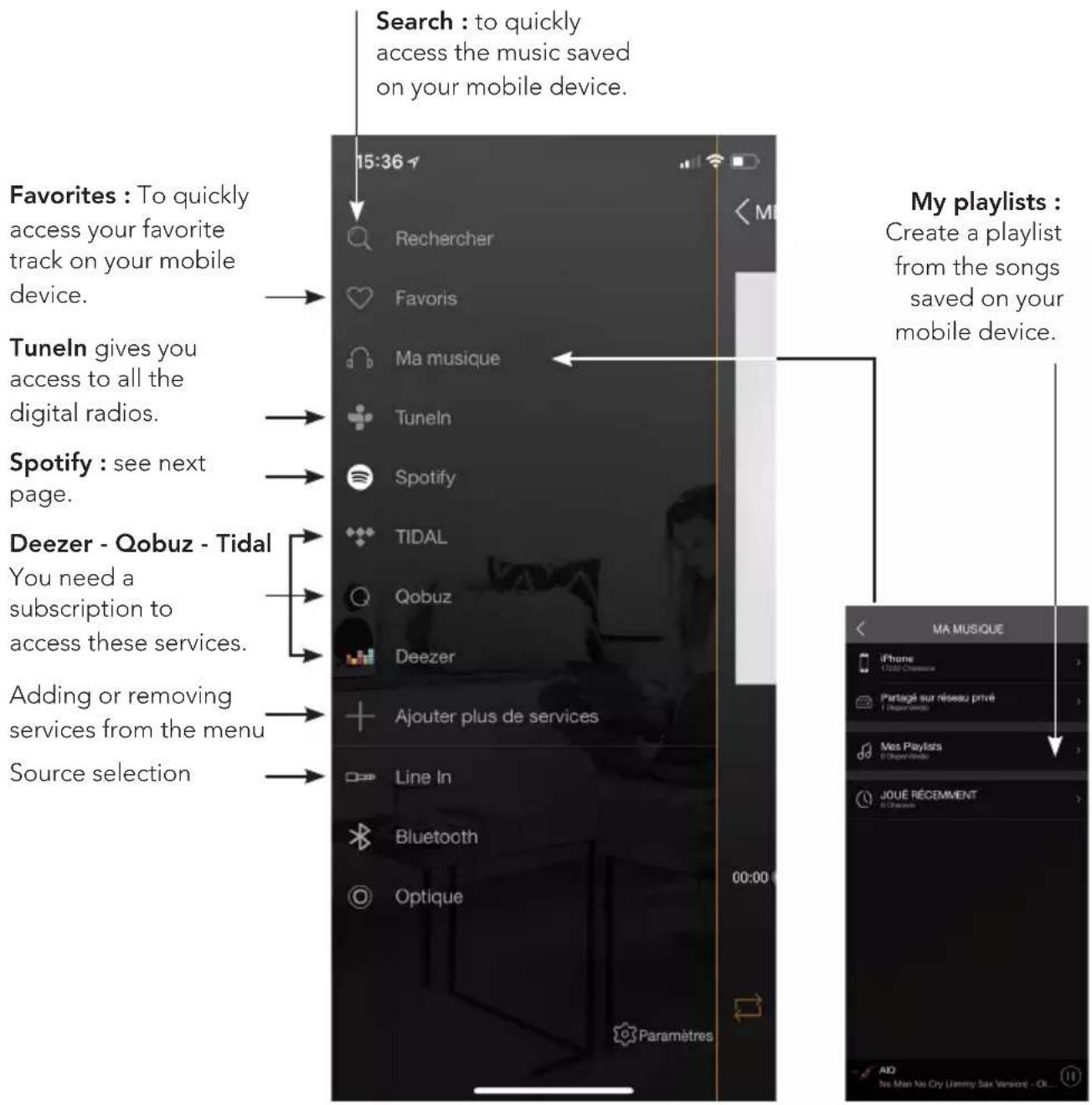

Deezer - Qobuz - Tidal You need a subscription to access these services. TuneIn gives you access to all the digital radios. My music : The AIO speaker lets you play music you downloaded on your phone and access the music stored on a NAS drive on your network or on your connected USB drive. You must allow the app to read the musical content on your mobile device (see Settings of the TRIANGLE AIO app in the general menu on your mobile device depending on your iOS or Android system). To be able to access your songs, they must be saved directly on your phone. Some tunes might be protected by DRM technology which will prevent you from playing them. Adding or removing services from the menu Source selection Favorites : To quickly access your favorite track on your mobile device. Search : to quickly access the music saved on your mobile device. Spotify : see next page. My playlists : Create a playlist from the songs saved on your mobile device. 20190107-AIOpro50_manuel.indd 39 21/05/2019 18:21:2140

Spotify: Listen out loud with Spotify connect

1. Connect your TRIANGLE AIO device to your WI-Fi network

2. Open up the Spotify app on your phone, tablet or laptop using the same Wi-Fi network

3. Play a song and select Devices Available

4. Select your TRIANGLE AIO device and start listening

The Spotify software’s subject to third party licence four here: www.spotify.com/connect/third-party-licences

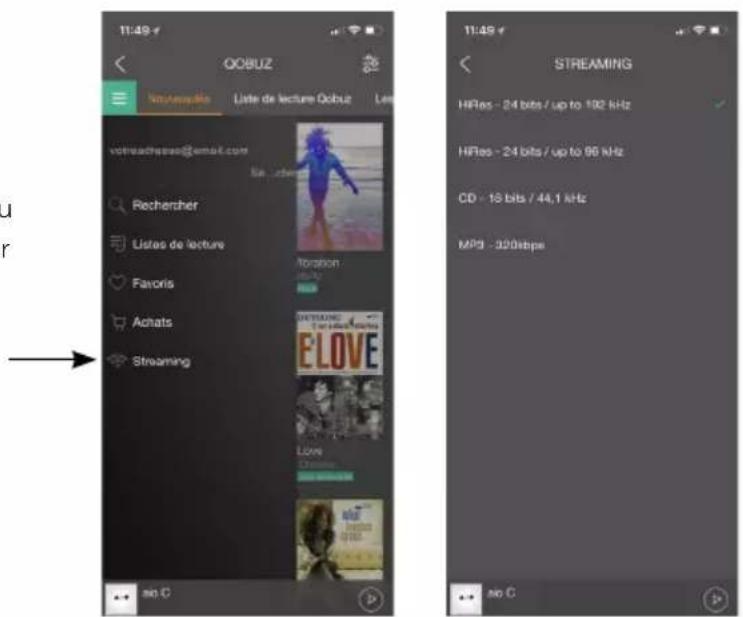

Listening yo music in high denition: To listen to music in high denition, you must have a subscription with a provider and set up the dedicated app. Example on the Qobuz app >> Choosing your device 20190107-AIOpro50_manuel.indd 40 21/05/2019 18:21:3341

5. Connection to other sources

• 1/8-INCH (3.5MM) JACK: Connect a 1/8-inch (3.5mm) jack cable or an RCA cable to your external source, then select the source.

• OPTICAL : Connect an optical cable to your external source, then select the source.

• BLUETOOTH Î Select the Bluetooth source - either via the TRIANGLE AIO app (see p.39) - or by pressing the Source button on the remote control. Î Once the Bluetooth source is selected, the LED turns blinking green. The pairing will automatically start. Î Make sure you disconnect your device in case another user wants to take over. Î Go to the Bluetooth settings on your mobile device. Î Select the source: TRIANGLE AIO Pro A50. 20190107-AIOpro50_manuel.indd 41 21/05/2019 18:21:3342

TROUBLESHOOTING If the device does not work correctly, check the points listed below. If the problem persists, the device may not operate normally. Unplug the power cord immediately and get in touch with your reseller. OBSERVATION SOLUTION My AIO does not connect to the network. Check that your mobile device is connected to the network on which you are trying to connect your AIO. Place your AIO closer to the router. Connect an Ethernet cable between your router and the AIO. Check that your app is up to date, or reinstall it. Restart your mobile phone and your network. The music is cutting out or jerky. Check the Internet connection. Make sure your network or another device is not using a large part of your bandwidth. Check the power of the WiFi signal (see p.36) Check that your app is up to date, or reinstall it. Restart your mobile phone and your network. 20190107-AIOpro50_manuel.indd 42 21/05/2019 18:21:3343

How many speakers can I group on the app? AIO can group up to 5 speakers in WiFi, 10 via Ethernet, if the quality of the connection is good enough. What happens when I get a call on my mobile phone while I use the app? The music continues to play on your speaker without interruption. Can the AIO play songs in high resolution (High Res)? The AIO can play songs up to 24 bit/192 kHz, but be careful, you must have a good Internet connection and your streaming app must be set-up correctly. CAUTION To avoid the risk of electric shock, do not open the speaker. 20190107-AIOpro50_manuel.indd 43 21/05/2019 18:21:3344
