USER MANUAL USC-320 Toolcraft

Betriebsspannung 220 - 240 V/AC 50 Hz Leistungsaufnahme (W) 160 380 440 160 280 Sicherung (Glasrohr 5 x 20 mm) F10 A/250 V Ultraschall-Leistung (W) 60 180 240 60 180 Ultraschall-Frequenz (kHz) 40 Heizleistung (W) 100 200 200 100 100 Timer (min) 0 - 30 Temperatureinstellung (°C) 30 - 80 Tankinhalt (l) 2 4,5 10 1,3 3,2 Abmessungen Tank (mm) 150 x 135 x 100 300 x 150 x 100 300 x 240 x 150 150 x 135 x 65 240 x 135 x 100 Abmessungen Gehäuse (mm) 175 x 160 x 210 325 x 180 x 225 325 x 265 x 280 172 x 162 x 165 265 x 165 x 220 Gewicht (kg) 2,4 4,6 7,3 2 3,6Operating instructions Ultrasonic cleaner Item no. 2901763 (2 L) Item no. 2901768 (4.5 L) Item no. 2901769 (10 L) Item no. 2923221 (1.3 L) Item no. 2923222 (3.2 L) 1 Intended use The ultrasonic cleaner is intended for cleaning suitable objects using ultrasonic waves. The appliance is only approved for connection to the 220 – 240 V/AC 50 Hz mains supply. Do not use any other power supply. This product is intended for indoor use only. Do not use it outdoors. Do not expose it to mois- ture, for example, in bathrooms or similar spaces. Using the product for purposes other than those described above may damage the product. Improper use can result in short circuits, re, electric shock or other hazards. This product complies with statutory, national and European regulations. For safety and ap- proval purposes, you must not rebuild and/or modify the product. Read the instructions carefully and store them in a safe place. Always provide these operating instructions when giving the product to a third party. All company and product names contained herein are trademarks of their respective owners. All rights reserved. 2 Delivery content

Drain hose with a hose clamp, sealing tape and lter (Item No.: 2901769)

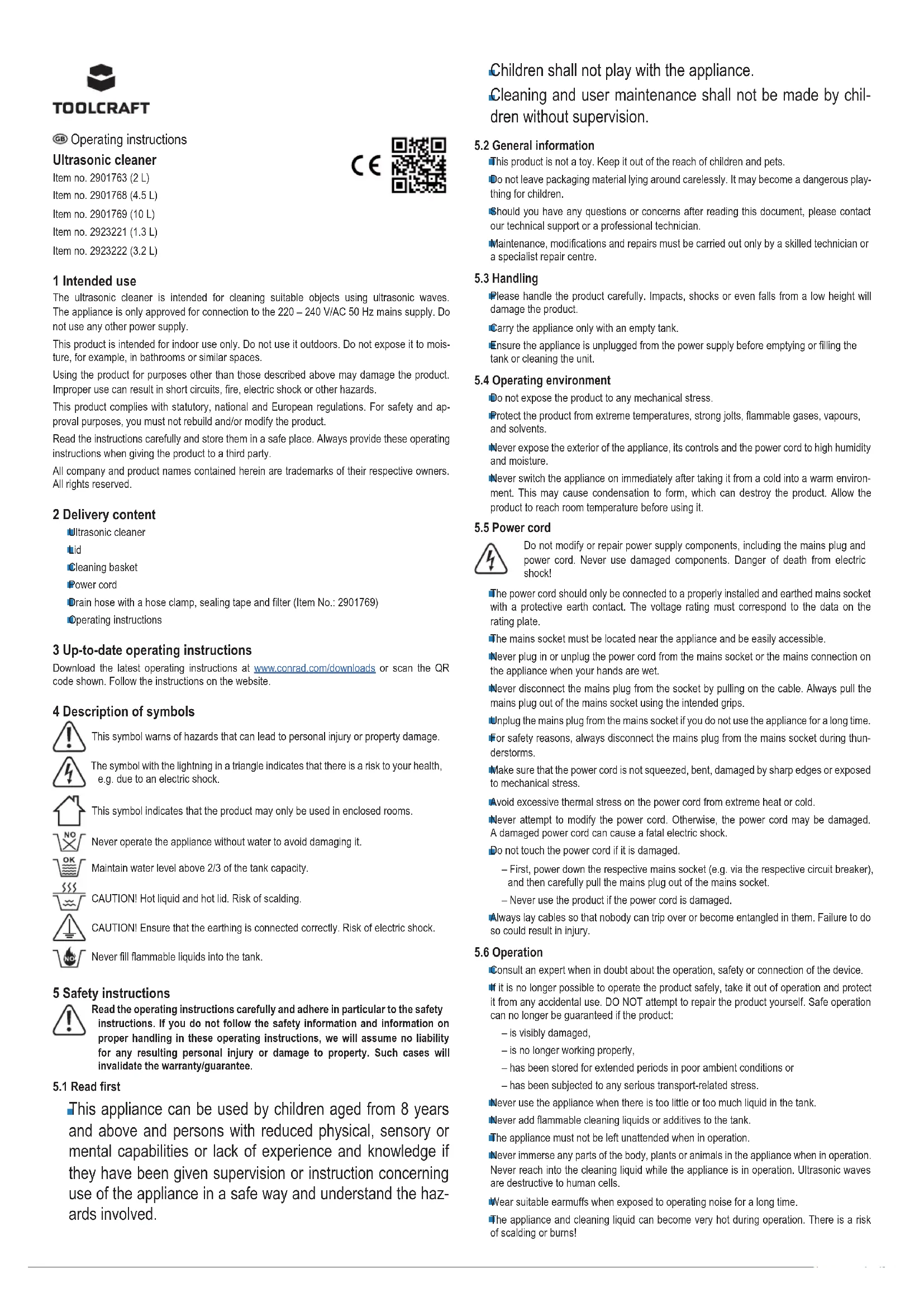

Operating instructions 3 Up-to-date operating instructions Download the latest operating instructions at www.conrad.com/downloads or scan the QR code shown. Follow the instructions on the website. 4 Description of symbols This symbol warns of hazards that can lead to personal injury or property damage. The symbol with the lightning in a triangle indicates that there is a risk to your health, e.g. due to an electric shock. This symbol indicates that the product may only be used in enclosed rooms. Never operate the appliance without water to avoid damaging it. Maintain water level above 2/3 of the tank capacity. CAUTION! Hot liquid and hot lid. Risk of scalding. CAUTION! Ensure that the earthing is connected correctly. Risk of electric shock. Never ll ammable liquids into the tank. 5 Safety instructions Read the operating instructions carefully and adhere in particular to the safety instructions. If you do not follow the safety information and information on proper handling in these operating instructions, we will assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the haz- ards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by chil- dren without supervision.

This product is not a toy. Keep it out of the reach of children and pets.

Do not leave packaging material lying around carelessly. It may become a dangerous play- thing for children.

Should you have any questions or concerns after reading this document, please contact our technical support or a professional technician.

Maintenance, modications and repairs must be carried out only by a skilled technician or a specialist repair centre.

Please handle the product carefully. Impacts, shocks or even falls from a low height will damage the product.

Carry the appliance only with an empty tank.

Ensure the appliance is unplugged from the power supply before emptying or lling the tank or cleaning the unit.

5.4 Operating environment

Do not expose the product to any mechanical stress.

Protect the product from extreme temperatures, strong jolts, ammable gases, vapours, and solvents.

Never expose the exterior of the appliance, its controls and the power cord to high humidity and moisture.

Never switch the appliance on immediately after taking it from a cold into a warm environ- ment. This may cause condensation to form, which can destroy the product. Allow the product to reach room temperature before using it.

Do not modify or repair power supply components, including the mains plug and power cord. Never use damaged components. Danger of death from electric shock!

The power cord should only be connected to a properly installed and earthed mains socket with a protective earth contact. The voltage rating must correspond to the data on the rating plate.

The mains socket must be located near the appliance and be easily accessible.

Never plug in or unplug the power cord from the mains socket or the mains connection on the appliance when your hands are wet.

Never disconnect the mains plug from the socket by pulling on the cable. Always pull the mains plug out of the mains socket using the intended grips.

Unplug the mains plug from the mains socket if you do not use the appliance for a long time.

For safety reasons, always disconnect the mains plug from the mains socket during thun- derstorms.

Make sure that the power cord is not squeezed, bent, damaged by sharp edges or exposed to mechanical stress.

Avoid excessive thermal stress on the power cord from extreme heat or cold.

Never attempt to modify the power cord. Otherwise, the power cord may be damaged. A damaged power cord can cause a fatal electric shock.

Do not touch the power cord if it is damaged. – First, power down the respective mains socket (e.g. via the respective circuit breaker), and then carefully pull the mains plug out of the mains socket. – Never use the product if the power cord is damaged.

Always lay cables so that nobody can trip over or become entangled in them. Failure to do so could result in injury.

Consult an expert when in doubt about the operation, safety or connection of the device.

If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation can no longer be guaranteed if the product: – is visibly damaged, – is no longer working properly, – has been stored for extended periods in poor ambient conditions or – has been subjected to any serious transport-related stress.

Never use the appliance when there is too little or too much liquid in the tank.

Never add ammable cleaning liquids or additives to the tank.

The appliance must not be left unattended when in operation.

Never immerse any parts of the body, plants or animals in the appliance when in operation. Never reach into the cleaning liquid while the appliance is in operation. Ultrasonic waves are destructive to human cells.

Wear suitable earmuffs when exposed to operating noise for a long time.

The appliance and cleaning liquid can become very hot during operation. There is a risk of scalding or burns!6 Components

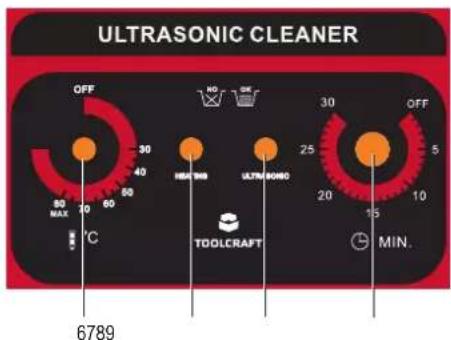

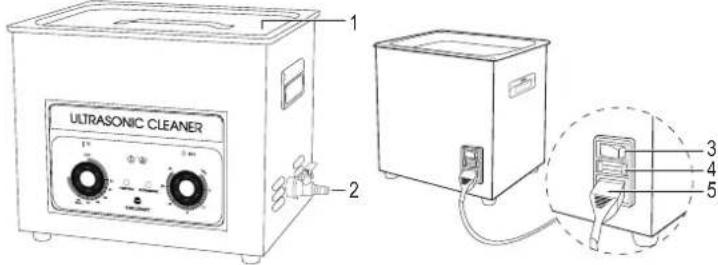

1 Lid 2 Drain valve (Item No.: 2901769) 3 On/off switch 4 Fuse holder 5 Mains connection 6 Heat control knob 7 HEATING indicator 8 ULTRASONIC indicator 9 Timer control knob 7 Getting started Important: – Only use this appliance to clean suitable objects. It can damage objects that are not suitable for ultrasonic cleaning. If in doubt, enquire with the vendor about the item to be cleaned. – Examples of suitable objects: – Glasses with metal frames – Jewellery and watch straps made of metal – Coins, cutlery – Writing and drawing instruments and their accessories – Braces, dentures – Vehicle parts, engine parts, carburettors, drive chains, tools – Ink cartridges – Electronic circuit boards – Weapon parts and cartridge cases – Fine mechanical parts – Examples of unsuitable objects: – Articial ngernails – Contact lenses – Watches – Jewellery with porous or fragile stones – Costume jewellery – Pearls, corals, opals, turquoise, lapis lazuli, malachite, etc. – Glasses with frames made of natural materials, such as a horn or tortoise shell. – Wood, textiles, leather or objects containing such materials

Place the ultrasonic cleaner on a horizontal, level surface resistant to moisture.

The installation surface must be stable enough to bear the weight of the ultrasonic cleaner lled with cleaning liquid.

7.2 Mounting the drain hose and lter (Item No.: 2901769)

1. Screw the connection piece for the drain hose onto the drain valve (2).

Æ If necessary, use the supplied sealing tape to seal the connection. For this purpose, wrap the sealing tape around the thread before screwing on the connection piece.

2. Attach the supplied drain hose to the connection piece.

3. Use the supplied hose clamp to secure the hose to the drain valve (2).

4. Fit the supplied lter onto the drain opening inside the tank.

7.3 Preparations for use

Important: – Never place anything on the bottom of the tank. Always put the objects to be cleaned into the stainless steel basket. You will thus protect the items to be cleaned and the tank of the appliance from scratches and improve the cleaning performance. – Only use water or cleaning additives that are approved and suitable for ultrasonic cleaning. Never use ammable, corrosive, caustic or other aggressive cleaning uids. Furthermore, it must be safe for the objects to be cleaned. – Ensure that the tank is always at least 2/3 full to avoid damage to the appliance. Exer- cise extreme caution when using the heating mode, as the cleaning liquid in the tank may evaporate quickly. – When using the heating mode for preheating the cleaning liquid, stir it every 15 minutes or switch on the ultrasonic mode to ensure better heat distribution and avoid the risk of delayed boiling of the liquid.

1. Remove the lid (1) and pour the cleaning liquid into the tank.

Æ If you wish to use the heating mode, you can add warm water. This signicantly reduces the heating time. Æ Most cleaning liquids contain gases that adversely affect the cleaning process. You can avoid this by degassing the cleaning liquid using the ultrasonic mode for approx. 10 minutes before the cleaning process.

2. Put the object(s) to be cleaned into the cleaning basket and place the basket in the tank.

Æ If you do not want to ll the whole tank with cleaning liquid or when cleaning smaller objects, you can put a glass or a similar container in the basket. In this case, add the cleaning liquid to the glass only and ll the rest of the tank with water. This “indirect” ultrasonic cleaning method has the advantage of saving on cleaner. But this method somewhat reduces the cleaning performance. Æ Do not put too many items in the cleaning basket. This also reduces the cleaning per- formance. Preferably place the items so that they do not touch each other. When in contact, items can scratch each other during cleaning. Æ Place more heavily soiled items on the bottom. Æ Place the items in a way that prevents the formation of air bubbles.

3. Replace the lid (1) on the appliance.

Æ The lid (1) should be in place throughout the cleaning process. This prevents objects from falling into the tank and the cleaning liquid from cooling down.

4. Plug the power cord into the mains connection (5) and connect the mains plug to a wall

1. You can adjust the cleaning time with the timer control knob (9).

Æ The timer control knob (9) turns back counter-clockwise during cleaning until reaching the OFF position and turning off the ultrasonic mode. To abort the cleaning process, turn the timer control knob (9) back manually to switch off the ultrasonic mode.

2. You can adjust the cleaning temperature with the heat control knob (6).

Æ You do not have to use the heating mode. You can just leave the heat control knob in the OFF position. Æ The best cleaning results can be achieved at temperatures of approx. 50 – 60 °C. But remember that the temperature setting should not cause any damage to the objects to be cleaned.

3. Switch on the appliance by setting the on/off switch (3) to “I”.

Æ When the heating mode is activated, the HEATING indicator (7) lights up. The heating switches off when the set temperature is reached and on again when the temperature drops below the set temperature. Æ When the ultrasonic mode is activated, the ULTRASONIC indicator (8) lights up.

4. After the preset cleaning time has elapsed, the ultrasonic mode switches off automatically,

and the ULTRASONIC indicator (8) goes out.

5. You have to switch off the heating manually. To do this, turn the heat control knob (6) to

“OFF”. The HEATING (7) indicator goes out.

6. Press the on/off switch (3) to switch off the appliance (set the switch to “O”).

7. Unplug the power cord from the wall socket and the mains connection (5).

8. Lift off the lid (1) and remove the cleaning basket.

Æ CAUTION! The items in the tank and the tank itself may be hot. Allow sufcient time to cool down.

9. Rinse the cleaned items with water.

10. Empty the tank. Clean it and wipe it dry.

Æ The 10 l version (Item No.: 2901769) features a drain valve (2) to facilitate emptying the large tank.This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microlming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing. Copyright 2023 by Conrad Electronic SE. *2901763_68_69, 2923221_ 22_V1_0923_02_dh_mh_en 9 Cleaning Important: – Never use aggressive cleaning agents, rubbing alcohol, other chemical solvents or abrasive cleaners to clean the appliance. They can damage the housing and can cause the product to malfunction. – Do not immerse the product in water.

1. Disconnect the product from the power supply.

2. Clean the tank and the cleaning basket with water and let both dry.

3. Use a dry or slightly damp cloth to clean the rest of the housing.

10 Changing the fuse If the event that you need to replace the fuse, ensure that you only use fuses of the specied type and rated current as a replacement (see “Technical data”). Never repair fuses or bridge the fuse holder.

1. Switch off the appliance by setting the on/off switch (3) to “O”.

2. Unplug the power cord from the mains socket and the mains connection (5).

3. Pry the fuse holder (4) out of its socket using a screwdriver.

4. Replace the defective fuse with a new fuse of the same type.

Æ The fuse holder (4) contains a replacement fuse.

5. Replace the fuse holder (4).

11 Disposal This symbol must appear on any electrical and electronic equipment placed on the EU market. This symbol indicates that this device should not be disposed of as unsorted municipal waste at the end of its service life. Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it separately from unsorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users from the WEEE in a non-destructive manner before it is handed over to a collection point. Distributors of electrical and electronic equipment are legally obliged to provide free take-back of waste. Conrad provides the following return options free of charge (more details on our website):

at the Conrad collection points

at the collection points of public waste management authorities or the collection points set up by manufacturers or distributors within the meaning of the ElektroG End users are responsible for deleting personal data from the WEEE to be disposed of. It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany. 12 Technical data
