PM002 - Hand blender SIGNATURE - Free user manual and instructions

Product type	Hand blender
Brand	Signature
Model	PM002
Power supply	220-240 V~, 50/60 Hz
Speed control	Yes, with progressive adjustment and Turbo button
Functions	Blending, mashing, chopping, whisking
Included accessories	Blending shaft, masher shaft, whisk, chopper (bowl + blades), graduated beaker
Maximum operating time (blender/masher/chopper)	1 minute
Maximum operating time (whisk)	2 minutes
Recommended rest time between cycles	3 minutes (blender), 10 minutes (other accessories)
Cooling after 5 cycles	Let cool to room temperature
Cleaning	Hand wash accessories; do not immerse handle; wipe with a damp cloth
Dishwasher safe	Not suitable
Blade material	Stainless steel
Legal warranty	2 years
Use	Domestic only
Safety	Sharp blades, disconnect before cleaning, do not use with wet hands

Frequently Asked Questions - PM002 SIGNATURE

How to use the hand blender?

Place the blending shaft onto the power handle until you hear a click. Fill the beaker (max marked). Plug in, set the speed, immerse the blades in the food, press the switch or Turbo button. Move the appliance slowly. Do not exceed 1 minute of operation.

Can I put the accessories in the dishwasher?

No, do not put any accessories or the handle in the dishwasher. Wash by hand with a mild detergent, rinse and dry thoroughly.

What to do if the blender does not start?

Check that the plug is connected, that the power supply matches the rating plate (220-240 V). Ensure the accessory is correctly locked (audible click). If the problem persists, contact customer service.

How to safely clean the blades?

Always unplug the appliance. Handle the blades with care as they are very sharp. Wash the blades under running water with a soft brush. Do not touch the cutting edge directly. Replace the protection cap after drying.

Why does my appliance stop during use?

This may be due to overheating. Let the appliance cool to room temperature (at least 2 minutes). Avoid exceeding the maximum operating time (1 min for blender, 2 min for whisk). If the blockage persists, check that the food is not too hard.

Can I blend hot food?

Yes, but with caution. If you pour hot liquid into the beaker, there may be sudden ejection due to boiling. Do not exceed maximum levels and use low speed at start.

How to change the accessory?

Unplug the appliance before any change. Unlock the accessory by turning and pulling. To install a new accessory, align the marks on the handle and the accessory, then turn until a locking click.

What is the maximum continuous operating time?

For the blender, masher and chopper: 1 minute. For the whisk: 2 minutes. After 5 cycles, let the appliance cool completely before reuse.

How to store the appliance?

Store the appliance in a cool, dry, ventilated place. Do not leave food in the beaker or chopper bowl for a long time. Store accessories with the protection cap on the blades.

What to do if the blades are blocked?

Stop the appliance immediately and unplug it. Remove the accessory, carefully remove blocked food (do not touch blades). Clean and try again. Avoid blending ingredients that are too hard or too large.

USER MANUAL PM002 SIGNATURE

Product photo of kitchen utensils including blender, whisk, brush, and clear glass (no text or symbols visible)

SIGNATURE®

MIXEUR PLONGEANT MULTIFONCTIONS

TABLE DES MATIÈRES

CONSIGNE DE SÉCURITÉ IMPORTANTE - 2 -

PRÉSENTATION GÉNÉRALE - 8 -

UTILISATION DE L'APPLIANCE - 9 -

GUIDE DE TRANSFORMATION ALIMENTAIRE -16-

NETTOYAGE ET ENTRETIEN -18-

SPÉCIFICATION TECHNIQUE -22-

ENLÈVEMENT DES APPAREILS MÉNAGERS USAGÉS -23-

LE TRI + FACILE BAC DE TRI

Technical diagram of a blender with numbered parts for identification and assembly reference.

UTILISATION DE L'APPAREIL

Reference: SIGNATURE PM002

Power supply: 220-240V\~50-60Hz

Power: 800W

Product photo of kitchen utensils including blender, whisk, brush, and clear glass (no text or symbols visible)

SIGNATURE®

HAND BLENDER SET

TABLE OF CONTENT

IMPORTANT SAFETY INSTRUCTION - 25 -

GENERAL PRESENTATION -30 -

USING THE APPLIANCE -31 -

FOOD PROCESSING GUIDE -37-

CLEANING AND MAINTENANCE -39-

TECHNICAL SPECIFICATION -41 -

DISPOSAL OF OLD ELECTRICAL APPLIANCES -42-

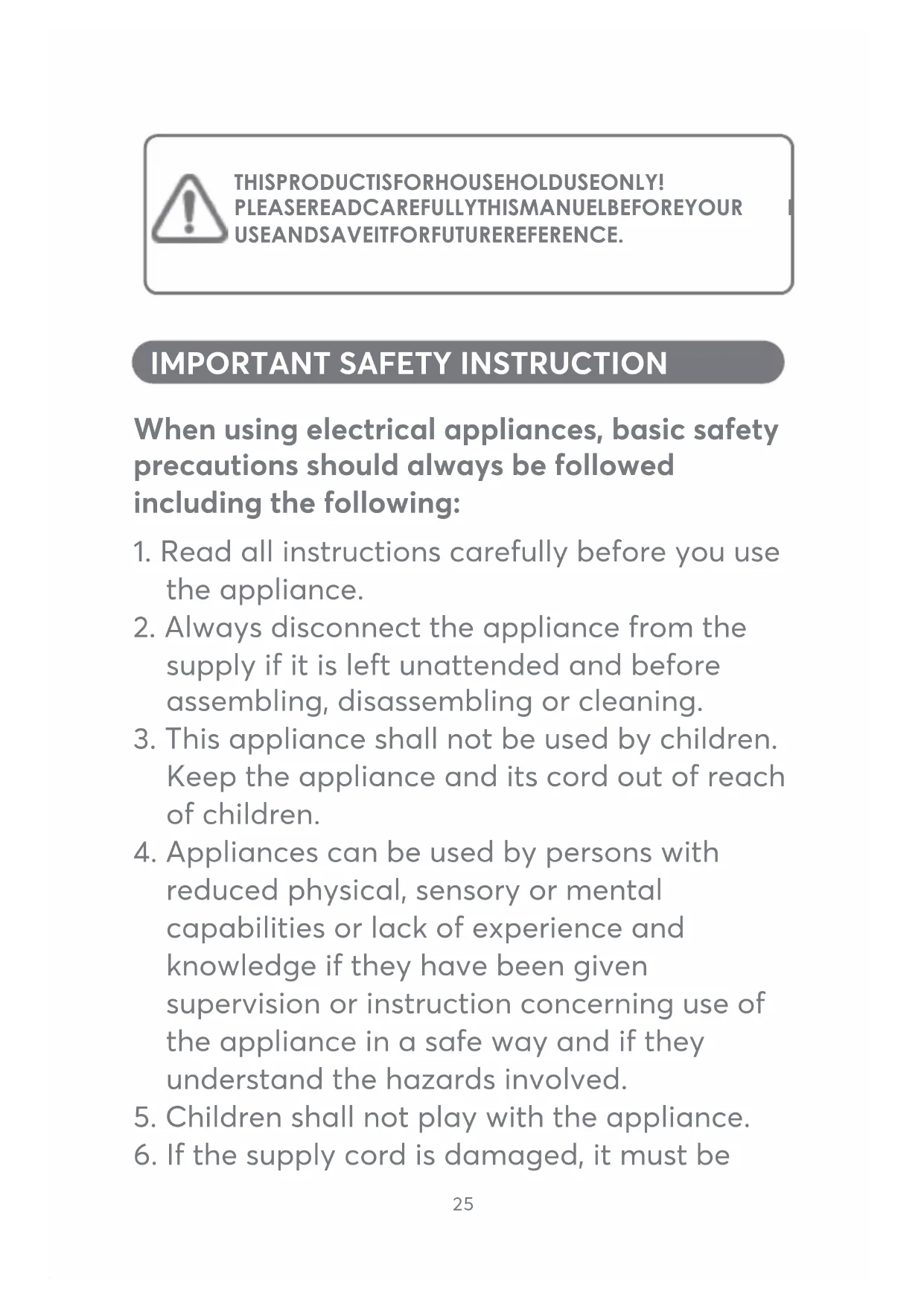

THISPRODUCTISFORHOUSEHOLDUSEONLY! PLEASEREADCAREFULLYTHISMANUELBEFOREYOUR USEANDSAVEITFORFUTUREREFERENCE.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before you use the appliance.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
2. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

3. This appliance is intended to be used in household and similar applications such as:

4. staff kitchen areas in shops, offices and other working environments;

5. farm houses;
6. by clients in hotels, motels and other residential type environments;

7. bed and breakfast type environments.

8. Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

9. WARNING: Potential injury from misuse.
10. Check that the voltage of the power supply in your home is same as the voltage shown on the rating label of this product.
11. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or it's dropped or damaged in any manner. Return the appliance to the

nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

1. Never put the power handle in water or other liquid or let the cord or plug get wet, you could get an electric shock.

2. Do not operate the blender with wet hands. Make hands dry with cloth before plugging in.

3. Make sure the blender shaft, egg-fork, chopper, potato blender shaft in place, the power cord is not damaged before using the appliance every time.

4. Never let the blades face toward anybody while operating the appliance.

5. Take special care when preparing food for babies, the elderly and infirm.

6. Always ensure that the hand blender shaft, egg fork, chopper or potato blender shaft is thoroughly sterilized.

7. Never blend or mix hot oil, fat.

8. Do not let the cord hang over edge of the table or counter.

9. Never let anybody trip over the power cord and attached cable. Don't let the cord touch hot surfaces or hang down where a child could grab it.

10. Unplug from outlet when it is not in use, before putting on or taking off parts, before

moving the appliance or adding the food, and before cleaning.

1. Do not use outdoors.
2. Blades are sharp. Handle carefully.

3. Never touch the blades or egg-fork while the machine is plugged in.

4. Never add ingredients to the beaker or chopper bowl while the hand blender is operating.

5. The capacity of the ingredient does not exceed the maximum graduation of the beaker or chopper bowl.

6. Do not continuously operate the blender too long. The motor may overheat. If the surface of the hand blender has been very hot, it may need time to cool down. After reducing to the room temperature, the appliance can be operated again.

7. The continuous operating time without the load must be less than 10 seconds when using blender, furthermore, do not use the blender to mix too hard ingredients.

8. Do not exceed the quantities and maximum time indicated in the "OPERATION GUIDELINE" or "FOOD PROCESSING GUIDE".

9. Take the attachments off before cleaning.

10. Avoid contacting moving parts.

11. Keep fingers, hair, clothing and utensils away from moving parts.
12. Keep hands and utensils out of the beaker or chopper bowl while blending or cutting to reduce the risk of severe injury to persons or damage to the blender.
13. Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to "CLEANING AND MAINTENANCE".

GENERAL PRESENTATION

Technical diagram of a blender with numbered parts for identification and assembly reference.

USING THE APPLIANCE

Caution: Blades are sharp. Handle carefully.

BEFORE USING FOR THE FIRST TIME

• Remove all packaging and take away the blade covers.
• Clean the blender according to the section of "quick cleaning".

TO USE THE HAND BLENDER

• Clean the blender shaft and beaker.
• Fit the power handle inside the blender shaft, turn and lock until you hear a slight click. The marks on the power handle and blender shaft should now be aligned with each other. If this is the case, the blender shaft is locked correctly.
• Check if the power cord is not damaged.
• Make sure your electricity supply is the same as the one shown on the power handle.
• Fill the food to the beaker (not more than the maximum indicated level).
• Plug in, adjust the desired setting, hold the power handle steady. Switch the appliance on by pressing the switch button or Turbo button.

• Immerse the blade completely in the ingredients.

• Blend the ingredients by moving the appliance slowly up and down and in circles.
  • After you have completed blending, release the switch button, then unplug from outlet.

• Warning: Max operation duration per time cannot exceed 1 minute, and 3 minute rest time must be maintained at two consecutive cycles.
• If your blender gets blocked, first stop and unplug before clearing.
  • After use, unplug and dismantle.
• Always switch off and unplug before cleaning. Please refer to the instruction in the "CLEANING AND MAINTENANCE".

TO USE THE POTATO BLENDER SHAFT

• Clean the potato blender shaft and a container used for holding the food.
• Fit the power handle inside the potato blender shaft, turn and lock until you hear a slight click. The marks on the power handle and potato blender shaft should now be aligned with each other. If this is the case, the potato blender shaft is locked correctly.
• Check if the power cord is not damaged.
• Make sure your electricity supply is the same as the one shown on the power handle.
• Fill the food (cooked-potato pieces, cooked-

pumpkin pieces etc.,) into the container.

• Plug in, adjust the desired setting, hold the power handle steady. Switch the appliance on by pressing the switch button or Turbo button.
• Immerse the blade completely in the ingredients.
• Blend the ingredients by moving the appliance slowly up and down and in circles.
  • After you have completed blending, Release the switch button, then unplug from outlet.
• Warning: Max operation duration per time cannot exceed 1 minute, and 10 minutes rest time must be maintained at two consecutive cycles.
• If your blender gets blocked, first stop and unplug before clearing.
  • After use, unplug and dismantle.
• Always switch off and unplug before cleaning. Please refer to the instruction in the "CLEANING AND MAINTENANCE".

TO USE THE CHOPPER

• Remove the protective cover from the blade of the chopper.

• Clean the lid, blade unit and bowl of the chopper.
  • Fix the blade unit in the chopper bowl.

• Fill the food to the bowl (not more than the maximum indicated level).

• Fit the power handle inside the chopper, turn and lock until you hear a slight click. The marks on the power handle and the chopper should now be aligned with each other. If this is the case, the chopper is locked correctly.
• Check if the power cord is not damaged.
• Make sure your electricity supply is the same as the one shown on the power handle.
• Plug in, adjust the desired setting, hold the power handle steady. Switch the appliance on by pressing the switch button or Turbo button.
  • After you have completed blending, Release the switch button, then unplug from outlet.
• Warning: Max operation duration per time cannot exceed 1 minute, and 10 minute rest time must be maintained at two consecutive cycles.
• Warning: To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place
• If your chopper gets blocked, first stop and unplug before clearing.
  • After use, unplug and dismantle the power handle and the lid unit in sequence, take the blade out of the bowl by holding the

plastic shaft, then pour out the food.

- The edge of the blade is very sharp, do not touch them.

- Always switch off and unplug before cleaning. Please refer to the instruction in the "CLEANING AND MAINTENANCE".

TO USE THE EGG-FORK

• Clean the egg-fork and beaker.
• Insert the egg-fork into the egg-fork head until you hear a slight click.
• Fit the power handle inside the egg-fork, turn and lock until you hear a slight click. The marks on the power handle and the egg- fork head should now be aligned with each other. If this is the case, the egg-fork is locked correctly.
• Check if the power cord is not damaged.
• Make sure your electricity supply is the same as the one shown on the power handle.
• Fill the food to the beaker (not more than the maximum indicated level).
• Plug in, adjust the desired setting, hold the power handle steady. Switch the appliance on by pressing the switch button.
• To prevent splashing, use the Low speed to mix when starting.

• Immerse the egg-fork completely in the ingredients.

• Blend the ingredients by moving the appliance slowly up and down and in circles.
  • After you have completed mixing, Release the switch button, then unplug from outlet.

• Warning: Max operation duration per time cannot exceed 2 minute, and 10 minute rest time must be maintained at two consecutive cycles.
• Never blend hot oil, fat or meat.
• If your egg-fork gets blocked, first stop and unplug before clearing.
  • After use, unplug and dismantle.
• Always switch off and unplug before cleaning. Please refer to the instruction in the "CLEANING AND MAINTENANCE".

FOOD PROCESSING GUIDE

THE HAND BLENDER

Food Speed		Max. time	Max. quantity
Soups Milk Vegetables Mayonnaise Sauces Strawberry	lower speed	30 seconds	200g
Carrot pieces (size 15mm x 15mmx15mm)	higher speed	30 seconds	550g Note: take 220g Carrot pieces per 330g water.

THE POTATO BLENDER SHAFT

Food Speed		Max. time	Max. quantity
cooked-potato pieces, cooked - pumpkin pieces (size 20mm x 20mmx20mm)	higher speed	30 seconds	300g

THE EGG-FORK

Food Speed		Max. time	Max. Quantity
Cream, egg whites	higher speed	3 minutes	200g

THE CHOPPER

Food Speed		Max. time	Max. Quantity
beef pieces (size 20mm x 20mm x20mm), almonds	high speed	30 seconds	200g

CLEANING AND MAINTENANCE

Always switch off and unplug before cleaning.

Take the attachments off.

Don't touch the sharp blades.

Caution: Take care when cleaning the blades as they are extremely sharp.

Note: Do not clean any part of the blender in the dishwasher.

The power handle and power cord

Wipe with a damp cloth, then dry.

Never immerse in water or other liquid or use abrasives.

The beaker

The beaker can be washed in water with cleaning agent.

Wash and rinse thoroughly with water, then dry.

The blender shaft

The shaft can be washed in water with cleaning agent.

Unplug, let it cool down.

Wash and rinse thoroughly with water, then dry.

The potato blender shaft

The shaft can be washed in water with cleaning agent.

Unplug, let it cool down.

Wash and rinse thoroughly with water, then dry.

The chopper

The lid unit of the chopper can only be wiped with a damp cloth, then dry.

Never immerse in water or other liquid or use abrasives.

The bowl and the blade can be washed in water with cleaning agent.

Unplug, let it cool down.

Wash and rinse thoroughly with water, then dry. Reattach the protective cover to the blade.

The egg-fork

The head of egg-fork can only be wiped with a damp cloth, then dry.

Never wash and rinse in water or use abrasives.

The other part of egg-fork can be washed in water with cleaning agent.

Unplug, let it cool down.

Wash and rinse thoroughly with water, then dry.

Storage

Small jar and bowl which can not be used to store food for a long time.

Store in a cool, dry and ventilating place.

QUICK CLEANING

Hold the hand blender in a cup half filled with water and turn on the appliance to make it run for a few seconds.

WARNING:

Any other servicing should be performed by an authorized service representative.

Do let the appliance rest at least 2 minutes between cycles!

After operating 5 cycles continuously, the appliance needs to cool down to the room temperature to restart.

Never misuse this appliance. Care is needed when handling cutting blades, especially when removing the blender from the beaker, taking the blade from the bowl and during cleaning.

Always reattach the protective cover to the blades after cleaning

TECHNICAL SPECIFICATION

Reference: SIGNATURE PM002

Power supply: 220-240V\~ 50-60Hz

Power: 800W

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97,

From Monday to Saturday from 8:00 am to 8:00 pm (local call price).

LE TRI + FACILE BAC DE TRI
