USER MANUAL CA4313 SIGNATURE

Top cover Sprayer Funnel Water tank Water gauge Main housing Switch Bottom cover Water tank deco Carafe Asm.

CORRECT DISPOSAL OF THIS PRODUCT

CLEANING AND MAINTENANCE

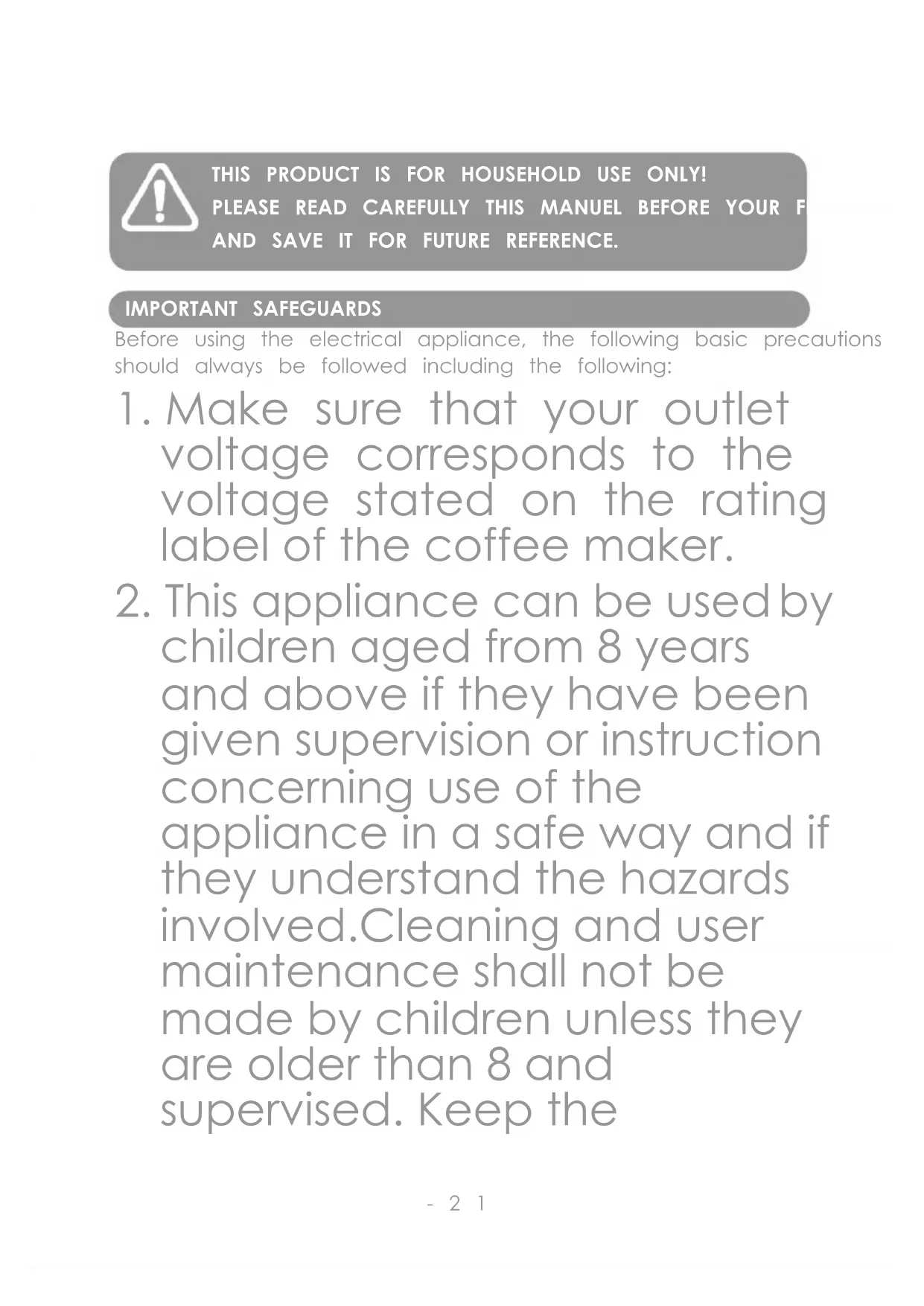

- 34 -- 2 1 - THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! PLEASE READ CAREFULLY THIS MANUEL BEFORE YOUR FIRST USE AND SAVE IT FOR FUTURE REFERENCE. IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Make sure that your outlet

voltage corresponds to the voltage stated on the rating label of the coffee maker.

2. This appliance can be used

children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep theappliance and its cord out of reach of children aged less than 8 years. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

4. Do not let the coffee maker

operate without water.

5. If the supply cord is damaged,

it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. - 2 2 - 3.- 2 3 - 6.To protect against fire, electric shock and injury to persons do not immerse cord, plug, or in water or other liquid. 7.Close supervision is necessary when your appliance is operating. Do not let the appliance on the standby state for a long time. And never allow the children or inform persons to operate the appliance. 8.Unplug from outlet when not in use and before cleaning. Allow to cooling before putting on or taking off parts, and before cleaning the appliance. 9.This appliance has been incorporated with a- 2 4 - grounded plug. Please ensure the wall outlet in your house is well earthed. 10.The use of attachments not recommended by the appliance manufact ure r may result in fire, electric shock or injury to persons.

11. Do not use outdoors.

12. Place appliance on flat

surface or table, do not let cord hang over edge of table or counter, or t o uch hot surface.

13. Do not place on or near a

hot gas or electric burner, or in a heated oven.

14. Do not use appliance for

other than intended use and place it in a dry environment.

15. Connect plug to wall outlet

before using and turn any switch off before plug is- 2 5 - removed from wall outlet. When unplug, always hold the plug. But ne ver pull the cord.

16. Some parts of appliance

are hot when operated, so do not touch with hand directly. Use handles or knobs only.

17. The container is designe d

for use with this applian ce. It must never be used on a range top.

18. Do not clean container with

cleansers, steel wool pads, or other abrasive material.

19. Never leave the empty

carafe on the keeping warm plate otherwise the carafe is liable to crack.

20. Never use the appliance if

the carafe shows any signs of cracks or carafe having a- 2 6 - loose or weakened handle. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.

21. Do not set a hot container

on a hot or cold surface.

22. Do not operate an y

appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examinat i on, repair or adjustment.

23. It is recommended to

check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.24. Keep the appliance and its cord out of reach of children less than 8 years.

25. The appliance is not

intended to be operated by means of an external timer or a separate remote –control system.

26. This appliance is intended

to be used in household and similar applications such as:

27. The heating element surface is

subject to residual heat after use. Do not touch these surfaces to avoid burning yourself.

28. The coffee-maker shall not be

placed in a cabinet when in use. - 2 7 -- 2 8 - to refer to the below "cleaning" in

The appliance including its accessories can only be maintained by a qualified person in compliance with the instruct i ons provided. Incorrect maintenance may cause harm to persons, animals or may damage property. Regarding the instruct ions for cleaning the app

29. WARNING: Risks of injuries if you

don't use this appliance correctly.

This appliance has a polarized plug, To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way, If the plug does not fit fully into the outlet, reverse the plug, If it still does not fit, contact a qualified electrician, Do not attempt to modify the plug in any way. manual.- 2 9 -

KNOW YOUR COFFEE MAKER

Top cover Sprayer Funnel Water tank Water gauge Main housing Switch Bottom cover Water tank deco Carafe Asm.

Check that all accessories are complete and the unit is not damaged. Fill water into water tank to the maximum level on the water gauge and brew water for several times without coffee powder, then discard the water. Clean and dry all detachable parts thoroughly according to the section “CLEANING AND MAINTENANCE”- 3 0 -

USING YOUR COFFEE MAKER

1. Open the top cover and fill the water tank with cold drinking water

NOTE: Do not fill water tank with water to exceed max level as indicated on water gauge. The appliance can brew max 10 cups of coffee every brewing cycle.

2. Place the funnel into funnel holder and make sure the funnel is

assembled in place, and then put a paper filter into funnel correctly.

3. Add proper coffee powder into paper filter. Usually a cup of coffee

need a level spoon of coffee powder, but you may adjust according to personal taste, and then replace the top cover.

4. Insert glass carafe with lid in place onto warming plate horizontally,

ensure center line of carafe aligns with that of funnel.

5. Plug the unit into an outlet.

6. Press the switch, the indicator in it will be illuminated and the

appliance will begin working. Note: The brewing process can be interrupted by pressing the switch again at any time and the indicator in it will go off, indicating your coffee maker is off. NOTE: the appliance is designed with a pause-and-serve feature, if you wish, at any time during brewing cycle, you can temporarily remove carafe to pour and serve a cup of hot coffee. The brewing cycle will not be interrupted and no coffee will drip from the appliance, simply replace glass carafe onto warming plate to restart the brewing cycle, But do not remove glass carafe for longer than 30s, never return empty carafe onto warming plate when it is still warm.

7. Remove carafe to serve when finish brewing.

NOTE: the coffee you get will be less than the water you have added as some water is absorbed by coffee powder.- 3 1 - CAUTION: When pour coffee, the momentary inclined angle of carafe shall not be more than 45 degree from the vertical position, you shall pour the coffee slowly until the carafe is empty, otherwise the coffee in the carafe will rush to the bottom of carafe lid, and the coffee will flow out from two edges of lid and hurt person!

8. After brewing, the appliance will automatically switch to the

warming mode, which will continue to keep your coffee warm for 40 minutes. After keeping warm for 40 minutes, the appliance will be cut off automatically. For an optimum coffee taste, serve it just after brewing.

9. Always turn the coffee maker off and unplug the appliance when

CLEANING AND MAINTENANCE

CAUTION: Be sure to unplug this appliance before cleaning and let the appliance cool down completely. To protect against electrical shock, do not immerse cord, plug or unit in water or liquid.

1) Clean all detachable parts after each use in hot sudsy water.

2) Wipe external surface of product with a soft, damp cloth to

remove stains. NOTE: Do not attempt to clean the inside of water tank, as this will leave a residue of lint and may clog your coffee maker, simply rinse with cold water periodically.

3) Water droplets may buildup in the area above the funnel and drip

onto the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.

4) Replace all parts and keep for next use.- 3 2 -

REMOVING MINERAL DEPOSITS

To keep your c offee maker operating efficiently, periodically you should clean away the mineral deposits left by the water according to the wate r quality in your area and the use frequency, we recommend removing mineral deposits as follows:

1. Fill the tank with water and descaler to the max level a s i ndicated

on water gauge (the scale of water and descaler is 4:1, the detail refers to the instruction of descaler. Please use “household descal e r”), you may also use t he citric acid instead of the descaler (the one hundred parts of water and three parts of citric acid).

2. Insert glass carafe onto the warming plate.

3. Make sure without coffee powder and funnel are assembled in

4. Switch on the appliance and allow it to “ brew” de-sc aling solution.

5. After “ brew” one-cup solution, switch off the appliance.

6. Leave the solution stay for 15 minutes and rep e at step 3-5.

7. Switch on the appliance and run off the solution until the water

tank is completely empty.

8. Rin se by operating the appliance with water at least 3 times.- 3 3 -

HINTS FOR GREAT-TASTING COFFEE

1. A clean coffee maker is essential for making great-tasting coffee.

Regularly clean the coffee maker as specified in the “CLEANING AND MAINTENANCE” section. Always use fresh, cold water in the coffee maker.

2. Store unused coffee powder in a cool, dry place. After opening a

package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness.

3. For an optimum coffee taste, buy whole coffee beans and finely

grind them just before brewing.

4. Do not reuse coffee powder since this will greatly reduce the

coffee’ flavor. Reheating coffee is not recommended as coffee is at its peak flavor immediately after brewing. TECHNICAL SPECIFICATION VOLTAGE/FREQUENCY: 220-240V~ 50-60Hz POWER: 1000W We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.- 3 4 -

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products

remind you of the obligations of separated collection. In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years. To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97， From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).
