Product Type	Interactive Monitor
Brand	Optoma
Model	N3751K
Screen Size	75 inches (190 cm diagonal)
Native Resolution	3840 x 2160 pixels (4K UHD)
Panel Type	LED backlit
Operating System	Custom Android 11
Connectivity	HDMI 2.0 (3 inputs, 1 output), USB-C (DisplayPort 1.2, Power Delivery 65W), USB 2.0/3.0, RS232, LAN, Wi-Fi (optional dongle), Bluetooth 5.2
Main Features	Creative Cast (wireless sharing), PIP, screen recording, video wall (up to 5x5), Low Blue Light mode, DynamicBlack
Power Supply	100-240 V AC, 50/60 Hz
Energy Consumption	ENERGY STAR certified (Standard mode)
Wall Mount	VESA 800 x 400 mm (M8 x 25L screws)
Built-in Speakers	2 speakers
Security	Screen lock with password, OSD lock, advanced parental control via password
Maintenance and Cleaning	Screen: soft dry cloth; front bezel: lint-free cloth; unplug before cleaning
Spare Parts / Repairability	Technical support via reseller or Optoma service center; repair by qualified personnel only

Frequently Asked Questions - N3751K OPTOMA

How to turn the screen on and off?

Press the Power button on the control panel or remote control. To turn off, hold the button for 3 seconds, then confirm. The LED indicator turns red in standby.

How to connect a computer via HDMI?

Connect an HDMI cable between your computer and one of the monitor's HDMI ports. Select the corresponding HDMI source via the shortcut menu (Source button).

How to use Creative Cast for wireless sharing?

Make sure the monitor and your device are on the same network. Launch the Creative Cast app on your mobile or computer, enter the verification code displayed on the screen, then select the type of content to share (mirror, photos, etc.).

How to configure Wi-Fi on the monitor?

First connect an optional Wi-Fi dongle to the designated slot. Go to Settings > Network > Wi-Fi, enable Wi-Fi, select your network and enter the password if required.

How to adjust brightness and contrast?

Open the OSD menu with the Menu button, navigate to Image. If the display mode is set to 'Custom', you can adjust the brightness and contrast sliders. Otherwise, choose a preset mode.

What to do if the screen does not turn on?

Check that the power cord is plugged in and the power switch is set to ON (I). Make sure the input source is correct. If the problem persists, contact customer service.

How to safely clean the screen?

First unplug the device. Use a soft dry cloth to wipe the screen. Never use water, spray cleaner, or abrasive products. For the front bezel, a lint-free cloth is sufficient.

How to lock the screen with a password?

Go to Settings > Security > Screen lock password. Enter a 4-digit password twice. To unlock, enter this password at startup.

How to update the monitor software?

Via Internet (OTA): go to Settings > System > Update and enable automatic check. Via USB key: place the update file (FAT32 format) in the root, plug it in, then select USB software upgrade in the same menu.

The remote control does not work, what to do?

Check the angle (max ±30°) and distance (max 8 m) from the IR sensor. Replace the batteries if they are depleted. Make sure no obstacles block the beam. If the problem persists, try resetting the remote by removing the batteries.

USER MANUAL N3751K OPTOMA

Creative Board....72

Optoma Marketplace 88

Keeper 89

MediaPlayer....90

Optoma Management Suite (OMS)....99

INFORMATIONS SUPPLÉMENTAIRES .... 102

Dimensions....102

55 pouces....102

65 pouces....103

75 pouces....104

86 pouces....105

98 pouces....106

Line drawing of a PC Enfichable OPS M router with two antennas and ports (no text or symbols on the device itself)

Line drawing of a vertical support structure with wheels and a chair (no text or symbols)

INTRODUCTION

INTRODUCTION

Technical line drawing of a dual-tiered rack structure with no visible text or symbols

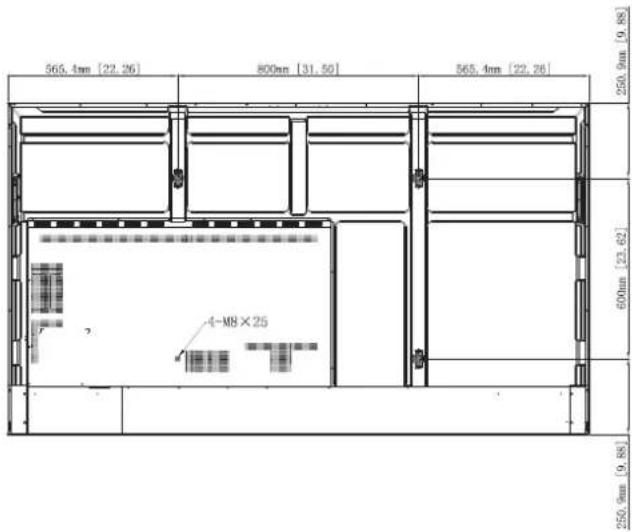

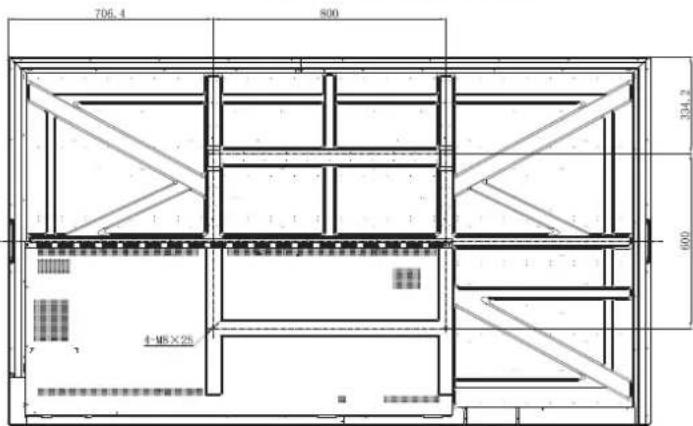

75 pouces 86 pouces

98 pouces

CONFIGURATION ET INSTALLATION

Technical diagram of a mechanical component with a magnified inset showing a screw inserted into a slot (no text or symbols present)

Diagram showing a cylindrical device with a ring attached to a panel, connected to a dashed rectangular box (no text or symbols present)

Technical diagram of a mechanical assembly with a blue arrow indicating direction, no visible text or symbols

Technical diagram of a wall-mounted device with a close-up inset showing a component labeled 'C' (no text or symbols present)

Remarque :

Technical line drawing of a mechanical component with a magnified inset showing a threaded fastener (no text or symbols)

Remarque :

Diagram showing a two-wheeled cart with wheels and a close-up of its mechanical components (no text or symbols)

Technical line drawing of a vertical mechanical device with wheels and a blue arrow indicating direction (no text or symbols)

CONFIGURATION ET INSTALLATION

Diagram of a smartphone rear panel with a blue arrow indicating rotation (no text or symbols)

Diagram of a remote control panel with battery and indicator lights (no text or symbols)

Diagram of a smartphone with a blue arrow indicating the change or direction (no text or symbols present)

MISE EN GARDE

Diagram showing a circular screen connected to a remote control with multiple function buttons (no text or symbols)

CONFIGURATION ET INSTALLATION

Connexions

Diagram showing connection between a device and a laptop via USB cable (no text or symbols present)

CONFIGURATION ET INSTALLATION

Simple diagram showing a blue downward arrow between two hanging lights on a horizontal beam (no text or symbols)

Diagram showing a blue upward arrow pointing to a gray base with a label 'II', above parallel lines (no text or symbols on the diagram itself)

Paysage Portrait

Advanced settings
USB WIFI Enable	<=	OPEN	=>
USB Disk Enable	<=	OFF	=>
Android input Enable	<=	OPEN	=>
Back

OPÉRATIONS DE BASE
