USER MANUAL Power Steamer 915E WAGNER

Explanation of symbols used This symbol indicates a potential danger for you or for the device. Under this symbol you can nd important information on how to avoid injuries and damage to the device.

Indicates tips for use and other particularly useful information. Risk of scalding: Discharged steam is hot

Risk of scalding: When working overhead, beware of hot water dripping Caution - risk of burns: surface can get hot during use. Wear suitable safety gloves when working. Wear suitable safety goggles while working. Translation of the original operating instructions14

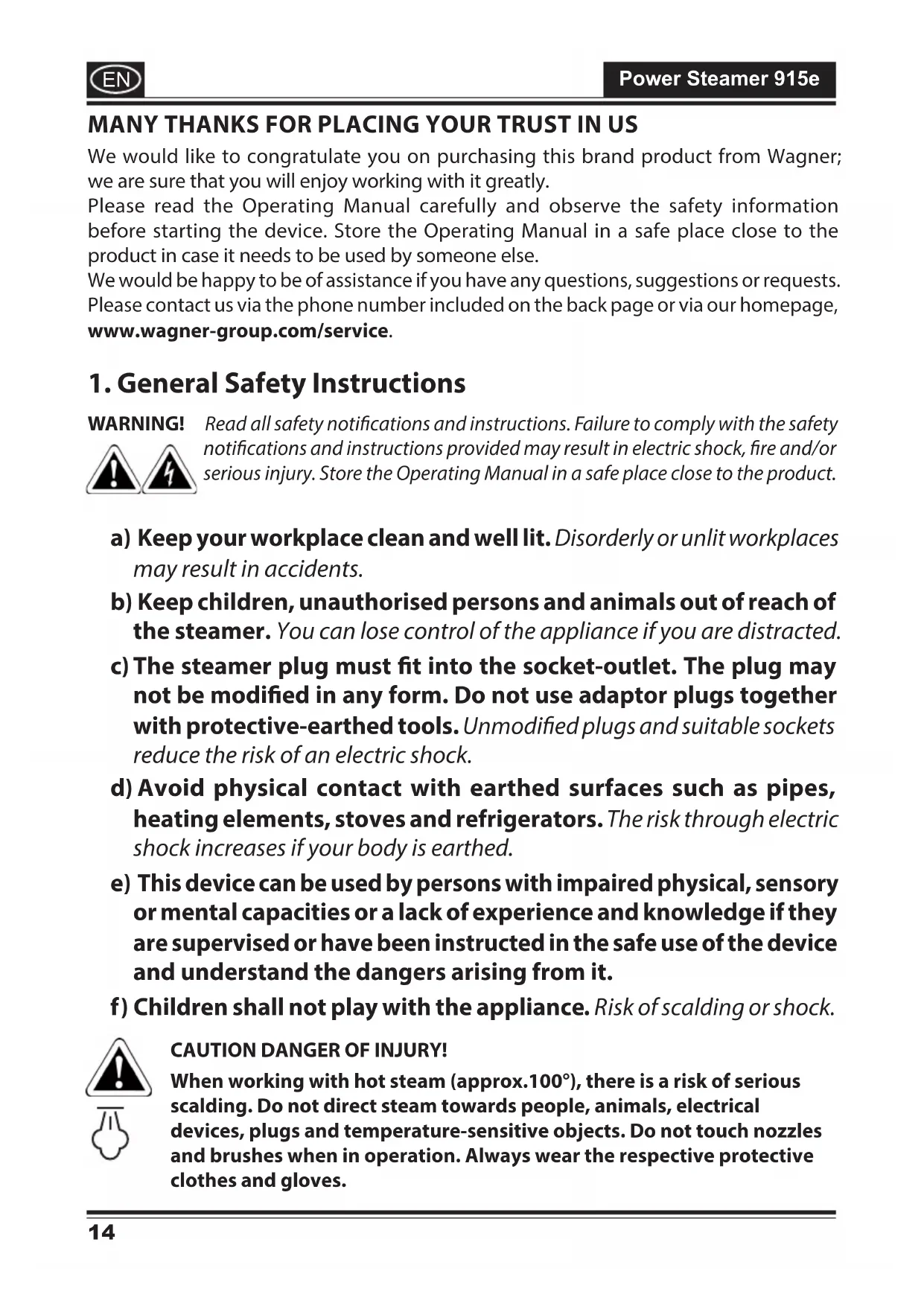

Power Steamer 915e MANY THANKS FOR PLACING YOUR TRUST IN US We would like to congratulate you on purchasing this brand product from Wagner; we are sure that you will enjoy working with it greatly. Please read the Operating Manual carefully and observe the safety information before starting the device. Store the Operating Manual in a safe place close to the product in case it needs to be used by someone else. We would be happy to be of assistance if you have any questions, suggestions or requests. Please contact us via the phone number included on the back page or via our homepage, www.wagner-group.com/service.

1. General Safety Instructions

WARNING! Read all safety notications and instructions. Failure to comply with the safety notications and instructions provided may result in electric shock, re and/or serious injury. Store the Operating Manual in a safe place close to the product.

Keep your workplace clean and well lit. Disorderly or unlit workplaces may result in accidents.

Keep children, unauthorised persons and animals out of reach of the steamer. You can lose control of the appliance if you are distracted.

The steamer plug must t into the socket-outlet. The plug may not be modied in any form. Do not use adaptor plugs together with protective-earthed tools. Unmodied plugs and suitable sockets reduce the risk of an electric shock.

Avoid physical contact with earthed surfaces such as pipes, heating elements, stoves and refrigerators. The risk through electric shock increases if your body is earthed.

This device can be used by persons with impaired physical, sensory or mental capacities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the dangers arising from it. f) Children shall not play with the appliance. Risk of scalding or shock. CAUTION DANGER OF INJURY! When working with hot steam (approx.100°), there is a risk of serious scalding. Do not direct steam towards people, animals, electrical devices, plugs and temperature-sensitive objects. Do not touch nozzles and brushes when in operation. Always wear the respective protective clothes and gloves.15

The steam cleaner is only designed to be used in the home and may not be used outside.

Never leave the steam cleaner unattended when it is connected to the mains.

Always lock the trigger guard when the steam cleaner is not in use.

Keep children away from the device when it is switched on or cooling down.

Do not use the steam cleaner if it has been dropped, if it is visibly damaged or not tightly sealed.

Ensure that the accessories are connected correctly to each other. Otherwise there is a danger of scalding!

Do not operate the steam cleaner if there is no water in the tank.

Operate the unit only with pure water without agents or additives.

Do not overll the water tank. Overlling the water tank can lead to damage or injuries.

Be careful of overhead water dripping down when you are working on the ceiling.

Keep feet and all parts of the body away from the jet of steam. Do not operate machine in bare feet or when wearing open toed shoes or sandals.

The steam cleaner gets hot during use. Only move the steam cleaner by the handle.

Be particularly careful when you are working on stairs or ladders.

Always ensure that the unit is standing securely in a horizontal position (on the oor).

Never turn the device upside down or to an angle of more than 45° when it is switched on.

Do not tread on the steam cleaner, hose or steam plate.

Do not pull or carry the steam cleaner by the cable or hose. Do not allow the cable or hose to become jammed in a door and do not lay them around sharp edges or corners. Keep the cable and hose away from hot surfaces.

If the cable or hose are damaged you must have them replaced immediately by the manufacturer or an authorized person in order to avoid any hazards.

In order to protect against electric shocks, connect the steam cleaner only to earthed mains sockets.

Integration of a 30 mA earth leakage circuit breaker in the power grid connection is recommended to provide extra protection against electric shocks.

When using an extension cable: max.10 m long – the cable cross section must be at least 3 x 1 mm².

Do not pull the plug out of the socket by the cable, but always by pulling at the plug itself.

Never take hold of the plug or the steam cleaner with wet hands.

When the steam cleaner is not being used, disconnect it from the mains. Always use the on/o switch rst and then disconnect it from the socket.

After use disconnect the steam cleaner from the mains and allow it to cool down before you clean it.

Before you empty the steam cleaner allow it cool down completely.

Do not dip the electric cable, plug or steam cleaner in water or other liquids.

Store the steam cleaner only when it is dry and empty. Keep it in a place that is not exposed to frost.

, 50-60 Hz Power consumption: 1500 W Protection class I Tank capacity 1200 ml Warm-up period Up to 9 minutes Operating time with one tank lling Up to 40 minutes Hose length 2.4 m Length of electric cable 1.8 m Weight approx. 5.6 kg

3. Description/ Scope of delivery

The picture that goes with this table can be found on the fold-out page at the beginning of the operating manual. Description/ Scope of delivery

5) Straight adapter for nozzles and brushes

7) Extension tube 8)

Floor attachment with angle adapter (8a)

: a) small (brass), b) large (brass),

small (nylon, 2 pcs. ), d) large (nylon, 2 pcs.

4. Field of application

The steam cleaner together with this wide range of accessories is suitable for cleaning various heat-resistant surfaces. It can also be used to remove old wallpaper from the walls. Only clear water without any additives may be used. Applications other than those described in the operating manual are not permitted.17

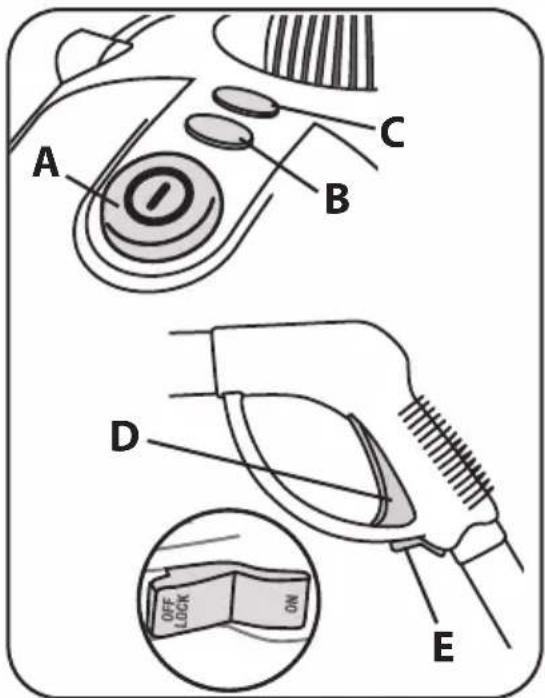

5. Operating elements and displays on device

B: Operating display (red): Lights when the device is switched on C: Steam display (orange): Lights when steam is being produced. The device is ready as soon as the light goes out. D: Trigger: Keep depressed to let out steam. After it has cooled down, depress when the device is switched o to release pressure. E: Trigger lock: To lock, set the switch to the "OFF/LOCK" position To unlock, set the switch to the "ON" position

ATTENTION! Carry out assembly work only when the steam cleaner is switched o and all individual parts have cooled down! Accessories for the straight adapter

With the straight adapter, all accessories except the oor brush and the steamer plate can be attached to the steam gun.

Press down the button on the steam gun (13).

Attach the straight adapter (Fig. 6, 5) to the gun either with or without extensions (7).

Slide the accessory onto the straight adapter (see the following overview for details of the dierent attachments). Window cleaner Upholstery cleaner Angle nozzle Excellent for cleaning shower cubicles, tiles, windows and glass surfaces. Do not use on glass if the temperature is below 0˚ C, there is a risk of breakage.Use with rubber lip removed to steam clothes, upholstery and mattresses (to kill dust mites).For disinfecting bathroom and kitchen ttings and hard-to-reach places.

Power Steamer 915e Brushes (nylon) Brushes (brass) The nylon brushes can be used in hard- to-reach areas around washbasins and bathroom ttings. The brass brushes can be used to remove grease and dirt from grills and ovens. Accessories for the angle adapter

Insert the angle adapter (8a) into the oor brush (8). The adapter must point downwards.

Press the button on the extension (7) and insert it into the angle adapter.

Insert the second extension and connect it to the steam gun (13).

If necessary, lay the mop cloth (4) on a at surface and place the oor brush (8) on it.

Press a clip on the oor brush and attach the mop cloth. Repeat this with the other clip. Steam plate (e.g. to remove wallpaper)

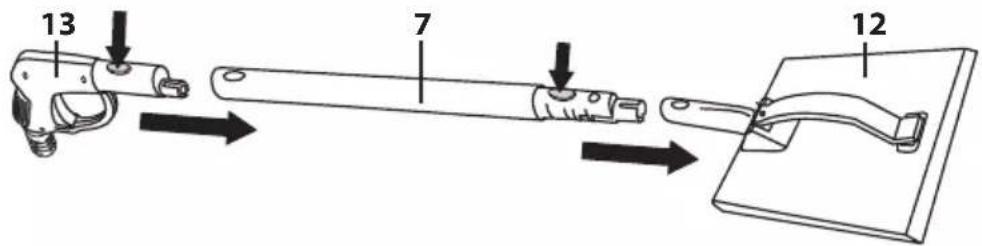

Press down the button on the steam gun (13).

Attach the steam plate (12) to the gun either with or without extensions (7).

7. Start-up7. Start-up

The use of distilled water prolongs the life of the steam cleaner. Fill the steam cleaner, but only while it is disconnected from the mains.

Turn the steam cap (2) in an anti-clockwise direction to remove it.Turn the steam cap (2) in an anti-clockwise direction to remove it.

Fill the steam cleaner with the help of the funnel (3) with max. Fill the steam cleaner with the help of the funnel (3) with max. 1200 ml water.1200 ml water.

Put the steam cap back on (2) and screw it shut tightly.Put the steam cap back on (2) and screw it shut tightly.

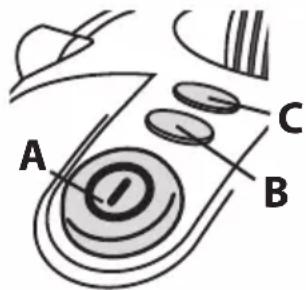

Connect it to the mains and switch the steam cleaner on. Connect it to the mains and switch the steam cleaner on. The operating display (B, red) and the steam display (C, orange) The operating display (B, red) and the steam display (C, orange) light up.light up.

As soon as the steam display (orange) switches o, the steam cleaner As soon as the steam display (orange) switches o, the steam cleaner is ready to be used (depending on the volume of water, this can is ready to be used (depending on the volume of water, this can take up to 9 minutes).take up to 9 minutes).

8. Working with the steam cleaner8. Working with the steam cleaner

GeneralATTENTION! Change accessories only when the steam cleaner is switched o and all individual parts have cooled down!

Set the lock (E) to ON to unlock the trigger guard (D).Set the lock (E) to ON to unlock the trigger guard (D).

Press the trigger (D) to let out steam.Press the trigger (D) to let out steam. While you are working the steam display (orange) can light up again. In this event release the trigger so that the steam pressure can build again (this should not take longer than 40 seconds). If the trigger is pressed while the steam display (orange) is lit, hot water might exit from the steam cleaner. If the work is interrupted for a longer period, a small amount of water can collect in the steam tube because the device has cooled down. After switching it back on again, a small jet of water (might be hot) will come out of the end of the hose when the trigger is pressed. Allow this water to escape when you start your work (e.g. into a bucket).Floors/upholstery You should test a small insignicant spot of any carpets or textiles you want to clean. A number of materials and fabrics are NOT suitable to be cleaned by steam for example: leather, furniture or oors that have been treated with wax, articial textiles, velvet or other steam-sensitive materials. Do not use on unsealed hardwood, laminate oors or unglazed ceramic surfaces. Before cleaning, rst remove the dust from the surfaces you want to clean. Depending on the oor surface, use the oor brushes (8) with or without the oor cloth (4). Use the upholstery cleaner (9b) to clean upholstery.Glass and ceramic tilesThermal shock can shatter glass. Before cleaning glass surfaces heat them gently by directing the steam jet at the surface but at a distance of at least 15 cm. Do not use on glass if the temperature is below 0˚ C. Use the Window/Tile Cleaner (9a) to clean grime from tiles and windows.

Power Steamer 915e Special applications for nozzle and brush

The Angled Nozzle (10) and the Brushes (11) can be used to get into awkward corners that are normally dicult to clean.

The brushes (11) are suitable for scrubbing and loosening persistent dirt from hard surfaces. The brass brush (11a/11b) may only be used for scratchproof surfaces (not enamel). Removing wallpaper Caution! Danger of short-circuits! Cover sockets and switches and do not subject them to steam.

Before you start your work, check the condition of the plaster. Steam can loosen weak, porous or poorly bonded plaster. The same can happen if there are cracks or holes in the plaster or if the steam plate is held too long in one place after the wallpaper has absorbed the water. You can detect poorly bonded plaster by rapping against it at a few dierent locations on the wall. A hollow sound means that you have to be extremely careful here. Stop immediately if you hear cracking sounds or if the plaster starts crumbling away. The device is primarily for dry walls and plasterboard walls. Regardless of the underlying surface, before you start work you should run a few tests in a small corner to see whether any problems arise.

As for all kinds of renovation work, cover oors and furniture to keep them protected.

If there are several layers of wallpaper, we recommend perforating the surface with a conventional perforator tool or by lightly slicing crisscross marks on the surface with a scraper at a distance of 15 cm.

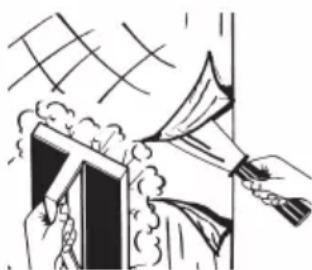

Hold the steam plate (12) at against the wallpaper for approx. 10 seconds.

Now move the steam plate (12) to the area immediately next to the one just steamed – from which the paper should now easily come away with a little help from a wallpaper scraper. Work in the garden

Steam can be used to disinfect soil in ower beds or greenhouses. First loosen the soil to attain a porous surface. Hold the steam plate (12) over each section for about 2 to 3 minutes to ensure that the steam has penetrated the surface.21

9. Relling the water tank

Switch o the steam cleaner at the on/o switch and disconnect from the mains.

Let the steam cleaner cool down for about 30 minutes and release the pressure by depressing the trigger.

Please note that the steam cap (2) may not be removed while the device is still under pressure for safety reasons.

Wait until there is no more steam coming out and then turn the steam cap (2) in an Wait until there is no more steam coming out and then turn the steam cap (2) in an anticlockwise direction to remove it.anticlockwise direction to remove it.

Fill the steam cleaner with the help of the funnel (3) with max. 1200 ml water.Fill the steam cleaner with the help of the funnel (3) with max. 1200 ml water.

Put the steam cap back on (2) and screw it shut tightly.Put the steam cap back on (2) and screw it shut tightly.

Switch the steam cleaner back on.

As soon as the steam display (orange) goes o, you can continue your work.

10. Cleaning and maintenance10. Cleaning and maintenance

ATTENTION! Carry out cleaning and maintenance only when the steam cleaner is switched o and all individual parts have cooled down!

To ensure that the steam cleaner functions properly over a longer period, rinse the water tank once a month to remove any lime scale. When you do this, we recommend using a vinegar solution or a normal descaler. Depending on how hard the water is, you might need to descale more often. Using distilled water is recommended.

Clean the steam cleaner and accessories with a slightly damp cloth.Clean the steam cleaner and accessories with a slightly damp cloth.

Never use a cleaning product or detergent.

Empty the steam cleaner completely. Never store the steam cleaner with liquid in the tank.

If the steam cleaner calcies, pour a vinegar solution or a normal descaler into the water tank and leave it take eect for about 2-3 hours. Please observe also the instructions for using the descaler provided by the manufacturer.

The steam cleaner does not consists of any components that should be repaired by the customer. All repairs must be carried out by Wagner Customer Services.

11. Correction of Malfunctions11. Correction of Malfunctions

ProblemProblem RemedyRemedy A. Water is coming out of the nozzle

The steam cleaner generates a lot of steam. This may condense as water or water droplets in the steam hose and can be expelled when used after a period of cooling. This is normal and not a cause for concern. (see chapter 8) D22

Power Steamer 915e ProblemProblem RemedyRemedy B. There is no steam coming out Check that the hose has not become kinked or blocked (allow to cool down rst). Also check the power supply and water level. Descale the steam cleaner (see chapter 10). To prevent the water tank from calcifying empty the water tank every time it has been used and use distilled or de-ionised waterC. The steam cap (2) won't come o The steam container is still under pressure. Switch o the device and let it cool down. Press the trigger to release pressure. (see chapter 9)D. Steam ow is erratic; sometimes it works well, other times it does not Check that all accessory parts are positioned correctly (allow to cool down rst). Descale the steam cleaner (see chapter 10). To prevent the water tank from calcifying empty the water tank every time it has been used and use distilled or de-ionised water

12. Spare Parts12. Spare Parts

The picture that goes with this table can be found on the fold-out page at the beginning of the operating manual. Spare Parts List Pos. Designation Order No.5, 10 Straight adapter, angle nozzle 24527447, 8a Extension tube, swivel adapter 24527399a, 9b, 4a Window cleaner, upholstery cleaner, towel 24527408, 4b Floor attachment , towel 245274111 Brush: small (brass, 1 pc.), large (brass, 1 pc.), small (nylon, 2 pc.), large (nylon, 1 pcs.)245274312 Steam plate 2452742 Environmental protection The device and all accessories and packaging have to be recycled in an environmentally friendly manner. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer.23

Power Steamer 915e Important Note regarding Product Liability! Using other accessories and spare parts can lead to partial or total loss of liability and guarantee claims. With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fullled. 3 + 1 year guarantee on this WAGNER DIY product In addition to the statutory warranty for this product, J. Wagner GmbH, based in 88677 Markdorf, Germany, grants you a guarantee (device guarantee) of 36 months for this product. This guarantee is extended by a further 12 months if the product is registered within 28 days of purchase on the Internet at https://go.wagner-group.com/3plus1. The guarantee includes the free repair of defects which are demonstrably caused by the use of unsuitable materials in the product's manufacture or by assembly errors, as well as the free replacement of faulty components provided there are no guarantee exclusions. The statutory material defect rights to which you as the purchaser are entitled for the intended purpose from the time of handover of the purchased item are not restricted by the guarantee. The guarantee, along with your statutory warranty rights, will expire if the device has been opened by persons other than authorised WAGNER service personnel. The detailed guarantee conditions can be obtained on request from our authorised WAGNER partners (see website or operating instructions) or in text form on our website: https://go.wagner-group.com/hf-warranty-conditions - Modications reserved - UKCA Declaration of conformity We declare under sole responsibility that this product conforms to the following relevant regulations: Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 The Waste Electrical and Electronic Equipment Regulations 2013 Applied harmonised standards BS EN 60335-1, BS EN 60335-2-54, BS EN IEC 55014-1, BS EN IEC 55014-2, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 6223324

Power Steamer 915e Warning If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required. The wires in this mains lead are coloured in accordance with the following code: green/yellow = earth blue = neutral brown = live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identiying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured brown.

Should the moulded plug have to be replaced, never re-use the defective plug or attempt to plug it into a dierent 13 A socket. This could result in an electric shock.

Should it be necessary to exchange the fuse in the plug only use fuses approved by ASTA in accordance with BS 1362. Only 13 Amp fuses may be used.

To ensure that the fuse and fuse carrier are correctly mounted please observe the provided markings or colour coding in the plug.

After changing the fuse, always make sure that the fuse carrier is correctly inserted. Without the fuse carrier, it is not permissible to use the plug.

The correct fuses and fuse carriers are available from your local electrical supplies stockist. EU Declaration of conformity We declare under sole responsibility that this product conforms to the following relevant stipulations: 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU Applied harmonised norms: EN 60335-1, EN 60335-2-54, EN IEC 55014-1, EN IEC 55014-2, EN IEC 61000-3-2, EN 61000-3-3, EN 62233 The EU declaration of conformity is enclosed with the product. If required, it can be re-ordered using order number 2452513.25
