NV7B7970CDA - Cooker SAMSUNG - Free user manual and instructions

Product type	Built-in oven
Brand	Samsung
Model	NV7B7970CDA
Dimensions (W x H x D)	595 x 596 x 570 mm (main unit); built-in: 560 x 579 x 549 mm
Weight	42.0 kg
Power supply	230-240 V, 50 Hz
Maximum power	3650-3950 W
Capacity	76 liters
Energy class	A+ (efficiency index 81.6)
Main functions	Convection, Classic, Eco Convection, Large Grill, Eco Grill, Grill with Fan, Top Heat + Convection, Bottom Heat + Convection, Bottom Heat, Professional Cooking, Vacuum Air, Air Fry, Steam Cooking, Steam Convection, Top Steam Heat + Convection, Bottom Steam Heat + Convection, Dual Cooking, Healthy Cooking (20 programs), Auto Cooking (50-70 programs)
Special functions	Keep Warm, Hot Plate, Defrost, Dough Proofing, Pizza Baking, Slow Cooking, Drying
Included accessories	Wire rack, Wire rack for tray, Baking tray, Universal tray, Deep tray, Separator plate, Temperature probe, Steam container, Air fry tray, Door opener, 2 screws
Cleaning	Pyrolysis, Steam cleaning, Descaling, Drain
Safety	Child lock, Intelligent safety mechanism (stop when door opened), Temperature probe, Automatic door
Spare parts and repairability	Bulbs 25-40W/220-240V resistant to 300°C, temperature probe, racks, windows. Repair by authorized Samsung center.
General information	Connected built-in oven (Wi-Fi, SmartThings), LCD screen, automatic door, removable water tank

Frequently Asked Questions - NV7B7970CDA SAMSUNG

How to use steam cooking on my Samsung NV7B7970CDA oven?

Fill the water tank with 500 ml of drinking water and insert it until it locks. Select a steam mode (Steam Cooking, Steam Convection, etc.) on the screen. Adjust the temperature, steam level (Low, Medium or High) and cooking time. Press START. Caution: The tank must be in place and the water must not exceed the max line.

How to clean my oven with the pyrolysis function?

Press the ≡ button, select Cleaning > Pyrolysis, choose the duration (e.g., 2h). Remove all accessories and large residues. The oven heats to a high temperature to burn off grease. Do not touch the appliance during the cycle. Once finished and cooled, wipe the ashes with a damp cloth.

What to do if my oven emits a burning smell during first use?

It's normal: manufacturing residues are burning. Run the oven empty in Convection mode at 200°C for 1 hour. Ventilate the room. If the smell persists after several uses, check for foreign objects on the heating elements.

How to open the door manually if it doesn't open automatically?

Use the provided door opener: insert it into the gap between the door and the control panel, then lift. Wear oven mitts as the door may be hot. If the problem persists, unplug the appliance for 30 seconds then plug it back in. Contact Samsung service if necessary.

How to set the time and date on the oven?

Press the ≡ button, select Settings > Date and time. You can enable automatic update via Wi-Fi or set manually. Use the adjustment knob to change values. The time format (12/24h) is also configurable.

Can I use aluminum dishes in my oven?

Yes, but avoid covering the oven floor with aluminum foil as it blocks heat and may damage the enamel. Use suitable aluminum dishes. For steam cooking, prefer glass or stainless steel containers.

How to replace the oven bulb?

Turn off the oven and unplug it. Remove the bulb cover using a flat tool. Replace with a halogen bulb of 25-40W/220-240V resistant to 300°C. Use a dry cloth to handle the bulb. Reinsert the cover. If the light remains dim, clean the inside of the oven.

What does error code C-d1 mean?

Error code C-d1 indicates a door lock malfunction. Try turning off the oven and restarting it. If the problem persists, cut the power for 30 seconds then restore it. If the error reappears, contact a Samsung service center.

How to use the Air Fry function?

Insert the separator plate at level 3 and place the tray with the wire rack at level 4. Select the Air Fry mode, set the temperature (default 220°C) and time. Turn food halfway through cooking for a crispy result. Use the specific tray provided.

How to descale the steam generator?

The oven will remind you when descaling is needed. Press ≡ > Cleaning > Descaling. Follow the on-screen instructions: pour the descaling agent (special for steam oven) and water into the tank. The cycle lasts about 1 hour. After draining, rinse with 500 ml of drinking water. Wear gloves when handling the hot tank.

USER MANUAL NV7B7970CDA SAMSUNG

Simple line drawing of a rectangular tray with two circular ends, no text or symbols present.

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

FR

Courant nominal (A) Section minimale

10 < A ≤ 16.5 mm^2

16 < A ≤ 25.25 mm^2

Four (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 596 J 579
E 595 K 559
F 503

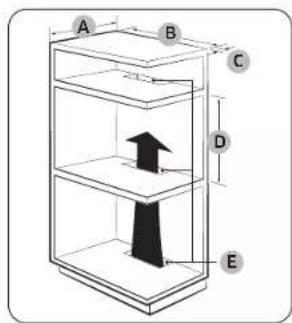

Meuble encastré (mm)

A 550 minimum

B 560 minimum

C 50 minimum

D 590 minimum - 600 maximum

E 460 minimum x 50 minimum

REMARQUE

Pure technical diagram of a rectangular frame with a small circular component and dimension lines, no text or symbols present.

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A inside (no text or symbols beyond label)

Architectural line drawing of a window frame structure with an inset showing a mechanical component (no text or symbols)

Illustration of four electronic components: a square container, a rectangular tray, a control panel with buttons, and a small battery (no text or symbols)

Diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with internal compartments and decorative patterns (no text or symbols)

Illustration of a hand opening a door with an inset showing the interior portion of the door (no text or symbols present)

Illustration of a hand pouring liquid into a container with a ring (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and labeled point A (no text or symbols beyond labels)

Line drawing of an open oven with a door and lid, showing airflow direction (no text or symbols)

Simple line drawing of a cabinet with doors and an upward arrow on the shelf (no text or symbols)

Diagram of a two-tiered dormer or bunk bed structure with no text or symbols

Illustration of a loaf of bread inside a bag (no text or symbols)

Simple line drawing of a rectangular enclosure with a central platform and surrounding shelves (no text or symbols)

Diagram showing two connectors with a circle highlighting a cross symbol, no text or labels present

Diagram showing a hand pressing down on a car seatbelt, with no text or symbols present.

Diagram of an oven with a blade being inserted, showing airflow direction (no text or symbols)

Diagram showing a car seatbelt mechanism with an arrow indicating clockwise motion (no text or symbols present)

Diagram of a window frame with an inset showing a hand holding a tool, no text or symbols present.

Technical diagram of a mechanical assembly with a ruler and a square plate, no visible text or symbols

3D diagram of a square frame with an arrow and label '02' (no text or symbols beyond labels)

Diagram of a mechanical frame with a gray panel and directional arrow, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door or panel with a labeled component '01' (no text or symbols beyond label)

01 Collecteur d'eau

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Diagram of a mechanical structure with a rotational arrow indicating motion (no text or symbols)

Line drawing of a washing machine door with a circular vent and handle (no text or symbols)

Diagram of a door handle with a circular button and an arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with an open door and a slide, showing a black arrow indicating the direction (no text or symbols present)

Diagram of a hand holding a small object inside a circular container (no text or symbols)

AVERTISSEMENT

Illustration of a hand holding a tool inside a square frame (no text or symbols)

UNE QUESTION ? DES COMMENTAIRES ?

PAYS APPELEZ LE OU CONTACTEZ-NOUS EN LIGNE SUR
AUSTRIA 0800	72 67 864 (0800 SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support(French)
DENMARK 707	019 70 www.samsung.com/ck/support
FINLAND 030	6227 515 www.samsung.com/fi/support
FRANCE 01 48	63 00 00 www.samsung.com/fr/support
GERMANY 061	96 77 555 77 www.samsung.com/de/support
ITALIA 800	SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111 SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG 261	03 710 www.samsung.com/be_fr/support
NETHERLANDS	068 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 038Chamada para a rede fixa nacionalDias úteis clas 9h às 20h	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771-400 300	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0618 717100	www.samsung.com/ie/support

PAYS APPELEZ LE OU CONTACTEZ-NOUS EN LIGNE SUR
ALBANIA 045	620 202 www.samsung.com/el/support
BOSNIA	055 233 399	www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800 111 31 - Безплатен за всички оператори *3000 - Цена на единградски разговор или според тарифата на мобилият оператор 09:00 до 18:00 - Понеделиях до Петък	www.samsung.com/bg/support
CROATIA	072 726 788	www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
HUNGARY 068	0SAWSUNG (0680-726-7664) www.samsung.com/hc/support
MONTENEGRO	020 405 888	www.samsung.com/support
POLAND	801-172-678' lub [phone]" * (opłata według taryfy operatora)	http://www.samsung.com/pl/support/
ROMANIA	0800872678 - Apel gratuit *8000 - Apel tarifat in rețea Program Call Center Luni - Vineri: 9 AM - 6 PM	www.samsung.com/ro/support
SERDIA	011 321 6899	www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 788)	www.samsung.com/sk/support
LITHUANIA 8-8	800-77777 www.samsung.com/lt/support
LATVIA	8000 7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
SLOVENIA	080 697 267 (brezplačna številka) www.samsung.com/si/support
KOSOVO	038 40 30 90	www.samsung.com/support

DG68-01472A-01

Einbaubackofen

Simple line drawing of a rectangular tray with two circular ends, no text or symbols present.

Gerät (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 596 J 579
E 595 K 559
F 503

WARNING

Pure technical diagram of a rectangular frame with a circular component and dimension line, no text or symbols present.

Pure geometric diagram showing a circle inscribed in a rectangle with diagonal lines, no text or symbols present.

Architectural diagram showing structural components with an inset magnified detail (no text or symbols)

Illustration of four electronic devices: a rectangular tray, a rectangular box, a control panel with buttons, and a small battery (no text or symbols)

Diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with six circular patterns inside, no text or symbols present.

Illustration of a hand opening a door with an inset showing the close-up of the door (no text or symbols)

Illustration of a hand pouring liquid into a container with a ring (no text or symbols)

Technical diagram of a mechanical component with labeled section A and arrow indicating direction (no readable text or symbols)

HINWEIS

Line drawing of an open oven with a door and lid, showing airflow direction (no text or symbols)

Simple line drawing of a cabinet with doors open, featuring a black silhouette on the shelf (no text or symbols)

Line drawing of a two-tiered dormer cabinet or bunk bed (no text or symbols)

Illustration of a raw steak inside a bag (no text or symbols)

Simple line drawing of a rectangular enclosure with a central platform and surrounding shelves (no text or symbols)

Diagram showing a hand holding a device inside a vehicle lift, with no visible text or symbols.

Line drawing of an oven with a diagonal blade and directional arrows indicating motion (no text or symbols)

Diagram showing a car seatbelt mechanism with an arrow indicating clockwise motion (no text or symbols present)

Technical line drawing of a mechanical component with an inset close-up showing a hand holding a tool (no text or symbols)

Technical diagram of a mechanical assembly with a ruler and a square plate, no visible text or symbols

3D diagram of a rectangular frame with a central square and directional arrow, no text or symbols present

Diagram of a mechanical assembly with a gray panel and directional arrow, no readable text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a door or panel corner with a labeled component '01' (no text or symbols beyond label)

01 Wasserkollektor

Technical line drawing of a mechanical component with an inset showing a detail (no text or symbols)

Diagram of a mechanical structure with a rotational arrow indicating motion (no text or symbols)

Line drawing of a door handle with a circular vent and a button (no text or symbols)

Diagram of a door handle with a circular button and arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with an open door and a partially open lid, showing a black arrow indicating rotation (no text or symbols)

Diagram of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand holding a tool inside a square frame (no text or symbols)

Deutsch 67

Simple line drawing of a rectangular tray with two circular ends, no text or symbols present.

www.samsung.com/uk/aboutsamsung/sustainability/environment/cur-commitment/data/

Oven (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 596 J 579
E 595 K 559
F 503

WAARSCHUWING

Pure technical diagram of a rectangular frame with a circular component and dimension lines, no text or symbols present.

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A inside (no text or symbols beyond the label)

Architectural line drawing of a structural frame with an inset showing a pipe connection detail (no text or symbols)

Illustration of four electronic components: a rectangular tray, a rectangular box, a control panel with buttons, and a small pen (no text or symbols)

Diagram of a mechanical component with a magnified inset showing a threaded fastener (no text or symbols present)

Illustration of a rectangular container with internal floral patterns (no text or symbols)

Illustration of a hand opening a door with an inset showing the interior door (no text or symbols)

Illustration of a hand pouring liquid into a container with a ring (no text or symbols)

Technical diagram of a mechanical component with a circular feature and labeled section A (no text or symbols beyond labels)

OPMERKING

Pure electrical circuit lines without any symbols

1. Druk op Automatische deur.

Line drawing of an open oven with a door and lid, showing the door opening and outlet (no text or symbols)

Simple line drawing of a cabinet with doors and an upward arrow on the shelf (no text or symbols)

Diagram of a two-tiered storage unit with horizontal shelves and mounting brackets (no text or labels)

Illustration of a bag with a piece of meat inside, no text or symbols present

Simple line drawing of a rectangular enclosure with a central horizontal beam and surrounding shelves (no text or symbols)

Diagram showing two connectors with a circle highlighting a cross symbol, no text or labels present

⚠ WAARSCHUWING in verband met acrylamide

Diagram showing a car seatbelt mechanism inside a vehicle (no text or symbols)

Diagram of a kitchen appliance with an open door and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating rotation, no text or symbols present

Diagram of a window frame with an inset showing a hand holding a tool, no text or symbols present.

Diagram of a rectangular electronic component with labeled parts and an arrow indicating direction (no readable text or symbols)

3D diagram of a square frame with an arrow and label '02' (no text or symbols beyond labels)

Diagram of a mechanical assembly with a gray panel and directional arrow, no readable text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a door or panel corner with a labeled component '01' (no text or symbols beyond label)

01 Wateropvangbak

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Diagram of a mechanical structure with a rotational arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a knob and handle (no text or symbols)

Diagram of a door handle with a circular button and an arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with an open door and a diagonal shelf, showing a black arrow indicating rotation (no text or symbols)

Simple line drawing of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand holding a tool inside a container (no text or symbols)

VRAGEN OF OPMERKINGEN?

LAND BEL OF BEZOEK ONS ONLINE OP
AUSTRIA 0800	72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support(French)
DENMARK 707	019 70 www.samsung.com/clk/support
FINLAND 030	6227 515 www.samsung.com/fr/support
FRANCE 01 49	63 00 00 www.samsung.com/fr/support
GERMANY 061	96 77 555 77 www.samsung.com/de/support
ITALIA 800	SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS 8009	4000 only from landline, toll free www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG 261	03 710 www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis das 9h às 20h	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771-400 300	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support

LAND BEL OF BEZOEK ONS ONLINE OP
ALBANIA 045	620 202 www.samsung.com/el/support
BOSNIA	055 233 999	www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800.111 31 - Безплатен за всички оператори *3000 - Цена на един градски разговор или според тарифата на мобилният оператор 09:00 до 18:00 - Понеделиник до Петък	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/nr/support
CZECH	800 - SAMSUNG (800-726.786)	www.samsung.com/cz/support
HUNGARY 068	0SAVSUNG (0680-726-7864) www.samsung.com/hu/support
MONTENEGRO	020 405 888	www.samsung.com/support
POLAND	801-172-678' lub [phone]" * (oplata wedlug taryfy operatora)	http://www.samsung.com/pl/support/
ROMANIA	0800872678 - Apel gratuit *8000 - Apel tarifat în rețea Program Call Center Luni - Vineri: 9 AM - 6 PM	www.samsung.com/no/support
SERBIA	011 321 6899	www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
LITHUANIA 8-8	000-77777 www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ec/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
KOSOVO	038 40 30 90	www.samsung.com/support

DG68-01472A-01

Inbyggd ugn

Line drawing of a rectangular tray with two circular ends, no text or symbols present

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Ugn (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 596 J 579
E 595 K 559
F 503

WARNING

Pure technical line drawing of a rectangular frame with a small circular component above it (no text or symbols)

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A inside (no text or symbols beyond the label)

Architectural line drawing of a window frame structure with an inset showing a mechanical component (no text or symbols)

Illustration of four electronic devices: a rectangular case, a rectangular display, a control panel with buttons, and a small pen (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with internal floral patterns (no text or symbols)

Illustration of a hand opening a door with an inset showing a close-up of the door (no text or symbols)

Illustration of a hand pouring liquid into a container with a ring (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and an arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of an open oven with a door and lid, showing the door opening and outlet (no text or symbols)

Simple line drawing of a cabinet or storage unit with an upward arrow on the shelf (no text or symbols)

Diagram of a two-tier dormitory cabinet with horizontal shelves and side rails (no text or labels)

Illustration of a bag with a piece of meat inside, no text or symbols present

Simple line drawing of a rectangular enclosure with a central platform and surrounding shelves (no text or symbols)

Diagram showing a hand holding a device inside a circular frame, with no visible text or symbols.

Diagram of a kitchen appliance with an open door and a blade, showing directional arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical component with an inset close-up showing a hand holding a tool (no text or symbols)

Technical diagram of a layered electronic component with a ruler and pin, no visible text or symbols

3D diagram of a square frame with an arrow and label '02' (no text or symbols beyond labels)

Diagram of a mechanical assembly with a gray panel and directional arrows, no readable text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door or panel corner with a labeled component '01' (no text or symbols beyond label)

01 Vattenuppsamlare

Technical line drawing of a mechanical component with an inset showing a detail (no text or symbols)

Diagram of a mechanical structure with a rotational arrow indicating motion (no text or symbols)

Line drawing of a door handle with a circular knob and a leaf (no text or symbols)

Diagram of a door handle with a circular button and arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with an open door and a downward arrow indicating a drop or change (no text or symbols present)

Simple line drawing of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand using a tool inside a container (no text or symbols)

FRÄGOR ELLER KOMMENTARER?

LAND RING	ELLER BESÖK OSS PÅ NÄTET PÅ
AUSTRIA 0800	72 67 864 (0800 SAMSUNG) www.samsung.com/af	/support
BELCIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support(French)
DENWARK 707	019 70 www.samsung.com/dk/support
FINLAND 030	6227 515 www.samsung.com/h/support
FRANCE 01 48	63 00 00 www.samsung.com/fr/support
GERMANY 061	96 77 555 77 www.samsung.com/de/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS 8009	4000 only from landline, toll free www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG 261	03 710 www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis dias 9h as 20h	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/cs/support
SWEDEN	0771-400 300	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support

LAND RING	ELLER BESÖK OSS PÅ NÄTET PÅ
ALBANIA 045	620 202 www.samsung.com/ol/support
BOSNIA	055 233 999	www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800 111 31 - Безплатен за всички оператори *3000 - Цена на един градски разговор или според тарифата на мобилинат оператор 09:00 до18:00 - Понеделник до Петък	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
HUNGARY 068	0SAWSUNG (0680-726-7664) www.samsung.com/hc/support
MONTENEGRO	020 405 888	www.samsung.com/support
POLAND	801-172-678* lub [phone]* * (opłata wedlug taryfy operatora)	http://www.samsung.com/pl/support/
ROMANIA	0800672678 - Apel gratuit '8000 - Apel tarifat in retea Program Call Center Luni - Vineri: 9 AM - 6 PM	www.samsung.com/no/support
SERBIA	011 321 6899 www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/ly/support
ESTONIA	600-7267	www.samsung.com/ee/support
SLOVENIA	080 697 267 (brezplačna številka) www.samsung.com/si/support
KOSOVO	038 40 30 90	www.samsung.com/support

DG68-01472A-01

Indbygget ovn

Line drawing of a rectangular tray with vertical slats and two circular ends (no text or symbols)

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Automatisk energibesparende funktion

Ovn (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 566 J 579
E 595 K 559
F 503

ADVARSEL

Pure technical diagram of a rectangular frame with a circular component and dimension lines, no text or symbols present.

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A inside (no text or symbols beyond the label)

Architectural line drawing of a window frame structure with an inset showing a mechanical component (no text or symbols)

Illustration of four electronic devices: a rectangular tray, a rectangular box, a control panel with buttons, and a small battery (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with internal floral patterns (no text or symbols)

Illustration of a hand inserting a device into a cabinet, with an inset showing the internal mechanism (no text or symbols)

Illustration of a hand pouring liquid into a container with a spoon (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and labeled point A (no text or symbols beyond labels)

BEMÄRK

Line drawing of an open oven with a door and lid, showing the interior and exterior view (no text or symbols)

1. Deren ábnes automatisk.

FORSIGTIG

Simple line drawing of a cabinet with doors and an upward arrow on the shelf (no text or symbols)

Diagram of a two-tiered storage unit with horizontal shelves and mounting brackets (no text or labels)

Illustration of a bag with a piece of meat inside, no text or symbols present

Simple line drawing of a rectangular enclosure with a central platform and surrounding shelves (no text or symbols)

Diagram showing a hand holding a device inside a vehicle seatbelt, with no visible text or symbols.

Diagram of an oven with a blade being inserted, showing airflow direction (no text or symbols)

Diagram showing a car seatbelt mechanism with an arrow indicating rotation (no text or symbols present)

Diagram of a window frame with an inset close-up showing a hand holding a tool (no text or symbols present)

Technical diagram of a mechanical assembly with a ruler and a flat plate (no text or symbols)

Diagram of a square frame with an arrow and label '02' indicating a section (no text or symbols beyond labels)

Diagram of a mechanical assembly with a gray panel and directional arrow, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door or panel with a labeled component '01' (no text or symbols beyond label)

01 Vandsamler

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Diagram of a mechanical structure with a rotational arrow indicating motion (no text or symbols)

Line drawing of a door handle with a circular vent and a button (no text or symbols)

Diagram showing a device with a circular button and an arrow indicating rotation or movement (no text or symbols)

1. Løft døråbneren.

Diagram of a refrigerator with an open door and a partially open lid, showing a black arrow indicating rotation (no text or symbols)

1. Deren ábnes manuelt.

ADVARSEL

Diagram of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand using a tool inside a container (no text or symbols)

SP∅RGSMÅL ELLER KOMMENTARER?

LAND RING ELLER BESOG OS ONLINE PÅ
AUSTRIA 0800	72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support(French)
DENMARK 707	019 70 www.samsung.com/dk/support
FINLAND 030	6227 515 www.samsung.com/fi/support
FRANCE 01 48	63 00 00 www.samsung.com/fr/support
GERMANY 061	96 77 555 77 www.samsung.com/cle/support
ITALIA 800	SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG 261	03 710 www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629093	www.samsung.com/no/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis clas 9h às 20h	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771 400 300	www.samsung.com/sc/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support

LAND RING	ELLER BESOG OS ONLINE PÅ
ALBANIA 045	620 202 www.samsung.com/el/support
BOSNIA	055 233 999	www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800 T11 31 - Безплатен за всички оператори *3000 - Цена на единградски разговор или според тарифата на мобилният оператор 09:00 до 18:00 - Понеделинк до Петък	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/nr/support
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
HUNGARY 068	0SAWSUNG (0680-726-7864) www.samsung.com/hv/support
MONTENECRO	020 405 888	www.samsung.com/support
POLAND	801 172 678" lub [phone]" (aplata wcdlug tary/fy operatora)	http://www.samsung.com/pl/support/
ROMANIA	0800872678 - Apel gratuit '8000 - Apel tarifat in retea Program Call Center Luni - Vineri: 9 AM - 6 PM	www.samsung.com/ro/support
SERBIA	011 321 6899 www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
LITHUANIA 8	800-77777 www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/ly/support
ESTONIA	800-7267	www.samsung.com/ee/support
SLOVENIA	080 697 257 (brezplačna številka) www.samsung.com/si/support
KOSOVO	038 40 30 90	www.samsung.com/support

DG68-01472A-01

Innebygget ovn

Line drawing of a rectangular tray with vertical slats and two circular ends (no text or symbols)

Grillrist Grillristinnsats * Bakeform *

Universalform * Ekstra dyp form * Skillevegg

Steketermometer ^ Dampbeholder ^ 2 Skruer (M4 L25)

Ovn (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 566 J 579
E 595 K 559
F 503

ADVARSEL

Pure technical diagram of a rectangular frame with a circular component and dimension lines, no text or symbols present.

Installasjon med en komfyrtopp Ved installasjon av en komfyrtopp må installasjonsveiledningen for komfyrtoppen kontrolleres med hensyn til plasskravene (*).

Installasjon

Montere ovnen

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A (no text or symbols beyond label)

Architectural line drawing of a window frame structure with an inset showing a close-up of the internal components (no text or symbols)

Technical line drawing of a rectangular device with four views and a control panel (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset view of a bolted joint (no text or symbols present)

Illustration of a rectangular container with six circular patterns inside, no text or symbols present.

Illustration of a hand opening a door with an inset showing hand inserting a component (no text or symbols)

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

Technical line drawing of a mechanical component with a circular feature and labeled point A (no text or symbols beyond labels)

MERK

Line drawing of an open oven with a door and lid, showing the door opening and outlet (no text or symbols)

1. Deren ápnes automatisk.

FORSIKTIG

Simple line drawing of a cabinet with doors and a central shelf, no text or symbols present

Diagram of a two-tiered storage unit with horizontal shelves and mounting brackets (no text or labels)

Illustration of a baked flatbread with a piece of bread inside, no text or symbols present

1. Legg mat i en ren vakuumpose og forsegl den. Legg deretter maten i posisjon 3 i stativet i ovnen.

Simple line drawing of a rectangular enclosure with a central horizontal structure and surrounding shelves (no text or symbols)

1. Sett pluggen for steketermometeret inn i kontakten på veggen på venstre side. Hvis steketermometeret er korrekt tilkoblet, ser du meldingen "Steketermometer satt inn".

- Hvis steketermometeret er satt inn, vil Steketermometertemperaturen bli vist i stedet for Tilberedningstiden.

1. Velg Steketermometertemperatur, og trykk deretter Dreieknotten for å angi måltemperaturen för kjøttet.

Diagram showing a hand holding a device inside a circular frame, with no visible text or symbols.

Diagram of an oven with a diagonal shelf and directional arrows indicating rotation (no text or symbols)

Diagram showing a car seatbelt mechanism with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with an inset close-up showing a hand holding a tool (no text or symbols present)

Technical diagram of a layered electronic device with a ruler and component, no visible text or symbols

3D diagram of a square frame with an arrow and label '02' indicating a specific area (no text or symbols beyond the label)

Diagram of a mechanical assembly with a gray panel and directional arrow, no text or symbols present

Technical line drawing of a mechanical component mounted on a base plate (no text or symbols)

Technical line drawing of a door or panel with a labeled component '01' (no text or symbols beyond label)

01 Vannoppsamier

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

1. Press den øversle delen av versle sidestativ og senk det omtrent 45°.

Diagram of a mechanical structure with rotational arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a knob and handle (no text or symbols)

Diagram of a door handle with a circular button and an arrow indicating rotation (no text or symbols)

Diagram of a refrigerator with an open door and a diagonal shelf, showing a black arrow indicating rotation (no text or symbols present)

1. Deren âpnes manuelt.

ADVARSEL

Simple line drawing of a hand holding a small object inside a transparent container (no text or symbols)

Illustration of a hand using a tool inside a container (no text or symbols)

HAR DU SP∅RSMÅL ELLER KOMMENTARER?

LAND RING ELLER BESOK OSS ONLINE PÅ
AUSTRIA 0800	72 67 864 (0800 SAMSUNG) www.samsung.com/at	/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support(French)
DENMARK 707	019 70 www.samsung.com/ck/support
FINLAND 030	6227 515 www.samsung.com/fi/support
FRANCE 01 49	63 00 00 www.samsung.com/fr/support
GERMANY 061	86 77 555 77 www.samsung.com/de/support
ITALIA 800-5	SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS 8009	4000 only from landline, toll free www.samsung.com/gr/support
GREECE	80111 SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG 261	03 710 www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 098Chamada para a rece fixa nacionalDias úteis cas 9h às 2Ch	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771-400 300	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support

LAND RING	ELLER BESOK OSS ONLINE PÅ
ALBANIA 045	620 202 www.samsung.com/isl/support
BOSNIA	055 233 999	www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800 111 31 - Безплатен за всички оператори *3000 - Цена на един градски разговор или според тарифата на мобилният оператор 09:00 до18:00 - Пенеделник до Петык	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
HUNGARY 068	OSAAMSUNG (0680-726-7864) www.samsung.com/hu/support
MONTENEGRO	020 405 888	www.samsung.com/support
POLAND	801-172-678" lub [phone]" * (optata według tary/y operatora)	http://www.samsung.com/pl/support/
ROMANIA	0800872678 - Apel gratuit *8000 - Apel tarifat în rețea Program Call Center Luni - Vineri: 9 AM - 6 PM	www.samsung.com/ro/support
SERBIA	011 321 6899 www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
LITHUANIA 8	800 77777 www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800 7267	www.samsung.com/ce/support
SLOVENIA	080 697 267 (brezplačna številka) www.samsung.com/sl/support
KOSOVO	038 40 30 90	www.samsung.com/support

DG68-01472A-01

Kalusteuuni

Line drawing of a rectangular tray with two circular ends, no text or symbols present

www.samsung.com/uk/aboutsamsung/sustainability/environment/cur-commitment/data/

Uuni (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 596 J 579
E 595 K 559
F 503

Pure technical line drawing of a rectangular frame with a small circular component above it (no text or symbols)

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A inside (no text or symbols beyond the label)

Architectural line drawing of a window frame structure with an inset showing a mechanical component (no text or symbols)

Illustration of four electronic components: a rectangular tray, a rectangular box, a control panel with buttons, and a small pen (no text or symbols)

Close-up of a mechanical component with a magnified inset showing a threaded fastener (no text or symbols visible)

Illustration of a rectangular container with six circular patterns inside, no text or symbols present.

Illustration of a hand inserting a device into a cabinet, with an inset showing the insertion process (no text or symbols)

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

Technical diagram of a mechanical component with labeled section A and arrow indicating direction (no text or symbols beyond labels)

Pure electrical circuit lines without any symbols

1. Paina Automaattisen luukun painiketta.

Line drawing of an open oven with a door and lid, showing the door opening and outlet (no text or symbols)

Simple line drawing of a cabinet or storage unit with doors and a central tray, no text or symbols present.

Diagram of a two-tier dormitory cabinet with horizontal shelves and side rails (no text or labels)

Illustration of a loaf of bread inside a bag (no text or symbols)

Diagram of a mechanical assembly inside a rectangular frame, showing internal components without any text or symbols.

Diagram showing two connected cables with a cross symbol and circle, no readable text or labels present.

Diagram showing a hand pressing down on a vehicle's seatbelt, with no text or symbols present.

Diagram of an oven with a rack and door, showing airflow direction (no text or symbols)

Diagram showing a car seatbelt mechanism with an arrow indicating rotation (no text or symbols present)

Diagram of a window frame with an inset showing a hand holding a device (no text or symbols present)

Technical diagram of a mechanical assembly with a ruler and a flat plate, no visible text or symbols

3D diagram of a square frame with an arrow and label '02' (no text or symbols beyond labels)

Diagram of a mechanical assembly with a gray panel and directional arrows, no readable text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a door or panel corner with a labeled component '01' (no text or symbols beyond label)

01 Vedenkeräin

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Diagram of a mechanical ladder inside a rectangular frame, with an arrow indicating rotational motion (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a door handle with a circular button and arrow indicating rotation (no text or symbols)

1. Nosta luukunavaaja ylös.

Diagram of a refrigerator with an open door and a black arrow indicating rotation (no text or symbols)

Diagram of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand using a tool inside a square frame, no text or symbols present

Suomi 67

KYSYMYKSIÄ TAI KOMMENTTEJA?

MAA SOITA	TAI VIERAILE VERKOSSA OSOITTEESSA
AUSTRIA 0800	72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support(French)
DENMARK 707	019 70 www.samsung.com/ck/support
FINLAND 030	6227 515 www.samsung.com/fi/support
FRANCE 01 49	63 00 00 www.samsung.com/fr/support
GERMANY 061	96 77 555 77 www.samsung.com/ce/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS	8009 4000 only from land line, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG 261	03 710 www.samsung.com/be_fr/support
NETHERLANDS	068 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis clas 9h as 20h	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771-400 300	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100 www.samsung.com/ie/support

MAA SOITA	TAI VIERAILE VERKOSSA OSOITTEESSA
ALBANIA 045	620 202 www.samsung.com/ol/support
BOSNIA	055 233 999 www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800 111 31 - Безплатен за всички оператори *3000 - Цена на един градски разговор или според тарифата на мобилият оператор 09:00 до 18:00 - Понеделинк до Петък	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/hr/support
CZECH	800 - SAVSUNG (800-726 786)	www.samsung.com/cz/support
HUNGARY 068	0SAWSUNG (0680-726-7664) www.samsung.com/hv/support
MONTENEGRO	020 405 888	www.samsung.com/support
POLAND	801-172-678* lub [phone]* * (opfata wedlug tary/fy operatoral)	http://www.samsung.com/pl/support/
ROMANIA	0800872678 - Apel gratuit *8000 - Apel tarifat in rotea Program Call Center Luni - Vinerit: 9 AM - 6 PM	www.samsung.com/ro/support
SERDIA	011 321 6899	www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
LITHUANIA 8	800 77777 www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800 7267	www.samsung.com/cc/support
SLOVENIA	080 697 267 (brezplačna stevilka)	www.samsung.com/si/support
KOSOVO	038 40 30 90	www.samsung.com/support

DG68-01472A-01

Built-in Oven

User & Installation manual

NV7B796**** / NV7B797**** / NV7B798**** / NV7B799****

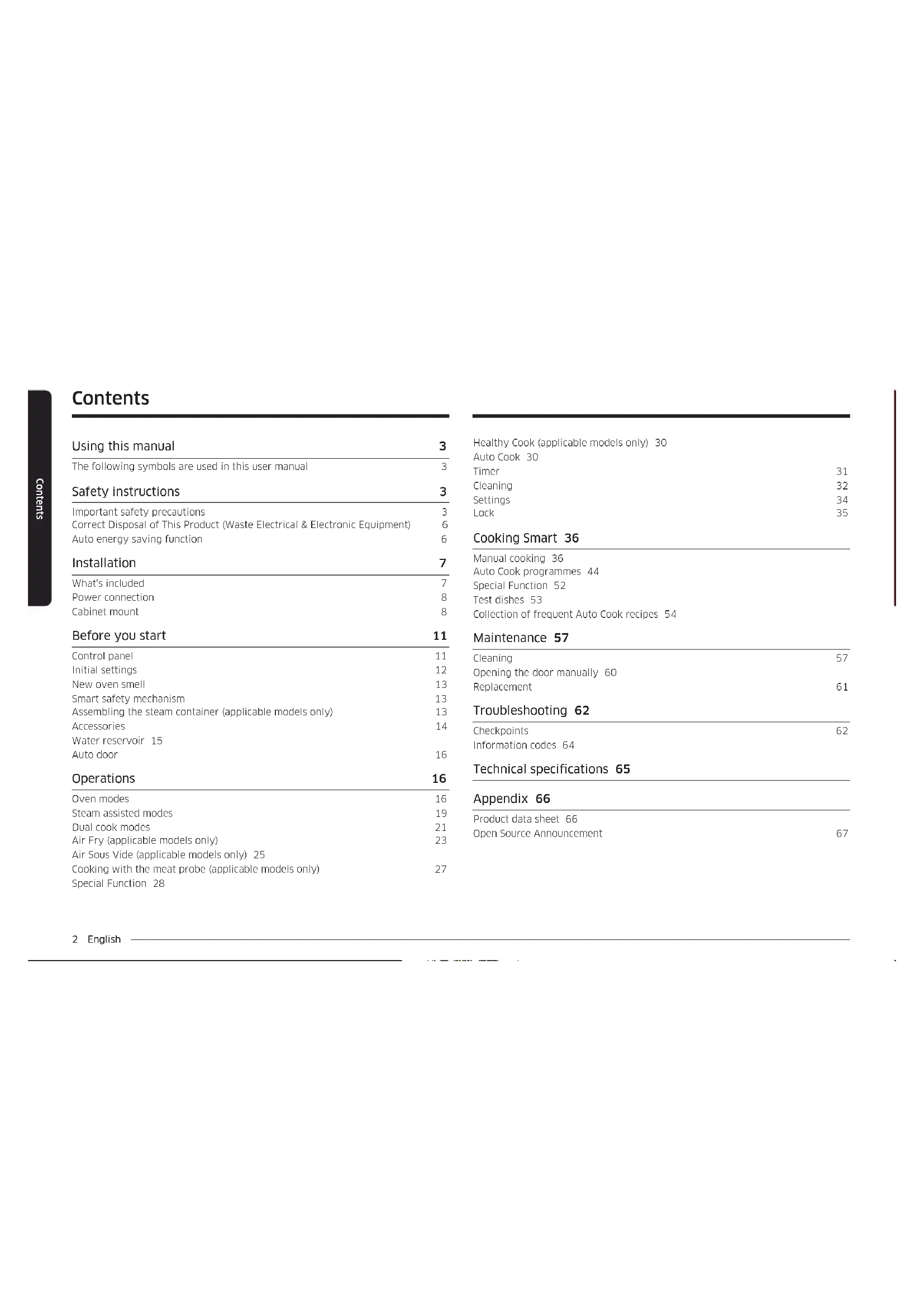

Contents

Using this manual 3

The following symbols are used in this user manual 3

Safety instructions 3

Important safety precautions 3 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) 6 Auto energy saving function 6

Installation 7

What's included 7 Power connection 8 Cabinet mount 8

Before you start 11

Control panel 11
Initial settings 12
New oven smell 13
Smart safety mechanism 13
Assembling the steam container (applicable models only) 13
Accessories 14
Water reservoir 15
Auto door 16

Operations 16

Oven modes 16
Steam assisted modes 19
Dual cook modes 21
Air Fry (applicable models only) 23
Air Sous Vide (applicable models only) 25
Cooking with the meat probe (applicable models only) 27
Special Function 28

Healthy Cook (applicable models only) 30

Auto Cook 30 Timer 31 Cleaning 32 Settings 34 Lock 35

Cooking Smart 36

Manual cooking 36
Auto Cook programmes 44
Special Function 52
Test dishes 53
Collection of frequent Auto Cook recipes 54

Maintenance 57

Cleaning 57 Opening the door manually 60 Replacement 61

Troubleshooting 62

Checkpoints 62 Information codes 64

Technical specifications 65

Appendix 66

Product data sheet 66 Open Source Announcement 67

Using this manual

Thank you for choosing SAMSUNG Built-In Oven.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your oven and keep this book for future reference.

The following symbols are used in this user manual

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Useful tips, recommendations, or information that helps users manipulate the product.

Safety instructions

Installation of this oven must be performed only by a licensed electrician. The installer is responsible for connecting the appliance to the mains power supply in observance of the relevant safety recommendations.

IMPORTANT SAFETY PRECAUTIONS

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

This Appliance should be allowed to disconnection from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Safety instructions

The method of fixing stated is not to depend on the use of adhesives since they are not considered to be a reliable fixing means.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

If this appliance has cleaning function, excess spillage must be removed before cleaning and all utensils should not be left in the oven during steam cleaning or self cleaning. The cleaning function depends on the model.

If this appliance has cleaning function, during cleaning conditions the surfaces may get hotter than usual and children should be kept away. For appliances with pyrolytic cleaning process, Some animals, particularly birds, can be sensitive to the fumes and local temperature fluctuations during the pyrolytic cleaning process and should be moved to an appropriate well ventilated area during this process.

Ventilate the room during and after the pyro cleaning process. The cleaning function depends on the model.

Only use the temperature probe recommended for this oven. (Meat probe model only)

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

The door or the outer surface may get hot when the appliance is operating.

The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use.

Line drawing of a rectangular tray with ribbed pattern and two circular ends (no text or symbols)

Insert the wire rack into position with the protruding parts (stoppers on both sides) towards the front so that the wire rack supports the rest position for large loads.

CAUTION

If the oven has been damaged in transport, do not connect it.

This appliance must be connected to the mains power supply only by a specially licensed electrician.

In the event of a fault or damage to the appliance, do not attempt to operate it.

Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. If your oven needs repair, contact a SAMSUNG Service center or your dealer.

Electrical leads and cables should not be allowed to touch the oven.

The oven should be connected to the mains power supply by means of an approved circuit breaker or fuse. Never use multiple plug adapters or extension leads.

The power supply of the appliance should be turned off when it is being repaired or cleaned.

Take care when connecting electrical appliances to sockets near the oven.

If this appliance has a vapour or steam cooking function, do not operate this appliance when the water supply cartridge is damaged. (Vapour or steam function model only)

When the cartridge is cracked or broken, do not use it and contact your nearest service center. (Vapour or steam function model only)

This oven has been designed only for the cooking of household foods.

During use, the oven interior surfaces become hot enough to cause burns. Do not touch heating elements or interior surfaces of the oven until they have had time to cool.

Never store flammable materials in the oven.

The oven surfaces become hot when the appliance is operated at a high temperature for an extended period of time.

When cooking, take care when opening the oven door as hot air and steam can escape rapidly.

When cooking dishes that contain alcohol, the alcohol may evaporate due to the high temperatures and the Vapour can catch fire if it comes into contact with a hot part of the oven.

For your safety, do not use high-pressure water cleaners or steam jet cleaners.

Children should be kept at a safe distance when the oven is in use.

Frozen foods such as pizzas should be cooked on the big grid. If the baking tray is used, it may become deformed due to the great variation in temperatures.

Safety instructions

Do not pour water into the bottom of the oven when it is hot. This could cause damage to the enamel surface.

The oven door must be closed during cooking.

Do not line the bottom of the oven with aluminum foil and do not place any baking trays or tins on it. The aluminum foil blocks the heat, which may result in damage to the enamel surfaces and cause poor cooking results.

Fruit juices will leave stains, which can become permanent on the enamel surfaces of the oven.

When cooking very moist cakes, use the deep pan.

Do not rest bakeware on the open oven door.

Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.

Do not step, lean, sit or place heavy items on the door.

Do not open the door with unnecessarily strong force.

WARNING: Do not disconnect the appliance from the main power supply even after the cooking process is completed.

WARNING: Do not leave the door open while oven is cooking.

WARNING: If the door opens automatically, it may hit children or pets. Make sure that there are no children or pets in range of the door. (Auto door(Handleless) model only)

WARNING: If you close or open the door while the product is in operation, make sure to use oven mitts or potholders. If you touch the door with your bare hands, you may get burned since the surface of the door is hot. (Auto door(Handleless) model only)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE. Batteries, visit :

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Auto energy saving function

Light: During cooking process, you can switch off Oven lamp by pressing 'Oven light' button. For energy saving, the oven lighting is switched off a few minutes after cooking programme has started.

Installation

WARNING

• This product is dedicated to built-in products.
- This oven must be installed by a qualified technician. The installer is responsible for connecting the oven to the main power, while observing the relevant safety regulations of your area.
- This appliance is designed for use up to a maximum altitude of 2,000 metres.

What's included

Make sure all parts and accessories are included in the product package. If you have a problem with the oven or accessories, contact a local Samsung customer centre or the retailer.

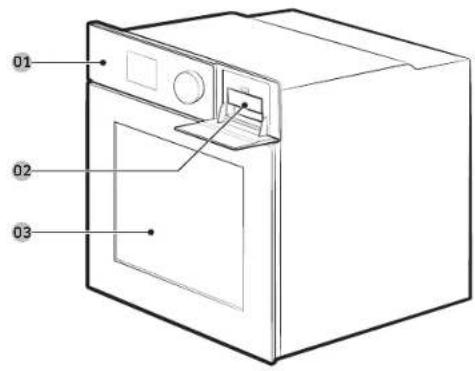

Oven at a glance

01 Control panel
02 Water reservoir
03 Door

Accessories

The oven comes with different accessories that help you prepare different types of food.

Wire rack Wire rack insert * Baking tray *

Universal tray * Extra-deep tray * Divider

Meat probe * Steam container * 2 Screws (M4 L25)

Air fry tray ^* Door Opener

NOTE

Availability of accessories with an asterisk (*) depends on the oven model.

CAUTION

Remove the child lock before using the Pyrolytic cleaning programme to avoid vent blockages that can heat up the door.

Installation

Power connection

01 BROWN or BLACK
02 BLUE or WHITE
03 YELLOW and GREEN

Plug the oven into an electrical socket. If a plug-type socket is not available due to allowable current limitations, use a multi-pole isolator switch (with at least 3 mm spacing in-between) in order to meet safety regulations. Use a power cord of sufficient length that supports the specification H05 RR-F or H05 VV-F, min. 1.5-2.5 mm ^2 .

Rated current (A) Minimum cross-sectional area
10 < A ≤ 16	mm^2
16 < A ≤ 25	mm^2

Check the output specifications on the label attached to the oven.

Open the rear cover of the oven using a screwdriver, and remove the screws on the cord clamp. Then, connect the power lines to the relevant connection terminals.

The (⊥)-terminal is designed for earthgrounding. First connect the yellow and green lines (earthgrounding), which must be longer than the others. If you use a plug-type socket, the plug must remain accessible after the oven is installed. Samsung is not responsible for accidents caused by missing or faulty earthgrounding.

Cabinet mount

If installing the oven in a built-in cabinet, the cabinet must have its plastic surfaces and adhesive parts resistant to temperatures in accordance to EN 60335. Samsung is not responsible for damage to furniture from the oven's heat emission. The oven must be properly ventilated. For ventilation, leave a gap of about 50 mm between the lower shelf of the cabinet and the supporting wall. If you install the oven under a cooktop, follow the cooktop's installation instructions.

Required dimensions for installation

Oven (mm)

A 560 G 481
B 166 H 21
C 383 I 549
D 596 J 579
E 595 K 559
F 503

WARNING

Do not step on or twist the wires during installation, and keep them away from heat-emitting parts of the oven.

Built-in cabinet (mm)

A Min. 550

B Min. 560

C Min. 50

D Min. 590 - Max. 600

E Min. 460 x Min. 50

NOTE

The built-in cabinet must have vents (E) to ventilate heat and circulate the air.

Under-sink cabinet (mm)

A Min. 550

B Min. 560

C Min. 600

D Min. 460 x Min. 50

NOTE

• The built-in cabinet must have vents (D) to ventilate heat and circulate the air.
- Minimum height requirement (C) is for oven installation alone.

Pure technical diagram of a rectangular frame with a circular component and dimension line (no text or symbols)

Installing with a hob

To install a hob on top of the oven, check the installation guide of the hob for the installation space requirement (*).

Installation

Mounting the oven

Pure geometric diagram showing a circle inscribed in a rectangular frame with diagonal lines, no text or symbols present.

Make sure to leave a gap (A) of at least 5 mm between the oven and each side of the cabinet.

Secure at least 3 mm of gap (B) so that the door opens and closes smoothly.

Architectural diagram showing structural components with an inset detail (no text or labels)

Fit the oven into the cabinet and fix the oven firmly on both sides using 2 screws.

After installation is complete, remove the protective film, tape, and other packing material, and take out the provided accessories from inside the oven. To remove the oven from the cabinet, first disconnect power to the oven and remove 2 screws on both sides of the oven.

WARNING

The oven requires ventilation for normal operation. Do not block the vents under any circumstance.

NOTE

The actual appearance of the oven may differ with the model.

Before you start

Control panel

The oven's control panel features a display (non-touch), dial knob and touch buttons to control the oven. Please read the following information to learn about the oven's control panel.

01 Screen Displays the menu, information, and cooking progress.
02 Options Tap to see the Options list.
03 Light Tap to turn the oven light on or off.
04 Smart Control	Tap to turn the Smart Control function on or off.NOTEEasy Connection should be set prior to use this function.
05 Back Tap to move to the previous screen.
06 Door Open Tap to open the door automatically.Use your own hands to close the door.CAUTIONUse oven mitts or potholders while the product is in operation.Make sure the door is completely closed.

07 Power Tap to turn	the screen on or off.
	NOTEOnly thePowerbutton can stop the operation of the oven when the door is open.
08 Dial Knob	Turn left and right to navigate through the menus and lists. An item will be underlined to show you where you are on the screen.Press to select the underlined item.

(*) applicable models only.

Before you start

Initial settings

When you turn on the oven for the first time, the Welcome screen appears with the Samsung logo. Follow the on-screen instructions to complete the initial settings. You can change the initial settings later by accessing the Settings screen.

1. On the welcome screen, select Start setup, and then press the Dial Knob.
2. Set the language.

a. Select the language, and then press the Dial Knob.
b. Select Next, and then press the Dial Knob.

1. Agree with the "Terms and Conditions" and "Privacy Policy".
2. Connect your appliance to the SmartThings app.

a. On the Mobile Experience screen, select Next, and then press the Dial Knob.
b. Scan the QR code on the screen with your smartphone and follow the onscreen instruction on your phone to complete the connection.
- If you do not wish to proceed this step, select Skip, and then press the Dial Knob to proceed next step.
c. Once you get the message that you are successfully connected, select OK, and the press the Dial Knob.

1. Set the time zone.

a. Select your time zone, and then press the Dial Knob.
b. Select Next, and then press the Dial Knob.

1. Set the date.

a. Select the day, month, and year. Press the Dial Knob after selecting each item.
b. Select Next, and then press the Dial Knob.

NOTE

Skip this step if you have connected your appliance to the SmartThings app.

1. Select the time.

a. Set the hour and minute. Press the Dial Knob after selecting each item.
b. Select Next, and then press the Dial Knob.

NOTE

Skip this step if you have connected your appliance to the SmartThings app.

1. Select Done, and then press the Dial Knob to complete the setting.

- Guide for first use screen appears. You can select LEARN MORE, and then press the Dial Knob to see the guide or select LATER, and then press the Dial Knob to skip this step.

Setting the screen to stay always on

The screen automatically turns off after a certain time. If you want to set the screen to stay on all the time, follow the below instructions.

1. Touch the ≡ button on the control panel.
2. Select Settings, and then press the Dial Knob.
3. On the Settings screen, select Display, and then press the Dial Knob.
4. On the Display screen, select Timeout, and then press the Dial Knob.
5. Select Always on, and then press the Dial Knob.

NOTE

• Energy consumption may increase depending on your setting.
- When the timeout setting is set to "Always on", the brightness of the LCD automatically changes to level 2 if there is no action for 3 minutes.
• "Always on" setting is available only when the screen saver is set to On.

New oven smell

Before using the oven for the first time, clean inside the oven to remove the new oven smell.

1. Remove all accessories from inside the oven.
2. Run the oven with Convection 200 °C or Conventional 200 °C for an hour. This will burn any remaining production substances in the oven.
3. When complete, turn off the oven.

NOTE

• At the first-time use, you may see some smoke inside the oven while it is operating. However, this is not a product failure.
• As the temperature of the cooking room increases at an initial period, you may find some spots on the inner glass of the door. If this is the case, turn off the oven and wait until it cools down. Then, use kitchen paper or neutral detergent with a clean cloth to wipe up the inner glass.
• It is also important to make sure that you operate the oven in a well-ventilating kitchen environment.

Smart safety mechanism

If you open the door while the oven is operating, the oven light turns on and both the fan and the heating elements stop operation. This is to prevent physical injuries such as burns as well as to prevent unnecessary energy loss. When this happens, simply close the door and the oven continues to operate normally because this is not a system failure.

Assembling the steam container (applicable models only)

Illustration of four different electronic devices or enclosures with no visible text or symbols

Diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with internal floral patterns and a small outlet (no text or symbols)

1. Check and make sure you have all the parts for the steam container.

2. Parts includes glass lid, metal pan, steam tray, and steam nozzle.

3. Insert the steam nozzle to the hole on the right-rear side of the metal pan, and then tighten the provided nut.

4. Put the steam tray in the metal pan, and then close the glass lid to use it in the oven.

Before you start

Accessories

For first time use, clean the accessories thoroughly with warm water, detergent and a soft clean cloth.

01 Level 1 02 Level 2
03 Level 3 04 Level 4
05 Level 5 (A) Steam

container level

• Insert the accessory to the correct position inside of the oven.
• Steam container level (A) is only for the steam container. Do not put the steam container on any other level, and do not put any other accessories on the steam container level (A). The steam container level (A) is provided for applicable models only.
• Allow at least a 1 cm space from the accessory and the bottom of the oven, and from any other accessory.
  • Take caution in removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.
• The accessories may be deformed while they are gaining heat. Once they have cooled down, they will recover their original appearance and performance.

Basic use

For better cooking experience, familiarise yourself with how to use each accessory.

Wire rack The wire rack is designed for grilling and roasting.Insert the wire rack into position with the protruding parts (stoppers on both sides) towards the front.

Wire rack insert * The wire rack insert is used with the tray, and prevents liquid from dropping onto the bottom of the oven.

Baking tray * The baking tray (depth: 20 mm) is used to bake cakes, cookies, and other pastries. Put the slanted side to the front.

Universal tray * The universal tray (depth: 30 mm) is used for cooking and roasting. Use the wire-tray insert to prevent liquid from dropping onto the bottom of the oven. Put the slanted side to the front.

Extra-deep tray * The extra-deep tray (depth: 50 mm) is used for roasting with or without the wire-tray insert. Put the slanted side to the front.

Air fry tray * Use the air fry tray only in Air Fry mode. As the tray becomes hot during or immediately after cooking, be sure to use oven gloves or wait until the oven cools down completely to remove the tray.

Divider The divider is designed to separate the oven in two zones. Use the divider with Dual cook mode. Do not use the divider for any other purpose than dividing the compartment into two cooking zones. Do not use the divider as a shelf.

Telescopic rails * Use the telescopic rail plate to insert the tray as follows:1. Stretch the rail plate out from the oven.2. Put the tray on the rail plate and slide the rail plate into the oven.3. Close the oven door.

Meat probe * The meat probe measures the internal temperature of the meat to cook. Use only the meat probe that comes with your oven.

Steam container * The steam container and glass lid are only for full steam cook function. Use the steam container on the steam container level only and make sure to insert fully into the comparment so the container touches the rear wall.The steam container has 4 separate parts: Glass lid, metal pan, steam tray, and steam nozzle.WARNING : Do not use glass lid for grill, baking.⚠ WARNING• Always wear oven mittens when handling the steam container and be careful not to drop the steam container.• Sudden temperature changes could cause glass parts to break or shatter.

NOTE

Availability of accessories with an asterisk (*) depends on the oven model.

Water reservoir

The water reservoir is used for steam functions. Fill it with water in advance of steam cooking.

Illustration of a hand inserting a device into a cabinet (no text or symbols)

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

1. Locate the water reservoir in the top-right corner. Push in the reservoir to open and remove.
2. Open the reservoir cap, and fill the reservoir with 500 ml of drinkable water.
3. Close the cap, and reinsert the reservoir.

NOTE

Insert the water reservoir to the end until it locks.

NOTE

Do not exceed the max line.

Technical diagram of a mechanical component with labeled section A and arrow indicating direction (no text or symbols beyond labels)

NOTE

Make sure the upper case (A) of the water reservoir is closed before using the oven.

Before you start

Auto door

1. Press the Auto door button.

Line drawing of an open oven with a door and lid, showing the door opening and outlet (no text or symbols)

1. The door will open automatically.

CAUTION

If the door opens automatically, it may hit children or pets. Make sure that there are no children or pets in range of the door:

Operations

Oven modes

1. On the main screen, select Convection, and then press the Dial Knob.
2. Select the desired cook mode, and then press the Dial Knob. (For detailed information of each mode, see "Oven mode descriptions".)
3. You can use the meat probe in some modes. To cook using the meat probe, see "Cooking with the meat probe (applicable models only)".

1. Set the desired temperature.
2. The default temperature and the temperature range differ depending on the cook mode.

1. Set the Fast Preheat option.
2. The default setting is "Off".

10:40

Conventional

200°C

Fast Preheat On

Cook Time

START

1. Select Cook Time, and then press the Dial Knob to set the desired cooking time.

• Maximum cooking time is 23 hours and 59 minutes.

1. After setting the cooking time, select the option you want to run at the end of cooking, and then press the Dial Knob.

• You can select Oven Off, Keep Temp., or Keep Warm.

• The Large Grill and Eco Grill modes does not support the Keep Warm option.

NOTE

If you start cooking without setting the cooking time or set Keep Temp. for option, you must stop the oven manually.

1. Select Ready at, and then press the Dial Knob to set the desired end time.

- When you set the cooking time, the oven displays the time cooking will end. (Ex. Ready at 13:30)

12:00
Conventional
200°C
Fast Preheat On
Thr 30mln | Oven Off
Ready at 14:30	START

1. Select START, and then press the Dial Knob.

- If you did not change the end time, the oven starts cooking immediately.

- If you changed the end time, the oven will automatically adjust the start time to end cooking at the set time.

NOTE

• You can change the temperature. Fast Preheat option, and cooking time during cooking.
• During cooking, you can select OFF, press the Dial Knob, select OK, and then press the Dial Knob to cancel cooking.
• When cooking is complete, +5 mins appears on the screen.
• You can select +5 mins, and then press the Dial Knob to extend the cooking for 5 more minutes.

Operations

Oven mode descriptions

Mode		Temperature range (°C)				Suggested temperature (°C)
		Single	Dual
			Upper Lower Dual
	Convection	30-275	40-250 40-	250 40-250	160
		The rear heating element generates heat, which is evenly distributed by the convection fan. Use this mode for baking and roasting on different levels at the same time.
	Conventional	30-275	-- 180
		The heat is generated from the top and bottom heating elements. This function should be used for standard baking and roasting for most types of dishes.
	Eco Convection	30-275	-- 160
		Eco Convection uses the optimized heating system to save energy while cooking. The cooking times slightly increases, but the cooking results remain the same. Note that this mode does not require preheating.
		NOTE Eco Convection mode of heating used to determine the energy efficiency class is in accordance with EN60350-1.
	Large Grill	100-300	40-250 --	220
		The large-area grill emits heat. Use this mode for browning the tops of food (for example, meat, lasagne, or gratin).
	Eco Grill	100-300	-- 220
		The small-area grill emits heat. Use this mode for food that requires less heat, such as fish and filled baguettes.

Mode		Temperature range (°C)				Suggested temperature (°C)
		Single	Dual
			Upper Lower Dual
	Fan Grill	100-275	-- 180
		Two top heating elements generate heat, which is distributed by the fan. Use this mode for grilling meat or fish.
	Top Heat + Convection	40-275	40-250 - -	180
		The top heating element generates heat, which is evenly distributed by the convection fan. Use this mode for roasting that requires a crispy top (for example, meat or lasagne).
	Bottom Heat + Convection	40-275	40-250 -	200
		The bottom heating element generates heat, which is evenly distributed by the convection fan. Use this mode for pizza, bread, or cake.
	Bottom Heat	100-230	40-250	40-250 150
		The bottom heating element generates heat. Use this mode at the end of baking or cooking to brown the bottoms of a quiche or pizza.
	Pro-Roasting	80-200	-- 160
		Pro-Roasting runs an automatic pre-heating cycle until the oven temperature reaches 220 °C. Then, the top heating element and the convection fan start operating to sear food such as meat. After searing, the meat will be cooked at low temperatures. Use this mode for beef, poultry, or fish.
Upper Lower Dual
	Air Sous Vide	50-95	-60
		Air Sous Vide mode uses low-temperature hot air to implement Sous Vide mode without steam or the water tank. In this mode, the oven keeps constant low temperatures inside the cooking chamber.
	Air Fry	-150	250--220
		Air Fry mode uses hot air for crispier and healthier frozen or fresh foods without, or less oil, than normal convection modes.

Steam assisted modes

CAUTION

Make sure the water reservoir is filled before using the steam assisted modes.

12:00

Convection

160°C

Fast Preheat Off

Cook Time

START

1. On the main screen, select Convection, and then press the Dial Knob.
2. Select the desired cook mode, and then press the Dial Knob. (For detailed information of each mode, see "Steam assisted mode descriptions".)
3. If you selected Steam Cook, go to step 5. (Step 2-4 is not applicable for Steam Cook.)
4. You can use the meat probe in some modes. To cook using the meat probe, see "Cooking with the meat probe (applicable models only)".

NOTE

Steam Cook is available on applicable models only.

1. Set the desired temperature.

- The default temperature and the temperature range differ depending on the cook mode.

12:00

Steam Convection

160°C

Fast Preheat Off

Medium Steam

Cook Time

START

Operations

12:00Steam Convection200°CFast Preheat OffMedium SteamCook TimeSTART

12:00Steam Convection200°CFast Preheat OnMedium SteamCook TimeSTART

12:00

Steam Convection

200°C

Fast Preheat On

High Steam

Cook Time.

START

1. Set the Fast Preheat option. • The default setting is "Off".

2. Set the steam level. • The default setting is "Medium".

3. Select Cook Time, and then press the Dial Knob to set the desired cooking time. • Maximum cooking time is 23 hours and 59 minutes.

4. After setting the cooking time, select the option you want to run at the end of cooking, and then press the Dial Knob. • You can select Oven Off. Keep Temp., or Keep Warm.

NOTE If you start cooking without setting the cooking time or set Keep Temp. for option, you must stop the oven manually.

12:00

Steam Convection

200°C

Fast Preheat On

High Steam

1hr 30min | Oven Off

Ready at 13-30 START

12:00
Steam Convection
200°C
Fast Preheat On
High Steam
1hr 30min | Oven Off
Ready at 14:30	START

1. Select Ready at, and then press the Dial Knob to set the desired end time.
2. When you set the cooking time, the oven displays the time cooking will end. (Ex. Ready at 13:30)
3. Select START, and then press the Dial Knob.
4. If you did not change the end time, the oven starts cooking immediately.
5. If you changed the end time, the oven will automatically adjust the start time to end cooking at the set time.

NOTE

• You can change the temperature, Fast Preheat option, and cooking time during cooking.
• During cooking, you can select OFF, press the Dial Knob, select OK, and then press the Dial Knob to cancel cooking.
• When cooking is complete, +5 mins appears on the screen.
• You can select +5 mins, and then press the Dial Knob to extend the cooking for 5 more minutes.

Steam assisted mode descriptions

Mode		Temperature range (°C)	Default temperature (°C)	Fast Preheat	Meat probe
[DSGK]	Steam Cook *	--XX
		The hot steam from the steam generator is injected through the steam nozzle into the oven to cook food. This mode is suitable for cooking vegetables, fish, eggs, fruits, and rice.
	Steam Convection	120-275 160 0 0
		The heat generated by the convection heater and fans is continuously supported by hot steam. The intensity of the steam can be adjusted to Low, Medium, or High. This mode is suitable for baking puff pastries, yeast cake, bread, and pizza and roasting meat and fish.
	Steam Top Heat + Convection	120-275 180 0 0
		The heat generated by the top heater and the convection heater is shared evenly in the oven by the fan, and the hot steam supports the heating elements. This mode is suitable for roasting crusty dishes like meat, poultry, or fish.
[2TXT]	Steam Bottom Heat + Convection	120-275 200 0 0
		The heat generated by the bottom heating element and the convection heater is shared evenly in the oven by the fan, and the hot steam supports the heating elements. This mode is suitable for crispy baking foods like pizza or apple pie.

Dual cook modes

You can use the provided divider to separate the cooking chamber in the upper and lower zones. This allows users to enable two different cooking modes simultaneously, or to simply choose one zone to cook with.

Simple line drawing of a cabinet with doors and an upward arrow on the shelf (no text or symbols)

12:00

Upper Oven

Lower Oven

12:00	Upper
Convection
160°C
Cook Time
	START

1. Insert the divider in level 3 to separate the cooking chamber in two zones.

- When the divider is inserted, the oven senses the divider and the main screen changes automatically.

1. Select the desired cooking zone, and then press the Dial Knob.

2. Set the desired cooking settings and start cooking.

3. For instructions, see "Oven modes" or "Steam assisted modes".

4. For available modes and options, refer to "Available modes in each zone".

NOTE

• Availability of the modes with an asterisk (*) depends on the oven model.
• Always fill the water reservoir with fresh water when cooking with these modes.

Operations

0:00	Upper
Convection
30°C >>> 160°C
13:30 | Oven Off	OFF

NOTE

• Once you started cooking in the either zone, you can start cooking in the other zone. Select the zone indicator on the top-middle of the screen, press the Dial Knob, and then repeat step 2 to 3 to cook in the other zone.
• There may be some restrictions on modes or temperature range that you can select when you try to cook in the both zones simultaneously.

Available modes in each zone

Zone Available mode		Temperature range (°C)	Default temperature (°C)	Fast Preheat	Meat probe
Upper	Convection 40-2	50 160 X X
	Large Grill 40-2	50 220 X X
	Top Heat + Convection	40-250 180 X X
	Air Fry 150-2	50 220 X X
Lower	Convection 40-2	50 160 X X
	Bottom Heat + Convection	40-250 200 X X
	Bottom Heat 40-	250 150 X X
	Steam Cook * - - X X
	Steam Convection 1	20-250 160 X X
	Steam Bottom Heat + Convection	120-250 200 X X

NOTE

• Refer to "Oven mode descriptions" or "Steam assisted mode descriptions" for description of each mode.
• Availability of the modes with an asterisk (*) depends on the oven model.

Air Fry (applicable models only)

Preheating is not necessary for this mode. We recommended place a baking sheet or tray on the divider for getting any drippings.

For better cooking results, flip food over during the process.

Diagram of a two-tiered bench structure with no text or symbols

1. Insert divider and place the tray with wire rack on rack position 4.

2. Select Air fry mode using the Dial Knob.

3. Use the Dial Knob to change the default temperature. Enter the suggested temperature for your food as recommended cooking guide. The default temperature is 220 °C.
4. Select Cook Time, and then press the Dial Knob to set the desired cooking time.
5. After setting the cooking time, select the option you want to run at the end of cooking, and then press the Dial Knob.
6. Select Start and press the Dial Knob.
7. When cooking is complete, tap OFF and take out the food.

NOTE

• Place a baking sheet or tray on the divider for getting any drippings. This will help to reduce splatter and smoke.
• Before using a baking sheet, check the maximum allowable temperature of baking sheet.
  • Air fry is designed for a dual upper oven rack. Insert divider and place food on rack position 4 for best results.
• For cooking fresh or homemade foods, spread the oil over a larger area more evenly, crisping up the food more effectively.

WARNING

• If anything is in progress in lower zone, Air fry is not available in the upper zone.
• When Air fry is in progress in the upper zone, the lower zone is not available at all.

We recommended turn over after half of cooking time for the best results.

Food	Accessory	Level	Temp. (°C)	Time (min.)
Potatoes
Frozen French fries	Wire rack + Air fry tray	4 210-220 20-25
Frozen French fries, seasoned	Wire rack + Air fry tray	4 210-220 20-25
Frozen tater tots	Wire rack + Air fry tray	4 210-220 15-20
Frozen hash brown	Wire rack + Air fry tray	4 210-220 15-20
Frozen potato wedges	Wire rack + Air fry tray	4 210-220 15-20
Homemade French fries	Wire rack + Air fry tray	4 200-210 20-25
Homemade potato wedges	Wire rack + Air fry tray	4 210-220 20-25

Operations

Food	Accessory	Level	Temp. (°C)	Time (min.)
Frozen
Frozen chicken nuggets	Wire rack + Air fry tray	4 210	-220 15-20
Frozen chicken wings	Wire rack + Air fry tray	4 210	-220 25-30
Frozen onion rings	Wire rack + Air fry tray	4 210	-220 15-20
Frozen chicken strips	Wire rack + Air fry tray	4 210	-220 20-25
Frozen Churros	Wire rack + Air fry tray	4 190	-200 10-15
Chicken
Fresh drumsticks	Wire rack + Air fry tray	4 200	-210 30-35
Fresh wings	Wire rack + Air fry tray	4 200	-210 25-30
Breasts, breaded	Wire rack + Air fry tray	4 200	-210 25-30

Food	Accessory	Level	Temp. (°C)	Time (min.)
Vegetable
Asparagus, breaded	Wire rack + Air fry tray	4 200	-210 15-20
Aubergine, sliced and breaded	Wire rack + Air fry tray	4 200	-210 15-20
Onion rings, breaded	Wire rack + Air fry tray	4 200	-210 15-20
Squash cubes	Wire rack + Air fry tray	4 200	-210 20-25
Cauliflower florets	Wire rack + Air fry tray	4 190	-200 15-20
Vegetable mix	Wire rack + Air fry tray	4 200	-210 15-20

Air Sous Vide (applicable models only)

Air Sous Vide mode uses low-temperature hot air to implement Sous Vide mode without steam or the water tank. In this mode, the oven keeps constant low temperatures inside the cooking chamber, cooking food that can keep its original fragrance and nutrients while offering enriched flavor and soft texture.

Illustration of a bag with a piece of meat inside, no text or symbols present

1. Put food in a clean vacuum bag and seal it up. Then, load the food in rack position 3 of the oven.

Simple line drawing of a rectangular enclosure with a central platform and surrounding shelves (no text or symbols)

1. Select Air Sous Vide mode.
2. Use the Dial Knob to change the default temperature. Enter the suggested temperature for your food as recommended cooking guide. The default temperature is 60 °C. (You can change the temperature by 1 °C)
3. Press the Dial Knob and set the cooking time.
4. After setting the cooking time, select the option you want to run at the end of cooking, and then press the Dial Knob.
5. Select Start and press the Dial Knob

NOTE

• Use fresh and quality ingredients only. Trim them in a clean condition and store under refrigeration.
• Use heat-resistant vacuum bags for moving and storing ingredients.
• Do never reuse the heat-resistant vacuum bags.
• The cooking time depends on the thickness of food. Addition of salt or sugar may shorten the cooking time.

Tips

• To keep the original taste, we recommend you use less herbs and spices than in ordinary recipes.
- Meat and fishery offer better flavors when seared and served.
- If not served immediately after cooked, put the food in ice water and cool down completely. Then, store them under 5 °C to keep the fragrance and texture of food.
- Exceptionally, chicken is recommended to eat immediately after cooked.

We recommended preheat the oven for the best results.

Food Doneness	Accessory Level			Temp. (°C)	Time (hrs.)
Beef
Steak, 4cm thick	Rare	Wire rack	3	54	3-4
Steak, 4cm thick	Medium	Wire rack	3	60	3-4
Steak, 4cm thick Well done Wire rack 3 68 3-4
Roast Medium	Wire rack 3 62 5-8
Roast	Well done	Wire rack	3	68	6-8

Operations

Food Doneness	Accessory Level			Temp. (°C)	Time (hrs.)
Pork
Chop, boneless	Tender	Wire rack	3	60	3-4
Chop, boneless	Firm	Wire rack	3	71	3-4
Roast	Medium	Wire rack	3	62	4-6
Roast	Well done	Wire rack	3	72	4-6
Pulled pork	Well done	Wire rack	3	74	18-24
Poultry
Chicken, breast	Tender	Wire rack	3	66	3-4
Chicken, breast	Firm	Wire rack	3	72	3-4
Duck, breast	Tender	Wire rack	3	63	3-4
Fish
Salmon steak	Tender	Wire rack	3	52	2-3
Salmon steak	Well done	Wire rack	3	63	2-3
Cod fillet	Tender	Wire rack	3	55	2-3
Vegetables
Asparagus	-	Wire rack	3	85	2-3
Potato, sliced	-	Wire rack	3	90	2-3
Sweet potato, sliced	-	Wire rack	3	90	2-3
Carrot, sliced	-	Wire rack	3	90	2-3
Squash, cubes	-	Wire rack	3	90	2-3

Food Doneness	Accessory Level			Temp. (°C)	Time (hrs.)
Fruit
Apple, sliced - W	re rack 3 80 2-3
Pineapple, sliced	-	Wire rack	3	85	1-2
Pear, sliced - Wire rack 3 83 2-3
Others
Hen's eggs Poached Wire rack 3 63 2-3
Hen's eggs Hard boiled Wire rack 3 71 2-3

* Cook hen's eggs without vacuum sealing.

Cooking with the meat probe (applicable models only)

The meat probe measures the internal temperature of meat while it's cooking. When the temperature reaches the target temperature, the oven stops and finishes cooking.
- Use only the meat probe that comes with your oven.
- You cannot set the cooking time if the meat probe is plugged in.

1. Insert the tip of the meat probe into the center of the meat to cook. Make sure the rubber handle is not inserted.

Diagram showing two cables connected to a refrigerator (no text or symbols present)

1. Plug the probe connector into the socket on the left wall. If the probe is connected properly, you will see a message of "Meat probe inserted."

2. If the meat probe is inserted, Probe Temperature will appear instead of Cook Time.

3. Select Probe Temperature, and then press the Dial Knob to set the target temperature of your meat.

1. Set the desired cooking settings.

- Refer to "Oven mode descriptions" or "Steam assisted mode descriptions" for the modes you can use the meat probe. - Refer to steps 1-3 of "Oven modes" or steps 1-4 of the "Steam assisted modes".

1. Select START, and then press the Dial Knob.

- The oven completes cooking with a melody when the internal temperature of the meat reaches the set temperature.

WARNING

• To prevent damage, do not use the meat probe with the spit accessory.
- When cooking is complete, the meat probe becomes very hot. To prevent burns, use oven gloves to take out the food.

NOTE

Not all modes support using the meat probe. If you use the meat probe with inapplicable modes, you will see a message of "The selected mode does not support the use of the meat probe." When this happens, remove the meat probe instantly.

Operations

Special Function

Unab

Convection

160°C

Fast Preheat Off

Cook Time

START

Special Function Keep Warm Plate Warm Defrost

12:00

< Keep Warm

60°C

Cook Time

START

12:00

< Keep Warm

80°C

Cook Time

START

1. On the main screen, select Convection, and then press the Dial Knob.

2. Select Special Function, and then press the Dial Knob.

3. Select the desired function, and then press the Dial Knob.

- For detailed information of each function, see "Special Function description".

1. Set the desired temperature.

- The default temperature and the temperature differ depending on the cook mode.

1. Select Cook Time, and then press the Dial Knob to set the desired cooking time, or select Probe Temperature, and then press the Dial Knob to set the target temperature of your meat.

• Probe Temperature is only applicable for Slow Cook.

• Maximum cooking time is 23 hours and 59 minutes.

17:00

< Keep Warm

80°C

Thr 30min

Ready at 13:30

12:00

< Keep Warm

80°C

1hr 30min

Ready at 14:30

1. Select Ready at, and then press the Dial Knob to set the desired end time.

- When you set the cooking time, the oven displays the time cooking will end. (Ex. Ready at 13:30)

- This step is not applicable for Slow Cook.

1. Select START. and then press the Dial Knob.

- If you did not change the end time, the oven starts cooking immediately.

- If you changed the end time, the oven will automatically adjust the start time to end cooking at the set time.

- If you selected Slow Cook, the oven completes cooking with a melody when the internal temperature of the meat reaches the set temperature.

Special Function description

Mode	Temperature range (°C)	Default temperature (°C)	Descriptions
Keep Warm 40-100 60			Use this only for keeping foods warm that have just been cooked.
Plate Warm 30-80 50			Use this for warming dishes or ovenware.
Defrost 30-60 30			This mode uses for defrosting frozen products, baking goods, fruit, cake, cream and chocolate. The defrosting time is depending on the type, size and quantity of the food.
Prove Dough 30-50 35			This mode uses for proving the dough and making the homemade yogurt.
Pizza Cook 160-250 200			This mode is suitable for pizza and the cooking temperature and time will depend on the pizza size and the thickness of pizza dough.

Mode	Temperature range (°C)	Default temperature (°C)	Descriptions
Slow Cook 70-120 80			This mode uses low temperature for the tender texture. This is suitable for roasting beef, pork, veal or lamb when you want to a tender texture. We recommend searing the meat all over at high temperature on the hob before roasting.
Drying 40-90 60			This mode uses for drying the fruit, vegetable and herb. The drying time is depending on the type and thickness and quantity of the food.

Operations

Healthy Cook (applicable models only)

The oven offers 20 healthy cook programs. The cook settings will be adjusted automatically according to the selected programme.

1. On the main screen, select Convection, and then press the Dial Knob.

2. Select Healthy Cook, and then press the Dial Knob.

3. Select the desired programme, and then press the Dial Knob.

- For detailed information of each programme, see "Healthy Cook" in "Cooking Smart" section on page 51.)

1. Read the tip, select Next, and then press the Dial Knob.

2. Pour the water in the water reservoir as instructed on the screen, select Next, and then press the Dial Knob.

3. Prepare food and accessories as instructed on the screen, select Next, and then press the Dial Knob.

- If you want to start cooking at a certain time, select Delay Start, and then press the Dial Knob to set the desired time.

1. Select START, and then press the Dial Knob.

Auto Cook

The oven offers 50 or 70 (for Steam cook model) Auto Cook programmes. Take advantage of this feature to save your time or shorten your learning curve. The cooking time, power level and temperature will be adjusted according to the selected programme.

12:00
Auto Cook Bakes & Bakery	Roast Side Dishes

1. On the main screen, select Convection, and then press the Dial Knob.

2. Select Auto Cook, and then press the Dial Knob.

3. Select the category, and then press the Dial Knob.

4. Select the subcategory, and then press the Dial Knob.

- Some categories may not have a subcategory.

1. Select the desired programme, and then press the Dial Knob.

- For detailed information of each programme, see "Auto Cook programmes" in "Cooking Smart" section on page 44.)

1. Read the tip, select Next, and then press the Dial Knob.

17:00
<Herb roasted lamb chops
Weight	0.4 kg
	0.5

1. Select the weight, and then press the Dial Knob.

• This step may not apply to some programmes.
• Available weight differs depending on the selected programme.

1. Pour the water in the water reservoir as instructed on the screen, select Next, and then press the Dial Knob.
2. This step may not apply to some programmes.
3. Prepare food and accessories as instructed on the screen, select Next, and then press the Dial Knob.
4. If you want to start cooking at a certain time, select Delay Start, and then press the Dial Knob to set the desired time.
5. Select START, and then press the Dial Knob.

Timer

Adding the new Timer

1. Touch the ≡ button on the control panel.
2. Select Timer, and then press the Dial Knob.
3. On the Timer screen, select + and then press the Dial Knob
4. Skip this step if you are adding the timer for the first time.
5. Set the time.

Editing the existing Timer

1. Touch the ≡ button on the control panel.
2. Select Timer, and then press the Dial Knob.
3. On the Timer screen, select the Timer you want to edit, and then press the Dial Knob.
4. Change the time.

Operations

Deleting the Timer

1. Touch the ≡ button on the control panel.
2. Select Timer, and then press the Dial Knob.
3. On the Timer screen, select 📋, and then press the Dial Knob.
4. Select Delete on the right side of the Timer you want to delete, and then press the Dial Knob.
5. Select Done, and then press the Dial Knob.

Using the Timer

1. Touch the ≡ button on the control panel.
2. Select Timer, and then press the Dial Knob.
3. Select Start on the right side of the Timer you want to use, and then press the Dial Knob.

Once you start the timer, you can pause or cancel the timer.

NOTE

When the time has elapsed to a set point, a message of "Time is up." appears with a melody. Select OK, and then press the Dial Knob to dismiss the message.

Cleaning

Pyrolytic (applicable models only)

Pyrolytic features high temperature thermal cleaning. It burns off oily leftovers to facilitate manual cleaning.

1. Touch the ≡ button on the control panel.
2. Select Cleaning, and then press the Dial Knob.
3. Select Pyrolytic, and then press the Dial Knob.
4. Select the time, and then press the Dial Knob.
5. Select Next, and then press the Dial Knob.
6. Follow the instruction on the screen, select Next, and then press the Dial Knob.
7. Read the message on the screen, select Start, and then press the Dial Knob.
8. Wait until the oven cools down, and then wipe the door along its edges using a wet cloth.

CAUTION

• Do not touch the oven because the oven becomes very hot during the cycle.
  • To avoid accidents, keep children away from the oven.
• After the cycle is complete, do not power off while the cooling fan is operating to cool the oven down.

NOTE

• Once the cycle starts, the oven becomes hot inside. Then, the door will be locked for safety. When the cycle is complete, and the oven cools down, the door will be unlocked.
• Make sure you empty the oven before cleaning. Accessories can be deformed due to high temperatures inside the oven.

Steam Clean

This is useful for cleaning light soiling with steam.

This automatic function saves you time by removing the need for regular manual cleaning.

1. Touch the ≡ button on the control panel.
2. Select Cleaning, and then press the Dial Knob.
3. Select Steam Clean, and then press the Dial Knob.
4. Select Next, and then press the Dial Knob.
5. Follow the instruction on the screen, select Next, and then press the Dial Knob.
6. Select START, and then press the Dial Knob.

WARNING

Do not open the door before the cycle is complete. The water inside the oven is very hot, and it can cause burns.

NOTE

• If the oven is heavily soiled with grease, for example, after roasting or grilling, it is recommended to remove stubborn soil manually using a cleaning agent before activating Steam cleaning.
• Leave the oven door ajar when the cycle is complete. This is to allow the interior enamel surface to dry thoroughly.
• While the oven is hot inside, auto cleaning is not activated. Wait until the oven cools down and try again.
• Do not pour water onto the bottom by force. Do it gently. Otherwise, the water overflows to the front.

Descale

Clean inside the steam generator to prevent affecting the food quality and taste.

NOTE

• The oven counts the time of steam assisted modes and notifies you to run the Descale function when required. You can still use the steam assisted modes for the next two hours without running the Descale function. However, you cannot use the steam assisted modes after two hours unless you run and complete the Descale function.

• When you get the notification message, select Start now, and then press the Dial Knob to run the Descale function, or select Later, and then press the Dial Knob to postpone it.
  : Descale required.

• Touch the ≡ button on the control panel.

• Select Cleaning, and then press the Dial Knob.
• Select Descale, and then press the Dial Knob.
• Select Next, and then press the Dial Knob.
• Follow the instruction on the screen, select Start, and then press the Dial Knob.

- If you get a notification message that you have insufficient water, add more water in the water reservoir, select OK, and then press the Dial Knob.

1. When descaling is complete, the oven drains water automatically.
2. Once draining is complete, empty the water reservoir.
3. Refill the water reservoir with 500 ml of drinkable water as instructed on the screen, select OK, and then press the Dial Knob to start rinsing.
4. When rinsing is complete, empty the water reservoir.
   • After emptying the reservoir, clean it before putting it back to the oven.

WARNING

• Wear oven gloves when you handle the water reservoir.
• Use only descaling agents that are specific to steam ovens or coffee machines.

Operations

CAUTION

• Do not cancel descaling in the process. Otherwise, you must restart the descaling cycle and complete within the next three hours in order to enable steam assisted modes.
  • To avoid accidents, keep children away from the oven.
• For the mixture ratio of water and the descaling agent, follow the agent manufacturer's instruction as it precedes.

Drain

After using the steam assisted modes, you must drain the remaining water to prevent affecting other cooking modes. Also, if you want to drain again for cleaning purposes, use this function.

1. Touch the ≡ button on the control panel.
2. Select Cleaning, and then press the Dial Knob.
3. Select Drain, and then press the Dial Knob.
4. Select Next, and then press the Dial Knob.
5. Follow the instruction on the screen, select Start, and then press the Dial Knob.
6. The oven drains water from the steam generator to the water reservoir.
7. When draining is complete, empty the water reservoir.
   • After emptying the reservoir, clean it before putting it back to the oven.

WARNING

• Wear oven gloves when you handle the water reservoir.
• Do not remove the water reservoir while draining.

NOTE

- Once the oven starts draining, please wait until the draining cycle is complete.

- Depending on the product's environment, the drain operation may take a long time. It's not a product malfunction, it's for safety, so wait for the water to cool down.

Settings

Touch the ☐ button on the control panel, select Settings, and then press the Dial Knob to change various settings for your oven. Please refer to the following table for detailed descriptions.

Menu Submenu Description
Connections	Wi-Fi You can turn the Wi-Fi on or off.
	Easy Connection	You can connect the oven to the SmartThings server via a Wi-Fi connection. When the oven is connected, you can use the SmartThings app to check the status of the oven and/or control it from a mobile device.
	Remote management	SelectActivate, and then press theDial Knobto allow the Call Centre to access your oven remotely to check internal information.
Display	Brightness	You can change the brightness of the display screen.
	Screen saver	You can turn the screen saver on or off.NOTEThe Screen saver is a function that displays the date and time on your screen if there is no input for a certain time in standby status.
	Clock theme You can select the clock theme.
	Timeout	You can set the length of time before the screen saver turns on.NOTEEnergy consumption may increase depending on your setting.When the timeout setting is set to"Always on", the brightness of the LCD automatically changes to level 2 if there is no action for 3 minutes.
Menu Sub	menu Description
Date & time	Automatic date and time	You can turn on or turn off to update time from the Internet. You must be connected to the Wi-Fi network.
	Select time zone	You can select the time zone. (You must disable Automatic date and time.)
	Set date	You can manually set a date. (You must disable Automatic date and time.)
	Set time	You can manually set time. (You must disable Automatic date and time.)
	Select time format	You can select the time format from 12-hour or 24-hour format.
Language You can select a language.
Volume You can adjust the volume of the oven.
Water hardness		You can adjust the water hardness of the water you use for steam assisted modes.Soft: Up to 120 ppmMedium: 120-240 ppmMedium-Hard: 240-350 ppmHard: Over 350 ppm
Help	Troubleshooting You can check the troubleshooting.
	Guide for first use	You can check the simple instructions on basic use of the oven.
About device	Model name You can check the model name of our oven.
	SW version	You can check the current version of the firmware. When you have new software available, SW update button will appear on this menu.
	Legal information	You can check the legal information.

Lock

You can lock the control panel to prevent any unintended operation.

• To activate the Lock function, touch the button on the control panel, select Lock, and then press the Dial Knob.
• To deactivate the Lock function, touch and hold the button until you see the "Control is unlocked." message.

Cooking Smart

Manual cooking

WARNING on acrylamide

Acrylamide produced while baking starch-contained food such as potato chips, French fries, and bread may cause health problems. It is recommended to cook these foods at low temperatures and avoid overcooking, heavy crisping, or burning.

CAUTION

Foods that can easily spoil (such as milk, eggs, fish, meat, or poultry) should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Easting spoiled food can result in sickness from food poisoning.

NOTE

• Pre-heating is recommended for all cooking modes unless otherwise specified in the cooking guide.
• When using Eco Grill, put food in the centre of the accessory tray.

Accessory tips

Your oven comes with a different number or kind of accessories. You may find that some accessories are missing from the table below. However, even if you are not provided with the exact accessories specified in this cooking guide, you can follow along with what you already have, and achieve the same results.

• The Baking tray and the Universal tray are interchangeable.
- When cooking oily foods, it is recommended to put a tray under the Wire rack to collect oil residue. If you are provided with the Wire rack insert, you can use it together with the tray.
- If you are provided with the Universal tray or Extra deep tray, or both, it is better to use whichever is deeper for cooking oily foods.

Baking

We recommend to preheat the oven for best results.

Food Accessory Level			Type of heating	Temp. (°C)	Time (min.)
Sponge cake	Wire rack, ∅ 25-26 cm tin	2		160-170	35-40
Marble cake	Wire rack, Gugelhopf tin	3		175-185	50-60
Tart	Wire rack, ∅ 20 cm tart tin	3		190-200	50-60
Yeast cake on tray with fruits and crumbles	Universal tray 2			160-180	40-50
Fruit crumble	Wire rack, 22-24 cm oven dish	3		170-180	25-30
Scones Universal tray 3				180-190	30-35
Lasagne	Wire rack, 22-24 cm oven dish	3		190-200	25-30
Meringues Universal tray 3				80-100	100-150
Soufflé	Wire rack, soufflé cups	3		170-180	20-25
Apple yeast tray cake	Universal tray 3			150-170	50-70
Homemade pizza, 1-1.2 kg	Universal tray 2			190-210	10-15
Frozen puff pastry, filled	Universal tray 2			180-200	20-25
Quiche	Wire rack, 22-24 cm oven dish	2		180-190	25-35

Food Accessory Level		Type of heating	Temp. (°C)	Time (min.)
Apple pie	Wire rack,∅ 20 cm lin	2		160-170 65-75
Chilled pizza Universal tray 3			180-200 5-10

Roasting

Food Accessory Level			Type of heating	Temp. (°C)	Time (min.)
Meat (Beef/Pork/Lamb)
Sirloin of beef, 1 kg	Wire rack + Universal tray	31		160-180	50-70
Boned loin of veal, 1.5 kg	Wire rack + Universal tray	31		160-180	90-120
Pork roast, 1 kg	Wire rack + Universal tray	31		200-210	50-60
Joint of pork, 1 kg	Wire rack + Universal tray	31		160-180	100-120
Leg of lamb on the bone, 1 kg	Wire rack + Universal tray	31		170-180	100-120

Food Accessory Level			Type of heating	Temp. (°C)	Time (min.)
Poultry (Chicken/Duck/Turkey)
Chicken, whole, 1.2 kg *	Wire rack + Universal tray (to catch drippings)	31		200-60	80 *
Chicken pieces	Wire rack + Universal tray	31		200-220	25-35
Duck breast	Wire rack + Universal tray	31		200-210	20-30
Small turkey, whole, 5 kg	Wire rack + Universal tray	31		180-200	120-150
Vegetables
Vegetables, 0.5 kg	Universal tray 3			220-230	15-20
Baked potato halves, 0.5 Kg	Universal tray 3			190-200	40-50
Fish
Fish fillet, baked	Wire rack + Universal tray	31		200-220	20-30
Roast fish	Wire rack + Universal tray	31		180-200	30-40

* Turn over after 23 of cooking time.

Cooking Smart

Grilling

We recommend preheat the oven using Large Grill mode. Turn over after half of time.

Food Accessory Level			Type of heating	Temp. (°C)	Time (min.)
Bread
Toast Wire rack 5				270-300	2-4
Cheese toast Universal tray 4				200 4-8
Beef
Steak *	Wire rack + Universal tray	41		240-250	15-20
Burgers *	Wire rack + Universal tray	41		250-270	13-18
Pork
Pork chops	Wire rack + Universal tray	41		250-270	15-20
Sausages	Wire rack + Universal tray	41		260-270	10-15
Poultry
Chicken, breast	Wire rack + Universal tray	41		230-240	30-35
Chicken, drumstick	Wire rack + Universal tray	41		230-240	25-30

* Turn over after 23 of the cooking time.

Frozen ready-meal

Food Accessory Level			Type of heating	Temp. (°C)	Time (min.)
Frozen pizza, 0.4-0.6 kg	Wire rack 3			200-220	15-25
Frozen lasagne Wire rack 3				180-200	45-50
Frozen oven chips Universal tray 3				220-225	20-25
Frozen croquettes Universal tray 3				220-230	25-30
Frozen oven camembert	Wire rack 3			190-200	10-15
Frozen baguettes with topping	Wire rack + Universal tray	31		190-200	10-15
Frozen fish fingers	Wire rack + Universal tray	31		190-200	15-25
Frozen fish burger Wire rack 3				180-200	20-35

Steam assisted mode

With steam enabled, the oven generates steam and evenly distributes inside the cooking zone, covering the whole area every racks and corners. This helps to brown the food, giving a crispy to top and soft, juicy inside. Fill the reservoir with drinkable water up to max line, and select a steam level that best suits your recipe.

Steam Convection

We recommend preheat the oven with steam mode for baking.

Food Accessory Level			Steam level	Temp. (°C)	Time (min.)
Chilled bread rolls	Universal tray	3	Low	180-190	10-20
Chilled croissants	Universal tray	3	Low	180-190	10-20
White bread loaf	Wire rack, 24 cm loaf cake tin	2	Med	180-190	30-40
Mixed grain bread loaf	Wire rack, 24 cm loaf cake tin	2	Med	180-190	30-40
Puff pastry	Universal tray	3	Low	180-190	15-20
Vanilla flan caramel	Wire rack	3	High	120-130	20-30
Cheese cake	Wire rack	3	Med	150-160	55-65
Baguette *	Universal tray	3	High	180-200	25-35
Frozen self-rising pizza	Universal tray	3	Med	190-210	15-25

* Baguette is needed the steam only in the beginning of baking. We recommend to use the Steam Convection mode for 10 min and use the Convection mode with same temperature during remained baking time.

Steam Top Heat + Convection

We recommend to adjust the cooking mode after half of the cooking time, in order to remove steam for crispy texture. We recommend to use the Top Heat + Convection mode or Convection mode and keep the temperature.

Food Accessory Level			Steam level	Temp. (°C)	Time (min.)
Pork roast with crackling, 1.2 kg	Wire rack + Universal tray	31	Med 17	0-180 90	120
Chicken, whole, 1.2 kg	Wire rack + Universal tray	21	Med 19	0-200 55	65
Chicken pieces	Wire rack + Universal tray	41	Low 21	0-220 25	35
Duck breast	Wire rack + Universal tray	41	Low 17	0-180 15	25
Duck, whole, 2.5 kg	Wire rack + Universal tray	21	Med 17	0-180 100	-120
Small turkey, whole, 4.0 kg	Wire rack + Universal tray	21	Med 18	0-200 120	-150
Whole fish, 0.5 kg*	Wire rack + Universal tray	41	Med 17	0-190 20	30
Fish fillets *	Wire rack + Universal tray	41	Low 19	0-200 15	25

* We recommend to use the Steam Top Heat + Convection mode during cooking time for moist texture.

Cooking Smart

Steam Bottom Heat + Convection

We recommend to preheat the oven with steam mode for crispy baking.

Food Accessory Level			Steam level	Temp. (°C)	Time (min.)
Homemade pizza	Universal tray	2	Med	190-200	15-20
Self-rising pizza	Universal tray	2	Med	190-210	15-20
Quiche	Wire rack	2	Low	180-190	25-35
Bread rolls	Universal tray	2	Low	180-190	15-25
Foccacia	Wire rack	2	Low	200-210	15-25

Steam Cook (applicable models only)

This Steam Cook mode allows you to use of a wide range of recipes.

Be sure to use steam container for steam cook and fill the reservoir with drinkable water up to max line.

Food	Accessory	Level	Time (min.)
Broccoli florets	Steam container	A	10-15
Sliced vegetables (Courgette, carrot, bell pepper)	Steam container	A	10-20
Green asparagus	Steam container	A	15-20
White asparagus	Steam container	A	15-20
Green beans	Steam container	A	15-20
Brussel sprouts	Steam container	A	15-20
Peeled potato halves	Steam container	A	25-35
Fish fillet	Steam container	A	15-25
Mussels	Steam container	A	10-20
Prawns	Steam container	A	10-20
Chicken breast	Steam container	A	20-30
Boiled eggs	Steam container	A	13-18

NOTE

Level A refers to an exclusive rack for the steam container. See the Accessories section on page 14 for exact location of the level A.

Pro-Roasting

This mode includes an automatic heating-up cycle up to 220 °C. The top heater and the convection fan are operating during the process of searing the meat. After this stage the food is cooked gently by the low temperature of pre-selection. This process is done while the top and the bottom heaters are operating. This mode is suitable for meat roasts and poultry.

Food Accessory Level Temp. (°C) Time (hrs.)
Roast beef	Wire rack + Universal tray	31	80-100 3-4
Pork roast	Wire rack + Universal tray	31	80-100 4-5
Lamb roast	Wire rack + Universal tray	31	80-100 3-4
Duck breast	Wire rack + Universal tray	31	80-100 2-3

Dual cook

Before using dual cook function insert the divider into the oven. We recommend preheat the oven for best results.

The following table presents 5 dual cook guides we recommend for cooking, roasting and baking. Using dual cook function, you will be able to cook your main dish & side dish or main dish & dessert simultaneously.

• Using dual cook function, preheating time can be extended.

No.	Zone Food	Accessory Level			Type of heating	Temp. (°C)	Time (min.)
1	Upper	Sponge cake	Wire rack, ∅ 25-26 cm tin	4 160-170-40-45
	Lower	Homemade pizza, 1.0-1.2 kg	Universal tray	1		190-210	13-18
2	Upper	Roast vegetables, 0.4-0.8 kg	Universal tray	4		220-230	13-18
	Lower	Apple pie	Wire rack, ∅ 20 cm tin	1 165-170-80
3	Upper	Pita bread	Universal tray	4		230-240	13-18
	Lower	Potato gratin, 1.0-1.5 kg	Wire rack, 22-24 cm oven dish	1		180-190	45-50

No.	Zone Food	Accessory Level			Type of heating	Temp. (°C)	Time (min.)
4	Upper	Chicken, drumstick	Wire rack + Universal tray	44		230-250	30-35
	Lower	Lasagne, 1.0-1.5 kg	Wire rack, 22-24 cm oven dish	1		190-200	30-35
5	Upper	Fish fillet, baked	Wire rack + Universal tray	44		210-230	15-20
	Lower	Apple puff pastry	Universal tray	1 170-180	25	30

Cooking Smart

You can also use upper or lower zone only to save power. The cooking time can be extended when you use separated zone. We recommend preheat the oven for best results.

Upper

Food Accessory Level			Type of heating	Temp. (°C)	Time (min.)
Potato gratin	Wire rack, 22-24 cm oven dish	4		160-170	40-50
Scones	Universal tray 4			180-190	30-35
Lasagne	Wire rack, 22-24 cm oven dish	4		180-190	25-35
Chicken, drumstick *	Wire rack + Universal tray	4		230-250	30-35

* Do not preheat the oven.

Lower

Food Accessory Level		Type of	heating	Steam level	Temp. (°C)	Time (min.)
Dutch loaf cake	Wire rack, 24 cm loaf cake tin	1		-	170-180	50-60
Apple pie	Wire rack, ∅ 20 cm tin	1		-	160-170	70-80
Homemade pizza, 1.0-1.2 kg	Universal tray	1 -	190-240 15-20
Croissants	Universal tray	1		Low 1	30-190 15	-20

Food Accessory Level		Type of	heating	Steam level	Temp. (°C)	Time (min.)
Cheese cake	Wire rack 1			Med 150-160 60-70
Bread rolls	Universal tray	1 Low 180-190 15-25
Broccoli florets *	Steam container	A		-- 10-15
Peeled potato halves *	Steam container	A -- 25-35
Fish fillet *	Steam container	A		-- 15-25
Boiled eggs *	Steam container	A		-- 13-18

NOTE

• Level A refers to an exclusive rack for the steam container. See the Accessories section on page 14 for exact location of the level A.
• Availability of the cook modes depends on the oven model.

Eco Convection

This mode uses the optimized heating system so that you save the energy during cooking your dishes. The times of this category are suggested to not be preheated before cooking for saving more energy.

Food	Accessory	Level	Temp. (°C)	Time (min.)
Fruit crumble, 0.8-1.2 kg	Wire rack, 24 cm oven dish	2 160	180 60-80
Jacket potatoes, 0.4-0.8 kg	Universal tray 2	190-200 70	80
Sausages, 0.3-0.5 kg	Wire rack + Universal tray	3 1	160-180	20-30
Frozen oven chips, 0.3-0.5 kg	Universal tray 3	180-200 25	35
Frozen potato wedges, 0.3-0.5 kg	Universal tray 3	190-210 25	35
Fish fillets, baked, 0.4-0.8 kg	Wire rack + Universal tray	3 1	200-220	30-40
Crispy fish fillets, breaded, 0.4-0.8 kg	Wire rack + Universal tray	3 1	200-220	30-45
Roast sirloin of beef, 0.8-1.2 kg	Wire rack + Universal tray	2 1	180-200	65-75
Roast vegetables, 0.4-0.6 kg	Universal tray 3	200-220 25	35

Meat probe

Type of food Core temperature (°C)
Beef/Lamb	Rare 45-50
	Medium 55-60
	Well done 65-70
Pork 80-85
Poultry 85-90

Cooking Smart

Auto Cook programmes

CAUTION

Foods that can easily spoil (such as milk, eggs, fish, meat, or poultry) should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

Single cook

The following table presents 50 auto programmes for cooking, roasting and baking.

It contains its quantities, weight ranges and appropriate recommendations. Cooking modes and times have been pre-programmed for your convenience. You will find some recipes for the auto programmes in your instruction book.

WARNING

Always use oven gloves while taking out food.

1. Bakes & Bakery

The Auto Cook programmes include preheating during baking and display the preheating progress. Start programme, after preheating beep sounds, insert food. Always use oven gloves while taking out food. We recommend the 22-24 cm ovenproof dish which can resist the heat (up to 300 °C) and made from glass or glass ceramic.

Food Weight (kg) Accessory Level
Bakes
Potato gratin	1.0-1.5 Wire rack 3
	Prepare fresh potato gratin using an ovenproof dish, 22-24 cm. Start programme, after preheating beep sounds, put dish on the centre of rack.

Food Weight (kg) Accessory Level
Vegetable gratin	0.8-1.2 Wire rack 3
	Prepare fresh vegetable gratin using an ovenproof dish. 22-24 cm. Start programme, after preheating beep sounds, put dish on the centre of rack.
Pasta bake	1.2-1.5 Wire rack 3
	Prepare pasta gratin using 22-24 cm ovenproof dish. Start programme, after preheating beep sounds, put dish on the centre of rack.
Lasagne	1.0-1.5 Wire rack 3
	Prepare homemade lasagna using 22-24 cm ovenproof dish. Start programme, after preheating beep sounds, put dish on the centre of rack.
Ratatouille	1.2-1.5 Wire rack 3
	Put ingredients for Ratatouille in casserole dish with lid. Start programme, after preheating beep sounds, put dish on the centre of rack. Bake covered. Stir before serving.
Pies & Pastry
Apple pie	1.2-1.4 Wire rack 2
	Prepare apple pie using a 20-24 cm round metal baking tin. Start programme, after preheating beep sounds, put tin on the centre of rack.
Croissants *	0.3-0.4 Universal tray 3
	Prepare croissants (chilled ready dough). Put on baking paper on universal tray. Start programme, after preheating beep sounds, put tray into the oven.
Food Weight	(kg) Accessory Level
Apple puff pastry *	0.3-0.4 Universal tray 3
	Put apple puff pastries on baking paper on universal tray.Start programme, after preheating beep sounds, put tray into the oven.
Fruit flan base	0.4-0.5 Wire rack 3
	Put the dough into a black metal buttered baking dish for cake base. Start programme, after preheating beep sounds, put tin on the centre of rack.
Quiche Lorraine	1.2-1.5 Wire rack 2
	Prepare quiche dough, put in a round quiche dish with 22-24 cm diameter. Start programme, after preheating beep sounds add filling and put dish on the centre of rack.
Madeleines	0.2-0.4 Wire rack 3
	Put dough into black metal madeleine moulds. Start programme, after preheating beep sounds add filling and put dish on the centre of rack.
Bread
White bread loaf *	0.6-0.7 Wire rack 2
	Prepare dough and put into a black metal rectangular baking dish (length 25-30 cm). Start programme, after preheating beep sounds put dish on the centre of rack.
Mixed grain bread loaf ^	0.8-0.9 Wire rack 2
	Prepare dough and put into a black metal rectangular baking dish (length 25-30 cm). Start programme, after preheating beep sounds put dish on the centre of rack.
Baguettes *	0.6-0.7 Universal tray 3
	Prepare dough as 2 pieces and put on the universal tray.

Food Weight	(kg) Accessory Level
Walnut bread *	1.0-1.1 Universal tray 3
	Prepare dough as 4 pieces and distribute on the universal tray.
Bread roll *	0.3-0.5 Universal tray 3
	Prepare rolls (chilled ready dough). Put on baking paper on universal tray. Start programme, after preheating beep, put tray into the oven.
Cakes & Desserts
Fruit crumbles	0.8-1.2 Wire rack 3
	Put fresh fruits (raspberries, blackberries, apple slices, or pear slices) into oven dish 22-24 cm. Distribute crumbles on top. Start programme, after preheating beep sounds, put dish on the centre of rack.
Scones	0.5-0.6 Universal tray 3
	Put scones (5-6 cm diameter) on baking paper on universal tray. Start programme, after preheating beep sounds, put tray into the oven.
Sponge cake	0.5-0.6 Wire rack 3
	Prepare cake batter and put into a black metal round baking tin with 25-26 cm diameter. Start programme, after preheating beep sounds, put tin on the centre of rack.
Marble cake	0.7-0.8 Wire rack 2
	Prepare cake batter and put into a metal round gugelhupf or bundt tin. Start programme, after preheating beep sounds, put tin on the centre of rack.

Cooking Smart

Food Weight	(kg) Accessory Level
Dutch loaf cake	0.7-0.8 Wire rack 2
	Prepare cake batter and put into a black metal rectangular baking dish (length 25-26 cm). Start programme, after preheating beep sounds, put tin on the centre of rack.
Cheesecake *	0.8-0.9 Wire rack 2
	Prepare dough and put into a black metal round baking tin (20-24 cm). Start programme, after preheating beep sounds, put tin on the centre of rack.
Brownies	0.7-0.8 Wire rack 3
	Prepare cake batter using a 22-24 cm ovenproof dish. Start programme, after preheating beep sounds, put dish on the centre of rack.

* Fill the reservoir with drinkable water up to max line for steam assisted cooking.

2. Roast

We recommend fresh chilled meat, poultry and fish for better taste. We recommend thawing frozen ingredients thoroughly if you use the them. The auto programmes don't include the preheating and turning over. But you can turn over after half time for better results if you want.

Food Weight	(kg) Accessory Level
Meat
Roast sirloin of beef **	0.8-1.2	Wire rack 2
		Universal tray 1
	Season the beef and leave in refrigerator for 1 hour. Put on the wire-rack with fat-side up.
Slow cooked roast beef **	0.8-1.2	Wire rack 2
		Universal tray 1
	Season the beef and leave in refrigerator for 1 hour. Put on the wire-rack with fat-side up.
Herb roasted lamb chops	0.4-0.8	Wire rack 4
		Universal tray 1
	Marinate the lamb chops with herbs and spices and put them on wire rack.
Leg of lamb on the bone **	0.8-1.4	Wire rack 3
		Universal tray 1
	Marinate the lamb and put on wire rack.
Roast pork with crackling **	0.8-1.2	Wire rack 3
		Universal tray 1
	Put pork roast with fat side to the top on wire rack.
Rack of pork ribs	0.8-1.2	Wire rack 3
		Universal tray 1
	Put rack of pork rib on rack.
Poultry
Chicken, whole */**	0.8-1.4	Wire rack 2
		Universal tray 1
	Rinse and clean chicken. Brush chicken with oil and spices. Put it breast side down on the rack. Put the meat probe into the thickest area of breast.
Chicken, breast	0.5-0.9	Wire rack 4
		Universal tray 1
	Marinate breast and put on the rack.
Chicken drumstick	0.5-0.9	Wire rack 4
		Universal tray 1
	Brush with oil and spices and put on rack.
Butterfly chicken *	1.0-1.3	Wire rack 3
		Universal tray 1
	Rinse and clean chicken. Cut the back of chicken and brush chicken with oil and spices. Put it on wire rack and universal tray and then cook.
Duck, whole */**	1.5-2.3	Wire rack 2
		Universal tray 1
	Rinse and clean duck. Brush duck with spices. Put it breast side up on the wire rack and universal tray. Put the meat probe into the thickest area of breast.
Duck, breast	0.3-0.7	Wire rack 4
		Universal tray 1
	Put duck breast with fat-side up on the rack.

Food Weight	(kg) Accessory Level
Fish
Trout fillet, baked	0.3-0.7 Universal tray 4
	Put trout fillets with the skin side up on the universal tray.
Trout	0.3-0.7	Wire rack 4
		Universal tray 1
	Rinse and clean the fish and put head to tail on the rack.Add lemon juice, salt and herbs inside fish. Cut skin surface with knife. Brush oil and salt.
Sole	0.3-0.7 Universal tray 3
	Put sole on baking paper on the universal tray. Cut surface with knife.
Salmon steak/fillet	0.3-0.7	Wire rack 4
		Universal tray 1
	Rinse and clean fillets or steaks. Put fillets skin side up on rack.

* Fill the reservoir with drinkable water up to max line for steam assisted cooking. ** Use the meat probe into the thickest part of meat.

Cooking Smart

3. Side Dishes

The auto programmes don't include the preheating. Use the fresh vegetables.

Food Weight (kg)	Accessory Level
Roast vegetables	0.3-0.7 Universal tray 4
	Rinse and prepare slices of courgette, aubergine, pepper, onion and cherry tomatoes. Brush with olive oil, herbs and spices. Distribute evenly on tray.
Stuffed tomatoes	0.3-0.7 Universal tray 3
	Rinse and cut the tomatoes into halves, core them. Stuff with mixtures (e.g. rice, minced beef) and put it on tray.
Potato wedges	0.3-0.7 Universal tray 3
	Rinse and cut potatoes into wedges. Brush with olive oil, herbs and spices. Distribute evenly on tray and cook.
Baked potato halves	0.5-0.9 Universal tray 3
	Cut large potatoes (each 200 g) into halves lengthways. Put with cut side up on universal tray and brush with olive oil, herbs and spices.

4. Convenience

The auto programmes don't include the preheating. Use the frozen pre-cooked conveniences.

Food Weight (kg)	Accessory Level
Frozen oven chips	0.3-0.7 Universal tray 3
	Distribute frozen oven chips evenly on tray.
Frozen potato wedges	0.3-0.7 Universal tray 3
	Distribute frozen potato wedges evenly on tray.
Frozen lasagne	0.3-0.7 Wire rack 3
	Put the frozen lasagne in the oven dish and put on the wire rack.

5. Pizza & Dough

The Auto Cook programmes include preheating during baking and display the preheating progress. Start programme, after preheating beep sounds, insert food. Always use oven gloves while taking out food.

Food Weight (kg)	Accessory Level
Frozen pizza	0.3-0.7 Wire rack 3
	Start programme, after preheating beep sounds, put the frozen pizza on the middle of the wire rack.
Homemade pizza	0.8-1.2 Universal tray 2
	Prepare homemade pizza with the yeast dough and put it on the universal tray. The weight include dough and topping such as sauce, vegetables, ham and cheese. Start programme, after preheating beep sounds, put tray into the oven.
Calzone	0.8-1.2 Universal tray 3
	Prepare 4 pieces of fresh calzone and put it on tray.
Dough proofing	0.3-0.7 Wire rack 2
	Prepare dough in bowl, cover with cling film. Put in centre of rack.

Dual cook

The following table presents 20 auto programmes for cooking, roasting and baking. You can use only upper zone or lower zone and use the upper and lower zones at the same time.

The programme contains its quantities, weight ranges and appropriate recommendations. Cooking modes and times have been pre-programmed for your convenience. You will find some recipes for the auto programmes in your instruction book.

All dual Auto Cook programmes include preheating and display the preheating progress.

Please put the food in the oven after preheating beep.

WARNING

Always use oven gloves while taking out food.

1. Upper

Food Weight (kg) Accessory Level
Potato gratin	1.0-1.5 Wire rack 4
	Prepare fresh potato gratin using an ovenproof dish, 22-24 cm. Start programme, after preheating beep sounds, put dish on the centre of rack.
Pasta bake	1.2-1.5 Wire rack 4
	Prepare pasta gratin using 22-24 cm ovenproof dish. Start programme, after preheating beep sounds, put dish on the centre of rack.
Lasagne	1.0-1.5 Wire rack 4
	Prepare homemade lasagna using 22-24 cm ovenproof dish. Start programme, after preheating beep sounds, put dish on the centre of rack.

Food Weight (kg) Accessory Level
Scones	0.5-0.6 Universal tray 4
	Put scones (5-6 cm diameter) on baking paper on universal tray. Start programme, after preheating beep sounds, put tray into the oven.
Chicken drumstick	0.5-0.9	Wire rack 4
		Universal tray 4
	Brush with oil and spices and put on rack.
Salmon steak/fillet	0.3-0.7	Wire rack 4
		Universal tray 4
	Rinse and clean fillets or steaks. Put fillets skin side up on rack.
Roast vegetables	0.3-0.7 Universal tray 4
	Rinse and prepare slices of courgette, aubergine, pepper, onion and cherry tomatoes. Brush with olive oil, herbs and spices. Distribute evenly on tray.
Baked potato halves	0.5-0.9 Universal tray 4
	Cut large potatoes (each 200 g) into halves lengthways. Put with cut side up on universal tray and brush with olive oil, herbs and spices.
Frozen potato wedges	0.3-0.7 Universal tray 4
	Distribute frozen potato wedges evenly on tray.
Frozen oven chips	0.3-0.7 Universal tray 4
	Distribute frozen oven chips evenly on tray.

Cooking Smart

1. Lower

Food Weight (kg)	Accessory Level
Apple pie	1.2-1.4 Wire rack 1
	Prepare apple pie using a 20-24 cm round metal baking tin. Start programme, after preheating beep sounds, put tin on the centre of rack.
Apple puff pastry *	0.3-0.4 Universal tray 1
	Put apple puff pastries on baking paper on tray. Start programme, after preheating beep sounds, put tray into the oven.
Croissants *	0.3-0.4 Universal tray 1
	Prepare croissants (chilled ready dough). Put on baking paper on universal tray. Start programme, after preheating beep sounds, put tray into the oven.
Quiche Lorraine	1.2-1.5 Wire rack 1
	Prepare quiche dough, put in a round quiche dish with 22-24 cm diameter. Start programme, after preheating beep sounds add filling and put dish on the centre of rack.
Bread roll *	0.3-0.5 Universal tray 1
	Prepare rolls (chilled ready dough). Put on baking paper on universal tray. Start programme, after preheating beep, put tray into the oven.
Fruit crumbles	0.8-1.2 Wire rack 1
	Put fresh fruits (raspberries, blackberries, apple slices, or pear slices) into oven dish 22-24 cm. Distribute crumbles on top. Start programme, after preheating beep sounds, put dish on the centre of rack.

Food Weight	(kg) Accessory Level
Cheesecake *	0.8-0.9 Wire rack 1
	Prepare dough and put into a black metal round baking tin (20-24 cm). Start programme, after preheating beep sounds, put tin on the centre of rack.
Stuffed tomatoes	0.3-0.7 Universal tray 1
	Rinse and cut the tomatoes into halves, core them. Stuff with mixtures (e.g. rice, minced beef) and put it on tray.
Frozen pizza	0.3-0.7 Wire rack 1
	Start programme, after preheating beep sounds, put the frozen pizza on the middle of the wire rack.
Homemade pizza	0.8-1.2 Universal tray 1
	Prepare homemade pizza with the yeast dough and put it on the universal tray. The weight include dough and topping such as sauce, vegetables, ham and cheese. Start programme, after preheating beep sounds, put tray into the oven.

* Fill the reservoir with drinkable water up to max line for steam assisted cooking.

3. Twin

You can select one auto programme for the lower and upper zones and cook simultaneously.

CAUTION

When you use either the upper or lower zone, the fan and the heater of the other zone may operate for optimal performance. The zone that is not being used must not be used for any unintended purposes.

Healthy Cook (applicable models only)

The oven offers 20 healthy cook programmes. The cook settings will be adjusted automatically according to the selected programme. You can use single zone or lower zone.

Be sure to use steam container for steam cook and fill the reservoir with drinkable water up to max line.

WARNING

Always use oven gloves while taking out food.

Food Weight (kg)	Accessory Level
Broccoli florets 0.4-0.6	Steam containers A
Cauliflower florets 0.4-0.6	Steam containers A
Carrot slices	0.4-0.6	Steam containers	A
Courgette slices 0.4-0.6	Steam containers A
Pumpkin cubes	0.4-0.6	Steam containers	A
Green asparagus 0.4-0.6	Steam containers A
White asparagus	0.4-0.6	Steam containers	A
Green beans	0.4-0.6	Steam containers A
Brussels sprouts	0.4-0.6	Steam containers	A
Peeled potato halves	0.6-0.8	Steam containers	A
Apple slices	0.4-0.6	Steam containers A
Prawns	0.6-0.8	Steam containers A
Mussels	0.8-1.0	Steam containers A
Fish fillet	0.6-0.8	Steam containers A
Chicken breast	0.8-1.0	Steam containers	A

Food Weight (kg)	Accessory Level
Crème caramel - Steam containers A
Frozen dumplings 0.4-0.6	Steam containers A
Egg, hard-boiled 0.5-0.7	Steam containers A
Egg, medium-boiled 0.5-0.7	Steam containers A
Egg, soft-boiled 0.5-0.7	Steam containers A

NOTE

Level A refers to an exclusive rack for the steam container. See the Accessories section on page 14 for exact location of the level A.

Cooking Smart

Special Function

Defrost

This mode is used for defrosting frozen products, baking goods, fruit, cake, cream and chocolate. The defrosting time is depending on the type, size and quantity of the food.

Food	Accessory	Level	Temp. (°C)	Time (min.)
Frozen productsChicken nuggets,Sausage, potatoes	Wire rack +Universal tray	31	50 -
Baked goodsBread and bread rolls	Wire rack +Universal tray	31	50 -
Fruit	Wire rack, oven dish	3	30	-
Cake, cream, chocolate	Wire rack, oven dish	3	30	-

Drying

This mode is used for drying the fruit, vegetable and herb. The drying time is depending on the type and thickness and quantity of the food.

Food	Accessory	Level	Temp. (°C)	Time (min.)
Fruit	Wire rack	3	70-80	300-420
Vegetable	Wire rack	3	70-80	200-500
Herb	Wire rack	3	70-80	60-90

Prove Dough

This mode is used for proving the dough and making the homemade yogurt.

Food	Accessory	Level	Temp. (°C)	Time (min.)
Pizza dough	Wire rack	2	30-40	30-40
Cake/Bread dough	Wire rack, oven dish	2	30-40	40-50
Homemade yogurt	Wire rack, oven dish	2	40-50	6-7 (hours)

Pizza Cook

This mode is suitable for pizza. Cooking temperature and time will depend on the pizza size and the thickness of pizza dough.

Food	Accessory	Level	Temp. (°C)	Time (min.)
Homemade pizza Universal tray 2 190-210	15-25
Homemade thin pizza	Universal tray	2	210-230	10-15

Slow Cook

This mode uses the low-temperature for the tender texture. This mode is suitable for roasting beef, pork, veal or lamb when you want to a tender texture. We recommend sear the meat all over at high temperature on the hob before roasting.

Food Accessory Level Temp. (°C)				Time (hours)
Roast beef	Wire rack + Universal tray	31	80-100 3-4
Sirloin, 5-6 cm thick	Wire rack + Universal tray	31	70-80 4-5
Pork roast	Wire rack + Universal tray	31	80-100 4-5
Lamb roast	Wire rack + Universal tray	31	80-100 3-4
Duck breast	Wire rack + Universal tray	31	70-90 2-3

Test dishes

According to standard EN 60350-1.

1. Baking

The recommendations for baking refer to a preheated oven. Do not use the Fast Preheat function. Always put trays the slanted side to the door front.

Type of food	Accessory Level		Type of heating	Temp. (°C)	Time (min.)
Small cakes	Universal tray	3		165 23-28
		3		165 25-30
		1+3		155 33-38
Shortbread	Universal tray 1+3			140 28-33
Fatless sponge cake	Wire rack + Spring form cake tin (Dark coated, ∅ 26 cm)	2		165 30-35*
		2		160 30-35
		1+4		155 35-40
Apple pie	Wire rack + 2 Spring form cake tins ** (Dark coated, ∅ 20 cm)	2. placed diagonally		160 70-80
	Universal tray + Wire rack + 2 Spring form cake tins *** (Dark coated, ∅ 20 cm)	1+3		160 80-90

* Increase the cooking time by 5 minutes if you are cooking in Conventional mode using a glass ovenware (∅ 26 cm).

** Two cakes are arranged on the grid at the back left and at the front right.

*** Two cakes are arranged in the center on top of each other.

2. Grilling

Preheat the empty oven for 5 minutes using Large Grill function.

Type of food	Accessory Level		Type of heating	Temp. (°C)	Time (min.)
White bread toast	Wire rack 5			300 (Max.)	1-2
Beef burgers * (12 ea)	Wire rack + Universal tray (to catch drippings)	41		300 (Max.)	1^st 15-18 2^rd 5-8

* Turn over after 23 of the cooking time.

1. Roasting

Type of food	Accessory Level		Type of heating	Temp. (°C)	Time (min.)
Whole chicken * 1.3-1.5 kg	Wire rack + Universal tray (to catch drippings)	31		200 60	-75
Whole chicken * 1.5-1.7 kg	Wire rack + Universal tray (to catch drippings)	31		200 70	-85

* Turn over after half of time.

Cooking Smart

4. Steam cook

Fill the reservoir with drinkable water up to max line for steam cooking.

Type of food Accessory Level		Type of heating	Time (min.)
Broccoli florets 0.5 kg	Steam container A		12-15
Steamed eggs 10 ea	Steam container A		15-18
Peeled potatoes 0.5 kg	Steam container A		18-23
Frozen salmon Steam container A			18-23

NOTE

Level A refers to an exclusive rack for the steam container. See the Accessories section on page 14 for exact location of the level A.

Collection of frequent Auto Cook recipes

Potato gratin

Ingredients 800 g potatoes, 100 ml milk, 100 ml cream, 50 g beaten whole egg. 1 tbsp each of salt, pepper, nutmeg, 150 g grated cheese, butter, thyme.

Directions Peel potatoes and slice them to 3 mm thickness. Rub the butter all over the surface of a gratin dish (22-24 cm). Spread the slices on a clean towel and keep them covered with the towel while you prepare the rest of the ingredients. Mix the rest of the ingredients except for grated cheese into a large bowl and stir well. Layer the potato slices in the dish slightly overlapping and pour the mixture over the potatoes. Spread the grated cheese over the top and bake. After cooking, serve sprinkled with a few fresh thyme leaves.

Vegetable gratin

Ingredients 800 g vegetables (courgette, tomato, onion, carrot, pepper, pre-cooked potatoes), 150 ml cream, 50 g beaten whole egg, 1 tbsp each of salt, herb (pepper, parsley or rosemary), 150 g grated cheese, 3 tbsp olive oil. Some thyme leaves.

Directions Wash the vegetables and slice them to 3-5 mm thickness. Layer the slices on a gratin dish (22-24 cm) and pour the oil on the vegetables. Mix the rest of the ingredients except for grated cheese and pour on the vegetables. Spread the grated cheese over the top and bake. Then serve sprinkled with a few fresh thyme leaves.

Lasagne

Ingredients 2 tbsp olive oil, 500 g minced beef, 500 ml tomato sauce, 100 ml beef stock, 150 g dried lasagne sheets, 1 onion (chopped), 200 g grated cheese, 1 tbsp each of dried parsley flakes, oregano, basil.

Directions Prepare tomato meat sauce. Heat the oil in a frying pan, then cook the minced beef and chopped onion for about 10 min until browned all over. Pour over the tomato sauce and beef stock, add the dried herbs. Bring up to the boil, then simmer for 30 min. Cook lasagne noodles according to package directions. Layer the lasagne noodle, meat sauce, and cheese then repeat. Then sprinkle evenly with remaining cheese on the top of layer of noodles and bake.

Apple pie

Ingredients • Pastry: 275 g flour, 12 , tbsp salt, 125 g white castor sugar, 8 g vanilla sugar, 175 g cold butter, 1 egg (beaten).

- Filling: 750 g firm whole apples, 1 tbsp lemon juice, 40 g sugar, ^1/2 tbsp cinnamon, 50 g seedless raisins, 2 tbsp bread crumbs.

Directions Sift the flour with the salt above a big bowl. Sift the castor sugar and vanilla sugar with it. Cut with 2 knives the butter through the flour in small cubes. Add 14 of the beaten egg. Knead all the ingredients in the food processor until a crumbly mass appears. Form the dough into a ball with your hands. Wrap it in plastic foil and leave it chilled for about 30 min.

Grease the spring tin (24-26 cm diameter) and dust the surface with flour. Roll out 14 of the dough till 5 mm thickness. Put it in the tin (bottom and sides).

Peel and core the apples. Cut them in cubes of about 34 x 34 cm. Sprinkle the apples with lemon juice and mix well. Wash and dry the currants and raisins. Add sugar, cinnamon, raisins and currants. Mix well and sprinkle the bottom of dough with bread crumbs. Press slightly.

Roll out the rest of the dough. Cut the dough in small strips and put them cross wise on the filling. Brush the pie evenly with the rest of the beaten egg.

Cooking Smart

Quiche Lorraine

Ingredients • Pastry: 200 g plain flour, 80 g butter, 1 egg.

- Filling: 75 g cubed fatless bacon, 125 ml cream, 125 g crème fraiche, 2 eggs, beaten, 100 g grated cheese from Switzerland, salt and pepper.

Directions To make the pastry, put the flour, butter and egg in a bowl and mix to a soften pastry and then rest it in the refrigerator for 30 min. Roll out the pastry and placed in the greased ceramic dish for quiche (25 cm diameter). Prick the bottom with a fork. Mix the egg, cream, crème fraîche, cheese, salt and pepper. Pour it on the pastry just before baking.

Fruit crumbles

Ingredients • Topping: 200 g flour, 100 g butter, 100 g sugar, 2 g salt, 2 g cinnamon powder.

- Fruit: 600 g mixed fruits.

Directions Mix all ingredients until to be crumble for making topping. Spread the mixed fruits into an oven dish and sprinkle the crumble.

Homemade pizza

Ingredients • Pizza dough: 300 g flour, 7 g dried yeast, 1 tbsp olive oil, 200 ml warm water, 1 tbsp sugar and salt.

- Topping: 400 g sliced vegetable (aubergine, courgette, onion, tomato), 100 g Ham or bacon (chopped), 100 g grated cheese.

Directions Put the flour, yeast, oil, salt, sugar and warm water in a bowl and mix to a wetish dough. Knead in a mixer or by hand about 5-10 min. Cover with lid and place in oven for 30 min at 35 °C to prove. Roll out the dough on a floured surface into a rectangle shape and put on the tray or pizza pan. Spread the tomato puree on the dough and place ham, mushroom, olive and tomato. Sprinkle evenly with cheese on the top and bake.

Roast sirloin of beef

Ingredients 1 kg sirloin of beef joint, 5 g salt, 1 g pepper, 3 g each of rosemary, thyme.

Directions Season the beef with salt, pepper and rosemary and leave in refrigerator for 1 hour. Put on the Wire rack. Put it in the oven and cook.

Maintenance

Herb roasted lamb chops

Ingredients 1 kg lamb chops (6 pieces), 4 large garlic cloves (pressed), 1 tbsp fresh thyme (crushed), 1 tbsp fresh rosemary (crushed), 2 tbsp salt, 2 tbsp olive oil.

Directions Mix the salt, garlic, herbs and oil and add the lamb. Turn to coat and leave at a room temperature at least 30 min to 1 hour.

Rack of pork ribs

Ingredients 2 racks pork spare ribs, 1 tbsp black peppercorns, 3 bay leaves, 1 onion (chopped), 3 garlic cloves (chopped), 85 g brown sugar, 3 tbsp Worcestershire sauce, 2 tbsp Tomato puree, 2 tbsp olive oil.

Directions Make a barbecue sauce. Heat oil in a sauce pan and add the onion. Cook until softened and add remaining ingredients. Broil and reduce heat and simmer for 30 min until thickened. Marinate the rib with the barbecue sauce at least 30 min to 1 hour.

Cleaning

WARNING

• Make sure the oven and accessories are cool before cleaning.
• Do not use abrasive cleaning agents, hard brushes, scouring pads or cloths, steel wool, knives or any other abrasive materials.

Oven interior

• For cleaning the interior of the oven, use a clean cloth and a mild cleaning agent or warm soapy water.
• Do not hand-clean the door seal.
• To avoid damaging the enamelled oven surfaces, only use standard oven cleaners.
  • To remove stubborn soils, use a special oven cleaner.
• As the temperature of the cooking room increases at an initial period, you may find some spots on the inner glass of the door. If this is the case, turn off the oven and wait until it cools down. Then, use kitchen paper or neutral detergent with a clean cloth to wipe up the inner glass.

Oven exterior

If there are fingerprints, grease, or stains on the exterior (such as the door surface or display), clean with a soft cloth with a glass cleaner or neutral detergent, and then wipe dry with a soft, clean, dry cloth.

Accessories

Wash the accessories after every use, and dry it with a tea towel. To remove stubborn impurities, soak the used accessories in warm soapy water for about 30 minutes before washing.

Maintenance

Catalytic enamel surface (applicable models only)

The removable parts are coated with dark grey catalytic enamel. They can be soiled with oil and fat spattered by the circulating air during convection heating. However, these impurities burn off at oven temperatures of 200 °C or above.

1. Remove all accessories from the oven.
2. Clean the interior of the oven.
3. Select Convection mode with max temperature, and run the cycle for an hour.

Door (applicable models only)

Do not remove the oven door unless for cleaning purposes. To remove the door for cleaning, follow these instructions.

WARNING

The oven door is heavy.

Diagram showing a hand pressing down on a vehicle seatbelt, with no text or symbols present.

1. Open the door and flip open the clips at both hinges.

Diagram of a kitchen appliance with an open door and a blade, showing directional arrows indicating motion (no text or symbols)

1. Close the door approximately 70". Hold the oven door by the sides using both hands, and lift and pull upwards until the hinges are removed.
2. Clean the door with soapy water and a clean cloth.

Diagram of a car seatbelt mechanism with arrow indicating rotation (no text or symbols)

1. When done, follow steps 1 to 2 in the reverse order to reinstall the door. Make sure the clips are hinged on both sides.

Door glass

Depending on the model, the oven door is equipped with 3-4 sheets of glass placed against each other. Do not remove the door glass unless for cleaning purposes. To remove the door glass for cleaning, follow these instructions.

Diagram of a window frame with an inset showing a hand holding a device (no text or symbols present)

1. Use a screwdriver to remove the screws on the left and right sides.

Technical diagram of a mechanical assembly with a ruler and a flat plate, no visible text or symbols

1. Detach the coverings in the arrow directions.
2. Remove the first sheet from the door.

3D diagram of a rectangular frame with a central square and directional arrow, no text or symbols present

1. Remove the second sheet from the door in the arrow direction.

Pure diagram of a rectangular frame with a circular label '03' and an arrow, no readable text or symbols.

1. Remove the third sheet from the door in the arrow direction.
2. Clean the glass with soapy water and a clean cloth.

CAUTION

To identify the correct side of the sheet, locate the "PYRO" mark on the corner of every sheet.

Correct direction: PYRO-**-** Wrong direction: **-***-09Y9

1. When done, reinsert the sheets as follows:

• See the picture and locate the hinges. Insert sheet 3 below support clip 1, sheet 2 between support clip 1 and 2, and sheet 1 into support clip 3 in this order. Make sure the printed side of sheets is inserted inward.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. After insert the sheet 2, press down the glass clips and check if they secure the glass sheet properly.
2. Follow steps 1-2 above in the reverse order to reinstall the coverings.

WARNING

To prevent heat leaks, make sure you properly reinsert the glass sheets.

Water collector

Technical line drawing of a door or panel with a labeled component '01' (no text or symbols beyond label)

01 Water collector

The water collector collects not only excess moisture from cooking but also food residue. The water collector cannot be detached. Wipe water on the water collector when the oven cools down after a cooking process.

WARNING

If you encounter a water leak from the water collector, contact us at a local Samsung service centre.

01 Support clip 1
02 Support clip 2
03 Support clip 3

Maintenance

Side racks (applicable models only)

Technical line drawing of a mechanical assembly with an inset showing a fastener (no text or symbols)

1. Press the top line of the left side rack, and lower by approximately 45^ .

Diagram of a mechanical linkage or frame structure with an arrow indicating rotational motion (no text or symbols present)

1. Pull and remove the bottom line of the left side rack.
2. Remove the right side rack in the same way.
3. Clean both side racks.
4. When done, follow steps 1 to 2 in the reverse order to reinsert the side racks.

NOTE

The oven operates without the side racks and racks in position.

Opening the door manually

If the door is not opened automatically and want to open it manually, you can open it by using door opener.

Pure technical line drawing of a mechanical component with no text or symbols

1. Insert the door opener into the gap between the door and the control panel.

Diagram showing a circular component being turned into a wall, with an arrow indicating rotation (no text or symbols present)

1. Lift up the door opener.

Diagram of a kitchen appliance with an arrow indicating a process or movement (no text or symbols present)

WARNING

• The door can get hot. Use oven gloves while opening the door manually.
• A lot of steam can escape if the door is opened manually. The steam can cause burns. Step back and wait until the steam has dissipated before taking the food out of the oven.

NOTE

If the door is not opened automatically, unplug the power cord for cooling enough time. When appear same problem, contact a local Samsung service centre.

Replacement

Bulbs

Diagram of a hand holding a small object inside a circular frame (no text or symbols)

WARNING

• Before replacing a bulb, turn off the oven and unplug the power cord.
• Use only 25-40 W / 220-240 V, 300 °C heat-resistant bulbs. You can purchase approved bulbs at a local Samsung service center.
• Always use a dry cloth when handling a halogen bulb. This is to prevent the bulb from being tampered with fingerprints or sweat, resulting in a shortened lifecycle.

Side oven light

Illustration of a hand holding a tool inside a circular frame (no text or symbols)

1. Hold the lower end of the cover of the side oven light with one hand, and use a flat-sharp tool such as a table knife to remove the cover as shown.
2. Replace the side oven light.
3. Reinsert the light cover.

Troubleshooting

Checkpoints

If you encounter a problem with the oven, first check the table below and try the suggestions. If the problem continues, contact a local Samsung service centre.

Problem Cause	Action
The buttons cannot be pressed properly.	If there is foreign matter caught between the buttonsTouch model: if there is moisture on the exteriorIf the Lock function is set	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the Lock function is set.
The time is not displayed.	If there is no power supplied	Check whether there is power supplied.
The oven does not work.	If there is no power supplied	Check whether there is power supplied.Check if the Demo mode is on.
The oven stops while in operation.	If it is unplugged from the power socket	Reconnect the power.
The power turns off during operation.	If continuous cooking takes a long timeIf the cooling fan does not workIf the oven is installed in a place without good ventilationWhen using several power plugs in the same socket	After cooking for a long time, let the oven cool.Listen for the sound of the cooling fan.Keep the gaps specified in the product installation guide.Use a single plug.

Problem Cause	Action
There is no power to the oven.	· If there is no power supplied	· Check whether there is power supplied.
The oven exterior is too hot during operation.	· If the oven is installed in a place without good ventilation	· Keep the gaps specified in the product installation guide.
The door cannot be opened properly.	· If there is food residue stuck between the door and product interior	· Clean the oven well and then open the door again.
The interior light is dim or does not turn on.	· If the lamp turns on and then off· If the lamp is covered by foreign matter during cooking	· The lamp automatically turns off after a certain amount of time to save power. You can turn it on again by pressing Oven light.· Clean the inside of the oven and then check.
There is electricity coming from the machine.	· If the power supply is not properly grounded· If you are using a socket without grounding	· Check whether the power supply is properly grounded.
There is water dripping.	· There may be water or steam in some cases depending on the food. This is not a product malfunction.	· Let the oven cool and then wipe with a dry dish towel.
There is steam through a crack in the door.
There is water remaining in the oven.
The brightness inside the oven varies.	· The brightness changes depending on power output changes.	· Power output changes during cooking are not malfunctions, so there is no need to worry.
Cooking is finished, but the cooling fan is still running.	· The fan automatically runs for a certain amount of time to ventilate inside the oven.	· This is not a product malfunction, so there is no need to worry.
The oven does not heat.	· If the door is open· If oven controls are not correctly set· If the household fuse has been blown or the circuit breaker has operated	· Close the door and restart.· Refer to the chapter on oven operation and reset the oven.· Replace the fuse or reset the circuit. If it happens repeatedly, call an electrician.· Check if the Demo mode is on.

Problem Cause Action
Smoke comes out during operation.	During initial operationIf there is food on the heater	Smoke may come from the heater when you first use the oven. This is not a malfunction, and if you run the oven 2-3 times, it should stop happening.Let the oven cool sufficiently and remove the food from the heater.
There is a burning or plastic smell when using the oven.	If using plastic or other containers that are not heat-resistant	Use glass containers suitable for hot temperatures.
The oven does not cook properly.	If the door is often opened during cooking	Do not frequently open the door unless you are cooking things that need to be turned. If you frequently open the door, the interior temperature will be lower and this may affect the results of your cooking.
I can hear water boiling during steam cooking.	This is because water is heated using the steam heater	This is not a product malfunction, so there is no need to worry.
Steam cooking does not work.	If there is no water in the water supply tank	Add water to the tank and try again.

Troubleshooting

Problem Cause	Action
The set is warm during pyro cleaning	This is because pyro cleaning uses high temperatures	This is not a product malfunction, so there is no need to worry.
There is a burning smell during pyro cleaning.	Pyro cleaning uses high temperatures, so you may smell food residue burning.	This is not a product malfunction, so there is no need to worry.
Steam cleaning does not work.	This is because the temperature is too high	Let the oven cool and then use.
The door cannot closed.	If the auto door motor is not initialized.	Push the door with your hand to keep the door closed, and touch the door auto open button to initialize.

Information codes

If the oven fails to operate, you may see an information code on the display. Check the table below and try the suggestions.

Code	Meaning Action
C-d1	Door lock malfunctions	Turn off the oven and then restart. If the problem continues, turn off all power for 30 seconds or more and then reconnect.If the problem is not fixed, please contact a service centre.
C-d4	Auto door open malfunctions
C-20	Sensor malfunctions
C-21
C-22
C-23
C-F1	Only occurs during EEPROM Read/Write
C-70	Steam-related problems
C-72
C-F0	If there is no communication between the main PCB and sub PCB
C-F2	Occurs when a communication problem is maintained between the Touch IC <> Main or Sub micom
C-d0	Button problemOccurs when a button is pressed and held for a period of time.	Clean the buttons and make sure there is no water on/around them. Turn off the oven and try again. If the problem continues, contact a local Samsung service centre.

Troubleshooting

Code	Meaning Action
-dC-	If the divider is removed during cooking in Dual cook mode.If the divider is inserted during cooking in Single cook mode.	The divider must not be removed during cooking in Dual cook mode.Turn off the oven and then restart. If the problem continues, turn off all power for 30 seconds or more and then reconnect.If the problem is not fixed, please contact a service centre.
S-01	Safety shutoffOven has continued operating at a set temperature for an extended time.Under 100 °C - 16 hoursFrom 105 °C to 240 °C - 8 hoursFrom 245 °C to Max - 4 hours	This is not a system failure. Turn off the oven and remove food. Then, try again normally.

Technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Connection voltage 230-240 V		~50 Hz
Maximum connected load power 3650-3950 W
Dimensions(W x H x D)	Main unit 595 x 596 x 570 mm
	Built-in 560 x 579 x 549 mm
Volume 76 liter

* This product contains a light source of energy efficiency class .

Appendix

Product data sheet

SAMSUNG		SAM/SUNG
Model identification		NV7B796***, NV7B797****, NV7B798***, NV7B799***
Energy Efficiency Index per cavity (EEI cavity)		81.6
Energy Efficiency Class per cavity		A+
Energy consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric final energy) (EC electricity)		1.05 kWh/cycle
Energy consumption required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy) (EC electricity)		0.71 kWh/cycle
Number of cavities		1
Heat source per cavity (electricity or gas)		electricity
Volume per cavity (V)		76 L
Type of oven		Built-in
Mass of the appliance (M)		NV7B796*** : 37.0 kgNV7B797*** : 42.0 kgNV7B798*** : 37.0 kgNV7B799*** : 42.0 kg
Overall Standby Power consumption (W)(All network ports is "on" condition)		1.9 W
Period of time for the power management (min)		20 min.
WiFi Standby-mode Power Consumption (W)		1.9 W
		20 min.
Off mode	Power consumption	0.5 W
	Period of time for the power management (min)	30 min.

Data determined according to standard EN 60350-1, EN 50564, Commission Regulations (EU) No 65/2014 and (EU) No 66/2014, and Regulation (EC) NO 1275/2008.

Energy saving tips

• During cooking, the oven door should remain closed except for turning food over. Do not open the door frequently during cooking to maintain the oven temperature and to save energy.
• Plan oven use to avoid turning the oven off between cooking one item and the next to save energy and reduce the time for re-heating the oven.
• If cooking time is more than 30 minutes, the oven may be switched off 5-10 minutes before the end of the cooking time to save energy. The residual heat will complete the cooking process.
• Wherever possible cook more than one item at a time.

NOTE

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com. go to Support > Search Product Support and enter the model name.

CAUTION

The 5 GHz WLAN function of this equipment may only be operated indoors in all EU countries and in the UK.

Wi-Fi	Frequency range Transmitter power (Max)
	2400-2484 MHz 20 dBm
	5150-5250 MHz 23 dBm
	5250-5350 MHz 23 dBm
	5470-5725 MHz 23 dBm

Memo

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by contacting our support team via http://opensource.samsung.com (Please use the "Inquiry" menu.)

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/COMMON_R18_TZ4_0/seq/0 leads to the open source license information as related to this product. This offer is valid to anyone in receipt of this information.

English 67

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02 201-24-18		www.samsung.com/be/support(Dutch)www.samsung.com/be_fr/support(French)
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-6227 515 www.samsung.com/fi/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
GERMANY 06196 77 555 77 www.samsung.com/de/support
ITALIA 800-5AMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111 SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100 www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis das 9h às 20h	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/cs/support
SWEDEN 0771-400 300 www.samsung.com/sc/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support(French)
UK	0333 000 0333	www.samsung.com/uk/support

COUNTRY CALL OR VISIT US ONLINE AT
IRELAND (EIRE)	0818 717100	www.samsung.com/ic/support
ALBANIA 045 620 202 www.samsung.com/al/support
BOSNIA	055 233 999	www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	0800 111 31 - Безплатен за всички оператори *3000 - Цена на един градски разговор или според тарифата на мобилният оператор 09:00 до 18:00 - Понеделник до Петък	www.samsung.com/bg/support
CROATIA	072 726 786	www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
MONTENEGRO	020 405 888 www.samsung.com/support
POLAND	801-172-678" lub [phone]* *(opłata według taryfy operatora)	http://www.samsung.com/pl/support/
ROMANIA	0800872678 - Apel gratuit *8000 - Apel tarifat în retea Program Call Center Luni - Vineri: 9 AM - 6 PM	www.samsung.com/ro/support
SERBIA	011 321 6899 www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267 www.samsung.com/ee/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
KOSOVO	038 40 30 90	www.samsung.com/support
