Product Type	Wi-Fi Indoor Surveillance Camera
Brand	Lorex
Model	W462AQD-EG
Dimensions (H x W)	107 mm x 86 mm
Power Supply	UL/CSA regulated USB power adapter (included)
Connectivity	Wi-Fi (2.4 GHz), Ethernet port
Viewing Angle	Pan and tilt (via app controls)
Night Vision	Mechanical IR filter with day/night switching
Audio	Built-in microphone and speaker for two-way communication
Storage	microSD card slot (not included)
App	Lorex Home (iOS and Android)
LED Indicator	Solid green: normal operation; Flashing green: ready for connection; Solid red: malfunction; Flashing red: network error; Red/green: firmware update
Mounting	On flat surface or ceiling with included bracket (screws and anchors included)
Usage	Indoor only
Maintenance and Cleaning	Periodic cleaning with a damp cloth; no abrasive chemicals
Safety	FCC Part 15 compliant; do not disassemble; use only the supplied power adapter
Repairability	Accessible reset button; replaceable microSD card; spare parts not specified
Operating Temperature	Not specified in the manual; use in room temperature conditions

Frequently Asked Questions - W462AQD-EG Lorex

How to connect the camera to the Lorex Home app?

Download the Lorex Home app from the App Store or Google Play, create an account, plug in the camera, wait for the LED to flash green, then press the '+' icon in the app and scan the device's QR code.

What to do if the camera LED is solid red?

A solid red LED indicates a malfunction. Hold down the reset button until the LED changes.

Can I use this camera outdoors?

No, this camera is designed for indoor use only. Do not install it outdoors.

How to mount the camera on the ceiling?

Use the included template to drill 6mm holes, insert the anchors, attach the mounting plate with screws, then turn the camera base clockwise to lock it.

What does a clicking sound from the camera mean?

The click is normal and comes from the mechanical IR filter that automatically switches to night mode. It is not a malfunction.

Is audio recording legal?

Audio recording without consent is illegal in some territories. Check local laws before using the audio function. Lorex disclaims all liability for non-compliance.

How to reset the camera to factory settings?

Locate the reset button (E on the diagram) and hold it down for about 10 seconds until the LED flashes green.

What type of microSD card to use?

The manual does not specify the maximum capacity. Use a standard microSD card (not included) with common formats (FAT32). If an error occurs, remove and reinsert the card.

How to clean the camera?

Unplug the camera and clean it with a damp cloth only. Do not use abrasive chemical cleaners.

Can I view the camera remotely?

Yes, via the Lorex Home app on your smartphone. You can view the live stream, activate privacy mode, and access recordings.

USER MANUAL W462AQD-EG Lorex

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Use camera within given temperature, humidity & voltage levels noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
• Periodic cleaning required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Disclaimers

• The camera is rated for indoor use only. Do not mount the camera outdoors.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.

Contents

What's included....1

Camera overview and dimensions....2

Status indicator....3

Step One: Connect to the app....4

Camera placement....5

Step Two: Place or mount the camera....6

Lorex Home app overview....7

What's included

Camera

USB power adapter

USB power cable

Mounting tape

Mounting bracket

Anchors & screws (x3)

ATTENTION: A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this (included). Use of a non-regulated, non-conforming power supply can damage this product and the warranty.

Camera overview

A B C

D E F G H

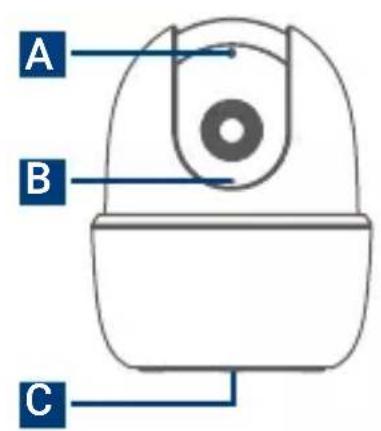

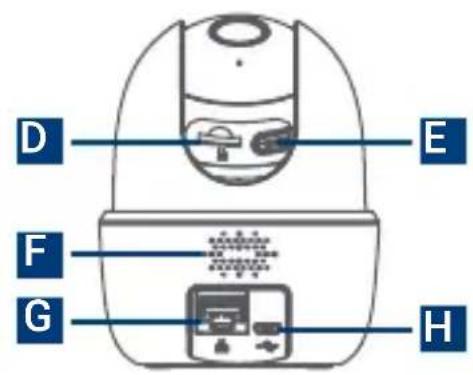

A. Status indicator
B. Microphone
C. Device QR code
D. microSD slot
E. Reset button
F. Speaker
G. Ethernet port
H. Power port

Dimensions

Height: 4.2" (107mm)

Width: 3.4" (86mm)

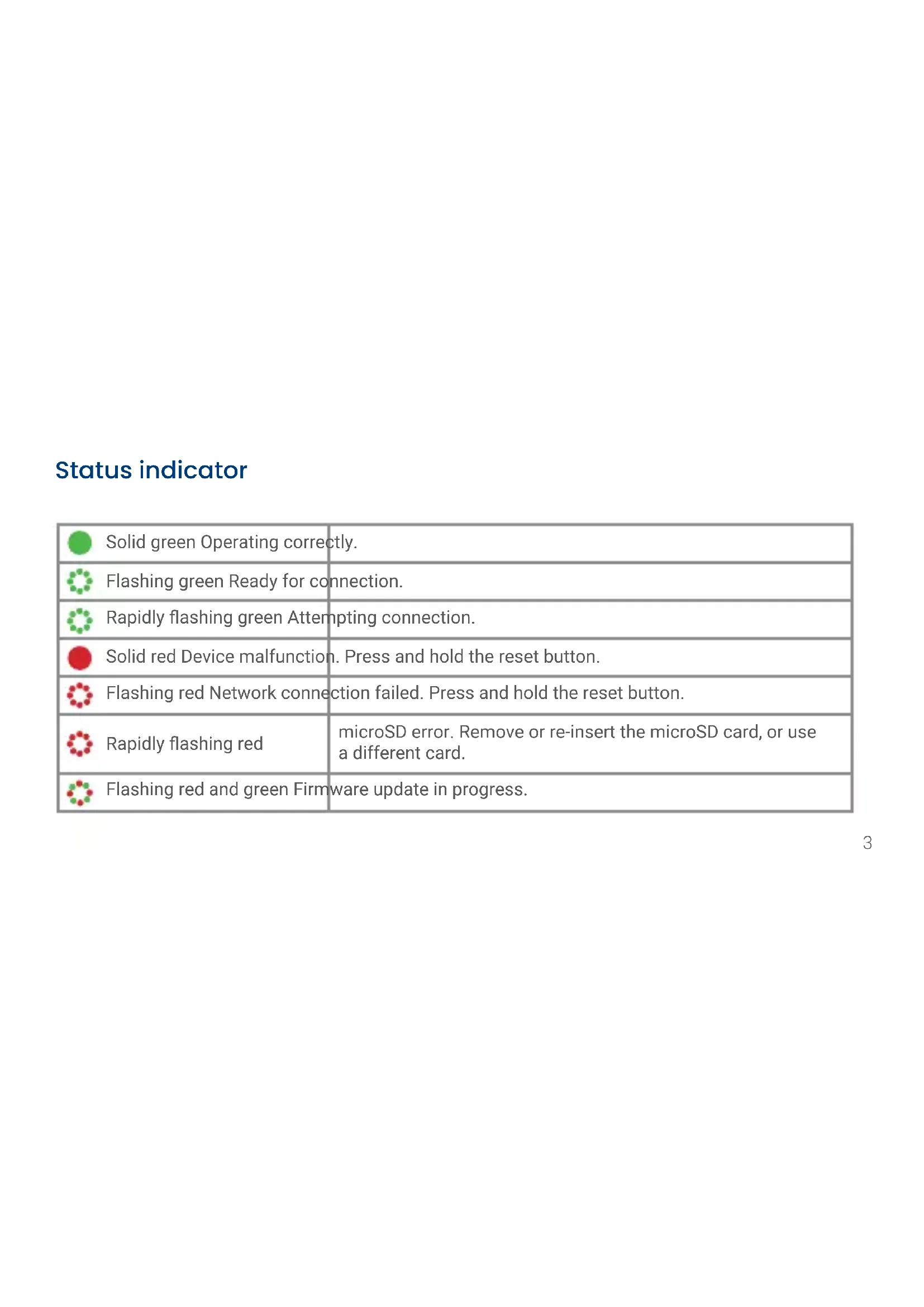

Status indicator

	Solid green Operating correctly.
	Flashing green Ready for connection.
	Rapidly flashing green Attempting connection.
	Solid red Device malfunction. Press and hold the reset button.
	Flashing red Network connection failed. Press and hold the reset button.
	Rapidly flashing red	microSD error. Remove or re-insert the microSD card, or use a different card.
	Flashing red and green Firmware update in progress.

Step One: Connect to the app

1. Scan the QR code on this page to download the free Lorex Home app from the App Store or Google Play Store.

2. Open the Lorex Home app.

3. Sign in or sign up and create an account.

4. Connect the USB power adapter to the camera and plug into an outlet.

5. Once the status indicator on the camera is flashing green and the startup chime sounds, tap the + icon to add your camera.

6. Scan the device QR code. If your mobile device cannot scan the QR code, tap Manually enter Device ID.

7. Follow the in-app instructions to complete the setup.

Two QR codes: one black-and-white with a white house icon, the other blue with a diamond shape containing a house symbol.

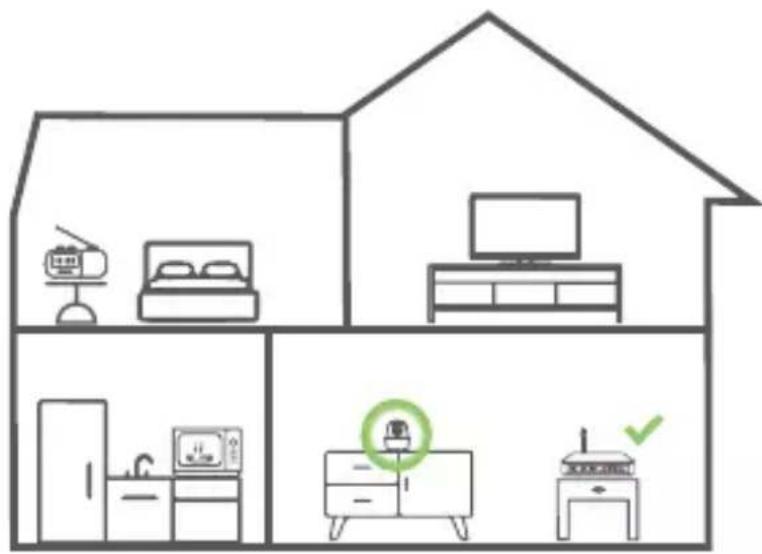

Camera placement

• Place the camera as close to your Wi-Fi router or access point as possible.
• Reduce the number of obstructive materials between the camera and the router or access point. Concrete, brick, metal and wood are the most common materials in your house that can cause poor signal strength.
• Other electronic devices such as microwaves, TVs, cordless phones, and baby monitors can cause signal interference. It is recommended to install the camera as far away from these devices as possible.

Diagram showing a house layout with home appliances and kitchen items, including a TV, refrigerator, and washing machine.

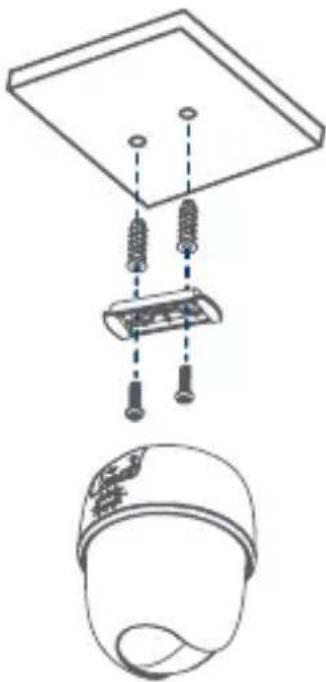

Step Two: Place or mount the camera

You can place the camera on a flat surface or follow the instructions below to mount it to an indoor ceiling.

1. Use the mounting template to mark two holes for screws.
2. Drill the holes using a 14 " (6mm) drill bit. If mounting to masonry or drywall, gently tap the anchors into the holes.
3. Align the flat side of the mounting plate with the drilled holes.
4. Use a Phillips screwdriver and two screws to secure the mounting plate to the mounting surface.
5. Twist the camera's base clockwise onto the mounting plate.
6. Open the camera's settings on the app and enable Image Rotation to flip the camera image.

Technical diagram showing a ceiling-mounted device connected to a battery pack and a helmet (no text or symbols present)

Lorex Home app overview

For a complete overview of controls available in the Lorex Home app, go to lorex.com.

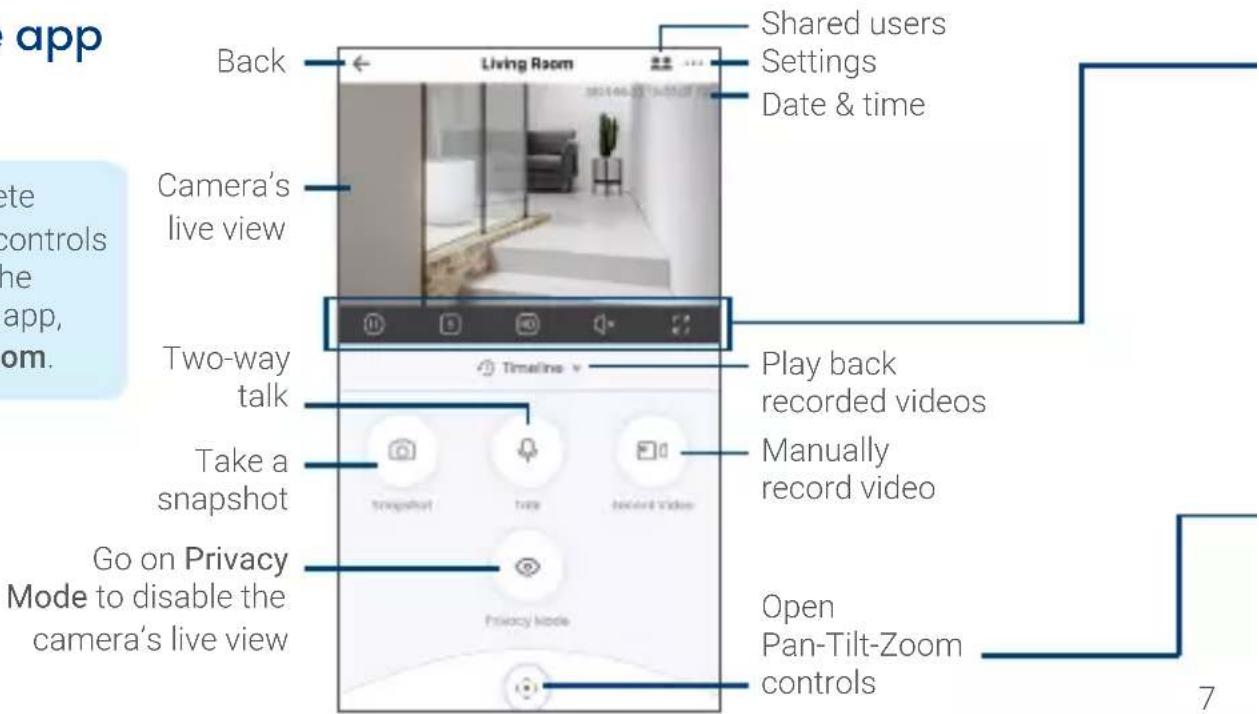

app Back Shared users Settings Date & time Camera's live view Two-way talk Take a snapshot Go on Privacy Mode to disable the camera's live view Timeline v Play back recorded videos Manually record video Open Pan-Tilt-Zoom controls 7

User interface toolbar with icons for video, audio, and display functions

Pause or restart video

modes

Video quality SD or HD

Mute or unmute audio

Full screenplaying

Tip: Change the video quality to SD (Standard Definition) to conserve bandwidth while watching live video. This will not impact the quality of recorded video.

Tap on the arrows to pan and tilt the camera. Pinch the video screen to zoom in.

Circular diagram with a central shaded circle and surrounding symbols (no text or labels)

Copyright © 2021 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

For up-to-date information and support, please visit: help.lorex.com

Please see our full Terms of Service and Limited Hardware Warranty Policy at lorex.com/warranty

W462AQC_QSG_TRILINGUAL_R1
