Product type	Built-in freezer
Brand	Samsung
Model	BRB2N715CWW
Dimensions (H x W x D)	1778 x 560 x 555 mm (min.)
Total volume	Not specified (domestic use)
Climate class	SN-ST-T (10°C to 43°C)
Refrigerant	R-600a (isobutane)
Power supply	220-240 V, 50 Hz
Freezer temperature range	-15°C to -23°C (adjustable)
Quick Freeze function	Yes (50 h max)
Adjustable Temperature+ function	Yes (Freeze, -5°C, -1°C, 2°C)
Door open alarm	Yes (after 2 min)
Automatic defrost	Yes (No Frost)
Interior lighting	LED (replacement by authorized service)
Number of freezer drawers	3 (including 1 central sliding drawer)
Sliding shelf	Yes
Built-in installation	Yes (ventilation mandatory)
Leveling feet	Yes (adjustable)
Cleaning	Soft cloth and warm water, no abrasive products
Child safety	No (no specific lock mentioned)
Spare parts availability	7 years (electronics, hinges), 10 years (door gaskets)
Warranty	24 months
Country of manufacture	Not specified

Frequently Asked Questions - BRB2N715CWW SAMSUNG

What is the ideal temperature for the freezer?

The recommended temperature is -19°C. You can adjust it between -15°C and -23°C via the control panel.

How to activate quick freeze?

Press and hold the Freezer button for 3 seconds to activate Quick Freeze mode. It runs for 50 hours then automatically returns to the previous setting.

What to do in case of audible alarm?

The alarm sounds if the door remains open for more than 2 minutes or if the freezer temperature is too high. Press Door Alarm to deactivate it or Freezer/Fridge to clear the temperature alarm.

How to install the freezer as built-in?

Provide a ventilation space of at least 200 cm² for air inlet and outlet. The appliance must be installed on a flat, level surface, with a minimum clearance of 10 mm at the rear. Consult the manual for exact cabinet dimensions.

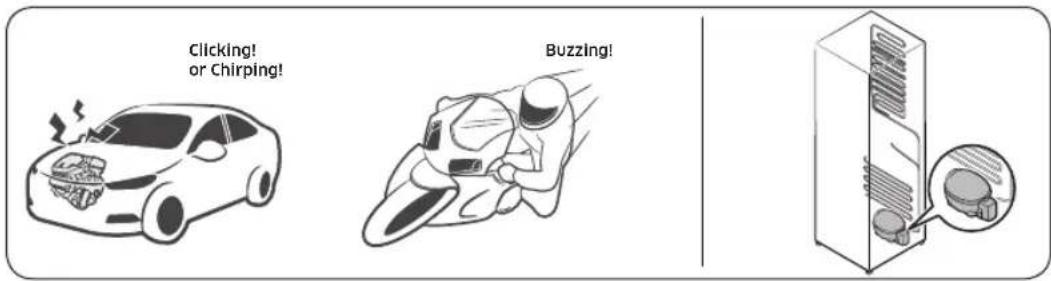

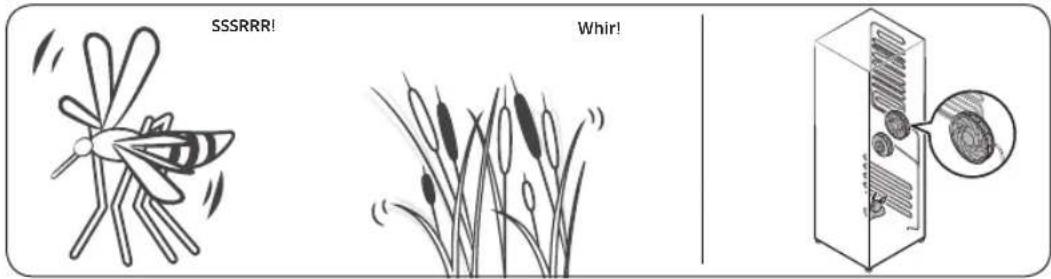

The freezer is making noise, is this normal?

Yes, some noises are normal: clicking (compressor), humming (fan), bubbling (refrigerant), cracking (expansion/contraction). In case of abnormal noises, check that it is level and that nothing blocks ventilation.

How to clean the interior of the freezer?

Unplug the appliance. Use a soft damp cloth with warm water and a mild detergent. Do not use abrasive products, benzene, thinner, or bleach. Dry thoroughly before reconnecting.

What is the freezing capacity?

The manual does not specify the exact capacity, but for large quantities, use the bottom freezer drawer after removing it. Activate quick freeze 20 hours before.

Can I freeze fresh food?

Yes, wrap them tightly in plastic wrap, aluminum foil, or freezer bags. Respect storage times: poultry up to 12 months, fish up to 6 months.

How to change the LED bulb?

LED bulbs cannot be replaced by the user. Contact an authorized Samsung service center.

What to do in case of prolonged power outage?

Avoid opening the door. If the outage lasts more than 24 hours, remove and discard frozen food. After power restoration, check the temperature alarm and set quick freeze if necessary.

USER MANUAL BRB2N715CWW SAMSUNG

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

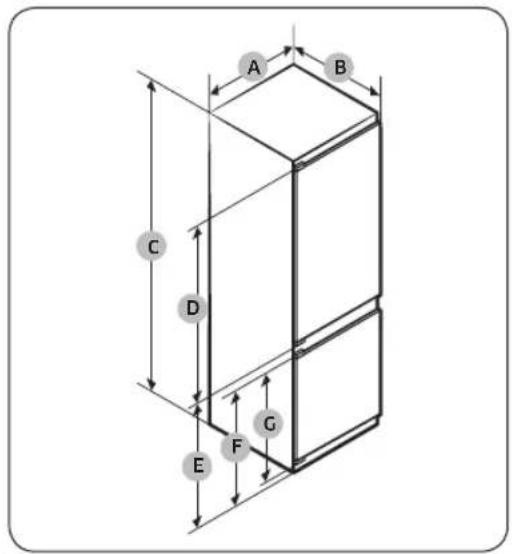

A B C D E F G

	BRB26°0" / BRB26°1"	BRB30°0" / BRB30°1"
A 540 ± 2 540 ± 2
B	550 ± 2	550 ± 2
C 1775 ± 2 1935 ± 2
D	987	1 147
E	735	735
F	671	671
G	621	621

(unité : mm)

Français32-

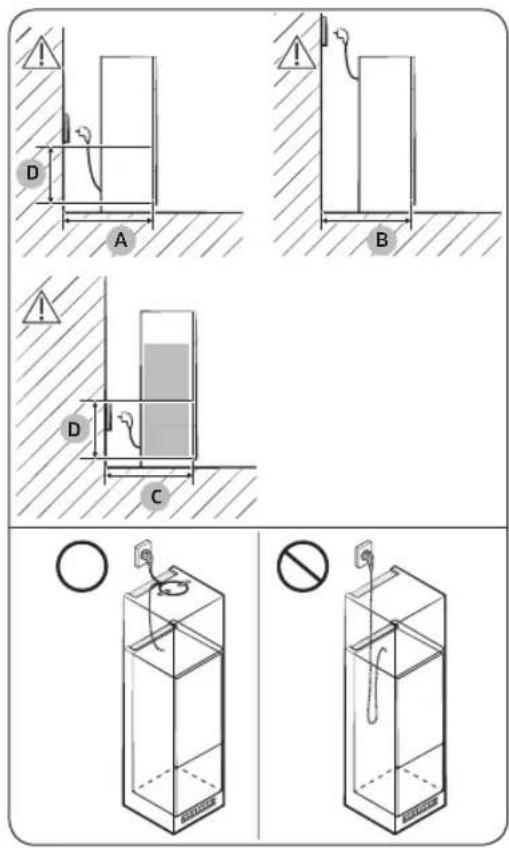

Technical diagram illustrating four different installation methods for a vertical structure, labeled A, B, C, and D with warning symbols.

A Min. 590
B Min. 560
C Min. 580
D 240

(unité : mm)

REMARQUE

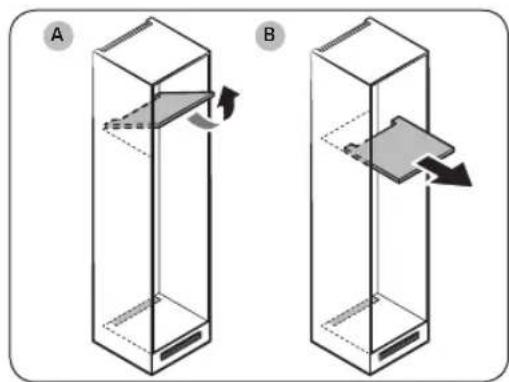

Two 3D diagrams of a rectangular container with internal compartments and directional arrows indicating movement (no text or symbols)

REMARQUE

Simple line drawing of a diagonal metal rod or beam (no text or symbols)

REMARQUE

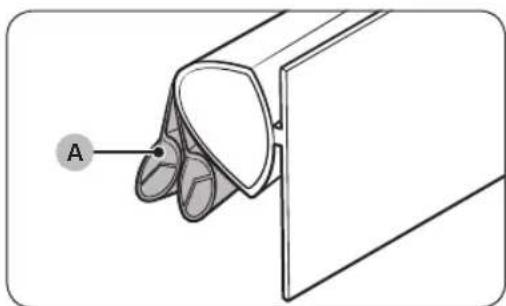

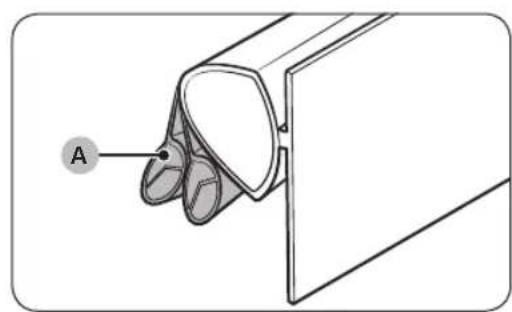

Diagram of a hand holding a device with labeled point A (no text or symbols beyond label)

REMARQUE

Diagram showing two refrigerator units with directional arrows indicating movement, one marked with a circle and the other with a prohibition sign (no text or symbols present)

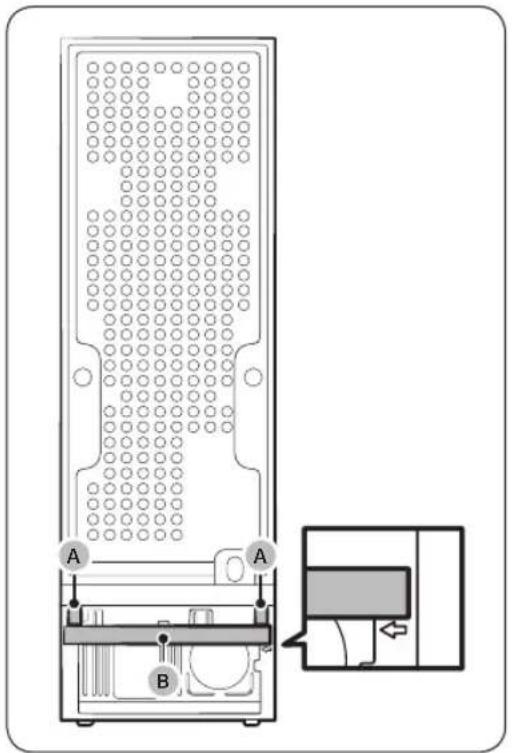

Technical diagram of a device panel with labeled ports A and B, showing internal components and a close-up view of the internal structure.

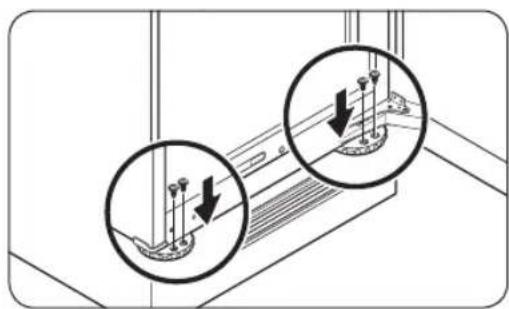

Diagram showing a mechanical device with a magnified inset highlighting a turning mechanism (no text or symbols present)

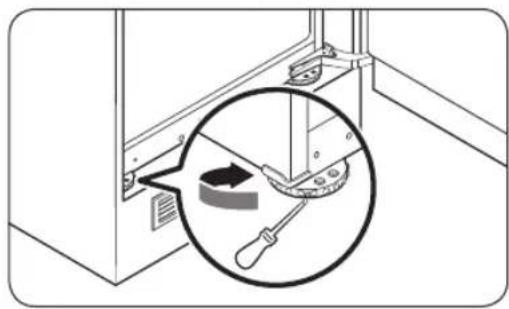

Diagram of a manual tool in a cabinet, showing a curved blade and handle (no text or symbols)

Diagram showing two circular insets of a ship's hull with arrows indicating direction, no text or symbols present.

REMARQUE

Technical diagram showing four views of a door mechanism with labeled components and directional arrows indicating assembly or positioning.

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

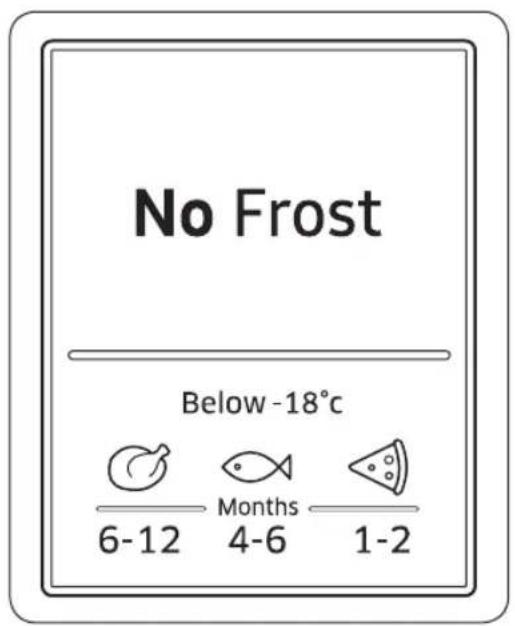

No Frost Below -18°C Months 6-12 4-6 1-2

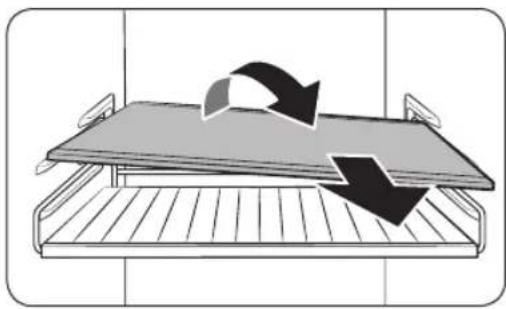

Diagram of a bed tray with an arrow indicating direction, no text or symbols present

Diagram of a bed tray with two arrows indicating direction, no text or symbols present

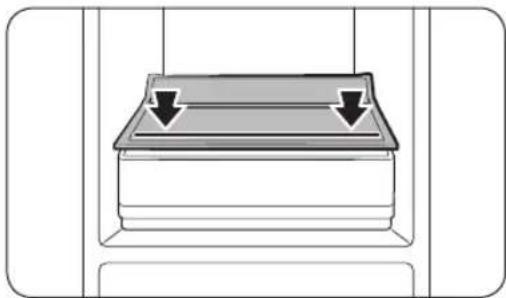

Simple line drawing of a box with two downward arrows indicating measurement or force (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating direction (no text or symbols present)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

A B C D E F G

	BRB26°0" / BRB26°1"	BRB30°0" / BRB30°1"
A 540 ± 2 540 ± 2
B 550 ± 2 550 ± 2
C 1775 ± 2 1935 ± 2
D 987 1147
E 735 735
F 671 671
G 621 621

(eenheid: mm)

Nederlands 31

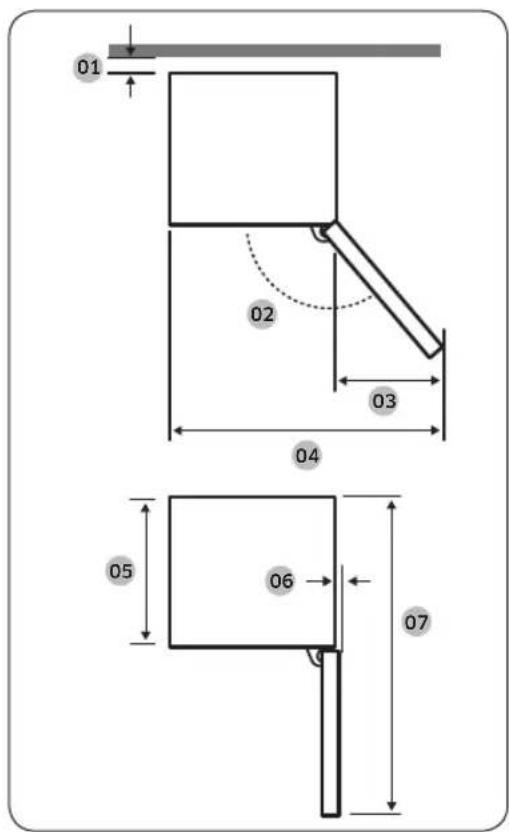

Installatie

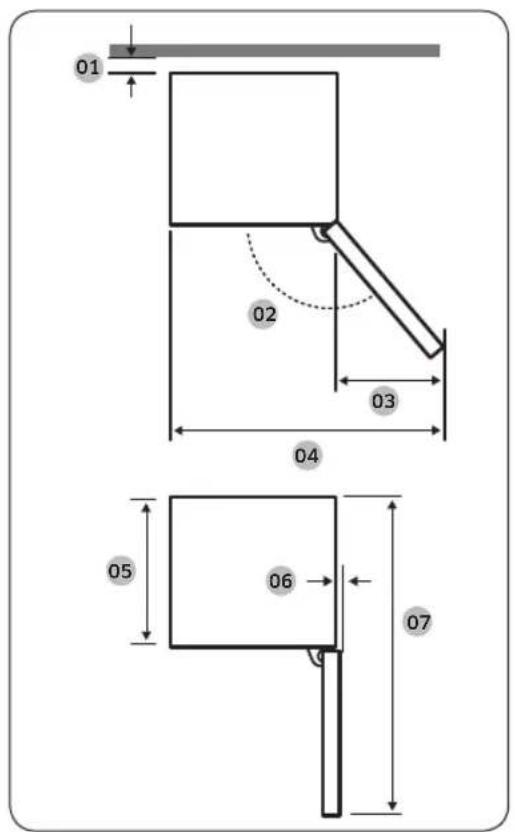

Totale productafmeting

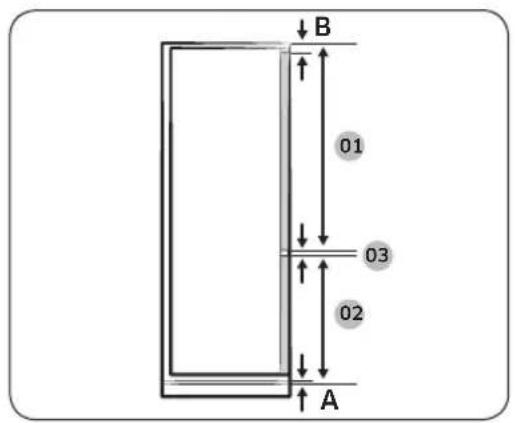

01 02 03 04 05 06 07

Model	BRB26*0*BRB30*0*SCHUIFTYPE	BRB26*1*BRB30*1*VAST TYPE
01 * 10 (min.) / 30 (aanbevolen)
02 95° (aanbevolen) 115° (aanbevolen)
03 218	180
04 758	700
05 510	510
06 15
07 1055	1055

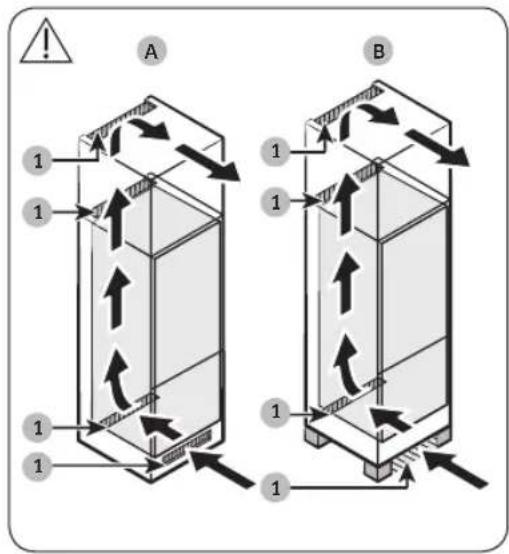

Technical diagram illustrating a water filtration or ventilation system with labeled components and warning symbols

A Min. 590
B Min. 560
C Min. 580
D 240

(eenheid: mm)

OPMERKING

Simple line drawing of a diagonal metal rod or beam (no text or symbols)

OPMERKING

Diagram of a mechanical component with labeled point A, showing internal parts and a rectangular body (no text or symbols beyond label)

OPMERKING

Diagram showing two refrigerators with directional arrows indicating movement or cooling (no text or symbols present)

Technical diagram of a device panel with labeled ports A and B, showing internal structure and connection to a control panel.

Diagram showing a mechanical device with a magnified inset highlighting a tool (no text or symbols present)

Diagram showing a tool interacting with a device, with an arrow indicating the process (no text or symbols present)

Diagram showing two circular insets of a mechanical device with arrows indicating motion or force direction (no text or symbols present)

OPMERKING

Technical diagram showing mechanical assembly steps with labeled components A and directional arrows indicating movement or assembly.

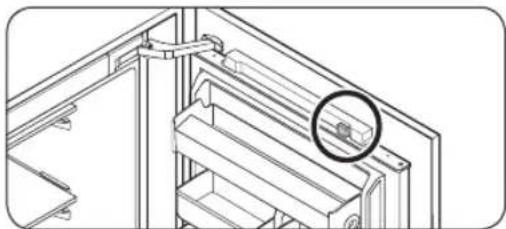

STAP5Eerste instelling

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

No Frost Below -18°C 6-12 Months 4-6 1-2

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram of a bed tray with arrows indicating direction or movement, no text or symbols present

Diagram of a mechanical component with two downward arrows indicating direction (no text or symbols)

Diagram of a mechanical assembly with a box and bracket, showing a black upward arrow (no text or symbols present)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

A B C D E F G

	BRB26°0" / BRB26°1"	BRB30°0" / BRB30°1";
A 540±2 540±2
B 550±2 550±2
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(Einheit: mm)

Deutsch34

Two 3D diagrams of a rectangular container with internal compartments and directional arrows indicating movement (no text or symbols)

HINWEIS

Simple line drawing of a diagonal metal rod or beam (no text or symbols)

HINWEIS

Diagram of a hand holding a device with labeled point A (no text or symbols beyond label)

HINWEIS

Diagram showing two refrigerator doors with directional arrows indicating movement, one marked with a circle and the other with a prohibition sign (no text or symbols present)

Technical diagram of a device panel with labeled ports A and B, showing internal structure and component insertion.

Diagram showing a mechanical device with a magnified inset highlighting a turning mechanism (no text or symbols present)

Diagram of a manual tool in a cabinet, showing a curved arrow and handle (no text or symbols present)

Diagram showing two circular insets of a ship's hull with arrows indicating direction (no text or symbols)

HINWEIS

Technical diagram showing four sequential steps of a door or cabinet installation with labeled components A and numbered parts.

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

No Frost Below -18°C Months 6-12 4-6 1-2

Diagram of a bed-like structure with arrows indicating direction, no text or symbols present

Diagram of a bed tray with two arrows indicating direction, no text or symbols present

Simple line drawing of a mechanical component with two downward arrows indicating force or direction (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

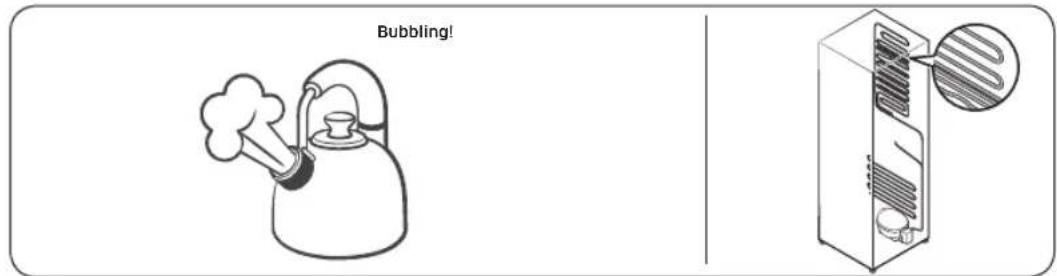

Blubbern!

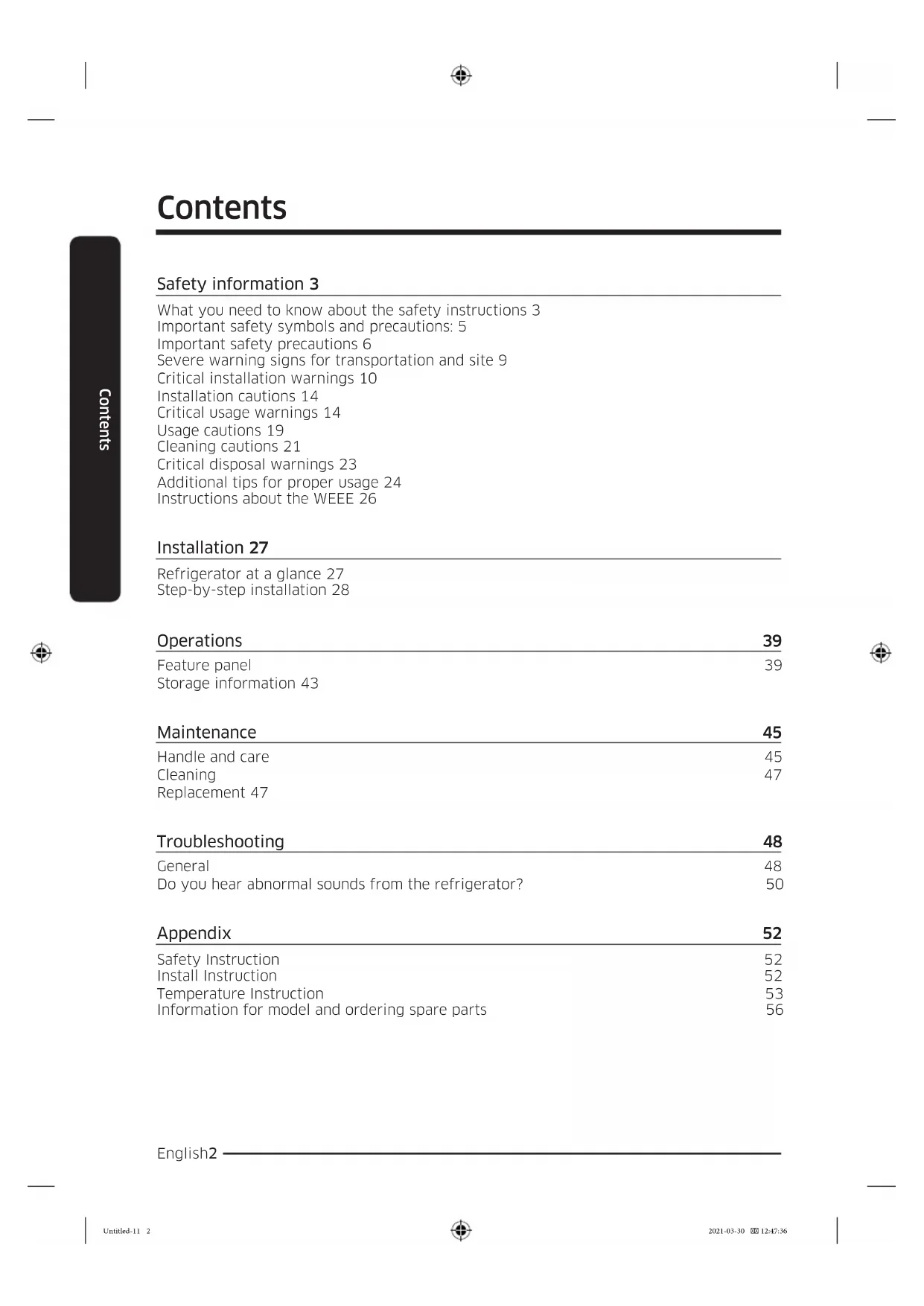

What you need to know about the safety instructions 3 Important safety symbols and precautions: 5 Important safety precautions 6 Severe warning signs for transportation and site 9 Critical installation warnings 10 Installation cautions 14 Critical usage warnings 14 Usage cautions 19 Cleaning cautions 21 Critical disposal warnings 23 Additional tips for proper usage 24 Instructions about the WEEE 26

Installation 27

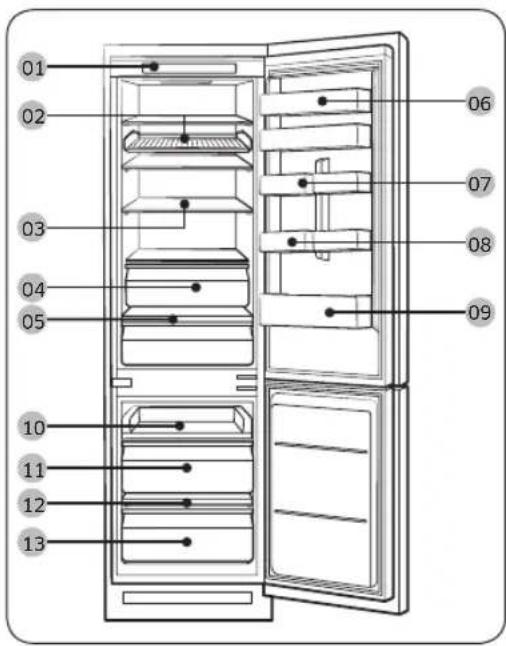

Refrigerator at a glance 27

Step-by-step installation 28

Operations 39

Feature panel 39

Storage information 43

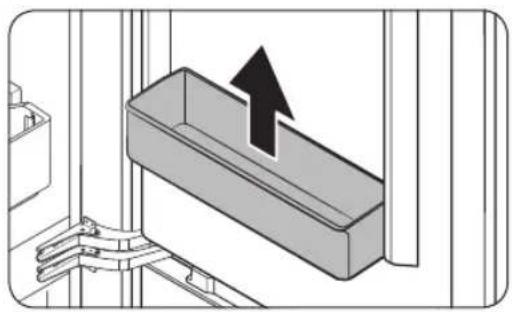

Maintenance 45

Handle and care 45

Cleaning 47

Replacement 47

Troubleshooting 48

General 48

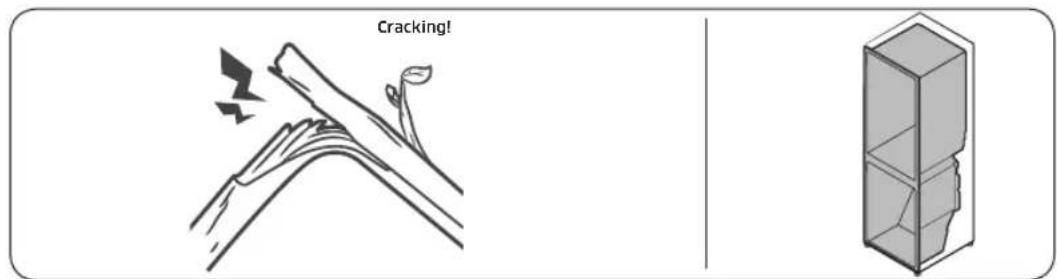

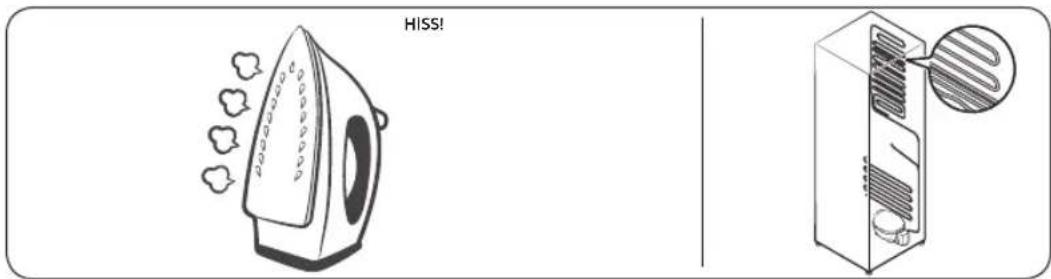

Do you hear abnormal sounds from the refrigerator? 50

Appendix 52

Safety Instruction 52

Install Instruction 52

Temperature Instruction 53

Information for model and ordering spare parts 56

English2

Safety information

Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your appliance. When this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.
• It is hazardous for anyone other than an Authorized Service Person to service this appliance.

English 3

Safety information

- Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1 m³ in size for every 8 g of R-600a refrigerant inside the appliance.

The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

- Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.

- Failing to do so may result in fire or explosion.

- To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

English4

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

Safety information

Important safety precautions

Warning; Risk of fire / flammable materials

WARNING

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

English6

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency.

- It must be outside the area of the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

• Contact a Samsung service center.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• If the interior or exterior LED lamp has gone out, contact your nearest service center.

• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.

English 7

Safety information

- To get the best energy efficiency of this product, please leave all shelves, drawers and baskets on their original position.

How to minimize the energy consumption

• Install the appliance in a cool, dry room with adequate ventilation.
- Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example).

• Not to block any vents or grilles is recommended for energy efficiency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.
• Do not keep the door of the appliance open for too long when putting food in or taking food out.
• The shorter time for which the door is open, the less ice will form in the freezer.
• Clean the rear of the refrigerator regularly. Dust increases energy consumption.
• Do not set temperature colder than necessary.
• Ensure sufficient air exhaust at the refrigerator base and at the back wall of the refrigerator. Do not cover air vent openings.
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

English8

- Select 560 mm cavity depth. A smaller cavity depth will result in a higher energy consumption.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

Safety information

- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock of fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

English10

• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

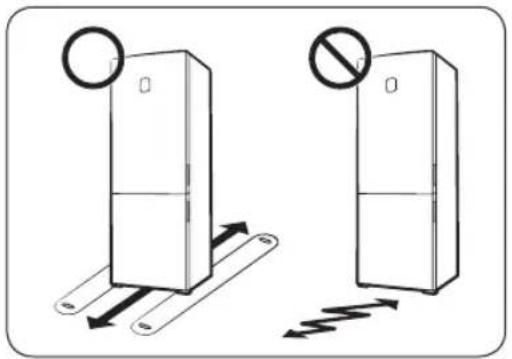

• When moving the refrigerator, be careful not to roll over or damage the power cord.

- This may result in an electric shock or fire.

- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

- Do not use aerosols near the refrigerator.

- Using aerosols near the refrigerator may cause an explosion or fire.

• Do not install this appliance near a heater or inflammable material.
• Do not install this appliance in a location where gas may leak.

- This may result in an electric shock or fire.

- This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

Safety information

• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).
• Deteriorated insulation of electrical parts may cause an electric shock or fire.
• If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

English12-

- The refrigerator must be safely grounded.

- Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

- Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.

• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• This may result in an electric shock, fire, explosion, or problems with the product.

- Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

- The fuse on the refrigerator must be changed by a qualified technician or service company.

- Failing to do so may result in an electric shock or personal injury.

• This appliance is a built-in model that requires guided ventilation. To prevent a risk of explosion, make sure to secure room for ventilation.
• The fuse on the refrigerator must be changed by a qualified technician or service company. Failing to do so may result in an electric shock or personal injury.

Safety information

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• If your refrigerator is not level, cooling efficiency and durability can be declined.
• Allow the appliance to stand for 2-3 hours before loading foods after installation and turning on.
  • We strongly recommend you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.

English14

- Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite.

- Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

- Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.

- This refrigerator is for storing food only.

- This may result in fire or explosion.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

- Do not put your fingers or children's fingers between the doors.

- Keep fingers out of the left and right door gaps. Be careful when you open the doors if your fingers are in between the doors.

- Do not let children hang on the door or door bins. A serious injury may occur.

- Do not let children go inside the refrigerator. They could become trapped.

- Do not insert your hands into the bottom area under the appliance.

- Any sharp edges may cause personal injury.

Safety information

• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.

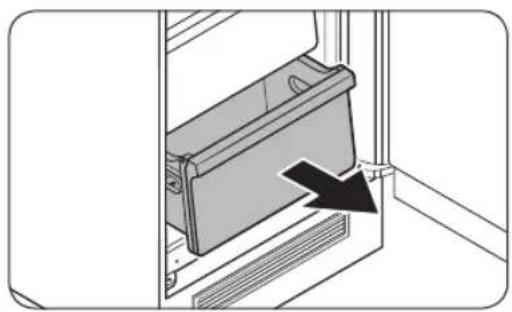

• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.
• Do not allow babies or children go inside the drawer.
• It can cause death from suffocation by entrapment or personal injury.
• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.

English16

- Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours.

- This may result in an electric shock or fire.

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

- If spilled, there is a risk of fire or electric shock.

- Never stare directly at the UV LED lamp for long periods of time.

- This may result in eye strain due to the ultraviolet rays.

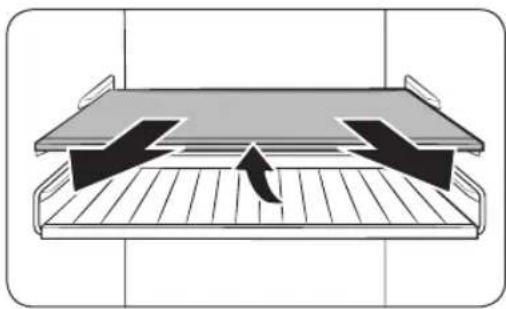

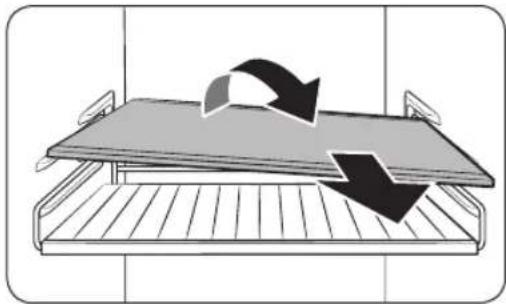

- Do not put shelf in upside down. Shelf stopper could not work.

- It may cause a personal injury because of glass shelf drop.

- If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

• Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in explosion or fire.

- Bottles should be stored tightly together so that they do not fall out.

- This product is intended only for the storage of food in a domestic environment.

Safety information

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in an electric shock or fire.

English18-

Usage cautions

CAUTION

- Do not refreeze thawed food.

• Frozen and thawed food will develop harmful bacteria faster than fresh.
• The second thaw will break down even more cells, leaching out moisture and changing the integrity of the product.

- Do not thaw meat at room temperature.

- Safety will depend on whether the raw product was handled properly.

- Do not place glass bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Use only the ice maker provided with the refrigerator.
  • To get the best performance from the product:

- Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Please observe maximum storage times and expiration dates of frozen goods.

Safety information

- There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. However, if you will be away for more than three weeks, remove all the food and ice in the ice bucket, unplug the refrigerator, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

- Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

- If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.

- When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center.

- Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Be careful that your fingers are not caught in.

English20-

- If the refrigerator is ☐ooded, make sure to contact your nearest service center.

- There is a risk of electric shock or re.

- Do not keep vegetable oil in your refrigerator's door bins.

The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

- Do not spray water directly on the inside or outside the refrigerator.

- There is a risk of re or electric shock.

- Do not use a hair dryer to dry the inside of the refrigerator.

- Do not place a lighted candle in the refrigerator to remove bad odors.

- This may result in an electric shock or re.

- Do not spray cleaning products directly on the display.

- Printed letters on the display may come off.

- If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.

- Failing to do so may result in an electric shock or re.

Safety information

- Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric shock.

• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.

- They may damage the surface of the appliance and may cause a fire.

- Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failing to do so may result in an electric shock or fire.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.

- These can scratch or damage the material.

- Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

English22-

Critical disposal warnings

WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, a child may get hurt or suffocate to death.

- If trapped inside, the child may become injury and suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over his or her head, the child could suffocate.

Safety information

Additional tips for proper usage

• In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last.
• Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• Should the power failure last more than 24 hours, remove and discard all frozen food.
• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.
• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.

English24

- The temperature of two star section (sections) or compartment (compartments) which have two star symbol (*) is slightly higher than other freezer compartment (compartments). The two star section (sections) or compartment (compartments) is (are) based on the instruction and/or the condition as delivered.

Safety information

Instructions about the WEEE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com

(For products sold in European countries and in the UK only)

English26

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
  • To prevent electric shock, unplug the power cord before servicing or replacements.

Refrigerator at a glance

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

01 02 03 04 05 10 11 12 13 06 07 08 09

01 Control panel
02 Shelf wine *
03 Fridge shelf *
04 Fridge drawer *
05 Vegetable shelf *
06 Top guard *
07 Variety guard
08 Egg tray *
09 Fridge guard
10 Slide shelf
11 Freezer middle drawer
12 Freezer shelf *
13 Freezer bottom drawer
* applicable models only

NOTE

• For best energy efficiency, make sure all of shelves, drawers, and baskets are placed in their original position.
• Only for models which have freezer shelf:
• To quickly freeze large quantities of food, use the freezer after removing the bottom drawer of the freezer.
• To get more space, you can remove the slide shelf (5) and two freezer drawers (6,11) under it but keep the freezer shelf on the bottom drawer of the freezer. They do not affect thermal and mechanical characteristics. The declared storage volume of the frozen food storage compartment is calculated with the shelf and the freezer drawers removed.

English 27

Installation

Step-by-step installation

STEP 1 Select a site

Site requirements:

• Solid, level surface without carpeting or flooring that may obstruct ventilation
• Away from direct sunlight
- Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 10 °C and 43 °C

Product dimension

A B C D E F G

	BRB26*0*/BRB26*1*	BRB30*0*/BRB30*1*
A 540±2 540±2
B 550±2 550±2
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(unit : mm)

English28-

Product Overall Dimension

01 02 03 04 05 06 07

Model	BRB26*0*BRB30*0*SLIDE TYPE	BRB26*1*BRB30*1*FIXED TYPE
01 * 10 (Min.) / 30 (Recommended)
02 95° (Recommended)		115°(Recommended)
03 218 180
04 758 700
05 510 510
06 1 5
07 1055 1055

* 01: From cabinet to rear of product.

(unit : mm)

NOTE

- The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm, however it consumes slightly more energy.

• We recommend using a cabinet that is 18 mm thick with hinges less than 20 mm thick.

NOTE

• The measurements in the above table may differ, depending on the measuring method.
- For built-in installation, see the Installation Manual.

Installation

Ventilation system of the cabinet

As shown in the figure, the air entering the refrigerator circulates along the ventilation path (see the arrow direction) of the cabinet. The cabinet must have at least 200 cm ^2 (WxH: 500 mm x 40 mm) of space both for the air inlet and air outlet. Also, the cabinet must have a rear vent of at least 200 cm ^2 (WxH: 500 mm x 40 mm) of space at the rear bottom.

Air inlet

A B 1 1 1 1 1

Air outlet

ABC

1 200 cm

2

The air inlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type.

A.A ventilation hole included in the cabinet.
B.A cabinet with feet.

The air outlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type.

A. Immediately above the refrigerator with an optional vent grille
B. Close to the cabinet ceiling
C.Above the refrigerator with a separately built-in vent

CAUTION

Regardless of the cabinet design, the air ventilation system must not be blocked by any kind of installation.

English30

Cabinet dimension

If the cabinet has a door, make sure the door is not heavy to prevent it from tipping or falling off.

Cabinet door Thickness (mm) Weight (kg)
Fridge side	Min. 16Max. 19	Max. 18
Freezer side Max. 12

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes
2. Defective cabinet
3. Mistakes by the installer or the user

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
BRB26*0*SLIDE TYPE	Min.	40 50055 Hinge : 17 mm		560 1778 560
	Recommend 580 17
	Max. - 1782 568
BRB26*1*FIXED TYPE	Min. 560 1778
	Recommend 580 1780 562
	Max. - 1782 568
BRB30*0*SLIDE TYPE	Min.	40 50055 Hinge : 17 mm		560 1938 560
	Recommend 580 19
	Max. - 1942 568
BRB30*1*FIXED TYPE	Min. 560 1938
	Recommend 580 1940 562
	Max. - 1942 568

NOTE

- If the width of a cabinet is larger than 568 mm, the gasket (between the refrigerator and the cabinet) can become loose.

English 31

Installation

- If the cabinet is higher than the maximum dimension (1782 mm), you must use other finishing materials to fill the gap.

Consideration for socket outlet location and required space

Technical diagram illustrating five different installation or cleaning methods for a vertical structure, labeled A, B, C, D, and a circle with prohibition signs.

A Min. 590
B Min. 560
C Min. 580
D 240

(unit : mm)

NOTE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

English32-

Cabinet type

The recommended cabinet type is one of the following:

Two 3D diagrams of a rectangular container with internal compartments and directional arrows indicating movement (no text or symbols)

NOTE

If using any of these cabinet types, you don't need to remove the main unit from the cabinet for servicing a defective main PBA. If using another cabinet type, you must remove the main unit from that cabinet for servicing.

A.Flipping type

B.Sliding type

Simple line drawing of a diagonal line with a small circular end (no text or symbols)

NOTE

- Using an unrecommended-sized cabinet can cause the gasket between the refrigerator and the cabinet to be loose after the refrigerator is inserted in the cabinet.

Diagram of a hand holding a device with labeled point A (no text or symbols beyond label)

NOTE

- If the gasket dedicated to BRB26*1*, BRB30*1* (FIXED TYPE) models is not inserted properly, split and remove the 2 extra branches (A) of the gasket one by one and try again.

Installation

B ↑ 01 ↓ 03 ↑ 02 ↓ A

English34

NOTE

To install a cabinet requiring a 3 mm gap (03), see the cabinet reference table below.

Model	BRB2600* SLIDE TYPE	BRB2601* FIXED TYPE
01	Min. 1041+B Max. 1102+B	Min. 1063+B Max. 1076+B
02	Min. 670+A Max. 731+A	Min. 696+A Max. 709+A
03	3 mm (fridge and freezer door gap)

Model	BRB30*0* SLIDE TYPE	BRB30*1* FIXED TYPE
01	Min. 1204+B Max. 1262+B	Min. 1223+B Max. 1236+B
02	Min. 670+A Max. 731+A	Min. 696+A Max. 709+A
03	3mm (fridge and freezer door gap)

A. Lower edge of the front panel above the air ventilation

B.Front panel overhang

STEP2Flooring

Diagram showing two refrigerator units with directional arrows indicating movement, one marked with a circle and the other with a prohibition sign (no text or symbols present)

• The surface to install the refrigerator must support a fully loaded refrigerator.
  • To protect the floor, put a large piece of cardboard on each foot of the refrigerator.
• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to, use a thick paper or cloth such as old carpet along the movement path.

STEP3Spacing (applicable models only)

Technical diagram of a device panel with labeled ports A and B, showing internal components and a close-up view of the internal structure.

Attach the provided spacers (A) and the sponge (B) as shown in the figure to for optimal energy efficiency.

CAUTION

If the refrigerator is not flush with the cabinet, you may cut the spacers to make the refrigerator flush with the cabinet, but the optimal energy efficiency cannot be guaranteed.

Installation

STEP4Adjust the levelling legs

CAUTION

• The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.

The refrigerator can be levelled using the front legs that have a special screw (leveller) for levelling purposes. Use a flat-head screwdriver for levelling.

Diagram showing a mechanical device with a magnified inset highlighting a tool interacting with a component (no text or symbols present)

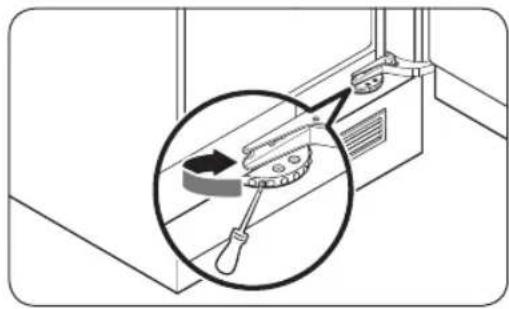

To adjust the height of the left side:

Insert a flat-head screwdriver into the leveller of the front left leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

Diagram of a mechanical device with a magnified inset showing a tool interacting with a component (no text or symbols present)

To adjust the height of the right side:

Insert a flat-head screwdriver into the leveller of the front right leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

Diagram showing two circular insets of a ship's hull with arrows indicating direction (no text or symbols)

NOTE

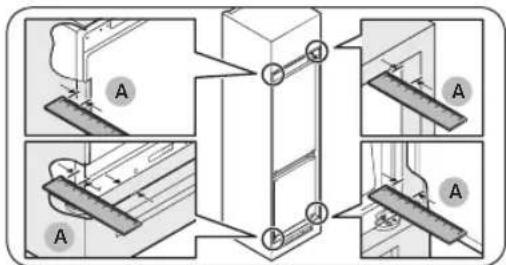

Make sure to secure a 41 mm (A: for both the sliding hinge and the fixed hinge) gap between the refrigerator and the closet or alcove. Then, fix the front legs using the screws.

English36-

Installation

Technical diagram showing mechanical assembly steps with labeled components A and numbered parts 1 to 5

STEP5Initial settings

By completing the following steps, the refrigerator should be fully functioning.

1. Remove the PE foam sheet on each shelf corner, which is attached to protect the refrigerator during transportation.
2. Open the door, and check if the interior light lights up.

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

1. Remove the PE foam on the magnet from the top of the door.

2. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor will run smoothly.

3. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

NOTE

When the refrigerator powers on, the alarm will sound. To turn off the alarm, press Freezer or Fridge.

Installation

STEP6 Temperature Alarm (applicable models only)

Type 1

• The refrigerator blinks '-' on the temperature display with an alarm if the freezer compartment is too warm. This may occur if the freezer becomes too warm after there has been a power failure.
• If this happens, press Freezer or Fridge. Whichever warmer temperature is displayed for 5 seconds. Then the actual temperature is displayed. To deactivate the alarm, press Door Alarm.

Type 2

- The refrigerator blinks the temperature indicator with an alarm if the freezer compartment is too warm. This may occur if the freezer becomes too warm after there has been a power failure. To deactivate the alarm, press Freezer or Fridge.

STEP7Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from the wall or the cabinet.
• The refrigerator is level and is sitting firmly on the furniture.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English38-

Operations

Feature panel

TYPE 1

Moist Care 8°C Fridge Vacation(3sec) 0102 Soft Freezing(-5°)/ Chill(-1°)/ Cool(2°) -88°C Freezer Cool Select+(3sec) 0304 Door Alarm POWER (3sec)

TYPE 2

No Frost 34 36 38 41 44 °C 1 2 3 5 7 °C Fridge | -8 -6 -2 1 5 °C Freezer | • Door Alarm • POWER Vacation(3sec) Power Freeze(3sec) 0304 0102

01 Fridge / Vacation

02 Freezer / Power Freeze / Cool Select+ *

03 Door Alarm

04 POWER

* applicable models only

NOTE

The LED indicators turn on all at once when the door is open, or turn off all at once when the door is closed.

Operations

01 Fridge / Vacation (3 sec)

Fridge

To adjust the fridge temperature, pressFridgeto select the corresponding temperature.You can change the temperature between 1 °C and 7 °C (default: 3 °C).Power Cool (Type 1)Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.To activate Power Cool, select temperature 1 °C, and then pressFridgeto select Power Cool. The corresponding indicator (Â)lights up, and the refrigerator will speed up the cooling process for you.To deactivate Power Cool, pressFridg again. Then, the temperature of the fridge will be set back to 7 °C.NOTEUsing Power Cool increases power consumption. Make sure you turn it off and return to the previous temperature if you don't intend to use it.

Vacation

Use the Vacation function if you are going on vacation or a business trip, or if you do not intend to use the fridge for an extended time. The fridge temperature will be kept under 17 °C, but the freezer remains active as previously set.To activate or deactivate the Vacation mode, press and holdFridgefor 3 seconds.NOTEMake sure to remove foods in the fridge compartment before using Vacation mode.The Vacation mode will be disabled if you adjust the temperature.

English40

02 Freezer / Power Freeze (3 sec) / Cool Select+ (3 sec)

Freezer

The Freezer button can be used to set the freezer temperature. Available temperatures are between -15 °C and -23 °C (default: -19 °C).NOTEYou cannot change the temperature in Cool Select+ mode.

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.Type 1To activate Power Freeze, select temperature -23 °C, and then press Freezerto select Power Freeze.The corresponding indicator (*) lights up, and the refrigerator will speed up the freezing process for you.When the Power Freeze process is complete, the corresponding indicator turns off and the freezer returns to the previous temperature setting.To deactivate Power Freeze, press Freezer again.The freezer returns to the pervious temperature setting.Type 2To activate Power Freeze, press and hold Freezer for 3 seconds to select Power Freeze.The corresponding indicator (*) lights up, and the refrigerator will speed up the freezing process for you.To deactivate Power Freeze, press and hold Freezer for 3 seconds again.The freezer returns to the previous temperature setting, and the indicator turns off.NOTEUsing Power Freeze increases power consumption. Make sure you turn it off and return to the previous temperature if you do not intend to use it.

Operations

Cool Select+(Type 1)

Each time you press and hold Cool Select+ for 3 seconds, the operating mode switches in this sequence:Freeze → Soft Freezing (-5 °C) → Chill (-1 °C) → Cool (2 °C)⚠ CAUTIONIf you switch the mode from Freezer to Cool Select+, the stored food may leak juice or liquid from the food.Do not store meat or fishery for an extended time in Cool Select+ mode. The food may freeze or spoil because of inappropriate temperature settings for the food to store.If the refrigerator recovers power from an extended time of inactivity, the Cool Select+ settings may be reset to factory defaults. Check out the Cool Select+ settings before using the refrigerator.

03 Door Alarm

Door Alarm

You can set the alarm for a reminder. If the door is left open for more than 2 minutes, the alarm will sound with the Alarm indicator blinking.You can toggle to enable and disable the alarm by pressing Door Alarm.

04 Power (3 sec)

POWER

To turn the refrigerator on, press and hold POWER for 3 seconds. Both the fridge and the freezer turn on, and do the lamps accordingly.If you press and hold POWER for 3 seconds again, the refrigerator (both the fridge and the freezer) turns off, and the room lamps also turn off.

English42-

Storage information

No Frost Below -18°C Months 6-12 4-6 1-2

The numbers marked in the bottom section of this figure indicate the storage period for the immediately above food item. For example, 4-6 months for fish.

To freeze food

1. Wrap the food airtight with suitable wrapping materials.
2. Seal the wrapping.
3. Label the wrapping with the content and date.

Wrapping materials

• Materials suitable for wrapping food: plastic film, polyethylene blown film, aluminium foil, and freezer tins.
• Materials not suitable for wrapping food: wrapping paper, greaseproof paper, cellophane, food garbage bags, and used shopping bags.

Sealing materials

Rubber bands, plastic clips, string, cold-resistant adhesive tape or similar. Bags and polyethylene blown film can be sealed with a film sealer.

Operations

Storage period of frozen food

The storage period differs with food types and storing temperatures. The following specification is based on a temperature of -18 °C (0 °F):

• Fresh poultry (whole chickens), fresh meat (steaks, roasts): up to 12 months
• Fish (lean fish, cooked fish), fresh shrimp, scallops, squid: up to 6 months
• Pizza, sausage: up to 2 months

NOTE

For more information, visit the FDA web site (http://www.fda.gov/).

Thawing

Frozen food can be thawed in the following ways:

• Naturally at room temperatures
• Naturally in the fridge
- By using an electric oven with or without heat support
- By using a microwave oven

NOTE

• Do not refreeze thawed food. Some parts of the food may not freeze completely.
• Do not store frozen food for longer than the max storage period.

English44

Maintenance

Handle and care

Shelves (fridge/freezer) / Shelf Wine (applicable models only)

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

1. Pull out the shelf (or shelf wine) a little. Then, while lifting the rear side, pull out.

Diagram of a bed tray with arrows indicating direction of movement or rotation (no text or symbols)

1. Twist the shelf (or shelf wine) diagonally to remove.

CAUTION

• The shelf must be inserted correctly. Do not insert upside down.
• Glass containers may scratch the surface of glass shelves.
• Do not insert a shelf in the shelf wine position. This may damage the refrigerator. (applicable models only)

Vegetable shelf (applicable models only)

Diagram of a mechanical component with two downward arrows indicating force or direction (no text or symbols)

- If your model has just one drawer in the fridge, the vegetable shelf just above the drawer has a line printed on it. When you store items on the vegetable shelf, make sure you put the items within the printed line.

Maintenance

Fridge guard / Variety guard

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

Hold the guard with both hands, and then lift up to remove.

CAUTION

To prevent accidents, empty the guards before removing

Fridge drawer / Freezer drawer

Diagram of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

Gently lift up the front of the drawer and slide out.

English46-

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

Replacement

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service centre.

WARNING

- The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.	Properly plug in the power cord.
	Temperature control is not set correctly.	Set the temperature lower.
	Refrigerator is located near a heat source or direct sunlight.	Keep the refrigerator away from direct sunlight or a heat source.
	Not enough clearance between refrigerator and sides/rear.	Make sure to secure at least 7 mm of space from the rear and side walls of the cabinet.
	Vacation mode is activated. Deactivate vacation mode.
	The refrigerator is overloaded. Food is blocking the refrigerator vents.	Do not overload the refrigerator. Do not allow food to block ventilation.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Interior wall is hot.	Refrigerator has heat-proof piping in the interior wall.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

English48-

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	·Food is blocking the vents.	·Make sure no food blocks the refrigerator vents.
Frost on interior walls.	·Door is not closed properly.	·Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	·Fruits or vegetables are stored in the Fresh/Chef Zone.	·The Fresh/Chef Zone is only for meat/fish.
Excessive frost build-ups in the freezer.	·The door is not sealing properly because the door gasket was not reversed after reversing the doors.	·Detach the door gasket and then attach it after rotating it 180°.

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	• If door is left open, moisture enters the refrigerator.	• Remove the moisture and do not open the door for a long time.
	• Food with high moisture content.	• Make sure food is wrapped airtight.

Troubleshooting

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

Clicking! or Chirping! Buzzing!

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

SSSRRR! Whir!

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

HISS!

English50-

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

Bubbling!

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Cracking!

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

Appendix

Safety Instruction

- For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer.

Install Instruction

For refrigerating appliances with climate class

Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.

The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.

You can find climate class on label inside of your refrigerator

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient Temperature range (°C)
		IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN	+10 to +32	+10 to +32
Temperate N +16	to +32 +16	to +32
Subtropical ST +16	to +38 +18	to +38
Tropical T +16 to	+43 +18 to	+43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

English52-

Temperature Instruction

Recommended Temperature

The optimal temperature setting for food storage:

• Fridge: 3 °C
• Freezer: -19 °C

NOTE

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 ^ .

Power Cool

Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don't need it and return the freezer to your original temperature setting.

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating.

Placement of Foods

Shelves	Shelves should be adjustable to accommodate a variety of packages.
Specialized compartment (applicable models only)	Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions.Crispers are equipped with controls devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.

Appendix

Stored on the door	Don't store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment	You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Milk products

Product Refrigerator Freezer
Milk 1 week 1 month
Butter 2 weeks 12 months
Ice cream - 2-3 weeks
Natural cheese 1 month 4-6 months
Cream cheese 2 weeks Not recommended
Yogurt 1 month	-

Meat

Product Refrigerator Freezer
Fresh roasts, steaks, chops	3-4 days	2-3 months
Fresh ground meat, stew meat	1-2 days	3-4 months
Bacon	7 days	1 month
Sausage, Raw from pork, beef, turkey	1-2 days	1-2 months

English54

Poultry / Eggs

ProductRefrigerator	Freezer
Fresh poultry 2 days 6-8 months
Poultry salad 1 day -
Eggs, Fresh in shell 2-4 weeks	Not recommended

Fish / Seafood

ProductRefrigerator	Freezer
Fresh fish 1-2 days 3-6 months
Cooked fish 3-4 days 1 month
Fish salad 1 day Not recommended
Dried or pickled fish 3-4 weeks	-

Fruits

ProductRefrigerator	Freezer
Apples	1 month	-
Peaches	2-3 weeks	-
Pineapple	1 week	-
Other fresh fruit	3-5 days	9-12 months

Vegetables

ProductRefrigerator	Freezer
Asparagus	2-3 days	-
Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days	-
Cabbage, cauliflower, celery, cucumbers, lettuce	1 week	-
Carrots, beets, radishes	2 weeks	-

Appendix

Information for model and ordering spare parts

Model information

To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. Energy Labelling information of the model is shown

Part information

• The minimum period during which spare parts, necessary for the repair of the appliance, are available
• 7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers)
• 10 Years door gaskets
• The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.
• Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative
• You can find professional repair information on http://samsung.com/support. You can find user servicing manual on http://samsung.com/support.

English56

Memo

Memo

Memo

SAMSUNG

ContactSAMSUNGWORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

CountryContactCenterWebSite
FRANCE	01 48 63 00 00	www.samsung.com/fr/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/bc_fr/support (French)
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
AUSTRIA	0800 72 67 864 (0800-SAMSUNG)	www.samsung.com/at/support
SWITZERLAND 0800 726 786		www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
NORWAY	21629099	www.samsung.com/no/support
SWEDEN	0771 726 786	www.samsung.com/se/support

DA68-04341R-01

Frigorifero

Manuale dell'utente

BRB26*0*/BRB26*1*/BRB30*0*/BRB30*1*

SEB/SEG Dispositivo da incasso

SAMSUNG

SAMSUNG

Indice

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

A B C D E F G

	BRB26'0" / BRB26'1"	BRB30'0" / BRB30'1"
A 540 ± 2 540 ± 2
B 550 ± 2 550 ± 2
C 1775 ± 2 1935 ± 2
D 987 1147
E 735 735
F 671 671
G 621 621

(unità : mm)

Italiano32-

Technical diagram illustrating a vertical structure with labeled components A, B, C and annotations D, including safety warnings and no symbols.

A Min. 590
B Min. 560
C Min. 580
D 240

(unità : mm)

NOTA

Two 3D diagrams of a rectangular container with internal compartments and directional arrows indicating movement (no text or symbols)

NOTA

Simple line drawing of a diagonal metal rod or beam (no text or symbols)

NOTA

Diagram of a mechanical component with labeled point A, showing internal parts and a rectangular body (no text or symbols beyond label)

NOTA

Diagram showing two refrigerator doors with directional arrows indicating movement, one marked with a circle and the other with a prohibition sign (no text or symbols present)

Diagram of a device panel with labeled ports A and B, showing internal components and a close-up view of the component.

Diagram showing a mechanical device with a magnified inset highlighting a tool interacting with a component (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a tool interacting with a component (no text or symbols present)

Diagram showing two circular insets of a ship's hull with arrows indicating direction (no text or symbols)

NOTA

Technical diagram showing four sequential steps of a mechanical assembly or installation, with labeled components A and directional arrows indicating motion.

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

No Frost Below -18°C Months 6-12 4-6 1-2

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram of a bed tray with two arrows indicating clockwise motion (no text or symbols)

Diagram of a mechanical component with two downward arrows indicating direction (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a black arrow indicating a directional movement (no text or symbols present)

scricchiolio

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

A B C D E F G

	BRB26'0" / BRB26'1"	BRB30'0" / BRB30'1"
A 540 ± 2 540 ± 2
B 550 ± 2 550 ± 2
C 1775 ± 2 1935 ± 2
D 987 1147
E 735 735
F 671 671
G 621 621

(enhet: mm)

Norsk26

Technical diagram illustrating five different installation or cleaning methods for a vertical structure, labeled A, B, C, D, and a circle with prohibition signs.

A Min. 590
B Min. 560
C Min. 580
D 240

(enhet: mm)

MERK

Hvis du installerer kjøleskapet i et skap som er 560 mm dypt, må du sørge for at strømledningen er på siden av kjøleskapet før du kobler den til et strømuttak. Hvis strømledningen er bak på kjøleskapet, kan det senke energieffektiviteten.

Norsk30-

Kabinettype

B. Overheng frontpanel

Norsk32-

TRINN2Underlag

Diagram showing two refrigerator units with directional arrows indicating movement, one marked with a circle and the other with a prohibition sign (no text or symbols present)

Technical diagram of a device panel with labeled components A and B, showing internal structure and connection to a control panel.

Diagram showing a mechanical device with a magnified inset highlighting a tool interacting with a curved component (no text or symbols present)

Diagram of a kitchen utensil with a magnified inset showing a tool interacting with a surface (no text or symbols)

Diagram showing two circular insets of a mechanical or structural component with arrows indicating motion or force direction (no text or symbols present)

MERK

Technical diagram showing four sequential steps of a mechanical assembly or installation, with labeled components A and directional arrows indicating motion.

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

No Frost Below -18°C Months 6-12 4-6 1-2

Diagram of a roof-mounted rack with directional arrows indicating flow or movement (no text or symbols)

1. Trekk ut hyllen (eller vinstativet) litt. Dra deretter ut mens du løfter baksiden.

Diagram of a bed tray with arrows indicating direction of movement or flow (no text or symbols)

Diagram of a mechanical component with two downward arrows indicating direction (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

Klikking! eller Kvitring! Summing!

SSSRRR! Brumming!

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

A B C D E F G

	BRB26*0*/BRB26*1*	BRB30*0*/BRB30*1*
A 540	± 2 540 ± 2
B 550	± 2 550 ± 2
C 1775	± 2 1935 ± 2
D 987	1147
E 735	735
F 671	671
G 621	621

(enhet: mm)

Installation

Two identical 3D diagrams of a device inside transparent chambers, showing internal components and directional arrows (no text or symbols)

Simple line drawing of a diagonal metal rod or beam (no text or symbols)

Diagram of a mechanical component with labeled section A, showing internal parts and a rectangular body (no text or symbols beyond label)

OBS!

Installation

B 01 03 02 A

OBS!

Diagram showing two refrigerators with directional arrows indicating movement or cooling (no text or symbols present)

Technical diagram of a device panel with labeled components A and B, showing internal structure and connection to a control panel.

Diagram showing a mechanical device with a magnified inset highlighting a tool (no text or symbols present)

Diagram showing a tool interacting with a device, with an arrow indicating the process (no text or symbols present)

Diagram showing two circular insets of a mechanical device with arrows indicating motion or force direction (no text or symbols present)

OBS!

Technical diagram showing mechanical assembly steps with labeled components A and directional arrows indicating movement or assembly.

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

01 Fridge (Kylskåp) / Vacation (Semester)

02 Freezer (Frys) / Power Freeze (Högeffektsfrys) / Cool Select+ *

03 Door Alarm (Dörralarm) 04 POWER (STRÖM)

No Frost Below -18°C 6-12 Months 4-6 1-2

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram of a bed tray with arrows indicating direction or movement, no text or symbols present

Diagram of a mechanical component with two downward arrows indicating direction (no text or symbols)

Diagram of a mechanical assembly with a box and clamping mechanism, no text or symbols present

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)
