FC-22 - Ultrasonic cleaner Fysic - Free user manual and instructions

Product type	Ultrasonic cleaner
Brand	Fysic
Model	FC-22
Ultrasonic frequency	43 kHz
Power supply	230 V ~ 50 Hz
Tank capacity	Approx. 0.6 liters (up to the MAX mark)
Cycle duration	5 minutes (automatic shut-off)
Construction	Stainless steel tank, transparent lid
Included accessories	Inner basket
Weight	Approx. 1.5 kg
Dimensions (L×W×H)	Approx. 20 × 15 × 15 cm
Noise level	Low (ultrasonic waves inaudible)
Maintenance	Clean the exterior with a damp cloth, no internal maintenance required
Recommended use	Glasses, jewelry, waterproof watches, dentures, etc.
Precautions	Do not use without water, do not clean living beings, avoid flammable products
Automatic shut-off	Yes, after 5 minutes

Frequently Asked Questions - FC-22 Fysic

What items can I clean with the Fysic FC-22?

You can clean glasses and frames, jewelry (gold, silver, gemstones, pearls), waterproof watches, dentures, razor heads, felt pens, and fragile mechanical parts. Avoid items with damaged coating or contact lenses unless with non-aggressive liquid.

Can I use a liquid other than water?

Yes, you can use special ultrasonic cleaning liquids, but never directly flammable or corrosive products in the tank. Use a separate glass container for these liquids.

How long does a cleaning cycle last?

The default cycle is 5 minutes. The device stops automatically. You can also stop it manually by pressing the on/off button.

What to do if items are very dirty?

Place items with the dirtiest side down, do not stack them. You can repeat the cleaning cycle several times if necessary.

Can I clean glasses with fragile frames?

Yes, but avoid direct contact of frames with the bottom of the tank to prevent scratches. If the coating is already worn, cleaning may further damage it. If in doubt, do not use the device.

Does the device heat up during use?

It is normal for the top edges of the tank to become hot during prolonged use. If the water gets too hot, take a 3-minute break between cycles to let it cool.

Why should the water be degassed?

Degassed water (boiled, decalcified or distilled) allows for better cleaning results. If the water has not been used for a while, run the device 3 empty cycles before inserting items.

What to do if the device does not work?

Check that the tank contains enough water (up to the MAX mark) and that the device is plugged into a 230V outlet. If visible transport damage is present, do not plug in the device.

How to maintain the ultrasonic cleaner?

No special maintenance is required. Clean the exterior with a damp cloth. Do not use chemical products. Empty the water if the device remains unused for a long time.

Can I clean body parts or animals?

No, never. The device is designed only for inanimate objects. Do not touch the liquid during operation.

USER MANUAL FC-22 Fysic

Illustration of a smart appliance with a power cord and power plug, no text or symbols present

NL

INLEIDING

Diagram of a smart appliance with labeled parts including a power plug, battery pack, and control panel

Illustration of a hand washing a small appliance with a red prohibition symbol (no text or labels)

VOORBEELDEN VAN GESCHIKTE VOORWERPEN VOOR REINIGING

Simple line drawing of a cylindrical object with a circular hole and a button, no text or symbols present.

Line drawing of two identical plastic baskets with internal compartments and a handle (no text or symbols)

Ultrasonic Cleaner FC-22

Power Supply: 220-240V\~50/60Hz

Power: 50W

Frequency: 43KHz

Tank Capacity: 500ml

Timer: ± 5 mins

Dimensions: 200×190×126mm

Net Weight: 720g

Illustration of a small electric heater with a power outlet and a power button, no text or symbols present.

FR

INTRODUCTION

Diagram of a smart appliance with labeled parts including a power plug, battery pack, and control panel

Illustration of a hand holding a pot with a red prohibition symbol (no text or symbols present)

EXEMPLES D'OBJETS QUI PEUVENT ÊTRE NETTOYÉS

Diagram of a cylindrical container with a circular arrow and a small button, no text or symbols present

Line drawing of two identical plastic baskets with internal compartments and a handle, no text or symbols present.

Ultrasonic Cleaner FC-22

Power Supply: 220-240V\~50/60Hz

Power: 50W

Tank Capacity: 500ml

Timer: ± 5 mins

Dimension of Machine: 200×190×126mm

Net Weight: 720g

Illustration of a small electric heater with a power outlet and power button (no text or symbols)

D

EINFÜHRUNG

Diagram of a smart appliance with labeled parts including a power plug, battery pack, and control panel

Illustration of a hand holding a small container with a red prohibition symbol crossed out (no text or symbols present)

Technical line drawing of a cylindrical tank with a circular component on top (no text or symbols)

Line drawing of two identical plastic basket designs with side supports and a handle (no text or symbols)

Ultrasonic Cleaner FC-22

Power Supply: 220-240V\~50/60Hz

Power: 50W

Tank Capacity: 500ml

Timer: ± 5 mins

Dimension of Machine: 200×190×126mm

Net Weight: 720g

GB

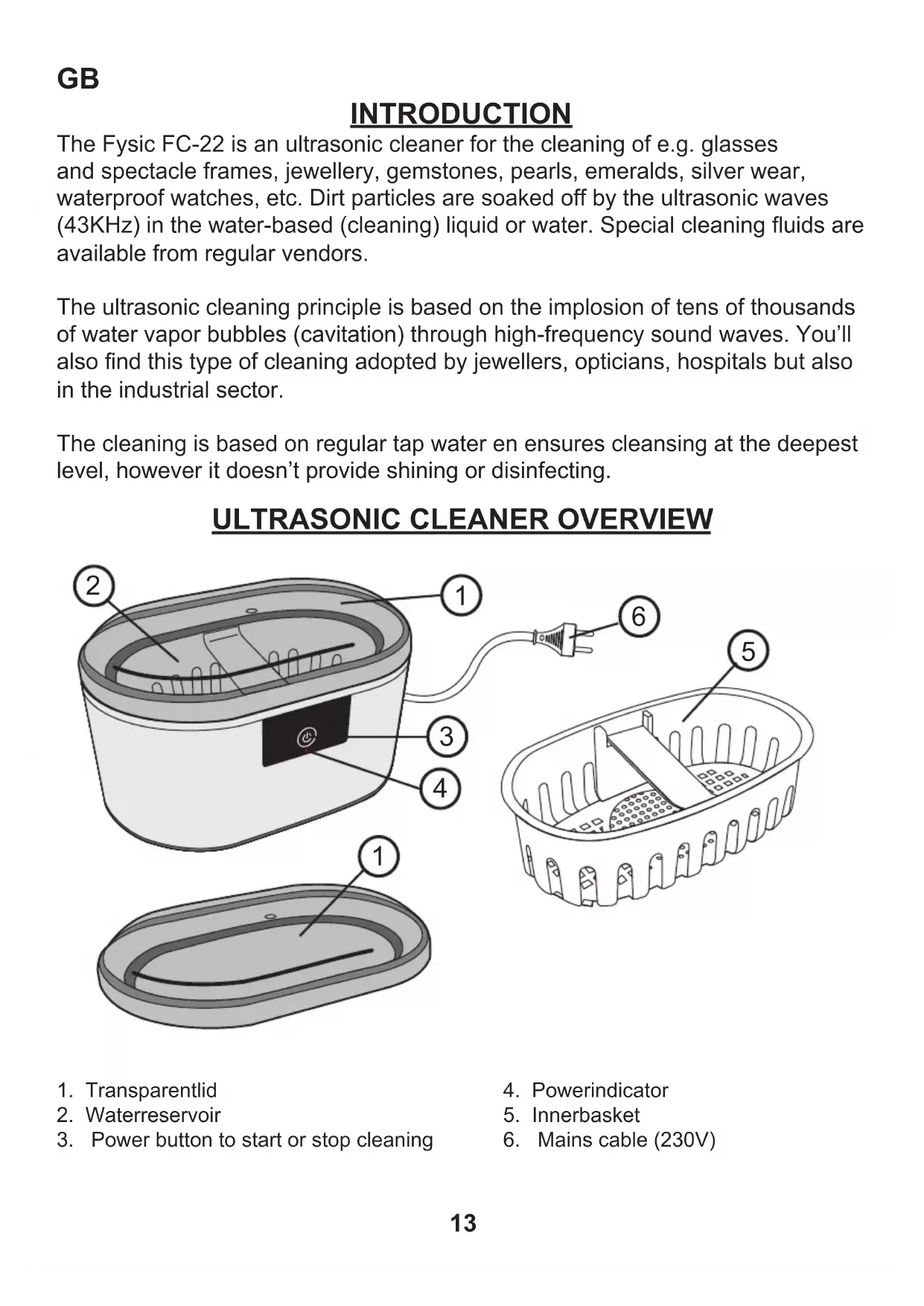

INTRODUCTION

The Fysic FC-22 is an ultrasonic cleaner for the cleaning of e.g. glasses and spectacle frames, jewellery, gemstones, pearls, emeralds, silver wear, waterproof watches, etc. Dirt particles are soaked off by the ultrasonic waves (43KHz) in the water-based (cleaning) liquid or water. Special cleaning fluids are available from regular vendors.

The ultrasonic cleaning principle is based on the implosion of tens of thousands of water vapor bubbles (cavitation) through high-frequency sound waves. You'll also find this type of cleaning adopted by jewellers, opticians, hospitals but also in the industrial sector.

The cleaning is based on regular tap water en ensures cleansing at the deepest level, however it doesn't provide shining or disinfecting.

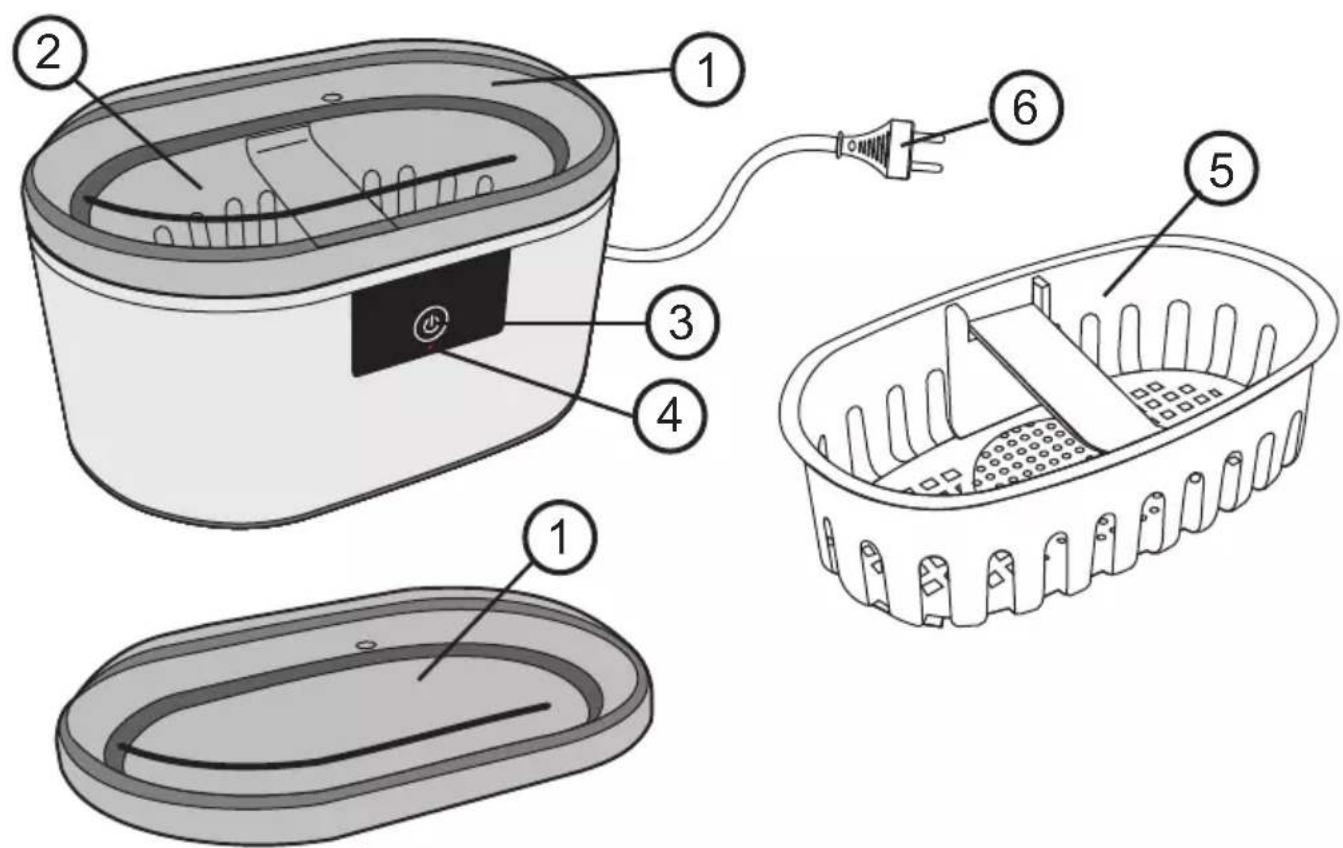

ULTRASONIC CLEANER OVERVIEW

Diagram of a smart appliance with labeled parts including a power plug, battery pack, and control panel

1. Transparentlid
2. Waterreservoir

3. Power button to start or stop cleaning

4. Powerindicator

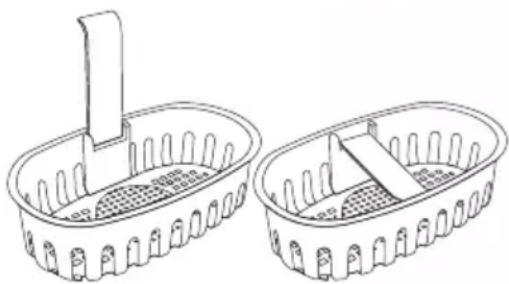

5. Innerbasket
6. Mains cable (230V)

SAFETY INSTRUCTIONS

• The ultrasonic cleaner may only be used with a mains voltage of 230V.
• Never directly fill the reservoir with flammable or aggressive chemicals (acids, etc.), but use a separate glass container (not included).
• Never reach into the cleaning liquid during the ultrasonic cleaning process.
• Never use the device for cleaning living beings or body parts (fingernails).
• If you've noticed any transportation damage, do not connect the device to the mains.
• Insert heavily polluted objects with the dirty side downwards and don't stack them. You may need to repeat the cleaning process.
• The ultrasonic cleaner may only be used when filled with an adequate amount of water (level 2/3, reservoir approx. 3/4 full, up to the MAX indication).

Illustration of a hand washing a cup with a red prohibition symbol (no text or labels)

It's normal for the upper edges of the reservoir to become warm during prolonged use.

EXAMPLES OF SUITABLE OBJECTS FOR CLEANING

• Glasses and spectacle frames (avoid direct contact between the spectacle glasses and the bottom of the reservoir to prevent scratching). Pay attention to any loose pieces or any damage to the coating of the frame or to the glass. In this case, the coating may be further damaged during the cleaning process.
• Contact lenses (hard and soft) in combination with multi-purpose no-rub liquid.
  • Gold or silver jewellery, gemstones, emeralds and pearls.
• Felt-tip pens, ink cartridges and accessories.
• Dentures, brackets, instruments, etc.
• Shaving heads of electric razors.
• Delicate mechanical parts of e.g. clocks or for model building.

OPERATION

1. Open the lid.

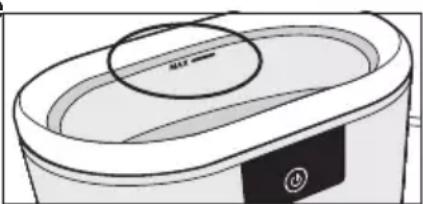

2. Fill the reservoir with cold water. Minimum 3/4 full up to the "MAX" indicator in the reservoir. Having the FC-22 operate without water or liquid will damage the device.
3. Place the object you want to clean in the reservoir (if necessary, use the inner basket. You may also use a glass jar or other container. This container must be provided with water or cleaning liquid. In this way, the water in the reservoir stays clean.
4. Close the lid.
5. Make sure your hands are dry and insert the plug into a wall socket. The power indicator will briefly illuminate to indicate that the device is switched on.

Illustration of a cylindrical container with a circular label and a small button, no text or symbols present.

Line drawing of two identical plastic baskets with internal compartments and a handle, no text or symbols present.

1. Press the “∪” button to start cleaning. The ultrasonic cleaner will now start the cleaning process. The indicator remains lit during this process. The device will stop cleaning after approx. 5 minutes. You may press the “∪”, button to stop the process beforehand. The cleaning process will stop.
2. Make sure your hands are dry and remove the plug from the wall socket.
3. Open the lid.
4. Remove the cleaned object from the water reservoir.
5. Empty the water reservoir when not in use for a prolonged period of time or when the water is heavily polluted.

INSTRUCTIONS

When filling with fresh tap water, based on the lime content, please keep in mind the degassing time (optimal cleaning results are obtained using degassed water, e.g. boiled, decalcified or distilled). In other cases we recommend you, for degassing the water, to fill the device with water and have it operate for 3 cycles before inserting any objects. When the water hasn't been used for some time, it's recommended to degas the water again.

PROLONGED USE

Keep in mind that when used for a longer period of time (starting the cleaning process multiple times in a row) the water and the reservoir may become warm. In this case, please take a break to allow the water and the reservoir to cool down (we recommend a 3 minutes pause in between cleaning processes). Using the device with the tank being too warm may affect its life span and may loosen the vibration element.

MAINTENANCE

The FC-22 is maintenance free and thus requires no maintenance.

If necessary you may cleaning the exterior with a moist cloth; never use chemical cleaning agents.

Don't place the cleaner on surfaces treated with cellulose; the rubber feet may leave tracks.

ATTENTION

Pay attention while cleaning glasses. An already loosened coating or colour layer on the glass or frame may be further loosened when using the FC-22. When in doubt, don't use the FC-22 for glasses with coating.

Specifications:

Ultrasonic Cleaner FC-22

Power Supply: 220-240V\~50/60Hz

Power: 50W

Tank Capacity: 500ml

Timer: ± 5 mins

Dimension of Machine: 200×190×126mm

Net Weight: 720g
