| Product type | LED beacon |
| Brand | Perel |
| Model | EFL91 |
| Dimensions (L x W x H) | 160 x 160 x 128 mm |
| Weight | 600 g |
| Material | ABS |
| Power supply | 5 V DC via USB-C |
| Connectivity | USB-C with USB-C to USB-A adapter included |
| Operating mode | Single flashing (non-modifiable) |
| Installation | Magnets, suction cup, screws (3 holes Ø3 mm) |
| Protection rating | IP56 |
| Operating temperature | -20 °C to 60 °C |
| Light source | Non-replaceable LED |
| Usage | Indoor and outdoor |
| Cable | Coiled USB-C cable |
| Warranty | 24 months (EU consumers) |
| Safety | Do not open, comply with local regulations regarding the use of flashing lights. |
| Maintenance | Clean with a soft, dry cloth. Do not use abrasive products. |
| Repairability | No user-serviceable parts. Contact an authorized dealer. |
| Environmental information | Do not dispose of with household waste. Recycle in accordance with local regulations. |
Frequently Asked Questions - EFL91 Perel
User questions about EFL91 Perel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Beacon light in PDF format for free! Find your manual EFL91 - Perel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EFL91 by Perel.

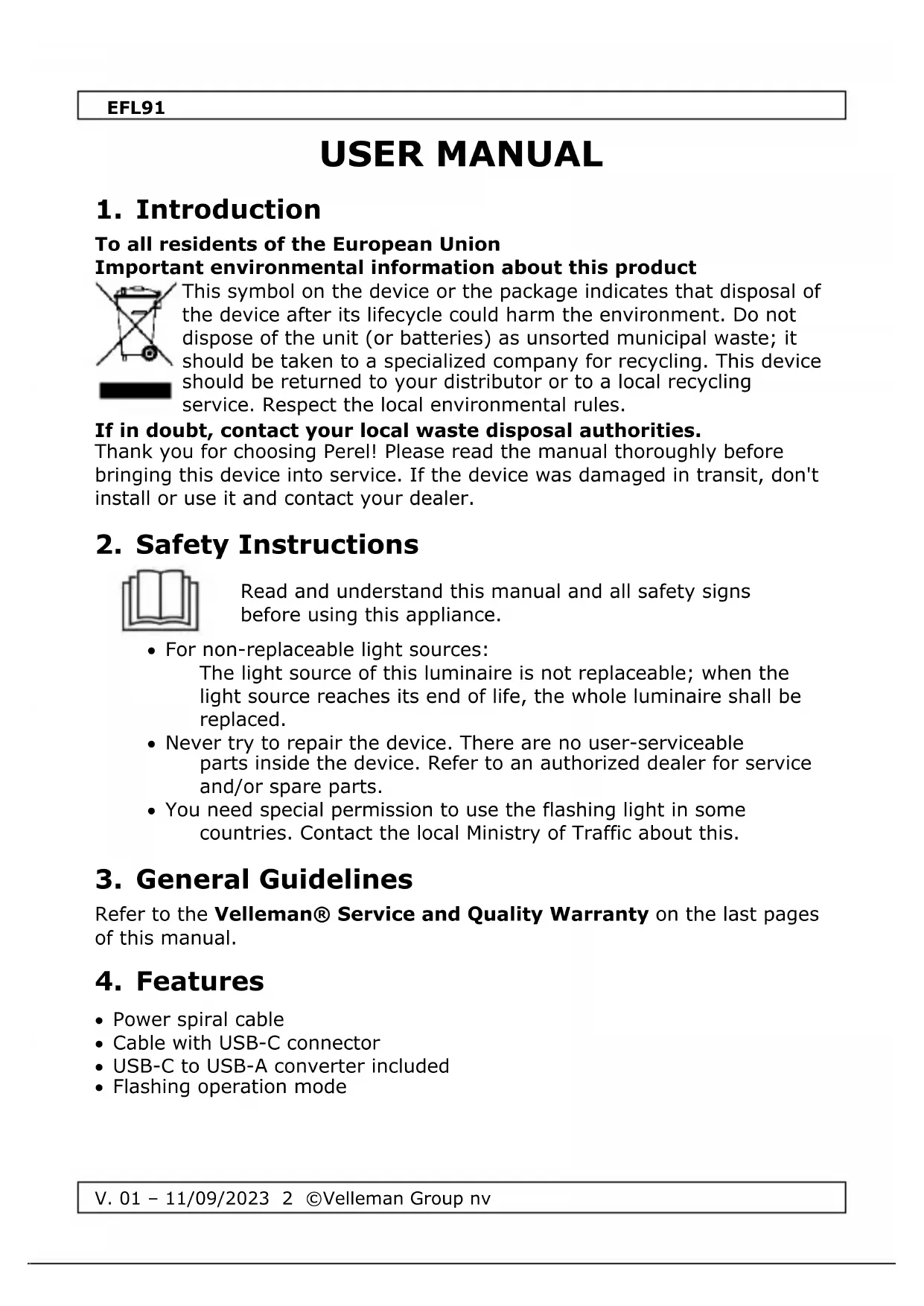

USER MANUAL EFL91 Perel
GEBRUIKERSHANDLEIDING 5
MODE D'EMPLOI 8
MANUAL DEL USUARIO 11
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
- For non-replaceable light sources:
The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced. - Never try to repair the device. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
- You need special permission to use the flashing light in some countries. Contact the local Ministry of Traffic about this.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
4. Features
- Power spiral cable
- Cable with USB-C connector
• USB-C to USB-A converter included - Flashing operation mode
5. Operation
Mounting:
The LED flashing light has a triple Installation Mode:
You can mount it on a metal surface via the built-in magnets, as well as on any smooth surface via the suction cup.
On rough surfaces, you can also mount the flashlight with 3 screws. The mounting holes are 3 mm in diameter.
Operation:
The LED flashing light with USB connector has 1 mode flashing mode and cannot be changed. The LED blinker starts up as soon as the USB connector receives power.
Connection:
There is a standard USB-C connection and a USB-A to USB-C conversion plug is also included. This allows you to connect it to a classic USB-A connector as well.
- Technical Specifications
| Depth unit | 160 mm |
| Height unit | 128 mm |
| Width unit | 160 mm |
| Weight Unit | 600 g |
| Material | ABS |
| Input voltage rating VDC | 5 V |
| USB type | USB-C, USB-C to USB-A converter |
| Usage location | Indoor & outdoor |
| IP rating | IP56 |
| Operating temperature range | -20-60 °C |
| Diameter lantern | 160 mm |
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.
For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu.
The information in this manual is subject to change without prior notice.
EFL91
© COPYRIGHT NOTICE The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
GEBRUIKERSHANDLEIDING
1. Inleiding
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
• Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
- Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
