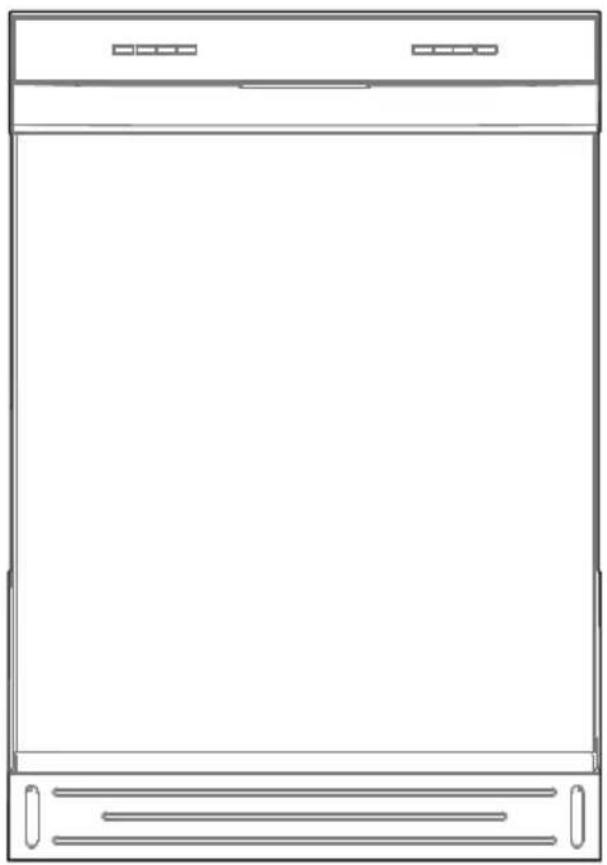

USER MANUAL MDF24P1BWW MIDEA

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug if provided with the appliance. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician. For a grounded, cord-connected appliance: This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. If this appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug, the plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. For a permanently connected appliance: This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

When using your dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.

Use the dishwasher only for its intended function.

Use only detergents or rinse/wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

When loading items to be washed:

Locate sharp items so that they are not likely to damage the door seal.

Load sharp knives with the handles up to reduce the risk of cut- type injuries.

Do not wash plastic items unless they are marked “Dishwasher Safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

Items that are not dishwasher safe may melt and create a potential fire hazard.

Do not touch the heating element during or immediately after use.

Do not operate your dishwasher unless all enclosure panels are properly in place.Ć "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !

Do not tamper with controls.

Do not abuse, sit on, or stand on the dishwasher door, or dish racks.

To reduce the risk of injury, do not allow children to play in or on a dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed by a qualified service technician using only original equipment factory replacement parts.

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Keep young children and infants away from dishwasher when it is operating.

Do not use the dishwasher if it has a damaged power line or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.

This manual does not cover every possible condition or situation that may occur.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

Do not use dishwasher until completely installed.

Do not push down on open door.

.+1(!/$++0%*# State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm

Before you throw away your old appliance, remove the door or lid so that children cannot hide or get trapped inside your old appliance.

Failure to follow these instructions can result in death or brain damage.

Never use harsh chemicals to clean your dishwasher. Some chloride- containing products can damage your dishwasher and may present health hazards!

Never use steam cleaning products to clean your dishwasher. The manufacturer will not be responsible for the possible damages or consequences.

To avoid possible dishwasher damage, do not use harsh chemicals, abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels to clean your dishwasher’s exterior door panel. Your dishwasher’s exterior door panel can be damaged by doing so.

It is highly recommended that the user become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or contact your installer for more information.

If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.

NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.

Protect your dishwasher from the elements. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.

Not for outdoor use.Ĉ "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock. This dishwasher is designed for operation on an adequately wired individual 120 V, 60 Hz, 15- or 20-amp fused electrical supply with copper wire only. It is recommended that a time-delay fuse or circuit breaker is used, and that a separate circuit serving only this appliance is provided. If an outlet is used, the outlet should be placed in adjacent cabinet.

Install where dishwasher is protected from the elements. Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. For winter storage information, see “Storing” in the “Dishwasher Care” section.

Install and level dishwasher on a floor that will hold the weight and in an area suitable for its size and use.

The water supply temperature should be 120°F to 150°F (49°C to 66°C).

The water supply must maintain water pressure between 20 and 80 psi for sufficient flow.

6DIHW\ 3DUWVDQG 6WDUW8S

*XLGH 'LVKZDVKHU /RDGLQJ 'LVKZDVKHU 8VH 'LVKZDVKHU

"!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ.!.+1(!/$++0%*#SPECIFICATIONSCapacity: 12 Place SettingsDimensions (WxDxH):Weight Unpacked: Power Supply: 120 volts, 60 HzRated Power Usage: Wash motor 50 W Heater 840 WWater Feed Pressure: 20 - 80 psi (138 - 552 kP) Your dishwasher has a multiple filter system, which helps your dishwasher perform better using less water and less energy.The filter system includes three filters that work in combination to separate dirty and clean water into different chambers. a Filter Location

Your dishwasher has a Smart Wash system which can be used by selecting the Auto cycle. The Smart Wash system senses the soil level of the load and adjusts the wash cycle accordingly. Your dishwasher can determine the type of cycle required to clean the dishes and will clean more efficiently every time. 23 3/5" x 22 7/10" x 33 3/4" (600x576x85mm)āĀ "!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

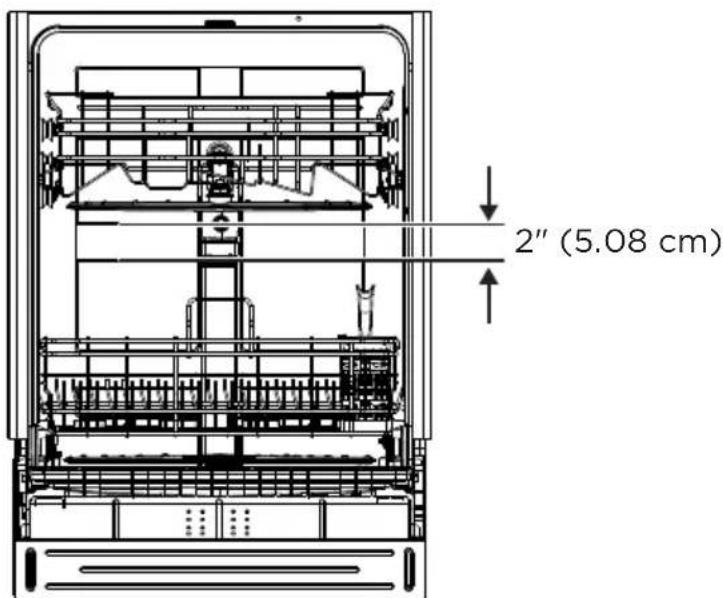

The Adjustable Upper Rack feature allows you to load taller items in either the upper or lower rack. The upper rack of your dishwasher can be adjusted 2" (5.08 cm). Adjusting the clearance of the Upper Rack increases or decreases the clearance of the lower rack, as shown. For instructions, see the “Adjustable Upper Rack” section. 2" (5. 08 cm)āā "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ.!.+1(!/$++0%*#

Read this entire User Manual. You will find important safety information and useful operating tips. ƫƫƫ Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. The dishwasher fills with water covering the filter area. Water is then pumped through the multiple filters and spray arms. Soil particles are separated from the water and go down the drain as the water is pumped out and replaced with clean water. The number of water fills will vary depending on the cycle selected. ƫƫƫ

1. Check the filters for debris that may have been introduced from the

packaging or during installation. See the “Clean Filters” section.

2. Add Rinse Aid. See “Proper Use of Rinse Aid.”

ƫƫƫ NOTE: To decrease cycle time and possibly improve performance, turn on the hot water faucet nearest to the dishwasher until the water runs hot. Turn off the water

Load dishwasher. See “Dishwasher Loading.” Add detergent. See “Proper Use of Detergent.” Close the door firmly to latch. 4 Select desired CYCLE and OPTIONS. See “Cycle and Option Charts.”

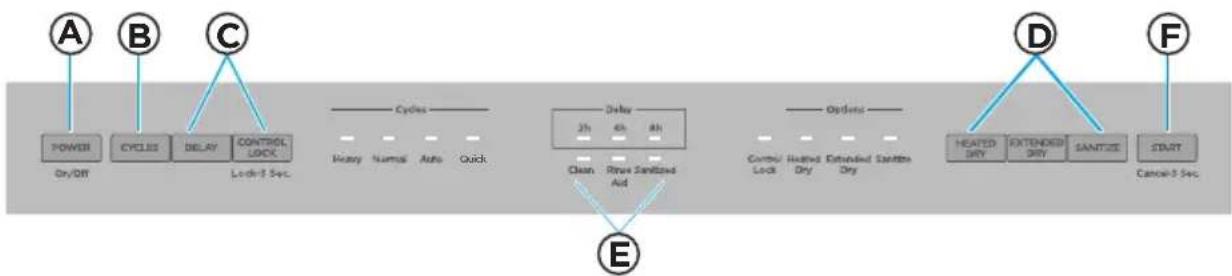

• Only the Options available for the Cycle selected will illuminate.

• The controls of the selected Cycle and Options will glow to indicate they are selected. Press START.

Quick Quickāă "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ .+1(!/$++0%*# ƫƫƫ ƫ ƫ Options enhance the wash cycle. Some Options are available with only certain Wash Cycles. Refer to the “Cycle and Options Charts” to see which Options are available for the wash cycle you selected.

Press the desired Option control(s). The Option control(s) illuminates to indicate which option(s) have been selected.

WARNING: Only sanitizing cycles have been designed to meet the

requirements for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a certified machine have passed the sanitization performance test. Delay The Delay Time feature allows you to program the dishwasher to begin the selected wash cycle ĂČƫąƫ+.ƫĉƫƫ hours later. Press the DELAY control repeatedly to toggle between ( Ăh/ą$ĥĉh ).The LED next to the selected time will illuminate. NOTE: To cancel the Delay feature, press and hold the START control for 3 seconds to Cancel. To begin the wash cycle immediately, press START again. Control Lock Use to lock all controls and prevent children from accidently changing the dishwasher cycle or starting the dishwasher.

• Press and hold for 3 seconds Control Lock to either activate or cancel the Control Lock option. After the function is selected the control lock icon will illuminate. If the the function is canceled, the control lock icon will light off. Sanitize The sanitize option sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for use in licensed food establishments. When the Sanitize option is selected, the water temperature will reach 156.2°F (69°C) maximum. The Sanitize Control illuminates to indicate when the Wash cycle with the Sanitize option is completed. The light will turn off after the door has been opened for 30 seconds. NOTE: It is possible that the water will not reach 156°F (69°C) in the Sanitize mode, if the temperature of the incoming hot water does not meet the minimum requirement of 120°F (49°C). Heated Dry When the Heated Dry option is selected, the heater will work during the drying process.

The cycle will begin. PAUSE - If you need to pause or cancel a dishwasher cycle in process: IMPORTANT: Open the door slightly, and then wait for the spray arms and wash action to stop before opening the door completely. Doing this will help keep you from being splashed with hot water. Open the door slightly and wait a few seconds until the wash action stops. Open the door to add or remove items. Close the door and then Press START to resume the wash cycle. CANCEL - To cancel a cycle when the dishwasher is running, press and hold Start for 3 seconds.

Rinse Aid The Rinse Aid indicator light illuminates when the rinse aid level is low. Rinse Aid should be added to the Rinse Aid dispenser. Sanitized The Sanitized indicator light illuminates when the cycle using the Sanitize option is finished. The light turns off turns off when the door is opened and then closed or Turns on after a cycle is finished. Turns off when the door is opened and any button is pressed. then closed or any button is pressed. Clean Start - Close the door and press Start.

Extend Dry, Sanitize Heated Dry or Extend Dry, Sanitize Heated Dry or Extend Dry, Sanitize Heated Dry or

Empty liquids from glasses and cups.

Remove leftover food, bones, toothpicks and other hard items from the dishes and discard.

It is not necessary to hand-rinse dishes before loading them into the dishwasher with the following exceptions:

Foods such as mayonnaise, mustard, vinegar, lemon juice and tomato-based products may discolor stainless steel and plastics if allowed to remain on them for any length of time.

Burned-on foods should be loosened before loading the cookware into the dishwasher.

It is IMPORTANT for the water spray to reach all soiled surfaces.

Load dishes so they are not stacked or overlapping if possible. For best drying results, water must be able to drain from all surfaces.

Load heavy pots and pans carefully. Heavy items can dent the stainless steel interior of the door if they are dropped or bumped.

Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not interfere with the spray arm rotation.

Make sure both the upper and lower spray arms are not blocked and move freely.

To avoid thumping/clattering noises during operation:

Make sure lightweight items are secured in the racks.

Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not touch interior walls or interfere with the rotation of the spray arm.

Load dishes so they do not touch one another. NOTE: For built-in models, keep sink drain plugs closed during dishwasher operation to prevent noise transfer through drains. "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ.!.+1(!/$++0%*# āćƫ

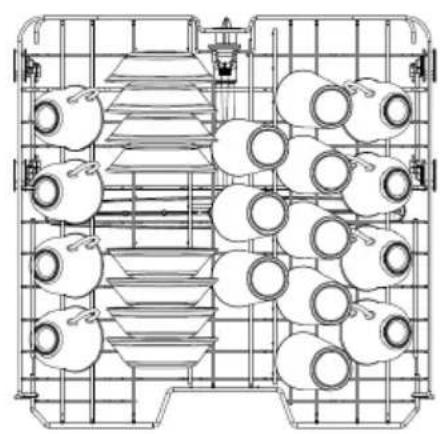

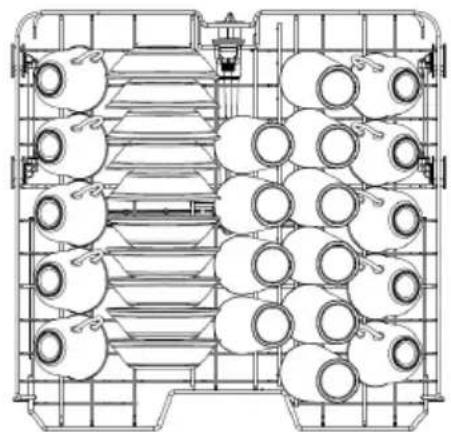

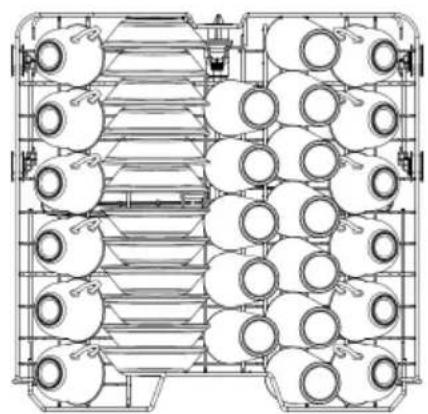

The upper dishwasher rack is designed for cups, glasses, small plates, bowls and plastic items marked dishwasher safe. The upper rack can be easily adjusted 2" (5 cm) up or down to accommodate taller items in either in the top or bottom rack.

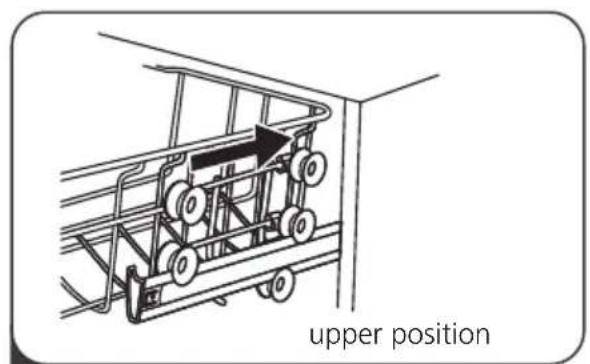

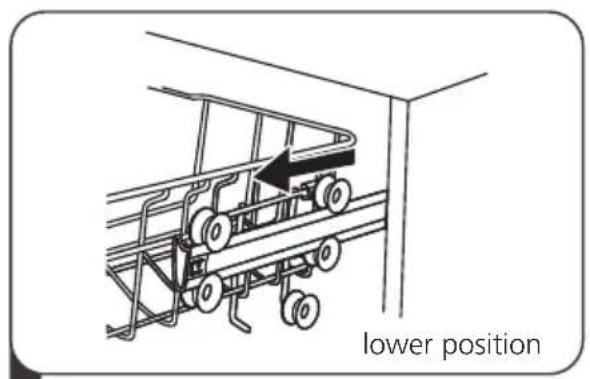

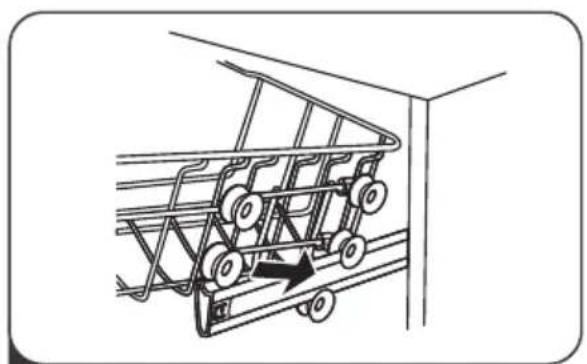

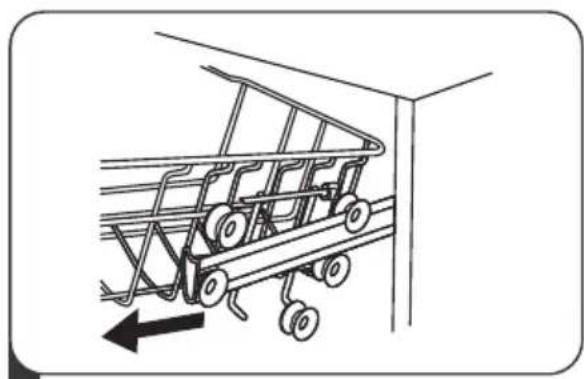

• Remove all items before adjusting the rack. The rack must be empty. To adjust the height of the upper rack, follow these steps:

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Place items so that the open ends face downward for cleaning and draining.

Load glasses and cups in upper rack only. The lower rack is not designed for glasses and cups. Damage can occur.

Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage, water spots, and poor cleaning.

Small bowls, pans and other utensils can be placed in the top rack. Load bowls in the center section for best stability.

China, crystal and other delicate items must not touch each other during dishwasher operation. Damage may occur.

Load plastic items so the force of the spray does not move them during the cycle. 1MBDF4FUUJOHT 1MBDF4FUUJOHT 1MBDF4FUUJOHT IMPORTANT: Make sure the items loaded in the upper rack do not interfere with the rotation of the middle spray arm located beneath the upper rack. Check for interference by turning spray arm by hand. āĉ"!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

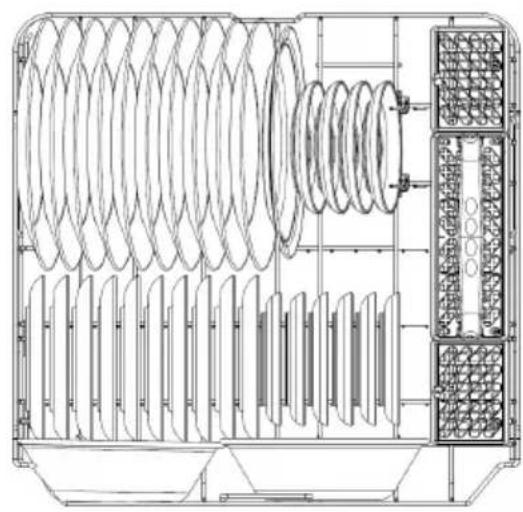

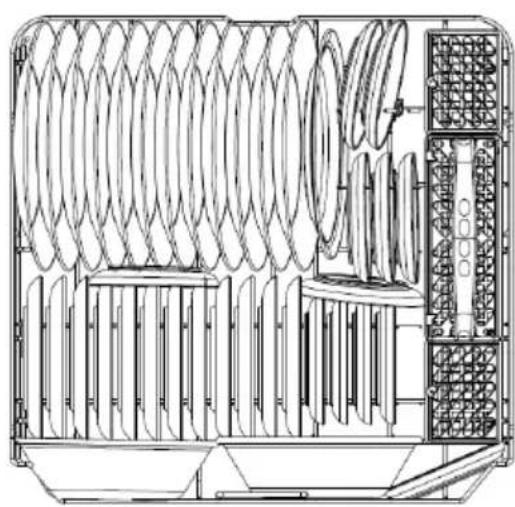

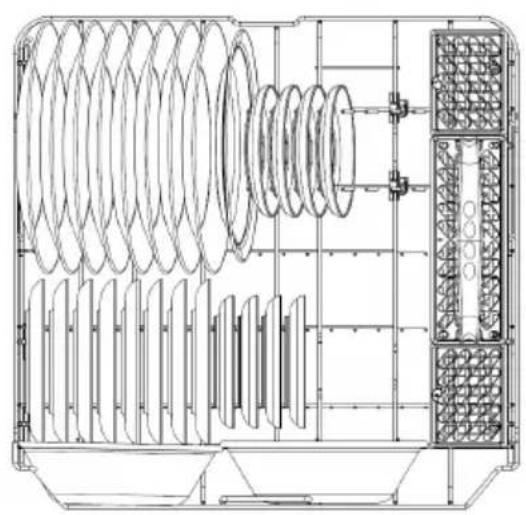

The lower rack is designed for plates, soup bowls, cookware and bakeware. The adjustable upper rack allows you to load items up to 12.6” in height in the lower rack. IMPORTANT: Items in the lower rack must be placed so that they do not interfere with the rotation of the spray arms, block the water inlet, or keep the water spray from reaching the detergent dispenser. 1MBDF4FUUJOHT 1MBDF4FUUJOHT 1MBDF4FUUJOHT āĊ"!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

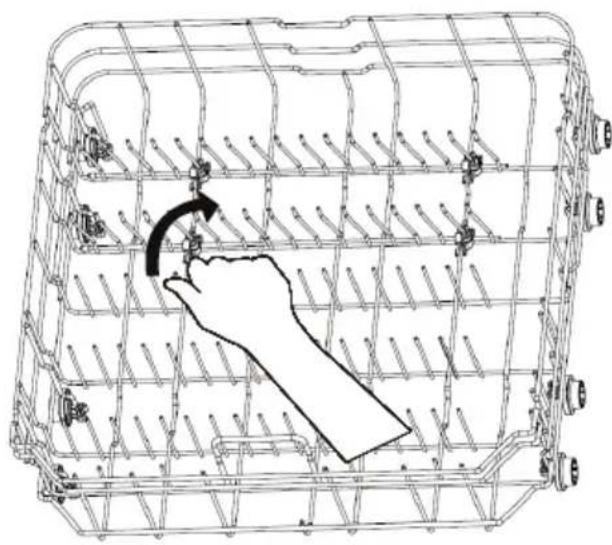

.+1(!/$++0%*# ƫƫƫ The fold-down tines in the lower rack make it easier to load extra large or hard-to-fit items such as serving bowls and roasters. The tines may be left in the up position for normal use, or folded down for more flexible loading.

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Do not load glasses, cups, or plastic items in the lower rack.

Load small items in the lower rack only if they are secured in place.

Load plates, soup bowls, etc. between tines. Do not nest bowls because the spray will not reach all surfaces.

Do not load items between the bottom rack and the side of the dishwasher tub.

Place heavily soiled cookware face down in the rack. ĂĀ"!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ .+1(!/$++0%*# NOTES: Do not load silver or silver-plated silverware with stainless steel. Thesemetals can be damaged by contact with each other during washing. Some foods (such as salt, vinegar, milk products, fruit juices, etc.), canpit or corrode silverware. DO NOT WASH ALUMINUM COOKWARE INYOUR DISHWASHER. ġƫƫ The silverware basket consists of three separate sections. For optimum loading flexibility, the center section of the basket can be used individually, joined with one or both side sections or removed. Lift handle to remove the silverware basket and set the basket on acounter or table top. Lift up on each side section to disengage the center section from thekeyhole slots in the side sections. Either replace the section(s) in the bottom rack and load thesilverware, OR load the silverware while the section(s) are on thecountertop and then replace the basket in the bottom rack. a Keyhole Slots b Prongs

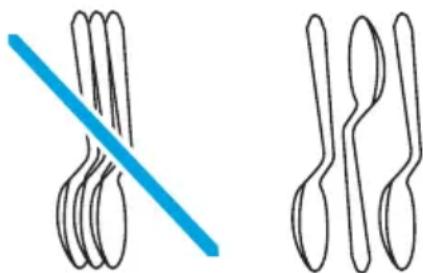

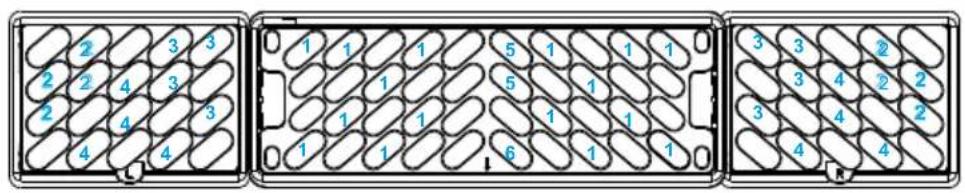

.+1(!/$++0%*# For Best Results:

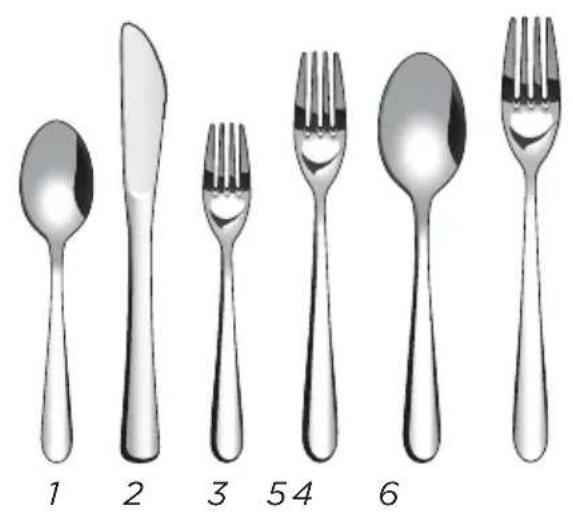

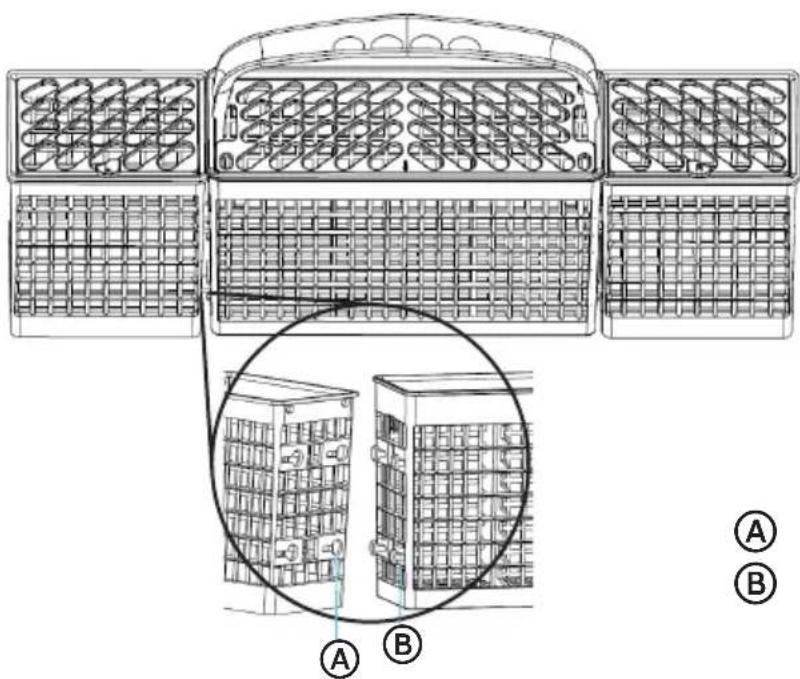

Load items with handles down, using the separators to prevent silverware from nesting.

Place small items such as baby bottle caps, jar lids, corncob holders, etc. in the section(s) with hinged cover(s). Close the cover to hold small items in place.

Unload or remove the basket before unloading the racks to avoid water drops from falling on the silverware.

When handles are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items. IMPORTANT: Always load sharp items (knives, skewers, etc.) pointing down. Be sure that nothing protrudes through bottom of the basket or rack that may block the wash arm. ĂĂ1 23 4 65

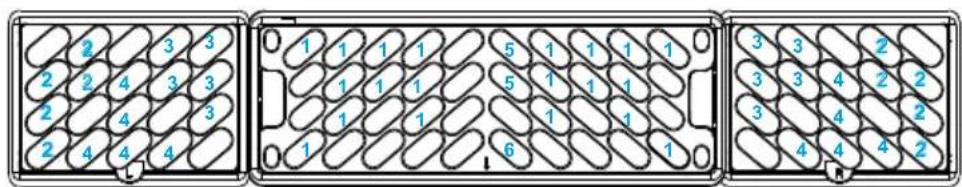

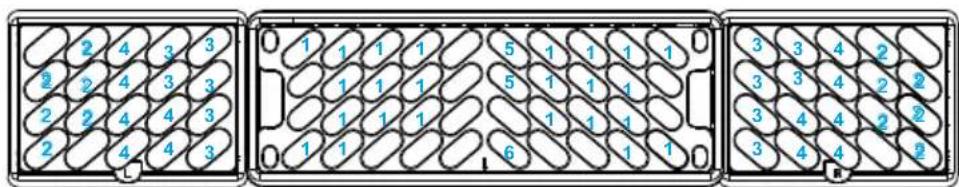

8 Place Setting/ 10 Place Setting/ 12 Place Setting/

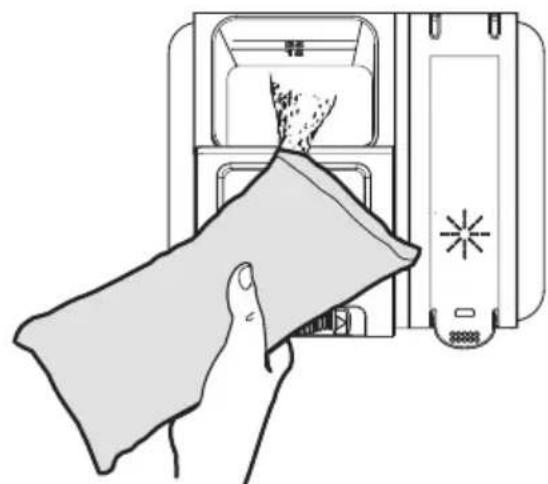

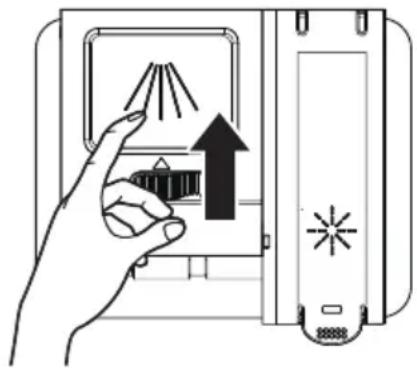

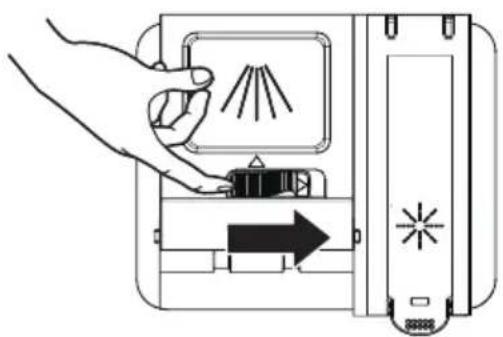

Use automatic dish washing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.

Add detergent just before starting a cycle.

Store detergent tightly closed in a cool, dry place. Fresh automatic dishwasher detergent results in better cleaning.

"!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ .+1(!/$++0%*# Ăąƫƫƫƫ The amount of detergent to use depends on the soil level of your load, the type of detergent used and the hardness of your water.

If you have soft water and use too much detergent, glassware will etch. Water Hardness Water hardness varies depending on your water source. For the best results, your dishwasher is designed to operate with water that has a hardness of no more than 7 grains per gallon. Test kits are available from all major appliance parts retail outlets. If your water has a hardness over 8 grains per gallon, you may consider installing a water softener or regularly use an additive to enhance the performance of your detergent. ƫƫƫƫ Rinse aid prevents water from forming droplets that can dry as spots or streaks. A small amount of the rinse aid is released into the final rinse water, which allows water to drain from the dishes. Rinse aid greatly improves drying performance after the final rinse. Your dishwasher is designed to use a LIQUID rinse aid. Do not use a solid or bar-type rinse aid.

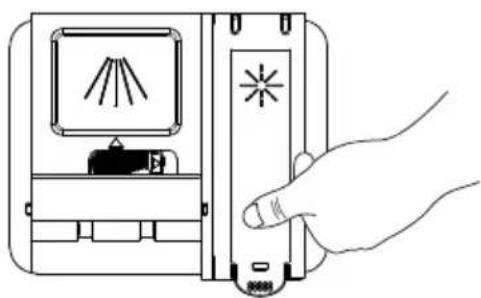

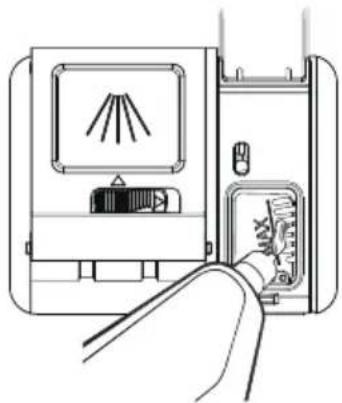

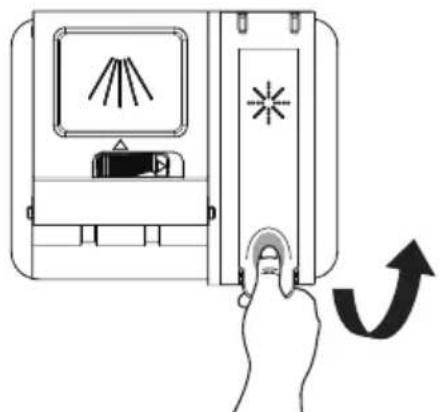

Under normal conditions, you will need to fill the rinse aid dispenser approximately once a month. Rinse aid is released through an opening in the dispenser. You do not need to wait until the dispenser is empty to refill it. Try to keep it full, but be careful not to overfill it. "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ .+1(!/$++0%*# ĂĆ"!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

To adjust the rinse aid setting You can adjust the amount of the rinse aid released during the rinse aid according to the following steps: Close the door and power on the dishwasheS Within 60 seconds after step 1, press the CYCLES button more than Ćseconds to enter into the setting mode, the rinse aid indicator will blinkquickly. Press the CYCLES button to select the proper setting according yourusing habits. The setting will change in the following sequence: d3->d4-Ŗd5->d1->d2->d3. Without any operation in 5 seconds or press the Power button to complete the setting and exit the setting mode.ƫƫ If you have doubts about washing a particular item, check with the dishware manufacturer to make sure it is dishwasher safe. Material Dishwasher Safe Comments Aluminum Possible High water temperature and detergents can affect finish of anodized aluminum. Unfinished aluminum will be discolored. Disposable Aluminum No Do not wash disposable aluminum pans in the dishwasher These might shift during washing and transfer black marks to dishes and other items. Bottles and cans No Wash bottles and cans by hand. Labels attached with glue can loosen and clog the spray arms or pump and reduce washing performance. Cast Iron No Seasoning will be removed and iron will rust. China / Stoneware Yes Always check manufacturer’s recommendations before washing. Antique, hand-painted, or over-the-glaze patterns may fade, gold leaf can discolor or fade. Crystal Yes Check manufacturer’s recommendations before washing. Some types of leaded crystal can etch with repeated washing. Gold No Gold-colored flatware will discolor. Glass Yes Milk glass yellows with repeated dishwasher washing. Hollow- Handle Knives No Handles of some knives are attached to the blade with adhesive that can loosen if washed in the dishwasher. Pewter Brass, Bronze No High water temperatures and detergent can discolor or pit the finish. Disposable Plastics No Cannot withstand high water temperatures and detergents. Plastics Yes Always check manufacturer’s recommendations before washing. Plastics vary in their capacity to withstand high temperatures and detergents. Load plastics in top rack only. Stainless Steel Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish. "!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

.+1(!/$++0%*# ĂĈMaterial Dishwasher Safe Comments Sterling Silver or Silver Plate Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish. Tin No Can rust. Wooden Ware No Wash by hand. Always check manufacturer’s instructions before washing. Untreated wood can warp, crack, or lose its finish. DISHWASHER CARE

ƫƫƫ In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to clean outside of your dishwasher. Clean the stainless steel door and handle regularly with a clean, soft cloth to remove debris. IMPORTANT: Do not use appliance wax, polish, bleach, or products containing chlorine to clean the stainless steel door. Control Panel Gently clean the control panel with a clean, soft cloth.

The tub is made of stainless steel designed to resist rust and corrosion if the dishwasher is scratched or dented. Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area. Do not clean the dishwasher interior until it has cooled. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or create suds.

Clean the steel inner door and tub with a clean, soft damp cloth. Using a damp cloth, clean around the door gasket regularly to remove food particles. "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ .+1(!/$++0%*# Ăĉƫ Clean the Control Panel gently with a lightly dampened cloth.

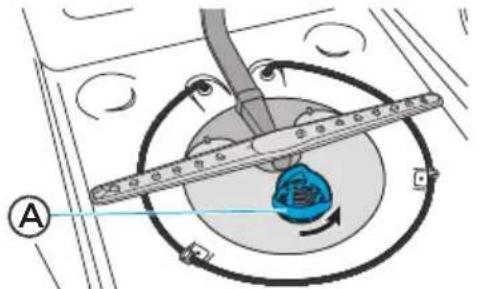

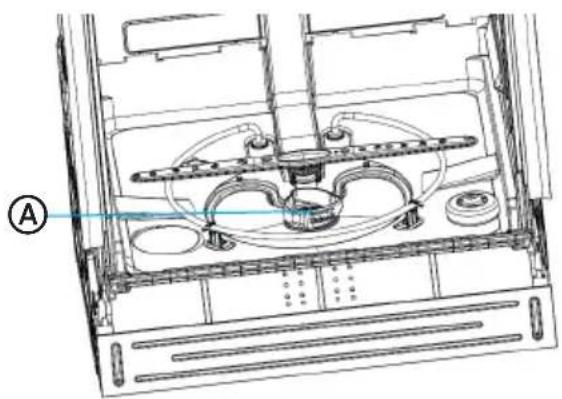

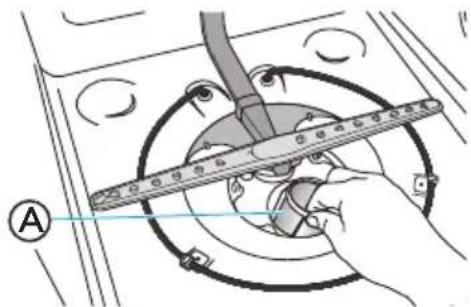

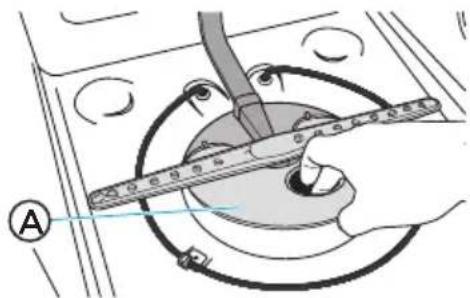

Check and clean the filters regularly for best performance.

1. Remove the lower dishwasher rack.

2. Rotate the Cylinder filter counterclockwise a quarter turn and lift up to

remove. a Cylinder Filter

3. Empty the Cylinder filter and rinse it under running water.

5. Remove the Micro filter from the bottom of the tub.

6. Inspect both the Fine filter and the Micro filter for debris, and then

clean them by holding the filters under slow running water. NOTE: A stiff, plastic bristle brush may be needed to remove some debris.

7. Reinstall the filters in reverse order making sure the Cylinder filter locks

into place. "!05ƫ.!10%+*/,!.0%*#ƫ!-1%.!)!*0/.0/ƫ* ƫ!01.!/0.0ƫ,ƫ1% !+*0.+(/%/$3/$!.ƫ+ %*#%/$3/$!.ƫ %/$3/$!.ƫ .+1(!/$++0%*#

ƫ%(1.!ƫ0+ƫ+..!0(5ƫ.!ġ%*/0((ƫ0$!ƫ"%(0!./ƫ3%((ƫ.!/1(0ƫ%*ƫ %)%*%/$! ,!."+.)*!ƫ* ƫƫ,+0!*0%(ƫ*!! ƫ"+.ƫ/!.2%!ċƫƫ Check the drain air gap anytime your dishwasher isn’t draining well. Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. If a drain is clogged, a drain air gap prevents water from backing up into the dishwasher. The drain air gap is usually located on top of the sink or countertop near the dishwasher. NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap. To Clean the Drain Air Gap: Clean the drain air gap periodically to ensure proper drainage of your dishwasher. Follow the cleaning instructions provided by the manufacturer. With most types:

1. Turn off the dishwasher.

2. Lift off the metal cover, and then unscrew the plastic cap.

3. Clean the plastic cap with a toothpick.

ƫƫƫ Protect your dishwasher during the summer months by turning off the water supply and power supply to the dishwasher. ƫƫƫ Protect your dishwasher and home against water damage caused by freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel. Prepare for Storage:

1. Turn off electrical power to the dishwasher.

2. Turn off the water supply.

3. Place a pan under the inlet valve, and then disconnect the water line

from the inlet valve.

4. Disconnect the drain line from the pump and drain water into the pan.

1. Reconnect the water, drain and electrical power supply.

2. Turn on water and electrical power supply.

3. Fill detergent cup and run the dishwasher through a heated wash

4. Check the connections for leaks.

PROBLEM POSSIBLE CAUSE SOLUTION

Dishwasher does not run or stops during a cycle There is no power to the dishwasher. Replace fuse or reset circuit breaker. The door is not closed tightly and latched. Close and latch the door. Most cycles pause for 5 minutes near the start of a cycle to let the dishes soak. This is normal, and reduces the energy required to clean the dishes. Certain cycles repeatedly pause for 15 to 65 seconds during the main wash. This is normal. The Delay feature is selected. To reset, see “Options” in the Controls section. Dishwasher does not start a cycle Control Lock feature is activated. Deactivate Control Lock. See “Additional Features” in the Controls section. Dishwasher will not fill The water shutoff valve is not turned on. Turn on the water valve. The door is not closed tightly and latched. Close and latch the door. Water pressure is too low. Verify a minimum of 20 psi water pressure is maintained during the filling operation. "!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

.+1(!/$++0%*# ăāPROBLEM POSSIBLE CAUSE SOLUTION Dishwasher seems to run too long The water supplied to the dishwasher is not hot enough. The dishwasher runs longer while heating water, and a delay automatically occurs in some wash and rinse cycles until the water reaches the proper temperature. Run the water in the adjacent sink until it gets hot before turning on the dishwasher. The Sanitize option is selected. The cycle time increases to heat the water to the correct temperature for sanitizing. The cycle time will vary depending on soil level. When heavy soil is detected, the Normal cycle will automatically increase the cycle time. Dishwasher is connected to the Cold water supply. Verify the dishwasher is connected correctly to the Hot water supply. Water remains in the dishwasher NOTE: A small amount of clean water around the outlet in the bottom of the tub is normal. It keeps the seal lubricated. The cycle is not complete or it is in a pause. The water will drain when the cycle is completed. The drain hose is kinked. Straighten the drain hose. The knockout plug is still in the garbage disposal. Remove the knockout plug. Drain hose is connected to the garbage disposal, and the garbage disposal is not empty. Run the garbage disposal until it is empty. Drain is clogged. Check the air gap. Detergent remains in the dispenser The cycle has not completed. Close the door and press START to complete cycle. The detergent is damp or has clumped. Remove detergent and replace with fresh dry dishwasher detergent. An item was blocking the dispenser. Remove item. Remove detergent and replace with fresh dry dishwasher detergent. The spray arm is blocked. Load the dishes in a manner that does not block the spray arm from rotating freely. "!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

*!""!0%2!ƫ+.ƫ %*"!.%+.ƫ !0!.#!*0ċ % !ƫ.!+))!* /ƫ* 1/0.5ƫ(! %*#ƫ !0!.#!*0/Čƫ!/,!%((5ƫ%*ƫ0$!ƫ,+ ĥ0ƫ"+.)ċPROBLEM POSSIBLE CAUSE SOLUTION Food residue remains on the dishes (cont.) Detergent is too old. Detergent must be fresh to be effective. Store detergent in a cool, dry area. Detergent is caked in the dispenser. Do not allow detergent to sit for several hours in a wet dispenser. Clean dispenser and refill with fresh, dry detergent. The pump or spray arm is clogged with labels from bottles and cans. Check pump and spray arm for labels and remove the labels. The pressure of the water coming into the home is too low. Water pressure should be 20 to 80 psi (138 to 552 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low. High suds are slowing the wash arm. Use only detergent recommended for the dishwasher. Do not use soap or laundry detergents. ƫƫƫƫ

PROBLEM POSSIBLE CAUSE SOLUTION

Spotting and filming on dishes Rinse Aid dispenser is empty. Add a liquid rinse aid to the dispenser. Hard water. High mineral content in your water Use a rinse aid and keep the dispenser filled to help eliminate spotting and filming. Increase setting on Rinse aid dispenser 1 number per cycle until spotting is eliminated. NOTE: If your water hardness is 13 grains (223 ppm) or above, it is strongly recommended that you install a home water softener. Water temperature is too low. For best results, water should be a minimum 120°F (49°C) as it enters the dishwasher. Did not use enough detergent. Use a minimum of 1 Tbsp. (15 g) of detergent per load. Heavy soil and/or hard water generally require extra detergent. "!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

.+1(!/$++0%*# ăąPROBLEM POSSIBLE CAUSE SOLUTION Spotting and filming on dishes (cont.) Detergent is too old. Detergent must be fresh and dry to be effective. Store detergent in a cool, dry area. Home water pressure is too low to fill dishwasher properly. Water pressure to the home should be 20 to 80 psi (138 to 552 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low. Silica film or etching Using too much detergent If you have soft water use less detergent, but do not use less than 1 Tbsp. (15 g) per load. The inlet water temperature exceeds 150°F (65°”C). Lower the incoming water temperature. Black or gray marks on dishes Aluminum items rubbing dishes during washing. Disposable aluminum items can break down in the dishwasher and cause marking. Hand wash aluminum items. Remove aluminum markings by using a mild abrasive cleaner. Orange stains on plastic dishes or dishwasher interior Large amounts of tomato-based foods on dishes placed in the dishwasher. Use a stain removal product to remove stains from your dishwasher. Stains will not affect dishwasher performance. ƫƫƫƫ

PROBLEM POSSIBLE CAUSE SOLUTION

Dishes are not completely dry NOTE: Plastics often need towel drying. Dishes are not loaded properly to allow water drainage. Do not overload dishwasher. Place glasses and cups in the rack so that the bottom surface is slanted to allow water to run off. Rinse Aid not used or dispenser is empty. Use a liquid rinse aid to speed drying and keep the dispenser full. Used an air dry or energy-saving option. For dryer dishes, select a Cycle that allows a Heated Dry option. "!05ƫ .!10%+*/ ,!.0%*#ƫ !-1%.!)!*0/ .0/ƫ* ƫ !01.!/ 0.0ƫ,ƫ 1% ! +*0.+(/ %/$3/$!.ƫ

PROBLEM POSSIBLE CAUSE SOLUTION

Dishes are chipped NOTE: Some types of china and glassware might be too delicate for automatic dish washing. Wash by hand. Dishes not loaded properly. Load the dishes and glasses so they are stable and will not strike together from washing action. Moving the rack in or out of the dishwasher too quickly. Minimize chipping by moving the rack in and out slowly.

Safety PrecautionsOperating RequirementsParts and FeaturesStart Up GuideControlsDishwasher LoadingDishwasher UseDishwasher CareTroubleshooting ERROR C ODES

CODE MEANING POSSIBLE CAUSE

POSSIBLE SOLUTION 2VJDL light flashes and dishwasher beeps for 30 seconds Either the water flow is insucient, or the water pressure from the incoming line is too high t Make sure that the water is turned on to the dishwasher. t Make sure that the water pressure is 20~100 psi. t Check the drain hose. t Contact Customer Service. Normal thgil flashes and dishwasher beeps for 30 seconds Overflow or leak sensor activated t Faucet is not opened t Water pressure is too low t The drain hose is plugged. t Other (parts failure of inlet or drain system). t A leak t Too much water in the tub Turn o water to t he dishwasher, then check the filter system for blockage. Unblock if necessary. If there is no water in the tub, contact Customer Service flash and dishwasher beeps for seconds Communication exception or issue The display board can’t receive or a dne s t ’ na c d r aob n i ameh t signal for over 20 seconds Contact Customer Service. Heavy, Normal and 2VJDL lights t The drain hose is plugged. t Other (parts failure of inlet or drain system). t Check the drain hose. t Contact Customer Service. 5VCXBUFSMFWFM UPPIJHI "VUPMJHIUGMBTIFT BOEEJTIXBTIFS CFFQTGPSTFDPOET37

2 YEAR LIMITED WARRANTY

This warranty is provided to the original purchaser at retail (the “Purchaser” or “you”) by Midea America Corp. (“Midea” or “we”), which warrants all parts of this Product, as described below. Midea warrants this Product to the Purchaser for personal, family or household use. This warranty covers performance and quality issues in materials and workmanship that appear under normal use and maintenance appearing within two years from the date of purchase. This warranty gives you specific rights, and you may also have other rights that vary from state to state.

WARRAN TY LIMITATIONS

This warranty is given only to the original purchaser at retail in either the United States or Canada and may not be transferred to any subsequent buyer. This warranty does not apply to purchasers of our products for use or resale in a business; a separate commercial warranty may protect those purchasers. This warranty does not cover any Product failure caused by: (a) Abuse, damage or use of the Product in violation of the Product instructions. (b) Modification to any Product or part. (c) Failure to maintain the Product or part as described in accordance with the Product instructions. (d) Faulty installation or application. (e) Use of parts or accessories not compatible with this Product. (f) Floods, fires, winds, lightning, accidents, corrosive atmosphere, or other conditions beyond Midea’s control. (g) Interruption in electrical service or inadequate electrical service. (h) Replacement of fuses and replacement or resetting of circuit breakers. (i) Frozen or broken water pipes, water damage, moisture intrusion, mold or other biological growth. (j) The use, combination or linking of the Product to other products, processes or materials not provided by Midea. WARRANTY REMEDY If any quality or performance issue covered by this warranty is discovered during the warranty period, we will, at our option, repair or replace any such Product. This warranty is limited to Product repair or replacement by an authorized Midea servicer or dealer and does not cover any shipping cost, labor cost, customs duties, inland logistics cost, or cost of service, including any diagnostics, removal, transportation, or reinstallation costs. If we ask, you must return the Product to us.

WARRANTY DISCLAIMER; EXCLUSION OF DAMAGES

This is the only express warranty to consumers that we offer on our Products. ANY IMPLIED WARRANTIES BY MIDEA, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS EXPRESS WARRANTY. Some states and provinces do not allow the exclusion of express warranties and/or limitations on how long an implied warranty lasts, so the above exclusion and/or limitation may not apply to you. THE REMEDY DESCRIBED ABOVE IS THE ONLY ONE THAT WE WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WE WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, NEGLIGENCE OR OTHER TORT, OR ON ANY STRICT LIABILITY THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS. 01/202438 Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. WARRANTY CLAIMS PROCESS For more information or to make a warranty claim, please visit: https://www.midea.com/us/support Or contact us at: Telephone: Email: 1-866-646-4332 [e-mail] You must have Your bill of sale, delivery slip, or appropriate proof of purchase to submit a warranty claim. The date of purchase establishes the warranty period, should service be required. DISPUTE RESOLUTION ARBITRATION CLAUSE. IMPORTANT. PLEASE REVIEW THIS ARBITRATION CLAUSE. IT AFFECTS YOUR LEGAL RIGHTS. (a) Parties: This arbitration clause (this “Arbitration Clause”) affects your rights against Midea and any of its affiliates or employees or agents, successors, or assigns, all of whom together are referred to below as “we” or “us” for ease of reference. (b) ARBITRATION REQUIREMENT: EXCEPT AS STATED BELOW, ANY DISPUTE BETWEEN YOU AND ANY OF US SHALL BE DECIDED BY NEUTRAL, BINDING ARBITRATION RATHER THAN IN COURT OR BY JURY TRIAL. “Dispute” will be given the broadest possible meaning allowable by law. It includes any dispute, claim, or controversy arising from or relating to your purchase of this Product, any warranty upon the Product, or the Product’s condition. It also includes determination of the scope or applicability of this Arbitration Clause. The arbitration requirement applies to claims in contract and tort, pursuant to statute, or otherwise. (c) CLASS-ARBITRATION WAIVER: ARBITRATION IS HANDLED ON AN INDIVIDUAL BASIS. IF A DISPUTE IS ARBITRATED, YOU AND WE EXPRESSLY WAIVE ANY RIGHT TO PARTICIPATE AS A CLASS REPRESENTATIVE OR CLASS MEMBER ON ANY CLASS CLAIM YOU MAY HAVE AGAINST US OR WE AGAINST YOU, OR AS A PRIVATE ATTORNEY GENERAL OR IN ANY OTHER REPRESENTATIVE CAPACITY, TO THE MAXIMUM EXTENT PERMITTED BY LAW. YOU AND WE ALSO WAIVE ANY RIGHT TO CLASS ARBITRATION OR ANY CONSOLIDATION OF INDIVIDUAL ARBITRATIONS. (d) Discovery and Other Rights: Discovery and rights to appeal in arbitration are generally more limited than in a lawsuit. This applies to both you and us. Other rights that you or we would have in court may not be available in arbitration. Please read this Arbitration Clause and consult the rules of the arbitration organizations listed below for more information. (e) SMALL CLAIMS COURT OPTION: YOU MAY CHOOSE TO LITIGATE ANY DISPUTE BETWEEN YOU AND ANY OF US IN SMALL CLAIMS COURT, RATHER THAN IN ARBITRATION, IF THE DISPUTE MEETS ALL REQUIREMENTS TO BE HEARD IN SMALL CLAIMS COURT. (f) Governing Law: For residents of the United States, the procedures and effect of the arbitration will be governed by the Federal Arbitration Act (9 U.S.C. § 1 et seq.) rather than by state law concerning arbitration. For residents of Canada, the procedures and effect of the arbitration will be governed by the applicable arbitration law of the province in which you purchased your Product. The law governing your substantive warranty rights and other claims will be the law of the state or province in which you purchased your Product. Any court having jurisdiction may enter judgment on the arbitration award.39 (g) Rules of the Arbitration: If the amount in controversy is less than $250,000, the arbitration will be decided by a single arbitrator. If the amount in controversy is greater than or equal to $250,000, the arbitration will be decided by a panel of three arbitrators. The arbitrator(s) will be chosen pursuant to the rules of the administering arbitration organization. United States residents may choose JAMS (1920 Main Street, Ste. 300, Irvine, CA 92614, www.jamsadr.com), or, subject to our approval, any other arbitration organization. In addition, Canadian residents may choose the ADR Institute of Canada (234 Eglinton Ave. East, Suite 405, Toronto, Ontario, M4P 1K5, www.amic.org). These organizations’ rules can be obtained by contacting the organization or visiting its website. If the chosen arbitration organization’s rules conflict with this Arbitration Clause, the provisions of this Arbitration Clause control. The award of the arbitrator(s) shall be final and binding on all parties. (h) Location of the Arbitration Hearing: Unless applicable law provides otherwise, the arbitration hearing for United States residents will be conducted in the federal judicial district in which you reside (in your hometown area) or, for Canadian residents, in the province in which you reside, and, if you choose, will be in-person. (i) Costs of the Arbitration: Each party is responsible for its own attorney, expert, and other costs and fees unless applicable law requires otherwise. Notwithstanding the preceding sentence, and unless applicable law requires otherwise, if you are a consumer under the JAMS rules or the rules of another agreed upon arbitration administrator, Midea will pay or reimburse you for all reasonable fees or costs to the extent required by law or the applicable arbitration administrator’s rules. Whether or not required by law or such rules, if you prevail at arbitration on any claim against Midea, Midea will reimburse you for any reasonable fees paid to the arbitration administrator in connection with the arbitration proceedings. Under no circumstances will Midea seek from you payment or reimbursement of any reasonable fees that Midea incurs in connection with the arbitration. If you are required to advance any fees or costs to JAMS or other agreed upon arbitration administrator, but you ask Midea to do so in your stead, Midea will consider and respond to your request. (j) Survival and Enforceability of this Arbitration Clause: This Arbitration Clause shall survive the expiration or termination, or any transfer, of the warranty on your Product. If any part of this Arbitration Clause, except waivers of class-action rights, is found to be unenforceable for any reason, the remainder of this clause and the warranty shall remain enforceable. If, in a case in which class-action allegations have been made, the waiver of class-action rights under this warranty is found to be unenforceable with respect to any part of the dispute, the parts of the dispute as to which the waiver of class-action rights have been found unenforceable will be severed and will proceed in court without reference or application of this Arbitration Clause. Any remaining parts will proceed in arbitration. QUEBEC RESIDENTS The arbitration provisions of this warranty shall not apply to residents of Quebec.

PROBLÈME CAUSES POSSIBLES SOLUTION
