USER MANUAL SDF35 Salton

INSTRUCTIONS AND WARRANTY

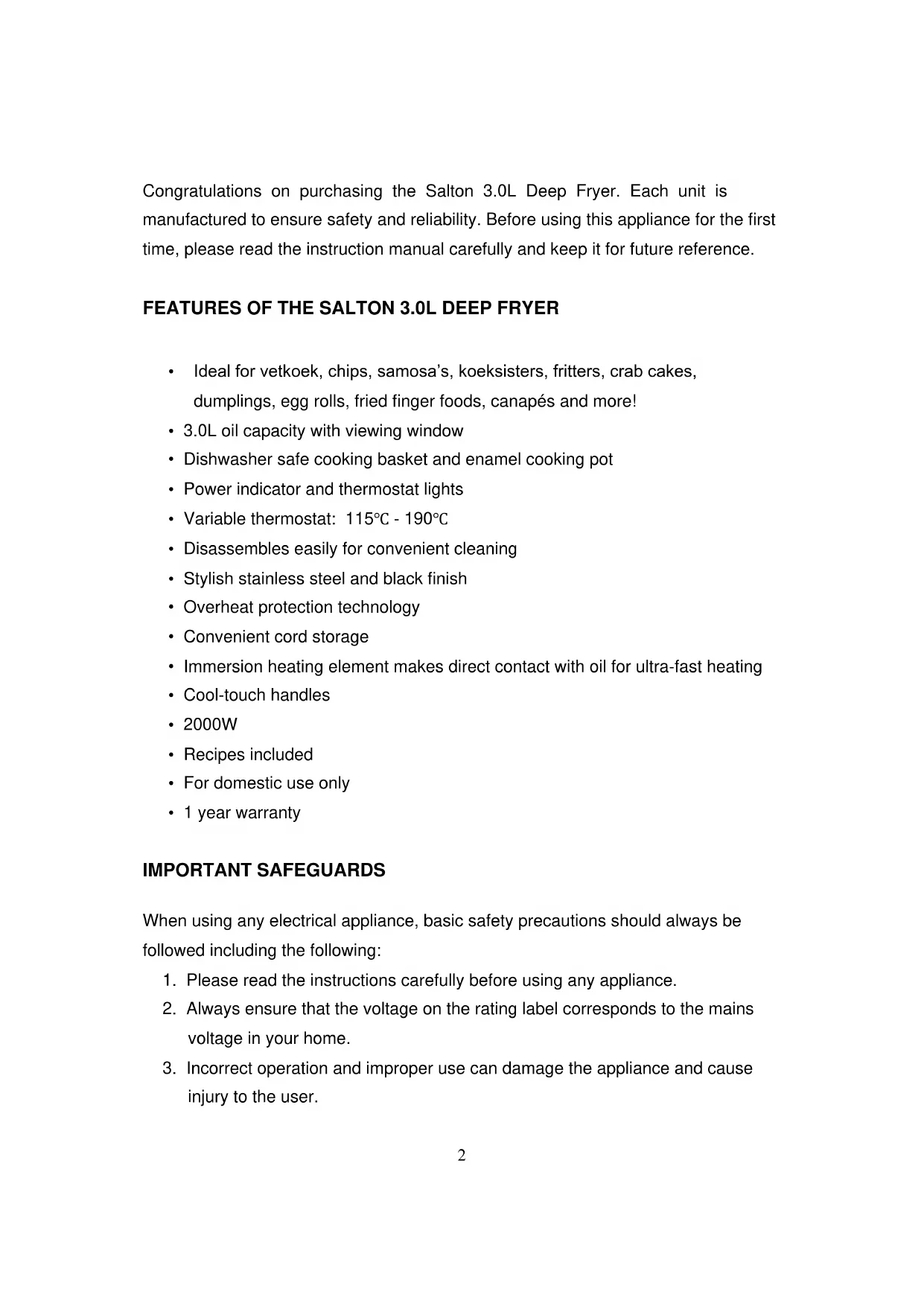

Congratulations on purchasing the Salton 3.0L Deep Fryer. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE SALTON 3.0L DEEP FRYER

• Ideal for vetkoek, chips, samosa’s, koeksisters, fritters, crab cakes, dumplings, egg rolls, fried finger foods, canapés and more!

• 3.0L oil capacity with viewing window

• Dishwasher safe cooking basket and enamel cooking pot

• Power indicator and thermostat lights

• Variable thermostat: 115℃ - 190℃

• Disassembles easily for convenient cleaning

• Stylish stainless steel and black finish

• Immersion heating element makes direct contact with oil for ultra-fast heating

• For domestic use only

• 1 year warranty IMPORTANT SAFEGUARDS When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the appliance and cause

injury to the user.3

4. The appliance is intended for household use only. Commercial use invalids the

warranty and the supplier cannot be held responsible for injury or damage caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the

8. Check the power cord and plug regularly for any damage. If the cord or the

plug is damaged, the manufacturer or a qualified person must replace it in order to avoid an electrical hazard.

9. Do not allow this appliance to touch curtains, wall coverings, clothing,

dishtowels or other flammable materials during use. Caution is required on surfaces where heat may cause damage -an insulated heat pad is recommended. Never place the appliance on a plastic, fabric or carpeted surface while cooking.

10. The appliance is not intended to be operated by means of an external timer or

separate remote-control system.

11. Do not touch hot surfaces – use handles.

12. Always lift the lid away from your face as escaping steam or oil may cause

13. Keep hands, arms, face etc clear from the escaping steam or oil when opening

14. DO NOT place the product near flammable materials.

15. Let the deep fryer cool down completely before you clean it or put it away.

16. Extreme caution must be used when moving a deep fryer containing hot

liquids. It is recommended that you do not move the appliance when it is full, when switched on or before it has cooled down.4

17. Do not use the appliance if it has been dropped or damaged in any way. In

case of damage, take the unit in for examination and/or repair by an authorised service agent.

18. Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning

19. To reduce the risk of electric shock, do not immerse or expose the appliance,

plug or the power cord to water or any other liquid.

20. Never immerse the unit in water or any other liquid for cleaning purposes.

21. The appliance cannot be partially or fully immersed in water for cleaning.

22. Remove the plug from the socket by gripping the plug. Do not pull on the cord

to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.

23. The use of accessory attachments that are not recommended or supplied by

the manufacturer may result in injuries, fire or electric shock.

24. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

25. Do not let the cord hang over the edge of a table or counter. Ensure that the

cord is not in a position where it can be pulled on inadvertently.

26. Do not allow the cord to touch hot surfaces and do not place on or near a hot

gas or electric burner or in a heated oven.

27. Do not use the appliance on a gas or electric cooking top or over or near an

28. Use of an extension cord with the appliance is not recommended. However, if

it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of the extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals, or tripped over.

29. This appliance is not suitable for outdoor use. For household use only. Do not

use this appliance for anything other than its intended use.

30. DO NOT carry the appliance by the power cord.

31. Do not leave the appliance unattended during use. Always unplug the unit

when not in use or before cleaning.5

32. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

33. Ensure that the switch is in the “Off” or “0” position after each use.

34. Do not let the deep fryer heat without oil in it, or with the oil below the Min

level. This will cause the thermal cut-off to switch the unit off, and may damage the unit.

35. Do not connect the deep fryer to the power supply without oil in the unit. The

manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.

36. In case of technical problems, switch off the appliance and do not attempt to

repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentioned pre-cautions and instructions, could affect the safe operation of this appliance.6 PARTS DIAGRAM

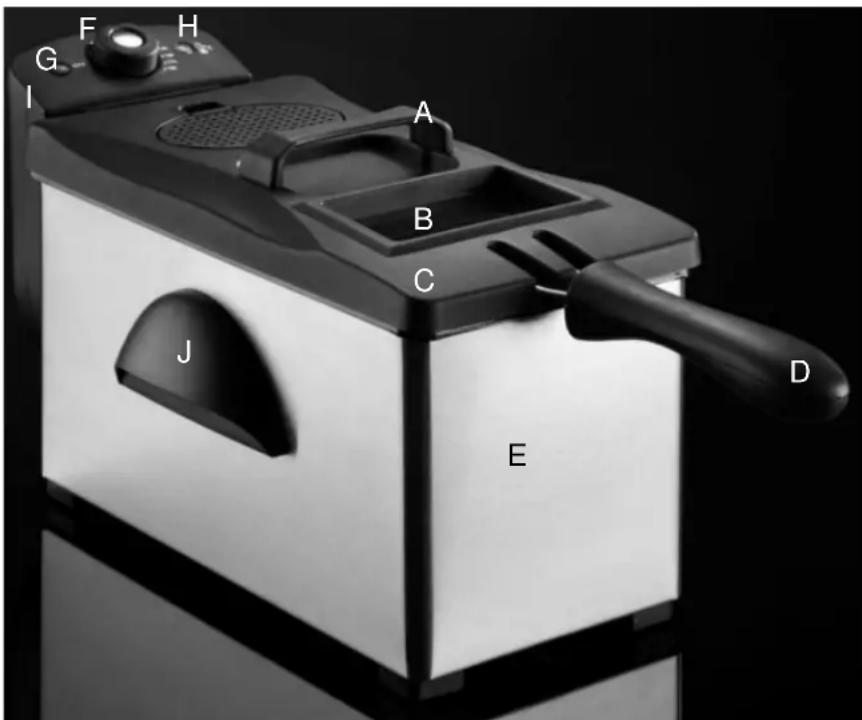

A: Lid Handle G: Power Indicator Light B: Viewing window H: Heating Indicator Light C: Lid I: Control Box with Fixed Element D: Basket Handle J: Side Handle E: Outer Housing

F: Temperature Control Dial

OPERATING INSTRUCTIONS NOTE: Do not use this product to heat water. Never plug the control panel into a wall socket if it is not installed in the outer housing.

1. Place the deep fryer on a dry, stable surface.

2. Remove the lid from the deep fryer and take out the accessories.

3. Fill the deep fryer with the required amount of oil or fat. The level of the oil or fat

should be above the minimum mark and below the maximum mark. Do not mix different kinds of oil and / or fat.

4. Select the temperature using the dial, as per the food you are cooking. The

cooking temperature guide below can be used for guidelines. Wait for the selected temperature to be reached, the ‘Heating’ light will go off when the temperature is reached.

5. Place the food for frying in the basket, and slowly lower the basket into the deep

fryer. It is best to use dry foods, as moist foods will make the oil splash out of the deep fryer, which is hazardous.

6. Place the basket into the deep fryer using the basket handle only. The deep fryer

will maintain the selected temperature, and thus the ‘Heating’ light will go on and off (cycle ON and OFF) as the product reheats the oil.

7. When the correct frying time has elapsed, slowly raise the basket out of the deep

fryer, allowing excess oil to drain off the food.

8. Switch/ turn the appliance to the “0” or “OFF” position.

9. Unplug the appliance from the electrical outlet.

FRYING TIPS Use a maximum of 200grams of food per each litre of oil. With frozen products, use only 100grams of food per each litre of oil, as the food will cool the oil. Always remove excess ice from frozen foods before frying. Oil or fat can be reused after deep frying. Drain the oil to remove any food particles and store in an airtight container. When the oil starts to discolour and turn brown, it is time to throw it away and use fresh oil. The oil can last up to 10 uses, depending on the type and quality of oil. Do not mix old and new oil.9 RECIPES Old Fashioned Jam Doughnuts Makes about 12 Kids and adults alike love these tasty treats! 30g compressed yeast ¼ cup lukewarm water 60g butter or margarine 1 cup milk ¼ cup castor sugar 2 eggs, beaten 3 ¾ cups flour 1 egg white Raspberry jam Oil for deep frying Icing sugar Dissolve yeast in the water. Melt the butter into milk in a small saucepan, stirring occasionally. Cool to lukewarm, then stir together the yeast mixture, butter/milk mixture, sugar and eggs in a large bowl. Beat well. All flour and beat in. Cover lightly and allow to rise in a warm place for about 45 minutes or until doubled in size. Turn onto floured board and knead lightly. Wrap in plastic and chill for 15 minutes. Roll dough to 1cm thickness and cut into 5cm rounds using a floured cutter. Brush half the rounds with lightly beaten egg white, and press jam into the centre of the other rounds.10 Placed ‘jammed’ halves onto egg white brushed halves and pinch together well around the edges to join. Cover loosely and allow to rise for a further 20 minutes or until almost doubled in size. Deep fry doughnuts in small batches at 170°C/ 190°C for 5-7 minutes or until golden brown, turning once, drain in wire basket, then on a paper towel. Dust with icing sugar and serve hot. Savoury Cheese Balls Makes about 12 These delectable morsels may be prepared in advance and chilled until ready to cook. 125g Swiss cheese, grated, 1 egg yolk (optional) 2 egg whites, dry breadcrumbs 1/3 teaspoon cayenne pepper, pinch salt Oil for frying Fried parsley sprigs Mix grated cheese with salt and pepper as well as egg yolk, if using. (Egg yolk gives a firmer texture). Beat egg whites stiffly and fold in cheese mixture. Form into balls and roll in bread crumbs. Fry at 190°C in the Salton Deep Fryer for about 2 minutes or until golden and crisp. Remove from basket. Fry parsley sprigs at 190°C for 1 minute until well crisped. Serve with the cheese balls and enjoy.11 Sesame Chicken Strips Makes about 36 A touch of oriental flavour adds interest to these tender chicken strips – may be served as an appetiser, a snack with drinks or as a light main course. 6 chicken breast fillets, skin removed Marinade: 2 tablespoon salt reduced soy sauce 1 tablespoon dry sherry 2 teaspoon cornflour, 1 teaspoon chilli sauce 1 teaspoon grated ginger root 1 clove garlic, finely chopped 2 teaspoon honey, +-/ ¼ cup sesame seeds Light oil for deep fryer Flatten chicken fillets between plastic, cut into finger sized strips. In a shallow dish, mix marinade ingredients thoroughly. Add chicken to marinade and refrigerate for several hours. Drain strips well, press on sesame seeds until well coated. Heat oil in the Salton Deep Fryer to 170°C and cook strips for 4 – 5 minutes or until cooked thoroughly. Serve hot, garnished with peas and carrot straws or with a side salad for a light meal Note: May be deep fried in advance and reheated briefly at 180°C in an oven.

CLEANING AND MAINTENANCE

Remove the electrical plug from the outlet. Ensure that the temperature selection is set to “0” or “OFF” and that all oil or fat has been poured out of the unit.12 Gently lift the basket, inner enamel bowl and element out of the stainless steel bowl. The inner enamel bowl, basket and stainless steel bowl can be washed in warm soapy water. Element can be wiped down with a warm damp cloth, but do not immerse the back of the element in water or any other liquid, or hold it under a running tap to clean. Do not use bleach or other abrasive substance or solvents to clean your appliance as it can be damaging to the finish. To remove stubborn spots/marks, wipe the surfaces with a cloth slightly dampened in soapy water or mild non-abrasive cleaner. Rinse and dry a clean, dry, soft cloth. Allow the unit to dry completely before storage. It is advisable not to leave any oil or fat in the deep fryer when storing.

STORING THE APPLIANCE

Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure that all parts are dry before storing. Store the appliance in its box or in a clean, dry place. Never store the appliance while it is still wet or dirty. Never wrap the power cord around the appliance.

SERVICING THE APPLIANCE

There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check the following: You have followed the instructions correctly That the unit has been wired correctly and that the wall socket is switched on. That the mains power supply is ON. That the plug is firmly in the mains socket.13 If the appliance still does not work after checking the above: - Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem and you need to return the appliance, make sure that: The unit is packed carefully back into its original packaging. Proof of purchase is attached. A reason is provided for why it is being returned. If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent, in order to avoid any hazard. If service becomes necessary within the warranty period, the appliance should be returned to an approved Home of Living Brands (Pty) Limited service centre. Servicing outside the warranty period is still available, but will, however, be chargeable.

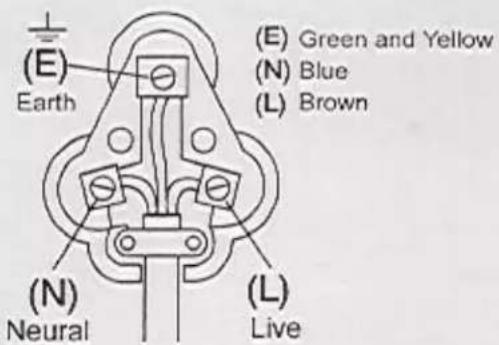

Should the need arise to change the fitted plug, follow the instructions below. This unit is designed to operate on the stated current only. Connecting to other power sources may damage the appliance. Connect a three-pin plug as follows: The wires in this mains lead are coloured in accordance with the following code: Green/Yellow = Earth Blue = Neutral Brown = Live14 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y

1. Home of Living Brands (Pty) Limited warrants to the original purchaser of this product

(“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).

2. Where the customer has purchased a product and it breaks, is defective or does not work

properly for the intended purpose, the customer must notify the supplier from whom the customer bought the product (“the supplier”) thereof within the warranty period. Any claim in terms of this warranty must be supported by a proof of purchase. If proof of purchase is not available, then repair, and/or service charges may be payable by the customer to the supplier.

3. The faulty product must be taken to the supplier's service centre to exercise the warranty.

4. The supplier will refund, repair or exchange the product in terms of this warranty subject

to legislative requirements. This warranty shall be valid only where the customer has not broken the product himself, or used the product for something that it is not supposed to be used for. The warranty does not include and will not be construed to cover products damaged as a result of disaster, misuse, tamper, abuse or any unauthorised modification or repair of the product.

5. This warranty will extend only to the product provided at the date of the purchase and not

to any expendables attached or installed by the customer.

6. If the customer requests that the supplier repairs the product and the product breaks or

fails to work properly within 3 (three) months of the repair and not as a result of misuse, tampering or modification by or on behalf of the customer, then the supplier may replace the product or pay a refund to the customer.

7. The customer may be responsible for certain costs where products returned are not in the

original packaging, or if the packaging is damaged. This will be deducted from any refund paid to the customer. HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)
