Product type	Sun bed (face tanner)
Brand	Efbe-Schott
Model	SC GB 908
Number of lamps	8 UVA lamps
Lamp type	Cleo Compact 15W (15-O-9/3,9)
Supply voltage	230 V ~
Timer	Adjustable (max 60 min, according to plan)
Minimum safety distance	5 cm
Maximum exposure time (type II)	16 minutes
Maximum exposure time (type III)	23 minutes
Maximum exposure time (type IV)	29 minutes
Interval between sessions	At least 48 hours
Maximum number of sessions per year (type II)	60
Maximum number of sessions per year (type III)	43
Maximum number of sessions per year (type IV)	33
Maximum annual dose	15 kJ/m²
Memory buttons	4 users
Safety goggles	Included
Cleaning	Damp cloth, disconnect before
Lamp replacement	By qualified professional
Safety instructions	Read the manual mandatory
Approvals	Compliant with ERP directive 1275/2008

Frequently Asked Questions - SC GB 908 Efbe-Schott

How to use the SC GB 908 sun bed?

Plug the device into a 230 V outlet. Turn the timer (3) to set the exposure time according to your skin type. Always wear the included safety goggles. Keep a distance of at least 5 cm. Slightly turn your head for an even tan. The device turns off automatically.

What are the risks of overexposure to UV?

Overexposure can cause sunburns, premature skin aging, increased risk of skin cancer and eye damage (cataracts). Respect the recommended exposure times and the minimum interval of 48 hours.

What skin types can use this device?

The device is recommended for skin types II, III and IV (according to the Fitzpatrick scale). It is not recommended for people with type I (very fair skin that always burns) and children under 14 years old, who do not tan.

How to replace the lamps?

Unplug the device. Unscrew the screws on the back, remove the covers. Turn the lamp 90° to remove it. Replace with a lamp of the same type: Cleo Compact 15W (15-O-9/3,9). Used lamps are hazardous waste.

How to clean the device?

Always unplug the device before cleaning. Use a damp cloth (not wet) to clean the housing. Never let water flow inside and never immerse the device in water.

What is the minimum distance to maintain?

The minimum distance between the device and the skin is 5 cm. Do not expose yourself closer to avoid any risk of burns or skin damage.

How long exposure for skin type III?

For skin type III, the first session lasts 6 minutes. The maximum time is 23 minutes. Follow the progressive session plan with at least 48 hours interval.

Can I use the device if I have moles?

If you have more than 16 moles (≥2 mm) or atypical moles, use is not recommended. Always protect sensitive areas (scars, tattoos, genitals). Consult a doctor if you notice any changes.

What to do if the lamps do not turn on?

First check that the timer is set. If the lamps do not turn on, turn them slightly in their socket without removing them. If the problem persists, contact after-sales service.

How to dispose of the device at end of life?

Do not throw the device in household waste. In accordance with directive 2002/96/EC, deposit it at a collection point for electronic waste (store or recycling center). Used lamps are hazardous waste.

USER MANUAL SC GB 908 Efbe-Schott

Important safeguards 6

Delivery and packaging 10

Skin tanning introduction 10

Tanning plan 12

Operation 15

Cleaning and care 15

DEUTSCH

Teilbeschreibung 4

Technical diagram of a portable air conditioner unit with numbered parts for identification and assembly reference.

ENGLISH

1. Carrying handle
2. UVA lamps

SC GB 904: 4 pcs.

SC GB 906: 6 pcs.

SC GB 908: 8 pcs.

1. Timer
2. Safety goggles
3. Power cord
4. Lower tube cover
5. Memory knobs
6. Cord storage compartment
7. Upper tube cover

DEUTSCH

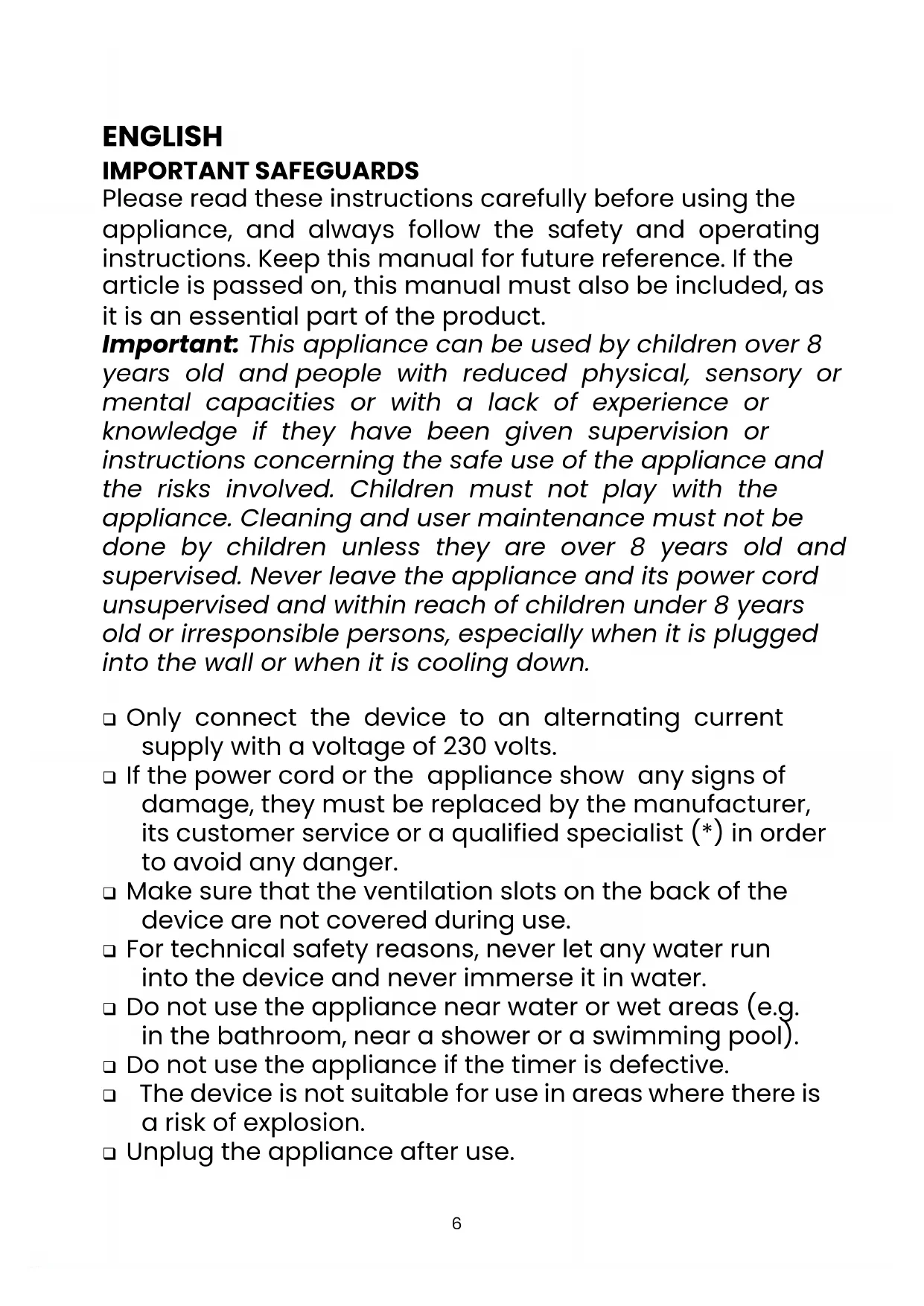

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Keep this manual for future reference. If the article is passed on, this manual must also be included, as it is an essential part of the product.

Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children must not play with the appliance. Cleaning and user maintenance must not be done by children unless they are over 8 years old and supervised. Never leave the appliance and its power cord unsupervised and within reach of children under 8 years old or irresponsible persons, especially when it is plugged into the wall or when it is cooling down.

☐ Only connect the device to an alternating current supply with a voltage of 230 volts.
☐ If the power cord or the appliance show any signs of damage, they must be replaced by the manufacturer, its customer service or a qualified specialist (*) in order to avoid any danger.
☐ Make sure that the ventilation slots on the back of the device are not covered during use.
☐ For technical safety reasons, never let any water run into the device and never immerse it in water.
☐ Do not use the appliance near water or wet areas (e.g. in the bathroom, near a shower or a swimming pool).
☐ Do not use the appliance if the timer is defective.
☐ The device is not suitable for use in areas where there is a risk of explosion.
□ Unplug the appliance after use.

□ Always let the device cool down before storing. (Cooling time: 15 minutes)
□ Certain materials that fade when exposed to sunlight (e.g. paintings) should not be exposed to the appliance’s ultraviolet light for too long.
☐ Non-users, and particularly children, must not be present when the device is in use.
☐ The duration of exposure should not exceed the personal minimal erythema dose (MED), i.e. the minimum UV dose that causes perceptible reddening of the skin. If erythema (redness of the skin) occurs a few hours after a tanning session, no further exposure should take place. After a break of one week, the treatment can be resumed, starting from the beginning of the tanning plan.
☐ If unexpected effects, such as itching, occur within 48 hours after the first exposure, please seek medical advice before the further use of the device.
- Ultraviolet radiation emitted by the sun or by electronic devices may cause irreversible damage to your skin or eyes. This biological effect depends on the quality and quantity of radiation and a person’s individual skin and eye sensitivity to ultraviolet light.
☐ Overexposure can cause sunburn. Repeated overexposure to UV rays emitted by the sun or by electronic devices can lead to premature skin aging and an increased risk of skin cancer. These risks increase with each exposure to UV radiation.
☐ Overexposure to UV radiation can lead to inflammation of the surface of the unprotected eye and, under certain circumstances, even to damage of the retina. Repeated exposure to ultraviolet light can contribute to the development of cataracts.
☐ In cases of high sensitivity or allergic reactions to UVA rays, please seek medical advice before using the device.

The following precautions must be taken when using the device:

□ Always wear the included safety goggles; contact lenses and sunglasses are never an equivalent substitute for the safety goggles.
- Remove any make-up prior to the exposure; do not use sunscreen or products that speed up tanning.
☐ Certain medical conditions or side effects of drugs may be enhanced by ultraviolet radiation; if in doubt, please seek medical advice.
☐ Allow a break of at least 48 hours between the first two tanning sessions.
□ Never sunbathe AND use the appliance on the same day.
☐ Please observe the recommendations for treatment duration, breaks and distance to the lamps.
☐ Seek medical advice if persistent swellings or sore spots develop on the skin, or if pigmented moles start to change.
□ Always protect sensitive skin areas such as scars, tattoos and genitals from exposure to ultraviolet light.

Devices emitting UV rays must not be used by:

□ persons younger than 18 years;
□ persons who tend to get freckles;
□ persons with natural red hair;
☐ persons with atypical discoloured skin areas;
☐ persons with more than 16 moles (2 mm in diameter or larger) on their whole body;
☐ persons with atypical moles (atypical moles are described as asymmetric moles with a diameter greater than 5 mm and with varying pigmentation and irregular borders);
☐ persons suffering from sunburn;
☐ persons who are unable to tan, or do not tan without getting sunburnt when exposed to direct sunlight;

☐ persons who tend to get sunburnt when exposed to direct sunlight;
☐ persons who repeatedly suffered from severe sunburns during their childhood;
☐ persons suffering or having suffered from skin cancer, or having a predisposition towards skin cancer;
☐ persons whose first-degree relatives have been diagnosed with melanoma (malignant melanoma);
☐ persons undergoing medical treatment for diseases associated with photosensitivity;
- persons who take photosensitizing drugs.

(*) Qualified specialist: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.

SCOPE OF DELIVERY AND PACKAGING

First, check if the packaging is undamaged and complete. If any parts are missing, do not use the device, but contact your retailer or service centre.

Scope of delivery

• The device
• Safety goggles
• Instruction book

Packaging

The packaging is made of environmentally friendly raw materials. It is reusable or can be returned to the raw material cycle. Properly dispose of unused packaging material. Immediately report any shipping damage to the retailer.

Always keep packaging films out of the reach of children. There is a risk of suffocation!

SKIN TANNING INTRODUCTION

The sun

The sun is the source of life on earth. As we can see from the rotation of the seasons and from our personal holiday experiences, light and warmth have a huge impact on our health and physical well-being. A bronzed skin is generally associated with a healthy and attractive appearance and, thus, enhances a person's self-confidence and well-being. At the same time, a suntan serves the biological purpose of protecting our skin from sunburn, particularly before going on a summer holiday.

The tanning

The tanning process is stimulated by a certain part of the light spectrum, regardless of whether the light is naturally produced by the sun or artificially produced.

Sunlight contains both a visible spectrum, which can be detected as light by the human eye, and invisible rays, such as those we feel as heat or that can lead to reddening of the skin or even sunburn. Rays that tan our skin belong to the spectrum of invisible ultraviolet (UV) radiation. It consists of three components: UVA, UVB and UVC radiation.

A perfect tan requires a preferably intense amount of UVA radiation, a very low amount of UVB and no UVC radiation at all.

UVC rays are blocked by the earth's atmosphere, while UVB and UVA rays do pass and can tan our skin. However, the rather high amount of UVB radiation emitted by the sun might quickly lead to excessive irritation, reddening and, hence, to sunburn in people with pale skin.

UVA tanning devices

UVA tanning devices by efbe-Schott feature a more favourable composition of UV radiation compared to natural sunlight. The intensity of UVA radiation is much higher than in natural sunlight, while at the same time, the harmful UVB radiation has been reduced to a fraction of the amount that is present in natural sunlight. In comparison to natural sunlight, the tanning process is usually accelerated while there is normally no risk of sunburn. The tanning colour that can be obtained is similar to a natural suntan. However, the skin's reaction to sun rays varies from one individual to another.

Skin types and exposure times

Each of us knows their skin's individual tanning behaviour when exposed to direct sunlight. Thus, a similar reaction of our skin may be expected from exposure to artificial UV light. People who can tolerate the sun very well tend to tan more quickly, while those who are unable to tan in the sun have only little chance of success when using UVA tanning devices.

Classification of skin types according to the reaction of the skin that has not been pre-irradiated to natural sunlight:

Skin type	Skin reaction and ethnicity
I	Always get sunburned quickly, hardly or no tan, even after repeated irradiations (Celtic type)
II	Almost always sunburn, moderate tan after repeated exposures (fair-skinned type)
III	Moderately often sunburn, progressive tanning after repeated irradiations (dark-skinned type)
IV	Rarely sunburn, rapid onset and clear tan (Mediterranean type)

Be careful when determining your individual exposure time, always taking into account your personal suntan experience.

Using a tanning device is only recommended for people with skin types II, III and IV.

People with skin type I and children younger than 14 years are not able to tan, neither in natural sunlight nor when using a tanning device.

TANNING PLAN

Depending on your skin type, the following tanning-session sequence is recommended when using the tanning device :

SC GB 904

Minimum distance from the device: 5 cm.

The interval between two exposures must be at least 48 hours!

Skin type	II	III	IV
1^st Exposure	10	10	10	Min.
2^nd Exposure	11	12	12	Min.
3^rd Exposure	12	14	16	Min.
4^th Exposure	14	16	19	Min.
5^th Exposure	15	18	22	Min.
6^th Exposure	16	21	25	Min.
7^th Exposure	18	23	28	Min.
8^th Exposure	19	25	31	Min.
9^th Exposure	20	27	34	Min.
10^th Exposure	22	29	37	Min.
11^th Exposure	23	32	40	Min.
12^th Exposure	24	34	44	Min.
Initial exposure	10	10	10	Min.
Initial dose	100	100	100	J/ m^2
Maximum exposure time	25	35	45	Min.
Final dose	250	350	450	J/ m^2
Max. number of exposures per year	60	43	33
Annual dose	15	15	15	kJ/ m^2

SC GB 906

Minimum distance from the device: 5 cm.

The interval between two exposures must be at least 48 hours!

Skin type	II	III	IV
1^st Exposure	7	7	7	Min.
2^nd Exposure	8	9	9	Min.
3^rd Exposure	9	10	12	Min.
4^th Exposure	10	12	14	Min.
5^th Exposure	11	13	16	Min.
6^th Exposure	12	15	18	Min.
7^th Exposure	13	17	21	Min.
8^th Exposure	14	18	23	Min.
9^th Exposure	15	20	25	Min.
10^th Exposure	16	21	27	Min.
11^th Exposure	17	23	30	Min.
12^th Exposure	18	25	32	Min.
Initial exposure	7	7	7	Min.
Initial dose	100	100	100	J/ m^2
Maximum exposure time	18	25	32	Min.
Final dose	250	350	450	J/ m^2
Max. number of exposures per year	60	43	33
Annual dose	15	15	15	kJ/ m^2

SC GB 908

Minimum distance from the device: 5 cm.

The interval between two exposures must be at least 48 hours!

Skin type	II	III	IV
1^st Exposure	6	6	6	Min.
2^nd Exposure	7	8	9	Min.
3^rd Exposure	8	9	11	Min.
4^th Exposure	9	11	13	Min.
5^th Exposure	10	12	15	Min.
6^th Exposure	11	14	17	Min.
7^th Exposure	12	15	19	Min.
8^th Exposure	13	17	21	Min.
9^th Exposure	14	18	23	Min.
10^th Exposure	14	20	25	Min.
11^th Exposure	15	21	27	Min.
12^th Exposure	16	23	29	Min.
Initial exposure	6	6	6	Min.
Initial dose	100	100	100	J/m2
Maximum exposure time	16	23	29	Min.
Final dose	250	350	450	J/m2
Max. number of exposures per year	60	43	33
Annual dose	15	15	15	kJ/m2

If you feel the recommended exposure time is too long (particularly when your skin becomes very tight and sensitive), please reduce the exposure time, for instance by 25% or more.

OPERATION

First, connect the tanning device to the mains supply.

Switch-on

• Turn the timer control knob (3) to the right and set the desired exposure time.
- The tanning device is switched on and the timer is activated.
- Once the timer has elapsed, the device switches off automatically.
- Do not exceed the recommended exposure time!
- Never continuously expose to UV radiation!

Exposure advice

• Slightly turn your head to the left and to the right in order to ensure an even tanning.
  • Always wear the safety goggles during exposure to protect your eyes.
• The lamps only get moderately warm and can be touched without risk even when in use.

Memory knobs

• Each user is assigned one of the 4 memory knobs (7).
- The tanning sessions can be documented and monitored with the help of the memory knobs.
- After each exposure, the memory knob needs to be moved one notch further to the next position.
- It is possible to set any desired exposure time, regardless of the position of the memory knob.

CLEANING AND CARE

• Always unplug the device before cleaning!
• If required, clean the housing of the device with a damp (not wet) sponge or cloth.

Repairs

• If the lamps do not light up after switching on, turn the lamps slightly back and forth.
- If functional devices with non-illuminating but functional lamps are sent in, this does not fall under the warranty.
- We are not liable for glass breakage even in the case of a new device, nor for any transport damage to repair devices that have been sent in with inadequate packaging.

- We recommend to keep all parts of the original packaging.

- Any repairs, including the replacement of the power cord, may only be carried out by the manufacturer, its customer service or a similarly qualified technician in order to avoid any hazards.

Replacement lamp for the tanning device

• UVA lamps may only be replaced with identical types:

Cleo Compact 15W, 15-O-9/3,9

• Unscrew the fastening screws on the back of the device upwards.
• Remove the covers.
• Turn the lamp by 90^ so that it can be removed from the socket.

Note: Like all fluorescent tubes, radiation tubes contain specific additives. They do not belong in the household waste. Defective radiation tubes are disposed of as hazardous waste.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol

■ on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

ERP DECLARATION - REGULATION 1275/2008/EC

We, Efbe-Schott Elektrogeräte GmbH, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Our product does not dispose of a standby mode as this product switches off completely immediately after the operation is finished and as a consequence does not consume electricity!

DECLARATION OF CONFORMITY

We guarantee the conformity of the product with the legally prescribed standards. The complete declaration of conformity can be requested from our address below: Efbe Elektrogeräte GmbH, Gustav-Töpfer-Str. 6, 07422 Bad Blankenburg, Germany

The instruction manual is by simple request also available in electronic format from the after-sales service (see warranty card).

DEUTSCH

INTRODUCTION AU BRONZAGE

Le soleil

DECLARATION DE CONFORMITÉ

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

[e-mail]

www.efbe-schott.de
