LINEAR SUB 1200 A - Speaker HK AUDIO - Free user manual and instructions
Find the device manual for free LINEAR SUB 1200 A HK AUDIO in PDF.
| Product Type | Active subwoofer |
| Brand | HK Audio |
| Model | LINEAR SUB 1200 A |
| Dimensions (W x H x D) | 38 x 66.8 x 56 cm |
| Weight | 30.7 kg |
| Mains Power | 220-240 V / 3.3 A (100-120 V / 6.6 A) |
| Amplifier | Class D, 1200 W |
| Woofer | 2 x 10" |
| Frequency Response (+/-3 dB) | 55 Hz - X-Over |
| Max SPL (10% THD) | 126 dB (half space) |
| Controls | Gain Bass (±6 dB), X-Over (110/130 Hz), Phase (0°/180°), Configuration (1 or 2 subs) |
| Audio Connections | 2 x combo XLR In, 2 x XLR Thru, 2 x XLR Mid/High Out, Speakon NL4 for passive sub |
| Protection | Undervoltage, thermal, short-circuit, overvoltage, subsonic 24 dB/oct., peak limiter |
| Pole Mount | 2 x M20 (K&M) |
| Handles | 4 x HK Audio MultiGrip |
| Enclosure | Birch multiplex 15/18 mm, 9/13 layers |
| Grille | 2 mm metal grille |
| Finish | Black acrylic lacquer |
| Accessories (optional) | Protective cover, Satellite Add-On M20 XLR, M20 pole, casters (100 mm), Tilt-Unit |
| Maintenance | Clean with a dry cloth. Do not open the unit. |
| Safety | Do not expose to moisture. Use only the supplied power cord. Disconnect during thunderstorms. |
| Repairability | Have serviced by qualified personnel. Replace fuses with IEC127 type (5x20 mm). |
Frequently Asked Questions - LINEAR SUB 1200 A HK AUDIO
User questions about LINEAR SUB 1200 A HK AUDIO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speaker in PDF format for free! Find your manual LINEAR SUB 1200 A - HK AUDIO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LINEAR SUB 1200 A by HK AUDIO.
USER MANUAL LINEAR SUB 1200 A HK AUDIO
L SUB 1200 A • L SUB 1500 A • L SUB 1800 A
L SUB 2000 A • L SUB 4000 A
Manual 1.6 v2

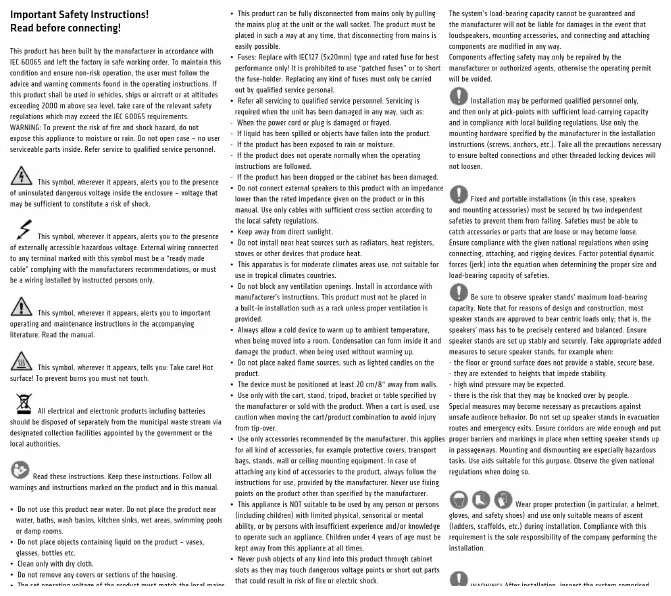

Important Safety Instructions! Read before connecting!
This product has been built by the manufacturer in accordance with IEC 60065 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. If this product shall be used in vehicles, ships or aircraft or at attitudes exceeding 2000 m above sea level, take care of the relevant safety regulations which may exceed the IEC 60065 requirements.
WARNING: To prevent the risk of fire and shock hazard, do not expose this appliance to moisture or rain. Do not open use - no user serviceable parts inside. Refer service to qualified service personnel.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to the presence of externally accessible hazardous voltage. External wiring connected to any terminal marked with this symbol must be a "ready mode cable" complying with the manufacturers recommendations, or must be a wiring installed by instructed persons only.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Read the manual
This symbol, wherever it appears, tells you. Take care! Hot surface! To prevent burns you must not touch.
All electrical and electronic products including betteries should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
Read these instructions. Keep these instructions. Follow all waminas and instructions marked on the product and in this menu
- Do not use this product near water. Do not place the product near water, baths, wash habits, kitchen sinks, wet areas, swimming pools or clamp rooms.
- In not place objects containing liquid on the product - vases, glasses, bottles etc.
- Clean only with dry cloth.
• Do not remove any covers or sections of the housing.
-
The other project will be done in the next year.
-
This product can be fully disconnected from mains only by pulling the mains plug at the unit or the wall socket. The product must be placed in such a way at any time, that disconnecting from mains is easily possible.
- Fuses: Replace with ICC127 (5x20mm) type and rated fuse for best performance only! It is prohibited to use "patched fuses" or to show the fuse-holder. Replacing any kind of fuses must only be carried out by qualified service personal.
- Refer at servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as
- When the power cord or plug is damaged or frayed.
- If liquid has been spilled or objects have fallen into the product.
- If the product has been exposed to rain or moisture.
- If the product does not operate normally when the operating instructions are followed.
- If the product has been dropped or the cabinet has been damaged.
- Do not connect external speakers to this product with an impedance lower than the rated impedance given on the product or in this manual. Use only cables with sufficient cross section according to the local safety regulations.
- Keep away from direct sunlight.
- Do not install near heat sources such as radiators, heat registers, stoves or other devices that produce heat.
- This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
- Do not block any ventilation openings. Install in accordance with manufacturer's instructions. This product must not be placed in a built-in installation such as a rack unless proper ventilation is provided.
- Always allow a cold device to warm up to ambient temperature, when being moved into a room. Condensation can form inside it and damage the product, when being used without warming up.
- In not place naked flame sourres, such as lighted candies on the product.
- The desire must be positioned at least 20 cm/8" away from walls.
- Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over
- Use only accessories recommended by the manufacturer, this applies for all kind of accessories, for example protective covers, transport bags, stands, wall or ceiling mounting equipment. In case of attaching any kind of accessories to the product, always follow the instructions for use, provided by the manufacturer. Never use fixing points on the product other than specified by the manufacturer.
- This appliance is HOT suitable to be used by any person or persons (including children) with limited physical, sensorical or mental abilities, or by persons with insufficient experience and/or knowledge to operate such an appliance. Children under 4 years of age must be kept away from this appliance at all times.
- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
The system's load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event that loudspeakers, mounting accessories, and connecting and attaching components are modified in one way. Components affecting safety may only be repaired by the manufacturer or authorized agents, otherwise the operating permit will be voided.
Installation may be performed qualified personnel only, and then only at pick points with sufficient load-carrying capacity and in compliance with local building regulations. Use only the mounting hardware specified by the manufacturer in the installation instructions (screws, anchors, etc.). Take all the precautions necessary to ensure bolted connections and other threaded locking devices will not loosen.
Fixed and portable installations (in this case, speakers and mounting accessories) must be secured by two independent safeties to prevent them from falling. Safeties must be able to catch accessories or parts that are loose or may become loose. Ensure compliance with the given national regulations when using connecting, attaching, and digging devices. Factor potential dynamic torres (jerk) into the equation when determining the proper size and load bearing capacity of safeties.
Be sure to observe speaker stands' maximum load-bearing capacity. Note that for reasons of design and construction, most speaker stands are approved to bear centric loads only; that is, the speakers' mess has to be precisely centered and balanced. Ensure speaker stands are set up stably and securely. Take appropriate added measures to secure speaker stands, for example when:
- the floor or ground surface does not provide a stable, secure base. they are extended to heights that impede stability.
- high wind pressure may be expected.
- there is the risk that they may be knocked over by people. Special measures may become necessary as precautions against unsafe audience behavior. Do not set up speaker stands in evacuation routes and emergency exits. Ensure corridors are wide enough and put proper barriers and markings in place when setting speaker stands up in passageways. Mounting and discounting are especially hazardous tools. Use aids suitable for this purpose. Observe the given national regulations when doing so.
Wear proper protection for particular, a helmet, gloves, and safety shoesl and use only suitable means of ascent (ladders, scaffolds, etc.) during installation. Compliance with this requirement is the sole responsibility of the company performing the installation.
in millions of the installation, except the picture commanded

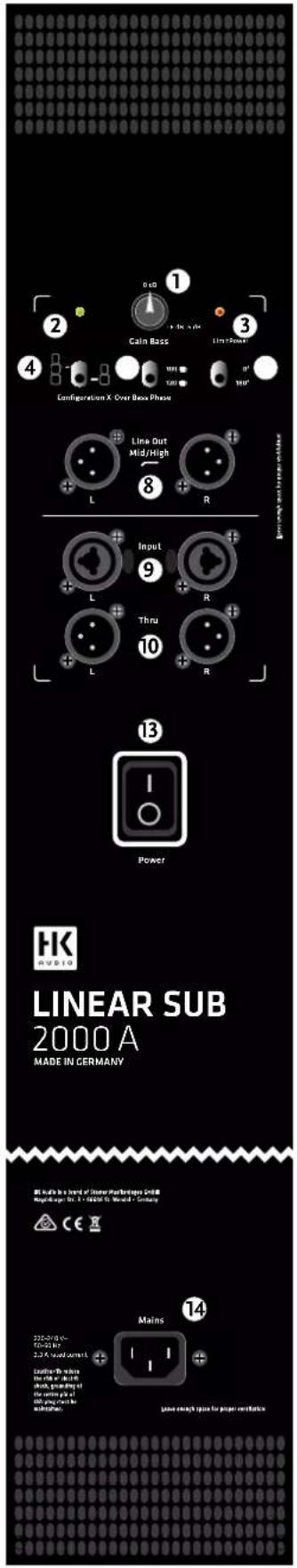

LINEAR SUB
L SUB 1200 A L SUB 1500 A
L SUB 2000 A L SUB 1800 A L SUB 4000 A
Welcome to the HK Audio family!
Warranty

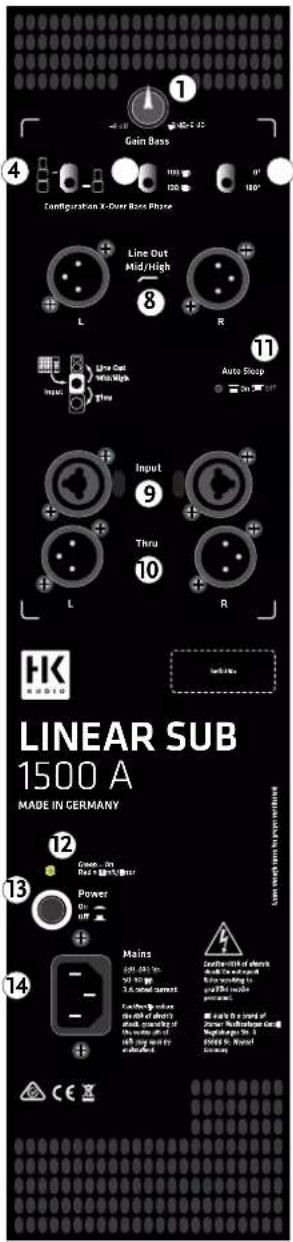

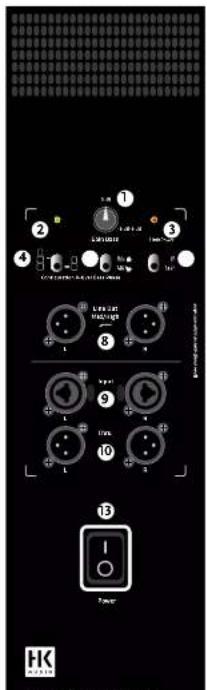

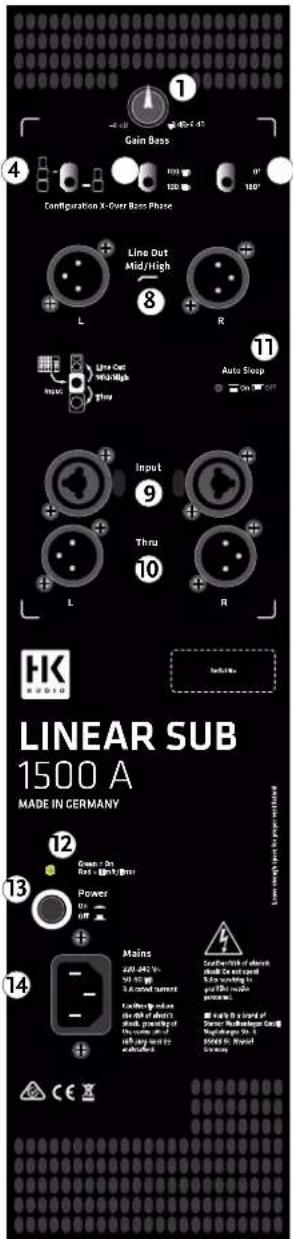

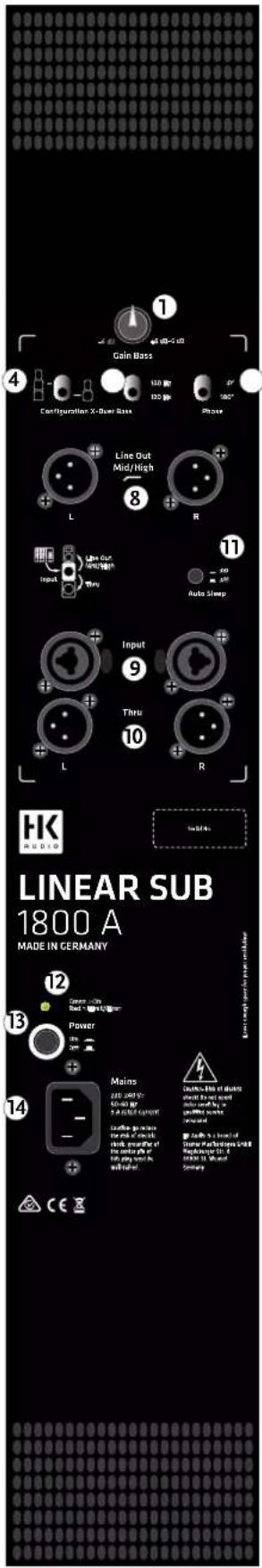

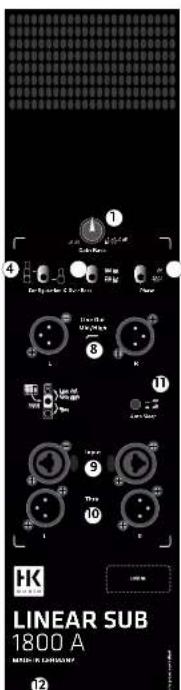

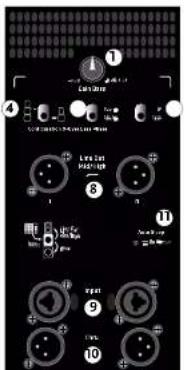

1 Control Features
This knob adjusts the subwoofer's volume. When set to the 12 o'clock position (0 dB /center-notched), the subwoofer's volume is matched to the LINEAR active speakers' levels to achieve a balanced soundscape with an evenhanded distribution of low and midrange frequencies. If you want to increase or decrease the subwoofer's volume, simply rotate the knob to the left or right (control range +/-6 dB).

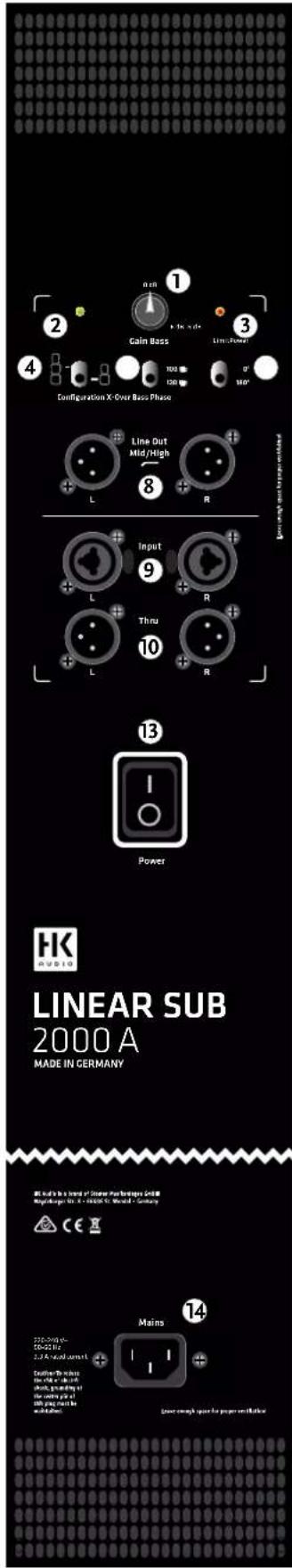

2 Power LED (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
This LED lights up green when the Power button is set to On and mains power is provided

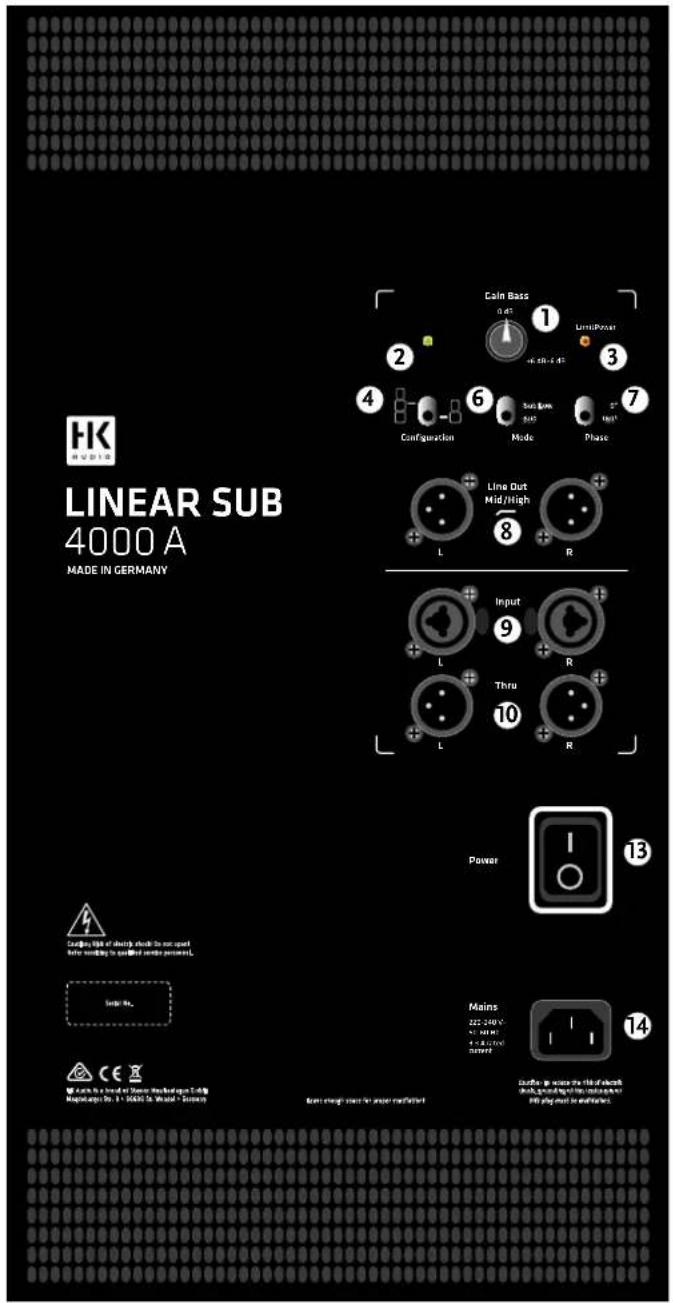

3 Limit LED (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
This LED lights up red when the power amp's input signal is too high or a fault has been detected. The LED briefly flashes red to tell you the limiter is responding to signal peaks.
4 Conf i guration

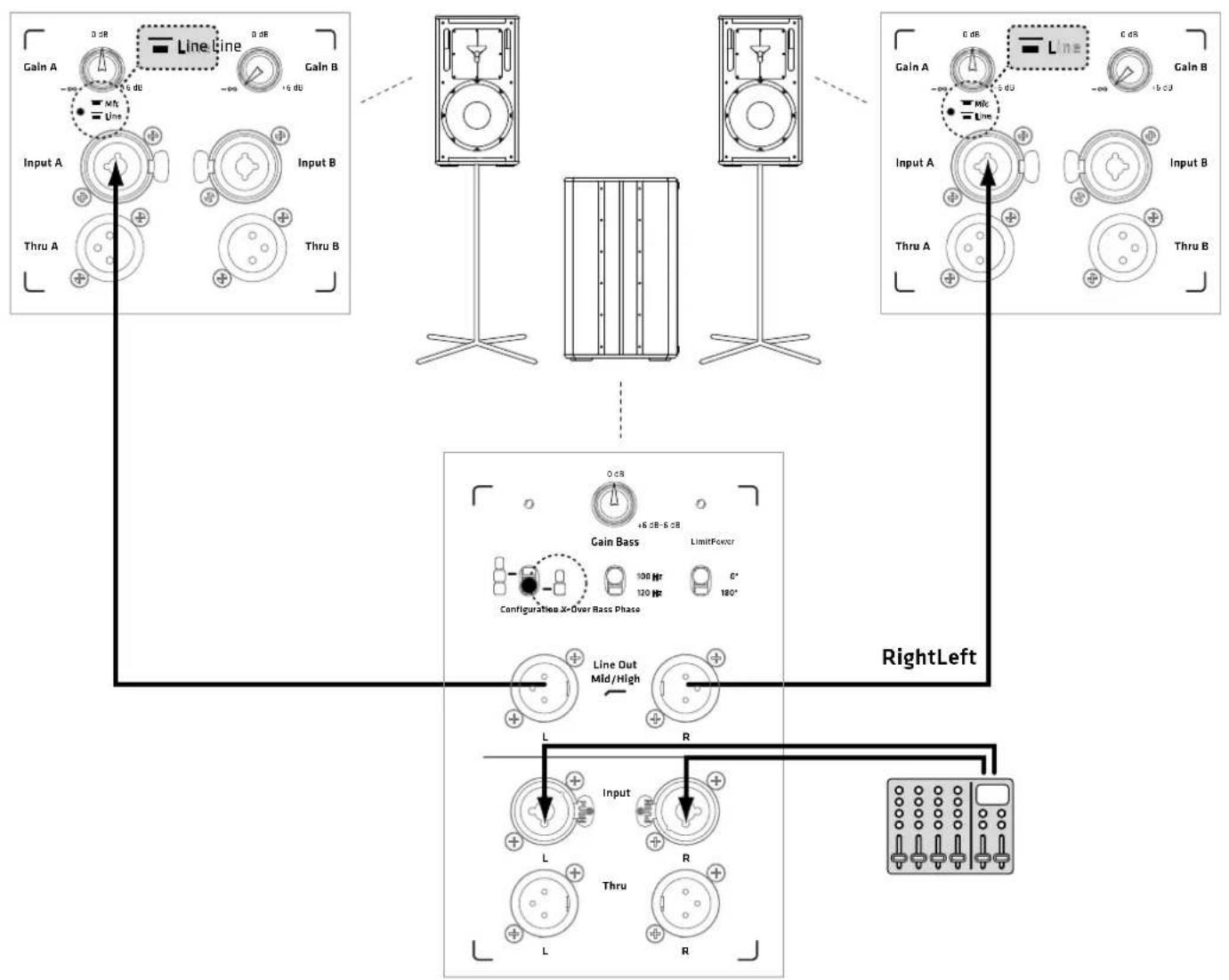

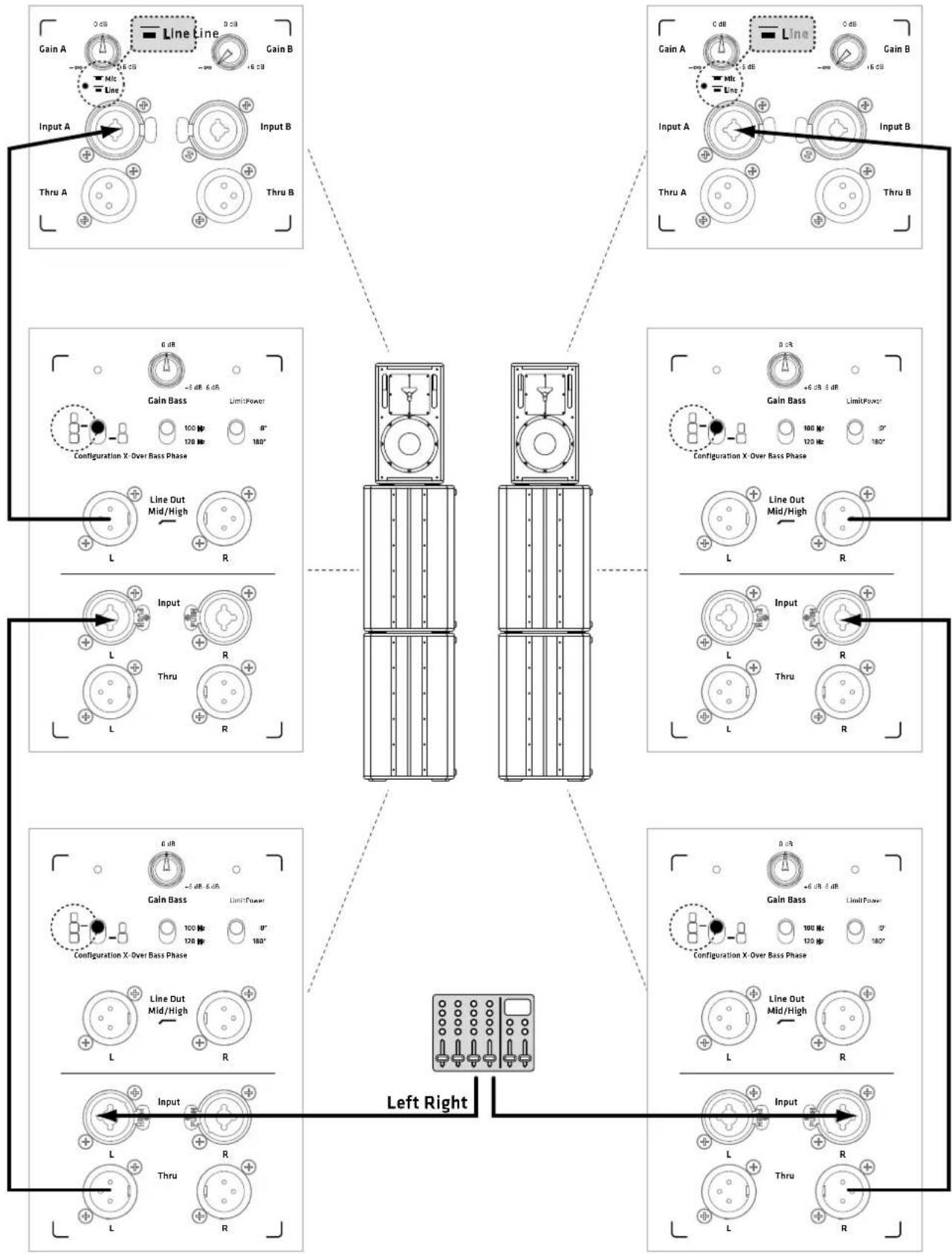

Set the switch to this position to configure one LINEAR active sub for use with one LINEAR active speaker.

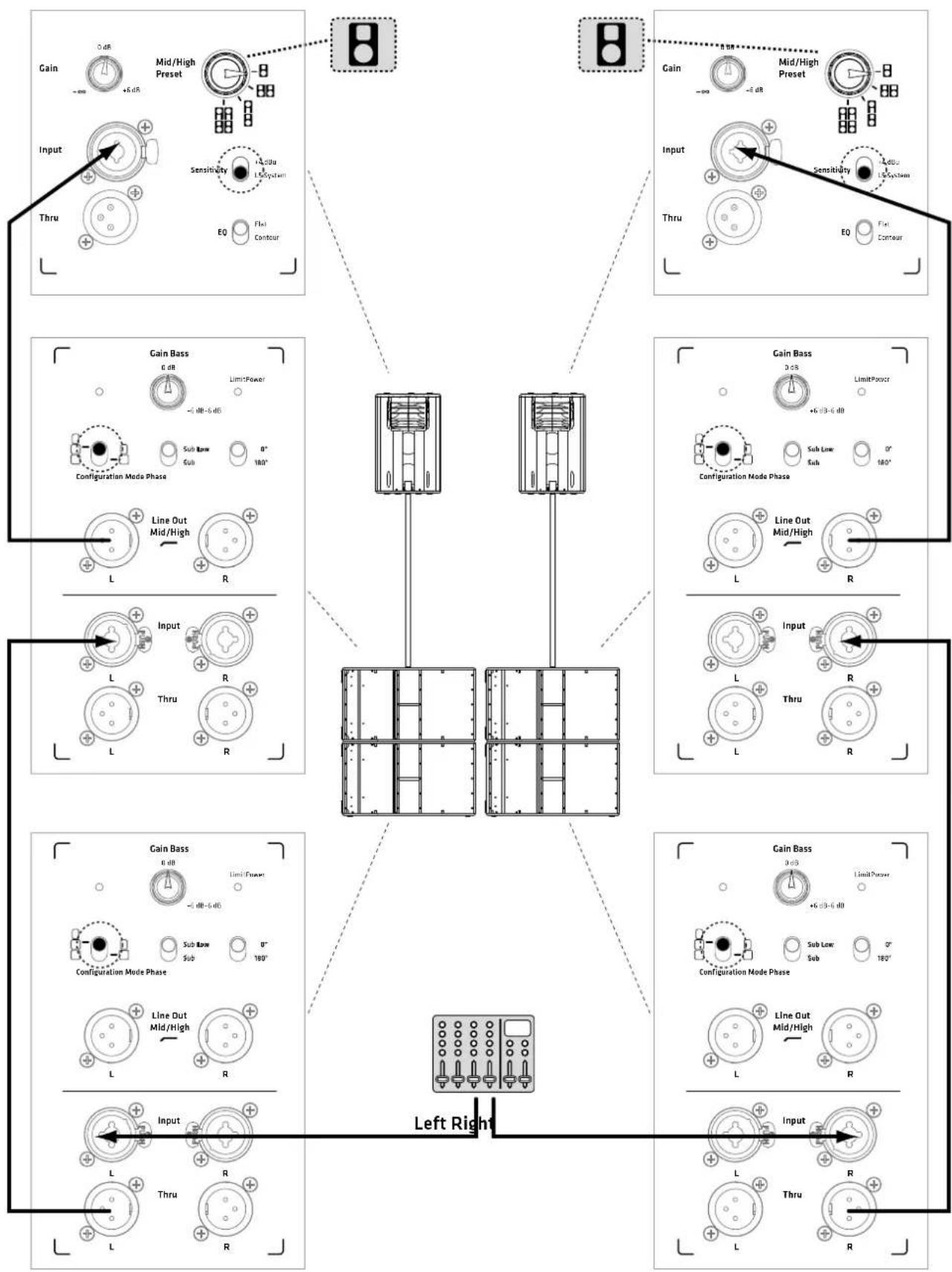

Set the switch to this position to operate two LINEAR active sub with one LINEAR active speaker. In this setting, the levels of the two Line Out Mid/High outputs are boosted by up to 6 dB to bring up the one mid/high unit's level and balance it out with two LINEAR active subs.
5 X-Over Bass
The X-Over switch lets you adjust the upper corner frequency of the X-over built into the LINEAR active sub.
• L SUB 1200 A between 110 Hz and 130 Hz
- L SUB 1500 A, L SUB 1800 A, L SUB 2000 A between 100 Hz and 120 Hz
Your choice of setting will depend on the conditions in the venue and the type of audio signal.

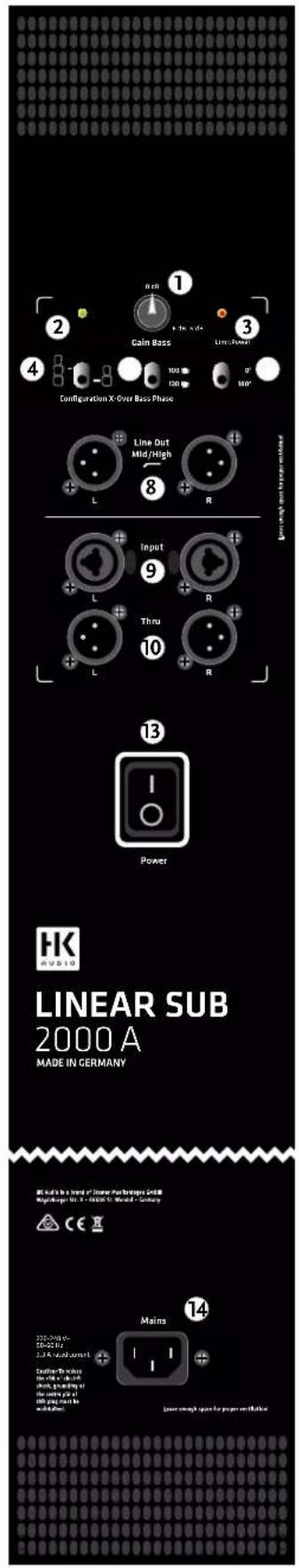

6 Mode (L SUB 4000 A only)
The Mode switch lets you adjust the upper corner frequency of the X-over built into the LINEAR active sub.
• L SUB 4000 A between 70 Hz (Sublow) and 100 Hz (Sub)
Your choice of setting will depend on the conditions in the venue and the type of audio signal, as well as whether the subwoofer is being used as a sub-low supplement or as a system bass.
7 Phase
The Phase switch configures the LINEAR active sub's phase position to match that of the connected mid/ high units (0°/180°). Set the switch to 0° when operating the bass bin with LINEAR mid/ high units. You may have to invert the phase 180° to operate it with other speakers.
Note:

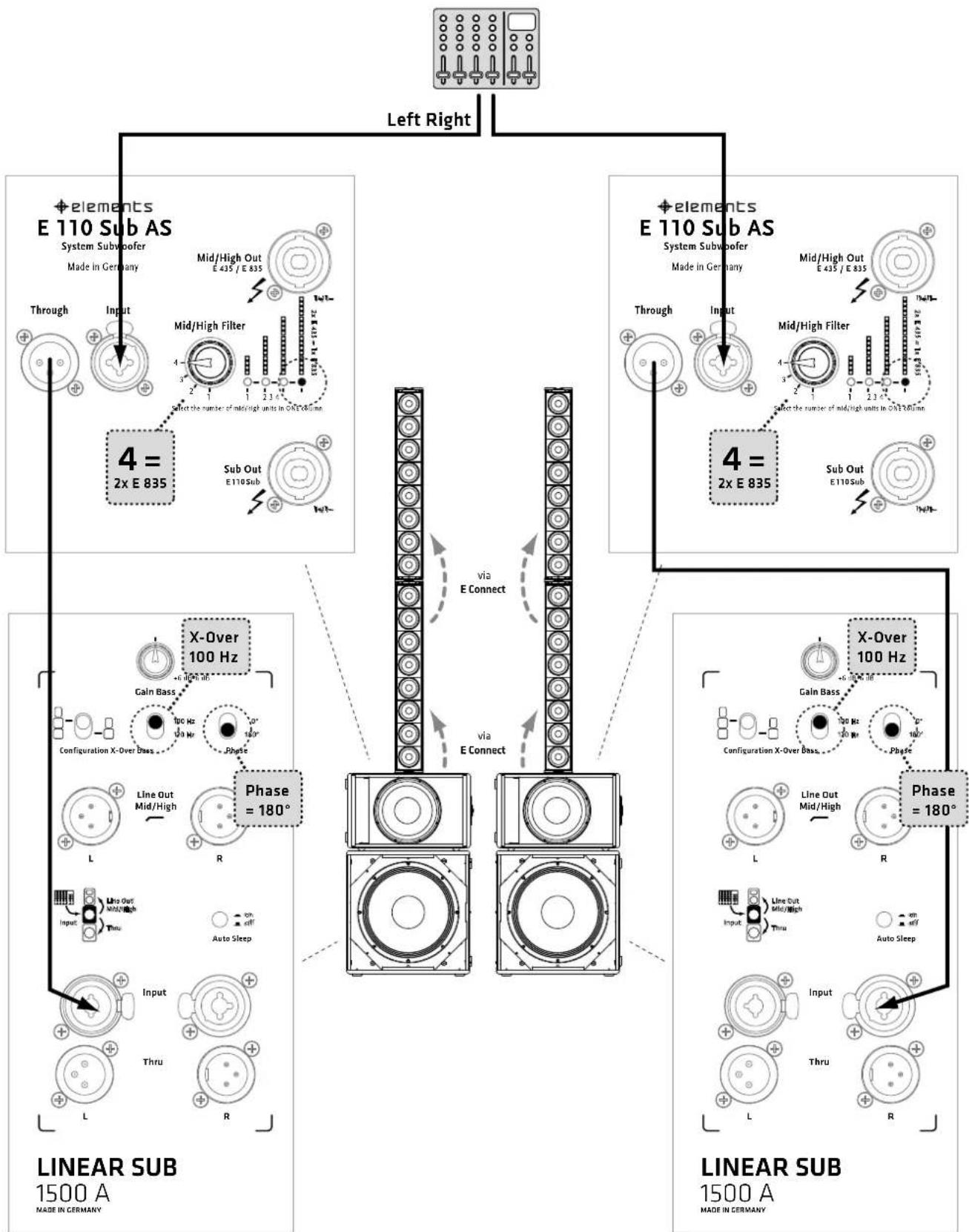

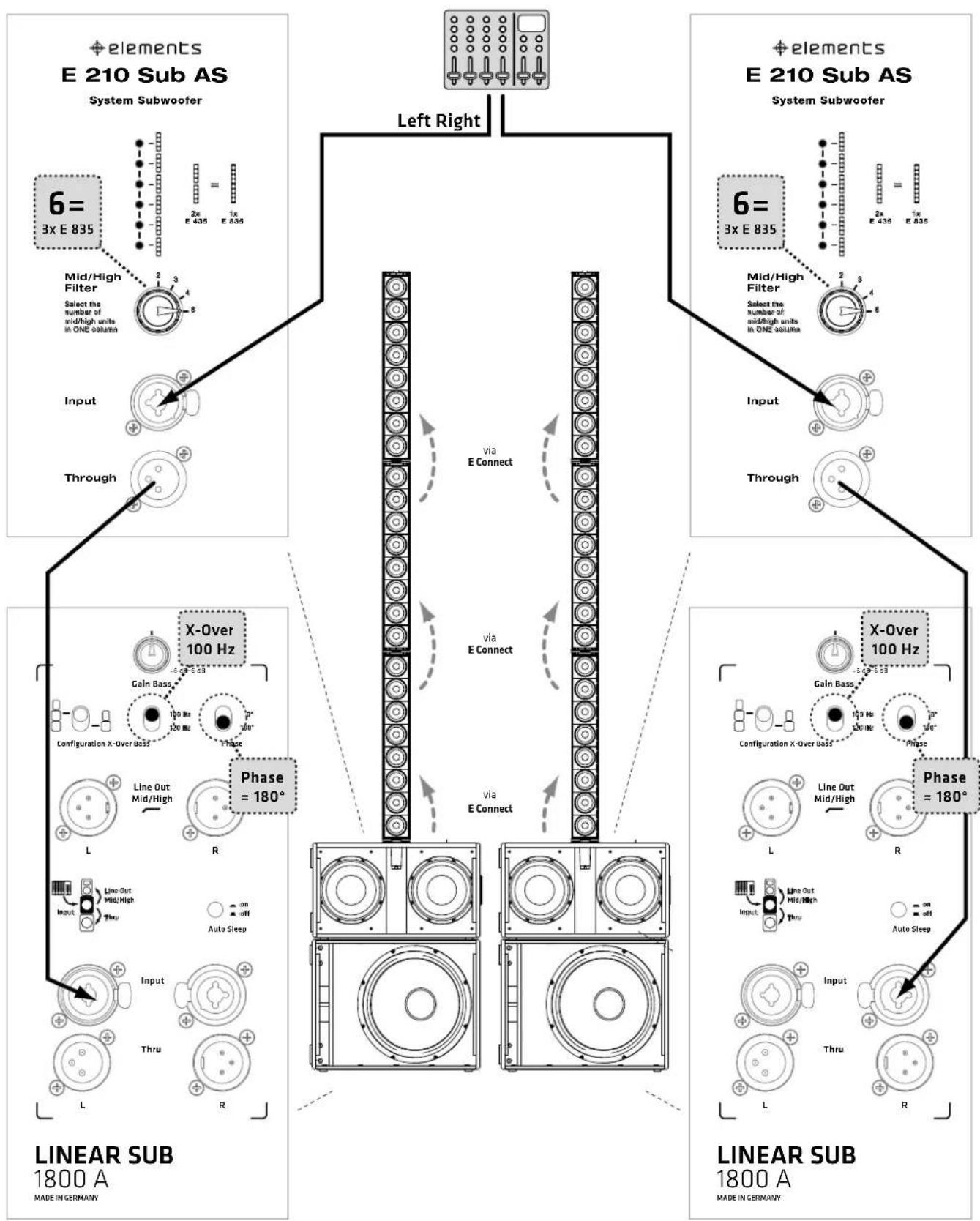

• ELEMENTS setup:
E 110 Sub A/AS + L SUB 1500 A -> Phase = 180"(X-Over Bass = 100 Hz)
E 210 Sub AS + L SUB 1800 A -> Phase = 180° (X-Over Bass = 100 Hz)
8 Line Out Mid/High L/R
Use these two electronically balanced XLR outputs to connect active mid/high units.
9 Input L/R
This electronically balanced, combination XLR/ 6.3 mm (1/4") input accepts audio signals.
10 Thru L/R
This parallel output routes Input L/R's incoming signal back out.
11 Auto Sleep (L SUB 1500 A, L SUB 1800 A)
The built-in amp switches to standby mode (Consumption around 0.5 watts) when the button is set to „On“ and the unit does not receive a signal for 180 minutes. To power the subwoofer back up again, simply set its Power button to „Off“ for five seconds and then back to On. The subwoofer will remain up and running if you disable Auto Sleep by setting this button to „Off“.
LINEAR SUB 1.6
12 Status LED (L SUB 1500 A, L SUB 1800 A)
This LED lights up green when the Power button is set to On and the unit is getting mains power.
This LED lights up red when the power amp's input signal is too high or a fault has been detected. The LED briefly flashes red to tell you the limiters are responding to signal peaks.
Heads up! If the Limit LED stays red while the unit is up and running, it is being overloaded. Turn down the signal level if you are not routing a signal in and the Limit LED stays red, the system has detected a fault.
13 Power
This is the on/off button for the LINEAR active sub. Its status LED lights up green when it is engaged.
14 Mains
Use the factory-included mains cord to connect this socket to a wall outlet. Note: All LINEAR SUBs are equipped with V-Lock mains sockets. If you use a VOLEX locking mains cord or another optionally available brand, with the same design, you can fix the mains cord in place to prevent accidental disconnection.

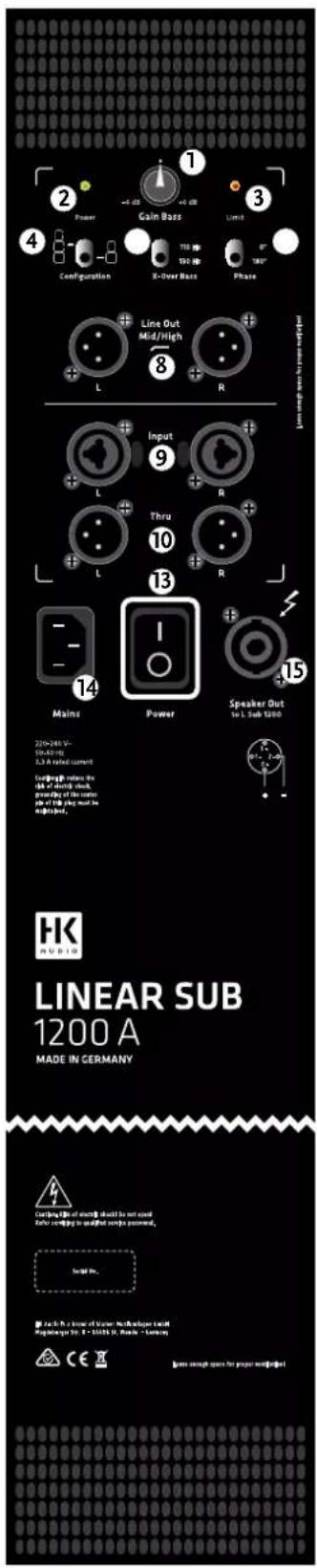

15 Speaker Out (L SUB 1200 A only)
This port serves to connect a passive L SUD 1200 (NL4, 2 + Sub - / 2 = Sub -).
Heads up: Do not connect any other device. If you do, it may be destroyed along with L SUB 1200 A.

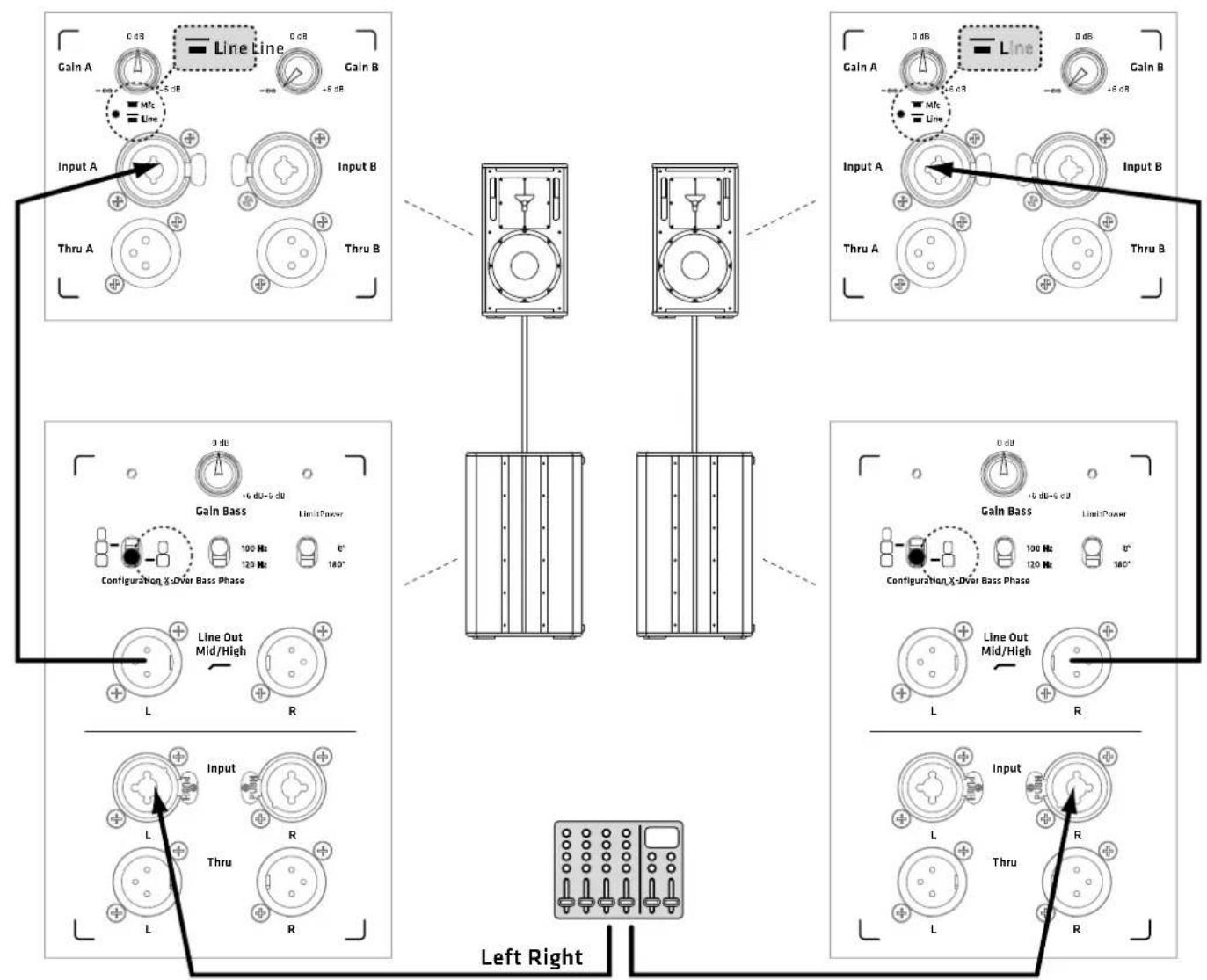

2 Connecting Cords
Use a microphone cord equipped with XLR connectors or 6.3 mm (1/4") jack plugs to send the signal from the audio source (master, monitor, line, or a similar output) to the balanced L/R inputs. Connect the active mid/high units to the XLR outputs labeled Line Out Mid/High. Use the two Thru L/R ports to route the fullrange signal to other speakers.
3 Operating the Sub
- When you flip the power switch, the fan will briefly start up (system check) and stop after about five seconds. The fan is temperature-controlled. It kicks on only at very high volume levels and runs according to the given temperature. The Status LED (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A) lights up red during the system check and will extinguish unless a fault is detected. L SUB 500 A, L SUB 1800 A; The Status LED lights up red during the system check, and then green if there is no malfunction and the unit is getting mains power.
4 Settings
- Adjusting Volume Levels with the Gain Bass Knob
Use the Cain Bass knob to adjust the active subwoofer's volume to suit the venue and situation. If you want to increase or decrease the subwoofer's volume, simply turn this knob to the left or right (control range +/-6 dB). If you hear distortion or the signal sounds saturated, first check the signal sources and, if possible, reduce the output signal level there.
- Adjusting the Corner Frequency:
With the X-Over Bass Switch
You can use this switch to adjust the LINEAR active sub's frequency range to match the signal you wish to render and/or the surroundings. The Line Out Mid/High Left/Right outputs are not affected by this setting
With the Mode Switch (L SUB 4000 A only)
Use this switch to adjust the frequency response of the active LINEAR subwoofer to the audio signal and the surroundings. The Line Out Mid/High Left/Right outputs are not affected by Mode changes. If you add the L SUB 4000 A to an existing PA system as a deep bass extension, Sun Low is the recommended setting. The LINCAR range's acoustic and phase-corrected tuning ensure that the L SUB 4000 A works with every model available.
- Adjusting the Phase Position with the Phase Switch
You can use the Phase switch to adjust the LINEAR active sub's phase position to match that of the connected mid/ high unit (for more on this, see section 1.7)
5 Technical Specifications
| Model L SUB 1200 A L SUB 1500 A L SUB 1800 A L SUB 2000 A L SUB 4000 A | |||||
| Max. SPL10% THD 126 dB half-space 125 dB half-space 130 dB half-space 132 dB half-space 135 dB half-space | |||||
| Max. SPL Peak810% THD 128 dB half-space 131 dB half-space 132 dB half-space 133 dB half-space 137 dB half-space | |||||
| Max. SPL Calc. 12% dB half space 132 dB half space 133 dB half space | |||||
| Frequency response - /- 3 dB | 55 Hz - X Over | 49 Hz - X Over | 42 Hz - X Over | 49 Hz - X Over | 31 Hz - X Over |
| Frequency response - 10 dB | 38 Hz - X Over | 45 Hz - X Over | 38 Hz - X Over | 39 Hz - X Over | 39 Hz - X Over |
| Power output | 1,200 W | 1,200 W | 1,200 W | 1,200 W | 1,200 W |
| Amp/type | Class II | Class III | Class IV | Class V | Class VI |
| Active protection circuits | Under voltage, thermal, short circuit, and over-current protection. Subsonic 24 dB/oct. peak limiter | Under voltage, thermal, short circuit, and over-current protection. Subsonic 24 dB/oct. peak limiter | Under voltage, thermal, short circuit, and over-current protection. Subsonic 24 dB/oct. peak limiter | Under voltage, thermal, short circuit, and over-current protection. Subsonic 24 dB/oct. peak limiter | Under voltage, thermal, short circuit, and over-current protection. Subsonic 24 dB/ oct. peak limiter |
| Bass motor | 2x 10" | 1x 15" | 1x 18" | 2x 12" | 1x 18" |
| Cut off Frequency active | 110/130 Hz variable with 24 dB/oct. | 100/120 Hz variable with 24 dB/oct. | 100/120 Hz variable with 24 dB/oct. | 100/120 Hz variable with 24 dB/oct. | 70/100 Hz variable with 24 dB/oct. |
| Audio ports | 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out, Speakon MCI for 2nd passive L Sub 1200 (2 = SUI - 2 = Sub-) | 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out | 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out | 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/ High Out | 2x XLR Combo In bal., 2x XLR Thru bal., 2x XLR-Mid/ High Out |
| Input sensitivity | +4 dBu @ Cain center click | +4 dBu @ Cain center notched | +4 dBu @ Cain center notched | +4 dBu @ Cain center notched | +4 dBu @ Cain center notched |
| Mains connector | 1x IEC socket with V-Lock cord retainer | 1x IEC socket with V-Lock cord retainer | 1x IEC socket with V-Lock cord retainer | 1x IEC socket with V-Lock cord retainer | 1x IEC socket with V-Lock cord retainer |
| Power consumption | 5.3 A / 220-240 V (6 & A / 100- 120 V) nominal according to EN hillies | 5.4 / 220-240 V (6 & A / 100- 120 V) nominal according to EN 600/s | 5.4 / 220-240 V (6 & A / 100- 120 V) nominal according to EN 600/s | 5.3 A / 220-240 V (6 & A / 100-120 V) nominal according to EN 600/s | 5.3 A / 220-240 V (6 & A / 100-120 V) nominal according to EN 600/s |
| Pole mount | 2x M20 (KGM) | 1x M20 (KGM) | 1x M20 (KGM) | 1x M20 (KGM) | 2x M20 (KGM) |
| Grips | 4x HK Audio MultiGroup | 2x HK Audio MultiGroup | 4x HK Audio MultiGroup | 4x HK Audio MultiGroup | 8x HK Audio MultiGroup |
| Housing | Bird multiples 15/18 mm, 9/18 p/y | MCF 16 mm | MDF 16 mm | Bird multiples 15/18 mm, 9/18 p/y | Bird multiples 15/18 mm, 9/18 p/y |
| Front grille | 2 mm metal grille | 2 mm metal grille | 2 mm metal grille | 2 mm metal grille | 2 mm metal grille |
| Finish | Acrylic enamel, black | Acrylic enamel, black | Acrylic enamel, black | Acrylic enamel, black | Acrylic enamel, black |
| Optional accessories | Protective cover, Satellite Add-On M20 XLR, Speaker, mounting pole M20, 100 mm casters | Protective cover, Satellite Add-On M20 XLR, Speaker, mounting pole M20, 100 mm casters | Protective cover, Satellite Add-On M20 XLR, Speaker, mounting pole M20, 100 mm casters | Protective cover, Satellite Add-On M20 XLR, Speaker, mounting pole M20, 100 mm | Protective cover, Satellite Add-On M20 XLR, Speaker, mounting pole M20, 100 mm |
L SUB 1200 A L SUB 1500 A
L SUB 2000 A L SUB 1800 A L SUB 4000 A
2 Power-LED (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
3 Limit-LED (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
12 Status-LED (L SUB 1500 A, L SUB 1800 A)
2+ = Sub - (2 = Sub)
LINEAR SUB 1200 A MADE IN GERMANY Pack B: a knee of Linear Modulator Bracket Page number: B - 1000 B. Hold - Coven Bare enough space for proper modified
LINEAR SUB 4000 A MADE IN GERMANY Gain Bass 0 dB 1 Line/Power +6 GB +8 dB 3 Configuration 6 Soft Loss Set 7 Mode High Phase Line Out Mid/High L R Input 9 L R Thru 10 L R Power 13 Casing light of electrical shock the last open better switching to specified normal position. Semi No. Mains 2.25 A, 1000 V~ 5.5 A, 100 V~ 3.5 A, 100 V~ 14 Semi No. 1.25 A, 1000 V~ Magnetic power: 1.25 A, 100 V~ Power change: -100 V for lower main/Forward Semi No. 1.25 A, 100 V~ Magnetic power: 1.25 A, 100 V~ Power change: -100 V for lower main/ForwardE 110 Sub A/AS + L SUB 1500 A -> Phase = 180°(X-Over Bass = 100 Hz) E 210 Sub AS + L SUB 1800 A -> Phase = 180° (X-Over Bass = 100 Hz)
8 Sorties Line Out Mid/High L/R
Front view of a grid-patterned industrial or mechanical component with no visible text or symbolsL SUB 1200 A L SUB 1500 A
LINEAR SUB 1200 A MADE IN GERMANY Pack B: a knee of Linear Modulus Modell Page number: B - 1000 B. Hold - Coven Power Gain Bass Limit Configuration X-Over Bass Phase Line Out Mid/High L R Input 9 L R Thru 10 L R Mains Power Speaker Out 1st L Sub 1200 220-260 V~ 55.43 deg. 3.8 ft related current Casing Pin: reduce the inlet of nominal angle, proceeding of the common pin of the pin must be augmented. HK H K D I U S Pack B: a knee of Linear Modulus Modell Page number: B - 1000 B. Hold - Coven Bare enough space for proper modified
2 Spia Power (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
E 110 Sub A/AS + L SUB 1500 A -> Phase = 180°(X-Over Bass = 100 Hz)
E 210 Sub AS + L SUB 1800 A -> Phase = 180° (X-Over Bass = 100 Hz)
7 Phase
8 Line Out Mid/High L/R
15 Speaker Out (soltanto L SUB 1200 A)
Mode (soltanto L SUB 4000 A)
2 LED Power (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
3 LED Limit (L SUB 1200 A, L SUB 2000 A, L SUB 4000 A)
E 210 Sub AS + L SUB 1800 A -> Phase = 180° (X-Over Bass = 100 Hz)
7 Phase
8 Line Out Mid/High L/R
2.1 SYSTEM:
2x Mid/high unit LINEAR 3/LINEAR 5 (112 FA/112 XA/115 FA)
+ 1x LINEAR SUB 1200/1500/1800/2000/4000 A
HALFSTACK SYSTEM:
2x Mid/high unit LINEAR 3/LINEAR 5 (112 FA/112 XA/115 FA)
+ 2x LINEAR SUB 1200/1500/1800/2000/4000 A
2x Mid/high unit LINEAR 3/LINEAR 5 (112 FA/112 XA/115 FA)
+ 4x LINEAR SUB 1200/1500/1800/2000/4000 A


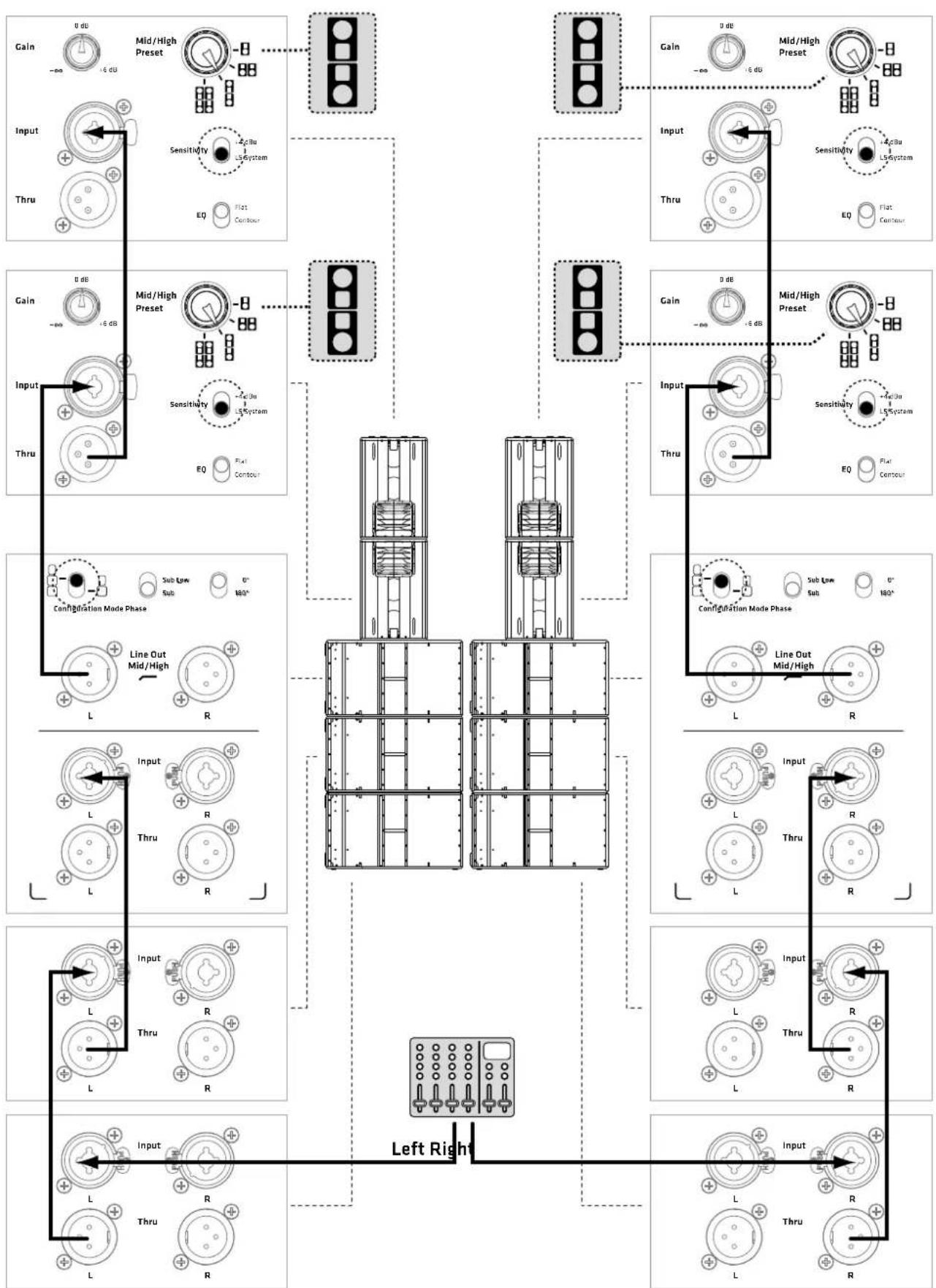

LINEAR 5 - LTS FULLSTACK SYSTEM:
2x L5 LTS A + 4x L SUB 4000 A
C
D
E
F
G
H
I
J
K
L
end
LINEAR 5 - LTS HEADSTACK SYSTEM:
4x L5 LTS A + 6x L SUB 4000 A
ELEMENTS „CLUB BASE“ SYSTEM:
4x E 835 / 2x E 110 SUB AS + 2x L SUB 1500 A
ELEMENTS „ROCK BASE“ SYSTEM:
6x E 835 / 2x E 210 SUB AS + 2x L SUB 1800 A
How to stack LINEAR cabinets correctly

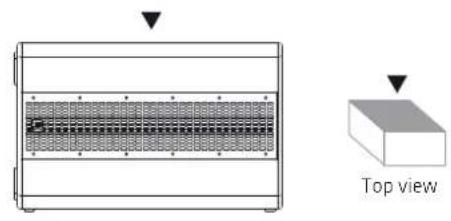

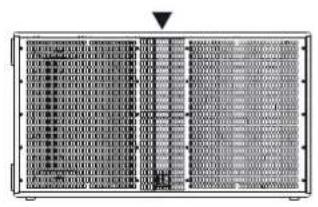

- L SUB 4000/A horizontal


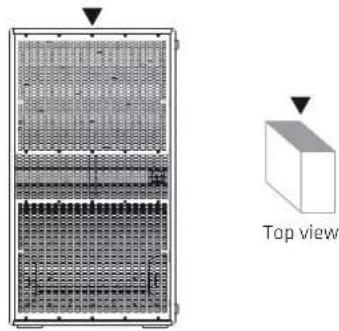

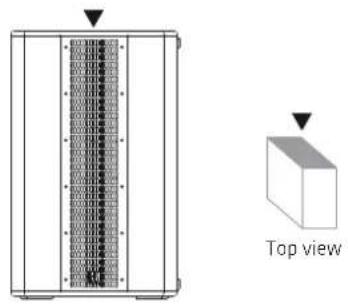

- L SUB 4000/A upright
+ L5 112 F+ L5 115 F+ L5 LTS


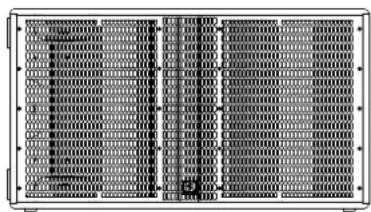

Technical diagram of a mechanical component with mounting holes and internal features, alongside a separate stack of black and gray blocks (no text or symbols)- L SUB 2000/A horizontal


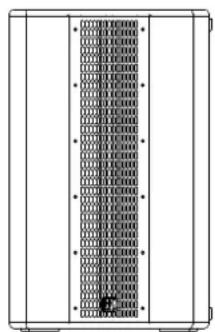

Front view of a rectangular electronic component with two square cutouts and a stack of three blocks below (no text or symbols)- L SUB 2000/A upright
HK Audio® • Postfach 1509 • 66595 St. Wendel • Germany • info@hkaudio.com • www.hkaudio.com International Inquiries: fax +49-68 51-905 215 • international@hkaudio.com
