HG10349 - Fan SILVERCREST - Free user manual and instructions

Product type	Stove/fireplace fan
Brand	SilverCrest
Model	HG10349
Dimensions (L × W × H)	180 × 120 × 190 mm
Power supply	Thermal (cordless, powered by stove heat)
Start temperature	55 °C – 60 °C
Operating temperature	55 °C – 345 °C
Main function	Improve hot air circulation for metal stoves
Delivery contents	1 stove fan, 1 user manual
Cleaning and maintenance	Clean with a dry non-linting cloth. Do not use harsh cleaning products.
Storage	Keep away from moisture and mechanical stress
Warranty	3 years
Safety	Do not touch the blades during operation. Risk of burns. Safety blade at high temperature (>345 °C).
Spare parts and repairability	Spare parts available during warranty period
Intended use	Private use on metal stoves with flat top. Do not use on ovens.

Frequently Asked Questions - HG10349 SILVERCREST

How does this fan work?

The fan uses the heat from the stove to power a thermal motor. It starts automatically when the temperature reaches 55 °C – 60 °C.

What is the maximum operating temperature?

The maximum operating temperature is 345 °C. Beyond that, a safety blade lifts the fan to isolate it from the stove.

Can I use this fan on an oven?

No, this fan is designed only for metal stoves with a flat top. Do not use it on an oven, risk of incineration.

How to clean the fan?

Clean the product with a dry non-linting cloth. Never use aggressive or corrosive cleaning products.

What to do if the fan does not start?

Check that the stove temperature is sufficient (at least 55 °C) and that the fan is placed on a flat surface. If the problem persists, contact customer service.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof.

How to contact customer service in France?

In France, call 0800904879 or send an email to [e-mail].

Does the fan present burn risks?

Yes, the product becomes hot during operation. Do not touch the blades and use the handle to move it. Allow to cool for 24 hours before handling.

Can I use the fan without a stove?

No, the fan requires the heat of a stove to operate. It has no electrical power or battery.

How to store the fan off-season?

Store the fan in a dry place, away from moisture and shocks. Handle with care.

USER MANUAL HG10349 SILVERCREST

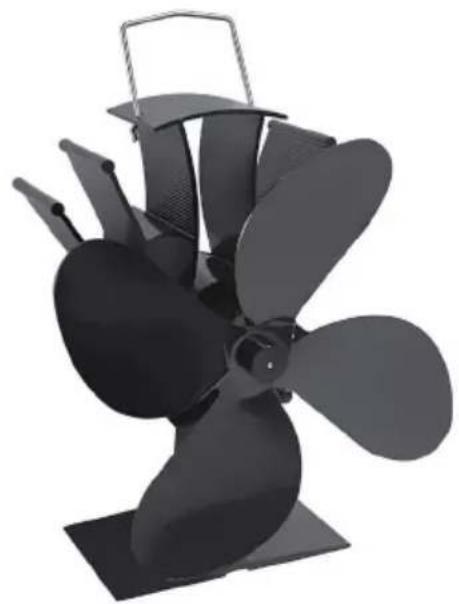

Black metal propeller with four blades and a handle, no text or symbols visible

KAMINOFEN-VENTILATOR / STOVE FAN / VENTILATEUR POUR POÊLE ET CHEMINÉE

DE AT CH

KAMINOFEN-VENTILATOR

Bedienungsanleitung

GB IE NI CY MT

STOVE FAN

User manual

FR BE CH

VENTILATEUR POUR POÊLE ET CHEMINÉE

Line drawing of a hand using a pin to adjust a small propeller into a cylindrical housing (no text or symbols)

Gebrauch

- Vor dem Gebrauch

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Bedienung

Illustration of a portable stove with steam rising, and two fan-shaped propellers emitting heat (no text or symbols)

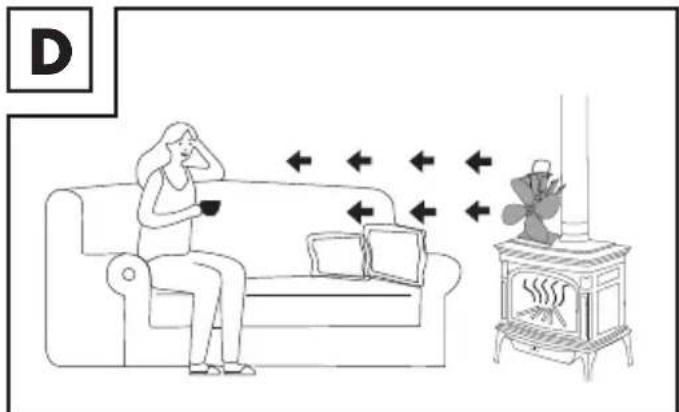

Line drawing of a person sitting on a sofa watching a steaming stove with a fan, no text or symbols present

List of pictograms used ...... Page 9

Introduction Page 9

Intended use....Page 9

Scope of delivery....Page 9

Technical data Page 9

Safety instruction....Page 9

Use Page 10

Before use Page 10

Installation Page 10

Operation step....Page 11

Cleaning and care Page 11

Storing Page 11

Disposal Page 11

Warranty Page 11

Warranty claim procedure....Page 12

Service Page 12

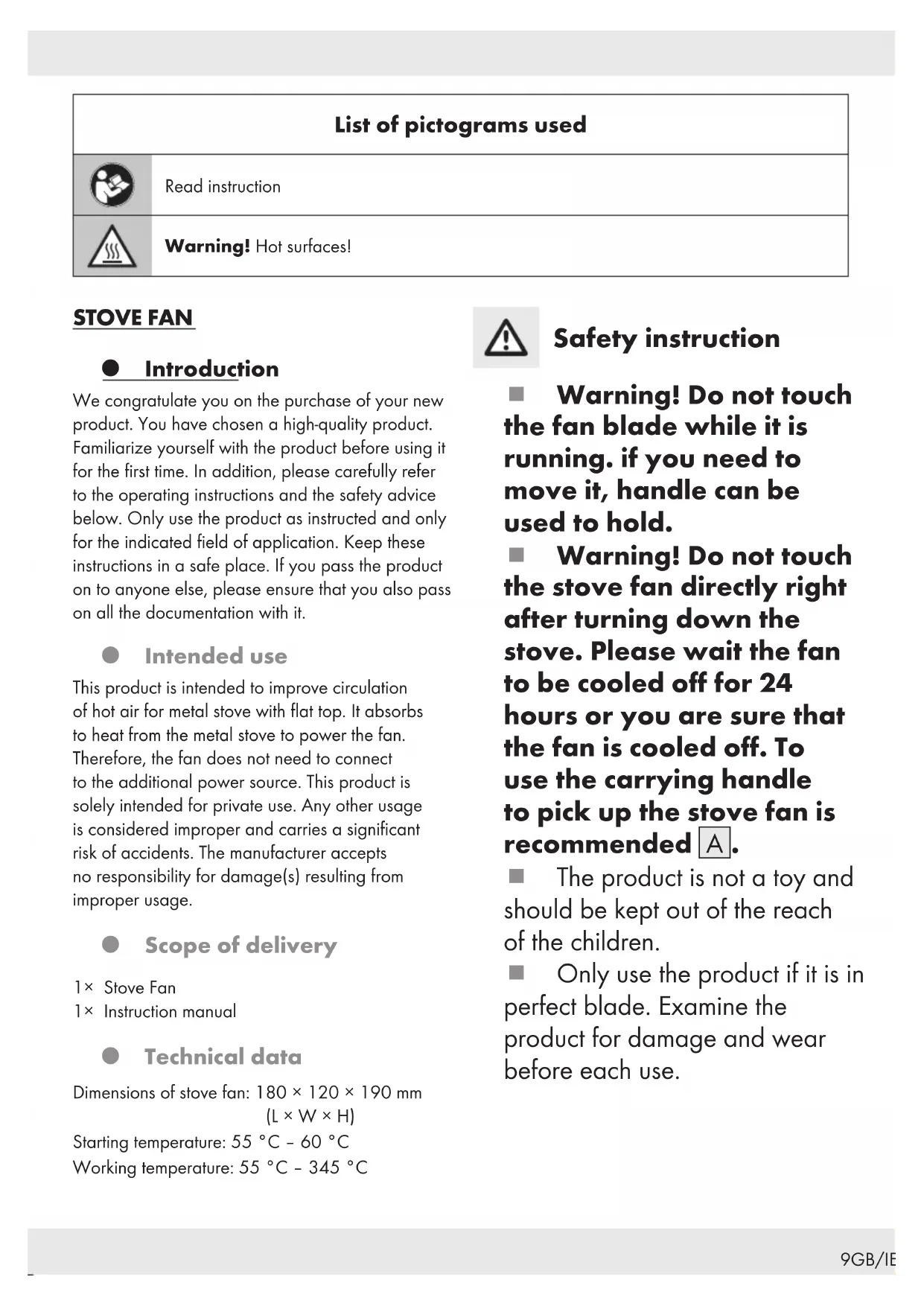

List of pictograms used
	Read instruction
	Warning! Hot surfaces!

STOVE FAN

Introduction

We congratulate you on the purchase of your new product. You have chosen a high-quality product. Familiarize yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended to improve circulation of hot air for metal stove with flat top. It absorbs to heat from the metal stove to power the fan. Therefore, the fan does not need to connect to the additional power source. This product is solely intended for private use. Any other usage is considered improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage.

- Scope of delivery

1× Stove Fan

1× Instruction manual

- Technical data

Dimensions of stove fan: 180 × 120 × 190 mm

$$ (L \times W \times H) $$

Starting temperature: 55 °C - 60 °C

Working temperature: 55 °C - 345 °C

Safety instruction

■ Warning! Do not touch the fan blade while it is running. if you need to move it, handle can be used to hold.

■ Warning! Do not touch the stove fan directly right after turning down the stove. Please wait the fan to be cooled off for 24 hours or you are sure that the fan is cooled off. To use the carrying handle to pick up the stove fan is recommended A.

■ The product is not a toy and should be kept out of the reach of the children.

■ Only use the product if it is in perfect blade. Examine the product for damage and wear before each use.

As the temperature of the stove is higher the maximum temperature of the product, please remove it before damaging to the stove fan.

⚠️ Burning warning

Product gets hot, do not touch, danger of burning! Let product cool down completely before moving!

⚠️ Incineration warning

The product shall only be placed on fireplace stoves, not on ovens! Danger of incineration due to high heat!

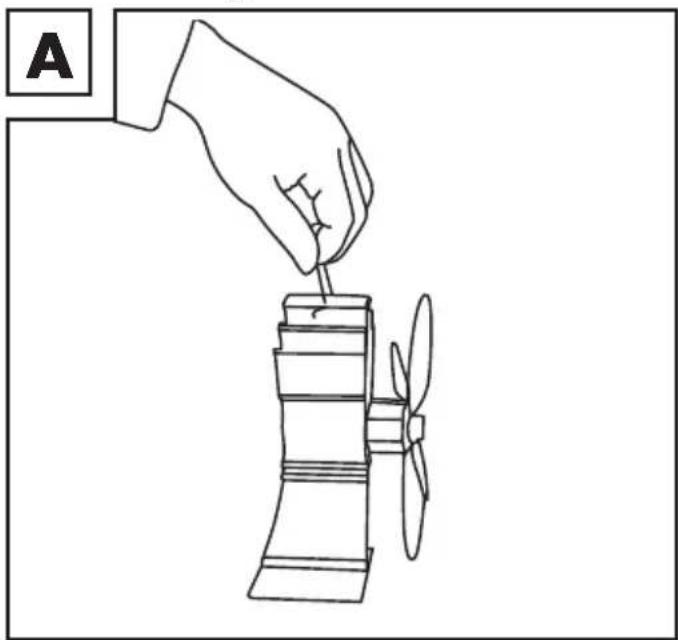

Line drawing of a hand using a pin to press down a small propeller (no text or symbols)

Use

Before use

The fan is designed for installing on free standing wood stoves, which can have surface from 55 °C to 345 °C. If the surface temperature exceeds the working temperature, the fan must be removed. Hence, it is important to keep monitoring the stove's

temperature to ensure it stays within the operating temperature and avoid damaging to the fan.

A safety paddle is set at the bottom of the handle of the heat powered stoved fan. As the temperature is close to 345 °C. Our heat powered stove fan will be lifted and isolated to the fireplace by the safety paddle. As the temperature decreased, the position of the paddle will be recovered.

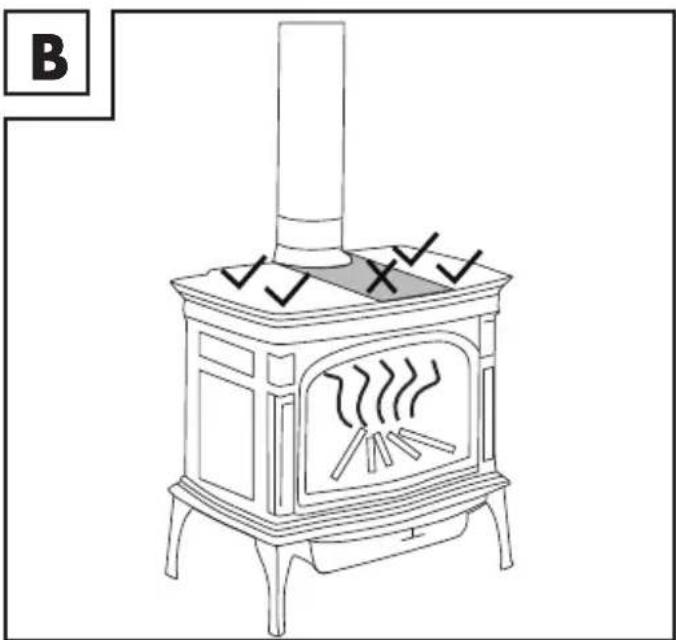

Installation

Place the fan on the top of the stove. The starting temperature is between 55^ - 60^ . The maximum working temperature is 345^ .

To get the best experience of the function of our heat powered stove fan, the fan should not be placed in front of the stovepipe B.
The fan can be placed to either side of the top of the stove.
To make sure that the surface of the top of the stove is flat.

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Operation step

As the fan is place on the surface of the top of stove which can meet the starting temperature, the fan will be moved automatically C and help to improve heat efficiency of the stove D.

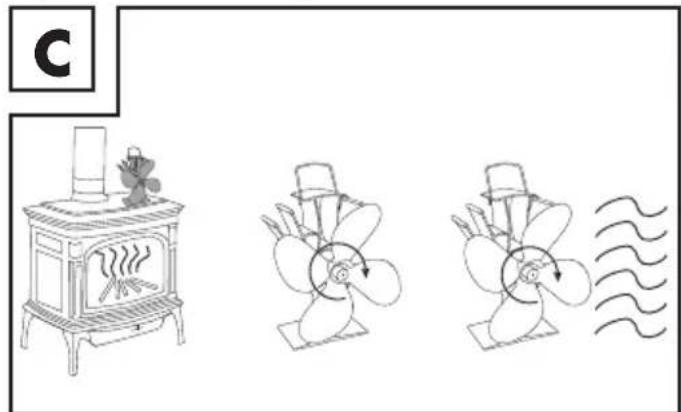

Illustration of a portable stove with steam rising, alongside two fan-shaped propeller blades emitting heat (no text or symbols)

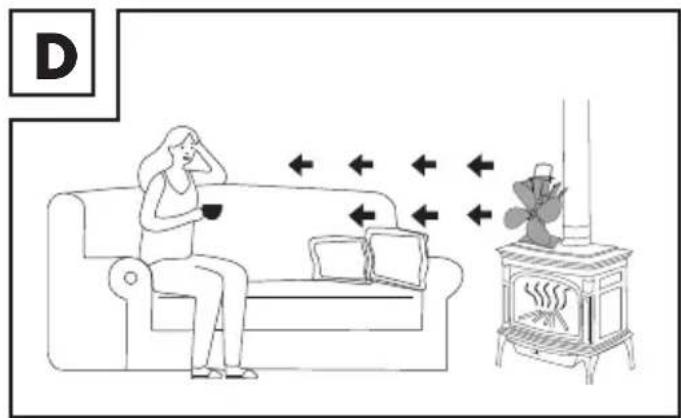

Illustration of a person relaxing on a sofa with directional arrows indicating movement, next to a small stove with a fan (no text or symbols)

● Cleaning and care

■ Clean the product with a dry, fluff free cloth.
■ Never use aggressive or corrosive cleaning agents as they may damage the product.

Storing

■ Handle and transport the product with care.
■ Store the tools so that they are not exposed to mechanical stress or damaging environmental factors. (i.e. moisture)

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 447428_2301) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

NI Service Northern Ireland

Tel.:[phone]

E-Mail:[e-mail]

MT Service Malta

Tel.:[phone]

E-Mail:[e-mail]

CY Service Cyprus

Tel.:[phone]

E-Mail:[e-mail]

Line drawing of a hand using a tool to lift a propeller into a motor (no text or symbols)

Utilisation

Avant utilisation

Line drawing of a portable stove with fire extinguisher and checkmark marks (no text or symbols)

Illustration of a portable stove with steam rising, alongside two fan-shaped propeller blades and a wavy line indicating airflow (no text or symbols)

Line drawing of a person sitting on a sofa watching a lamp, with arrows indicating direction of motion (no text or symbols)

Line drawing of a hand using a tool to lift a propeller into a motor (no text or symbols)

Gebruik

- Voor gebruik

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Bediening

Illustration of a stove with a chimney and fan, alongside three fan blades showing airflow or heat (no text or symbols)

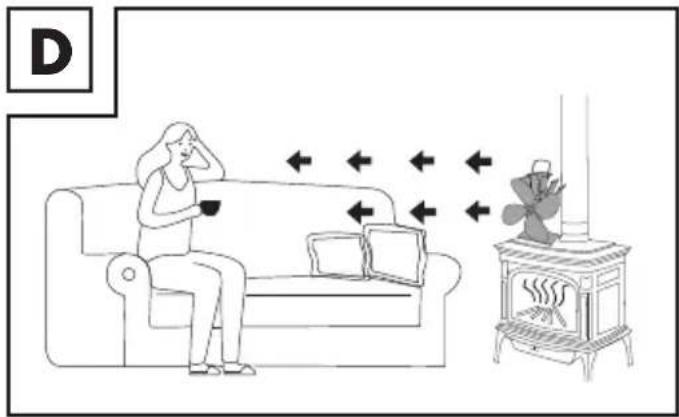

Illustration of a person sitting on a sofa watching a steaming stove with arrows indicating direction (no text or symbols)

1x Wentylator do pieca

Line drawing of a hand using a pin to handle a small mechanical component (no text or symbols)

Użytkowanie

Przed użyciem:

Line drawing of a portable stove with fire extinguisher and checkmark marks (no text or symbols)

Krok operacji

Illustration of a portable stove with a chimney and fan, alongside two fan blades with motion arrows indicating airflow (no text or symbols)

Line drawing of a person sitting on a sofa watching a lamp, with arrows indicating direction of motion (no text or symbols)

Line drawing of a hand using a handheld device to lift a propeller (no text or symbols)

Použití

Před použitím

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Provozní krok

Illustration of a stove with steam rising, showing three fan-shaped blades and motion lines (no text or symbols)

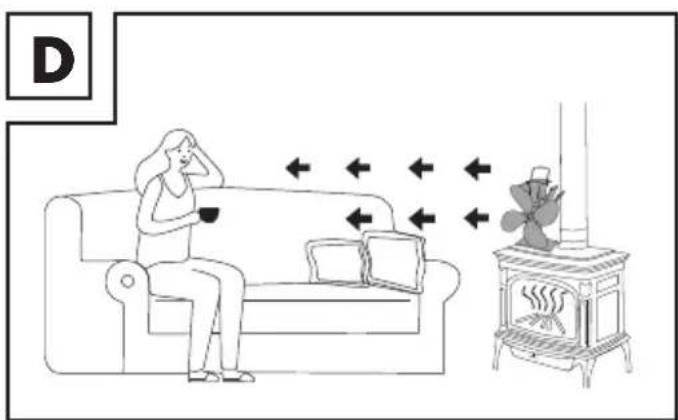

Line drawing of a person sitting on a sofa watching TV with fan and stove, no text or symbols present

Čištění a údržba

Line drawing of a hand using a pin to adjust a small propeller into a cylindrical housing (no text or symbols)

Použite

Pred použitím

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Prevádzkový krok

Line drawing of a person sitting on a sofa watching TV, with a small stove and fan nearby (no text or symbols)

- Čistenie a starostlivost'

Výrobok čistite suchou handričkou nezanechávajúcou stopy.

Line drawing of a hand using a tool to lift a small propeller into a cylindrical housing (no text or symbols)

Uso

- Antes de usar

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Illustration of a portable stove with steam rising, alongside two fan-shaped propeller blades and a wavy line indicating airflow (no text or symbols)

Line drawing of a person sitting on a sofa watching a lamp with a fan, no text or symbols present

Limpieza y cuidado

Line drawing of a hand using a pin to press down a small mechanical component (no text or symbols)

Brug

Før brug:

Line drawing of a portable stove with fire extinguisher and checkmark marks (no text or symbols)

Betjeningstrin

Line drawing of a person sitting on a sofa watching a TV with a fan, no text or symbols present

Produkt:

Line drawing of a hand using a tool to lift a propeller into a motor (no text or symbols)

Utilizzo

Prima dell'uso

Line drawing of a portable stove with a chimney and fire extinguisher (no text or symbols)

Funzionamento

Illustration of a portable stove with steam rising, alongside two fan-shaped blades and wavy lines indicating motion (no text or symbols)

Line drawing of a person sitting on a sofa watching a lamp, with a small stove nearby and directional arrows indicating motion (no text or symbols)

Line drawing of a hand using a pin to adjust a small propeller into a cylindrical housing (no text or symbols)

Használat

Line drawing of a portable stove with fire extinguisher and checkmarks indicating status (no text or symbols)

Kezelés

Illustration of a stove with a chimney, three figures showing different motion patterns (no text or symbols)

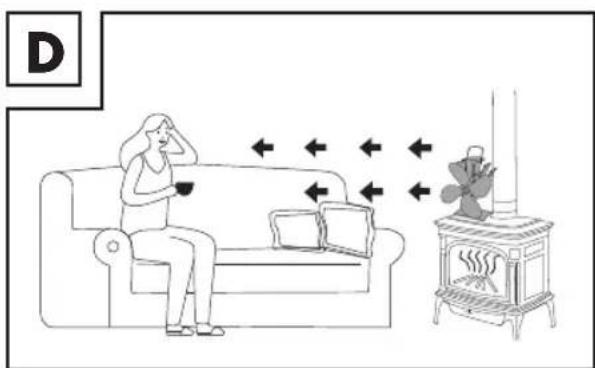

Line drawing of a person relaxing on a sofa with arrows indicating direction, next to a stove with a fan (no text or symbols)

Tisztítás és ápolás
