Product type	Children's vehicle (four-wheel tricycle, between ride-on and balance bike)
Brand	Puky
Model	Pukymoto
Category	Children's bike / wheeled toy
Recommended age	From 12 months up to 36 months (3 years)
Maximum load capacity	20 kg
Seat height	27 cm (min. position) or 29 cm (max. position)
Wheels	4 wheels (double rear axle)
Brake	None (no brake)
Approval	Not approved for public roads
Standards	European Directive 2009/48/EC (toy safety)
Materials	Metal frame, seat, handlebars
Assembly	By an adult, necessary tool: 5 mm Allen key
Maintenance	Clean with slightly soapy solution and soft cloth; do not use high-pressure cleaner; avoid corrosive substances
Safety	Protective equipment essential; adult supervision; do not use near stairs, slopes, pools; wear closed shoes
Wear parts	Wheels, brake (if applicable) – replace with original PUKY parts
Warranty	5 years on frame, fork and handlebars (subject to online registration within 4 weeks of purchase)
Nameplate	On the frame, note for part orders
Delivery contents	Frame with seat, stem with front axle, handlebars, rear axle with wheels

Frequently Asked Questions - Pukymoto Puky

What is the recommended age for the Pukymoto?

The Pukymoto is designed for children from 12 to 36 months (up to 3 years) and supports a maximum load of 20 kg.

Does the Pukymoto have a brake?

No, this vehicle does not have a brake. Stopping is done by placing feet on the ground or by natural friction.

How to adjust the seat height?

The seat height is adjusted by turning the rear axle: min. position (27 cm) or max. (29 cm). To change, unscrew the axle screws, reposition, and retighten with a 5 mm Allen key.

What tool is needed for assembly?

Assembly requires a 5 mm Allen key (not included). Assembly must be done carefully by an adult.

Can the Pukymoto be used on public roads?

No, this vehicle is not approved for road traffic. It should only be used on flat, obstacle-free surfaces in a safe play area.

What is the maximum supported load?

The total permissible load is a maximum of 20 kg (child + any accessories). Do not exceed this weight.

How to maintain the Pukymoto?

Clean it with a lightly soapy solution and a soft cloth. Do not use a high-pressure washer. Avoid corrosive substances (salt, sea water, fertilizers) and store it in a dry place.

What to do if a part is worn or damaged?

Immediately replace worn or defective parts with original PUKY spare parts. Do not straighten bent parts. Do not use the vehicle until it is repaired.

What is the warranty of the Pukymoto?

PUKY offers a 5-year warranty on frames, forks and handlebars. The warranty is transferable and must be activated by online registration within 4 weeks of purchase at www.puky.de.

How to activate the warranty?

Activation is done online at www.puky.de within 4 weeks of purchase date. Keep the nameplate and proof of purchase.

USER MANUAL Pukymoto Puky

Silhouette of a person riding a tricycle (no text or symbols)

Technical diagram showing four labeled mechanical components: wheel, lever, and guide rail.

MONTAGEANLEITUNG

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

Diagram of a mechanical assembly with two wheels and screw fasteners, showing rotational motion (no text or labels)

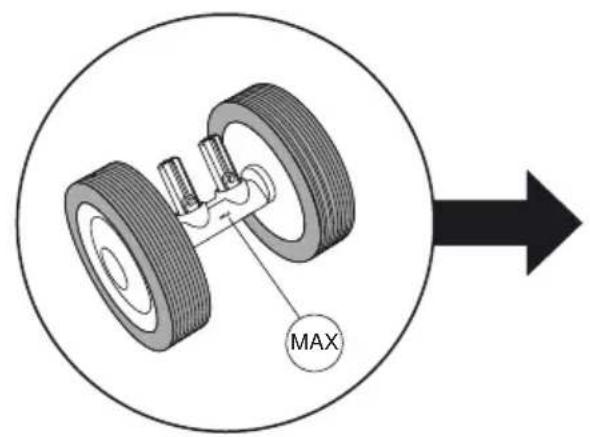

Seat position LOW 27

MAX

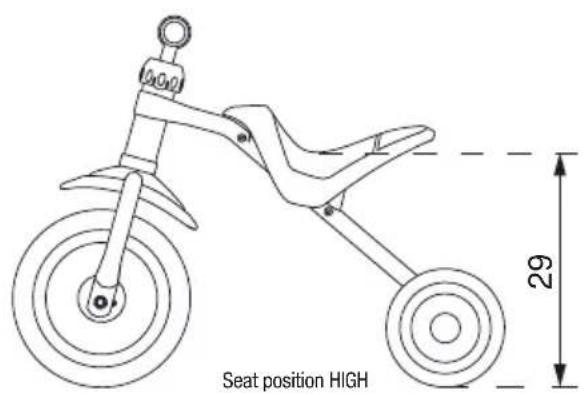

Seat position HIGH 29

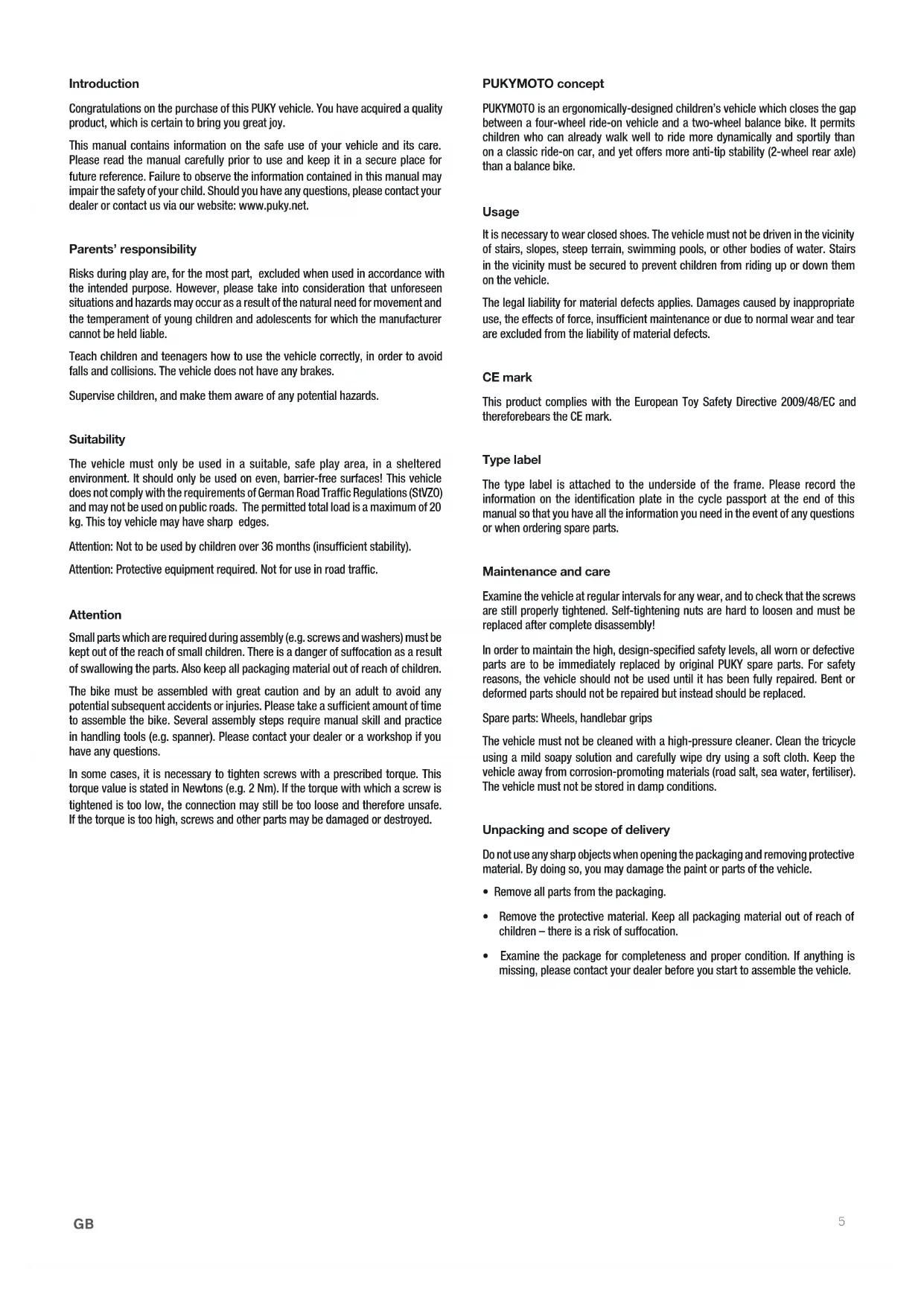

Introduction

Congratulations on the purchase of this PUKY vehicle. You have acquired a quality product, which is certain to bring you great joy.

This manual contains information on the safe use of your vehicle and its care. Please read the manual carefully prior to use and keep it in a secure place for future reference. Failure to observe the information contained in this manual may impair the safety of your child. Should you have any questions, please contact your dealer or contact us via our website: www.puky.net.

Parents' responsibility

Risks during play are, for the most part, excluded when used in accordance with the intended purpose. However, please take into consideration that unforeseen situations and hazards may occur as a result of the natural need for movement and the temperament of young children and adolescents for which the manufacturer cannot be held liable.

Teach children and teenagers how to use the vehicle correctly, in order to avoid falls and collisions. The vehicle does not have any brakes.

Supervise children, and make them aware of any potential hazards.

Suitability

The vehicle must only be used in a suitable, safe play area, in a sheltered environment. It should only be used on even, barrier-free surfaces! This vehicle does not comply with the requirements of German Road Traffic Regulations (StVZ0) and may not be used on public roads. The permitted total load is a maximum of 20 kg. This toy vehicle may have sharp edges.

Attention: Not to be used by children over 36 months (insufficient stability).

Attention: Protective equipment required. Not for use in road traffic.

Attention

Small parts which are required during assembly (e.g. screws and washers) must be kept out of the reach of small children. There is a danger of suffocation as a result of swallowing the parts. Also keep all packaging material out of reach of children.

The bike must be assembled with great caution and by an adult to avoid any potential subsequent accidents or injuries. Please take a sufficient amount of time to assemble the bike. Several assembly steps require manual skill and practice in handling tools (e.g. spanner). Please contact your dealer or a workshop if you have any questions.

In some cases, it is necessary to tighten screws with a prescribed torque. This torque value is stated in Newtons (e.g. 2 Nm). If the torque with which a screw is tightened is too low, the connection may still be too loose and therefore unsafe. If the torque is too high, screws and other parts may be damaged or destroyed.

PUKYMOTO concept

PUKYMOTO is an ergonomically-designed children's vehicle which closes the gap between a four-wheel ride-on vehicle and a two-wheel balance bike. It permits children who can already walk well to ride more dynamically and sportily than on a classic ride-on car, and yet offers more anti-tip stability (2-wheel rear axle) than a balance bike.

Usage

It is necessary to wear closed shoes. The vehicle must not be driven in the vicinity of stairs, slopes, steep terrain, swimming pools, or other bodies of water. Stairs in the vicinity must be secured to prevent children from riding up or down them on the vehicle.

The legal liability for material defects applies. Damages caused by inappropriate use, the effects of force, insufficient maintenance or due to normal wear and tear are excluded from the liability of material defects.

CE mark

This product complies with the European Toy Safety Directive 2009/48/EC and thereforebears the CE mark.

Type label

The type label is attached to the underside of the frame. Please record the information on the identification plate in the cycle passport at the end of this manual so that you have all the information you need in the event of any questions or when ordering spare parts.

Maintenance and care

Examine the vehicle at regular intervals for any wear, and to check that the screws are still properly tightened. Self-tightening nuts are hard to loosen and must be replaced after complete disassembly!

In order to maintain the high, design-specified safety levels, all worn or defective parts are to be immediately replaced by original PUKY spare parts. For safety reasons, the vehicle should not be used until it has been fully repaired. Bent or deformed parts should not be repaired but instead should be replaced.

Spare parts: Wheels, handlebar grips

The vehicle must not be cleaned with a high-pressure cleaner. Clean the tricycle using a mild soapy solution and carefully wipe dry using a soft cloth. Keep the vehicle away from corrosion-promoting materials (road salt, sea water, fertiliser). The vehicle must not be stored in damp conditions.

Unpacking and scope of delivery

Do not use any sharp objects when opening the packaging and removing protective material. By doing so, you may damage the paint or parts of the vehicle.

• Remove all parts from the packaging.
• Remove the protective material. Keep all packaging material out of reach of children – there is a risk of suffocation.
• Examine the package for completeness and proper condition. If anything is missing, please contact your dealer before you start to assemble the vehicle.

SCOPE OF DELIVERY PUKYMOTO

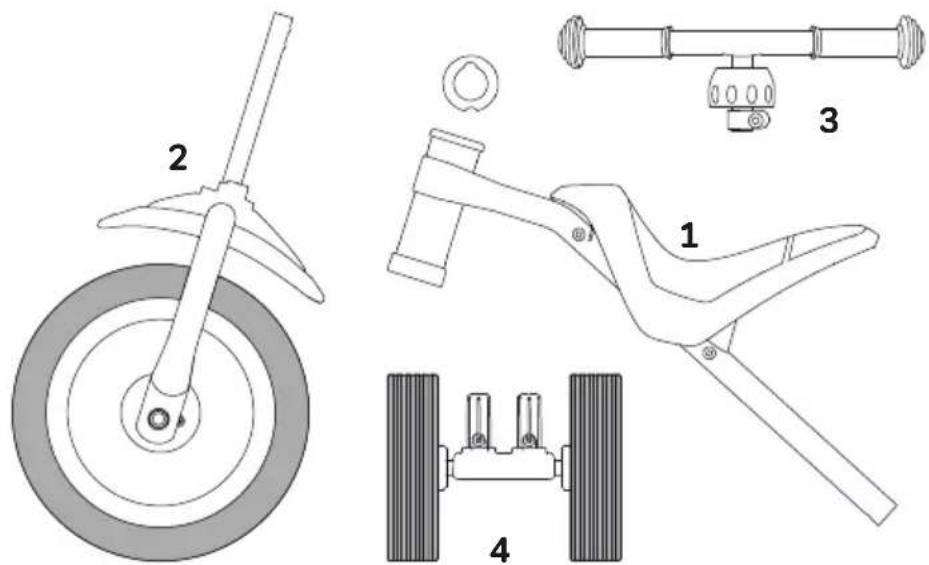

1. Frame incl. seat
2. Fork incl. front wheel
3. Handlebar
4. Rear axle with wheels

Technical diagram showing four labeled mechanical components: wheel, lever, bracket, and mounting bracket.

INSTALLATION MANUAL

You will need the following tools for assembly: (The tools are not part of the scope of delivery)

- Allen key 5 mm

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

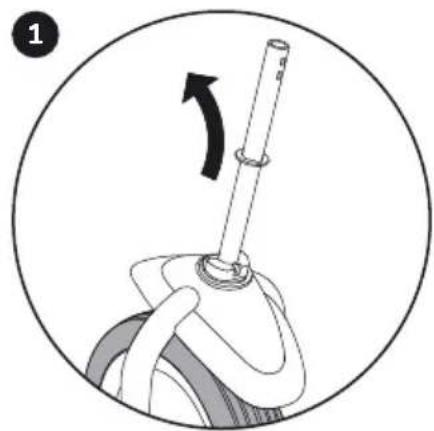

Remove transport restraint (paperboard, rubber band) and take off the washer.

2 1 2 !

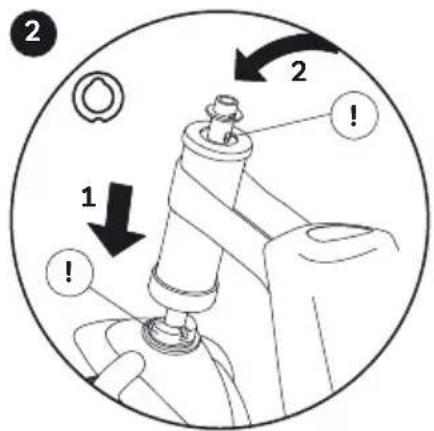

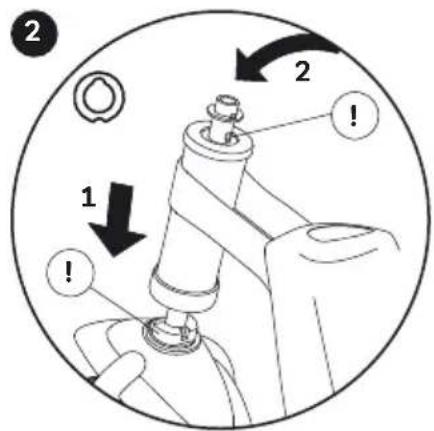

Slide the steering tube onto the fork shaft, until it reaches the stop. Make sure that the steering head is aligned correctly (!) Add the washer. Align the nibs on the fork shaft to face backwards (!).

3 2 1 5-8 Nm

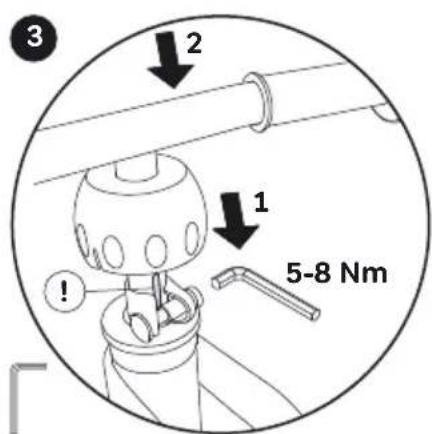

Slide the handlebar all the way onto the fork shaft, and tighten the screw. Align the slot in the handlebar with the rear (!) Firmly press down on the spherical cap until it snaps into position.

Diagram of a mechanical assembly showing two wheels with stator and screw base, no text or symbols present

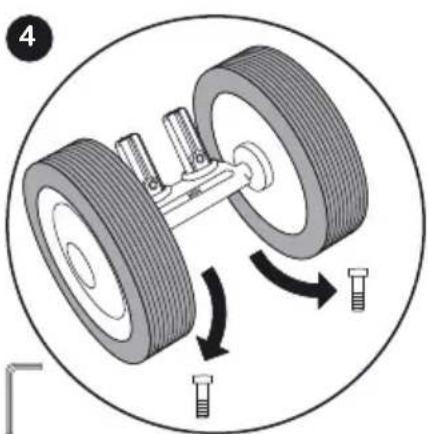

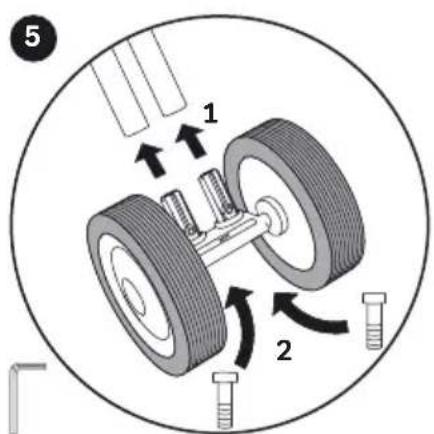

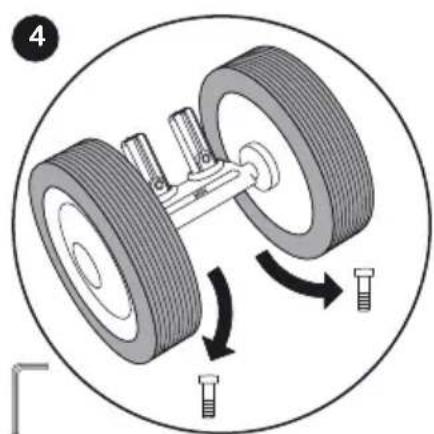

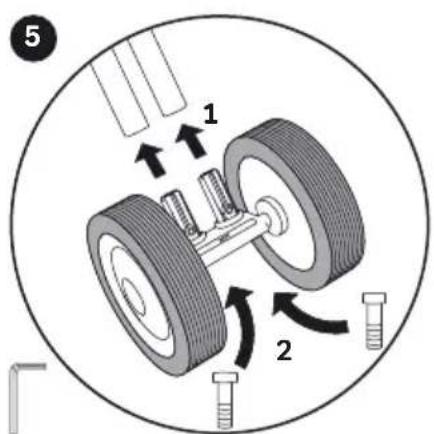

Unscrew screws from rear axle. Insert the rear axle into the frame in

5 1 2

the desired position - seat height min.
(27 cm) or seat height max. (29 cm). Insert screws and tighten with tool (spanner).

OPERATION

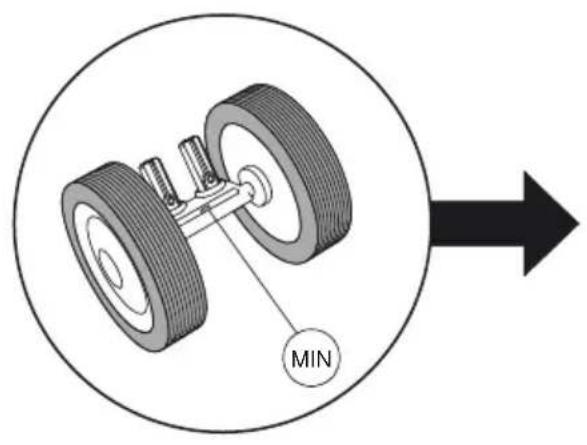

Adjust the seat height by turning the rear axle - Seat height Min (27cm) or seat height Max (29 cm).

MIN

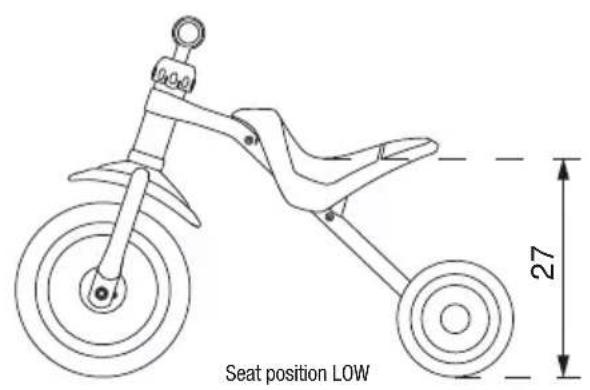

Seat position LOW 27

MAX

Seat position HIGH 29
