EB35 - Egg cooker Duronic - Free user manual and instructions

USER MANUAL EB35 Duronic

Creative Consumer Products

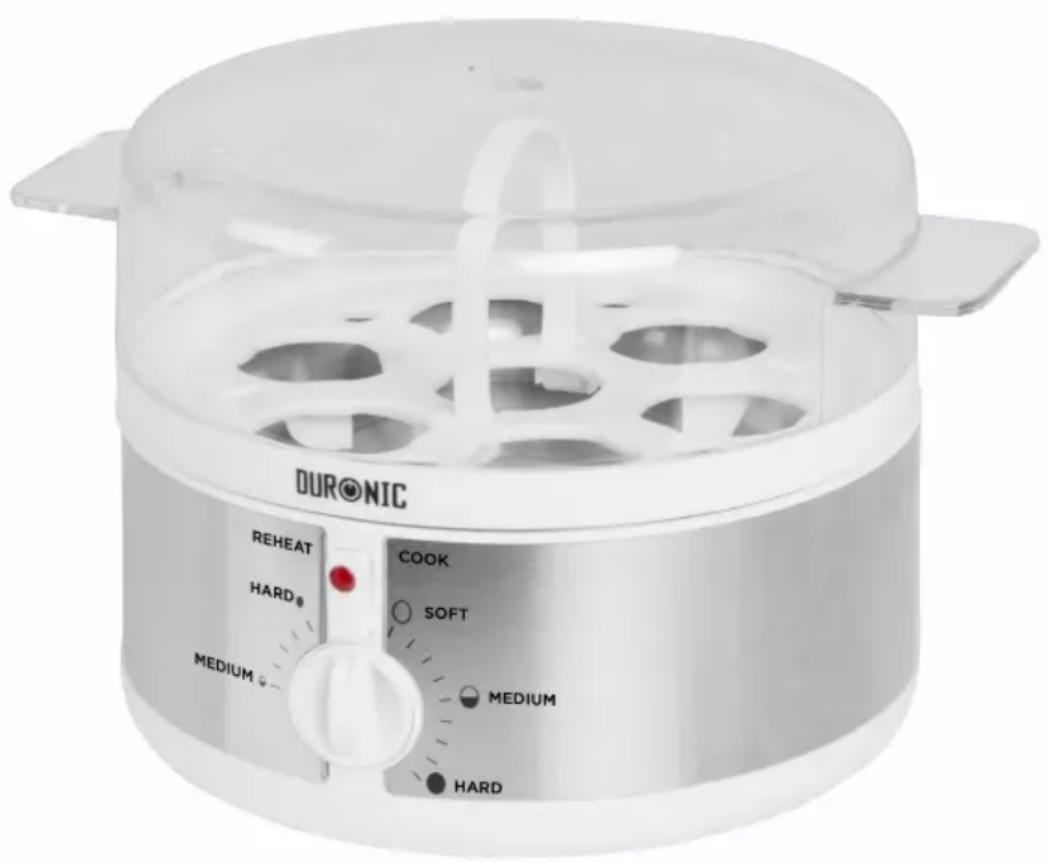

DURONIC REHEAT HARD® MEDIUM COOK SOFT MEDIUM HARD

EB35 - Egg Boiler

DURONIC

Contents

English Manual 5

Line drawing of a kitchen appliance with top, side, and bottom views showing internal components (no text or symbols)

Technical Information

Model: EB35

Voltage: 230V

Frequency: 50 Hz

Wattage: 350W

Egg capacity: 7 Eggs

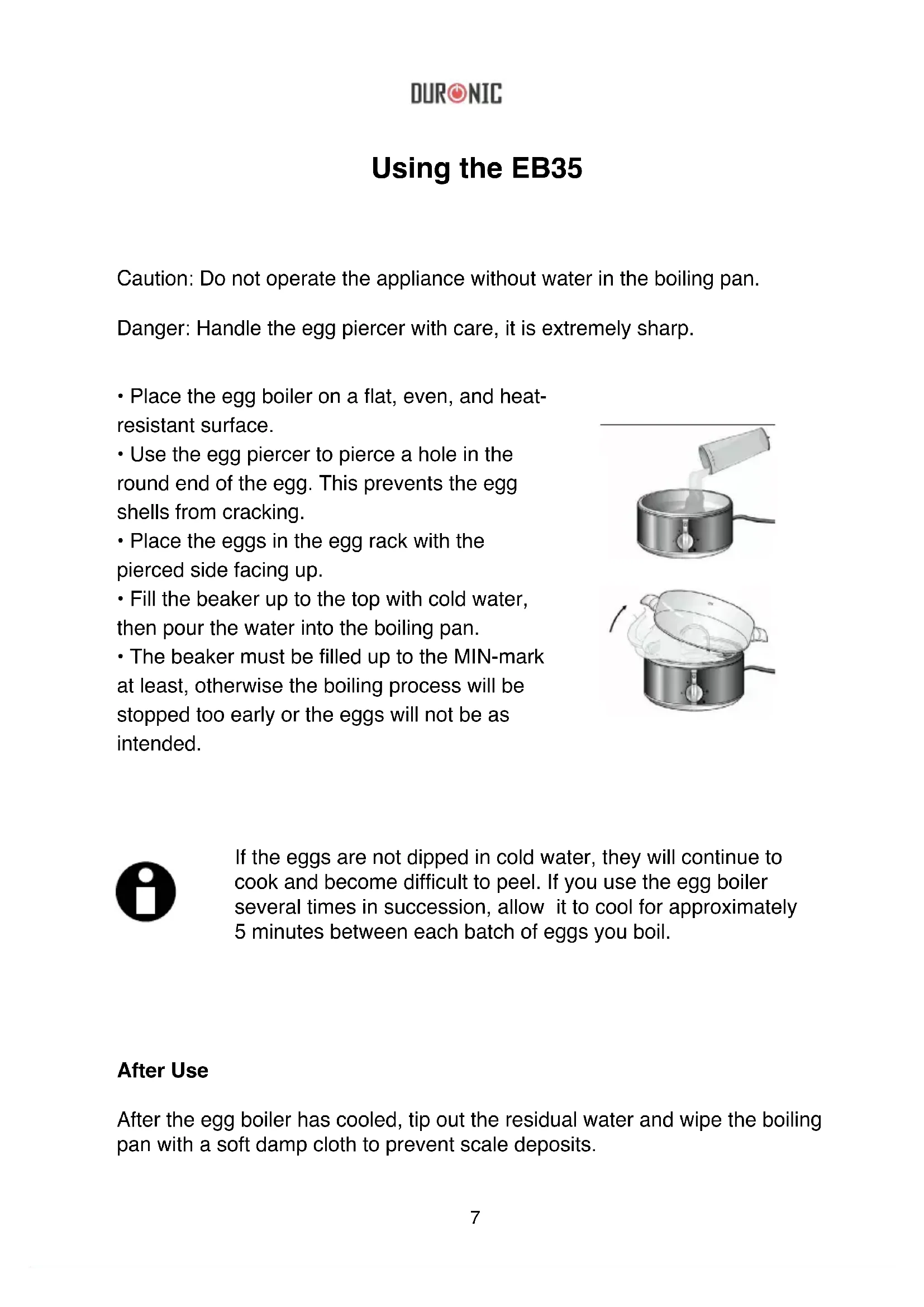

Using the EB35

Caution: Do not operate the appliance without water in the boiling pan.

Danger: Handle the egg piercer with care, it is extremely sharp.

- Place the egg boiler on a flat, even, and heat-resistant surface.

- Use the egg piercer to pierce a hole in the round end of the egg. This prevents the egg shells from cracking.

- Place the eggs in the egg rack with the pierced side facing up.

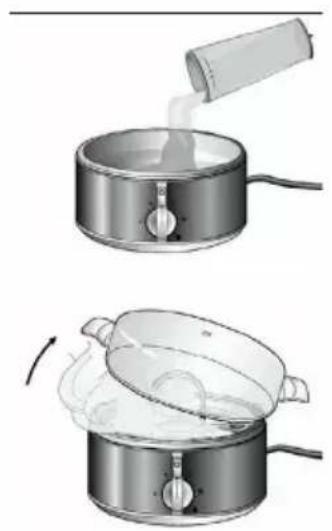

- Fill the beaker up to the top with cold water, then pour the water into the boiling pan.

- The beaker must be filled up to the MIN-mark at least, otherwise the boiling process will be stopped too early or the eggs will not be as intended.

Illustration of two cooking steps: adding liquid from a pan into a pot, then boiling over a lid (no text or symbols)

If the eggs are not dipped in cold water, they will continue to cook and become difficult to peel. If you use the egg boiler several times in succession, allow it to cool for approximately 5 minutes between each batch of eggs you boil.

After Use

After the egg boiler has cooled, tip out the residual water and wipe the boiling pan with a soft damp cloth to prevent scale deposits.

Boiling Instructions

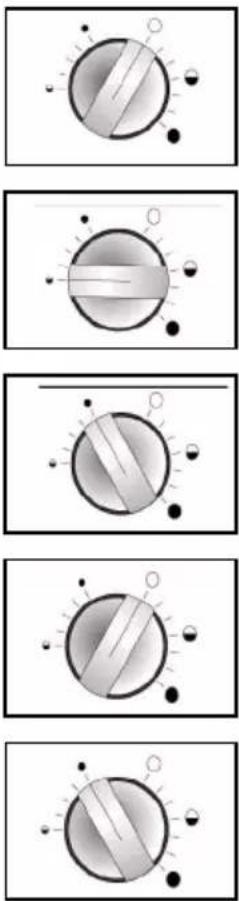

Boiling Soft, Medium And Hard Boiled Eggs Together:

The eggs should be more or less the same size.

• Fill the egg boiler with water and eggs (see pg.7).
• Select the hardness setting for soft eggs. The setting depends on the quantity and size of the eggs (see “Boiling eggs”).
• When you hear the buzzer, turn off the appliance. Using a tablespoon, carefully remove the soft boiled eggs.
• Dip the eggs in cold water, otherwise they will continue to cook and harden.
• Replace the lid.
• Slide the control to the small symbol for medium boiled eggs and turn the appliance back on again.
• When you hear the buzzer, turn off the appliance and remove as many eggs as you require with this degree of hardness.
• Turn the control to the small hard boiled egg symbol and turn the appliance back on again.
• As soon as the signal sounds, turn off the appliance.
  • The hard boiled eggs will be done.

Boiling Instructions

Setting the boiling time:

Use the control knob to set the boiling time and preferred degree of hardness. The symbols below serve as guide:

Soft Boiled Egg Medium Boiled Egg Hard Boiled Egg

The boiling time depends on the quantity and size of the eggs you use. Small eggs are ready sooner than large eggs. The more eggs you put in, the longer you must allow them to boil.

Soft-boiling 1 small egg:

- Set the control to the start of the boiling range.

Soft-boiling 1 large egg:

- Set the control to the middle boiling position.

Soft-boiling 7 small eggs:

- Set the control to middle boiling position.

Soft-boiling 7 large eggs:

- Set the control to the end of the boiling range.

Information about the correct boiling temperature:

A small setting deviation does not alter the result much. Sometimes you may not always get the perfect results, as you can get eggs in a variety of forms, therefore you may have to toggle the settings every now and again to get the perfect setting. Very soon you will have found the right setting to suit your preferred taste.

Boiling eggs:

Caution: The egg boiler must not be moved while it is in use as hot water may spill. The appliance heats up during use. Take extra care when handling the appliance and avoid touching the hot surfaces without appropriate safety gloves.

DURONIC

• Check whether the appliance is switched off. The On/Off switch must not be pressed down.
• Plug into a wall socket.
• Switch the appliance on.
• The indicator lamp lights up and the cooking process will begin. The buzzer will make a sound indicating that the eggs are ready.
• Press the On/Off switch to switch off the appliance.
  • Unplug the appliance
• Hold the lid by the handles and remove it, ensuring that you avoid coming into contact with the steam.
• Carefully take out the egg rack by the handle.
  • Cool the eggs in cold water for a few seconds.
• Your eggs are ready to eat!

Safety Instructions

The appliance is intended for boiling hens eggs. It is designed for home use and is not suitable for commercial use.

Danger to children - Children must be supervised to ensure that they do not play with the appliance. Risk of electric shock through moisture. The appliance must not be immersed in water or other liquids or held under running water as this will cause the risk of electric shock.

Unplug the egg boiler, before:

• filling water
• cleaning the appliance
• after use.

Always ensure you unplug the appliance by pulling the plug and not the cord.

Electrical hazards

• Only connect the appliance to a properly installed power outlet with a mains voltage which matches the rating label on the appliance.
• Do not use the egg boiler if the appliance or power cord is damaged.
• Keep the power cord away from hot surfaces or other heat sources.
• Do not make any modification to the appliance or its power cord. You must

DURONIC

not attempt to replace the power cord yourself. Have repairs carried out by a specialist workshop or a similarly qualified person only. Improper repair may result in considerable risk of injury to the user.

Risk of scalding

- The appliance heats up during use. Do not touch any hot surfaces with proper safety gloves.

- Do not move the egg boiler while it is in use as hot water may spill out.

Other causes of injury

- Never leave the egg boiler unattended when in use.

- Handle the egg piercer with care, it is extremely sharp.

Caution - material damage

- Do not operate the appliance without water in the boiling pan. - Do not bend the power cord and do not wrap it around the appliance. Use the cable storage for management.

- Do not use pointed or abrasive objects to clean the appliance.

- Do not use any aggressive lime scale removers.

- Do not place the appliance next to water sources or surfaces; splashes could cause marks.

Cleaning & Care

Danger: The appliance must not be immersed in water or other liquids as this causes the risk of electric shock.

Caution: Do not use pointed or abrasive objects to clean the appliance. Do not use any aggressive limescale removers.

Cleaning after us

1. Unplug and allow the appliance and allow it to cool before cleaning.
2. Regularly wipe the boiling pan with a damp cloth.
3. Cleaning the lid and egg tray with warm soapy water.

Removing scale deposits

1. Fill the boiling pan with water and a dash of vinegar.
2. Set the control to the setting shown on the right, heat the vinegar solution and allow it to take effect for several minutes, then pour it away.
3. Unplug the appliance and allow it to cool before wiping it clean.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Technical line drawing of a portable rice cooker with lid, side panel, and base unit (no text or symbols)

Informations techniques

Référence : EB35

Voltage : 220-240V

Fréquence : 50 Hz

Wattage : 350W

Capacité : 7 œufs

Illustration of cooking process: adding liquid from a pan into a pot (no text or symbols)

Three identical grayscale diagrams showing a sphere with internal lines and surrounding dots, arranged horizontally (no text or symbols)

Line drawing of a kitchen appliance with top, side, and bottom views showing internal components (no text or symbols)

Illustration of two cooking steps: adding liquid from a pan into a pot, then boiling over a lid (no text or symbols)

Simple diagram of a knob with arrows indicating direction (no text or symbols)

Simple diagram of a circular object with internal lines and small dots, no text or symbols present.

Simple diagram of a circular object with internal striped pattern and surrounding dots (no text or symbols)

Close-up of a circular dial with pointer and measurement markings (no readable text or symbols)

Simple diagram of a circular object with internal bands and surrounding dots (no text or symbols)

Kochanweisungen

Line drawing of a kitchen appliance with top, side, and bottom views showing internal components (no text or symbols)

Información técnica

Modelo: EB35

Voltaje: 230 V

Frecuencia: 50 Hz

Potencia: 350 W

Capacidad: 7 Huevos

Illustration showing two steps of cooking a pot: adding liquid from a pan into a lid, then boiling over a pan (no text or symbols present)

Line drawing of a portable rice cooker with internal components and a side view showing the lid, fan, and base (no text or symbols)

Specifiche tecniche

Modello: EB35

Voltaggio: 220V

Frequenza: 50hz

Wattaggio: 350W

Illustration of two cooking steps: adding liquid from a pan into a pot, then boiling in a pan (no text or symbols)

Close-up of a circular mechanical knob with radial lines and dots, no visible text or symbols

Simple diagram of a sun with a horizontal bar and surrounding dots (no text or labels)

Simple diagram of a circular object with internal bands and surrounding dots (no text or symbols)

Close-up of a circular mechanical knob with pointer and dial (no text or symbols visible)

Simple diagram of a circular object with internal bands and surrounding dots (no text or symbols)

Line drawing of a kitchen appliance with top, side, and bottom views showing internal components (no text or symbols)

Dane techniczne

Model: EB35

Illustration of two cooking steps: adding liquid from a pan into a pot, then boiling over a lid (no text or symbols)
